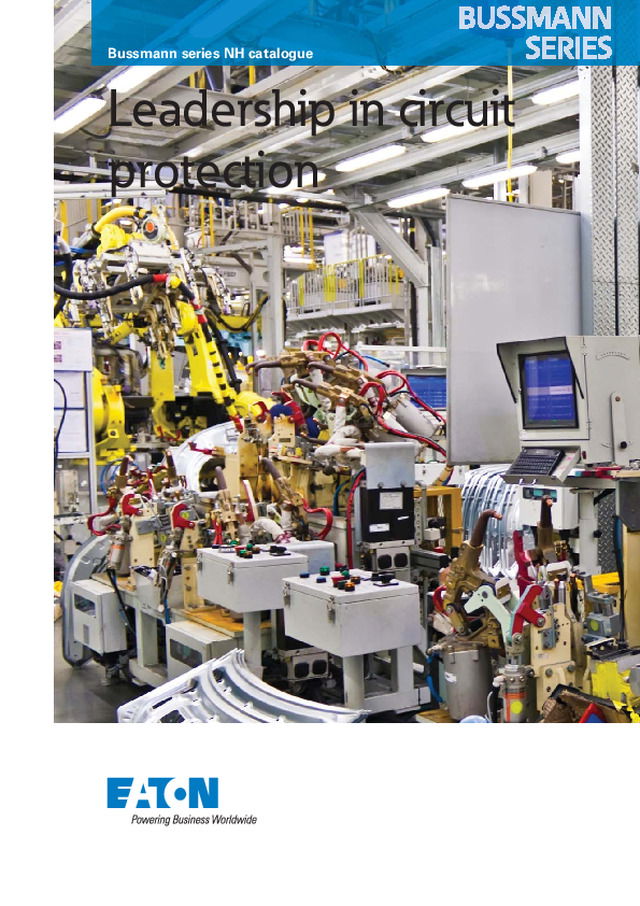

Leadership in circuit protection Bussmann series NH catalogue

We deliver: •  Electrical solutions  that use less energy, improve power reliability and make the places we live and work safer and more comfortable •  Hydraulic and electrical solutions  that enable machines to deliver more productivity without wasting power •  Aerospace solutions  that make aircraft lighter, safer and less costly to operate, and help airports operate more efficiently •  Vehicle drivetrain and powertrain solutions  that deliver more power to cars, trucks and buses, while reducing fuel consumption and emissions Discover today’s Eaton. Powering business worldwide As a global power management company, we help customers worldwide manage the power needed for buildings, aircraft, trucks, cars, machinery and businesses. Eaton’s innovative technologies help customers manage electrical, hydraulic and mechanical power more reliably, efficiently, safely and sustainably. We provide integrated solutions that help make energy, in all its forms, more practical and accessible. With 2014 sales of $22.6 billion, Eaton has approximately 100,000 employees around the world and sells products in more than 175 countries.  Eaton.com Energizing a world that demands more. 2 EATON Bussmann series NH catalogue

Table of contents Section Page NH Fuse links technical data  4 - 11 Technical data 4 - 6 NH Fuse links applications 7 Features of the NH DIN range 8 Product range overview 9 Ordering key 9 Sizing guide 10 NH Fuse links dimensions - mm 11 400 Volts range - gG  12 - 18 Technical data 12 Catalogue numbers summary 13 Size 000 14 Size 00 15 Sizes 01 and 1 16 Sizes 02 and 2 17 Sizes 03 and 3 18 500 Volts range - gG 19 - 31 Technical data 19 Catalogue numbers summary 20 - 21 Size 000 22 Size 00 23 Size 0 24 Size 01 25 Size 1 26 Size 02 27 Size 2 28 Size 03 29 Size 3 30 Size 4 31 Section Page 690 Volts range - gG 32 - 39 Technical data 32 Catalogue numbers summary 33 Size 000 34 Size 00 35 Size 1 36 Size 2 37 Size 3 38 Size 4 39 500 and 690 Volts range - aM 40 - 46 Technical data 40 Catalogue numbers summary 41 Size 000 42 Size 00 43 Size 1 44 Size 2 45 Size 3 46 Accessories 47 - 63  NH Fuse bases and accessories  47 - 52 NH Fuse rails - vertical  53 - 55 NH Fuse switch disconnectors - vertical 56 - 61 NH Fuse switch disconnectors - horizontal 62 - 74  Index 75 - 76 3 EATON Bussmann series NH catalogue

NH Fuse links technical data Introduction    Bussmann’s NH fuse link range uses the latest technology to provide class leading fuse link performance and reliable indication. With a unique patented dual indicator design capable of operating a microswitch for remote fuse indication, Bussmann provides one of the most reliable solutions available. The range is fully compliant with IEC 60269-1 and 2 standards, with VDE 0636-2 third party approval and complies with the dimensional requirements of DIN 43620 for ease of use.  In order to help select the correct product for an application,Bussmann provides the following application notes. Selecting the correct product Before making a fuse link selection the following information  should be known about the system or circuit to be protected. Type of application (cable protection/motor protection) For general applications or cable protection, the standard gG  (general purpose) NH fuse link should be considered. For Motor  protection applications, the aM (motor protection) NH fuse link  should be considered. Motor Protection (aM) fuse links have  partial range breaking ability and cannot clear low overload faults.  They should only be applied to circuits also protected by a motor  protection relay or where only high short-circuit faults could occur.  ote:  N Please note that misapplication of a fuse link can be problematical,  consult Bussmann if there is any doubt over fuse link selection. System voltage Bussmann’s NH fuse links are available in three voltage ratings,  400 V, 500 V and 690 V. These are maximum voltage ratings and  should not be used where the nominal system voltage could  exceed the fuse link’s maximum rating. Full load current In accordance with IEC standards, Bussmann’s NH fuse links are  tested to carry full load current. The Current of a fuse link should  be equal or greater than the operational current of the circuit and  equal or smaller than the continuous current carrying capacity of  the conductor.The standard gG (general purpose) NH fuse link with a conven- tional fusing current of 1.6 times Current will give assured cable  protection against the effects of overcurrents. Non-fault overload currents (motor inrush currents etc) To prevent nuisance operation of the fuse link, the fuse link rating  selected for the application should take into account any non-fault  overload currents. Please refer to the time-current curves in the  catalogue. Possible fault conditions and maximum short-circuit current This information is essential in order to select the fuse link that  would provide the best possible protection under all fault condi- tions. Bussmann’s NH fuse links have a maximum breaking capac- ity of 120 kA and should never be used on a system where the  maximum short-circuit current exceeds this level. Please refer to  the time-current curves in the catalogue. Time-current curves The time-current curve is probably the most useful piece of all  fuse link data available. It allows you to determine how quickly the  fuse link will operate under fault conditions and which fuse link  will not operate under non-fault overload currents.To use the curve simply plot the prospective Root Mean Square  (RMS) fault current along the X axis and draw a line vertically  upwards from this point. Where this point intersects the fuse  curve line, plot a line across to the Y axis for the relevant rating.  The Y axis shows the nominal operating time for the fuse in  seconds. Hence, it shows how quickly the fuse link will operate  under different fault currents.The graph can be used to check if a fuse link can withstand an  overload condition that is not considered to be a fault such as a  direct-on-line (DOL) motor start. For example, if a motor starts and  the inrush current is six times the full load current for 10 seconds,  the exact point can be plotted onto the time-current curve. 4 EATON Bussmann series NH catalogue

Any fuse link line lying to the right of this point will withstand the  motor start current (allowing for a +/-10% tolerance on each fuse  link curve). If the fuse link curve falls to the left of this point, then  the fuse link will not withstand the motor start current and will  inadvertently operate when the motor is started.In summary, the rule for time-current curves is that any point on  or to the right of a fuse link curve would indicate the fuse link  has operated in the given time. Any point to the left of the curve  would indicate the fuse link has not operated. Cut-off curves The graph consists of an A-B line running diagonally from bottom  left to top right, see drawing below. This is known as the non cur- rent-limiting line. Branching from this A-B line you can see each  individual fuse link rating line running diagonally left to right. To  read the graph, plot the RMS prospective fault current along the X  axis. If this point only intersects the A-B line then the prospective  fault current is too low to benefit from the current-limiting effect  of the fuse link.However, if this point intersects the relevant fuse link line, plot a  line across to the Y axis. This point on the Y axis shows the peak  asymmetrical let-through current the fuse link will allow to pass  before operating.  The peak asymmetrical let-through current is the  absolute worst case peak current the fuse link will allow to pass  through, taking into account the DC offset seen under short-circuit  conditions and low power factor.The RMS let-through current is read from the graph using the  same procedure above. Instead of plotting the point of intersec- tion with the fuse link current-limiting line over to the Y axis, it  should only be plotted as far as the A-B line. At this point, a line  can be drawn back down to the X axis to show a RMS symmetri- cal value of let-through current. This is known as the “up, over and  down method”. 5 EATON Bussmann series NH catalogue

I ²t values I²t values are measured at the time of testing the fuse link at their  rated breaking capacity and voltage. I²t is effectively the amount  of heating energy the fuse link will allow to pass during fault clear- ing at high short-circuit faults. I²t values relevant for short-circuit  faults cannot be calculated from the time-current or cut-off curves.The published I²t figures always show two values, pre-arcing/total  clearing and are representative of the area under the first half  cycle of the fault current.   • The pre-arcing value is the area under the first half cycle of fault  current showing on the graph in yellow to the point just before  an arc occurs within the fuse link. This is due to the element  material being vaporised by the very high short-circuit current.   • The total clearing I²t is the yellow and green area under the first  half cycle from the start of the short-circuit current flow to the  point where the fuse link has become an insulator, completely  isolating the flow of current.  The diagram here shows a representation of I²t during a half cycle  of fault current.I²t values give a good representation of the speed of operation of  a fuse link. A small I²t value would indicate a very fast-acting fuse  link whereas a large I²t value would indicate a fairly slow operating  fuse link. In all cases the total clearing I²t value of the fuse link  must be smaller than the I²t value of the device to be protected  in order for the fuse link to provide adequate protection against  short-circuit faults. For fuse link discrimination (see definition of  discrimination below) in distribution systems, the total clearing I²t  value of the fuse link downstream should be less than the pre-arc- ing I²t value of the fuse link upstream. This ensures the smaller  fuse link, in the system operates well before the larger upstream  fuse link. NH discrimination Bussmann’s NH fuse links are easy to use on distribution net- works where discrimination between large and small fuse links  are required. This can be achieved by applying a discrimination  factor of 1 to 1.6  without the need to check the fuse link data. For  example, by using a 100 A fuse link downstream from the main  160A fuse link, in the event of a fault condition, the smaller 100A  fuse link is sure to operate before the 160A fuse link, ensuring  discrimination. DC applications Bussmann’s NH fuse links can be used on DC applications. In all  cases the fuse links can be used at half of their AC rating with a  time constant of no more than 10mS. The time constant is the  rate of rise of fault current and should be as close to a 50Hz AC  half cycle as possible. Power loss Every effort is made to ensure the power loss of the fuse link is  kept to a minimum. Bussmann provides fuse links with some of  the lowest power losses in the industry. Power loss of the fuse  link is given off as heat and this should be taken into account  when fitting fuse links into unventilated areas. It is preferable that  a fuse link has good airflow around the body of the fuse link to  ensure cool running and prevent nuisance operation of the fuse  link due to thermal stresses. Should further information be required please contact Bussmann’s application engineers: 00 44 (0) 1509 882 699 or [email protected] 6 EATON Bussmann series NH catalogue

NH fuse links can be found  on a solar distribution network NH fuse links can be found  in a wind turbine NH fuse links can be used for protection of cables and distribution circuits NH fuse links can be used for  industrial motor applications NH fuse links can be found on the low voltage side of substations NH Fuse links applications 7 EATON Bussmann series NH catalogue

Features of the NH DIN range Cd/Pb-free   • High breaking capacity   • 400, 500 and 690 V a.c.   • Dual indication   • Insulated tag variants option available   • IEC 60269-1 and 2, DIN 43620, VDE 0636-2, CE Mark. Lead and cadmium free Bussmann is the world’s first true manufacturer of a complete  range of Lead and Cadmium free NH fuse links. Negating any  legislation concerns regarding the amount of hazardous materials  permissible within the fuse links.  Recycling Bussmann is dedicated to produce recyclable products and is a  member of an industry recognised recycling scheme. The “HRC”  symbol on Bussmann’s NH fuse links define the product suitable  for recycling, limiting disposal cost.    Dual indicator system Bussmann’s patented dual indicator provides clear indication,  ensuring extremely reliable local and remote signalling, decreas- ing fuse link replacement time and costs. with the use of an optional microswitch accessory Low power loss Bussmann’s “low watts loss” fuse links reduce overall operating  costs and carbon footprint through lower energy consumption and  heat transfer to equipment. To find out how much you can save,  please contact our technical applications department: [email protected]. Globally compliant Bussmann’s NH fuse links are tested and comply with IEC  60269-1 and 2, DIN 43620, VDE, CE, CCC (China), RoHS and can  be recycled, ensuring global acceptance. Lug is live part Lug is voltage free Insulated Metal Gripping Lugs Metal Gripping Lugs NH Dual indicator system  from Bussmann 8 EATON Bussmann series NH catalogue

Voltage (V a.c.) Class Size Amps Page 2 4 6 10 16 20 25 32 35 40 50 63 80 100 125 160 200 224 250 300 315 355 400 425 450 500 630 800 1000 1250 400 gG 000 2 4 6 10 16 20 25 32 35 40 50 63 80 100 14 00 125 160 15 01 35 40 50 63 80 100 125 160 16 1 200 224 250 16 02 35 40 50 63 80 100 125 160 200 224 250 17 2 315 355 400 630 17 03 250 315 355 400 18 3 500 630 18 500 gG 000 2 4 6 10 16 20 25 32 35 40 50 63 80 100 22 00 50 63 80 100 125 160 23 0 6 10 16 20 25 32 35 40 50 63 80 100 125 160 24 01 6 10 16 20 25 32 35 40 50 63 80 100 125 160 25 1 50 63 80 100 125 160 200 224 250 315 355 26 02 35 40 50 63 80 100 125 160 200 224 250 27 2 250 300 315 355 400 425 450 500 28 03 250 315 355 400 29 3 315 355 400 425 450 500 630 800 30 4 500 630 800 1000 1250 31 690 gG 000 2 4 6 10 16 20 25 32 35 40 50 63 34 00 50 63 80 100 125 160 35 1 50 63 80 100 125 160 200 224 250 36 2 200 224 250 315 37 3 250 315 355 400 425 500 38 4 630 800 39 500 and 690 aM 000 6 10 16 20 25 32 35 40 50 42 00 63 80 100 43 1 50 63 80 100 125 160 44 2 125 160 200 224 250 315 355 45 3 315 355 400 500 46 Product range overview Current rating 100 NH fuse link NH Utilisation class G Body size 000 Bussmann by Eaton B Insulated metal gripping lugs (optional) I Complete Catalogue Numbers 100 NH G 000 B I : Part available, for example Size 00 400 V is available in 125 and 160A Ordering key Intuitive catalogue numbers Bussmann logical catalogue numbering system  provides simple  identification of fuse link  current, utilisation class, size and voltage,  ensuring easy identification on site reducing  replacement time and improving network  productivity. 9 EATON Bussmann series NH catalogue

Sizing guide Size 000 Size 03 Size 0 Size 2 Size 00 Size 4 Size 1 Size 3 Size 01 Size 02 10 EATON Bussmann series NH catalogue

NH Fuse links dimensions - mm Size a 1 a 2  (max) a 3 a 4 b c 1 c 2  d  e 1  (max) e 2  (max) e 3  (max) e 4  f  (max) 000 78.5±1.5 54 45±1.5 49±1.5 15 35 10 2±0.5 41 21 16 6 8 00 78.5±1.5 54 45±1.5 49±1.5 15 35 11 2±0.5 48 30 25 6 15 0 125±2.5 68 62 68 15 35 11 2.5±0.5 48 30 25 6 15 01 135±2.5 75 62±2.5 68±2.5 15 40 11 2.5±0.5 48 30 25 6 15 1 135±2.5 75 62±2.5 68±2.5 20 40 11 2.5±0.5 53 40 25 6 15 02 150±2.5 75 62±2.5 68±2.5 20 48 11 2.5±0.5 53 40 25 6 15 2 150±2.5 75 62±2.5 68±2.5 25 48 11 2.5±0.5 61 53 25 6 15 03 150±2.5 75 62±2.5 68±2.5 25 60 11 2.5±0.5 61 53 25 6 15 3 150±2.5 75 62±2.5 68±2.5 32 60 11 3±0.5 75 70 25 6 18 4 200±3 84 62±2.5 90±3 50 85 10 3±0.5 102 102 25 8 30 +3 -1.5 +1.5 -3 Size 4 is a single indication fuse lin with slotted end tags 11 EATON Bussmann series NH catalogue

400Vac Data sheet 720099 Description A square bodied range of industrial fuse links for a wide variety  of applications. Catalogue numbers structure   • (amp)NHG(size)B-400 e.g. 100NHG02B-400 with conducting  metal gripping lugs   • (amp)NHG(size)BI-400 e.g. 100NHG000BI-400 with insulated  metal gripping lugs Class of operation   • gL/gG. Standards / approvals   • IEC 60269-1 and 2, VDE 0636, DIN 43620 and CE. Technical data   • Sizes 000 to 3   • Voltage: 400 V a.c.   • Current: 2 to 630 A   • Rated breaking capacity: 120 kA AC   • Rated frequency: 50Hz   • Operating frequency: 45-62Hz. Optional microswitch   • BVL50 or 170H0236. Compatible fuse holders   • Fuse bases 1 pole:    • SD(size)-D DIN-Rail mounted   • SD(size)-S: Screw mounting     • Fuse bases 3 pole   • TD(size)-D, DIN-Rail mounted   • Fuse bases accessories: IP20, shroud and phase barrier kits    • Fuse rails - vertical: EBF series   • Fuse switch disconnectors vertical: EBV series   • Fuse switch disconnectors horizontal: EBH series. Environmental   • Recyclable   • RoHS compliant   • Lead and cadmium free. Packaging   • All fuse links are packed in threes. Features:    • Reliable dual indicator system   • Low temperature rise   • Globally compliant. 400 V a.c. -  class gG/gL - 2 to 630 amps - sizes 000 to 3 12 EATON Bussmann series NH catalogue   12 EATON Bussmann series NH catalogue

40 0V ac Catalogue Numbers Size Current (Amps) Voltage(V a.c.) gG/gL Dual Indicator Pack Quantity Voltage Conducting Metal Gripping Lugs Insulated  Metal Gripping Lugs 000 2 400 2NHG000B-400 2NHG000BI-400 3 4 4NHG000B-400 4NHG000BI-400 6 6NHG000B-400 6NHG000BI-400 10 10NHG000B-400 10NHG000BI-400 16 16NHG000B-400 16NHG000BI-400 20 20NHG000B-400 20NHG000BI-400 25 25NHG000B-400 25NHG000BI-400 32 32NHG000B-400 32NHG000BI-400 35 35NHG000B-400 35NHG000BI-400 40 40NHG000B-400 40NHG000BI-400 50 50NHG000B-400 50NHG000BI-400 63 63NHG000B-400 63NHG000BI-400 80 80NHG000B-400 80NHG000BI-400 100 100NHG000B-400 100NHG000BI-400 00 125 400 125NHG00B-400 125NHG00BI-400 3 160 160NHG00B-400 160NHG00BI-400 01 35 400 35NHG01B-400 35NHG01BI-400 3 40 40NHG01B-400 40NHG01BI-400 50 50NHG01B-400 50NHG01BI-400 63 63NHG01B-400 63NHG01BI-400 80 80NHG01B-400 80NHG01BI-400 100 100NHG01B-400 100NHG01BI-400 125 125NHG01B-400 125NHG01BI-400 160 160NHG01B-400 160NHG01BI-400 1 200 400 200NHG1B-400 200NHG1BI-400 3 224 224NHG1B-400 224NHG1BI-400 250 250NHG1B-400 250NHG1BI-400 02 35 400 35NHG02B-400 35NHG02BI-400 3 40 40NHG02B-400 40NHG02BI-400 50 50NHG02B-400 50NHG02BI-400 63 63NHG02B-400 63NHG02BI-400 80 80NHG02B-400 80NHG02BI-400 100 100NHG02B-400 100NHG02BI-400 125 125NHG02B-400 125NHG02BI-400 160 160NHG02B-400 160NHG02BI-400 200 200NHG02B-400 200NHG02BI-400 224 224NHG02B-400 224NHG02BI-400 250 250NHG02B-400 250NHG02BI-400 2 315 400 315NHG2B-400 315NHG2BI-400 3 355 355NHG2B-400 355NHG2BI-400 400 400NHG2B-400 400NHG2BI-400 630 630NHG2B-400 - 03 250 400 250NHG03B-400 250NHG03BI-400 3 315 315NHG03B-400 315NHG03BI-400 355 355NHG03B-400 355NHG03BI-400 400 400NHG03B-400 400NHG03BI-400 3 500 400 500NHG3B-400 500NHG3BI-400 3 630 630NHG3B-400 630NHG3BI-400 400 V a.c. - class gG/gL - 2 to 630 amps - sizes 000 to 3 13 EATON Bussmann series NH catalogue   13 EATON Bussmann series NH catalogue

400Vac Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss (W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 400  V a.c. 2NHG000B-400 2NHG000BI-400 000 2 400 3.5 5.5 0.8 0.133 4NHG000B-400 4NHG000BI-400 4 6 10.5 1.4 6NHG000B-400 6NHG000BI-400 6 14 19 2.2 10NHG000B-400 10NHG000BI-400 10 60 175 1.5 16NHG000B-400 16NHG000BI-400 16 240 710 2.3 20NHG000B-400 20NHG000BI-400 20 584 1800 2.2 25NHG000B-400 25NHG000BI-400 25 1000 2800 3.1 32NHG000B-400 32NHG000BI-400 32 2400 9600 2.8 35NHG000B-400 35NHG000BI-400 35 2900 11,300 2.8 40NHG000B-400 40NHG000BI-400 40 4000 16,400 3 50NHG000B-400 50NHG000BI-400 50 4000 12,000 3.4 63NHG000B-400 63NHG000BI-400 63 6000 20,400 4.5 80NHG000B-400 80NHG000BI-400 80 9900 35,700 4.7 100NHG000B-400 100NHG000BI-400 100 18,100 39,800 5.2 Technical data  Current in Amps (A) I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 720099 400 V a.c. - class gG/gL - 2 to 100 amps - size 000 Time-current characteristics Time in seconds (s) 14 EATON Bussmann series NH catalogue   14 EATON Bussmann series NH catalogue

40 0V ac Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss (W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 400  V a.c. 125NHG00B-400 125NHG00BI-400 00 125 400 25,000 80,000 8 0.185 160NHG00B-400 160NHG00BI-400 160 60,000 126,000 7.8 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 720099 400 V a.c. - class gG/gL - 125 and 160 amps - size 00 Time-current characteristics Current in Amps (A) Time in seconds (s) Technical data  15 EATON Bussmann series NH catalogue   15 EATON Bussmann series NH catalogue

400Vac Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 400  V a.c. 35NHG01B-400 35NHG01BI-400 01 35 400 2400 7600 4.9 0.269 40NHG01B-400 40NHG01BI-400  40 3300 10,600 5 50NHG01B-400 50NHG01BI-400  50 4200 10,400 4.7 63NHG01B-400 63NHG01BI-400  63 6600 16,300 5.6 80NHG01B-400 80NHG01BI-400 80 9600 33,600 5.6 100NHG01B-400 100NHG01BI-400 100 16,000 56,000 6.8 125NHG01B-400 125NHG01BI-400 125 24,000 86,400 8.8 160NHG01B-400 160NHG01BI-400  160 53,000 111,300 8.9 200NHG1B-400 200NHG1BI-400 1 200 400 89,000 232,000 12 0.387 224NHG1B-400 224NHG1BI-400 224 119,000 322,000 12 250NHG1B-400 250NHG1BI-400 250 171,000 479,000 14 Technical data  Current in Amps (A) I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 400 V a.c. - class gG/gL - 35 to 250 amps - sizes 01 & 1 Time-current characteristics Time in seconds (s) Data sheet 720099 Current in Amps (A) Time in seconds (s) 16 EATON Bussmann series NH catalogue   16 EATON Bussmann series NH catalogue

40 0V ac Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 720099 400 V a.c. - class gG/gL - 35 to 630 amps - sizes 02 & 2 35 40 50 63 80 100 125 160 200 224 250 10 000 4 6 6 4 1 000 2 2 10 000 6 100 2 6 10 4 4 2 1 4 2 0.1 6 TI M E  -  Se co nds 6 4 2 0.01 400 315 355 2 8 6 1000 4 2 8 4 6 2 8 6 CURRENT - Amperes 100 630 Time-current characteristics Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 400  V a.c. 35NHG02B-400 35NHG02BI-400 02 35 400 2400 7600 4.4 0.402 40NHG02B-400 40NHG02BI-400  40 3300 10,600 5 50NHG02B-400 50NHG02BI-400  50 4200 10,400 6.5 63NHG02B-400 63NHG02BI-400 63 6600 16,300 5.5 80NHG02B-400 80NHG02BI-400 80 10,000 34,800 5.5 100NHG02B-400 100NHG02BI-400 100 16,000 56,000 6.6 125NHG02B-400 125NHG02BI-400  125 24,000 86,400 8.7 160NHG02B-400 160NHG02BI-400 160 50,000 185,000 10 200NHG02B-400 200NHG02BI-400 200 89,000 232,000 12 224NHG02B-400 224NHG02BI-400  224 119,000 322,000 12 250NHG02B-400 250NHG02BI-400  250 171,000 479,000 14 315NHG2B-400 315NHG2BI-400 2 315 400 280,000 924,000 19 0.630 355NHG2B-400 355NHG2BI-400 355 350,000 1,155,000 22 400NHG2B-400 400NHG2BI-400 400 504,000 1,673,000 24 630NHG2B-400 - 630 2,100,000 5,775,000 44 Current in Amps (A) Time in seconds (s) 17 EATON Bussmann series NH catalogue   17 EATON Bussmann series NH catalogue

400Vac Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 400  V a.c. 250NHG03B-400 250NHG03BI-400 03 250 400 115,000 379,500 18 0.634 315NHG03B-400 315NHG03BI-400 315 280,000 924,000 19 355NHG03B-400 355NHG03BI-400 355 350,000 1,155,000 22 400NHG03B-400 400NHG03BI-400 400 504,000 1,663,000 24 500NHG3B-400 500NHG3BI-400 3 500 400 686,000 2,605,000 30 1.043 630NHG3B-400 630NHG3BI-400 630 1,590,000 6,201,000 36 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 400 V a.c. - class gG/gL - 250 to 630 amps - sizes 03 & 3 Time-current characteristics Data sheet 720099 Current in Amps (A) Time in seconds (s) 18 EATON Bussmann series NH catalogue   18 EATON Bussmann series NH catalogue

50 0V ac Description A square bodied range of industrial fuse links for a wide variety  of applications. Catalogue Numbers structure   • (amp)NHG(size)B e.g. 100NHG01B. Class of operation   • gL/gG. Standards / approvals   • IEC 60269-1 and 2, VDE 0636, DIN 43620 and CE. Technical data   • Sizes 000 to 4   • Voltage: 500 V a.c.   • Current: 2 to 1250 A   • Rated breaking capacity: 120 kA AC   • Operating frequency: 45-62Hz. Optional microswitch   • BVL50 or 170H0236. Compatible fuse holders   • Fuse bases 1 pole:    • SD(size)-D DIN-Rail mounted   • SD(size)-S: Screw mounting     • Fuse bases 3 pole   • TD(size)-D, DIN-Rail mounted   • Fuse bases accessories: IP20, shroud and phase barrier kits    • Fuse rails - vertical: EBF series   • Fuse switch disconnectors vertical: EBV series   • Fuse switch disconnectors horizontal: EBH series Environmental   • Recyclable   • RoHS compliant   • Lead and cadmium free. Packaging   • Size 000 to 3: 3 in a pack / Size 4: 1 in a pack. Features:    • Reliable dual indicator system (size 4 single indication only)   • Low temperature rise   • Globally compliant. 500 V a.c. - class gG/gL - 2 to 1250 amps - sizes 000 to 4 Data sheet 10164 19 EATON Bussmann series NH catalogue   19 EATON Bussmann series NH catalogue

500Vac Catalogue Numbers - sizes 000 to 01 Size Current (Amps) Voltage(V a.c.) gG/gL Dual indicator Pack Quantity Voltage Conducting Metal Gripping Lugs Insulated Metal Gripping Lugs 000 2 500 2NHG000B 2NHG000BI 3 4 4NHG000B 4NHG000BI 6 6NHG000B 6NHG000BI 10 10NHG000B 10NHG000BI 16 16NHG000B 16NHG000BI        20 20NHG000B 20NHG000BI 25 25NHG000B 25NHG000BI 32 32NHG000B 32NHG000BI 35 35NHG000B 35NHG000BI 40 40NHG000B 40NHG000BI 50 50NHG000B 50NHG000BI 63 63NHG000B 63NHG000BI 80 80NHG000B 80NHG000BI 100 100NHG000B 100NHG000BI 00 50 500 50NHG00B 50NHG00BI 3 63 63NHG00B 63NHG00BI 80 80NHG00B 80NHG00BI 100 100NHG00B 100NHG00BI 125 125NHG00B 125NHG00BI 160 160NHG00B 160NHG00BI 0 6 500 6NHG0B - 3 10 10NHG0B - 16 16NHG0B - 20 20NHG0B - 25 25NHG0B - 32 32NHG0B - 35 35NHG0B - 40 40NHG0B - 50 50NHG0B - 63 63NHG0B - 80 80NHG0B - 100 100NHG0B - 125 125NHG0B - 160 160NHG0B - 01 6 500 6NHG01B 6NHG01BI 3 10 10NHG01B 10NHG01BI 16 16NHG01B 16NHG01BI  20 20NHG01B 20NHG01BI  25 25NHG01B 25NHG01BI  32 32NHG01B 32NHG01BI  35 35NHG01B 35NHG01BI  40 40NHG01B 40NHG01BI  50 50NHG01B 50NHG01BI  63 63NHG01B 63NHG01BI  80 80NHG01B 80NHG01BI  100 100NHG01B 100NHG01BI  125 125NHG01B 125NHG01BI  160 160NHG01B 160NHG01BI  500 V a.c. - class gG/gL - 2 to 1250 amps - sizes 000 to 4 Data sheet 10164 Available upon request 20 EATON Bussmann series NH catalogue   20 EATON Bussmann series NH catalogue

50 0V ac Catalogue Numbers - sizes 1 to 4 Size Current (Amps) Voltage(V a.c.) gG/gL Dual Indicator Pack Quantity Voltage Conducting Metal Gripping Lugs Insulated Metal Gripping Lugs 1 50 500 50NHG1B 50NHG1BI 3 63 63NHG1B 63NHG1BI 80 80NHG1B 80NHG1BI 100 100NHG1B 100NHG1BI 125 125NHG1B 125NHG1BI 160 160NHG1B 160NHG1BI 200 200NHG1B 200NHG1BI 224 224NHG1B 224NHG1BI 250 250NHG1B 250NHG1BI 315 440 315NHG1B 315NHG1BI 3 355 355NHG1B 355NHG1BI 02 35 500 35NHG02B 35NHG02BI 3 40 40NHG02B 40NHG02BI 50 50NHG02B 50NHG02BI 63 63NHG02B 63NHG02BI 80 80NHG02B 80NHG02BI 100 100NHG02B 100NHG02BI 125 125NHG02B 125NHG02BI 160 160NHG02B 160NHG02BI 200 200NHG02B 200NHG02BI 224 224NHG02B 224NHG02BI 250 250NHG02B 250NHG02BI 2 250 500 250NHG2B 250NHG2BI 3 300 300NHG2B 300NHG2BI 315 315NHG2B 315NHG2BI 355 355NHG2B 355NHG2BI 400 400NHG2B 400NHG2BI 425 425NHG2B 425NHG2BI 450 450NHG2B 450NHG2BI 500 440 500NHG2B 500NHG2BI 3 03 250 500 250NHG03B 250NHG03BI 3 315 315NHG03B 315NHG03BI 355 355NHG03B 355NHG03BI 400 400NHG03B 400NHG03BI 3 315 500 315NHG3B - 3 355 355NHG3B - 400 400NHG3B - 425 425NHG3B - 450 450NHG3B 500 500NHG3B - 630 630NHG3B - 800 440 800NHG3B - 3 4 500 500 500NHG4G - 1 630 630NHG4G - 800 800NHG4G - 1000 1000NHG4G - 1250 1250NHG4G - 500 V a.c. - class gG/gL - 2 to 1250 amps - sizes 000 to 4 Data sheet 10164 Available upon request Size 4 NH is a single indication fuse with slotted end tags 21 EATON Bussmann series NH catalogue   21 EATON Bussmann series NH catalogue

500Vac Data sheet 10164 Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 2NHG000B 2NHG000BI 000 2 500 3.5 6 3.9 0.130 4NHG000B 4NHG000BI 4 6 12 1.8 6NHG000B 6NHG000BI 6 14 21 2 10NHG000B 10NHG000BI 10 58 290 1.5 16NHG000B 16NHG000BI 16 234 1200 2.3 20NHG000B 20NHG000BI 20 490 2500 2.2 25NHG000B 25NHG000BI 25 920 4600 3.1 32NHG000B 32NHG000BI 32 1800 9000 3.4 35NHG000B 35NHG000BI 35 2400 11,800 3.7 40NHG000B 40NHG000BI 40 3300 16,500 4 50NHG000B 50NHG000BI 50 5900 29,500 4.9 63NHG000B 63NHG000BI 63 6300 24,900 4.6 80NHG000B 80NHG000BI 80 9800 38,900 6.3 100NHG000B 100NHG000BI 100 18,100 72,300 7.4 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 V a.c. - class gG/gL - 2 to 100 amps - size 000 Time-current characteristics Current in Amps (A) Time in seconds (s) 22 EATON Bussmann series NH catalogue   22 EATON Bussmann series NH catalogue

50 0V ac Data sheet 10164 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 V a.c. - class gG/gL - 50 to 160 amps - size 00 Time-current characteristics Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 50NHG00B 50NHG00BI 00 50 500 5800 21,500 5 0.190  63NHG00B 63NHG00BI 63 5800 25,000 5 80NHG00B 80NHG00BI 80 11,000 35,000 7 100NHG00B 100NHG00BI 100 19,000 60,000 7.5 125NHG00B 125NHG00BI 125 25,000 125,000 10 160NHG00B 160NHG00BI 160 64,000 310,000 10 Current in Amps (A) Time in seconds (s) 23 EATON Bussmann series NH catalogue   23 EATON Bussmann series NH catalogue

500Vac Data sheet 10164 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 6NHG0B 0 6 500 14 21 2 0.260 10NHG0B 10 58 290 2 16NHG0B 16 240 1200 3 20NHG0B 20 490 2500 3.5 25NHG0B 25 1200 5600 3.2 32NHG0B 32 1800 9000 4.8 35NHG0B 35 2400 11,800 4.7 40NHG0B 40 3300 16,500 5 50NHG0B 50 5600 27,800 6.3 63NHG0B 63 6600 26,100 5.6 80NHG0B 80 9800 38,900 7.1 100NHG0B 100 20,600 82,300 7.5 125NHG0B 125 25,000 125,000 11.8 160NHG0B 160 62,000 310,000 12.3 Technical data  TI ME  (S e c onds ) CURRENT (Amperes) 6 8 4 2 6 8 2 6 4 8 2 4 6 10 100 1000 2 6 4 0.1 0.01 1 6 4 2 6 2 4 10 100 6 4 2 6 4 2 6 4 2 1 000 10 000 32 35 40 50 63 80 100 125 160 16 10 20 25 6 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 V a.c. - class gG/gL - 6 to 160 amps       - size 0 Time-current characteristics Current in Amps (A) Time in seconds (s) 24 EATON Bussmann series NH catalogue   24 EATON Bussmann series NH catalogue

50 0V ac Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 6NHG01B 6NHG01BI 01 6 500 14 21 2 0.270 10NHG01B 10NHG01BI 10 58 290 2 16NHG01B 16NHG01BI  16 240 1200 3 20NHG01B 20NHG01BI  20 490 2500 3.4 25NHG01B 25NHG01BI  25 1200 5600 5 32NHG01B 32NHG01BI  32 1800 9000 4.8 35NHG01B 35NHG01BI  35 2400 11,800 4.6 40NHG01B 40NHG01BI  40 3300 16,500 5 50NHG01B 50NHG01BI  50 5600 27,800 6.3 63NHG01B 63NHG01BI  63 6600 26,100 5.6 80NHG01B 80NHG01BI  80 9800 38,900 7.1 100NHG01B 100NHG01BI  100 20,600 82,300 7.7 125NHG01B 125NHG01BI  125 25,000 125,000 11.8 160NHG01B 160NHG01BI  160 62,000 310,000 12.3 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 10164 Technical data  500 V a.c. - class gG/gL - 6 to 160 amps - size 01 TI M E  (S ec o nds ) CURRENT (Amperes) 2 6 8 4 2 4 10 100 1000 2 6 4 8 6 2 6 4 0.1 0.01 1 6 4 2 6 2 4 10 100 6 4 2 6 4 2 6 4 2 1 000 10 000 32 35 40 50 63 80 100 125 160 16 10 20 25 8 6 4 6 Time-current characteristics Current in Amps (A) Time in seconds (s) 25 EATON Bussmann series NH catalogue   25 EATON Bussmann series NH catalogue

500Vac Data sheet 10164 Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 50NHG1B 50NHG1BI 1 50 500 6350 18,000 6.4 0.390 63NHG1B 63NHG1BI 63 6800 23,000 5.6 80NHG1B 80NHG1BI 80 10,500 31,200 7.7 100NHG1B 100NHG1BI 100 22,000 68,200 8.2 125NHG1B 125NHG1BI 125 29,000 82,000 13 160NHG1B 160NHG1BI 160 62,000 310,000 12.3 200NHG1B 200NHG1BI 200 97,000 368,600 15 224NHG1B 224NHG1BI 224 124,000 471,200 18 250NHG1B 250NHG1BI 250 151,300 574,900 19 315NHG1B 315NHG1BI 315 440 320,000 750,000 22 355NHG1B 355NHG1BI 355 320,000 750,000 32 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 V a.c. - class gG/gL - 50 to 355 amps - size 1 Time-current characteristics Current in Amps (A) Time in seconds (s) 26 EATON Bussmann series NH catalogue   26 EATON Bussmann series NH catalogue

50 0V ac Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage(V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 35NHG02B 35NHG02BI 02 35 500 2400 11,800 4.7 0.402 40NHG02B 40NHG02BI 40 3300 16,500 5 50NHG02B 50NHG02BI 50 5600 27,800 6.4 63NHG02B 63NHG02BI 63 6600 26,100 5.5 80NHG02B 80NHG02BI 80 9800 38,900 7.3 100NHG02B 100NHG02BI 100 20,600 82,300 7.5 125NHG02B 125NHG02BI 125 25,000 100,000 12 160NHG02B 160NHG02BI  160 62,000 248,000 12 200NHG02B 200NHG02BI 200 96,900 367,900 15 224NHG02B 224NHG02BI 224 124,000 471,200 18 250NHG02B 250NHG02BI  250 151,300 574,900 19 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 10164 Technical data  500 V a.c. - class gG/gL - 35 to 250 amps - size 02 Time-current characteristics Current in Amps (A) Time in seconds (s) 27 EATON Bussmann series NH catalogue   27 EATON Bussmann series NH catalogue

500Vac Data sheet 10164 Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage(V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 250NHG2B 250NHG2BI 2 250 500 170,000 437,000 23 0.630 300NHG2B 300NHG1BI 300 320,000 840,000 20 315NHG2B 315NHG2BI 315 361,700 1,446,500 21 355NHG2B 355NHG2BI 355 446,500 1,785,800 27 400NHG2B 400NHG2BI 400 642,900 2,571,500 30 425NHG2B 425NHG2BI 425 720,000 1,862,000 31 450NHG2B 450NHG2BI 450 870,000 2,275,000 31 500NHG2B 500NHG2BI 2 500 440 1,200,000 2,720,000 37 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 V a.c. - class gG/gL - 250 to 500 amps - size 2 Time-current characteristics Current in Amps (A) Time in seconds (s) 28 EATON Bussmann series NH catalogue   28 EATON Bussmann series NH catalogue

50 0V ac Catalogue Numbers With Metal Gripping Lugs   Catalogue  Numbers With Insulated Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 250NHG03B 250NHG03BI 03 250 500 160,800 642,900 20 0.640 315NHG03B 315NHG03BI  315 361,700 1,446,500 21 355NHG03B 355NHG03BI  355 446,500 1,785,800 27 400NHG03B 400NHG03BI 400 642,900 2,571,500 30 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 10164 Technical data  500 V a.c. - class gG/gL - 250 to 400 amps - size 03 Time-current characteristics Current in Amps (A) Time in seconds (s) 29 EATON Bussmann series NH catalogue   29 EATON Bussmann series NH catalogue

500Vac Data sheet 10164 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 315NHG3B 3 315 500 375,000 970,000 22 1.050 355NHG3B 355 400,000 1,110,000 25 400NHG3B 400 642,900 2,571,500 30 425NHG3B 425 570,000 1,934,000 30 450NHG3B 450 670,000 2,260,000 33 500NHG3B 500 886,000 3,898,400 37 630NHG3B 630 1,590,000 6,996,000 47 800NHG3B 3 800 440 2,420,000 5,420,000 59 1.050 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 V a.c. - class gG/gL - 315 to 800 amps - size 3 Time-current characteristics Current in Amps (A) Time in seconds (s) 30 EATON Bussmann series NH catalogue   30 EATON Bussmann series NH catalogue

50 0V ac Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss (W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 500  V a.c. 500NHG4G 4 500 500 800,000 3,850,000 37 2.200 630NHG4G 630 880,000 4,100,000 47 800NHG4G 800 1,500,000 6,480,000 68 1000NHG4G 1000 4,800,000 13,000,000 80 1250NHG4G 1250 7,000,000 18,000,000 108 Size 4 NH is a single indication fuse with slotted end tags I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 10164 Technical data  500 V a.c. - class gG/gL - 500 to 1250 amps - size 4 Time-current characteristics Current in Amps (A) Time in seconds (s) 31 EATON Bussmann series NH catalogue   31 EATON Bussmann series NH catalogue

690Vac gG Data sheet 720109 Description A square bodied range of industrial fuse links for a wide variety  of applications. Catalogue Numbers structure   • (amp)NHG(size)B-690 e.g. 2NHG000B-690. Class of operation   • gL/gG. Standards / approvals   • IEC 60269-1 and 2, DIN 43620 Part 1 and 3. Technical data   • Sizes 000 to 4   • Voltage: 690 V a.c.    • Current: 2 to 800 A   • Rated breaking capacity: 120 kA    • Operating frequency: 45-62Hz. Optional microswitch   • BVL50 or 170H0236. Compatible fuse holders   • Fuse bases 1 pole:    • SD(size)-D DIN-Rail mounted   • SD(size)-S: Screw mounting     • Fuse bases 3 pole   • TD(size)-D, DIN-Rail mounted   • Fuse bases accessories: IP20, shroud and phase barrier kits    • Fuse rails - vertical: EBF series   • Fuse switch disconnectors vertical: EBV series   • Fuse switch disconnectors horizontal: EBH series Environmental   • Recyclable   • RoHS compliant   • Lead and cadmium free for sizes 000 to 4 (2 to 1250A). Packaging   • Sizes 000 to 3: 3 per carton   • Size 4: 1 per carton Features:    • Reliable dual indicator system (size 4 single indication only)   • Low temperature rise   • Globally compliant   • UL on limited ratings. 690 V a.c. - class gG/gL - 2 to 800 amps - sizes 000 to 4 32 EATON Bussmann series NH catalogue   32 EATON Bussmann series NH catalogue

69 0V ac gG Data sheet 720109 Size 4 is a fuse link with single indication fuse link with slotted end tags Please consult us should you wish to order 500 Volts size [email protected] or 00 44 (0) 1509 882 699 Catalogue Numbers- sizes 000 to 4 Size Current (Amps) Voltage(V a.c.) gG/gL Dual Indicator Pack Quantity Voltage Conducting Metal Gripping Lugs 000 2 690 2NHG000B-690 3 4 4NHG000B-690 6 6NHG000B-690 10 10NHG000B-690 16 16NHG000B-690 20 20NHG000B-690 25 25NHG000B-690 32 32NHG000B-690 35 35NHG000B-690 40 40NHG000B-690 50 50NHG000B-690 63 63NHG000B-690 00 50 690 50NHG00B-690 3 63 63NHG00B-690 80 80NHG00B-690 100 100NHG00B-690 125 125NHG00B-690 160 660 160NHG00B-660 3 1 50 690 50NHG1B-690 3 63 63NHG1B-690 80 80NHG1B-690 100 100NHG1B-690 125 125NHG1B-690 160 160NHG1B-690 200 200NHG1B-690 224 224NHG1B-690 250 250NHG1B-690 2 200 690 200NHG2B-690 3 224 224NHG2B-690 250 250NHG2B-690 315 315NHG2B-690 3 250 690 250NHG3B-690 3 315 315NHG3B-690 355 355NHG3B-690 400 400NHG3B-690 425 425NHG3B-690 500 500NHG3B-690 4 630 690 630NHG4B-690 1 800 800NHG4B-690 690 V a.c. - class gG/gL - 2 to 800 amps - sizes 000 to 4 33 EATON Bussmann series NH catalogue   33 EATON Bussmann series NH catalogue

690Vac gG Data sheet 720109 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage(V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 2NHG000B-690 000 2 690 3.5 8 4 0.118 4NHG000B-690 4 6 16 2 6NHG000B-690 6 14 25 2 10NHG000B-690 10 60 400 1.5 16NHG000B-690 16 240 1200 2.5 20NHG000B-690 20 500 2500 2.5 25NHG000B-690 25 920 4400 3.5 32NHG000B-690 32 1800 9600 3.5 35NHG000B-690 35 2800 15,000 4 40NHG000B-690 40 3300 15,000 4 50NHG000B-690 50 6100 26,500 5.5 63NHG000B-690 63 6500 30,500 5.5 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 690 V a.c. - class gG/gL - 2 to 63 amps - size 000 Time-current characteristics Current in Amps (A) Time in seconds (s) 34 EATON Bussmann series NH catalogue   34 EATON Bussmann series NH catalogue

69 0V ac gG Data sheet 720109 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 50NHG00B-690 00 50 690 5800 35,000 5 0.182 63NHG00B-690 63 5800 43,000 5 80NHG00B-690 80 11,000 54,500 7 100NHG00B-690 100 19,000 92,000 7.5 125NHG00B-690 125 27,500 105,000 9.5 160NHG00B-660 00 160 660 40,500 135,000 13 0.182 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Technical data  690 V a.c. - class gG/gL - 50 to 160 amps - size 00 Time-current characteristics Current in Amps (A) Time in seconds (s) 35 EATON Bussmann series NH catalogue   35 EATON Bussmann series NH catalogue

690Vac gG Data sheet 720109 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 50NHG1B-690 1 50 690 6350 26,500 6.4 0.380 63NHG1B-690 63 6800 36,000 5.6 80NHG1B-690 80 10,500 47,500 7.7 100NHG1B-690 100 22,000 105,000 8.2 125NHG1B-690 125 29,000 120,000 13 160NHG1B-690 160 71,000 240,000 13 200NHG1B-690 200 105,000 350,000 17 224NHG1B-690 224 120,000 430,000 19 250NHG1B-690 250 150,000 520,000 22 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 690 V a.c. - class gG/gL - 50 to 250 amps - size 1 Time-current characteristics Current in Amps (A) Time in seconds (s) 36 EATON Bussmann series NH catalogue   36 EATON Bussmann series NH catalogue

69 0V ac gG Data sheet 720109 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 200NHG2B-690 2 200 690 99,000 385,000 18 0.620 224NHG2B-690 224 130,000 485,000 20 250NHG2B-690 250 170,000 625,000 23 315NHG2B-690 315 295,000 760,000 32 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Technical data  690 V a.c. - class gG/gL - 200 to 315 amps - size 2 Time-current characteristics Current in Amps (A) Time in seconds (s) 37 EATON Bussmann series NH catalogue   37 EATON Bussmann series NH catalogue

690Vac gG Data sheet 720109 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 250NHG3B-690 3 250 690 160,000 715,000 21 1.050 315NHG3B-690 315 375,000 1,400,000 22 355NHG3B-690 355 400,000 1,650,000 25 400NHG3B-690 400 475,000 1,600,000 37 425NHG3B-690 425 630,000 1,700,000 35 500NHG3B-690 500 856,000 2,480,000 43 Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 690 V a.c. - class gG/gL - 250 to 500 amps - size 3 Time-current characteristics Current in Amps (A) Time in seconds (s) 38 EATON Bussmann series NH catalogue   38 EATON Bussmann series NH catalogue

69 0V ac gG Please consult us should you wish to order 500 Volts size 4 [email protected] or 00 44 (0) 1509 882 699 Single indication fuse link with slotted end tags Data sheet 720109 Catalogue Numbers With Metal Gripping Lugs Fuse Link Size Current (Amps) Voltage (V a.c.) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 630NHG4B-690 4 630 690 1,730,000 6,550,000 44 2.500 800NHG4B-690 800 3,330,000 11,000,000 61 I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Technical data  690 V a.c. - class gG/gL - 630 and 800 amps - size 4 Time-current characteristics Current in Amps (A) Time in seconds (s) 39 EATON Bussmann series NH catalogue   39 EATON Bussmann series NH catalogue

aM Data sheet 10165 Description A range of class aM square bodied industrial fuse links for a  wide variety of motor protection applications. Catalogue Numbers structure   • 500 Volts: (amp)NHM(size)B   • 690 Volts: (amp)NHM(size)B-690. Class of operation   • aM. Standards / approvals   • IEC 60269-1 and 2, DIN 43620 Part 1 and 3. Technical data   • Sizes 000 to 3   • Voltage: 500 and 690 V a.c.   • Current: 6 to 500 A   • Rated breaking capacity: 120 kA    • Operating frequency: 45-62Hz. Optional microswitch   • BVL50 or 170H0236. Compatible fuse holders   • Fuse bases 1 pole:    • SD(size)-D DIN-Rail mounted   • SD(size)-S: Screw mounting     • Fuse bases 3 pole   • TD(size)-D, DIN-Rail mounted   • Fuse bases accessories: IP20, shroud and phase barrier kits    • Fuse rails - vertical: EBF series   • Fuse switch disconnectors vertical: EBV series   • Fuse switch disconnectors horizontal: EBH series Environmental   • Recyclable   • RoHS compliant   • Lead and cadmium free. Packaging   • All fuse links are packed in threes. Features:    • Reliable dual indicator system (except size 2, 315 and 355 A  which are single indication)   • Low watts loss   • Metal gripping lugs. 500 and 690 V a.c. - class aM - 6 to 500 amps - sizes 000 to 3 40 EATON Bussmann series NH catalogue   40 EATON Bussmann series NH catalogue

aM Data sheet 10165 Catalogue Numbers- sizes 000 to 3 Size Current (Amps) 500 V a.c. class aM 690 V a.c. class aM Pack Quantity Voltage Conducting Metal Gripping Lugs Voltage Conducting Metal Gripping Lugs 000 6 6NHM000B 6NHM000B-690 3 10 10NHM000B 10NHM000B-690 16 16NHM000B 16NHM000B-690 20 20NHM000B 20NHM000B-690 25 25NHM000B 25NHM000B-690 32 32NHM000B 32NHM000B-690 35 35NHM000B 35NHM000B-690 40 40NHM000B 40NHM000B-690 50 50NHM000B 50NHM000B-690 00 63 63NHM00B 63NHM00B-690 3 80 80NHM00B 80NHM00B-690 100 100NHM00B 100NHM00B-690 1 50 50NHM1B 50NHM1B-690 3 63 63NHM1B 63NHM1B-690 80 80NHM1B 80NHM1B-690 100 100NHM1B 100NHM1B-690 125 125NHM1B 125NHM1B-690 160 160NHM1B 160NHM1B-690 2 125 125NHM2B 125NHM2B-690 3 160 160NHM2B 160NHM2B-690 200 200NHM2B 200NHM2B-690 224 224NHM2B 224NHM2B-690 250 250NHM2B 250NHM2B-690 315 315NHM2B 315NHM2B-690 355 355NHM2B 355NHM2B-690 3 315 315NHM3B 315NHM3B-690 3 355 355NHM3B 355NHM3B-690 400 400NHM3B 400NHM3B-690 500 500NHM3B 500NHM3B-690 Single indication 500 and 690 V a.c. - class aM - 6 to 500 amps - sizes 000 to 3 41 EATON Bussmann series NH catalogue   41 EATON Bussmann series NH catalogue

aM Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 and 690 V a.c. - class aM - 6 to 50 amps - size 000 Time-current characteristics Data sheet 10165 500 V a.c.   690 V a.c. Fuse Link Size Current (Amps) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Catalogue Numbers With Metal Gripping Lugs Catalogue Numbers With Metal Gripping Lugs Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 6NHM000B 6NM000B-690 000 6 48 650 0.3 0.118 10NHM000B 10NHM000B-690 10 200 1800 0.5 16NHM000B 16NHM000B-690 16 500 4400 0.8 20NHM000B 20NHM000B-690 20 1450 7250 0.9 25NHM000B 25NHM000B-690 25 3500 13,500 1.1 32NHM000B 32NHM000B-690 32 2200 7500 2.1 35NHM000B 35NHM000B-690 35 3000 12,000 2.1 40NHM000B 40NHM000B-690 40 4700 14,500 2.3 50NHM000B 50NHM000B-690 50 11,000 27,000 2.7 Current in Amps (A) Time in seconds (s) 42 EATON Bussmann series NH catalogue   42 EATON Bussmann series NH catalogue

aM Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 10165 500 V a.c.   690 V a.c. Fuse Link Size Current (Amps) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Catalogue Numbers With Metal Gripping Lugs Catalogue Numbers With Metal Gripping Lugs Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 63NHM00B 63NHM00B-690 00 63 16,000 52,000 3.1 0.186 80NHM00B 80NHM00B-690 80 24,000 69,500 4.3 100NHM00B 100NHM00B-690 100 35,000 110,000 5.5 500 and 690 V a.c. - class aM - 63 to 100 amps - size 00 Time-current characteristics Current in Amps (A) Time in seconds (s) 43 EATON Bussmann series NH catalogue   43 EATON Bussmann series NH catalogue

aM Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 and 690 V a.c. - class aM - 50 to 160 amps - size 1 Time-current characteristics Data sheet 10165 500 V a.c.   690 V a.c. Fuse Link Size Current (Amps) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Catalogue Numbers With Metal Gripping Lugs Catalogue Numbers With Metal Gripping Lugs Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 50NHM1B 50NHM1B-690 1 50 10,000 39,500 3 0.380 63NHM1B 63NHM1B-690 63 12,500 49,500 4.4 80NHM1B 80NHM1B-690 80 19,500 77,500 5.6 100NHM1B 100NHM1B-690 100 33,000 105,000 6.7 125NHM1B 125NHM1B-690 125 49,500 170,000 8.8 160NHM1B 160NHM1B-690 160 110,000 315,000 10.6 Current in Amps (A) Time in seconds (s) 44 EATON Bussmann series NH catalogue   44 EATON Bussmann series NH catalogue

aM Single indication Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements Data sheet 10165 500 V a.c.   690 V a.c. Fuse Link Size Current (Amps) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Catalogue Numbers With Metal Gripping Lugs Catalogue Numbers With Metal Gripping Lugs Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 125NHM2B 125NHM2B-690 2 125 56,500 215,000 9.7 0.615 160NHM2B 160NHM2B-690 160 120,000 510,000 11 200NHM2B 200NHM2B-690 200 175,000 730,000 14 224NHM2B 224NHM2B-690 224 255,000 1,050,000 15 250NHM2B 250NHM2B-690 250 300,000 1,280,000 17 315NHM2B 315NHM2B-690 315 510,000 1,150,000 23 355NHM2B 355NHM2B-690 355 570,000 1,300,000 28 500 and 690 V a.c. - class aM - 125 to 355 amps - size 2 Time-current characteristics Current in Amps (A) Time in seconds (s) 45 EATON Bussmann series NH catalogue   45 EATON Bussmann series NH catalogue

aM Technical data  I 1  is the maximum breaking capacity test at Voltage according to IEC 60269-1 and 2 requirements 500 and 690 V a.c. - class aM - 315 to 500 amps - size 3 Time-current characteristics Data sheet 10165 500 V a.c.   690 V a.c. Fuse Link Size Current (Amps) I ²t (Amps² Seconds) Watts Loss(W) Net Weight Per Fuse (Kg) Catalogue Numbers With Metal Gripping Lugs Catalogue Numbers With Metal Gripping Lugs Minimum Pre-Arcing I 1  120 kA at 690  V a.c. 315NHM3B 315NHM3B-690 3 315 480,000 1,600,000 20 1.050 355NHM3B 355NHM3B-690 355 500,000 1,300,000 27 400NHM3B 400NHM3B-690 400 680,000 2,000,000 28 500NHM3B 500NHM3B-690 500 1,050,000 2,800,000 36 Current in Amps (A) Time in seconds (s) 46 EATON Bussmann series NH catalogue   46 EATON Bussmann series NH catalogue

A cces so ries Fuse base catalogue numbers NH Fuse bases and accessories - SD and TD series Data sheet 10163 Size Poles Current (Amps) Catalogue Numbers Pack Quantity Compatible Fuse Links Size DIN-Rail and Screw Mounting Screw Mounting Only 00 1-pole 160 SD00-D SD00-S 3 400/500/690 V NH gG and  aM fuse links 3-pole 160 TD00-D N/A 1 160 TD00-DI N/A 1 1 1-pole 250 SD1-D SD1-S 3 3-pole 250 TD1-D N/A 1 2 1-pole 400 SD2-D SD2-S 3 400 SD2-DD N/A 3 3-pole 400 TD2-D N/A 1 400 TD2-DD N/A 1 3 1-pole 630 SD3-D SD3-S 3 3-pole 630 TD3-D N/A 1 4 1-pole 1250 N/A SD4-S 1 1600 N/A SD4-S1600 1 3-pole integral base moulding. Double fuse contact clips. Description NH fuse bases with thermoplastic bodies, DIN rail and/or screw  mounting (size 4 screw mounting only). Range of accessories  including phase barriers, IP20 finger-safe protection kits and neutral  links available.Microswitch also available for remote signaling of fuse link operation. Catalogue numbers structure   • SD(size)-D, SD(size)-S: 1-pole    • TD(size)-D, TD(size)-DI: 3-pole. Standards / approvals   • IEC 60269-1 and 2, VDE 0636-1 and 2. Technical data   • Voltage: 690 V a.c.   • Current: 160 to 1600A   • Rated for fuse links with breaking capacity: 120 kA Compatible fuse links   • NH 400, 500 and 690 V a.c. NH gG and aM fuse links Packaging   • 1-pole: 3, SD4 and 3-pole: 1   • Packaging 100% recyclable Features   • Complies with IEC 60269-1 and 2 fuse system A (NH base), manu- facturers type test certificates of compliance available.   • 3-pole integral NH00 base available with reduced width.    • Clip-in phase barriers, terminal shrouds and fuse covers available.   • Vibration tested to IEC 60068-2-6 for marine use. 47 EATON Bussmann series NH catalogue   47 EATON Bussmann series NH catalogue

A cces so ries Fuse Base Catalogue Numbers SD00-DTD00-DTD00-DI SD1-DTD1-D SD2-DTD2-D SD3-DTD3-D SD4-S SD4-S1600 Base Glass filled PBT Contacts Silver plated copper Screw, nuts and washers Zinc clear plated steel Derating temperature factors for  maximum current  35°C 1 1 1 1 1 1 40°C 0.95 0.95 0.95 0.95 0.95 0.95 50°C 0.85 0.85 0.85 0.85 0.85 0.85 Maximum power acceptance 12W 32W 45W 60W 110W 145W Degree of protection with covers fitted IP20 IP20 IP20 IP20 - - Terminal screw M8 M10 M10 M12 M16 M16 Maximum tightening torque terminal screw 10N•m 32N•m 32N•m 32N•m 56N•m 56N•m Fixing DIN-Rail       Screw       With microswitch 16A/250V Fuse operated signal       Operating temperature range -20 to 70°C Storage temperature range -40 to 80°C Size Current (Amps) Catalogue Numbers Pack Quantity NH00 160 SDL-00 3 NH1 250 SDL-1 3 NH2 400 SDL-2 3 NH3 630 SDL-3 3 Fuse extraction handle Size Current (Amps) Catalogue Numbers Pack Quantity NH00-3 160 - 630 FEH 1 Accessories Shroud kits Fuse Base Series Fuse size Current (Amps) Catalogue Numbers Description SD1 NH1 250 SD12-SK Kit includes 2 shrouds and 1 fuse cover SD2 NH2 400 SD12-SK SD3 NH3 630 SD3-SK Shroud kit Technical data  Solid links catalogue numbers  Data sheet 10163 NH Fuse bases and accessories - SD and TD series Fuse extraction handle Solid link 48 EATON Bussmann series NH catalogue   48 EATON Bussmann series NH catalogue

A cces so ries Data sheet 10163 Size Current(Amps) Phase Barrier Kit Description Catalogue Numbers Pack Quantity NH00 160 SD00-PB 1 2-Phase barriers NH1 250 SD12-PB 1 2-Phase barriers and 2 ganging links NH2 400 SD12-PB 1 NH3 630 SD3-PB 1 Phase barrier Ganging link IP Protection Kits Size Current(Amps) Catalogue Numbers Fuse Cover Shroud Phase Barrier Ganging Link Integral Kit Description NH00 160 TD00-IP20 3 6 2 Triple pole protection kit for TD00-D with shrouds, fuse  covers and phase barriers TD00-IP20I 1 Integral triple pole protection kit for TD00-DI with molded  shrouds and phase barriers  TD00-IP20IC 3 1 Integral triple pole protection kit for TD00-DI with fuse  covers and molded shrouds and phase barriers  NH1 250 TD1-IP20 3 6 2 2 Triple pole protection kit with terminal shrouds, fuse cover  phase barriers and ganging links NH2 400 TD2-IP20 NH3 630 TD3-IP20 TD00-IP20 TD00-IP20I TD00-IP20IC TD(size 1 to 3)-IP20 Microswitch Catalogue Numbers Pack Quantity Ratings BVL50 1 6 A 250 V a.c. 170H0236 12 2 A 250 V a.c. 170H0238 12 2A 250 V a.c. Microswitch suitable for the following NH fuse links:   • 400 Volts gG/gL   • 500 Volts gG/gL and aM   • 690 Volts gG/gL and aM. Note: Microswitches fit onto the fuse gripping lugs and are applicable to all NH size Bussmann fuses. NH Fuse bases and accessories - SD and TD series BVL50 170H0236 49 EATON Bussmann series NH catalogue   49 EATON Bussmann series NH catalogue

A cces so ries Dimensions (mm) 1-pole, size 00  Size Pole A B C D E F G H I J NH00 1-pole 120 102 35.5 20 56 24 51 M8x20 25 8 Dimensions (mm) 1-pole, sizes 1, 2 and 3 Size Poles/Type A B C D E F G H I J K NH1 1-pole 199 175 56 35 79 37 78 M10x25 25 10 30 NH2 1 pole 224 199 56 35 79 37.5 86 M10x25 25 10 30 1-pole double clip 223 199 56 35 82 37 79 M10x25 25 10 30 NH3 1-pole 239 209 56 36 82 37.5 88 M12x30 25 10 30 Data sheet 10163 NH Fuse bases and accessories - SD and TD series 50 EATON Bussmann series NH catalogue   50 EATON Bussmann series NH catalogue

A cces so ries Data sheet 10163 Dimensions (mm) 1-pole, size 4  Size Poles/Type A B C D E F G H I J K L M N NH4  1-pole 1250A 295 255 90 52 105 47 122 M16x40 30 14 40 150 92 M12x40 1-pole 1600A 295 255 90 60 105 50 125 M16x40 30 14 40 150 92 M12x40 Dimensions (mm) 3-pole, size 00  Size Poles/Type A B C D E F G H I J K L M N P NH00 3-pole 120 102 35.5 20 56 24 51 M8x20 25 8 - 103.5 34 146 89 NH Fuse bases and accessories - SD and TD series 51 EATON Bussmann series NH catalogue   51 EATON Bussmann series NH catalogue

A cces so ries Dimensions (mm) integral 3-pole, size 00  Size Poles/Type A B C D E F G H I J K L M N P NH00 3-pole Integral 120 102 - 20 56 24 51 M8x20 - 7.5x10 63.5 97 32.3 146 90 Dimensions (mm) 3-pole, sizes 1, 2 and 3 Size Poles/Type A B C D E F G H I J K L M N P NH1 3-pole 199 175 56 35 79 37 78 M10x25 25 10 30 188 66 245 125.5 NH2 3-pole 224 199 56 35 79 37.5 86 M10x25 25 10 30 188 66 245 125.5 3-pole double clip 223 199 56 35 82 37 79 M10x25 25 10 30 188 66 245 125.5 NH3 3-pole 239 209 56 36 82 37.5 88 M12x30 25 10 30 221 82.5 260 137.5 Data sheet 10163 NH Fuse bases and accessories - SD and TD series 52 EATON Bussmann series NH catalogue   52 EATON Bussmann series NH catalogue

A cces so ries Catalogue Numbers Size Current (Amps) Busbar system Catalogue Numbers Cable Terminals Pack Quantity Weight Compatible Fuse Links Size Vertical fuse rail for NH Size 00  00 160 100 mm EBF00230S8 Bridge terminals with bridge clamps (S) 4 - 70 mm 2 , screw terminals with M8 screws 1 1 kg 00 EBF00230V1 V-Terminals with V-Clamps 25 - 120 SW 1.1 kg EBF00230V0 V Terminals without V-Clamps 1 kg 185mm EBF00330S8 Bridge terminals with bridge clamps (S) 4 - 70 mm 2 , screw terminals with M8 screws 1 2 kg EBF00330V1 V-Terminals with V-Clamps 25 - 120 SW 2.2 kg EBF00330V0 V Terminals without V-Clamps 2 kg Vertical fuse rail suitable for NH Size 1 and size 2 fuses 2 400 185 mm EBF2330V1 V-Terminals with V-Clamps (35 - 240 mm 2 ) 1 3.2 kg 1 and 2 EBF2330M1 Screw terminals with pressed nuts M10 (M10 Screw) 3.1 kg EBF2330W1 2V-Terminals with double V-Clamps (2 x 50 - 240 mm 2 ) 3.8 kg Vertical fuse rail suitable for NH Size 3 fuses  3 630 185 mm EBF3330V1 V-Terminals with V-Clamps (70 - 300 SW) 1 4 kg 3 EBF3330M1 Screw terminals with pressed nuts M12 (M12 Screw) 3.1 kg EBF3330W1 2V-Terminals with double V-Clamps (2 x 50 - 240 mm 2 ) 4.8 kg  NH Fuse rails - vertical - EBF series DescriptionBussmann’s range of NH Fuse rails is specifically designed to be used with NH Fuse links. All energized metal parts are fully protected against accidental contact. They are intended for direct installation on horizontal or vertical busbar systems. Functionality   • Designed for installation onto 185 mm busbar systems, sizes  00,1,2 and 3   • Fuse rail width: size 00 - 50 mm, size 2,3 - 100 mm   • IP20 Touch protection    • EBF 00/100 mm fuse rails are designed for installation onto 100  mm busbar systems. Installation onto 185 mm busbar system is  possible by using an adaptor Catalogue Numbers structure   • EBF Standards / approvals   • IEC 60269-1 and CE. Technical data   • Voltage: 690 V a.c.   • Current:    • 160 A size 00   • 400 A size 2   • 630 A size 3 Compatible fuse links   • NH 400, 500 and 690 V NH gG and aM fuse links EBF 00 - 100 mm fuse rails are designed for installation onto 100 mm busbar systems.    Installation onto a 185 mm busbar system is possible by using an adaptor Operating conditions   • Suitable for installation in environments free of any dust,  explosive or aggressive gases.   • Altitude up to 2000 metre above sea level   • Can be used in outdoor environments if they are installed  in IP34 cabinets   • Relative air humidity should not be higher than 50% tem- perature of +40 o C   • Ambient temperature from -25 o C to +55 o C Features   • Possible installation of various earthing devices   • Various options for cable terminations   • Wide range of accessories   • Touch protection IP20 with fuse shrouds Packaging   • 1 per carton. 53 EATON Bussmann series NH catalogue   53 EATON Bussmann series NH catalogue

A cces so ries Type EBF 00 100 mm EBF 00 185 mm EBF 2 EBF3 Size 00 00 2 3 Rated thermal current I th  = I n A 160 160 400 630 Voltage U n V 690 690 690 690 Rated insulation voltage U I V 1000 1000 1000 1000 Rated frequency Hz 50 - 60 50 - 60 50 - 60 50 - 60 Rated power dissipation W 12 12 45 60  Rated short-circuit withstand current kA 100 100 100 100  Mechanical durability Number of cycles 100 100 100 100 Weight kg 0.75 2 4.5 5 IP Degree of protection IP 00 00 20 1 20 1 Size of fuse links 00 00 2 3 1 With fuse links shrouds Dimensions (mm) - EBF 00 100 mm busbar system Technical data  M8 Screws M S NH Fuse rails - vertical - EBF series V-Terminals M8 Screwsside view V-Terminalsside view 54 EATON Bussmann series NH catalogue   54 EATON Bussmann series NH catalogue

A cces so ries Dimensions (mm) - EBF 00 185 mm busbar system EBF 2 and 3 EBF 2 and 3 With terminals 2V (2 x 240 mm 2 ) M8 Screws NH Fuse rails - vertical - EBF series V-Terminals Dimensions (mm) - EBF 2 and 3 55 EATON Bussmann series NH catalogue   55 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - vertical - EBV series Description Eaton's Bussmann series NH Vertical Gear is specifically designed  to be used with NH fuse links. All energized metal parts are fully  protected against accidental contact. They are suitable for direct  installation on horizontal or vertical busbar systems. The three  poles can be switched independently or simultaneously  depending upon the version. These are manually operated  switches and the making and breaking is dependent on the speed  of the operation. The EBV series NH gear are provided complete  with the clamps(i.e. screws/V-terminals/2V-terminals) and shrouds  for cable termination. Functionality   • Designed for installation onto 100 mm or 185 mm busbar  system   • Making and breaking operation should be done with determined  movement   • Parrallel moving, double contact system   • Suitable for top cable termination connection Catalogue Numbers structure   • EBV (see table below) Standards / approvals   • IEC 60947-1 and 3, EN 60947-1 and 3 Technical data   • Voltage: 690 V a.c.   • Current: 160 to 910 A   • Utilisation category:    • AC21B 690 V a.c. Size 3   • AC22B 500 V a.c. Sizes 00 to 3   • AC23B 400 V a.c. Size 00 to 3. Compatible fuse links   • NH 400, 500 and 690 V gG and aM fuse links. Busbar mounting options   • Size 00 NH gear are available in two versions suitable for instal- lations onto 100 mm busbar and 185 mm busbar system. 100 mm rails can be installed on the 185 mm busbar system by  using an adaptor   • Sizes 1,2 and 3 are suitable for installation onto 185 mm busbar  system Operating conditions   • Suitable for installation in environments free of any dust,  explosive or aggressive gases.   • Altitude up to 2000 metre above sea level   • Can be used in outdoor environments if they are installed in  IP34 cabinets   • Relative air humidity should not be higher than 50%  temperature of +40 o C   • Ambient temperature from -25 o C to +55 o C Features   • Touch protection IP 30 from the front.   • Top/bottom cable termination possibility   • Test holes provided on the cover to measure the voltage across  the link   • Various options for cable terminations   • Wide range of accessories Packaging   • 1 per carton. 56 EATON Bussmann series NH catalogue   56 EATON Bussmann series NH catalogue

A cces so ries Catalogue Numbers Size Current (Amps) Busbar System Catalogue Numbers Cable Terminals Pack Quantity Weight Compatible Fuse Links Size Vertical fuse switch disconnector for NH Size 00 for 100 mm busbar system - simultaneous 3 phase switching00 160 100 EBV0023TS8 Bridge terminals with bridge clamps (s) 4-70mm², screw terminals with M8 screws 1 1.3 kg 00 EBV00023TV1 V-terminals with V-clamps 25-120SW 1.5 kg EBV0023TV0 V-terminals, without V-clamps 1.3 kg Vertical fuse switch disconnector for NH Size 00 for 185 mm busbar system - each phase switching separately00 160 185 EBV0033SS8 Bridge terminals with bridge clamps (s) 4-70 mm², screw terminals with M8 screws 1 2.8 kg 00 EBV0033SV1 V-terminals with V-clamps 25-120SW 2.9 kg EBV0033SV0 V-terminals, without V-clamps 2.8 kg Vertical fuse switch disconnector for NH Size 00 for 185 mm busbar system - simultaneous 3 phase switching00 160 185 EBV0033TS8 Bridge terminals with bridge clamps (s) 4-70 mm 2 , screw terminals with M8 screws 1 2.7 kg 00 EBV0033TV1 V-terminals with V-clamps 25-120SW 2.8 kg EBV0033TV0 V-terminals without V-clamps 2.7 kg Vertical fuse switch disconnector for NH Sizes 1 and 2 for 185 mm busbar system - each phase switching separately2 400 185 EBV233SV1 V-terminals with V-clamps 240 mm 2 1 5.8 kg 1 and 2 EBV233SM1 Screw terminals with pressed nuts M10 5.7 kg EBV233SW1 2V-terminals with double clamps 240 mm 2 6.4 kg EBV233SV0 V-terminals without V-clamps 5.5 kg EBV233SW0 2V-terminals without double V-clamps 6.9 kg Vertical fuse rail suitable for NH Sizes 1 and 2 fuses for 185mm busbar system - simultaneous 3 phase switching2 400 185 EBV233TV1 V-terminals with V-clamps 240 mm 2 1 5.8 kg 1 and 2 EBV233TM1 Screw terminals with pressed nuts M10 5.7 kg EBV233TW1 2V-terminals with double V-clamps 240 mm 2 6.4 kg EBV233TV0 V-terminals without V-clamps 5.5 kg EBV233TW0 2V-terminals without double V-clamps 6.9 kg Vertical fuse rail suitable for NH size 3 fuses for 185mm busbar system - each phase switching separately3 630 185 EBV333SV1 V-terminals with V-clamps 240 mm 2 1 6.6 kg 3 EBV333SM2 Screw terminals with pressed nuts M12 6.5 kg EBV333SW1 2V-terminals with double V-clamps 240mm 2 7.2 kg EBV333SV0 V-terminals without V-clamps 6.3 kg EBV333SW0 2V-terminals without double V-clamps 6.7 kg Vertical fuse rail suitable for NH size 3 fuses for 185 mm busbar system - simultaneous 3 phase switching3 630 185 EBV333TV1 V-terminals with V-clamps 240 mm 2 1 6.6 kg 3 EBV333TM2 Screw terminals with pressed nuts M12 6.5 kg EBV333TW1 2V-terminals with double V-clamps 240 mm 2 7.2 kg EBV333TV0 V-terminals without V-clamps 6.3 kg EBV333TW0 2V-terminals without double V-clamps 6.7 kg NH Fuse switch disconnectors - vertical - EBV series 57 EATON Bussmann series NH catalogue   57 EATON Bussmann series NH catalogue

A cces so ries Technical data Type EBV 00/ 100 mm  EBV 00  EBV 2  EBV 3  Rated thermal current with fuse links I th  = I n A 160 160 400 630 Rated thermal current with solid links I th A N/A N/A 600 750 Voltage U n V 690 690 690 690 Utilisation category 690 V a.c. AC-22B AC-22B AC-22B AC-21B 500 V a.c. N/A N/A N/A AC-22B 400 V a.c. AC-23B AC-23B AC-23B AC-23B Rated switching current I e A 160 160 400 630 Rated short-circuit making current 690 V a.c. 25 80 100 80 500 V a.c. 25  N/A 100 100 400 V a.c. 25 100 100 100 Rated short-circuit withstand current 690 V a.c. 100 80 100 80 500 V a.c. 100 N/A 100 100 400 V a.c. 100 100 100 100 Rated insulation voltage U i V 1000 1000 1000 1000 Rated impulse withstand voltage U imp kV 8 12 12 12 Rated short time withstand current I cw kA N/A N/A 12 2 )/ 15 3 ) 14 2 )/ 16 3 ) Rated frequency Hz 50/60 50/60 50/60 50/60 Mechanical durability No. of cycles 1600 1600 1000 1000 Electrical durability 200 200 200 200 IP Rating IP 30 20 30 30 Fuse links size 00 00 1, 2 3 1: fuse link gTr 630 kVA, DIN 43620, VDE 0636/2011 voltage2  For disconnectors 1-phase disconnected3: For disonnectors 3-phase disconnectors NH Fuse switch disconnectors - vertical - EBV series Dimensions (mm) - EBV 00 100 mm M8 Screws EBV 00 (each phase switching separately) M10 Screws 58 EATON Bussmann series NH catalogue   58 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - vertical - EBV series Dimensions (mm) - EBV 00 (Three phase switching simultaneously) Dimensions (mm) - EBV 2 (Each phase switching separately) M12 Screws V-Terminals 59 EATON Bussmann series NH catalogue   59 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - vertical - EBV series Dimensions (mm) - EBV 2 (Three phase switching simultaneously) M12 Screws V-Terminals Dimensions (mm) - EBV 3 (One phase) M12 Screws V-Terminals 60 EATON Bussmann series NH catalogue   60 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - vertical - EBV series Dimensions (mm) - EBV 3 (Three phase) M12 Screws V-Terminals 61 EATON Bussmann series NH catalogue   61 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH000  Description Bussmann’s range of EBH000 NH Horizontal Gear is specifically  designed to be used with size 000 NH Fuse links up to 160 A.  They have compact dimensions, all energized metal parts are fully  protected against accidental contact. These are manually operated  switches and the making and breaking is dependent on the speed  of the operation.  Functionality   • Designed for installation onto mounting platess, 60 mm or 100  mm busbar systems   • Making and breaking operation should be done with determined  movement   • Parallel moving, double contact system   • Suitable for top or bottom cable terminal connection Catalogue numbers structure   • EBH000 O on mounting plates   • EBH000 1 on 60 mm busbar systems Standards/approvals   • IEC 60947-1 and 3, EN 60947-1 and 3 Technical data   • Voltage: 690 V a.c.   • Current: 160 A   • Utilisation category:    • AC21B   • AC22B    • AC23B    • DC21B Compatible fuse links   • Size 000 NH Fuse links up to 160 A Mounting options   • On mounting plates: EBH000 O   • On to 60 mm busbar systems: EBH000 1 Operating conditions   • Suitable for installation in environments free of any dust,  explosive or aggressive gases   • Altitude up to 2000 metres above sea level   • Can be used in outdoor environments if they are installed in  IP34 cabinets   • Relative air humidity should not be higher than 50% tempera- ture of +40 o C   • Ambient temperature from -25 o C to +55 o C Features   • Touch for IP 30 from the front   • Top/bottom cable termination possibility   • Compact dimensions   • Test holes provided on the cover to measure the voltage  across the link   • Various options for cable terminations   • Wide range of accessories) Packaging   • 1 per carton. 62 EATON Bussmann series NH catalogue   62 EATON Bussmann series NH catalogue

A cces so ries Catalogue Numbers Size Current (Amps) Busbar System Catalogue Numbers Cable Terminals Pack Quantity Compatible Fuse Links Size Horizontal fuse switch disconnector for NH size 000 up to 160 A for installation on mounting plates000 160 N/A EBH000O3TS5 for connection of round conductors - S-bridge clamps 1 000 up to 160 A EBH000O3TS5-D for connection of round conductors - S-bridge clamps, option to install on DIN railEBH000O3TM8 for connection of round conductors with lug terminals - M8 screws EBH000O3TM8-D for connection of round conductors with lug terminals - M8 screws,  option to install  on DIN rail EBH000O3TS5L for connection of round conductors - S-bridge clamps, lengthened terminal shrouds EBH000O3TM8L for connection of round conductors with lug terminals - M8 screws, lengthened  terminal shrouds Horizontal fuse switch disconnector for NH size 000 up to 160 A for installation on 60 mm busbar000 160 60 mm EBH00013TBS5 Cable terminal – bottom, for connection of round conductors - S-bridge clamps 1 000 up to 160 A EBH00013TTS5 Cable terminal – top, for connection of round conductors - S-bridge clamps EBH00013TBM8 Cable terminal – bottom, for connection of conductors with lug terminals - M8 screwsEBH00013TTM8 Cable terminal – top, for connection of conductors with lug terminals - M8 screws NH Fuse switch disconnectors - horizontal - EBH000  EBH 000 Rated thermal current with solid links I th A 160 Voltage U n V 690 Utilisation category AC-23B AC-22B AC-22B AC-21B DC-21B Rated switching current I e A 100 100 160 160 160 Rated switching Voltage U e V 400 690 400 690 250 Rated short circuit making current 690 V 100 100 100 100 100 Rated short-circuit withstand current 690 V 25 25 25 25 25 Rated insulation voltage U i V 1000 1000 1000 1000 1000 Rated power dissipation W 12 12 12 12 12 Rated impulse withstand voltage U imp kV 8 8 8 8 8 Rated frequency Hz 50-60 50-60 50-60 50-60 50-60 Mechanical durability Nb of cycles 2000 2000 2000 2000 2000 Electrical durability Nb of cycles 300 300 300 300 300 IP Rating IP20 IP20 IP20 IP20 IP20 Fuse links size 000 000 000 000 000 Technical data DIN-Rail Mounting plates Busbar 63 EATON Bussmann series NH catalogue   63 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH000  Dimensions (mm) - EBH000 Dimensions and spacing of holes for installation on EBH000 O on mounting plates On mounting plates With extended terminal shrouds 64 EATON Bussmann series NH catalogue   64 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH000  Dimensions (mm) - EBH000 (60 mm busbar mounting) Bottom cable terminal Top cable terminal  65 EATON Bussmann series NH catalogue   65 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH00 to 4 Description Eatons' Bussmann series NH horizontal fuse switch disconnectors  are specifically designed to be used with NH fuse links.  All energised metal parts are fully protected against accidental  contact. These are manually operated switches and the making  and breaking is dependent on the speed of the operation. The  EBV series NH gear are provided complete with the clamps (i.e.  screws/V-terminals/2V-terminals) and cable for shrouds for cable  termination. Functionality   • Designed for installation onto mounting platess, 60 mm or 100  mm busbar systems   • Making and breaking operation should be done with determined  movement   • Parallel moving, double contact system   • Suitable for top or bottom cable terminal connection Catalogue Numbers structure   • EBH (see catalogue numbers table) Standards/approvals   • IEC 60947-1 and 3, EN 60947-1 and 3 Technical data   • Voltage: 400, 500 and 690 V a.c.   • Current: 160 to 1600 A   • Utilisation category:    • AC21B Size 4   • AC22B Sizes 00 (V 120), 1-S, 3, 4   • AC23B Sizes 00 to 2   • DC21B Sizes 00, 2 and 3   • DC21B Sizes 00, 1 and 2 Compatible fuse links   • NH 400, 500 and 690 V NH gG and aM fuse links Mounting options   • On mounting plates   • EBH00 O, EBH1 O, EBH2 O, EBH3 O   •  On to busbar systems   •  60 mm busbar systems: EBH00 1, EBH1 1, EBH2 1  installation on to busbar system with hooked clamps   •  100 mm busbar systems: EBH2 2, EBH1 2 installation on to  busbar system with hooked clamps Operating conditions   • Suitable for installation in environments free of any dust,  explosive or aggressive gases   • Altitude up to 2000 metre above sea level   • Can be used in outdoor environments if they are installed in  IP34 cabinets   • Relative air humidity should not be higher than 50%  temperature of +40 o C   • Ambient temperature from -25 o C to +55 o C Features   • Touch for IP 30 from the front   • Top/bottom cable termination possibility   • Test holes provided on the cover to measure the voltage  across the link   • Various options for cable terminations   • Wide range of accessories) Packaging   • 1 per carton. 66 EATON Bussmann series NH catalogue   66 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH00 to 4 Catalogue Numbers Size Current (Amps) Busbar System Catalogue Numbers Cable Terminals Pack Quantity Compatible Fuse Links Size Horizontal fuse switch disconnector for NH size 00 for installation on mounting plates00 160 N/A EBH00O3TS5 For connection of round conductors 1 00 EBH00O3TM8 For connection of conductors with lug terminals EBH00O3TV1 For connection of sector-shaped conductors EBH00O3TS5L For connection of round conductors, lenghtened terminal shrouds EBH00O3TM8L For connection of conductors with lug terminals, lenghtened terminal shroudsEBHOO03TV1L For connection of sector-shaped conductors, lengthened terminal shrouds Horizontal fuse switch disconnector for NH size 00 for installation on 60 mm busbar00 160 60 mm EBH0013TBM8 Cable terminal - bottom, for connection of conductors with lug terminals 1 00 EBH0013TTM8 Cable terminal - top, for connection of conductors with lug terminalsEBH0013TBF Cable terminal - top, for connection of conductors with bare ends EBH0013TTF Cable terminal - bottom, for connection of conductors with bare ends frame clamps Horizontal fuse switch disconnector for NH size 1 for installation on mounting plates1 250 N/A EBH1O3TS8 For connection of round conductors - S-bridge clamps 1 1 EBH1O3TM1 For connection of conductors with lug terminals - screws EBH1O3TV1 For connection of sector-shaped conductors V-clamps EBH1O3TVS For connection of round conductors, top terminals, V-terminals, bottom terminals,  S-bridge terminals EBH1O3TVM For connection of round conductors, top terminals, V-terminals, bottom terminals,  screw terminals EBH1O3TSV For connection of round conductors, top terminals, S-bridge terminals, bottom  terminals, V-terminals EBH1O3TMV For connection of round conductors, top terminal, screw terminals, bottom terminals,  V-terminals Horizontal fuse switch disconnector for NH size 1 for installation on 60 mm busbar1 250 60 mm EBH113TTS8 Top cable terminals, for connection of round conductors, S-bridge clamps 1 1 EBH113TBS8 Bottom cable terminals, for connection of round conductors, S-bridge clamps EBH113TBM1 Bottom cable terminals, for connection of conductors with lug terminals - screws EBH113TTV1 Top cable terminals, for connection of sector-shaped conductors - V-clamps EBH113TBV1 Bottom cable terminals for connection of sector-shaped conductors - V-clamps Horizontal fuse switch disconnector for NH size 1 for installation on 100 mm busbar1 250 100 mm EBH123TTS8 Top cable terminals, for connection of round conductors 1 1 EBH123TBS8 Bottom cable terminals, for connection of round conductors - S-bridge clamps EBH123TTM1 Top cable terminals, for connection of conductors, with lug terminals - screws EBH123TBM1 Bottom cable terminals, for connection of conductors, with lug terminals - screws EBH123TTV1 Top cable terminals, for connection of sector shaped conductors - V-clamps EBH123TBV1 Bottom cable terminals for connection  Horizontal fuse switch disconnector for NH size 2 for installation on mounting plates2 400 N/A EBH2O3TS8 For connection of round conductors - S-bridge clamps 1 2 EBH2O3TM1 For connection of conductors with lug terminals - M10 screws EBH2O3TV1 For connection of sector-shaped conductors - V-clamps EBH2O3TW1 For connection of sector-shaped conductors - double V-clamps Horizontal fuse switch disconnect for NH size 2 for installation on 60 mm busbar2 400 60 EBH213TBM1 Bottom cable terminals, for connection of conductors with lug terminals, M10 screws 1 2 EBH213TTM1 Top cable terminals, for connection of conductors with lug terminals, M10 screws EBH213TBV1 Bottom cable terminals, for connection of sector-shaped conductors, V-clamps EBH213TTV1 Top cable terminals, for connection of sector shaped conductors, V-clamps EBH213TBW1 Bottom cable terminals, for connection of sector shaped conductors, double V-clamps EBH213TTW1 Top cable terminals, for connection of sector shaped conductors, double V-clamps 1: Please contact Bussmann to discuss specific requirements 67 EATON Bussmann series NH catalogue   67 EATON Bussmann series NH catalogue

A cces so ries Catalogue Numbers Size Current (Amps) Busbar System Catalogue Numbers Cable Terminals Pack Quantity Compatible Fuse Links Size Horizontal fuse switch disconnector for NH size 2 for installation on 100 mm busbar2 400 100 mm EBH223TBM1 Bottom cable terminals, for connection of conductors with lug terminals, M10 screws 1 2 EBH223TTM1 Top cable terminals, for connection of conductors with lug terminals, M10 screws EBH223TBV1 Bottom cable terminals, for connection of sector shaped conductors , V-clamps EBH223TTV1 Top cable terminals, for connection of sector shaped conductors, V-clamps EBH223TBW1 Bottom cable terminals, for connection of sector shaped conductors, double V-clamps EBH223TTW1 Top cable terminals, for connection of sector shaped conductors, double V-clamps Horizontal fuse switch disconnector for NH size 3 for installation on mounting plates3 630 N/A EBH3O3TS8 For connection of round conductors, S-bridge clamps 1 3 EBH3O3TM2 For connection of conductors with lug terminals, M12 screws Horizontal fuse switch disconnector for NH size 3 for installation on 60 mm busbar3 630 60 mm EBH313TM2 For installation on to 60 mm busbar system, top/bottom cable terminals, M12 screws 1 3 Horizontal fuse switch disconnector for NH size 4 for installation on mounting plates4a 1250 N/A EBH403TM2-12 Three phase switching simultaneously 1 4 1600 EBH403TM2-16 Three phase switching simultaneously 1250 EBH403SM2-12 Each phase switching simultaneously 1600 EBH403SM2-16 Each phase switching simultaneously NH Fuse switch disconnectors - horizontal - EBH00 to 4 EBH 00 EBH 1 EBH 2 Rated thermal current with solid links I th A 160 250 400 Voltage U n V 690 690 690 Utilisation category AC-23B DC-21B DC-22B AC-23B AC-22B DC-22B AC-23B DC-21B DC-22B Rated switching current I e A 160 160 160 250 250 250 400 400 400 Rated switching Voltage U e V 690 440 250 400 690 250 690 440 220 Rated short circuit making current 690 V 80 20 20 80 80 25 80 15 20 400 V 100 20 20 100 100 25 100 15 20 Rated short-circuit withstand current 690 V 80 20 20 80 80 25 80 400 V 100 20 20 100 100 25 100 Rated insulation voltage U i V 1000 1000 1000 Rated power dissipation W 12 32 45 Rated impulse withstand voltage U imp kV 8 8 12 Rated frequency Hz 50-60 N/A N/A 50-60 50-60 N/A 50-60 N/A N/A Mechanical durability No of cycles 1600 1600 1000 Electrical durability 200 200 200 IP Rating IP 20 30 20 Weight kg 0.7, 0.9 2.5 3 / 4.5 Fuse links size 00 1 2 Technical data - sizes 00, 1 and 2 68 EATON Bussmann series NH catalogue   68 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH00 to 4 Dimensions (mm) for EBH00 suitable for installation on mounting plates  Dimensions and spacing holes for installation on mounting plates With extended terminals Without extended terminals EBH 3 EBH4a Rated thermal current with solid links I th A 630 1250 1600 Voltage U n V 690 500 400 Utilisation category AC-22B DC-21B AC-22B AC-21B Rated switching current I e A 630 630 1250 1600 Rated switching Voltage U e V 690 250 500 400 Rated short circuit making current 690 V 100 100 400 V 100 100 Rated short-circuit withstand current 690 V 25 400 V 25 50 Rated insulation voltage U i V 1000 800 Rated power dissipation W 60 Rated impulse withstand voltage U imp kV 12 8 Rated frequency Hz 50-60 N/A 50-60 Mechanical durability No of cycles 1000 Electrical durability 200 IP Rating IP 20 Weight kg 5 / 5.9 Fuse links size 3 4a Technical data - sizes 3 and 4a 69 EATON Bussmann series NH catalogue   69 EATON Bussmann series NH catalogue

A cces so ries Dimensions (mm) for EBH1 suitable for installation on mounting platess NH Fuse switch disconnectors - horizontal - EBH00 to 4 Dimensions and spacing holes for installation on mounting platess Screw terminals V Clamps 70 EATON Bussmann series NH catalogue   70 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH00 to 4 Dimensions (mm) for EBH1 suitable for installation on 60 mm busbar Dimensions (mm) for EBH1 suitable for installation on 100 mm busbar 71 EATON Bussmann series NH catalogue   71 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH00 to 4 Dimensions (mm) for EBH2 suitable for installation on mounting platess Screw Terminals V Terminals Dimensions and spacing holes for installation on mounting platess 72 EATON Bussmann series NH catalogue   72 EATON Bussmann series NH catalogue

A cces so ries NH Fuse switch disconnectors - horizontal - EBH00 to 4 Dimensions (mm) for EBH2 suitable for installation on 60 mm busbar Dimensions (mm) for EBH2 suitable for installation on 100 mm busbar 73 EATON Bussmann series NH catalogue   73 EATON Bussmann series NH catalogue

A cces so ries Dimensions (mm) for EBH3 NH Fuse switch disconnectors - horizontal - EBH00 to 4 Dimensions (mm) for EBH4 74 EATON Bussmann series NH catalogue   74 EATON Bussmann series NH catalogue

Index - by catalogue numbers Catalogue number Size Voltage Class Type Page 170H0236 N/A 250 N/A Microswitch 49 170H0238 N/A 250 N/A Microswitch 49 BVL50 N/A 250 N/A Microswitch 49 EBF 00 to 3 690 N/A NH Fuse rails - vertical 53-55 EBH00 to 4 00 to 4 400, 500, 690 N/A NH Fuse disconnector - horizontal 66-74 EBH000 000 690 N/A NH Fuse disconnector - horizontal 62-65 EBV N/A 690 N/A NH Fuse disconnector - vertical 56-61 FEH N/A N/A N/A Fuse extraction handle 48 NHG000B 000 500 gG/gL NH Fuse - Metal 22 NHG000B-400 000 400 gG/gL NH Fuse - Metal 14 NHG000B-690 000 690 gG/gL NH Fuse - Metal 34 NHG000BI 000 500 gG/gL NH Fuse - IMGL 22 NHG000BI-400 000 400 gG/gL NH Fuse - IMGL 14 NHG00B 00 500 gG/gL NH Fuse - Metal 23 NHG00B-400 00 400 gG/gL NH Fuse - IMGL 15 NHG00B-690 00 690 gG/gL NH Fuse - Metal 35 NHG00BI 00 500 gG/gL NH Fuse - IMGL 23 NHG00BI-400 00 400 gG/gL NH Fuse - IMGL 15 NHG01B 01 500 gG/gL NH Fuse - Metal 25 NHG01B-400 01 400 gG/gL NH Fuse - Metal 16 NHG01BI 01 500 gG/gL NH Fuse - IMGL 25 NHG01BI-400 01 400 gG/gL NH Fuse - IMGL 16 NHG02B 02 500 gG/gL NH Fuse - Metal 27 NHG02B-400 02 400 gG/gL NH Fuse - Metal 17 NHG02BI 02 500 gG/gL NH Fuse - IMGL 27 NHG02BI-400 02 400 gG/gL NH Fuse - IMGL 17 NHG03B 03 500 gG/gL NH Fuse - Metal 29 NHG03B-400 03 400 gG/gL NH Fuse - Metal 18 NHG03BI 03 500 gG/gL NH Fuse - IMGL 29 NHG03BI-400 03 400 gG/gL NH Fuse - IMGL 18 NHG0B 0 500 gG/gL NH Fuse - Metal 24 NHG1B 1 500 gG/gL NH Fuse - Metal 26 NHG1B-400 1 400 gG/gL NH Fuse - Metal 16 NHG1B-690 1 690 gG/gL NH Fuse - Metal 36 NHG1BI 1 500 gG/gL NH Fuse - IMGL 26 NHG1BI-400 1 400 gG/gL NH Fuse - IMGL 16 NHG2B 2 500 gG/gL NH Fuse - Metal 28 NHG2B-400 2 400 gG/gL NH Fuse - Metal 17 NHG2B-690 2 690 gG/gL NH Fuse - Metal 37 NHG2BI 2 500 gG/gL NH Fuse - IMGL 28 NHG2BI-400 2 400 gG/gL NH Fuse - IMGL 17 NHG3B 3 500 gG/gL NH Fuse - Metal 30 NHG3B-400 3 400 gG/gL NH Fuse - Metal 18 NHG3B-690 3 690 gG/gL NH Fuse - Metal 38 NHG3BI-400 3 400 gG/gL NH Fuse - IMGL 18 NHG4B-690 4 690 gG/gL NH Fuse - Metal 39 NHG4G 4 500 gG/gL NH Fuse - Metal 31 NHM000B 000 500 aM NH Fuse - Metal 42 NHM000B-690 000 690 aM NH Fuse - Metal 42 NHM00B 00 500 aM NH Fuse - Metal 43 NHM00B-690 00 690 aM NH Fuse - Metal 43 NHM1B 1 500 aM NH Fuse - Metal 44 NHM1B-690 1 690 aM NH Fuse - Metal 44 NHM2B 2 500 aM NH Fuse - Metal 45 NHM2B-690 2 690 aM NH Fuse - Metal 45 NHM3B 3 500 aM NH Fuse - Metal 46 NHM3B-690 3 690 aM NH Fuse - Metal 46 SD-D 1-pole 690 N/A NH Base 47-52 SDL N/A N/A N/A Solid link 48 SD-PB N/A N/A N/A Phase barrier kit 49 SD-S 1-pole 690 N/A NH Base 47-52 SD-SK N/A N/A N/A Shroud kit 48 TD-D 3-pole 690 N/A NH Base 47-52 TD-IP20 N/A N/A N/A IP20 Protection kit 49 IMGL: Insulated Metal Gripping Lugs 75 EATON Bussmann series NH catalogue

Index - by size Size Voltage Catalogue number Class Type Page 0 500 NHG0B gG/gL NH Fuse - Metal 24 00 400 NHG00B-400 gG/gL NH Fuse - IMGL 15 00 400 NHG00BI-400 gG/gL NH Fuse - IMGL 15 00 500 NHG00B gG/gL NH Fuse - Metal 23 00 500 NHG00BI gG/gL NH Fuse - IMGL 23 00 500 NHM00B aM NH Fuse - Metal 43 00 690 NHG00B-690 gG/gL NH Fuse - Metal 35 00 690 NHM00B-690 aM NH Fuse - Metal 43 00 to 3 690 EBF N/A NH Fuse rails - vertical 53-55 00 to 4 400, 500, 690 EBH00 to 4 N/A NH Fuse disconnector - horizontal 66-74 000 400 NHG000B-400 gG/gL NH Fuse - Metal 14 000 400 NHG000BI-400 gG/gL NH Fuse - IMGL 14 000 500 NHG000B gG/gL NH Fuse - Metal 22 000 500 NHG000BI gG/gL NH Fuse - IMGL 22 000 500 NHM000B aM NH Fuse - Metal 42 000 690 EBH000 N/A NH Fuse disconnector - horizontal 62-65 000 690 NHG000B-690 gG/gL NH Fuse - Metal 34 000 690 NHM000B-690 aM NH Fuse - Metal 42 01 400 NHG01B-400 gG/gL NH Fuse - Metal 16 01 400 NHG01BI-400 gG/gL NH Fuse - IMGL 16 01 500 NHG01B gG/gL NH Fuse - Metal 25 01 500 NHG01BI gG/gL NH Fuse - IMGL 25 02 400 NHG02B-400 gG/gL NH Fuse - Metal 17 02 400 NHG02BI-400 gG/gL NH Fuse - IMGL 17 02 500 NHG02B gG/gL NH Fuse - Metal 27 02 500 NHG02BI gG/gL NH Fuse - IMGL 27 03 400 NHG03B-400 gG/gL NH Fuse - Metal 18 03 400 NHG03BI-400 gG/gL NH Fuse - IMGL 18 03 500 NHG03B gG/gL NH Fuse - Metal 29 03 500 NHG03BI gG/gL NH Fuse - IMGL 29 1 400 NHG1B-400 gG/gL NH Fuse - Metal 16 1 400 NHG1BI-400 gG/gL NH Fuse - IMGL 16 1 500 NHG1B gG/gL NH Fuse - Metal 26 1 500 NHG1BI gG/gL NH Fuse - IMGL 26 1 500 NHM1B aM NH Fuse - Metal 44 1 690 NHG1B-690 gG/gL NH Fuse - Metal 36 1 690 NHM1B-690 aM NH Fuse - Metal 44 1-pole 690 SD-D N/A NH Base 47-52 1-pole 690 SD-S N/A NH Base 47-52 2 400 NHG2B-400 gG/gL NH Fuse - Metal 17 2 400 NHG2BI-400 gG/gL NH Fuse - IMGL 17 2 500 NHG2B gG/gL NH Fuse - Metal 28 2 500 NHG2BI gG/gL NH Fuse - IMGL 28 2 500 NHM2B aM NH Fuse - Metal 45 2 690 NHG2B-690 gG/gL NH Fuse - Metal 37 2 690 NHM2B-690 aM NH Fuse - Metal 45 3 400 NHG3B-400 gG/gL NH Fuse - Metal 18 3 400 NHG3BI-400 gG/gL NH Fuse - IMGL 18 3 500 NHG3B gG/gL NH Fuse - Metal 30 3 500 NHM3B aM NH Fuse - Metal 46 3 690 NHG3B-690 gG/gL NH Fuse - Metal 38 3 690 NHM3B-690 aM NH Fuse - Metal 46 3-pole 690 TD-D N/A NH Base 47-52 4 500 NHG4G gG/gL NH Fuse - Metal 31 4 690 NHG4B-690 gG/gL NH Fuse - Metal 39 N/A 250 170H0236 N/A Microswitch 49 N/A 250 170H0238 N/A Microswitch 49 N/A 250 BVL50 N/A Microswitch 49 N/A 690 EBV N/A NH Fuse disconnector - vertical 56-61 N/A N/A FEH N/A Fuse extraction handle 48 N/A N/A SDL N/A Solid link 48 N/A N/A SD-PB N/A Phase barrier kit 49 N/A N/A SD-SK N/A Shroud kit 48 N/A N/A TD-IP20 N/A IP20 Protection kit 49 IMGL: Insulated Metal Gripping Lugs 76 EATON Bussmann series NH catalogue

Notes 77 EATON Bussmann series NH catalogue

Notes 78 EATON Bussmann series NH catalogue

Customer satisfaction team Bussmann’s Custo mer Satisfaction Team is available to answer questions regarding Bussmann products. Europe calls can be made between: Monday - Thursday   7.30 a.m. - 5.30 p.m. GMT Friday     7.30 a.m. - 5.00 p.m. GMT The Customer Service Satisfaction Team can be reached via: Phone:  00 44 (0) 1509 882 600 Fax:   00 44 (0) 1509 882 786 Email:   [email protected] 'My Eaton' customer center 'My eaton' portal supports the following Divisions: B-Line, Bussmann, Crouse-Hinds, Cooper Lighting, Cooper Power Systems, Cooper Safety, and Cooper Wiring Devices. Get started today at www.my.eaton.com by clicking ‘Request User ID and Password’. • Easy to Navigate• Simple to Use• Real-Time Data. Online resources Visit www.bussmann.com for the following resources: • Product cross reference• Product profiles• Online catalogues for the latest United States and European catalogues. Application engineering Application Engineering assistance is available to all customers. The Application Engineering team is staffed byuniversity-qualified electrical engineers who are available with technical and application support. Europe calls can be made between: Monday - Thursday   8.30 a.m. - 4.30 p.m. GMT Friday     8.30 a.m. - 4.00 p.m. GMT Application Engineering can be reached via: Phone:  00 44 (0) 1509 882 699 Fax:   00 44 (0) 1509 882 794 Email:   [email protected] 79 EATON Bussmann series NH catalogue
