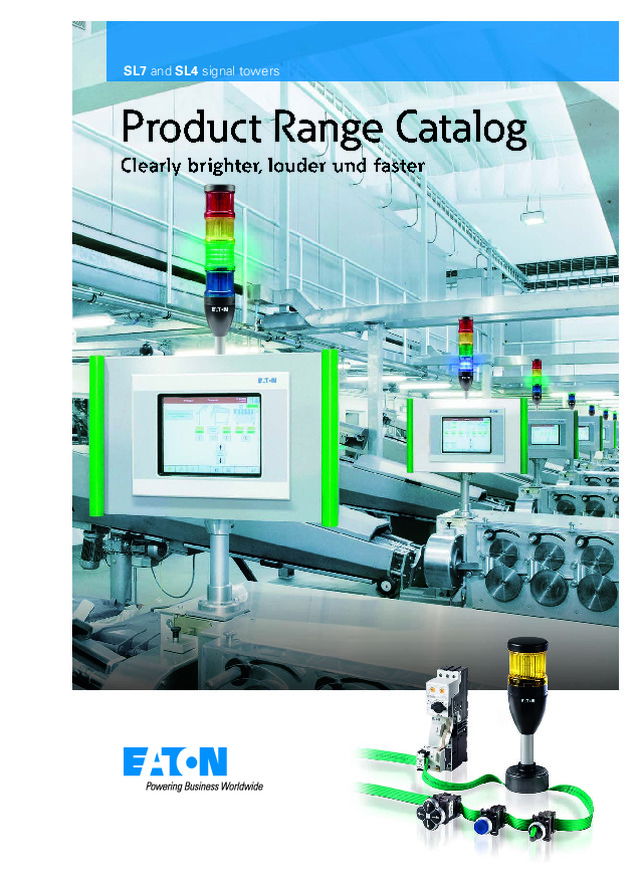

SL7 and SL4 signal towers

You can find comprehensive up-to-date product information at http://de.ecat.moeller.net Lookup You can search by keywords, product names, article numbers, technical data: The search understands everything and takes you straight to the product you’re looking for. Graphical navigation Graphical representation of the fields of application and product groups. Selection aids Tailored to the typical expert’s approach, this search aid helps you quickly find the product you need. Data sheets For every article the catalog can generate a technical data sheet, which you can convert to a PDF file for printing or saving with a single click. Parts lists From your search results you can create a parts list that you can then send to your Eaton sales partner as a query. You can find comprehensive up-to-date information about Eaton’s automation products and switchgear in our Online Catalog. Eaton Online Catalog – find product details quickly and efficiently! HTML data sheet; can be saved as PDF file. Parts list, e.g. for queries to Eaton Sales. Doppelseite_GB.indd 23 10.05.12 14:42

Signal towers CA047002EN-INT www.eaton.eu 1 Signal towers SL7 System overview 6 Ordering 8 Complete devices 8 Customised complete unit 8 Card with LED 8 Continuous light 8 Flashing light 9 Strobe light 10 Card with high-output LED 11 Continuous light 11 Flashing light 11 Strobe light 11 Card for filament lamp 11 Continuous light 11 Acoustic modules 12 Basic modules 13 Mounting brackets 14 Including mounting bracket M20 cable gland 14 Tool for replacing filament lamp 14 Filament bulbs 14 Technical data 15 Dimensions 17 Complete devices 17 Light modules 17 Acoustic modules 17 Basic modules 18 Base module for connecting to SmartWire-DT ® 20 Accessories 20 Signal towers SL4 System overview 22 Ordering 24 Complete devices 24 Customised complete unit 24 Card with LED 24 Continuous light 24 Flashing light 25 Strobe light 26 Multistrobe light 26 Card for filament lamp 27 Continuous light 27 Acoustic modules 27 Basic modules 28 Mounting brackets 29 Including mounting bracket M20 cable gland 29 Tool for replacing filament lamp 29 Filament bulbs 29 Technical data 30 Dimensions 32 Complete devices 32 Light modules 32 Acoustic modules 32 Basic modules 33 Base module for connecting to SmartWire-DT ® 35 Accessories 35 ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.84") 295 mm (11.61") 16.6 mm (0.65") ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.84") 261 mm (10.28") 17.3 mm (0.68")

Energizing a world that demands more. Powering business worldwide As a global diversiﬁ ed power management company, we help customers worldwide manage the power needed for buildings, aircraft, trucks, cars, machinery and businesses. Eaton’s innovative technologies help customers manage electrical, hydraulic and mechanical power more reliably, efﬁ ciently, safely and sustainably. Discover today’s Eaton. Unbenannt-1 2 25.04.13 11:24

We deliver: Electrical solutions that use less energy, improve power reliability and make the places we live and work safer and more comfortable Hydraulic and electrical solutions that enable machines to deliver more productivity without wasting power Aerospace solutions that make aircraft lighter, safer and less costly to operate, and help airports operate more efficiently Vehicle drivetrain and powertrain solutions that deliver more power to cars, trucks and buses, while reducing fuel consumption and emissions We provide integrated solutions that help make energy, in all its forms, more practical and accessible. With 2012 sales of $16.3 billion, Eaton has approximately 103,000 employees around the world and sells products in more than 175 countries. Eaton’s electrical business Eaton is a global leader with expertise in: w aton. ww.e eu Unbenannt-1 3 25.04.13 11:24

Clearly Eaton! Eaton has the entire machine in view – from the control panel to the peripherals. Its optimized signal towers can now guarantee even better control over all key processes and with it increased availability for your machines. Clearly MORE EFFICIENT! An essential part of Eaton’s Lean Solution approach, SmartWire-DT is a technology designed to reduce electrical engineering costs for machines by up to 30%. Signal towers are an important component of this technology, since the advance warning function provides information that help the operator avoid potential standstills and increase availability Potential failures are not just detected in advance by intelligent switchgear, but in fact are also signalized by signal towers with SmartWire-DT. Clearly LOVELIER! An engaging design with smooth curves enhances the appeal of our new signal towers and, together with the control and signal units in the RMQ-Titan range of products, creates a standardized look for machines and systems. Saving 30% Example: Savings in every step of the life cycle Planning / engineering Material Wiring Commis- sioning Maintenance Lean Solution Conventional solution Katalog-Doppelseite.indd 4 05.04.13 10:56

SL 7 70 mm SL 4 40 mm The transporta-tion cover pro-tects cables and terminals. Clearly LOUDER! Acoustic modules with up to 8 selectable signals, as well as adjustable volume levels (up to 100 dB), make it possible to adapt perfectly to any environment. Clearly BRIGHTER! Clearly MORE FLEXIBLE! Signal towers indicate machine states by means of visual and acoustic signals. Accordingly, they must be easy to see from a distance, and the information they provide must be clear from the get-go. Orange has been added to the colors shown in order to comply with international standards. More importantly, Eaton has improved its signal towers exactly where it counts. High-performance LEDs provide a level of brightness that will be reliably seen even under extremely adverse conditions. Benefit from better attention-getting power, stronger brightness and higher volumes as well as multiple tone variants to identify faults unambiguously or even help prevent them from occurring at all. Clearly MORE COMPACT! Eaton signal towers have been designed with flexibility in mind so that they can be used regardless of adverse installation conditions, such as the lack of ceiling clearance and situations that require different signals on the right or left-hand side. Both signal tower sizes can also be installed vertically with up to 5 elements per side. Clearly STURDIER! With a high IP66 degree of protection, our signal towers provide perfect protection even against water jets from all directions. These signal towers are meant for worldwide use. Type approvals and certifications for Europe and North American have already been obtained, and ship classifications and CCC are currently pending. Mounting and dismantl-ing of protruding signal towers can be a major effort, particularly when transporting machines. The new rapid-mount system speeds up that process by up to 50%. Our new signal towers can be flexibly installed in any of 9 different ways. In addition to the option of mounting them on the side, there are various options for mounting the cup-shaped base directly, as well as a variety of tube mounting options. In addition, tubes with lengths of 100, 250, and 400 mm make mounting even more flexible. Katalog-Doppelseite.indd 5 05.04.13 10:56

6 Signal towers SL7 CA047002EN-INT www.eaton.eu SL7 System overview 6h 6i 6c 6b 7 5c 7 1 3 6, 6a 4, 4a, 4b, 4c 2, 2a, 2b 6e 6f 6g 6d 5b 5a 7 7

CA047002EN-INT www.eaton.eu Signal towers SL7 7 Card for filament lamp, continuous light 1 Without light element (filament lamp with BA15d socket)Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor)￫ page 11 Card with LED, continuous light 2 Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor) Card with LED 2a with LED ￫ page 8 Card with high-output LED 2b with High Performance LED ￫ page 11 Card with LED, flashing light 3 with LED Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor)Flashing frequency 2 Hz ￫ page 9 Card with LED, strobe light 4 Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor) Card with LED 4a with LED Flashing frequency 1.4 Hz ￫ page 10 Card with high-output LED 4b with High Performance LED Flashing frequency 1.4 Hz ￫ page 11 Card with high-output LED 4c with High Performance LED with various strobe sequencesFlashing frequency 1 - 2.6 Hz ￫ page 11 Acoustic module 5 Easy mounting with bayonet mount Set up as topmost module Max. 2 x 1 modules that can be actuated separately (two with base module SL7-CB-D only)Permanently integrated cover plate Degree of protection IP66 Operating mode: 100 % DF (duty factor)sound pressure 100 db, adjustable with internal potentiometer Acoustic module 5a Continuous tone or pulsed tone, adjustable with internal dip switchesFrequency: 2800 Hz ￫ page 12 Acoustic module 5b Multi-tone (8 tones) adjustable with internal dip switchFrequency 500 - 2700 Hz ￫ page 12 Acoustic module 5c Continuous tone or pulsed tone; can be actuated externally; takes up 2 inputs (2 modules)Frequency: 2800 Hz ￫ page 12 Base module 6 Easy mounting with bayonet mount Degree of protection IP66 Including cover plate With spring-cage terminals Base for mounting on both sides 6a ￫ page 14 Base with aluminium tube and plastic foot 6b Aluminium tube 100 mm, 250 mm or 400 mm￫ page 13 Base with aluminum tube and banjo bolt 6c Aluminium tube 100 mm, 250 mm or 400 mm￫ page 13 Base with external fixing holes 6 d ￫ page 13 One-sided base with bracket 6e ￫ page 14 Base with internal (on the inside) fixing holes 6f ￫ page 13 Base with built-in (pre-assembled) fixing screws 6g ￫ page 13 Base with base adapter for slipping onto place (rapid mounting and wiring system) 6h Aluminium tube 100 mm, 250 mm or 400 mm￫ page 13 Base with base adapter for slipping onto place (rapid mounting and wiring system) and SmartWire-DT connection 6i Aluminium tube 100 mm ￫ page 13 Accessory Considerations 7 Mounting brackets Including mounting bracket M20 cable glandTool for replacing filament lamp Filament lamp ￫ page 14

8 Signal towers SL7, Complete devices, Light modules CA047002EN-INT www.eaton.eu SL7, Complete devices, Light modules Ordering Rated operational voltage Number of modules Colour Function Part no.Article no. Pricesee price list Std. pack U e V Complete devices Continuous light, LED, IP66, Base module with foot and 100 mm tube 24 V AC/DC 2 SL7-100-L-RG-24LED171424 1 off 3 SL7-100-L-RYG-24LED171425 Customised complete unit Order on request - - - - SL7-COMBINATION2011955 1 off Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V Card with LED Continuous lightIP66 24 V AC/DC SL7-L24-B171461 1 off SL7-L24-G171462 SL7-L24-R171463 SL7-L24-W171464 SL7-L24-Y171465 SL7-L24-A171466 110/120 V AC SL7-L120-B171467 SL7-L120-G171468 SL7-L120-R171469 SL7-L120-W171470 SL7-L120-Y171471 SL7-L120-A171472 230/240 V AC SL7-L230-B171473 SL7-L230-G171474 SL7-L230-R171475 SL7-L230-W171476 SL7-L230-Y171477 SL7-L230-A171426 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No.NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in Canada Degree of Protection UL Type 4, 4X, 13

Signal towers SL7, Light modules CA047002EN-INT www.eaton.eu 9 SL7, Light modules Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V Card with LED Flashing lightIP662 Hz 24 V AC/DC SL7-BL24-B171439 1 off SL7-BL24-G171440 SL7-BL24-R171441 SL7-BL24-W171442 SL7-BL24-Y171388 SL7-BL24-A171389 110/120 V AC SL7-BL120-B171390 SL7-BL120-G171391 SL7-BL120-R171392 SL7-BL120-W171393 SL7-BL120-Y171394 SL7-BL120-A171395 230/240 V AC SL7-BL230-B171396 SL7-BL230-G171397 SL7-BL230-R171398 SL7-BL230-W171399 SL7-BL230-Y171400 SL7-BL230-A171401 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13

10 Signal towers SL7, Light modules CA047002EN-INT www.eaton.eu Card with LED Strobe lightIP661.4 Hz 24 V AC/DC SL7-FL24-B171402 1 off SL7-FL24-G171403 SL7-FL24-R171404 SL7-FL24-W171405 SL7-FL24-Y171406 SL7-FL24-A171407 110/120 V AC SL7-FL120-B171408 SL7-FL120-G171409 SL7-FL120-R171410 SL7-FL120-W171411 SL7-FL120-Y171412 SL7-FL120-A171413 230/240 V AC SL7-FL230-B171414 SL7-FL230-G171415 SL7-FL230-R171416 SL7-FL230-W171417 SL7-FL230-Y171418 SL7-FL230-A171419 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13 Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V

Signal towers SL7, Light modules CA047002EN-INT www.eaton.eu 11 Card with high-output LED Continuous lightIP66High-performance LED for maximum signaling effectHigh Performance LED 24 V AC/DC SL7-L24-B-HP171427 1 off SL7-L24-G-HP171428 SL7-L24-R-HP171429 SL7-L24-W-HP171430 SL7-L24-Y-HP171431 SL7-L24-A-HP171432 Strobe lightIP66High-performance LED for maximum signaling effectHigh Performance LED1.4 Hz 24 V AC/DC SL7-FL24-B-HP171420 SL7-FL24-G-HP171421 SL7-FL24-R-HP171422 SL7-FL24-W-HP171423 SL7-FL24-Y-HP171273 SL7-FL24-A-HP171274 Multistrobe lightIP66High-performance LED for maximum signaling effectHigh Performance LED1 - 2.6 Hz 24 V AC/DC SL7-FL24-B-HPM171275 SL7-FL24-G-HPM171276 SL7-FL24-R-HPM171277 SL7-FL24-W-HPM171278 SL7-FL24-Y-HPM171279 SL7-FL24-A-HPM171280 Card for filament lamp Continuous lightIP66without light elementsFilament lamp max. 7 WFilament bulbs ￫ page 14 250 V AC/DC SL7-L-B171433 1 off SL7-L-G171434 SL7-L-R171435 SL7-L-W171436 SL7-L-Y171437 SL7-L-A171438 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13 Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V

12 Signal towers SL7, Acoustic modules CA047002EN-INT www.eaton.eu SL7, Acoustic modules Rated operational voltage Rated operational current Colour Function Sound type Part no.Article no. Pricesee price list Std. pack U e I e V mA Acoustic modules Continuous tone or pulsed tone, adjustable with internal dip switches.Sound pressure 100 db, adjustable with internal potentiometer.f = 2800 HzPlace only at the highest position on a poleIP66 24 V AC/DC max. 92 SL7-AP24171281 1 off 110/120 V AC max. 41 SL7-AP120171282 230/240 V AC max. 43 SL7-AP230171283 Continuous tone or pulsed tone, external actuation. Assigned two inputs (2 modules).Sound pressure 100 db, adjustable with internal potentiometer.f = 2800 HzPlace only at the highest position on a poleIP66 24 V AC/DC max. 92 SL7-AP24-E171284 1 off 110/120 V AC max. 41 SL7-AP120-E171285 230/240 V AC max. 43 SL7-AP230-E171286 Multi-tone; 8 tones, adjustable with internal dip switch.Sound pressure 100 db, adjustable with internal potentiometer.f = 500 - 2700 HzPlace only at the highest position on a poleIP66 24 V AC/DC max. 115 SL7-AP24-M171287 1 off 110/120 V AC max. 45 SL7-AP120-M171288 230/240 V AC max. 43 SL7-AP230-M171289 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13

Signal towers SL7, Basic modules CA047002EN-INT www.eaton.eu 13 SL7, Basic modules Tube length Colour For use with Part no.Article no. Pricesee price list Std. pack Basic modules for horizontal mounting, including cover, max. 5 modules Base with aluminium tube and plastic foot Spring-loaded terminals 100 mm blackAluminum color tube SL7-L-…SL7-BL-…SL7-FL-…SL7-AP-… SL7-CB-100171443 1 off 250 mm SL7-CB-250171444 400 mm SL7-CB-400171445 Base with aluminum tube and banjo boltSpring-loaded terminals 100 mm SL7-CB-T-100171452 250 mm SL7-CB-T-250171453 400 mm SL7-CB-T-400171454 Base with internal (on the inside) fixing holesSpring-loaded terminals - black SL7-CB-IMH 1) 171447 Base with built-in (pre-assembled) fixing screwsSpring-loaded terminals - SL7-CB-IMS171448 Base with external fixing holesSpring-loaded terminals - SL7-CB-EMH171449 Base with base adapter for slipping onto place (rapid mounting and wiring system)Screw terminals 100 mm blackAluminum color tube SL7-FMS-100171456 250 mm SL7-FMS-250171457 400 mm SL7-FMS-400171458 Base with base adapter for slipping onto place (rapid mounting and wiring system)Blade terminal SWD4-8MF2max. 5 modulesmax. 0.3 A per moduleExternal power supply connectable (24 V DC)Configurable with SWD‐Assist (planning and ordering help)Further technical data, see manual MN05006001Z. 100 mm SL7-SWD 2) 171459 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No.NKCRCSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in Canada Degree of Protection UL Type 4, 4X, 13 1) Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No.NKCRCSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in Canada Degree of Protection UL Type 1 2) Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking North America Certification Request filed for UL and CSA Degree of Protection UL Type 4, 4X, 13

14 Signal towers SL7, Basic modules, Accessories CA047002EN-INT www.eaton.eu SL7, Basic modules, Accessories Colour For use with Part no.Article no. Pricesee price list Std. pack Basic modules for vertical mounting, including cover, max. 5 modules One-sided base with bracketSpring-loaded terminals black SL7-L-…SL7-BL-…SL7-FL-…SL7-AP-… SL7-CB-FW171450 1 off for vertical mounting on both sides, including cover, max. 2 x 5 modules Base with external fixing holesSpring-loaded terminals black SL7-L-…SL7-BL-…SL7-FL-…SL7-AP-… SL7-CB-D171451 1 off lifespan Rated operational voltage Power For use with Part no.Article no. Pricesee price list Std. pack U e h V Mounting brackets for vertical mounting, Plastic, Fixing screws included as standard - - - SL4-PIB…SL4-FMS…SL7-CB...SL7-FMS… SL7/4-FW171446 1 off Including mounting bracket M20 cable gland for vertical mounting, Metal, Gasket included as standard - - - SL4-PIB-T…SL7-CB-T... SL7/4-FW-T171455 1 off Tool for replacing filament lamp - - - - SL7/4-BET171294 1 off Filament bulbs Mounting: Ba15d 3000 12 V 5 W SL7-L-… SL7-L12171290 1 off 24 V 6.5 W SL7-L24171291 120 V 7 W SL7-L120171292 230 V 6.5 W SL7-L230171293 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13

Signal towers SL7 CA047002EN-INT www.eaton.eu 15 SL7 Technical data SL7-… General Standards IEC/EN 60947-5-1 Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60069-2-30 Mounting position As required Mechanical shock resistance g 15according to IEC 60068-2-27Shock duration 11 msSinusoidal IEC degree of protection IP66IEC/EN 60529 Protection type UL Type 4, 4X, 13 Material Enclosure: Polycarbonate (PC), blackCap: Polycarbonate (PC) Cap colour blue, green, red, clear, yellow, orange Ambient temperature °C -30 - +60 Number of signal elements Max. 5 with standard baseMax. 10 with base for mounting on both sides Terminal capacity Solid or flexible conductor mm 2 0.13 - 2.5 Flexible with ferrule with plastic collar mm 2 0.25 - 1.5 AWG 24 - AWG 14 Contacts Rated impulse withstand voltage U imp V AC 4000 Rated insulation voltage U i V 250 Overvoltage category/pollution degree III/3 SL7-L-…-… SL7-BL-…-… SL7-FL-…-… SL7-L24-…-HP SL7-FL24-…-HP SL7-FL24-…-HPM SL7-L-… Light modules Type of light Continuous light Flashing light Strobe light Continuous light Strobe light Multistrobe light Continuous light Light elements LED High Performance LED Filament lamp max. 7 W Mounting - - - - - - Ba15d Flashing/strobe frequency - 2 Hz 1.4 Hz - 1.4 Hz 1 - 2.6 Hz - Transmission angle 360° Leakage current A 0.003 Current-/power consumption 24 V AC/DC A 0.049 - 0.054 0.058 0.130 - 0.135 0.170 - 0.200 0.260 - 0.265 0.260 - 0.265 - 110 /120 V AC A 0.028 - 0.031 0.028 - 0.030 0.010 - - - - 230 /240V AC A 0.027 - 0.028 0.030 - 0.031 0.010 - - - - Power consumption - - - - - - Max. 7 W with the specified voltages Voltage levels 24 V AC/DC ± 10 %110/120 V AC ± 10 %230/240 V AC ± 10 % 18-30 V DC/18-26 V AC up to 250 V AC/DC lifespan h 100000 50000 3000 Weight g 80

16 Signal towers SL7 CA047002EN-INT www.eaton.eu SL7-AP… SL7-AP…-E SL7-AP…-M Acoustic modules Type of tone Continuous or pulsed tone Continuous or pulsed tone8 types of sound Types of sound 2 versions, table of sound types 8 versions, table of sound types Sound setting Internal; 1 pole DIP can be externally actuated Internal; 3 pole DIP Sound pressure dB 100 Sound pressure level adjustment Built-in, potentiometer Sound_pressure_can_be_lowered_to_a_minimum_of 88 dB Transmission angle 360° Current-/power consumption 24 V AC/DC A 0.092 0.092 0.115 110 /120 V AC A 0.041 0.041 0.045 230 /240V AC A 0.043 0.043 0.043 Voltage levels 24 V AC/DC ± 10 %110/120 V AC ± 10 %230/240 V AC ± 10 % Weight g 102 Table of sound types Sound type DIP switch settings Frequency Diagram Repeat rate Special application Max. volume Hz dB SL7-AP… Continuous tone approx. 2800 - - 100 Pulsed tone approx. 2800 approx. 2 Hz - 100 SL7-AP…-E Continuous tone - approx. 2800 - - 100 Pulsed tone - approx. 2800 approx . 2 Hz - 100 SL7-AP…-M Continuous tone 2700 - - 100 Continuous tone 1350 - - 100 Pulsed tone 2700 250 ms on, 250 ms off - 100 Pulsed tone 1350 250 ms on, 250 ms off - 100 falling 1200 - 500 1 Hz Evacuation, Germany, DIN3304-3 98 Rising 500 - 1200 Rising 3 s, 0.5 s off Netherlands NEN 2575:2000 98 Alternating 800 - 1000 2 Hz 94 rising/falling 500 - 1500 10 Hz 94 ON ON ON ON ON ON ON ON ON ON

Signal towers SL7 CA047002EN-INT www.eaton.eu 17 SL7 Dimensions Complete devices SL7-100-L-RG-24LED SL7-100-L-RYG-24LED Light modules Acoustic modules SL7-(B)(F)L … SL7-AP… ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.84") 295 mm (11.61") 16.6 mm (0.65") ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.84") 356 mm (14.02") 16.6 mm (0.65") 61 mm (2.4") ⌀ 73 mm (⌀ 2.87") 71 mm (2.8") ⌀ 73.2 mm (⌀ 2.88")

18 Signal towers SL7 CA047002EN-INT www.eaton.eu Basic modules SL7-CB-… SL7-CB-T-… SL7-CB-D SL7-CB-EMH ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.83") a 16.6 mm (0.65") Part no. amm (inch) SL7-CB-100 171 (6.73) SL7-CB-250 321 (12.64) SL7-CB-400 471 (18.54) M20 a 16.6 mm (0.65") Part no. amm (inch) SL7-CB-T-100 190 (7.48) SL7-CB-T-250 340 (13.38) SL7-CB-T-400 490 (19.29) 82 mm (3.23") 31 mm (1.22") 119 mm (4.68") 84 mm (3.31") 96 mm (3.78") ⌀ 5.8 mm (⌀ 0.23") 16.6 mm (0.65") 16.6 mm (0.65") 82.5 mm (3.25") ⌀ 100 mm (⌀ 3.94") ⌀ 5.8 mm (⌀ 0.23") ⌀ 85 mm (⌀ 3.35") 16.6 mm (0.65")

Signal towers SL7 CA047002EN-INT www.eaton.eu 19 Basic modules SL7-CB-FW SL7-CB-IMH SL7-CB-IMS SL7-FMS-… ⌀ 6 mm (⌀ 0.24") 107 mm (4.21") 84 mm (3.31") 70 mm (2.76") 90 mm (3.54") 16.6 mm (0.65") 48 mm (1.89") 82 mm (3.23") 73 mm (2.87") ⌀ 52 mm (⌀ 2.05") ⌀ 5.8 mm (⌀ 0.23") 16.6 mm (0.65") 82 mm (3.23") 20 mm (0.79") 73 mm (2.87") 52 mm (2.05") M5 16.6 mm (0.65") ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 80 mm (⌀ 3.15") a 16.6 mm (0.65") Part no. amm (inch) SL7-FMS-100 192 (7.55) SL7-FMS-250 342 (13.46) SL7-FMS-400 492 (19.37)

20 Signal towers SL7 CA047002EN-INT www.eaton.eu Base module for connecting to SmartWire-DT ® SL7-SWD Mounting brackets SL7/4-FW SL7/4-FW-T Filament bulbs Tool for replacing filament lamp SL7-L12 SL7/4-BET ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 80 mm (⌀ 3.15") 192 mm (7.56") 16.6 mm (0.65") ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") 46 mm (1.81") 22.5 mm (0.89") 91 mm (3.58") 50 mm (1.97") 72 mm (2.83") ⌀ 6.4 mm (⌀ 0.25") 65 mm (2.56") 44 mm (1.73") 62.4 mm (2.46") M20 35 mm (1.38") 70 mm (2.76") 24 mm (0.94") 54 mm (2.13") 8.5 mm (0.33") 8.5 mm (0.33") 35 mm (1.38") 17 mm (0.67") ⌀ 13 mm (⌀ 0.51") ⌀ 15.3 mm (⌀ 0.6") ⌀ 16.2 mm (⌀ 0.64") 75.5 mm (2.97") ⌀ 12 mm (⌀ 0.47") ⌀ 20 mm (⌀ 0.79")

Signal towers Notes CA047002EN-INT www.eaton.eu 21 Notes

22 Signal towers SL4 CA047002EN-INT www.eaton.eu SL4 System overview 7 7 6h 6i 6c 6b 7 1 2 3 6, 6a 4, 4a, 4b 6e 6f 6g 6d 7 5

CA047002EN-INT www.eaton.eu Signal towers SL4 23 Card for filament lamp, continuous light 1 Without light element (filament lamp with BA15d socket)Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor)￫ page 27 Card with LED, continuous light 2 with LED Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor)￫ page 24 Card with LED, flashing light 3 with LED Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor)Flashing frequency 2 Hz ￫ page 25 Card with LED, strobe light 4 Easy mounting with bayonet mount Modules can be arranged in any orderDegree of protection IP66 Max. 2 x 5 modules that can be actuated individually (two with base module SL7-CB-D only)Operating mode: 100 % DF (duty factor) Card with LED 4a with LED Flashing frequency 1.4 Hz ￫ page 26 Card with LED 4b With LED for effective signaling effect with various flashing sequencesFlashing frequency approx. 1 -2.6 Hz ￫ page 26 Acoustic module 5 Continuous tone or pulsed tone, adjustable with internal dip switchesSound pressure 80 dB, frequency 4000 HzEasy mounting with bayonet mount Set up as topmost module Max. 2 x 1 modules that can be individually actuated (two with base module SL7-CB-D only)Permanently integrated cover plate Degree of protection IP66 Operating mode: 100 % DF (duty factor)￫ page 27 Base module 6 Easy mounting with bayonet mount Degree of protection IP66 Including cover plate with Push in terminals Base for mounting on both sides 6a ￫ page 29 Base with aluminium tube and plastic foot 6b Aluminium tube 100 mm, 250 mm or 400 mm￫ page 28 Base with aluminum tube and banjo bolt 6c Aluminium tube 100 mm, 250 mm or 400 mm￫ page 28 Base with external fixing holes 6 d ￫ page 28 One-sided base with bracket 6e ￫ page 29 Base with internal (on the inside) fixing holes 6f ￫ page 28 Base with built-in (pre-assembled) fixing screws 6g ￫ page 28 Base with base adapter for slipping onto place (rapid mounting and wiring system) 6h Aluminium tube 100 mm, 250 mm or 400 mm￫ page 28 Base with base adapter for slipping onto place (rapid mounting and wiring system) and SmartWire-DT connection 6i Aluminium tube 100 mm ￫ page 28 Accessory Considerations 7 Mounting brackets Including mounting bracket M20 cable glandTool for replacing filament lamp Filament lamp ￫ page 29

24 Signal towers SL4, Complete devices, Light modules CA047002EN-INT www.eaton.eu SL4, Complete devices, Light modules Ordering Rated operational voltage Number of modules Colour Function Part no.Article no. Pricesee price list Std. pack U e V Complete devices Continuous light, LED, IP66, Base module with foot and 100 mm tube 24 V AC/DC 2 SL4-100-L-RG-24LED171295 1 off 3 SL4-100-L-RYG-24LED171296 Customised complete unit Order on request - - - - SL4-COMBINATION2011956 1 off Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V Card with LED Continuous lightIP66 24 V AC/DC SL4-L24-B171313 1 off SL4-L24-G171314 SL4-L24-R171315 SL4-L24-W171316 SL4-L24-Y171317 SL4-L24-A171318 110/120 V AC SL4-L120-B171319 SL4-L120-G171320 SL4-L120-R171321 SL4-L120-W171322 SL4-L120-Y171323 SL4-L120-A171324 230/240 V AC SL4-L230-B171325 SL4-L230-G171326 SL4-L230-R171327 SL4-L230-W171328 SL4-L230-Y171329 SL4-L230-A171330 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No.NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in Canada Degree of Protection UL Type 4, 4X, 13

Signal towers SL4, Light modules CA047002EN-INT www.eaton.eu 25 SL4, Light modules Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V Card with LED Flashing lightIP662 Hz 24 V AC/DC SL4-BL24-B171337 1 off SL4-BL24-G171338 SL4-BL24-R171339 SL4-BL24-W171340 SL4-BL24-Y171341 SL4-BL24-A171342 110/120 V AC SL4-BL120-B171343 SL4-BL120-G171344 SL4-BL120-R171345 SL4-BL120-W171346 SL4-BL120-Y171347 SL4-BL120-A171348 230/240 V AC SL4-BL230-B171349 SL4-BL230-G171350 SL4-BL230-R171351 SL4-BL230-W171352 SL4-BL230-Y171353 SL4-BL230-A171354 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13

26 Signal towers SL4, Light modules CA047002EN-INT www.eaton.eu Card with LED Strobe lightIP661.4 Hz 24 V AC/DC SL4-FL24-B171355 1 off SL4-FL24-G171356 SL4-FL24-R171357 SL4-FL24-W171358 SL4-FL24-Y171359 SL4-FL24-A171360 110/120 V AC SL4-FL120-B171361 SL4-FL120-G171362 SL4-FL120-R171363 SL4-FL120-W171364 SL4-FL120-Y171365 SL4-FL120-A171366 230/240 V AC SL4-FL230-B171367 SL4-FL230-G171368 SL4-FL230-R171369 SL4-FL230-W171370 SL4-FL230-Y171371 SL4-FL230-A171372 Multistrobe lightIP66LED for effective signaling effectWith various strobe sequences1 - 2.6 Hz 24 V AC/DC SL4-FL24-B-M171373 1 off SL4-FL24-G-M171374 SL4-FL24-R-M171375 SL4-FL24-W-M171376 SL4-FL24-Y-M171377 SL4-FL24-A-M171378 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13 Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V

Signal towers SL4, Light modules, Acoustic modules CA047002EN-INT www.eaton.eu 27 SL4, Light modules, Acoustic modules Rated operational voltage Colour Function Part no.Article no. Pricesee price list Std. pack U e V Card for filament lamp Continuous lightIP66without light elementsFilament lamp max. 4 WFilament bulbs ￫ page 29 250 V AC/DC SL4-L-B171331 1 off SL4-L-G171332 SL4-L-R171333 SL4-L-W171334 SL4-L-Y171335 SL4-L-A171336 Rated operational voltage Rated operational current Colour Function Sound type Part no.Article no. Pricesee price list Std. pack U e I e V mA Acoustic modules Continuous tone or pulsed tone, adjustable with internal dip switches.Sound pressure 80 dB.f = 4000 HzPlace only at the highest position on a poleIP66 24 V AC/DC max. 39 SL4-AP24171379 1 off 110/120 V AC max. 21 SL4-AP120171380 230/240 V AC max. 21 SL4-AP230171381 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13

28 Signal towers SL4, Basic modules CA047002EN-INT www.eaton.eu SL4, Basic modules Tube length Colour For use with Part no.Article no. Pricesee price list Std. pack Basic modules for horizontal mountingincluding covermax. 5 modules Base with aluminium tube and plastic foot Push in terminals 100 mm blackAluminum color tube SL4-L-…SL4-BL-…SL4-FL-…SL4-AP-... SL4-PIB-100171297 1 off 250 mm SL4-PIB-250171298 400 mm SL4-PIB-400171299 Base with aluminum tube and banjo boltPush in terminals 100 mm SL4-PIB-T-100171305 250 mm SL4-PIB-T-250171306 400 mm SL4-PIB-T-400171307 Base with external fixing holesPush in terminals - black SL4-PIB-EMH171302 Base with internal (on the inside) fixing holesPush in terminals - SL4-PIB-IMH 1) 171300 Base with built-in (pre-assembled) fixing screwsPush in terminals - SL4-PIB-IMS171301 Base with base adapter for slipping onto place (rapid mounting and wiring system)Screw terminals 100 mm blackAluminum color tube SL4-FMS-100171308 250 mm SL4-FMS-250171309 400 mm SL4-FMS-400171310 Base with base adapter for slipping onto place (rapid mounting and wiring system)Blade terminal SWD4-8MF2max. 5 modulesmax. 0.3 A per moduleExternal power supply connectable (24 V DC)Configurable with SWD‐Assist (planning and ordering help)Further technical data, see manual MN05006001Z. 100 mm SL4-SWD 2) 171311 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No.NKCRCSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in Canada Degree of Protection UL Type 4, 4X, 13 1) Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No.NKCRCSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in Canada Degree of Protection UL Type 1 2) Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking North America Certification Request filed for UL and CSA Degree of Protection UL Type 4, 4X, 13

Signal towers SL4, Basic modules, Accessories CA047002EN-INT www.eaton.eu 29 SL4, Basic modules, Accessories Colour For use with Part no.Article no. Pricesee price list Std. pack Basic modules for vertical mountingincluding cover One-sided base with bracketPush in terminalsmax. 5 modules black SL4-L-…SL4-BL-…SL4-FL-…SL4-AP-... SL4-PIB-FW171303 1 off for vertical mounting on both sidesincluding cover Base with external fixing holesPush in terminalsmax. 2 x 5 modules black SL4-L-…SL4-BL-…SL4-FL-…SL4-AP-... SL4-PIB-D171304 1 off lifespan Rated operational voltage Power For use with Part no.Article no. Pricesee price list Std. pack U e h V Mounting brackets for vertical mounting, Plastic, Fixing screws included as standard - - - SL4-PIB…SL4-FMS…SL7-CB...SL7-FMS… SL7/4-FW171446 1 off Including mounting bracket M20 cable gland for vertical mounting, Metal, Gasket included as standard - - - SL4-PIB-T…SL7-CB-T... SL7/4-FW-T171455 1 off Tool for replacing filament lamp - - - - SL7/4-BET171294 1 off Filament bulbs Mounting: Ba15d 3000 12 V 4 W SL4-L-… SL4-L12171382 1 off 24 V SL4-L24171383 120 V SL4-L120171384 230 V SL4-L230171385 Notes Information relevant for export to North America Product Standards IEC/EN 60947-5-1; UL 508; CSA-C22.2 No. 14-10; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. UL report applies to both US and Canada CSA Class No. NKCR7 North America Certification UL listed, certified by UL for use in CanadaDegree of Protection UL Type 4, 4X, 13

30 Signal towers SL4 CA047002EN-INT www.eaton.eu SL4 Technical data SL4-… General Standards IEC/EN 60947-5-1 Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60069-2-30 Mounting position As required Mechanical shock resistance g 15according to IEC 60068-2-27Shock duration 11 msSinusoidal IEC degree of protection IP66IEC/EN 60529 Protection type UL Type 4, 4X, 13 Material Enclosure: Polycarbonate (PC), blackCap: Polycarbonate (PC) Cap colour blue, green, red, clear, yellow, orange Ambient temperature °C -30 - +60 Number of signal elements Max. 5 with standard baseMax. 10 with base for mounting on both sides Terminal capacity Solid or flexible conductor mm 2 0.2 - 1.5 Solid or flexible conductor, with ferrule mm 2 0.25 - 1.5 Flexible with ferrule with plastic collar mm 2 0.25 - 0.75 AWG 24 - AWG 16 Contacts Rated impulse withstand voltage U imp V AC 4000 Rated insulation voltage U i V 250 Overvoltage category/pollution degree III/3 SL4-L…-… SL4-BL…-… SL4-FL…-… SL4-FL24-…-M SL4-L… Light modules Type of light Continuous light Flashing light Strobe light Multistrobe light Continuous light Light elements LED Filament lamp max. 4 W Mounting - - - - Ba15d Flashing/strobe frequency - 2 Hz 1.4 Hz 1 - 2.6 Hz - Transmission angle 360° Leakage current A 0.003 Current-/power consumption 24 V AC/DC A 0.022 - 0.033 0.028 - 0.036 0.035 - 0.065 0.048 - 0.068 - 110 /120 V AC A 0.030 0.030 0.10 - - 230 /240V AC A 0.030 0.030 0.10 - - Power consumption - - - - Max. 4 W with the specified voltages Voltage levels 24 V AC/DC ± 10 %110/120 V AC ± 10 %230/240 V AC ± 10 % 24 V AC/DC ± 10 % up to 250 V AC/DC lifespan h 100000 3000 Weight g 45

Signal towers SL4 CA047002EN-INT www.eaton.eu 31 SL4-AP… Acoustic modules Type of tone Continuous or pulsed tone Types of sound 2 versions, table of sound types Sound setting Internal; 1 pole DIP Sound pressure dB 80 Sound pressure level adjustment - Sound_pressure_can_be_lowered_to_a_minimum_of - Transmission angle 360° Current-/power consumption 24 V AC/DC A 0.039 110 /120 V AC A 0.021 230 /240V AC A 0.021 Voltage levels 24 V AC/DC ± 10 %110/120 V AC ± 10 %230/240 V AC ± 10 % Weight g 43 Table of sound types Sound type DIP switch settings Frequency Diagram Repeat rate Special application Max. volume Hz dB SL4-AP… Continuous tone approx. 4000 - - 80 Pulsed tone approx. 4000 approx. 2 Hz - 80 ON ON

32 Signal towers SL4 CA047002EN-INT www.eaton.eu SL4 Dimensions Complete devices SL4-100-L-RG-24LED SL4-100-L-RYG-24LED Light modules Acoustic modules SL4-(B)(F)L … SL4-AP… ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.84") 261 mm (10.28") 17.3 mm (0.68") ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.84") 323 mm (12.72") 17.3 mm (0.68") 62 mm (2.44") ⌀ 43 mm (⌀ 1.69") 71 mm (2.80") ⌀ 44 mm (⌀ 1.73")

Signal towers SL4 CA047002EN-INT www.eaton.eu 33 Basic modules SL4-PIB-… SL4-PIB-T-… SL4-PIB-D SL4-PIB-EMH ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") ⌀ 72 mm (⌀ 2.83") a 17.3 mm (0.68") Part no. amm (inch) SL4-PIB-100 136 (3.53) SL4-PIB-250 286 (11.26) SL4-PIB-400 436 (17.16) M20 a 17.3 mm (0.68") Part no. amm (inch) SL4-PIB-T-100 150 (5.90) SL4-PIB-T-250 300 (11.81) SL4-PIB-T-400 450 (17.72) 35 mm (1.38") 56 mm (2.21") 62 mm (2.44") 97 mm (3.82") 45 mm (1.77") ⌀ 5.9 mm (⌀ 0.23") 17.3 mm (0.68") 17.3 mm (0.68") ⌀ 69 mm (⌀ 2.72") 57 mm (2.24") ⌀ 5.8 mm (⌀ 0.23") ⌀ 54 mm(⌀ 2.13") 17.3 mm (0.68")

34 Signal towers SL4 CA047002EN-INT www.eaton.eu Basic modules SL4-PIB-FW SL4-PIB-IMH SL4-PIB-IMS SL4-FMS-… 45 mm (1.77") 65 mm (2.56") 80 mm (3.15") ⌀ 5.8 mm (⌀ 0.23") 56 mm (2.21") 17.3 mm (0.68") 31 mm (1.22") 57 mm (2.24") 43 mm (1.34") ⌀ 22 mm (⌀ 0.87") ⌀ 5.8 mm (⌀ 0.23") 17.3 mm (0.68") 57 mm (2.24") 21 mm (0.83") 22 mm (0.87") 43 mm (1.69") M5 17.3 mm (0.68") ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") a ⌀ 80 mm (⌀ 3.15") 17.3 mm (0.68") Part no. amm (inch) SL4-FMS-100 157 (6.18) SL4-FMS-250 307 (12.09) SL4-FMS-400 457 (17.99)

Signal towers SL4 CA047002EN-INT www.eaton.eu 35 Base module for connecting to SmartWire-DT ® SL4-SWD Mounting brackets SL7/4-FW SL7/4-FW-T Filament bulbs Tool for replacing filament lamp SL7-L12 SL7/4-BET ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") 157 mm (6.18") ⌀ 80 mm (⌀ 3.15") 17.3 mm (0.68") ⌀ 5.5 mm (⌀ 0.22") ⌀ 54 mm (⌀ 2.13") 46 mm (1.81") 22.5 mm (0.89") 91 mm (3.58") 50 mm (1.97") 72 mm (2.83") ⌀ 6.4 mm (⌀ 0.25") 65 mm (2.56") 44 mm (1.73") 62.4 mm (2.46") M20 35 mm (1.38") 70 mm (2.76") 24 mm (0.94") 54 mm (2.13") 8.5 mm (0.33") 8.5 mm (0.33") 35 mm (1.38") 17 mm (0.67") ⌀ 13 mm (⌀ 0.51") ⌀ 15.3 mm (⌀ 0.6") ⌀ 16.2 mm (⌀ 0.64") 75.5 mm (2.97") ⌀ 12 mm (⌀ 0.47") ⌀ 20 mm (⌀ 0.79")

36 Signal towers Notes CA047002EN-INT www.eaton.eu Notes

1874 1833 1886 1911 1914 1893 1983 1962 1961 1989 1984 1977 1908 1906 1899 1897 1963 1967 1934 The power of fusion. There’s a certain energy at Eaton. It’s the power of uniting some of the world’s most respected names to build a brand you can trust to meet your every power management need. Eaton is dedicated to ensuring that reliable, efﬁ cient and safe power is available when it’s needed most. Building on over 100 years of experience in electrical power management, the experts at Eaton deliver customized, integrated solutions to solve your most critical challenges. To learn more visit www.eaton.eu/electrical. All of the above are trademarks of Eaton or its afﬁ liates. ᕡ Eaton has a license to use the Westinghouse brand name in Asia Paciﬁ c. ©2013 Eaton. Brand-Orbit-A4-English.indd 1 19.04.13 11:13

Eaton Industries GmbHHein-Moeller-Str. 7–11D-53115 Bonn/Germany © 2013 by Eaton CorporationAll rights reservedPrinted in Germany 01/14Publication No.: CA047002EN-INTDoku/DHW/bb/gro 01/14Article No.: 171892 Eaton is a registered trademark of EatonCorporation. All other trademarks are property of theirrespective owners. SmartWire-DT ® is a registered trademark of Eaton Corporation. Eaton is dedicated to ensuring that reliable, efficient and safe power is available when it’s needed most. With unparalleled knowledge of electrical power management across industries, experts at Eaton deliver customized, integrated solutions to solve our customers’ most critical challenges. Our focus is on delivering the right solution for the application. But, decision makers demand more than just innovative products. They turn to Eaton for an unwavering commitment to personal support that makes customer success a top priority. For more information, visit www.eaton.eu/electrical. To contact an Eaton salesperson or local distributor/agent, please visit www.eaton.eu/electrical/customersupport Changes to the products, to the information contained in this document, and to prices are reserved; so are errors and omissions. Only order confirmations and technical documentation by Eaton is binding. Photos and pictures also do not warrant a specific layout or functionality. Their use in whatever form is subject to prior approval by Eaton. The same applies to Trademarks (especially Eaton, Moeller, Cutler-Hammer). The Terms and Conditions of Eaton apply, as referenced on Eaton internet pages and Eaton order confirmations.
