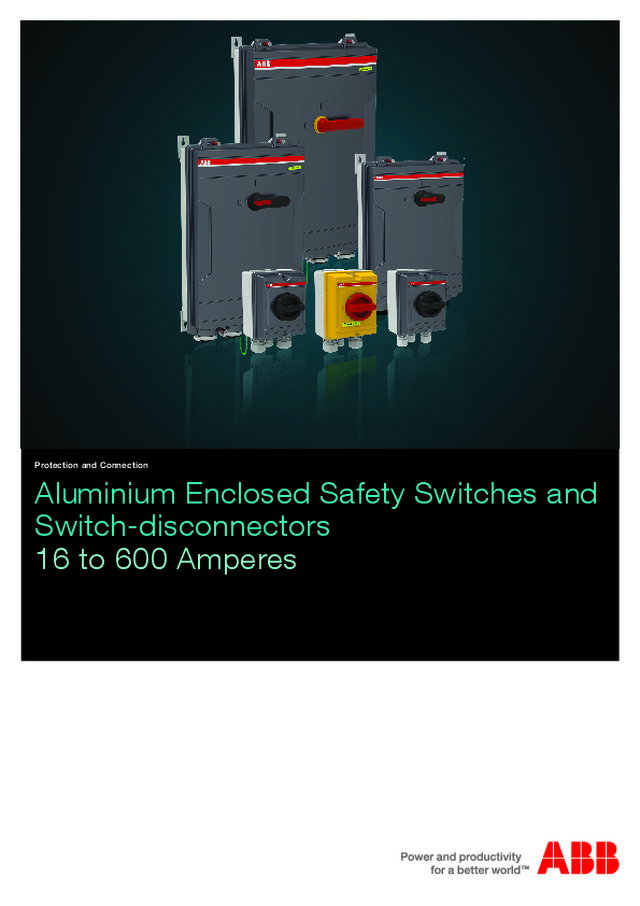

Aluminium Enclosed Safety Switches and  Switch-disconnectors 16 to 600 Amperes Protection and Connection

2     | Protection and Connection |  Aluminium Enclosed Safety Switches and Switch-disconnectors Comprehensive offering ABB offers a complete range of aluminium enclosed switch-disconnectors and safety switches from 16 up to 600 Amperes. The range includes 3 and 4 pole versions, front or side operated with black or red handles. The safety switches are equipped with an auxiliary contact for electrical interlocking, by connecting the switch to a starter or other motor control device.  Reliable in harsh conditions The enclosures are made of rigid and high quality dye casted aluminium alloy for durability in demanding conditions, indoor or outdoor. ABB’s safety switches are EMC approved, therefore suitable for environments with electromagnetic disturbances.  Safety and protection All the enclosed and safety switches have been tested according to IEC 60947-3 standard. All the switches starting from 125 A have an arc proof enclosure with built-in expander washers and security latches for enhanced safety. The switches from 125 to 600 A include defeatable interlocks and the switch insert has visible contacts.  Aluminium Enclosed Safety Switches and  Switch-disconnectors

  Aluminium Enclosed Safety Switches and Switch-disconnectors  | Protection and Connection |      3 Cable glands included, not mounted 3p or 4p versions M25 or M32 cable entry M20 control cable entry PE-terminals Inside view 16 to 600 Amperes OTA / OKA 125...600 A Protective plexi glass between the poles Coated busbar N -terminals PE -terminals Pull stoppers OTA / OKA 16...40 A Cable glands (included)

4     | Protection and Connection |  Aluminium Enclosed Safety Switches and Switch-disconnectors Technical data  Enclosed Safety switches Technical data according to IEC 60947-3Type / size OTA 16_ OTA 25_ OTA 40_ OTA 63_ LBAS _45 LBAS _75 LBAS _90 Frame size 1 1 1 1 2 2 2 Rated insulation voltage V 750 750 750 750 750 750 750 Rated thermal current and rated operational current  AC20/DC20  40ºC A 25 32 40 63 63 80 125  60ºC A 20 25 32 50 50 63 100 Rated operational power /current, AC-23A  400V kW/A 7,5/16 15/30 22/45 30/63 22/45 37/75 45/90  500V kW/A 7,5/16 15/30 22/45 30/50 22/45 37/58 45/70  690V kW/A 7,5/10 15/20 15/20 30/35 22/20 37/20 45/50 Conditional short-circuit kA 50 50 50 50 50 50 50 Fuse protected short circuit making capacity  400V kA 5 5 5 13 13 13 16,5  500V kA 4,8 4,8 4,8 11 11 11 10  690V kA 4,8 4,8 4,8 11 11 11 10 Max fuse  gG/Am  400V A 40 100 100 100 63 80 125  500V A 25 80 80 80 63 80 63  690V A 25 80 80 80 63 80 63 Rated conditional short-circuit current r.m.s and  corresponding cut-off current of the fuse in single- phase test according to IEC60269  50kA, 415V kA 6,5 6,5 6,5 13 13 13 18  Fuse size: gG/aM A 40/32 40/32 40/32 100/80 100/80 100/80 125/100  50kA, 690V kA 4 4 4 11 11 11 12  Fuse size: gG/aM A 25/16 25/16 25/16 80/63 80/63 80/63 125/100 Rated frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Cu-wire size suitable for terminal mm2 0,75...10 0,75...10 0,75...10 1.5...35 1.5...35 1.5...35 10...70 Technical data according to IEC 60947-3Type / size OTA 125_ OTA 160_ OTA 200_ OTA 250_ OTA 315_ OTA 400_ OTA 600_ Frame size 3 3 3 3 4 4 5 Rated insulation voltage V 1000 1000 1000 1000 1000 1000 1000 Rated thermal current and rated rated operational  current AC20/DC20  40ºC A 160 160 200 250 315 400 550  60ºC A 160 160 200 200 315 320 440 Rated operational power /current, AC-23A  400V kW/A 55/125 75/135 110/200 132/250 160/315 220/400 315/540  500V kW/A 55/90 75/135 132/200 160/250 200/315 280/400 400/552  690V kW/A 55/70 75/80 160/200 200/250 250/315 355/400 560/551 Conditional short-circuit kA 50 50 50 50 50 50 50 Fuse protected short circuit making capacity  400V kA 18 18 35 35 35 50 50  500V kA 18 18 35 35 35 50 50  690V kA 18 18 35 35 35 50 50 Max fuse  gG/Am  400V A 200/250 200/250 355/315 355/315 500/500 500/500 800/1000  500V A 200/250 200/250 355/315 355/315 500/500 500/500 800/1000  690V A 200/250 200/250 355/315 355/315 500/500 500/500 800/1000 Rated conditional short-circuit current r.m.s and  corresponding cut-off current of the fuse in single- phase test according to IEC60269  100kA, 500V kA 40,5 40,5 40,5 40,5 61,5 61,5 90  gG/aM A 315/315 315/315 315/315 315/315 500/450 500/450 800/1000  80kA, 690V kA 40,5 40,5 40,5 40,5 59 59 83,5 gG/aM A 355/315 355/315 355/315 355/315 500/500 500/500 800/1000 Rated frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Cu-wire size suitable for terminal mm2 10...70 10...70 - - - - - Terminal bolt size - - M8x25 M8x25 M10x30 M10x30 M12x40

  Aluminium Enclosed Safety Switches and Switch-disconnectors  | Protection and Connection |      5 Technical data according to IEC60529 and IEC 60947-3Type / size OKA 16_ OKA 25_ OKA 40_ OKA 63_ KSE _63 KSE _80 KSE _125 Frame size 1 1 1 1 2 2 2 Rated insulation voltage V 750 750 750 750 750 750 750 Rated thermal current and rated operational current,  AC20/DC20  40ºC A 25 32 40 63 63 80 125  60ºC A 20 25 32 50 50 63 100 Rated operational current,  AC-21A and AC-22A  400V A 16 25 40 63 63 80 125  500V A 16 25 40 63 63 80 125  690V A 16 25 40 63 63 80 125 Rated operational current, AC-23A  up to 415 V A 16 20 23 45 45 75 90  440V A 16 20 23 45 45 65 78  500V A 16 20 23 45 45 58 70  690V A 10 11 12 20 20 20 50 Rated conditional short-circuit current r.m.s and  corresponding cut-off current of the fuse in single- phase test according to IEC60269  50kA, 415V kA 6,5 6,5 6,5 13 13 13 18  Fuse size: gG/aM A 40/32 40/32 40/32 100/80 100/80 100/80 125/100  50kA, 690V kA 4 4 4 11 11 11 12  Fuse size: gG/aM A 25/16 25/16 25/16 80/63 80/63 80/63 125/100 Rated frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Cu-wire size suitable for terminal mm2 0,75...10 0,75...10 0,75...10 1.5...35 1.5...35 1.5...35 10...70 Technical data according to IEC60529 and IEC 60947-3Type / size OKA 125_ OKA 160_ OKA 200_ OKA 250_ OKA 315_ OKA 400_ OKA 600_ Frame size 3 3 3 3 4 4 5 Rated insulation voltage V 1000 1000 1000 1000 1000 1000 1000 Rated thermal current and rated operational current,  AC20/DC20  40ºC A 160 160 200 250 315 400 550  60ºC A 160 160 200 200 315 320 440 Rated operational current,  AC-21A and AC-22A  400V A 125 160 200 250 315 400 600  500V A 125 160 200 250 315 400 600  690V A 125 160 200 250 315 400 600 Rated operational current, AC-23A  up to 415 V A 105 135 200 250 315 400 600  440V A 90 125 200 250 315 400 600  500V A 70 125 200 250 315 400 600  690V A 50 80 200 250 315 400 600 Rated conditional short-circuit current r.m.s and  corresponding cut-off current of the fuse in single- phase test according to IEC60269  100kA, 500V kA 40,5 40,5 40,5 40,5 61,5 61,5 90  gG/aM A 315/315 315/315 315/315 315/315 500/450 500/450 800/1000  80kA, 690V kA 40,5 40,5 40,5 40,5 59 59 83,5 gG/aM A 355/315 355/315 355/315 355/315 500/500 500/500 800/1000 Rated frequency Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Cu-wire size suitable for terminal mm2 10...70 10...70 - - - - - Terminal bolt size - - M8x25 M8x25 M10x30 M10x30 M12x40 Technical data  Switch-disconnectors

6     | Protection and Connection |  Aluminium Enclosed Safety Switches and Switch-disconnectors Explanation of the types Option: OT A 16 S 4 G Position: 1 2 3 4 5 6 1 Brand  OT Safety switch  OK Switch disconnector 2 Enclosure material   A Aluminium 3 Size of the switch   (Amperes) 16...600 4 Handle type  P                   Pistol type   S                 Selector type 5 Number of poles 34 6 Colour B Black handle, grey cover Y Red or red yellow handle Type codes Aluminum enclosed safety switches andswitch-disconnectors Cabling Aluminum enclosed safety switches and switch-disconnectors Mounting accessories (to  supply side) Amount of parallel cables mm² Terminal clamp Supply cable, cable cross section  0,75…35 mm ² Cable entries from top and  bottom Cable entries from bottom 1x(0,75...10) OTA16_,OKA16_, OKA25_, OKA40_ 1x(1,5...35) OTA63_, OTA25_, OTA40_, OKA63_ Supply cable, cable cross section 25…240 mm² 1x(25…120) OTA/OKA125_ , OTA/OKA160_ , OTA/OKA200_ , OTA/OKA250_ OZXB2L 1x(95…185) OTA/OKA125_ , OTA/OKA160_ , OTA/OKA200_ , OTA/OKA250_ OZXB8 1x(95…240) OTA/OKA125_ , OTA/OKA160_ , OTA/OKA200_ , OTA/OKA250_ OZXB9 1x(95…240) OTA/OKA315_ , OTA/OKA400_ OZXB9 2x(70…185) OTA/OKA600_ OZXB4

  Aluminium Enclosed Safety Switches and Switch-disconnectors  | Protection and Connection |      7 Ordering information Aluminium enclosed safety switches OTA16S3Y OTA63S3G Front operated safety switches, 3 pole 3-pole, cable entries from top and bottom The delivery includes:  Selector handle, fixed neutral and PE terminal. 1 NO auxiliary contact, cable entries with metric threaded holes with three compression type glands (IP65). Padlockable handle with cover interlock function.  Max. motor output / AC23A  [kW/A] Enclosure size [mm] Type Ordering number 400V 690V Auxiliary contacts  max. H W D Weight [kg] Grey enclosure, black selector handle 7,5kW/16A 7,5kW/10A 2no+2nc 165 130 131 OTA16S3G 1SCA142663R1001 1,25 15kW/30A 15kW/20A 2no+2nc 165 130 131 OTA25S3G 1SCA142671R1001 1,45 22kW/45A 15kW/20A 2no+2nc 165 130 131 OTA40S3G 1SCA142675R1001 1,45 30kW/63A 30kW/35A 2no+2nc 165 130 131 OTA63S3G 1SCA142679R1001 1,45 Yellow enclosure, red selector handle 7,5kW/16A  7,5kW/10A  2no+2nc   165   130   131   OTA16S3Y  1SCA142664R1001  1,25 15kW/30A  15kW/20A  2no+2nc   165   130   131  OTA25S3Y  1SCA142672R1001  1,45 22kW/45A  15kW/20A  2no+2nc   165    130   131  OTA40P3Y  1SCA142676R1001  1,45 30kW/63A   30kW/35A  2no+2nc   165   130   131  OTA63S3Y  1SCA142680R1001  1,45 OTA16S3G OTA63S3Y 3-pole, cable entries from top and bottom The delivery includes: black selector handle, neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54. For IP65 protection compression glands must be used. The switch-disconnector is lockable. Max. motor output / AC23A  [kW/A] Cable entries up/down Enclosure size [mm] Type Ordering number 500V 690V H W D Weight [kg] Selector handle, dark grey cover22kW/45A 22kW/20A 2xM40/2xM40+1xM16 160 230 145 LBAS345TPN 2CMA142627R1000 1,75 37kW/58A 37kW/20A 2xM40/2xM40+1xM16 160 230 145 LBAS375TPN 2CMA142628R1000 1,75 45kW70A 45kW/50A 2xM40/2xM40+1xM16 160 230 145 LBAS390TPN 2CMA142629R1000 1,75 LBAS_ TPN 3-pole, cable entries from bottom Safety switch including N- and PE-terminals. Two (125-250) or four (315-600) cable glands included. Padlockable black color pistol type handle with defeatable interlocking function. 1 NO and 1 NC auxiliary contacts included in 125A and 160A switches. 2NO and 2NC auxiliary contacts included in 315A to 600A switches. Max. motor output / AC23A  [kW] Cable  outlet/ top Auxiliary  contacts  max. H W D Type Ordering number 400V 690V Weight [kg] Black pistol handle, grey enclosure 55kW/125A 55kW/70A Blank 2no+2nc 620 425 210 OTA125P3B 1SCA142583R1001 16,5 75kW/135A 75kW/80A Blank 2no+2nc 620 425 210 OTA160P3B 1SCA142585R1001 16,5 110kW/200A 160kW/160A Blank 2no+2nc 620 425 210 OTA200P3B 1SCA142587R1001 16,8 132kW/250A 200kW/250A Blank 2no+2nc 620 425 210 OTA250P3B 1SCA142589R1001 16,8 160kW/315A 250kW/315A Blank 2no+2nc 730 485 215 OTA315P3B 1SCA142591R1001 31,7 220kW/400A 355kW/400A Blank 2no+2nc 730 485 215 OTA400P3B 1SCA142593R1001 32 315kW/540A 560kW/551A Blank 2no+2nc 975 585 270 OTA600P3B 1SCA144287R1001 39,1 OTA125P3B OTA315P3B

8     | Protection and Connection |  Aluminium Enclosed Safety Switches and Switch-disconnectors 4-pole, cable entries from top and bottom The delivery includes: black selector handle, switched neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54. For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current/power  Cable entries up/down Enclosure size [mm] Type Ordering number AC23A 400V 690V H W D Weight [kg] Selector handle, dark grey cover 22kW/45A 22kW/20A 2xM40/2xM40+1xM16 160 230 145 LBAS445TPSN 2CMA142630R1000 1,75 37kW/75A 37kW/20A 2xM40/2xM40+1xM16 160 230 145 LBAS475TPSN 2CMA142631R1000 1,75 45kW/90A 45kW/50A 2xM40/2xM40+1xM16 160 230 145 LBAS490TPSN 2CMA142632R1000 1,75 Ordering information Aluminium enclosed safety switches Front operated safety switches, 4 poles 4-pole, cable entries from top and bottom The delivery includes:  Selector handle, fixed neutral and PE terminal. 1 NO auxiliary contact, cable entries with metric threaded holes with three compression type glands (IP65). Padlockable handle with cover interlock function.  Max. motor output / AC23A  [kW/A] Auxiliary contacts  max. Enclosure size [mm] Type Ordering number 400V 690V H W D Weight [kg] Black selector handle, grey enclosure 7,5kW/16A 7,5kW/10A 2no+2nc 165 130 131 OTA16S4G 1SCA142666R1001 1,25 15kW/30A 15kW/20A 2no+2nc 165 130 131 OTA25S4G 1SCA142673R1001 1,45 22kW/45A 15kW/20A 2no+2nc 165 130 131 OTA40S4G 1SCA142677R1001 1,45 30kW/63A 30kW/35A 2no+2nc 165 130 131 OTA63S4G 1SCA142681R1001 1,45 Red selector handle, yellow enclosure 7,5kW/16A 7,5kW/10A 2no+2nc 165 130 131 OTA16S4Y 1SCA142670R1001 1,25 15kW/30A 15kW/20A 2no+2nc 165 130 131 OTA25S4Y 1SCA142674R1001 1,45 22kW/45A 15kW/20A 2no+2nc 165 130 131 OTA40S4Y 1SCA142678R1001 1,45 30kW/63A 30kW/35A 2no+2nc 165 130 131 OTA63S4Y 1SCA142682R1001 1,45 OTA16S3Y OTA63S3G OTA16S3G 3-pole, cable entries from bottom Safety switch including N- and PE-terminals. Two (125-250) or four (315-600) cable glands included. Padlockable red/yellow color pistol type handle with defeatable interlocking function.1 NO and 1 NC auxiliary contacts included in 125A and 160A switches. 2NO and 2NC auxiliary contacts included in 315A to 600A switches. Max. motor output / AC23A  [kW] Cable  outlet/ top Auxiliary  contacts  max. H W D Type Ordering number 400V 690V Weight [kg] Red-yellow pistol handle, grey enclosure 55kW/125A 55kW/70A Blank 2no+2nc 620 425 210 OTA125P3Y 1SCA142584R1001 16,5 75kW/135A 75kW/80A Blank 2no+2nc 620 425 210 OTA160P3Y 1SCA142586R1001 16,5 110kW/200A 160kW/160A Blank 2no+2nc 620 425 210 OTA200P3Y 1SCA142588R1001 16,8 132kW/250A 200kW/250A Blank 2no+2nc 620 425 210 OTA250P3Y 1SCA142590R1001 16,8 160kW/315A 250kW/315A Blank 2no+2nc 730 485 215 OTA315P3Y 1SCA142592R1001 31,7 220kW/400A 355kW/400A Blank 2no+2nc 730 485 215 OTA400P3Y 1SCA142594R1001 32 315kW/540A 560kW/551A Blank 2no+2nc 975 585 270 OTA600P3Y 1SCA144288R1001 39,1 OTA600P3B LBAS475TPN, LBAS490TPN

  Aluminium Enclosed Safety Switches and Switch-disconnectors  | Protection and Connection |      9 Ordering information Aluminium enclosed safety switches Front operated safety switches, 6 poles  6-pole, cable entries from top and bottom The delivery includes: black selector handle, neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54. For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current/power  Cable entries up/down Enclosure size [mm] Type Ordering number AC23A 500V 690V H W D Weight [kg] Selector handle, dark grey cover 37kW/58A 37kW/20A 2xM40/2xM40+1xM16 160 230 145 LBAS675TPN 2CMA142633R1000 1,75 Rated operational  current/power  Cable entries up/down Enclosure size [mm] Type Ordering number AC23A 500V 690V H W D Weight [kg] Dark grey side-operated handle, dark grey cover 7,5kW/16A 7,5kW/10A 2xM25/2xM25 111 130 60 LBAS416TPSN 2CMA142431R1000 0,57 11kW/25A 11kW/16A 2xM32/2xM32+1xM16 138 168 68 LBAS425TPSN 2CMA142433R1000 0,81 4-pole, cable entries from top and bottom The delivery includes: dark grey plastic handle, switched neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54 (see table page 11). For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current/power  Cable entries up/down Enclosure size [mm] Type Ordering number AC23A 500V 690V H W D Weight [kg] Dark grey side-operated handle, dark grey cover 7,5kW/16A 7,5kW/10A 2xM25/2xM25 111 130 60 LBAS316TPN 2CMA142430R1000 0,57 11kW/25A 11kW/16A 2xM32/2xM32+1xM16 138 168 68 LBAS325TPN 2CMA142432R1000 0,80 Side operated safety switches, 3 and 4-pole 3-pole, cable entries from top and bottom The delivery includes: dark grey plastic handle, neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54. For IP65 protection compression glands must be used. The switch-disconnector is lockable. LBAS325 TPN, LBAS425 TPSN LBAS675TPN

10     | Protection and Connection |  Aluminium Enclosed Safety Switches and Switch-disconnectors Rated operational current [A]  Cable sizes up/down Enclosure size [mm] Type Ordering number AC22A AC23A 400V 500V 690V 500V H W D Weight [kg] 63 63 63 45 2xM40/2xM40+1xM16 230 160 145 KSE363TPN 2CMA144580R1000 1,75 63 63 63 45 Closed/2xM40+1xM16 230 160 145 KSE363D/TPN 2CMA144581R1000 1,76 80 80 80 58 2xM40/2xM40+1xM16 230 160 145 KSE380TPN 2CMA144583R1000 1,75 125 125 125 70 2xM40/2xM40+1xM16 230 160 145 KSE3125TPN 2CMA144588R1000 1,84 100 100 100 60 2xM40/2xM40+1xM16 230 160 145 KSE3100TPN 2CMA144585R1000 1,83 3-pole, cable entries from top and bottom Enclosure in Aluminium alloy (Silumin) with metric threaded cable entries. Light grey box with dark grey cover. Operating handle in black PBT plastic. Delivery includes PE+neutral terminal and membrane glands (IP54) / sealing plugs. For IP65 degree of protection compression glands must be used. Front operated switch-disconnectors, 3 and 4-poles Ordering information Aluminium enclosed switch-disconnectors KSE363TPN, KSE380TPN,KSE3125TPN KSE363D/TPN 3-pole, cable entriesfrom top and bottom The delivery includes: Black selector handle, fixed neutral and PE terminal. Cable entries with metric threaded holes. Two compression type glands (IP65). Padlockable handle with cover interlock function.  Rated  operational  current [A]  AC-22A, 690V Cable outlets/ top  Cable outlets/ bottom Enclosure size [mm] Type Ordering number H W D Weight [kg] 16 2xM25+M20 2xM25+M20 165 130 131 OKA16S3G 1SCA142683R1001 1,25 25 2xM32+M20 2xM32+M20 165 130 131 OKA25S3G 1SCA142685R1001 1,25 40 2xM32+M20 2xM32+M20 165 130 131 OKA40S3G 1SCA142687R1001 1,25 63 2xM32+M20 2xM32+M20 165 130 131 OKA63S3G 1SCA142689R1001 1,45 Rated  operational  current [A]  AC-22A, 690V Cable outlets/ bottom Enclosure size [mm] Type Ordering number H W D Weight [kg] 125 2xø18-48mm 620 425 210 OKA125P3B 1SCA142607R1001 1,65 160 2xø18-48mm 620 425 210 OKA160P3B 1SCA142608R1001 1,65 200 2xø18-48mm 620 425 210 OKA200P3B 1SCA142609R1001 1,68 250 2xø18-48mm 620 425 210 OKA250P3B 1SCA142610R1001 1,68 315 4xø30-68mm 730 485 215 OKA315P3B 1SCA142611R1001 3,17 400 4xø30-68mm 730 485 215 OKA400P3B 1SCA142612R1001 3,2 600 4xø30-68mm 975 585 270 OKA600P3B 1SCA144286R1001 3,91 3-pole, cable entriesfrom top and bottom  Enclosed Switch Disconnector including N- and PE-terminals. Two (125-250) or four (315-600) cable glands included. Padlockable red/yellow color pistol type handle with defeatable interlocking function. 1 NO and 1 NC auxiliary contacts included in 125A and 160A switches. 2NO and 2NC auxiliary contacts included in 315A to 600A switches. OKA16...40S3G OKA125...250P3B OKA315...400P3B

  Aluminium Enclosed Safety Switches and Switch-disconnectors  | Protection and Connection |      11 4-pole front operated switch-disconnectors Aluminium enclosed, IP65 Enclosure in Aluminium alloy (Silumin) with metric threaded cable entries. Light grey box with dark grey cover. Operating handle in black PBT plastic. Delivery includes PE terminal and membrane glands (IP54) / sealing plugs. For IP65 degree of protection compression glands must be used.  Rated operational current [A] Cable sizes  up/down Enclosure size [mm] Type Ordering number Weight  [kg] AC22A AC23A 400V 500V 690V 500V H W D 63 63 63 45 2xM40/2xM40+1xM16 230 160 145 KSE463TPSN 2CMA144582R1000 1.76 80 80 80 58 2xM40/2xM40+1xM16 230 160 145 KSE480TPSN 2CMA144584R1000 1.75 4-pole, cable entries from top and bottom The delivery includes: Black selector handle, fixed neutral and PE terminal. Cable entries with metric threaded holes. Two compression type glands (IP65). Padlockable handle with cover interlock function.   Rated  operational  current [A]  AC-22A, 690V Cable outlets/ top  Cable outlets/ bottom Enclosure size [mm] Type Ordering number H W D Weight [kg] 16 2xM25+M20 2xM25+M20 165 130 131 OKA16S4G 1SCA142684R1001 1,25 25 2xM32+M20 2xM32+M20 165 130 131 OKA25S4G 1SCA142686R1001 1,25 40 2xM32+M20 2xM32+M20 165 130 131 OKA40S4G 1SCA142688R1001 1,25 63 2xM32+M20 2xM32+M20 165 130 131 OKA63S4G 1SCA142690R1001 1,45 Ordering information Aluminium enclosed switch-disconnectors KSE463TPSN, KSE480TPSN OKA16S4G

12     | Protection and Connection |  Aluminium Enclosed Safety Switches and Switch-disconnectors Accessories Aluminium enclosed switch-disconnectors Compression glands, plastic, IP68 Includes  Cable DIA (mm)  Quantity  Type  Ordering table Compression glandsM20    6...13 1 ESKV20 1SCA022715R6070 M25 9...17 2 ESKV25 1SCA022715R6150 M32 13...21 2 ESKV32 1SCA022715R6230 Compression glands, EMC, metallic Includes the locking nuts. IP67 Includes  Cable DIA (mm)  Quantity  Type  Ordering table Compression glandsM20 8....14 1 EMCM20SET 1SCA022713R3610 M25 10..16 1 EMCM25SET 1SCA022713R3700 M32 14...21 1 EMCM32SET 1SCA022713R3960 EMCM_ ESKV20 Metallic hasp for pistol handle Quantity  Type  Ordering table 1 OHZX13 1SCA022841R5480 OHZX13

  Aluminium Enclosed Safety Switches and Switch-disconnectors  | Protection and Connection |      13 Dimension drawings H W X Y D A B Ø G H W X Y D A B Ø G H W X Y D A B Ø G H W X Y D A B Ø G OTA16...63, OKA16...63Size Cable entry Fixing dimensions H W D X Y A B G 165 130 131 2xM25 + 1xM20 2xM25 + 1xM20 95 125 6,5 OTA125...250, OKA125...250Size Cable entry Fixing dimensions H W D X Y A B G 620 425 210 - 2xø18-48mm 365 615 9,8 OTA313...400, OKA315...400Size Cable entry Fixing dimensions H W D X Y A B G 730 485 215 - 4xø30-68mm 425 710 9,8 OTA600, OKA600Size Cable entry Fixing dimensions H W D X Y A B G 975 585 270 - 4xø30-68mm 525 840 9,8 KSE363...3125, KSE463...480Size Cable entry Fixing dimensions H W D X Y A B G 230 160 145 2xM40 1xM16 124 190 5.3 X X Y D H W A ØG B X W H X Y D  LBAS_16...LBAS_25 Size  Cable entry  Fixing dimensions  W  H  D  X  Y  A  B  G  LBAS316_, LBAS416_  111  130  60  2xM25  -  64  90  5  LBAS325_, LBAS425_  138  168  68  2xM32  1xM16  90  127  5 ØG A B
