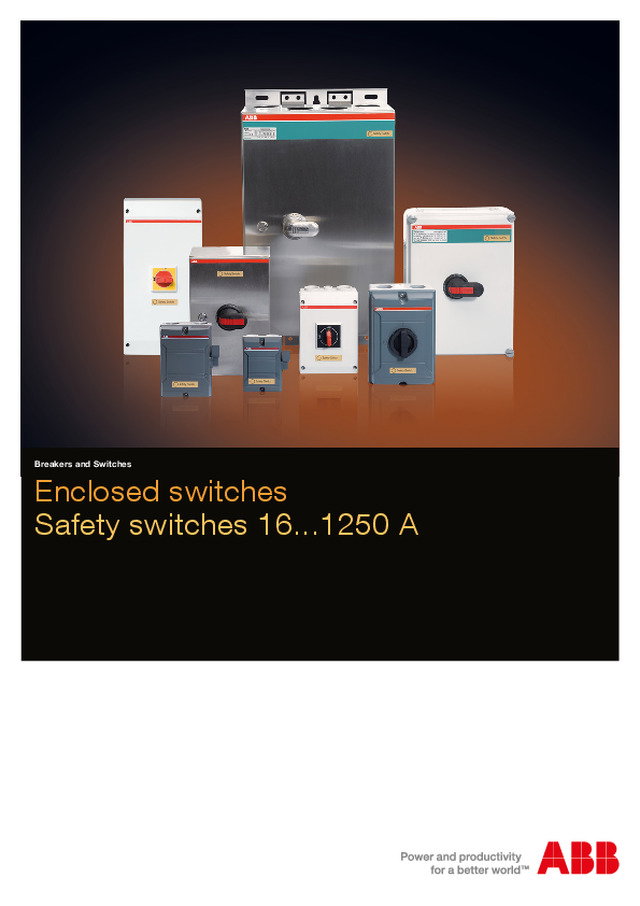

Enclosed switches Safety switches 16...1250 A Breakers and Switches

Safety switches | Contents  3 Contents 04 Product overview, features 10 Technical data, cabling 14 Safety switches, ordering information 14 Plastic enclosed, IP65 14 Installation safety switches / 3-pole 15 Black / red-yellow handle / 3-, 4- and 6-pole 21 Side operated / 3-, 4- and 6-pole 22 Steel sheet enclosed, IP65, IP54 22 Black / red-yellow handle / 3-, 4- and 6-pole 47 Stainless steel sheet enclosed, IP65 47 Black / red-yellow handle / 3-, 4- and 6-pole 53 Stainless steel handle / 3- and 6-pole 55 Aluminum enclosed, IP65 55 Side and front operated / 3-, 4- and 6-pole 58 EMC safety switches, ordering information 58 Plastic enclosed, IP65 58 Black / red-yellow handle / 3-, 4- and 6-pole 62 Steel sheet enclosed, IP65, IP54 6272 Black / red-yellow handle / 3-, 4- and 6-pole Aluminum enclosed, IP65 72 Side operated / 3-pole 73 Enclosure accessories, selection overview 75 Accessories, ordering information 89 Dimension drawings 101 Index Safety switches From 16...1250 Amperes

4  Product overview | Safety switches Safety switches from 16 to 1250 A   7.5…1200 kW / 690 V, AC-23A Aluminum IP65Black handle types Industrial safety switches  Switch size Max. motor output 690 V / AC23A 3-pole kW Max. motor output 690 V / AC23A 4-pole kW Max. motor output 690 V / AC23A 6-pole kW EMC safety switches Max. motor output 690 V / AC23A 3-pole kW Plastic IP65Installation safety switches: - White / black / red-yellow handle typesIndustrial / EMC safety switches: - Black / red-yellow handle types Side-operated safety switches: - Dark grey / yellow handle types Front operated safety switches Installation satety switches OTP16H_ OTP16HT_ OTP16K_ Max. motor output 690 V / AC23A 3-pole kW 7.5 7.5 7.5 Industrial safety switches OTP_ Switch size 16 25 36 63 Max. motor output 690 V / AC23A 3-pole kW 7.5 15 15 30 Max. motor output 690 V / AC23A 4-pole kW 7.5 15 15 Max. motor output 690 V / AC23A 6-pole kW 7.5 EMC safety switches OTE_ Switch size 16 25 36 Max. motor output 690 V / AC23A 3-pole kW 7.5 15 15 Max. motor output 690 V / AC23A 4-pole kW 7.5 15 15 Max. motor output 690 V / AC23A 6-pole kW 7.5

Safety switches | Product overview  5     Side-operated safety switches      Front operated safety switches LBAS_ LBAS_ LBAS_ LBAS_ 16 25 45 75 90 125 160 200 250 400 630 7.5 11 22 37 45 70 80 250 315 350 350 7.5 11 37 45 37 16 25 7.5 11 Accessories Handles Auxiliary contacts Terminal clamps Busbar connections Neutral links Padlock unit Cable glands and entries Condensation water outlet Side-operated safety switches OTP_ OT_ BWS_ BWS_ BWS_ 25 36 63 75 90 90 125 160 200 250 315 400 630 1000 16 25 16 25 37 45 45 55 75 160 200 250 355 560 1000 7.5 11 37 45 55 75 160 200 250 355 7.5 11 15 15 30 37 45 45 55 75 160 200 250 355 7.5 11 OTE_ 25 36 75 90 37 45 37 45 15 15 37 45

6  Product overview | Safety switches Safety switches from 16 to 1250 A   7.5…1200 kW / 690 V, AC-23A Steel sheet IP65, IP54 Black / red-yellow handle types Industrial safety switches, IP65 OTL_ OTL_ OTL_ Switch size 16 25 36 63 25 36 63 75 90 Max. motor output 690 V / AC23A 3-pole kW 7.5 15 15 30 30 37 45 Max. motor output 690 V / AC23A 4-pole kW 7.5 15 15 30 30 37 45 Max. motor output 690 V / AC23A 6-pole kW 7.5 15 15 37 45 Industrial safety switches, IP54 Switch size Max. motor output 690 V / AC23A 3-pole kW Max. motor output 690 V / AC23A 4-pole kW Max. motor output 690 V / AC23A 6-pole kW EMC safety switches, IP65 OT_ OT_ Switch size 16 25 36 25 36 63 Max. motor output 690 V / AC23A 3-pole kW 7.5 15 15 30 Max. motor output 690 V / AC23A 6-pole kW 7.5 15 15 EMC safety switches, IP54 Switch size Max. motor output 690 V / AC23A 3-pole kW Max. motor output 690 V / AC23A 4-pole kW Stainless steel sheet IP65Black / red-yellow handle types in OTR- typesStainless steel handle in OT-types Industrial safety switches  OTR_ Switch size 16 25 36 63 Max. motor output 690 V / AC23A 3-pole kW 7.5 15 15 30 Max. motor output 690 V / AC23A 4-pole kW 7.5 15 15 30 Max. motor output 690 V / AC23A 6-pole kW 7.5

Safety switches | Product overview  7 OT_  OT_ 16 25 36 63 75 90 16 25 36 75 90 125 160 200 250 315 400 630 800 1000 1250 7.5 15 15 30 37 45 7.5 15 15 37 45 55 75 160 200 250 355 560 710 1000 1200 45 55 75 160 200 250 355 560 710 15 37 45 55 75 160 200 250 355 560 710 800 OT_ OT_ 16 25 36 63 75 90 36 75 90 125 160 200 250 315 400 630 800 1000 7.5 15 15 30 37 45 15 37 45 55 75 160 200 250 355 560 710 1000 7.5 15 15 30 37 45 7.5 15 15 30 37 45 55 75 160 200 250 355 560 710 800 OT_ OT_ 16 25 36 63 90 125 160 200 250 315 400 630 800 1000 1250 7.5 15 15 30 45 55 75 160 200 250 355 560 710 1000 1200 7.5 15 15 30 45 55 75 160 200 250 355 560 710 800 OT_ OT_ 16 25 36 63 90 125 160 200 250 315 400 630 800 1000 7.5 15 15 30 45 55 75 160 200 250 355 560 710 1000 7.5 15 15 30 OTR_ OTR_  OT_ 25 36 63 75 90 160 200 250 315 400 630 800 1000 1250 30 37 45 75 160 200 250 355 560 710 1000 1200 30 37 45 15 15 37 45 75 160 200 250 355 560 710 Accessories Handles Auxiliary contacts Terminal clamps Busbar connections Neutral links Padlock unit Cable glands and entries Condensation water outlet

8  Features | Safety switches Safety switches 7.5...1200 kW, from 16 to 1250 Amperes Safety switches are designed to be mounted near a motor or machine to isolate it from the main circuit.  They prevent accidental starting of electrical machinery during maintenance or repair work. To ensure maximum safety, it is a good practice to use a separate switch for normal start and stop and to use the safety switch only during repair and maintenance.ABB’s range includes side and front operated safety switches from 16 to 1200 Amperes, with power ratings from 7.5 to 1200 kW up to 690 V. The ratings correspond to utilization category AC-23A.  Enclosures are available in plastic, aluminum, steel sheet, stainless steel sheet and acid-proof material. The appropriate material can be selected according to preference or applica-tion.  Suitable for demanding environments   – The enclosures are made of strong, high quality materials.    High durability in tough conditions.    – All switches from sizes 200 A have extra thick silver plated  contacts.   Corrosion resistance even in the most difficult operational     conditions.  Gold plated auxiliary contacts for extremely difficult circum-stances are available on request. Designed for safety The safety switch construction criteria and materials are cho-sen with a strong emphasis on operational safety.    – All safety switches have been tested according to IEC  60947-3 standard. One of the most significant safety factors is the arc proof short-circuit durability.  After numerous tests, ABB’s safety switches have proven to maintain high degree of safety. The aluminum enclosures have built-in expander washers and large steel sheet  enclosures have security latches to prevent personal injury.   In the unlikely event of a short circuit, the force of the    explosion and the dangerous arc gases are directed safely     away from the operator.   – If the contacts are welded together, the handle does not  reach the OFF-position but remains between ON and OFF, maintaining the door interlock and preventing padlocking.   There are no elastic or non-compliant parts between the contacts and the handle.   Reliable position indication guaranteed constantly.   – The handle can be padlocked in the OFF-position with  up to six padlocks, depending on the switch type and accessories used. The door of the safety switch cannot be opened when the handle is in the ON-position.   Unwanted operation prevented.

Safety switches | Features  9 Safety switches are designed to be mounted near a motor or machine to isolate it from the main circuit.   They prevent  accidental starting of electrical machinery during maintenance or repair work. I ON O OFF I O N  O  O FF 45° The safety switches are delivered with an auxiliary contact that can be used for electrical interlocking . This is done by connecting the safety switch to a starter or other motor control devices. For easy identification, the safety switch has a sticker label. EMC ABB offers safety switches especially designed for environ-ments with electromagnetic disturbances (EMC). EMC safety switches ABB’s EMC safety switches comply with IEC 61000-6-3/4,ac-cording to EU directive 2004/108/EC. Electromagnetic compatibility (EMC) refers to the ability of the device to function despite electromagnetic disturbances in the  environment without electromagnetically disturbing other de-vices in the surroundings.  This is important in environments where the disturbance from frequency converters may rise up to tenths, even hundreds of MHz.

10  Technical data | Safety switches Technical data Safety switches Safety switches type OT_ Data according to IEC 60947-3  Switch size 16 25 36 63 75 90_E Plastic enclosed  Switch type OTP/OTE OTP/OTE OTP/OTE OTP OTP/OTE OTP/OTE Steel sheet enclosed OTL/OT OTL/OT OTL/OT OTL/OT OTL/OT OTL/OT Stainless steel sheet enclosed OTR OTR OTR OTR OTR OTR Rated Insulation voltage V 750 750 750 750 750 750 Rated thermal current 40ºC A 40 63 80 115 115 125 60ºC A 32 50 63 80 80 100 Rated operational power, AC-23A 230V  kW/A 5.5/23 7.5/30 11/45 18.5/63 22/80 22/90 400V  kW/A 7.5/16 15/30 22/45 30/63 37/80 45/90 500V  kW/A 7.5/16 15/30 22/45 30/50 37/60 45/70 690V  kW/A 7.5/10 15/20 15/20 30/35 37/40 45/50 Rated conditional short-circuit current 50kA, 400V 1) kA 6.5 13 13 16.5 16.5 16.5 r.m.s and corresponding cut-off current Fuse size: gG/aM 40/32 100/80 100/80 125/125 125/125 125/125 of the fuse in single-phase test  50kA, 690V 1) kA 4 11 11 10 10 10 according to IEC60269 Fuse size: gG/aM 25/16 80/63 80/63 63/63 63/63 63/63 Used switch type OT40_ OT63_ OT80_ OT100_ OT100_ OT125F_ Satety switches type BWS_ and LBAS_  Switch size 16 25 45 75 90 125 Plastic enclosed  Switch type BWS BWS Aluminum enclosed LBAS LBAS LBAS LBAS LBAS LBAS Rated Insulation voltage V 690 690 750 750 750 1000 Rated thermal current 40ºC A 32 40 63 80 125 160 60ºC A 50 63 100 Rated operational power / current AC-23A 400V kW/A 7.5/16 11/25 22/45 37/75 45/90 55/125 500V kW/A 7.5/16 15/25 22/45 37/58 45/70 55/90 690V kW/A 7.5/10 11/16 15/20 18.5/20 45/50 55/70 Conditional short circuit current     kA 25 25 50 50 50 50 Fuse protected short circuit 400V kA 5 5 13 13 16.5 18 making capacity 500V kA 4.8 4.8 11 11 10 18 690V kA 4.8 4.8 11 11 10 18 Max fuse 400V A 50 50 63 80 125 200 500V A 35 35 63 80 63 200 690V A 35 35 63 80 63 200 Colour codes of the enclosures / safety switches Colour code/cover Colour code/box Plastic enclosures OTP, white enclosure, installation safety swithes RAL9001 RAL9001 OTP and OT, grey enclosure RAL 7035 RAL 7035 BWS, grey cover RAL 7012 RAL 7035 BWS, yellow cover RAL1021 RAL 7035 Steel sheet enclosures OTL RAL 7035 RAL 7035 OT NCS 1704-Y15R NCS 1704-Y15R Aluminium enclosures LBAS_16…90 RAL 7012 RAL 7035 LBAS_125…630 RAL 7035 RAL 7035 1)  Other short-circuit ratings: see OT_OETL1GB catalogue. For more information on switches and their applications, see catalogue OT_OETL1GB. Cabling, see pages 12...13. Terminal clamps for Al/Cu cables on page 79. For more information about our products, visit www.abb.com and our selection tool for enclosed switches at www.switchselector.com

Safety switches | Technical data  11 90_A 125 160 160EV_ 200 250 315 400 630 800 1000 1250 OT_A OT OT OT OT OT OT OT OT OT OT OT_A OT OT OT OT OT OT OT OT OT OT OT_EV_ OT OT OT OT OT OT OT OT 750 750 750 1000 1000 1000 1000 1000 1000 1000 1000 1000 135 160 160 160 200 250 315 400 570 720 1000 1250 125 160 160 160 200 200 315 320 460 580 30/105 37/125 43/135 48/160 55/200 75/250 90/315 110/400 180/570 200/720 315/1000 400/1250 45/105 55/125 75/135 80/160 110/200 132/250 160/315 220/400 315/570 400/720 560/1000 710/1250 45/70 55/90 75/125 112/160 132/200 160/250 200/315 280/400 400/570 500/720 710/1000 900/1250 45/50 55/70 75/80 144/160 160/200 200/250 250/315 355/400 560/570 710/720 1000/1000 1200/1250 24 24 24 35 35 35 50.5 50.5 71.5 71.5 75 200/250 200/250 200/250 355/315 355/315 355/315 500/500 500/500 800/1000 800/1000 1000/1000 24 24 24 35 35 35 50.5 50.5 71.5 71.5 75 200/250 200/250 200/250 355/315 355/315 355/315 500/500 500/500 800/1000 800/1000 1000/1000 OT125A_ OT160E_ OT160E_ OT160EV_ OT200_ OT250_ OT315_ OT400_ OT630_ OT800_ OT1000_ OT1250_ 160 200 250 400 630 LBAS LBAS LBAS LBAS LBAS 1000 1000 1000 1000 1000 160 270 315 500 630 75/160 132/250 160/315 250/500 315/630 75/125 160/250 200/315 315/500 355/580 75/80 200/250 250/315 315/350 355/350 50 50 50 50 50 18 35 35 50 50 18 35 35 50 50 18 35 35 50 50 250 400 400 630 800 250 400 400 630 800 250 400 400 630 800  Membrane glands/sealing plugs (included in BWS/LBAS) Cable  entries Included in For cable Protection   size/metric delivery   diam. Type class threads [pcs] [mm] BWS_16 IP54 M25 2 9...16 LBAS_16 IP54 M25 4 9...16 BWS616, 625 IP54 M25 3 9...16 IP54 M16 1 6...11 BWS_25   IP54 M32 2 12...20 IP54 M16 1 7...11 LBAS_25 IP54 M32 4 16...24 IP54 M16 1 7...11 LBAS_45..._90 IP54 M40 4 19...25 IP54 M16 1 6...11 EMC-safety switches LBAS316E/TPN IP68 M25 2 9...16 LBAS325E/TPN IP68 IP68 M32 M16 2 1 16...24 7...11

12  Cabling | Safety switches Cabling Steel sheet enclosed safety switches Supply cable Steel sheet enclosed safety switch (3-pole) Amount of parallel cables mm 2 Cable entries from top and bottom Cable entries from bottom Supply cable, cable cross section 16…50 mm 2 1x(16…50) OT_75_, OT_90_ 1x(16…50) OT 90E_ Supply cable, cable cross section 10…70 mm 2 1x(10…70) OT_75_, OT_90_ 1x(10…70) OT 90E_ 1x(10…70) OT 90A_, OT125_ OT90A_, OT125_, OT160_ 1x(10…70) OT200_, OT250_ OT200_, OT250_ 2x(10…70) OT200_, OT250_, OT315_, OT400_ OT125_, OT160_, OT200_, OT250_, OT315_, OT400_ Supply cable, cable cross section 25…120 mm 2 1x(25…120) OT 90A_ OT 90A_ 1x(25…120) OT125_ OT125_ 1x(25…120) OT160_, OT200_, OT250_ OT160_, OT200_, OT250_ 1x(25…120) OT315_, OT400_ OT315_, OT400_ 2x(25…120) OT160_ OT 90A_, OT125_, OT160_ 2x(25…120) OT200_, OT250_ OT200_, OT250_ 2x(25…120) OT315_, OT400_ OT315_, OT400_ 2x(25…120) OT315_, OT400_ OT315_, OT400_ Supply cable, cable cross section 70…185 mm 2 1x(70…185) OT315_, OT400_, OT630_, OT800E_ OT315_, OT400_, OT630_, OT800E_ 2x(70…185) OT315_, OT400_, OT630_, OT800E_ OT315_, OT400_, OT630_, OT800E_ 3x(70...185) OT630_,OT800_ OT630KA_,OT800_ 4x(70...185) OT630_,OT800_ OT630KA_,OT800_ Supply cable, cable cross section 95…240 mm 2 1x(95…240) OT200_, OT250_, OT315_, OT400_ OT200_, OT250_, OT315_, OT400_ 2x(95…240) OT200_, OT250_ OT200_, OT250_ 2x(95…240) OT315_, OT400_ OT315_, OT400_ Supply cable, cable cross section 120…240 mm 2 1x(120…240) OT315_, OT400_ OT315_, OT400_ Supply cable, cable cross section 120….300 mm 2 1x(120…300) OT315_, OT400_, OT630_, OT800E_ OT315_, OT400_, OT630_, OT800E_ 2x(120…300) OT315_, OT400_, OT630_, OT800E_ OT630_, OT800E_ 2x(120…300) OT1000_, OT1250_ OT1000_, OT1250_ 3x(120…300) OT630_, OT800E_ OT630KA_,OT800_ 3x(120…300) OT1000_, OT1250_ OT1000_, OT1250_ 4x(120...300) OT630_,OT800_ OT630KA_, OT800_ 4x(120…300) OT1000_, OT1250_ OT1000_, OT1250_ 5x(120…300) OT1000BL_, OT1250EL_   For 800 mm wide enclosure only

Safety switches | Cabling  13 Mounting accessories (to supply side) Cable entries from top and bottom Cable entries from bottom Busbar Terminal clamp Terminal bolt kit Busbar Terminal clamp Terminal bolt kit OZXT1 (max 63A) OZXT1 (max 63A) OZXL1+OTS125T3P OZXL1+OTS125T3P OZXL2 OZXB1L OZXB1L OZXB1L OZXE20 2xOZXB1 OZXE 20 2xOZXB1 OZXB2 OZXB2 OZXB2 OZXB2 OZXB2 OZXB2 OZXB2L OZXB2L OZXE21 2xOZXB2 OZXE21 2xOZXB2 OZXE45 OZXB2+OZXB2L OZXE21 2xOZXB2 OZXE21 2xOZXB2 OZXE21 2xOZXB2 OZXE21 2xOZXB2L OZXE54 OZXE21 2xOZXB2L OZXE54 OZXB3 OZXB3 OZXB4 OZXB4 OZXE19 OZXB3+OZXB4 OZXE19 OZXB3 + OZXB4 OZXE19 2xOZXB4 OZXE19 2xOZXB4 OZXB9 OZXB9 OZXE45 2xOZXB9 OZXE 56 OZXE45 2xOZXB9 OZXE56 OZXE46 2xOZXB9 OZXE 57 OZXE46 2xOZXB9 OZXE57 OZXB7 OZXB 7 OZXB5 OZXB5 OZXB6 OZXB6 2xOZXB5 2xOZXB5 OZXE19 OZXB5+OZXB6 OZXE19 OZXB5+OZXB6 OZXB5+OZXB6 OZXB5+OZXB6 OZXE19 2xOZXB6 OZXE19 2xOZXB6 2xOZXB6 2xOZXB6 OZXE19 2xOZXB6+OZXB5

14  Ordering information | Safety switches Ordering information Installation safety switches, 3-pole,  IP65 The delivery includes a selector handle (I-O/ON-OFF), N- and PE-terminals, two membrane cable glands, two pull stoppers, auxiliary contacts according to the table below. Type _/10 = 10 units / type. White handle, white enclosure (RAL9001), cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side 1) included max. Type Order number [kg] Round handle 5.5 7.5 7.5 7.5 2×Pg16 - 1no+1nc OTP16H3P1 1SCA022371R2400 0.4 5.5 7.5 7.5 7.5 2×Pg16 - 1no+1nc OTP16H3P1/10 1SCA022373R1700 4.0 5.5 7.5 7.5 7.5 2×Pg16 1no 1no+1nc OTP16H3P 1SCA022371R2310 0.4 5.5 7.5 7.5 7.5 2×Pg16 1no 1no+1nc OTP16H3P/10 1SCA022373R1610 4.0 5.5 7.5 7.5 7.5 2×M20 - 1no+1nc OTP16H3M1 1SCA022432R1090 0.4 5.5 7.5 7.5 7.5 2×M20 - 1no+1nc OTP16H3M1/10 1SCA022608R9750 4.0 5.5 7.5 7.5 7.5 2×M20 1no 1no+1nc OTP16H3M 1SCA022608R8190 0.4 5.5 7.5 7.5 7.5 2×M20 1no 1no+1nc OTP16H3M/10 1SCA022608R9240 4.0 5.5 7.5 7.5 7.5 2×M25 - 1no+1nc OTP16H3M251 1SCA022699R3340 0.4 5.5 7.5 7.5 7.5 2×M25 - 1no+1nc OTP16H3M251/10 1SCA022699R3420 4.0 5.5 7.5 7.5 7.5 2×M25 1no 1no+1nc OTP16H3M25 1SCA022699R3000 0.4 5.5 7.5 7.5 7.5 2×M25 1no 1no+1nc OTP16H3M25/10 1SCA022699R3180 4.0 Black handle, grey enclosure, cable entries from top and bottom Round handle 5.5 7.5 7.5 7.5 2×M20 - 1no+1nc OTP16HT3M1 1SCA022400R9320 0.4 5.5 7.5 7.5 7.5 2×M20 - 1no+1nc OTP16HT3M1/10 1SCA022641R7600 4.0 5.5 7.5 7.5 7.5 2×M20 1no 1no+1nc OTP16HT3M 1SCA022400R9410 0.4 5.5 7.5 7.5 7.5 2×M20 1no 1no+1nc OTP16HT3M/10 1SCA022641R7510 4.0 5.5 7.5 7.5 7.5 2×M25 - 1no+1nc OTP16HT3M251 1SCA022699R4070 0.4 5.5 7.5 7.5 7.5 2×M25 - 1no+1nc OTP16HT3M251/10 1SCA022699R4150 4.0 5.5 7.5 7.5 7.5 2×M25 1no 1no+1nc OTP16HT3M25 1SCA022699R3770 0.4 5.5 7.5 7.5 7.5 2×M25 1no 1no+1nc OTP16HT3M25/10 1SCA022699R3850 4.0 Rectangular handle 5.5 7.5 7.5 7.5 2×M20 - 1no+1nc OTP16K3M1 1SCA022400R9750 0.4 5.5 7.5 7.5 7.5 2×M20 1no 1no+1nc OTP16K3M 1SCA022400R9830 0.4 5.5 7.5 7.5 7.5 2×M25 - 1no+1nc OTP16K3M251 1SCA022699R4400 0.4 5.5 7.5 7.5 7.5 2×M25 1no 1no+1nc OTP16K3M25 1SCA022699R4310 0.4 Red-yellow handle, grey enclosure, cable entries from top and bottom Rectangular handle 5.5 7.5 7.5 7.5 2×M20 - 1no+1nc OTP16KA3M1 1SCA022401R0330 0.4 5.5 7.5 7.5 7.5 2×M20 1no 1no+1nc OTP16KA3M 1SCA022399R6590 0.4 5.5 7.5 7.5 7.5 2×M25 - 1no+1nc OTP16KA3M251 1SCA022699R4660 0.4 5.5 7.5 7.5 7.5 2×M25 1no 1no+1nc OTP16KA3M25 1SCA022699R4580 0.4 1)   Pg-threads available on request Plastic enclosed safety switches OTP16K_ S00695A OTP16H_ S00691A OTP16HT_ S00694A OTP16KA_ S00453A

Safety switches | Ordering information  15 Ordering information Safety switches, 3-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), PE-terminal, knock-out openings and auxil-iary contacts according to the table below. Grey enclosure. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side 1) included max. Type Order number [kg] Selector handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 5.5 7.5 7.5 7.5 2×M25+M16 1no 2no+2nc OTP16T3M 1SCA022400R9910 0.5 7.5 15 15 15 2×M32+M16 1no 2no+2nc OTP25T3M 1SCA022401R0090 0.9 11 22 22 15 2×M32+M16 1no 2no+2nc OTP36T3M 1SCA022401R0170 0.9 18.5 30 30 30 2×M32+M16 1no 2no+2nc OTP63T3M 1SCA022608R2910 1.0 22 37 37 37 2×M50+M16 1no 2no+2nc OTP75T3M 1SCA022812R2890 2.4 22 45 45 45 2×M50+M16 1no 2no+2nc OTP90T3M 1SCA022812R2970 2.4 Include N-terminal. Flanges have to be ordered separately, page 84. 22 37 37 37 I-flange 1no 2no+2nc OTP75T3B 1SCA022371R2910 2.4 22 37 37 37 - 1no 2no+2nc OTP75T3U 1SCA022401R0250 2.4 22 45 45 45 I-flange 1no 2no+2nc OTP90T3B 1SCA022429R3450 2.4 22 45 45 45 - 1no 2no+2nc OTP90T3U 1SCA022430R0760 2.4 Pistol handle Flanges have to be ordered separately, page 84. 30 45 45 45 II-flange 1no+1nc 2no+2nc OT90AFCC3T 1SCA022576R0200 5.4 37 55 55 55 II-flange 1no+1nc 1no+1nc OT125EFCC3T 1SCA022260R4990 5.4 45 75 75 75 II-flange 1no+1nc 1no+1nc OT160EFCC3T 1SCA022299R1910 7.0 55 110 132 160 II-flange 2no+1nc 2no+1nc OT200KFCC3T 1SCA022260R5370 9.0 75 132 160 200 II-flange 2no+1nc 2no+1nc OT250KFCC3T 1SCA022276R8830 9.0 90 160 200 250 II-flange 2no+1nc 2no+1nc OT315KFCC3T 1SCA022276R9810 9.0 110 220 280 355 II-flange 2no+1nc 2no+1nc OT400DFCC3T 1SCA022277R0490 16.0 180 355 400 560 2×II-flange 2no+1nc 2no+1nc OT630KFCC3T 1SCA022277R1030 20.0 315 560 710 1000 2×II-flange 1no+1nc 1no+1nc OT1000BFCC3T 1SCA022277R1620 35.0 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Pistol handle Flanges have to be ordered separately, page 84. 45 75 75 75 II-flange 1no+1nc 1no+1nc OT160EGCC3T 1SCA022298R9680 7.0 55 110 132 160 II-flange 2no+1nc 2no+1nc OT200KGCC3T 1SCA022276R8670 9.0 75 132 160 200 II-flange 2no+1nc 2no+1nc OT250KGCC3T 1SCA022276R9640 9.0 90 160 200 250 II-flange 2no+1nc 2no+1nc OT315KGCC3T 1SCA022277R0220 9.0 110 220 280 355 2×II-flange 2no+1nc 2no+1nc OT400DGCC3T 1SCA022277R0810 24.0 180 355 400 560 2×II-flange 2no+1nc 2no+1nc OT630KGCC3T 1SCA022277R1460 26.0 1)   Pg-threads available on request Plastic enclosed safety switches OTP16T_, OTP25T_, OTP36T_, OTP63T S00764A OTP75T_, OTP90T_ S00692A OT90A_...1000_ S00835 OT160_...630_ S00835

16  Ordering information | Safety switches Ordering information Safety switches, 4-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), PE-terminals, knock-out openings and auxiliary contacts according to the table below. Grey enclosure. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side 1) included max. Type Order number [kg] Selector handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 5.5 7.5 7.5 7.5 2×M25+M16 1no 2no+2nc OTP16T4M 1SCA022401R0500 0.5 7.5 15 15 15 2×M32+M16 1no 2no+2nc OTP25T4M 1SCA022401R0680 1.0 11 22 22 15 2×M32+M16 1no 2no+2nc OTP36T4M 1SCA022401R0760 1.0 22 37 37 37 2×M50+M16 1no 2no+2nc OTP75T4M 1SCA022812R3010 2.5 22 45 45 45 2×M50+M16 1no 2no+2nc OTP90T4M 1SCA022812R3190 2.5 Include N-terminal. Flanges have to be ordered separately, page 84. 22 37 37 37 I-flange 1no 2no+2nc OTP75T4B 1SCA022383R0860 2.5 22 37 37 37 - 1no 2no+2nc OTP75T4U 1SCA022401R0840 2.5 22 45 45 45 I-flange 1no 2no+2nc OTP90T4B 1SCA022430R1310 2.5 22 45 45 45 - 1no 2no+2nc OTP90T4U 1SCA022401R0840 2.5 Pistol handle Flanges have to be ordered separately, page 84. 37 55 55 55 II-flange 1no+1nc 1no+1nc OT125EFCC4T 1SCA022483R0050 5.7 45 75 75 75 II-flange 1no+1nc 1no+1nc OT160EFCC4T 1SCA022302R5660 7.3 55 110 132 160 II-flange 2no+1nc 2no+1nc OT200KFCC4T 1SCA022367R9430 9.3 75 132 160 200 II-flange 2no+1nc 2no+1nc OT250KFCC4T 1SCA022619R2250 9.3 90 160 200 250 II-flange 2no+1nc 2no+1nc OT315KFCC4T 1SCA022367R9510 9.3 110 220 280 355 II-flange 2no+1nc 2no+1nc OT400DFCC4T 1SCA022623R3970 17.0 1)   Pg-threads available on request Plastic enclosed safety switches OTP16T_, OTP25T_, OTP36T S00764A OTP75T, OTP90T_ S00692A OT125_...400_ S00835

Safety switches | Ordering information  17 Ordering information Plastic enclosed safety switches Safety switches, 6-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), PE-terminals, knock-out openings and auxiliary contacts according to the table below. Grey enclosure. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side 1) included max. Type Order number [kg] Selector handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 5.5 7.5 7.5 7.5 2×M25+M16 1no 1no+1nc OTP16T6M 1SCA022401R1730 0.7 Pistol handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 7.5 15 15 15 2×M32+M16 1no 1no+1nc OTP25T6M 1SCA022401R1810 1.2 11 22 22 15 2×M32+M16 1no 1no+1nc OTP36T6M 1SCA022401R1900 1.2 22 37 37 37 2×M50+M16 1no 2no+2nc OTP75T6M 1SCA022812R3270 3.2 22 45 45 45 2×M50+M16 1no 2no+2nc OTP90T6M 1SCA022812R3350 3.2 Include N-terminal. Flanges have to be ordered separately, page 84. 18.5 30 30 30 I-flange 1no 2no+2nc OTP63T6B 1SCA022485R6440 2.5 22 37 37 37 I-flange 1no 2no+2nc OTP75T6B 1SCA022371R3040 3.2 22 37 37 37 - 1no 2no+2nc OTP75T6U 1SCA022401R2030 3.2 22 45 45 45 I-flange 1no 2no+2nc OTP90T6B 1SCA022430R2380 3.2 22 45 45 45 - 1no 2no+2nc OTP90T6U 1SCA022430R2460 3.2 Flanges have to be ordered separately, page 84. 30 45 45 45 II-flange 2no+2nc 2no+2nc OT90AFCC6T 1SCA022260R3590 7.0 37 55 55 55 II-flange 2no+2nc 2no+2nc OT125EFCC6T 1SCA022260R5110 8.0 45 75 75 75 II-flange 2no+2nc 2no+2nc OT160EFCC6T 1SCA022299R0260 8.0 55 110 132 160 2×II-flange 4no+2nc 4no+2nc OT200KFCC6T 1SCA022260R5530 21.0 75 132 160 200 2×II-flange 4no+2nc 4no+2nc OT250KFCC6T 1SCA022276R9480 21.0 90 160 200 250 2×II-flange 4no+2nc 4no+2nc OT315KFCC6T 1SCA022277R0060 21.0 110 220 280 355 2×II-flange 4no+2nc 4no+2nc OT400DFCC6T 1SCA022277R0650 29.0 1)   Pg-threads available on request OT90A_...400_ S00835 OTP25T...90T_ S02084 OTP16T_ S00764A

18  Ordering information | Safety switches Ordering information Safety switches, 3-pole, IP65, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), PE-terminal, knock-out openings and auxiliary contacts according to the table below. Grey enclosure. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side 1) included max. Type Order number [kg] Selector handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 5.5 7.5 7.5 7.5 2×M25+M16 1no 2no+2nc OTP16A3M 1SCA022399R6750 0.5 7.5 15 15 15 2×M32+M16 1no 2no+2nc OTP25A3M 1SCA022399R6670 0.9 11 22 22 15 2×M32+M16 1no 2no+2nc OTP36A3M 1SCA022399R6830 0.9 18.5 30 30 30 2×M32+M16 1no 2no+2nc OTP63A3M 1SCA022613R1200 1.0 22 37 37 37 2×M50+M16 1no 2no+2nc OTP75A3M 1SCA022812R3430 2.4 22 45 45 45 2×M50+M16 1no 2no+2nc OTP90A3M 1SCA022812R3510 2.4 Include N-terminal. Flanges have to be ordered separately, page 84. 22 37 37 37 I-flange 1no 2no+2nc OTP75A3B 1SCA022382R0550 2.4 22 37 37 37 - 1no 2no+2nc OTP75A3U 1SCA022401R0410 2.4 22 45 45 45 I-flange 1no 2no+2nc OTP90A3B 1SCA022430R0410 2.4 22 45 45 45 - 1no 2no+2nc OTP90A3U 1SCA022430R1060 2.4 Pistol handle Flanges have to be ordered separately, page 84. 30 45 45 45 II-flange 1no+1nc 2no+2nc OT90AFCC3A 1SCA110504R1001 5.4 37 55 55 55 II-flange 1no+1nc 1no+1nc OT125EFCC3A 1SCA022280R1040 5.4 45 75 75 75 II-flange 1no+1nc 1no+1nc OT160EFCC3A 1SCA022278R6810 7.0 55 110 132 160 II-flange 2no+1nc 2no+1nc OT200KFCC3A 1SCA022278R1340 9.0 75 132 160 200 II-flange 2no+1nc 2no+1nc OT250KFCC3A 1SCA022278R1930 9.0 90 160 200 250 II-flange 2no+1nc 2no+1nc OT315KFCC3A 1SCA022278R2580 9.0 110 220 280 355 II-flange 2no+1nc 2no+1nc OT400DFCC3A 1SCA022278R3120 16 180 315 400 560 2×II-flange 2no+1nc 2no+1nc OT630KFCC3A 1SCA022278R3710 20 315 560 710 1000 2×II-flange 2no+1nc 2no+1nc OT1000BFCC3A 1SCA022297R5620 35 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Pistol handle Knock-out flanges, flanges have to be ordered separately, page 84. 45 75 75 75 II-flange 1no+1nc 1no+1nc OT160EGCC3A 1SCA022297R5890 7.0 55 110 132 160 II-flange 2no+1nc 2no+1nc OT200KGCC3A 1SCA022297R6010 9.0 75 132 160 200 II-flange 2no+1nc 2no+1nc OT250KGCC3A 1SCA022297R6270 9.0 90 160 200 250 II-flange 2no+1nc 2no+1nc OT315KGCC3A 1SCA022298R8280 9.0 110 220 280 355 2×II-flange 2no+1nc 2no+1nc OT400DGCC3A 1SCA022297R6430 24 180 315 400 560 2×II-flange 2no+1nc 2no+1nc OT630KGCC3A 1SCA022297R6600 26 1)   Pg-threads available on request Plastic enclosed safety switches OTP16A_, OTP25A_ OTP36A_, OTP63A_ S00760A OTP75A_, OTP90A_ S00763A OT90A...1000_ S01765A OT160_...630_ S01765A

Safety switches | Ordering information  19 Ordering information Plastic enclosed safety switches Safety switches, 4-pole, IP65, red-yellow handle  The delivery includes a red-yellow handle (I-O/ON-OFF), PE-terminals, knock-out openings and auxiliary contacts according to the table below. Grey enclosure.  Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side 1) included max. Type Order number [kg] Selector handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 5.5 7.5 7.5 7.5 2×M25+M16 1no 2no+2nc OTP16A4M 1SCA022401R1060 0.53 7.5 15 15 15 2×M32+M16 1no 2no+2nc OTP25A4M 1SCA022401R1220 0.96 11 22 22 15 2×M32+M16 1no 2no+2nc OTP36A4M 1SCA022401R1490 0.96 22 37 37 37 2×M50+M16 1no 2no+2nc OTP75A4M 1SCA022812R3780 2.5 22 45 45 45 2×M50+M16 1no 2no+2nc OTP90A4M 1SCA022812R3860 2.5 Include N-terminal. Flanges have to be ordered separately, page 84. 22 37 37 37 I-flange 1no 2no+2nc OTP75A4B 1SCA022401R1570 2.5 22 37 37 37 - 1no 2no+2nc OTP75A4U 1SCA022401R1650 2.5 22 45 45 45 I-flange 1no 2no+2nc OTP90A4B 1SCA022430R1900 2.5 22 45 45 45 - 1no 2no+2nc OTP90A4U 1SCA022430R2030 2.5 Pistol handle Flanges have to be ordered separately, page 84. 37 55 55 55 II-flange 1no+1nc 1no+1nc OT125EFCC4A 1SCA022745R6200 5.7 45 75 75 75 II-flange 1no+1nc 1no+1nc OT160EFCC4A 1SCA022745R6380 7.3 55 110 132 160 II-flange 2no+1nc 2no+1nc OT200KFCC4A 1SCA022745R6460 9.3 75 132 160 200 II-flange 2no+1nc 2no+1nc OT250KFCC4A 1SCA022745R6540 9.3 90 160 200 250 II-flange 2no+1nc 2no+1nc OT315KFCC4A 1SCA022745R6620 9.3 110 220 280 355 II-flange 2no+1nc 2no+1nc OT400DFCC4A 1SCA022745R6710 17.0 1)   Pg-threads available on request OTP16A_, OTP25A_, OTP36A_ S00760A OTP75A_, OTP90A_ S00763A OT125_...400_ S01765A

20  Ordering information | Safety switches Ordering information Safety switches, 6-pole, IP65, red-yellow handle  The delivery includes a red-yellow handle (I-O/ON-OFF), PE-terminals, knock-out openings and auxiliary contacts according to the table below. Grey enclosure. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side 1) included max. Type Order number [kg] Selector handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 5.5 7.5 7.5 7.5 2×M25+M16 1no 1no+1nc OTP16A6M 1SCA022401R2200 0.7 Pistol handle Include N-terminal. Knock-out openings, also for control cables. Compression glands have to be ordered separately,  page 85. 7.5 15 15 15 2×M32+M16 1no 1no+1nc OTP25A6M 1SCA022401R2460 1.2 11 22 22 15 2×M32+M16 1no 1no+1nc OTP36A6M 1SCA022401R2620 1.2 22 37 37 37 2×M50+M16 1no 2no+2nc OTP75A6M 1SCA022812R3940 3.2 22 45 45 45 2×M50+M16 1no 2no+2nc OTP90A6M 1SCA022812R4080 3.2 Include N-terminal. Flanges have to be ordered separately, page 84. 18.5 30 30 30 I-flange 1no 2no+2nc OTP63A6B 1SCA022485R6280 2.5 22 37 37 37 I-flange 1no 2no+2nc OTP75A6B 1SCA022401R2710 3.2 22 37 37 37 - 1no 2no+2nc OTP75A6U 1SCA022401R2890 3.2 22 45 45 45 I-flange 1no 2no+2nc OTP90A6B 1SCA022430R2540 3.2 22 45 45 45 - 1no 2no+2nc OTP90A6U 1SCA022430R2620 3.2 Flanges have to be ordered separately, page 84. 30 45 45 45 II-flange 2no+2nc 2no+2nc OT90AFCC6A 1SCA022297R7830 7.0 37 55 55 55 II-flange 2no+2nc 2no+2nc OT125EFCC6A 1SCA022297R8050 8.0 45 75 75 75 II-flange 2no+2nc 2no+2nc OT160EFCC6A 1SCA022297R8210 8.0 55 110 132 160 2xII-flange 4no+2nc 4no+2nc OT200KFCC6A 1SCA022297R8480 21 75 132 160 200 2xII-flange 4no+2nc 4no+2nc OT250KFCC6A 1SCA022297R8640 21 90 160 200 250 2xII-flange 4no+2nc 4no+2nc OT315KFCC6A 1SCA022292R7730 21 110 220 280 355 2xII-flange 4no+2nc 4no+2nc OT400DFCC6A 1SCA022297R8810 29 1)   Pg-threads available on request Plastic enclosed safety switches OTP16A_ S00760A OTP25A...90A_ S00769 OT90AF_...400_ S01765A

Safety switches | Ordering information  21 Ordering information Plastic enclosed safety switches Side operated safety switches, 3, 4 and 6-pole, IP65 Enclosure in robust thermoplastic (PBT). Colors: Box in light grey, cover and handle according the table below. The safety switch comes complete with neutral, PE terminal, one N.O auxil-iary contact, cable entries with metric threaded knock-outs, IP54 membrane glands (See table page 11). For IP65 protection compression glands must be used. Cable entries from top and bottom Rated operational  current/power AC-23A Enclosure Weight 500V 690V Cable entries  size [mm] /unit [A] [A] [kW] Up/Down W H D Type Order number  [kg] 3-pole Dark grey side-operated handle, dark grey cover 16 10 7.5 2×M25/2×M25 111 130 60 BWS316 TPN 2CMA142417R1000 0.32 25 16 11 2×M32/2×M32+1×M16 138 168 68 BWS325 TPN 2CMA142420R1000 0.41 Red side-operated handle, yellow cover 16 10 7.5 2×M25/2×M25 111 130 60 BWS316 Y TPN 2CMA142423R1000 0.37 25 16 11 2×M32/2×M32+1×M16 138 168 68 BWS325 Y TPN 2CMA142426R1000 0.41 Dark greyside-operated handle, dark grey cover, auxiliary contacts not included 16 10 7.5 2×M25/2×M25 111 130 60 BWS316 F TPN 2CMA142440R1000 0.32 4-pole Dark grey side-operated handle, dark grey cover 16 10 7.5 2×M25/2×M25 111 130 60 BWS416 TPSN 2CMA142418R1000 0.32 25 16 11 2×M32/2×M32+1×M16 138 168 68 BWS425 TPSN 2CMA142421R1000 0.42 Red side-operated handle, yellow cover 16 10 7.5 2×M25/2×M25 111 130 60 BWS416 Y TPSN 2CMA142424R1000 0.32 25 16 11 2×M32/2×M32+1×M16 138 168 68 BWS425 Y TPSN 2CMA142427R1000 0.42 6-pole Dark grey side-operated handle, dark grey cover 16 10 7.5 2×Ø25+Ø16/2×Ø25+Ø16 190 130 65 BWS616 TPN 2CMA142419R1000 0.54 25 16 11 2×Ø25+Ø16/2×Ø25+Ø16 190 130 65 BWS625 TPN 2CMA142422R1000 0.54 Red side-operated handle, yellow cover 16 10 7.5 2×Ø25+Ø16/2×Ø25+Ø16 190 130 65 BWS616 Y TPN 2CMA142425R1000 0.54 25 16 11 2×Ø25+Ø16/2×Ø25+Ø16 190 130 65 BWS625 Y TPN 2CMA142428R1000 0.54 BWS316 TPN, BWS416 TPSN 2CMC341011F0054 BWS616 TPN, BWS625 TPN 2CMC341011F0066 BWS316 Y TPN, BWS416 Y TPSN 2CMC342002F0056 BWS325 Y TPN, BWS425 Y TPSN 2CMC342002F0056 BWS616 Y TPN, BWS625 Y TPN 2CMC341011F0070 BWS325 TPN, BWS425 TPSN 2CMC341011F0056

22  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches, 3-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF) PE-terminal and auxiliary contact 1 no. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Hinged cover, cable entries from top and bottom Grey enclosure, equipped with hings and lock. Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25.5+ø16.5 1no 2no+2nc OTL16T3M 1SCA102679R1001 1.7 7.5 15 15 15 2×ø32.5+ø16.5 1no 2no+2nc OTL25T3M 1SCA022612R9990 1.9 11 22 22 15 2×ø32.5+ø16.5 1no 2no+2nc OTL36T3M 1SCA022613R0060 1.9 Pistol handle 18.5 30 30 30 2×ø32.5+ø16.5 1no 2no+2nc OTL63T3M  1SCA022609R7180 2.4 22 37 37 37 B-flange 1no 2no+2nc OTL75T3B  1SCA022546R0820 3.3 22 37 37 37 - 1no 2no+2nc OTL75T3U  1SCA022718R4520 3.3 22 45 45 45 B-flange 1no 2no+2nc OTL90T3B  1SCA022546R1120 3.3 22 45 45 45 - 1no 2no+2nc OTL90T3U  1SCA022718R4610 3.3 Hinged cover, cable entries from bottom Grey enclosure, equipped with hings and lock. Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTL16T3B  1SCA022571R9150 1.7 7.5 15 15 15 B-flange 1no 2no+2nc OTL25T3B  1SCA022571R9230 1.9 11 22 22 15 B-flange 1no 2no+2nc OTL36T3B  1SCA022571R9310 1.9 18.5 30 30 30 B-flange 1no 2no+2nc OTL63T3B  1SCA022571R9400 2.0 Screw fixed cover, cable entries from top and bottom Grey enclosure, screw fixed cover. OTL75...90T3B S01251A OTL16...36T3M S01211A OTL63T3M S01335A OTL16...63T3B S01334A OT16...90_3TZ S00822A Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25+ø16 1no 2no+2nc OT16ELMM3TZ 1SCA022786R0670 1.6 7.5 15 15 15 2×ø32+ø16 1no 2no+2nc OT25ELMM3TZ 1SCA022692R7040 1.6 11 22 22 15 2×ø32+ø16 1no 2no+2nc OT36ELMM3TZ 1SCA022786R0830 1.7 18.5 30 30 30 2×ø32+ø16 1no 2no+2nc OT63ELMM3TZ 1SCA022513R7290 3.7 22 37 37 37 B-flange 1no 2no+2nc OT75ELBB3TZ 1SCA022462R4150 4.5 22 45 45 45 B-flange 1no 2no+2nc OT90ELBB3TZ 1SCA022462R4230 4.5

Safety switches | Ordering information  23 Ordering information Safety switches with ring-flange cable entries, 3-pole, IP65, black handle The delivery includes:    – Black pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A    – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below.       To be ordered separately:   – Ring-flanges; the table below illustrates the number of ring-flange entries / entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. The ordering information for ring-flanges on page 81...82.          Cable entries from top and bottom Ring-flange  Ring- covers with Max. motor output/ flange knock-outs AC-23A entries/ included Auxiliary Auxiliary Weight 230V 400V 500V 690V side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Order number [kg] Divided cable entry with ring-flange entries on top and bottom 45 75 75 75 4 3 3 1no+1nc 1no+1nc OT160ELRR3TZ 1SCA022339R9910 19 55 110 132 160 4 3 3 2no+1nc 2no+1nc OT200KLRR3TZ 1SCA022340R0770 21 75 132 160 200 4 3 3 2no+1nc 2no+1nc OT250KLRR3TZ 1SCA022340R1150 21 90 160 200 250 4 3 3 2no+1nc 2no+1nc OT315KLRR3TZ 1SCA022340R1580 21 110 220 280 355 4 2 3 2no+1nc 2no+1nc OT400DLRR3TZ 1SCA022340R1910 27 180 315 400 560 4 2 2 2no+1nc 2no+1nc OT630KLRR3TZ 1SCA022281R6230 31 200 400 500 710 4 2 2 2no+1nc 2no+1nc OT800ELRR3TZ 1SCA022827R8390 31 315 560 710 1000 8 5 5 2no+1nc 2no+1nc OT1000BLRR3TZ 1SCA022340R3520 66 315 560 710 1000 4 1 1 2no+1nc 2no+1nc OT1000BBRR3TZ 1SCA022340R3100 63 400 710 900 1200 8 5 5 2no+1nc 2no+1nc OT1250ELRR3TZ 1SCA102773R1001 66 Cable entries from bottom Divided cable entry with ring-flange entries on bottom, blank entry plate on top 30 45 45 45 4 2 2 1no+1nc 1no+1nc OT90AAUR3TZ 1SCA022303R2440 12 37 55 55 55 4 2 2 1no+1nc 1no+1nc OT125EAUR3TZ 1SCA022281R6660 12 45 75 75 75 4 1 1 1no+1nc 1no+1nc OT160EAUR3TZ 1SCA022340R0340 21 55 110 132 160 4 1 1 2no+1nc 2no+1nc OT200KAUR3TZ 1SCA022281R6820 23 75 132 160 200 4 1 1 2no+1nc 2no+1nc OT250KAUR3TZ 1SCA022281R7040 27 90 160 200 250 4 1 1 2no+1nc 2no+1nc OT315KAUR3TZ 1SCA022281R7210 27 110 220 280 355 4 1 1 2no+1nc 2no+1nc OT400DAUR3TZ 1SCA022281R7470 30 180 315 400 560 8 2 2 2no+1nc 2no+1nc OT630KAUR3TZ 1SCA022281R7630 50 180 315 400 560 4 - - 2no+1nc 2no+1nc OT630KBUR3TZ 1SCA022340R2710 48 200 400 500 710 8 2 2 2no+1nc 2no+1nc OT800EAUR3TZ 1SCA022827R8210 50 315 560 710 1000 8 1 1 2no+1nc 2no+1nc OT1000BAUR3TZ 1SCA022340R3950 73 400 710 900 1200 8 1 1 2no+1nc 2no+1nc OT1250EAUR3TZ 1SCA103273R1001 73 Steel sheet enclosed safety switches OT160...1250_RR3TZ S00850A OT90...1250_UR3TZ S00507A

24  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches with C-flange cable entries, 3-pole, IP65, black handle The delivery includes:   – Black pistol type handle (I-O / ON - OFF indication), PE-terminal, grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A   – Fixed cable entries with C-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Cover flanges, (delivered unfastened), the number of cover flanges on the table belowTo be ordered separately:   – C-flanges; the table below illustrates the number of C-flange entries / entry plate.  Depending on the number of cables, cover flanges can be replaced by C-flanges if required. Ordering information for C-flanges, see page 83. Cable entries from top and bottom Max. motor output/ C-flange Cover AC-23A entries/ flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Order number [kg] C-flange entries on top and bottom 30 45 45 45 1 - 1no+1nc 1no+1nc OT90ALCC3TZ 1SCA022340R5490 12 37 55 55 55 1 - 1no+1nc 1no+1nc OT125ELCC3TZ 1SCA022281R5260 12 45 75 75 75 2 2 1no+1nc 1no+1nc OT160ELCC3TZ 1SCA022340R0180 19 55 110 132 160 2 2 2no+1nc 2no+1nc OT200KLCC3TZ 1SCA022281R5420 21 75 132 160 200 2 2 2no+1nc 2no+1nc OT250KLCC3TZ 1SCA022281R5690 21 90 160 200 250 2 2 2no+1nc 2no+1nc OT315KLCC3TZ 1SCA022281R5850 21 110 220 280 355 2 2 2no+1nc 2no+1nc OT400DLCC3TZ 1SCA022281R6070 27 180 315 400 560 2 2 2no+1nc 2no+1nc OT630KLCC3TZ 1SCA022340R2390 31 200 400 500 710 2 2 2no+1nc 2no+1nc OT800ELCC3TZ 1SCA022828R0700 31 315 560 710 1000 6 8 1no+1nc 2no+2nc OT1000BLCC3TZ 1SCA022340R3790 67 315 560 710 1000 3 2 1no+1nc 2no+2nc OT1000BBCC3TZ 1SCA022340R3360 63 400 710 900 1200 6 8 2no+1nc 2no+1nc OT1250ELCC3TZ 1SCA102769R1001 63 Cable entries from bottom C-flange Max. motor output/ entries/ Cover AC-23A bottom flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V  side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Ordering number [kg] C-flange entries on bottom, blank entry plate on top 30 45 45 45 2 1 1no+1nc 1no+1nc OT90AAUC3TZ 1SCA022339R1840 12 37 55 55 55 2 1 1no+1nc 1no+1nc OT125EAUC3TZ 1SCA022339R2060 12 45 75 75 75 2 1 1no+1nc 1no+1nc OT160EAUC3TZ 1SCA022340R0510 21 55 110 132 160 2 1 2no+1nc 2no+1nc OT200KAUC3TZ 1SCA022340R0930 23 75 132 160 200 2 1 2no+1nc 2no+1nc OT250KAUC3TZ 1SCA022340R1310 27 90 160 200 250 2 1 2no+1nc 2no+1nc OT315KAUC3TZ 1SCA022340R1740 27 110 220 280 355 2 1 2no+1nc 2no+1nc OT400DAUC3TZ 1SCA022340R2120 30 180 315 400 560 4 2 2no+1nc 2no+1nc OT630KAUC3TZ 1SCA022340R2550 50 180 315 400 560 3 1 2no+1nc 2no+1nc OT630KBUC3TZ 1SCA022340R2980 48 200 400 500 710 4 2 2no+1nc 2no+1nc OT800EAUC3TZ 1SCA022827R9790 50 315 560 710 1000 6 3 2no+1nc 2no+1nc OT1000BAUC3TZ 1SCA022340R4170 73 400 710 900 1200 6 3 2no+1nc 2no+1nc OT1250EAUC3TZ  1SCA103274R1001 73 OT160...1250_CC3TZ S00849A OT90...1250_UC3TZ S00507A

Safety switches | Ordering information  25 Ordering information Safety switches, 3-pole, open bottom, IP65, black handle The delivery incudes a black handle (I-O/ON-OFF), PE-terminal and auxiliary contacts accord-ing to the following table. Grey enclosure. Cable entries from bottom, open bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W x D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Blank entry plate on top. Cable entry and flanges have to be ordered separately for bottom, see “Accessories”, pages 80...82. Entry plate fixing profiles are also used for mounting the safety switches. 5.5 7.5 7.5 7.5 250 x 180 1no 2no+2nc OT16EAUA3TZ 1SCA022545R5150 11 7.5 15 15 15 250 x 180 1no 2no+2nc OT25EAUA3TZ 1SCA022530R5690 11 11 22 22 15 250 x 180 1no 2no+2nc OT36EAUA3TZ 1SCA022470R8840 9.8 22 37 37 37 250 x 180 1no 2no+2nc OT75EAUA3TZ 1SCA022470R9060 10 Steel sheet enclosed safety switches OT16...75_UA3TZ S07203

26  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches, 4-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contact 1 no and PE-terminal. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Grey enclosure, equipped with hings and lock. Cable entries from top and bottom Max. motor output / AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25.5+ø16.5 1no 2no+2nc OTL16T4M 1SCA022613R0140 1.8 7.5 15 15 15 2×ø32.5+ø16.5 1no 2no+2nc OTL25T4M 1SCA022613R0220 2.0 11 22 22 15 2×ø32.5+ø16.5 1no 2no+2nc OTL36T4M 1SCA022613R0310 2.0 Pistol handle 18.5 30 30 30 2×ø32.5+ø16.5 1no 2no+2nc OTL63T4M 1SCA022613R0490 2.5 22 37 37 37 B-flange 1no 2no+2nc OTL75T4B 1SCA022546R0910 3.4 22 45 45 45 B-flange 1no 2no+2nc OTL90T4B 1SCA022546R1210 3.4 Cable entries from bottom Max. motor output / AC-23A Cable Auxiliary Auxiliary Weight  230V 400V 500V 690V outlets / contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTL16T4B 1SCA022580R5150 1.8 7.5 15 15 15 B-flange 1no 2no+2nc OTL25T4B 1SCA022580R5310 2.0 11 22 22 15 B-flange 1no 2no+2nc OTL36T4B 1SCA022580R5400 2.0 18.5 30 30 30 B-flange 1no 1no+1nc OTL63T4B 1SCA022580R5580 2.1 OTL75...90T4B S01251A OTL16...36T4M S01211A OTL63T4M S01335A OTL16...63T4B S01334A

Safety switches | Ordering information  27 Ordering information Safety switches with ring-flange cable entries, 4-pole, IP65, black handle The delivery includes:    – Black pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A    – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below.       To be ordered separately:   – Ring-flanges; the table below illustrates the number of ring-flange entries / entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. The ordering information for ring-flanges on page 81...82.         Cable entries from top and bottom Ring- Ring-flange Max. motor output/ flange covers with AC-23A entries/ knock-outs Auxiliary Auxiliary Weight 230V 400V 500V 690V side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Ordering number [kg] Divided cable entry with ring-flange entries on top and bottom 45 75 75 75 4 3 3 1no+1nc 1no+1nc OT160ELRR4TZ 1SCA022461R5240 20 55 110 132 160 4 3 3 2no+1nc 2no+1nc OT200KLRR4TZ 1SCA022461R5410 22 75 132 160 200 4 3 3 2no+1nc 2no+1nc OT250KLRR4TZ 1SCA022461R5670 22 90 160 200 250 4 3 3 2no+1nc 2no+1nc OT315KLRR4TZ 1SCA022461R5830 22 110 220 280 355 4 2 3 2no+1nc 2no+1nc OT400DLRR4TZ 1SCA022461R6050 29 180 315 400 560 4 2 3 2no+1nc 2no+1nc OT630KLRR4TZ 1SCA022461R6210 33 200 400 500 710 4 2 3 2no+1nc 2no+1nc OT800ELRR4TZ 1SCA022828R1260 33 Steel sheet enclosed safety switches OT160...800 S00850A

28  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches with C-flange cable entries, 4-pole, IP65, black handle The delivery includes:   – Black pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A   – PE-terminal   – Fixed cable entries with C-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Cover flanges, (delivered unfastened), the number of cover flanges on the table belowTo be ordered separately:   – C-flanges; the table below illustrates the number of C-flange entries / entry plate.  Depending on the number of cables, cover flanges can be replaced by C-flanges if required.Ordering information for C-flanges, see page 83. Cable entries from top and bottom Max. motor output/ C-flange Cover AC-23A entries/ flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Ordering number [kg] C-flange entries on top and bottom 30 45 45 45 1 - 1no+1nc 1no+1nc OT90ALCC4TZ 1SCA022461R5080 13 37 55 55 55 1 - 1no+1nc 1no+1nc OT125ELCC4TZ 1SCA022461R5160 13 45 75 75 75 2 2 1no+1nc 1no+1nc OT160ELCC4TZ 1SCA022461R5320 20 55 110 132 160 2 2 2no+1nc 2no+1nc OT200KLCC4TZ 1SCA022461R5590 22 75 132 160 200 2 2 2no+1nc 2no+1nc OT250KLCC4TZ 1SCA022461R5750 22 90 160 200 250 2 2 2no+1nc 2no+1nc OT315KLCC4TZ 1SCA022461R5910 22 110 220 280 355 2 2 2no+1nc 2no+1nc OT400DLCC4TZ 1SCA022461R6130 29 180 315 400 560 2 2 2no+1nc 2no+1nc OT630KLCC4TZ 1SCA022461R6130 33 200 400 500 710 2 2 2no+1nc 2no+1nc OT800ELCC4TZ 1SCA022828R1420 33 OT90...800 S00849A

Safety switches | Ordering information  29 Ordering information Safety switches, 6-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF) PE-terminal and auxiliary contact 1 no. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Hinged cover, cable entries from top and bottom Grey enclosure, equipped with hings and lock. Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25.5+ø16.5 1no 2no+2nc OTL16T6M 1SCA022613R0570 1.8 Pistol handle 7.5 15 15 15 2×ø32.5+ø16.5 1no 1no+1nc OTL25T6M 1SCA022613R0650 2.5 7.5 15 15 15 B-flange 1no 1no+1nc OTL25T6B 1SCA022580R8090 3.4 11 22 22 15 2×ø32.5+ø16.5 1no 1no+1nc OTL36T6M 1SCA022613R0730 2.5 11 22 22 15 B-flange 1no 1no+1nc OTL36T6B 1SCA022580R8170 3.4 22 37 37 37 B-flange 1no 1no OTL75T6B 1SCA022546R1040 3.6 22 37 37 37 - 1no 1no OTL75T6U 1SCA022730R9160 3.6 22 45 45 45 B-flange 1no 1no OTL90T6B 1SCA022546R1390 3.6 22 45 45 45 - 1no 1no OTL90T6U 1SCA022730R9240 3.6 Hinged cover, cable entries from bottom Grey enclosure, equipped with hings and lock. Max. motor output / AC-23A Cable Auxiliary Auxiliary Weight  230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTL16T6B 1SCA022580R5230 1.8 Screw fixed cover, cable entries from top and bottom Grey enclosure, screw fixed cover. Steel sheet enclosed safety switches OTL75...90T6B S01251A OT16T6M S01211A OTL25...36T6M S01335A OTL16T6B S01334A Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Ordering number [kg] Pistol handle 7.5 15 15 15 2×ø32+ø16 1no 2no+2nc OT25ELMM6TZ 1SCA022693R2980 4.0 22 37 37 37 B-flange 1no 2no+2nc OT75ELBB6TZ 1SCA022462R4660 4.0 OT25...75_6TZ S07227

30  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches with ring-flange cable entries, 6-pole, IP65, black handle The delivery includes:    – Black pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A    – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below.       To be ordered separately:   – Ring-flanges; the table below illustrates the number of ring-flange entries / entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. The ordering information for ring-flanges on page 81...82.          Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries/ included Auxiliary Auxiliary Weight 230V 400V 500V 690V side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Order number [kg] Divided cable entry with ring-flange entries on top and bottom 30 45 45 45 4 2 2 2no+2nc 2no+2nc OT90ALRR6TZ 1SCA022340R4500 14 37 55 55 55 4 2 2 2no+2nc 2no+2nc OT125ELRR6TZ 1SCA022340R4920 14 45 75 75 75 4 2 2 2no+2nc 2no+2nc OT160ELRR6TZ 1SCA022340R5310 29 55 110 132 160 8 6 6 4no+2nc 4no+2nc OT200KLRR6TZ 1SCA022340R5730 37 75 132 160 200 8 4 4 4no+2nc 4no+2nc OT250KLRR6TZ 1SCA022338R7490 42 90 160 200 250 8 4 4 4no+2nc 4no+2nc OT315KLRR6TZ 1SCA022338R7810 42 110 220 280 355 8 4 4 4no+2nc 4no+2nc OT400DLRR6TZ 1SCA022338R8200 45 180 315 400 560 8 4 4 4no+2nc 4no+2nc OT630KLRR6TZ 1SCA022338R8620 54 200 400 500 710 8 4 4 4no+2nc 4no+2nc OT800ELRR6TZ 1SCA022827R8470 54 250 500 600 800 8 2 2 2no+2nc 4no+2nc OT1000BLRR6TZ 1SCA022338R9010 90 Cable entries from bottom Divided cable entry with ring-flange entries on bottom, blank entry plate on top 30 45 45 45 4 2 2 2no+2nc 2no+2nc OT90AAUR6TZ 1SCA022360R1910 22 37 55 55 55 4 2 2 2no+2nc 2no+2nc OT125EAUR6TZ 1SCA022325R0350 22 45 75 75 75 4 2 2 2no+2nc 2no+2nc OT160EAUR6TZ 1SCA022360R2210 32 55 110 132 160 8 2 2 2no+1nc 2no+1nc OT200KAUR6TZ 1SCA022339R0010 39 75 132 160 200 8 2 2 2no+1nc 2no+1nc OT250KAUR6TZ 1SCA022360R2560 45 90 160 200 250 8 2 - 2no+1nc 2no+1nc OT315KAUR6TZ 1SCA022360R2720 45 110 220 280 355 8 2 - 2no+1nc 2no+1nc OT400DAUR6TZ 1SCA022360R2990 48 180 315 400 560 8 2 - 2no+1nc 2no+1nc OT630KAUR6TZ 1SCA022460R9940 85 OT90...1000_RR6TZ S00850A OT90...630_UR6TZ S07201

Safety switches | Ordering information  31 Ordering information Safety switches with C-flange cable entries, 6-pole, IP65, black handle The delivery includes:   – Black pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A   – PE-terminal   – Fixed cable entries with C-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Cover flanges, (delivered unfastened), the number of cover flanges on the table belowTo be ordered separately:   – C-flanges; the table below illustrates the number of C-flange entries / entry plate.  Depending on the number of cables, cover flanges can be replaced by C-flanges if required. Ordering information for C-flanges, see page 83. Cable entries from top and bottom Max. motor output/ C-flange Cover AC-23A entries/ flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Order number [kg] C-flange entries on top and bottom 30 45 45 45 2 2 2no+2nc 2no+2nc OT90ALCC6TZ 1SCA022340R4760 14 37 55 55 55 2 2 2no+2nc 2no+2nc OT125ELCC6TZ 1SCA022340R5140 14 45 75 75 75 2 2 2no+2nc 2no+2nc OT160ELCC6TZ 1SCA022340R5570 29 55 110 132 160 4 4 4no+2nc 4no+2nc OT200KLCC6TZ 1SCA022338R7220 37 75 132 160 200 4 4 4no+2nc 4no+2nc OT250KLCC6TZ 1SCA022338R7650 42 90 160 200 250 4 4 4no+2nc 4no+2nc OT315KLCC6TZ 1SCA022338R8030 42 110 220 280 355 4 4 4no+2nc 4no+2nc OT400DLCC6TZ 1SCA022338R8460 45 180 315 400 560 4 4 4no+2nc 4no+2nc OT630KLCC6TZ 1SCA022338R8890 54 200 400 500 710 4 4 4no+2nc 4no+2nc OT800ELCC6TZ 1SCA022828R2230 54 250 500 600 800 6 4 2no+2nc 4no+2nc OT1000BLCC6TZ 1SCA022338R9270 91 Cable entries from bottom C-flange Max. motor output/ entries/ Cover AC-23A bottom flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V  side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Ordering number [kg] C-flange entries on bottom, blank entry plate on top 30 45 45 45 2 1 2no+2nc 2no+2nc OT90AAUC6TZ 1SCA022360R2130 22 37 55 55 55 2 1 2no+2nc 2no+2nc OT125EAUC6TZ 1SCA022338R9600 22 45 75 75 75 2 1 2no+2nc 2no+2nc OT160EAUC6TZ 1SCA022360R2300 32 55 110 132 160 4 2 2no+1nc 2no+1nc OT200KAUC6TZ 1SCA022339R0280 39 75 132 160 200 4 2 2no+1nc 2no+1nc OT250KAUC6TZ 1SCA022360R2640 45 90 160 200 250 4 1 2no+1nc 2no+1nc OT315KAUC6TZ 1SCA022360R2810 45 110 220 280 355 4 1 2no+1nc 2no+1nc OT400DAUC6TZ 1SCA022360R3020 48 180 315 400 560 6 2 2no+1nc 2no+1nc OT630KAUC6TZ 1SCA022460R9860 85 Steel sheet enclosed safety switches OT90...1000_CC6TZ S00849A OT90...630_UC6TZ S07202

32  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches, 3, 4 and 6-pole, IP54, black handle The delivery incudes a black handle (I-O/ON-OFF), PE-terminal and auxiliary contacts accord-ing to the table below. Grey enclosure, screw fixed cover. Knock-out openings included, also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. 3-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25+ø16 1no 2no+2nc OT16ELMM3T 1SCA022472R6070 1.6 5.5 7.5 7.5 7.5 2×ø25+ø16  - 2no+2nc OT16ELMM3T1 1SCA022472R6150 1.6 7.5 15 15 15 2×ø32+ø16 1no 2no+2nc OT25ELMM3T 1SCA022472R6230 1.6 11 22 22 15 2×ø32+ø16 1no 2no+2nc OT36ELMM3T 1SCA022472R6310 1.7 18.5 30 30 30 2×ø32+ø16 1no 2no+2nc OT63ELMM3T 1SCA022473R0000 3.7 22 37 37 37 B-flange 1no 2no+2nc OT75ELBB3T 1SCA022462R3000 4.5 22 45 45 45 B-flange 1no 2no+2nc OT90ELBB3T 1SCA022462R3180 4.5 4-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25+ø16 1no 2no+2nc OT16ELMM4T 1SCA022472R6910 1.6 7.5 15 15 15 2xø32+ø16 1no 2no+2nc OT25ELMM4T 1SCA022472R7040 1.6 11 22 22 15 2xø32+ø16 1no 2no+2nc OT36ELMM4T 1SCA022472R7120 1.7 18.5 30 30 30 2xø32+ø16 1no 2no+2nc OT63ELMM4T 1SCA022473R0180 3.7 22 37 37 37 B-flange 1no 2no+2nc OT75ELBB4T 1SCA022472R6740 4.5 22 45 45 45 B-flange 1no 2no+2nc OT90ELBB4T 1SCA022472R6820 4.5 6-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25+ø16 1no 2no+2nc OT16ELMM6T 1SCA022473R3100 1.9 Pistol handle 7.5 15 15 15 2×ø32+ø16 1no 2no+2nc OT25ELMM6T 1SCA022473R3280 4.0 11 22 22 15 2×ø32+ø16 1no 2no+2nc OT36ELMM6T 1SCA022472R9840 4.0 18.5 30 30 30 2×ø32+ø16 1no 2no+2nc OT63ELMM6T 1SCA022473R0260 4.0 22 37 37 37 B-flange 1no 2no+2nc OT75ELBB6T 1SCA022462R3510 4.0 OT16...90_3T S00822A OT16ELMM6T S00822A OT25...75_6T S07227 OT16...90_4T S00822A

Safety switches | Ordering information  33 Ordering information Safety switches, 3-pole, IP54, black handle The delivery incudes a black handle (I-O/ON-OFF), PE-terminal and auxiliary contacts accord-ing to the table below. Grey enclosure. Cable entries from top and bottom, open top and bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W × D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Cable entries and flanges have to be ordered separately, see “Accessories”, page 81...83. Entry plate fixing profiles are also used for mounting the safety switches. 30 45 45 45 250 × 180 1no+1nc 1no+1nc OT90ALAA3T 1SCA022281R7390 9.8 37 55 55 55 250 × 180 1no+1nc 1no+1nc OT125ELAA3T 1SCA022277R3240 9.8 45 75 75 75 400 × 230 1no+1nc 1no+1nc OT160ELAA3T 1SCA022281R7550 15 55 110 132 160 400 × 230 2no+1nc 2no+1nc OT200KLAA3T 1SCA022277R3830 17 75 132 160 200 400 × 230 2no+1nc 2no+1nc OT250KLAA3T 1SCA022277R4480 17 90 160 200 250 400 × 230 2no+1nc 2no+1nc OT315KLAA3T 1SCA022276R8910 17 110 220 280 355 400 × 230 2no+1nc 2no+1nc OT400DLAA3T 1SCA022276R9560 23 180 315 400 560 400 × 230 2no+1nc 2no+1nc OT630KLAA3T 1SCA022277R0140 27 200 400 500 710 400 × 230 2no+1nc 2no+1nc OT800ELAA3T 1SCA022828R0530 27 315 560 710 1000 800 × 330 2no+1nc 2no+1nc OT1000BLAA3T 1SCA022277R0730 56 Cable entries from bottom, open bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W × D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Blank entry plate on top. Cable entry and flanges have to be ordered separately for bottom, see “Accessories”, page  81...83. Entry plate fixing profiles are also used for mounting the safety switches. 11 22 22 15 250 × 180 1no 2no+2nc OT36EAUA3T 1SCA022470R8760 9.8 22 37 37 37 250 × 180 1no 2no+2nc OT75EAUA3T 1SCA022470R8920 10 30 45 45 45 400 × 230 1no+1nc 1no+1nc OT90AAUA3T 1SCA022299R0420 10 37 55 55 55 400 × 230 1no+1nc 1no+1nc OT125EAUA3T 1SCA022277R3670 10 45 75 75 75 400 × 230 1no+1nc 1no+1nc OT160EAUA3T 1SCA022299R0690 19 55 110 132 160 400 × 230 2no+1nc 2no+1nc OT200KAUA3T 1SCA022277R4210 21 75 132 160 200 400 × 230 2no+1nc 2no+1nc OT250KAUA3T 1SCA022276R8750 25 90 160 200 250 400 × 230 2no+1nc 2no+1nc OT315KAUA3T 1SCA022276R9300 25 110 220 280 355 400 × 230 2no+1nc 2no+1nc OT400DAUA3T 1SCA022276R9990 28 180 315 400 560 800 × 230 2no+1nc 2no+1nc OT630KAUA3T 1SCA022277R0570 46 180 315 400 560 400 × 330 2no+1nc 2no+1nc OT630KBUA3T 1SCA022284R1510 46 200 400 500 710 800 × 230 2no+1nc 2no+1nc OT800EAUA3T 1SCA022827R9610 46 315 560 710 1000 800 × 330 2no+1nc 2no+1nc OT1000BAUA3T 1SCA022277R1110 68 Steel sheet enclosed safety switches OT90...1000_AA3T S00834A OT36...1000_UA3T S07203

34  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches, 6-pole, IP54, black handle The delivery incudes a black handle (I-O/ON-OFF), PE-terminal and auxiliary contacts accord-ing to the table below. Grey enclosure. Cable entries from top and bottom, open top and bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W × D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Cable entries and flanges have to be ordered separately, see “Accessories”, page 81...83. Entry plate fixing profiles are also used for mounting the safety switches. 30 45 45 45 400 × 230 2no+2nc 2no+2nc OT90ALAA6T 1SCA022299R2630    10 37 55 55 55 400 × 230 2no+2nc 2no+2nc OT125ELAA6T 1SCA022277R3410    10 45 75 75 75 400 × 230 2no+2nc 2no+2nc OT160ELAA6T 1SCA022299R2800    25 55 110 132 160 800 × 230 4no+2nc 4no+2nc OT200KLAA6T 1SCA022277R4050    29 75 132 160 200 800 × 230 4no+2nc 4no+2nc OT250KLAA6T 1SCA022277R4640    34 90 160 200 250 800 × 230 4no+2nc 4no+2nc OT315KLAA6T 1SCA022276R9130    34 110 220 280 355 800 × 230 4no+2nc 4no+2nc OT400DLAA6T 1SCA022276R9720    37 180 315 400 560 800 × 230 4no+2nc 4no+2nc OT630KLAA6T 1SCA022277R0310    46 200 400 500 710 800 × 230 4no+2nc 4no+2nc OT800ELAA6T 1SCA022828R2150    46 250 500 600 800 800 × 330 2no+2nc 4no+2nc OT1000BLAA6T 1SCA022277R0900    81 Cable entries from bottom, open bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight  230V 400V 500V 690V entry W × D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Blank entry plate on top. Cable entry and flanges have to be ordered separately for bottom, see “Accessories”, page  81...83. Entry plate fixing profiles are also used for mounting the safety switches. 30 45 45 45 400 × 230 2no+2nc 2no+2nc OT90AAUA6T 1SCA022360R1830    20 37 55 55 55 400 × 230 2no+2nc 2no+2nc OT125EAUA6T 1SCA022325R0190    20 45 75 75 75 400 × 230 2no+2nc 2no+2nc OT160EAUA6T 1SCA022335R5020    30 55 110 132 160 800 × 230 4no+2nc 4no+2nc OT200KAUA6T 1SCA022338R9430    35 75 132 160 200 800 × 230 4no+2nc 4no+2nc OT250KAUA6T 1SCA022360R2480    41 90 160 200 250 800 × 230 4no+2nc 4no+2nc OT315KAUA6T 1SCA022335R4480    41 110 220 280 355 800 × 230 4no+2nc 4no+2nc OT400DAUA6T 1SCA022335R4640    44 180 315 400 560 1000 × 330 4no+2nc 4no+2nc OT630KAUA6T 1SCA022438R2040    80 OT90...1000_AA6T S00834A OT90...630_UA6T S00507A

Safety switches | Ordering information  35 Ordering information Safety switches, 3-pole, IP65, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contact 1 no and PE-termi-nal. Knock-out type cable openings included, cable outlets also for control cable. Compres-sion glands and flanges have to be ordered separately, pages 83 and 85. Grey enclosure, equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25.5+ø16.5 1no 2no+2nc OTL16A3M 1SCA022612R8750 1.7 7.5 15 15 15 2×ø32.5+ø16.5 1no 2no+2nc OTL25A3M 1SCA022612R8830 1.9 11 22 22 15 2×ø32.5+ø16.5 1no 2no+2nc OTL36A3M 1SCA022612R8910 1.9 Pistol handle 18.5 30 30 30 2×ø32.5+ø16.5 1no 2no+2nc OTL63A3M 1SCA022612R9050 2.4 22 37 37 37 B-flange 1no 2no+2nc OTL75A3B 1SCA022555R7580 3.3 22 37 37 37 - 1no 2no+2nc OTL75A3U 1SCA022707R7610 3.3 22 45 45 45 B-flange 1no 2no+2nc OTL90A3B 1SCA022555R7820 3.3 22 45 45 45 - 1no 2no+2nc OTL90A3U 1SCA022707R7790 3.3 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTL16A3B 1SCA022575R1630 1.7 7.5 15 15 15 B-flange 1no 2no+2nc OTL25A3B 1SCA022575R1710 1.9 11 22 22 15 B-flange 1no 2no+2nc OTL36A3B 1SCA022575R1800 1.9 18.5 30 30 30 B-flange 1no 2no+2nc OTL63A3B 1SCA022575R1980 2.0 Steel sheet enclosed safety switches OTL75...90A3B S01347A OTL16...36A3M S01345A OTL63A3M S01346A OTL16...63A3B S01348A

36  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches with ring-flange cable entries, 3-pole, IP65, red-yellow handle The delivery includes:    – Red-yellow pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A    – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below.       To be ordered separately:   – Ring-flanges; the table below illustrates the number of ring-flange entries / entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required.The ordering information for ring-flanges on page 81...82. Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries/ included Auxiliary Auxiliary Weight 230V 400V 500V 690V side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Ordering number [kg] Divided cable entry with ring-flange entries on top and bottom 45 75 75 75 4 3 3 1no+1nc 1no+1nc OT160ELRR3AZ 1SCA022512R7220 19 55 110 132 160 4 3 3 2no+1nc 2no+1nc OT200KLRR3AZ 1SCA022512R7310 21 75 132 160 200 4 3 3 2no+1nc 2no+1nc OT250KLRR3AZ 1SCA022512R7490 21 90 160 200 250 4 3 3 2no+1nc 2no+1nc OT315KLRR3AZ 1SCA022512R7570 21 110 220 280 355 4 2 3 2no+1nc 2no+1nc OT400DLRR3AZ 1SCA022512R7650 27 180 315 400 560 4 2 2 2no+1nc 2no+1nc OT630KLRR3AZ 1SCA022512R7730 31 200 400 500 710 4 2 2 2no+1nc 2no+1nc OT800ELRR3AZ 1SCA022828R1180 31 315 560 710 1000 8 5 5 2no+1nc 2no+1nc OT1000BLRR3AZ 1SCA022512R7810 66 315 560 710 1000 4 1 1 2no+1nc 2no+1nc OT1000BBRR3AZ 1SCA022543R2060 63 400 710 900 1200 8 5 5 2no+1nc 2no+1nc OT1250ELRR3AZ 1SCA102772R1001 66 Cable entries from bottom Divided cable entry with ring-flange entries on bottom, blank entry plate on top 30 45 45 45 4 2 2 1no+1nc 1no+1nc OT90AAUR3AZ 1SCA022513R0790 12 37 55 55 55 4 2 2 1no+1nc 1no+1nc OT125EAUR3AZ 1SCA022513R0870 12 45 75 75 75 4 1 1 1no+1nc 1no+1nc OT160EAUR3AZ 1SCA022513R0950 21 55 110 132 160 4 1 1 2no+1nc 2no+1nc OT200KAUR3AZ 1SCA022513R1090 23 75 132 160 200 4 1 1 2no+1nc 2no+1nc OT250KAUR3AZ 1SCA022513R1170 27 90 160 200 250 4 1 1 2no+1nc 2no+1nc OT315KAUR3AZ 1SCA022513R1250 27 110 220 280 355 4 1 1 2no+1nc 2no+1nc OT400DAUR3AZ 1SCA022513R1330 30 180 315 400 560 8 2 2 2no+1nc 2no+1nc OT630KAUR3AZ 1SCA022513R1410 50 180 315 400 560 4 - - 2no+1nc 2no+1nc OT630KBUR3AZ 1SCA022542R6720 48 200 400 500 710 8 2 2 2no+1nc 2no+1nc OT800EAUR3AZ 1SCA022828R0020 50 315 560 710 1000 8 1 1 2no+1nc 2no+1nc OT1000BAUR3AZ 1SCA022513R1500 73 400 710 900 1200 8 1 1 2no+1nc 2no+1nc OT1250EAUR3AZ 1SCA103275R1001 73 OT160...1250_RR3AZ S01764A OT90...1250_UR3AZ S00870A

Safety switches | Ordering information  37 Ordering information Safety switches with C-flange cable entries, 3-pole, IP65, red-yellow handle The delivery includes:   – Red-yellow pistol type handle (I-O / ON - OFF indication), PE-terminal, grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A   – Fixed cable entries with C-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Cover flanges, (delivered unfastened), the number of cover flanges on the table belowTo be ordered separately:   – C-flanges; the table below illustrates the number of C-flange entries / entry plate.  Depending on the number of cables, cover flanges can be replaced by C-flanges if required. Ordering information for C-flanges, see page 83. Cable entries from top and bottom Max. motor output/ C-flange Cover AC-23A entries/ flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Order number [kg] C-flange entries on top and bottom 30 45 45 45 1 - 1no+1nc 1no+1nc OT90ALCC3AZ 1SCA022512R6090 12 37 55 55 55 1 - 1no+1nc 1no+1nc OT125ELCC3AZ 1SCA022512R6170 12 45 75 75 75 2 2 1no+1nc 1no+1nc OT160ELCC3AZ 1SCA022512R6250 19 55 110 132 160 2 2 2no+1nc 2no+1nc OT200KLCC3AZ 1SCA022512R6330 21 75 132 160 200 2 2 2no+1nc 2no+1nc OT250KLCC3AZ 1SCA022512R6410 21 90 160 200 250 2 2 2no+1nc 2no+1nc OT315KLCC3AZ 1SCA022512R6500 21 110 220 280 355 2 2 2no+1nc 2no+1nc OT400DLCC3AZ 1SCA022512R6680 27 180 315 400 560 2 2 2no+1nc 2no+1nc OT630KLCC3AZ 1SCA022512R6760 31 200 400 500 710 2 2 2no+1nc 2no+1nc OT800ELCC3AZ 1SCA022828R1000 31 315 560 710 1000 6 8 2no+1nc 2no+1nc OT1000BLCC3AZ 1SCA022512R6840 67 315 560 710 1000 3 2 2no+1nc 2no+1nc OT1000BBCC3AZ 1SCA022512R6920 63 400 710 900 1200 6 8 2no+1nc 2no+1nc OT1250ELCC3AZ 1SCA102768R1001 67 Cable entries from bottom C-flange Max. motor output/ entries/ Cover AC-23A bottom flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Ordering number [kg] C-flange entries on bottom, blank entry plate on top 30 45 45 45 2 1 1no+1nc 1no+1nc OT90AAUC3AZ 1SCA022512R9780 12 37 55 55 55 2 1 1no+1nc 1no+1nc OT125EAUC3AZ 1SCA022512R9860 12 45 75 75 75 2 1 1no+1nc 2no+1nc OT160EAUC3AZ 1SCA022512R9940 21 55 110 132 160 2 1 2no+1nc 2no+1nc OT200KAUC3AZ 1SCA022513R0010 23 75 132 160 200 2 1 2no+1nc 2no+1nc OT250KAUC3AZ 1SCA022513R0100 27 90 160 200 250 2 1 2no+1nc 2no+1nc OT315KAUC3AZ 1SCA022513R0280 27 110 220 280 355 2 1 2no+1nc 2no+1nc OT400DAUC3AZ 1SCA022513R0360 30 180 315 400 560 4 2 2no+1nc 2no+1nc OT630KAUC3AZ 1SCA022513R0440 50 180 315 400 560 3 1 2no+1nc 2no+1nc OT630KBUC3AZ 1SCA022513R0520 48 200 400 500 710 4 2 2no+1nc 2no+1nc OT800EAUC3AZ 1SCA022827R9950 50 315 560 710 1000 6 3 2no+1nc 2no+1nc OT1000BAUC3AZ 1SCA022513R0610 73 400 710 900 1200 6 3 2no+1nc 2no+1nc OT1250EAUC3AZ 1SCA103279R1001 73 Steel sheet enclosed safety switches OT90...1250_CC3AZ S01768A OT90...1250_UC3AZ S00870A

38  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches, 4-pole, IP65, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contact 1 no and PE-termi-nal. Knock-out type cable openings included, cable outlets also for control cable. Compres-sion glands and flanges have to be ordered separately, pages 83 and 85. Grey enclosure, equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OTL16A4M 1SCA022612R9130 1.8 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OTL25A4M 1SCA022612R9210 2.0 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OTL36A4M 1SCA022612R9300 2.0 Pistol handle 18.5 30 30 30 2xø32.5+ø16.5 1no 2no+2nc OTL63A4M 1SCA022612R9480 2.5 22 37 37 37 B-flange 1no 2no+2nc OTL75A4B 1SCA022555R7660 3.4 22 45 45 45 B-flange 1no 2no+2nc OTL90A4B 1SCA022555R7910 3.4 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5,.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTL16A4B 1SCA022745R7010 1.8 7.5 15 15 15 B-flange 1no 2no+2nc OTL25A4B 1SCA022745R7190 2.0 11 22 22 15 B-flange 1no 2no+2nc OTL36A4B 1SCA022745R7270 2.0 18.5 30 30 30 B-flange 1no 1no+1nc OTL63A4B 1SCA022745R7350 2.1 OTL75...90A4B S01347A OTL16...36A4M S01345A OTL63A4M S01346A OTL16...63A4B S01348A

Safety switches | Ordering information  39 Ordering information Safety switches with ring-flange cable entries, 4-pole, IP65, red-yellow handle The delivery includes:    – Red-yellow pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A    – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below.       To be ordered separately:   – Ring-flanges; the table below illustrates the number of ring-flange entries / entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. The ordering information for ring-flanges on page 81...82.          Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries/ included Auxiliary Auxiliary Weight 230V 400V 500V 690V side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Ordering number [kg] Divided cable entry with ring-flange entries on top and bottom 45 75 75 75 4 3 3 1no+1nc 1no+1nc OT160ELRR4AZ 1SCA022542R6810 20 55 110 132 160 4 3 3 2no+1nc 2no+1nc OT200KLRR4AZ 1SCA022542R6990 22 75 132 160 200 4 3 3 2no+1nc 2no+1nc OT250KLRR4AZ 1SCA022542R7020 22 90 160 200 250 4 3 3 2no+1nc 2no+1nc OT315KLRR4AZ 1SCA022542R7110 22 110 220 280 355 4 2 3 2no+1nc 2no+1nc OT400DLRR4AZ 1SCA022542R7290 29 180 315 400 560 4 2 3 2no+1nc 2no+1nc OT630KLRR4AZ 1SCA022542R7450 33 200 400 500 710 4 2 3 2no+1nc 2no+1nc OT800ELRR4AZ 1SCA022828R1690 33 Steel sheet enclosed safety switches OT160...800 S01764A

40  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches with C-flange cable entries, 4-pole, IP65, red-yellow handle The delivery includes:   – Red-yellow pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A   – PE-terminal   – Fixed cable entries with C-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Cover flanges, (delivered unfastened), the number of cover flanges on the table belowTo be ordered separately:   – C-flanges; the table below illustrates the number of C-flange entries / entry plate.  Depending on the number of cables, cover flanges can be replaced by C-flanges if required. Ordering information for C-flanges, see page 83. Cable entries from top and bottom Max. motor output/ C-flange Cover AC-23A entries/ flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Ordering number [kg] C-flange entries on top and bottom 30 45 45 45 1 - 1no+1nc 1no+1nc OT90ALCC4AZ 1SCA022542R7700 13 37 55 55 55 1 - 1no+1nc 1no+1nc OT125ELCC4AZ 1SCA022542R7960 13 45 75 75 75 2 2 1no+1nc 1no+1nc OT160ELCC4AZ 1SCA022542R8000 20 55 110 132 160 2 2 2no+1nc 2no+1nc OT200KLCC4AZ 1SCA022542R8260 22 75 132 160 200 2 2 2no+1nc 2no+1nc OT250KLCC4AZ 1SCA022542R8340 22 90 160 200 250 2 2 2no+1nc 2no+1nc OT315KLCC4AZ 1SCA022542R8690 22 110 220 280 355 2 2 2no+1nc 2no+1nc OT400DLCC4AZ 1SCA022542R8770 29 180 315 400 560 2 2 2no+1nc 2no+1nc OT630KLCC4AZ 1SCA022542R8850 33 200 400 500 710 2 2 2no+1nc 2no+1nc OT800ELCC4AZ 1SCA022828R1510 33 OT90...800 S01768A

Safety switches | Ordering information  41 Ordering information Safety switches, 6-pole, IP65, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contact 1 no and PE-termi-nal. Knock-out type cable openings included, cable outlets also for control cable. Compres-sion glands and flanges have to be ordered separately, pages 83 and 85. Grey enclosure, equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2×25.5+16.5 1no 2no+2nc OTL16A6M 1SCA022612R9560 1.8 Pistol handle 7.5 15 15 15 2×32.5+16.5 1no 1no+1nc OTL25A6M 1SCA022612R9640 2.5 7.5 15 15 15 B-flange 1no 1no+1nc OTL25A6B 1SCA022745R6890 3.4 11 22 22 15 2×32.5+16.5 1no 1no+1nc OTL36A6M 1SCA022612R9720 2.5 11 22 22 15 B-flange 1no 1no+1nc OTL36A6B 1SCA022745R6970 3.4 22 37 37 37 B-flange 1no 1no OTL75A6B 1SCA022555R7740 3.6 22 37 37 37 - 1no 1no OTL75A6U 1SCA022696R4830 3.6 22 45 45 45 B-flange 1no 1no OTL90A6B 1SCA022555R8040 3.6 22 45 45 45 - 1no 1no OTL90A6U 1SCA022708R3090 3.6 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Ordering number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTL16A6B 1SCA022745R7430 1.8 Steel sheet enclosed safety switches OTL25...36A6M S01346A OTL16A6B S01348A OTL75..90A6B S01347A OTL16A6M S01345A

42  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches with ring-flange cable entries, 6-pole, IP65, red-yellow handle The delivery includes:    – Red-yellow pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A    – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below.       To be ordered separately:   – Ring-flanges; the table below illustrates the number of ring-flange entries / entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. The ordering information for ring-flanges on page 81...82.          Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries/ included Auxiliary Auxiliary Weight 230V 400V 500V 690V side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Order number [kg] Divided cable entry with ring-flange entries on top and bottom 30 45 45 45 4 2 2 2no+2nc 2no+2nc OT90ALRR6AZ 1SCA022512R8890 14 37 55 55 55 4 2 2 2no+2nc 2no+2nc OT125ELRR6AZ 1SCA022512R8970 14 45 75 75 75 4 2 2 2no+2nc 2no+2nc OT160ELRR6AZ 1SCA022512R9010 29 55 110 132 160 8 6 6 4no+2nc 4no+2nc OT200KLRR6AZ 1SCA022512R9190 37 75 132 160 200 8 4 4 4no+2nc 4no+2nc OT250KLRR6AZ 1SCA022512R9270 42 90 160 200 250 8 4 4 4no+2nc 4no+2nc OT315KLRR6AZ 1SCA022512R9350 42 110 220 280 355 8 4 4 4no+2nc 4no+2nc OT400DLRR6AZ 1SCA022512R9430 45 180 315 400 560 8 4 4 4no+2nc 4no+2nc OT630KLRR6AZ 1SCA022512R9510 54 200 400 500 710 8 4 4 4no+2nc 4no+2nc OT800ELRR6AZ 1SCA022828R2580 54 250 500 600 800 8 2 2 2no+2nc 4no+2nc OT1000BLRR6AZ 1SCA022338R9010 90 Cable entries from bottom Divided cable entry with ring-flange entries on bottom, blank entry plate on top 30 45 45 45 4 2 2 2no+2nc 2no+2nc OT90AAUR6AZ 1SCA022542R1840 22 37 55 55 55 4 2 2 2no+2nc 2no+2nc OT125EAUR6AZ 1SCA022542R5320 22 45 75 75 75 4 2 2 2no+2nc 2no+2nc OT160EAUR6AZ 1SCA022542R5410 32 55 110 132 160 8 2 2 4no+2nc 4no+2nc OT200KAUR6AZ 1SCA022542R5590 39 75 132 160 200 8 2 2 4no+2nc 4no+2nc OT250KAUR6AZ 1SCA022542R5670 45 90 160 200 250 8 2 - 4no+2nc 4no+2nc OT315KAUR6AZ 1SCA022542R5750 45 110 220 280 355 8 2 - 4no+2nc 4no+2nc OT400DAUR6AZ 1SCA022542R5830 48 180 315 400 560 8 2 - 4no+2nc 4no+2nc OT630KAUR6AZ 1SCA022542R5910 85 OT90...1000_RR6AZ S01764A OT90...630_UR6AZ S00870A

Safety switches | Ordering information  43 Ordering information Safety switches with C-flange cable entries, 6-pole, IP65, red-yellow handle The delivery includes:   – Red-yellow pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...800A   – PE-terminal   – Fixed cable entries with C-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Cover flanges, (delivered unfastened), the number of cover flanges on the table belowTo be ordered separately:   – C-flanges; the table below illustrates the number of C-flange entries / entry plate.  Depending on the number of cables, cover flanges can be replaced by C-flanges if required. Ordering information for C-flanges, see page 83. Cable entries from top and bottom Max. motor output/ C-flange Cover AC-23A entries/ flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Order number [kg] C-flange entries on top and bottom 30 45 45 45 2 2 2no+2nc 2no+2nc OT90ALCC6AZ 1SCA022512R7900 14 37 55 55 55 2 2 2no+2nc 2no+2nc OT125ELCC6AZ 1SCA022512R8030 14 45 75 75 75 2 2 2no+2nc 2no+2nc OT160ELCC6AZ 1SCA022512R8110 29 55 110 132 160 4 4 4no+2nc 4no+2nc OT200KLCC6AZ 1SCA022512R8200 37 75 132 160 200 4 4 4no+2nc 4no+2nc OT250KLCC6AZ 1SCA022512R8380 42 90 160 200 250 4 4 4no+2nc 4no+2nc OT315KLCC6AZ 1SCA022512R8460 42 110 220 280 355 4 4 4no+2nc 4no+2nc OT400DLCC6AZ 1SCA022512R8540 45 180 315 400 560 4 4 4no+2nc 4no+2nc OT630KLCC6AZ 1SCA022512R8620 54 200 400 500 710 4 4 4no+2nc 4no+2nc OT800ELCC6AZ 1SCA022828R2400 54 250 500 600 800 6 4 2no+2nc 4no+2nc OT1000BLCC6AZ 1SCA022512R8710 91 Cable entries from bottom C-flange Max. motor output/ entries/ Cover AC-23A bottom flanges Auxiliary Auxiliary Weight 230V 400V 500V 690V side included contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] [pcs] included max. Type Order number [kg] C-flange entries on bottom, blank entry plate on top 30 45 45 45 2 1 2no+2nc 2no+2nc OT90AAUC6AZ 1SCA022542R1920 22 37 55 55 55 2 1 2no+2nc 2no+2nc OT125EAUC6AZ 1SCA022542R6050 22 45 75 75 75 2 1 2no+2nc 2no+2nc OT160EAUC6AZ 1SCA022542R6130 32 55 110 132 160 4 2 4no+2nc 4no+2nc OT200KAUC6AZ 1SCA022542R6210 39 75 132 160 200 4 2 4no+2nc 4no+2nc OT250KAUC6AZ 1SCA022542R6300 45 90 160 200 250 4 1 4no+2nc 4no+2nc OT315KAUC6AZ 1SCA022542R6480 45 110 220 280 355 4 1 4no+2nc 4no+2nc OT400DAUC6AZ 1SCA022542R6560 48 180 315 400 560 6 2 4no+2nc 4no+2nc OT630KAUC6AZ 1SCA022542R6640 85 Steel sheet enclosed safety switches OT90...1000_CC6AZ S01768A OT90...630_UC6AZ S00870A

44  Ordering information | Safety switches Ordering information Steel sheet enclosed safety switches Safety switches, 3 and 6-pole, IP54, red-yellow handle The delivery incudes a red-yellow handle (I-O/ON-OFF), PE-terminal and auxiliary contacts ac-cording to the table below. Grey enclosure, screw fixed cover. IP65 types available on request. Knock-out openings included, also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. 3-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25+ø16 1no 2no+2nc OT16ELMM3A 1SCA022745R8670 1.6 5.5 7.5 7.5 7.5 2×ø25+ø16  - 2no+2nc OT16ELMM3A1 1SCA022745R8750 1.6 7.5 15 15 15 2×ø32+ø16 1no 2no+2nc OT25ELMM3A 1SCA022745R8830 1.6 11 22 22 15 2×ø32+ø16 1no 2no+2nc OT36ELMM3A 1SCA022745R8910 1.7 18.5 30 30 30 2×ø32+ø16 1no 2no+2nc OT63ELMM3A 1SCA022617R6050 3.7 22 37 37 37 B-flange 1no 2no+2nc OT75ELBB3A 1SCA022462R0830 4.5 22 45 45 45 B-flange 1no 2no+2nc OT90ELBB3A 1SCA022462R0910 4.5 6-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2×ø25+ø16 1no 2no+2nc OT16ELMM6A 1SCA022745R8410 1.9 Pistol handle 7.5 15 15 15 2×ø32+ø16 1no 2no+2nc OT25ELMM6A 1SCA022745R8590 1.9 11 22 22 15 2×ø32+ø16 1no 2no+2nc OT36ELMM6A 1SCA022745R9130 4.0 22 37 37 37 B-flange 1no 2no+2nc OT75ELBB6A 1SCA022462R1300 4.0 OT16...90_3A S01090A OT16ELMM6A S01090A OT25...75_6A S07226

Safety switches | Ordering information  45 Ordering information Safety switches, 3-pole, IP54, red-yellow handle The delivery incudes a red-yellow handle (I-O/ON-OFF), PE-terminal and auxiliary contacts ac-cording to the table below. Grey enclosure. IP65 types available on request. Cable entries from top and bottom, open top and bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W × D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Cable entries and flanges have to be ordered separately, see “Accessories”, page 81...83. Entry plate fixing profiles  are also used for mounting the safety switches. 30 45 45 45 250 × 180 1no+1nc 1no+1nc OT90ALAA3A 1SCA022297R9290 9.8 37 55 55 55 250 × 180 1no+1nc 1no+1nc OT125ELAA3A 1SCA022297R9450 9.8 45 75 75 75 400 × 230 1no+1nc 1no+1nc OT160ELAA3A 1SCA022280R3250 15 55 110 132 160 400 × 230 2no+1nc 2no+1nc OT200KLAA3A 1SCA022280R3840 17 75 132 160 200 400 × 230 2no+1nc 2no+1nc OT250KLAA3A 1SCA022280R4490 17 90 160 200 250 400 × 230 2no+1nc 2no+1nc OT315KLAA3A 1SCA022280R5030 17 110 220 280 355 400 × 230 2no+1nc 2no+1nc OT400DLAA3A 1SCA022280R5620 23 180 315 400 560 400 × 230 2no+1nc 2no+1nc OT630KLAA3A 1SCA022280R0150 27 200 400 500 710 400 × 230 2no+1nc 2no+1nc OT800ELAA3A 1SCA022828R0880 27 315 560 710 1000 800 × 330 2no+1nc 2no+1nc OT1000BLAA3A 1SCA022297R9610 56 Cable entries from bottom, open bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W × D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Blank entry plate on top. Cable entry and flanges have to be ordered separately for bottom, see “Accessories”, page  81...83. Entry plate fixing profiles are also used for mounting the safety switches. 11 22 22 15 250 × 180 1no 2no+2nc OT36EAUA3A 1SCA022544R0800 9.8 22 37 37 37 250 × 180 1no 2no+2nc OT75EAUA3A 1SCA022544R0980 10 30 45 45 45 400 × 230 1no+1nc 1no+1nc OT90AAUA3A 1SCA022297R9880 10 37 55 55 55 400 × 230 1no+1nc 1no+1nc OT125EAUA3A 1SCA022298R0030 10 45 75 75 75 400 × 230 1no+1nc 1no+1nc OT160EAUA3A 1SCA022298R0200 19 55 110 132 160 400 × 230 2no+1nc 2no+1nc OT200KAUA3A 1SCA022298R0460 21 75 132 160 200 400 × 230 2no+1nc 2no+1nc OT250KAUA3A 1SCA022298R0620 25 90 160 200 250 400 × 230 2no+1nc 2no+1nc OT315KAUA3A 1SCA022298R0890 25 110 220 280 355 400 × 230 2no+1nc 2no+1nc OT400DAUA3A 1SCA022297R4900 28 180 315 400 560 800 × 230 2no+1nc 2no+1nc OT630KAUA3A 1SCA022297R5110 46 180 315 400 560 400 × 330 2no+1nc 2no+1nc OT630KBUA3A 1SCA022544R0710 46 200 400 500 710 800 × 230 2no+1nc 2no+1nc OT800EAUA3A 1SCA022827R9870 46 315 560 710 1000 800 × 330 2no+1nc 2no+1nc OT1000BAUA3A 1SCA022297R5380 68 Steel sheet enclosed safety switches OT90...1000_AA3A S07205 OT36...1000_UA3A S07206

46  Ordering information | Safety switches Ordering information Safety switches, 6-pole, IP54, red-yellow handle The delivery incudes a red-yellow handle (I-O/ON-OFF), PE-terminal and auxiliary contacts ac-cording to the table below. Grey enclosure. IP65 types available on request.  Cable entries from top and bottom, open top and bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W x D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Cable entries and flanges have to be ordered separately, see “Accessories”, page 81...83. Entry plate fixing profiles  are also used for mounting the safety switches. 30 45 45 45 400 x 230 2no+2nc 2no+2nc OT90ALAA6A 1SCA022297R7910    10 37 55 55 55 400 x 230 2no+2nc 2no+2nc OT125ELAA6A 1SCA022297R8130    10 45 75 75 75 400 x 230 2no+2nc 2no+2nc OT160ELAA6A 1SCA022297R8300    25 55 110 132 160 800 x 230 4no+2nc 4no+2nc OT200KLAA6A 1SCA022297R8560    29 75 132 160 200 800 x 230 4no+2nc 4no+2nc OT250KLAA6A 1SCA022297R8720    34 90 160 200 250 800 x 230 4no+2nc 4no+2nc OT315KLAA6A 1SCA022297R8990    34 110 220 280 355 800 x 230 4no+2nc 4no+2nc OT400DLAA6A 1SCA022297R9110    37 180 315 400 560 800 x 230 4no+2nc 4no+2nc OT630KLAA6A 1SCA022297R9370    46 200 400 500 710 800 x 230 4no+2nc 4no+2nc OT800ELAA6A 1SCA022828R2310    46 250 500 600 800 800 x 330 2no+2nc 4no+2nc OT1000BLAA6A 1SCA022297R9530    81 Cable entries from bottom, open bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry W x D contacts contacts /unit [kW] [kW] [kW] [kW]  [mm] included max. Type Order number [kg] Pistol handle Blank entry plate on top. Cable entry and flanges have to be ordered separately for bottom, see “Accessories”, page  81...83. Entry plate fixing profiles are also used for mounting the safety switches. 30 45 45 45 400 x 230 2no+2nc 2no+2nc OT90AAUA6A 1SCA022500R3410    20 37 55 55 55 400 x 230 2no+2nc 2no+2nc OT125EAUA6A 1SCA022500R4140    20 45 75 75 75 400 x 230 2no+2nc 2no+2nc OT160EAUA6A 1SCA022500R3500    30 55 110 132 160 800 x 230 4no+2nc 4no+2nc OT200KAUA6A 1SCA022500R3680    35 75 132 160 200 800 x 230 4no+2nc 4no+2nc OT250KAUA6A 1SCA022500R3760    41 90 160 200 250 800 x 230 4no+2nc 4no+2nc OT315KAUA6A 1SCA022500R3840    41 110 220 280 355 800 x 230 4no+2nc 4no+2nc OT400DAUA6A 1SCA022500R3920    44 180 315 400 560 1000 x 330 4no+2nc 4no+2nc OT630KAUA6A 1SCA022500R4060    80 Steel sheet enclosed safety switches OT90...1000_AA6A S07205 OT90...630_UA6A S07206

Safety switches | Ordering information  47 Ordering information Stainless steel sheet enclosed safety switches Safety switches, 3-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contact 1 no and PE-terminal. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OTR16T3M 1SCA022613R2780 1.7 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OTR25T3M 1SCA022613R3910 1.9 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OTR36T3M 1SCA022613R4050 1.9 Pistol handle 18.5 30 30 30 2xø32.5+ø16.5 1no 2no+2nc OTR63T3M 1SCA022613R4130 2.4 22 37 37 37 B-flange 1no 2no+2nc OTR75T3B 1SCA022567R1280 3.3 22 45 45 45 B-flange 1no 2no+2nc OTR90T3B 1SCA022567R1440 3.3 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTR16T3B 1SCA022572R0160 1.7 7.5 15 15 15 B-flange 1no 2no+2nc OTR25T3B 1SCA022572R0240 1.9 11 22 22 15 B-flange 1no 2no+2nc OTR36T3B 1SCA022572R0320 1.9 18.5 30 30 30 B-flange 1no 2no+2nc OTR63T3B 1SCA022572R0410 2.0 OTR75...90T3B S07209 OTR16...36T3M S07207 OTR63T3M S07208 OT16...63T3B S07210

48  Ordering information | Safety switches Ordering information Stainless steel sheet enclosed safety switches Safety switches, 4-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contact 1 no and PE-terminal. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OTR16T4M 1SCA022613R4210 1.8 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OTR25T4M 1SCA022613R4300 2.0 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OTR36T4M 1SCA022613R4480 2.0 Pistol handle 18.5 30 30 30 2xø32.5+ø16.5 1no 2no+2nc OTR63T4M 1SCA022613R4560 2.5 22 37 37 37 B-flange 1no 2no+2nc OTR75T4B 1SCA022567R1360 3.4 22 45 45 45 B-flange 1no 2no+2nc OTR90T4B 1SCA022567R1520 3.4 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTR16T4B 1SCA022580R5740 1.8 7.5 15 15 15 B-flange 1no 2no+2nc OTR25T4B 1SCA022580R5910 2.0 11 22 22 15 B-flange 1no 2no+2nc OTR36T4B 1SCA022580R6040 2.0 18.5 30 30 30 B-flange 1no 1no+1nc OTR63T4B 1SCA022580R6120 2.1   OTR75...90T4B S07209 OTR16...36T4M S07207 OTR63T4M S07208 OT16...63T4B S07210

Safety switches | Ordering information  49 Ordering information Stainless steel sheet enclosed safety switches Safety switches, 6-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contact 1 no and PE-terminal. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5,5 7,5 7,5 7,5 2xø25.5+ø16.5 1no 2no+2nc OTR16T6M 1SCA022613R464 1.8 Pistol handle 7,5 15 15 15 2xø32.5+ø16.5 1no 1no+1nc OTR25T6M 1SCA022613R4720 2.5 7,5 15 15 15 B-flange 1no 1no+1nc OTR25T6B 1SCA022580R8250 3.4 11 22 22 15 2xø32.5+ø16.5 1no 1no+1nc OTR36T6M 1SCA022613R4810 2.5 11 22 22 15 B-flange 1no 1no+1nc OTR36T6B 1SCA022580R8330 3.4 22 37 37 37 B-flange 1no 1no OTR75T6B 1SCA022580R9060 3.6 22 45 45 45 B-flange 1no 1no OTR90T6B 1SCA022580R9140 3.6 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5,5 7,5 7,5 7,5 B-flange 1no 2no+2nc OTR16T6B 1SCA022580R5820 1.8 OTR25...90T6B S07209 OTR16T6M S07207 OTR25...36T6M S07208 OTR16T6B S07210

50  Ordering information | Safety switches Ordering information Stainless steel sheet enclosed safety switches Safety switches, 3-pole, IP65, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contact 1 no and PE-termi-nal. Knock-out type cable openings included, cable outlets also for control cable. Compres-sion glands and flanges have to be ordered separately, pages 83 and 85. Equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OTR16A3M 1SCA022613R2860 1.7 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OTR25A3M 1SCA022613R2940 1.9 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OTR36A3M 1SCA022613R3080 1.9 Pistol handle 18.5 30 30 30 2xø32.5+ø16.5 1no 2no+2nc OTR63A3M 1SCA022613R3160 2.4 22 37 37 37 B-flange 1no 2no+2nc OTR75A3B 1SCA022567R8960 3.3 22 45 45 45 B-flange 1no 2no+2nc OTR90A3B 1SCA022567R9180 3.3 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTR16A3B 1SCA022575R7410 1.7 7.5 15 15 15 B-flange 1no 2no+2nc OTR25A3B 1SCA022575R7590 1.9 11 22 22 15 B-flange 1no 2no+2nc OTR36A3B 1SCA022575R7670 1.9 18.5 30 30 30 B-flange 1no 2no+2nc OTR63A3B 1SCA022575R7750 2.0 OTR75...90A3B S07213 OTR16...36A3M S07211 OTR63A3M S07212 OTR16...63A3B S07214

Safety switches | Ordering information  51 Ordering information Safety switches, 4-pole, IP65, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contact 1 no and PE-terminal. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OTR16A4M 1SCA022613R3240 1.8 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OTR25A4M 1SCA022613R3320 2.0 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OTR36A4M 1SCA022613R3410 2.0 Pistol handle 18.5 30 30 30 2xø32.5+ø16.5 1no 2no+2nc OTR63A4M 1SCA022613R3590 2.5 22 37 37 37 B-flange 1no 2no+2nc OTR75A4B 1SCA022567R9000 3.4 22 45 45 45 B-flange 1no 2no+2nc OTR90A4B 1SCA022567R9260 3.4 Cable entries from bottom  Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTR16A4B 1SCA022745R7780 1.8 7.5 15 15 15 B-flange 1no 2no+2nc OTR25A4B 1SCA022745R7860 2.0 11 22 22 15 B-flange 1no 2no+2nc OTR36A4B 1SCA022745R7940 2.0 18.5 30 30 30 B-flange 1no 1no+1nc OTR63A4B 1SCA022745R8080 2.1 Stainless steel sheet enclosed safety switches OTR75...90A4B S07213 OTR16...36A4M S07211 OTR63A4M S07212 OTR16...63A4B S07214

52  Ordering information | Safety switches Ordering information Safety switches, 6-pole, IP65, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contact 1 no and PE-terminal. Knock-out type cable openings included, cable outlets also for control cable. Compression glands and flanges have to be ordered separately, pages 83 and 85. Equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OTR16A6M 1SCA022613R3670 1.8 Pistol handle 7.5 15 15 15 2xø32.5+ø16.5 1no 1no+1nc OTR25A6M 1SCA022613R3750 2.5 7.5 15 15 15 B-flange 1no 1no+1nc OTR25A6B 1SCA022745R7510 3.4 11 22 22 15 2xø32.5+ø16.5 1no 1no+1nc OTR36A6M 1SCA022613R3830 2.5 11 22 22 15 B-flange 1no 1no+1nc OTR36A6B 1SCA022745R7600 3.4 22 37 37 37 B-flange 1no 1no OTR75A6B 1SCA022596R7210 3.6 22 45 45 45 B-flange 1no 1no OTR90A6B 1SCA022596R7300 3.6 Cable entries from bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 B-flange 1no 2no+2nc OTR16A6B 1SCA022745R8160 1.8 Stainless steel sheet enclosed safety switches OTR25...90A6B S07213 OTR16A6M S07211 OTR25...36A6M S07212 OTR16A6B S07214

Safety switches | Ordering information  53 Ordering information Stainless steel sheet (acid proof) enclosed safety switches Safety switches, 3-pole, IP65, stainless steel handle The delivery includes a stainless steel handle (I-O/ON-OFF), auxiliary contacts according to the table below and PE-terminal. Knock-out type cable entry for control cable (25 mm) and open type cable entries for maincables. Cable flanges and flange covers to be ordered separately. More information on accessories page 84. Equipped with hings and lock. Cable entries from top and bottom Max. motor  output/ AC-23A Flange Auxiliary Auxiliary Weight 230V 400V 500V 690V openings/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Pistol handle 45 75 75 75 4x 2no+1nc 2no+1nc OT160EVRRR3TZ 1SCA125630R1001 25 55 110 132 160 4x 2no+1nc 2no+1nc OT200ERRR3TZ 1SCA101252R1001 25 75 132 160 200 4x 2no+1nc 2no+1nc OT250ERRR3TZ 1SCA102364R1001 25 90 160 200 250 4x 2no+1nc 2no+1nc OT315ERRR3TZ 1SCA102332R1001 25 110 220 280 355 4x 2no+1nc 2no+1nc OT400ERRR3TZ 1SCA102318R1001 32 180 315 400 560 4x 2no+1nc 2no+1nc OT630ERRR3TZ 1SCA102321R1001 36 200 400 500 710 4x 2no+1nc 2no+1nc OT800ERRR3TZ 1SCA102333R1001 36 315 560 710 1000 8x 2no+1nc 2no+1nc OT1000ERRR3TZ 1SCA103329R1001 70 400 710 900 1200 8x 2no+1nc 2no+1nc OT1250ERRR3TZ 1SCA103351R1001 70 Cable entries from bottom Max. motor  output/ AC-23A Flange Auxiliary Auxiliary Weight 230V 400V 500V 690V openings/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Pistol handle Flange covers mounted on top 45 75 75 75 4x 2no+1nc 2no+1nc OT160EVSUR3TZ 1SCA125726R1001 28 55 110 132 160 4x 2no+1nc 2no+1nc OT200ESUR3TZ 1SCA102325R1001 28 75 132 160 200 4x 2no+1nc 2no+1nc OT250ESUR3TZ 1SCA102320R1001 33 90 160 200 250 4x 2no+1nc 2no+1nc OT315ESUR3TZ 1SCA102317R1001 34 110 220 280 355 4x 2no+1nc 2no+1nc OT400ESUR3TZ 1SCA102323R1001 34 180 315 400 560 8x 2no+1nc 2no+1nc OT630ESUR3TZ 1SCA102336R1001 56 200 400 500 710 8x 2no+1nc 2no+1nc OT800ESUR3TZ 1SCA102324R1001 56 315 560 710 1000 8x 2no+1nc 2no+1nc OT1000ESUR3TZ 1SCA104434R1001 78 400 710 900 1200 8x 2no+1nc 2no+1nc OT1250ESUR3TZ 1SCA104440R1001 78 OT160EV...400_UR3TZ S07197 OT160EV...800_RR3TZ S07196 OT1000...1250_RR3TZ S07198 OT630...1250_UR3TZ S07199

54  Ordering information | Safety switches Ordering information Safety switches, 6-pole, IP65, stainless steel handle The delivery includes a stainless steel handle (I-O/ON-OFF), auxiliary contacts according to the table below and PE-terminal. Knock-out type cable entry for control cable (25 mm) and open type cable entries for main cables. Cable flanges and flange covers to be ordered separately. More information on accessories page 84. Equipped with hings and lock. Cable entries from top and bottom Max. motor output/ AC-23A Flange Auxiliary Auxiliary Weight 230V 400V 500V 690V openings/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Pistol handle 45 75 75 75 8x 4no+2nc 4no+2nc OT160EVRRR6TZ 1SCA125725R1001 41 55 110 132 160 8x 4no+2nc 4no+2nc OT200ERRR6TZ 1SCA102316R1001 41 75 132 160 200 8x 4no+2nc 4no+2nc OT250ERRR6TZ 1SCA102365R1001 46 90 160 200 250 8x 4no+2nc 4no+2nc OT315ERRR6TZ 1SCA102327R1001 46 110 220 280 355 8x 4no+2nc 4no+2nc OT400ERRR6TZ 1SCA102329R1001 50 180 315 400 560 8x 4no+2nc 4no+2nc OT630ERRR6TZ 1SCA102326R1001 59 200 400 500 710 8x 4no+2nc 4no+2nc OT800ERRR6TZ 1SCA102334R1001 59 Cable entries from bottom Max. motor output/ AC-23A Flange Auxiliary Auxiliary Weight 230V 400V 500V 690V openings/ contacts contacts /unit [kW] [kW] [kW] [kW] bottom side included max. Type Order number [kg] Pistol handle Flange covers mounted on top 45 75 75 75 8x 4no+2nc 4no+2nc OT160EVSUR6TZ 1SCA125650R1001 43 55 110 132 160 8x 4no+2nc 4no+2nc OT200ESUR6TZ 1SCA102319R1001 43 75 132 160 200 8x 4no+2nc 4no+2nc OT250ESUR6TZ 1SCA102370R1001 51 90 160 200 250 8x 4no+2nc 4no+2nc OT315ESUR6TZ 1SCA102330R1001 51 110 220 280 355 8x 4no+2nc 4no+2nc OT400ESUR6TZ 1SCA102335R1001 54 180 315 400 560 8x 4no+2nc 4no+2nc OT630ESUR6TZ 1SCA102322R1001 90 Stainless steel sheet (acid proof) enclosed safety switches OT160EV...800_RR6TZ S07198 OT160EV...630_UR6TZ S07199

Safety switches | Ordering information  55 Ordering information Side operated safety switches, 3 and 4-pole, IP65 3-pole, cable entries from top and bottom The delivery includes: enclosure in aluminum and handle in dark grey plastic, neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54 (see table page 11). For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current / power AC-23A Cable Enclosure Weight 500V 690V 690V  entries size [mm] /unit [A] [A] [kW] Up/Down W H D Type Order number  [kg] Dark grey side-operated handle, dark grey cover 16 10 7,5 2xM25/2xM25 111 130 60 LBAS316 TPN 2CMA142430R1000 0.57 25 16 11 2xM32/2xM32+1xM16 138 168 68 LBAS325 TPN 2CMA142432R1000 0.80 4-pole, cable entries from top and bottom The delivery includes:  enclosure in aluminum and handle in dark grey plastic, switched neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with mem-brane glands/sealing plugs IP54 (see table page 11). For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current / power AC-23A Cable Enclosure Weight 500V 690V 690V  entries size [mm] /unit [A] [A] [kW] Up/Down W H D Type Order number  [kg] Dark grey side-operated handle, dark grey cover 16 10 7,5 2xM25/2xM25 111 130 60 LBAS416 TPSN  2CMA142431R1000 0.57 25 16 11 2xM32/2xM32+1xM16 138 168 68 LBAS425 TPSN  2CMA142433R1000 0.81 Aluminum enclosed safety switches LBAS316 TPN, LBAS416 TPSN 2CMC342002F0008 LBAS325 TPN, LBAS425 TPSN 2CMC342002F0010

56  Ordering information | Safety switches Ordering information Safety switches, 3, 4 and 6-pole, IP65, black handle 3-pole, cable entries from top and bottom The delivery includes:  enclosure in aluminum and handle in black plastic, neutral and PE ter-minal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54 (see table page 11). For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current / power AC-23A Cable Enclosure Weight 500V 690V 690V  entries size [mm] /unit [A] [A] [kW] Up/Down W H D Type Order number  [kg] Selector handle, dark grey cover 45 20 22 2xM40/2xM40+1xM16 160 230 145 LBAS345 TPN 2CMA142627R1000 1.75 58 20 37 2xM40/2xM40+1xM16 160 230 145 LBAS375 TPN 2CMA142628R1000 1.75 70 50 45 2xM40/2xM40+1xM16 160 230 145 LBAS390 TPN 2CMA142629R1000 1.75 4-pole, cable entries from top and bottom The delivery includes: enclosure in aluminum and handle in black plastic, switched neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54 (see table page 11). For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current / power AC-23A Cable Enclosure Weight 500V 690V 690V  entries size [mm] /unit [A] [A] [kW] Up/Down W H D Type Order number  [kg] Selector handle, dark grey cover 58 20 37 2xM40/2xM40+1xM16 160 230 145 LBAS475 TPN 2CMA142631R1000 1.75 70 50 45 2xM40/2xM40+1xM16 160 230 145 LBAS490 TPN 2CMA142632R1000 1.75 6-pole, cable entries from top and bottom The delivery includes:  enclosure in aluminum and handle in black plastic, neutral and PE ter-minal, 1 NO auxiliary contact, cable entries with metric threaded holes with membrane glands/sealing plugs IP54 (see table page 11). For IP65 protection compression glands must be used. The switch-disconnector is lockable. Rated operational  current / power AC-23A Cable Enclosure Weight 500V 690V 690V  entries size [mm] /unit [A] [A] [kW] Up/Down W H D Type Order number  [kg] Selector handle, dark grey cover 58 20 37 2xM40/2xM40+1xM16 160 230 145 LBAS675 TPN 2CMA142633R1000 1.75 Aluminum enclosed safety switches LBAS_ TPN 2CMC341011F0075

Safety switches | Ordering information  57 Ordering information Safety switches, 3-pole, IP65, black handle Cable entries from bottom The delivery includes: enclosure in white aluminum and handle in black plastic, PE terminal, 1 NO auxiliary contact, cable tightening/glands. Rated operational  current / power AC-23A Cable Enclosure Weight 500V 690V  entries size [mm] /unit [A] [A] [kW] Down W H D Type Order number  [kg] Pistol handle, white cover 125 90 70 2xØ 18-48 400 405 234 LBAS125/S 2CMA144495R1000 9.70 125 90 70 2xØ 18-48 400 405 234 LBAS125/SK 1) 2CMA144496R1000 10.40 160 125 80 2xØ 18-48 400 405 234 LBAS160/S 2CMA144498R1000 9.70 160 125 80 2xØ 18-48 400 405 234 LBAS160/SK 1) 2CMA144499R1000 10.40 250 250 250 4xØ 30-68 465 555 235 LBAS200/S 2) 2CMA144500R1000 23.00 315 315 315 4xØ 30-68 465 555 235 LBAS250/S 3) 2CMA144503R1000 23.00 500 500 350 4xØ 30-68 565 655 235 LBAS400/S 3) 2CMA144505R1000 26.00 630 580 350 4xØ 30-68 565 655 235 LBAS630/S 3) 2CMA144506R1000 27.00 1)  Screw terminals for cable lugs max 95 mm 2 2)  Screw terminals for cable lugs max 2//240 mm 2 3)  Screw terminals for cable lugs max 2//300 mm 2 Aluminum enclosed safety switches LBAS_ 2CMC341011F0023

58  Ordering information | Safety switches Ordering information Plastic enclosed EMC safety switches EMC safety switches, 3-pole, IP65, black handle The delivery includes a black selector type  handle (I-O/ON-OFF), auxiliary contacts according to the table below, and PE-terminal. Grey enclosure. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V  outlets/  contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] The handles are padlockable with three padlocks in O-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16T3M 1SCA022613R2190  0.5 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25T3M 1SCA022613R2270 0.9 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36T3M 1SCA022613R2350 0.9 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75T3M 1SCA022812R4160 3.6 22 38 45 45 2xM50+M16 1no 2no+2nc OTE90T3M 1SCA022812R4240 3.6 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75T3B 1SCA022438R3790 3.6 22 45 45 45 I -flange 1no 2no+2nc OTE90T3B 1SCA022438R3870 3.6 The handles are padlockable with three padlocks in O- and I-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16TL3M 1SCA022613R9870 0.5 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25TL3M 1SCA022614R0290 0.9 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36TL3M 1SCA022614R0610 0.9 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75TL3M 1SCA022812R4320 3.6 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90TL3M 1SCA022812R4410 3.6 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75TL3B 1SCA022469R0610 3.6 22 45 45 45 I -flange 1no 2no+2nc OTE90TL3B 1SCA022469R0700 3.6 With disturbance protected safety switches the cables have to be shielded. OTE16...36T_ S00764A OTE75T_, OTE90T_ S00692A

Safety switches | Ordering information  59 Ordering information Plastic enclosed EMC safety switches EMC safety switches, 4 and 6-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contacts according to the table below, and N- and PE-terminals. Grey enclosure. 4-pole, cable entries from top and bottom, selector handle Max. motor  output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V  outlets/  contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] The handles are padlockable with three padlocks in O-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16T4M 1SCA022613R2430 0.53 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25T4M 1SCA022613R2510 0.96 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36T4M 1SCA022613R2600  0.96 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75T4M 1SCA022812R4670 3.7 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90T4M 1SCA022812R5050 3.7 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75T4B 1SCA022438R4250 3.7 22 45 45 45 I -flange 1no 2no+2nc OTE90T4B 1SCA022438R4330 3.7 The handles are padlockable with three padlocks in O- and I-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16TL4M 1SCA022613R9950  0.53 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25TL4M 1SCA022614R0370  0.96 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36TL4M 1SCA022614R0700  0.96 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75TL4M 1SCA022812R5300 3.7 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90TL4M 1SCA022812R5560 3.7 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75TL4B 1SCA022469R1260 3.7 22 45 45 45 I -flange 1no 2no+2nc OTE90TL4B 1SCA022469R1340 3.7 6-pole, cable entries from top and bottom The handles are padlockable with three padlocks in O-position Selector handle Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16T6M 1SCA022613R8980 1.0 Pistol handle Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75T6M 1SCA022812R5720 4.2 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90T6M 1SCA022812R5810 4.2 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 7.5 15 15 15 I -flange 1no 2no+2nc OTE25T6B 1SCA022506R4120 4.1 11 22 22 15 I -flange 1no 2no+2nc OTE36T6B 1SCA022506R4210 4.1 22 37 37 37 I -flange 1no 2no+2nc OTE75T6B 1SCA022536R1680 4.2 22 45 45 45 I -flange 1no 2no+2nc OTE90T6B 1SCA022536R1760 4.2 With disturbance protected safety switches the cables have to be shielded. OTE16...36T4_ S00764A OTE75T4_, OTE90T4_ S00692A OTE16T6_ S00764A OTE25...90T6_ S02084

60  Ordering information | Safety switches Ordering information EMC safety switches, 3-pole, IP65, red-yellow handle The delivery includes a red-yellow selector type handle (I-O/ON-OFF), auxiliary contacts ac-cording to the table below, and PE-terminal. Grey enclosure. Cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V  outlets/  contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] The handles are padlockable with three padlocks in O-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16A3M 1SCA022613R8710 0.5 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25A3M 1SCA022613R9010 0.9 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36A3M 1SCA022613R9280 0.9 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75A3M 1SCA022812R5990 3.6 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90A3M 1SCA022812R6020 3.6 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75A3B 1SCA022438R4760 3.6 22 45 45 45 I -flange 1no 2no+2nc OTE90A3B 1SCA022438R4840 3.6 The handles are padlockable with three padlocks in O- and I-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16AL3M 1SCA022613R9610 0.5 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25AL3M 1SCA022614R0020 0.9 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36AL3M 1SCA022614R0450 0.9 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75AL3M 1SCA022812R6110 3.6 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90AL3M 1SCA022812R6290 3.6 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75AL3B 1SCA022500R9290  3.6 22 45 45 45 I -flange 1no 2no+2nc OTE90AL3B 1SCA022500R9370  3.6 With disturbance protected safety switches the cables have to be shielded. Plastic enclosed EMC safety switches OTE16A...36A_ S00760A OTE75A_, OTE90A_ S00763A

Safety switches | Ordering information  61 Ordering information EMC safety switches, 4 and 6-pole, IP65, red-yellow handle The delivery includes a yellow-red handle (I-O/ON-OFF), auxiliary contacts according to the table below, and N- and PE-terminals. Grey enclosure. 4-pole, cable entries from top and bottom, selector handle Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V  outlets/  contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] The handles are padlockable with three padlocks in O-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16A4M 1SCA022613R8800 0.53 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25A4M 1SCA022613R9100 0.96 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36A4M 1SCA022613R9360 0.96 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75A4M 1SCA022812R6370 3.7 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90A4M 1SCA022812R6450 3.7 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75A4B 1SCA022438R5220 3.7 22 45 45 45 I -flange 1no 2no+2nc OTE90A4B 1SCA022438R5310 3.7 The handles are padlockable with three padlocks in O- and I-position Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16AL4M 1SCA022613R9790 0.53 7.5 15 15 15 2xM32+M16 1no 2no+2nc OTE25AL4M 1SCA022614R0110 0.96 11 22 22 15 2xM32+M16 1no 2no+2nc OTE36AL4M 1SCA022614R0530 0.96 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75AL4M 1SCA022812R6530 3.7 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90AL4M 1SCA022812R6610 3.7 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 22 37 37 37 I -flange 1no 2no+2nc OTE75AL4B 1SCA022500R9700 3.7 22 45 45 45 I -flange 1no 2no+2nc OTE90AL4B 1SCA022500R9880 3.7 6-pole, cable entries from top and bottom The handles are padlockable with three padlocks in O-position. Selector handle Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 5.5 7.5 7.5 7.5 2xM25+M16 1no 2no+2nc OTE16A6M 1SCA022681R1250 1.0 Pistol handle Threaded knock-out openings, compression glands have to be ordered separately, page 85. Standard compression  glands may be used (no EMC). 22 37 37 37 2xM50+M16 1no 2no+2nc OTE75A6M 1SCA022812R6700 4.2 22 45 45 45 2xM50+M16 1no 2no+2nc OTE90A6M 1SCA022812R6880 4.2 Knock-out flanges, flanges have to be ordered separately, page 84. Standard flanges may be used (no EMC). 7.5 15 15 15 I -flange 1no 2no+2nc OTE25A6B 1SCA022615R0500 4.1 11 22 22 15 I -flange 1no 2no+2nc OTE36A6B 1SCA022652R3890 4.1 22 37 37 37 I -flange 1no 2no+2nc OTE75A6B 1SCA022652R3970 4.2 22 45 45 45 I -flange 1no 2no+2nc OTE90A6B 1SCA022652R4010 4.2 With disturbance protected safety switches the cables have to be shielded. Plastic enclosed EMC safety switches OTE16...36A4_ S00760A OTE75A4_, OTE90A4_ S00763A OTE16A6_ S00760A OTE25...90A6_ S00769

62  Ordering information | Safety switches Ordering information EMC safety switches, 3 and 6-pole, IP65, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contact 1 no and PE-terminal. Knock-out openings included, cable outlets also for control cable. Compression glands have to be ordered separately, see Accessories for EMC Safety switches. Equipped with hings and lock, grey enclosure. 3-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW]  [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OT16ETMM3TE 1SCA022734R5980 1.7 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OT25ETMM3TE 1SCA022734R6010 1.9 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OT36ETMM3TE 1SCA022734R6100 1.9 Pistol handle 18.5 30 30 30 2xø32.5+ø16.5 1no 2no+2nc OT63ETMM3TE 1SCA022734R6280 2.4 6-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V  outlets/  contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OT16ETMM6TE 1SCA022739R3870 1.9 Pistol handle 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+1nc OT25ETMM6TE 1SCA022739R3950 4.0 11 22 22 15 2xø32.5+ø16.5 1no 2no+1nc OT36ETMM6TE 1SCA022739R4090 4.0 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT16...36_3TE S01211A OT63_3TE S01335A OT16_6TE S01211A OT25...36_6TE S01335A

Safety switches | Ordering information  63 Ordering information EMC safety switches with ring-flange cable entries, 3-pole, IP65, black handle The delivery includes:   – Black pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...400A   – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below. To be ordered separately:   – Ring-flanges, the table below illustrates the number of ring-flange entries/ entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. see Accessories for EMC Safety switches. Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries included Auxiliary Auxiliary Weight 230V 400V 500V 690V /side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Order number [kg] Divided cable entry with ring-flange entries on top and bottom 45 75 75 75 4 3  3 1no+1nc 1no+1nc OT160ETRR3TZ 1SCA022513R7370 19 55 110 132 160 4 3  3 2no+1nc 2no+1nc OT200KTRR3TZ 1SCA022513R7450 21 75 132 160 200 4 3  3 2no+1nc 2no+1nc OT250KTRR3TZ 1SCA022513R7530 21 90 160 200 250 4 3  3 2no+1nc 2no+1nc OT315KTRR3TZ 1SCA022513R7610 21 110 220 280 355 4 2  3 2no+1nc 2no+1nc OT400DTRR3TZ 1SCA022513R7700 27 180 315 400 560 4 2  2 2no+1nc 2no+1nc OT630KTRR3TZ 1SCA022513R7880 31 200 400 500 710 4 2  2 2no+1nc 2no+1nc OT800ETRR3TZ 1SCA022828R1770 31 315 560 710 1000 8 5  5 2no+1nc 2no+1nc OT1000BTRR3TZ 1SCA022513R7960 66 400 710 900 1200 8 5  5 2no+1nc 2no+1nc OT1250ETRR3TZ 1SCA103280R1001 66 Cable entries from bottom Divided cable entry with ring-flange entries on bottom, blank entry plate on top 30 45 45 45 4 2   2 1no+1nc 1no+1nc OT90AUUR3TZ 1SCA022513R8000 12 37 55 55 55 4 2   2 1no+1nc 1no+1nc OT125EUUR3TZ 1SCA022513R8180 12 45 75 75 75 4 1   1 1no+1nc 1no+1nc OT160EUUR3TZ 1SCA022513R8260 21 55 110 132 160 4 1   1 2no+1nc 2no+1nc OT200KUUR3TZ 1SCA022513R8340 23 75 132 160 200 4 1   1 2no+1nc 2no+1nc OT250KUUR3TZ 1SCA022513R8420 27 90 160 200 250 4 1   1 2no+1nc 2no+1nc OT315KUUR3TZ 1SCA022513R8510 27 110 220 280 355 4 1   1 2no+1nc 2no+1nc OT400DUUR3TZ 1SCA022513R8690 30 180 315 400 560 8 2   2 2no+1nc 2no+1nc OT630KUUR3TZ 1SCA022513R8770 50 200 400 500 710 8 2   2 2no+1nc 2no+1nc OT800EUUR3TZ 1SCA022828R0110 50 315 560 710 1000 8 1   1 2no+1nc 2no+1nc OT1000BUUR3TZ 1SCA022513R8850 73 400 710 900 1200 8 1   1 2no+1nc 2no+1nc OT1250EUUR3TZ 1SCA103281R1001 73 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT160...1250_RR3TZ S00850A OT90...1250_UR3TZ S00507A

64  Ordering information | Safety switches Ordering information EMC safety switches with ring-flange cable entries, 6-pole, IP65, black handle The delivery includes:    – Black pistol type handle (I-O / ON - OFF indication)   – Auxiliary contacts are wired to the terminal blocks in sizes 200A...400A   – PE-terminal   – Fixed divided cable entries with ring-flange entries. Entry plate fixing profiles are used also  for mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), 1 knock-out opening /  ring-flange cover.   – The number of ring-flange covers and the size of knock-out openings on the table below.To be ordered separately:   – Ring-flanges, the table below illustrates the number of ring-flange entries/ entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required.  The ordering information for ring-flanges, see Accessories for EMC Safety switches. Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries included Auxiliary Auxiliary Weight 230V 400V 500V 690V /side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Order number [kg] Divided cable entry with ring-flange entries on top and bottom 30 45 45 45 4 2 2 2no+2nc 2no+2nc OT90ATRR6TZ    1SCA022545R7100 14 37 55 55 55 4 2 2 2no+2nc 2no+2nc OT125ETRR6TZ  1SCA022545R7280 14 45 75 75 75 4 2 2 2no+2nc 2no+2nc OT160ETRR6TZ  1SCA022545R7360 29 55 110 132 160 8 6 6 4no+2nc 4no+2nc OT200KTRR6TZ  1SCA022545R7440 37 75 132 160 200 8 4 4 4no+2nc 4no+2nc OT250KTRR6TZ  1SCA022545R7520 42 90 160 200 250 8 4 4 4no+2nc 4no+2nc OT315KTRR6TZ  1SCA022545R7610 42 110 220 280 355 8 4 4 4no+2nc 4no+2nc OT400DTRR6TZ  1SCA022545R7790 45 180 315 400 560 8 4 4 4no+2nc 4no+2nc OT630KTRR6TZ  1SCA022545R7870 54 200 400 500 710 8 4 4 4no+2nc 4no+2nc OT800ETRR6TZ 1SCA022828R2660 54 250 500 600 800 8 2 2 2no+2nc 4no+2nc OT1000BTRR6TZ  1SCA022545R7950 90 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT90...1000 S00850A

Safety switches | Ordering information  65 Ordering information EMC safety switches, 3 and 4-pole, IP54, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contacts according to the table below, and PE-terminal. Grey enclosure, screw fixed cover. Knock-out openings included. Compression glands have to be ordered separately,  see Accessories for EMC Safety switches. IP65 available on request. 3-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25+ø16 1no 2no+2nc OT16ETMM3T 1SCA022650R6610 1.6 7.5 15 15 15 2xø32+ø16 1no 2no+2nc OT25ETMM3T 1SCA022650R6960 1.6 11 22 22 15 2xø32+ø16 1no 2no+2nc OT36ETMM3T 1SCA022650R7180 1.7 18.5 30 30 30 2xø32+ø16 1no 2no+2nc OT63ETMM3T 1SCA022650R7420 3.7 4-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25+ø16 1no 2no+2nc OT16ETMM4T 1SCA022650R6700 1.9 7.5 15 15 15 2xø32+ø16 1no 2no+2nc OT25ETMM4T 1SCA022650R7000 1.9 11 22 22 15 2xø32+ø16 1no 2no+2nc OT36ETMM4T 1SCA022650R7340 1.9 18.5 30 30 30 2xø32+ø16 1no 2no+2nc OT63ETMM4T 1SCA022650R7260 4.0 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT16...63_3T S00822A OT16...63_4T S00822A

66  Ordering information | Safety switches Ordering information Steel sheet enclosed EMC safety switches EMC safety switches, 3-pole, IP54, black handle The delivery includes a black handle (I-O/ON-OFF), auxiliary contacts according to the table below, and PE-terminal. Grey enclosure. IP65 available on request. Cable entries and flanges have to be ordered separately, see Accessories for EMC Safety switches. Cable entries from top and bottom, open top and bottom Max. motor output/ Size of AC-23A suitable cable Auxiliary Auxiliary Weight 230V 400V 500V 690V entry contacts contacts /unit [kW] [kW] [kW] [kW] W x D [mm] included max. Type Order number [kg] Pistol handle Cable entries and flanges have to be ordered separately, see Accessories for EMC Safety switches. Entry plate fixing  profiles are used also for mounting the safety switches. 30 45 45 45 250 x 180  1no+1nc 1no+1nc OT90ATAA3T 1SCA022398R9030 9.8 37 55 55 55 250 x 180 1no+1nc 1no+1nc OT125ETAA3T 1SCA022398R9110 9.8 45 75 75 75 400 x 230 1no+1nc 1no+1nc OT160ETAA3T 1SCA022398R9200 15 55 110 132 160 400 x 230 2no+1nc 2no+1nc OT200KTAA3T 1SCA022398R9380 17 75 132 160 200 400 x 230 2no+1nc 2no+1nc OT250KTAA3T 1SCA022398R9460 17 90 160 200 250 400 x 230 2no+1nc 2no+1nc OT315KTAA3T 1SCA022398R9540 17 110 220 280 355 400 x 230 2no+1nc 2no+1nc OT400DTAA3T 1SCA022398R9620 23 180 315 400 560 400 x 230 2no+1nc 2no+1nc OT630KTAA3T 1SCA022398R9710 27 200 400 500 710 400 x 230 2no+1nc 2no+1nc OT800ETAA3T 1SCA022828R1850 27 315 560 710 1000 800 x 330 2no+1nc 2no+1nc OT1000BTAA3T 1SCA022398R9890 56 Cable entries from bottom, open bottom Pistol handle Blank entry plate on top. Cable entry and flanges have to be ordered separately for bottom, see Accessories for EMC  Safety switches. Entry plate fixing profiles are also used for mounting the safety switches. 30 45 45 45 400 x 230 1no+1nc 1no+1nc OT90AUUA3T 1SCA022398R8140   10 37 55 55 55 400 x 230 1no+1nc 1no+1nc OT125 EUUA3T 1SCA022398R8220  10 45 75 75 75 400 x 230 1no+1nc 1no+1nc OT160EUUA3T 1SCA022398R8310  19 55 110 132 160 400 x 230 2no+1nc 2no+1nc OT200KUUA3T 1SCA022398R8490  21 75 132 160 200 400 x 230 2no+1nc 2no+1nc OT250KUUA3T 1SCA022398R8570  25 90 160 200 250 400 x 230 2no+1nc 2no+1nc OT315KUUA3T 1SCA022398R8650  25 110 220 280 355 400 x 230 2no+1nc 2no+1nc OT400DUUA3T 1SCA022398R8730  28 180 315 400 560 800 x 230 2no+1nc 2no+1nc OT630KUUA3T 1SCA022398R8810  46 200 400 500 710 800 x 230 2no+1nc 2no+1nc OT800EUUA3T 1SCA022828R0290 46 315 560 710 1000 800 x 330 2no+1nc 2no+1nc OT1000BUUA3T 1SCA022398R8900 68 With disturbance protected safety switches the cables have to be shielded. OT90...1000_AA3T S00834A OT90...1000_UA3T S07203

Safety switches | Ordering information  67 Ordering information EMC safety switches, 3 and 6-pole, IP65, red-yellow handle Red-yellow handle, grey enclosure, IP65  The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contact 1 no and PE-termi-nal. Knock-out openings included, cable outlets also for control cable. Compression glands have to be ordered separately, see Accessories for EMC Safety switches. Equipped with hings and lock, grey enclosure. 3-pole, cable entries from top and bottom Max. motor  output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/ contacts contacts /unit [kW] [kW] [kW]  [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OT16ETMM3AE 1SCA022742R0780 1.7 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OT25ETMM3AE 1SCA022742R0860 1.9 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OT36ETMM3AE 1SCA022742R0940 1.9 Pistol handle 18.5 30 30 30 2xø32.5+ø16.5 1no 2no+2nc OT63ETMM3AE 1SCA022742R1080 2.4 6-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/  contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25.5+ø16.5 1no 2no+2nc OT16ETMM6AE 1SCA022742R1160 1.9 Pistol handle 7.5 15 15 15 2xø32.5+ø16.5 1no 2no+2nc OT25ETMM6AE 1SCA022742R1240 4.0 11 22 22 15 2xø32.5+ø16.5 1no 2no+2nc OT36ETMM6AE 1SCA022742R1320 4.0 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT16...36_3AE S01345A OT63_3AE S01346A OT16_6AE S01345A OT25...36_6AE S01346A

68  Ordering information | Safety switches Ordering information EMC safety switches with ring-flange cable entries, 3-pole, IP65, red-yellow handle The delivery includes:    – Red-yellow pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts according to the table below    – PE-terminal   – Fixed divided cable entry with ring-flange entries. Entry plate fixing profiles are used also for  mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out  opening/ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below. To be ordered separately:   – Ring-flanges, the table below illustrates the number of ring-flange entries/ entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. The ordering information for ring-flanges, see Accessories for EMC Safety switches. Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries included Auxiliary Auxiliary Weight 230V 400V 500V 690V /side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Order number [kg] Divided cable entry with ring-flange entries on top and bottom 45 75 75 75 4 3 3 1no+1nc 1no+1nc OT160ETRR3AZ 1SCA022742R3370 19 55 110 132 160 4 3 3 2no+1nc 2no+1nc OT200KTRR3AZ 1SCA022742R3450 21 75 132 160 200 4 3 3 2no+1nc 2no+1nc OT250KTRR3AZ 1SCA022742R3530 21 90 160 200 250 4 3 3 2no+1nc 2no+1nc OT315KTRR3AZ 1SCA022742R3610 21 110 220 280 355 4 2 3 2no+1nc 2no+1nc OT400DTRR3AZ 1SCA022742R3700 27 180 315 400 560 4 2 2 2no+1nc 2no+1nc OT630KTRR3AZ 1SCA022742R3880 31 200 400 500 710 4 2 2 2no+1nc 2no+1nc OT800ETRR3AZ 1SCA022828R2070 31 315 560 710 1000 8 5 5 2no+1nc 2no+1nc OT1000BTRR3AZ 1SCA102749R1001 66 400 710 900 1200 8 5 5 2no+1nc 2no+1nc OT1250ETRR3AZ 1SCA103282R1001 66 Cable entries from bottom Divided cable entry with ring-flange entries on bottom, blank entry plate on top 30 45 45 45 4 2 2 1no+1nc 1no+1nc OT90AUUR3AZ 1SCA022700R6260 12 37 55 55 55 4 2 2 1no+1nc 1no+1nc OT125EUUR3AZ 1SCA022725R2710 12 45 75 75 75 4 1 1 1no+1nc 1no+1nc OT160EUUR3AZ 1SCA022732R2260 21 55 110 132 160 4 1 1 2no+1nc 2no+1nc OT200KUUR3AZ 1SCA022700R6340 23 75 132 160 200 4 1 1 2no+1nc 2no+1nc OT250KUUR3AZ 1SCA022725R3190 27 90 160 200 250 4 1 1 2no+1nc 2no+1nc OT315KUUR3AZ 1SCA022725R2890 27 110 220 280 355 4 1 1 2no+1nc 2no+1nc OT400DUUR3AZ 1SCA022700R6420 30 180 315 400 560 8 2 2 2no+1nc 2no+1nc OT630KUUR3AZ 1SCA022725R2970 50 200 400 500 710 8 2 2 2no+1nc 2no+1nc OT800EUUR3AZ 1SCA022828R0450 50 315 560 710 1000 8 1 1 2no+1nc 2no+1nc OT1000BUUR3AZ 1SCA022725R3010 73 400 710 900 1200 8 1 1 2no+1nc 2no+1nc OT1250EUUR3AZ 1SCA103283R1001 73 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT160...1250_RR3AZ S01764A OT90...1250_UR3AZ S00870A

Safety switches | Ordering information  69 Ordering information Steel sheet enclosed EMC safety switches EMC safety switches with ring-flange cable entries, 6-pole, IP65, red-yellow handle The delivery includes:    – Red-yellow pistol type handle (I-O / ON - OFF indication), grey enclosure   – Auxiliary contacts according to the table below    – PE-terminal   – Fixed divided cable entries with ring-flange entries. Entry plate fixing profiles are used also  for mounting the safety switch   – Ring-flange covers with knock-out openings, (delivered unfastened), one knock-out opening  / ring-flange cover. The number of ring-flange covers and the size of knock-out openings on the table below. To be ordered separately:   – Ring-flanges, the table below illustrates the number of ring-flange entries/ entry plate.  Depending on the number of cables, ring-flange covers can be replaced by ring-flanges if required. The ordering information for ring-flanges, see Accessories for EMC Safety switches. Cable entries from top and bottom Ring-flange Ring- covers with Max. motor output/ flange knock-outs AC-23A entries included Auxiliary Auxiliary Weight 230V 400V 500V 690V /side [pcs] contacts contacts /unit [kW] [kW] [kW] [kW] [pcs] ø25,5 ø40,5 included max. Type Order number [kg] 30 45 45 45 4 2 2 2no+2nc 2no+2nc OT 90ATRR6AZ 1SCA022742R4000 14 37 55 55 55 4 2 2 2no+2nc 2no+2nc OT125ETRR6AZ 1SCA022742R4180 14 45 75 75 75 4 2 2 2no+2nc 2no+2nc OT160ETRR6AZ 1SCA022742R4260 29 55 110 132 160 8 6 6 4no+2nc 4no+2nc OT200KTRR6AZ 1SCA022742R4340 37 75 132 160 200 8 4 4 4no+2nc 4no+2nc OT250KTRR6AZ 1SCA022742R4420 42 90 160 200 250 8 4 4 4no+2nc 4no+2nc OT315KTRR6AZ 1SCA022742R4510 42 110 220 280 355 8 4 4 4no+2nc 4no+2nc OT400 DTRR6AZ 1SCA022742R4690 45 180 315 400 560 8 4 4 4no+2nc 4no+2nc OT630KTRR6AZ 1SCA022742R4770 54 200 400 500 710 8 4 4 4no+2nc 4no+2nc OT800ETRR6AZ 1SCA022828R2820 54 250 500 600 800 8 2 2 2no+2nc 4no+2nc OT1000BTRR6AZ  1SCA022742R4850 90 With disturbance protected safety switches the cables have to be shielded. OT90...1000 S01764A

70  Ordering information | Safety switches Ordering information EMC safety switches, 3 and 4-pole, IP54, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contacts according to the table below, and PE-terminal. Grey enclosure, screw fixed cover. Knock-out openings in-cluded. Compression glands have to be ordered separately,  see Accessories for EMC Safety switches. IP65 available on request. 3-pole, cable entries from top and bottom Max. motor output/ AC-23A Cable Auxiliary Auxiliary Weight 230V 400V 500V 690V outlets/  contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle  5.5 7.5 7.5 7.5 2 x ø25 + ø16 1no 2no+2nc OT16ETMM3A 1SCA022714R3500 1.6 7.5 15 15 15 2 x ø32 + ø16 1no 2no+2nc OT25ETMM3A 1SCA022714R3680 1.6 11 22 22 15 2 x ø32 + ø16 1no 2no+2nc OT36ETMM3A 1SCA022714R3840 1.7 18.5 30 30 30 2 x ø32 + ø16 1no 2no+2nc OT63ETMM3A 1SCA022714R3920 3.7 4-pole, cable entries from top and bottom Max. motor output/ Cable AC-23A  outlets on Auxiliary Auxiliary Weight 230V 400V 500V 690V  bottom contacts contacts /unit [kW] [kW] [kW] [kW] side included max. Type Order number [kg] Selector handle 5.5 7.5 7.5 7.5 2xø25+ø16 1no 2no+2nc OT16ETMM4A 1SCA022714R4060 1.9 7.5 15 15 15 2xø32+ø16 1no 2no+2nc OT25ETMM4A 1SCA022714R4140 1.9 11 22 22 15 2xø32+ø16 1no 2no+2nc OT36ETMM4A 1SCA022714R4220 1.9 18.5 30 30 30 2xø32+ø16 1no 2no+2nc OT63ETMM4A 1SCA022714R4310 4.0 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT16...63_3A S01090A OT16...63_4A S01090A

Safety switches | Ordering information  71 Ordering information EMC safety switches, 3-pole, IP54, red-yellow handle The delivery includes a red-yellow handle (I-O/ON-OFF), auxiliary contacts according to the table below, and PE-terminal. Grey enclosure. IP65 available on request. Cable entries and flanges have to be ordered separately, see Accessories for EMC Safety switches. Cable entries from top and bottom, open top and bottom Max. motor output/ Size of AC-23A suitable Auxiliary Auxiliary Weight 230V 400V 500V 690V cable entry contacts contacts /unit [kW] [kW] [kW] [kW] W x D [mm] included max. Type Order number [kg] Pistol handle  Cable entries and flanges have to be ordered separately, see Accessories for EMC Safety switches.  Entry plate fixing profiles are also used for mounting the safety switches. 30 45 45 45 250 x 180  1no+1nc 1no+1nc OT90ATAA3A 1SCA022438R6460 9.8 37 55 55 55 250 x 180 1no+1nc 1no+1nc OT125ETAA3A 1SCA022438R6540 9.8 45 75 75 75 400 x 230 1no+1nc 1no+1nc OT160ETAA3A 1SCA022438R6620 15 55 110 132 160 400 x 230 2no+1nc 2no+1nc OT200KTAA3A 1SCA022438R6710 17 75 132 160 200 400 x 230 2no+1nc 2no+1nc OT250KTAA3A 1SCA022438R6890 17 90 160 200 250 400 x 230 2no+1nc 2no+1nc OT315KTAA3A 1SCA022438R6970 17 110 220 280 355 400 x 230 2no+1nc 2no+1nc OT400DTAA3A 1SCA022438R7010 23 180 315 400 560 400 x 230 2no+1nc 2no+1nc OT630KTAA3A 1SCA022438R7190 27 200 400 500 710 400 x 230 2no+1nc 2no+1nc OT800ETAA3A 1SCA022828R1930 27 315 560 710 1000 800 x 330 2no+1nc 2no+1nc OT1000BTAA3A 1SCA022438R7270 56 Cable entries from bottom, open bottom Max. motor output/ Size of AC-23A suitable Auxiliary Auxiliary Weight 230V 400V 500V 690V cable entry contacts contacts /unit [kW] [kW] [kW] [kW] W x D [mm] included max. Type Order number [kg] Pistol handle Blank entry plate on top. Cable entry and flanges have to be ordered separately for bottom, see Accessories for EMC  Safety switches. Entry plate fixing profiles are also used for mounting the safety switches. 30 45 45 45 400 x 230 1no+1nc 1no+1nc OT 90AUUA3A 1SCA022438R8160 10 37 55 55 55 400 x 230 1no+1nc 1no+1nc OT 125EUUA3A 1SCA022438R8080 10 45 75 75 75 400 x 230 1no+1nc 1no+1nc OT 160EUUA3A 1SCA022438R7940 19 55 110 132 160 400 x 230 2no+1nc 2no+1nc OT 200KUUA3A 1SCA022438R7860 21 75 132 160 200 400 x 230 2no+1nc 2no+1nc OT 250KUUA3A 1SCA022438R7780 25 90 160 200 250 400 x 230 2no+1nc 2no+1nc OT 315KUUA3A 1SCA022438R7600 25 110 220 280 355 400 x 230 2no+1nc 2no+1nc OT 400DUUA3A 1SCA022438R7510 28 180 315 400 560 800 x 230 2no+1nc 2no+1nc OT 630KUUA3A 1SCA022438R7430 46 200 400 500 710 800 x 230 2no+1nc 2no+1nc OT 800EUUA3A 1SCA022828R0370 46 315 560 710 1000 800 x 330 2no+1nc 2no+1nc OT 1000BUUA3A 1SCA022438R7350 68 With disturbance protected safety switches the cables have to be shielded. Steel sheet enclosed EMC safety switches OT90...1000_AA3A S07205 OT90...1000_UA3A S07206

72  Ordering information | Safety switches Ordering information Side operated EMC safety switches, 3-pole, IP65 Cable entries from top and bottom The delivery includes: enclosure in aluminum and handle in dark grey plastic, neutral and PE terminal, 1 NO auxiliary contact, cable entries with metric threaded holes with EMC approved membrane glands/sealing plugs IP68 (see table page 11). The switch-disconnector is lock-able. Rated operational  current / power AC-23A Cable Enclosure Weight 500V 690V 690V  entries size [mm] /unit [A] [A] [kW] Up/Down W H D Type Order number  [kg] Dark grey side-operated handle, dark grey cover 16 10 7,5 2xM25/2xM25 111 130 60 LBAS316E/TPN 2CMA142449R1000 0.57 25 16 11 2xM32/2xM32+1xM16 138 168 68 LBAS325E/TPN 2CMA142450R1000 0.80 Aluminum enclosed EMC safety switches LBAS316 TPN, LBAS416 TPSN 2CMC342002F0008

Safety switches | Accessories, selection overview  73 ABB SafeLine NO  I                           O  O F F   Enclosure accessories Selection overview Plastic enclosures Side and front operated Steel sheet enclosures 1 10 9 8 1 1 Enclosure | 2 Compression gland | 3 Locking nut | 4 Adapter (expander) | 5 Adapter (reducer) | 6 Gasket  | 7 B-flange | 8 Blank cable entry | 9 Cable entry with C-flange entries | 10 Cable entry with ring-flange entries | 11 Ring-flange | 12 Ring-flange cover | 13 Plate extension for ring-flanges | 14 Ring-flange adapters for C-flange covers | 15 C-flange | 16 Cable inlets | 17 C-flange cover 1 Enclosure | 2 Membrane gland/sealing plug (included) | 3 Padlock shackle L6  | 4 Compression gland | 5 Adapter (reducer) | 6 Gasket  | 7 Adapter (expander) | 8 I-Flange | 9 II-Flange O  OFF 1 3 2 2 2 2 4 5 1 1 1 17 14 14 15 16 13 12 11 3 3 6 15 4 7 5 6 7 7 7 7 1 9 8 9 9 8 8 1 1

74  Accessories, selection overview | Safety switches S07099 2 3 Aluminum enclosures Side and front operated 1 Enclosure | 2 Compression gland | 3 Locking nut | 4 Adapter (expander) | 5 Adapter (reducer) | 6 Gasket | 7 B-flange | 8 Membrane type cable flange | 9 Membrane type cable flange for EMC applications | 10 Flange cover 1 O  OFF 2 2 4 5 1 3 3 6 Stainless steel sheet enclosures 1 3 2 2 2 2 1 1 Enclosure | 2 Membrane gland/sealing plug (included) | 3 Padlock shackle L6 | 2 Cable tightening / gland (included) | 3 Hose clamp (included) 1 Enclosure accessories Selection overview 1 8 10 9 7 7 7 7

Safety switches | Ordering information  75 Ordering information Accessories Handles, plastic, black Indication I-O and ON-OFF, colour = black For Handle Shaft Units Weight safety length diameter /type /unit switches [mm] [mm] Type Order  number [pcs] [kg] Selector type handle for 3- and 4-pole safety switches, IP65 The handle is padlockable with 3 padlocks in O-position, door interlock in I-position, defeatable. OT16_...90E OHBS2AJ 1SCA022347R4030 1 Pistol type handle for 3- and 4-pole safety switches, IP65 The handles are padlockable with 3 padlocks in O-position, door interlock in I-position, defeatable OT90A...250_ 65 6 OHB65J6 1SCA022380R9660 1 0.12 OT315_...400_ 95 12 OHB95J12 1SCA022381R0830 1 0.16 OT630_...800_ 125 12 OHB125J12 1SCA022381R1560 1 0.17 OT1000_...1250_ 274 12 OHB274J12 1SCA115920R1001 1 0.54 Pistol type handle for 6-pole safety switches, IP65 The handles are padlockable with 3 padlocks in O-position, door interlock in I-position, defeatable OT25_...75_ 45 6 OHB45J6 1SCA022380R8770 1 0.10 OTP75_...90_ 45 6 OHB45J6 1SCA022380R8770 1 0.10 OT90A...800_ 145 12 OHB145J12 1SCA022381R2110 1 0.17 OT1000_ 175 12 OHB175J12 1SCA022381R2450 1 0.18 Handles, plastic, red-yellow Indication I-O and ON-OFF, colour = red-yellow For Handle Shaft Units Weight safety length diameter /type /unit switches [mm] [mm] Type Order  number [pcs] [kg] Selector type handle for 3- and 4-pole safety switches, IP65 The handle is padlockable with 3 padlocks in O-position, door interlock in I-position, defeatable OT16_...90E_ OHYS2AJ 1SCA022353R2840 1 Pistol type handle for 3- and 4-pole safety switches, IP65 The handles are padlockable with 3 padlocks in O-position, door interlock in I-position, defeatable OT90A...250_ 65 6 OHY65J6 1SCA022380R9820 1 0.12 OT315_...400_ 95 12 OHY95J12 1SCA022381R1050 1 0.16 OT630_...800_ 125 12 OHY125J12 1SCA022381R1720 0.17 OT1000_...OT1250 274 12 OHY274J12 1SCA115919R1001 1 0.54 Pistol type handle for 6-pole safety switches, IP65 The handles are padlockable with 3 padlocks in O-position, door interlock in I-position, defeatable OT25_...75_ 45 6 OHY45J6 1SCA022380R8930 1 0.10 OTP75_...90_ 45 6 OHY45J6 1SCA022380R8930 1 0.10 OT90A...800_ 145 12 OHY145J12 1SCA022381R2370 1 0.17 OT1000_ 175 12 OHY175J12 1SCA022381R2700 1 0.18 Door interlocking in I-position means that the door can not be opened, when the handle is in ON-position. This can be defeated in IP65  types to allow authorized personnel access for inspection. OHB_ S00601A OHB_ S00469A OHB_2_ S00396A OHY_2_ S00856A OHY_ S00853A OHY_ S00865A

76  Ordering information | Safety switches Ordering information Accessories Handles, metallic / stainless steel Indication I-O and ON-OFF Selector type handle with metal hasp, IP65 For Units Weight safety /type /unit switches Type Order  number [pcs] [kg] The handle is padlockable with 3 padlocks in O-position, door interlock in I-position, defeatable OT16_...90E_ OHBS2AJEH 1SCA108230R1001 1 Stainless steel pistol type handles, for 3-pole safety switches, IP65 The handles are padlockable with 3 padlocks in O-position, door interlock in I-position, defeat-able Handle Shaft Units Weight length diameter /type /unit Colour [mm] [mm] Type Order  number [pcs] [kg] OT25_...75_ 65 6 OHM65L6 1SCA022739R1070 1 0.73 OT90A...800_ 125 12 OHM125L12 1SCA022739R1150 1 0.76 OT1000_ 175 12 OHM175L12 1SCA022739R1230 1 0.83 Stainless steel pistol type handles, for 6-pole safety switches, IP65 The handles are padlockable with 3 padlocks in O-position, door interlock in I-position, defeat-able Handle Shaft Units Weight length diameter /type /unit Colour [mm] [mm] Type Order  number [pcs] [kg] OT25_...75_ 65 6 OHM65L6 1SCA022739R1070 1 0.73 OT90A...800_ 175 12 OHM175L12 1SCA022739R1230 1 0.83 Door interlocking in ON-position means that the door can not be opened, when the handle is in ON-position. This can be defeated in IP65/IP66  types to allow authorized personnel access for inspection. OHBS2AJEH OHM_ S02140A

Safety switches | Ordering information  77 Ordering information Accessories Auxiliary contacts Auxiliary contacts for safety switches OTP_, OTE_, OT16...90E, OTR_, OTL_, BWS_ and LBAS_  Snap-on mounting to the switch, the auxiliary contacts (no) open before the main contacts. The auxiliary contact type OBEA_ is mounted with adapter OEZNP1. The type and order num-ber are for one piece.  Mounting  to the For side Delivery Weight safety Auxiliary   of the batch /unit switch contact switch Type Order number [pcs] [kg] OTP_, OTE_, OT16...90E_, OTR_, OTL_ 1no right OA1G10 1SCA022353R4970 10 0.03 OTP_, OTE_, OT16...90E_, OTR_, OTL_ 1nc left OA1G01 1SCA022353R4890 10 0.03 LBAS345…390, 475…490, 675_ 1no right OA1G10 2CMA144690R1000 10 0.03 LBAS345…390, 475…490, 675_ 1nc left OA1G01 2CMA144691R1000 10 0.03 OTR_, OTL_, 3- and 4-pole, OTP_6-pole 1no+1nc left OA2G11 1SCA022379R8100 10 0.06 BWS316...625, LBAS316...425 1no OBEA10 2CMA144519R1000 10 0.01 BWS316...625, LBAS316...425 1nc OBEA01 2CMA144520R1000 10 0.01 LBAS125..160/S_ 1no OBEA10 2CMA144519R1000 10 0.01 LBAS125..160/S_ 1nc OBEA01 2CMA144520R1000 10 0.01 LBAS200…250/S 1no+1nc OZXK12 2CMA144521R1000 1 0.12 LBAS400…630/S 1no+1nc OZXK1 2CMA144522R1000 1 0.12 Auxiliary contacts for safety switches OT90A...1000  Early break-type contacts (I-0). Additional auxiliary contacts can be mounted to the safety switches, or they can be changed to another contact function. For the max. number of auxilia-ry contacts, see the ordering information tables. The auxiliary contact type OBEA_ is mounted with adapter OEZNP1. The type and order number are for one piece. For Delivery Weight safety Auxiliary batch /unit switches contact Type  1)  Order  number [pcs] [kg] OT90A...160_ 1no OBEA10 1SCA022190R3000 10 0.02 OT90A...160_ 1no OBEA10AU 1SCA022185R3310 10 0.02 OT90A...160_ 1nc OBEA01 1SCA022190R3260 10 0.02 OT90A...160_ 1nc OBEA01AU 1SCA022185R3730 10 0.02 OT200...1250_ 1no OA1G10 1SCA022353R4970 10 0.03 OT200...1250_ 1nc OA3G01 1SCA022456R7410 10 0.03 Adapter for OBEA_ Mountable on top of the switch OEZNP1 1SCA022259R7410 1 0.02 1)  Types _AU  for extremely difficult circumstances, even at low voltages. The contacts are gold plated. OBEA _ S00040A OA2G11 S01025A OA1G_, OA3G_ S00261A OZXK _ S01248A 22 21 14 13 22 21 14 13 1no, 1nc 1no + 1nc OEZNP1  S00492A

78  Ordering information | Safety switches Ordering information Auxiliary contacts Technical data of auxiliary contacts: OA_ OBEA_ and OZXK_ Protection class  IP20 IP20 Rated thermal current l th 16 A 10 A Cable cross section, max. 2 x 2.5 mm 2 2 x 2.5 mm 2 Cable cross section, min. 0.75 mm 2 0.5 mm 2 Insulation voltage 690 V 690 V Operational current in different voltages (IEC 60947-5-1) AC-15 230 V 6 A - 400...415 V 4 A - 690 V 2 A AC-12 120 V - 8 A 240 V - 6 A 400...415 V - 4 A 480...500 V - 3 A 690 V - 2 A DC-12 24 V 10 A 5 A 72 V 4 A 1.9 A 125 V 2 A 1.1 A 250 V 0.55 A 0.55 A 440 V 0.1 A 0.31 A 500 V - 0.27 A 600 V - 0.2 A Accessories

Safety switches | Ordering information  79 Ordering information Accessories  Terminal clamps for Al and Cu cables Cables for steel sheet safety switches, see the table on page 12...13. Cable Units Weight cross section /type /unit [mm 2 ] Remark Type Order number [pcs] [kg] Terminal clamp sets for Al- and Cu-cables, insulated versions 16...50 Al, 2.5...50 Cu  Max. I n   = 63A OZXT1 1SCA022469R6310 3 0.05 16...50 Al, 2.5...50 Cu  Max. I n   = 63A OZXT1/1 1SCA022469R6490 1 0.02 Terminal clamp sets for Al- and Cu-cables 10…70 Al/Cu OZXL1 1SCA022439R6770 3 0.18 10…70 Al/Cu OZXL1/1 1SCA022469R6220 1 0.06 10…70 Al/Cu OZXL2 1SCA022335R2430 3 0.20 10…70 Al/Cu OZXL2/1 1SCA022352R3340 1 0.07 OZXB type Al/Cu connectors made of stainless steel 10…70 Al/Cu OZXB1 1SCA022119R7450 3 0.15 10…70 Al/Cu OZXB1/1 1SCA022193R9880 1 0.05 25...120 Al/Cu OZXB2 1SCA022119R7610 3 0.34 25...120 Al/Cu OZXB2/1 1SCA022194R0200 1 0.12 25...120 Al/Cu OZXB2L 1SCA022158R7750 3 0.43 25...120 Al/Cu OZXB2L/1 1SCA022194R0460 1 0.15 70…185 Al/Cu OZXB3 1SCA022136R8100 3 1.28 70…185 Al/Cu OZXB3/1 1SCA022194R0620 1 0.13 2x(70…185) Al/Cu OZXB4 1SCA022137R4760 3 1.71 2x(70…185) Al/Cu OZXB4/1 1SCA022194R0890 1 0.60 95...185 Al/Cu OZXB8 1SCA022744R1510 3 0.50 95...185 Al/Cu OZXB8/1 1SCA022744R1600 1 0.15 95...240 Al/Cu OZXB9 1SCA022750R3210 3 0.50 95...240 Al/Cu OZXB9/1 1SCA022750R3300 1 0.14 120…300 Al/Cu OZXB5 1SCA022137R2470 3 2.22 120…300 Al/Cu OZXB5/1 1SCA022194R1010 1 0.80 2x(120…300) Al/Cu OZXB6 1SCA022137R4920 3 3.03 2x(120…300) Al/Cu OZXB6/1 1SCA022194R1270 1 1.00 OZXB2 S00179A OZXB2L S00182A OZXB3, 5 S00186A OZXB4, 6 S00188A OZXB1 S07215 OZXL1 S01361A OZXB8, 9 S01806A OZXT1 S00738A

80  Ordering information | Safety switches Ordering information Accessories Busbar connections Cables for steel sheet safety switches, see the table on pages 12...13. Suitable for terminal Units Weight clamps /type /unit or busbar Bolt size Type Order number [pcs] [kg] Busbar for connecting the cable to the switch, suitable for switches OT90A...160 OZXB2 OEZXX6 1SCA022292R6330 3 0.20 Busbars for parallel connection 2x OZXB2, OZXB2L OZXE21 1SCA022161R8810 3 0.30 2x OZXB1 OZXE20 1SCA022161R8650 3 2x OZXB6 + OZXB5 OZXE19 1SCA022162R8020 3 OZXB2 + OZXB2L, 2 x OZXB9 OZXE45 1SCA022809R0240 3 2 x OZXB9 OZXE46 1SCA022809R3180 3 Terminal boltset for terminal connections OZXE21 M10 x 30 OZXE54 1SCA022733R9150 6 OZXE45 M8 x 30 OZXE56 1SCA022811R5920 3 OZXE46 M10 x 35 OZXE57 1SCA022811R6060 3 Neutral links for 5-wire systems Rated  Cable  cross Units Weight current section /type /unit [A] [mm 2 ] Mounting Type Order number [pcs] [kg] 200 10...120 On mounting plate OESAZX162 1SCA022193R0400 1 0.12 315 10...300 On mounting plate OESAZX164 1SCA022202R9520 1 0.10 400 10...300 On mounting plate OESAZX165 1SCA022202R9790 1 0.12 OEZXX6 S01367A OZXE 21 S00094A OZXE 20 S00093A OZXE 19 S00092A OESAZX_ S01994A OZXE 45 S02137A OZXE 46 S02136A L6 2CMC340002F0006 Padlock unit suitable for all side operated switches Description Type Order number  Shackle for up to 6 padlocks L6 2CMA144539R1000

Safety switches | Ordering information  81 Ordering information Enclosure accessories Cable outlet accessories  Cable entries for steel sheet enclosures OT90A...1600, OT36EA...75EA Entry plate fixing profiles are also used for mounting the safety switches. The flanges have to be ordered separately, either ring-flanges or C-flanges. Size of Number of  Number of cable entry C-flange ring-flange Weight W x D entries entries /unit [mm] [pcs] [pcs] Type Order number [kg] Blank entries, no flange entries 250x180 1) - - OEZXP120 1SCA022277R2350 0.8 400x230 - - OEZXP240 1SCA022277R2780 1.5 400x330 - - OEZXP340 1SCA022277R3320 2.0 800x230 - - OEZXP280 1SCA022277R3910 3.0 800x330 - - OEZXP380 1SCA022277R4720 4.0 Cable entries with ring-flange entries, divided 2) 400x230 - 4 OEZXP24R 1SCA022277R3160 1.6 400x330 - 4 OEZXP34R 1SCA022277R3750 2.1 800x230 - 8 OEZXP28R 1SCA022277R4560 3.2 800x330 - 8 OEZXP38R 1SCA022277R5020 4.2 Cable entries with C-flange entries, compact 2) 250x180 1) 1 - OEZXP120C 1SCA022338R5360 0.8 400x230 2 - OEZXP240C 1SCA022338R5520 1.7 400x330 3 - OEZXP340C 1SCA022338R5790 2.3 800x230 4 - OEZXP280C 1SCA022338R5950 3.4 800x330 6 - OEZXP380C 1SCA022338R6170 4.5 OEZXP__C 1. S00814A, 2. S00815A, 3. S00817A, 4. S00816A, 5. S00818A OEZXP__0 1. S00512A, 2. S00808A 1. 2. OEZXP__R 1. S00810A, 2. S00811A, 3. S00812A, 4. S00813A 1. 2. 3. 4. 1. 2. 3. 4. 5. Cable entry gasket set for IP65 switches For IP65 switches only, to seal up the cable entry OEZXX2 1SCA022281R5340 OEZXR1__ S00514A  Ring-flanges for different cable diameters Outside diameter Suitable Weight of cable  for /unit [mm] cable entries Type Order number [kg] 22...35 OEZXP_R OEZXR134 1SCA022277R5610 0.45 31...44 OEZXP_R OEZXR143 1SCA022277R5880 0.40 39...51 OEZXP_R OEZXR150 1SCA022277R6000 0.35 46...59 OEZXP_R OEZXR158 1SCA022277R6260 0.30 1)  Includes knock-outs ø 10, 12.5, 20.5 and 25.5 2)  Includes knock-outs ø 10, 12.5, 20.5, 25.5 and 32.5

82  Ordering information | Safety switches Ordering information OEZXPK_, KOT_ S01381A Cable outlet accessories  Ring-flange covers with knock-out openings Knock-out Suitable Weight size  ø  for /unit [mm] cable entries Type Order number [kg] 20,5 OEZXP_R OEZXR020 1SCA022656R8130 0.16 22,5 OEZXP_R OEZXR023 1SCA022277R5290 0.16 25,5 OEZXP_R OEZXR025 1SCA022656R8210 0.16 37 OEZXP_R OEZXR037 1SCA022277R5450 0.16 40,5 OEZXP_R OEZXR040 1SCA022656R8300 0.16 Plate extension for ring-flanges Screws are included in the delivery. With the help of a plate extension the plastic shrink film can be mounted over the ring-flange and the cable. Suitable Dimensions Weight for A B /unit ring-flanges [mm] [mm] Type Order number [kg] OEZXR134 and OEZXR143 49 43 OEZXX143R 1SCA022350R3820 0.18 OEZXR150 and OEZXR158 70 64 OEZXX158R 1SCA022350R3910 0.18 Enclosure accessories OEZXR0_ S00515A OEZXX1__ S00952A Shields The shield can be used as a roof to protect the enclosure agaist dust, water etc. Size Units Weight width x depth  /type /unit [mm] Type Order number [pcs] [kg] Steel sheet 290 x 230 OEZXPK120 1SCA022646R2730 1 1.2 440 x 280 OEZXPK240 1SCA022646R3110 1 2.0 840 x 280 OEZXPK280 1SCA022646R3200 1 3.8 840 x 380 OEZXPK380 1SCA022647R3510 1 4.9 Painted zinc-plated steel sheet 190x150 KOT62305 1SCA125902R1001 1 0.5 240X185 KOT62306 1SCA125903R1001 1 0.7 205x160 KOT62307 1SCA125905R1001 1 0.5 Stainless steel sheet 190x150 KOT62282 1SCA125777R1001 1 0.5 240X185 KOT62283 1SCA125776R1001 1 0.7 205x160 KOT62284 1SCA125815R1001 1 0.5 Stainless steel sheet, acid proof 440X282 KOT62280 1SCA125779R1001 1 1.8 840X382 KOT62281 1SCA125780R1001 1 4.4 840X282 KOT62293 1SCA125816R1001 1 3.4

Safety switches | Ordering information  83 Ordering information Enclosure accessories KIG-221-1 and KIG-221-2 S00998 KIG-1 and KIG-2 S00995A KIM 13-1 and KIM 13-2 S01389A OEZXC2R S00847A KIG-221-1 S00997A KIG-221-2 S00996A KIG-1 S00993A KIM-13-1 S01395A KIM-13-2 S01396A OEZXC 0 S00846B LPBSIU S01775A LBSI2ALM40 S01774A KIG-2 S00994A OEZXC1R S00846A Cable outlet accessories  Cable flanges for steel sheet enclosures, OTL16...90, OT90A...1600, OT36EA...75EA Included mounting set for the flanges: screws, nuts and seal extruded into the flange covers.  Suitable cable For cable entries/ Weight size ø Compression /unit [mm]  glands Type Order number  [kg] C-flanges, steel 20...65 KIG-221-1 1SEH650052R6713 0.49 2x(20...65) KIG-221-2 1SEH650052R6714 0.72 C-flange cover, steel - OEZXP__C OEZXC 0 1SCA022277R6420 0.25 B-flanges for cable entries, steel 15...40 KIM13-1 1SEH655267R2050 0.20 2x(15...40) KIM13-2 1SEH655267R2060 0.30 B-flanges, cover plate, metallic, IP65  - Fe, hot dip galvanized LBFEU 1SCA022713R6040 0.16  - Siluminium LBSIU 1SCA022713R6120 0.20 B-flanges, metallic, compression glands, IP65 8....14 2xM20 LBSI2ALM20 1SCA022713R6210 0.26 10....16 4xM25 LBSI4ALM25 1SCA022713R6390 0.26 16....21 3xM32 LBSI3ALM32 1SCA022713R6550 0.26 18....27 2xM40 LBSI2ALM40 1SCA022713R6630 0.26 16....21 (M32)/10...16 (M25) 2xM32+1xM25 LBSI2ALM32+1ALM25 1SCA022722R3520 0.26 10....16 3xM25+1xM25 (blank plug) LBSI3ALM25+1TM25 1SCA022722R3610 0.22 Cable inlet, metallic 15...45 See the picture below KIG-1 1SEH650052R6711 0.22 20...65 KIG-2 1SEH650052R6712 0.40  Ring-flange adapters for C-flange entries, Aluminium alloy Mounting set for the flange is included: screws, nuts and a seal which is extruded into the flanges. Ring-flanges have to be ordered separately.    Weight Suitable for /unit Remarks cable entries Type Order number [kg] One hole for ring-flanges and OEZXP__C OEZXC1R 1SCA022281R3560 0.53 knock-outs ø 21, ø 23, ø 29 Two holes for ring-flanges  and one with Pg 16 threads OEZXP__C OEZXC2R 1SCA022281R3720 0.55 Drilling guide

84  Ordering information | Safety switches Ordering information Enclosure accessories Cable outlet accessories  Cable flanges for plastic enclosures Outside Knock-out diameter control of Weight Flange of cable   cable /unit size [mm]  [mm] Type Order number [kg] II/C-flanges For cable entries from bottom. Mounting set, flange and cable gasket included. II / C ø 30...55 2 x ø 20,5 OEZXC11L 1SCA022560R5570 0.40 II / C 2 x ø 30...60 2 x ø 20,5 + 2 x ø 10 OEZXC12L 1SCA022560R5730 0.53 Includes sealing gasket and fixing accessories II / C 2xM50 + 4xM20  YMF-MB10861SET 1SCA022715R9090 0.14 II / C 2xM32+2xM25+3xM20+2xM16 YMF-MB10862SET 1SCA022715R9170 0.12 I/B-flanges For cable entries from bottom. Mounting set, flange and cable gasket included (OEZXB). I / B 2 x ø 15...30 ø 12,5 OEZXB12L 1SCA022560R5140 0.12 I / B ø 15...30 ø 12,5 + ø 20,5 OEZXB11L 1SCA022560R4920 0.10 I / B Cover plate 1) YMF-MB10215 1SCA022191R2170 0.05 I / B Gasket for cover plate YMF-MK10440 1SCA022660R7130 0.01 Cable flanges for stainless steel (acid proof) enclosures Complete mounting set included. Outside diameter Weight Flange of cable /unit  type [mm] Type Order number [kg] Membrane type cable flange 27...66 KOT61007 1SCA101607R1001 0.40 Membrane type cable flange for EMC-applications 27...57 KOT62296 1SCA125871R1001 0.40 Flange cover, to block remaining flange openings KOT61008 1SCA101606R1001 0.20 1)  Fixing screws not included OEZXB11L S01371A OEZXB12L S01372A OEZXC11L S01373A OEZXC12L S01374A YMF-MB10861SET S01824A YMF-MB10862SET S01823A YMF-MB10215 S00509A YMF-MK10440 S00523A KOT61007, KOT62296 S03002 KOT61008 S03003

Safety switches | Ordering information  85 Ordering information Enclosure accessories Cable outlet accessories Cable Weight  DIA /unit Thread [mm] Type Order number [kg]  Compression glands, plastic, IP68 Compression glands M12 2...7 ESKV12 1SCA022715R5850 0.01 M16 4.5...10 ESKV16 1SCA022715R5930 0.01 M20 6...13 ESKV20 1SCA022715R6070 0.02 M25 9...17 ESKV25 1SCA022715R6150 0.02 M32 13...21 ESKV32 1SCA022715R6230 0.03 M40 14...28 ESKV40 1SCA022715R6310 0.06 M50 18...35 ESKV50 1SCA022715R6400 0.08 M63 34...48 ESKV63 1SCA022715R6580 0.10 Locking nuts Needed if the enclosure holes are not provided with threads M12 EMUG12 1SCA022715R8280 0.01 M16 EMUG16 1SCA022715R8360 0.01 M20 EMUG20 1SCA022715R8440 0.01 M25 EMUG25 1SCA022715R8520 0.01 M32 EMUG32 1SCA022715R8610 0.01 M40 EMUG40 1SCA022715R8790 0.01 M50 EMUG50 1SCA022715R8870 0.02 M63 EMUG63 1SCA022715R8950 0.02 Compression glands, metallic, IP68 Compression glands M12 3...6 EMSKV12/5 1SCA022722R2710 0.02 M16 5...9 EMSKV16/5 1SCA022722R2800 0.03 M20 9....12 EMSKV20/6 1SCA022722R2980 0.04 M25 11....16 EMSKV25/7 1SCA022722R3010 0.06 M32 14....21 EMSKV32/8 1SCA022722R3100 0.08 M40 19....27 EMSKV40/8 1SCA022722R3280 0.08 M50 24....35 EMSKV50/9 1SCA022722R3360 0.10 M63 32....42 EMSKV63/10 1SCA022722R3440 0.12 Locking nuts Needed if the enclosure holes are not provided with threads M12 EMMU12 1SCA022722R1910 0.01 M16 EMMU16 1SCA022722R2040 0.01 M20 EMMU20 1SCA022722R2120 0.02 M25 EMMU25 1SCA022722R2210 0.02 M32 EMMU32 1SCA022722R2390 0.03 M40 EMMU40 1SCA022722R2470 0.04 M50 EMMU50 1SCA022722R2550 0.05 M63 EMMU63 1SCA022722R2630 0.06 EMUG20 S01779A EMSKV25/7 S01777A ESKV20 S01778A EMMU25 S01780A

86  Ordering information | Safety switches Ordering information Enclosure accessories Cable outlet accessories Adapters for M-threads, metallic Weight /unit Thread Type Order number [kg] Reducer M20 to M12 EPN720M20/M12 1SCA114806R1001 0.02 M20 to M16 EPN720M20/M16 1SCA114807R1001 0.02 M25 to M16 EPN720M25/M16 1SCA122555R1001 0.02 M25 to M20 EPN720M25/M20 1SCA109748R1001 0.02 M32 to M20 EPN720M32/M20 1SCA109749R1001 0.02 M40 to M25 EPN720M40/M25 1SCA114808R1001 0.02 Expander M32 to M40 EPN740M32/M40 1SCA114810R1001 0.02 Adapters for M-threads, plastic Reducer M16 to M12 KRM16/12 1SCA022749R6090 0.01 M20 to M12 KRM20/12 1SCA022749R6170 0.01 M25 to M12 KRM25/12 1SCA022749R6980 0.01 M25 to M20 SORPNMPAM25/M20   1SCA022646R4510 0.01 M32 to M25 SORPNMPAM32/M25   1SCA022646R4600 0.01 M50 to M32 EPN550M50/M32 1SCA114803R1001 0.01 M50 to M40 EPN550M50/M40 1SCA104355R1001 0.01 Expander M16 to M20 EPN650M16/M20 1SCA103053R1001 0.01 M25 to M32 EPN650M25/M32 1SCA101159R1001 0.01 M32 to M40 EPN650M32/M40 1SCA101160R1001 0.01 Gasket Gasket needed for maintaining IP65 rating. Weight Thread/ /unit hole dia Type Order number [kg] M16/ø16.5 EADR16 1SCA022749R6410 0.01 M20/ø20.5 EADR20 1SCA022749R6500 0.01 M25/ø25.5 EADR25 1SCA022749R6680 0.01 M32/ø32.5 EADR32 1SCA101165R1001 0.01 M40/ø40.5 EADR40 1SCA116849R1001 0.01 M50/ø50.5 EADR50 1SCA104353R1001 0.01 Condensation water outlet IP44 Weight Hole diameter /unit [mm] Type Order number [kg] 10 YJTB3 1SCA122170R1001 0.025 EPN_ (expander) S01865A EPN_/KRM_ (reducer) S01866A EADR_ S07123 YJTB3 S07150

Safety switches | Ordering information  87 Ordering information Cable outlet accessories for EMC safety switches Cable entries for steel sheet enclosed EMC safety switches The cable entries are used for mounting the safety switches. Ring-flanges have to be ordered separately. Size of suitable Number of holes Weight cable entry  for ring-flanges /unit W x D  [mm] [pcs] Type Order number [kg] Blank entries, no flange entries 250 x 180 - OEZXPE120 1) 1SCA022398R9970 0.8 400 x 230 - OEZXPE240 1SCA022399R0040 1.5 800 x 230 - OEZXPE280 1SCA022399R0210 3.0 800 x 330 - OEZXPE380 1SCA022399R0390 4.0 Cable entries with ring-flange entries, divided 2) 400 x 230 4 OEZXPE24R 1SCA022399R0470 1.6 400 x 330 4 OEZXPE34R 1SCA022399R0550 2.1 800 x 230 8 OEZXPE28R 1SCA022399R0630 3.2 800 x 330 8 OEZXPE38R 1SCA022399R0710 4.2 Ring-flanges for steel sheet enclosed EMC safety switches Weight Knock-out size ø / [mm] / Suitable for /unit For cable diameter ø / [mm] cable entry Type Order number  [kg] Ring-flange covers with knock-out openings Knock-out ø 20,5 OEZXPE_R OEZXRE020 1SCA022656R8480 0.16 Knock-out ø 22,5 OEZXPE_R OEZXRE023 1SCA022399R0800 0.16 Knock-out ø 25,5 OEZXPE_R OEZXRE025 1SCA022656R8560 0.16 Knock-out ø 37 OEZXPE_R OEZXRE037 1SCA022399R0980 0.16 Knock-out ø 40,5 OEZXPE_R OEZXRE040 1SCA022656R8640 0.16 Ring-flanges for different cable diameters For cable dia 22...35 OEZXPE_R OEZXRE134 1SCA022399R1010 0.45 For cable dia 31...44 OEZXPE_R OEZXRE143 1SCA022399R1100 0.40 For cable dia 39...51 OEZXPE_R OEZXRE150 1SCA022399R1280 0.35 For cable dia 46...59 OEZXPE_R OEZXRE158 1SCA022399R1360 0.30 Plate extension for ring-flanges Screws included in the delivery. With the help of plate extension the plastic shrink sock can be mounted over the ring-flange and the cable. For Dimensions ring-flanges A B Type Order number OEZXRE134 and OEZXRE143 49 43 OEZXX143R 1SCA022350R3820 OEZXRE150 and OEZXRE158 70 64 OEZXX158R 1SCA022350R3910 1)  Includes knock-outs ø 10, 12.5, 20.5, 25.5, 32.5 and 40.5 2)  Includes knock-outs ø 10, 12.5, 20.5, 25.5 and 32.5 Accessories for EMC safety switches OEZXPE__0 1. S00512A, 2. S00808A 1. 2. OEZXPE__R 1. S00810A, 2. S00811A, 3. S00812A, 4. S00813A 1. 2. 3. 4. OEZXRE1__ S00514A OEZXRE0_ S00515A OEZXX1__ S00952A

88  Ordering information | Safety switches Ordering information Cable outlet accessories for EMC safety switches Compression glands, EMC, metallic Includes the locking nuts. IP67 Thread Cable DIA [mm] Type Order number M16 5....8 EMCM16SET 1SCA022713R4000 M20 8....14 EMCM20SET 1SCA022713R3610 M25 10..16 EMCM25SET 1SCA022713R3700 M32 14...21 EMCM32SET 1SCA022713R3960 M40 18…27 EMCM40SET 1SCA022734R5040 M63 32...49 EMCM63SET 1SCA114253R1001 M75 49...60 EMCM75SET 1SCA114254R1001 M85 59...76 EMCM85SET 1SCA022727R1760 M32/M25 10…16 EMCM25/M32SET 1SCA022722R3790 Accessories for EMC safety switches EMCM_ S01776A

Safety switches | Dimension drawings  89 Dimension drawings O  OFF    I  ON 120 85 60 33 2xM20 70.5 105.5 ø5 2xM20 Ø23 S00700A OTP16H_ Type X OTP16H3P_ 2 x PG16 OTP16H3M 2 x M20 OTP16H3M25_ 2 x M25 OTP16K3M1, OTP16K3M Plastic enclosed safety switches 25,5 34 85 M20 20 42 O  O F F                    I    ON  120 85 60 33 X X 70.5 105.5 ø5 Ø23 S00699A OTP16H3M 25,5 34 85 M20 20 42

90  Dimension drawings | Safety switches Dimension drawings OTP/OTE16...90_ Plastic enclosed safety switches 32 20 145 81 M16 M32 26 52 81 59,5 200 32 77 38 Ø7 Type X OTP16_3M, _4M 2xM25+M16 OTE16_3M, _4M 2xM25+M16 OTP16_6M 2xM25+M16 Type X OTP/OTE25_3M, _4M 2xM32+M16 OTP25_6M 2xM32+M16 OTP/OTE36_3M, _4M 2xM32+M16 OTP36_6M 2xM32+M16 OTP63_3M 2xM32+M16 Type X OTP/OTE75_3B, _4B I -flange OTP/OTE75_6B I -flange OTP/OTE90_3B, _4B I -flange OTP90_6B I -flange OTE25_6B I -flange OTE36_6B I -flange 30 13,1 M25 70 130 M16 42 19,3 A B øG O  OFF    I  ON H W D E X X Y S00697B H W D E X X Y Type W H D E B A ØG X Y 3- and 4-pole OTP16_3M, _4M 130 150 60 33 115 136 5 2xM25+M16 2x (ø29+ø19) OTE16_3M, _4M 130 150 85 33 115 136 5 2xM25+M16 2x (ø29+ø19) OTP/OTE25_3M, _4M 145 200 90 33 129.5 182.5 5 2xM32+M16 2x (ø38+ø19) OTP/OTE36_3M, _4M 145 200 90 33 129.5 182.5 5 2xM32+M16 2x (ø38+ø19) OTP63_3M 145 200 90 33 129.5 182.5 5 2xM32+M16 2x (ø38+ø19) OTP/OTE75_3M, _4M 200 400 140 33 176 376 6 2xM50+M16 2x (ø38+ø19) OTP/OTE75_3B, _4B 200 400 140 33 176 376 6 I -flange - OTP/OTE75_3U, _4U 200 400 140 33 176 376 6 - - OTP/OTE90_3M, _4M 200 400 140 33 176 376 6 2xM50+M16 2x (ø38+ø19) OTP/OTE90_3B, _4B 200 400 140 33 176 376 6 I -flange - OTP/OTE90_3U, _4U 200 400 140 33 176 376 6 - - 6-pole OTP16_6M 130 150 85 33 115 136 5 2xM25+M16 2x (ø29+ø19) OTP25_6M 145 200 90 45 129.5 182.5 5 2xM32+M16 2x (ø38+ø19) OTE25_6B 200 400 140 45 176 376 6 I -flange - OTP36_6M 145 200 90 45 129.5 182.5 5 2xM32+M16 2x (ø38+ø19) OTE36_6B 200 400 140 45 176 376 6 I -flange - OTP63_6B 200 400 140 45 176 376 6 I -flange - OTP/OTE75_6M 200 400 140 45 176 376 6 2xM50+M16 2x (ø38+ø19) OTP75_6B 200 400 140 45 176 376 6 I -flange - OTP75_6U 200 400 140 45 176 376 6 - - OTP/OTE90_6M 200 400 140 45 176 376 6 2xM50+M16 2x (ø38+ø19) OTP90_6B 200 400 140 45 176 376 6 I -flange - OTP90_6U 200 400 140 45 176 376 6 - -

Safety switches | Dimension drawings  91 Dimension drawings OT90...1000_ Fixing entry size in enclosure ø 7 Plastic enclosed safety switches Type OT 90AFCC6_ OT 125EFCC6_ OT 160EFCC6_ OT 160EGCC3_ OT 200KGCC3_ OT 250KGCC3_ OT 315KFCC3_, 4_ OT 315KGCC3_ OT 400DFCC3_, 4_ Type OT 200KFCC6_ OT 250KFCC6_ OT 315KFCC6_ OT 400DFCC6_ OT 400DGCC3_ OT 630KFCC3_ OT 630KGCC3_ NO  I                             O  O F F   W H D E X X B A S00734A Type Size Cable entry Fixing dimensions Safety switch H W D E X A B 3-pole and 4-pole OT125EFCC3_, 4_ 380 280 130 45 I I 355 255 OT160EFCC3_, 4_ 560 280 180 45 I I 535 255 OT160EGCC3_ 560 380 180 45 I I 535 355 OT200KFCC3_, 4_ 560 280 180 45 I I 535 255 OT200KGCC3_ 560 380 180 45 I I 535 355 OT250KFCC3_, 4_ 560 280 180 45 I I 535 255 OT250KGCC3_ 560 380 180 45 I I 535 355 OT315KFCC3_, 4_ 560 380 180 45 I I 535 355 OT315KGCC3_ 560 380 180 45 I I 535 355 OT400DFCC3_, 4_ 840 380 180 45 I I 815 355 OT400DGCC3_ 760 560 250 45 2 x I I 735 535 OT630KFCC3_ 760 560 250 45 2 x I I 735 535 OT630KGCC3_ 760 560 250 45 2 x I I 735 535 OT1000BFCC3_ 760 560 250 45 2 x I I 735 535 6-pole OT90AFCC6_ 280 380 180 45 I I 255 355 OT125EFCC6_ 560 380 180 45 I I 535 355 OT160EFCC6_ 560 380 180 45 I I 535 355 OT200KFCC6_ 760 560 250 45 2 x I I 735 535 OT250KFCC6_ 760 560 250 45 2 x I I 735 535 OT315KFCC6_ 760 560 250 45 2 x I I 735 535 OT400DFCC6_ 760 560 250 45 2 x I I 735 535

92  Dimension drawings | Safety switches Dimension drawings Side-operated safety switchesBWS_16...BWS_25 BWS616...BWS625 Type Size Cable entry Fixing dimensions W H D X Y A B G 3-pole, Plastic enclosed side-operated safety switches BWS316_ 111 130 60 2xM25 - 64 90 5 BWS325_ 138 168 68 2xM32 1xM16 90 127 5 4-pole, Plastic enclosed side-operated safety switches BWS416_ 111 130 60 2xM25 - 64 90 5 BWS425_ 138 168 68 2xM32 1xM16 90 127 5 Type Size Cable entry Fixing dimensions W H D X Y A B G 6-pole, Plastic enclosed side-operated safety switches BWS616_ 190 130 65 2xØ25 Ø16 124 90 5 BWS625_ 190 130 65 2xØ25 Ø16 124 90 5 Plastic enclosed safety switches X W H X Y D ØG A B ØG A B W H X Y X Y D

Safety switches | Dimension drawings  93 Dimension drawings 80 130 Ø6,5 O  OFF 200 150 100  Ø6,5 I ON 34,5 S01330FI OTL, OTR16...63 with selector handle 3-pole OTL, OTR16...63 4-pole OTL, OTR16...63 6-pole OTL, OTR16 EMC OT16...36ETMM3_E, OT16ETMM6_E Steel and stainless steel sheet enclosed safety switches 120 83 15 32 18 150 Ø10 12 Ø7 41 68 150 35 13,5 83 Ø16,5 20 Ø10 25,5 35 80 150 83 13,5 35 20 Ø16,5 Ø10 Ø32,5 Type Cable outlets OTL/OTR16…63_3B, 4B B-flange OTL/OTR16_6B B-flange Type Cable outlets OTL/OTR25…36_3M, 4M 2xØ32.5+Ø16.5 OT25…36ETMM3_E, 6_E (EMC) 2xØ32.5+Ø16.5 Type Cable outlets OTL/OTR16_3M, 4M, 6M 2xØ25.5+Ø16.5 OT16ETMM3_E, 6_E (EMC) 2xØ25.5+Ø16.5

94  Dimension drawings | Safety switches Dimension drawings Steel and stainless steel sheet enclosed safety switches OTL, OTR25...63 pistol handle 3-pole OTL, OTR63 4-pole OTL, OTR63 6-pole OTL, OTR25...36 EMC OT63ETMM3_E, OT25...36ETMM6_E 42,5 80 165 93 13,5 35 Ø32,5 21,5 Ø10 Ø16,5 OTL, OTR75...90 pistol handle 3-pole OTL, OTR75...90 4-pole OTL, OTR75...90 6-pole OTL, OTR25...90 120 40 18 30 23 118 200 Ø10 Ø7 Type Cable outlets OTL/OTR75..90_3B, 4B, 6B B-flange OTL/OTR25...36_6B B-flange 300 200 135 130 230 Ø6,5  Ø6,5 45 S01332FI NO  I                            O  O F F   Type Cable outlets OTL/OTR63_3M, 4M 2xØ32.5+Ø16.5 OTL/OTR25…36_6M 2xØ32.5+Ø16.5 OT63ETMM3_E (EMC) 2xØ32.5+Ø16.5

Safety switches | Dimension drawings  95 Dimension drawings OT16...90_ Fixing entry size in enclosure ø 6 Type Size Cable/entry H W D E A B X 3-pole OT16E_MM3_ 240 162 110 34.5 144 92 2xø25+ø16 OT16ELMM3_1 240 162 110 34.5 144 92 2xø25+ø16 OT25E_MM3_ 240 162 110 34.5 144 92 2xø32+ø16 OT36E_MM3_ 240 162 110 34.5 144 92 2xø32+ø16 OT63E_MM3_ 350 233 140 34.5 250 160 2xø32+ø16 OT75ELBB3_ 350 233 140 34.5 250 160 B -flange OT90ELBB3_ 350 233 140 34.5 250 160 B -flange 4-pole OT16E_MM4_ 240 162 110 34.5 144 92 2xø25+ø16 OT25E_MM4_ 240 162 110 34.5 144 92 2xø32+ø16 OT36E_MM4_ 240 162 110 34.5 144 92 2xø32+ø16 OT63E_MM4_ 350 233 140 34.5 250 160 2xø32+ø16 OT75ELBB4_ 350 233 140 34,5 250 160 B -flange OT90ELBB4_ 350 233 140 34,5 250 160 B -flange 6-pole OT16ELMM6_ 240 162 110 34.5 144 92 2xø25+ø16 OT25ELMM6_ 350 233 140 45 250 160 2xø32+ø16 OT36ELMM6_ 350 233 140 45 250 160 2xø32+ø16 OT63ELMM6T 350 233 140 45 250 160 2xø32+ø16 OT75ELBB6_ 350 233 140 45 250 160 B -flange Steel sheet enclosed safety switches E E

96  Dimension drawings | Safety switches Dimension drawings OT16...1250_ Type Size Fixing dimensions Fixing hole Steel sheet enclosed H W D E A B C F G J K L 3- and 4-pole cable entries from top and bottom OT90A__3_,_4_Z 400 250 180 45 445 162 27 11 OT125E__3_,_4_Z 400 250 180 45 445 162 27 11 OT160E__3_,_4_Z 600 400 230 45 645 303 35 11 OT200K__3_,_4_Z 600 400 230 45 645 303 35 11 OT250K__3_,_4_Z 600 400 230 45 645 303 35 11 OT315K__3_,_4_Z 600 400 230 45 645 303 35 11 OT400D__3_,_4_Z 800 400 230 45 845 303 35 11 OT630K__3_,_4_Z 1000 400 230 45 1045 303 35 11 OT800E__3_,_4_Z 1000 400 230 45 1045 303 35 11 OT1000B__3_ 1200 800 330 45 1245 303 512 612 712 35 11 27 OT1000BBAA3_ 1200 400 330 45 1245 303 35 11 OT1250E_3_ 1200 800 330 45 1245 303 512 612 712 35 11 27 3-pole, cable entries from bottom / 4-pole 250-400A cable entries from bottom OT16E__3_ 400 250 180 45 445 162 27 11 OT25E__3_ 400 250 180 45 445 162 27 11 OT36E__3_ 400 250 180 45 445 162 27 11 OT75E__3_ 400 250 180 45 445 162 27 11 OT90A__3 400 400 230 45 445 303 35 11 OT125E__3_ 400 400 230 45 445 303 35 11 OT160E__3_ 600 400 230 45 645 303 35 11 OT200K__3_ 600 400 230 45 645 303 35 11 OT250K__3_ 800 400 230 45 845 303 35 11 OT250K__4_ 600 400 230 45 645 303 35 11 OT315K__3_ 800 400 230 45 845 303 35 11 OT315K__4_ 600 400 230 45 645 303 35 11 OT400D__3_ 800 400 230 45 845 303 35 11 OT400D__4_ 600 400 230 45 645 303 35 11 OT630K__3_ 1000 800 230 45 1045 303 512 612 712 35 11 27 OT630KB__3_ 1000 400 330 45 1045 303 35 11 OT800E__3_ 1000 800 230 45 1045 303 512 612 712 35 11 27 OT1000B__3_ 1200 800 330 45 1245 303 512 612 712 35 11 27 OT1250E_3_ 1200 800 330 45 1245 303 512 612 712 35 11 27 6-pole, cable entries from top and bottom OT90AL__6_ 400 400 230 45 445 303 35 11 OT125EL__6_ 400 400 230 45 445 303 35 11 OT160EL__6_ 600 400 230 45 645 303 35 11 OT200KL__6_ 600 800 230 45 645 303 512 612 712 35 11 27 OT250KL__6_ 800 800 230 45 845 303 512 612 712 35 11 27 OT315KL__6_ 800 800 230 45 845 303 512 612 712 35 11 27 OT400DL__6_ 800 800 230 45 845 303 512 612 712 35 11 27 OT630KL__6_ 1000 800 230 45 1045 303 512 612 712 35 11 27 OT800EL__6_ 1000 800 230 45 1045 303 512 612 712 35 11 27 OT1000BL__6_ 1200 800 330 45 1245 303 512 612 712 35 11 27 6-pole, cable entries from bottom OT90AAU_6_ 600 400 230 45 645 303 35 11 OT125EAU_6_ 600 400 230 45 645 303 35 11 OT160EAU_6_ 800 400 230 45 845 303 35 11 OT200KAU_6_ 600 800 230 45 645 303 512 612 712 35 11 27 OT250KAU_6_ 800 800 230 45 645 303 512 612 712 35 11 27 OT315KAU_6_ 800 800 230 45 845 303 512 612 712 35 11 27 OT400DAU_6_ 800 800 230 45 845 303 512 612 712 35 11 27 OT630KAU_6_ 1000 800 330 45 1045 303 512 612 712 35 11 27 Steel sheet enclosed safety switches

Safety switches | Dimension drawings  97 Dimension drawings Steel sheet enclosed safety switches OT90...1250_, cable entries OEZXP24R OEZXP34R OEZXP28R OEZXP38R 231 404 Ø10 Ø20,5 Ø25,5 70 88 70 Ø32,5 66 Ø10 Ø12,5 Ø10 Ø5,5 Ø7 331 Ø10 400 Ø20,5 70 66 Ø25,5 70 88 Ø10 Ø12,5 Ø32,5 Ø10 Ø7 Ø5,5 136 800 231 70 70 66 88 Ø10 Ø20,5 Ø25,5 Ø10 Ø12,5 Ø32,5 Ø10 Ø5,5 Ø7 331 800 136 70 70 66 88 Ø10 Ø20,5 Ø25,5 Ø10 Ø12,5 Ø32,5 Ø10 Ø7 Ø6 OEZXP120C 181 250 61 70 62 Ø20,5 Ø25,5Ø12,5 131 Ø10 Ø9,5 Ø5,5 OEZXP240C 231 400 157 70 Ø20,5 Ø25,5 Ø10 Ø12,5 Ø5,5 Ø9,5 61 116 131 62 OEZXP340C 331 400 71 115 62 100 100 41 131 Ø32,5 Ø10 Ø12,5 Ø25,5 Ø20,5 Ø9,5 Ø5,5 OEZXP280C 231 800 251 71 100 62 131 202 Ø5,5 Ø20,5 Ø10 Ø12,5 Ø32,5 Ø10 Ø22,5 OEZXP380C 331 800 86 131 253 203 67 100 100 62 Ø25,5 Ø25,5 Ø20,5 Ø20,5 Ø10Ø12,5 Ø32,5 Ø32,5 Ø10 Ø10 Ø9,5 Ø5,5 231 400 Ø10 Ø20,5 Ø25,5 70 88 70 Ø32,5 66 Ø10 Ø12,5 Ø10 Ø5,5 Ø7 OEZXPE24R (EMC) OEZXPE34R (EMC) 331 Ø10 400 Ø20,5 70 66 Ø25,5 70 88 Ø10 Ø12,5 Ø32,5 Ø10 Ø7 Ø5,5 OEZXPE28R (EMC) 136 800 231 70 70 66 88 Ø10 Ø20,5 Ø25,5 Ø10 Ø12,5 Ø32,5 Ø10 Ø5,5 Ø7 OEZXPE38R (EMC) 331 800 136 70 70 66 88 Ø10 Ø20,5 Ø25,5 Ø10 Ø12,5 Ø32,5 Ø10 Ø7 Ø6

98  Dimension drawings | Safety switches Dimension drawings Stainless steel sheet enclosed safety switches OT200...1250 Type Cable entry size OT160EV_…800ERRR3TZ 400x230 OT160EV_…400ESUR3TZ 400x230 Type Cable entry size OT160EV_…400ERRR6TZ 800x230 OT160EV_…400ESUR6TZ 800x230 Type Cable entry size OT1000…1250ERRR3TZ 800x330 OT630…1250ESUR3TZ 800x330 OT630ESUR6TZ 800x330 OT630...800ERRRGTZ 800x330 OT630...800ERRRGTZ 800x330 Type Size Fixing dimensions Fixing hole Stainless steel sheet  enclosed H W D E M A B C F G J K L 3-pole cable entries from top and bottom OT160EVRRR3TZ 600 400 230 51 695 645 303 35 11 OT200ERRR3TZ 600 400 230 51 695 645 303 35 11 OT250ERRR3TZ 600 400 230 51 695 645 303 35 11 OT315ERRR3TZ 600 400 230 51 695 645 303 35 11 OT400ERRR3TZ 800 400 230 51 895 845 303 35 11 OT630ERRR3TZ 1000 400 230 51 1095 1045 303 35 11 OT800ERRR3TZ 1000 400 230 51 1095 1045 303 35 11 OT1000ERRR3TZ 1200 800 330 51 1295 1245 303 512 612 712 35 11 27 OT1250ERRR3TZ 1200 800 330 51 1295 1245 303 512 612 712 35 11 27 3-pole, cable entries from bottom OT160EVSUR3TZ 600 400 230 51 695 645 303 35 11 OT200ESUR3TZ 600 400 230 51 695 645 303 35 11 OT250ESUR3TZ 800 400 230 51 895 845 303 35 11 OT315ESUR3TZ 800 400 230 51 895 845 303 35 11 OT400ESUR3TZ 800 400 230 51 895 845 303 35 11 OT630ESUR3TZ 1000 800 330 51 1095 1045 303 512 612 712 35 11 27 OT800ESUR3TZ 1000 800 330 51 1095 1045 303 512 612 712 35 11 27 OT1000ESUR3TZ 1200 800 330 51 1295 1245 303 512 612 712 35 11 27 OT1250ESUR3TZ 1200 800 330 51 1295 1245 303 512 612 712 35 11 27 6-pole, cable entries from top and bottom OT160EVRRR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT200ERRR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT250ERRR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT315ERRR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT400ERRR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT630ERRR6TZ 1000 800 330 51 1095 1045 303 512 612 712 35 11 27 OT800ERRR6TZ 1000 800 330 51 1095 1045 303 512 612 712 35 11 27 6-pole, cable entries from bottom OT160EVSUR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT200ESUR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT250ESUR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT315ESUR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT400ESUR6TZ 800 800 230 51 895 845 303 512 612 712 35 11 27 OT630ESUR6TZ 1000 800 330 51 1095 1045 303 512 612 712 35 11 27 M07034 B C F G L L L J K W ø10 + ø16 D E H M A

Safety switches | Dimension drawings  99 Dimension drawings Side-operated safety switchesLBAS_16...LBAS_25 Type Size Cable entry Fixing dimensions W H D X Y A B G 3-pole, Aluminum enclosed side-operated safety switches LBAS316_ 111 130 60 2xM25 - 64 90 5 LBAS325_ 138 168 68 2xM32 1xM16 90 127 5 4-pole, Aluminum enclosed side-operated safety switches LBAS416_ 111 130 60 2xM25 - 64 90 5 LBAS425_ 138 168 68 2xM32 1xM16 90 127 5 Type Size Cable entry Fixing dimensions W H D X Y A B G Aluminum enclosed front-operated safety swithes LBAS_45..._90 160 230 145 2xM40 1xM16 124 190 5.3 Front-operated safety switches LBAS_45...LBAS_90 Aluminum enclosed safety switches X W H X Y D ØG A B A ØG B X X Y D H W

100  Dimension drawings | Safety switches Dimension drawings X W H D A øC B LBAS125...LBAS160 Type Size Cable entry Fixing dimensions H W D X A B C min/max min/max 3-pole, Aluminum enclosed front-operated safety switches LBAS125/160 405 400 234 2xØ18-48 340/414 331/405 8 Type Size Cable entry Fixing dimensions H W D X A B C min/max min/max 3-pole, Aluminum enclosed front-operated safety switches LBAS200/250 555 465 322 4xØ30-68 395/490 485/580 10 LBAS400/630 655 565 322 4xØ30-68 495/590 585/680 10 LBAS200...LBAS630 Aluminum enclosed safety switches W H X D A øC B

Safety switches | Index  101 Index Type Order number Description Page BWS316 F TPN 2CMA142440R1000 Plastic enclosed safety switch 21 BWS316 TPN 2CMA142417R1000 Plastic enclosed safety switch 21 BWS316 Y TPN 2CMA142423R1000 Plastic enclosed safety switch 21 BWS325 TPN 2CMA142420R1000 Plastic enclosed safety switch 21 BWS325 Y TPN 2CMA142426R1000 Plastic enclosed safety switch 21 BWS416 TPSN 2CMA142418R1000 Plastic enclosed safety switch 21 BWS416 Y TPSN 2CMA142424R1000 Plastic enclosed safety switch 21 BWS425 TPSN 2CMA142421R1000 Plastic enclosed safety switch 21 BWS425 Y TPSN 2CMA142427R1000 Plastic enclosed safety switch 21 BWS616 TPN 2CMA142419R1000 Plastic enclosed safety switch 21 BWS616 Y TPN 2CMA142425R1000 Plastic enclosed safety switch 21 BWS625 TPN 2CMA142422R1000 Plastic enclosed safety switch 21 BWS625 Y TPN 2CMA142428R1000 Plastic enclosed safety switch 21 EADR16 1SCA022749R6410 Gasket 86 EADR20 1SCA022749R6500 Gasket 86 EADR25 1SCA022749R6680 Gasket 86 EADR32 1SCA101165R1001 Gasket 86 EADR40 1SCA116849R1001 Gasket 86 EADR50 1SCA104353R1001 Gasket 86 EMCM16SET 1SCA022713R4000 Compression  gland 88 EMCM20SET 1SCA022713R3610 Compression gland 88 EMCM25/M32SET 1SCA022722R3790 Compression gland 88 EMCM25SET 1SCA022713R3700 Compression gland 88 EMCM32SET 1SCA022713R3960 Compression gland 88 EMCM40SET 1SCA022734R5040 Compression gland 88 EMCM63SET 1SCA114253R1001 Compression gland 88 EMCM75SET 1SCA114254R1001 Compression gland 88 EMCM85SET 1SCA022727R1760 Compression gland 88 EMMU12 1SCA022722R1910 Locking nut 85 EMMU16 1SCA022722R2040 Locking nut 85 EMMU20 1SCA022722R2120 Locking nut 85 EMMU25 1SCA022722R2210 Locking nut 85 EMMU32 1SCA022722R2390 Locking nut 85 EMMU40 1SCA022722R2470 Locking nut 85 EMMU50 1SCA022722R2550 Locking nut 85 EMMU63 1SCA022722R2630 Locking nut 85 EMSKV12/5 1SCA022722R2710 Compression gland 85 EMSKV16/5 1SCA022722R2800 Compression gland 85 EMSKV20/6 1SCA022722R2980 Compression gland 85 EMSKV25/7 1SCA022722R3010 Compression gland 85 EMSKV32/8 1SCA022722R3100 Compression gland 85 EMSKV40/8 1SCA022722R3280 Compression gland 85 EMSKV50/9 1SCA022722R3360 Compression gland 85 EMSKV63/10 1SCA022722R3440 Compression gland 85 EMUG12 1SCA022715R8280 Locking nut 85 EMUG16 1SCA022715R8360 Locking nut 85 EMUG20 1SCA022715R8440 Locking nut 85 EMUG25 1SCA022715R8520 Locking nut 85 EMUG32 1SCA022715R8610 Locking nut 85 EMUG40 1SCA022715R8790 Locking nut 85 EMUG50 1SCA022715R8870 Locking nut 85 EMUG63 1SCA022715R8950 Locking nut 85 EPN550M50/M32 1SCA114803R1001 Adapters for M-thread 86 EPN550M50/M40 1SCA104355R1001 Adapters for M-thread 86 EPN650M16/M20 1SCA103053R1001 Adapters for M-thread 86 EPN650M25/M32 1SCA101159R1001 Adapters for M-thread 86 EPN650M32/M40 1SCA101160R1001 Adapters for M-thread 86 EPN720M20/M12 1SCA114806R1001 Adapters for M-thread 86 EPN720M20/M16 1SCA114807R1001 Adapters for M-thread 86 Type Order number Description Page EPN720M25/M16 1SCA122555R1001 Adapters for M-thread 86 EPN720M25/M20 1SCA109748R1001 Adapters for M-thread 86 EPN720M32/M20 1SCA109749R1001 Adapters for M-thread 86 EPN720M40/M25 1SCA114808R1001 Adapters for M-thread 86 EPN740M32/M40 1SCA114810R1001 Adapters for M-thread 86 ESKV12 1SCA022715R5850 Compression gland 85 ESKV16 1SCA022715R5930 Compression gland 85 ESKV20 1SCA022715R6070 Compression gland 85 ESKV25 1SCA022715R6150 Compression gland 85 ESKV32 1SCA022715R6230 Compression gland 85 ESKV40 1SCA022715R6310 Compression gland 85 ESKV50 1SCA022715R6400 Compression gland 85 ESKV63 1SCA022715R6580 Compression gland 85 KIG-1 1SEH650052R6711 Cable inlet 83 KIG-2 1SEH650052R6712 Cable inlet 83 KIG-221-1 1SEH650052R6713 Cable flange 83 KIG-221-2 1SEH650052R6714 Cable flange 83 KIM13-1 1SEH655267R2050 Cable flange 83 KIM13-2 1SEH655267R2060 Cable flange 83 KOT61007 1SCA101607R1001 Cable flange 84 KOT61008 1SCA101606R1001 Cable flange 84 KOT62280 1SCA125779R1001 Shield 82 KOT62281 1SCA125780R1001 Shield 82 KOT62282 1SCA125777R1001 Shield 82 KOT62283 1SCA125776R1001 Shield 82 KOT62284 1SCA125815R1001 Shield 82 KOT62293 1SCA125816R1001 Shield 82 KOT62296 1SCA125871R1001 Cable flange 84 KOT62305 1SCA125902R1001 Shield 82 KOT62306 1SCA125903R1001 Shield 82 KOT62307 1SCA125905R1001 Shield 82 KRM16/12 1SCA022749R6090 Adapters for M-thread 86 KRM20/12 1SCA022749R6170 Adapters for M-thread 86 KRM25/12 1SCA022749R6980 Adapters for M-thread 86 L6 2CMA144539R1000 Padlock unit 80 LBAS125/S 2CMA144495R1000 Aluminum enclosed safety switch 57 LBAS125/SK 2CMA144496R1000 Aluminum enclosed safety switch 57 LBAS160/S 2CMA144498R1000 Aluminum enclosed safety switch 57 LBAS160/SK 2CMA144499R1000 Aluminum enclosed safety switch 57 LBAS200/S 2CMA144500R1000 Aluminum enclosed safety switch 57 LBAS250/S 2CMA144503R1000 Aluminum enclosed safety switch 57 LBAS316 TPN 2CMA142430R1000 Aluminum enclosed safety switch 55 LBAS316E/TPN 2CMA142449R1000 Aluminum enclosed EMC safety switch 72 LBAS325 TPN 2CMA142432R1000 Aluminum enclosed safety switch 55 LBAS325E/TPN 2CMA142450R1000 Aluminum enclosed EMC safety switch 72 LBAS345 TPN 2CMA142627R1000 Aluminum enclosed safety switch 56 LBAS375 TPN 2CMA142628R1000 Aluminum enclosed safety switch 56 LBAS390 TPN 2CMA142629R1000 Aluminum enclosed safety switch 56 LBAS400/S 2CMA144505R1000 Aluminum enclosed safety switch 57 LBAS416 TPSN  2CMA142431R1000 Aluminum enclosed safety switch 55 LBAS425 TPSN   2CMA142433R1000 Aluminum enclosed safety switch 55 LBAS475 TPN 2CMA142631R1000 Aluminum enclosed safety switch 56 LBAS490 TPN 2CMA142632R1000 Aluminum enclosed safety switch 56 LBAS630/S 2CMA144506R1000 Aluminum enclosed safety switch 57 LBAS675 TPN 2CMA142633R1000 Aluminum enclosed safety switch 56 LBFEU 1SCA022713R6040 Cable flange 83 LBSI2ALM20 1SCA022713R6210 Cable flange 83 LBSI2ALM32+1ALM25 1SCA022722R3520 Cable flange 83 LBSI2ALM40 1SCA022713R6630 Cable flange 83

102  Index | Safety switches Type Order number Description Page LBSI3ALM25+1TM25 1SCA022722R3610 Cable flange 83 LBSI3ALM32 1SCA022713R6550 Cable flange 83 LBSI4ALM25 1SCA022713R6390 Cable flange 83 LBSIU 1SCA022713R6120 Cable flange 83 OA1G01 1SCA022353R4890 Auxiliary contact 77 OA1G01 2CMA144691R1000 Auxiliary contact 77 OA1G10 1SCA022353R4970 Auxiliary contact 77 OA1G10 2CMA144690R1000 Auxiliary contact 77 OA1G10 1SCA022353R4970 Auxiliary  contact 77 OA2G11 1SCA022379R8100 Auxiliary contact 77 OA3G01 1SCA022456R7410 Auxiliary contact 77 OBEA01 2CMA144520R1000 Auxiliary contact 77 OBEA01 2CMA144520R1000 Auxiliary contact 77 OBEA01 1SCA022190R3260 Auxiliary contact 77 OBEA01AU 1SCA022185R3730 Auxiliary contact 77 OBEA10 2CMA144519R1000 Auxiliary contact 77 OBEA10 2CMA144519R1000 Auxiliary contact 77 OBEA10 1SCA022190R3000 Auxiliary contact 77 OBEA10AU 1SCA022185R3310 Auxiliary contact 77 OESAZX162 1SCA022193R0400 Neutral link 80 OESAZX164 1SCA022202R9520 Neutral link 80 OESAZX165 1SCA022202R9790 Neutral link 80 OEZNP1 1SCA022259R7410 Adapter for OBEA_ 77 OEZXB11L 1SCA022560R4920 Cable flange 84 OEZXB12L 1SCA022560R5140 Cable flange 84 OEZXC 0 1SCA022277R6420 Cable flange 83 OEZXC11L 1SCA022560R5570 Cable flange 84 OEZXC12L 1SCA022560R5730 Cable flange 84 OEZXC1R 1SCA022281R3560 Ring-flange adapter  for C-flange entry 83 OEZXC2R 1SCA022281R3720 83 OEZXP120 1SCA022277R2350 Cable entry 81 OEZXP120C 1SCA022338R5360 Cable entry 81 OEZXP240 1SCA022277R2780 Cable entry 81 OEZXP240C 1SCA022338R5520 Cable entry 81 OEZXP24R 1SCA022277R3160 Cable entry 81 OEZXP280 1SCA022277R3910 Cable entry 81 OEZXP280C 1SCA022338R5950 Cable entry 81 OEZXP28R 1SCA022277R4560 Cable entry 81 OEZXP340 1SCA022277R3320 Cable entry 81 OEZXP340C 1SCA022338R5790 Cable entry 81 OEZXP34R 1SCA022277R3750 Cable entry 81 OEZXP380 1SCA022277R4720 Cable entry 81 OEZXP380C 1SCA022338R6170 Cable entry 81 OEZXP38R 1SCA022277R5020 Cable entry 81 OEZXPE120 1SCA022398R9970 Cable entry 87 OEZXPE240 1SCA022399R0040 Cable entry 87 OEZXPE24R 1SCA022399R0470 Cable entry 87 OEZXPE280 1SCA022399R0210 Cable entry 87 OEZXPE28R 1SCA022399R0630 Cable entry 87 OEZXPE34R 1SCA022399R0550 Cable entry 87 OEZXPE380 1SCA022399R0390 Cable entry 87 OEZXPE38R 1SCA022399R0710 Cable entry 87 OEZXPK120 1SCA022646R2730 Shield 82 OEZXPK240 1SCA022646R3110 Shield 82 OEZXPK280 1SCA022646R3200 Shield 82 OEZXPK380 1SCA022647R3510 Shield 82 OEZXR020 1SCA022656R8130 Ring-flange cover 82 OEZXR023 1SCA022277R5290 Ring-flange cover 82 OEZXR025 1SCA022656R8210 Ring-flange cover 82 OEZXR037 1SCA022277R5450 Ring-flange cover 82 OEZXR040 1SCA022656R8300 Ring-flange cover 82 OEZXR134 1SCA022277R5610 Ring-flange 81 OEZXR143 1SCA022277R5880 Ring-flange 81 OEZXR150 1SCA022277R6000 Ring-flange 81 OEZXR158 1SCA022277R6260 Ring-flange 81 OEZXRE020 1SCA022656R8480 Ring-flange 87 OEZXRE023 1SCA022399R0800 Ring-flange 87 OEZXRE025 1SCA022656R8560 Ring-flange 87 OEZXRE037 1SCA022399R0980 Ring-flange 87 Type Order number Description Page OEZXRE040 1SCA022656R8640 Ring-flange 87 OEZXRE134 1SCA022399R1010 Ring-flange 87 OEZXRE143 1SCA022399R1100 Ring-flange 87 OEZXRE150 1SCA022399R1280 Ring-flange 87 OEZXRE158 1SCA022399R1360 Ring-flange 87 OEZXX143R 1SCA022350R3820 Plate extension for ring-flange 87 OEZXX143R 1SCA022350R3820 Plate extension for ring-flange 82 OEZXX158R 1SCA022350R3910 Plate extension for ring-flange 87 OEZXX158R 1SCA022350R3910 Plate extension for ring-flange 82 OEZXX2 1SCA022281R5340 Cable entry gasket set 81 OEZXX6 1SCA022292R6330 Busbar 80 OHB125J12 1SCA022381R1560 Handle 75 OHB145J12 1SCA022381R2110 Handle 75 OHB175J12 1SCA022381R2450 Handle 75 OHB274J12 1SCA115920R1001 Handle 75 OHB45J6 1SCA022380R8770 Handle 75 OHB45J6 1SCA022380R8770 Handle 75 OHB65J6 1SCA022380R9660 Handle 75 OHB95J12 1SCA022381R0830 Handle 75 OHBS2AJ 1SCA022347R4030 Handle 75 OHBS2AJEH 1SCA108230R1001 Handle 76 OHM125L12 1SCA022739R1150 Handle 76 OHM175L12 1SCA022739R1230 Handle 76 OHM175L12 1SCA022739R1230 Handle 76 OHM65L6 1SCA022739R1070 Handle 76 OHM65L6 1SCA022739R1070 Handle 76 OHY125J12 1SCA022381R1720 Handle 75 OHY145J12 1SCA022381R2370 Handle 75 OHY175J12 1SCA022381R2700 Handle 75 OHY274J12 1SCA115919R1001 Handle 75 OHY45J6 1SCA022380R8930 Handle 75 OHY45J6 1SCA022380R8930 Handle 75 OHY65J6 1SCA022380R9820 Handle 75 OHY95J12 1SCA022381R1050 Handle 75 OHYS2AJ 1SCA022353R2840 Handle 75 OT 1000BUUA3A 1SCA022438R7350 Steel sheet enclosed EMC  safety switch 71 OT 125EUUA3A 1SCA022438R8080 Steel sheet enclosed EMC  safety switch 71 OT 160EUUA3A 1SCA022438R7940 Steel sheet enclosed EMC  safety switch 71 OT 200KUUA3A 1SCA022438R7860 Steel sheet enclosed EMC  safety switch 71 OT 250KUUA3A 1SCA022438R7780 Steel sheet enclosed EMC  safety switch 71 OT 315KUUA3A 1SCA022438R7600 Steel sheet enclosed EMC  safety switch 71 OT 400DUUA3A 1SCA022438R7510 Steel sheet enclosed EMC  safety switch 71 OT 630KUUA3A 1SCA022438R7430 Steel sheet enclosed EMC  safety switch 71 OT 800EUUA3A 1SCA022828R0370 Steel sheet enclosed EMC  safety switch 71 OT 90ATRR6AZ 1SCA022742R4000 Steel sheet enclosed EMC  safety switch 69 OT 90AUUA3A 1SCA022438R8160 Steel sheet enclosed EMC  safety switch 71 OT1000BAUA3A 1SCA022297R5380 Steel sheet enclosed safety switch 45 OT1000BAUA3T 1SCA022277R1110 Steel sheet enclosed safety switch 33 OT1000BAUC3AZ 1SCA022513R0610 Steel sheet enclosed safety switch 37 OT1000BAUC3TZ 1SCA022340R4170 Steel sheet enclosed safety switch 24 OT1000BAUR3AZ 1SCA022513R1500 Steel sheet enclosed safety switch 36 OT1000BAUR3TZ 1SCA022340R3950 Steel sheet enclosed safety switch 23 OT1000BBCC3AZ 1SCA022512R6920 Steel sheet enclosed safety switch 37 OT1000BBCC3TZ 1SCA022340R3360 Steel sheet enclosed safety switch 24 OT1000BBRR3AZ 1SCA022543R2060 Steel sheet enclosed safety switch 36 OT1000BBRR3TZ 1SCA022340R3100 Steel sheet enclosed safety switch 23 OT1000BFCC3A 1SCA022297R5620 Plastic enclosed safety switch 18 OT1000BFCC3T 1SCA022277R1620 Plastic enclosed safety switch 15 OT1000BLAA3A 1SCA022297R9610 Steel sheet enclosed safety switch 45

Safety switches | Index  103 Type Order number Description Page OT1000BLAA3T 1SCA022277R0730 Steel sheet enclosed safety switch 33 OT1000BLAA6A 1SCA022297R9530 Steel sheet enclosed safety switch 46 OT1000BLAA6T 1SCA022277R0900 Steel sheet enclosed safety switch 34 OT1000BLCC3AZ 1SCA022512R6840 Steel sheet enclosed safety switch 37 OT1000BLCC3TZ 1SCA022340R3790 Steel sheet enclosed safety switch 24 OT1000BLCC6AZ 1SCA022512R8710 Steel sheet enclosed safety switch 43 OT1000BLCC6TZ 1SCA022338R9270 Steel sheet enclosed safety switch 31 OT1000BLRR3AZ 1SCA022512R7810 Steel sheet enclosed safety switch 36 OT1000BLRR3TZ 1SCA022340R3520 Steel sheet enclosed safety switch 23 OT1000BLRR6AZ 1SCA022338R9010 Steel sheet enclosed safety switch 42 OT1000BLRR6TZ 1SCA022338R9010 Steel sheet enclosed safety switch 30 OT1000BTAA3A 1SCA022438R7270 Steel sheet enclosed EMC  safety switch 71 OT1000BTAA3T 1SCA022398R9890 Steel sheet enclosed EMC  safety switch 66 OT1000BTRR3AZ 1SCA102749R1001 Steel sheet enclosed EMC  safety switch 68 OT1000BTRR3TZ 1SCA022513R7960 Steel sheet enclosed EMC  safety switch 63 OT1000BTRR6AZ  1SCA022742R4850 Steel sheet enclosed EMC  safety switch 69 OT1000BTRR6TZ  1SCA022545R7950 Steel sheet enclosed EMC  safety switch 64 OT1000BUUA3T 1SCA022398R8900 Steel sheet enclosed EMC  safety switch 66 OT1000BUUR3AZ 1SCA022725R3010 Steel sheet enclosed EMC  safety switch 68 OT1000BUUR3TZ 1SCA022513R8850 Steel sheet enclosed EMC  safety switch 63 OT1000ERRR3TZ 1SCA103329R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT1000ESUR3TZ 1SCA104434R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT125 EUUA3T 1SCA022398R8220  Steel sheet enclosed EMC  safety switch 66 OT1250EAUC3AZ 1SCA103279R1001 Steel sheet enclosed safety switch 37 OT1250EAUC3TZ  1SCA103274R1001 Steel sheet enclosed safety switch 24 OT1250EAUR3AZ 1SCA103275R1001 Steel sheet enclosed safety switch 36 OT1250EAUR3TZ 1SCA103273R1001 Steel sheet enclosed safety switch 23 OT1250ELCC3AZ 1SCA102768R1001 Steel sheet enclosed safety switch 37 OT1250ELCC3TZ 1SCA102769R1001 Steel sheet enclosed safety switch 24 OT1250ELRR3AZ 1SCA102772R1001 Steel sheet enclosed safety switch 36 OT1250ELRR3TZ 1SCA102773R1001 Steel sheet enclosed safety switch 23 OT1250ERRR3TZ 1SCA103351R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT1250ESUR3TZ 1SCA104440R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT1250ETRR3AZ 1SCA103282R1001 Steel sheet enclosed EMC  safety switch 68 OT1250ETRR3TZ 1SCA103280R1001 Steel sheet enclosed EMC  safety switch 63 OT1250EUUR3AZ 1SCA103283R1001 Steel sheet enclosed EMC  safety switch 68 OT1250EUUR3TZ 1SCA103281R1001 Steel sheet enclosed EMC  safety switch 63 OT125EAUA3A 1SCA022298R0030 Steel sheet enclosed safety switch 45 OT125EAUA3T 1SCA022277R3670 Steel sheet enclosed safety switch 33 OT125EAUA6A 1SCA022500R4140 Steel sheet enclosed safety switch 46 OT125EAUA6T 1SCA022325R0190 Steel sheet enclosed safety switch 34 OT125EAUC3AZ 1SCA022512R9860 Steel sheet enclosed safety switch 37 OT125EAUC3TZ 1SCA022339R2060 Steel sheet enclosed safety switch 24 OT125EAUC6AZ 1SCA022542R6050 Steel sheet enclosed safety switch 43 OT125EAUC6TZ 1SCA022338R9600 Steel sheet enclosed safety switch 31 OT125EAUR3AZ 1SCA022513R0870 Steel sheet enclosed safety switch 36 OT125EAUR3TZ 1SCA022281R6660 Steel sheet enclosed safety switch 23 OT125EAUR6AZ 1SCA022542R5320 Steel sheet enclosed safety switch 42 OT125EAUR6TZ 1SCA022325R0350 Steel sheet enclosed safety switch 30 OT125EFCC3A 1SCA022280R1040 Plastic enclosed safety switch 18 OT125EFCC3T 1SCA022260R4990 Plastic enclosed safety switch 15 OT125EFCC4A 1SCA022745R6200 Plastic enclosed safety switch 19 Type Order number Description Page OT125EFCC4T 1SCA022483R0050 Plastic enclosed safety switch 16 OT125EFCC6A 1SCA022297R8050 Plastic enclosed safety switch 20 OT125EFCC6T 1SCA022260R5110 Plastic enclosed safety switch 17 OT125ELAA3A 1SCA022297R9450 Steel sheet enclosed safety switch 45 OT125ELAA3T 1SCA022277R3240 Steel sheet enclosed safety switch 33 OT125ELAA6A 1SCA022297R8130 Steel sheet enclosed safety switch 46 OT125ELAA6T 1SCA022277R3410 Steel sheet enclosed safety switch 34 OT125ELCC3AZ 1SCA022512R6170 Steel sheet enclosed safety switch 37 OT125ELCC3TZ 1SCA022281R5260 Steel sheet enclosed safety switch 24 OT125ELCC4AZ 1SCA022542R7960 Steel sheet enclosed safety switch 40 OT125ELCC4TZ 1SCA022461R5160 Steel sheet enclosed safety switch 28 OT125ELCC6AZ 1SCA022512R8030 Steel sheet enclosed safety switch 43 OT125ELCC6TZ 1SCA022340R5140 Steel sheet enclosed safety switch 31 OT125ELRR6AZ 1SCA022512R8970 Steel sheet enclosed safety switch 42 OT125ELRR6TZ 1SCA022340R4920 Steel sheet enclosed safety switch 30 OT125ETAA3A 1SCA022438R6540 Steel sheet enclosed EMC  safety switch 71 OT125ETAA3T 1SCA022398R9110 Steel sheet enclosed EMC  safety switch 66 OT125ETRR6AZ 1SCA022742R4180 Steel sheet enclosed EMC  safety switch 69 OT125ETRR6TZ   1SCA022545R7280 Steel sheet enclosed EMC  safety switch 64 OT125EUUR3AZ 1SCA022725R2710 Steel sheet enclosed EMC  safety switch 68 OT125EUUR3TZ 1SCA022513R8180 Steel sheet enclosed EMC  safety switch 63 OT160EAUA3A 1SCA022298R0200 Steel sheet enclosed safety switch 45 OT160EAUA3T 1SCA022299R0690 Steel sheet enclosed safety switch 33 OT160EAUA6A 1SCA022500R3500 Steel sheet enclosed safety switch 46 OT160EAUA6T 1SCA022335R5020 Steel sheet enclosed safety switch 34 OT160EAUC3AZ 1SCA022512R9940 Steel sheet enclosed safety switch 37 OT160EAUC3TZ 1SCA022340R0510 Steel sheet enclosed safety switch 24 OT160EAUC6AZ 1SCA022542R6130 Steel sheet enclosed safety switch 43 OT160EAUC6TZ 1SCA022360R2300 Steel sheet enclosed safety switch 31 OT160EAUR3AZ 1SCA022513R0950 Steel sheet enclosed safety switch 36 OT160EAUR3TZ 1SCA022340R0340 Steel sheet enclosed safety switch 23 OT160EAUR6AZ 1SCA022542R5410 Steel sheet enclosed safety switch 42 OT160EAUR6TZ 1SCA022360R2210 Steel sheet enclosed safety switch 30 OT160EFCC3A 1SCA022278R6810 Plastic enclosed safety switch 18 OT160EFCC3T 1SCA022299R1910 Plastic enclosed safety switch 15 OT160EFCC4A 1SCA022745R6380 Plastic enclosed safety switch 19 OT160EFCC4T 1SCA022302R5660 Plastic enclosed safety switch 16 OT160EFCC6A 1SCA022297R8210 Plastic enclosed safety switch 20 OT160EFCC6T 1SCA022299R0260 Plastic enclosed safety switch 17 OT160EGCC3A 1SCA022297R5890 Plastic enclosed safety switch 18 OT160EGCC3T 1SCA022298R9680 Plastic enclosed safety switch 15 OT160ELAA3A 1SCA022280R3250 Steel sheet enclosed safety switch 45 OT160ELAA3T 1SCA022281R7550 Steel sheet enclosed safety switch 33 OT160ELAA6A 1SCA022297R8300 Steel sheet enclosed safety switch 46 OT160ELAA6T 1SCA022299R2800 Steel sheet enclosed safety switch 34 OT160ELCC3AZ 1SCA022512R6250 Steel sheet enclosed safety switch 37 OT160ELCC3TZ 1SCA022340R0180 Steel sheet enclosed safety switch 24 OT160ELCC4AZ 1SCA022542R8000 Steel sheet enclosed safety switch 40 OT160ELCC4TZ 1SCA022461R5320 Steel sheet enclosed safety switch 28 OT160ELCC6AZ 1SCA022512R8110 Steel sheet enclosed safety switch 43 OT160ELCC6TZ 1SCA022340R5570 Steel sheet enclosed safety switch 31 OT160ELRR3AZ 1SCA022512R7220 Steel sheet enclosed safety switch 36 OT160ELRR3TZ 1SCA022339R9910 Steel sheet enclosed safety switch 23 OT160ELRR4AZ 1SCA022542R6810 Steel sheet enclosed safety switch 39 OT160ELRR4TZ 1SCA022461R5240 Steel sheet enclosed safety switch 27 OT160ELRR6AZ 1SCA022512R9010 Steel sheet enclosed safety switch 42 OT160ELRR6TZ 1SCA022340R5310 Steel sheet enclosed safety switch 30 OT160ETAA3A 1SCA022438R6620 Steel sheet enclosed EMC  safety switch 71 OT160ETAA3T 1SCA022398R9200 Steel sheet enclosed EMC  safety switch 66 OT160ETRR3AZ 1SCA022742R3370 Steel sheet enclosed EMC  safety switch 68

104  Index | Safety switches Type Order number Description Page OT160ETRR3TZ 1SCA022513R7370 Steel sheet enclosed EMC  safety switch 63 OT160ETRR6AZ 1SCA022742R4260 Steel sheet enclosed EMC  safety switch 69 OT160ETRR6TZ   1SCA022545R7360 Steel sheet enclosed EMC  safety switch 64 OT160EUUA3T 1SCA022398R8310  Steel sheet enclosed EMC  safety switch 66 OT160EUUR3AZ 1SCA022732R2260 Steel sheet enclosed EMC  safety switch 68 OT160EUUR3TZ 1SCA022513R8260 Steel sheet enclosed EMC  safety switch 63 OT160EVRRR3TZ 1SCA125630R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT160EVRRR6TZ 1SCA125725R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT160EVSUR3TZ 1SCA125726R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT160EVSUR6TZ 1SCA125650R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT16EAUA3TZ 1SCA022545R5150 Steel sheet enclosed safety switch 25 OT16ELMM3A 1SCA022745R8670 Steel sheet enclosed safety switch 44 OT16ELMM3A1 1SCA022745R8750 Steel sheet enclosed safety switch 44 OT16ELMM3T 1SCA022472R6070 Steel sheet enclosed safety switch 32 OT16ELMM3T1 1SCA022472R6150 Steel sheet enclosed safety switch 32 OT16ELMM3TZ 1SCA022786R0670 Steel sheet enclosed safety switch 22 OT16ELMM4T 1SCA022472R6910 Steel sheet enclosed safety switch 32 OT16ELMM6A 1SCA022745R8410 Steel sheet enclosed safety switch 44 OT16ELMM6T 1SCA022473R3100 Steel sheet enclosed safety switch 32 OT16ETMM3A 1SCA022714R3500 Steel sheet enclosed EMC  safety switch 70 OT16ETMM3AE 1SCA022742R0780 Steel sheet enclosed EMC  safety switch 67 OT16ETMM3T 1SCA022650R6610 Steel sheet enclosed EMC  safety switch 65 OT16ETMM3TE 1SCA022734R5980 Steel sheet enclosed EMC  safety switch 62 OT16ETMM4A 1SCA022714R4060 Steel sheet enclosed EMC  safety switch 70 OT16ETMM4T 1SCA022650R6700 Steel sheet enclosed EMC  safety switch 65 OT16ETMM6AE 1SCA022742R1160 Steel sheet enclosed EMC  safety switch 67 OT16ETMM6TE 1SCA022739R3870 Steel sheet enclosed EMC  safety switch 62 OT200ERRR3TZ 1SCA101252R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT200ERRR6TZ 1SCA102316R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT200ESUR3TZ 1SCA102325R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT200ESUR6TZ 1SCA102319R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT200KAUA3A 1SCA022298R0460 Steel sheet enclosed safety switch 45 OT200KAUA3T 1SCA022277R4210 Steel sheet enclosed safety switch 33 OT200KAUA6A 1SCA022500R3680 Steel sheet enclosed safety switch 46 OT200KAUA6T 1SCA022338R9430 Steel sheet enclosed safety switch 34 OT200KAUC3AZ 1SCA022513R0010 Steel sheet enclosed safety switch 37 OT200KAUC3TZ 1SCA022340R0930 Steel sheet enclosed safety switch 24 OT200KAUC6AZ 1SCA022542R6210 Steel sheet enclosed safety switch 43 OT200KAUC6TZ 1SCA022339R0280 Steel sheet enclosed safety switch 31 OT200KAUR3AZ 1SCA022513R1090 Steel sheet enclosed safety switch 36 OT200KAUR3TZ 1SCA022281R6820 Steel sheet enclosed safety switch 23 OT200KAUR6AZ 1SCA022542R5590 Steel sheet enclosed safety switch 42 OT200KAUR6TZ 1SCA022339R0010 Steel sheet enclosed safety switch 30 OT200KFCC3A 1SCA022278R1340 Plastic enclosed safety switch 18 OT200KFCC3T 1SCA022260R5370 Plastic enclosed safety switch 15 OT200KFCC4A 1SCA022745R6460 Plastic enclosed safety switch 19 OT200KFCC4T 1SCA022367R9430 Plastic enclosed safety switch 16 OT200KFCC6A 1SCA022297R8480 Plastic enclosed safety switch 20 Type Order number Description Page OT200KFCC6T 1SCA022260R5530 Plastic enclosed safety switch 17 OT200KGCC3A 1SCA022297R6010 Plastic enclosed safety switch 18 OT200KGCC3T 1SCA022276R8670 Plastic enclosed safety switch 15 OT200KLAA3A 1SCA022280R3840 Steel sheet enclosed safety switch 45 OT200KLAA3T 1SCA022277R3830 Steel sheet enclosed safety switch 33 OT200KLAA6A 1SCA022297R8560 Steel sheet enclosed safety switch 46 OT200KLAA6T 1SCA022277R4050 Steel sheet enclosed safety switch 34 OT200KLCC3AZ 1SCA022512R6330 Steel sheet enclosed safety switch 37 OT200KLCC3TZ 1SCA022281R5420 Steel sheet enclosed safety switch 24 OT200KLCC4AZ 1SCA022542R8260 Steel sheet enclosed safety switch 40 OT200KLCC4TZ 1SCA022461R5590 Steel sheet enclosed safety switch 28 OT200KLCC6AZ 1SCA022512R8200 Steel sheet enclosed safety switch 43 OT200KLCC6TZ 1SCA022338R7220 Steel sheet enclosed safety switch 31 OT200KLRR3AZ 1SCA022512R7310 Steel sheet enclosed safety switch 36 OT200KLRR3TZ 1SCA022340R0770 Steel sheet enclosed safety switch 23 OT200KLRR4AZ 1SCA022542R6990 Steel sheet enclosed safety switch 39 OT200KLRR4TZ 1SCA022461R5410 Steel sheet enclosed safety switch 27 OT200KLRR6AZ 1SCA022512R9190 Steel sheet enclosed safety switch 42 OT200KLRR6TZ 1SCA022340R5730 Steel sheet enclosed safety switch 30 OT200KTAA3A 1SCA022438R6710 Steel sheet enclosed EMC  safety switch 71 OT200KTAA3T 1SCA022398R9380 Steel sheet enclosed EMC  safety switch 66 OT200KTRR3AZ 1SCA022742R3450 Steel sheet enclosed EMC  safety switch 68 OT200KTRR3TZ 1SCA022513R7450 Steel sheet enclosed EMC  safety switch 63 OT200KTRR6AZ 1SCA022742R4340 Steel sheet enclosed EMC  safety switch 69 OT200KTRR6TZ   1SCA022545R7440 Steel sheet enclosed EMC  safety switch 64 OT200KUUA3T 1SCA022398R8490  Steel sheet enclosed EMC  safety switch 66 OT200KUUR3AZ 1SCA022700R6340 Steel sheet enclosed EMC  safety switch 68 OT200KUUR3TZ 1SCA022513R8340 Steel sheet enclosed EMC  safety switch 63 OT250ERRR3TZ 1SCA102364R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT250ERRR6TZ 1SCA102365R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT250ESUR3TZ 1SCA102320R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT250ESUR6TZ 1SCA102370R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT250KAUA3A 1SCA022298R0620 Steel sheet enclosed safety switch 45 OT250KAUA3T 1SCA022276R8750 Steel sheet enclosed safety switch 33 OT250KAUA6A 1SCA022500R3760 Steel sheet enclosed safety switch 46 OT250KAUA6T 1SCA022360R2480 Steel sheet enclosed safety switch 34 OT250KAUC3AZ 1SCA022513R0100 Steel sheet enclosed safety switch 37 OT250KAUC3TZ 1SCA022340R1310 Steel sheet enclosed safety switch 24 OT250KAUC6AZ 1SCA022542R6300 Steel sheet enclosed safety switch 43 OT250KAUC6TZ 1SCA022360R2640 Steel sheet enclosed safety switch 31 OT250KAUR3AZ 1SCA022513R1170 Steel sheet enclosed safety switch 36 OT250KAUR3TZ 1SCA022281R7040 Steel sheet enclosed safety switch 23 OT250KAUR6AZ 1SCA022542R5670 Steel sheet enclosed safety switch 42 OT250KAUR6TZ 1SCA022360R2560 Steel sheet enclosed safety switch 30 OT250KFCC3A 1SCA022278R1930 Plastic enclosed safety switch 18 OT250KFCC3T 1SCA022276R8830 Plastic enclosed safety switch 15 OT250KFCC4A 1SCA022745R6540 Plastic enclosed safety switch 19 OT250KFCC4T 1SCA022619R2250 Plastic enclosed safety switch 16 OT250KFCC6A 1SCA022297R8640 Plastic enclosed safety switch 20 OT250KFCC6T 1SCA022276R9480 Plastic enclosed safety switch 17 OT250KGCC3A 1SCA022297R6270 Plastic enclosed safety switch 18 OT250KGCC3T 1SCA022276R9640 Plastic enclosed safety switch 15 OT250KLAA3A 1SCA022280R4490 Steel sheet enclosed safety switch 45 OT250KLAA3T 1SCA022277R4480 Steel sheet enclosed safety switch 33 OT250KLAA6A 1SCA022297R8720 Steel sheet enclosed safety switch 46 OT250KLAA6T 1SCA022277R4640 Steel sheet enclosed safety switch 34 OT250KLCC3AZ 1SCA022512R6410 Steel sheet enclosed safety switch 37

Safety switches | Index  105 Type Order number Description Page OT250KLCC3TZ 1SCA022281R5690 Steel sheet enclosed safety switch 24 OT250KLCC4AZ 1SCA022542R8340 Steel sheet enclosed safety switch 40 OT250KLCC4TZ 1SCA022461R5750 Steel sheet enclosed safety switch 28 OT250KLCC6AZ 1SCA022512R8380 Steel sheet enclosed safety switch 43 OT250KLCC6TZ 1SCA022338R7650 Steel sheet enclosed safety switch 31 OT250KLRR3AZ 1SCA022512R7490 Steel sheet enclosed safety switch 36 OT250KLRR3TZ 1SCA022340R1150 Steel sheet enclosed safety switch 23 OT250KLRR4AZ 1SCA022542R7020 Steel sheet enclosed safety switch 39 OT250KLRR4TZ 1SCA022461R5670 Steel sheet enclosed safety switch 27 OT250KLRR6AZ 1SCA022512R9270 Steel sheet enclosed safety switch 42 OT250KLRR6TZ 1SCA022338R7490 Steel sheet enclosed safety switch 30 OT250KTAA3A 1SCA022438R6890 Steel sheet enclosed EMC  safety switch 71 OT250KTAA3T 1SCA022398R9460 Steel sheet enclosed EMC  safety switch 66 OT250KTRR3AZ 1SCA022742R3530 Steel sheet enclosed EMC  safety switch 68 OT250KTRR3TZ 1SCA022513R7530 Steel sheet enclosed EMC  safety switch 63 OT250KTRR6AZ 1SCA022742R4420 Steel sheet enclosed EMC  safety switch 69 OT250KTRR6TZ   1SCA022545R7520 Steel sheet enclosed EMC  safety switch 64 OT250KUUA3T 1SCA022398R8570  Steel sheet enclosed EMC  safety switch 66 OT250KUUR3AZ 1SCA022725R3190 Steel sheet enclosed EMC  safety switch 68 OT250KUUR3TZ 1SCA022513R8420 Steel sheet enclosed EMC  safety switch 63 OT25EAUA3TZ 1SCA022530R5690 Steel sheet enclosed safety switch 25 OT25ELMM3A 1SCA022745R8830 Steel sheet enclosed safety switch 44 OT25ELMM3T 1SCA022472R6230 Steel sheet enclosed safety switch 32 OT25ELMM3TZ 1SCA022692R7040 Steel sheet enclosed safety switch 22 OT25ELMM4T 1SCA022472R7040 Steel sheet enclosed safety switch 32 OT25ELMM6A 1SCA022745R8590 Steel sheet enclosed safety switch 44 OT25ELMM6T 1SCA022473R3280 Steel sheet enclosed safety switch 32 OT25ELMM6TZ 1SCA022693R2980 Steel sheet enclosed safety switch 29 OT25ETMM3A 1SCA022714R3680 Steel sheet enclosed EMC  safety switch 70 OT25ETMM3AE 1SCA022742R0860 Steel sheet enclosed EMC  safety switch 67 OT25ETMM3T 1SCA022650R6960 Steel sheet enclosed EMC  safety switch 65 OT25ETMM3TE 1SCA022734R6010 Steel sheet enclosed EMC  safety switch 62 OT25ETMM4A 1SCA022714R4140 Steel sheet enclosed EMC  safety switch 70 OT25ETMM4T 1SCA022650R7000 Steel sheet enclosed EMC  safety switch 65 OT25ETMM6AE 1SCA022742R1240 Steel sheet enclosed EMC  safety switch 67 OT25ETMM6TE 1SCA022739R3950 Steel sheet enclosed EMC  safety switch 62 OT315ERRR3TZ 1SCA102332R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT315ERRR6TZ 1SCA102327R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT315ESUR3TZ 1SCA102317R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT315ESUR6TZ 1SCA102330R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT315KAUA3A 1SCA022298R0890 Steel sheet enclosed safety switch 45 OT315KAUA3T 1SCA022276R9300 Steel sheet enclosed safety switch 33 OT315KAUA6A 1SCA022500R3840 Steel sheet enclosed safety switch 46 OT315KAUA6T 1SCA022335R4480 Steel sheet enclosed safety switch 34 OT315KAUC3AZ 1SCA022513R0280 Steel sheet enclosed safety switch 37 OT315KAUC3TZ 1SCA022340R1740 Steel sheet enclosed safety switch 24 OT315KAUC6AZ 1SCA022542R6480 Steel sheet enclosed safety switch 43 OT315KAUC6TZ 1SCA022360R2810 Steel sheet enclosed safety switch 31 OT315KAUR3AZ 1SCA022513R1250 Steel sheet enclosed safety switch 36 Type Order number Description Page OT315KAUR3TZ 1SCA022281R7210 Steel sheet enclosed safety switch 23 OT315KAUR6AZ 1SCA022542R5750 Steel sheet enclosed safety switch 42 OT315KAUR6TZ 1SCA022360R2720 Steel sheet enclosed safety switch 30 OT315KFCC3A 1SCA022278R2580 Plastic enclosed safety switch 18 OT315KFCC3T 1SCA022276R9810 Plastic enclosed safety switch 15 OT315KFCC4A 1SCA022745R6620 Plastic enclosed safety switch 19 OT315KFCC4T 1SCA022367R9510 Plastic enclosed safety switch 16 OT315KFCC6A 1SCA022292R7730 Plastic enclosed safety switch 20 OT315KFCC6T 1SCA022277R0060 Plastic enclosed safety switch 17 OT315KGCC3A 1SCA022298R8280 Plastic enclosed safety switch 18 OT315KGCC3T 1SCA022277R0220 Plastic enclosed safety switch 15 OT315KLAA3A 1SCA022280R5030 Steel sheet enclosed safety switch 45 OT315KLAA3T 1SCA022276R8910 Steel sheet enclosed safety switch 33 OT315KLAA6A 1SCA022297R8990 Steel sheet enclosed safety switch 46 OT315KLAA6T 1SCA022276R9130 Steel sheet enclosed safety switch 34 OT315KLCC3AZ 1SCA022512R6500 Steel sheet enclosed safety switch 37 OT315KLCC3TZ 1SCA022281R5850 Steel sheet enclosed safety switch 24 OT315KLCC4AZ 1SCA022542R8690 Steel sheet enclosed safety switch 40 OT315KLCC4TZ 1SCA022461R5910 Steel sheet enclosed safety switch 28 OT315KLCC6AZ 1SCA022512R8460 Steel sheet enclosed safety switch 43 OT315KLCC6TZ 1SCA022338R8030 Steel sheet enclosed safety switch 31 OT315KLRR3AZ 1SCA022512R7570 Steel sheet enclosed safety switch 36 OT315KLRR3TZ 1SCA022340R1580 Steel sheet enclosed safety switch 23 OT315KLRR4AZ 1SCA022542R7110 Steel sheet enclosed safety switch 39 OT315KLRR4TZ 1SCA022461R5830 Steel sheet enclosed safety switch 27 OT315KLRR6AZ 1SCA022512R9350 Steel sheet enclosed safety switch 42 OT315KLRR6TZ 1SCA022338R7810 Steel sheet enclosed safety switch 30 OT315KTAA3A 1SCA022438R6970 Steel sheet enclosed EMC  safety switch 71 OT315KTAA3T 1SCA022398R9540 Steel sheet enclosed EMC  safety switch 66 OT315KTRR3AZ 1SCA022742R3610 Steel sheet enclosed EMC  safety switch 68 OT315KTRR3TZ 1SCA022513R7610 Steel sheet enclosed EMC  safety switch 63 OT315KTRR6AZ 1SCA022742R4510 Steel sheet enclosed EMC  safety switch 69 OT315KTRR6TZ   1SCA022545R7610 Steel sheet enclosed EMC  safety switch 64 OT315KUUA3T 1SCA022398R8650  Steel sheet enclosed EMC  safety switch 66 OT315KUUR3AZ 1SCA022725R2890 Steel sheet enclosed EMC  safety switch 68 OT315KUUR3TZ 1SCA022513R8510 Steel sheet enclosed EMC  safety switch 63 OT36EAUA3A 1SCA022544R0800 Steel sheet enclosed safety switch 45 OT36EAUA3T 1SCA022470R8760 Steel sheet enclosed safety switch 33 OT36EAUA3TZ 1SCA022470R8840 Steel sheet enclosed safety switch 25 OT36ELMM3A 1SCA022745R8910 Steel sheet enclosed safety switch 44 OT36ELMM3T 1SCA022472R6310 Steel sheet enclosed safety switch 32 OT36ELMM3TZ 1SCA022786R0830 Steel sheet enclosed safety switch 22 OT36ELMM4T 1SCA022472R7120 Steel sheet enclosed safety switch 32 OT36ELMM6A 1SCA022745R9130 Steel sheet enclosed safety switch 44 OT36ELMM6T 1SCA022472R9840 Steel sheet enclosed safety switch 32 OT36ETMM3A 1SCA022714R3840 Steel sheet enclosed EMC  safety switch 70 OT36ETMM3AE 1SCA022742R0940 Steel sheet enclosed EMC  safety switch 67 OT36ETMM3T 1SCA022650R7180 Steel sheet enclosed EMC  safety switch 65 OT36ETMM3TE 1SCA022734R6100 Steel sheet enclosed EMC  safety switch 62 OT36ETMM4A 1SCA022714R4220 Steel sheet enclosed EMC  safety switch 70 OT36ETMM4T 1SCA022650R7340 Steel sheet enclosed EMC  safety switch 65 OT36ETMM6AE 1SCA022742R1320 Steel sheet enclosed EMC  safety switch 67 OT36ETMM6TE 1SCA022739R4090 Steel sheet enclosed EMC  safety switch 62

106  Index | Safety switches Type Order number Description Page OT400 DTRR6AZ 1SCA022742R4690 Steel sheet enclosed EMC  safety switch 69 OT400DAUA3A 1SCA022297R4900 Steel sheet enclosed safety switch 45 OT400DAUA3T 1SCA022276R9990 Steel sheet enclosed safety switch 33 OT400DAUA6A 1SCA022500R3920 Steel sheet enclosed safety switch 46 OT400DAUA6T 1SCA022335R4640 Steel sheet enclosed safety switch 34 OT400DAUC3AZ 1SCA022513R0360 Steel sheet enclosed safety switch 37 OT400DAUC3TZ 1SCA022340R2120 Steel sheet enclosed safety switch 24 OT400DAUC6AZ 1SCA022542R6560 Steel sheet enclosed safety switch 43 OT400DAUC6TZ 1SCA022360R3020 Steel sheet enclosed safety switch 31 OT400DAUR3AZ 1SCA022513R1330 Steel sheet enclosed safety switch 36 OT400DAUR3TZ 1SCA022281R7470 Steel sheet enclosed safety switch 23 OT400DAUR6AZ 1SCA022542R5830 Steel sheet enclosed safety switch 42 OT400DAUR6TZ 1SCA022360R2990 Steel sheet enclosed safety switch 30 OT400DFCC3A 1SCA022278R3120 Plastic enclosed safety switch 18 OT400DFCC3T 1SCA022277R0490 Plastic enclosed safety switch 15 OT400DFCC4A 1SCA022745R6710 Plastic enclosed safety switch 19 OT400DFCC4T 1SCA022623R3970 Plastic enclosed safety switch 16 OT400DFCC6A 1SCA022297R8810 Plastic enclosed safety switch 20 OT400DFCC6T 1SCA022277R0650 Plastic enclosed safety switch 17 OT400DGCC3A 1SCA022297R6430 Plastic enclosed safety switch 18 OT400DGCC3T 1SCA022277R0810 Plastic enclosed safety switch 15 OT400DLAA3A 1SCA022280R5620 Steel sheet enclosed safety switch 45 OT400DLAA3T 1SCA022276R9560 Steel sheet enclosed safety switch 33 OT400DLAA6A 1SCA022297R9110 Steel sheet enclosed safety switch 46 OT400DLAA6T 1SCA022276R9720 Steel sheet enclosed safety switch 34 OT400DLCC3AZ 1SCA022512R6680 Steel sheet enclosed safety switch 37 OT400DLCC3TZ 1SCA022281R6070 Steel sheet enclosed safety switch 24 OT400DLCC4AZ 1SCA022542R8770 Steel sheet enclosed safety switch 40 OT400DLCC4TZ 1SCA022461R6130 Steel sheet enclosed safety switch 28 OT400DLCC6AZ 1SCA022512R8540 Steel sheet enclosed safety switch 43 OT400DLCC6TZ 1SCA022338R8460 Steel sheet enclosed safety switch 31 OT400DLRR3AZ 1SCA022512R7650 Steel sheet enclosed safety switch 36 OT400DLRR3TZ 1SCA022340R1910 Steel sheet enclosed safety switch 23 OT400DLRR4AZ 1SCA022542R7290 Steel sheet enclosed safety switch 39 OT400DLRR4TZ 1SCA022461R6050 Steel sheet enclosed safety switch 27 OT400DLRR6AZ 1SCA022512R9430 Steel sheet enclosed safety switch 42 OT400DLRR6TZ 1SCA022338R8200 Steel sheet enclosed safety switch 30 OT400DTAA3A 1SCA022438R7010 Steel sheet enclosed EMC  safety switch 71 OT400DTAA3T 1SCA022398R9620 Steel sheet enclosed EMC  safety switch 66 OT400DTRR3AZ 1SCA022742R3700 Steel sheet enclosed EMC  safety switch 68 OT400DTRR3TZ 1SCA022513R7700 Steel sheet enclosed EMC  safety switch 63 OT400DTRR6TZ   1SCA022545R7790 Steel sheet enclosed EMC  safety switch 64 OT400DUUA3T 1SCA022398R8730  Steel sheet enclosed EMC  safety switch 66 OT400DUUR3AZ 1SCA022700R6420 Steel sheet enclosed EMC  safety switch 68 OT400DUUR3TZ 1SCA022513R8690 Steel sheet enclosed EMC  safety switch 63 OT400ERRR3TZ 1SCA102318R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT400ERRR6TZ 1SCA102329R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT400ESUR3TZ 1SCA102323R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT400ESUR6TZ 1SCA102335R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT630ERRR3TZ 1SCA102321R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT630ERRR6TZ 1SCA102326R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT630ESUR3TZ 1SCA102336R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT630ESUR6TZ 1SCA102322R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 Type Order number Description Page OT630KAUA3A 1SCA022297R5110 Steel sheet enclosed safety switch 45 OT630KAUA3T 1SCA022277R0570 Steel sheet enclosed safety switch 33 OT630KAUA6A 1SCA022500R4060 Steel sheet enclosed safety switch 46 OT630KAUA6T 1SCA022438R2040 Steel sheet enclosed safety switch 34 OT630KAUC3AZ 1SCA022513R0440 Steel sheet enclosed safety switch 37 OT630KAUC3TZ 1SCA022340R2550 Steel sheet enclosed safety switch 24 OT630KAUC6AZ 1SCA022542R6640 Steel sheet enclosed safety switch 43 OT630KAUC6TZ 1SCA022460R9860 Steel sheet enclosed safety switch 31 OT630KAUR3AZ 1SCA022513R1410 Steel sheet enclosed safety switch 36 OT630KAUR3TZ 1SCA022281R7630 Steel sheet enclosed safety switch 23 OT630KAUR6AZ 1SCA022542R5910 Steel sheet enclosed safety switch 42 OT630KAUR6TZ 1SCA022460R9940 Steel sheet enclosed safety switch 30 OT630KBUA3A 1SCA022544R0710 Steel sheet enclosed safety switch 45 OT630KBUA3T 1SCA022284R1510 Steel sheet enclosed safety switch 33 OT630KBUC3AZ 1SCA022513R0520 Steel sheet enclosed safety switch 37 OT630KBUC3TZ 1SCA022340R2980 Steel sheet enclosed safety switch 24 OT630KBUR3AZ 1SCA022542R6720 Steel sheet enclosed safety switch 36 OT630KBUR3TZ 1SCA022340R2710 Steel sheet enclosed safety switch 23 OT630KFCC3A 1SCA022278R3710 Plastic enclosed safety switch 18 OT630KFCC3T 1SCA022277R1030 Plastic enclosed safety switch 15 OT630KGCC3A 1SCA022297R6600 Plastic enclosed safety switch 18 OT630KGCC3T 1SCA022277R1460 Plastic enclosed safety switch 15 OT630KLAA3A 1SCA022280R0150 Steel sheet enclosed safety switch 45 OT630KLAA3T 1SCA022277R0140 Steel sheet enclosed safety switch 33 OT630KLAA6A 1SCA022297R9370 Steel sheet enclosed safety switch 46 OT630KLAA6T 1SCA022277R0310 Steel sheet enclosed safety switch 34 OT630KLCC3AZ 1SCA022512R6760 Steel sheet enclosed safety switch 37 OT630KLCC3TZ 1SCA022340R2390 Steel sheet enclosed safety switch 24 OT630KLCC4AZ 1SCA022542R8850 Steel sheet enclosed safety switch 40 OT630KLCC4TZ 1SCA022461R6130 Steel sheet enclosed safety switch 28 OT630KLCC6AZ 1SCA022512R8620 Steel sheet enclosed safety switch 43 OT630KLCC6TZ 1SCA022338R8890 Steel sheet enclosed safety switch 31 OT630KLRR3AZ 1SCA022512R7730 Steel sheet enclosed safety switch 36 OT630KLRR3TZ 1SCA022281R6230 Steel sheet enclosed safety switch 23 OT630KLRR4AZ 1SCA022542R7450 Steel sheet enclosed safety switch 39 OT630KLRR4TZ 1SCA022461R6210 Steel sheet enclosed safety switch 27 OT630KLRR6AZ 1SCA022512R9510 Steel sheet enclosed safety switch 42 OT630KLRR6TZ 1SCA022338R8620 Steel sheet enclosed safety switch 30 OT630KTAA3A 1SCA022438R7190 Steel sheet enclosed EMC  safety switch 71 OT630KTAA3T 1SCA022398R9710 Steel sheet enclosed EMC  safety switch 66 OT630KTRR3AZ 1SCA022742R3880 Steel sheet enclosed EMC  safety switch 68 OT630KTRR3TZ 1SCA022513R7880 Steel sheet enclosed EMC  safety switch 63 OT630KTRR6AZ 1SCA022742R4770 Steel sheet enclosed EMC  safety switch 69 OT630KTRR6TZ   1SCA022545R7870 Steel sheet enclosed EMC  safety switch 64 OT630KUUA3T 1SCA022398R8810  Steel sheet enclosed EMC  safety switch 66 OT630KUUR3AZ 1SCA022725R2970 Steel sheet enclosed EMC  safety switch 68 OT630KUUR3TZ 1SCA022513R8770 Steel sheet enclosed EMC  safety switch 63 OT63ELMM3A 1SCA022617R6050 Steel sheet enclosed safety switch 44 OT63ELMM3T 1SCA022473R0000 Steel sheet enclosed safety switch 32 OT63ELMM3TZ 1SCA022513R7290 Steel sheet enclosed safety switch 22 OT63ELMM4T 1SCA022473R0180 Steel sheet enclosed safety switch 32 OT63ELMM6T 1SCA022473R0260 Steel sheet enclosed safety switch 32 OT63ETMM3A 1SCA022714R3920 Steel sheet enclosed EMC safety switch 70 OT63ETMM3AE 1SCA022742R1080 Steel sheet enclosed EMC safety switch 67 OT63ETMM3T 1SCA022650R7420 Steel sheet enclosed EMC safety switch 65 OT63ETMM3TE 1SCA022734R6280 Steel sheet enclosed EMC safety switch 62

Safety switches | Index  107 Type Order number Description Page OT63ETMM4A 1SCA022714R4310 Steel sheet enclosed EMC  safety switch 70 OT63ETMM4T 1SCA022650R7260 Steel sheet enclosed EMC  safety switch 65 OT75EAUA3A 1SCA022544R0980 Steel sheet enclosed safety switch 45 OT75EAUA3T 1SCA022470R8920 Steel sheet enclosed safety switch 33 OT75EAUA3TZ 1SCA022470R9060 Steel sheet enclosed safety switch 25 OT75ELBB3A 1SCA022462R0830 Steel sheet enclosed safety switch 44 OT75ELBB3T 1SCA022462R3000 Steel sheet enclosed safety switch 32 OT75ELBB3TZ 1SCA022462R4150 Steel sheet enclosed safety switch 22 OT75ELBB4T 1SCA022472R6740 Steel sheet enclosed safety switch 32 OT75ELBB6A 1SCA022462R1300 Steel sheet enclosed safety switch 44 OT75ELBB6T 1SCA022462R3510 Steel sheet enclosed safety switch 32 OT75ELBB6TZ 1SCA022462R4660 Steel sheet enclosed safety switch 29 OT800EAUA3A 1SCA022827R9870 Steel sheet enclosed safety switch 45 OT800EAUA3T 1SCA022827R9610 Steel sheet enclosed safety switch 33 OT800EAUC3AZ 1SCA022827R9950 Steel sheet enclosed safety switch 37 OT800EAUC3TZ 1SCA022827R9790 Steel sheet enclosed safety switch 24 OT800EAUR3AZ 1SCA022828R0020 Steel sheet enclosed safety switch 36 OT800EAUR3TZ 1SCA022827R8210 Steel sheet enclosed safety switch 23 OT800ELAA3A 1SCA022828R0880 Steel sheet enclosed safety switch 45 OT800ELAA3T 1SCA022828R0530 Steel sheet enclosed safety switch 33 OT800ELAA6A 1SCA022828R2310 Steel sheet enclosed safety switch 46 OT800ELAA6T 1SCA022828R2150 Steel sheet enclosed safety switch 34 OT800ELCC3AZ 1SCA022828R1000 Steel sheet enclosed safety switch 37 OT800ELCC3TZ 1SCA022828R0700 Steel sheet enclosed safety switch 24 OT800ELCC4AZ 1SCA022828R1510 Steel sheet enclosed safety switch 40 OT800ELCC4TZ 1SCA022828R1420 Steel sheet enclosed safety switch 28 OT800ELCC6AZ 1SCA022828R2400 Steel sheet enclosed safety switch 43 OT800ELCC6TZ 1SCA022828R2230 Steel sheet enclosed safety switch 31 OT800ELRR3AZ 1SCA022828R1180 Steel sheet enclosed safety switch 36 OT800ELRR3TZ 1SCA022827R8390 Steel sheet enclosed safety switch 23 OT800ELRR4AZ 1SCA022828R1690 Steel sheet enclosed safety switch 39 OT800ELRR4TZ 1SCA022828R1260 Steel sheet enclosed safety switch 27 OT800ELRR6AZ 1SCA022828R2580 Steel sheet enclosed safety switch 42 OT800ELRR6TZ 1SCA022827R8470 Steel sheet enclosed safety switch 30 OT800ERRR3TZ 1SCA102333R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT800ERRR6TZ 1SCA102334R1001 Stainless steel sheet (acid proof)  enclosed safety switch 54 OT800ESUR3TZ 1SCA102324R1001 Stainless steel sheet (acid proof)  enclosed safety switch 53 OT800ETAA3A 1SCA022828R1930 Steel sheet enclosed EMC  safety switch 71 OT800ETAA3T 1SCA022828R1850 Steel sheet enclosed EMC  safety switch 66 OT800ETRR3AZ 1SCA022828R2070 Steel sheet enclosed EMC  safety switch 68 OT800ETRR3TZ 1SCA022828R1770 Steel sheet enclosed EMC  safety switch 63 OT800ETRR6AZ 1SCA022828R2820 Steel sheet enclosed EMC  safety switch 69 OT800ETRR6TZ 1SCA022828R2660 Steel sheet enclosed EMC  safety switch 64 OT800EUUA3T 1SCA022828R0290 Steel sheet enclosed EMC  safety switch 66 OT800EUUR3AZ 1SCA022828R0450 Steel sheet enclosed EMC  safety switch 68 OT800EUUR3TZ 1SCA022828R0110 Steel sheet enclosed EMC  safety switch 63 OT90AAUA3A 1SCA022297R9880 Steel sheet enclosed safety switch 45 OT90AAUA3T 1SCA022299R0420 Steel sheet enclosed safety switch 33 OT90AAUA6A 1SCA022500R3410 Steel sheet enclosed safety switch 46 OT90AAUA6T 1SCA022360R1830 Steel sheet enclosed safety switch 34 OT90AAUC3AZ 1SCA022512R9780 Steel sheet enclosed safety switch 37 OT90AAUC3TZ 1SCA022339R1840 Steel sheet enclosed safety switch 24 OT90AAUC6AZ 1SCA022542R1920 Steel sheet enclosed safety switch 43 OT90AAUC6TZ 1SCA022360R2130 Steel sheet enclosed safety switch 31 OT90AAUR3AZ 1SCA022513R0790 Steel sheet enclosed safety switch 36 OT90AAUR3TZ 1SCA022303R2440 Steel sheet enclosed safety switch 23 Type Order number Description Page OT90AAUR6AZ 1SCA022542R1840 Steel sheet enclosed safety switch 42 OT90AAUR6TZ 1SCA022360R1910 Steel sheet enclosed safety switch 30 OT90AFCC3A 1SCA110504R1001 Plastic enclosed safety switch 18 OT90AFCC3T 1SCA022576R0200 Plastic enclosed safety switch 15 OT90AFCC6A 1SCA022297R7830 Plastic enclosed safety switch 20 OT90AFCC6T 1SCA022260R3590 Plastic enclosed safety switch 17 OT90ALAA3A 1SCA022297R9290 Steel sheet enclosed safety switch 45 OT90ALAA3T 1SCA022281R7390 Steel sheet enclosed safety switch 33 OT90ALAA6A 1SCA022297R7910 Steel sheet enclosed safety switch 46 OT90ALAA6T 1SCA022299R2630 Steel sheet enclosed safety switch 34 OT90ALCC3AZ 1SCA022512R6090 Steel sheet enclosed safety switch 37 OT90ALCC3TZ 1SCA022340R5490 Steel sheet enclosed safety switch 24 OT90ALCC4AZ 1SCA022542R7700 Steel sheet enclosed safety switch 40 OT90ALCC4TZ 1SCA022461R5080 Steel sheet enclosed safety switch 28 OT90ALCC6AZ 1SCA022512R7900 Steel sheet enclosed safety switch 43 OT90ALCC6TZ 1SCA022340R4760 Steel sheet enclosed safety switch 31 OT90ALRR6AZ 1SCA022512R8890 Steel sheet enclosed safety switch 42 OT90ALRR6TZ 1SCA022340R4500 Steel sheet enclosed safety switch 30 OT90ATAA3A 1SCA022438R6460 Steel sheet enclosed EMC  safety switch 71 OT90ATAA3T 1SCA022398R9030 Steel sheet enclosed EMC  safety switch 66 OT90ATRR6TZ     1SCA022545R7100 Steel sheet enclosed EMC  safety switch 64 OT90AUUA3T 1SCA022398R8140   Steel sheet enclosed EMC  safety switch 66 OT90AUUR3AZ 1SCA022700R6260 Steel sheet enclosed EMC  safety switch 68 OT90AUUR3TZ 1SCA022513R8000 Steel sheet enclosed EMC  safety switch 63 OT90ELBB3A 1SCA022462R0910 Steel sheet enclosed safety switch 44 OT90ELBB3T 1SCA022462R3180 Steel sheet enclosed safety switch 32 OT90ELBB3TZ 1SCA022462R4230 Steel sheet enclosed safety switch 22 OT90ELBB4T 1SCA022472R6820 Steel sheet enclosed safety switch 32 OTE16A3M 1SCA022613R8710 Plastic enclosed EMC safety switch 60 OTE16A4M 1SCA022613R8800 Plastic enclosed EMC safety switch 61 OTE16A6M  1SCA022681R1250 Plastic enclosed EMC safety switch 61 OTE16AL3M 1SCA022613R9610 Plastic enclosed EMC safety switch 60 OTE16AL4M 1SCA022613R9790 Plastic enclosed EMC safety switch 61 OTE16T3M 1SCA022613R2190  Plastic enclosed EMC safety switch 58 OTE16T4M 1SCA022613R2430 Plastic enclosed EMC safety switch 59 OTE16T6M 1SCA022613R8980 Plastic enclosed EMC safety switch 59 OTE16TL3M 1SCA022613R9870 Plastic enclosed EMC safety switch 58 OTE16TL4M 1SCA022613R9950  Plastic enclosed EMC safety switch 59 OTE25A3M 1SCA022613R9010 Plastic enclosed EMC safety switch 60 OTE25A4M 1SCA022613R9100 Plastic enclosed EMC safety switch 61 OTE25A6B 1SCA022615R0500 Plastic enclosed EMC safety switch 61 OTE25AL3M 1SCA022614R0020 Plastic enclosed EMC safety switch 60 OTE25AL4M 1SCA022614R0110 Plastic enclosed EMC safety switch 61 OTE25T3M 1SCA022613R2270 Plastic enclosed EMC safety switch 58 OTE25T4M 1SCA022613R2510 Plastic enclosed EMC safety switch 59 OTE25T6B 1SCA022506R4120 Plastic enclosed EMC safety switch 59 OTE25TL3M 1SCA022614R0290 Plastic enclosed EMC safety switch 58 OTE25TL4M 1SCA022614R0370  Plastic enclosed EMC safety switch 59 OTE36A3M 1SCA022613R9280 Plastic enclosed EMC safety switch 60 OTE36A4M 1SCA022613R9360 Plastic enclosed EMC safety switch 61 OTE36A6B 1SCA022652R3890 Plastic enclosed EMC safety switch 61 OTE36AL3M 1SCA022614R0450 Plastic enclosed EMC safety switch 60 OTE36AL4M 1SCA022614R0530 Plastic enclosed EMC safety switch 61 OTE36T3M 1SCA022613R2350 Plastic enclosed EMC safety switch 58 OTE36T4M 1SCA022613R2600  Plastic enclosed EMC safety switch 59 OTE36T6B 1SCA022506R4210 Plastic enclosed EMC safety switch 59 OTE36TL3M 1SCA022614R0610 Plastic enclosed EMC safety switch 58 OTE36TL4M 1SCA022614R0700  Plastic enclosed EMC safety switch 59 OTE75A3B 1SCA022438R4760 Plastic enclosed EMC safety switch 60 OTE75A3M 1SCA022812R5990 Plastic enclosed EMC safety switch 60 OTE75A4B 1SCA022438R5220 Plastic enclosed EMC safety switch 61 OTE75A4M 1SCA022812R6370 Plastic enclosed EMC safety switch 61 OTE75A6B 1SCA022652R3970 Plastic enclosed EMC safety switch 61 OTE75A6M 1SCA022812R6700 Plastic enclosed EMC safety switch 61

108  Index | Safety switches Type Order number Description Page OTE75AL3B 1SCA022500R9290  Plastic enclosed EMC safety switch 60 OTE75AL3M 1SCA022812R6110 Plastic enclosed EMC safety switch 60 OTE75AL4B 1SCA022500R9700 Plastic enclosed EMC safety switch 61 OTE75AL4M 1SCA022812R6530 Plastic enclosed EMC safety switch 61 OTE75T3B 1SCA022438R3790 Plastic enclosed EMC safety switch 58 OTE75T3M 1SCA022812R4160 Plastic enclosed EMC safety switch 58 OTE75T4B 1SCA022438R4250 Plastic enclosed EMC safety switch 59 OTE75T4M 1SCA022812R4670 Plastic enclosed EMC safety switch 59 OTE75T6B 1SCA022536R1680 Plastic enclosed EMC safety switch 59 OTE75T6M 1SCA022812R5720 Plastic enclosed EMC safety switch 59 OTE75TL3B 1SCA022469R0610 Plastic enclosed EMC safety switch 58 OTE75TL3M 1SCA022812R4320 Plastic enclosed EMC safety switch 58 OTE75TL4B 1SCA022469R1260 Plastic enclosed EMC safety switch 59 OTE75TL4M 1SCA022812R5300 Plastic enclosed EMC safety switch 59 OTE90A3B 1SCA022438R4840 Plastic enclosed EMC safety switch 60 OTE90A3M 1SCA022812R6020 Plastic enclosed EMC safety switch 60 OTE90A4B 1SCA022438R5310 Plastic enclosed EMC safety switch 61 OTE90A4M 1SCA022812R6450 Plastic enclosed EMC safety switch 61 OTE90A6B 1SCA022652R4010 Plastic enclosed EMC safety switch 61 OTE90A6M 1SCA022812R6880 Plastic enclosed EMC safety switch 61 OTE90AL3B 1SCA022500R9370  Plastic enclosed EMC safety switch 60 OTE90AL3M 1SCA022812R6290 Plastic enclosed EMC safety switch 60 OTE90AL4B 1SCA022500R9880 Plastic enclosed EMC safety switch 61 OTE90AL4M 1SCA022812R6610 Plastic enclosed EMC safety switch 61 OTE90T3B 1SCA022438R3870 Plastic enclosed EMC safety switch 58 OTE90T3M 1SCA022812R4240 Plastic enclosed EMC safety switch 58 OTE90T4B 1SCA022438R4330 Plastic enclosed EMC safety switch 59 OTE90T4M 1SCA022812R5050 Plastic enclosed EMC safety switch 59 OTE90T6B 1SCA022536R1760 Plastic enclosed EMC safety switch 59 OTE90T6M 1SCA022812R5810 Plastic enclosed EMC safety switch 59 OTE90TL3B 1SCA022469R0700 Plastic enclosed EMC safety switch 58 OTE90TL3M 1SCA022812R4410 Plastic enclosed EMC safety switch 58 OTE90TL4B 1SCA022469R1340 Plastic enclosed EMC safety switch 59 OTE90TL4M 1SCA022812R5560 Plastic enclosed EMC safety switch 59 OTL16A3B 1SCA022575R1630 Steel sheet enclosed safety switch 35 OTL16A3M 1SCA022612R8750 Steel sheet enclosed safety switch 35 OTL16A4B 1SCA022745R7010 Steel sheet enclosed safety switch 38 OTL16A4M 1SCA022612R9130 Steel sheet enclosed safety switch 38 OTL16A6B 1SCA022745R7430 Steel sheet enclosed safety switch 41 OTL16A6M 1SCA022612R9560 Steel sheet enclosed safety switch 41 OTL16T3B  1SCA022571R9150 Steel sheet enclosed safety switch 22 OTL16T3M 1SCA102679R1001 Steel sheet enclosed safety switch 22 OTL16T4B 1SCA022580R5150 Steel sheet enclosed safety switch 26 OTL16T4M 1SCA022613R0140 Steel sheet enclosed safety switch 26 OTL16T6B 1SCA022580R5230 Steel sheet enclosed safety switch 29 OTL25A3B 1SCA022575R1710 Steel sheet enclosed safety switch 35 OTL25A3M 1SCA022612R8830 Steel sheet enclosed safety switch 35 OTL25A4B 1SCA022745R7190 Steel sheet enclosed safety switch 38 OTL25A4M 1SCA022612R9210 Steel sheet enclosed safety switch 38 OTL25A6B 1SCA022745R6890 Steel sheet enclosed safety switch 41 OTL25A6M 1SCA022612R9640 Steel sheet enclosed safety switch 41 OTL25T3B  1SCA022571R9230 Steel sheet enclosed safety switch 22 OTL25T3M 1SCA022612R9990 Steel sheet enclosed safety switch 22 OTL25T4B 1SCA022580R5310 Steel sheet enclosed safety switch 26 OTL25T4M 1SCA022613R0220 Steel sheet enclosed safety switch 26 OTL25T6B 1SCA022580R8090 Steel sheet enclosed safety switch 29 OTL25T6M 1SCA022613R0650 Steel sheet enclosed safety switch 29 OTL36A3B 1SCA022575R1800 Steel sheet enclosed safety switch 35 OTL36A3M 1SCA022612R8910 Steel sheet enclosed safety switch 35 OTL36A4B 1SCA022745R7270 Steel sheet enclosed safety switch 38 OTL36A4M 1SCA022612R9300 Steel sheet enclosed safety switch 38 OTL36A6B 1SCA022745R6970 Steel sheet enclosed safety switch 41 OTL36A6M 1SCA022612R9720 Steel sheet enclosed safety switch 41 OTL36T3B  1SCA022571R9310 Steel sheet enclosed safety switch 22 OTL36T3M 1SCA022613R0060 Steel sheet enclosed safety switch 22 OTL36T4B 1SCA022580R5400 Steel sheet enclosed safety switch 26 OTL36T4M 1SCA022613R0310 Steel sheet enclosed safety switch 26 OTL36T6B 1SCA022580R8170 Steel sheet enclosed safety switch 29 OTL36T6M 1SCA022613R0730 Steel sheet enclosed safety switch 29 OTL63A3B 1SCA022575R1980 Steel sheet enclosed safety switch 35 Type Order number Description Page OTL63A3M 1SCA022612R9050 Steel sheet enclosed safety switch 35 OTL63A4B 1SCA022745R7350 Steel sheet enclosed safety switch 38 OTL63A4M 1SCA022612R9480 Steel sheet enclosed safety switch 38 OTL63T3B  1SCA022571R9400 Steel sheet enclosed safety switch 22 OTL63T3M  1SCA022609R7180 Steel sheet enclosed safety switch 22 OTL63T4B 1SCA022580R5580 Steel sheet enclosed safety switch 26 OTL63T4M 1SCA022613R0490 Steel sheet enclosed safety switch 26 OTL75A3B 1SCA022555R7580 Steel sheet enclosed safety switch 35 OTL75A3U 1SCA022707R7610 Steel sheet enclosed safety switch 35 OTL75A4B 1SCA022555R7660 Steel sheet enclosed safety switch 38 OTL75A6B 1SCA022555R7740 Steel sheet enclosed safety switch 41 OTL75A6U 1SCA022696R4830 Steel sheet enclosed safety switch 41 OTL75T3B  1SCA022546R0820 Steel sheet enclosed safety switch 22 OTL75T3U  1SCA022718R4520 Steel sheet enclosed safety switch 22 OTL75T4B 1SCA022546R0910 Steel sheet enclosed safety switch 26 OTL75T6B 1SCA022546R1040 Steel sheet enclosed safety switch 29 OTL75T6U 1SCA022730R9160 Steel sheet enclosed safety switch 29 OTL90A3B 1SCA022555R7820 Steel sheet enclosed safety switch 35 OTL90A3U 1SCA022707R7790 Steel sheet enclosed safety switch 35 OTL90A4B 1SCA022555R7910 Steel sheet enclosed safety switch 38 OTL90A6B 1SCA022555R8040 Steel sheet enclosed safety switch 41 OTL90A6U 1SCA022708R3090 Steel sheet enclosed safety switch 41 OTL90T3B  1SCA022546R1120 Steel sheet enclosed safety switch 22 OTL90T3U  1SCA022718R4610 Steel sheet enclosed safety switch 22 OTL90T4B 1SCA022546R1210 Steel sheet enclosed safety switch 26 OTL90T6B 1SCA022546R1390 Steel sheet enclosed safety switch 29 OTL90T6U 1SCA022730R9240 Steel sheet enclosed safety switch 29 OTP16A3M 1SCA022399R6750 Plastic enclosed safety switch 18 OTP16A4M  1SCA022401R1060 Plastic enclosed safety switch 19 OTP16A6M  1SCA022401R2200 Plastic enclosed safety switch 20 OTP16H3M 1SCA022608R8190 Plastic enclosed installation safety  switch 14 OTP16H3M/10 1SCA022608R9240 Plastic enclosed installation safety  switch 14 OTP16H3M1 1SCA022432R1090 Plastic enclosed installation safety  switch 14 OTP16H3M1/10 1SCA022608R9750 Plastic enclosed installation safety  switch 14 OTP16H3M25 1SCA022699R3000 Plastic enclosed installation safety  switch 14 OTP16H3M25/10 1SCA022699R3180 Plastic enclosed installation safety  switch 14 OTP16H3M251 1SCA022699R3340 Plastic enclosed installation safety  switch 14 OTP16H3M251/10 1SCA022699R3420 Plastic enclosed installation safety  switch 14 OTP16H3P 1SCA022371R2310 Plastic enclosed installation safety  switch 14 OTP16H3P/10 1SCA022373R1610 Plastic enclosed installation safety  switch 14 OTP16H3P1 1SCA022371R2400 Plastic enclosed installation safety  switch 14 OTP16H3P1/10 1SCA022373R1700 Plastic enclosed installation safety  switch 14 OTP16HT3M 1SCA022400R9410 Plastic enclosed installation safety  switch 14 OTP16HT3M/10 1SCA022641R7510 Plastic enclosed installation safety  switch 14 OTP16HT3M1 1SCA022400R9320 Plastic enclosed installation safety  switch 14 OTP16HT3M1/10 1SCA022641R7600 Plastic enclosed installation safety  switch 14 OTP16HT3M25 1SCA022699R3770 Plastic enclosed installation safety  switch 14 OTP16HT3M25/10 1SCA022699R3850 Plastic enclosed installation safety  switch 14 OTP16HT3M251 1SCA022699R4070 Plastic enclosed installation safety  switch 14 OTP16HT3M251/10 1SCA022699R4150 Plastic enclosed installation safety  switch 14

Safety switches | Index  109 Type Order number Description Page OTP16K3M 1SCA022400R9830 Plastic enclosed installation safety  switch 14 OTP16K3M1 1SCA022400R9750 Plastic enclosed installation safety  switch 14 OTP16K3M25 1SCA022699R4310 Plastic enclosed installation safety  switch 14 OTP16K3M251 1SCA022699R4400 Plastic enclosed installation safety  switch 14 OTP16KA3M 1SCA022399R6590 Plastic enclosed installation safety  switch 14 OTP16KA3M1 1SCA022401R0330 Plastic enclosed installation safety  switch 14 OTP16KA3M25 1SCA022699R4580 Plastic enclosed installation safety  switch 14 OTP16KA3M251 1SCA022699R4660 Plastic enclosed installation safety  switch 14 OTP16T3M 1SCA022400R9910 Plastic enclosed safety switch 15 OTP16T4M 1SCA022401R0500 Plastic enclosed safety switch 16 OTP16T6M 1SCA022401R1730 Plastic enclosed safety switch 17 OTP25A3M 1SCA022399R6670 Plastic enclosed safety switch 18 OTP25A4M  1SCA022401R1220 Plastic enclosed safety switch 19 OTP25A6M  1SCA022401R2460 Plastic enclosed safety switch 20 OTP25T3M 1SCA022401R0090 Plastic enclosed safety switch 15 OTP25T4M 1SCA022401R0680 Plastic enclosed safety switch 16 OTP25T6M 1SCA022401R1810 Plastic enclosed safety switch 17 OTP36A3M 1SCA022399R6830 Plastic enclosed safety switch 18 OTP36A4M  1SCA022401R1490 Plastic enclosed safety switch 19 OTP36A6M  1SCA022401R2620 Plastic enclosed safety switch 20 OTP36T3M 1SCA022401R0170 Plastic enclosed safety switch 15 OTP36T4M 1SCA022401R0760 Plastic enclosed safety switch 16 OTP36T6M 1SCA022401R1900 Plastic enclosed safety switch 17 OTP63A3M 1SCA022613R1200 Plastic enclosed safety switch 18 OTP63A6B 1SCA022485R6280 Plastic enclosed safety switch 20 OTP63T3M 1SCA022608R2910 Plastic enclosed safety switch 15 OTP63T6B 1SCA022485R6440 Plastic enclosed safety switch 17 OTP75A3B 1SCA022382R0550 Plastic enclosed safety switch 18 OTP75A3M 1SCA022812R3430 Plastic enclosed safety switch 18 OTP75A3U 1SCA022401R0410 Plastic enclosed safety switch 18 OTP75A4B 1SCA022401R1570 Plastic enclosed safety switch 19 OTP75A4M 1SCA022812R3780 Plastic enclosed safety switch 19 OTP75A4U 1SCA022401R1650 Plastic enclosed safety switch 19 OTP75A6B 1SCA022401R2710 Plastic enclosed safety switch 20 OTP75A6M 1SCA022812R3940 Plastic enclosed safety switch 20 OTP75A6U 1SCA022401R2890 Plastic enclosed safety switch 20 OTP75T3B 1SCA022371R2910 Plastic enclosed safety switch 15 OTP75T3M 1SCA022812R2890 Plastic enclosed safety switch 15 OTP75T3U 1SCA022401R0250 Plastic enclosed safety switch 15 OTP75T4B 1SCA022383R0860 Plastic enclosed safety switch 16 OTP75T4M 1SCA022812R3010 Plastic enclosed safety switch 16 OTP75T4U 1SCA022401R0840 Plastic enclosed safety switch 16 OTP75T6B 1SCA022371R3040 Plastic enclosed safety switch 17 OTP75T6M 1SCA022812R3270 Plastic enclosed safety switch 17 OTP75T6U 1SCA022401R2030 Plastic enclosed safety switch 17 OTP90A3B 1SCA022430R0410 Plastic enclosed safety switch 18 OTP90A3M 1SCA022812R3510 Plastic enclosed safety switch 18 OTP90A3U 1SCA022430R1060 Plastic enclosed safety switch 18 OTP90A4B 1SCA022430R1900 Plastic enclosed safety switch 19 OTP90A4M 1SCA022812R3860 Plastic enclosed safety switch 19 OTP90A4U 1SCA022430R2030 Plastic enclosed safety switch 19 OTP90A6B 1SCA022430R2540 Plastic enclosed safety switch 20 OTP90A6M 1SCA022812R4080 Plastic enclosed safety switch 20 OTP90A6U 1SCA022430R2620 Plastic enclosed safety switch 20 OTP90T3B 1SCA022429R3450 Plastic enclosed safety switch 15 OTP90T3M 1SCA022812R2970 Plastic enclosed safety switch 15 OTP90T3U 1SCA022430R0760 Plastic enclosed safety switch 15 OTP90T4B 1SCA022430R1310 Plastic enclosed safety switch 16 OTP90T4M 1SCA022812R3190 Plastic enclosed safety switch 16 OTP90T4U 1SCA022401R0840 Plastic enclosed safety switch 16 OTP90T6B 1SCA022430R2380 Plastic enclosed safety switch 17 OTP90T6M 1SCA022812R3350 Plastic enclosed safety switch 17 Type Order number Description Page OTP90T6U 1SCA022430R2460 Plastic enclosed safety switch 17 OTR16A3B 1SCA022575R7410 Stainless steel sheet enclosed safety  switch 50 OTR16A3M 1SCA022613R2860 Stainless steel sheet enclosed safety  switch 50 OTR16A4B 1SCA022745R7780 Stainless steel sheet enclosed safety  switch 51 OTR16A4M 1SCA022613R3240 Stainless steel sheet enclosed safety  switch 51 OTR16A6B 1SCA022745R8160 Stainless steel sheet enclosed safety  switch 52 OTR16A6M 1SCA022613R3670 Stainless steel sheet enclosed safety  switch 52 OTR16T3B 1SCA022572R0160 Stainless steel sheet enclosed safety  switch 47 OTR16T3M 1SCA022613R2780 Stainless steel sheet enclosed safety  switch 47 OTR16T4B 1SCA022580R5740 Stainless steel sheet enclosed safety  switch 48 OTR16T4M 1SCA022613R4210 Stainless steel sheet enclosed safety  switch 48 OTR16T6B 1SCA022580R5820 Stainless steel sheet enclosed safety  switch 49 OTR16T6M 1SCA022613R464 Stainless steel sheet enclosed safety  switch 49 OTR25A3B 1SCA022575R7590 Stainless steel sheet enclosed safety  switch 50 OTR25A3M 1SCA022613R2940 Stainless steel sheet enclosed safety  switch 50 OTR25A4B 1SCA022745R7860 Stainless steel sheet enclosed safety  switch 51 OTR25A4M 1SCA022613R3320 Stainless steel sheet enclosed safety  switch 51 OTR25A6B 1SCA022745R7510 Stainless steel sheet enclosed safety  switch 52 OTR25A6M 1SCA022613R3750 Stainless steel sheet enclosed safety  switch 52 OTR25T3B 1SCA022572R0240 Stainless steel sheet enclosed safety  switch 47 OTR25T3M 1SCA022613R3910 Stainless steel sheet enclosed safety  switch 47 OTR25T4B 1SCA022580R5910 Stainless steel sheet enclosed safety  switch 48 OTR25T4M 1SCA022613R4300 Stainless steel sheet enclosed safety  switch 48 OTR25T6B 1SCA022580R8250 Stainless steel sheet enclosed safety  switch 49 OTR25T6M 1SCA022613R4720 Stainless steel sheet enclosed safety  switch 49 OTR36A3B 1SCA022575R7670 Stainless steel sheet enclosed safety  switch 50 OTR36A3M 1SCA022613R3080 Stainless steel sheet enclosed safety  switch 50 OTR36A4B 1SCA022745R7940 Stainless steel sheet enclosed safety  switch 51 OTR36A4M 1SCA022613R3410 Stainless steel sheet enclosed safety  switch 51 OTR36A6B 1SCA022745R7600 Stainless steel sheet enclosed safety  switch 52 OTR36A6M 1SCA022613R3830 Stainless steel sheet enclosed safety  switch 52 OTR36T3B 1SCA022572R0320 Stainless steel sheet enclosed safety  switch 47 OTR36T3M 1SCA022613R4050 Stainless steel sheet enclosed safety  switch 47 OTR36T4B 1SCA022580R6040 Stainless steel sheet enclosed safety  switch 48 OTR36T4M 1SCA022613R4480 Stainless steel sheet enclosed safety  switch 48

110  Index | Safety switches Type Order number Description Page OTR36T6B 1SCA022580R8330 Stainless steel sheet enclosed safety  switch 49 OTR36T6M 1SCA022613R4810 Stainless steel sheet enclosed safety  switch 49 OTR63A3B 1SCA022575R7750 Stainless steel sheet enclosed safety  switch 50 OTR63A3M 1SCA022613R3160 Stainless steel sheet enclosed safety  switch 50 OTR63A4B 1SCA022745R8080 Stainless steel sheet enclosed safety  switch 51 OTR63A4M 1SCA022613R3590 Stainless steel sheet enclosed safety  switch 51 OTR63T3B 1SCA022572R0410 Stainless steel sheet enclosed safety  switch 47 OTR63T3M 1SCA022613R4130 Stainless steel sheet enclosed safety  switch 47 OTR63T4B 1SCA022580R6120 Stainless steel sheet enclosed safety  switch 48 OTR63T4M 1SCA022613R4560 Stainless steel sheet enclosed safety  switch 48 OTR75A3B 1SCA022567R8960 Stainless steel sheet enclosed safety  switch 50 OTR75A4B 1SCA022567R9000 Stainless steel sheet enclosed safety  switch 51 OTR75A6B 1SCA022596R7210 Stainless steel sheet enclosed safety  switch 52 OTR75T3B 1SCA022567R1280 Stainless steel sheet enclosed safety  switch 47 OTR75T4B 1SCA022567R1360 Stainless steel sheet enclosed safety  switch 48 OTR75T6B 1SCA022580R9060 Stainless steel sheet enclosed safety  switch 49 OTR90A3B 1SCA022567R9180 Stainless steel sheet enclosed safety  switch 50 OTR90A4B 1SCA022567R9260 Stainless steel sheet enclosed safety  switch 51 OTR90A6B 1SCA022596R7300 Stainless steel sheet enclosed safety  switch 52 OTR90T3B 1SCA022567R1440 Stainless steel sheet enclosed safety  switch 47 OTR90T4B 1SCA022567R1520 Stainless steel sheet enclosed safety  switch 48 OTR90T6B 1SCA022580R9140 Stainless steel sheet enclosed safety  switch 49 OZXB1 1SCA022119R7450 Terminal clamp 79 OZXB1/1 1SCA022193R9880 Terminal clamp 79 OZXB2 1SCA022119R7610 Terminal clamp 79 OZXB2/1 1SCA022194R0200 Terminal clamp 79 OZXB2L 1SCA022158R7750 Terminal clamp 79 OZXB2L/1 1SCA022194R0460 Terminal clamp 79 OZXB3 1SCA022136R8100 Terminal clamp 79 OZXB3/1 1SCA022194R0620 Terminal clamp 79 OZXB4 1SCA022137R4760 Terminal clamp 79 OZXB4/1 1SCA022194R0890 Terminal clamp 79 OZXB5 1SCA022137R2470 Terminal clamp 79 OZXB5/1 1SCA022194R1010 Terminal clamp 79 OZXB6 1SCA022137R4920 Terminal clamp 79 OZXB6/1 1SCA022194R1270 Terminal clamp 79 OZXB8 1SCA022744R1510 Terminal clamp 79 OZXB8/1 1SCA022744R1600 Terminal clamp 79 OZXB9 1SCA022750R3210 Terminal clamp 79 OZXB9/1 1SCA022750R3300 Terminal clamp 79 OZXE19 1SCA022162R8020 Busbar for parallel connection 80 OZXE20 1SCA022161R8650 Busbar for parallel connection 80 OZXE21 1SCA022161R8810 Busbar for parallel connection 80 OZXE45 1SCA022809R0240 Busbar for parallel connection 80 OZXE46 1SCA022809R3180 Busbar for parallel connection 80 OZXE54 1SCA022733R9150 Terminal boltset 80 OZXE56 1SCA022811R5920 Terminal boltset 80 OZXE57 1SCA022811R6060 Terminal boltset 80 Type Order number Description Page OZXK1 2CMA144522R1000 Auxiliary contact 77 OZXK12 2CMA144521R1000 Auxiliary contact 77 OZXL1 1SCA022439R6770 Terminal clamp 79 OZXL1/1 1SCA022469R6220 Terminal clamp 79 OZXL2 1SCA022335R2430 Terminal clamp 79 OZXL2/1 1SCA022352R3340 Terminal clamp 79 OZXT1 1SCA022469R6310 Terminal clamp 79 OZXT1/1 1SCA022469R6490 Terminal clamp 79 SORPNMPAM25/M20  1SCA022646R4510 Adapters for M-thread 86 SORPNMPAM32/M25  1SCA022646R4600 Adapters for M-thread 86 YJTB3 1SCA122170R1001 Condensation water outlet 86 YMF-MB10215 1SCA022191R2170 Cable flange 84 YMF-MB10861SET 1SCA022715R9090 Cable flange 84 YMF-MB10862SET 1SCA022715R9170 Cable flange 84 YMF-MK10440 1SCA022660R7130 Cable flange 84
