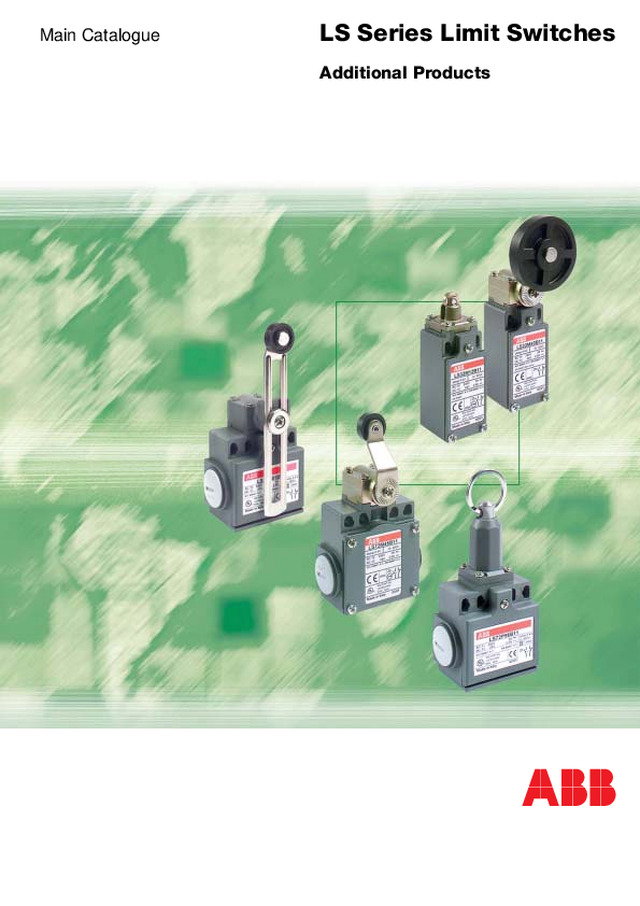

LS Series Limit Switches

Main Catalogue LS Series Limit Switches Additional Products

Low Voltage Products 1 1SBC141138C0201 LS Series Limit Switches Contents Panorama Metal Casing ......................................................................................................................... 2, 3 Plastic Casing ....................................................................................................................... 2, 3 Applications - Description - Type - Implementation Metal Casing IP66LS32M..., LS33M..., LS35M... and LS72M..., LS73M..., LS75M...   . ...................................... 4, 5 Plastic Casing IP65LS72P..., LS73P..., LS75P...  - ............................................................................................... 6, 7 Travel and Operation Diagrams .............................................................................................. 8 Technical Data .............................................................................................................. 9 to 11 Selection Table and Functional Characteristics Metal Casings: 30 mm width .......................................................................................... 12 to 23 60 mm width .......................................................................................... 24 to 35 Plastic Casing: 60 mm width .......................................................................................... 36 to 47 Accessories ............................................................................................................................ 48 Standard ................................................................................................................................. 49 Terminology ............................................................................................................................ 50 Utilization Precautions .......................................................................................................... 51 Ordering Details Metal Casings: 30 mm width .......................................................................................... 52 to 59 60 mm width .......................................................................................... 60 to 67 Plastic Casing: 60 mm width .......................................................................................... 68 to 75 Accessories .............................................................................................................................. 76

2 Type LS...M11 LS...M12, LS...M13 LS...M14 LS...M31 Actuator Plain plunger Roller plunger Plain plunger Roller lever Action type CENELEC conformity / Positive opening operation EN 50047 EN 50047 EN 50047 EN 50047 LS...M51, LS...M53 LS...M52 LS...M55 LS...M61 LS...M62 LS...M71, LS...M72 Adjustable roller lever Adjustable roller lever Adjustable roller lever Flexible lever Flexible lever Adjustable rod lever – – – – – – Note:  The transparent Limit Switches (pictured above) are available, but not referenced in this catalogue (Please consult us). Plastic Casing IP65 LS72P...LS73P... 60 mm LS75P... As the range is very large, the products shownhere are the most comnon. The full range canbe found on pages 36 to 47. Type LS...P10 LS...P12, LS...P13 LS...P31 LS...P38 Actuator Plain plunger Roller plunger Roller lever Adjustable roller lever Action type CENELEC conformity / Positive opening operation – – – – Metal Casing IP66 LS32M...LS33M... 30 mm LS35M... LS72M...LS73M... 60 mm LS75M... LS Series LS Series

3 LS...M32 LS...M35 LS...M38 LS...M41, LS...M43 LS...M42 LS...M45, LS...M46 Roller lever Roller lever Adjustable roller lever Roller lever Roller lever Roller lever – – – EN 50047 – – LS...M73 LS...M74 LS...M78 LS...M91 LS...M92 LS...M98B11-A Adjustable rod lever Adjustable rod lever Adjustable rod lever Flexible rod Flexible rod Pull action – –  –  –  –  – LS...P41, LS...P43 LS...P42 LS...P51, LS...P53 LS...P71, LS...P72 LS...P91 LS...P98 Roller lever Roller lever Adjustable roller lever Adjustable rod lever Flexible rod Pull action – – – – – – Limit Switches Limit Switches

4 Low Voltage Products 1SBC141138C0201 L1221D Applications Easy to use, electromechanical limit switches offer specific qualities: ●  Visible operation. ● Able to switch strong currents (10 A conventional thermal current). ●  Electrically separated contacts (Zb shape). ●  Contact blocks with positive opening operation of the "N.C." normally closed contact(s) (symbol  ). ●  Precise operating points (consistency). ●  Immune to electromagnetic disturbances. They are exceptional detection devices thanks to these characteristics: ●  Presence/absence. ●  Positioning and travel limit. ●  Objects passing/counting. Description Limit switches, which are made of zinc alloy (zamack), have a degree of protection of IP66. The casings come in 2 dimensions: – LS32M..., LS33M..., LS35M...  30 mm width. – LS72M..., LS73M..., LS75M...  60 mm width. LS32M..., LS33M..., LS35M... andLS72M..., LS73M..., LS75M...  Limit Switches Metal Casing IP66 Type Example: L S 3 2 M 4 1 B 1 1 L S M L imit S witch ................................................................................ LS Casing width:  3 0 mm .................................................................................... 3 1 cable inlet M16 x 1.5 for ISO 16 cable gland .................................................... 2 1 cable inlet M20 x 1.5 for ISO 20 cable gland .................................................... 3 1 cable inlet 1/2" NPT for 1/2" NPT cable gland .................................................. 5 M etal casing ..................................................................................................................... M Operating heads: 10 ... 98 ........................................................................................................................ Codes Contact types: 11 ........... 1 N.O. +  1 N.C. contacts 20 ........... 2 N.O. contacts 02 ........... 2 N.C. contacts Snap action: B ........... Zb Snap Dependent (slow) action: L ........... Zb Slow / Simultaneous D ........... Zb Non-overlapping late make C ........... Zb Overlapping early make Casing width:  6 0 mm (new casing) .............................................................. 7 3 cable inlets M16 x 1.5 for ISO 16 cable gland .................................................. 2 3 cable inlets M20 x 1.5 for ISO 20 cable gland .................................................. 3 3 cable inlets 1/2" NPT for 1/2" NPT cable gland ................................................ 5 Travel and Operation Diagrams .................................................................... page 8 Terminology ................................................................................................... page 50 General Technical Data .................................................................................. page 9 Ordering Details ................................................................................... pages 52...67 Mounting the casing: ● 2 x M4 screws for 30 mm width ● 2 or 4 x M4 screws for 60 mm width Casing: ● 30 mm width with standardized dimension according toEN 50047 ● 60 mm width A variety of operating heads: ● Plain plunger ● Roller plunger ● Roller lever, adjustable or not, etc. Assembled using 4 x M3 screws for 30 & 60 mm widths Electrical connection: ● 1 (LS32M) or 3 (LS72M) cable inlets M16 x 1.5 for ISO 16cable gland ● 1 (LS33M) or 3 (LS73M) cable inlets M20 x 1.5 for ISO 20cable gland ● 1 (LS35M) or 3 (LS75M) x 1/2" NPT cable gland ● Other cable entries (Pg13.5, Pg11) on request ● Suitable for conduit connection only with use of adaptorsleeve optionally provided by manufacturer. (on request) Terminal for protective conductor placed near thecable inlet and marked: ● M3.5 (+,–) pozidriv 2 screw(Screw head with captive cable clamp) Cover: ● Closed using 3 x M3 screws for 30 mm width ● Closed using 4 x M3 screws for 60 mm width One piece sealing gasket to ensure tightness Block of 2 contacts: ● Contact configuration: 1 N.O. + 1 N.C. or 2 N.O. or 2 N.C. ● Positive opening operation ● Snap action or slow action ● Zb shape: the 2 contacts are electrically separated Connecting terminals: ● M3.5 (+,–) pozidriv 2 screw(Screw head with captive cable clamp) ● Markings conform with IEC 60947-1, IEC 60947-5-1,EN 50005 and EN 50013 standards

Low Voltage Products 5 1SBC141138C0201 90˚ 180˚ 270˚ 0˚ 90˚ 180˚ 270˚ 0˚ 90˚ 180˚ 270˚ 0˚ L1230D L1231D L1228D Implementation ● Head orientation. ● Free position adjustment 10 °  in 10 °  of the lever. ● Lever round turning. LS32M..., LS33M..., LS35M... andLS72M..., LS73M..., LS75M...  Limit Switches Metal Casing IP66 LS32M..., LS33M... and LS35M... 30 mm width LS72M..., LS73M... and LS75M... 60 mm width

6 Low Voltage Products 1SBC141138C0201 L0906D Applications Easy to use, electromechanical limit switches offer specific qualities: ●  Visible operation. ● Able to switch strong currents (10 A conventional thermal current). ●  Electrically separated contacts (Zb shape). ●  Contact blocks with positive opening operation of the "N.C." normally closed contact(s) (symbol  ). ●  Precise operating points (consistency). ●  Immune to electromagnetic disturbances. They are exceptional detection devices thanks to these characteristics: ●  Presence/absence. ●  Positioning and travel limit. ●  Objects passing/counting. Description Limit switches, which are made of fibre-glass reinforced UL-V0 thermoplastic material, offer double insulation   and a degree of protection IP65. The casing comes in 1 dimension: LS72P..., LS73P..., LS75P...  60 mm width. LS72P..., LS73P... and LS75P...  Limit Switches Double Insulation – Plastic Casing IP65 Type Example: L S 7 2 P 4 1 B 1 1 L S P L imit S witch ................................................................................ LS Casing width:  6 0 mm .................................................................................... 7 2 cable inlets M16 x 1.5 for ISO 16 cable gland .................................................. 2 2 cable inlets M20 x 1.5 for ISO 20 cable gland .................................................. 3 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional1/2" NPT plastic adaptor (on request) ................................................................. 5 P lastic casing .................................................................................................................... P Operating heads: 10 ... 98 ........................................................................................................................ Codes Contact types: 11 ........... 1 N.O. +  1 N.C. contacts 20 ........... 2 N.O. contacts 02 ........... 2 N.C. contacts Snap action: B ........... Zb Snap Dependent (slow) action: L ........... Zb Slow / Simultaneous D ........... Zb Non-overlapping late make C ........... Zb Overlapping early make Casing: ● 60 mm width Block of 2 contacts: ● Contact configuration: 1 N.O. + 1 N.C., 2 N.O., 2 N.C. ● Positive contact opening   ● Snap action or slow action ● Zb shape: the 2 contacts are electrically separated Connecting terminals: ● M3.5 (+,–) pozidriv 2 screw(Screw head with captive cable clamp) ● Markings conform with IEC 60947-1, IEC 60947-5-1,EN 50005 and EN 50013 standards Electrical connection: ● 2 cable inlets M16 x 1.5 cable gland for LS72P ● 2 cable inlets M20 x 1.5 cable gland for LS73P ● 1 x 1/2" NPT by plastic adaptor + 1 x Pg11 for another1/2" NPT plastic adaptor (on request) for LS75P... ● Other cable entries (Pg13.5, Pg11) on request ● Suitable for conduit connection only with use of adaptorsleeve optionally provided by manufacturer. (on request) Mounting the casing: ● 2 or 4 x M4 screws. Cover: ● Closed using ø 3 screws One piece sealing gasket to ensure tightness A variety of operating heads: ● Plain plunger ● Roller plunger ● Roller lever, adjustable or not, etc. Assembled using 4 x ø 3 screws for 60 mm width Travel and Operation Diagrams .................................................................... page 8 Terminology ................................................................................................... page 50 General Technical Data .................................................................................. page 9 Ordering Details ................................................................................... pages 52...67

Low Voltage Products 7 1SBC141138C0201 L1228D 90˚ 180˚ 270˚ 0˚ L1224D L1233D Implementation ● Head orientation. ● Free position adjustment 10 °  in 10 °  of the lever. ● Lever round turning. LS72P..., LS73P... and LS75P...  Limit Switches Double Insulation – Plastic Casing IP65

8 Low Voltage Products 1SBC141138C0201 C1 C2 C3 C4 F1 CP P O P A P P L P R CL L0338D 31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° C C C C L1236D 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 P O Free position: position of the switch actuator when no externalforce is exerted on it. P A Operating position: position of the switch actuator, under the effectof force  F1 , when the contacts leave their initial free position. P P Positive opening position: position of the switch actuator from whichpositive opening is ensured. L Max. travel position: maximum acceptable travel position of theswitch actuator under the effect of a force   F1 . P R Release position: position of the switch actuator when thecontacts return to their initial free position. C 1 Pre-travel  (average travel): distance between the free position  P O and the operating position  P A . C P Positive opening travel: minimum travel of the switch actuator, from thefree position, to ensure positive openingoperation of the normally closed contact (N.C.). C 2 Over-travel  (average travel): distance between the operating position  P A and the max. travel position  L . C L Max. travel  (maximum travel): distance between the free position  P O and the max. travel position  L . C 3 Differential travel (C1-C4)  (average travel): travel difference of the switch actuator betweenthe operating position  P A and the release posi- tion P R . C 4 Release travel  (average travel): distance between the release position  P R and the free position  P O . Diagram for snap action contacts: Diagram for non-overlapping slow action contacts: Note: for slow action contacts,  C 3 = 0,   C 1-1 = pre-travel of contact 21-22,   C 1-2 = pre-travel of contact 13-14. Examples: LS32M13B11 Diagram in millimetres/ cam travel (snap action contacts) LS32M41B11 Diagram in degrees/ lever rotation (snap action contacts) LS32M11D11 Diagram in millimetres/ plunger travel (non-overlapping slow action contacts) C: Travel in millimetres C: Travel in degrees 21-22 13-1421-22 13-14 P P C P C L C 1 Release Actuation C 4 C 3 21-22 13-14 P P C P C L C 1-1 Actuationand release C 1-2 Limit Switches Plastic or Metal Casing Travel and Operation Diagrams 21-22 21-22 Contact closed Contact open Contacts identification (example) Contacts position Panorama .................................................................................................. pages 2...3 Standards ...................................................................................................... page 49 Additional Technical Data ................................................................... pages 12...48 Terminology and Utilization Precautions ........................................... pages 50...51 Ordering Details ................................................................................... pages 52...76

Low Voltage Products 9 1SBC141138C0201 { } { } General Technical Data Plastic Casing Metal Casing Standards IEC 60947-1, IEC 60947-5-1, EN 60947-1, EN 60947-5-1, UL 508 and CSA C22-2 n ° 14 Certifications - Approvals UL - CSA Air temperature  near the device – during operation °C – 25 ... + 70 – 25 ... + 70 – for storage °C – 30 ... + 80 – 30 ... + 80 Climatic withstand According to IEC 68-2-3 and salty mist according to IEC 68-2-11 Mounting positions All positions are authorized Shock withstand (according to IEC 68-2-27 and EN 60068-2-27) g 50 g  (1/2 sinusoidal shock for 11 ms) no change in contact position Resistance to vibrations (acc. to IEC 68-2-6 and EN 60068-2-6) g 25 g  (10 ... 500 Hz) no change in position of contacts greater than 100  µ s Protection against electrical shocks (acc. to IEC 536) Class II Class I Degree of protection (according to IEC 529 and EN 60529) IP65 IP66  Consistency (measured over 1 million operations) 0.1 mm  (upon closing point) 0.1 mm  (upon closing point) Minimum actuation speed m/s Slow action contacts  0.060 / Snap action contacts 0.001 Electrical Data Rated insulation voltage U i – according to IEC 60947-1 and EN 60947-1 V 500 (degree of pollution 3) 400 (degree of pollution 3) – according to UL 508, CSA C22-2 n ° 14 V 600 300 Rated impulse withstand voltage U imp kV 6 (according to IEC 60947-1 and EN 60947-1) Conventional enclosed thermal current I the A 10 (according to IEC 60947-5-1 and EN 60947-5-1 ) θ  40 ° C Short-circuit protection A 10 gG type fuses Rated operational currentI e  / AC-15 – acc. to IEC 60947-5-1 24 V - 50/60 Hz A 10 130 V - 50/60 Hz A 5.5 230 V - 50/60 Hz A 3.1 240 V - 50/60 Hz A 3 400 V - 50/60 Hz A 1.8 – acc. to UL 508, CSA C22 n ° 14 A 600 A 300 I e  / DC-13 – acc. to IEC 60947-5-1 24 V - d.c. A 2.8 110 V - d.c. A 0.6 250 V - d.c. A 0.27 – acc. to UL 508, CSA C22 n ° 14 Q 600 Q 300 Positivity Contacts with positive opening operation as per IEC 60947-5-1 chapter 3 and EN 60947-5-1 Resistance between contacts m Ω 25 Mechanical durability Millions 15 10...12 ; 30...38 15 3x 11...12 ; 31...38 of 10 LS 7xP 13 ; 41...46 ; 51...53 ; 71...78 10 LS M 13 ; 41...46 ; 51...55 ; 61...78 operations 5 91...92 ; 98 5 7x 14 ; 91...92 ; 98 Electrical durability (according to IEC 60947-5-1 appendice C) Utilization categories AC-15 and DC-13 (see curves and values below) – max. switching frequency Cycles/h 3600 – load factor 0.5  Except for LS32/33/35M42,M52 and M55 - LS72/73/75M42, M52 and M55 - LS72/73/75P42, P52 and P55: 25g Except for LS32/33/35M52, M55, M73, M74 and M92 - LS72/73/75M52, M55, M73, M74 and M92 : the degree of protection is IP65. Electrical durability for AC-15 utilization category Electrical durability for DC-13 utilization category Snap action Slow action Snap action Slow action Power breaking for a durability of 5 million operating cycles Voltage 24 V 9.5 W 12 W Voltage 48 V 6.8 W 9 W Voltage 110 V 3.6 W 6 W Limit Switches Plastic or Metal Casing Technical Data 1   2   3   5 10 Current (A) 0.1 0.2 0.3 0.5 1 2 3 5 Millions of operating cycles 12 - 24 4 8 130 230 L0350DG Millions of operating cycles 0.1 0.2 0.3 0.5 Current (A) 1 2 3 5 1   2   3   5 10  0.2  0.3  0.5 12 - 24 48 130 230 - 240 40 0 L0351DG Ordering Details .................................................................................................................................................................................................................................................. pages 52...76

10 Low Voltage Products 1SBC141138C0201 A F E B B C D D C L1237D LS32M..., LS33M..., LS35M... andLS72M..., LS73M..., LS75M... Limit Switches Metal Casing IP66 - 30 mm and 60 mm width Main Technical Data  (continued) Tightening Torques A and F B C D E Connecting terminals for: Closing the cover Assembling Assembling or adjusting: Cable inlet by - Contact block (A) the operating head - Rod lever 1/2" NPT metal - Protective conductor (F) - Roller lever adaptor  Screws M3.5 + pozidriv 2 M3 + pozidriv 1 M3 + pozidriv 1 M3 + pozidriv 1 – Tightening Recommended Max. Recommended Max. Recommended Max. Recommended Max. Recommended Max. torque N.m / lb.in N.m N.m / lb.in N.m N.m / lb.in N.m N.m / lb.in N.m N.m / lb.in N.m Limit switches LS32M11 ... M38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS32M41 ... M78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – LS32M91 ... M98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS33M11 ... M38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS33M41 ... M78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – LS33M91 ... M98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS35M11 ... M38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – 17 / 150 18 LS35M41 ... M78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 17 / 150 18 LS35M91 ... M98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – 17 / 150 18 LS72M11 ... M38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS72M41 ... M78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – LS72M91 ... M98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS73M11 ... M38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS73M41 ... M78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – LS73M91 ... M98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS75M11 ... M38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – 17 / 150 18 LS75M41 ... M78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 17 / 150 18 LS75M91 ... M98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – 17 / 150 18 Connecting data of contact blocks Connecting terminals M3.5 (+,–) pozidriv 2 screw with cable clamp Connecting capacity 1 or 2 x  mm 2  / AWG 0.5 mm 2 / AWG 20 to 2.5 mm 2 / AWG 14 Terminal marking According to EN 50013 Heads M11, M12, M13, M14, M31, M32, M35, M38, M91, M92 and M98 Heads M41, M42, M43, M45, M46, M51, M52, M53, M55, M61, M62, M71, M72, M73, M74 and M78 Rod lever or Roller lever This type of adaptor can be used with direct conduit connections.

Low Voltage Products 11 1SBC141138C0201 A E B D C D C L1237D LS72P..., LS73P..., LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm width Main Technical Data  (continued) Tightening Torques A B C D E Contact block Closing the cover Assembling Assembling or adjusting: Cable inlet by connecting terminals the operating head - Rod lever 1/2" NPT plastic - Roller lever adaptor  Screws M3.5 + pozidriv 2 ø3 + pozidriv 1 ø3 + pozidriv 1 M3 + pozidriv 1 – Tightening Recommended Max. Recommended Max. Recommended Max. Recommended Max. Recommended Max. torque N.m / lb.in N.m N.m / lb.in N.m N.m / lb.in N.m N.m / lb.in N.m N.m / lb.in N.m Limit switches LS72P11 ... P38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS72P41 ... P78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – LS72P91 ... P98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS73P11 ... P38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS73P41 ... P78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – LS73P91 ... P98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – – – LS75P11 ... P38 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – 17 / 150 18 LS75P41 ... P78 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 0.5 / 4.3 0.8 17 / 150 18 LS75P91 ... P98 0.8 / 7 0.9 0.5 / 4.3 0.8 0.5 / 4.3 0.8 – – 17 / 150 18 Connecting data of contact blocks Connecting terminals M3.5 (+,–) pozidriv 2 screw with cable clamp Connecting capacity 1 or 2 x  mm 2  / AWG 0.5 mm 2 / AWG 20 to 2.5 mm 2 / AWG 14 Terminal marking According to EN 50013 Heads P10, P11, P12, P13, P30, P31, P35, P38, P91, P92 and P98 Heads P41, P42, P43, P45, P46, P51, P52, P53, P71, P72, P73, P74 and P78 Rod lever or Roller lever This type of adaptor can be used with direct conduit connections.

12 Low Voltage Products 1SBC141138C0201 20 L0901D O 8 L0902D 75 12.5 31 L0905D O 11 20 25 30 ° L0906D 86 12.5 3.5 39 L0907D O 12.5 20 31 30 ° L0908D 94 12.5 5 30.3 20 22 L1009D O 4  4 55 14.5 32.5 12.5 M16x1.5 L1010D O 8 20 L0903D L0904D 75 12.5 LS32M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M16 x 1.5 for ISO 16 Cable Gland Movement to be detected: On End 30 °  Cam Translat. Unidirectional... Actuator Plain plunger Plain plunger with Roller plunger Plastic roller lever dust protection cup on plunger Conformity /  (N.C. contact with positive opening operation) EN 50047  (B shape) EN 50047  (B shape) EN 50047  (C shape) EN 50047  (E shape) Maximum actuation speed 0.5 m/s 0.5 m/s 0.3 m/s 1 m/s Min. force / torque: - actuation 15 N 15 N 12 N 7 N - positive opening operation 45 N 45 N 41 N 24 N Additional Technical Data Type and Order code to be completed with code  Metal plunger 1 Metal plunger 4 Metal roller 2 Metal plunger 1 Plastic plunger Plastic plunger Plastic roller 3 Plastic plunger Snap action contacts Type LS32M1 1 B11 LS32M1 4 B11 LS32M1 B11 LS32M3 1 B11 Order code 1SBV01191 1 R1211 1SBV01191 4 R1211 1SBV01191 R1211 1SBV01193 1 R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS32M1 1 D11 LS32M1 4 D11 LS32M1 D11 LS32M3 1 D11 Slow action contacts Order code 1SBV01191 1 R1411 1SBV01191 4 R1411 1SBV01191 R1411 1SBV01193 1 R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS32M1 1 C11 LS32M1 4 C11 LS32M1 C11 LS32M3 1 C11 Slow action contacts Order code 1SBV01191 1 R1511 1SBV01191 4 R1511 1SBV01191 R1511 1SBV01193 1 R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS32M1 1 L02 LS32M1 4 L02 LS32M1 L02 LS32M3 1 L02 Order code 1SBV01191 1 R1302 1SBV01191 4 R1302 1SBV01191 R1302 1SBV01193 1 R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS32M1 1 L20 LS32M1 4 L20 LS32M1 L20 LS32M3 1 L20 Order code 1SBV01191 1 R1320 1SBV01191 4 R1320 1SBV01191 R1320 1SBV01193 1 R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS32M1 1 B02 LS32M1 4 B02 LS32M1 B02 LS32M3 1 B02 Order code 1SBV01191 1 R1202 1SBV01191 4 R1202 1SBV01191 R1202 1SBV01193 1 R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.180 0.180 0.185 0.175 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 13 1SBC141138C0201 20 30 ° 21 29 L0909D 39 O12.5 L0910D 94 12.5 5 17...23 29...35 51 O 22 L0911D L0912D 106 12.5 6 53 17.5 O 18 L0913D 5.5 15 40 45 L0914D 108 36 O 50 69 L0915D 17.5 9 43.5 L0916D 124 51 36 O 18 61 L0917D 17.5 5.5 15.5 48.8 L0918D 116 36 O 18 61 L0917D 17.5 5.5 15.5 48.8 L0918D 116 36 Plastic roller lever Adjustable plastic roller ø18 roller lever ø50 rubber roller lever ø18 plastic roller ø18 steel roller on plunger lever on plunger with bent lever with bent lever – – EN 50047  (A shape) – – – 1 m/s 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 7 N 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 24 N 24 N 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Metal plunger 2 Metal plunger 8 Metal roller 3 – – – Plastic plunger Plastic plunger Plastic roller 1 – – – LS32M3 2 B11 LS32M3 8 B11 LS32M4 B11 LS32M42B11 LS32M45B11 LS32M46B11 1SBV01193 2 R1211 1SBV01193 8 R1211 1SBV01194 R1211 1SBV011942R1211 1SBV011945R1211 1SBV011946R1211 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS32M3 2 D11 LS32M3 8 D11 LS32M4 D11 LS32M42D11 LS32M45D11 LS32M46D11 1SBV01193 2 R1411 1SBV01193 8 R1411 1SBV01194 R1411 1SBV011942R1411 1SBV011945R1411 1SBV011946R1411 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS32M3 2 C11 LS32M3 8 C11 LS32M4 C11 LS32M42C11 LS32M45C11 LS32M46C11 1SBV01193 2 R1511 1SBV01193 8 R1511 1SBV01194 R1511 1SBV011942R1511 1SBV011945R1511 1SBV011946R1511 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS32M3 2 L02 LS32M3 8 L02 LS32M4 L02 LS32M42L02 LS32M45L02 LS32M46L02 1SBV01193 2 R1302 1SBV01193 8 R1302 1SBV01194 R1302 1SBV011942R1302 1SBV011945R1302 1SBV011946R1302 5.7 10.2 0 11-12 21-22 21.0 mm 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS32M3 2 L20 LS32M3 8 L20 LS32M4 L20 LS32M42L20 LS32M45L20 LS32M46L20 1SBV01193 2 R1320 1SBV01193 8 R1320 1SBV 01194 R1320 1SBV011942R1320 1SBV011945R1320 1SBV011946R1320 5.3 0 13-14 23-24 21.0 mm 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS32M3 2 B02 LS32M3 8 B02 LS32M4 B02 LS32M42B02 LS32M45B02 LS32M46B02 1SBV01193 2 R1202 1SBV01193 8 R1202 1SBV01194 R1202 1SBV011942R1202 1SBV011945R1202 1SBV011946R1202 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.175 0.180 0.235 0.255 0.250 0.255 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact LS32M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M16 x 1.5 for ISO 16 Cable Gland Unidirectional 30 °  Cam Translation 30 °  Cam Translation Movement Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

14 Low Voltage Products 1SBC141138C0201 L0919D O 18 45.5...117.5 17.5 5.5 41 34 L0920D 100.5....172.5 45.5 42 L0921D O 50 72.5...131 17.5 9 44.5 32.5 52 L0922D 127.5...186 L0923D O 50 72.5...131 17.5 O 3  5.5 L0925D Max.  177.5 17.5 36 L0926D Max.  232.5 170 42 30.3 20 22 L1009D O 4  4 55 14.5 32.5 12.5 M16x1.5 L1010D 9 51...70 59...78 L0924D 127.5...186 42 Actuator Adjustable ø18 Adjustable ø50 Adjustable lever with Adjustable ø3 roller lever rubber roller lever ø50 rubber roller  rod lever Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Additional Technical Data Type and Order code to be completed with code  Metal roller 3 – – Metal rod 1 Plastic roller 1 – – Fibre-glass rod 2 Snap action contacts Type LS32M5 B11  LS32M52B11  LS32M55B11 LS32M7 B11 Order code 1SBV01195 R1211 1SBV011952R1211 1SBV011955R1211 1SBV01197 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS32M5 D11 LS32M52D11 LS32M55D11 LS32M7 D11 Slow action contacts Order code 1SBV01195 R1411 1SBV011952R1411 1SBV011955R1411 1SBV01197 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS32M5 C11 LS32M52C11 LS32M55C11 LS32M7 C11 Slow action contacts Order code 1SBV01195 R1511 1SBV011952R1511 1SBV011955R1511 1SBV01197 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS32M5 L02 LS32M52L02 LS32M55L02 LS32M7 L02 Order code 1SBV01195 R1302 1SBV011952R1302 1SBV011955R1302 1SBV01197 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS32M5 L20 LS32M52L20 LS32M55L20 LS32M7 L20 Order code 1SBV01195 R1320 1SBV011952R1320 1SBV011955R1320 1SBV01197 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS32M5 B02 LS32M52B02 LS32M55B02 LS32M7 B02 Order code 1SBV01195 R1202 1SBV011952R1202 1SBV011955R1202 1SBV01197 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.245 0.265 0.270 0.245 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) LS32M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M16 x 1.5 for ISO 16 Cable Gland Movement to be detected: 30 ° Cam Translation Movement Fully Directional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 Adjustable lever (vertical and horizontal)

Low Voltage Products 15 1SBC141138C0201 L0927D Max.  202.5  8 O 6 17.5 39.5 L0928D max.  257.5 195 44 L0929D Max.  177.5  5.5 17.5  3 36 L0930D Max.  232.5 170 42 3 O 6.3 L0931D 135 O 1.2 L0932D 190  12.5 O 6.3 L0933D 115 L0934D 170  12.5 O 27 L0935D 74 L0936D 129  12.5 L0927D Max.  202.5  8 O 6 17.5 39.5 L0928D max.  257.5 195 44 Adjustable ø6 Adjustable ø6 Adjustable  3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – – – LS32M73B11 LS32M74B11 LS32M78B11 LS32M91B11 LS32M92B11 LS32M98B11-A 1SBV011973R1211 1SBV011974R1211 1SBV011978R1211 1SBV011991R1211 1SBV011992R1211 1SBV011998R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS32M73D11 LS32M74D11 LS32M78D11 LS32M91D11 LS32M92D11 LS32M98D11-A 1SBV011973R1411 1SBV011974R1411 1SBV011978R1411 1SBV011991R1411 1SBV011992R1411 1SBV011998R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS32M73C11 LS32M74C11 LS32M78C11 LS32M91C11 LS32M92C11 1SBV011973R1511 1SBV011974R1511 1SBV011978R1511 1SBV011991R1511 1SBV011992R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS32M73L02 LS32M74L02 LS32M78L02 LS32M91L02 LS32M92L02 LS32M98L02-A 1SBV011973R1302 1SBV011974R1302 1SBV011978R1302 1SBV011991R1302 1SBV011992R1302 1SBV011998R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS32M73L20 LS32M74L20 LS32M78L20 LS32M91L20 LS32M92L20 LS32M98L20-A 1SBV011973R1320 1SBV011974R1320 1SBV011978R1320 1SBV011991R1320 1SBV011992R1320 1SBV011998R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS32M73B02 LS32M74B02 LS32M78B02 LS32M91B02 LS32M92B02 1SBV011973R1202 1SBV011974R1202 1SBV011978R1202 1SBV011991R1202 1SBV011992R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.255 0.255 0.240 0.180 0.185 0.215 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN LS32M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M16 x 1.5 for ISO 16 Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

16 Low Voltage Products 1SBC141138C0201 30.3 20 22 L1009D O 4  4 55 14.5 32.5 12.5 M20x1.5 L1201D 20 L0901D O 8 L0902D 75 12.5 31 L0905D O 11 20 25 30 ° L0906D 86 12.5 3.5 39 L0907D O 12.5 20 31 30 ° L0908D 94 12.5 5 O 8 20 L0903D L0904D 75 12.5 LS33M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M20 x 1.5 for ISO 20 Cable Gland Actuator Plain plunger Plain plunger with Roller plunger Plastic roller lever dust protection cup on plunger Conformity /  (N.C. contact with positive opening operation)  EN 50047  (B shape) EN 50047  (B shape) EN 50047  (C shape) EN 50047  (E shape) Maximum actuation speed 0.5 m/s 0.5 m/s 0.3 m/s 1 m/s Min. force / torque: - actuation 15 N 15 N 12 N 7 N - positive opening operation 45 N 45 N 41 N 24 N Additional Technical Data Type and Order code to be completed with code  Metal plunger 1 Metal plunger 4 Metal roller 2 Metal plunger 1 Plastic plunger Plastic plunger Plastic roller 3 Plastic plunger Snap action contacts Type LS33M1 1 B11 LS33M1 4 B11 LS33M1 B11 LS33M3 1 B11 Order code 1SBV01381 1 R1211 1SBV01381 4 R1211 1SBV01381 R1211 1SBV01383 1 R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS33M1 1 D11 LS33M1 4 D11 LS33M1 D11 LS33M3 1 D11 Slow action contacts Order code 1SBV01381 1 R1411 1SBV01381 4 R1411 1SBV01381 R1411 1SBV01383 1 R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS33M1 1 C11 LS33M1 4 C11 LS33M1 C11 LS33M3 1 C11 Slow action contacts Order code 1SBV01381 1 R1511 1SBV01381 4 R1511 1SBV01381 R1511 1SBV01383 1 R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS33M1 1 L02 LS33M1 4 L02 LS33M1 L02 LS33M3 1 L02 Order code 1SBV01381 1 R1302 1SBV01381 4 R1302 1SBV01381 R1302 1SBV01383 1 R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS33M1 1 L20 LS33M1 4 L20 LS33M1 L20 LS33M3 1 L20 Order code 1SBV01381 1 R1320 1SBV01381 4 R1320 1SBV01381 R1320 1SBV01383 1 R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS33M1 1 B02 LS33M1 4 B02 LS33M1 B02 LS33M3 1 B02 Order code 1SBV01381 1 R1202 1SBV01381 4 R1202 1SBV01381 R1202 1SBV01383 1 R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.180 0.180 0.185 0.175 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Movement to be detected: On End 30 °  Cam Translat. Unidirectional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 17 1SBC141138C0201 20 30 ° 21 29 L0909D 39 O12.5 L0910D 94 12.5 5 17...23 29...35 51 O 22 L0911D L0912D 106 12.5 6 5.5 15 40 45 L0914D 108 36 9 43.5 L0916D 124 51 36 5.5 15.5 48.8 L0918D 116 36 53 17.5 O 18 L0913D O 50 69 L0915D 17.5 O 18 61 L0917D 17.5 5.5 15.5 48.8 L0918D 116 36 O 18 61 L0917D 17.5 Plastic roller lever Adjustable plastic roller ø18 roller lever ø50 rubber roller lever ø18 plastic roller ø18 steel roller on plunger lever on plunger with bent lever with bent lever – – EN 50047  (A shape) – – – 1 m/s 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 7 N 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 24 N 24 N 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Metal plunger 2 Metal plunger 8 Metal roller 3 – – – Plastic plunger Plastic plunger Plastic roller 1 – – – LS33M3 2 B11 LS33M3 8 B11 LS33M4 B11 LS33M42B11 LS33M45B11 LS33M46B11 1SBV01383 2 R1211 1SBV01383 8 R1211 1SBV01384 R1211 1SBV013842R1211 1SBV013845R1211 1SBV013846R1211 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS33M3 2 D11 LS33M3 8 D11 LS33M4 D11 LS33M42D11 LS33M45D11 LS33M46D11 1SBV01383 2 R1411 1SBV01383 8 R1411 1SBV01384 R1411 1SBV013842R1411 1SBV013845R1411 1SBV013846R1411 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS33M3 2 C11 LS33M3 8 C11 LS33M4 C11 LS33M42C11 LS33M45C11 LS33M46C11 1SBV01383 2 R1511 1SBV01383 8 R1511 1SBV01384 R1511 1SBV013842R1511 1SBV013845R1511 1SBV013846R1511 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS33M3 2 L02 LS33M3 8 L02 LS33M4 L02 LS33M42L02 LS33M45L02 LS33M46L02 1SBV01383 2 R1302 1SBV01383 8 R1302 1SBV01384 R1302 1SBV013842R1302 1SBV013845R1302 1SBV013846R1302 5.7 10.2 0 11-12 21-22 21.0 mm 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS33M3 2 L20 LS33M3 8 L20 LS33M4 L20 LS33M42L20 LS33M45L20 LS33M46L20 1SBV01383 2 R1320 1SBV01383 8 R1320 1SBV01384 R1320 1SBV013842R1320 1SBV013845R1320 1SBV013846R1320 5.3 0 13-14 23-24 21.0 mm 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS33M3 2 B02 LS33M3 8 B02 LS33M4 B02 LS33M42B02 LS33M45B02 LS33M46B02 1SBV01383 2 R1202 1SBV01383 8 R1202 1SBV01384 R1202 1SBV013842R1202 1SBV013845R1202 1SBV013846R1202 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.175 0.180 0.235 0.255 0.250 0.255 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact LS33M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M20 x 1.5 for ISO 20 Cable Gland Unidirectional 30 °  Cam Translation 30 °  Cam Translation Movement Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

18 Low Voltage Products 1SBC141138C0201 30.3 20 22 L1009D O 4  4 55 14.5 32.5 12.5 M20x1.5 L1201D L0919D O 18 45.5...117.5 17.5 5.5 41 34 L0920D 100.5....172.5 45.5 42 L0921D O 50 72.5...131 17.5 9 44.5 32.5 52 L0922D 127.5...186 L0923D O 50 72.5...131 17.5 O 3  5.5 L0925D Max.  177.5 17.5 36 L0926D Max.  232.5 170 42 9 51...70 59...78 L0924D 127.5...186 42 Actuator Adjustable ø18 Adjustable ø50 Adjustable lever with Adjustable ø3 roller lever rubber roller lever ø50 rubber roller  rod lever Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Additional Technical Data Type and Order code to be completed with code  Metal roller 3 – – Metal rod 1 Plastic roller 1 – – Fibre-glass rod 2 Snap action contacts Type LS33M5 B11 LS33M52B11 LS33M55B11 LS33M7 B11 Order code 1SBV01385 R1211 1SBV013852R1211 1SBV013855R1211 1SBV01387 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS33M5 D11 LS33M52D11 LS33M55D11 LS33M7 D11 Slow action contacts Order code 1SBV01385 R1411 1SBV013852R1411 1SBV013855R1411 1SBV01387 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS33M5 C11 LS33M52C11 LS33M55C11 LS33M7 C11 Slow action contacts Order code 1SBV01385 R1511 1SBV013852R1511 1SBV013855R1511 1SBV01387 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS33M5 L02 LS33M52L02 LS33M55L02 LS33M7 L02 Order code 1SBV01385 R1302 1SBV013852R1302 1SBV013855R1302 1SBV01387 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS33M5 L20 LS33M52L20 LS33M55L20 LS33M7 L20 Order code 1SBV01385 R1320 1SBV013852R1320 1SBV013855R1320 1SBV01387 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS33M5 B02 LS33M52B02 LS33M55B02 LS33M7 B02 Order code 1SBV01385 R1202 1SBV013852R1202 1SBV013855R1202 1SBV01387 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.245 0.265 0.270 0.245 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) LS33M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M20 x 1.5 for ISO 20 Cable Gland Movement to be detected: 30 °  Cam Translation Movement Fully Directional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 Adjustable lever (vertical and horizontal)

Low Voltage Products 19 1SBC141138C0201 L0927D Max.  202.5  8 O 6 17.5 39.5 L0928D max.  257.5 195 44 L0929D Max.  177.5  5.5 17.5  3 36 L0930D Max.  232.5 170 42 3 O 6.3 L0931D 135 O 1.2 O 6.3 L0933D 115 L0934D 170  12.5 O 27 L0935D 74 L0936D 129  12.5 L0927D Max.  202.5  8 O 6 17.5 39.5 L0928D max.  257.5 195 44 L0932D 190  12.5 Adjustable ø6 Adjustable ø6 Adjustable  3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – LS33M73B11 LS33M74B11 LS33M78B11 LS33M91B11 LS33M92B11 LS33M98B11-A 1SBV013873R1211 1SBV013874R1211 1SBV013878R1211 1SBV013891R1211 1SBV013892R1211 1SBV013898R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS33M73D11 LS33M74D11 LS33M78D11 LS33M91D11 LS33M92D11 LS33M98D11-A 1SBV013873R1411 1SBV013874R1411 1SBV013878R1411 1SBV013891R1411 1SBV013892R1411 1SBV013898R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS33M73C11 LS33M74C11 LS33M78C11 LS33M91C11 LS32M92C11 1SBV013873R1511 1SBV013874R1511 1SBV013878R1511 1SBV013891R1511 1SBV013892R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS33M73L02 LS33M74L02 LS33M78L02 LS33M91L02 LS33M92L02 LS33M98L02-A 1SBV013873R1302 1SBV013874R1302 1SBV013878R1302 1SBV013891R1302 1SBV013892R1302 1SBV013898R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS33M73L20 LS33M74L20 LS33M78L20 LS33M91L20 LS33M92L20 LS33M98L20-A 1SBV013873R1320 1SBV013874R1320 1SBV013878R1320 1SBV013891R1320 1SBV013892R1320 1SBV013898R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS33M73B02 LS33M74B02 LS33M78B02 LS33M91B02 LS33M92B02 1SBV013873R1202 1SBV013874R1202 1SBV013878R1202 1SBV013891R1202 1SBV013892R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.255 0.255 0.240 0.180 0.185 0.215 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN LS33M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet M20 x 1.5 for ISO 20 Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

20 Low Voltage Products 1SBC141138C0201 20 L0901D O 8 L0902D 75 12.5 31 L0905D O 11 20 25 30 ° L0906D 86 12.5 3.5 39 L0907D O 12.5 20 31 30 ° L0908D 94 12.5 5 O 8 20 L0903D L0904D 75 12.5 30.3 20 22 L1009D O 4  4 55 LS35M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet for 1/2" NPT Cable Gland Movement to be detected: On End 30 °  Cam Translat. Unidirectional... Actuator Plain plunger Plain plunger with Roller plunger Plastic roller lever dust protection cup on plunger Conformity /  (N.C. contact with positive opening operation) EN 50047  (B shape) EN 50047  (B shape) EN 50047  (C shape) EN 50047  (E shape) Maximum actuation speed 0.5 m/s 0.5 m/s 0.3 m/s 1 m/s Min. force / torque: - actuation 15 N 15 N 12 N 7 N - positive opening operation 45 N 45 N 41 N 24 N Additional Technical Data Type and Order code to be completed with code  Metal plunger 1 Metal plunger 4 Metal roller 2 Metal plunger 1 Plastic plunger Plastic plunger Plastic roller 3 Plastic plunger Snap action contacts Type LS35M1 1 B11 LS35M1 4 B11 LS35M1 B11 LS35M3 1 B11 Order code 1SBV01371 1 R1211 1SBV01371 4 R1211 1SBV01371 R1211 1SBV01373 1 R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS35M1 1 D11 LS35M1 4 D11 LS35M1 D11 LS35M3 1 D11 Slow action contacts Order code 1SBV01371 1 R1411 1SBV01371 4 R1411 1SBV01371 R1411 1SBV01373 1 R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS35M1 1 C11 LS35M1 4 C11 LS35M1 C11 LS35M3 1 C11 Slow action contacts Order code 1SBV01371 1 R1511 1SBV01371 4 R1511 1SBV01371 R1511 1SBV01373 1 R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS35M1 1 L02 LS35M1 4 L02 LS35M1 L02 LS35M3 1 L02 Order code 1SBV01371 1 R1302 1SBV01371 4 R1302 1SBV01371 R1302 1SBV01373 1 R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS35M1 1 L20 LS35M1 4 L20 LS35M1 L20 LS35M3 1 L20 Order code 1SBV01371 1 R1320 1SBV01371 4 R1320 1SBV01371 R1320 1SBV01373 1 R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS35M1 1 B02 LS35M1 4 B02 LS35M1 B02 LS35M3 1 B02 Order code 1SBV01371 1 R1202 1SBV01371 4 R1202 1SBV01371 R1202 1SBV01373 1 R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.180 0.180 0.185 0.175 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 14.5 32.5 12.5 1 cable inlet for 1/2" NPT cable gland L1202DG

Low Voltage Products 21 1SBC141138C0201 20 30 ° 21 29 L0909D 39 O12.5 L0910D 94 12.5 5 17...23 29...35 51 O 22 L0911D L0912D 106 12.5 6 5.5 15 40 45 L0914D 108 36 9 43.5 L0916D 124 51 36 5.5 15.5 48.8 L0918D 116 36 53 17.5 O 18 L0913D O 50 69 L0915D 17.5 O 18 61 L0917D 17.5 5.5 15.5 48.8 L0918D 116 36 O 18 61 L0917D 17.5 LS35M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet for 1/2" NPT Cable Gland Unidirectional 30 °  Cam Translation 30 °  Cam Translation Movement Plastic roller lever Adjustable plastic roller ø18 roller lever ø50 rubber roller lever ø18 plastic roller ø18 steel roller on plunger lever on plunger with bent lever with bent lever – – EN 50047  (A shape) – – – 1 m/s 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 7 N 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 24 N 24 N 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Metal plunger 2 Metal plunger 8 Metal roller 3 – – – Plastic plunger Plastic plunger Plastic roller 1 – – – LS35M3 2 B11 LS35M3 8 B11 LS35M4 B11 LS35M42B11 LS35M45B11 LS35M46B11 1SBV01373 2 R1211 1SBV01373 8 R1211 1SBV01374 R1211 1SBV013742R1211 1SBV013745R1211 1SBV013746R1211 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS35M3 2 D11 LS35M3 8 D11 LS35M4 D11 LS35M42D11 LS35M45D11 LS35M46D11 1SBV01373 2 R1411 1SBV01373 8 R1411 1SBV01374 R1411 1SBV 01 3742 R1411 1SBV013745R1411 1SBV013746R1411 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS35M3 2 C11 LS35M3 8 C11 LS35M4 C11 LS35M42C11 LS35M45C11 LS35M46C11 1SBV01373 2 R1511 1SBV01373 8 R1511 1SBV01374 R1511 1SBV013742R1511 1SBV013745R1511 1SBV013746R1511 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS35M3 2 L02 LS35M3 8 L02 LS35M4 L02 LS35M42L02 LS35M45L02 LS35M46L02 1SBV01373 2 R1302 1SBV01373 8 R1302 1SBV01374 R1302 1SBV013742R1302 1SBV013745R1302 1SBV013746R1302 5.7 10.2 0 11-12 21-22 21.0 mm 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS35M3 2 L20 LS35M3 8 L20 LS35M4 L20 LS35M42L20 LS35M45L20 LS35M46L20 1SBV01373 2 R1320 1SBV01373 8 R1320 1SBV01374 R1320 1SBV013742R1320 1SBV013745R1320 1SBV013746R1320 5.3 0 13-14 23-24 21.0 mm 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS35M3 2 B02 LS35M3 8 B02 LS35M4 B02 LS35M42B02 LS35M45B02 LS35M46B02 1SBV01373 2 R1202 1SBV01373 8 R1202 1SBV01374 R1202 1SBV013742R1202 1SBV013745R1202 1SBV013746R1202 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.175 0.180 0.235 0.255 0.250 0.255 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

22 Low Voltage Products 1SBC141138C0201 L0919D O 18 45.5...117.5 17.5 5.5 41 34 L0920D 100.5....172.5 45.5 42 L0921D O 50 72.5...131 17.5 9 44.5 32.5 52 L0922D 127.5...186 L0923D O 50 72.5...131 17.5 O 3  5.5 L0925D Max.  177.5 17.5 36 L0926D Max.  232.5 170 42 9 51...70 59...78 L0924D 127.5...186 42 30.3 20 22 L1009D O 4  4 55 Actuator Adjustable ø18 Adjustable ø50 Adjustable lever with Adjustable ø3 roller lever rubber roller lever ø50 rubber roller rod lever Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Additional Technical Data Type and Order code to be completed with code  Metal roller 3 – – Metal rod 1 Plastic roller 1 – – Fibre-glass rod 2 Snap action contacts Type LS35M5 B11 LS35M52B11 LS35M55B11 LS35M7 B11 Order code 1SBV01375 R1211 1SBV013752R1211 1SBV013755R1211 1SBV01377 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS35M5 D11 LS35M52D11 LS35M55D11 LS35M7 D11 Slow action contacts Order code 1SBV01375 R1411 1SBV013752R1411 1SBV013755R1411 1SBV01377 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS35M5 C11 LS35M52C11 LS35M55C11 LS35M7 C11 Slow action contacts Order code 1SBV01375 R1511 1SBV013752R1511 1SBV013755R1511 1SBV01377 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS35M5 L02 LS35M52L02 LS35M55L02 LS35M7 L02 Order code 1SBV01375 R1302 1SBV013752R1302 1SBV013755R1302 1SBV01377 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS35M5 L20 LS35M52L20 LS35M55L20 LS35M7 L20 Order code 1SBV01375 R1320 1SBV013752R1320 1SBV013755R1320 1SBV01377 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS35M5 B02 LS35M52B02 LS35M55B02 LS35M7 B02 Order code 1SBV01375 R1202 1SBV013752R1202 1SBV013755R1202 1SBV01377 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.245 0.265 0.270 0.245 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) LS35M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet for 1/2" NPT Cable Gland Movement to be detected: 30 °  Cam Translation Movement Fully Directional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 14.5 32.5 12.5 1 cable inlet for 1/2" NPT cable gland L1202DG Adjustable lever (vertical and horizontal)

Low Voltage Products 23 1SBC141138C0201 L0927D Max.  202.5  8 O 6 17.5 39.5 L0928D max.  257.5 195 44 L0929D Max.  177.5  5.5 17.5  3 36 L0930D Max.  232.5 170 42 3 O 6.3 L0931D 135 O 1.2 L0932D 190  12.5 O 6.3 L0933D 115 L0934D 170  12.5 O 27 L0935D 74 L0936D 129  12.5 L0927D Max.  202.5  8 O 6 17.5 39.5 L0928D max.  257.5 195 44 Adjustable ø6 Adjustable ø6 Adjustable  3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – – – LS35M73B11 LS35M74B11 LS35M78B11 LS35M91B11 LS35M92B11 LS35M98B11-A 1SBV013773R1211 1SBV013774R1211 1SBV013778R1211 1SBV013791R1211 1SBV013792R1211 1SBV013798R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS35M73D11 LS35M74D11 LS35M78D11 LS35M91D11 LS35M92D11 LS35M98D11-A 1SBV013773R1411 1SBV013774R1411 1SBV013778R1411 1SBV013791R1411 1SBV013792R1411 1SBV013798R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS35M73C11 LS35M74C11 LS35M78C11 LS35M91C11 LS35M92C11 1SBV013773R1511 1SBV013774R1511 1SBV013778R1511 1SBV013791R1511 1SBV013792R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS35M73L02 LS35M74L02 LS35M78L02 LS35M91L02 LS35M92L02 LS35M98L02-A 1SBV013773R1302 1SBV013774R1302 1SBV013778R1302 1SBV013791R1302 1SBV013792R1302 1SBV013798R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS35M73L20 LS35M74L20 LS35M78L20 LS35M91L20 LS35M92L20 LS35M98L20-A 1SBV013773R1320 1SBV013774R1320 1SBV013778R1320 1SBV013791R1320 1SBV013792R1320 1SBV013798R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS35M73B02 LS35M74B02 LS35M78B02 LS35M91B02 LS35M92B02 1SBV013773R1202 1SBV013774R1202 1SBV013778R1202 1SBV013791R1202 1SBV013792R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.255 0.255 0.240 0.180 0.185 0.215 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN LS35M... Limit Switches Metal Casing IP66 - 30 mm Width1 Cable Inlet for 1/2" NPT Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

24 Low Voltage Products 1SBC141138C0201 O 8 20 L0973D 74.5 12.5 L0974D O 11 20 25 30 ° 31 L0975D 88.5 12.5 3.5 L0976D O 12.5 39 20 31 30 ° L0977D 93.5 12.5 5 L0978D O 12.5 30 ° 39 20 31 L0979D 93.5 12.5 5 L0980D O 5.2  2 54.5 59 L1021D 52 20 22 40 42 36 L1208D 14 12.5 3 x M16x1.5 LS72M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Movement to be detected: On End 30 °  Cam Translat. Unidirectional 30 °  Cam Translation Actuator Plain plunger Roller plunger Plastic roller lever Plastic roller lever on plunger on steel plunger Conformity /  (N.C. contact with positive opening operation)  – – – – Maximum actuation speed 0.5 m/s 0.3 m/s 1 m/s 1 m/s Min. force / torque: - actuation 15 N 12 N 7 N 7 N - positive opening operation 45 N 41 N 24 N 24 N Additional Technical Data Type and Order code to be completed with code  Metal plunger 1 Metal roller 2 Metal plunger 1 – Plastic plunger Plastic roller 3 Plastic plunger – Snap action contacts Type LS72M1 1 B11 LS72M1 B11 LS72M3 1 B11 LS72M35B11 Order code 1SBV01431 1 R1211 1SBV01431 R1211 1SBV01433 1 R1211 1SBV014335R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS72M1 1 D11 LS72M1 D11 LS72M3 1 D11 LS72M35D11 Slow action contacts Order code 1SBV01431 1 R1411 1SBV01431 R1411 1SBV01433 1 R1411 1SBV014335R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS72M1 1 C11 LS72M1 C11 LS72M3 1 C11 LS72M35C11 Slow action contacts Order code 1SBV01431 1 R1511 1SBV01431 R1511 1SBV01433 1 R1511 1SBV014335R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS72M1 1 L02 LS72M1 L02 LS72M3 1 L02 LS72M35L02 Order code 1SBV01431 1 R1302 1SBV01431 R1302 1SBV01433 1 R1302 1SBV014335R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS72M1 1 L20 LS72M1 L20 LS72M3 1 L20 LS72M35L20 Order code 1SBV01431 1 R1320 1SBV01431 R1320 1SBV01433 1 R1320 1SBV014335R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS72M1 1 B02 LS72M1 B02 LS72M3 1 B02 LS72M35B02 Order code 1SBV01431 1 R1202 1SBV01431 R1202 1SBV01433 1 R1202 1SBV014335R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.270 0.280 0.265 0.265 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) With dust protection cup Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 25 1SBC141138C0201 17...23 29...35 L0981D 51 O 22 105.5 12.5 6 L0982D 53 O 18 L0983D 17.5 5.5 15 40 107.5 L0984D 45 36 O 50 69 L0985D 17.5 9 43.5 123.5 L0986D 51 36 O 18 61 L0987D 17.5 5.5 15.5 48.8 115.5 L0988D 36 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 Adjustable plastic roller ø18 roller lever ø50 rubber roller lever ø18 roller Adjustable ø18 Adjustable ø18 lever on plunger with bent lever plastic roller lever steel roller lever – – – – – – 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 24 N 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Metal plunger 8 Metal roller 3 – Metal roller 6 – – Plastic plunger Plastic roller 1 – Plastic roller 5 – – LS72M3 8 B11 LS72M4 B11 LS72M42B11 LS72M4 B11 LS72M51B11 LS72M53B11 1SBV01433 8 R1211 1SBV01434 R1211 1SBV014342R1211 1SBV01434 R1211 1SBV014351R1211 1SBV014353R1211   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS72M3 8 D11 LS72M4 D11 LS72M42D11 LS72M4 D11 LS72M51D11 LS72M53D11 1SBV01433 8 R1411 1SBV01434 R1411 1SBV014342R1411 1SBV01434 R1411 1SBV014351R1411 1SBV014353R1411 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS72M3 8 C11 LS72M4 C11 LS72M42C11 LS72M4 C11 LS72M51C11 LS72M53C11 1SBV01433 8 R1511 1SBV01434 R1511 1SBV014342R1511 1SBV01434 R1511 1SBV014351R1511 1SBV014353R1511 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS72M3 8 L02 LS72M4 L02 LS72M42L02 LS72M4 L02 LS72M51L02 LS72M53L02 1SBV01433 8 R1302 1SBV01434 R1302 1SBV014342R1302 1SBV01434 R1302 1SBV014351R1302 1SBV014353R1302 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS72M3 8 L20 LS72M4 L20 LS72M42L20 LS72M4 L20 LS72M51L20 LS72M53L20 1SBV01433 8 R1320 1SBV01434 R1320 1SBV014342R1320 1SBV01434 R1320 1SBV014351R1320 1SBV014353R1320 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS72M3 8 B02 LS72M4 B02 LS72M42B02 LS72M4 B02 LS72M51B02 LS72M53B02 1SBV01433 8 R1202 1SBV01434 R1202 1SBV014342R1202 1SBV01434 R1202 1SBV014351R1202 1SBV014353R1202   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.270 0.325 0.345 0.340 0.340 0.345 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact LS72M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Unidirectional... 30 °  Cam Translation Movement Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

26 Low Voltage Products 1SBC141138C0201 L0991D O 50 77...133.5 17.5 9 44.5 32.5 131.5...188 L0992D 52 42 8 O 7 124 L0993D 17.5 39.5 178.5 L0996D 44 39.5 178.5 L0994D 44 8 O 7 124 L0995D 17.5 L0997D Max.  177.5 O 3  5.5 17.5 36 Max.  232  L0998D 170 42 O 5.2  2 54.5 59 L1021D 52 20 22 40 42 36 L1208D 14 12.5 3 x M16x1.5 LS72M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Movement to be detected: 30 °  Cam Translat. Fully Directional Translation Movement Actuator Adjustable ø50 Flexible lever Coil spring lever Adjustable ø3 rubber roller lever with insulated end rod lever Conformity /  (N.C. contact with positive opening operation) – – – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m – – 0.32 N.m Additional Technical Data Type and Order code to be completed with code  – – – Metal rod 1 – – – Fibre-glass rod 2 Snap action contacts Type LS72M52B11 LS72M61B11 LS72M62B11 LS72M7 B11 Order code 1SBV014352R1211 1SBV014361R1211 1SBV014362R1211 1SBV01437 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS72M52D11 LS72M61D11 LS72M62D11 LS72M7 D11 Slow action contacts Order code 1SBV014352R1411 1SBV014361R1411 1SBV014362R1411 1SBV01437 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 ° 0 21-22 13-14 74 ° 30 ° 21 ° 0 21-22 13-14 74 ° 30 ° 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS72M52C11 LS72M61C11 LS72M62C11 LS72M7 C11 Slow action contacts Order code 1SBV014352R1511 1SBV014361R1511 1SBV014362R1511 1SBV01437 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 0 21-22 13-14 0 21-22 13-14 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS72M52L02 LS72M61L02 LS72M62L02 LS72M7 L02 Order code 1SBV014352R1302 1SBV014361R1302 1SBV014362R1302 1SBV01437 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 0 11-12 21-22 74 ° 19 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS72M52L20 LS72M61L20 LS72M62L20 LS72M7 L20 Order code 1SBV014352R1320 1SBV014361R1320 1SBV014362R1320 1SBV01437 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS72M52B02 LS72M61B02 LS72M62B02 LS72M7 B02 Order code 1SBV014352R1202 1SBV014361R1202 1SBV014362R1202 1SBV01437 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.355 0.375 0.380 0.380 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 27 1SBC141138C0201 L0999D Max.  202.5 8 O 6 17.5 39.5 Max.  257 195 L1000D 44 L1001D 3 Max.  177.5  5.5 17.5 36 Max.  232 L1002D 3 170 42 O 6.3 135 L1003D O 1.2 189.5 L1004D  12.5 O 6.3 115 L1005D 169.5 L1006D  12.5 O 27 74 L1007D 128.5 L1008D  12.5 L0999D Max.  202.5 8 O 6 17.5 39.5 Max.  257 195 L1000D 44 LS72M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Adjustable ø6 Adjustable ø6 Adjustable 3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – – – LS72M73B11 LS72M74B11 LS72M78B11 LS72M91B11 LS72M92B11 LS72M98B11-A 1SBV014373R1211 1SBV014374R1211 1SBV014378R1211 1SBV014391R1211 1SBV014392R1211 1SBV014398R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS72M73D11 LS72M74D11 LS72M78D11 LS72M91D11 LS72M92D11 LS72M98D11-A 1SBV014373R1411 1SBV014374R1411 1SBV014378R1411 1SBV014391R1411 1SBV014392R1411 1SBV014398R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS72M73C11 LS72M74C11 LS72M78C11 LS72M91C11 LS72M92C11 1SBV014373R1511 1SBV014374R1511 1SBV014378R1511 1SBV014391R1511 1SBV014392R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS72M73L02 LS72M74L02 LS72M78L02 LS72M91L02 LS72M92L02 LS72M98L02-A 1SBV014373R1302 1SBV014374R1302 1SBV014378R1302 1SBV014391R1302 1SBV014392R1302 1SBV014398R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS72M73L20 LS72M74L20 LS72M78L20 LS72M91L20 LS72M92L20 LS72M98L20-A 1SBV014373R1320 1SBV014374R1320 1SBV014378R1320 1SBV014391R1320 1SBV014392R1320 1SBV014398R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS72M73B02 LS72M74B02 LS72M78B02 LS72M91B02 LS72M92B02 1SBV014373R1202 1SBV014374R1202 1SBV014378R1202 1SBV014391R1202 1SBV014392R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.390 0.390 0.375 0.315 0.320 0.350 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

28 Low Voltage Products 1SBC141138C0201 O 5.2  2 54.5 59 L1021D 52 20 22 40 42 36 L1022D 14 12.5 3 x M20x1.5 O 8 20 L0973D 74.5 12.5 L0974D O 11 20 25 30 ° 31 L0975D 88.5 12.5 3.5 L0976D 93.5 12.5 5 L0978D 93.5 12.5 5 L0980D O 12.5 39 20 31 30 ° L0977D O 12.5 30 ° 39 20 31 L0979D O 5.2  2 54.5 59 L1021D 52 20 22 40 42 36 L1022D 14 12.5 3 x M20x1.5 O 8 20 L0973D 74.5 12.5 L0974D O 11 20 25 30 ° 31 L0975D 88.5 12.5 3.5 L0976D 93.5 12.5 5 L0978D 93.5 12.5 5 L0980D O 12.5 39 20 31 30 ° L0977D O 12.5 30 ° 39 20 31 L0979D LS73M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Movement to be detected: On End 30 °  Cam Translat. Unidirectional 30 °  Cam Translation Actuator Plain plunger Roller plunger Plastic roller lever Plastic roller lever on plunger on steel plunger Conformity /  (N.C. contact with positive opening operation)   – – – – Maximum actuation speed 0.5 m/s 0.3 m/s 1 m/s 1 m/s Min. force / torque: - actuation 15 N 12 N 7 N 7 N - positive opening operation 45 N 41 N 24 N 24 N Additional Technical Data Type and Order code to be completed with code  Metal plunger 1 Metal roller 2 Metal plunger 1 – Plastic plunger Plastic roller 3 Plastic plunger – Snap action contacts Type LS73M1 1 B11 LS73M1 B11 LS73M3 1 B11 LS73M35B11 Order code 1SBV01521 1 R1211 1SBV01521 R1211 1SBV01523 1 R1211 1SBV015235R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS73M1 1 D11 LS73M1 D11 LS73M3 1 D11 LS73M35D11 Slow action contacts Order code 1SBV01521 1 R1411 1SBV01521 R1411 1SBV01523 1 R1411 1SBV015235R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS73M1 1 C11 LS73M1 C11 LS73M3 1 C11 LS73M35C11 Slow action contacts Order code 1SBV01521 1 R1511 1SBV01521 R1511 1SBV01523 1 R1511 1SBV015235R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS73M1 1 L02 LS73M1 L02 LS73M3 1 L02 LS73M35L02 Order code 1SBV01521 1 R1302 1SBV01521 R1302 1SBV01523 1 R1302 1SBV015235R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS73M1 1 L20 LS73M1 L20 LS73M3 1 L20 LS73M35L20 Order code 1SBV01521 1 R1320 1SBV01521 R1320 1SBV01523 1 R1320 1SBV015235R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS73M1 1 B02 LS73M1 B02 LS73M3 1 B02 LS73M35B02 Order code 1SBV01521 1  R1202 1SBV01521 R1202 1SBV01523 1 R1202 1SBV015235R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.270 0.280 0.265 0.265 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) With dust protection cup Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 29 1SBC141138C0201 17...23 29...35 L0981D 51 O 22 105.5 12.5 6 L0982D 53 O 18 L0983D 17.5 5.5 15 40 107.5 L0984D 45 36 O 50 69 L0985D 17.5 9 43.5 123.5 L0986D 51 36 O 18 61 L0987D 17.5 5.5 15.5 48.8 115.5 L0988D 36 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 17...23 29...35 L0981D 51 O 22 105.5 12.5 6 L0982D 53 O 18 L0983D 17.5 5.5 15 40 107.5 L0984D 45 36 O 50 69 L0985D 17.5 9 43.5 123.5 L0986D 51 36 O 18 61 L0987D 17.5 5.5 15.5 48.8 115.5 L0988D 36 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 Adjustable plastic roller ø18 roller lever  ø50 rubber roller lever ø18 roller Adjustable ø18 Adjustable ø18 lever on plunger with bent lever plastic roller lever steel roller lever – – – – – – 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 24 N 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Metal plunger 8 Metal roller 3 – Metal roller 6 – – Plastic plunger Plastic roller 1 – Plastic roller 5 – – LS73M3 8 B11 LS73M4 B11 LS73M42B11 LS73M4 B11 LS73M51B11 LS73M53B11 1SBV01523 8 R1211 1SBV01524 R1211 1SBV015242R1211 1SBV01524 R1211 1SBV015251R1211 1SBV015253R1211   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS73M3 8 D11 LS73M4 D11 LS73M42D11 LS73M4 D11 LS73M51D11 LS73M53D11 1SBV01523 8 R1411 1SBV01524 R1411 1SBV015242R1411 1SBV01524 R1411 1SBV015251R1411 1SBV015253R1411 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS73M3 8 C11 LS73M4 C11 LS73M42C11 LS73M4 C11 LS73M51C11 LS73M53C11 1SBV01523 8 R1511 1SBV01524 R1511 1SBV015242R1511 1SBV01524 R1511 1SBV015251R1511 1SBV015253R1511 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS73M3 8 L02 LS73M4 L02 LS73M42L02 LS73M4 L02 LS73M51L02 LS73M53L02 1SBV01523 8 R1302 1SBV01524 R1302 1SBV015242R1302 1SBV01524 R1302 1SBV015251R1302 1SBV015253R1302 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS73M3 8 L20 LS73M4 L20 LS73M42L20 LS73M4 L20 LS73M51L20 LS73M53L20 1SBV01523 8 R1320 1SBV01524 R1320 1SBV015242R1320 1SBV01524 R1320 1SBV015251R1320 1SBV015253R1320 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS73M3 8 B02 LS73M4 B02 LS73M42B02 LS73M4 B02 LS73M51B02 LS73M53B02 1SBV01523 8 R1202 1SBV01524 R1202 1SBV015242R1202 1SBV01524 R1202 1SBV015251R1202 1SBV015253R1202   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.270 0.325 0.345 0.340 0.340 0.345 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact LS73M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Unidirectional... 30 °  Cam Translation Movement Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

30 Low Voltage Products 1SBC141138C0201 O 5.2  2 54.5 59 L1021D 52 20 22 40 42 36 L1022D 14 12.5 3 x M20x1.5 L0991D O 50 77...133.5 17.5 9 44.5 32.5 131.5...188 L0992D 52 42 8 O 7 124 L0993D 17.5 39.5 178.5 L0996D 44 39.5 178.5 L0994D 44 8 O 7 124 L0995D 17.5 L0997D Max.  177.5 O 3  5.5 17.5 36 Max.  232  L0998D 170 42 LS73M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Movement to be detected: 30 °  Cam Translat. Fully Directional Translation Movement Actuator Adjustable ø50 Flexible lever Coil spring lever Adjustable ø3 rubber roller lever with insulated end rod lever Conformity /  (N.C. contact with positive opening operation) – – – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m – – 0.32 N.m Additional Technical Data Type and Order code to be completed with code  – – – Metal rod 1 – – – Fibre-glass rod 2 Snap action contacts Type LS73M52B11 LS73M61B11 LS73M62B11 LS73M7 B11 Order code 1SBV015252R1211 1SBV015261R1211 1SBV015262R1211 1SBV01527 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS73M52D11 LS73M61D11 LS73M62D11 LS73M7 D11 Slow action contacts Order code 1SBV015252R1411 1SBV015261R1411 1SBV015262R1411 1SBV01527 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 ° 0 21-22 13-14 74 ° 30 ° 21 ° 0 21-22 13-14 74 ° 30 ° 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS73M52C11 LS73M61C11 LS73M62C11 LS73M7 C11 Slow action contacts Order code 1SBV015252R1511 1SBV015261R1511 1SBV015262R1511 1SBV01527 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 0 21-22 13-14 0 21-22 13-14 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS73M52L02 LS73M61L02 LS73M62L02 LS73M7 L02 Order code 1SBV015252R1302 1SBV015261R1302 1SBV015262R1302 1SBV01527 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 0 11-12 21-22 74 ° 19 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS73M52L20 LS73M61L20 LS73M62L20 LS73M7 L20 Order code 1SBV015252R1320 1SBV015261R1320 1SBV015262R1320 1SBV01527 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS73M52B02 LS73M61B02 LS73M62B02 LS73M7 B02 Order code 1SBV015252R1202 1SBV015261R1202 1SBV015262R1202 1SBV01527 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.355 0.375 0.380 0.380 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 31 1SBC141138C0201 L0999D Max.  202.5 8 O 6 17.5 39.5 Max.  257 195 L1000D 44 L1001D 3 Max.  177.5  5.5 17.5 36 Max.  232 L1002D 3 170 42 O 6.3 135 L1003D O 1.2 189.5 L1004D  12.5 O 6.3 115 L1005D 169.5 L1006D  12.5 O 27 74 L1007D 128.5 L1008D  12.5 L0999D Max.  202.5 8 O 6 17.5 39.5 Max.  257 195 L1000D 44 LS73M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Adjustable ø6 Adjustable ø6 Adjustable 3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – – – LS73M73B11 LS73M74B11 LS73M78B11 LS73M91B11 LS73M92B11 LS73M98B11-A 1SBV015273R1211 1SBV015274R1211 1SBV015278R1211 1SBV015291R1211 1SBV015292R1211 1SBV015298R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS73M73D11 LS73M74D11 LS73M78D11 LS73M91D11 LS73M92D11 LS73M98D11-A 1SBV015273R1411 1SBV015274R1411 1SBV015278R1411 1SBV015291R1411 1SBV015292R1411 1SBV015298R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS73M73C11 LS73M74C11 LS73M78C11 LS73M91C11 LS73M92C11 1SBV015273R1511 1SBV015274R1511 1SBV015278R1511 1SBV015291R1511 1SBV015292R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS73M73L02 LS73M74L02 LS73M78L02 LS73M91L02 LS73M92L02 LS73M98L02-A 1SBV015273R1302 1SBV015274R1302 1SBV015278R1302 1SBV015291R1302 1SBV015292R1302 1SBV015298R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS73M73L20 LS73M74L20 LS73M78L20 LS73M91L20 LS73M92L20 LS73M98L20-A 1SBV015273R1320 1SBV015274R1320 1SBV015278R1320 1SBV015291R1320 1SBV015292R1320 1SBV015298R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS73M73B02 LS73M74B02 LS73M78B02 LS73M91B02 LS73M92B02 1SBV015273R1202 1SBV015274R1202 1SBV015278R1202 1SBV015291R1202 1SBV015292R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.390 0.390 0.375 0.315 0.320 0.350 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

32 Low Voltage Products 1SBC141138C0201 O 5.2  2 54.5 59 L1021D 52 20 22 40 42 O 8 20 L0973D 74.5 12.5 L0974D O 11 20 25 30 ° 31 L0975D 88.5 12.5 3.5 L0976D 93.5 12.5 5 L0978D 93.5 12.5 5 L0980D O 12.5 39 20 31 30 ° L0977D O 12.5 30 ° 39 20 31 L0979D LS75M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets for 1/2" NPT Cable Gland Movement to be detected: On End 30 °  Cam Translat. Unidirectional 30 °  Cam Translation Actuator Plain plunger Roller plunger Plastic roller lever Plastic roller lever on plunger on steel plunger Conformity /  (N.C. contact with positive opening operation)   – – – – Maximum actuation speed 0.5 m/s 0.3 m/s 1 m/s 1 m/s Min. force / torque: - actuation 15 N 12 N 7 N 7 N - positive opening operation 45 N 41 N 24 N 24 N Additional Technical Data Type and Order code to be completed with code  Metal plunger 1 Metal roller 2 Metal plunger 1 – Plastic plunger Plastic roller 3 Plastic plunger – Snap action contacts Type LS75M1 1 B11 LS75M1 B11 LS75M3 1 B11 LS75M35B11 Order code 1SBV01511 1 R1211 1SBV01511 R1211 1SBV01513 1 R1211 1SBV015135R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS75M1 1 D11 LS75M1 D11 LS75M3 1 D11 LS75M35D11 Slow action contacts Order code 1SBV01511 1 R1411 1SBV01511 R1411 1SBV01513 1 R1411 1SBV015135R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS75M1 1 C11 LS75M1 C11 LS75M3 1 C11 LS75M35C11 Slow action contacts Order code 1SBV01511 1 R1511 1SBV01511 R1511 1SBV01513 1 R1511 1SBV015135R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS75M1 1 L02 LS75M1 L02 LS75M3 1 L02 LS75M35L02 Order code 1SBV01511 1 R1302 1SBV01511 R1302 1SBV01513 1 R1302 1SBV015135R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS75M1 1 L20 LS75M1 L20 LS75M3 1 L20 LS75M35L20 Order code 1SBV01511 1 R1320 1SBV01511 R1320 1SBV01513 1 R1320 1SBV015135R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS75M1 1 B02 LS75M1 B02 LS75M3 1 B02 LS75M35B02 Order code 1SBV01511 1  R1202 1SBV01511 R1202 1SBV01513 1 R1202 1SBV015135R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.270 0.280 0.265 0.265 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) With dust protection cup Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 36 L1209DG 14 12.5 3 cable inletsfor 1/2" NPTcable gland

Low Voltage Products 33 1SBC141138C0201 17...23 29...35 L0981D 51 O 22 105.5 12.5 6 L0982D 53 O 18 L0983D 17.5 5.5 15 40 107.5 L0984D 45 36 O 50 69 L0985D 17.5 9 43.5 123.5 L0986D 51 36 O 18 61 L0987D 17.5 5.5 15.5 48.8 115.5 L0988D 36 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 L0989D O 18 45.5...117.5 17.5 5.5 41 34 100...172 L0990D 45.5 42 Adjustable plastic roller ø18 roller lever ø50 rubber roller lever ø18 roller Adjustable ø18 Adjustable ø18 lever on plunger with bent lever plastic roller lever steel roller lever – – – – – – 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m 24 N 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Metal plunger 8 Metal roller 3 – Metal roller 6 – – Plastic plunger Plastic roller 1 – Plastic roller 5 – – LS75M3 8 B11 LS75M4 B11 LS75M42B11 LS75M4 B11 LS75M51B11 LS75M53B11 1SBV01513 8 R1211 1SBV01514 R1211 1SBV015142R1211 1SBV01514 R1211 1SBV015151R1211 1SBV015153R1211   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS75M3 8 D11 LS75M4 D11 LS75M42D11 LS75M4 D11 LS75M51D11 LS75M53D11 1SBV01513 8 R1411 1SBV01514 R1411 1SBV015142R1411 1SBV01514 R1411 1SBV015151R1411 1SBV015153R1411 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS75M3 8 C11 LS75M4 C11 LS75M42C11 LS75M4 C11 LS75M51C11 LS75M53C11 1SBV01513 8 R1511 1SBV01514 R1511 1SBV015142R1511 1SBV01514 R1511 1SBV015151R1511 1SBV015153R1511 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS75M3 8 L02 LS75M4 L02 LS75M42L02 LS75M4 L02 LS75M51L02 LS75M53L02 1SBV01513 8 R1302 1SBV01514 R1302 1SBV015142R1302 1SBV01514 R1302 1SBV015151R1302 1SBV015153R1302 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS75M3 8 L20 LS75M4 L20 LS75M42L20 LS75M4 L20 LS75M51L20 LS75M53L20 1SBV01513 8 R1320 1SBV01514 R1320 1SBV015142R1320 1SBV01514 R1320 1SBV015151R1320 1SBV015153R1320 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS75M3 8 B02 LS75M4 B02 LS75M42B02 LS75M4 B02 LS75M51B02 LS75M53B02 1SBV01513 8 R1202 1SBV01514 R1202 1SBV015142R1202 1SBV01514 R1202 1SBV015151R1202 1SBV015153R1202   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.270 0.325 0.345 0.340 0.340 0.345 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact LS75M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets for 1/2" NPT Cable Gland Unidirectional... 30 °  Cam Translation Movement Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

34 Low Voltage Products 1SBC141138C0201 O 5.2  2 54.5 59 L1021D 52 20 22 40 42 L0991D O 50 77...133.5 17.5 9 44.5 32.5 131.5...188 L0992D 52 42 8 O 7 124 L0993D 17.5 39.5 178.5 L0996D 44 39.5 178.5 L0994D 44 8 O 7 124 L0995D 17.5 L0997D Max.  177.5 O 3  5.5 17.5 36 Max.  232  L0998D 170 42 LS75M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets for 1/2" NPT Cable Gland Movement to be detected: 30 °  Cam Translat. Fully Directional Translation Movement Actuator Adjustable ø50 Flexible lever Coil spring lever Adjustable ø3 rubber roller lever with insulated end rod lever Conformity /  (N.C. contact with positive opening operation)  – – – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m – – 0.32 N.m Additional Technical Data Type and Order code to be completed with code  – – – Metal rod 1 – – – Fibre-glass rod 2 Snap action contacts Type LS75M52B11 LS75M61B11 LS75M62B11 LS75M7 B11 Order code 1SBV015152R1211 1SBV015161R1211 1SBV015162R1211 1SBV01517 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS75M52D11 LS75M61D11 LS75M62D11 LS75M7 D11 Slow action contacts Order code 1SBV015152R1411 1SBV015161R1411 1SBV015162R1411 1SBV01517 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 ° 0 21-22 13-14 74 ° 30 ° 21 ° 0 21-22 13-14 74 ° 30 ° 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS75M52C11 LS75M61C11 LS75M62C11 LS75M7 C11 Slow action contacts Order code 1SBV015152R1511 1SBV015161R1511 1SBV015162R1511 1SBV01517 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 ° 0 21-22 13-14 74 ° 18 ° 35 ° 0 21-22 13-14 74 ° 18 ° 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS75M52L02 LS75M61L02 LS75M62L02 LS75M7 L02 Order code 1SBV015152R1302 1SBV015161R1302 1SBV015162R1302 1SBV01517 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 0 11-12 21-22 74 ° 19 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS75M52L20 LS75M61L20 LS75M62L20 LS75M7 L20 Order code 1SBV015152R1320 1SBV015161R1320 1SBV015162R1320 1SBV01517 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS75M52B02 LS75M61B02 LS75M62B02 LS75M7 B02 Order code 1SBV015152R1202 1SBV015161R1202 1SBV015162R1202 1SBV01517 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.355 0.375 0.380 0.380 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 36 L1209DG 14 12.5 3 cable inletsfor 1/2" NPTcable gland

Low Voltage Products 35 1SBC141138C0201 L0999D Max.  202.5 8 O 6 17.5 39.5 Max.  257 195 L1000D 44 L1001D 3 Max.  177.5  5.5 17.5 36 Max.  232 L1002D 3 170 42 O 6.3 135 L1003D O 1.2 189.5 L1004D  12.5 O 6.3 115 L1005D 169.5 L1006D  12.5 O 27 74 L1007D 128.5 L1008D  12.5 L0999D Max.  202.5 8 O 6 17.5 39.5 Max.  257 195 L1000D 44 LS75M... Limit Switches Metal Casing IP66 - 60 mm Width3 Cable Inlets for 1/2" NPT Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Adjustable ø6 Adjustable ø6 Adjustable 3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – LS75M73B11 LS75M74B11 LS75M78B11 LS75M91B11 LS75M92B11 LS75M98B11-A 1SBV015173R1211 1SBV015174R1211 1SBV015178R1211 1SBV015191R1211 1SBV015192R1211 1SBV015198R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS75M73D11 LS75M74D11 LS75M78D11 LS75M91D11 LS75M92D11 LS75M98D11-A 1SBV015173R1411 1SBV015174R1411 1SBV015178R1411 1SBV015191R1411 1SBV015192R1411 1SBV015198R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS75M73C11 LS75M74C11 LS75M78C11 LS75M91C11 LS75M92C11 1SBV015173R1511 1SBV015174R1511 1SBV015178R1511 1SBV015191R1511 1SBV015192R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS75M73L02 LS75M74L02 LS75M78L02 LS75M91L02 LS75M92L02 LS75M98L02-A 1SBV015173R1302 1SBV015174R1302 1SBV015178R1302 1SBV015191R1302 1SBV015192R1302 1SBV015198R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS75M73L20 LS75M74L20 LS75M78L20 LS75M91L20 LS75M92L20 LS75M98L20-A 1SBV015173R1320 1SBV015174R1320 1SBV015178R1320 1SBV015191R1320 1SBV015192R1320 1SBV015198R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS75M73B02 LS75M74B02 LS75M78B02 LS75M91B02 LS75M92B02 1SBV015173R1202 1SBV015174R1202 1SBV015178R1202 1SBV015191R1202 1SBV015192R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.390 0.390 0.375 0.315 0.320 0.350 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

36 Low Voltage Products 1SBC141138C0201 66 12.5 L0938D O 8 20 L0939D 66 12.5 L0940D O 11 20 25 30 ° 31 L0941D 77 12.5 3.5 L0942D 39 O 12.5 20 31 30 ° L0943D 85 12.5 5 L0944D 33 L1017D 14 12.5 2 x M16x1.5 O 4  4 46 57 L1015D 50 20 22 40 42 O 8 20 L0939D LS72P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Movement to be detected: On end 30 °  Cam Translat. Unidirectional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 Actuator Plastic plain plunger Steel plain plunger Roller plunger Plastic roller leveron plastic plunger Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 0.5 m/s 0.5 m/s 0.3 m/s 1 m/s Min. force / torque: - actuation 15 N 15 N 12 N 7 N - positive opening operation 45 N 45 N 41 N 24 N Additional Technical Data Type and Order code to be completed with code  – – Metal roller 2 – – – Plastic roller 3 – Snap action contacts Type LS72P10B11 LS72P11B11 LS72P1 B11 LS72P30B11 Order code 1SBV011010R1211 1SBV011011R1211 1SBV01101 R1211 1SBV011030R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS72P10D11 LS72P11D11 LS72P1 D11 LS72P30D11 Slow action contacts Order code 1SBV011010R1411 1SBV011011R1411 1SBV01101 R1411 1SBV011030R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS72P10C11 LS72P11C11 LS72P1 C11 LS72P30C11 Slow action contacts Order code 1SBV011010R1511 1SBV011011R1511 1SBV01101 R1511 1SBV 011030R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS72P10L02 LS72P11L02 LS72P1 L02 LS72P30L02 Order code 1SBV011010R1302 1SBV011011R1302 1SBV01101 R1302 1SBV011030R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS72P10L20 LS72P11L20 LS72P1 L20 LS72P30L20 Order code 1SBV011010R1320 1SBV011011R1320 1SBV01101 R1320 1SBV011030R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS72P10B02 LS72P11B02 LS72P1 B02 LS72P30B02 Order code 1SBV011010R1202 1SBV011011R1202 1SBV01101 R1202 1SBV011030R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.095 0.100 0.105 0.100 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm)

Low Voltage Products 37 1SBC141138C0201 39 O 12.5 20 31 30 ° L0945D 85 12.5 5 L0946D O 12.5 30 ° 39 20 31 L0947D 85 12.5 5 L0948D 51 17...23 29...35 L0949D O 22 97 12.5 6 L0950D 53 O 18 17.5 L0951D 5.5 15 40 99 45 L0952D 36 O 50 69 L0953D 17.5 9 43.5 112.5 L0954D 51 36 53 O 18 17.5 L0951D 5.5 15 40 99 45 L0952D 36 Plastic roller lever Plastic roller lever Adjustable plastic roller ø18 plastic roller lever ø18 steel roller lever ø50 rubber roller on steel plunger on steel plunger lever on plunger lever – – – – – – 1 m/s 1 m/s 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 7 N 7 N 0.1 N.m 0.1 N.m 0.1 N.m 24 N 24 N 24 N 0.32 N.m 0.32 N.m 0.32 N.m – – Metal plunger 8 – – – – – Plastic plunger – – – LS72P31B11 LS72P35B11 LS72P3 8 B11 LS72P41B11 LS72P43B11 LS72P42B11 1SBV011031R1211 1SBV 011035R1211 1SBV 01103 8 R1211 1SBV011041R1211 1SBV011043R1211 1SBV011042R1211 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS72P31D11 LS72P35D11 LS72P3 8 D11 LS72P41D11 LS72P43D11 LS72P42D11 1SBV011031R1411 1SBV011035R1411 1SBV01103 8 R1411 1SBV011041R1411 1SBV011043R1411 1SBV011042R1411 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS72P31C11 LS72P35C11 LS72P3 8 C11 LS72P41C11 LS72P43C11 LS72P42C11 1SBV011031R1511 1SBV011035R1511 1SBV01103 8 R1511 1SBV011041R1511 1SBV011043R1511 1SBV011042R1511 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS72P31L02 LS72P35L02 LS72P3 8 L02 LS72P41L02 LS72P43L02 LS72P42L02 1SBV011031R1302 1SBV011035R1302 1SBV01103 8 R1302 1SBV011041R1302 1SBV011043R1302 1SBV011042R1302 5.7 10.2 0 11-12 21-22 21.0 mm 5.7 10.2 0 11-12 21-22 21.0 mm 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS72P31L20 LS72P35L20 LS72P3 8 L20 LS72P41L20 LS72P43L20 LS72P42L20 1SBV011031R1320 1SBV011035R1320 1SBV01103 8 R1320 1SBV011041R1320 1SBV011043R1320 1SBV011042R1320 5.3 0 13-14 23-24 21.0 mm 5.3 0 13-14 23-24 21.0 mm 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS72P31B02 LS72P35B02 LS72P3 8 B02 LS72P41B02 LS72P43B02 LS72P42B02 1SBV011031R1202 1SBV 011035R1202 1SBV01103 8 R1202 1SBV011041R1202 1SBV011043R1202 1SBV011042R1202 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.105 0.105 0.110 0.130 0.135 0.145 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact LS72P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Unidirectional 30 °  Cam Translation Movement 30 °  Cam Translation Movement With dust protection cup Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

38 Low Voltage Products 1SBC141138C0201 O 18 61 17.5 L0955D 5.5 15.5 48.8 107 L0956D 36 O 18 45.5...117.5 17.5 L0957D 5.5 41 34 91.5...163.5 45.5 42 L0958D O 50 77...133.5 17.5 L0959D 9 44.5 32.5 122.5...179.5 51 L0960D 42 Max.  177.5 O 3  5.5 17.5 L0961D 36 Max.  223.5  170 L0962D 42 33 L1017D 14 12.5 2 x M16x1.5 O 4  4 46 57 L1015D 50 20 22 40 42 Actuator ø18 roller Adjustable ø18 Adjustable ø50 Adjustable ø3 with bent lever roller lever rubber roller lever  rod lever Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Additional Technical Data Type and Order code to be completed with code  Metal roller 6 Metal roller 3 – Metal rod 1 Plastic roller 5 Plastic roller 1 – Fibre-glass rod 2 Snap action contacts Type LS72P4 B11 LS72P5 B11 LS72P52B11 LS72P7 B11 Order code 1SBV01104 R1211 1SBV01105 R1211 1SBV011052R1211 1SBV01107 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS72P4 D11 LS72P5 D11 LS72P52D11 LS72P7 D11 Slow action contacts Order code 1SBV01104 R1411 1SBV01105 R1411 1SBV011052R1411 1SBV01107 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS72P4 C11 LS72P5 C11 LS72P52C11 LS72P7 C11 Slow action contacts Order code 1SBV01104 R1511 1SBV01105 R1511 1SBV011052R1511 1SBV01107 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS72P4 L02 LS72P5 L02 LS72P52L02 LS72P7 L02 Order code 1SBV01104 R1302 1SBV01105 R1302 1SBV011052R1302 1SBV01107 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS72P4 L20 LS72P5 L20 LS72P52L20 LS72P7 L20 Order code 1SBV01104 R1320 1SBV0115 R1320 1SBV011052R1320 1SBV01107 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS72P4 B02 LS72P5 B02 LS72P52B02 LS72P7 B02 Order code 1SBV01104 R1202 1SBV01105 R1202 1SBV011052R1202 1SBV01107 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.130 0.140 0.155 0.130 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) LS72P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Movement to be detected: 30 ° Cam Translation Movement Fully Directional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 39 1SBC141138C0201 L0963D Max.  202.5 8 O 6 17.5 39.5 Max.  248.5 195 L0964D 44 L0965D 3 Max.  177.5  5.5 17.5 36 Max.  223.5 L0966D 3 170 42 O 6.3 135 L0967D O 1.2 181 L0968D  12.5 O 6.3 115 L0969D 161  12.5 L0970D O 27 74 L0971D 120 L0972D  12.5 L0963D Max.  202.5 8 O 6 17.5 39.5 Max.  248.5 195 L0964D 44 Adjustable ø6 Adjustable ø6 Adjustable 3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – LS72P73B11 LS72P74B11 LS72P78B11 LS72P91B11 LS72P92B11 LS72P98B11-A 1SBV011073R1211 1SBV011074R1211 1SBV011078R1211 1SBV011091R1211 1SBV011092R1211 1SBV011098R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS72P73D11 LS72P74D11 LS72P78D11 LS72P91D11 LS72P92D11 LS72P98D11-A 1SBV011073R1411 1SBV011074R1411 1SBV011078R1411 1SBV011091R1411 1SBV011092R1411 1SBV011098R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS72P73C11 LS72P74C11 LS72P78C11 LS72P91C11 LS72P92C11 1SBV011073R1511 1SBV011074R1511 1SBV011078R1511 1SBV011091R1511 1SBV011092R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS72P73L02 LS72P74L02 LS72P78L02 LS72P91L02 LS72P92L02 LS72P98L02-A 1SBV011073R1302 1SBV011074R1302 1SBV011078R1302 1SBV 011091R1302 1SBV011092R1302 1SBV011098R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS72P73L20 LS72P74L20 LS72P78L20 LS72P91L20 LS72P92L20 LS72P98L20-A 1SBV011073R1320 1SBV011074R1320 1SBV011078R1320 1SBV011091R1320 1SBV011092R1320 1SBV011098R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS72P73B02 LS72P74B02 LS72P78B02 LS72P91B02 LS72P92B02 1SBV011073R1202 1SBV011074R1202 1SBV011078R1202 1SBV011091R1202 1SBV011092R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.145 0.145 0.125 0.110 0.115 0.145 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN LS72P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M16 x 1.5 for ISO 16 Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

40 Low Voltage Products 1SBC141138C0201 33 L1016D 14 12.5 2 x M16x1.5 O 4  4 46 57 L1015D 50 20 22 40 42 66 12.5 L0938D O 8 20 L0939D 66 12.5 L0940D O 11 20 25 30 ° 31 L0941D 77 12.5 3.5 L0942D 39 O 12.5 20 31 30 ° L0943D 85 12.5 5 L0944D O 8 20 L0939D LS73P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Movement to be detected: On end 30 °  Cam Translat. Unidirectional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 Actuator Plastic plain plunger Steel plain plunger Roller plunger Plastic roller leveron plastic plunger Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 0.5 m/s 0.5 m/s 0.3 m/s 1 m/s Min. force / torque: - actuation 15 N 15 N 12 N 7 N - positive opening operation 45 N 45 N 41 N 24 N Additional Technical Data Type and Order code to be completed with code  – – Metal roller 2 – – – Plastic roller 3 – Snap action contacts Type LS73P10B11 LS73P11B11 LS73P1 B11 LS73P30B11 Order code 1SBV012810R1211 1SBV012811R1211 1SBV01281 R1211 1SBV012830R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS73P10D11 LS73P11D11 LS73P1 D11 LS73P30D11 Slow action contacts Order code 1SBV012810R1411 1SBV012811R1411 1SBV01281 R1411 1SBV012830R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS73P10C11 LS73P11C11 LS73P1 C11 LS73P30C11 Slow action contacts Order code 1SBV012810R1511 1SBV012811R1511 1SBV 01281 R1511 1SBV012830R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS73P10L02 LS73P11L02 LS73P1 L02 LS73P30L02 Order code 1SBV012810R1302 1SBV012811R1302 1SBV01281 R1302 1SBV012830R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS73P10L20 LS73P11L20 LS73P1 L20 LS73P30L20 Order code 1SBV012810R1320 1SBV012811R1320 1SBV01281 R1320 1SBV012830R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS73P10B02 LS73P11B02 LS73P1 B02 LS73P30B02 Order code 1SBV012810R1202 1SBV012811R1202 1SBV01281 R1202 1SBV012830R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.095 0.100 0.105 0.100 Special heads, accessories and special contact arrangement or particular function: please consult us..  Closed contact /   Open contact Dimensions (in mm)

Low Voltage Products 41 1SBC141138C0201 39 O 12.5 20 31 30 ° L0945D 85 12.5 5 L0946D O 12.5 30 ° 39 20 31 L0947D 85 12.5 5 L0948D 51 17...23 29...35 L0949D O 22 97 12.5 6 L0950D 53 O 18 17.5 L0951D 5.5 15 40 99 45 L0952D 36 O 50 69 L0953D 17.5 9 43.5 112.5 L0954D 51 36 53 O 18 17.5 L0951D 5.5 15 40 99 45 L0952D 36 LS73P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Plastic roller lever Plastic roller lever Adjustable plastic roller ø18 plastic roller lever ø18 steel roller lever ø50 rubber roller lever on steel plunger on steel plunger lever on plunger – – – – – – 1 m/s 1 m/s 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 7 N 7 N 0.1 N.m 0.1 N.m 0.1 N.m 24 N 24 N 24 N 0.32 N.m 0.32 N.m 0.32 N.m – – Metal plunger 8 – – – – – Plastic plunger – – – LS73P31B11 LS73P35B11 LS73P3 8 B11 LS73P41B11 LS73P43B11 LS73P42B11 1SBV012831R1211 1SBV012835R1211 1SBV01283 8 R1211 1SBV012841R1211 1SBV012843R1211 1SBV012842R1211 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS73P31D11 LS73P35D11 LS73P3 8 D11 LS73P41D11 LS73P43D11 LS73P42D11 1SBV012831R1411 1SBV012835R1411 1SBV01283 8 R1411 1SBV012841R1411 1SBV012843R1411 1SBV012842R1411 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS73P31C11 LS73P35C11 LS73P3 8 C11 LS73P41C11 LS73P43C11 LS73P42C11 1SBV012831R1511 1SBV012835R1511 1SBV01283 8 R1511 1SBV012841R1511 1SBV012843R1511 1SBV012842R1511 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS73P31L02 LS73P35L02 LS73P3 8 L02 LS73P41L02 LS73P43L02 LS73P42L02 1SBV012831R1302 1SBV012835R1302 1SBV01283 8 R1302 1SBV012841R1302 1SBV012843R1302 1SBV012842R1302 5.7 10.2 0 11-12 21-22 21.0 mm 5.7 10.2 0 11-12 21-22 21.0 mm 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS73P31L20 LS73P35L20 LS73P3 8 L20 LS73P41L20 LS73P43L20 LS73P42L20 1SBV012831R1320 1SBV012835R1320 1SBV01283 8 R1320 1SBV012841R1320 1SBV012843R1320 1SBV012842R1320 5.3 0 13-14 23-24 21.0 mm 5.3 0 13-14 23-24 21.0 mm 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS73P31B02 LS73P35B02 LS73P3 8 B02 LS73P41B02 LS73P43B02 LS73P42B02 1SBV012831R1202 1SBV012835R1202 1SBV01283 8 R1202 1SBV012841R1202 1SBV012843R1202 1SBV012842R1202 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.105 0.105 0.110 0.130 0.135 0.145 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Unidirectional 30 °  Cam Translation Movement 30 °  Cam Translation Movement With dust protection cup Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

42 Low Voltage Products 1SBC141138C0201 O 18 61 17.5 L0955D 5.5 15.5 48.8 107 L0956D 36 O 18 45.5...117.5 17.5 L0957D 5.5 41 34 91.5...163.5 45.5 42 L0958D O 50 77...133.5 17.5 L0959D 9 44.5 32.5 122.5...179.5 51 L0960D 42 Max.  177.5 O 3  5.5 17.5 L0961D 36 Max.  223.5  170 L0962D 42 33 L1016D 14 12.5 2 x M16x1.5 O 4  4 46 57 L1015D 50 20 22 40 42 LS73P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Actuator ø18 roller Adjustable ø18 Adjustable ø50 Adjustable ø3 with bent lever roller lever  rubber roller lever  rod lever Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Additional Technical Data Type and Order code to be completed with code  Metal roller 6 Metal roller 3 – Metal rod 1 Plastic roller 5 Plastic roller 1 – Fibre-glass rod 2 Snap action contacts Type LS73P4 B11 LS73P5 B11 LS73P52B11 LS73P7 B11 Order code 1SBV01284 R1211 1SBV01285 R1211 1SBV012852R1211 1SBV01287 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS73P4 D11 LS73P5 D11 LS73P52D11 LS73P7 D11 Slow action contacts Order code 1SBV01284 R1411 1SBV01285 R1411 1SBV012852R1411 1SBV01287 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS73P4 C11 LS73P5 C11 LS73P52C11 LS73P7 C11 Slow action contacts Order code 1SBV01284 R1511 1SBV01285 R1511 1SBV012852R1511 1SBV01287 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS73P4 L02 LS73P5 L02 LS73P52L02 LS73P7 L02 Order code 1SBV01284 R1302 1SBV01285 R1302 1SBV012852R1302 1SBV01287 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS73P4 L20 LS73P5 L20 LS73P52L20 LS73P7 L20 Order code 1SBV01284 R1320 1SBV01285 R1320 1SBV012852R1320 1SBV01287 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS73P4 B02 LS73P5 B02 LS73P52B02 LS73P7 B02 Order code 1SBV01284 R1202 1SBV01285 R1202 1SBV012852R1202 1SBV01287 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.130 0.140 0.155 0.130 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Movement to be detected: 30 °  Cam Translation Movement Fully Directional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

Low Voltage Products 43 1SBC141138C0201 L0963D Max.  202.5 8 O 6 17.5 39.5 Max.  248.5 195 L0964D 44 L0965D 3 Max.  177.5  5.5 17.5 36 Max.  223.5 L0966D 3 170 42 O 6.3 135 L0967D O 1.2 181 L0968D  12.5 O 6.3 115 L0969D 161  12.5 L0970D O 27 74 L0971D 120 L0972D  12.5 L0963D Max.  202.5 8 O 6 17.5 39.5 Max.  248.5 195 L0964D 44 LS73P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets M20 x 1.5 for ISO 20 Cable Gland Fully Directional Translation Movement Multidirectional Pull Action Adjustable ø6 Adjustable ø6 Adjustable 3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – – – LS73P73B11 LS73P74B11 LS73P78B11 LS73P91B11 LS73P92B11 LS73P98B11-A 1SBV012873R1211 1SBV012874R1211 1SBV012878R1211 1SBV012891R1211 1SBV012892R1211 1SBV012898R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS73P73D11 LS73P74D11 LS73P78D11 LS73P91D11 LS73P92D11 LS73P98D11-A 1SBV012873R1411 1SBV012874R1411 1SBV012878R1411 1SBV012891R1411 1SBV012892R1411 1SBV012898R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS73P73C11 LS73P74C11 LS73P78C11 LS73P91C11 LS73P92C11 1SBV012873R1511 1SBV012874R1511 1SBV012878R1511 1SBV012891R1511 1SBV012892R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS73P73L02 LS73P74L02 LS73P78L02 LS73P91L02 LS73P92L02 LS73P98L02-A 1SBV012873R1302 1SBV012874R1302 1SBV012878R1302 1SBV012891R1302 1SBV012892R1302 1SBV012898R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS73P73L20 LS73P74L20 LS73P78L20 LS73P91L20 LS73P92L20 LS73P98L20-A 1SBV012873R1320 1SBV012874R1320 1SBV012878R1320 1SBV012891R1320 1SBV012892R1320 1SBV012898R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS73P73B02 LS73P74B02 LS73P78B02 LS73P91B02 LS73P92B02 1SBV012873R1202 1SBV012874R1202 1SBV012878R1202 1SBV012891R1202 1SBV012892R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.145 0.145 0.125 0.110 0.115 0.145 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

44 Low Voltage Products 1SBC141138C0201 66 12.5 L0938D O 8 20 L0939D 66 12.5 L0940D O 11 20 25 30 ° 31 L0941D 77 12.5 3.5 L0942D 39 O 12.5 20 31 30 ° L0943D 85 12.5 5 L0944D O 8 20 L0939D 33 L1205D 14 12.5 LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets for 1/2" NPT plastic adaptor Movement to be detected: On end 30 °  Cam Translat. Unidirectional... Actuator Plastic plain plunger Steel plain plunger Roller plunger Plastic roller leveron plastic plunger Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 0.5 m/s 0.5 m/s 0.3 m/s 1 m/s Min. force / torque: - actuation 15 N 15 N 12 N 7 N - positive opening operation 45 N 45 N 41 N 24 N Additional Technical Data Type and Order code to be completed with code  – – Metal roller 2 – – – Plastic roller 3 – Snap action contacts Type LS75P10B11 LS75P11B11 LS75P1 B11 LS75P30B11 Order code 1SBV012710R1211 1SBV012711R1211 1SBV01271 R1211 1SBV012730R1211 21 22 13 14 Zb Operation 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 2.7 4.3 0 21-22 13-1421-22 13-14 5.6 mm 1.7 4.8 7.7 0 21-22 13-1421-22 13-14 9.6 mm 3.0 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 diagram Non-overlapping Type LS75P10D11 LS75P11D11 LS75P1 D11 LS75P30D11 Slow action contacts Order code 1SBV012710R1411 1SBV012711R1411 1SBV01271 R1411 1SBV012730R1411 21 22 13 14 Zb Operation 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 1.9 3.5 0 21-22 13-14 5.6 mm 2.8 3.4 6.3 0 21-22 13-14 9.6 mm 5.1 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 diagram Overlapping Type LS75P10C11 LS75P11C11 LS75P1 C11 LS75P30C11 Slow action contacts Order code 1SBV012710R1511 1SBV012711R1511 1SBV01271 R1511 1SBV012730R1511 21 22 13 14 Zb Operation 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 3.2 4.8 0 21-22 13-14 5.6 mm 1.8 5.7 8.6 0 21-22 13-14 9.6 mm 3.2 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 diagram Slow action contacts Type LS75P10L02 LS75P11L02 LS75P1 L02 LS75P30L02 Order code 1SBV012710R1302 1SBV012711R1302 1SBV01271 R1302 1SBV012730R1302 21 22 11 12 Zb Operation 1.9 3.5 0 11-12 21-22 5.6 mm 1.9 3.5 0 11-12 21-22 5.6 mm 3.4 6.3 0 11-12 21-22 9.6 mm 5.7 10.2 0 11-12 21-22 21.0 mm diagram Slow action contacts Type LS75P10L20 LS75P11L20 LS75P1 L20 LS75P30L20 Order code 1SBV012710R1320 1SBV012711R1320 1SBV01271 R1320 1SBV012730R1320 23 24 13 14 Zb Operation 1.8 0 13-14 23-24 5.6 mm 1.8 0 13-14 23-24 5.6 mm 3.2 0 13-14 23-24 9.6 mm 5.3 0 13-14 23-24 21.0 mm diagram Snap action contacts Type LS75P10B02 LS75P11B02 LS75P1 B02 LS75P30B02 Order code 1SBV012710R1202 1SBV012711R1202 1SBV01271 R1202 1SBV012730R1202 21 22 11 12 Zb Operation 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 2.8 4.4 0 11-12 21-2211-12 21-22 5.6 mm 1.8 5.0 7.9 0 11-12 21-2211-12 21-22 9.6 mm 3.2 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 diagram Weight (packing per unit) kg 0.102 0.107 0.112 0.107 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) - 1 cable inlet by 1/2" NPT plastic adaptor  (delivered not mounted) , and - 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor  (on request) 1/2" NPT plastic adaptors LSR1305 1SBV 04 7500 R1305 1 packet of 1 piece LSR1305 1SBV 04 7500 T1305 1 packet of 10 pieces LSR1305 1SBV 04 7500 W1305 1 packet of 50 pieces Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 O 4  4 46 57 50 20 22 40 42 1/2" NPTplastic adaptor delivered not mounted Pg11 18 1 L1204D

Low Voltage Products 45 1SBC141138C0201 39 O 12.5 20 31 30 ° L0945D 85 12.5 5 L0946D O 12.5 30 ° 39 20 31 L0947D 85 12.5 5 L0948D 51 17...23 29...35 L0949D O 22 97 12.5 6 L0950D 53 O 18 17.5 L0951D 5.5 15 40 99 45 L0952D 36 O 50 69 L0953D 17.5 9 43.5 112.5 L0954D 51 36 53 O 18 17.5 L0951D 5.5 15 40 99 45 L0952D 36 LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets for 1/2" NPT plastic adaptor Unidirectional 30 °  Cam Translation Movement 30 °  Cam Translation Movement Plastic roller lever Plastic roller lever Adjustable plastic roller ø18 plastic roller lever ø18 steel roller lever ø50 rubber roller lever on steel plunger on steel plunger on plunger – – – – – – 1 m/s 1 m/s 1 m/s 1.5 m/s 1.5 m/s 1.5 m/s 7 N 7 N 7 N 0.1 N.m 0.1 N.m 0.1 N.m 24 N 24 N 24 N 0.32 N.m 0.32 N.m 0.32 N.m – – Metal plunger 8 – – – – Plastic plunger – – LS75P31B11 LS75P35B11 LS75P3 8 B11 LS75P41B11 LS75P43B11 LS75P42B11 1SBV012731R1211 1SBV012735R1211 1SBV01273 8 R1211 1SBV012741R1211 1SBV012743R1211 1SBV012742R1211 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9 9.0 14.5 0 21-22 13-1421-22 13-14 21.0 mm 4.9   15.0 23.2 0 21-22 13-1421-22 13-14 32.0 mm 8.8   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° LS75P31D11 LS75P35D11 LS75P3 8 D11 LS75P41D11 LS75P43D11 LS75P42D11 1SBV012731R1411 1SBV012735R1411 1SBV01273 8 R1411 1SBV012741R1411 1SBV012743R1411 1SBV012742R1411 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 6.0  10.5 0 21-22 13-14 21.0 mm 8.6 10.6   18.5 0 21-22 13-14 32.0 mm 15.1 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ LS75P31C11 LS75P35C11 LS75P3 8 C11 LS75P41C11 LS75P43C11 LS75P42C11 1SBV012731R1511 1SBV012735R1511 1SBV01273 8 R1511 1SBV012741R1511 1SBV012743R1511 1SBV012742R1511 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 10.2  14.6 0 21-22 13-14 21.0 mm 5.4 16.8  25.1 0 21-22 13-14 32.0 mm 9.4 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ LS75P31L02 LS75P35L02 LS75P3 8 L02 LS75P41L02 LS75P43L02 LS75P42L02 1SBV012731R1302 1SBV012735R1302 1SBV01273 8 R1302 1SBV012741R1302 1SBV012743R1302 1SBV012742R1302 5.7 10.2 0 11-12 21-22 21.0 mm 5.7 10.2 0 11-12 21-22 21.0 mm 9.6 17.8 0 11-12 21-22 32.0 mm 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° LS75P31L20 LS75P35L20 LS75P3 8 L20 LS75P41L20 LS75P43L20 LS75P42L20 1SBV012731R1320 1SBV012735R1320 1SBV01273 8 R1320 1SBV012741R1320 1SBV012743R1320 1SBV012742R1320 5.3 0 13-14 23-24 21.0 mm 5.3 0 13-14 23-24 21.0 mm 9.2 0 13-14 23-24 32.0 mm 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° LS75P31B02 LS75P35B02 LS75P3 8 B02 LS75P41B02 LS75P43B02 LS75P42B02 1SBV012731R1202 1SBV012735R1202 1SBV01273 8 R1202 1SBV012741R1202 1SBV012743R1202 1SBV012742R1202 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1 8.6 13.1 0 11-12 21-2211-12 21-22 21.0 mm 5.1   14.6 22.8 0 11-12 21-2211-12 21-22 32.0 mm 8.8 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 0.112 0.112 0.117 0.137 0.142 0.152 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact With dust protection cup Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51

46 Low Voltage Products 1SBC141138C0201 O 18 61 17.5 L0955D 5.5 15.5 48.8 107 L0956D 36 O 18 45.5...117.5 17.5 L0957D 5.5 41 34 91.5...163.5 45.5 42 L0958D O 50 77...133.5 17.5 L0959D 9 44.5 32.5 122.5...179.5 51 L0960D 42 Max.  177.5 O 3  5.5 17.5 L0961D 36 Max.  223.5  170 L0962D 42 33 L1205D 14 12.5 LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets for 1/2" NPT plastic adaptor Actuator ø18 roller Adjustable ø18 Adjustable ø50 Adjustable ø3 with bent lever roller lever rubber roller lever rod lever Conformity /  (N.C. contact with positive opening operation) – – – – Maximum actuation speed 1.5 m/s 1.5 m/s 1.5 m/s 1.5 m/s Min. force / torque: - actuation 0.1 N.m 0.1 N.m 0.1 N.m 0.1 N.m - positive opening operation 0.32 N.m 0.32 N.m 0.32 N.m 0.32 N.m Additional Technical Data Type and Order code to be completed with code  Metal roller 6 Metal roller 3 – Metal rod 1 Plastic roller 5 Plastic roller 1 – Fibreglass rod 2 Snap action contacts Type LS75P4 B11 LS75P5 B11 LS75P52B11 LS75P7 B11 Order code 1SBV01274 R1211 1SBV01275 R1211 1SBV012752R1211 1SBV01277 R1211 21 22 13 14 Zb Operation   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 ° diagram Non-overlapping Type LS75P4 D11 LS75P5 D11 LS75P52D11 LS75P7 D11 Slow action contacts Order code 1SBV01274 R1411 1SBV01275 R1411 1SBV012752R1411 1SBV01277 R1411 21 22 13 14 Zb Operation 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ diagram Overlapping Type LS75P4 C11 LS75P5 C11 LS75P52C11 LS75P7 C11 Slow action contacts Order code 1SBV01274 R1511 1SBV01275 R1511 1SBV012752R1511 1SBV01277 R1511 21 22 13 14 Zb Operation 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ diagram Slow action contacts Type LS75P4 L02 LS75P5 L02 LS75P52L02 LS75P7 L02 Order code 1SBV01274 R1302 1SBV01275 R1302 1SBV012752R1302 1SBV01277 R1302 21 22 11 12 Zb Operation 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° diagram Slow action contacts Type LS75P4 L20 LS75P5 L20 LS75P52L20 LS75P7 L20 Order code 1SBV01274 R1320 1SBV01275 R1320 1SBV012752R1320 1SBV01277 R1320 23 24 13 14 Zb Operation 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° diagram Snap action contacts Type LS75P4 B02 LS75P5 B02 LS75P52B02 LS75P7 B02 Order code 1SBV01274 R1202 1SBV01275 R1202 1SBV012752R1202 1SBV01277 R1202 21 22 11 12 Zb Operation 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° diagram Weight (packing per unit) kg 0.137 0.147 0.162 0.137 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Dimensions (in mm) Movement to be detected: 30 °  Cam Translation Movement Fully Directional... Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 - 1 cable inlet by 1/2" NPT plastic adaptor  (delivered not mounted) , and - 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor  (on request) 1/2" NPT plastic adaptors LSR1305 1SBV 04 7500 R1305 1 packet of 1 piece LSR1305 1SBV 04 7500 T1305 1 packet of 10 pieces LSR1305 1SBV 04 7500 W1305 1 packet of 50 pieces O 4  4 46 57 50 20 22 40 42 1/2" NPTplastic adaptor delivered not mounted Pg11 18 1 L1204D

Low Voltage Products 47 1SBC141138C0201 L0963D Max.  202.5 8 O 6 17.5 39.5 Max.  248.5 195 L0964D 44 O 27 74 L0971D 120 L0972D  12.5 L0965D 3 Max.  177.5  5.5 17.5 36 Max.  223.5 L0966D 3 170 42 O 6.3 135 L0967D O 1.2 181 L0968D  12.5 O 6.3 115 L0969D 161  12.5 L0970D L0963D Max.  202.5 8 O 6 17.5 39.5 Max.  248.5 195 L0964D 44 Fully Directional Translation Movement Multidirectional Pull Action Adjustable ø6 Adjustable ø6 Adjustable 3 square Spring rod Flexible rod Pull action polyamide rod lever fibre-glass rod lever steel rod lever with insulated end with ring – – – – – – – – – 1.5 m/s 1.5 m/s 1.5 m/s 1 m/s 1 m/s 0.5 m/s 0.1 N.m 0.1 N.m 0.1 N.m 0.12 N.m 0.12 N.m 30 N 0.32 N.m 0.32 N.m 0.32 N.m – – – – – – – – – – – – – – LS75P73B11 LS75P74B11 LS75P78B11 LS75P91B11 LS75P92B11 LS75P98B11-A 1SBV012773R1211 1SBV012774R1211 1SBV012778R1211 1SBV012791R1211 1SBV012792R1211 1SBV012798R1211   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   31 ° 47 ° 0 21-22 13-1421-22 13-14 74 ° 17 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 °   23 ° 0 21-22 13-1421-22 13-14 36 ° 12 ° 2.0 0 21-22 13-1421-22 13-14 5.6 mm 0.9 LS75P73D11 LS75P74D11 LS75P78D11 LS75P91D11 LS75P92D11 LS75P98D11-A 1SBV012773R1411 1SBV012774R1411 1SBV012778R1411 1SBV012791R1411 1SBV012792R1411 1SBV012798R1411 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 21 °    37 ° 0 21-22 13-14 74 ° 30˚ 14 ° 0 21-22 13-14 36 ° 21 ° 14 ° 0 21-22 13-14 36 ° 21 ° 1.0 0 21-22 13-14 5.6 mm 1.9 LS75P73C11 LS75P74C11 LS75P78C11 LS75P91C11 LS75P92C11 1SBV012773R1511 1SBV012774R1511 1SBV012778R1511 1SBV012791R1511 1SBV012792R1511 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 35 °  51 ° 0 21-22 13-14 74 ° 18˚ 25˚ 0 21-22 13-14 36˚ 12˚ 25˚ 0 21-22 13-14 36˚ 12˚ LS75P73L02 LS75P74L02 LS75P78L02 LS75P91L02 LS75P92L02 LS75P98L02-A 1SBV012773R1302 1SBV012774R1302 1SBV012778R1302 1SBV012791R1302 1SBV012792R1302 1SBV012798R1302 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 19 ° 37 ° 0 11-12 21-22 74 ° 14 ° 0 11-12 21-22 36 ° 14 ° 0 11-12 21-22 36 ° 2.0 0 11-12 21-22 5.6 mm LS75P73L20 LS75P74L20 LS75P78L20 LS75P91L20 LS75P92L20 LS75P98L20-A 1SBV012773R1320 1SBV012774R1320 1SBV012778R1320 1SBV012791R1320 1SBV012792R1320 1SBV012798R1320 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 18 ° 0 13-14 23-24 74 ° 13 ° 0 13-14 23-24 36 ° 13 ° 0 13-14 23-24 36 ° 1.8 0 13-14 23-24 5.6 mm LS75P73B02 LS75P74B02 LS75P78B02 LS75P91B02 LS75P92B02 1SBV012773R1202 1SBV012774R1202 1SBV012778R1202 1SBV012791R1202 1SBV012792R1202 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 30 ° 46 ° 0 11-12 21-2211-12 21-22 74 ° 17 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 22 ° 0 11-12 21-2211-12 21-22 36 ° 12 ° 0.152 0.152 0.132 0.117 0.122 0.152 Special heads, accessories and special contact arrangement or particular function: please consult us.  Closed contact /   Open contact Tearing withstand of– operating head: 200 daN– ring: 40 daN Description, Travel  and Technical Data ............. pages 4...11 Accessories .................................... page 48 Utilization Precautions .................... page 51 LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width2 Cable Inlets for 1/2" NPT plastic adaptor

48 Low Voltage Products 1SBC141138C0201 L1241D 14 ø15 ø15 14 L1242D C D E B F A L1243D C A D E L1245D C F A B E D L1244D Limit Switches Plastic and Metal Casing Accessories Extension piece for angular motion head This accessory, made of polymer glass-reinforced resin, allows the lever to operate with an increased offset. Blanking Plugs - IP66 Cable Glands - IP68 Cable glands - Blanking plugs - Thread adaptors The use of the correct cable gland (or blanking plug in case of unused cable inlets) is recommended if the product is installed in an environmentwhen a protection degree against water or dust is needed. ABB's cable glands and blanking plugs are designed to garantee a protection degreeof IP66. Thread adapters are available request. The adaptors must always be used when a direct conduit connection to the limit switch is required.Different adaptors can be supplied upon request. Compatible heads LSA70X-9004 1SBV 04 8600 R9004 1 piece (minimum order 10 pieces) LSA70X-9005 1SBV 04 8600 R9005 LSA70X-9004 1SBV 04 8600 T9004 10 pieces (1 packet) LSA70X-9005 1SBV 04 8600 T9005 LSA70X-9004 1SBV 04 8600 W9004 50 pieces (1 packet) LSA70X-9005 1SBV 04 8600 W9005 P40 ... P49 P50 ... P79 M40 ... M49 M50 ... M79 Ordering details ........................................................................................................................................................................................................................................................... page 76 In order to install this accessory a longer screw is needed (delivred with the extension piece) Thread Adaptors  (male/female) Thread type Type Order code Type Order code Type Order code Pg11 LSR 1101 1SBV 04 7500  1101 LSR 1801 1SBV 04 7500  1801 Pg13.5 LSR 1102 1SBV 04 7500  1102 LSR 1802 1SBV 04 7500  1802 ISO 16 LSR 1103 1SBV 04 7500  1103 LSR 1803 1SBV 04 7500  1803 ISO 20 LSR 1104 1SBV 04 7500  1104 LSR 1804 1SBV 04 7500  1804 1/2" NPT LSR 1805 1SBV 04 7500  1805 Pg11 to 1/2" NPT LSR 1305 1SBV 04 7500  1305 1/2" NPT to 1/2" NPT LSR 1605 1SBV 04 7500  1605 Dimensions (in mm) A B C D E F A B C D E F A B C D E F Pg11 Pg11 22 10 23-28 ø 5-10 Pg11 – 22 6 3 – Pg13.5 Pg13.5 24 10 24-29 ø 6-12 Pg13.5 – 25 6 3.5 – ISO 16 M16x1.5 19 8 23-28 ø 5-10 M16x1.5 – 20 6 3 – ISO 20 M20x1.5 25 9 24-29 ø 8-13 M20x1.5 – 24 6 3.5 – 1/2" NPT 1/2" NPT – 25 6 3.5 – Pg11 to 1/2" NPT Pg11 24 26 8 17 1/2"NPT 1/2" NPT to 1/2" NPT 1/2" NPT 24 26 8 17 1/2"NPT Plastic thread adaptor (male/female): Pg11 to 1/2" NPT R 1 piece  (Min. order 10 pieces) T 10 pieces  (1 packet) W 50 pieces  (1 packet) ☞ page ordering detail Brass thread adaptor (male/female): 1/2" NPT to 1/2" NPT

Low Voltage Products 49 1SBC141138C0201 + 0- 2.5 18 + 0.5 - Differential travel Operating L0330DG 21 min. 15 min. 12.5 position +1 - 0 +0- 2.5 25 2.5 min. 10 min. 12.5 + 1.5 - + 1 - 10 Differential travel Differential travel Operating position 20 min. 35 30 ˚ Operating L0331DG 25 min. 28 31 min. position +0- 2.5 +1 - 0 31 5 min. 10 min. 12.5 + 2 - 10 Differential travel Operating position 20 min. 40 30 max. 30˚ L0332DG Limit Switches EN 50047 Standard The European Committee for Electrotechnical Standardization (CENELEC), which groups together 18 European countries, publishes EN standards.The present standard defines dimensions and mechanical data for limit switches (30 x 55 mm). A Shape B Shape Roller lever operating heads Rounded plunger operating heads C Shape E Shape Roller plunger operating heads Roller lever operating heads +1 - 0 40 12.5 min. 5 min. 10 min. Cable inlet Reference axis 15 30 max. 50 max. 31 max. 20 + 10 - + 3 - + 0.1 - + 0.1 - 22 + 0.1 - 15 + 2 - 40 Differential travel Operating position 4.3 20 min. 55 max. 55 30˚ L0329DG

50 Low Voltage Products 1SBC141138C0201 L0320D 11 12 13 14 Za L0319D 21 22 13 14 Zb L0285D2 L0284D2 L0300D2 L0301D2 L0302D2 LS  Series Limit Switches Terminology General Technical Data ................................................................................................................................................................................................................................................ page 9 Double Insulation Class II materials, according to IEC 536, are designed with double insulation. This measure consists in doubling the functional insulation with anadditional layer of insulation so as to eliminate the risk of electric shock and thus not having to protect elsewhere. No conductive part of "doubleinsulated" material should be connected to a protective conductor. Positive Opening Operation A control switch, with one or more break-contact elements, has a positive opening operation when the switch actuator ensures full contact openingof the break-contact.  For the part of travel that separates the contacts, there must be a positive drive, with no resilient member (e.g. springs), betweenthe moving contacts and the point of the actuator to which the actuating force is applied. Control switches with positive opening operation may be provided with either snap action or slow action contact elements. To use several contactson the same control switch with positive opening operation, they must be electrically separated from each other, if not, only one may be used. Every control switch with positive opening operation must be indelibly marked on the outside with the symbol: . Snap Action Snap action contacts are characterised by arelease position that is distinct from the operat-ing position (differential travel).  Snap breakingof  moving contacts is independent of the switchactuator' s speed and contributes to regular elec-tric performance even for slow switch actuatorspeeds. State of rest Contact change Positive opening Slow Action Slow action contacts are characterised by arelease position that is the same as the operat-ing position. The switch actuator' s speed di-rectly conditions the travel speed of contacts. State of rest Completely closed Contact shape according to IEC 60947-5-1. Change-over contact elements with 4 terminalsmust be indelibly marked  Za or Zb. See figure opposite for contact representation. Contacts with the same polarity The 2 moving contacts are electrically separated Utilization Category AC-15: switching of electromagnetic loads of electromagnets using an alternating current ( 72 VA).DC-13: switching of electromagnets using a direct courant. Minimum Actuation Force / Torque The minimum amount of force/torque that is to be applied to the switch actuator to produce a change in contact position. Minimum Force / Torque to achieve Positive Opening Operation The minimum amount of force/torque that is to be applied to the switch actuator to ensure positive opening operation of the N.C. contact.

Low Voltage Products 51 1SBC141138C0201 L1212DS 30 30 L1215DS L1216DS L1214DS 30 L1213DS L1217DS L1218DS L1219DS L1220D L1210DS L121 1DS Plain plunger Correct Wrong Roller plunger or roller lever Correct Wrong Correct Wrong Curve of connecting cable / Cable gland orientation Correct Wrong Wrong LS  Series Limit Switches Utilization precautions

52 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8567 1F030S LS32M11B11 1SBC5 8569 1F030S LS32M12B11 1SBC5 9040 1F030S LS32M13B11 LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Steel plain plunger  (zinc-plated) 1 LS32M11B11 1SBV 01 1911 R1211 0.180 1 LS32M11D11 1SBV 01 1911 R1411 0.180 1 LS32M11C11 1SBV 01 1911 R1511 0.180 1 LS32M11L02 1SBV 01 1911 R1302 0.180 1 LS32M11L20 1SBV 01 1911 R1320 0.180 1 LS32M11B02 1SBV 01 1911 R1202 0.180 1 LS33M11B11 1SBV 01 3811 R1211 0.180 1 LS33M11D11 1SBV 01 3811 R1411 0.180 1 LS33M11C11 1SBV 01 3811 R1511 0.180 1 LS33M11L02 1SBV 01 3811 R1302 0.180 1 LS33M11L20 1SBV 01 3811 R1320 0.180 1 LS33M11B02 1SBV 01 3811 R1202 0.180 1 LS35M11B11 1SBV 01 3711 R1211 0.180 1 LS35M11D11 1SBV 01 3711 R1411 0.180 1 LS35M11C11 1SBV 01 3711 R1511 0.180 1 LS35M11L02 1SBV 01 3711 R1302 0.180 1 LS35M11L20 1SBV 01 3711 R1320 0.180 1 LS35M11B02 1SBV 01 3711 R1202 0.180 ø11 steel roller plunger  (zinc-plated) 1 LS32M12B11 1SBV 01 1912 R1211 0.185 1 LS32M12D11 1SBV 01 1912 R1411 0.185 1 LS32M12C11 1SBV 01 1912 R1511 0.185 1 LS32M12L02 1SBV 01 1912 R1302 0.185 1 LS32M12L20 1SBV 01 1912 R1320 0.185 1 LS32M12B02 1SBV 01 1912 R1202 0.185 1 LS33M12B11 1SBV 01 3812 R1211 0.185 1 LS33M12D11 1SBV 01 3812 R1411 0.185 1 LS33M12C11 1SBV 01 3812 R1511 0.185 1 LS33M12L02 1SBV 01 3812 R1302 0.185 1 LS33M12L20 1SBV 01 3812 R1320 0.185 1 LS33M12B02 1SBV 01 3812 R1202 0.185 1 LS35M12B11 1SBV 01 3712 R1211 0.185 1 LS35M12D11 1SBV 01 3712 R1411 0.185 1 LS35M12C11 1SBV 01 3712 R1511 0.185 1 LS35M12L02 1SBV 01 3712 R1302 0.185 1 LS35M12L20 1SBV 01 3712 R1320 0.185 1 LS35M12B02 1SBV 01 3712 R1202 0.185 ø11 plastic  (polyacetal)  roller plunger 1 LS32M13B11 1SBV 01 1913 R1211 0.185 1 LS32M13D11 1SBV 01 1913 R1411 0.185 1 LS32M13C11 1SBV 01 1913 R1511 0.185 1 LS32M13L02 1SBV 01 1913 R1302 0.185 1 LS32M13L20 1SBV 01 1913 R1320 0.185 1 LS32M13B02 1SBV 01 1913 R1202 0.185 1 LS33M13B11 1SBV 01 3813 R1211 0.185 1 LS33M13D11 1SBV 01 3813 R1411 0.185 1 LS33M13C11 1SBV 01 3813 R1511 0.185 1 LS33M13L02 1SBV 01 3813 R1302 0.185 1 LS33M13L20 1SBV 01 3813 R1320 0.185 1 LS33M13B02 1SBV 01 3813 R1202 0.185 1 LS35M13B11 1SBV 01 3713 R1211 0.185 1 LS35M13D11 1SBV 01 3713 R1411 0.185 1 LS35M13C11 1SBV 01 3713 R1511 0.185 1 LS35M13L02 1SBV 01 3713 R1302 0.185 1 LS35M13L20 1SBV 01 3713 R1320 0.185 1 LS35M13B02 1SBV 01 3713 R1202 0.185 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width Technical Data, Dimensions ................................. page 12 Accessories ............................................................ page 76

Low Voltage Products 53 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8570 1F030S LS32M31B11 1SBC5 857 1F030S LS32M32B11 1SBC5 8568 1F030S LS32M14B11 LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Steel plain plunger  (zinc-plated)  with dust protection cup 1 LS32M14B11 1SBV 01 1914 R1211 0.180 1 LS32M14D11 1SBV 01 1914 R1411 0.180 1 LS32M14C11 1SBV 01 1914 R1511 0.180 1 LS32M14L02 1SBV 01 1914 R1302 0.180 1 LS32M14L20 1SBV 01 1914 R1320 0.180 1 LS32M14B02 1SBV 01 1914 R1202 0.180 1 LS33M14B11 1SBV 01 3814 R1211 0.180 1 LS33M14D11 1SBV 01 3814 R1411 0.180 1 LS33M14C11 1SBV 01 3814 R1511 0.180 1 LS33M14L02 1SBV 01 3814 R1302 0.180 1 LS33M14L20 1SBV 01 3814 R1320 0.180 1 LS33M14B02 1SBV 01 3814 R1202 0.180 1 LS35M14B11 1SBV 01 3714 R1211 0.180 1 LS35M14D11 1SBV 01 3714 R1411 0.180 1 LS35M14C11 1SBV 01 3714 R1511 0.180 1 LS35M14L02 1SBV 01 3714 R1302 0.180 1 LS35M14L20 1SBV 01 3714 R1320 0.180 1 LS35M14B02 1SBV 01 3714 R1202 0.180 ø12.5 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated) 1 LS32M31B11 1SBV 01 1931 R1211 0.175 1 LS32M31D11 1SBV 01 1931 R1411 0.175 1 LS32M31C11 1SBV 01 1931 R1511 0.175 1 LS32M31L02 1SBV 01 1931 R1302 0.175 1 LS32M31L20 1SBV 01 1931 R1320 0.175 1 LS32M31B02 1SBV 01 1931 R1202 0.175 1 LS33M31B11 1SBV 01 3831 R1211 0.175 1 LS33M31D11 1SBV 01 3831 R1411 0.175 1 LS33M31C11 1SBV 01 3831 R1511 0.175 1 LS33M31L02 1SBV 01 3831 R1302 0.175 1 LS33M31L20 1SBV 01 3831 R1320 0.175 1 LS33M31B02 1SBV 01 3831 R1202 0.175 1 LS35M31B11 1SBV 01 3731 R1211 0.175 1 LS35M31D11 1SBV 01 3731 R1411 0.175 1 LS35M31C11 1SBV 01 3731 R1511 0.175 1 LS35M31L02 1SBV 01 3731 R1302 0.175 1 LS35M31L20 1SBV 01 3731 R1320 0.175 1 LS35M31B02 1SBV 01 3731 R1202 0.175 ø12.5 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated) 1 LS32M32B11 1SBV 01 1932 R1211 0.175 1 LS32M32D11 1SBV 01 1932 R1411 0.175 1 LS32M32C11 1SBV 01 1932 R1511 0.175 1 LS32M32L02 1SBV 01 1932 R1302 0.175 1 LS32M32L20 1SBV 01 1932 R1320 0.175 1 LS32M32B02 1SBV 01 1932 R1202 0.175 1 LS33M32B11 1SBV 01 3832 R1211 0.175 1 LS33M32D11 1SBV 01 3832 R1411 0.175 1 LS33M32C11 1SBV 01 3832 R1511 0.175 1 LS33M32L02 1SBV 01 3832 R1302 0.175 1 LS33M32L20 1SBV 01 3832 R1320 0.175 1 LS33M32B02 1SBV 01 3832 R1202 0.175 1 LS35M32B11 1SBV 01 3732 R1211 0.175 1 LS35M32D11 1SBV 01 3732 R1411 0.175 1 LS35M32C11 1SBV 01 3732 R1511 0.175 1 LS35M32L02 1SBV 01 3732 R1302 0.175 1 LS35M32L20 1SBV 01 3732 R1320 0.175 1 LS35M32B02 1SBV 01 3732 R1202 0.175 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width Technical Data, Dimensions ......................... pages 12, 13 Accessories ............................................................ page 76

54 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8573 1F030S LS32M41B11 1SBC5 8574 1F030S LS32M42B11 1SBC5 8572 1F030S LS32M38B11 LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable ø22 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated) 1 LS32M38B11 1SBV 01 1938 R1211 0.180 1 LS32M38D11 1SBV 01 1938 R1411 0.180 1 LS32M38C11 1SBV 01 1938 R1511 0.180 1 LS32M38L02 1SBV 01 1938 R1302 0.180 1 LS32M38L20 1SBV 01 1938 R1320 0.180 1 LS32M38B02 1SBV 01 1938 R1202 0.180 1 LS33M38B11 1SBV 01 3838 R1211 0.180 1 LS33M38D11 1SBV 01 3838 R1411 0.180 1 LS33M38C11 1SBV 01 3838 R1511 0.180 1 LS33M38L02 1SBV 01 3838 R1302 0.180 1 LS33M38L20 1SBV 01 3838 R1320 0.180 1 LS33M38B02 1SBV 01 3838 R1202 0.180 1 LS35M38B11 1SBV 01 3738 R1211 0.180 1 LS35M38D11 1SBV 01 3738 R1411 0.180 1 LS35M38C11 1SBV 01 3738 R1511 0.180 1 LS35M38L02 1SBV 01 3738 R1302 0.180 1 LS35M38L20 1SBV 01 3738 R1320 0.180 1 LS35M38B02 1SBV 01 3738 R1202 0.180 ø18 plastic  (polyacetal)  roller lever 1 LS32M41B11 1SBV 01 1941 R1211 0.230 1 LS32M41D11 1SBV 01 1941 R1411 0.230 1 LS32M41C11 1SBV 01 1941 R1511 0.230 1 LS32M41L02 1SBV 01 1941 R1302 0.230 1 LS32M41L20 1SBV 01 1941 R1320 0.230 1 LS32M41B02 1SBV 01 1941 R1202 0.230 1 LS33M41B11 1SBV 01 3841 R1211 0.230 1 LS33M41D11 1SBV 01 3841 R1411 0.230 1 LS33M41C11 1SBV 01 3841 R1511 0.230 1 LS33M41L02 1SBV 01 3841 R1302 0.230 1 LS33M41L20 1SBV 01 3841 R1320 0.230 1 LS33M41B02 1SBV 01 3841 R1202 0.230 1 LS35M41B11 1SBV 01 3741 R1211 0.230 1 LS35M41D11 1SBV 01 3741 R1411 0.230 1 LS35M41C11 1SBV 01 3741 R1511 0.230 1 LS35M41L02 1SBV 01 3741 R1302 0.230 1 LS35M41L20 1SBV 01 3741 R1320 0.230 1 LS35M41B02 1SBV 01 3741 R1202 0.230 ø50 rubber roller lever 1 LS32M42B11 1SBV 01 1942 R1211 0.255 1 LS32M42D11 1SBV 01 1942 R1411 0.255 1 LS32M42C11 1SBV 01 1942 R1511 0.255 1 LS32M42L02 1SBV 01 1942 R1302 0.255 1 LS32M42L20 1SBV 01 1942 R1320 0.255 1 LS32M42B02 1SBV 01 1942 R1202 0.255 1 LS33M42B11 1SBV 01 3842 R1211 0.255 1 LS33M42D11 1SBV 01 3842 R1411 0.255 1 LS33M42C11 1SBV 01 3842 R1511 0.255 1 LS33M42L02 1SBV 01 3842 R1302 0.255 1 LS33M42L20 1SBV 01 3842 R1320 0.255 1 LS33M42B02 1SBV 01 3842 R1202 0.255 1 LS35M42B11 1SBV 01 3742 R1211 0.255 1 LS35M42D11 1SBV 01 3742 R1411 0.255 1 LS35M42C11 1SBV 01 3742 R1511 0.255 1 LS35M42L02 1SBV 01 3742 R1302 0.255 1 LS35M42L20 1SBV 01 3742 R1320 0.255 1 LS35M42B02 1SBV 01 3742 R1202 0.255 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width Technical Data, Dimensions ................................. page 13 Accessories ............................................................ page 76

Low Voltage Products 55 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8575 1F030S LS32M45B11 1SBC5 9041 1F030S LS32M43B11 1SBC5 9042 1F030S LS32M46B11 LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø18 steel roller lever  (zinc-plated) 1 LS32M43B11 1SBV 01 1943 R1211 0.235 1 LS32M43D11 1SBV 01 1943 R1411 0.235 1 LS32M43C11 1SBV 01 1943 R1511 0.235 1 LS32M43L02 1SBV 01 1943 R1302 0.235 1 LS32M43L20 1SBV 01 1943 R1320 0.235 1 LS32M43B02 1SBV 01 1943 R1202 0.235 1 LS33M43B11 1SBV 01 3843 R1211 0.235 1 LS33M43D11 1SBV 01 3843 R1411 0.235 1 LS33M43C11 1SBV 01 3843 R1511 0.235 1 LS33M43L02 1SBV 01 3843 R1302 0.235 1 LS33M43L20 1SBV 01 3843 R1320 0.235 1 LS33M43B02 1SBV 01 3843 R1202 0.235 1 LS35M43B11 1SBV 01 3743 R1211 0.235 1 LS35M43D11 1SBV 01 3743 R1411 0.235 1 LS35M43C11 1SBV 01 3743 R1511 0.235 1 LS35M43L02 1SBV 01 3743 R1302 0.235 1 LS35M43L20 1SBV 01 3743 R1320 0.235 1 LS35M43B02 1SBV 01 3743 R1202 0.235 ø18 plastic  (polyacetal)  roller with bent lever 1 LS32M45B11 1SBV 01 1945 R1211 0.245 1 LS32M45D11 1SBV 01 1945 R1411 0.245 1 LS32M45C11 1SBV 01 1945 R1511 0.245 1 LS32M45L02 1SBV 01 1945 R1302 0.245 1 LS32M45L20 1SBV 01 1945 R1320 0.245 1 LS32M45B02 1SBV 01 1945 R1202 0.245 1 LS33M45B11 1SBV 01 3845 R1211 0.245 1 LS33M45D11 1SBV 01 3845 R1411 0.245 1 LS33M45C11 1SBV 01 3845 R1511 0.245 1 LS33M45L02 1SBV 01 3845 R1302 0.245 1 LS33M45L20 1SBV 01 3845 R1320 0.245 1 LS33M45B02 1SBV 01 3845 R1202 0.245 1 LS35M45B11 1SBV 01 3745 R1211 0.245 1 LS35M45D11 1SBV 01 3745 R1411 0.245 1 LS35M45C11 1SBV 01 3745 R1511 0.245 1 LS35M45L02 1SBV 01 3745 R1302 0.245 1 LS35M45L20 1SBV 01 3745 R1320 0.245 1 LS35M45B02 1SBV 01 3745 R1202 0.245 ø18 steel roller  (zinc-plated)  with bent lever 1 LS32M46B11 1SBV 01 1946 R1211 0.250 1 LS32M46D11 1SBV 01 1946 R1411 0.250 1 LS32M46C11 1SBV 01 1946 R1511 0.250 1 LS32M46L02 1SBV 01 1946 R1302 0.250 1 LS32M46L20 1SBV 01 1946 R1320 0.250 1 LS32M46B02 1SBV 01 1946 R1202 0.250 1 LS33M46B11 1SBV 01 3846 R1211 0.250 1 LS33M46D11 1SBV 01 3846 R1411 0.250 1 LS33M46C11 1SBV 01 3846 R1511 0.250 1 LS33M46L02 1SBV 01 3846 R1302 0.250 1 LS33M46L20 1SBV 01 3846 R1320 0.250 1 LS33M46B02 1SBV 01 3846 R1202 0.250 1 LS35M46B11 1SBV 01 3746 R1211 0.250 1 LS35M46D11 1SBV 01 3746 R1411 0.250 1 LS35M46C11 1SBV 01 3746 R1511 0.250 1 LS35M46L02 1SBV 01 3746 R1302 0.250 1 LS35M46L20 1SBV 01 3746 R1320 0.250 1 LS35M46B02 1SBV 01 3746 R1202 0.250 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width Technical Data, Dimensions ................................. page 13 Accessories ............................................................ page 76

56 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8576 1F030S LS32M51B11 1SBC5 8577 1F030S LS32M52B11 1SBC5 9043 1F030S LS32M53B11 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable ø18 plastic  (polyacetal)  roller lever 1 LS32M51B11 1SBV 01 1951 R1211 0.240 1 LS32M51D11 1SBV 01 1951 R1411 0.240 1 LS32M51C11 1SBV 01 1951 R1511 0.240 1 LS32M51L02 1SBV 01 1951 R1302 0.240 1 LS32M51L20 1SBV 01 1951 R1320 0.240 1 LS32M51B02 1SBV 01 1951 R1202 0.240 1 LS33M51B11 1SBV 01 3851 R1211 0.240 1 LS33M51D11 1SBV 01 3851 R1411 0.240 1 LS33M51C11 1SBV 01 3851 R1511 0.240 1 LS33M51L02 1SBV 01 3851 R1302 0.240 1 LS33M51L20 1SBV 01 3851 R1320 0.240 1 LS33M51B02 1SBV 01 3851 R1202 0.240 1 LS35M51B11 1SBV 01 3751 R1211 0.240 1 LS35M51D11 1SBV 01 3751 R1411 0.240 1 LS35M51C11 1SBV 01 3751 R1511 0.240 1 LS35M51L02 1SBV 01 3751 R1302 0.240 1 LS35M51L20 1SBV 01 3751 R1320 0.240 1 LS35M51B02 1SBV 01 3751 R1202 0.240 Adjustable ø50 rubber roller lever 1 LS32M52B11 1SBV 01 1952 R1211 0.265 1 LS32M52D11 1SBV 01 1952 R1411 0.265 1 LS32M52C11 1SBV 01 1952 R1511 0.265 1 LS32M52L02 1SBV 01 1952 R1302 0.265 1 LS32M52L20 1SBV 01 1952 R1320 0.265 1 LS32M52B02 1SBV 01 1952 R1202 0.265 1 LS33M52B11 1SBV 01 3852 R1211 0.265 1 LS33M52D11 1SBV 01 3852 R1411 0.265 1 LS33M52C11 1SBV 01 3852 R1511 0.265 1 LS33M52L02 1SBV 01 3852 R1302 0.265 1 LS33M52L20 1SBV 01 3852 R1320 0.265 1 LS33M52B02 1SBV 01 3852 R1202 0.265 1 LS35M52B11 1SBV 01 3752 R1211 0.265 1 LS35M52D11 1SBV 01 3752 R1411 0.265 1 LS35M52C11 1SBV 01 3752 R1511 0.265 1 LS35M52L02 1SBV 01 3752 R1302 0.265 1 LS35M52L20 1SBV 01 3752 R1320 0.265 1 LS35M52B02 1SBV 01 3752 R1202 0.265 Adjustable ø18 steel roller lever  (zinc-plated) 1 LS32M53B11 1SBV 01 1953 R1211 0.245 1 LS32M53D11 1SBV 01 1953 R1411 0.245 1 LS32M53C11 1SBV 01 1953 R1511 0.245 1 LS32M53L02 1SBV 01 1953 R1302 0.245 1 LS32M53L20 1SBV 01 1953 R1320 0.245 1 LS32M53B02 1SBV 01 1953 R1202 0.245 1 LS33M53B11 1SBV 01 3853 R1211 0.245 1 LS33M53D11 1SBV 01 3853 R1411 0.245 1 LS33M53C11 1SBV 01 3853 R1511 0.245 1 LS33M53L02 1SBV 01 3853 R1302 0.245 1 LS33M53L20 1SBV 01 3853 R1320 0.245 1 LS33M53B02 1SBV 01 3853 R1202 0.245 1 LS35M53B11 1SBV 01 3753 R1211 0.245 1 LS35M53D11 1SBV 01 3753 R1411 0.245 1 LS35M53C11 1SBV 01 3753 R1511 0.245 1 LS35M53L02 1SBV 01 3753 R1302 0.245 1 LS35M53L20 1SBV 01 3753 R1320 0.245 1 LS35M53B02 1SBV 01 3753 R1202 0.245 Technical Data, Dimensions ................................. page 14 Accessories ............................................................ page 76

Low Voltage Products 57 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8578 1F030S LS32M55B11 1SBC5 8579 1F030S LS32M71B11 1SBC5 9044 1F030S LS32M72B11 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable lever  (vertical and horizontal)  with ø50 rubber roller 1 LS32M55B11 1SBV 01 1955 R1211 0.270 1 LS32M55D11 1SBV 01 1955 R1411 0.270 1 LS32M55C11 1SBV 01 1955 R1511 0.270 1 LS32M55L02 1SBV 01 1955 R1302 0.270 1 LS32M55L20 1SBV 01 1955 R1320 0.270 1 LS32M55B02 1SBV 01 1955 R1202 0.270 1 LS33M55B11 1SBV 01 3855 R1211 0.270 1 LS33M55D11 1SBV 01 3855 R1411 0.270 1 LS33M55C11 1SBV 01 3855 R1511 0.270 1 LS33M55L02 1SBV 01 3855 R1302 0.270 1 LS33M55L20 1SBV 01 3855 R1320 0.270 1 LS33M55B02 1SBV 01 3855 R1202 0.270 1 LS35M55B11 1SBV 01 3755 R1211 0.270 1 LS35M55D11 1SBV 01 3755 R1411 0.270 1 LS35M55C11 1SBV 01 3755 R1511 0.270 1 LS35M55L02 1SBV 01 3755 R1302 0.270 1 LS35M55L20 1SBV 01 3755 R1320 0.270 1 LS35M55B02 1SBV 01 3755 R1202 0.270 Adjustable ø3 stainless steel rod lever 1 LS32M71B11 1SBV 01 1971 R1211 0.245 1 LS32M71D11 1SBV 01 1971 R1411 0.245 1 LS32M71C11 1SBV 01 1971 R1511 0.245 1 LS32M71L02 1SBV 01 1971 R1302 0.245 1 LS32M71L20 1SBV 01 1971 R1320 0.245 1 LS32M71B02 1SBV 01 1971 R1202 0.245 1 LS33M71B11 1SBV 01 3871 R1211 0.245 1 LS33M71D11 1SBV 01 3871 R1411 0.245 1 LS33M71C11 1SBV 01 3871 R1511 0.245 1 LS33M71L02 1SBV 01 3871 R1302 0.245 1 LS33M71L20 1SBV 01 3871 R1320 0.245 1 LS33M71B02 1SBV 01 3871 R1202 0.245 1 LS35M71B11 1SBV 01 3771 R1211 0.245 1 LS35M71D11 1SBV 01 3771 R1411 0.245 1 LS35M71C11 1SBV 01 3771 R1511 0.245 1 LS35M71L02 1SBV 01 3771 R1302 0.245 1 LS35M71L20 1SBV 01 3771 R1320 0.245 1 LS35M71B02 1SBV 01 3771 R1202 0.245 Adjustable ø3 fibre-glass rod lever 1 LS32M72B11 1SBV 01 1972 R1211 0.235 1 LS32M72D11 1SBV 01 1972 R1411 0.235 1 LS32M72C11 1SBV 01 1972 R1511 0.235 1 LS32M72L02 1SBV 01 1972 R1302 0.235 1 LS32M72L20 1SBV 01 1972 R1320 0.235 1 LS32M72B02 1SBV 01 1972 R1202 0.235 1 LS33M72B11 1SBV 01 3872 R1211 0.235 1 LS33M72D11 1SBV 01 3872 R1411 0.235 1 LS33M72C11 1SBV 01 3872 R1511 0.235 1 LS33M72L02 1SBV 01 3872 R1302 0.235 1 LS33M72L20 1SBV 01 3872 R1320 0.235 1 LS33M72B02 1SBV 01 3872 R1202 0.235 1 LS35M72B11 1SBV 01 3772 R1211 0.235 1 LS35M72D11 1SBV 01 3772 R1411 0.235 1 LS35M72C11 1SBV 01 3772 R1511 0.235 1 LS35M72L02 1SBV 01 3772 R1302 0.235 1 LS35M72L20 1SBV 01 3772 R1320 0.235 1 LS35M72B02 1SBV 01 3772 R1202 0.235 Technical Data, Dimensions ................................. page 14 Accessories ............................................................ page 76

58 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb 1SBC5 8580 1F030S LS32M73B11 LS32M78B11 1SBC5 8581 1F030S 1SBC5 9045 1F030S LS32M74B11 Zb LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable ø6 polyamide rod lever 1 LS32M73B11 1SBV 01 1973 R1211 0.255 1 LS32M73D11 1SBV 01 1973 R1411 0.255 1 LS32M73C11 1SBV 01 1973 R1511 0.255 1 LS32M73L02 1SBV 01 1973 R1302 0.255 1 LS32M73L20 1SBV 01 1973 R1320 0.255 1 LS32M73B02 1SBV 01 1973 R1202 0.255 1 LS33M73B11 1SBV 01 3873 R1211 0.255 1 LS33M73D11 1SBV 01 3873 R1411 0.255 1 LS33M73C11 1SBV 01 3873 R1511 0.255 1 LS33M73L02 1SBV 01 3873 R1302 0.255 1 LS33M73L20 1SBV 01 3873 R1320 0.255 1 LS33M73B02 1SBV 01 3873 R1202 0.255 1 LS35M73B11 1SBV 01 3773 R1211 0.255 1 LS35M73D11 1SBV 01 3773 R1411 0.255 1 LS35M73C11 1SBV 01 3773 R1511 0.255 1 LS35M73L02 1SBV 01 3773 R1302 0.255 1 LS35M73L20 1SBV 01 3773 R1320 0.255 1 LS35M73B02 1SBV 01 3773 R1202 0.255 Adjustable ø6 fibre-glass rod lever 1 LS32M74B11 1SBV 01 1974 R1211 0.255 1 LS32M74D11 1SBV 01 1974 R1411 0.255 1 LS32M74C11 1SBV 01 1974 R1511 0.255 1 LS32M74L02 1SBV 01 1974 R1302 0.255 1 LS32M74L20 1SBV 01 1974 R1320 0.255 1 LS32M74B02 1SBV 01 1974 R1202 0.255 1 LS33M74B11 1SBV 01 3874 R1211 0.255 1 LS33M74D11 1SBV 01 3874 R1411 0.255 1 LS33M74C11 1SBV 01 3874 R1511 0.255 1 LS33M74L02 1SBV 01 3874 R1302 0.255 1 LS33M74L20 1SBV 01 3874 R1320 0.255 1 LS33M74B02 1SBV 01 3874 R1202 0.255 1 LS35M74B11 1SBV 01 3774 R1211 0.255 1 LS35M74D11 1SBV 01 3774 R1411 0.255 1 LS35M74C11 1SBV 01 3774 R1511 0.255 1 LS35M74L02 1SBV 01 3774 R1302 0.255 1 LS35M74L20 1SBV 01 3774 R1320 0.255 1 LS35M74B02 1SBV 01 3774 R1202 0.255 Adjustable 3 square steel rod lever  (zinc-plated) 1 LS32M78B11 1SBV 01 1978 R1211 0.240 1 LS32M78D11 1SBV 01 1978 R1411 0.240 1 LS32M78C11 1SBV 01 1978 R1511 0.240 1 LS32M78L02 1SBV 01 1978 R1302 0.240 1 LS32M78L20 1SBV 01 1978 R1320 0.240 1 LS32M78B02 1SBV 01 1978 R1202 0.240 1 LS33M78B11 1SBV 01 3878 R1211 0.240 1 LS33M78D11 1SBV 01 3878 R1411 0.240 1 LS33M78C11 1SBV 01 3878 R1511 0.240 1 LS33M78L02 1SBV 01 3878 R1302 0.240 1 LS33M78L20 1SBV 01 3878 R1320 0.240 1 LS33M78B02 1SBV 01 3878 R1202 0.240 1 LS35M78B11 1SBV 01 3778 R1211 0.240 1 LS35M78D11 1SBV 01 3778 R1411 0.240 1 LS35M78C11 1SBV 01 3778 R1511 0.240 1 LS35M78L02 1SBV 01 3778 R1302 0.240 1 LS35M78L20 1SBV 01 3778 R1320 0.240 1 LS35M78B02 1SBV 01 3778 R1202 0.240 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width Technical Data, Dimensions ................................. page 15 Accessories ............................................................ page 76

Low Voltage Products 59 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8582 1F030S 1SBC5 8583 1F030S LS32M92B11 1SBC5 8584 1F030S LS32M98B11-A LS32M91B11 LS32M…, LS33M... and LS35M... Limit Switches Metal Casing IP66 - 30 mm Width LS32M with 1 cable inlet M16 x 1.5 for ISO 16 cable gland.LS33M with 1 cable inlet M20 x 1.5 for ISO 20 cable gland.LS35M with 1 cable inlet for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Spring rod 1 LS32M91B11 1SBV 01 1991 R1211 0.180 1 LS32M91D11 1SBV 01 1991 R1411 0.180 1 LS32M91C11 1SBV 01 1991 R1511 0.180 1 LS32M91L02 1SBV 01 1991 R1302 0.180 1 LS32M91L20 1SBV 01 1991 R1320 0.180 1 LS32M91B02 1SBV 01 1991 R1202 0.180 1 LS33M91B11 1SBV 01 3891 R1211 0.180 1 LS33M91D11 1SBV 01 3891 R1411 0.180 1 LS33M91C11 1SBV 01 3891 R1511 0.180 1 LS33M91L02 1SBV 01 3891 R1302 0.180 1 LS33M91L20 1SBV 01 3891 R1320 0.180 1 LS33M91B02 1SBV 01 3891 R1202 0.180 1 LS35M91B11 1SBV 01 3791 R1211 0.180 1 LS35M91D11 1SBV 01 3791 R1411 0.180 1 LS35M91C11 1SBV 01 3791 R1511 0.180 1 LS35M91L02 1SBV 01 3791 R1302 0.180 1 LS35M91L20 1SBV 01 3791 R1320 0.180 1 LS35M91B02 1SBV 01 3791 R1202 0.180 Flexible rod with insulated end 1 LS32M92B11 1SBV 01 1992 R1211 0.185 1 LS32M92D11 1SBV 01 1992 R1411 0.185 1 LS32M92C11 1SBV 01 1992 R1511 0.185 1 LS32M92L02 1SBV 01 1992 R1302 0.185 1 LS32M92L20 1SBV 01 1992 R1320 0.185 1 LS32M92B02 1SBV 01 1992 R1202 0.185 1 LS33M92B11 1SBV 01 3892 R1211 0.185 1 LS33M92D11 1SBV 01 3892 R1411 0.185 1 LS33M92C11 1SBV 01 3892 R1511 0.185 1 LS33M92L02 1SBV 01 3892 R1302 0.185 1 LS33M92L20 1SBV 01 3892 R1320 0.185 1 LS33M92B02 1SBV 01 3892 R1202 0.185 1 LS35M92B11 1SBV 01 3792 R1211 0.185 1 LS35M92D11 1SBV 01 3792 R1411 0.185 1 LS35M92C11 1SBV 01 3792 R1511 0.185 1 LS35M92L02 1SBV 01 3792 R1302 0.185 1 LS35M92L20 1SBV 01 3792 R1320 0.185 1 LS35M92B02 1SBV 01 3792 R1202 0.185 Pull action with ring 1 LS32M98B11-A 1SBV 01 1998 R1211 0.215 1 LS32M98D11-A 1SBV 01 1998 R1411 0.215 1 LS32M98L02-A 1SBV 01 1998 R1302 0.215 1 LS32M98L20-A 1SBV 01 1998 R1320 0.215 1 LS33M98B11-A 1SBV 01 3898 R1211 0.215 1 LS33M98D11-A 1SBV 01 3898 R1411 0.215 1 LS33M98L02-A 1SBV 01 3898 R1302 0.215 1 LS33M98L20-A 1SBV 01 3898 R1320 0.215 1 LS35M98B11-A 1SBV 01 3798 R1211 0.215 1 LS35M98D11-A 1SBV 01 3798 R1411 0.215 1 LS35M98L02-A 1SBV 01 3798 R1302 0.215 1 LS35M98L20-A 1SBV 01 3798 R1320 0.215 Technical Data, Dimensions ................................. page 15 Accessories ............................................................ page 76

60 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8603 1F030S LS72M11B11 1SBC5 8604 1F030S LS72M12B11 1SBC5 9046 1F030S LS72M13B11 LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Steel plain plunger  (zinc-plated) 1 LS72M11B11 1SBV 01 4311 R1211 0.270 1 LS72M11D11 1SBV 01 4311 R1411 0.270 1 LS72M11C11 1SBV 01 4311 R1511 0.270 1 LS72M11L02 1SBV 01 4311 R1302 0.270 1 LS72M11L20 1SBV 01 4311 R1320 0.270 1 LS72M11B02 1SBV 01 4311 R1202 0.270 1 LS73M11B11 1SBV 01 5211 R1211 0.270 1 LS73M11D11 1SBV 01 5211 R1411 0.270 1 LS73M11C11 1SBV 01 5211 R1511 0.270 1 LS73M11L02 1SBV 01 5211 R1302 0.270 1 LS73M11L20 1SBV 01 5211 R1320 0.270 1 LS73M11B02 1SBV 01 5211 R1202 0.270 1 LS75M11B11 1SBV 01 5111 R1211 0.270 1 LS75M11D11 1SBV 01 5111 R1411 0.270 1 LS75M11C11 1SBV 01 5111 R1511 0.270 1 LS75M11L02 1SBV 01 5111 R1302 0.270 1 LS75M11L20 1SBV 01 5111 R1320 0.270 1 LS75M11B02 1SBV 01 5111 R1202 0.270 ø11 steel roller plunger (zinc-plated) 1 LS72M12B11 1SBV 01 4312 R1211 0.280 1 LS72M12D11 1SBV 01 4312 R1411 0.280 1 LS72M12C11 1SBV 01 4312 R1511 0.280 1 LS72M12L02 1SBV 01 4312 R1302 0.280 1 LS72M12L20 1SBV 01 4312 R1320 0.280 1 LS72M12B02 1SBV 01 4312 R1202 0.280 1 LS73M12B11 1SBV 01 5212 R1211 0.280 1 LS73M12D11 1SBV 01 5212 R1411 0.280 1 LS73M12C11 1SBV 01 5212 R1511 0.280 1 LS73M12L02 1SBV 01 5212 R1302 0.280 1 LS73M12L20 1SBV 01 5212 R1320 0.280 1 LS73M12B02 1SBV 01 5212 R1202 0.280 1 LS75M12B11 1SBV 01 5112 R1211 0.280 1 LS75M12D11 1SBV 01 5112 R1411 0.280 1 LS75M12C11 1SBV 01 5112 R1511 0.280 1 LS75M12L02 1SBV 01 5112 R1302 0.280 1 LS75M12L20 1SBV 01 5112 R1320 0.280 1 LS75M12B02 1SBV 01 5112 R1202 0.280 ø11 plastic  (polyacetal)  roller plunger 1 LS72M13B11 1SBV 01 4313 R1211 0.275 1 LS72M13D11 1SBV 01 4313 R1411 0.275 1 LS72M13C11 1SBV 01 4313 R1511 0.275 1 LS72M13L02 1SBV 01 4313 R1302 0.275 1 LS72M13L20 1SBV 01 4313 R1320 0.275 1 LS72M13B02 1SBV 01 4313 R1202 0.275 1 LS73M13B11 1SBV 01 5213 R1211 0.275 1 LS73M13D11 1SBV 01 5213 R1411 0.275 1 LS73M13C11 1SBV 01 5213 R1511 0.275 1 LS73M13L02 1SBV 01 5213 R1302 0.275 1 LS73M13L20 1SBV 01 5213 R1320 0.275 1 LS73M13B02 1SBV 01 5213 R1202 0.275 1 LS75M13B11 1SBV 01 5113 R1211 0.275 1 LS75M13D11 1SBV 01 5113 R1411 0.275 1 LS75M13C11 1SBV 01 5113 R1511 0.275 1 LS75M13L02 1SBV 01 5113 R1302 0.275 1 LS75M13L20 1SBV 01 5113 R1320 0.275 1 LS75M13B02 1SBV 01 5113 R1202 0.275 Technical Data, Dimensions ................................. page 24 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

Low Voltage Products 61 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8605 1F030S LS72M31B11 1SBC5 8606 1F030S LS72M35B11 1SBC5 8607 1F030S LS72M38B11 LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø12.5 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated) 1 LS72M31B11 1SBV 01 4331 R1211 0.265 1 LS72M31D11 1SBV 01 4331 R1411 0.265 1 LS72M31C11 1SBV 01 4331 R1511 0.265 1 LS72M31L02 1SBV 01 4331 R1302 0.265 1 LS72M31L20 1SBV 01 4331 R1320 0.265 1 LS72M31B02 1SBV 01 4331 R1202 0.265 1 LS73M31B11 1SBV 01 5231 R1211 0.265 1 LS73M31D11 1SBV 01 5231 R1411 0.265 1 LS73M31C11 1SBV 01 5231 R1511 0.265 1 LS73M31L02 1SBV 01 5231 R1302 0.265 1 LS73M31L20 1SBV 01 5231 R1320 0.265 1 LS73M31B02 1SBV 01 5231 R1202 0.265 1 LS75M31B11 1SBV 01 5131 R1211 0.265 1 LS75M31D11 1SBV 01 5131 R1411 0.265 1 LS75M31C11 1SBV 01 5131 R1511 0.265 1 LS75M31L02 1SBV 01 5131 R1302 0.265 1 LS75M31L20 1SBV 01 5131 R1320 0.265 1 LS75M31B02 1SBV 01 5131 R1202 0.265 ø12.5 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated)  with dust protection cup 1 LS72M35B11 1SBV 01 4335 R1211 0.265 1 LS72M35D11 1SBV 01 4335 R1411 0.265 1 LS72M35C11 1SBV 01 4335 R1511 0.265 1 LS72M35L02 1SBV 01 4335 R1302 0.265 1 LS72M35L20 1SBV 01 4335 R1320 0.265 1 LS72M35B02 1SBV 01 4335 R1202 0.265 1 LS73M35B11 1SBV 01 5235 R1211 0.265 1 LS73M35D11 1SBV 01 5235 R1411 0.265 1 LS73M35C11 1SBV 01 5235 R1511 0.265 1 LS73M35L02 1SBV 01 5235 R1302 0.265 1 LS73M35L20 1SBV 01 5235 R1320 0.265 1 LS73M35B02 1SBV 01 5235 R1202 0.265 1 LS75M35B11 1SBV 01 5135 R1211 0.265 1 LS75M35D11 1SBV 01 5135 R1411 0.265 1 LS75M35C11 1SBV 01 5135 R1511 0.265 1 LS75M35L02 1SBV 01 5135 R1302 0.265 1 LS75M35L20 1SBV 01 5135 R1320 0.265 1 LS75M35B02 1SBV 01 5135 R1202 0.265 Adjustable ø22 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated) 1 LS72M38B11 1SBV 01 4338 R1211 0.270 1 LS72M38D11 1SBV 01 4338 R1411 0.270 1 LS72M38C11 1SBV 01 4338 R1511 0.270 1 LS72M38L02 1SBV 01 4338 R1302 0.270 1 LS72M38L20 1SBV 01 4338 R1320 0.270 1 LS72M38B02 1SBV 01 4338 R1202 0.270 1 LS73M38B11 1SBV 01 5238 R1211 0.270 1 LS73M38D11 1SBV 01 5238 R1411 0.270 1 LS73M38C11 1SBV 01 5238 R1511 0.270 1 LS73M38L02 1SBV 01 5238 R1302 0.270 1 LS73M38L20 1SBV 01 5238 R1320 0.270 1 LS73M38B02 1SBV 01 5238 R1202 0.270 1 LS75M38B11 1SBV 01 5138 R1211 0.270 1 LS75M38D11 1SBV 01 5138 R1411 0.270 1 LS75M38C11 1SBV 01 5138 R1511 0.270 1 LS75M38L02 1SBV 01 5138 R1302 0.270 1 LS75M38L20 1SBV 01 5138 R1320 0.270 1 LS75M38B02 1SBV 01 5138 R1202 0.270 Technical Data, Dimensions ......................... pages 24, 25 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

62 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8608 1F030S LS72M41B11 1SBC5 8609 1F030S LS72M42B11 1SBC5 9047 1F030S LS72M43B11 LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø18 plastic  (polyacetal)  roller lever 1 LS72M41B11 1SBV 01 4341 R1211 0.320 1 LS72M41D11 1SBV 01 4341 R1411 0.320 1 LS72M41C11 1SBV 01 4341 R1511 0.320 1 LS72M41L02 1SBV 01 4341 R1302 0.320 1 LS72M41L20 1SBV 01 4341 R1320 0.320 1 LS72M41B02 1SBV 01 4341 R1202 0.320 1 LS73M41B11 1SBV 01 5241 R1211 0.320 1 LS73M41D11 1SBV 01 5241 R1411 0.320 1 LS73M41C11 1SBV 01 5241 R1511 0.320 1 LS73M41L02 1SBV 01 5241 R1302 0.320 1 LS73M41L20 1SBV 01 5241 R1320 0.320 1 LS73M41B02 1SBV 01 5241 R1202 0.320 1 LS75M41B11 1SBV 01 5141 R1211 0.320 1 LS75M41D11 1SBV 01 5141 R1411 0.320 1 LS75M41C11 1SBV 01 5141 R1511 0.320 1 LS75M41L02 1SBV 01 5141 R1302 0.320 1 LS75M41L20 1SBV 01 5141 R1320 0.320 1 LS75M41B02 1SBV 01 5141 R1202 0.320 ø50 rubber roller lever 1 LS72M42B11 1SBV 01 4342 R1211 0.345 1 LS72M42D11 1SBV 01 4342 R1411 0.345 1 LS72M42C11 1SBV 01 4342 R1511 0.345 1 LS72M42L02 1SBV 01 4342 R1302 0.345 1 LS72M42L20 1SBV 01 4342 R1320 0.345 1 LS72M42B02 1SBV 01 4342 R1202 0.345 1 LS73M42B11 1SBV 01 5242 R1211 0.345 1 LS73M42D11 1SBV 01 5242 R1411 0.345 1 LS73M42C11 1SBV 01 5242 R1511 0.345 1 LS73M42L02 1SBV 01 5242 R1302 0.345 1 LS73M42L20 1SBV 01 5242 R1320 0.345 1 LS73M42B02 1SBV 01 5242 R1202 0.345 1 LS75M42B11 1SBV 01 5142 R1211 0.345 1 LS75M42D11 1SBV 01 5142 R1411 0.345 1 LS75M42C11 1SBV 01 5142 R1511 0.345 1 LS75M42L02 1SBV 01 5142 R1302 0.345 1 LS75M42L20 1SBV 01 5142 R1320 0.345 1 LS75M42B02 1SBV 01 5142 R1202 0.345 ø18 steel roller lever  (zinc-plated) 1 LS72M43B11 1SBV 01 4343 R1211 0.325 1 LS72M43D11 1SBV 01 4343 R1411 0.325 1 LS72M43C11 1SBV 01 4343 R1511 0.325 1 LS72M43L02 1SBV 01 4343 R1302 0.325 1 LS72M43L20 1SBV 01 4343 R1320 0.325 1 LS72M43B02 1SBV 01 4343 R1202 0.325 1 LS73M43B11 1SBV 01 5243 R1211 0.325 1 LS73M43D11 1SBV 01 5243 R1411 0.325 1 LS73M43C11 1SBV 01 5243 R1511 0.325 1 LS73M43L02 1SBV 01 5243 R1302 0.325 1 LS73M43L20 1SBV 01 5243 R1320 0.325 1 LS73M43B02 1SBV 01 5243 R1202 0.325 1 LS75M43B11 1SBV 01 5143 R1211 0.325 1 LS75M43D11 1SBV 01 5143 R1411 0.325 1 LS75M43C11 1SBV 01 5143 R1511 0.325 1 LS75M43L02 1SBV 01 5143 R1302 0.325 1 LS75M43L20 1SBV 01 5143 R1320 0.325 1 LS75M43B02 1SBV 01 5143 R1202 0.325 Technical Data, Dimensions ................................. page 25 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

Low Voltage Products 63 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8610 1F030S LS72M45B11 1SBC5 8611 1F030S LS72M51B11 1SBC5 9048 1F030S LS72M46B11 LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø18 plastic  (polyacetal)  roller with bent lever 1 LS72M45B11 1SBV 01 4345 R1211 0.335 1 LS72M45D11 1SBV 01 4345 R1411 0.335 1 LS72M45C11 1SBV 01 4345 R1511 0.335 1 LS72M45L02 1SBV 01 4345 R1302 0.335 1 LS72M45L20 1SBV 01 4345 R1320 0.335 1 LS72M45B02 1SBV 01 4345 R1202 0.335 1 LS73M45B11 1SBV 01 5245 R1211 0.335 1 LS73M45D11 1SBV 01 5245 R1411 0.335 1 LS73M45C11 1SBV 01 5245 R1511 0.335 1 LS73M45L02 1SBV 01 5245 R1302 0.335 1 LS73M45L20 1SBV 01 5245 R1320 0.335 1 LS73M45B02 1SBV 01 5245 R1202 0.335 1 LS75M45B11 1SBV 01 5145 R1211 0.335 1 LS75M45D11 1SBV 01 5145 R1411 0.335 1 LS75M45C11 1SBV 01 5145 R1511 0.335 1 LS75M45L02 1SBV 01 5145 R1302 0.335 1 LS75M45L20 1SBV 01 5145 R1320 0.335 1 LS75M45B02 1SBV 01 5145 R1202 0.335 ø18 steel roller  (zinc-plated)  with bent lever 1 LS72M46B11 1SBV 01 4346 R1211 0.340 1 LS72M46D11 1SBV 01 4346 R1411 0.340 1 LS72M46C11 1SBV 01 4346 R1511 0.340 1 LS72M46L02 1SBV 01 4346 R1302 0.340 1 LS72M46L20 1SBV 01 4346 R1320 0.340 1 LS72M46B02 1SBV 01 4346 R1202 0.340 1 LS73M46B11 1SBV 01 5246 R1211 0.340 1 LS73M46D11 1SBV 01 5246 R1411 0.340 1 LS73M46C11 1SBV 01 5246 R1511 0.340 1 LS73M46L02 1SBV 01 5246 R1302 0.340 1 LS73M46L20 1SBV 01 5246 R1320 0.340 1 LS73M46B02 1SBV 01 5246 R1202 0.340 1 LS75M46B11 1SBV 01 5146 R1211 0.340 1 LS75M46D11 1SBV 01 5146 R1411 0.340 1 LS75M46C11 1SBV 01 5146 R1511 0.340 1 LS75M46L02 1SBV 01 5146 R1302 0.340 1 LS75M46L20 1SBV 01 5146 R1320 0.340 1 LS75M46B02 1SBV 01 5146 R1202 0.340 Adjustable ø18 plastic  (polyacetal)  roller lever 1 LS72M51B11 1SBV 01 4351 R1211 0.335 1 LS72M51D11 1SBV 01 4351 R1411 0.335 1 LS72M51C11 1SBV 01 4351 R1511 0.335 1 LS72M51L02 1SBV 01 4351 R1302 0.335 1 LS72M51L20 1SBV 01 4351 R1320 0.335 1 LS72M51B02 1SBV 01 4351 R1202 0.335 1 LS73M51B11 1SBV 01 5251 R1211 0.335 1 LS73M51D11 1SBV 01 5251 R1411 0.335 1 LS73M51C11 1SBV 01 5251 R1511 0.335 1 LS73M51L02 1SBV 01 5251 R1302 0.335 1 LS73M51L20 1SBV 01 5251 R1320 0.335 1 LS73M51B02 1SBV 01 5251 R1202 0.335 1 LS75M51B11 1SBV 01 5151 R1211 0.335 1 LS75M51D11 1SBV 01 5151 R1411 0.335 1 LS75M51C11 1SBV 01 5151 R1511 0.335 1 LS75M51L02 1SBV 01 5151 R1302 0.335 1 LS75M51L20 1SBV 01 5151 R1320 0.335 1 LS75M51B02 1SBV 01 5151 R1202 0.335 Technical Data, Dimensions ................................. page 25 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

64 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb 1SBC5 8612 1F030S LS72M52B11 1SBC5 8613 1F030S LS72M61B11 1SBC5 9049 1F030S LS72M53B11 Zb LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable ø50 rubber roller lever 1 LS72M52B11 1SBV 01 4352 R1211 0.355 1 LS72M52D11 1SBV 01 4352 R1411 0.355 1 LS72M52C11 1SBV 01 4352 R1511 0.355 1 LS72M52L02 1SBV 01 4352 R1302 0.355 1 LS72M52L20 1SBV 01 4352 R1320 0.355 1 LS72M52B02 1SBV 01 4352 R1202 0.355 1 LS73M52B11 1SBV 01 5252 R1211 0.355 1 LS73M52D11 1SBV 01 5252 R1411 0.355 1 LS73M52C11 1SBV 01 5252 R1511 0.355 1 LS73M52L02 1SBV 01 5252 R1302 0.355 1 LS73M52L20 1SBV 01 5252 R1320 0.355 1 LS73M52B02 1SBV 01 5252 R1202 0.355 1 LS75M52B11 1SBV 01 5152 R1211 0.355 1 LS75M52D11 1SBV 01 5152 R1411 0.355 1 LS75M52C11 1SBV 01 5152 R1511 0.355 1 LS75M52L02 1SBV 01 5152 R1302 0.355 1 LS75M52L20 1SBV 01 5152 R1320 0.355 1 LS75M52B02 1SBV 01 5152 R1202 0.355 Adjustable ø18 steel roller lever  (zinc-plated) 1 LS72M53B11 1SBV 01 4353 R1211 0.340 1 LS72M53D11 1SBV 01 4353 R1411 0.340 1 LS72M53C11 1SBV 01 4353 R1511 0.340 1 LS72M53L02 1SBV 01 4353 R1302 0.340 1 LS72M53L20 1SBV 01 4353 R1320 0.340 1 LS72M53B02 1SBV 01 4353 R1202 0.340 1 LS73M53B11 1SBV 01 5253 R1211 0.340 1 LS73M53D11 1SBV 01 5253 R1411 0.340 1 LS73M53C11 1SBV 01 5253 R1511 0.340 1 LS73M53L02 1SBV 01 5253 R1302 0.340 1 LS73M53L20 1SBV 01 5253 R1320 0.340 1 LS73M53B02 1SBV 01 5253 R1202 0.340 1 LS75M53B11 1SBV 01 5153 R1211 0.340 1 LS75M53D11 1SBV 01 5153 R1411 0.340 1 LS75M53C11 1SBV 01 5153 R1511 0.340 1 LS75M53L02 1SBV 01 5153 R1302 0.340 1 LS75M53L20 1SBV 01 5153 R1320 0.340 1 LS75M53B02 1SBV 01 5153 R1202 0.340 Flexible lever with insulated end 1 LS72M61B11 1SBV 01 4361 R1211 0.375 1 LS72M61D11 1SBV 01 4361 R1411 0.375 1 LS72M61C11 1SBV 01 4361 R1511 0.375 1 LS72M61L02 1SBV 01 4361 R1302 0.375 1 LS72M61L20 1SBV 01 4361 R1320 0.375 1 LS72M61B02 1SBV 01 4361 R1202 0.375 1 LS73M61B11 1SBV 01 5261 R1211 0.375 1 LS73M61D11 1SBV 01 5261 R1411 0.375 1 LS73M61C11 1SBV 01 5261 R1511 0.375 1 LS73M61L02 1SBV 01 5261 R1302 0.375 1 LS73M61L20 1SBV 01 5261 R1320 0.375 1 LS73M61B02 1SBV 01 5261 R1202 0.375 1 LS75M61B11 1SBV 01 5161 R1211 0.375 1 LS75M61D11 1SBV 01 5161 R1411 0.375 1 LS75M61C11 1SBV 01 5161 R1511 0.375 1 LS75M61L02 1SBV 01 5161 R1302 0.375 1 LS75M61L20 1SBV 01 5161 R1320 0.375 1 LS75M61B02 1SBV 01 5161 R1202 0.375 Technical Data, Dimensions ......................... pages 25, 26 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

Low Voltage Products 65 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8614 1F030S LS72M62B11 1SBC5 8615 1F030S LS72M71B11 1SBC5 9050 1F030S LS72M72B11 LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Coil spring lever 1 LS72M62B11 1SBV 01 4362 R1211 0.380 1 LS72M62D11 1SBV 01 4362 R1411 0.380 1 LS72M62C11 1SBV 01 4362 R1511 0.380 1 LS72M62L02 1SBV 01 4362 R1302 0.380 1 LS72M62L20 1SBV 01 4362 R1320 0.380 1 LS72M62B02 1SBV 01 4362 R1202 0.380 1 LS73M62B11 1SBV 01 5262 R1211 0.380 1 LS73M62D11 1SBV 01 5262 R1411 0.380 1 LS73M62C11 1SBV 01 5262 R1511 0.380 1 LS73M62L02 1SBV 01 5262 R1302 0.380 1 LS73M62L20 1SBV 01 5262 R1320 0.380 1 LS73M62B02 1SBV 01 5262 R1202 0.380 1 LS75M62B11 1SBV 01 5162 R1211 0.380 1 LS75M62D11 1SBV 01 5162 R1411 0.380 1 LS75M62C11 1SBV 01 5162 R1511 0.380 1 LS75M62L02 1SBV 01 5162 R1302 0.380 1 LS75M62L20 1SBV 01 5162 R1320 0.380 1 LS75M62B02 1SBV 01 5162 R1202 0.380 Adjustable ø3 stainless steel rod lever 1 LS72M71B11 1SBV 01 4371 R1211 0.380 1 LS72M71D11 1SBV 01 4371 R1411 0.380 1 LS72M71C11 1SBV 01 4371 R1511 0.380 1 LS72M71L02 1SBV 01 4371 R1302 0.380 1 LS72M71L20 1SBV 01 4371 R1320 0.380 1 LS72M71B02 1SBV 01 4371 R1202 0.380 1 LS73M71B11 1SBV 01 5271 R1211 0.380 1 LS73M71D11 1SBV 01 5271 R1411 0.380 1 LS73M71C11 1SBV 01 5271 R1511 0.380 1 LS73M71L02 1SBV 01 5271 R1302 0.380 1 LS73M71L20 1SBV 01 5271 R1320 0.380 1 LS73M71B02 1SBV 01 5271 R1202 0.380 1 LS75M71B11 1SBV 01 5171 R1211 0.380 1 LS75M71D11 1SBV 01 5171 R1411 0.380 1 LS75M71C11 1SBV 01 5171 R1511 0.380 1 LS75M71L02 1SBV 01 5171 R1302 0.380 1 LS75M71L20 1SBV 01 5171 R1320 0.380 1 LS75M71B02 1SBV 01 5171 R1202 0.380 Adjustable ø3 fibre-glass rod lever 1 LS72M72B11 1SBV 01 4372 R1211 0.370 1 LS72M72D11 1SBV 01 4372 R1411 0.370 1 LS72M72C11 1SBV 01 4372 R1511 0.370 1 LS72M72L02 1SBV 01 4372 R1302 0.370 1 LS72M72L20 1SBV 01 4372 R1320 0.370 1 LS72M72B02 1SBV 01 4372 R1202 0.370 1 LS73M72B11 1SBV 01 5272 R1211 0.370 1 LS73M72D11 1SBV 01 5272 R1411 0.370 1 LS73M72C11 1SBV 01 5272 R1511 0.370 1 LS73M72L02 1SBV 01 5272 R1302 0.370 1 LS73M72L20 1SBV 01 5272 R1320 0.370 1 LS73M72B02 1SBV 01 5272 R1202 0.370 1 LS75M72B11 1SBV 01 5172 R1211 0.370 1 LS75M72D11 1SBV 01 5172 R1411 0.370 1 LS75M72C11 1SBV 01 5172 R1511 0.370 1 LS75M72L02 1SBV 01 5172 R1302 0.370 1 LS75M72L20 1SBV 01 5172 R1320 0.370 1 LS75M72B02 1SBV 01 5172 R1202 0.370 Technical Data, Dimensions ................................. page 26 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

66 Low Voltage Products 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8616 1F030S LS72M73B11 1SBC5 8617 1F030S LS72M78B11 1SBC5 9051 1F030S LS72M74B11 LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable ø6 polyamide rod lever 1 LS72M73B11 1SBV 01 4373 R1211 0.390 1 LS72M73D11 1SBV 01 4373 R1411 0.390 1 LS72M73C11 1SBV 01 4373 R1511 0.390 1 LS72M73L02 1SBV 01 4373 R1302 0.390 1 LS72M73L20 1SBV 01 4373 R1320 0.390 1 LS72M73B02 1SBV 01 4373 R1202 0.390 1 LS73M73B11 1SBV 01 5273 R1211 0.390 1 LS73M73D11 1SBV 01 5273 R1411 0.390 1 LS73M73C11 1SBV 01 5273 R1511 0.390 1 LS73M73L02 1SBV 01 5273 R1302 0.390 1 LS73M73L20 1SBV 01 5273 R1320 0.390 1 LS73M73B02 1SBV 01 5273 R1202 0.390 1 LS75M73B11 1SBV 01 5173 R1211 0.390 1 LS75M73D11 1SBV 01 5173 R1411 0.390 1 LS75M73C11 1SBV 01 5173 R1511 0.390 1 LS75M73L02 1SBV 01 5173 R1302 0.390 1 LS75M73L20 1SBV 01 5173 R1320 0.390 1 LS75M73B02 1SBV 01 5173 R1202 0.390 Adjustable ø6 fibre-glass rod lever 1 LS72M74B11 1SBV 01 4374 R1211 0.390 1 LS72M74D11 1SBV 01 4374 R1411 0.390 1 LS72M74C11 1SBV 01 4374 R1511 0.390 1 LS72M74L02 1SBV 01 4374 R1302 0.390 1 LS72M74L20 1SBV 01 4374 R1320 0.390 1 LS72M74B02 1SBV 01 4374 R1202 0.390 1 LS73M74B11 1SBV 01 5274 R1211 0.390 1 LS73M74D11 1SBV 01 5274 R1411 0.390 1 LS73M74C11 1SBV 01 5274 R1511 0.390 1 LS73M74L02 1SBV 01 5274 R1302 0.390 1 LS73M74L20 1SBV 01 5274 R1320 0.390 1 LS73M74B02 1SBV 01 5274 R1202 0.390 1 LS75M74B11 1SBV 01 5174 R1211 0.390 1 LS75M74D11 1SBV 01 5174 R1411 0.390 1 LS75M74C11 1SBV 01 5174 R1511 0.390 1 LS75M74L02 1SBV 01 5174 R1302 0.390 1 LS75M74L20 1SBV 01 5174 R1320 0.390 1 LS75M74B02 1SBV 01 5174 R1202 0.390 Adjustable 3 square steel rod lever  (zinc-plated) 1 LS72M78B11 1SBV 01 4378 R1211 0.375 1 LS72M78D11 1SBV 01 4378 R1411 0.375 1 LS72M78C11 1SBV 01 4378 R1511 0.375 1 LS72M78L02 1SBV 01 4378 R1302 0.375 1 LS72M78L20 1SBV 01 4378 R1320 0.375 1 LS72M78B02 1SBV 01 4378 R1202 0.375 1 LS73M78B11 1SBV 01 5278 R1211 0.375 1 LS73M78D11 1SBV 01 5278 R1411 0.375 1 LS73M78C11 1SBV 01 5278 R1511 0.375 1 LS73M78L02 1SBV 01 5278 R1302 0.375 1 LS73M78L20 1SBV 01 5278 R1320 0.375 1 LS73M78B02 1SBV 01 5278 R1202 0.375 1 LS75M78B11 1SBV 01 5178 R1211 0.375 1 LS75M78D11 1SBV 01 5178 R1411 0.375 1 LS75M78C11 1SBV 01 5178 R1511 0.375 1 LS75M78L02 1SBV 01 5178 R1302 0.375 1 LS75M78L20 1SBV 01 5178 R1320 0.375 1 LS75M78B02 1SBV 01 5178 R1202 0.375 Technical Data, Dimensions ................................. page 27 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

Low Voltage Products 67 1SBC141138C0201 Zb Zb Zb Zb Zb Zb 1SBC5 8618 1F030S LS72M91B11 1SBC5 8619 1F030S LS72M92B11 1SBC5 8620 1F030S LS72M98B11-A LS72M with 3 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73M with 3 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75M with 3 cable inlets for 1/2" NPT cable gland. Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Spring rod 1 LS72M91B11 1SBV 01 4391 R1211 0.315 1 LS72M91D11 1SBV 01 4391 R1411 0.315 1 LS72M91C11 1SBV 01 4391 R1511 0.315 1 LS72M91L02 1SBV 01 4391 R1302 0.315 1 LS72M91L20 1SBV 01 4391 R1320 0.315 1 LS72M91B02 1SBV 01 4391 R1202 0.315 1 LS73M91B11 1SBV 01 5291 R1211 0.315 1 LS73M91D11 1SBV 01 5291 R1411 0.315 1 LS73M91C11 1SBV 01 5291 R1511 0.315 1 LS73M91L02 1SBV 01 5291 R1302 0.315 1 LS73M91L20 1SBV 01 5291 R1320 0.315 1 LS73M91B02 1SBV 01 5291 R1202 0.315 1 LS75M91B11 1SBV 01 5191 R1211 0.315 1 LS75M91D11 1SBV 01 5191 R1411 0.315 1 LS75M91C11 1SBV 01 5191 R1511 0.315 1 LS75M91L02 1SBV 01 5191 R1302 0.315 1 LS75M91L20 1SBV 01 5191 R1320 0.315 1 LS75M91B02 1SBV 01 5191 R1202 0.315 Flexible rod with insulated end 1 LS72M92B11 1SBV 01 4392 R1211 0.320 1 LS72M92D11 1SBV 01 4392 R1411 0.320 1 LS72M92C11 1SBV 01 4392 R1511 0.320 1 LS72M92L02 1SBV 01 4392 R1302 0.320 1 LS72M92L20 1SBV 01 4392 R1320 0.320 1 LS72M92B02 1SBV 01 4392 R1202 0.320 1 LS73M92B11 1SBV 01 5292 R1211 0.320 1 LS73M92D11 1SBV 01 5292 R1411 0.320 1 LS73M92C11 1SBV 01 5292 R1511 0.320 1 LS73M92L02 1SBV 01 5292 R1302 0.320 1 LS73M92L20 1SBV 01 5292 R1320 0.320 1 LS73M92B02 1SBV 01 5292 R1202 0.320 1 LS75M92B11 1SBV 01 5192 R1211 0.320 1 LS75M92D11 1SBV 01 5192 R1411 0.320 1 LS75M92C11 1SBV 01 5192 R1511 0.320 1 LS75M92L02 1SBV 01 5192 R1302 0.320 1 LS75M92L20 1SBV 01 5192 R1320 0.320 1 LS75M92B02 1SBV 01 5192 R1202 0.320 Pull action with ring 1 LS72M98B11-A 1SBV 01 4398 R1211 0.350 1 LS72M98D11-A 1SBV 01 4398 R1411 0.350 1 LS72M98L02-A 1SBV 01 4398 R1302 0.350 1 LS72M98L20-A 1SBV 01 4398 R1320 0.350 1 LS73M98B11-A 1SBV 01 5298 R1211 0.350 1 LS73M98D11-A 1SBV 01 5298 R1411 0.350 1 LS73M98L02-A 1SBV 01 5298 R1302 0.350 1 LS73M98L20-A 1SBV 01 5298 R1320 0.350 1 LS75M98B11-A 1SBV 01 5198 R1211 0.350 1 LS75M98D11-A 1SBV 01 5198 R1411 0.350 1 LS75M98L02-A 1SBV 01 5198 R1302 0.350 1 LS75M98L20-A 1SBV 01 5198 R1320 0.350 Technical Data, Dimensions ................................. page 27 Accessories ............................................................ page 76 LS72M…, LS73M... and LS75M... Limit Switches Metal Casing IP66 - 60 mm Width

68 Low Voltage Products 1SBC141138C0201 1SBC5 8585 1F030S LS72P10B11 1SBC5 8586 1F030S LS72P11B11 1SBC5 9052 1F030S LS72P12B11 Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Plastic plain plunger  (polyacetal) 1 LS72P10B11 1SBV 01 1010 R1211 0.095 1 LS72P10D11 1SBV 01 1010 R1411 0.095 1 LS72P10C11 1SBV 01 1010 R1511 0.095 1 LS72P10L02 1SBV 01 1010 R1302 0.095 1 LS72P10L20 1SBV 01 1010 R1320 0.095 1 LS72P10B02 1SBV 01 1010 R1202 0.095 1 LS73P10B11 1SBV 01 2810 R1211 0.095 1 LS73P10D11 1SBV 01 2810 R1411 0.095 1 LS73P10C11 1SBV 01 2810 R1511 0.095 1 LS73P10L02 1SBV 01 2810 R1302 0.095 1 LS73P10L20 1SBV 01 2810 R1320 0.095 1 LS73P10B02 1SBV 01 2810 R1202 0.095 1 LS75P10B11 1SBV 01 2710 R1211 0.102 1 LS75P10D11 1SBV 01 2710 R1411 0.102 1 LS75P10C11 1SBV 01 2710 R1511 0.102 1 LS75P10L02 1SBV 01 2710 R1302 0.102 1 LS75P10L20 1SBV 01 2710 R1320 0.102 1 LS75P10B02 1SBV 01 2710 R1202 0.102 Steel plain plunger  (zinc-plated) 1 LS72P11B11 1SBV 01 1011 R1211 0.100 1 LS72P11D11 1SBV 01 1011 R1411 0.100 1 LS72P11C11 1SBV 01 1011 R1511 0.100 1 LS72P11L02 1SBV 01 1011 R1302 0.100 1 LS72P11L20 1SBV 01 1011 R1320 0.100 1 LS72P11B02 1SBV 01 1011 R1202 0.100 1 LS73P11B11 1SBV 01 2811 R1211 0.100 1 LS73P11D11 1SBV 01 2811 R1411 0.100 1 LS73P11C11 1SBV 01 2811 R1511 0.100 1 LS73P11L02 1SBV 01 2811 R1302 0.100 1 LS73P11L20 1SBV 01 2811 R1320 0.100 1 LS73P11B02 1SBV 01 2811 R1202 0.100 1 LS75P11B11 1SBV 01 2711 R1211 0.107 1 LS75P11D11 1SBV 01 2711 R1411 0.107 1 LS75P11C11 1SBV 01 2711 R1511 0.107 1 LS75P11L02 1SBV 01 2711 R1302 0.107 1 LS75P11L20 1SBV 01 2711 R1320 0.107 1 LS75P11B02 1SBV 01 2711 R1202 0.107 ø11 steel roller plunger  (zinc-plated) 1 LS72P12B11 1SBV 01 1012 R1211 0.105 1 LS72P12D11 1SBV 01 1012 R1411 0.105 1 LS72P12C11 1SBV 01 1012 R1511 0.105 1 LS72P12L02 1SBV 01 1012 R1302 0.105 1 LS72P12L20 1SBV 01 1012 R1320 0.105 1 LS72P12B02 1SBV 01 1012 R1202 0.105 1 LS73P12B11 1SBV 01 2812 R1211 0.105 1 LS73P12D11 1SBV 01 2812 R1411 0.105 1 LS73P12C11 1SBV 01 2812 R1511 0.105 1 LS73P12L02 1SBV 01 2812 R1302 0.105 1 LS73P12L20 1SBV 01 2812 R1320 0.105 1 LS73P12B02 1SBV 01 2812 R1202 0.105 1 LS75P12B11 1SBV 01 2712 R1211 0.112 1 LS75P12D11 1SBV 01 2712 R1411 0.112 1 LS75P12C11 1SBV 01 2712 R1511 0.112 1 LS75P12L02 1SBV 01 2712 R1302 0.112 1 LS75P12L20 1SBV 01 2712 R1320 0.112 1 LS75P12B02 1SBV 01 2712 R1202 0.112 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width Technical Data, Dimensions ................................. page 36 Accessories ............................................................ page 76

Low Voltage Products 69 1SBC141138C0201 1SBC5 8587 1F030S LS72P13B11 1SBC5 8588 1F030S LS72P30B11 1SBC5 8589 1F030S LS72P31B11 Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø11 plastic  (polyacetal) roller plunger 1 LS72P13B11 1SBV 01 1013 R1211 0.100 1 LS72P13D11 1SBV 01 1013 R1411 0.100 1 LS72P13C11 1SBV 01 1013 R1511 0.100 1 LS72P13L02 1SBV 01 1013 R1302 0.100 1 LS72P13L20 1SBV 01 1013 R1320 0.100 1 LS72P13B02 1SBV 01 1013 R1202 0.100 1 LS73P13B11 1SBV 01 2813 R1211 0.100 1 LS73P13D11 1SBV 01 2813 R1411 0.100 1 LS73P13C11 1SBV 01 2813 R1511 0.100 1 LS73P13L02 1SBV 01 2813 R1302 0.100 1 LS73P13L20 1SBV 01 2813 R1320 0.100 1 LS73P13B02 1SBV 01 2813 R1202 0.100 1 LS75P13B11 1SBV 01 2713 R1211 0.107 1 LS75P13D11 1SBV 01 2713 R1411 0.107 1 LS75P13C11 1SBV 01 2713 R1511 0.107 1 LS75P13L02 1SBV 01 2713 R1302 0.107 1 LS75P13L20 1SBV 01 2713 R1320 0.107 1 LS75P13B02 1SBV 01 2713 R1202 0.107 ø12.5 plastic  (polyacetal)  roller lever on plastic  (polyacetal)  plunger 1 LS72P30B11 1SBV 01 1030 R1211 0.100 1 LS72P30D11 1SBV 01 1030 R1411 0.100 1 LS72P30C11 1SBV 01 1030 R1511 0.100 1 LS72P30L02 1SBV 01 1030 R1302 0.100 1 LS72P30L20 1SBV 01 1030 R1320 0.100 1 LS72P30B02 1SBV 01 1030 R1202 0.100 1 LS73P30B11 1SBV 01 2830 R1211 0.100 1 LS73P30D11 1SBV 01 2830 R1411 0.100 1 LS73P30C11 1SBV 01 2830 R1511 0.100 1 LS73P30L02 1SBV 01 2830 R1302 0.100 1 LS73P30L20 1SBV 01 2830 R1320 0.100 1 LS73P30B02 1SBV 01 2830 R1202 0.100 1 LS75P30B11 1SBV 01 2730 R1211 0.107 1 LS75P30D11 1SBV 01 2730 R1411 0.107 1 LS75P30C11 1SBV 01 2730 R1511 0.107 1 LS75P30L02 1SBV 01 2730 R1302 0.107 1 LS75P30L20 1SBV 01 2730 R1320 0.107 1 LS75P30B02 1SBV 01 2730 R1202 0.107 ø12.5 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated) 1 LS72P31B11 1SBV 01 1031 R1211 0.105 1 LS72P31D11 1SBV 01 1031 R1411 0.105 1 LS72P31C11 1SBV 01 1031 R1511 0.105 1 LS72P31L02 1SBV 01 1031 R1302 0.105 1 LS72P31L20 1SBV 01 1031 R1320 0.105 1 LS72P31B02 1SBV 01 1031 R1202 0.105 1 LS73P31B11 1SBV 01 2831 R1211 0.105 1 LS73P31D11 1SBV 01 2831 R1411 0.105 1 LS73P31C11 1SBV 01 2831 R1511 0.105 1 LS73P31L02 1SBV 01 2831 R1302 0.105 1 LS73P31L20 1SBV 01 2831 R1320 0.105 1 LS73P31B02 1SBV 01 2831 R1202 0.105 1 LS75P31B11 1SBV 01 2731 R1211 0.112 1 LS75P31D11 1SBV 01 2731 R1411 0.112 1 LS75P31C11 1SBV 01 2731 R1511 0.112 1 LS75P31L02 1SBV 01 2731 R1302 0.112 1 LS75P31L20 1SBV 01 2731 R1320 0.112 1 LS75P31B02 1SBV 01 2731 R1202 0.112 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width Technical Data, Dimensions ......................... pages 36, 37 Accessories ............................................................ page 76

70 Low Voltage Products 1SBC141138C0201 1SBC5 8590 1F030S LS72P35B11 1SBC5 8592 1F030S LS72P41B11 1SBC5 8591 1F030S LS72P38B11 Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø12.5 plastic  (polyacetal) roller lever on steel plunger  (zinc-plated)  with dust production cup 1 LS72P35B11 1SBV 01 1035 R1211 0.105 1 LS72P35D11 1SBV 01 1035 R1411 0.105 1 LS72P35C11 1SBV 01 1035 R1511 0.105 1 LS72P35L02 1SBV 01 1035 R1302 0.105 1 LS72P35L20 1SBV 01 1035 R1320 0.105 1 LS72P35B02 1SBV 01 1035 R1202 0.105 1 LS73P35B11 1SBV 01 2835 R1211 0.105 1 LS73P35D11 1SBV 01 2835 R1411 0.105 1 LS73P35C11 1SBV 01 2835 R1511 0.105 1 LS73P35L02 1SBV 01 2835 R1302 0.105 1 LS73P35L20 1SBV 01 2835 R1320 0.105 1 LS73P35B02 1SBV 01 2835 R1202 0.105 1 LS75P35B11 1SBV 01 2735 R1211 0.112 1 LS75P35D11 1SBV 01 2735 R1411 0.112 1 LS75P35C11 1SBV 01 2735 R1511 0.112 1 LS75P35L02 1SBV 01 2735 R1302 0.112 1 LS75P35L20 1SBV 01 2735 R1320 0.112 1 LS75P35B02 1SBV 01 2735 R1202 0.112 Adjustable ø22 plastic  (polyacetal)  roller lever on steel plunger  (zinc-plated) 1 LS72P38B11 1SBV 01 1038 R1211 0.110 1 LS72P38D11 1SBV 01 1038 R1411 0.110 1 LS72P38C11 1SBV 01 1038 R1511 0.110 1 LS72P38L02 1SBV 01 1038 R1302 0.110 1 LS72P38L20 1SBV 01 1038 R1320 0.110 1 LS72P38B02 1SBV 01 1038 R1202 0.110 1 LS73P38B11 1SBV 01 2838 R1211 0.110 1 LS73P38D11 1SBV 01 2838 R1411 0.110 1 LS73P38C11 1SBV 01 2838 R1511 0.110 1 LS73P38L02 1SBV 01 2838 R1302 0.110 1 LS73P38L20 1SBV 01 2838 R1320 0.110 1 LS73P38B02 1SBV 01 2838 R1202 0.110 1 LS75P38B11 1SBV 01 2738 R1211 0.117 1 LS75P38D11 1SBV 01 2738 R1411 0.117 1 LS75P38C11 1SBV 01 2738 R1511 0.117 1 LS75P38L02 1SBV 01 2738 R1302 0.117 1 LS75P38L20 1SBV 01 2738 R1320 0.117 1 LS75P38B02 1SBV 01 2738 R1202 0.117 ø18 plastic  (polyacetal)  roller lever 1 LS72P41B11 1SBV 01 1041 R1211 0.125 1 LS72P41D11 1SBV 01 1041 R1411 0.125 1 LS72P41C11 1SBV 01 1041 R1511 0.125 1 LS72P41L02 1SBV 01 1041 R1302 0.125 1 LS72P41L20 1SBV 01 1041 R1320 0.125 1 LS72P41B02 1SBV 01 1041 R1202 0.125 1 LS73P41B11 1SBV 01 2841 R1211 0.125 1 LS73P41D11 1SBV 01 2841 R1411 0.125 1 LS73P41C11 1SBV 01 2841 R1511 0.125 1 LS73P41L02 1SBV 01 2841 R1302 0.125 1 LS73P41L20 1SBV 01 2841 R1320 0.125 1 LS73P41B02 1SBV 01 2841 R1202 0.125 1 LS75P41B11 1SBV 01 2741 R1211 0.132 1 LS75P41D11 1SBV 01 2741 R1411 0.132 1 LS75P41C11 1SBV 01 2741 R1511 0.132 1 LS75P41L02 1SBV 01 2741 R1302 0.132 1 LS75P41L20 1SBV 01 2741 R1320 0.132 1 LS75P41B02 1SBV 01 2741 R1202 0.132 Technical Data, Dimensions ................................. page 37 Accessories ............................................................ page 76 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width

Low Voltage Products 71 1SBC141138C0201 1SBC5 8593 1F030S LS72P42B11 1SBC5 8594 1F030S LS72P45B11 1SBC5 9053 1F030S LS72P43B11 Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø50 rubber roller lever 1 LS72P42B11 1SBV 01 1042 R1211 0.145 1 LS72P42D11 1SBV 01 1042 R1411 0.145 1 LS72P42C11 1SBV 01 1042 R1511 0.145 1 LS72P42L02 1SBV 01 1042 R1302 0.145 1 LS72P42L20 1SBV 01 1042 R1320 0.145 1 LS72P42B02 1SBV 01 1042 R1202 0.145 1 LS73P42B11 1SBV 01 2842 R1211 0.145 1 LS73P42D11 1SBV 01 2842 R1411 0.145 1 LS73P42C11 1SBV 01 2842 R1511 0.145 1 LS73P42L02 1SBV 01 2842 R1302 0.145 1 LS73P42L20 1SBV 01 2842 R1320 0.145 1 LS73P42B02 1SBV 01 2842 R1202 0.145 1 LS75P42B11 1SBV 01 2742 R1211 0.152 1 LS75P42D11 1SBV 01 2742 R1411 0.152 1 LS75P42C11 1SBV 01 2742 R1511 0.152 1 LS75P42L02 1SBV 01 2742 R1302 0.152 1 LS75P42L20 1SBV 01 2742 R1320 0.152 1 LS75P42B02 1SBV 01 2742 R1202 0.152 ø18 steel roller lever  (zinc-plated) 1 LS72P43B11 1SBV 01 1043 R1211 0.130 1 LS72P43D11 1SBV 01 1043 R1411 0.130 1 LS72P43C11 1SBV 01 1043 R1511 0.130 1 LS72P43L02 1SBV 01 1043 R1302 0.130 1 LS72P43L20 1SBV 01 1043 R1320 0.130 1 LS72P43B02 1SBV 01 1043 R1202 0.130 1 LS73P43B11 1SBV 01 2843 R1211 0.130 1 LS73P43D11 1SBV 01 2843 R1411 0.130 1 LS73P43C11 1SBV 01 2843 R1511 0.130 1 LS73P43L02 1SBV 01 2843 R1302 0.130 1 LS73P43L20 1SBV 01 2843 R1320 0.130 1 LS73P43B02 1SBV 01 2843 R1202 0.130 1 LS75P43B11 1SBV 01 2743 R1211 0.137 1 LS75P43D11 1SBV 01 2743 R1411 0.137 1 LS75P43C11 1SBV 01 2743 R1511 0.137 1 LS75P43L02 1SBV 01 2743 R1302 0.137 1 LS75P43L20 1SBV 01 2743 R1320 0.137 1 LS75P43B02 1SBV 01 2743 R1202 0.137 ø18 plastic  (polyacetal)  roller with bent lever 1 LS72P45B11 1SBV 01 1045 R1211 0.125 1 LS72P45D11 1SBV 01 1045 R1411 0.125 1 LS72P45C11 1SBV 01 1045 R1511 0.125 1 LS72P45L02 1SBV 01 1045 R1302 0.125 1 LS72P45L20 1SBV 01 1045 R1320 0.125 1 LS72P45B02 1SBV 01 1045 R1202 0.125 1 LS73P45B11 1SBV 01 2845 R1211 0.125 1 LS73P45D11 1SBV 01 2845 R1411 0.125 1 LS73P45C11 1SBV 01 2845 R1511 0.125 1 LS73P45L02 1SBV 01 2845 R1302 0.125 1 LS73P45L20 1SBV 01 2845 R1320 0.125 1 LS73P45B02 1SBV 01 2845 R1202 0.125 1 LS75P45B11 1SBV 01 2745 R1211 0.132 1 LS75P45D11 1SBV 01 2745 R1411 0.132 1 LS75P45C11 1SBV 01 2745 R1511 0.132 1 LS75P45L02 1SBV 01 2745 R1302 0.132 1 LS75P45L20 1SBV 01 2745 R1320 0.132 1 LS75P45B02 1SBV 01 2745 R1202 0.132 Technical Data, Dimensions ......................... pages 37, 38 Accessories ............................................................ page 76 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width

72 Low Voltage Products 1SBC141138C0201 1SBC5 8595 1F030S LS72P51B11 1SBC5 8595 1F030S LS72P52B11 1SBC5 9054 1F030S LS72P46B11 Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece ø18 steel roller  (zinc-plated)  with bent lever 1 LS72P46B11 1SBV 01 1046 R1211 0.130 1 LS72P46D11 1SBV 01 1046 R1411 0.130 1 LS72P46C11 1SBV 01 1046 R1511 0.130 1 LS72P46L02 1SBV 01 1046 R1302 0.130 1 LS72P46L20 1SBV 01 1046 R1320 0.130 1 LS72P46B02 1SBV 01 1046 R1202 0.130 1 LS73P46B11 1SBV 01 2846 R1211 0.130 1 LS73P46D11 1SBV 01 2846 R1411 0.130 1 LS73P46C11 1SBV 01 2846 R1511 0.130 1 LS73P46L02 1SBV 01 2846 R1302 0.130 1 LS73P46L20 1SBV 01 2846 R1320 0.130 1 LS73P46B02 1SBV 01 2846 R1202 0.130 1 LS75P46B11 1SBV 01 2746 R1211 0.137 1 LS75P46D11 1SBV 01 2746 R1411 0.137 1 LS75P46C11 1SBV 01 2746 R1511 0.137 1 LS75P46L02 1SBV 01 2746 R1302 0.137 1 LS75P46L20 1SBV 01 2746 R1320 0.137 1 LS75P46B02 1SBV 01 2746 R1202 0.137 Adjustable ø18 plastic  (polyacetal)  roller lever 1 LS72P51B11 1SBV 01 1051 R1211 0.135 1 LS72P51D11 1SBV 01 1051 R1411 0.135 1 LS72P51C11 1SBV 01 1051 R1511 0.135 1 LS72P51L02 1SBV 01 1051 R1302 0.135 1 LS72P51L20 1SBV 01 1051 R1320 0.135 1 LS72P51B02 1SBV 01 1051 R1202 0.135 1 LS73P51B11 1SBV 01 2851 R1211 0.135 1 LS73P51D11 1SBV 01 2851 R1411 0.135 1 LS73P51C11 1SBV 01 2851 R1511 0.135 1 LS73P51L02 1SBV 01 2851 R1302 0.135 1 LS73P51L20 1SBV 01 2851 R1320 0.135 1 LS73P51B02 1SBV 01 2851 R1202 0.135 1 LS75P51B11 1SBV 01 2751  R1211 0.142 1 LS75P51D11 1SBV 01 2751  R1411 0.142 1 LS75P51C11 1SBV 01 2751  R1511 0.142 1 LS75P51L02 1SBV 01 2751  R1302 0.142 1 LS75P51L20 1SBV 01 2751  R1320 0.142 1 LS75P51B02 1SBV 01 2751  R1202 0.142 Adjustable ø50 rubber roller lever 1 LS72P52B11 1SBV 01 1052 R1211 0.155 1 LS72P52D11 1SBV 01 1052 R1411 0.155 1 LS72P52C11 1SBV 01 1052 R1511 0.155 1 LS72P52L02 1SBV 01 1052 R1302 0.155 1 LS72P52L20 1SBV 01 1052 R1320 0.155 1 LS72P52B02 1SBV 01 1052 R1202 0.155 1 LS73P52B11 1SBV 01 2852 R1211 0.155 1 LS73P52D11 1SBV 01 2852 R1411 0.155 1 LS73P52C11 1SBV 01 2852 R1511 0.155 1 LS73P52L02 1SBV 01 2852 R1302 0.155 1 LS73P52L20 1SBV 01 2852 R1320 0.155 1 LS73P52B02 1SBV 01 2852 R1202 0.155 1 LS75P52B11 1SBV 01 2752 R1211 0.162 1 LS75P52D11 1SBV 01 2752 R1411 0.162 1 LS75P52C11 1SBV 01 2752 R1511 0.162 1 LS75P52L02 1SBV 01 2752 R1302 0.162 1 LS75P52L20 1SBV 01 2752 R1320 0.162 1 LS75P52B02 1SBV 01 2752 R1202 0.162 Technical Data, Dimensions ................................. page 38 Accessories ............................................................ page 76 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width

Low Voltage Products 73 1SBC141138C0201 1SBC5 9056 1F030S LS72P71B11 1SBC5 9055 1F030S LS72P53B11 1SBC5 8597 1F030S LS72P72B11 Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable ø18 steel roller  (zinc-plated)  lever 1 LS72P53B11 1SBV 01 1053 R1211 0.140 1 LS72P53D11 1SBV 01 1053 R1411 0.140 1 LS72P53C11 1SBV 01 1053 R1511 0.140 1 LS72P53L02 1SBV 01 1053 R1302 0.140 1 LS72P53L20 1SBV 01 1053 R1320 0.140 1 LS72P53B02 1SBV 01 1053 R1202 0.140 1 LS73P53B11 1SBV 01 2853 R1211 0.140 1 LS73P53D11 1SBV 01 2853 R1411 0.140 1 LS73P53C11 1SBV 01 2853 R1511 0.140 1 LS73P53L02 1SBV 01 2853 R1302 0.140 1 LS73P53L20 1SBV 01 2853 R1320 0.140 1 LS73P53B02 1SBV 01 2853 R1202 0.140 1 LS75P53B11 1SBV 01 2753 R1211 0.147 1 LS75P53D11 1SBV 01 2753 R1411 0.147 1 LS75P53C11 1SBV 01 2753 R1511 0.147 1 LS75P53L02 1SBV 01 2753 R1302 0.147 1 LS75P53L20 1SBV 01 2753 R1320 0.147 1 LS75P53B02 1SBV 01 2753 R1202 0.147 Adjustable ø3 stainless steel rod lever 1 LS72P71B11 1SBV 01 1071 R1211 0.130 1 LS72P71D11 1SBV 01 1071 R1411 0.130 1 LS72P71C11 1SBV 01 1071 R1511 0.130 1 LS72P71L02 1SBV 01 1071 R1302 0.130 1 LS72P71L20 1SBV 01 1071 R1320 0.130 1 LS72P71B02 1SBV 01 1071 R1202 0.130 1 LS73P71B11 1SBV 01 2871 R1211 0.130 1 LS73P71D11 1SBV 01 2871 R1411 0.130 1 LS73P71C11 1SBV 01 2871 R1511 0.130 1 LS73P71L02 1SBV 01 2871 R1302 0.130 1 LS73P71L20 1SBV 01 2871 R1320 0.130 1 LS73P71B02 1SBV 01 2871 R1202 0.130 1 LS75P71B11 1SBV 01 2771 R1211 0.137 1 LS75P71D11 1SBV 01 2771 R1411 0.137 1 LS75P71C11 1SBV 01 2771 R1511 0.137 1 LS75P71L02 1SBV 01 2771 R1302 0.137 1 LS75P71L20 1SBV 01 2771 R1320 0.137 1 LS75P71B02 1SBV 01 2771 R1202 0.137 Adjustable ø3 fibre-glass rod lever 1 LS72P72B11 1SBV 01 1072 R1211 0.120 1 LS72P72D11 1SBV 01 1072 R1411 0.120 1 LS72P72C11 1SBV 01 1072 R1511 0.120 1 LS72P72L02 1SBV 01 1072 R1302 0.120 1 LS72P72L20 1SBV 01 1072 R1320 0.120 1 LS72P72B02 1SBV 01 1072 R1202 0.120 1 LS73P72B11 1SBV 01 2872 R1211 0.120 1 LS73P72D11 1SBV 01 2872 R1411 0.120 1 LS73P72C11 1SBV 01 2872 R1511 0.120 1 LS73P72L02 1SBV 01 2872 R1302 0.120 1 LS73P72L20 1SBV 01 2872 R1320 0.120 1 LS73P72B02 1SBV 01 2872 R1202 0.120 1 LS75P72B11 1SBV 01 2772 R1211 0.127 1 LS75P72D11 1SBV 01 2772 R1411 0.127 1 LS75P72C11 1SBV 01 2772 R1511 0.127 1 LS75P72L02 1SBV 01 2772 R1302 0.127 1 LS75P72L20 1SBV 01 2772 R1320 0.127 1 LS75P72B02 1SBV 01 2772 R1202 0.127 Technical Data, Dimensions ................................. page 38 Accessories ............................................................ page 76 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width

74 Low Voltage Products 1SBC141138C0201 1SBC5 8598 1F030S LS72P73B11 1SBC5 8599 1F030S LS72P78B11 1SBC5 9057 1F030S LS72P74B11 Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Adjustable ø6 polyamide rod lever 1 LS72P73B11 1SBV 01 1073 R1211 0.145 1 LS72P73D11 1SBV 01 1073 R1411 0.145 1 LS72P73C11 1SBV 01 1073 R1511 0.145 1 LS72P73L02 1SBV 01 1073 R1302 0.145 1 LS72P73L20 1SBV 01 1073 R1320 0.145 1 LS72P73B02 1SBV 01 1073 R1202 0.145 1 LS73P73B11 1SBV 01 2873 R1211 0.145 1 LS73P73D11 1SBV 01 2873 R1411 0.145 1 LS73P73C11 1SBV 01 2873 R1511 0.145 1 LS73P73L02 1SBV 01 2873 R1302 0.145 1 LS73P73L20 1SBV 01 2873 R1320 0.145 1 LS73P73B02 1SBV 01 2873 R1202 0.145 1 LS75P73B11 1SBV 01 2773 R1211 0.152 1 LS75P73D11 1SBV 01 2773 R1411 0.152 1 LS75P73C11 1SBV 01 2773 R1511 0.152 1 LS75P73L02 1SBV 01 2773 R1302 0.152 1 LS75P73L20 1SBV 01 2773 R1320 0.152 1 LS75P73B02 1SBV 01 2773 R1202 0.152 Adjustable ø6 fibre-glass rod lever 1 LS72P74B11 1SBV 01 1074 R1211 0.145 1 LS72P74D11 1SBV 01 1074 R1411 0.145 1 LS72P74C11 1SBV 01 1074 R1511 0.145 1 LS72P74L02 1SBV 01 1074 R1302 0.145 1 LS72P74L20 1SBV 01 1074 R1320 0.145 1 LS72P74B02 1SBV 01 1074 R1202 0.145 1 LS73P74B11 1SBV 01 2874 R1211 0.145 1 LS73P74D11 1SBV 01 2874 R1411 0.145 1 LS73P74C11 1SBV 01 2874 R1511 0.145 1 LS73P74L02 1SBV 01 2874 R1302 0.145 1 LS73P74L20 1SBV 01 2874 R1320 0.145 1 LS73P74B02 1SBV 01 2874 R1202 0.145 1 LS75P74B11 1SBV 01 2774 R1211 0.152 1 LS75P74D11 1SBV 01 2774 R1411 0.152 1 LS75P74C11 1SBV 01 2774 R1511 0.152 1 LS75P74L02 1SBV 01 2774 R1302 0.152 1 LS75P74L20 1SBV 01 2774 R1320 0.152 1 LS75P74B02 1SBV 01 2774 R1202 0.152 Adjustable 3 square steel rod lever  (zinc-plated) 1 LS72P78B11 1SBV 01 1078 R1211 0.125 1 LS72P78D11 1SBV 01 1078 R1411 0.125 1 LS72P78C11 1SBV 01 1078 R1511 0.125 1 LS72P78L02 1SBV 01 1078 R1302 0.125 1 LS72P78L20 1SBV 01 1078 R1320 0.125 1 LS72P78B02 1SBV 01 1078 R1202 0.125 1 LS73P78B11 1SBV 01 2878 R1211 0.125 1 LS73P78D11 1SBV 01 2878 R1411 0.125 1 LS73P78C11 1SBV 01 2878 R1511 0.125 1 LS73P78L02 1SBV 01 2878 R1302 0.125 1 LS73P78L20 1SBV 01 2878 R1320 0.125 1 LS73P78B02 1SBV 01 2878 R1202 0.125 1 LS75P78B11 1SBV 01 2778 R1211 0.132 1 LS75P78D11 1SBV 01 2778 R1411 0.132 1 LS75P78C11 1SBV 01 2778 R1511 0.132 1 LS75P78L02 1SBV 01 2778 R1302 0.132 1 LS75P78L20 1SBV 01 2778 R1320 0.132 1 LS75P78B02 1SBV 01 2778 R1202 0.132 Technical Data, Dimensions ................................. page 39 Accessories ............................................................ page 76 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width

Low Voltage Products 75 1SBC141138C0201 1SBC5 8600 1F030S LS72P91B11 1SBC5 8601 1F030S LS72P92B11 1SBC5 8602 1F030S LS72P98B11-A Zb Zb Zb Zb Zb Zb LS72P with 2 cable inlets M16 x 1.5 for ISO 16 cable gland.LS73P with 2 cable inlets M20 x 1.5 for ISO 20 cable gland.LS75P with 1 cable inlet by 1/2" NPT plastic adaptor + 1 cable inlet Pg11 for additional 1/2" NPT plastic adaptor(on resquest). Ordering Details Contact blocks Type Order code Unitweightkg Packing B11 D11 C11 L02 L20 B02 1 piece Spring rod 1 LS72P91B11 1SBV 01 1091 R1211 0.110 1 LS72P91D11 1SBV 01 1091 R1411 0.110 1 LS72P91C11 1SBV 01 1091 R1511 0.110 1 LS72P91L02 1SBV 01 1091 R1302 0.110 1 LS72P91L20 1SBV 01 1091 R1320 0.110 1 LS72P91B02 1SBV 01 1091 R1202 0.110 1 LS73P91B11 1SBV 01 2891 R1211 0.110 1 LS73P91D11 1SBV 01 2891 R1411 0.110 1 LS73P91C11 1SBV 01 2891 R1511 0.110 1 LS73P91L02 1SBV 01 2891 R1302 0.110 1 LS73P91L20 1SBV 01 2891 R1320 0.110 1 LS73P91B02 1SBV 01 2891 R1202 0.110 1 LS75P91B11 1SBV 01 2791 R1211 0.117 1 LS75P91D11 1SBV 01 2791 R1411 0.117 1 LS75P91C11 1SBV 01 2791 R1511 0.117 1 LS75P91L02 1SBV 01 2791 R1302 0.117 1 LS75P91L20 1SBV 01 2791 R1320 0.117 1 LS75P91B02 1SBV 01 2791 R1202 0.117 Flexible rod with insulated end 1 LS72P92B11 1SBV 01 1092 R1211 0.115 1 LS72P92D11 1SBV 01 1092 R1411 0.115 1 LS72P92C11 1SBV 01 1092 R1511 0.115 1 LS72P92L02 1SBV 01 1092 R1302 0.115 1 LS72P92L20 1SBV 01 1092 R1320 0.115 1 LS72P92B02 1SBV 01 1092 R1202 0.115 1 LS73P92B11 1SBV 01 2892 R1211 0.115 1 LS73P92D11 1SBV 01 2892 R1411 0.115 1 LS73P92C11 1SBV 01 2892 R1511 0.115 1 LS73P92L02 1SBV 01 2892 R1302 0.115 1 LS73P92L20 1SBV 01 2892 R1320 0.115 1 LS73P92B02 1SBV 01 2892 R1202 0.115 1 LS75P92B11 1SBV 01 2792 R1211 0.122 1 LS75P92D11 1SBV 01 2792 R1411 0.122 1 LS75P92C11 1SBV 01 2792 R1511 0.122 1 LS75P92L02 1SBV 01 2792 R1302 0.122 1 LS75P92L20 1SBV 01 2792 R1320 0.122 1 LS75P92B02 1SBV 01 2792 R1202 0.122 Pull action with ring 1 LS72P98B11-A 1SBV 01 1098 R1211 0.145 1 LS72P98D11-A 1SBV 01 1098 R1411 0.145 1 LS72P98L02-A 1SBV 01 1098 R1302 0.145 1 LS72P98L20-A 1SBV 01 1098 R1320 0.145 1 LS73P98B11-A 1SBV 01 2898 R1211 0.145 1 LS73P98D11-A 1SBV 01 2898 R1411 0.145 1 LS73P98L02-A 1SBV 01 2898 R1302 0.145 1 LS73P98L20-A 1SBV 01 2898 R1320 0.145 1 LS75P98B11-A 1SBV 01 2798 R1211 0.152 1 LS75P98D11-A 1SBV 01 2798 R1411 0.152 1 LS75P98L02-A 1SBV 01 2798 R1302 0.152 1 LS75P98L20-A 1SBV 01 2798 R1320 0.152 Technical Data, Dimensions ................................. page 39 Accessories ............................................................ page 76 LS72P…, LS73P... and LS75P... Limit Switches Double Insulation - Plastic Casing IP65 - 60 mm Width

76 Low Voltage Products 1SBC141138C0201 LSA 70X-9004 LSA 70X-9005 L01251D L01252D LSR1801 L01248D LSR1805 L01249D LSR1605 L01250D Ordering Details Type Order code Packing Weight pieces kg 1 packet Extension piece for angular motion head For non-adjustable LSA70X-9004 1SBV 04 8600 R9004 1 0.007 rollers levers LSA70X-9004 1SBV 04 8600 T9004 10 0.050 (P40...49 and M40...49) LSA70X-9004 1SBV 04 8600 W9004 50 0.210 for flexible LSA70X-9005 1SBV 04 8600 R9005 1 0.007 or adjustable levers LSA70X-9005 1SBV 04 8600 T9005 10 0.050 (P50…79 and M41…79) LSA70X-9005 1SBV 04 8600 W9005 50 0.210 Cable glands Pg11 plastic cable gland LSR1101 1SBV 04 7500 R1101 1 0.010 IP68 LSR1101 1SBV 04 7500 T1101 10 0.090 LSR1101 1SBV 04 7500 W1101 50 0.410 Pg13.5 plastic cable gland LSR1102 1SBV 04 7500 R1102 1 0.015 IP68 LSR1102 1SBV 04 7500 T1102 10 0.110 LSR1102 1SBV 04 7500 W1102 50 0.510 ISO 16 plastic cable gland LSR1103 1SBV 04 7500 R1103 1 0.010 IP68 LSR1103 1SBV 04 7500 T1103 10 0.090 LSR1103 1SBV 04 7500 W1103 50 0.410 ISO 20 plastic cable gland LSR1104 1SBV 04 7500 R1104 1 0.015 IP68 LSR1104 1SBV 04 7500 T1104 10 0.110 LSR1104 1SBV 04 7500 W1104 50 0.510 Blanking plugs Pg11 plastic blanking plug LSR1801 1SBV 04 7500 R1801 1 0.007 IP66 LSR1801 1SBV 04 7500 T1801 10 0.050 LSR1801 1SBV 04 7500 W1801 50 0.210 Pg13.5 plastic blanking plug LSR1802 1SBV 04 7500 R1802 1 0.007 IP66 LSR1802 1SBV 04 7500 T1802 10 0.050 LSR1802 1SBV 04 7500 W1802 50 0.210 ISO16 plastic blanking plug LSR1803 1SBV 04 7500 R1803 1 0.007 IP66 LSR1803 1SBV 04 7500 T1803 10 0.050 LSR1803 1SBV 04 7500 W1803 50 0.210 ISO20 plastic blanking plug LSR1804 1SBV 04 7500 R1804 1 0.007 IP66 LSR1804 1SBV 04 7500 T1804 10 0.050 LSR1804 1SBV 04 7500 W1804 50 0.210 1/2"NPT plastic blanking plug LSR1805 1SBV 04 7500 R1805 1 0.007 IP66 LSR1805 1SBV 04 7500 T1805 10 0.050 LSR1805 1SBV 04 7500 W1805 50 0.210 Thread Adaptors  (male/female) Plastic thread adaptor LSR1305 1SBV 04 7500 R1305 1 0.007 Pg11 to 1/2"NPT LSR1305 1SBV 04 7500 T1305 10 0.070 LSR1305 1SBV 04 7500 W1305 50 0.350 Brass thread adaptor LSR1605 1SBV 04 7500 R1605 1 0.035 1/2"NPT to 1/2"NPT LSR1605 1SBV 04 7500 T1605 10 0.350 LSR1605 1SBV 04 7500 W1605 50 1.750 Technical Data, Dimensions ........................................................................................................................................................ page 48 Limit SwitchesPlastic and Metal Casings Accessories 1 piece: minimum order 10 pieces 10 pieces: 1 packet 50 pieces: 1 packet

2 Low Voltage Products 1SBC141138C0201 Type Order Code Page Index Classification by Type Type Order Code Page Type Order Code Page LS32M11... LS32M11B02 1SBV 01 1911 R1202 52 LS32M11B11 1SBV 01 1911 R1211 52 LS32M11C11 1SBV 01 1911 R1511 52 LS32M11D11 1SBV 01 1911 R1411 52 LS32M11L02 1SBV 01 1911 R1302 52 LS32M11L20 1SBV 01 1911 R1320 52 LS32M12... LS32M12B02 1SBV 01 1912 R1202 52 LS32M12B11 1SBV 01 1912 R1211 52 LS32M12C11 1SBV 01 1912 R1511 52 LS32M12D11 1SBV 01 1912 R1411 52 LS32M12L02 1SBV 01 1912 R1302 52 LS32M12L20 1SBV 01 1912 R1320 52 LS32M13... LS32M13B02 1SBV 01 1913 R1202 52 LS32M13B11 1SBV 01 1913 R1211 52 LS32M13C11 1SBV 01 1913 R1511 52 LS32M13D11 1SBV 01 1913 R1411 52 LS32M13L02 1SBV 01 1913 R1302 52 LS32M13L20 1SBV 01 1913 R1320 52 LS32M14... LS32M14B02 1SBV 01 1914 R1202 53 LS32M14B11 1SBV 01 1914 R1211 53 LS32M14C11 1SBV 01 1914 R1511 53 LS32M14D11 1SBV 01 1914 R1411 53 LS32M14L02 1SBV 01 1914 R1302 53 LS32M14L20 1SBV 01 1914 R1320 53 LS32M31... LS32M31B02 1SBV 01 1931 R1202 53 LS32M31B11 1SBV 01 1931 R1211 53 LS32M31C11 1SBV 01 1931 R1511 53 LS32M31D11 1SBV 01 1931 R1411 53 LS32M31L02 1SBV 01 1931 R1302 53 LS32M31L20 1SBV 01 1931 R1320 53 LS32M32... LS32M32B02 1SBV 01 1932 R1202 53 LS32M32B11 1SBV 01 1932 R1211 53 LS32M32C11 1SBV 01 1932 R1511 53 LS32M32D11 1SBV 01 1932 R1411 53 LS32M32L02 1SBV 01 1932 R1302 53 LS32M32L20 1SBV 01 1932 R1320 53 LS32M38... LS32M38B02 1SBV 01 1938 R1202 54 LS32M38B11 1SBV 01 1938 R1211 54 LS32M38C11 1SBV 01 1938 R1511 54 LS32M38D11 1SBV 01 1938 R1411 54 LS32M38L02 1SBV 01 1938 R1302 54 LS32M38L20 1SBV 01 1938 R1320 54 LS32M41... LS32M41B02 1SBV 01 1941 R1202 54 LS32M41B11 1SBV 01 1941 R1211 54 LS32M41C11 1SBV 01 1941 R1511 54 LS32M41D11 1SBV 01 1941 R1411 54 LS32M41L02 1SBV 01 1941 R1302 54 LS32M41L20 1SBV 01 1941 R1320 54 LS32M42... LS32M42B02 1SBV 01 1942 R1202 54 LS32M42B11 1SBV 01 1942 R1211 54 LS32M42C11 1SBV 01 1942 R1511 54 LS32M42D11 1SBV 01 1942 R1411 54 LS32M42L02 1SBV 01 1942 R1302 54 LS32M42L20 1SBV 01 1942 R1320 54 LS32M43... LS32M43B02 1SBV 01 1943 R1202 55 LS32M43B11 1SBV 01 1943 R1211 55 LS32M43C11 1SBV 01 1943 R1511 55 LS32M43D11 1SBV 01 1943 R1411 55 LS32M43L02 1SBV 01 1943 R1302 55 LS32M43L20 1SBV 01 1943 R1320 55 LS32M45... LS32M45B02 1SBV 01 1945 R1202 55 LS32M45B11 1SBV 01 1945 R1211 55 LS32M45C11 1SBV 01 1945 R1511 55 LS32M45D11 1SBV 01 1945 R1411 55 LS32M45L02 1SBV 01 1945 R1302 55 LS32M45L20 1SBV 01 1945 R1320 55 LS32M46... LS32M46B02 1SBV 01 1946 R1202 55 LS32M46B11 1SBV 01 1946 R1211 55 LS32M46C11 1SBV 01 1946 R1511 55 LS32M46D11 1SBV 01 1946 R1411 55 LS32M46L02 1SBV 01 1946 R1302 55 LS32M46L20 1SBV 01 1946 R1320 55 LS32M51... LS32M51B02 1SBV 01 1951 R1202 56 LS32M51B11 1SBV 01 1951 R1211 56 LS32M51C11 1SBV 01 1951 R1511 56 LS32M51D11 1SBV 01 1951 R1411 56 LS32M51L02 1SBV 01 1951 R1302 56 LS32M51L20 1SBV 01 1951 R1320 56 LS32M52... LS32M52B02 1SBV 01 1952 R1202 56 LS32M52B11 1SBV 01 1952 R1211 56 LS32M52C11 1SBV 01 1952 R1511 56 LS32M52D11 1SBV 01 1952 R1411 56 LS32M52L02 1SBV 01 1952 R1302 56 LS32M52L20 1SBV 01 1952 R1320 56 LS32M53... LS32M53B02 1SBV 01 1953 R1202 56 LS32M53B11 1SBV 01 1953 R1211 56 LS32M53C11 1SBV 01 1953 R1511 56 LS32M53D11 1SBV 01 1953 R1411 56 LS32M53L02 1SBV 01 1953 R1302 56 LS32M53L20 1SBV 01 1953 R1320 56 LS32M55... LS32M55B02 1SBV 01 1955 R1202 57 LS32M55B11 1SBV 01 1955 R1211 57 LS32M55C11 1SBV 01 1955 R1511 57 LS32M55D11 1SBV 01 1955 R1411 57 LS32M55L02 1SBV 01 1955 R1302 57 LS32M55L20 1SBV 01 1955 R1320 57 LS32M71... LS32M71B02 1SBV 01 1971 R1202 57 LS32M71B11 1SBV 01 1971 R1211 57 LS32M71C11 1SBV 01 1971 R1511 57 LS32M71D11 1SBV 01 1971 R1411 57 LS32M71L02 1SBV 01 1971 R1302 57 LS32M71L20 1SBV 01 1971 R1320 57 LS32M72... LS32M72B02 1SBV 01 1972 R1202 57 LS32M72B11 1SBV 01 1972 R1211 57 LS32M72C11 1SBV 01 1972 R1511 57 LS32M72D11 1SBV 01 1972 R1411 57 LS32M72L02 1SBV 01 1972 R1302 57 LS32M72L20 1SBV 01 1972 R1320 57 LS32M73... LS32M73B02 1SBV 01 1973 R1202 58 LS32M73B11 1SBV 01 1973 R1211 58 LS32M73C11 1SBV 01 1973 R1511 58 LS32M73D11 1SBV 01 1973 R1411 58 LS32M73L02 1SBV 01 1973 R1302 58 LS32M73L20 1SBV 01 1973 R1320 58 LS32M74... LS32M74B02 1SBV 01 1974 R1202 58 LS32M74B11 1SBV 01 1974 R1211 58 LS32M74C11 1SBV 01 1974 R1511 58 LS32M74D11 1SBV 01 1974 R1411 58 LS32M74L02 1SBV 01 1974 R1302 58 LS32M74L20 1SBV 01 1974 R1320 58 LS32M78... LS32M78B02 1SBV 01 1978 R1202 58 LS32M78B11 1SBV 01 1978 R1211 58 LS32M78C11 1SBV 01 1978 R1511 58 LS32M78D11 1SBV 01 1978 R1411 58 LS32M78L02 1SBV 01 1978 R1302 58 LS32M78L20 1SBV 01 1978 R1320 58 LS32M91... LS32M91B02 1SBV 01 1991 R1202 59 LS32M91B11 1SBV 01 1991 R1211 59 LS32M91C11 1SBV 01 1991 R1511 59 LS32M91D11 1SBV 01 1991 R1411 59 LS32M91L02 1SBV 01 1991 R1302 59 LS32M91L20 1SBV 01 1991 R1320 59 LS32M92... LS32M92B02 1SBV 01 1992 R1202 59 LS32M92B11 1SBV 01 1992 R1211 59 LS32M92C11 1SBV 01 1992 R1511 59 LS32M92D11 1SBV 01 1992 R1411 59 LS32M92L02 1SBV 01 1992 R1302 59 LS32M92L20 1SBV 01 1992 R1320 59 LS32M98... LS32M98B11-A 1SBV 01 1998 R1211 59 LS32M98D11-A 1SBV 01 1998 R1411 59 LS32M98L02-A 1SBV 01 1998 R1302 59 LS32M98L20-A 1SBV 01 1998 R1320 59 LS33M11... LS33M11B02 1SBV 01 3811 R1202 52 LS33M11B11 1SBV 01 3811 R1211 52 LS33M11C11 1SBV 01 3811 R1511 52 LS33M11D11 1SBV 01 3811 R1411 52 LS33M11L02 1SBV 01 3811 R1302 52 LS33M11L20 1SBV 01 3811 R1320 52 LS33M12... LS33M12B02 1SBV 01 3812 R1202 52 LS33M12B11 1SBV 01 3812 R1211 52 LS33M12C11 1SBV 01 3812 R1511 52 LS33M12D11 1SBV 01 3812 R1411 52 LS33M12L02 1SBV 01 3812 R1302 52 LS33M12L20 1SBV 01 3812 R1320 52 LS33M13... LS33M13B02 1SBV 01 3813 R1202 52 LS33M13B11 1SBV 01 3813 R1211 52 LS33M13C11 1SBV 01 3813 R1511 52 LS33M13D11 1SBV 01 3813 R1411 52 LS33M13L02 1SBV 01 3813 R1302 52 LS33M13L20 1SBV 01 3813 R1320 52 LS33M14... LS33M14B02 1SBV 01 3814 R1202 53 LS33M14B11 1SBV 01 3814 R1211 53 LS33M14C11 1SBV 01 3814 R1511 53 LS33M14D11 1SBV 01 3814 R1411 53 LS33M14L02 1SBV 01 3814 R1302 53 LS33M14L20 1SBV 01 3814 R1320 53 LS33M31... LS33M31B02 1SBV 01 3831 R1202 53 LS33M31B11 1SBV 01 3831 R1211 53 LS33M31C11 1SBV 01 3831 R1511 53 LS33M31D11 1SBV 01 3831 R1411 53 LS33M31L02 1SBV 01 3831 R1302 53 LS33M31L20 1SBV 01 3831 R1320 53 LS33M32... LS33M32B02 1SBV 01 3832 R1202 53 LS33M32B11 1SBV 01 3832 R1211 53 LS33M32C11 1SBV 01 3832 R1511 53 LS33M32D11 1SBV 01 3832 R1411 53 LS33M32L02 1SBV 01 3832 R1302 53 LS33M32L20 1SBV 01 3832 R1320 53

Low Voltage Products 3 1SBC141138C0201 Index Classification by Type Type Order Code Page Type Order Code Page Type Order Code Page LS33M38... LS33M38B02 1SBV 01 3838 R1202 54 LS33M38B11 1SBV 01 3838 R1211 54 LS33M38C11 1SBV 01 3838 R1511 54 LS33M38D11 1SBV 01 3838 R1411 54 LS33M38L02 1SBV 01 3838 R1302 54 LS33M38L20 1SBV 01 3838 R1320 54 LS33M41... LS33M41B02 1SBV 01 3841 R1202 54 LS33M41B11 1SBV 01 3841 R1211 54 LS33M41C11 1SBV 01 3841 R1511 54 LS33M41D11 1SBV 01 3841 R1411 54 LS33M41L02 1SBV 01 3841 R1302 54 LS33M41L20 1SBV 01 3841 R1320 54 LS33M42... LS33M42B02 1SBV 01 3842 R1202 54 LS33M42B11 1SBV 01 3842 R1211 54 LS33M42C11 1SBV 01 3842 R1511 54 LS33M42D11 1SBV 01 3842 R1411 54 LS33M42L02 1SBV 01 3842 R1302 54 LS33M42L20 1SBV 01 3842 R1320 54 LS33M43... LS33M43B02 1SBV 01 3843 R1202 55 LS33M43B11 1SBV 01 3843 R1211 55 LS33M43C11 1SBV 01 3843 R1511 55 LS33M43D11 1SBV 01 3843 R1411 55 LS33M43L02 1SBV 01 3843 R1302 55 LS33M43L20 1SBV 01 3843 R1320 55 LS33M45... LS33M45B02 1SBV 01 3845 R1202 55 LS33M45B11 1SBV 01 3845 R1211 55 LS33M45C11 1SBV 01 3845 R1511 55 LS33M45D11 1SBV 01 3845 R1411 55 LS33M45L02 1SBV 01 3845 R1302 55 LS33M45L20 1SBV 01 3845 R1320 55 LS33M46... LS33M46B02 1SBV 01 3846 R1202 55 LS33M46B11 1SBV 01 3846 R1211 55 LS33M46C11 1SBV 01 3846 R1511 55 LS33M46D11 1SBV 01 3846 R1411 55 LS33M46L02 1SBV 01 3846 R1302 55 LS33M46L20 1SBV 01 3846 R1320 55 LS33M51... LS33M51B02 1SBV 01 3851 R1202 56 LS33M51B11 1SBV 01 3851 R1211 56 LS33M51C11 1SBV 01 3851 R1511 56 LS33M51D11 1SBV 01 3851 R1411 56 LS33M51L02 1SBV 01 3851 R1302 56 LS33M51L20 1SBV 01 3851 R1320 56 LS33M52... LS33M52B02 1SBV 01 3852 R1202 56 LS33M52B11 1SBV 01 3852 R1211 56 LS33M52C11 1SBV 01 3852 R1511 56 LS33M52D11 1SBV 01 3852 R1411 56 LS33M52L02 1SBV 01 3852 R1302 56 LS33M52L20 1SBV 01 3852 R1320 56 LS33M53... LS33M53B02 1SBV 01 3853 R1202 56 LS33M53B11 1SBV 01 3853 R1211 56 LS33M53C11 1SBV 01 3853 R1511 56 LS33M53D11 1SBV 01 3853 R1411 56 LS33M53L02 1SBV 01 3853 R1302 56 LS33M53L20 1SBV 01 3853 R1320 56 LS33M55... LS33M55B02 1SBV 01 3855 R1202 57 LS33M55B11 1SBV 01 3855 R1211 57 LS33M55C11 1SBV 01 3855 R1511 57 LS33M55D11 1SBV 01 3855 R1411 57 LS33M55L02 1SBV 01 3855 R1302 57 LS33M55L20 1SBV 01 3855 R1320 57 LS33M71... LS33M71B02 1SBV 01 3871 R1202 57 LS33M71B11 1SBV 01 3871 R1211 57 LS33M71C11 1SBV 01 3871 R1511 57 LS33M71D11 1SBV 01 3871 R1411 57 LS33M71L02 1SBV 01 3871 R1302 57 LS33M71L20 1SBV 01 3871 R1320 57 LS33M72... LS33M72B02 1SBV 01 3872 R1202 57 LS33M72B11 1SBV 01 3872 R1211 57 LS33M72C11 1SBV 01 3872 R1511 57 LS33M72D11 1SBV 01 3872 R1411 57 LS33M72L02 1SBV 01 3872 R1302 57 LS33M72L20 1SBV 01 3872 R1320 57 LS33M73... LS33M73B02 1SBV 01 3873 R1202 58 LS33M73B11 1SBV 01 3873 R1211 58 LS33M73C11 1SBV 01 3873 R1511 58 LS33M73D11 1SBV 01 3873 R1411 58 LS33M73L02 1SBV 01 3873 R1302 58 LS33M73L20 1SBV 01 3873 R1320 58 LS33M74... LS33M74B02 1SBV 01 3874 R1202 58 LS33M74B11 1SBV 01 3874 R1211 58 LS33M74C11 1SBV 01 3874 R1511 58 LS33M74D11 1SBV 01 3874 R1411 58 LS33M74L02 1SBV 01 3874 R1302 58 LS33M74L20 1SBV 01 3874 R1320 58 LS33M78 ... LS33M78B02 1SBV 01 3878 R1202 58 LS33M78B11 1SBV 01 3878 R1211 58 LS33M78C11 1SBV 01 3878 R1511 58 LS33M78D11 1SBV 01 3878 R1411 58 LS33M78L02 1SBV 01 3878 R1302 58 LS33M78L20 1SBV 01 3878 R1320 58 LS33M91... LS33M91B02 1SBV 01 3891 R1202 59 LS33M91B11 1SBV 01 3891 R1211 59 LS33M91C11 1SBV 01 3891 R1511 59 LS33M91D11 1SBV 01 3891 R1411 59 LS33M91L02 1SBV 01 3891 R1302 59 LS33M91L20 1SBV 01 3891 R1320 59 LS33M92... LS33M92B02 1SBV 01 3892 R1202 59 LS33M92B11 1SBV 01 3892 R1211 59 LS33M92C11 1SBV 01 3892 R1511 59 LS33M92D11 1SBV 01 3892 R1411 59 LS33M92L02 1SBV 01 3892 R1302 59 LS33M92L20 1SBV 01 3892 R1320 59 LS33M98... LS33M98B11-A 1SBV 01 3898 R1211 59 LS33M98D11-A 1SBV 01 3898 R1411 59 LS33M98L02-A 1SBV 01 3898 R1302 59 LS33M98L20-A 1SBV 01 3898 R1320 59 LS35M11... LS35M11B02 1SBV 01 3711 R1202 52 LS35M11B11 1SBV 01 3711 R1211 52 LS35M11C11 1SBV 01 3711 R1511 52 LS35M11D11 1SBV 01 3711 R1411 52 LS35M11L02 1SBV 01 3711 R1302 52 LS35M11L20 1SBV 01 3711 R1320 52 LS35M12... LS35M12B02 1SBV 01 3712 R1202 52 LS35M12B11 1SBV 01 3712 R1211 52 LS35M12C11 1SBV 01 3712 R1511 52 LS35M12D11 1SBV 01 3712 R1411 52 LS35M12L02 1SBV 01 3712 R1302 52 LS35M12L20 1SBV 01 3712 R1320 52 LS35M13... LS35M13B02 1SBV 01 3713 R1202 52 LS35M13B11 1SBV 01 3713 R1211 52 LS35M13C11 1SBV 01 3713 R1511 52 LS35M13D11 1SBV 01 3713 R1411 52 LS35M13L02 1SBV 01 3713 R1302 52 LS35M13L20 1SBV 01 3713 R1320 52 LS35M14... LS35M14B02 1SBV 01 3714 R1202 53 LS35M14B11 1SBV 01 3714 R1211 53 LS35M14C11 1SBV 01 3714 R1511 53 LS35M14D11 1SBV 01 3714 R1411 53 LS35M14L02 1SBV 01 3714 R1302 53 LS35M14L20 1SBV 01 3714 R1320 53 LS35M31... LS35M31B02 1SBV 01 3731 R1202 53 LS35M31B11 1SBV 01 3731 R1211 53 LS35M31C11 1SBV 01 3731 R1511 53 LS35M31D11 1SBV 01 3731 R1411 53 LS35M31L02 1SBV 01 3731 R1302 53 LS35M31L20 1SBV 01 3731 R1320 53 LS35M32... LS35M32B02 1SBV 01 3732 R1202 53 LS35M32B11 1SBV 01 3732 R1211 53 LS35M32C11 1SBV 01 3732 R1511 53 LS35M32D11 1SBV 01 3732 R1411 53 LS35M32L02 1SBV 01 3732 R1302 53 LS35M32L20 1SBV 01 3732 R1320 53 LS35M38... LS35M38B02 1SBV 01 3738 R1202 54 LS35M38B11 1SBV 01 3738 R1211 54 LS35M38C11 1SBV 01 3738 R1511 54 LS35M38D11 1SBV 01 3738 R1411 54 LS35M38L02 1SBV 01 3738 R1302 54 LS35M38L20 1SBV 01 3738 R1320 54 LS35M41... LS35M41B02 1SBV 01 3741 R1202 54 LS35M41B11 1SBV 01 3741 R1211 54 LS35M41C11 1SBV 01 3741 R1511 54 LS35M41D11 1SBV 01 3741 R1411 54 LS35M41L02 1SBV 01 3741 R1302 54 LS35M41L20 1SBV 01 3741 R1320 54 LS35M42... LS35M42B02 1SBV 01 3742 R1202 54 LS35M42B11 1SBV 01 3742 R1211 54 LS35M42C11 1SBV 01 3742 R1511 54 LS35M42D11 1SBV 01 3742 R1411 54 LS35M42L02 1SBV 01 3742 R1302 54 LS35M42L20 1SBV 01 3742 R1320 54 LS35M43... LS35M43B02 1SBV 01 3743 R1202 55 LS35M43B11 1SBV 01 3743 R1211 55 LS35M43C11 1SBV 01 3743 R1511 55 LS35M43D11 1SBV 01 3743 R1411 55 LS35M43L02 1SBV 01 3743 R1302 55 LS35M43L20 1SBV 01 3743 R1320 55 LS35M45... LS35M45B02 1SBV 01 3745 R1202 55 LS35M45B11 1SBV 01 3745 R1211 55 LS35M45C11 1SBV 01 3745 R1511 55 LS35M45D11 1SBV 01 3745 R1411 55 LS35M45L02 1SBV 01 3745 R1302 55 LS35M45L20 1SBV 01 3745 R1320 55 LS35M46... LS35M46B02 1SBV 01 3746 R1202 55 LS35M46B11 1SBV 01 3746 R1211 55 LS35M46C11 1SBV 01 3746 R1511 55 LS35M46D11 1SBV 01 3746 R1411 55 LS35M46L02 1SBV 01 3746 R1302 55 LS35M46L20 1SBV 01 3746 R1320 55

4 Low Voltage Products 1SBC141138C0201 Type Order Code Page Index Classification by Type Type Order Code Page Type Order Code Page LS35M51... LS35M51B02 1SBV 01 3751 R1202 56 LS35M51B11 1SBV 01 3751 R1211 56 LS35M51C11 1SBV 01 3751 R1511 56 LS35M51D11 1SBV 01 3751 R1411 56 LS35M51L02 1SBV 01 3751 R1302 56 LS35M51L20 1SBV 01 3751 R1320 56 LS35M52... LS35M52B02 1SBV 01 3752 R1202 56 LS35M52B11 1SBV 01 3752 R1211 56 LS35M52C11 1SBV 01 3752 R1511 56 LS35M52D11 1SBV 01 3752 R1411 56 LS35M52L02 1SBV 01 3752 R1302 56 LS35M52L20 1SBV 01 3752 R1320 56 LS35M53... LS35M53B02 1SBV 01 3753 R1202 56 LS35M53B11 1SBV 01 3753 R1211 56 LS35M53C11 1SBV 01 3753 R1511 56 LS35M53D11 1SBV 01 3753 R1411 56 LS35M53L02 1SBV 01 3753 R1302 56 LS35M53L20 1SBV 01 3753 R1320 56 LS35M55... LS35M55B02 1SBV 01 3755 R1202 57 LS35M55B11 1SBV 01 3755 R1211 57 LS35M55C11 1SBV 01 3755 R1511 57 LS35M55D11 1SBV 01 3755 R1411 57 LS35M55L02 1SBV 01 3755 R1302 57 LS35M55L20 1SBV 01 3755 R1320 57 LS35M71... LS35M71B02 1SBV 01 3771 R1202 57 LS35M71B11 1SBV 01 3771 R1211 57 LS35M71C11 1SBV 01 3771 R1511 57 LS35M71D11 1SBV 01 3771 R1411 57 LS35M71L02 1SBV 01 3771 R1302 57 LS35M71L20 1SBV 01 3771 R1320 57 LS35M72... LS35M72B02 1SBV 01 3772 R1202 57 LS35M72B11 1SBV 01 3772 R1211 57 LS35M72C11 1SBV 01 3772 R1511 57 LS35M72D11 1SBV 01 3772 R1411 57 LS35M72L02 1SBV 01 3772 R1302 57 LS35M72L20 1SBV 01 3772 R1320 57 LS35M73... LS35M73B02 1SBV 01 3773 R1202 58 LS35M73B11 1SBV 01 3773 R1211 58 LS35M73C11 1SBV 01 3773 R1511 58 LS35M73D11 1SBV 01 3773 R1411 58 LS35M73L02 1SBV 01 3773 R1302 58 LS35M73L20 1SBV 01 3773 R1320 58 LS35M74... LS35M74B02 1SBV 01 3774 R1202 58 LS35M74B11 1SBV 01 3774 R1211 58 LS35M74C11 1SBV 01 3774 R1511 58 LS35M74D11 1SBV 01 3774 R1411 58 LS35M74L02 1SBV 01 3774 R1302 58 LS35M74L20 1SBV 01 3774 R1320 58 LS35M78... LS35M78B02 1SBV 01 3778 R1202 58 LS35M78B11 1SBV 01 3778 R1211 58 LS35M78C11 1SBV 01 3778 R1511 58 LS35M78D11 1SBV 01 3778 R1411 58 LS35M78L02 1SBV 01 3778 R1302 58 LS35M78L20 1SBV 01 3778 R1320 58 LS35M91... LS35M91B02 1SBV 01 3791 R1202 59 LS35M91B11 1SBV 01 3791 R1211 59 LS35M91C11 1SBV 01 3791 R1511 59 LS35M91D11 1SBV 01 3791 R1411 59 LS35M91L02 1SBV 01 3791 R1302 59 LS35M91L20 1SBV 01 3791 R1320 59 LS35M92... LS35M92B02 1SBV 01 3792 R1202 59 LS35M92B11 1SBV 01 3792 R1211 59 LS35M92C11 1SBV 01 3792 R1511 59 LS35M92D11 1SBV 01 3792 R1411 59 LS35M92L02 1SBV 01 3792 R1302 59 LS35M92L20 1SBV 01 3792 R1320 59 LS35M98... LS35M98B11-A 1SBV 01 3798 R1211 59 LS35M98D11-A 1SBV 01 3798 R1411 59 LS35M98L02-A 1SBV 01 3798 R1302 59 LS35M98L20-A 1SBV 01 3798 R1320 59 LS72M11... LS72M11B02 1SBV 01 4311 R1202 60 LS72M11B11 1SBV 01 4311 R1211 60 LS72M11C11 1SBV 01 4311 R1511 60 LS72M11D11 1SBV 01 4311 R1411 60 LS72M11L02 1SBV 01 4311 R1302 60 LS72M11L20 1SBV 01 4311 R1320 60 LS72M12... LS72M12B02 1SBV 01 4312 R1202 60 LS72M12B11 1SBV 01 4312 R1211 60 LS72M12C11 1SBV 01 4312 R1511 60 LS72M12D11 1SBV 01 4312 R1411 60 LS72M12L02 1SBV 01 4312 R1302 60 LS72M12L20 1SBV 01 4312 R1320 60 LS72M13... LS72M13B02 1SBV 01 4313 R1202 60 LS72M13B11 1SBV 01 4313 R1211 60 LS72M13C11 1SBV 01 4313 R1511 60 LS72M13D11 1SBV 01 4313 R1411 60 LS72M13L02 1SBV 01 4313 R1302 60 LS72M13L20 1SBV 01 4313 R1320 60 LS72M31... LS72M31B02 1SBV 01 4331 R1202 61 LS72M31B11 1SBV 01 4331 R1211 61 LS72M31C11 1SBV 01 4331 R1511 61 LS72M31D11 1SBV 01 4331 R1411 61 LS72M31L02 1SBV 01 4331 R1302 61 LS72M31L20 1SBV 01 4331 R1320 61 LS72M35... LS72M35B02 1SBV 01 4335 R1202 61 LS72M35B11 1SBV 01 4335 R1211 61 LS72M35C11 1SBV 01 4335 R1511 61 LS72M35D11 1SBV 01 4335 R1411 61 LS72M35L02 1SBV 01 4335 R1302 61 LS72M35L20 1SBV 01 4335 R1320 61 LS72M38... LS72M38B02 1SBV 01 4338 R1202 61 LS72M38B11 1SBV 01 4338 R1211 61 LS72M38C11 1SBV 01 4338 R1511 61 LS72M38D11 1SBV 01 4338 R1411 61 LS72M38L02 1SBV 01 4338 R1302 61 LS72M38L20 1SBV 01 4338 R1320 61 LS72M41... LS72M41B02 1SBV 01 4341 R1202 62 LS72M41B11 1SBV 01 4341 R1211 62 LS72M41C11 1SBV 01 4341 R1511 62 LS72M41D11 1SBV 01 4341 R1411 62 LS72M41L02 1SBV 01 4341 R1302 62 LS72M41L20 1SBV 01 4341 R1320 62 LS72M42... LS72M42B02 1SBV 01 4342 R1202 62 LS72M42B11 1SBV 01 4342 R1211 62 LS72M42C11 1SBV 01 4342 R1511 62 LS72M42D11 1SBV 01 4342 R1411 62 LS72M42L02 1SBV 01 4342 R1302 62 LS72M42L20 1SBV 01 4342 R1320 62 LS72M43... LS72M43B02 1SBV 01 4343 R1202 62 LS72M43B11 1SBV 01 4343 R1211 62 LS72M43C11 1SBV 01 4343 R1511 62 LS72M43D11 1SBV 01 4343 R1411 62 LS72M43L02 1SBV 01 4343 R1302 62 LS72M43L20 1SBV 01 4343 R1320 62 LS72M45... LS72M45B02 1SBV 01 4345 R1202 63 LS72M45B11 1SBV 01 4345 R1211 63 LS72M45C11 1SBV 01 4345 R1511 63 LS72M45D11 1SBV 01 4345 R1411 63 LS72M45L02 1SBV 01 4345 R1302 63 LS72M45L20 1SBV 01 4345 R1320 63 LS72M46... LS72M46B02 1SBV 01 4346 R1202 63 LS72M46B11 1SBV 01 4346 R1211 63 LS72M46C11 1SBV 01 4346 R1511 63 LS72M46D11 1SBV 01 4346 R1411 63 LS72M46L02 1SBV 01 4346 R1302 63 LS72M46L20 1SBV 01 4346 R1320 63 LS72M51... LS72M51B02 1SBV 01 4351 R1202 63 LS72M51B11 1SBV 01 4351 R1211 63 LS72M51C11 1SBV 01 4351 R1511 63 LS72M51D11 1SBV 01 4351 R1411 63 LS72M51L02 1SBV 01 4351 R1302 63 LS72M51L20 1SBV 01 4351 R1320 63 LS72M52... LS72M52B02 1SBV 01 4352 R1202 64 LS72M52B11 1SBV 01 4352 R1211 64 LS72M52C11 1SBV 01 4352 R1511 64 LS72M52D11 1SBV 01 4352 R1411 64 LS72M52L02 1SBV 01 4352 R1302 64 LS72M52L20 1SBV 01 4352 R1320 64 LS72M53... LS72M53B02 1SBV 01 4353 R1202 64 LS72M53B11 1SBV 01 4353 R1211 64 LS72M53C11 1SBV 01 4353 R1511 64 LS72M53D11 1SBV 01 4353 R1411 64 LS72M53L02 1SBV 01 4353 R1302 64 LS72M53L20 1SBV 01 4353 R1320 64 LS72M61... LS72M61B02 1SBV 01 4361 R1202 64 LS72M61B11 1SBV 01 4361 R1211 64 LS72M61C11 1SBV 01 4361 R1511 64 LS72M61D11 1SBV 01 4361 R1411 64 LS72M61L02 1SBV 01 4361 R1302 64 LS72M61L20 1SBV 01 4361 R1320 64 LS72M62... LS72M62B02 1SBV 01 4362 R1202 65 LS72M62B11 1SBV 01 4362 R1211 65 LS72M62C11 1SBV 01 4362 R1511 65 LS72M62D11 1SBV 01 4362 R1411 65 LS72M62L02 1SBV 01 4362 R1302 65 LS72M62L20 1SBV 01 4362 R1320 65 LS72M71... LS72M71B02 1SBV 01 4371 R1202 65 LS72M71B11 1SBV 01 4371 R1211 65 LS72M71C11 1SBV 01 4371 R1511 65 LS72M71D11 1SBV 01 4371 R1411 65 LS72M71L02 1SBV 01 4371 R1302 65 LS72M71L20 1SBV 01 4371 R1320 65 LS72M72... LS72M72B02 1SBV 01 4372 R1202 65 LS72M72B11 1SBV 01 4372 R1211 65 LS72M72C11 1SBV 01 4372 R1511 65 LS72M72D11 1SBV 01 4372 R1411 65 LS72M72L02 1SBV 01 4372 R1302 65 LS72M72L20 1SBV 01 4372 R1320 65

Low Voltage Products 5 1SBC141138C0201 Index Classification by Type Type Order Code Page Type Order Code Page Type Order Code Page LS72M73... LS72M73B02 1SBV 01 4373 R1202 66 LS72M73B11 1SBV 01 4373 R1211 66 LS72M73C11 1SBV 01 4373 R1511 66 LS72M73D11 1SBV 01 4373 R1411 66 LS72M73L02 1SBV 01 4373 R1302 66 LS72M73L20 1SBV 01 4373 R1320 66 LS72M74... LS72M74B02 1SBV 01 4374 R1202 66 LS72M74B11 1SBV 01 4374 R1211 66 LS72M74C11 1SBV 01 4374 R1511 66 LS72M74D11 1SBV 01 4374 R1411 66 LS72M74L02 1SBV 01 4374 R1302 66 LS72M74L20 1SBV 01 4374 R1320 66 LS72M78... LS72M78B02 1SBV 01 4378 R1202 66 LS72M78B11 1SBV 01 4378 R1211 66 LS72M78C11 1SBV 01 4378 R1511 66 LS72M78D11 1SBV 01 4378 R1411 66 LS72M78L02 1SBV 01 4378 R1302 66 LS72M78L20 1SBV 01 4378 R1320 66 LS72M91... LS72M91B02 1SBV 01 4391 R1202 67 LS72M91B11 1SBV 01 4391 R1211 67 LS72M91C11 1SBV 01 4391 R1511 67 LS72M91D11 1SBV 01 4391 R1411 67 LS72M91L02 1SBV 01 4391 R1302 67 LS72M91L20 1SBV 01 4391 R1320 67 LS72M92... LS72M92B02 1SBV 01 4392 R1202 67 LS72M92B11 1SBV 01 4392 R1211 67 LS72M92C11 1SBV 01 4392 R1511 67 LS72M92D11 1SBV 01 4392 R1411 67 LS72M92L02 1SBV 01 4392 R1302 67 LS72M92L20 1SBV 01 4392 R1320 67 LS72M98... LS72M98B11-A 1SBV 01 4398 R1211 67 LS72M98D11-A 1SBV 01 4398 R1411 67 LS72M98L02-A 1SBV 01 4398 R1302 67 LS72M98L20-A 1SBV 01 4398 R1320 67 LS72P10... LS72P10B02 1SBV 01 1010 R1202 68 LS72P10B11 1SBV 01 1010 R1211 68 LS72P10C11 1SBV 01 1010 R1511 68 LS72P10D11 1SBV 01 1010 R1411 68 LS72P10L02 1SBV 01 1010 R1302 68 LS72P10L20 1SBV 01 1010 R1320 68 LS72P11... LS72P11B02 1SBV 01 1011 R1202 68 LS72P11B11 1SBV 01 1011 R1211 68 LS72P11C11 1SBV 01 1011 R1511 68 LS72P11D11 1SBV 01 1011 R1411 68 LS72P11L02 1SBV 01 1011 R1302 68 LS72P11L20 1SBV 01 1011 R1320 68 LS72P12... LS72P12B02 1SBV 01 1012 R1202 68 LS72P12B11 1SBV 01 1012 R1211 68 LS72P12C11 1SBV 01 1012 R1511 68 LS72P12D11 1SBV 01 1012 R1411 68 LS72P12L02 1SBV 01 1012 R1302 68 LS72P12L20 1SBV 01 1012 R1320 68 LS72P13... LS72P13B02 1SBV 01 1013 R1202 69 LS72P13B11 1SBV 01 1013 R1211 69 LS72P13C11 1SBV 01 1013 R1511 69 LS72P13D11 1SBV 01 1013 R1411 69 LS72P13L02 1SBV 01 1013 R1302 69 LS72P13L20 1SBV 01 1013 R1320 69 LS72P30... LS72P30B02 1SBV 01 1030 R1202 69 LS72P30B11 1SBV 01 1030 R1211 69 LS72P30C11 1SBV 01 1030 R1511 69 LS72P30D11 1SBV 01 1030 R1411 69 LS72P30L02 1SBV 01 1030 R1302 69 LS72P30L20 1SBV 01 1030 R1320 69 LS72P31... LS72P31B02 1SBV 01 1031 R1202 69 LS72P31B11 1SBV 01 1031 R1211 69 LS72P31C11 1SBV 01 1031 R1511 69 LS72P31D11 1SBV 01 1031 R1411 69 LS72P31L02 1SBV 01 1031 R1302 69 LS72P31L20 1SBV 01 1031 R1320 69 LS72P35... LS72P35B02 1SBV 01 1035 R1202 70 LS72P35B11 1SBV 01 1035 R1211 70 LS72P35C11 1SBV 01 1035 R1511 70 LS72P35D11 1SBV 01 1035 R1411 70 LS72P35L02 1SBV 01 1035 R1302 70 LS72P35L20 1SBV 01 1035 R1320 70 LS72P38... LS72P38B02 1SBV 01 1038 R1202 70 LS72P38B11 1SBV 01 1038 R1211 70 LS72P38C11 1SBV 01 1038 R1511 70 LS72P38D11 1SBV 01 1038 R1411 70 LS72P38L02 1SBV 01 1038 R1302 70 LS72P38L20 1SBV 01 1038 R1320 70 LS72P41... LS72P41B02 1SBV 01 1041 R1202 70 LS72P41B11 1SBV 01 1041 R1211 70 LS72P41C11 1SBV 01 1041 R1511 70 LS72P41D11 1SBV 01 1041 R1411 70 LS72P41L02 1SBV 01 1041 R1302 70 LS72P41L20 1SBV 01 1041 R1320 70 LS72P42... LS72P42B02 1SBV 01 1042 R1202 71 LS72P42B11 1SBV 01 1042 R1211 71 LS72P42C11 1SBV 01 1042 R1511 71 LS72P42D11 1SBV 01 1042 R1411 71 LS72P42L02 1SBV 01 1042 R1302 71 LS72P42L20 1SBV 01 1042 R1320 71 LS72P43... LS72P43B02 1SBV 01 1043 R1202 71 LS72P43B11 1SBV 01 1043 R1211 71 LS72P43C11 1SBV 01 1043 R1511 71 LS72P43D11 1SBV 01 1043 R1411 71 LS72P43L02 1SBV 01 1043 R1302 71 LS72P43L20 1SBV 01 1043 R1320 71 LS72P45... LS72P45B02 1SBV 01 1045 R1202 71 LS72P45B11 1SBV 01 1045 R1211 71 LS72P45C11 1SBV 01 1045 R1511 71 LS72P45D11 1SBV 01 1045 R1411 71 LS72P45L02 1SBV 01 1045 R1302 71 LS72P45L20 1SBV 01 1045 R1320 71 LS72P46... LS72P46B02 1SBV 01 1046 R1202 72 LS72P46B11 1SBV 01 1046 R1211 72 LS72P46C11 1SBV 01 1046 R1511 72 LS72P46D11 1SBV 01 1046 R1411 72 LS72P46L02 1SBV 01 1046 R1302 72 LS72P46L20 1SBV 01 1046 R1320 72 LS72P51... LS72P51B02 1SBV 01 1051 R1202 72 LS72P51B11 1SBV 01 1051 R1211 72 LS72P51C11 1SBV 01 1051 R1511 72 LS72P51D11 1SBV 01 1051 R1411 72 LS72P51L02 1SBV 01 1051 R1302 72 LS72P51L20 1SBV 01 1051 R1320 72 LS72P52... LS72P52B02 1SBV 01 1052 R1202 72 LS72P52B11 1SBV 01 1052 R1211 72 LS72P52C11 1SBV 01 1052 R1511 72 LS72P52D11 1SBV 01 1052 R1411 72 LS72P52L02 1SBV 01 1052 R1302 72 LS72P52L20 1SBV 01 1052 R1320 72 LS72P53... LS72P53B02 1SBV 01 1053 R1202 73 LS72P53B11 1SBV 01 1053 R1211 73 LS72P53C11 1SBV 01 1053 R1511 73 LS72P53D11 1SBV 01 1053 R1411 73 LS72P53L02 1SBV 01 1053 R1302 73 LS72P53L20 1SBV 01 1053 R1320 73 LS72P71... LS72P71B02 1SBV 01 1071 R1202 73 LS72P71B11 1SBV 01 1071 R1211 73 LS72P71C11 1SBV 01 1071 R1511 73 LS72P71D11 1SBV 01 1071 R1411 73 LS72P71L02 1SBV 01 1071 R1302 73 LS72P71L20 1SBV 01 1071 R1320 73 LS72P72... LS72P72B02 1SBV 01 1072 R1202 73 LS72P72B11 1SBV 01 1072 R1211 73 LS72P72C11 1SBV 01 1072 R1511 73 LS72P72D11 1SBV 01 1072 R1411 73 LS72P72L02 1SBV 01 1072 R1302 73 LS72P72L20 1SBV 01 1072 R1320 73 LS72P73... LS72P73B02 1SBV 01 1073 R1202 74 LS72P73B11 1SBV 01 1073 R1211 74 LS72P73C11 1SBV 01 1073 R1511 74 LS72P73D11 1SBV 01 1073 R1411 74 LS72P73L02 1SBV 01 1073 R1302 74 LS72P73L20 1SBV 01 1073 R1320 74 LS72P74... LS72P74B02 1SBV 01 1074 R1202 74 LS72P74B11 1SBV 01 1074 R1211 74 LS72P74C11 1SBV 01 1074 R1511 74 LS72P74D11 1SBV 01 1074 R1411 74 LS72P74L02 1SBV 01 1074 R1302 74 LS72P74L20 1SBV 01 1074 R1320 74 LS72P78... LS72P78B02 1SBV 01 1078 R1202 74 LS72P78B11 1SBV 01 1078 R1211 74 LS72P78C11 1SBV 01 1078 R1511 74 LS72P78D11 1SBV 01 1078 R1411 74 LS72P78L02 1SBV 01 1078 R1302 74 LS72P78L20 1SBV 01 1078 R1320 74 LS72P91... LS72P91B02 1SBV 01 1091 R1202 75 LS72P91B11 1SBV 01 1091 R1211 75 LS72P91C11 1SBV 01 1091 R1511 75 LS72P91D11 1SBV 01 1091 R1411 75 LS72P91L02 1SBV 01 1091 R1302 75 LS72P91L20 1SBV 01 1091 R1320 75 LS72P92... LS72P92B02 1SBV 01 1092 R1202 75 LS72P92B11 1SBV 01 1092 R1211 75 LS72P92C11 1SBV 01 1092 R1511 75 LS72P92D11 1SBV 01 1092 R1411 75 LS72P92L02 1SBV 01 1092 R1302 75 LS72P92L20 1SBV 01 1092 R1320 75 LS72P98... LS72P98B11-A 1SBV 01 1098 R1211 75 LS72P98D11-A 1SBV 01 1098 R1411 75 LS72P98L02-A 1SBV 01 1098 R1302 75 LS72P98L20-A 1SBV 01 1098 R1320 75

6 Low Voltage Products 1SBC141138C0201 Type Order Code Page Index Classification by Type Type Order Code Page Type Order Code Page LS73M11... LS73M11B02 1SBV 01 5211 R1202 60 LS73M11B11 1SBV 01 5211 R1211 60 LS73M11C11 1SBV 01 5211 R1511 60 LS73M11D11 1SBV 01 5211 R1411 60 LS73M11L02 1SBV 01 5211 R1302 60 LS73M11L20 1SBV 01 5211 R1320 60 LS73M12... LS73M12B02 1SBV 01 5212 R1202 60 LS73M12B11 1SBV 01 5212 R1211 60 LS73M12C11 1SBV 01 5212 R1511 60 LS73M12D11 1SBV 01 5212 R1411 60 LS73M12L02 1SBV 01 5212 R1302 60 LS73M12L20 1SBV 01 5212 R1320 60 LS73M13... LS73M13B02 1SBV 01 5213 R1202 60 LS73M13B11 1SBV 01 5213 R1211 60 LS73M13C11 1SBV 01 5213 R1511 60 LS73M13D11 1SBV 01 5213 R1411 60 LS73M13L02 1SBV 01 5213 R1302 60 LS73M13L20 1SBV 01 5213 R1320 60 LS73M31... LS73M31B02 1SBV 01 5231 R1202 61 LS73M31B11 1SBV 01 5231 R1211 61 LS73M31C11 1SBV 01 5231 R1511 61 LS73M31D11 1SBV 01 5231 R1411 61 LS73M31L02 1SBV 01 5231 R1302 61 LS73M31L20 1SBV 01 5231 R1320 61 LS73M35... LS73M35B02 1SBV 01 5235 R1202 61 LS73M35B11 1SBV 01 5235 R1211 61 LS73M35C11 1SBV 01 5235 R1511 61 LS73M35L02 1SBV 01 5235 R1302 61 LS73M35L20 1SBV 01 5235 R1320 61 LS73M38... LS73M38B02 1SBV 01 5238 R1202 61 LS73M38B11 1SBV 01 5238 R1211 61 LS73M38C11 1SBV 01 5238 R1511 61 LS73M38D11 1SBV 01 5238 R1411 61 LS73M38L02 1SBV 01 5238 R1302 61 LS73M38L20 1SBV 01 5238 R1320 61 LS73M41... LS73M41B02 1SBV 01 5241 R1202 62 LS73M41B11 1SBV 01 5241 R1211 62 LS73M41C11 1SBV 01 5241 R1511 62 LS73M41D11 1SBV 01 5241 R1411 62 LS73M41L02 1SBV 01 5241 R1302 62 LS73M41L20 1SBV 01 5241 R1320 62 LS73M42... LS73M42B02 1SBV 01 5242 R1202 62 LS73M42B11 1SBV 01 5242 R1211 62 LS73M42C11 1SBV 01 5242 R1511 62 LS73M42D11 1SBV 01 5242 R1411 62 LS73M42L02 1SBV 01 5242 R1302 62 LS73M42L20 1SBV 01 5242 R1320 62 LS73M43... LS73M43B02 1SBV 01 5243 R1202 62 LS73M43B11 1SBV 01 5243 R1211 62 LS73M43C11 1SBV 01 5243 R1511 62 LS73M43D11 1SBV 01 5243 R1411 62 LS73M43L02 1SBV 01 5243 R1302 62 LS73M43L20 1SBV 01 5243 R1320 62 LS73M45... LS73M45B02 1SBV 01 5245 R1202 63 LS73M45B11 1SBV 01 5245 R1211 63 LS73M45C11 1SBV 01 5245 R1511 63 LS73M45D11 1SBV 01 5245 R1411 63 LS73M45L02 1SBV 01 5245 R1302 63 LS73M45L20 1SBV 01 5245 R1320 63 LS73M46... LS73M46B02 1SBV 01 5246 R1202 63 LS73M46B11 1SBV 01 5246 R1211 63 LS73M46C11 1SBV 01 5246 R1511 63 LS73M46D11 1SBV 01 5246 R1411 63 LS73M46L02 1SBV 01 5246 R1302 63 LS73M46L20 1SBV 01 5246 R1320 63 LS73M51... LS73M51B02 1SBV 01 5251 R1202 63 LS73M51B11 1SBV 01 5251 R1211 63 LS73M51C11 1SBV 01 5251 R1511 63 LS73M51D11 1SBV 01 5251 R1411 63 LS73M51L02 1SBV 01 5251 R1302 63 LS73M51L20 1SBV 01 5251 R1320 63 LS73M52... LS73M52B02 1SBV 01 5252 R1202 64 LS73M52B11 1SBV 01 5252 R1211 64 LS73M52C11 1SBV 01 5252 R1511 64 LS73M52D11 1SBV 01 5252 R1411 64 LS73M52L02 1SBV 01 5252 R1302 64 LS73M52L20 1SBV 01 5252 R1320 64 LS73M53... LS73M53B02 1SBV 01 5253 R1202 64 LS73M53B11 1SBV 01 5253 R1211 64 LS73M53C11 1SBV 01 5253 R1511 64 LS73M53D11 1SBV 01 5253 R1411 64 LS73M53L02 1SBV 01 5253 R1302 64 LS73M53L20 1SBV 01 5253 R1320 64 LS73M61... LS73M61B02 1SBV 01 5261 R1202 64 LS73M61B11 1SBV 01 5261 R1211 64 LS73M61C11 1SBV 01 5261 R1511 64 LS73M61D11 1SBV 01 5261 R1411 64 LS73M61L02 1SBV 01 5261 R1302 64 LS73M61L20 1SBV 01 5261 R1320 64 LS73M62... LS73M62B02 1SBV 01 5262 R1202 65 LS73M62B11 1SBV 01 5262 R1211 65 LS73M62C11 1SBV 01 5262 R1511 65 LS73M62D11 1SBV 01 5262 R1411 65 LS73M62L02 1SBV 01 5262 R1302 65 LS73M62L20 1SBV 01 5262 R1320 65 LS73M71... LS73M71B02 1SBV 01 5271 R1202 65 LS73M71B11 1SBV 01 5271 R1211 65 LS73M71C11 1SBV 01 5271 R1511 65 LS73M71D11 1SBV 01 5271 R1411 65 LS73M71L02 1SBV 01 5271 R1302 65 LS73M71L20 1SBV 01 5271 R1320 65 LS73M72... LS73M72B02 1SBV 01 5272 R1202 65 LS73M72B11 1SBV 01 5272 R1211 65 LS73M72C11 1SBV 01 5272 R1511 65 LS73M72D11 1SBV 01 5272 R1411 65 LS73M72L02 1SBV 01 5272 R1302 65 LS73M72L20 1SBV 01 5272 R1320 65 LS73M73... LS73M73B02 1SBV 01 5273 R1202 66 LS73M73B11 1SBV 01 5273 R1211 66 LS73M73C11 1SBV 01 5273 R1511 66 LS73M73D11 1SBV 01 5273 R1411 66 LS73M73L02 1SBV 01 5273 R1302 66 LS73M73L20 1SBV 01 5273 R1320 66 LS73M74 LS73M74B02 1SBV 01 5274 R1202 66 LS73M74B11 1SBV 01 5274 R1211 66 LS73M74C11 1SBV 01 5274 R1511 66 LS73M74D11 1SBV 01 5274 R1411 66 LS73M74L02 1SBV 01 5274 R1302 66 LS73M74L20 1SBV 01 5274 R1320 66 LS73M78 LS73M78B02 1SBV 01 5278 R1202 66 LS73M78B11 1SBV 01 5278 R1211 66 LS73M78C11 1SBV 01 5278 R1511 66 LS73M78D11 1SBV 01 5278 R1411 66 LS73M78L02 1SBV 01 5278 R1302 66 LS73M78L20 1SBV 01 5278 R1320 66 LS73M91 LS73M91B02 1SBV 01 5291 R1202 67 LS73M91B11 1SBV 01 5291 R1211 67 LS73M91C11 1SBV 01 5291 R1511 67 LS73M91D11 1SBV 01 5291 R1411 67 LS73M91L02 1SBV 01 5291 R1302 67 LS73M91L20 1SBV 01 5291 R1320 67 LS73M92 LS73M92B02 1SBV 01 5292 R1202 67 LS73M92B11 1SBV 01 5292 R1211 67 LS73M92C11 1SBV 01 5292 R1511 67 LS73M92D11 1SBV 01 5292 R1411 67 LS73M92L02 1SBV 01 5292 R1302 67 LS73M92L20 1SBV 01 5292 R1320 67 LS73M98 LS73M98B11-A 1SBV 01 5298 R1211 67 LS73M98D11-A 1SBV 01 5298 R1411 67 LS73M98L02-A 1SBV 01 5298 R1302 67 LS73M98L20-A 1SBV 01 5298 R1320 67 LS73P10 LS73P10B02 1SBV 01 2810 R1202 68 LS73P10B11 1SBV 01 2810 R1211 68 LS73P10C11 1SBV 01 2810 R1511 68 LS73P10D11 1SBV 01 2810 R1411 68 LS73P10L02 1SBV 01 2810 R1302 68 LS73P10L20 1SBV 01 2810 R1320 68 LS73P11 LS73P11B02 1SBV 01 2811 R1202 68 LS73P11B11 1SBV 01 2811 R1211 68 LS73P11C11 1SBV 01 2811 R1511 68 LS73P11D11 1SBV 01 2811 R1411 68 LS73P11L02 1SBV 01 2811 R1302 68 LS73P11L20 1SBV 01 2811 R1320 68 LS73P12 LS73P12B02 1SBV 01 2812 R1202 68 LS73P12B11 1SBV 01 2812 R1211 68 LS73P12C11 1SBV 01 2812 R1511 68 LS73P12D11 1SBV 01 2812 R1411 68 LS73P12L02 1SBV 01 2812 R1302 68 LS73P12L20 1SBV 01 2812 R1320 68 LS73P13 LS73P13B02 1SBV 01 2813 R1202 69 LS73P13B11 1SBV 01 2813 R1211 69 LS73P13C11 1SBV 01 2813 R1511 69 LS73P13D11 1SBV 01 2813 R1411 69 LS73P13L02 1SBV 01 2813 R1302 69 LS73P13L20 1SBV 01 2813 R1320 69 LS73P30 LS73P30B02 1SBV 01 2830 R1202 69 LS73P30B11 1SBV 01 2830 R1211 69 LS73P30C11 1SBV 01 2830 R1511 69 LS73P30D11 1SBV 01 2830 R1411 69 LS73P30L02 1SBV 01 2830 R1302 69 LS73P30L20 1SBV 01 2830 R1320 69 LS73P31 LS73P31B02 1SBV 01 2831 R1202 69 LS73P31B11 1SBV 01 2831 R1211 69 LS73P31C11 1SBV 01 2831 R1511 69 LS73P31D11 1SBV 01 2831 R1411 69 LS73P31L02 1SBV 01 2831 R1302 69 LS73P31L20 1SBV 01 2831 R1320 69

Low Voltage Products 7 1SBC141138C0201 Index Classification by Type Type Order Code Page Type Order Code Page Type Order Code Page LS73P35 LS73P35B02 1SBV 01 2835 R1202 70 LS73P35B11 1SBV 01 2835 R1211 70 LS73P35C11 1SBV 01 2835 R1511 70 LS73P35D11 1SBV 01 2835 R1411 70 LS73P35L02 1SBV 01 2835 R1302 70 LS73P35L20 1SBV 01 2835 R1320 70 LS73P38 LS73P38B02 1SBV 01 2838 R1202 70 LS73P38B11 1SBV 01 2838 R1211 70 LS73P38C11 1SBV 01 2838 R1511 70 LS73P38D11 1SBV 01 2838 R1411 70 LS73P38L02 1SBV 01 2838 R1302 70 LS73P38L20 1SBV 01 2838 R1320 70 LS73P41 LS73P41B02 1SBV 01 2841 R1202 70 LS73P41B11 1SBV 01 2841 R1211 70 LS73P41C11 1SBV 01 2841 R1511 70 LS73P41D11 1SBV 01 2841 R1411 70 LS73P41L02 1SBV 01 2841 R1302 70 LS73P41L20 1SBV 01 2841 R1320 70 LS73P42 LS73P42B02 1SBV 01 2842 R1202 71 LS73P42B11 1SBV 01 2842 R1211 71 LS73P42C11 1SBV 01 2842 R1511 71 LS73P42D11 1SBV 01 2842 R1411 71 LS73P42L02 1SBV 01 2842 R1302 71 LS73P42L20 1SBV 01 2842 R1320 71 LS73P43 LS73P43B02 1SBV 01 2843 R1202 71 LS73P43B11 1SBV 01 2843 R1211 71 LS73P43C11 1SBV 01 2843 R1511 71 LS73P43D11 1SBV 01 2843 R1411 71 LS73P43L02 1SBV 01 2843 R1302 71 LS73P43L20 1SBV 01 2843 R1320 71 LS73P45 LS73P45B02 1SBV 01 2845 R1202 71 LS73P45B11 1SBV 01 2845 R1211 71 LS73P45C11 1SBV 01 2845 R1511 71 LS73P45D11 1SBV 01 2845 R1411 71 LS73P45L02 1SBV 01 2845 R1302 71 LS73P45L20 1SBV 01 2845 R1320 71 LS73P46 LS73P46B02 1SBV 01 2846 R1202 72 LS73P46B11 1SBV 01 2846 R1211 72 LS73P46C11 1SBV 01 2846 R1511 72 LS73P46D11 1SBV 01 2846 R1411 72 LS73P46L02 1SBV 01 2846 R1302 72 LS73P46L20 1SBV 01 2846 R1320 72 LS73P51 LS73P51B02 1SBV 01 2851 R1202 72 LS73P51B11 1SBV 01 2851 R1211 72 LS73P51C11 1SBV 01 2851 R1511 72 LS73P51D11 1SBV 01 2851 R1411 72 LS73P51L02 1SBV 01 2851 R1302 72 LS73P51L20 1SBV 01 2851 R1320 72 LS73P52 LS73P52B02 1SBV 01 2852 R1202 72 LS73P52B11 1SBV 01 2852 R1211 72 LS73P52C11 1SBV 01 2852 R1511 72 LS73P52D11 1SBV 01 2852 R1411 72 LS73P52L02 1SBV 01 2852 R1302 72 LS73P52L20 1SBV 01 2852 R1320 72 LS73P53 LS73P53B02 1SBV 01 2853 R1202 73 LS73P53B11 1SBV 01 2853 R1211 73 LS73P53C11 1SBV 01 2853 R1511 73 LS73P53D11 1SBV 01 2853 R1411 73 LS73P53L02 1SBV 01 2853 R1302 73 LS73P53L20 1SBV 01 2853 R1320 73 LS73P71 LS73P71B02 1SBV 01 2871 R1202 73 LS73P71B11 1SBV 01 2871 R1211 73 LS73P71C11 1SBV 01 2871 R1511 73 LS73P71D11 1SBV 01 2871 R1411 73 LS73P71L02 1SBV 01 2871 R1302 73 LS73P71L20 1SBV 01 2871 R1320 73 LS73P72 LS73P72B02 1SBV 01 2872 R1202 73 LS73P72B11 1SBV 01 2872 R1211 73 LS73P72C11 1SBV 01 2872 R1511 73 LS73P72D11 1SBV 01 2872 R1411 73 LS73P72L02 1SBV 01 2872 R1302 73 LS73P72L20 1SBV 01 2872 R1320 73 LS73P73 LS73P73B02 1SBV 01 2873 R1202 74 LS73P73B11 1SBV 01 2873 R1211 74 LS73P73C11 1SBV 01 2873 R1511 74 LS73P73D11 1SBV 01 2873 R1411 74 LS73P73L02 1SBV 01 2873 R1302 74 LS73P73L20 1SBV 01 2873 R1320 74 LS73P74 LS73P74B02 1SBV 01 2874 R1202 74 LS73P74B11 1SBV 01 2874 R1211 74 LS73P74C11 1SBV 01 2874 R1511 74 LS73P74D11 1SBV 01 2874 R1411 74 LS73P74L02 1SBV 01 2874 R1302 74 LS73P74L20 1SBV 01 2874 R1320 74 LS73P78 LS73P78B02 1SBV 01 2878 R1202 74 LS73P78B11 1SBV 01 2878 R1211 74 LS73P78C11 1SBV 01 2878 R1511 74 LS73P78D11 1SBV 01 2878 R1411 74 LS73P78L02 1SBV 01 2878 R1302 74 LS73P78L20 1SBV 01 2878 R1320 74 LS73P91 LS73P91B02 1SBV 01 2891 R1202 75 LS73P91B11 1SBV 01 2891 R1211 75 LS73P91C11 1SBV 01 2891 R1511 75 LS73P91D11 1SBV 01 2891 R1411 75 LS73P91L02 1SBV 01 2891 R1302 75 LS73P91L20 1SBV 01 2891 R1320 75 LS73P92 LS73P92B02 1SBV 01 2892 R1202 75 LS73P92B11 1SBV 01 2892 R1211 75 LS73P92C11 1SBV 01 2892 R1511 75 LS73P92D11 1SBV 01 2892 R1411 75 LS73P92L02 1SBV 01 2892 R1302 75 LS73P92L20 1SBV 01 2892 R1320 75 LS73P98 LS73P98B11-A 1SBV 01 2898 R1211 75 LS73P98D11-A 1SBV 01 2898 R1411 75 LS73P98L02-A 1SBV 01 2898 R1302 75 LS73P98L20-A 1SBV 01 2898 R1320 75 LS75M11 LS75M11B02 1SBV 01 5111 R1202 60 LS75M11B11 1SBV 01 5111 R1211 60 LS75M11C11 1SBV 01 5111 R1511 60 LS75M11D11 1SBV 01 5111 R1411 60 LS75M11L02 1SBV 01 5111 R1302 60 LS75M11L20 1SBV 01 5111 R1320 60 LS75M12 LS75M12B02 1SBV 01 5112 R1202 60 LS75M12B11 1SBV 01 5112 R1211 60 LS75M12C11 1SBV 01 5112 R1511 60 LS75M12D11 1SBV 01 5112 R1411 60 LS75M12L02 1SBV 01 5112 R1302 60 LS75M12L20 1SBV 01 5112 R1320 60 LS75M13 LS75M13B02 1SBV 01 5113 R1202 60 LS75M13B11 1SBV 01 5113 R1211 60 LS75M13C11 1SBV 01 5113 R1511 60 LS75M13D11 1SBV 01 5113 R1411 60 LS75M13L02 1SBV 01 5113 R1302 60 LS75M13L20 1SBV 01 5113 R1320 60 LS75M31 LS75M31B02 1SBV 01 5131 R1202 61 LS75M31B11 1SBV 01 5131 R1211 61 LS75M31C11 1SBV 01 5131 R1511 61 LS75M31D11 1SBV 01 5131 R1411 61 LS75M31L02 1SBV 01 5131 R1302 61 LS75M31L20 1SBV 01 5131 R1320 61 LS75M35 LS75M35B02 1SBV 01 5135 R1202 61 LS75M35B11 1SBV 01 5135 R1211 61 LS75M35C11 1SBV 01 5135 R1511 61 LS75M35D11 1SBV 01 5135 R1411 61 LS75M35L02 1SBV 01 5135 R1302 61 LS75M35L20 1SBV 01 5135 R1320 61 LS75M38 LS75M38B02 1SBV 01 5138 R1202 61 LS75M38B11 1SBV 01 5138 R1211 61 LS75M38C11 1SBV 01 5138 R1511 61 LS75M38D11 1SBV 01 5138 R1411 61 LS75M38L02 1SBV 01 5138 R1302 61 LS75M38L20 1SBV 01 5138 R1320 61 LS75M41 LS75M41B02 1SBV 01 5141 R1202 62 LS75M41B11 1SBV 01 5141 R1211 62 LS75M41C11 1SBV 01 5141 R1511 62 LS75M41D11 1SBV 01 5141 R1411 62 LS75M41L02 1SBV 01 5141 R1302 62 LS75M41L20 1SBV 01 5141 R1320 62 LS75M42 LS75M42B02 1SBV 01 5142 R1202 62 LS75M42B11 1SBV 01 5142 R1211 62 LS75M42C11 1SBV 01 5142 R1511 62 LS75M42D11 1SBV 01 5142 R1411 62 LS75M42L02 1SBV 01 5142 R1302 62 LS75M42L20 1SBV 01 5142 R1320 62 LS75M43 LS75M43B02 1SBV 01 5143 R1202 62 LS75M43B11 1SBV 01 5143 R1211 62 LS75M43C11 1SBV 01 5143 R1511 62 LS75M43D11 1SBV 01 5143 R1411 62 LS75M43L02 1SBV 01 5143 R1302 62 LS75M43L20 1SBV 01 5143 R1320 62 LS75M45 LS75M45B02 1SBV 01 5145 R1202 63 LS75M45B11 1SBV 01 5145 R1211 63 LS75M45C11 1SBV 01 5145 R1511 63 LS75M45D11 1SBV 01 5145 R1411 63 LS75M45L02 1SBV 01 5145 R1302 63 LS75M45L20 1SBV 01 5145 R1320 63 LS75M46 LS75M46B02 1SBV 01 5146 R1202 63 LS75M46B11 1SBV 01 5146 R1211 63 LS75M46C11 1SBV 01 5146 R1511 63 LS75M46D11 1SBV 01 5146 R1411 63 LS75M46L02 1SBV 01 5146 R1302 63 LS75M46L20 1SBV 01 5146 R1320 63 LS75M51 LS75M51B02 1SBV 01 5151 R1202 63 LS75M51C11 1SBV 01 5151 R1511 63 LS75M51D11 1SBV 01 5151 R1411 63 LS75M51L02 1SBV 01 5151 R1302 63 LS75M51L20 1SBV 01 5151 R1320 63

8 Low Voltage Products 1SBC141138C0201 Type Order Code Page Index Classification by Type Type Order Code Page Type Order Code Page LS75M52 LS75M52B02 1SBV 01 5152 R1202 64 LS75M52B11 1SBV 01 5152 R1211 64 LS75M52C11 1SBV 01 5152 R1511 64 LS75M52D11 1SBV 01 5152 R1411 64 LS75M52L02 1SBV 01 5152 R1302 64 LS75M52L20 1SBV 01 5152 R1320 64 LS75M53 LS75M53B02 1SBV 01 5153 R1202 64 LS75M53B11 1SBV 01 5153 R1211 64 LS75M53C11 1SBV 01 5153 R1511 64 LS75M53D11 1SBV 01 5153 R1411 64 LS75M53L02 1SBV 01 5153 R1302 64 LS75M53L20 1SBV 01 5153 R1320 64 LS75M61 LS75M61B02 1SBV 01 5161 R1202 64 LS75M61B11 1SBV 01 5161 R1211 64 LS75M61C11 1SBV 01 5161 R1511 64 LS75M61D11 1SBV 01 5161 R1411 64 LS75M61L02 1SBV 01 5161 R1302 64 LS75M61L20 1SBV 01 5161 R1320 64 LS75M62 LS75M62B02 1SBV 01 5162 R1202 65 LS75M62B11 1SBV 01 5162 R1211 65 LS75M62C11 1SBV 01 5162 R1511 65 LS75M62D11 1SBV 01 5162 R1411 65 LS75M62L02 1SBV 01 5162 R1302 65 LS75M62L20 1SBV 01 5162 R1320 65 LS75M71 LS75M71B02 1SBV 01 5171 R1202 65 LS75M71B11 1SBV 01 5171 R1211 65 LS75M71C11 1SBV 01 5171 R1511 65 LS75M71D11 1SBV 01 5171 R1411 65 LS75M71L02 1SBV 01 5171 R1302 65 LS75M71L20 1SBV 01 5171 R1320 65 LS75M72 LS75M72B02 1SBV 01 5172 R1202 65 LS75M72B11 1SBV 01 5172 R1211 65 LS75M72C11 1SBV 01 5172 R1511 65 LS75M72D11 1SBV 01 5172 R1411 65 LS75M72L02 1SBV 01 5172 R1302 65 LS75M72L20 1SBV 01 5172 R1320 65 LS75M73 LS75M73B02 1SBV 01 5173 R1202 66 LS75M73B11 1SBV 01 5173 R1211 66 LS75M73C11 1SBV 01 5173 R1511 66 LS75M73D11 1SBV 01 5173 R1411 66 LS75M73L02 1SBV 01 5173 R1302 66 LS75M73L20 1SBV 01 5173 R1320 66 LS75M74 LS75M74B02 1SBV 01 5174 R1202 66 LS75M74B11 1SBV 01 5174 R1211 66 LS75M74C11 1SBV 01 5174 R1511 66 LS75M74D11 1SBV 01 5174 R1411 66 LS75M74L02 1SBV 01 5174 R1302 66 LS75M74L20 1SBV 01 5174 R1320 66 LS75M78 LS75M78B02 1SBV 01 5178 R1202 66 LS75M78B11 1SBV 01 5178 R1211 66 LS75M78C11 1SBV 01 5178 R1511 66 LS75M78D11 1SBV 01 5178 R1411 66 LS75M78L02 1SBV 01 5178 R1302 66 LS75M78L20 1SBV 01 5178 R1320 66 LS75M91 LS75M91B02 1SBV 01 5191 R1202 67 LS75M91B11 1SBV 01 5191 R1211 67 LS75M91C11 1SBV 01 5191 R1511 67 LS75M91D11 1SBV 01 5191 R1411 67 LS75M91L02 1SBV 01 5191 R1302 67 LS75M91L20 1SBV 01 5191 R1320 67 LS75M92 LS75M92B02 1SBV 01 5192 R1202 67 LS75M92B11 1SBV 01 5192 R1211 67 LS75M92C11 1SBV 01 5192 R1511 67 LS75M92D11 1SBV 01 5192 R1411 67 LS75M92L02 1SBV 01 5192 R1302 67 LS75M92L20 1SBV 01 5192 R1320 67 LS75M98 LS75M98B11-A 1SBV 01 5198 R1211 67 LS75M98D11-A 1SBV 01 5198 R1411 67 LS75M98L02-A 1SBV 01 5198 R1302 67 LS75M98L20-A 1SBV 01 5198 R1320 67 LS75P10LS75P10B02 1SBV 01 2710 R1202 68 LS75P10B11 1SBV 01 2710 R1211 68 LS75P10C11 1SBV 01 2710 R1511 68 LS75P10D11 1SBV 01 2710 R1411 68 LS75P10L02 1SBV 01 2710 R1302 68 LS75P10L20 1SBV 01 2710 R1320 68 LS75P11 LS75P11B02 1SBV 01 2711 R1202 68 LS75P11B11 1SBV 01 2711 R1211 68 LS75P11C11 1SBV 01 2711 R1511 68 LS75P11D11 1SBV 01 2711 R1411 68 LS75P11L02 1SBV 01 2711 R1302 68 LS75P11L20 1SBV 01 2711 R1320 68 LS75P12 LS75P12B02 1SBV 01 2712 R1202 68 LS75P12B11 1SBV 01 2712 R1211 68 LS75P12C11 1SBV 01 2712 R1511 68 LS75P12D11 1SBV 01 2712 R1411 68 LS75P12L02 1SBV 01 2712 R1302 68 LS75P12L20 1SBV 01 2712 R1320 68 LS75P13 LS75P13B02 1SBV 01 2713 R1202 69 LS75P13B11 1SBV 01 2713 R1211 69 LS75P13C11 1SBV 01 2713 R1511 69 LS75P13D11 1SBV 01 2713 R1411 69 LS75P13L02 1SBV 01 2713 R1302 69 LS75P13L20 1SBV 01 2713 R1320 69 LS75P30 LS75P30B02 1SBV 01 2730 R1202 69 LS75P30B11 1SBV 01 2730 R1211 69 LS75P30C11 1SBV 01 2730 R1511 69 LS75P30D11 1SBV 01 2730 R1411 69 LS75P30L02 1SBV 01 2730 R1302 69 LS75P30L20 1SBV 01 2730 R1320 69 LS75P31 LS75P31B02 1SBV 01 2731 R1202 69 LS75P31B11 1SBV 01 2731 R1211 69 LS75P31C11 1SBV 01 2731 R1511 69 LS75P31D11 1SBV 01 2731 R1411 69 LS75P31L02 1SBV 01 2731 R1302 69 LS75P31L20 1SBV 01 2731 R1320 69 LS75P35 LS75P35B02 1SBV 01 2735 R1202 70 LS75P35B11 1SBV 01 2735 R1211 70 LS75P35C11 1SBV 01 2735 R1511 70 LS75P35D11 1SBV 01 2735 R1411 70 LS75P35L02 1SBV 01 2735 R1302 70 LS75P35L20 1SBV 01 2735 R1320 70 LS75P38 LS75P38B02 1SBV 01 2738 R1202 70 LS75P38B11 1SBV 01 2738 R1211 70 LS75P38C11 1SBV 01 2738 R1511 70 LS75P38D11 1SBV 01 2738 R1411 70 LS75P38L02 1SBV 01 2738 R1302 70 LS75P38L20 1SBV 01 2738 R1320 70 LS75P41 LS75P41B02 1SBV 01 2741 R1202 70 LS75P41B11 1SBV 01 2741 R1211 70 LS75P41C11 1SBV 01 2741 R1511 70 LS75P41D11 1SBV 01 2741 R1411 70 LS75P41L02 1SBV 01 2741 R1302 70 LS75P41L20 1SBV 01 2741 R1320 70 LS75P42 LS75P42B02 1SBV 01 2742 R1202 71 LS75P42B11 1SBV 01 2742 R1211 71 LS75P42C11 1SBV 01 2742 R1511 71 LS75P42D11 1SBV 01 2742 R1411 71 LS75P42L02 1SBV 01 2742 R1302 71 LS75P42L20 1SBV 01 2742 R1320 71 LS75P43 LS75P43B02 1SBV 01 2743 R1202 71 LS75P43B11 1SBV 01 2743 R1211 71 LS75P43C11 1SBV 01 2743 R1511 71 LS75P43D11 1SBV 01 2743 R1411 71 LS75P43L02 1SBV 01 2743 R1302 71 LS75P43L20 1SBV 01 2743 R1320 71 LS75P45 LS75P45B02 1SBV 01 2745 R1202 71 LS75P45B11 1SBV 01 2745 R1211 71 LS75P45C11 1SBV 01 2745 R1511 71 LS75P45D11 1SBV 01 2745 R1411 71 LS75P45L02 1SBV 01 2745 R1302 71 LS75P45L20 1SBV 01 2745 R1320 71 LS75P46 LS75P46B02 1SBV 01 2746 R1202 72 LS75P46B11 1SBV 01 2746 R1211 72 LS75P46C11 1SBV 01 2746 R1511 72 LS75P46D11 1SBV 01 2746 R1411 72 LS75P46L02 1SBV 01 2746 R1302 72 LS75P46L20 1SBV 01 2746 R1320 72 LS75P51 LS75P51B02 1SBV 01 2751 R1202 72 LS75P51B11 1SBV 01 2751 R1211 72 LS75P51C11 1SBV 01 2751 R1511 72 LS75P51D11 1SBV 01 2751 R1411 72 LS75P51L02 1SBV 01 2751 R1302 72 LS75P51L20 1SBV 01 2751 R1320 72 LS75P52 LS75P52B02 1SBV 01 2752 R1202 72 LS75P52B11 1SBV 01 2752 R1211 72 LS75P52C11 1SBV 01 2752 R1511 72 LS75P52D11 1SBV 01 2752 R1411 72 LS75P52L02 1SBV 01 2752 R1302 72 LS75P52L20 1SBV 01 2752 R1320 72 LS75P53 LS75P53B02 1SBV 01 2753 R1202 73 LS75P53B11 1SBV 01 2753 R1211 73 LS75P53C11 1SBV 01 2753 R1511 73 LS75P53D11 1SBV 01 2753 R1411 73 LS75P53L02 1SBV 01 2753 R1302 73 LS75P53L20 1SBV 01 2753 R1320 73 LS75P71 LS75P71B02 1SBV 01 2771 R1202 73 LS75P71B11 1SBV 01 2771 R1211 73 LS75P71C11 1SBV 01 2771 R1511 73 LS75P71D11 1SBV 01 2771 R1411 73 LS75P71L02 1SBV 01 2771 R1302 73 LS75P71L20 1SBV 01 2771 R1320 73 LS75P72 LS75P72B02 1SBV 01 2772 R1202 73 LS75P72B11 1SBV 01 2772 R1211 73 LS75P72C11 1SBV 01 2772 R1511 73 LS75P72D11 1SBV 01 2772 R1411 73

Low Voltage Products 9 1SBC141138C0201 Index Classification by Type Type Order Code Page Type Order Code Page Type Order Code Page LS75P72L02 1SBV 01 2772 R1302 73 LS75P72L20 1SBV 01 2772 R1320 73 LS75P73 LS75P73B02 1SBV 01 2773 R1202 74 LS75P73B11 1SBV 01 2773 R1211 74 LS75P73C11 1SBV 01 2773 R1511 74 LS75P73D11 1SBV 01 2773 R1411 74 LS75P73L02 1SBV 01 2773 R1302 74 LS75P73L20 1SBV 01 2773 R1320 74 LS75P74 LS75P74B02 1SBV 01 2774 R1202 74 LS75P74B11 1SBV 01 2774 R1211 74 LS75P74C11 1SBV 01 2774 R1511 74 LS75P74D11 1SBV 01 2774 R1411 74 LS75P74L02 1SBV 01 2774 R1302 74 LS75P74L20 1SBV 01 2774 R1320 74 LS75P78 LS75P78B02 1SBV 01 2778 R1202 74 LS75P78B11 1SBV 01 2778 R1211 74 LS75P78C11 1SBV 01 2778 R1511 74 LS75P78D11 1SBV 01 2778 R1411 74 LS75P78L02 1SBV 01 2778 R1302 74 LS75P78L20 1SBV 01 2778 R1320 74 LS75P91 LS75P91B02 1SBV 01 2791 R1202 75 LS75P91B11 1SBV 01 2791 R1211 75 LS75P91C11 1SBV 01 2791 R1511 75 LS75P91D11 1SBV 01 2791 R1411 75 LS75P91L02 1SBV 01 2791 R1302 75 LS75P91L20 1SBV 01 2791 R1320 75 LS75P92 LS75P92B02 1SBV 01 2792 R1202 75 LS75P92B11 1SBV 01 2792 R1211 75 LS75P92C11 1SBV 01 2792 R1511 75 LS75P92D11 1SBV 01 2792 R1411 75 LS75P92L02 1SBV 01 2792 R1302 75 LS75P92L20 1SBV 01 2792 R1320 75 LS75P98 LS75P98B11-A 1SBV 01 2798 R1211 75 LS75P98D11-A 1SBV 01 2798 R1411 75 LS75P98L02-A 1SBV 01 2798 R1302 75 LS75P98L20-A 1SBV 01 2798 R1320 75

10 Low Voltage Products 1SBC141138C0201 Order Code Type Page Index Classification by Order Code Order Code Type Page Order Code Type Page 1SBV 01 101... 1SBV 01 1010 R1202 LS72P10B02 68 1SBV 01 1010 R1211 LS72P10B11 68 1SBV 01 1010 R1302 LS72P10L02 68 1SBV 01 1010 R1320 LS72P10L20 68 1SBV 01 1010 R1411 LS72P10D11 68 1SBV 01 1010 R1511 LS72P10C11 68 1SBV 01 1011 R1202 LS72P11B02 68 1SBV 01 1011 R1211 LS72P11B11 68 1SBV 01 1011 R1302 LS72P11L02 68 1SBV 01 1011 R1320 LS72P11L20 68 1SBV 01 1011 R1411 LS72P11D11 68 1SBV 01 1011 R1511 LS72P11C11 68 1SBV 01 1012 R1202 LS72P12B02 68 1SBV 01 1012 R1211 LS72P12B11 68 1SBV 01 1012 R1302 LS72P12L02 68 1SBV 01 1012 R1320 LS72P12L20 68 1SBV 01 1012 R1411 LS72P12D11 68 1SBV 01 1012 R1511 LS72P12C11 68 1SBV 01 1013 R1202 LS72P13B02 69 1SBV 01 1013 R1211 LS72P13B11 69 1SBV 01 1013 R1302 LS72P13L02 69 1SBV 01 1013 R1320 LS72P13L20 69 1SBV 01 1013 R1411 LS72P13D11 69 1SBV 01 1013 R1511 LS72P13C11 69 1SBV 01 103... 1SBV 01 1030 R1202 LS72P30B02 69 1SBV 01 1030 R1211 LS72P30B11 69 1SBV 01 1030 R1302 LS72P30L02 69 1SBV 01 1030 R1320 LS72P30L20 69 1SBV 01 1030 R1411 LS72P30D11 69 1SBV 01 1030 R1511 LS72P30C11 69 1SBV 01 1031 R1202 LS72P31B02 69 1SBV 01 1031 R1211 LS72P31B11 69 1SBV 01 1031 R1302 LS72P31L02 69 1SBV 01 1031 R1320 LS72P31L20 69 1SBV 01 1031 R1411 LS72P31D11 69 1SBV 01 1031 R1511 LS72P31C11 69 1SBV 01 1035 R1202 LS72P35B02 70 1SBV 01 1035 R1211 LS72P35B11 70 1SBV 01 1035 R1302 LS72P35L02 70 1SBV 01 1035 R1320 LS72P35L20 70 1SBV 01 1035 R1411 LS72P35D11 70 1SBV 01 1035 R1511 LS72P35C11 70 1SBV 01 1038 R1202 LS72P38B02 70 1SBV 01 1038 R1211 LS72P38B11 70 1SBV 01 1038 R1302 LS72P38L02 70 1SBV 01 1038 R1320 LS72P38L20 70 1SBV 01 1038 R1411 LS72P38D11 70 1SBV 01 1038 R1511 LS72P38C11 70 1SBV 01 104... 1SBV 01 1041 R1202 LS72P41B02 70 1SBV 01 1041 R1211 LS72P41B11 70 1SBV 01 1041 R1302 LS72P41L02 70 1SBV 01 1041 R1320 LS72P41L20 70 1SBV 01 1041 R1411 LS72P41D11 70 1SBV 01 1041 R1511 LS72P41C11 70 1SBV 01 1042 R1202 LS72P42B02 71 1SBV 01 1042 R1211 LS72P42B11 71 1SBV 01 1042 R1302 LS72P42L02 71 1SBV 01 1042 R1320 LS72P42L20 71 1SBV 01 1042 R1411 LS72P42D11 71 1SBV 01 1042 R1511 LS72P42C11 71 1SBV 01 1043 R1202 LS72P43B02 71 1SBV 01 1043 R1211 LS72P43B11 71 1SBV 01 1043 R1302 LS72P43L02 71 1SBV 01 1043 R1320 LS72P43L20 71 1SBV 01 1043 R1411 LS72P43D11 71 1SBV 01 1043 R1511 LS72P43C11 71 1SBV 01 1045 R1202 LS72P45B02 71 1SBV 01 1045 R1211 LS72P45B11 71 1SBV 01 1045 R1302 LS72P45L02 71 1SBV 01 1045 R1320 LS72P45L20 71 1SBV 01 1045 R1411 LS72P45D11 71 1SBV 01 1045 R1511 LS72P45C11 71 1SBV 01 1046 R1202 LS72P46B02 72 1SBV 01 1046 R1211 LS72P46B11 72 1SBV 01 1046 R1302 LS72P46L02 72 1SBV 01 1046 R1320 LS72P46L20 72 1SBV 01 1046 R1411 LS72P46D11 72 1SBV 01 1046 R1511 LS72P46C11 72 1SBV 01 105... 1SBV 01 1051 R1202 LS72P51B02 72 1SBV 01 1051 R1211 LS72P51B11 72 1SBV 01 1051 R1302 LS72P51L02 72 1SBV 01 1051 R1320 LS72P51L20 72 1SBV 01 1051 R1411 LS72P51D11 72 1SBV 01 1051 R1511 LS72P51C11 72 1SBV 01 1052 R1202 LS72P52B02 72 1SBV 01 1052 R1211 LS72P52B11 72 1SBV 01 1052 R1302 LS72P52L02 72 1SBV 01 1052 R1320 LS72P52L20 72 1SBV 01 1052 R1411 LS72P52D11 72 1SBV 01 1052 R1511 LS72P52C11 72 1SBV 01 1053 R1202 LS72P53B02 73 1SBV 01 1053 R1211 LS72P53B11 73 1SBV 01 1053 R1302 LS72P53L02 73 1SBV 01 1053 R1320 LS72P53L20 73 1SBV 01 1053 R1411 LS72P53D11 73 1SBV 01 1053 R1511 LS72P53C11 73 1SBV 01 107... 1SBV 01 1071 R1202 LS72P71B02 73 1SBV 01 1071 R1211 LS72P71B11 73 1SBV 01 1071 R1302 LS72P71L02 73 1SBV 01 1071 R1320 LS72P71L20 73 1SBV 01 1071 R1411 LS72P71D11 73 1SBV 01 1071 R1511 LS72P71C11 73 1SBV 01 1072 R1202 LS72P72B02 73 1SBV 01 1072 R1211 LS72P72B11 73 1SBV 01 1072 R1302 LS72P72L02 73 1SBV 01 1072 R1320 LS72P72L20 73 1SBV 01 1072 R1411 LS72P72D11 73 1SBV 01 1072 R1511 LS72P72C11 73 1SBV 01 1073 R1202 LS72P73B02 74 1SBV 01 1073 R1211 LS72P73B11 74 1SBV 01 1073 R1302 LS72P73L02 74 1SBV 01 1073 R1320 LS72P73L20 74 1SBV 01 1073 R1411 LS72P73D11 74 1SBV 01 1073 R1511 LS72P73C11 74 1SBV 01 1074 R1202 LS72P74B02 74 1SBV 01 1074 R1211 LS72P74B11 74 1SBV 01 1074 R1302 LS72P74L02 74 1SBV 01 1074 R1320 LS72P74L20 74 1SBV 01 1074 R1411 LS72P74D11 74 1SBV 01 1074 R1511 LS72P74C11 74 1SBV 01 1078 R1202 LS72P78B02 74 1SBV 01 1078 R1211 LS72P78B11 74 1SBV 01 1078 R1302 LS72P78L02 74 1SBV 01 1078 R1320 LS72P78L20 74 1SBV 01 1078 R1411 LS72P78D11 74 1SBV 01 1078 R1511 LS72P78C11 74 1SBV 01 109... 1SBV 01 1091 R1202 LS72P91B02 75 1SBV 01 1091 R1211 LS72P91B11 75 1SBV 01 1091 R1302 LS72P91L02 75 1SBV 01 1091 R1320 LS72P91L20 75 1SBV 01 1091 R1411 LS72P91D11 75 1SBV 01 1091 R1511 LS72P91C11 75 1SBV 01 1092 R1202 LS72P92B02 75 1SBV 01 1092 R1211 LS72P92B11 75 1SBV 01 1092 R1302 LS72P92L02 75 1SBV 01 1092 R1320 LS72P92L20 75 1SBV 01 1092 R1411 LS72P92D11 75 1SBV 01 1092 R1511 LS72P92C11 75 1SBV 01 1098 R1211 LS72P98B11-A 75 1SBV 01 1098 R1302 LS72P98L02-A 75 1SBV 01 1098 R1320 LS72P98L20-A 75 1SBV 01 1098 R1411 LS72P98D11-A 75  1SBV 01 191... 1SBV 01 1911 R1202 LS32M11B02 52 1SBV 01 1911 R1211 LS32M11B11 52 1SBV 01 1911 R1302 LS32M11L02 52 1SBV 01 1911 R1320 LS32M11L20 52 1SBV 01 1911 R1411 LS32M11D11 52 1SBV 01 1911 R1511 LS32M11C11 52 1SBV 01 1912 R1202 LS32M12B02 52 1SBV 01 1912 R1211 LS32M12B11 52 1SBV 01 1912 R1302 LS32M12L02 52 1SBV 01 1912 R1320 LS32M12L20 52 1SBV 01 1912 R1411 LS32M12D11 52 1SBV 01 1912 R1511 LS32M12C11 52 1SBV 01 1913 R1202 LS32M13B02 52 1SBV 01 1913 R1211 LS32M13B11 52 1SBV 01 1913 R1302 LS32M13L02 52 1SBV 01 1913 R1320 LS32M13L20 52 1SBV 01 1913 R1411 LS32M13D11 52 1SBV 01 1913 R1511 LS32M13C11 52 1SBV 01 1914 R1202 LS32M14B02 53 1SBV 01 1914 R1211 LS32M14B11 53 1SBV 01 1914 R1302 LS32M14L02 53 1SBV 01 1914 R1320 LS32M14L20 53 1SBV 01 1914 R1411 LS32M14D11 53 1SBV 01 1914 R1511 LS32M14C11 53 1SBV 01 193... 1SBV 01 1931 R1202 LS32M31B02 53 1SBV 01 1931 R1211 LS32M31B11 53 1SBV 01 1931 R1302 LS32M31L02 53 1SBV 01 1931 R1320 LS32M31L20 53 1SBV 01 1931 R1411 LS32M31D11 53 1SBV 01 1931 R1511 LS32M31C11 53 1SBV 01 1932 R1202 LS32M32B02 53 1SBV 01 1932 R1211 LS32M32B11 53 1SBV 01 1932 R1302 LS32M32L02 53 1SBV 01 1932 R1320 LS32M32L20 53 1SBV 01 1932 R1411 LS32M32D11 53 1SBV 01 1932 R1511 LS32M32C11 53 1SBV 01 1938 R1202 LS32M38B02 54 1SBV 01 1938 R1211 LS32M38B11 54 1SBV 01 1938 R1302 LS32M38L02 54 1SBV 01 1938 R1320 LS32M38L20 54 1SBV 01 1938 R1411 LS32M38D11 54 1SBV 01 1938 R1511 LS32M38C11 54 1SBV 01 194... 1SBV 01 1941 R1202 LS32M41B02 54 1SBV 01 1941 R1211 LS32M41B11 54 1SBV 01 1941 R1302 LS32M41L02 54 1SBV 01 1941 R1320 LS32M41L20 54 1SBV 01 1941 R1411 LS32M41D11 54 1SBV 01 1941 R1511 LS32M41C11 54 1SBV 01 1942 R1202 LS32M42B02 54 1SBV 01 1942 R1211 LS32M42B11 54 1SBV 01 1942 R1302 LS32M42L02 54 1SBV 01 1942 R1320 LS32M42L20 54 1SBV 01 1942 R1411 LS32M42D11 54 1SBV 01 1942 R1511 LS32M42C11 54 1SBV 01 1943 R1202 LS32M43B02 55 1SBV 01 1943 R1211 LS32M43B11 55 1SBV 01 1943 R1302 LS32M43L02 55 1SBV 01 1943 R1320 LS32M43L20 55 1SBV 01 1943 R1411 LS32M43D11 55 1SBV 01 1943 R1511 LS32M43C11 55 1SBV 01 1945 R1202 LS32M45B02 55 1SBV 01 1945 R1211 LS32M45B11 55 1SBV 01 1945 R1302 LS32M45L02 55 1SBV 01 1945 R1320 LS32M45L20 55 1SBV 01 1945 R1411 LS32M45D11 55 1SBV 01 1945 R1511 LS32M45C11 55 1SBV 01 1946 R1202 LS32M46B02 55 1SBV 01 1946 R1211 LS32M46B11 55 1SBV 01 1946 R1302 LS32M46L02 55 1SBV 01 1946 R1320 LS32M46L20 55 1SBV 01 1946 R1411 LS32M46D11 55 1SBV 01 1946 R1511 LS32M46C11 55 1SBV 01 195... 1SBV 01 1951 R1202 LS32M51B02 56 1SBV 01 1951 R1211 LS32M51B11 56 1SBV 01 1951 R1302 LS32M51L02 56 1SBV 01 1951 R1320 LS32M51L20 56 1SBV 01 1951 R1411 LS32M51D11 56 1SBV 01 1951 R1511 LS32M51C11 56 1SBV 01 1952 R1202 LS32M52B02 56 1SBV 01 1952 R1211 LS32M52B11 56 1SBV 01 1952 R1302 LS32M52L02 56 1SBV 01 1952 R1320 LS32M52L20 56

Low Voltage Products 11 1SBC141138C0201 Order Code Type Page Index Classification by Order Code Order Code Type Page Order Code Type Page 1SBV 01 1952 R1411 LS32M52D11 56 1SBV 01 1952 R1511 LS32M52C11 56 1SBV 01 1953 R1202 LS32M53B02 56 1SBV 01 1953 R1211 LS32M53B11 56 1SBV 01 1953 R1302 LS32M53L02 56 1SBV 01 1953 R1320 LS32M53L20 56 1SBV 01 1953 R1411 LS32M53D11 56 1SBV 01 1953 R1511 LS32M53C11 56 1SBV 01 1955 R1202 LS32M55B02 57 1SBV 01 1955 R1211 LS32M55B11 57 1SBV 01 1955 R1302 LS32M55L02 57 1SBV 01 1955 R1320 LS32M55L20 57 1SBV 01 1955 R1411 LS32M55D11 57 1SBV 01 1955 R1511 LS32M55C11 57 1SBV 01 197... 1SBV 01 1971 R1202 LS32M71B02 57 1SBV 01 1971 R1211 LS32M71B11 57 1SBV 01 1971 R1302 LS32M71L02 57 1SBV 01 1971 R1320 LS32M71L20 57 1SBV 01 1971 R1411 LS32M71D11 57 1SBV 01 1971 R1511 LS32M71C11 57 1SBV 01 1972 R1202 LS32M72B02 57 1SBV 01 1972 R1211 LS32M72B11 57 1SBV 01 1972 R1302 LS32M72L02 57 1SBV 01 1972 R1320 LS32M72L20 57 1SBV 01 1972 R1411 LS32M72D11 57 1SBV 01 1972 R1511 LS32M72C11 57 1SBV 01 1973 R1202 LS32M73B02 58 1SBV 01 1973 R1211 LS32M73B11 58 1SBV 01 1973 R1302 LS32M73L02 58 1SBV 01 1973 R1320 LS32M73L20 58 1SBV 01 1973 R1411 LS32M73D11 58 1SBV 01 1973 R1511 LS32M73C11 58 1SBV 01 1974 R1202 LS32M74B02 58 1SBV 01 1974 R1211 LS32M74B11 58 1SBV 01 1974 R1302 LS32M74L02 58 1SBV 01 1974 R1320 LS32M74L20 58 1SBV 01 1974 R1411 LS32M74D11 58 1SBV 01 1974 R1511 LS32M74C11 58 1SBV 01 1978 R1202 LS32M78B02 58 1SBV 01 1978 R1211 LS32M78B11 58 1SBV 01 1978 R1302 LS32M78L02 58 1SBV 01 1978 R1320 LS32M78L20 58 1SBV 01 1978 R1411 LS32M78D11 58 1SBV 01 1978 R1511 LS32M78C11 58 1SBV 01 199... 1SBV 01 1991 R1202 LS32M91B02 59 1SBV 01 1991 R1211 LS32M91B11 59 1SBV 01 1991 R1302 LS32M91L02 59 1SBV 01 1991 R1320 LS32M91L20 59 1SBV 01 1991 R1411 LS32M91D11 59 1SBV 01 1991 R1511 LS32M91C11 59 1SBV 01 1992 R1202 LS32M92B02 59 1SBV 01 1992 R1211 LS32M92B11 59 1SBV 01 1992 R1302 LS32M92L02 59 1SBV 01 1992 R1320 LS32M92L20 59 1SBV 01 1992 R1411 LS32M92D11 59 1SBV 01 1992 R1511 LS32M92C11 59 1SBV 01 1998 R1211 LS32M98B11-A 59 1SBV 01 1998 R1302 LS32M98L02-A 59 1SBV 01 1998 R1320 LS32M98L20-A 59 1SBV 01 1998 R1411 LS32M98D11-A 59 1SBV 01 271... 1SBV 01 2710 R1202 LS75P10B02 68 1SBV 01 2710 R1211 LS75P10B11 68 1SBV 01 2710 R1302 LS75P10L02 68 1SBV 01 2710 R1320 LS75P10L20 68 1SBV 01 2710 R1411 LS75P10D11 68 1SBV 01 2710 R1511 LS75P10C11 68 1SBV 01 2711 R1202 LS75P11B02 68 1SBV 01 2711 R1211 LS75P11B11 68 1SBV 01 2711 R1302 LS75P11L02 68 1SBV 01 2711 R1320 LS75P11L20 68 1SBV 01 2711 R1411 LS75P11D11 68 1SBV 01 2711 R1511 LS75P11C11 68 1SBV 01 2712 R1202 LS75P12B02 68 1SBV 01 2712 R1211 LS75P12B11 68 1SBV 01 2712 R1302 LS75P12L02 68 1SBV 01 2712 R1320 LS75P12L20 68 1SBV 01 2712 R1411 LS75P12D11 68 1SBV 01 2712 R1511 LS75P12C11 68 1SBV 01 2713 R1202 LS75P13B02 69 1SBV 01 2713 R1211 LS75P13B11 69 1SBV 01 2713 R1302 LS75P13L02 69 1SBV 01 2713 R1320 LS75P13L20 69 1SBV 01 2713 R1411 LS75P13D11 69 1SBV 01 2713 R1511 LS75P13C11 69 1SBV 01 273... 1SBV 01 2730 R1202 LS75P30B02 69 1SBV 01 2730 R1211 LS75P30B11 69 1SBV 01 2730 R1302 LS75P30L02 69 1SBV 01 2730 R1320 LS75P30L20 69 1SBV 01 2730 R1411 LS75P30D11 69 1SBV 01 2730 R1511 LS75P30C11 69 1SBV 01 2731 R1202 LS75P31B02 69 1SBV 01 2731 R1211 LS75P31B11 69 1SBV 01 2731 R1302 LS75P31L02 69 1SBV 01 2731 R1320 LS75P31L20 69 1SBV 01 2731 R1411 LS75P31D11 69 1SBV 01 2731 R1511 LS75P31C11 69 1SBV 01 2735 R1202 LS75P35B02 70 1SBV 01 2735 R1211 LS75P35B11 70 1SBV 01 2735 R1302 LS75P35L02 70 1SBV 01 2735 R1320 LS75P35L20 70 1SBV 01 2735 R1411 LS75P35D11 70 1SBV 01 2735 R1511 LS75P35C11 70 1SBV 01 2738 R1202 LS75P38B02 70 1SBV 01 2738 R1211 LS75P38B11 70 1SBV 01 2738 R1302 LS75P38L02 70 1SBV 01 2738 R1320 LS75P38L20 70 1SBV 01 2738 R1411 LS75P38D11 70 1SBV 01 2738 R1511 LS75P38C11 70 1SBV 01 274... 1SBV 01 2741 R1202 LS75P41B02 70 1SBV 01 2741 R1211 LS75P41B11 70 1SBV 01 2741 R1302 LS75P41L02 70 1SBV 01 2741 R1320 LS75P41L20 70 1SBV 01 2741 R1411 LS75P41D11 70 1SBV 01 2741 R1511 LS75P41C11 70 1SBV 01 2742 R1202 LS75P42B02 71 1SBV 01 2742 R1211 LS75P42B11 71 1SBV 01 2742 R1302 LS75P42L02 71 1SBV 01 2742 R1320 LS75P42L20 71 1SBV 01 2742 R1411 LS75P42D11 71 1SBV 01 2742 R1511 LS75P42C11 71 1SBV 01 2743 R1202 LS75P43B02 71 1SBV 01 2743 R1211 LS75P43B11 71 1SBV 01 2743 R1302 LS75P43L02 71 1SBV 01 2743 R1320 LS75P43L20 71 1SBV 01 2743 R1411 LS75P43D11 71 1SBV 01 2743 R1511 LS75P43C11 71 1SBV 01 2745 R1202 LS75P45B02 71 1SBV 01 2745 R1211 LS75P45B11 71 1SBV 01 2745 R1302 LS75P45L02 71 1SBV 01 2745 R1320 LS75P45L20 71 1SBV 01 2745 R1411 LS75P45D11 71 1SBV 01 2745 R1511 LS75P45C11 71 1SBV 01 2746 R1202 LS75P46B02 72 1SBV 01 2746 R1211 LS75P46B11 72 1SBV 01 2746 R1302 LS75P46L02 72 1SBV 01 2746 R1320 LS75P46L20 72 1SBV 01 2746 R1411 LS75P46D11 72 1SBV 01 2746 R1511 LS75P46C11 72 1SBV 01 275... 1SBV 01 2751 R1202 LS75P51B02 72 1SBV 01 2751 R1211 LS75P51B11 72 1SBV 01 2751 R1302 LS75P51L02 72 1SBV 01 2751 R1320 LS75P51L20 72 1SBV 01 2751 R1411 LS75P51D11 72 1SBV 01 2751 R1511 LS75P51C11 72 1SBV 01 2752 R1202 LS75P52B02 72 1SBV 01 2752 R1211 LS75P52B11 72 1SBV 01 2752 R1302 LS75P52L02 72 1SBV 01 2752 R1320 LS75P52L20 72 1SBV 01 2752 R1411 LS75P52D11 72 1SBV 01 2752 R1511 LS75P52C11 72 1SBV 01 2753 R1202 LS75P53B02 73 1SBV 01 2753 R1211 LS75P53B11 73 1SBV 01 2753 R1302 LS75P53L02 73 1SBV 01 2753 R1320 LS75P53L20 73 1SBV 01 2753 R1411 LS75P53D11 73 1SBV 01 2753 R1511 LS75P53C11 73 1SBV 01 277... 1SBV 01 2771 R1202 LS75P71B02 73 1SBV 01 2771 R1211 LS75P71B11 73 1SBV 01 2771 R1302 LS75P71L02 73 1SBV 01 2771 R1320 LS75P71L20 73 1SBV 01 2771 R1411 LS75P71D11 73 1SBV 01 2771 R1511 LS75P71C11 73 1SBV 01 2772 R1202 LS75P72B02 73 1SBV 01 2772 R1211 LS75P72B11 73 1SBV 01 2772 R1302 LS75P72L02 73 1SBV 01 2772 R1320 LS75P72L20 73 1SBV 01 2772 R1411 LS75P72D11 73 1SBV 01 2772 R1511 LS75P72C11 73 1SBV 01 2773 R1202 LS75P73B02 74 1SBV 01 2773 R1211 LS75P73B11 74 1SBV 01 2773 R1302 LS75P73L02 74 1SBV 01 2773 R1320 LS75P73L20 74 1SBV 01 2773 R1411 LS75P73D11 74 1SBV 01 2773 R1511 LS75P73C11 74 1SBV 01 2774 R1202 LS75P74B02 74 1SBV 01 2774 R1211 LS75P74B11 74 1SBV 01 2774 R1302 LS75P74L02 74 1SBV 01 2774 R1320 LS75P74L20 74 1SBV 01 2774 R1411 LS75P74D11 74 1SBV 01 2774 R1511 LS75P74C11 74 1SBV 01 2778 R1202 LS75P78B02 74 1SBV 01 2778 R1211 LS75P78B11 74 1SBV 01 2778 R1302 LS75P78L02 74 1SBV 01 2778 R1320 LS75P78L20 74 1SBV 01 2778 R1411 LS75P78D11 74 1SBV 01 2778 R1511 LS75P78C11 74 1SBV 01 279... 1SBV 01 2791 R1202 LS75P91B02 75 1SBV 01 2791 R1211 LS75P91B11 75 1SBV 01 2791 R1302 LS75P91L02 75 1SBV 01 2791 R1320 LS75P91L20 75 1SBV 01 2791 R1411 LS75P91D11 75 1SBV 01 2791 R1511 LS75P91C11 75 1SBV 01 2792 R1202 LS75P92B02 75 1SBV 01 2792 R1211 LS75P92B11 75 1SBV 01 2792 R1302 LS75P92L02 75 1SBV 01 2792 R1320 LS75P92L20 75 1SBV 01 2792 R1411 LS75P92D11 75 1SBV 01 2792 R1511 LS75P92C11 75 1SBV 01 2798 R1211 LS75P98B11-A 75 1SBV 01 2798 R1302 LS75P98L02-A 75 1SBV 01 2798 R1320 LS75P98L20-A 75 1SBV 01 2798 R1411 LS75P98D11-A 75 1SBV 01 281... 1SBV 01 2810 R1202 LS73P10B02 68 1SBV 01 2810 R1211 LS73P10B11 68 1SBV 01 2810 R1302 LS73P10L02 68 1SBV 01 2810 R1320 LS73P10L20 68 1SBV 01 2810 R1411 LS73P10D11 68 1SBV 01 2810 R1511 LS73P10C11 68 1SBV 01 2811 R1202 LS73P11B02 68 1SBV 01 2811 R1211 LS73P11B11 68 1SBV 01 2811 R1302 LS73P11L02 68 1SBV 01 2811 R1320 LS73P11L20 68 1SBV 01 2811 R1411 LS73P11D11 68 1SBV 01 2811 R1511 LS73P11C11 68 1SBV 01 2812 R1202 LS73P12B02 68 1SBV 01 2812 R1211 LS73P12B11 68 1SBV 01 2812 R1302 LS73P12L02 68 1SBV 01 2812 R1320 LS73P12L20 68 1SBV 01 2812 R1411 LS73P12D11 68 1SBV 01 2812 R1511 LS73P12C11 68 1SBV 01 2813 R1202 LS73P13B02 69 1SBV 01 2813 R1211 LS73P13B11 69 1SBV 01 2813 R1302 LS73P13L02 69 1SBV 01 2813 R1320 LS73P13L20 69 1SBV 01 2813 R1411 LS73P13D11 69 1SBV 01 2813 R1511 LS73P13C11 69

12 Low Voltage Products 1SBC141138C0201 Order Code Type Page Index Classification by Order Code Order Code Type Page Order Code Type Page 1SBV 01 283... 1SBV 01 2830 R1202 LS73P30B02 69 1SBV 01 2830 R1211 LS73P30B11 69 1SBV 01 2830 R1302 LS73P30L02 69 1SBV 01 2830 R1320 LS73P30L20 69 1SBV 01 2830 R1411 LS73P30D11 69 1SBV 01 2830 R1511 LS73P30C11 69 1SBV 01 2831 R1202 LS73P31B02 69 1SBV 01 2831 R1211 LS73P31B11 69 1SBV 01 2831 R1302 LS73P31L02 69 1SBV 01 2831 R1320 LS73P31L20 69 1SBV 01 2831 R1411 LS73P31D11 69 1SBV 01 2831 R1511 LS73P31C11 69 1SBV 01 2835 R1202 LS73P35B02 70 1SBV 01 2835 R1211 LS73P35B11 70 1SBV 01 2835 R1302 LS73P35L02 70 1SBV 01 2835 R1320 LS73P35L20 70 1SBV 01 2835 R1411 LS73P35D11 70 1SBV 01 2835 R1511 LS73P35C11 70 1SBV 01 2838 R1202 LS73P38B02 70 1SBV 01 2838 R1211 LS73P38B11 70 1SBV 01 2838 R1302 LS73P38L02 70 1SBV 01 2838 R1320 LS73P38L20 70 1SBV 01 2838 R1411 LS73P38D11 70 1SBV 01 2838 R1511 LS73P38C11 70 1SBV 01 284... 1SBV 01 2841 R1202 LS73P41B02 70 1SBV 01 2841 R1211 LS73P41B11 70 1SBV 01 2841 R1302 LS73P41L02 70 1SBV 01 2841 R1320 LS73P41L20 70 1SBV 01 2841 R1411 LS73P41D11 70 1SBV 01 2841 R1511 LS73P41C11 70 1SBV 01 2842 R1202 LS73P42B02 71 1SBV 01 2842 R1211 LS73P42B11 71 1SBV 01 2842 R1302 LS73P42L02 71 1SBV 01 2842 R1320 LS73P42L20 71 1SBV 01 2842 R1411 LS73P42D11 71 1SBV 01 2842 R1511 LS73P42C11 71 1SBV 01 2843 R1202 LS73P43B02 71 1SBV 01 2843 R1211 LS73P43B11 71 1SBV 01 2843 R1302 LS73P43L02 71 1SBV 01 2843 R1320 LS73P43L20 71 1SBV 01 2843 R1411 LS73P43D11 71 1SBV 01 2843 R1511 LS73P43C11 71 1SBV 01 2845 R1202 LS73P45B02 71 1SBV 01 2845 R1211 LS73P45B11 71 1SBV 01 2845 R1302 LS73P45L02 71 1SBV 01 2845 R1320 LS73P45L20 71 1SBV 01 2845 R1411 LS73P45D11 71 1SBV 01 2845 R1511 LS73P45C11 71 1SBV 01 2846 R1202 LS73P46B02 72 1SBV 01 2846 R1211 LS73P46B11 72 1SBV 01 2846 R1302 LS73P46L02 72 1SBV 01 2846 R1320 LS73P46L20 72 1SBV 01 2846 R1411 LS73P46D11 72 1SBV 01 2846 R1511 LS73P46C11 72 1SBV 01 285... 1SBV 01 2851 R1202 LS73P51B02 72 1SBV 01 2851 R1211 LS73P51B11 72 1SBV 01 2851 R1302 LS73P51L02 72 1SBV 01 2851 R1320 LS73P51L20 72 1SBV 01 2851 R1411 LS73P51D11 72 1SBV 01 2851 R1511 LS73P51C11 72 1SBV 01 2852 R1202 LS73P52B02 72 1SBV 01 2852 R1211 LS73P52B11 72 1SBV 01 2852 R1302 LS73P52L02 72 1SBV 01 2852 R1320 LS73P52L20 72 1SBV 01 2852 R1411 LS73P52D11 72 1SBV 01 2852 R1511 LS73P52C11 72 1SBV 01 2853 R1202 LS73P53B02 73 1SBV 01 2853 R1211 LS73P53B11 73 1SBV 01 2853 R1302 LS73P53L02 73 1SBV 01 2853 R1320 LS73P53L20 73 1SBV 01 2853 R1411 LS73P53D11 73 1SBV 01 2853 R1511 LS73P53C11 73 1SBV 01 287... 1SBV 01 2871 R1202 LS73P71B02 73 1SBV 01 2871 R1211 LS73P71B11 73 1SBV 01 2871 R1302 LS73P71L02 73 1SBV 01 2871 R1320 LS73P71L20 73 1SBV 01 2871 R1411 LS73P71D11 73 1SBV 01 2871 R1511 LS73P71C11 73 1SBV 01 2872 R1202 LS73P72B02 73 1SBV 01 2872 R1211 LS73P72B11 73 1SBV 01 2872 R1302 LS73P72L02 73 1SBV 01 2872 R1320 LS73P72L20 73 1SBV 01 2872 R1411 LS73P72D11 73 1SBV 01 2872 R1511 LS73P72C11 73 1SBV 01 2873 R1202 LS73P73B02 74 1SBV 01 2873 R1211 LS73P73B11 74 1SBV 01 2873 R1302 LS73P73L02 74 1SBV 01 2873 R1320 LS73P73L20 74 1SBV 01 2873 R1411 LS73P73D11 74 1SBV 01 2873 R1511 LS73P73C11 74 1SBV 01 2874 R1202 LS73P74B02 74 1SBV 01 2874 R1211 LS73P74B11 74 1SBV 01 2874 R1302 LS73P74L02 74 1SBV 01 2874 R1320 LS73P74L20 74 1SBV 01 2874 R1411 LS73P74D11 74 1SBV 01 2874 R1511 LS73P74C11 74 1SBV 01 2878 R1202 LS73P78B02 74 1SBV 01 2878 R1211 LS73P78B11 74 1SBV 01 2878 R1302 LS73P78L02 74 1SBV 01 2878 R1320 LS73P78L20 74 1SBV 01 2878 R1411 LS73P78D11 74 1SBV 01 2878 R1511 LS73P78C11 74 1SBV 01 289... 1SBV 01 2891 R1202 LS73P91B02 75 1SBV 01 2891 R1211 LS73P91B11 75 1SBV 01 2891 R1302 LS73P91L02 75 1SBV 01 2891 R1320 LS73P91L20 75 1SBV 01 2891 R1411 LS73P91D11 75 1SBV 01 2891 R1511 LS73P91C11 75 1SBV 01 2892 R1202 LS73P92B02 75 1SBV 01 2892 R1211 LS73P92B11 75 1SBV 01 2892 R1302 LS73P92L02 75 1SBV 01 2892 R1320 LS73P92L20 75 1SBV 01 2892 R1411 LS73P92D11 75 1SBV 01 2892 R1511 LS73P92C11 75 1SBV 01 2898 R1211 LS73P98B11-A 75 1SBV 01 2898 R1302 LS73P98L02-A 75 1SBV 01 2898 R1320 LS73P98L20-A 75 1SBV 01 2898 R1411 LS73P98D11-A 75 1SBV 01 371... 1SBV 01 3711 R1202 LS35M11B02 52 1SBV 01 3711 R1211 LS35M11B11 52 1SBV 01 3711 R1302 LS35M11L02 52 1SBV 01 3711 R1320 LS35M11L20 52 1SBV 01 3711 R1411 LS35M11D11 52 1SBV 01 3711 R1511 LS35M11C11 52 1SBV 01 3712 R1202 LS35M12B02 52 1SBV 01 3712 R1211 LS35M12B11 52 1SBV 01 3712 R1302 LS35M12L02 52 1SBV 01 3712 R1320 LS35M12L20 52 1SBV 01 3712 R1411 LS35M12D11 52 1SBV 01 3712 R1511 LS35M12C11 52 1SBV 01 3713 R1202 LS35M13B02 52 1SBV 01 3713 R1211 LS35M13B11 52 1SBV 01 3713 R1302 LS35M13L02 52 1SBV 01 3713 R1320 LS35M13L20 52 1SBV 01 3713 R1411 LS35M13D11 52 1SBV 01 3713 R1511 LS35M13C11 52 1SBV 01 3714 R1202 LS35M14B02 53 1SBV 01 3714 R1211 LS35M14B11 53 1SBV 01 3714 R1302 LS35M14L02 53 1SBV 01 3714 R1320 LS35M14L20 53 1SBV 01 3714 R1411 LS35M14D11 53 1SBV 01 3714 R1511 LS35M14C11 53 1SBV 01 373... 1SBV 01 3731 R1202 LS35M31B02 53 1SBV 01 3731 R1211 LS35M31B11 53 1SBV 01 3731 R1302 LS35M31L02 53 1SBV 01 3731 R1320 LS35M31L20 53 1SBV 01 3731 R1411 LS35M31D11 53 1SBV 01 3731 R1511 LS35M31C11 53 1SBV 01 3732 R1202 LS35M32B02 53 1SBV 01 3732 R1211 LS35M32B11 53 1SBV 01 3732 R1302 LS35M32L02 53 1SBV 01 3732 R1320 LS35M32L20 53 1SBV 01 3732 R1411 LS35M32D11 53 1SBV 01 3732 R1511 LS35M32C11 53 1SBV 01 3738 R1202 LS35M38B02 54 1SBV 01 3738 R1211 LS35M38B11 54 1SBV 01 3738 R1302 LS35M38L02 54 1SBV 01 3738 R1320 LS35M38L20 54 1SBV 01 3738 R1411 LS35M38D11 54 1SBV 01 3738 R1511 LS35M38C11 54 1SBV 01 374... 1SBV 01 3741 R1202 LS35M41B02 54 1SBV 01 3741 R1211 LS35M41B11 54 1SBV 01 3741 R1302 LS35M41L02 54 1SBV 01 3741 R1320 LS35M41L20 54 1SBV 01 3741 R1411 LS35M41D11 54 1SBV 01 3741 R1511 LS35M41C11 54 1SBV 01 3742 R1202 LS35M42B02 54 1SBV 01 3742 R1211 LS35M42B11 54 1SBV 01 3742 R1302 LS35M42L02 54 1SBV 01 3742 R1320 LS35M42L20 54 1SBV 01 3742 R1411 LS35M42D11 54 1SBV 01 3742 R1511 LS35M42C11 54 1SBV 01 3743 R1202 LS35M43B02 55 1SBV 01 3743 R1211 LS35M43B11 55 1SBV 01 3743 R1302 LS35M43L02 55 1SBV 01 3743 R1320 LS35M43L20 55 1SBV 01 3743 R1411 LS35M43D11 55 1SBV 01 3743 R1511 LS35M43C11 55 1SBV 01 3745 R1202 LS35M45B02 55 1SBV 01 3745 R1211 LS35M45B11 55 1SBV 01 3745 R1302 LS35M45L02 55 1SBV 01 3745 R1320 LS35M45L20 55 1SBV 01 3745 R1411 LS35M45D11 55 1SBV 01 3745 R1511 LS35M45C11 55 1SBV 01 3746 R1202 LS35M46B02 55 1SBV 01 3746 R1211 LS35M46B11 55 1SBV 01 3746 R1302 LS35M46L02 55 1SBV 01 3746 R1320 LS35M46L20 55 1SBV 01 3746 R1411 LS35M46D11 55 1SBV 01 3746 R1511 LS35M46C11 55 1SBV 01 375... 1SBV 01 3751 R1202 LS35M51B02 56 1SBV 01 3751 R1211 LS35M51B11 56 1SBV 01 3751 R1302 LS35M51L02 56 1SBV 01 3751 R1320 LS35M51L20 56 1SBV 01 3751 R1411 LS35M51D11 56 1SBV 01 3751 R1511 LS35M51C11 56 1SBV 01 3752 R1202 LS35M52B02 56 1SBV 01 3752 R1211 LS35M52B11 56 1SBV 01 3752 R1302 LS35M52L02 56 1SBV 01 3752 R1320 LS35M52L20 56 1SBV 01 3752 R1411 LS35M52D11 56 1SBV 01 3752 R1511 LS35M52C11 56 1SBV 01 3753 R1202 LS35M53B02 56 1SBV 01 3753 R1211 LS35M53B11 56 1SBV 01 3753 R1302 LS35M53L02 56 1SBV 01 3753 R1320 LS35M53L20 56 1SBV 01 3753 R1411 LS35M53D11 56 1SBV 01 3753 R1511 LS35M53C11 56 1SBV 01 3755 R1202 LS35M55B02 57 1SBV 01 3755 R1211 LS35M55B11 57 1SBV 01 3755 R1302 LS35M55L02 57 1SBV 01 3755 R1320 LS35M55L20 57 1SBV 01 3755 R1411 LS35M55D11 57 1SBV 01 3755 R1511 LS35M55C11 57 1SBV 01 377... 1SBV 01 3771 R1202 LS35M71B02 57 1SBV 01 3771 R1211 LS35M71B11 57 1SBV 01 3771 R1302 LS35M71L02 57 1SBV 01 3771 R1320 LS35M71L20 57 1SBV 01 3771 R1411 LS35M71D11 57 1SBV 01 3771 R1511 LS35M71C11 57 1SBV 01 3772 R1202 LS35M72B02 57 1SBV 01 3772 R1211 LS35M72B11 57 1SBV 01 3772 R1302 LS35M72L02 57 1SBV 01 3772 R1320 LS35M72L20 57

Low Voltage Products 13 1SBC141138C0201 Order Code Type Page Index Classification by Order Code Order Code Type Page Order Code Type Page 1SBV 01 3772 R1411 LS35M72D11 57 1SBV 01 3772 R1511 LS35M72C11 57 1SBV 01 3773 R1202 LS35M73B02 58 1SBV 01 3773 R1211 LS35M73B11 58 1SBV 01 3773 R1302 LS35M73L02 58 1SBV 01 3773 R1320 LS35M73L20 58 1SBV 01 3773 R1411 LS35M73D11 58 1SBV 01 3773 R1511 LS35M73C11 58 1SBV 01 3774 R1202 LS35M74B02 58 1SBV 01 3774 R1211 LS35M74B11 58 1SBV 01 3774 R1302 LS35M74L02 58 1SBV 01 3774 R1320 LS35M74L20 58 1SBV 01 3774 R1411 LS35M74D11 58 1SBV 01 3774 R1511 LS35M74C11 58 1SBV 01 3778 R1202 LS35M78B02 58 1SBV 01 3778 R1211 LS35M78B11 58 1SBV 01 3778 R1302 LS35M78L02 58 1SBV 01 3778 R1320 LS35M78L20 58 1SBV 01 3778 R1411 LS35M78D11 58 1SBV 01 3778 R1511 LS35M78C11 58 1SBV 01 379... 1SBV 01 3791 R1202 LS35M91B02 59 1SBV 01 3791 R1211 LS35M91B11 59 1SBV 01 3791 R1302 LS35M91L02 59 1SBV 01 3791 R1320 LS35M91L20 59 1SBV 01 3791 R1411 LS35M91D11 59 1SBV 01 3791 R1511 LS35M91C11 59 1SBV 01 3792 R1202 LS35M92B02 59 1SBV 01 3792 R1211 LS35M92B11 59 1SBV 01 3792 R1302 LS35M92L02 59 1SBV 01 3792 R1320 LS35M92L20 59 1SBV 01 3792 R1411 LS35M92D11 59 1SBV 01 3792 R1511 LS35M92C11 59 1SBV 01 3798 R1211 LS35M98B11-A 59 1SBV 01 3798 R1302 LS35M98L02-A 59 1SBV 01 3798 R1320 LS35M98L20-A 59 1SBV 01 3798 R1411 LS35M98D11-A 59 1SBV 01 381... 1SBV 01 3811 R1202 LS33M11B02 52 1SBV 01 3811 R1211 LS33M11B11 52 1SBV 01 3811 R1302 LS33M11L02 52 1SBV 01 3811 R1320 LS33M11L20 52 1SBV 01 3811 R1411 LS33M11D11 52 1SBV 01 3811 R1511 LS33M11C11 52 1SBV 01 3812 R1202 LS33M12B02 52 1SBV 01 3812 R1211 LS33M12B11 52 1SBV 01 3812 R1302 LS33M12L02 52 1SBV 01 3812 R1320 LS33M12L20 52 1SBV 01 3812 R1411 LS33M12D11 52 1SBV 01 3812 R1511 LS33M12C11 52 1SBV 01 3813 R1202 LS33M13B02 52 1SBV 01 3813 R1211 LS33M13B11 52 1SBV 01 3813 R1302 LS33M13L02 52 1SBV 01 3813 R1320 LS33M13L20 52 1SBV 01 3813 R1411 LS33M13D11 52 1SBV 01 3813 R1511 LS33M13C11 52 1SBV 01 3814 R1202 LS33M14B02 53 1SBV 01 3814 R1211 LS33M14B11 53 1SBV 01 3814 R1302 LS33M14L02 53 1SBV 01 3814 R1320 LS33M14L20 53 1SBV 01 3814 R1411 LS33M14D11 53 1SBV 01 3814 R1511 LS33M14C11 53 1SBV 01 383... 1SBV 01 3831 R1202 LS33M31B02 53 1SBV 01 3831 R1211 LS33M31B11 53 1SBV 01 3831 R1302 LS33M31L02 53 1SBV 01 3831 R1320 LS33M31L20 53 1SBV 01 3831 R1411 LS33M31D11 53 1SBV 01 3831 R1511 LS33M31C11 53 1SBV 01 3832 R1202 LS33M32B02 53 1SBV 01 3832 R1211 LS33M32B11 53 1SBV 01 3832 R1302 LS33M32L02 53 1SBV 01 3832 R1320 LS33M32L20 53 1SBV 01 3832 R1411 LS33M32D11 53 1SBV 01 3832 R1511 LS33M32C11 53 1SBV 01 3838 R1202 LS33M38B02 54 1SBV 01 3838 R1211 LS33M38B11 54 1SBV 01 3838 R1302 LS33M38L02 54 1SBV 01 3838 R1320 LS33M38L20 54 1SBV 01 3838 R1411 LS33M38D11 54 1SBV 01 3838 R1511 LS33M38C11 54 1SBV 01 384... 1SBV 01 3841 R1202 LS33M41B02 54 1SBV 01 3841 R1211 LS33M41B11 54 1SBV 01 3841 R1302 LS33M41L02 54 1SBV 01 3841 R1320 LS33M41L20 54 1SBV 01 3841 R1411 LS33M41D11 54 1SBV 01 3841 R1511 LS33M41C11 54 1SBV 01 3842 R1202 LS33M42B02 54 1SBV 01 3842 R1211 LS33M42B11 54 1SBV 01 3842 R1302 LS33M42L02 54 1SBV 01 3842 R1320 LS33M42L20 54 1SBV 01 3842 R1411 LS33M42D11 54 1SBV 01 3842 R1511 LS33M42C11 54 1SBV 01 3843 R1202 LS33M43B02 55 1SBV 01 3843 R1211 LS33M43B11 55 1SBV 01 3843 R1302 LS33M43L02 55 1SBV 01 3843 R1320 LS33M43L20 55 1SBV 01 3843 R1411 LS33M43D11 55 1SBV 01 3843 R1511 LS33M43C11 55 1SBV 01 3845 R1202 LS33M45B02 55 1SBV 01 3845 R1211 LS33M45B11 55 1SBV 01 3845 R1302 LS33M45L02 55 1SBV 01 3845 R1320 LS33M45L20 55 1SBV 01 3845 R1411 LS33M45D11 55 1SBV 01 3845 R1511 LS33M45C11 55 1SBV 01 3846 R1202 LS33M46B02 55 1SBV 01 3846 R1211 LS33M46B11 55 1SBV 01 3846 R1302 LS33M46L02 55 1SBV 01 3846 R1320 LS33M46L20 55 1SBV 01 3846 R1411 LS33M46D11 55 1SBV 01 3846 R1511 LS33M46C11 55 1SBV 01 385... 1SBV 01 3851 R1202 LS33M51B02 56 1SBV 01 3851 R1211 LS33M51B11 56 1SBV 01 3851 R1302 LS33M51L02 56 1SBV 01 3851 R1320 LS33M51L20 56 1SBV 01 3851 R1411 LS33M51D11 56 1SBV 01 3851 R1511 LS33M51C11 56 1SBV 01 3852 R1202 LS33M52B02 56 1SBV 01 3852 R1211 LS33M52B11 56 1SBV 01 3852 R1302 LS33M52L02 56 1SBV 01 3852 R1320 LS33M52L20 56 1SBV 01 3852 R1411 LS33M52D11 56 1SBV 01 3852 R1511 LS33M52C11 56 1SBV 01 3853 R1202 LS33M53B02 56 1SBV 01 3853 R1211 LS33M53B11 56 1SBV 01 3853 R1302 LS33M53L02 56 1SBV 01 3853 R1320 LS33M53L20 56 1SBV 01 3853 R1411 LS33M53D11 56 1SBV 01 3853 R1511 LS33M53C11 56 1SBV 01 3855 R1202 LS33M55B02 57 1SBV 01 3855 R1211 LS33M55B11 57 1SBV 01 3855 R1302 LS33M55L02 57 1SBV 01 3855 R1320 LS33M55L20 57 1SBV 01 3855 R1411 LS33M55D11 57 1SBV 01 3855 R1511 LS33M55C11 57 1SBV 01 387... 1SBV 01 3871 R1202 LS33M71B02 57 1SBV 01 3871 R1211 LS33M71B11 57 1SBV 01 3871 R1302 LS33M71L02 57 1SBV 01 3871 R1320 LS33M71L20 57 1SBV 01 3871 R1411 LS33M71D11 57 1SBV 01 3871 R1511 LS33M71C11 57 1SBV 01 3872 R1202 LS33M72B02 57 1SBV 01 3872 R1211 LS33M72B11 57 1SBV 01 3872 R1302 LS33M72L02 57 1SBV 01 3872 R1320 LS33M72L20 57 1SBV 01 3872 R1411 LS33M72D11 57 1SBV 01 3872 R1511 LS33M72C11 57 1SBV 01 3873 R1202 LS33M73B02 58 1SBV 01 3873 R1211 LS33M73B11 58 1SBV 01 3873 R1302 LS33M73L02 58 1SBV 01 3873 R1320 LS33M73L20 58 1SBV 01 3873 R1411 LS33M73D11 58 1SBV 01 3873 R1511 LS33M73C11 58 1SBV 01 3874 R1202 LS33M74B02 58 1SBV 01 3874 R1211 LS33M74B11 58 1SBV 01 3874 R1302 LS33M74L02 58 1SBV 01 3874 R1320 LS33M74L20 58 1SBV 01 3874 R1411 LS33M74D11 58 1SBV 01 3874 R1511 LS33M74C11 58 1SBV 01 3878 R1202 LS33M78B02 58 1SBV 01 3878 R1211 LS33M78B11 58 1SBV 01 3878 R1302 LS33M78L02 58 1SBV 01 3878 R1320 LS33M78L20 58 1SBV 01 3878 R1411 LS33M78D11 58 1SBV 01 3878 R1511 LS33M78C11 58 1SBV 01 389... 1SBV 01 3891 R1202 LS33M91B02 59 1SBV 01 3891 R1211 LS33M91B11 59 1SBV 01 3891 R1302 LS33M91L02 59 1SBV 01 3891 R1320 LS33M91L20 59 1SBV 01 3891 R1411 LS33M91D11 59 1SBV 01 3891 R1511 LS33M91C11 59 1SBV 01 3892 R1202 LS33M92B02 59 1SBV 01 3892 R1211 LS33M92B11 59 1SBV 01 3892 R1302 LS33M92L02 59 1SBV 01 3892 R1320 LS33M92L20 59 1SBV 01 3892 R1411 LS33M92D11 59 1SBV 01 3892 R1511 LS33M92C11 59 1SBV 01 3898 R1211 LS33M98B11-A 59 1SBV 01 3898 R1302 LS33M98L02-A 59 1SBV 01 3898 R1320 LS33M98L20-A 59 1SBV 01 3898 R1411 LS33M98D11-A 59 1SBV 01 431... 1SBV 01 4311 R1202 LS72M11B02 60 1SBV 01 4311 R1211 LS72M11B11 60 1SBV 01 4311 R1302 LS72M11L02 60 1SBV 01 4311 R1320 LS72M11L20 60 1SBV 01 4311 R1411 LS72M11D11 60 1SBV 01 4311 R1511 LS72M11C11 60 1SBV 01 4312 R1202 LS72M12B02 60 1SBV 01 4312 R1211 LS72M12B11 60 1SBV 01 4312 R1302 LS72M12L02 60 1SBV 01 4312 R1320 LS72M12L20 60 1SBV 01 4312 R1411 LS72M12D11 60 1SBV 01 4312 R1511 LS72M12C11 60 1SBV 01 4313 R1202 LS72M13B02 60 1SBV 01 4313 R1211 LS72M13B11 60 1SBV 01 4313 R1302 LS72M13L02 60 1SBV 01 4313 R1320 LS72M13L20 60 1SBV 01 4313 R1411 LS72M13D11 60 1SBV 01 4313 R1511 LS72M13C11 60 1SBV 01 433... 1SBV 01 4331 R1202 LS72M31B02 61 1SBV 01 4331 R1211 LS72M31B11 61 1SBV 01 4331 R1302 LS72M31L02 61 1SBV 01 4331 R1320 LS72M31L20 61 1SBV 01 4331 R1411 LS72M31D11 61 1SBV 01 4331 R1511 LS72M31C11 61 1SBV 01 4335 R1202 LS72M35B02 61 1SBV 01 4335 R1211 LS72M35B11 61 1SBV 01 4335 R1302 LS72M35L02 61 1SBV 01 4335 R1320 LS72M35L20 61 1SBV 01 4335 R1411 LS72M35D11 61 1SBV 01 4335 R1511 LS72M35C11 61 1SBV 01 4338 R1202 LS72M38B02 61 1SBV 01 4338 R1211 LS72M38B11 61 1SBV 01 4338 R1302 LS72M38L02 61 1SBV 01 4338 R1320 LS72M38L20 61 1SBV 01 4338 R1411 LS72M38D11 61 1SBV 01 4338 R1511 LS72M38C11 61 1SBV 01 434... 1SBV 01 4341 R1202 LS72M41B02 62 1SBV 01 4341 R1211 LS72M41B11 62 1SBV 01 4341 R1302 LS72M41L02 62 1SBV 01 4341 R1320 LS72M41L20 62 1SBV 01 4341 R1411 LS72M41D11 62 1SBV 01 4341 R1511 LS72M41C11 62 1SBV 01 4342 R1202 LS72M42B02 62 1SBV 01 4342 R1211 LS72M42B11 62 1SBV 01 4342 R1302 LS72M42L02 62

14 Low Voltage Products 1SBC141138C0201 Order Code Type Page Index Classification by Order Code Order Code Type Page Order Code Type Page 1SBV 01 4342 R1320 LS72M42L20 62 1SBV 01 4342 R1411 LS72M42D11 62 1SBV 01 4342 R1511 LS72M42C11 62 1SBV 01 4343 R1202 LS72M43B02 62 1SBV 01 4343 R1211 LS72M43B11 62 1SBV 01 4343 R1302 LS72M43L02 62 1SBV 01 4343 R1320 LS72M43L20 62 1SBV 01 4343 R1411 LS72M43D11 62 1SBV 01 4343 R1511 LS72M43C11 62 1SBV 01 4345 R1202 LS72M45B02 63 1SBV 01 4345 R1211 LS72M45B11 63 1SBV 01 4345 R1302 LS72M45L02 63 1SBV 01 4345 R1320 LS72M45L20 63 1SBV 01 4345 R1411 LS72M45D11 63 1SBV 01 4345 R1511 LS72M45C11 63 1SBV 01 4346 R1202 LS72M46B02 63 1SBV 01 4346 R1211 LS72M46B11 63 1SBV 01 4346 R1302 LS72M46L02 63 1SBV 01 4346 R1320 LS72M46L20 63 1SBV 01 4346 R1411 LS72M46D11 63 1SBV 01 4346 R1511 LS72M46C11 63 1SBV 01 435... 1SBV 01 4351 R1202 LS72M51B02 63 1SBV 01 4351 R1211 LS72M51B11 63 1SBV 01 4351 R1302 LS72M51L02 63 1SBV 01 4351 R1320 LS72M51L20 63 1SBV 01 4351 R1411 LS72M51D11 63 1SBV 01 4351 R1511 LS72M51C11 63 1SBV 01 4352 R1202 LS72M52B02 64 1SBV 01 4352 R1211 LS72M52B11 64 1SBV 01 4352 R1302 LS72M52L02 64 1SBV 01 4352 R1320 LS72M52L20 64 1SBV 01 4352 R1411 LS72M52D11 64 1SBV 01 4352 R1511 LS72M52C11 64 1SBV 01 4353 R1202 LS72M53B02 64 1SBV 01 4353 R1211 LS72M53B11 64 1SBV 01 4353 R1302 LS72M53L02 64 1SBV 01 4353 R1320 LS72M53L20 64 1SBV 01 4353 R1411 LS72M53D11 64 1SBV 01 4353 R1511 LS72M53C11 64 1SBV 01 436... 1SBV 01 4361 R1202 LS72M61B02 64 1SBV 01 4361 R1211 LS72M61B11 64 1SBV 01 4361 R1302 LS72M61L02 64 1SBV 01 4361 R1320 LS72M61L20 64 1SBV 01 4361 R1411 LS72M61D11 64 1SBV 01 4361 R1511 LS72M61C11 64 1SBV 01 4362 R1202 LS72M62B02 65 1SBV 01 4362 R1211 LS72M62B11 65 1SBV 01 4362 R1302 LS72M62L02 65 1SBV 01 4362 R1320 LS72M62L20 65 1SBV 01 4362 R1411 LS72M62D11 65 1SBV 01 4362 R1511 LS72M62C11 65 1SBV 01 437... 1SBV 01 4371 R1202 LS72M71B02 65 1SBV 01 4371 R1211 LS72M71B11 65 1SBV 01 4371 R1302 LS72M71L02 65 1SBV 01 4371 R1320 LS72M71L20 65 1SBV 01 4371 R1411 LS72M71D11 65 1SBV 01 4371 R1511 LS72M71C11 65 1SBV 01 4372 R1202 LS72M72B02 65 1SBV 01 4372 R1211 LS72M72B11 65 1SBV 01 4372 R1302 LS72M72L02 65 1SBV 01 4372 R1320 LS72M72L20 65 1SBV 01 4372 R1411 LS72M72D11 65 1SBV 01 4372 R1511 LS72M72C11 65 1SBV 01 4373 R1202 LS72M73B02 66 1SBV 01 4373 R1211 LS72M73B11 66 1SBV 01 4373 R1302 LS72M73L02 66 1SBV 01 4373 R1320 LS72M73L20 66 1SBV 01 4373 R1411 LS72M73D11 66 1SBV 01 4373 R1511 LS72M73C11 66 1SBV 01 4374 R1202 LS72M74B02 66 1SBV 01 4374 R1211 LS72M74B11 66 1SBV 01 4374 R1302 LS72M74L02 66 1SBV 01 4374 R1320 LS72M74L20 66 1SBV 01 4374 R1411 LS72M74D11 66 1SBV 01 4374 R1511 LS72M74C11 66 1SBV 01 4378 R1202 LS72M78B02 66 1SBV 01 4378 R1211 LS72M78B11 66 1SBV 01 4378 R1302 LS72M78L02 66 1SBV 01 4378 R1320 LS72M78L20 66 1SBV 01 4378 R1411 LS72M78D11 66 1SBV 01 4378 R1511 LS72M78C11 66 1SBV 01 439... 1SBV 01 4391 R1202 LS72M91B02 67 1SBV 01 4391 R1211 LS72M91B11 67 1SBV 01 4391 R1302 LS72M91L02 67 1SBV 01 4391 R1320 LS72M91L20 67 1SBV 01 4391 R1411 LS72M91D11 67 1SBV 01 4391 R1511 LS72M91C11 67 1SBV 01 4392 R1202 LS72M92B02 67 1SBV 01 4392 R1211 LS72M92B11 67 1SBV 01 4392 R1302 LS72M92L02 67 1SBV 01 4392 R1320 LS72M92L20 67 1SBV 01 4392 R1411 LS72M92D11 67 1SBV 01 4392 R1511 LS72M92C11 67 1SBV 01 4398 R1211 LS72M98B11-A 67 1SBV 01 4398 R1302 LS72M98L02-A 67 1SBV 01 4398 R1320 LS72M98L20-A 67 1SBV 01 4398 R1411 LS72M98D11-A 67 1SBV 01 511... 1SBV 01 5111 R1202 LS75M11B02 60 1SBV 01 5111 R1211 LS75M11B11 60 1SBV 01 5111 R1302 LS75M11L02 60 1SBV 01 5111 R1320 LS75M11L20 60 1SBV 01 5111 R1411 LS75M11D11 60 1SBV 01 5111 R1511 LS75M11C11 60 1SBV 01 5112 R1202 LS75M12B02 60 1SBV 01 5112 R1211 LS75M12B11 60 1SBV 01 5112 R1302 LS75M12L02 60 1SBV 01 5112 R1320 LS75M12L20 60 1SBV 01 5112 R1411 LS75M12D11 60 1SBV 01 5112 R1511 LS75M12C11 60 1SBV 01 5113 R1202 LS75M13B02 60 1SBV 01 5113 R1211 LS75M13B11 60 1SBV 01 5113 R1302 LS75M13L02 60 1SBV 01 5113 R1320 LS75M13L20 60 1SBV 01 5113 R1411 LS75M13D11 60 1SBV 01 5113 R1511 LS75M13C11 60 1SBV 01 513... 1SBV 01 5131 R1202 LS75M31B02 61 1SBV 01 5131 R1211 LS75M31B11 61 1SBV 01 5131 R1302 LS75M31L02 61 1SBV 01 5131 R1320 LS75M31L20 61 1SBV 01 5131 R1411 LS75M31D11 61 1SBV 01 5131 R1511 LS75M31C11 61 1SBV 01 5135 R1202 LS75M35B02 61 1SBV 01 5135 R1211 LS75M35B11 61 1SBV 01 5135 R1302 LS75M35L02 61 1SBV 01 5135 R1320 LS75M35L20 61 1SBV 01 5135 R1411 LS75M35D11 61 1SBV 01 5135 R1511 LS75M35C11 61 1SBV 01 5138 R1202 LS75M38B02 61 1SBV 01 5138 R1211 LS75M38B11 61 1SBV 01 5138 R1302 LS75M38L02 61 1SBV 01 5138 R1320 LS75M38L20 61 1SBV 01 5138 R1411 LS75M38D11 61 1SBV 01 5138 R1511 LS75M38C11 61 1SBV 01 514... 1SBV 01 5141 R1202 LS75M41B02 62 1SBV 01 5141 R1211 LS75M41B11 62 1SBV 01 5141 R1302 LS75M41L02 62 1SBV 01 5141 R1320 LS75M41L20 62 1SBV 01 5141 R1411 LS75M41D11 62 1SBV 01 5141 R1511 LS75M41C11 62 1SBV 01 5142 R1202 LS75M42B02 62 1SBV 01 5142 R1211 LS75M42B11 62 1SBV 01 5142 R1302 LS75M42L02 62 1SBV 01 5142 R1320 LS75M42L20 62 1SBV 01 5142 R1411 LS75M42D11 62 1SBV 01 5142 R1511 LS75M42C11 62 1SBV 01 5143 R1202 LS75M43B02 62 1SBV 01 5143 R1211 LS75M43B11 62 1SBV 01 5143 R1302 LS75M43L02 62 1SBV 01 5143 R1320 LS75M43L20 62 1SBV 01 5143 R1411 LS75M43D11 62 1SBV 01 5143 R1511 LS75M43C11 62 1SBV 01 5145 R1202 LS75M45B02 63 1SBV 01 5145 R1211 LS75M45B11 63 1SBV 01 5145 R1302 LS75M45L02 63 1SBV 01 5145 R1320 LS75M45L20 63 1SBV 01 5145 R1411 LS75M45D11 63 1SBV 01 5145 R1511 LS75M45C11 63 1SBV 01 5146 R1202 LS75M46B02 63 1SBV 01 5146 R1211 LS75M46B11 63 1SBV 01 5146 R1302 LS75M46L02 63 1SBV 01 5146 R1320 LS75M46L20 63 1SBV 01 5146 R1411 LS75M46D11 63 1SBV 01 5146 R1511 LS75M46C11 63 1SBV 01 515... 1SBV 01 5151 R1202 LS75M51B02 63 1SBV 01 5151 R1302 LS75M51L02 63 1SBV 01 5151 R1320 LS75M51L20 63 1SBV 01 5151 R1411 LS75M51D11 63 1SBV 01 5151 R1511 LS75M51C11 63 1SBV 01 5152 R1202 LS75M52B02 64 1SBV 01 5152 R1211 LS75M52B11 64 1SBV 01 5152 R1302 LS75M52L02 64 1SBV 01 5152 R1320 LS75M52L20 64 1SBV 01 5152 R1411 LS75M52D11 64 1SBV 01 5152 R1511 LS75M52C11 64 1SBV 01 5153 R1202 LS75M53B02 64 1SBV 01 5153 R1211 LS75M53B11 64 1SBV 01 5153 R1302 LS75M53L02 64 1SBV 01 5153 R1320 LS75M53L20 64 1SBV 01 5153 R1411 LS75M53D11 64 1SBV 01 5153 R1511 LS75M53C11 64 1SBV 01 516... 1SBV 01 5161 R1202 LS75M61B02 64 1SBV 01 5161 R1211 LS75M61B11 64 1SBV 01 5161 R1302 LS75M61L02 64 1SBV 01 5161 R1320 LS75M61L20 64 1SBV 01 5161 R1411 LS75M61D11 64 1SBV 01 5161 R1511 LS75M61C11 64 1SBV 01 5162 R1202 LS75M62B02 65 1SBV 01 5162 R1211 LS75M62B11 65 1SBV 01 5162 R1302 LS75M62L02 65 1SBV 01 5162 R1320 LS75M62L20 65 1SBV 01 5162 R1411 LS75M62D11 65 1SBV 01 5162 R1511 LS75M62C11 65 1SBV 01 517... 1SBV 01 5171 R1202 LS75M71B02 65 1SBV 01 5171 R1211 LS75M71B11 65 1SBV 01 5171 R1302 LS75M71L02 65 1SBV 01 5171 R1320 LS75M71L20 65 1SBV 01 5171 R1411 LS75M71D11 65 1SBV 01 5171 R1511 LS75M71C11 65 1SBV 01 5172 R1202 LS75M72B02 65 1SBV 01 5172 R1211 LS75M72B11 65 1SBV 01 5172 R1302 LS75M72L02 65 1SBV 01 5172 R1320 LS75M72L20 65 1SBV 01 5172 R1411 LS75M72D11 65 1SBV 01 5172 R1511 LS75M72C11 65 1SBV 01 5173 R1202 LS75M73B02 66 1SBV 01 5173 R1211 LS75M73B11 66 1SBV 01 5173 R1302 LS75M73L02 66 1SBV 01 5173 R1320 LS75M73L20 66 1SBV 01 5173 R1411 LS75M73D11 66 1SBV 01 5173 R1511 LS75M73C11 66 1SBV 01 5174 R1202 LS75M74B02 66 1SBV 01 5174 R1211 LS75M74B11 66 1SBV 01 5174 R1302 LS75M74L02 66 1SBV 01 5174 R1320 LS75M74L20 66 1SBV 01 5174 R1411 LS75M74D11 66 1SBV 01 5174 R1511 LS75M74C11 66 1SBV 01 5178 R1202 LS75M78B02 66 1SBV 01 5178 R1211 LS75M78B11 66 1SBV 01 5178 R1302 LS75M78L02 66 1SBV 01 5178 R1320 LS75M78L20 66 1SBV 01 5178 R1411 LS75M78D11 66 1SBV 01 5178 R1511 LS75M78C11 66

Low Voltage Products 15 1SBC141138C0201 Order Code Type Page Index Classification by Order Code Order Code Type Page Order Code Type Page 1SBV 01 519... 1SBV 01 5191 R1202 LS75M91B02 67 1SBV 01 5191 R1211 LS75M91B11 67 1SBV 01 5191 R1302 LS75M91L02 67 1SBV 01 5191 R1320 LS75M91L20 67 1SBV 01 5191 R1411 LS75M91D11 67 1SBV 01 5191 R1511 LS75M91C11 67 1SBV 01 5192 R1202 LS75M92B02 67 1SBV 01 5192 R1211 LS75M92B11 67 1SBV 01 5192 R1302 LS75M92L02 67 1SBV 01 5192 R1320 LS75M92L20 67 1SBV 01 5192 R1411 LS75M92D11 67 1SBV 01 5192 R1511 LS75M92C11 67 1SBV 01 5198 R1211 LS75M98B11-A 67 1SBV 01 5198 R1302 LS75M98L02-A 67 1SBV 01 5198 R1320 LS75M98L20-A 67 1SBV 01 5198 R1411 LS75M98D11-A 67 1SBV 01 521... 1SBV 01 5211 R1202 LS73M11B02 60 1SBV 01 5211 R1211 LS73M11B11 60 1SBV 01 5211 R1302 LS73M11L02 60 1SBV 01 5211 R1320 LS73M11L20 60 1SBV 01 5211 R1411 LS73M11D11 60 1SBV 01 5211 R1511 LS73M11C11 60 1SBV 01 5212 R1202 LS73M12B02 60 1SBV 01 5212 R1211 LS73M12B11 60 1SBV 01 5212 R1302 LS73M12L02 60 1SBV 01 5212 R1320 LS73M12L20 60 1SBV 01 5212 R1411 LS73M12D11 60 1SBV 01 5212 R1511 LS73M12C11 60 1SBV 01 5213 R1202 LS73M13B02 60 1SBV 01 5213 R1211 LS73M13B11 60 1SBV 01 5213 R1302 LS73M13L02 60 1SBV 01 5213 R1320 LS73M13L20 60 1SBV 01 5213 R1411 LS73M13D11 60 1SBV 01 5213 R1511 LS73M13C11 60 1SBV 01 523... 1SBV 01 5231 R1202 LS73M31B02 61 1SBV 01 5231 R1211 LS73M31B11 61 1SBV 01 5231 R1302 LS73M31L02 61 1SBV 01 5231 R1320 LS73M31L20 61 1SBV 01 5231 R1411 LS73M31D11 61 1SBV 01 5231 R1511 LS73M31C11 61 1SBV 01 5235 R1202 LS73M35B02 61 1SBV 01 5235 R1211 LS73M35B11 61 1SBV 01 5235 R1302 LS73M35L02 61 1SBV 01 5235 R1320 LS73M35L20 61 1SBV 01 5235 R1511 LS73M35C11 61 1SBV 01 5238 R1202 LS73M38B02 61 1SBV 01 5238 R1211 LS73M38B11 61 1SBV 01 5238 R1302 LS73M38L02 61 1SBV 01 5238 R1320 LS73M38L20 61 1SBV 01 5238 R1411 LS73M38D11 61 1SBV 01 5238 R1511 LS73M38C11 61 1SBV 01 524... 1SBV 01 5241 R1202 LS73M41B02 62 1SBV 01 5241 R1211 LS73M41B11 62 1SBV 01 5241 R1302 LS73M41L02 62 1SBV 01 5241 R1320 LS73M41L20 62 1SBV 01 5241 R1411 LS73M41D11 62 1SBV 01 5241 R1511 LS73M41C11 62 1SBV 01 5242 R1202 LS73M42B02 62 1SBV 01 5242 R1211 LS73M42B11 62 1SBV 01 5242 R1302 LS73M42L02 62 1SBV 01 5242 R1320 LS73M42L20 62 1SBV 01 5242 R1411 LS73M42D11 62 1SBV 01 5242 R1511 LS73M42C11 62 1SBV 01 5243 R1202 LS73M43B02 62 1SBV 01 5243 R1211 LS73M43B11 62 1SBV 01 5243 R1302 LS73M43L02 62 1SBV 01 5243 R1320 LS73M43L20 62 1SBV 01 5243 R1411 LS73M43D11 62 1SBV 01 5243 R1511 LS73M43C11 62 1SBV 01 5245 R1202 LS73M45B02 63 1SBV 01 5245 R1211 LS73M45B11 63 1SBV 01 5245 R1302 LS73M45L02 63 1SBV 01 5245 R1320 LS73M45L20 63 1SBV 01 5245 R1411 LS73M45D11 63 1SBV 01 5245 R1511 LS73M45C11 63 1SBV 01 5246 R1202 LS73M46B02 63 1SBV 01 5246 R1211 LS73M46B11 63 1SBV 01 5246 R1302 LS73M46L02 63 1SBV 01 5246 R1320 LS73M46L20 63 1SBV 01 5246 R1411 LS73M46D11 63 1SBV 01 5246 R1511 LS73M46C11 63 1SBV 01 525... 1SBV 01 5251 R1202 LS73M51B02 63 1SBV 01 5251 R1211 LS73M51B11 63 1SBV 01 5251 R1302 LS73M51L02 63 1SBV 01 5251 R1320 LS73M51L20 63 1SBV 01 5251 R1411 LS73M51D11 63 1SBV 01 5251 R1511 LS73M51C11 63 1SBV 01 5252 R1202 LS73M52B02 64 1SBV 01 5252 R1211 LS73M52B11 64 1SBV 01 5252 R1302 LS73M52L02 64 1SBV 01 5252 R1320 LS73M52L20 64 1SBV 01 5252 R1411 LS73M52D11 64 1SBV 01 5252 R1511 LS73M52C11 64 1SBV 01 5253 R1202 LS73M53B02 64 1SBV 01 5253 R1211 LS73M53B11 64 1SBV 01 5253 R1302 LS73M53L02 64 1SBV 01 5253 R1320 LS73M53L20 64 1SBV 01 5253 R1411 LS73M53D11 64 1SBV 01 5253 R1511 LS73M53C11 64 1SBV 01 526... 1SBV 01 5261 R1202 LS73M61B02 64 1SBV 01 5261 R1211 LS73M61B11 64 1SBV 01 5261 R1302 LS73M61L02 64 1SBV 01 5261 R1320 LS73M61L20 64 1SBV 01 5261 R1411 LS73M61D11 64 1SBV 01 5261 R1511 LS73M61C11 64 1SBV 01 5262 R1202 LS73M62B02 65 1SBV 01 5262 R1211 LS73M62B11 65 1SBV 01 5262 R1302 LS73M62L02 65 1SBV 01 5262 R1320 LS73M62L20 65 1SBV 01 5262 R1411 LS73M62D11 65 1SBV 01 5262 R1511 LS73M62C11 65 1SBV 01 527... 1SBV 01 5271 R1202 LS73M71B02 65 1SBV 01 5271 R1211 LS73M71B11 65 1SBV 01 5271 R1302 LS73M71L02 65 1SBV 01 5271 R1320 LS73M71L20 65 1SBV 01 5271 R1411 LS73M71D11 65 1SBV 01 5271 R1511 LS73M71C11 65 1SBV 01 5272 R1202 LS73M72B02 65 1SBV 01 5272 R1211 LS73M72B11 65 1SBV 01 5272 R1302 LS73M72L02 65 1SBV 01 5272 R1320 LS73M72L20 65 1SBV 01 5272 R1411 LS73M72D11 65 1SBV 01 5272 R1511 LS73M72C11 65 1SBV 01 5273 R1202 LS73M73B02 66 1SBV 01 5273 R1211 LS73M73B11 66 1SBV 01 5273 R1302 LS73M73L02 66 1SBV 01 5273 R1320 LS73M73L20 66 1SBV 01 5273 R1411 LS73M73D11 66 1SBV 01 5273 R1511 LS73M73C11 66 1SBV 01 5274 R1202 LS73M74B02 66 1SBV 01 5274 R1211 LS73M74B11 66 1SBV 01 5274 R1302 LS73M74L02 66 1SBV 01 5274 R1320 LS73M74L20 66 1SBV 01 5274 R1411 LS73M74D11 66 1SBV 01 5274 R1511 LS73M74C11 66 1SBV 01 5278 R1202 LS73M78B02 66 1SBV 01 5278 R1211 LS73M78B11 66 1SBV 01 5278 R1302 LS73M78L02 66 1SBV 01 5278 R1320 LS73M78L20 66 1SBV 01 5278 R1411 LS73M78D11 66 1SBV 01 5278 R1511 LS73M78C11 66 1SBV 01 529... 1SBV 01 5291 R1202 LS73M91B02 67 1SBV 01 5291 R1211 LS73M91B11 67 1SBV 01 5291 R1302 LS73M91L02 67 1SBV 01 5291 R1320 LS73M91L20 67 1SBV 01 5291 R1411 LS73M91D11 67 1SBV 01 5291 R1511 LS73M91C11 67 1SBV 01 5292 R1202 LS73M92B02 67 1SBV 01 5292 R1211 LS73M92B11 67 1SBV 01 5292 R1302 LS73M92L02 67 1SBV 01 5292 R1320 LS73M92L20 67 1SBV 01 5292 R1411 LS73M92D11 67 1SBV 01 5292 R1511 LS73M92C11 67 1SBV 01 5298 R1211 LS73M98B11-A 67 1SBV 01 5298 R1302 LS73M98L02-A 67 1SBV 01 5298 R1320 LS73M98L20-A 67 1SBV 01 5298 R1411 LS73M98D11-A 67
