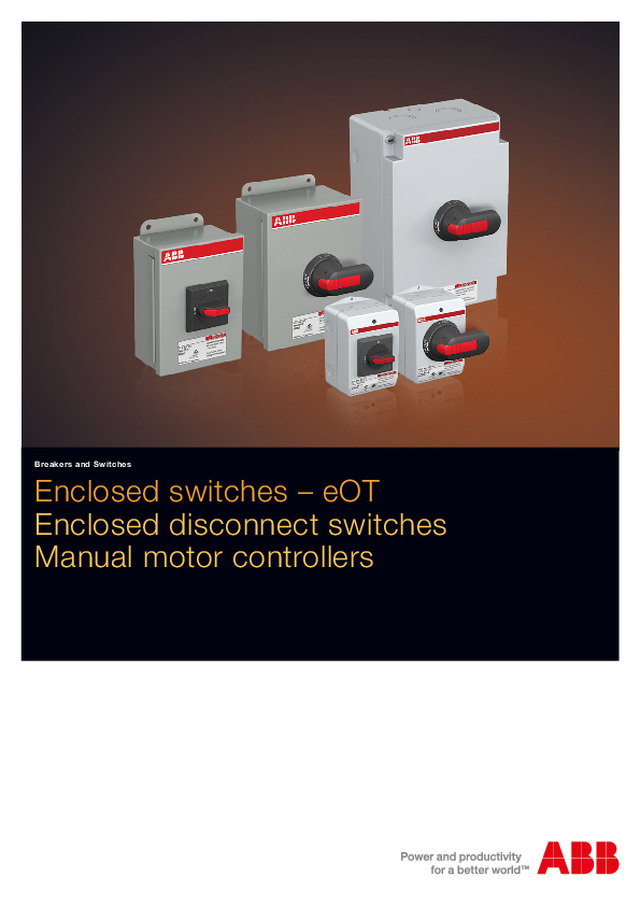

Enclosed switches – eOT Enclosed disconnect switchesManual motor controllers Breakers and Switches

2     |  1SCC340011C0201 | Enclosed switches – eOT The next generation of enclosed switches General information The eOT series of enclosed manual motor controllers are rotary operated, 3 pole, 600V Hp rated switches, housed in thermoplastic/polycarbonate or sheet steel enclosures. They are suitable for wet and corrosive environments. Plastic enclosed manual motor controllers   – UL/NEMA 3R/12 and NEMA 4X versions   – Standard black handle, selector or pistol type Steel sheet enclosed switches   – UL/NEMA 3R/12 versions    – Standard black handle, selector or pistol type eOT products are properly installed on the load side of a branch circuit protective device and are suitable for use as motor disconnects as illustrated in Figure. Disconnect means M Short Circuit protective device Controller Overload protections Motor disconnect (OSHA Lock Out/Tag Out)

Enclosed switches – eOT  |  1SCC340011C0201  |     3 Outstanding features   – cUL approval, UL508 Listed, UL98   – Suitable as motor disconnect   – Horsepower rated   – Touch safe construction   – Positive operation   – Clear position indication   – Self lifting tunnel terminals   – Extremely compact size   – Accessories   – 4th power pole   – Snap-on auxiliary contacts Cutting edge design and technology.  eOT ensures reliable  switching time after time. Clean and simple installation Plastic enclosures have conduit knock-outs provided on the top and bottom of the enclosure. Plastic enclosures have a metallic base plate that electrically bonds together all conduit hubs installed in the top and bottom of the enclosure - addi-tional conduit bonding jumpers are not required.  Plastic enclosure installs flush on mounting surface, reducing the accu-mulation of dirt behind the enclosure.  Sealed enclosure cover is water tight, suitable for hose-down environments (Type 4X version only).

4     |  1SCC340011C0201 | Enclosed switches – eOT Technical data Enclosed switches Technical data eOT16 eOT32 eOT45 eOT63 Approvals 3pole UL508 UL508 UL508 UL508 UL Amperage Rating 16 40 60 80 Max Horsepower rating Three Phase 200V-208V HP 3 10 15 20 240V HP 6 10 15 20 480V HP 10 20 30 40 600V HP 10 25 30 40 Single Phase 120V HP 1 2 2 2 240V HP 2 5 7.5 10 Interrupting Capacity (SCCR) with fuse Fuse Type CC kA 10/- 10/- -/- -/- Fuse Type J kA 10/10 10/10 100/- 100/- Fuse Type T kA 10/10 10/10 100/- 100/- Fuse Type RK1 kA 10/- 10/- -/- -/- Fuse Type RK5 kA 5/5 5/5 10/5 10/5 Fuse Type L kA -/- -/- -/- -/- Fuse Type H kA -/- -/- -/5 -/5 Maximum Fuse Size A 30/60 1) 30/60 1) 100/150 100/150 Endurances Min. electrical endurance power factor 0.75...0.8 op. cycles 6000 6000 6000 6000 0.40...0.50 op. cycles 1000 1000 1000 1000 Mechanical endurance  operations 20000 20000 20000 20000 Switch operating torque lbs. in. 8.8 8.8 10.5 10.5 Nm 1 1 1.2 1.2 Knock-outs Plastic enclosure Ends 4×1/2” or 4×3/4” 4×1/2" or 4× 3/4" 4×3/4" or 4×1" 4×1" or 4×1 1/4" Terminal Lug Kits Not required Not required Not required Not required Wire Range AWG #18-8 #18-8 #14-4 #14-4 mm 2 0.75-6 0.75-6 2.5-16 2.5-16 Wire Tightening Torque lbs. in. 7 7 18 18 Nm 0.8 0.8 2.0 2.0 Lug Mounting lbs. in. Integral Integral Integral Integral Auxiliary Contacts Suitable auxiliary contacts Plastic enclosure OA1G_ or OA2G11  OA1G_ or OA2G11  OA1G_ or OA2G11  OA1G_ or OA2G11  Metallic enclosure OA1G_ OA1G_ OA1G_ OA1G_ NEMA ratings, AC AC600 AC600 AC600 AC600 AC rated voltage VAC 600 600 600 600 AC rated thermal current A 10 10 10 10 AC maximum volt-ampere making VAC 7200 7200 7200 7200 AC maximum volt-amperage breaking VAC 720 720 720 720 NEMA ratings, DC R300 R300 R300 R300 DC rated voltage VDC 300 300 300 300 DC  thermal  rated  current A 1 1 1 1 DC maximum make-break VA 28 28 28 28 Torque:  wire  tightening lbs.  in. 7 7 7 7 Nm 0.8 0.8 0.8 0.8 Wire Range AWG #18-14 #18-14 #18-14 #18-14 mm 2 0.75 - 2.5 0.75 - 2.5 0.75 - 2.5 0.75 - 2.5 1)  Fuse size 70A for RK5

Enclosed switches – eOT  |  1SCC340011C0201  |     5 Ordering information Enclosed manual motor controllers Plastic enclosed 3-pole manual motor contollers Amp Weight/ rating Handle Handle Auxiliary unit [A] type color contacts Catalog number Order number [kg] UL/NEMA 3R, 12 16 Selector Black  - EOT16U3P3-S 1SCA022792R2700 0.55 40 Selector Black  - EOT32U3P3-S 1SCA022793R3060 0.55 60 Selector Black  - EOT45U3P3-S 1SCA103984R1001 1.10 80 Pistol Black  - EOT63U3P3-P 1SCA103999R1001 2.11 UL/NEMA 4X 16 Pistol Black  - EOT16U3P4-P 1SCA022793R4030 0.62 40 Pistol Black  - EOT32U3P4-P 1SCA022793R3810 0.62 Types with auxiliary contacts available on request EOT16/32_-S EOT45_-S EOT63_-P EOT16/32_-P Sheet steel enclosed 3-pole manual motor contollers Amp Weight/ rating Handle Handle Auxiliary unit [A] type color contacts   Catalog number Order number [kg] UL/NEMA 3R, 12 40 Selector Black  - EOT32U3M3-S 1SCA022823R7440 2.1 60 Pistol Black  - EOT45U3M3-P 1SCA022823R8840 2.8 80 Pistol Black  - EOT63U3M3-P 1SCA022823R9060 2.8 Types with auxiliary contacts available on request EOT32U3M3-S EOT45/63U3M3-P

6     |  1SCC340011C0201 | Enclosed switches – eOT Ordering information Accessories Auxiliary contacts Contact numbering according to EN 50013. AC thermal amp rating 10 A and AC rated voltage 600 V. IP20 touch safe. The catalog numbers are for one piece. Maximum number of auxiliary contacts: 2NO+2NC, if fourth pole installed: 1NO+2NC. OA2G11 suitable only for plastic enclosed disconnect switches, not mountable on same side as the fourth pole. Weight/ Mounting to the side unit Function of the switch  Catalog number  Order number [kg] 1NC left OA1G01 1SCA022353R4890 0.03 1NO right OA1G10 1SCA022353R4970 0.03 1NO+1NC right OA2G11 1SCA022379R8100 0.03 Fourth poles Mountable on the side of the switch. Only one additional pole per switch. AC rated voltage 600 V. IP20 touch safe. The catalog numbers are for one piece. AC thermal  Weight/ Suitable for  amp rating unit switches [A] Catalog number  Order number [kg] Simultaneous function with the main contacts EOT16, EOT32 40 OTPS40FPN2 1SCA105000R1001 0.03 EOT45, EOT63 80 OTPS80FP 1SCA105461R1001 0.06 Late-break and early-make EOT16, EOT32 40 OTPL40FP 1SCA105717R1001 0.03 EOT45, EOT63 80 OTPL80FP 1SCA105452R1001 0.06 Solid neutral pole EOT16, EOT32 40 OTPN40FP 1SCA104997R1001 0.03 EOT45, EOT63 80 OTPN80FP 1SCA105457R1001 0.06 OA1G OA2G OTP_40_ OTP_80_ S00261A S01025A S00262A S00263A

Enclosed switches – eOT  |  1SCC340011C0201  |     7 Ordering information Accessories Handles Selector type handles NEMA 1, 3R, 12 (IP65), handles, padlockable with maximum 3 padlocks with bail diameter 0.20…0.32" (5...8 mm), door interlock in ON-position, defeatable. Indication I-O and ON-OFF. Weight/unit Color Catalog number  Order number [kg] For shaft diameter 0.24 × 0.24“ (6 mm). Black OHBS2AJ 1SCA105213R1001 Pistol type handles, plastic NEMA 1,3R, 12, 4, 4X (IP65) handles, padlockable with maximum 3 padlocks with bail diam-eter 0.20…0.39" (5…10 mm) in OFF-position, door interlock in ON-position. Screw fixing from the back side of the handle. No screws on the front ensures double insulation. Indication I-O, ON-OFF. Handle  Weight/ length unit Color [in/mm] Catalog number  Order number [kg] Black 2.6/65 OHB65L6 1SCA022580R9650 0.12 OHB65J6 OHBS2AJ

8     |  1SCC340011C0201 | Enclosed switches – eOT Dimension drawings Plastic enclosed manual motor controllers eOT45_-S eOT16_-S/P, eOT32_-S/P 152 5,98 501,97 161,4 6,35 mmin 140 5,51 76 2,99 4,50,18 7,400,29 100 3,94 S07152 / M00084 EOT16-32U_P_-S  A ON I O  OFF Selector type handle Pistol type handle R2,250,09 45 126 1,77 4,96 36 1,42 34,51,36 115,5 4,55 1,18 30 1,18 30 20 0,79 Metric M20(0,79 dia) Metric M20(0,79 dia) 20 0,79  19 0,75 Knock-outs on top and bottom 3/4 "1/2 "M25 240,94 25 0,98 50 1,97 1525,98

Enclosed switches – eOT  |  1SCC340011C0201  |     9 Dimension drawings Plastic enclosed manual motor controllers eOT63_-P 210 8.27 189 7.44 300 11.81 238 9.37 150 5.91 105 4.13 Ø6.6    0.26 M00141/EOT30-100U_P_-P  C 1"  1 1/4" 1"  1 1/4" mm in 181 7.12 136 5.35 45 1.77 20.5 0.81 60 2.36 20 0.79 238 9.37 189 7.44

10     |  1SCC340011C0201 | Enclosed switches – eOT Dimension drawings Sheet steel and stainless steel enclosed manual motor controllers eOT32_S eOT45/63_-P M00102 / EOT16-32M/S-S   B I L J H K P O Type 3R, 4X, 12 B C D F G E A 190,75 ON I O  OFF mm in eOT32 Dimension [mm/in] A  B C  D  E  F G H  I  J K  L M N O P 7,9/0,31  215,9/8,50  183,4/7,22 91,7/3,61 73,7/2,90  101,6/4,00  134,1/5,28 19,0/0,75 83,3/3,28 35,5/1,36  2,8/0,11  117,9/4,64 101,6/4,0 101,6/4,0  196,9/7,75 76,2/3,00  M00101 / EOT16-32M/S-P   B P O T ype 3R, 4X, 12 I L J H K B C D F G E A mm in 190,75 eOT45-63 Dimension [mm/in] Handle  code  A B  C D  E  F G H  I  J K  L M N O P -P  7,9/0,31 241,3/9,50 208,8/8,22 104,4/4,11  86,1/3,39 127,0/5,00 159,5/6,28  36,0/1,42 108,7/4,28  45,0/1,77  2,8/0,11 153,7/6,05 127,0/5,0 127,0/5,0  222,3/8,75  101,6/4,00 -M  7,9/0,31 241,3/9,50 208,8/8,22 104,4/4,11  86,1/3,39 127,0/5,00 159,5/6,28  36,0/1,42 108,7/4,28  52,0/2,05  2,8/0,11 160,7/6,32 127,0/5,0 127,0/5,0  222,3/8,75  101,6/4,00
