Draka Data Kabloları

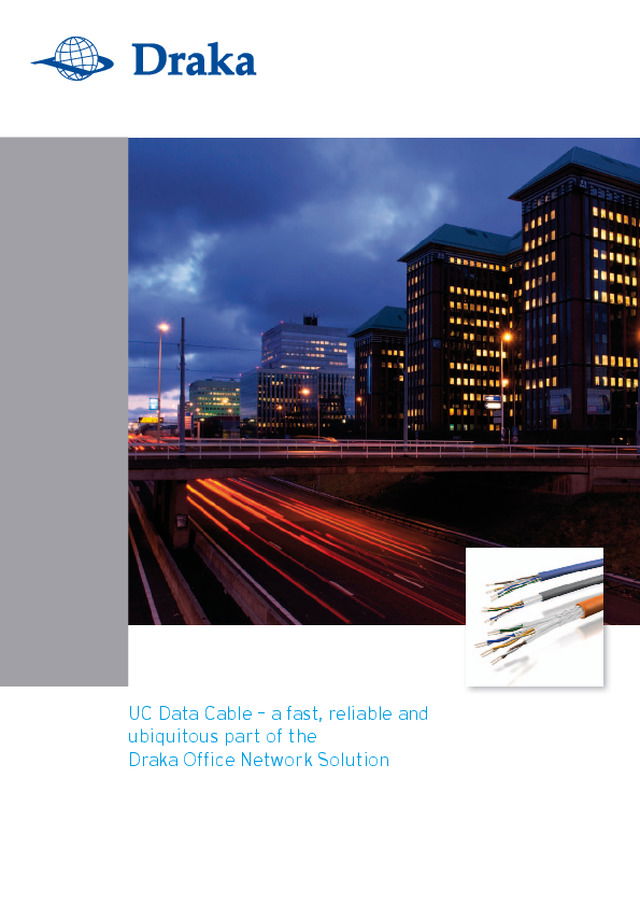

UC Data Cable – a fast, reliable andubiquitous part of theDraka Office Network Solution

Transmission performance EMC properties Mechanical properties UC300 26 Cat.5e U/UTP Patch Cable MHz 1 10 100 250 300   Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 0,3 0,9 3,0 4,4 4,8  Loop resistance  Ω/km ≤ 260 Overall diameter mm 5,2 NEXT dB 71,0 56,0 41,0 35,0 34,0  NVP % ca. 67 Weight kg/km 25 PS-NEXT dB 68,0 53,0 38,0 32,0 31,0  Capacitance nF/km nom. 48 Fire load MJ/km 324 PS-ELFEXT dB 65,0 45,0 25,0 17,0 13,0   Bending radius with load 8xD without load 4xD Tensile force N 55 Transmission performance EMC properties Mechanical properties UC300 24 Cat.5e U/UTP Installation Cable MHz 1 10 100 250 300   Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 1,9 6,0 19,8 29,2 32,0  Loop resistance Ω/km ≤ 165 Overall diameter mm 5,0 NEXT dB 71,0 56,0 41,0 35,0 34,0  NVP % ca. 67 Weight kg/km 35 PS-NEXT dB 68,0 53,0 38,0 32,0 31,0  Capacitance nF/km nom. 48 Fire load MJ/km 336 ACR dB 69,1 50,0 21,2 5,8 2,0  Bending radius PS-ACR dB 63,1 47,0 18,2 2,8 -1,2  with load 8xD PS-ELFEXT dB 65,0 45,0 25,0 17,0 13,0 without load 4xD Tensile force N 100 Transmission performance EMC properties Mechanical properties UC300 S24 Cat.5e F/UTP Installation Cable MHz 1 10 100 250 300   Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 1,9 6,0 19,8 29,2 32,0  Loop resistance Ω/km ≤ 190 Overall diameter mm 5,9 NEXT dB 71,0 56,0 41,0 35,0 34,0  NVP % ca. 67 Weight kg/km 37 PS-NEXT dB 68,0 53,0 38,0 32,0 31,0  Capacitance nF/km nom. 48 Fire load MJ/km 396 ACR dB 69,1 50,0 21,2 5,8 1,8  Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 66,1 47,0 18,2 2,8 -1,2    bei 1 MHz 50 with load 8xD PS-ELFEXT dB 65,0 45,0 25,0 17,0 13,0    bei 10 MHz 100 without load 4xD   bei 30 MHz 200 Tensile force N 80 Transmission performance EMC properties Mechanical properties UC300 HS24 Cat.5e SF/UTP Installation Cable MHz 1 10 100 250 300   Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 1,9 6,0 19,8 29,2 32,0  Loop resistance Ω/km ≤ 190 Overall diameter mm 6,4 NEXT dB 71,0 56,0 41,0 35,0 34,0  NVP % ca. 67 Weight kg/km 47 PS-NEXT dB 68,0 53,0 38,0 32,0 31,0  Capacitance nF/km nom. 48 Fire load MJ/km 433 ACR dB 69,1 50,0 21,2 5,8 2,0  Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 66,1 47,0 18,2 2,8 -1,0    bei 1 MHz 20 with load 8xD PS-ELFEXT dB 65,0 45,0 25,0 17,0 13,0     bei 10 MHz 20 without load 4xD   bei 30 MHz 30 Tensile force N 120   bei 100 MHz 60 Duplex Cable available on request.  Electrical properties

Transmission performance EMC properties Mechanical properties UC400 26 Cat.6 U/UTP Patch Cable MHz 1 10 100 250 300   400 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 0,30 0,90 3,00 4,90 5,20 6,00  Loop resistance Ω/km ≤ 195 Overall diameter mm 5,6 NEXT dB 74,0 60,0 45,0 39,0 38,0 37,0  NVP % ca. 67 Weight kg/km 34 PS-NEXT dB 71,0 56,0 42,0 36,0 35,0 34,0  Capacitance nF/km nom. 52 Fire load MJ/km 342 PS-ELFEXT dB 66,0 46,0 26,0 19,0 18,0 17,0   Bending radius with load 8xD without load 4xD Tensile force N 70 Transmission performance EMC properties Mechanical properties UC400 S27 Cat.6 U/FTP Patch Cable MHz 1 10 100 250 300   400 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 0,3 1,0 3,3 5,1 5,6 6,5  Loop resistance Ω/km ≤ 340 Overall diameter mm 5,7 NEXT dB 87,0 72,0 57,0 51,0 50,0 48,0  NVP % ca. 79 Weight kg/km 26 PS-NEXT dB 84,0 69,0 54,0 48,0 47,0 45,0  Capacitance nF/km nom. 43 Fire load MJ/km 342 PS-ELFEXT dB 72,0 72,0 52,0 44,0 42,0 40,0  Kopplungswiderstand m Ω/m Bending radius   bei 1 MHz 50 with load 8xD   bei 10 MHz 100 without load 4xD   bei 30 MHz 200 Tensile force N 70 Transmission performance EMC properties Mechanical properties UC400 23 Cat.6 U/UTP Installation Cable MHz 1 10 100 250 300   400 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 1,9 5,6 19,0 32,0 36,0 42,0  Loop resistance Ω/km ≤ 176 Overall diameter mm 6,2 NEXT dB 81,0 74,0 48,0 44,0 41,0 39,0  NVP % ca. 68 Weight kg/km 40 PS-NEXT dB 78,0 71,0 45,0 41,0 38,0 36,0  Capacitance nF/km nom. 48 Fire load MJ/km 329 ACR dB 79,0 68,0 29,0 12,0 5,0 -3,0  Bending radius PS-ACR dB 76,0 65,0 26,0 9,0 2,0 -6,0  with load 8xD PS-ELFEXT dB 79,0 59,0 39,0 31,0 29,0 27,0  without load 4xD Tensile force N 100 Transmission performance EMC properties Mechanical properties UC400 S23 Cat.6 U/FTP Installation Cable MHz 1 10 100 250 300   400 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 1,8 5,4 17,4 28,8 30,9 38,3 Loop resistance  Ω/km ≤ 145 Overall diameter mm 7,3 NEXT dB 100 100 100 90 89 87 NVP % ca. 75 Weight kg/km 45 PS-NEXT dB 97 97 97 97 86 84 Capacitance nF/km nom. 45 Fire load MJ/km 542 ACR dB 98 95 83 62 58 48 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 95 92 80 59 55 45   bei 1 MHz 50 with load 8xD PS-ELFEXT dB 102 94 74 66 64 61   bei 10 MHz 100 without load 4xD   bei 100 MHz 1000 Tensile force N 100 Nominal value measured at 100 m (Velocity of Propagation)  |   Nominal value Patch Cable measured at 10 m  |   NVP = Nominal  |   LSOH

Transmission performance EMC properties Mechanical properties UC500 S27 Cat.6 A  U/FTP Patch Cable MHz 1 10 100 250 300   400 500 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation   dB  0,3  1,0  3,3  5,1  5,6  6,5  7,3  Loop resistance Ω/km ≤ 340 Overall diameter mm 5,7 NEXT  dB  87,0  72,0  57,0  51,0  50,0  48,0  46,0  NVP % ca. 79 Weight kg/km 26 PS-NEXT  dB  84,0  69,0  54,0  48,0  47,0  45,0  43,0  Capacitance nF/km nom. 43 Fire load MJ/km 342 PS-ELFEXT  dB  72,0  72,0  52,0  44,0  42,0  40,0  37,0  Kopplungswiderstand m Ω/m Bending radius   bei 1 MHz 50 with load 8xD   bei 10 MHz 100 without load 4xD   bei 30 MHz 200 Tensile force N 50 Transmission performance EMC properties Mechanical properties UC500 23 Cat.6 A  U/UTP Installation Cable MHz 1 10 100 250 300   400 500 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation   dB  2,0  5,9  19,0  31,1 34,2  40,0  45,3 Loop resistance Ω/km ≤ 145 Overall diameter mm 8,9 NEXT  dB  75,3  60,3  45,3  39,3  38,1  36,3  34,8 NVP % ca. 67 Weight kg/km 73 PS-NEXT  dB  72,3  57,3  42,3  36,3  35,1  33,3  31,8 Capacitance nF/km nom. 48 Fire load MJ/km 1075 PS-ELFEXT  dB  65,0  45,0  25,0  17,0  15,5  13,0  11,0 Bending radius with load 8xD without load 4xD Tensile force N 100 Transmission performance EMC properties Mechanical properties UC500 S23 Cat.6 A  U/FTP Installation Cable MHz 1 10 100 250 300   400 500 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation   dB  1,8  5,4  17,4  28,1  30,9  38,3  44,8 Loop resistance Ω/km ≤ 176 Overall diameter mm 6,9 NEXT  dB  100,0  100,0  100,0  90,0  89,0  87,0  85,0 NVP % ca. 79 Weight kg/km 45 PS-NEXT  dB  97,0  97,0  97,0  87,0  86,0  84,0  82,0 Capacitance nF/km nom. 45 Fire load MJ/km 493 ACR  dB  98,0  95,0  83,0  62,0  58,0  48,0  40,0 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB  95,0  92,0  80,0  59,0  55,0  45,0  37,0   bei 1 MHz ≤ 50 with load 8xD PS-ELFEXT  dB  102 ,0 94,0  74,0  66,0  64,0  61,0  58,0   bei 10 MHz ≤ 100 without load 4xD   bei 30 MHz 1000 Tensile force N 100 Transmission performance EMC properties Mechanical properties UC500 AS23 Cat.6 A  F/FTP Installation Cable MHz 1 10 100 250 300   400 500 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation   dB  1,8  5,4  17,4  28,1  30,9  38,3  44,8 Loop resistance Ω/km ≤ 176 Overall diameter mm 7,1 NEXT  dB  100,0  100,0  100,0  90,0  89,0  87,0  85,0 NVP % ca. 79 Weight kg/km 47 PS-NEXT  dB  97,0  97,0  97,0  87,0  86,0  84,0  82,0 Capacitance nF/km nom. 43 Fire load MJ/km 501 ACR  dB  98,0  95,0  83,0  62,0  58,0  48,0  40,0 Kopplungswiderstand m Ω/m Bending radius PS-ACR  dB  95,0  92,0  80,0  59,0  55,0  45,0  37,0   bei 1 MHz 20 with load 8xD PS-ELFEXT  dB  102 ,0 94,0  74,0  66,0  64,0  61,0  58,0   bei 10 MHz 50 without load 4xD   bei 30 MHz 100 Tensile force N 100  Electrical properties

Transmission performance EMC properties Mechanical properties UC900 SS27 Cat.7 S/FTP Patch Cable MHz 1 10 100 250 300   450 600 1000 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation   dB  0,3 1,0 3,2 5,1 5,6 6,9 7,9 10,2 Loop resistance Ω/km ≤ 340 Overall diameter mm 5,9 NEXT  dB  90,0 90,0 87,0 81,0 80,0 77,0 75,0 71,0 NVP % ca. 79 Weight kg/km 39 PS-NEXT  dB  87,0 87,0 84,0 78,0 77,0 74,0 72,0 68,0 Capacitance nF/km nom. 43 Fire load MJ/km 349 PS-ELFEXT  dB  77,0 77,0 57,0 49,0 47,0 44,0 41,0 37,0 Kopplungswiderstand m Ω/m Bending radius   bei 1 MHz 25 with load 8xD   bei 10 MHz 15 without load 4xD   bei 30 MHz 30 Tensile force N 100 Transmission performance EMC properties Mechanical properties UC900 HS23 Cat.7 S/FTP Installation Cable MHz 1 10 100 250 300   450 600 1000 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 1,8 5,4 17,4 28,1 30,9 38,3 44,8 63,1 Loop resistance Ω/km ≤ 165 Overall diameter mm 7,4 NEXT dB 100,0 100,0 100,0 90,0 89,0 87,0 85,0 80,0 NVP % ca. 79 Weight kg/km 54,5 PS-NEXT dB 97,0 97,0 97,0 87,0 86,0 84,0 82,0 77,0 Capacitance nF/km nom. 43 Fire load MJ/km 590 ACR dB 98,0 95,0 83,0 62,0 58,0 48,0 40,0 17,0 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 95,0 92,0 80,0 59,0 55,0 45,0 37,0 14,0   bei 1 MHz 20 with load 8xD PS-ELFEXT dB 105,0 94,0 74,0 66,0 64,0 61,0 58,0 54,0   bei 10 MHz 30 without load 4xD   bei 100 MHz 200 Tensile force N 110 Transmission performance EMC properties Mechanical properties UC900 SS23 Cat.7 S/FTP Installation Cable MHz 1 10 100 250 300   450 600 1000 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation dB 1,8 5,4 17,4 28,1 30,9 38,3 44,8 63,1 Loop resistance Ω/km ≤ 150 Overall diameter mm 7,5 NEXT dB 100,0 100,0 100,0 90,0 89,0 87,0 85,0 80,0 NVP % ca. 79 Weight kg/km 75 PS-NEXT dB 97,0 97,0 97,0 87,0 86,0 84,0 82,0 77,0 Capacitance nF/km nom. 43 Fire load MJ/km 585 ACR dB 98,0 95,0 83,0 62,0 58,0 48,0 40,0 17,0 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 95,0 92,0 80,0 59,0 55,0 45,0 37,0 14,0   bei 1 MHz 5 with load 8xD PS-ELFEXT dB 105,0 94,0 74,0 66,0 64,0 61,0 58,0 54,0   bei 10 MHz 5 without load 4xD   bei 100 MHz 20 Tensile force N 340 Nominal value measured at 100 m (Velocity of Propagation)  |   Nominal value Patch Cable measured at 10 m  |   NVP = Nominal  |   LSOH

Transmission performance EMC properties Mechanical properties UC1200 SS23 Cat.7 A  S/FTP Installation Cable MHz 1 10 100 250 300   600 1000 1200 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB 1,8 5,4 17,4 28,1 30,9 44,8 58,4 65,2 Loop resistance Ω/km ≤ 133 Overall diameter mm 7,8 NEXT dB 100,0 100,0 100,0 90,0 87,0 85,0 82,0 82,0 NVP % ca. 79 Weight kg/km 65 PS-NEXT dB 97,0 97,0 97,0 87,0 86,0 82,0 79,0 79,0 Capacitance nF/km nom. 44 Fire load MJ/km 589 ACR dB 98,0 95,0 83,0 87,0 86,0 40,0 24,0 17,0 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 95,0 92,0 80,0 59,0 55,0 37,0 21,0 14,0   bei 1 MHz 5 with load 8xD PS-ELFEXT dB 105,0 94,0 74,0 66,0 64,0 58,0 54,0 40,0   bei 10 MHz 5 without load 4xD   bei 100 MHz 20 Tensile force N 100 Transmission performance EMC properties Mechanical properties UC1500 HS22 Cat.7 A  S/FTP MHz 1 10 100 250 600   1000 1200 1400 1500 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB  1,7 5,1  16,3 25,8 40,2 52,1 57,1 61,3 64,1 Loop resistance Ω/km ≤ 128 Overall diameter mm 7,9 NEXT dB 100 100 100 90  85 83  83   81 80 NVP % ca. 79 Weight kg/km 81 ACR dB 98 95 83 64 45 31 26 21 16 Capacitance nF/km nom. 43 Fire load MJ/km 642 PS-NEXT dB 97 97 97 87 82 80 80 78 77 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 95 92 80 61 42 28 23 18 13   bei 1 MHz 20 with load 8xD PS-ELFEXT dB 97 92 77 66 42 37 32 27 25   bei 10 MHz 30 without load 4xD   bei 100 MHz 200 Tensile force N 340  Electrical properties Transmission performance EMC properties Mechanical properties UC1500 SS22 Cat.7 A  S/FTP MHz 1 10 100 250 600   1000 1200 1400 1500 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB  1,7 5,1  16,3 25,8 40,2 52,1 57,1 61,3 64,1 Loop resistance Ω/km ≤ 128 Overall diameter mm 7,9 NEXT dB 100 100 100 90  85 83  83   81 80 NVP % ca. 79 Weight kg/km 81 ACR dB 98 95 83 64 45 31 26 21 16 Capacitance nF/km nom. 43 Fire load MJ/km 642 PS-NEXT dB 97 97 97 87 82 80 80 78 77 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 95 92 80 61 42 28 23 18 13   bei 1 MHz 20 with load 8xD PS-ELFEXT dB 97 92 77 66 42 37 32 27 25   bei 10 MHz 30 without load 4xD   bei 100 MHz 200 Tensile force N 340 Installation Cable Installation Cable Transmission performance EMC properties Mechanical properties UC MULTIMEDIA 1500 SS22 6 FOILS S/FTP MHz 1 10 100 250 600   1000 1500 Impedance  Ω 100  ± 15 Fire protection characteristics Attenuation  dB 1,7 5,1 16,3 25,8 40,2 52,1 64,1 Loop resistance Ω/km ≤ 110 Overall diameter mm 8,9 NEXT dB 115,0 115,0 110,0 105,0 100,0 96,0 94,0 NVP % ca. 79 Weight kg/km 86 PS-NEXT dB 112,0 112,0 108,0 102,0 97,0 93,0 91,0 Capacitance nF/km nom. 43 Fire load MJ/km 746 ACR dB 113,0 110,0 95,0 80,0 60,0 44,0 30,0 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 110,0 107,0 92,0 77,0 57,0 41,0 27,0   bei 1 MHz 5 with load 8xD PS-ELFEXT dB 102,0 94,0 74,0 66,0 58,0 54,0 50,0   bei 10 MHz 5 without load 4xD   bei 100 MHz 20 Tensile force N 380 Installation Cable Nominal value measured at 100 m (Velocity of Propagation)  |   Nominal value Patch Cable measured at 10 m  |    NVP = Nominal  |   LSOH

Transmission performance EMC properties Mechanical properties UC1200 SS23 Cat.7 A  S/FTP Installation Cable MHz 1 10 100 250 300   600 1000 1200 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB 1,8 5,4 17,4 28,1 30,9 44,8 58,4 65,2 Loop resistance Ω/km ≤ 133 Overall diameter mm 7,8 NEXT dB 100,0 100,0 100,0 90,0 87,0 85,0 82,0 82,0 NVP % ca. 79 Weight kg/km 65 PS-NEXT dB 97,0 97,0 97,0 87,0 86,0 82,0 79,0 79,0 Capacitance nF/km nom. 44 Fire load MJ/km 589 ACR dB 98,0 95,0 83,0 87,0 86,0 40,0 24,0 17,0 Kopplungswiderstand m Ω/m Bending radius PS-ACR dB 95,0 92,0 80,0 59,0 55,0 37,0 21,0 14,0   bei 1 MHz 5 with load 8xD PS-ELFEXT dB 105,0 94,0 74,0 66,0 64,0 58,0 54,0 40,0   bei 10 MHz 5 without load 4xD   bei 100 MHz 20 Tensile force N 100 Product scope UC Data Transmission Cable Cable type Screening Category Application UC300 24 Cat.5e U/UTP  U/UTP Cat.5e Installation Cable UC300 S24 Cat.5e F/UTP F/UTP Cat.5e Installation Cable UC300 HS24 Cat.5.e SF/UTP  SF/UTP Cat.5e Installation Cable UC300 26 Cat.5e U/UTP  U/UTP Cat.5e Patch Kabel UC300 S26 Cat.5e F/UTP  F/UTP Cat.5e Patch Kabel UC300 HS26 Cat.5e SF/UTP  SF/UTP Cat.5e Patch Kabel UC400 23 Cat.6 U/UTP  U/UTP Cat.6 Installation Cable UC400 S23 Cat.6 U/FTP U/FTP Cat.6 Installation Cable UC400 HS23 Cat.6 S/FTP S/FTP Cat.6 Installation Cable UC400 26 Cat.6 U/UTP  U/UTP Cat.6 Patch Kabel UC400 S27 Cat.6 U/FTP U/FTP Cat.6 Patch Kabel UC500 23 Cat.6 A  U/UTP U/UTP Cat.6 A Installation Cable UC500 S23 Cat.6 A  U/FTP U/FTP Cat.6 A Installation Cable UC500 AS23 Cat.6 A  F/FTP F/FTP Cat.6 A Installation Cable UC500 27 Cat.6 A  U/UTP U/UTP Cat.6 A Patch Kabel UC500 S27 Cat.6 A  U/FTP U/FTP Cat.6 A Patch Kabel UC900 HS23 Cat.7 S/FTP  S/FTP Cat.7 Installation Cable UC900 SS23 Cat.7 S/FTP  S/FTP Cat.7 Installation Cable UC900 SS27 Cat.7 S/FTP  S/FTP Cat.7 Patch Kabel UC1200 SS23 Cat.7 A  S/FTP S/FTP Cat.7 A Installation Cable UC1200 HS23 Cat.7 A  S/FTP S/FTP Cat.7 A Installation Cable UC1500 SS22 Cat.7 A  S/FTP S/FTP Cat.7 A Installation Cable UCUC1500 HS22 Cat.7 A  S/FTP S/FTP Cat.7 A Installation Cable UC MULTIMEDIA 1500 SS23 6FOILS S/FTP S/FTP MULTIMEDIA Installation Cable UC MULTIMEDIA 1500 SS22 6FOILS S/FTP S/FTP MULTIMEDIA Installation Cable Draka patent designs

Transmission performance EMC properties Mechanical properties Multipair Kabel according to Cat.3 U/UTPJ-2YY/H 25/50/100x2x0,52 (AWG24) MHz 1 4 10 16 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB 26,0 56,0 98,0 131,0 Loop resistance Ω/km ≤ 186 Overall diameter mm 12,9 NEXT dB 41,0 32,0 26,0 23,0 Capacitance nF/km nom. 45 Weight kg/km 162 Bending radius with load 8xD without load 4xD Tensile force N 500  Electrical properties Transmission performance EMC properties Mechanical properties Multipair Kabel according to Cat.3 F/UTPJ-2Y(St)Y/H 25/50/100x2x0,52 (AWG24) MHz 1 4 10 16 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB 26,0 56,0 98,0 131,0 Loop resistance Ω/km ≤ 186 Overall diameter mm 12,9 NEXT dB 41,0 32,0 26,0 23,0 Capacitance nF/km nom. 45 Weight kg/km 162 Bending radius with load 8xD without load 4xD Tensile force N 500 Transmission performance EMC properties Mechanical properties Multipair Kabel according to Cat.5e U/UTPS-2YY/H 25/50/100x2x0,52 (AWG24) MHz 1 10 100 125 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB 1,9 6,0 19,8 22,3 Loop resistance Ω/km ≤ 190 Overall diameter mm 15,5 NEXT dB 71,0 56,0 41,0 40,0 NVP % ca. 67 Weight kg/km 190 PS-NEXT dB 68,0 53,0 38,0 37,0 Capacitance nF/km nom. 48 Fire load MJ/km 2250 PS-ELFEXT dB 65,0 45,0 25,0 23,0 Bending radius with load 8xD without load 4xD Tensile force N 500 Transmission performance EMC properties Mechanical properties Multipair Kabel according to Cat.5e F/UTPS-2Y(St)Y/H 25/50/100x2x0,52 (AWG24) MHz 1 10 100 125 Impedance  Ω 100  ± 5 Fire protection characteristics Attenuation  dB 1,9 6,0 19,8 22,3 Loop resistance Ω/km ≤ 190 Overall diameter mm 15,5 NEXT dB 71,0 56,0 41,0 40,0 NVP % ca. 67 Weight kg/km 190 PS-NEXT dB 68,0 53,0 38,0 37,0 Capacitance nF/km nom. 48 Fire load MJ/km 2250 PS-ELFEXT dB 65,0 45,0 25,0 23,0 Bending radius with load 8xD without load 4xD Tensile force N 500 Nominal value measured at 100 m (Velocity of Propagation)  |   Nominal value Patch Cable measured at 10 m  |   NVP = Nominal  |   LSOH
