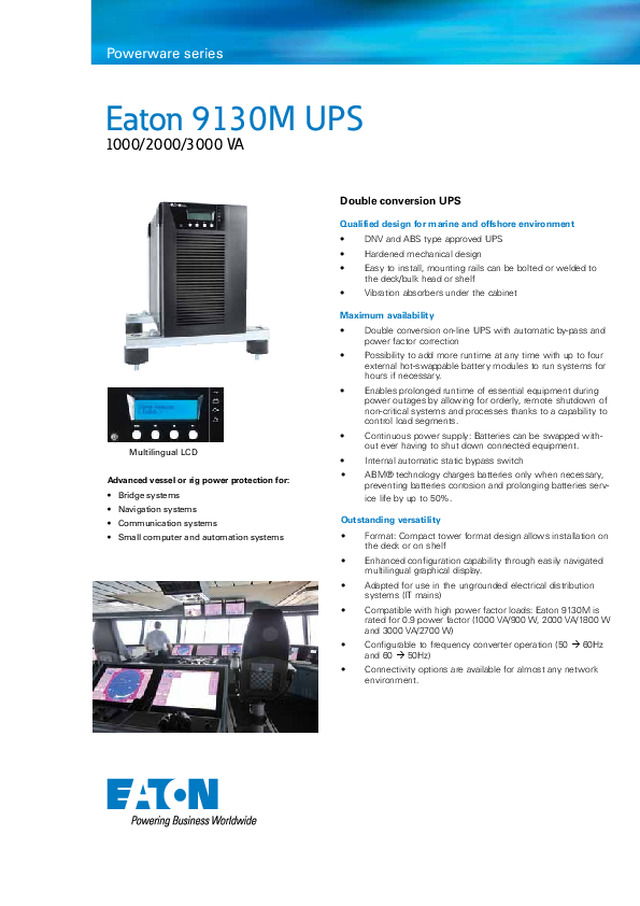

Eaton 9130M UPS 1000/2000/3000 VA Powerware series Advanced vessel or rig power protection for:   • Bridge systems   • Navigation systems   • Communication systems   • Small computer and automation systems Double conversion UPS Qualified design for marine and offshore environment • DNV and ABS type approved UPS • Hardened mechanical design • Easy to install, mounting rails can be bolted or welded to the deck/bulk head or shelf • Vibration absorbers under the cabinet Maximum availability • Double conversion on-line UPS with automatic by-pass and power factor correction • Possibility to add more runtime at any time with up to four external hot-swappable battery modules to run systems for hours if necessary. • Enables prolonged runtime of essential equipment during power outages by allowing for orderly, remote shutdown of non-critical systems and processes thanks to a capability to control load segments. • Continuous power supply: Batteries can be swapped with- out ever having to shut down connected equipment. • Internal automatic static bypass switch • ABM® technology charges batteries only when necessary, preventing batteries corrosion and prolonging batteries serv-ice life by up to 50%. Outstanding versatility • Format: Compact tower format design allows installation on the deck or on shelf • Enhanced configuration capability through easily navigated multilingual graphical display. • Adapted for use in the ungrounded electrical distribution systems (IT mains) • Compatible with high power factor loads: Eaton 9130M is rated for 0.9 power factor (1000 VA/900 W, 2000 VA/1800 W and 3000 VA/2700 W) • Configurable to frequency converter operation (50  60Hz and 60  50Hz) • Connectivity options are available for almost any network environment. Multilingual LCD

Eaton 9130M UPS 1. Multilingual graphical LCD display 2. Panel for replacing batteries3. 1 USB port + 1 serial port4. 1 Relay Output + 1 EPO connector 5. EBM battery unit connector6. Load segments7.  Communication card slot 1 2 © 2011 Eaton Corporation, All Rights Reserved, 00DATA1018163 rev B, March 2011 Runtimes are shown at a 0.9 power factor. Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. 3 5 7 6 4 In the interests of continuous product improvement all specifications are subject to change without notice. www.eaton.com/powerquality/marine Technical specificaTions General User interface Graphical LCD with blue backlight and text in   English, French, German, Russian and Spanish LEDs Four status-indicating LEDs Topology True online, double-conversion Diagnostics Full system self-test UPS bypass Automatic bypass Electrical InputNominal voltage 220–240V Voltage range up to 120-276 VAC (depending on load level) Frequency range 40-70 Hz (50/60 Hz) Electrical OutputPower factor 0.9 Voltage ±3 % of nominal regulation (on utility and battery) Frequency regulation ±3 Hz online Load crest factor 3 to 1 CommunicationsPorts RS-232 and USB HID port as standard Relay output Common alarm standard Optional communication  cards (BD Slot) SNMP/Web card for monitoring in SNMP-based net- works, monitoring through Web browser interface.  Relay card for integration to industrial environment and  BMS, remote shutdown for IBM AS/400 systems EnvironmentalAudible noise 50 dB Ambient operating 0˚C to +40˚C Storage temperature -20˚C to +40˚C with batteries and   -25˚C to +55˚C without batteries Relative humidity 5–90% non-condensing Compliance with standardsSafety IEC/EN 62 040-1-1 Performance IEC/EN 62 040-3 EMC IEC/EN62040-2, (Emissions, Category C1; Immunity,  Category C2), IEC/EN 60945 Approvals CE, GS, DNV, ABS Description Part number Dimensions HxWxD Weight Eaton 9130 1kVA Marine  103007846-6591 363x330x411 mm 20 kg Eaton 9130 2kVA Marine 103007847-6591 469x392x445 mm 33 kg Eaton 9130 3kVA Marine 103007848-6591 469x392x445 mm 33 kg BATTERY RUNTIMES Internal batteries +1 EBM +2 EBMs +3 EBMs +4 EBMs 100% Load 50% Load 100% Load 50% Load 100% Load 50% Load 100% Load 50% Load 100% Load 50% Load Eaton 9130 1000 Marine 6 19 31 68 51 111 82 192 100 246 Eaton 9130 2000 Marine 11 27 44 95 79 168 115 258 161 336 Eaton 9130 3000 Marine 6 15 21 60 51 100 66 169 93 215 with Installation kit and filter assembled Options Part number 9130-1kVA Marine filter 1029424 9130-2kVA Marine filter 1031246 9130-3kVA Marine filter 1029425 9130-1kVA Installation kit 1029426 9130-3kVA Installation kit 1029427 PW9130N1000T-EBM 103006438-6591 PW9130N3000T-EBM 103006440-6591 2m EBM Cable for 1kVA 152602868-001 2m EBM Cable for 2-3kVA 152602870-001 Marine UPS requires Installation kit for DNV and ABS approval and Marine filter (EMC)  for IEC/EN 60945 compliance
