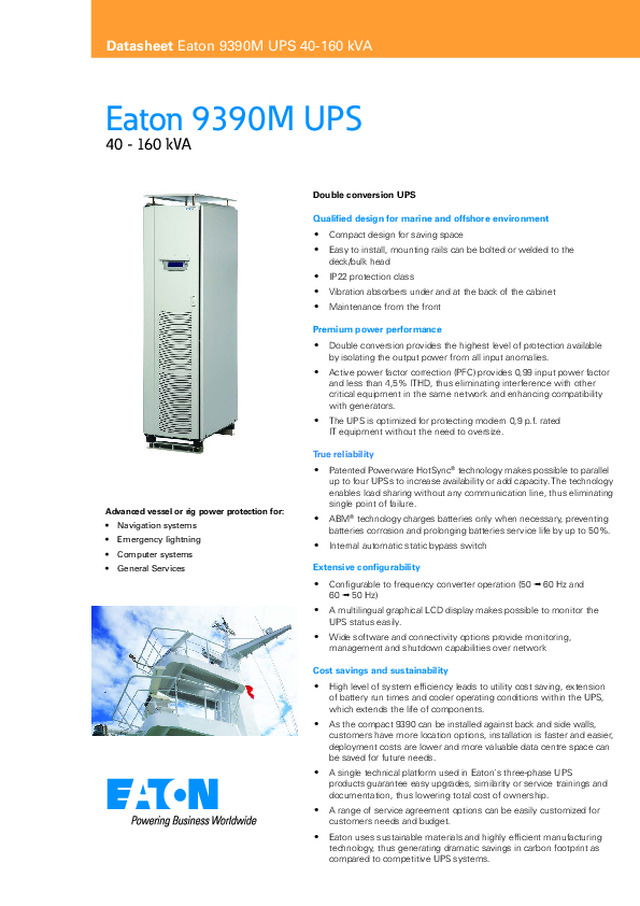

Eaton 9390M UPS 40 - 160 kVA Advanced vessel or rig power protection for:•  Navigation systems•  Emergency lightning•  Computer systems•  General Services Datasheet Eaton 9390M UPS 40-160 kVA Datasheet Eaton 9390M UPS 40-160 kVA Double conversion UPS Qualified design for marine and offshore environment •  Compact design for saving space•  Easy to install, mounting rails can be bolted or welded to the   deck/bulk head •  IP22 protection class•  Vibration absorbers under and at the back of the cabinet•  Maintenance from the front Premium power performance •  Double conversion provides the highest level of protection available  by isolating the output power from all input anomalies. •  Active power factor correction (PFC) provides 0,99 input power factor  and less than 4,5% ITHD, thus eliminating interference with other critical equipment in the same network and enhancing compatibility with generators. •  The UPS is optimized for protecting modern 0,9 p.f. rated   IT equipment without the need to oversize. True reliability •  Patented Powerware HotSync ®  technology makes possible to parallel  up to four UPSs to increase availability or add capacity. The technology enables load sharing without any communication line, thus eliminating single point of failure. •  ABM ®  technology charges batteries only when necessary, preventing  batteries corrosion and prolonging batteries service life by up to 50%. •  Internal automatic static bypass switch Extensive configurability •  Configurable to frequency converter operation (50 Ô 60 Hz and   60 Ô 50 Hz) •  A multilingual graphical LCD display makes possible to monitor the  UPS status easily. •  Wide software and connectivity options provide monitoring,  management and shutdown capabilities over network Cost savings and sustainability •  High level of system efficiency leads to utility cost saving, extension  of battery run times and cooler operating conditions within the UPS, which extends the life of components. •  As the compact 9390 can be installed against back and side walls,  customers have more location options, installation is faster and easier, deployment costs are lower and more valuable data centre space can be saved for future needs. •  A single technical platform used in Eaton´s three-phase UPS  products guarantee easy upgrades, similarity or service trainings and documentation, thus lowering total cost of ownership. •  A range of service agreement options can be easily customized for  customers needs and budget. •  Eaton uses sustainable materials and highly efficient manufacturing  technology, thus generating dramatic savings in carbon footprint as compared to competitive UPS systems.

TECHNICAL SPECIFICATIONSUPS output power rating (0,9 p.f.)kVA 40 60 80 100 120 160 kW 36 54 72 90 108 144 GeneralEfficiency in double   conversion mode (full load) 94% (without transformer) Efficiency in double   conversion mode (half load) 92,5% (without transformer) Distributed parallelling with  Hot Sync technology 6 Field upgradeable yes Inverter/rectifier topology transformer-free IGBT with PWM Audible noise 65 dB Colour RAL 7035 InputNominal voltage rating   (configurable) 380, 400, 415 V 50/60 Hz With external transformer e.g. 230, 440, 480, 690 V Input voltage range Low -15% at 100% load/-30% at 50% load without  battery discharge; High +10%/max +20% Input frequency range 45-65 Hz Input power factor 0,99 Input ITHD less than 4,5% Soft start capability Yes Internal backfeed protection YesOutputNominal voltage rating   (configurable) 380, 400, 415 V 50/60 Hz With external transformer e.g. 230, 440, 480, 690 V Output UTHD  3% (100% linear load); 5% (reference non  linear load) Output power factor 0,9 (e.g. 72 kW at 80 kVA) Permitted load power factor 0,7 lagging - 0,8 leadingBatteryType Maintenance free VRLA batteries, NiCd Charging method ABM technology or Float Temperature compensation Optional Battery nominal voltage  (lead-acid) 480 V (40 x 12 V, 240 cells) Charging current / Model  Default A  Max A 40 60 80 100 120 160  10 20   20   30   30  40  20 40 40   60   60  80 May be limited by maximum UPS input current rating AccessoriesExternal battery cabinets with long-life batteries, X-Slot connectivity (Web/ SNMP, ModBus/Jbus, Relay, Hot Sync, ViewUPS-X remote display), Hot  Sync parallel tie cabinet, integrated manual bypass up to 80 kVA, external  maintenance bypass switchCommunicationsX-Slot 4 communication bays Serial ports 1 available Relay inputs/outputs 5/1 programmable Compliance with standardsClassification survey report On request Standard UPSDescription Rating Dimensions (HxWxD) Weight 9390-60-U-M 60 kVA / 54 kW 2022x519x808 (+110) mm 363 kg 9390-80-N-M 80 kVA / 72 kW 2022x519x808 (+110) mm 363 kg 9390-100-U-M 100 kVA / 90 kW 2022x944x808 (+110) mm 485 kg 9390-120-N-M 120 kVA / 108 kW 2022x944x808 (+110) mm 485 kg 9390-120-U-M 120 kVA / 108 kW 2022x944x808 (+110) mm 585 kg 9390-160-N-M 160 kVA / 144 kW 2022x944x808 (+110) mm 585 kg Standard external batteryDescription Rating Dimensions (HxWxD) Weight 9390-BAT-M-S-40x38Ah 38 Ah 2022x575x808 (+110) mm 740 kg 9390-BAT-M-S-200 53 Ah 2022x575x808 (+110) mm 1216 kg 9390-BAT-M-280 83 Ah 2022x1125x808 (+110) mm 1504 kg 9390-BAT-M-330 94 Ah 2022x1125x808 (+110) mm 1685 kg 9390-BAT-M-500 130 Ah 2022x1125x808 (+110) mm 2248 kg See runtime from the runtime specification. © 2014 Eaton All Rights Reserved 00DATA1018145 Rev C,  November 2014 Eaton is a registered trademark.  All other trademarks are property   of their respective owners. www.eaton.com/powerquality/marine Eaton 9390M UPS 40-160 kVA Technical Spec i fi ca tions
