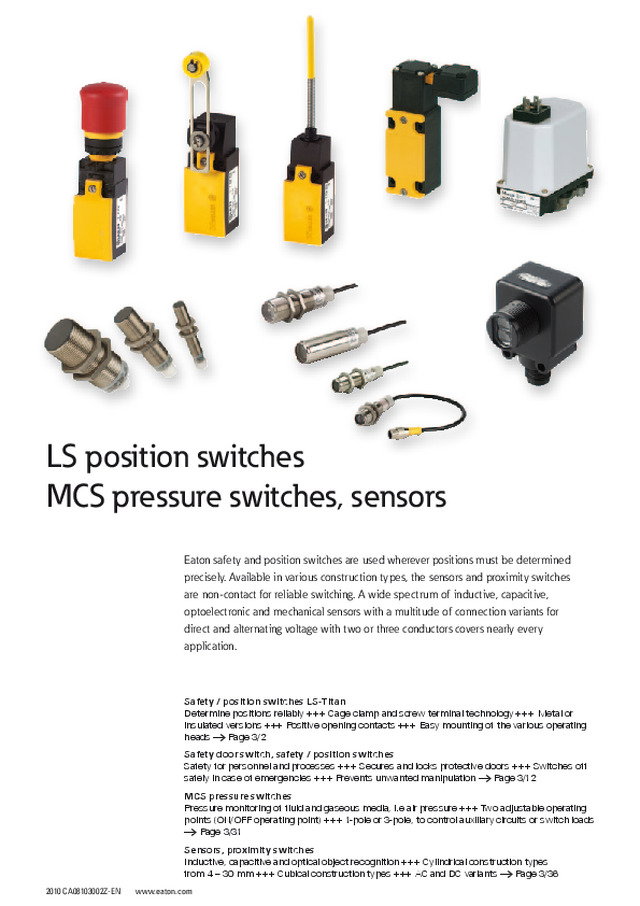

2010 CA08103002Z-EN www.eaton.com Safety / position switches LS-Titan Determine positions reliably +++ Cage clamp and screw terminal technology +++ Metal or insulated versions +++ Positive opening contacts +++ Easy mounting of the various operating heads ￫ Page 3/2Safety door switch, safety / position switches Safety for personnel and processes +++ Secures and locks protective doors +++ Switches off safely in case of emergencies +++ Prevents unwanted manipulation ￫ Page 3/12MCS pressure switches Pressure monitoring of fluid and gaseous media, i.e air pressure +++ Two adjustable operating points (ON/OFF operating point) +++ 1-pole or 3-pole, to control auxiliary circuits or switch loads ￫ Page 3/31Sensors, proximity switches Inductive, capacitive and optical object recognition +++ Cylindrical construction types from 4 – 30 mm +++ Cubical construction types +++ AC and DC variants ￫ Page 3/36 Eaton safety and position switches are used wherever positions must be determined precisely. Available in various construction types, the sensors and proximity switches are non-contact for reliable switching. A wide spectrum of inductive, capacitive, optoelectronic and mechanical sensors with a multitude of connection variants for direct and alternating voltage with two or three conductors covers nearly every application. LS position switches MCS pressure switches, sensors

System overview LS-Titan 3/2 Ordering LS-Titan safety position switch 3/3 LS-Titan position switch without positive opening 3/8 Operating heads 3/9 Accessories 3/10 System overview Safety position switches LS...ZBZ, LS...ZB, LSR... 3/12 Description Safety position switches LS...ZBZ, LS...ZB, LSR... 3/14 Ordering Safety position switches LS…ZBZ 3/16 Actuators LS…ZBZ 3/17 Safety position switches LSR…, LS…ZB 3/18 Engineering Contact travel diagrams for LS-Titan position 3/19 switches Technical data (Safety) position switch LS-Titan 3/22 Safety position switches LS...ZBZ 3/24 Dimensions (Safety) position switch LS-Titan. 3/25 Safety position switches LS...ZBZ, LS...ZB, LSR... 3/27 Safety position switches LSR…, LS…ZB 3/29 Safety position switches LS4…ZB 3/30 Ordering Pressure switch 3/31 Accessories 3/33 Pressure switches for North America 3/34 Dimensions Pressure switches 3/34 Technical data Pressure switches 3/35 Inductive Sensors E57 Global series 3/36 Description 3/36 Ordering 3/37 Engineering 3/41 Technical data 3/42 Dimensions 3/44 E57 Premium Plus series 3/46 Description 3/46 Ordering 3/47 Engineering 3/55 Technical data 3/56 Dimensions 3/57 iProx series 3/59 E57 Miniature series 3/62 E55-Series 3/66 E52-Series 3/71 E56-Series 3/74 Capacitive sensors E53-Series 3/77 Description 3/77 Ordering 3/78 Engineering, technical data 3/81 Dimensions 3/82 Optical sensors Comet series 3/83 Description 3/83 Ordering sensors 3/84 Ordering FO cable 3/88 Engineering 3/90 Technical data 3/92 Dimensions 3/93 E58-Series 3/97 E65-SM-Series 3/101 Accessories Ordering 3/105 Dimensions 3/108 Position switches

3/2 Position Switches Safety position switches LS-Titan 2010 CA08103002Z-EN www.eaton.com Safety position switchesLS-Titan System overview 2 1 1 3 4 5 6 7 8 9 12 11 10 LS, LSM Basic units Basic Unit 1 According to EN 50047With screw-on coverContact configuration: 1N/O / 1NC, 2N/O, 2NCCage Clamp, Screw terminals technologyAs snap-action or standard-action switchAs electronic snap-action switch,(individually adjustable)As 4-20 mA analog signal encoderAs 0-10 VDC analog signal encoder￫ Page 3/3 Operating headsCan be rotated by 90° Fixing adapters 2 Actuation through front element RMQ-Titan®Roller lever 3 For one-sided operation with higher operating speedAngled roller lever 4 For actuation along the unit axisRotary lever 5 For transverse actuation, for pendulum movements￫ Page 3/5 Operating headsCan be rotated by 90° Roller plunger 6 For transverse actuation with low actuating forceAdjustable roller lever 7 For length adjustment as requiredRounded plunger, center fixing 8 For mounting in enclosure wall or mounting plate drilling M18 x 1Roller plunger, center fixing 9 For mounting in enclosure wall or mounting plate drilling M18 x 1Actuating rod 10 On conveyor belts for lightweight goodsSpring rod 11 For flexible actuation from all sidesActuating rod 12 Withdrawable mechanism from front￫ Page 3/5 LS, LSM product features • Modular system• IP65 and IP66 protection type (except LSM) • Personnel protection• Positive operation•  Safety function with positively opening contacts to IEC/EN 60947-5-1 up to Category 4 to EN 954-1 • Suitable for use with electronic units to IEC/EN 61131-2 • Devices for world markets

Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS-Titan 3/3 LS-TitanSafety position switches Ordering Contact configuration Circuit symbol Contact travel■ = Contact closed□ = Contact open Color Enclosure cover Part no.Article no. PriceSee price list Std. pack  Safety function safety function to IEC/EN 60947-5-1 N/O = normally open contact NC = normally closed contact Basic unit, expandable Operating point electronically adjustable, IP66, IP67 Basic unitVisible status display, comparable with positive opening functionPartly short-circuit-proof, restart after reset 1 N/O 1 NC LSE-11266121 2 off 1) – 2 NC LSE-02266122 2 off 1) Notes Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13 1) Operating heads ￫ Page 3/9 electron. +U e Q1 0 V Q2 Q1 Q2 0.5 5.5 default = 3.0 6.1 0 Q1 0 V Q2 +U e electron. Q1 Q2 0.5 5.5 default = 3.0 6.1 0 LSE-11 and LSE-02: Individual operating point adjustment: The following applies to LSE-11 and LSE-02: ensure that the power supply operates correctly when setting the operating point. 1 s f max F 2 N set set adjust fix LED Circuit example of series connection:LSE-11 and LSE-02 can be used in safety-oriented circuits. S1 is connected to 24 V DC S2, S3 each switch with a delay of 0.7 sR1, R2 e.g. series resistor element M22-XLED60 (2820 Ω/0.5 W) + 24 V 0 V LS-.. K1 R1 S4 LSE-11 S1 Q1 Q2 0V 0V 0V +Ue +Ue +Ue LSE-11 S2 Q1 Q2 R2 LSE-11 S3 Q1 Q2 HPL03003EN

3/4 Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS-Titan Contact configuration Circuit symbol Contact travel■ = Contact closed□ = Contact open Color Enclosure covers Enclosure Connection type Part no.Article no. PriceSee price list Std. pack  Positive opening safety function according to IEC/EN 60947-5-1N/O = normally open NC = normally closed contact Basic unit, expandable Rounded plunger, IP66, IP67 – 2 NC  plastic Cage Clamp LS-02266107 10 off 1) 2) – 2 NC  Cage Clamp LS-02-SW272009 10 off 1) 2) – 2 NC  Screwed terminal LS-S02106729 10 off 2) – 2 NC  Screwed terminal LS-S02-SW106782 10 off 2) – 2 NC  metal Cage Clamp LSM-02266142 2 off 1) 2) – 2 NC  plastic EN 50047 Form B Cage Clamp LS-02A116702 10 off 1) 2) – 2 NC  Screwed terminal LS-S02A116703 10 off 2) 1 N/O 1 NC  plastic Cage Clamp LS-11266109 10 off 1) 2) 1 N/O 1 NC  Cage Clamp LS-11-SW272006 10 off 1) 2) 1 N/O 1 NC  Screwed terminal LS-S11106783 10 off 2) 1 N/O 1 NC  Screwed terminal LS-S11-SW106807 10 off 2) 1 N/O 1 NC  metal EN 50047 Form B Cage Clamp LSM-11266144 2 off 1) 2) 1 N/O 1 NC  plastic EN 50047 Form B Cage Clamp LS-11A116704 10 off 1) 2) 1 N/O 1 NC  Screwed terminal LS-S11A116705 10 off 2) 1 N/O 1 NC  plastic Cage Clamp LS-11D266114 10 off 1) 2) 1 N/O 1 NC  Cage Clamp LS-11D-SW272007 10 off 1) 2) 1 N/O 1 NC  Screwed terminal LS-S11D106791 10 off 2) 1 N/O 1 NC  Screwed terminal LS-S11D-SW106797 10 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11D266149 2 off 1) 2) 1 N/O 1 NC  plastic Cage Clamp LS-11DA292361 10 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11DA106795 1 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11DA292363 1 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form B Cage Clamp LS-11S266105 10 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form B Cage Clamp LS-11S-SW272020 10 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form B Screwed terminal LS-S11S106798 10 off 2) 1 N/O 1 NC  plasticEN 50047 Form B Screwed terminal LS-S11S-SW106806 10 off 2) 1 N/O 1 NC  metalEN 50047 Form B Cage Clamp LSM-11S266140 2 off 1) 2) Notes 1) Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden, Germany.Accessories for the Cage Clamp terminals from Wago:Jumper insert, grey, Wago article no. 264-402 2) Operating heads ￫ Page 3/9 Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13 12 22 21 11 NC 11-12 21-22 NC Zw = 4.5 mm 3.0 0 3.0 6.1 11-12 21-22 0 6.1 2.0 4.0 Zw (11-12) = 3.3 mmZw (21-22) = 5.3 mm NC NC 14 22 21 13 13-14 21-22 NO NC Zw = 4.5 mm 3.0 0 4.3 6.1 13-14 21-22 0 6.1 3.0 1.0 Zw = 2,3 mm NO NC 15 27 28 16 NC 15-16 27-28 NO Zw = 4.5 mm 2.1 0 3.0 6.1 15 16 28 27 NC 15-16 27-28 NO 2.1 0 4.0 6.1 ZW = 5.5 mm 14 22 21 13 13-14 13-14 21-22 21-22 Zw = 5.5 mm 1.6 0 3.0 6.1 HPL03004EN

Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS-Titan 3/5 LS-TitanSafety position switches Contact configuration Circuit symbol Contact travel■ = Contact closed□ = Contact open Color Enclosure covers Enclosure Connection type Part no.Article no. PriceSee price list Std. pack  Positive opening safety function according to IEC/EN 60947-5-1N/O = normally open contact NC = normally closed contact Complete units Rounded plunger, IP66, IP67 (front fixing) – 2 NC  plastic Cage Clamp LS-02/F292365 1 off 1) 2) – 2 NC  plastic Screwed terminal LS-S02/F106780 1 off 2) – 2 NC  metal Cage Clamp LSM-02/F292371 1 off 1) 2) 1 N/O 1 NC  plastic Cage Clamp LS-11/F290176 1 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11/F106784 1 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11/F292372 1 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11D/F106792 1 off 2) 1 N/O 1 NC  plastic Cage Clamp LS-11D/F292366 1 off 1) 2) 1 N/O 1 NC  metal Cage Clamp LSM-11D/F292373 1 off 1) 2) 1 N/O 1 NC  plastic Cage Clamp LS-11DA/F292369 1 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11DA/F106796 1 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11DA/F292376 1 off 1) 2) 1 N/O 1 NC  plastic Cage Clamp LS-11S/F292367 1 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11S/F106799 1 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11S/F292374 1 off 1) 2) Roller plungers, IP66, IP67 1 N/O 1 NC  plasticEN 50047 Form C Cage Clamp LS-11/P266112 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form C Screwed terminal LS-S11/P106788 2 off 2) 1 N/O 1 NC  metalEN 50047 Form C Cage Clamp LSM-11/P266147 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form C Cage Clamp LS-11S/P266118 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form C Screwed terminal LS-S11S/P106801 2 off 2) 1 N/O 1 NC  metalEN 50047 Form C Cage Clamp LSM-11S/P266153 2 off 1) 2) Spring rod actuator IP66, IP67Do not use spring-rod actuator as a safety position switch; admissible only with snap-action contact. 1 N/O 1 NC  plastic Cage Clamp LS-11S/S266104 2 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11S/S106805 2 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11S/S266139 2 off 1) 2) Notes 1) Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden.Accessories for the Cage Clamp terminals from Wago:Jumper insert, grey, Wago article no. 264-402 2) The operating head can be rotated at 90° intervals to adapt to the specified operating direction. Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13 12 22 21 11 NC 11-12 21-22 NC Zw = 4.5 mm 3.0 0 3.0 6.1 14 22 21 13 13-14 21-22 NO NC Zw = 4.5 mm 3.0 0 4.3 6.1 27 28 16 15 NC 15-16 27-28 NO Zw = 4.5 mm 2.1 0 3.0 6.1 27 28 16 15 NC 15-16 27-28 NO 2.1 0 4.0 6.1 ZW = 5.5 mm 14 22 21 13 13-14 13-14 21-22 21-22 Zw = 5.5 mm 1.6 0 3.0 6.1 13-14 21-22 NO NC Zw = 4.5 mm 3.0 0 4.3 6.1 13-14 13-14 21-22 21-22 Zw = 5.5 mm 1.6 0 3.0 6.1 14 22 21 13 13-14 13-14 21-22 Zw = 19˚ 7˚ 0˚ 13˚ 26˚ 21-22 HPL030005EN

3/6 Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS-Titan LS-TitanSafety position switches Contact configuration Circuit symbol Contact travel■ = Contact closed□ = Contact open Color Enclosure cover Enclosure Connection type Part no.Article no. PriceSee price list Std. pack  Positive opening safety function according to IEC/EN 60947-5-1N/O = normally open contact NC = normally closed contact Complete units Roller lever IP66, IP67 Long – 2 NC  plastic Cage Clamp LS-02/L266108 2 off 1) 2) – 2 NC  plastic Screwed terminal LS-S02/L106781 2 off 2) – 2 NC  metal Cage Clamp LSM-02/L266143 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form E Cage Clamp LS-11/L266110 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form E Screwed terminal LS-S11/L106785 2 off 2) 1 N/O 1 NC  metalEN 50047 Form E Cage Clamp LSM-11/L266145 2 off 1) 2) 1 N/O 1 NC  plastic Cage Clamp LS-11D/L266115 2 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11D/L106793 2 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11D/L266150 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form E Cage Clamp LS-11S/L266116 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form E Screwed terminal LS-S11S/L106800 2 off 2) 1 N/O 1 NC  metalEN 50047 Form E Cage Clamp LSM-11S/L266151 2 off 1) 2) Short 1 N/O 1 NC  plastic Cage Clamp LS-11/LS290173 2 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11/LS106787 1 off 2) 1 N/O 1 NC  plastic Cage Clamp LS-11D/LS290174 1 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11D/LS106794 1 off 2) Large 1 N/O 1 NC  plastic Cage Clamp LS-11/LB290175 1 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11/LB106786 1 off 2) Notes 1) Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden.Accessories for the Cage Clamp terminals from Wago:Jumper insert, grey, Wago article no. 264-402 2) The operating head can be rotated at 90° intervals to adapt to the specified operating direction. Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13 12 22 21 11 NC 11-12 21-22 NC Zw = 6.9 mm 4.4 0 4.4 9.6 14 22 21 13 13-14 21-22 NO NC Zw = 7.1 mm 4.7 0 6.5 9.6 15 27 28 16 NC 15-16 27-28 NO Zw = 7.7 mm 3.3 0 4.7 9.6 14 22 21 13 13-14 13-14 21-22 21-22 Zw = 8.7 mm 2.3 0 4.4 9.6 NO 13-14 21-22 NC 3.3 0 4.7 6.9 Zw = 5.0 mm 15 27 28 16 NC 15-16 27-28 NO 2.2 0 3.3 6.9 Zw = 5.0 mm 14 22 21 13 NO 13-14 21-22 NC 6.3 0 9.1 13.4 Zw = 9.6 mm HPL03006EN

Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS-Titan 3/7 LS-TitanSafety position switches Contact configuration Circuit symbol Contact travel■ = Contact closed□ = Contact open Color Enclosure covers Enclosure Connection type Part no.Article no. PriceSee price list Std. pack  Positive opening safety function according to IEC/EN 60947-5-1N/O = normally open contact NC = normally closed contact Complete units Rotary lever, IP66, IP67 1 N/O 1 NC  plasticEN 50047 Form A Cage Clamp LS-11/RL266111 2 off 1) 2) 1 N/O 1 NC  metalEN 50047 Form A Cage Clamp LSM-11/RL266146 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form A Screwed terminal LS-S11/RL106789 2 off 2) 1 N/O 1 NC  plasticEN 50047 Form A Cage Clamp LS-11S/RL266117 2 off 1) 2) 1 N/O 1 NC  plasticEN 50047 Form A Screwed terminal LS-S11S/RL106802 2 off 2) 1 N/O 1 NC  metalEN 50047 Form A Cage Clamp LSM-11S/RL266152 2 off 1) 2) Adjustable roller levers, IP66, IP67 1 N/O 1 NC  plastic Cage Clamp LS-11/RLA266113 2 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11/RLA106790 2 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11/RLA266148 2 off 1) 2) 1 N/O 1 NC  plastic Cage Clamp LS-11S/RLA266119 2 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11S/RLA106803 2 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11S/RLA266154 2 off 1) 2) Actuating rodIP66, IP67 1 N/O 1 NC  plastic Cage Clamp LS-11S/RR266106 4 off 1) 2) 1 N/O 1 NC  plastic Screwed terminal LS-S11S/RR106804 4 off 2) 1 N/O 1 NC  metal Cage Clamp LSM-11S/RR266141 4 off 1) 2) Customer specific complete units IP66, IP67 ( ) Use-definable customer ID or stock no.: up to 10 characters plastic – LS-COMBINATION- 266168 1 off 1) 2) Notes 1) Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden, Germany.Accessories for the Cage Clamp terminals from Wago:Jumper insert, grey, Wago article no. 264-402 2) The operating head can be rotated at 90° intervals to adapt to the specified operating direction. Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13 14 22 21 13 13-14 21-22 NO NC Zw = 48˚ 32˚ 0˚ 46˚ 65˚ 13-14 13-14 21-22 21-22 Zw = 60˚ 15˚ 0˚ 30˚ 65˚ 14 22 21 13 13-14 21-22 NO NC Zw = 48˚ 32˚ 0˚ 46˚ 65˚ 13-14 13-14 21-22 21-22 Zw = 60˚ 15˚ 0˚ 30˚ 65˚ 14 22 21 13 13-14 13-14 21-22 21-22 Zw = 60˚ 15˚ 0˚ 30˚ 65˚ HPL03007EN

3/8 Position Switches Positions switches without positive opening 2010 CA08103002Z-EN www.eaton.com LS-Titan LS-TitanPositions switches without positive opening Contact configuration Circuit symbol Contact travel■ = Contact closed□ = Contact open Color Enclosure cover Enclosure Connection type Part no.Article no. PriceSee price list Std. pack  Positive opening safety function according to IEC/EN 60947-5-1N/O = normally open contact NC = normally closed contact Basic unit, expandable Analog electronic position switches IP66, IP67 Basic unitVisual status indicationQ1 = Analog outputQ2 = Diagnostics output (the diagnostics output has a 0 V signal in the event of a fault.) plastic Cage Clamp LSE-AI269461 2 off 2) plastic Cage Clamp LSE-AU274096 2 off 2) Rounded plunger, IP66, IP67 2 N/O – plastic Cage Clamp LS-20266120 10 off 1) 2) 2 N/O – Cage Clamp LS-20-SW272008 10 off 1) 2) 2 N/O – Screwed terminal LS-S20106808 1 off 2) 2 N/O – Screwed terminal LS-S20-SW106812 10 off 2) 2 N/O – metal Cage Clamp LSM-20266155 2 off 1) 2) 2 N/O – plastic Cage Clamp LS-20A292362 1 off 1) 2) 2 N/O – plastic Screwed terminal LS-S20A106810 10 off 2) 2 N/O – metal Cage Clamp LSM-20A100051 2 off 1) 2) 2 N/O – plastic EN 50047 Form B Cage Clamp LS-20B116706 10 off 1) 2) 2 N/O – plastic EN 50047 Form B Screwed terminal LS-S20B116707 10 off 2) Basic unit, not expandable Rounded plunger, IP66, IP67 (front fixing) 2 N/O – plastic Cage Clamp LS-20/F292368 1 off 1) 2 N/O – plastic Screwed terminal LS-S20/F106809 1 off 2 N/O – metal Cage Clamp LSM-20/F292375 1 off 1) 2 N/O – plastic Cage Clamp LS-20A/F292370 1 off 1) 2 N/O – plastic Screwed terminal LS-S20A/F106811 1 off 2 N/O – metal Cage Clamp LSM-20A/F292377 1 off 1) Notes 1) Cage Clamp is a registered trademark of Wago Kontakttechnik, 32432 Minden.Accessories for the Cage Clamp terminals from Wago:Jumper insert, grey, Wago article no. 264-402 2) Operating heads ￫ Page 3/9 Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP66, 67, UL/CSA Type 3R, 4X (indoor use only), 12, 13 100 0 4 20 S [%] I [mA] 100 0 10 S [%] U [V] 13 14 24 23 NO 13-14 23-24 NO 2.1 0 4.3 6.1 NO 13-14 23-24 NO 2.1 0 2.1 6.1 ZW = 4.5 mm 13-14 23-24 0 6.1 1.3 NO NO NO 13-14 23-24 NO 2.1 0 4.3 6.1 NO 13-14 23-24 NO 2.1 0 2.1 6.1 ZW = 4.5 mm HPL03008EN

Position Switches Operating heads 2010 CA08103002Z-EN www.eaton.com LS-Titan 3/9 LS-TitanOperating heads plastic metal Part no.Article no. PriceSee price list Std. pack Part no.Article no. PriceSee price list Std. pack Notes Rounded plunger, center fixing For installation in M18 × 1 enclosure wall or mounting plate drilling LS-XZS114024 1 off The operating head can be rotated at 90° intervals to adapt to the specified operating direction. Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Roller plunger, center fixing For installation in M18 × 1 enclosure wall or mounting plate drilling LS-XZRS114025 1 off Roller plunger – LS-XP266125 10 off LSM-XP266158 10 off Roller lever Large LS-XLB290178 5 off Short LS-XLS290177 1 off Long LS-XL266123 10 off LSM-XL266156 10 off Angled roller lever – LS-XLA266124 10 off LSM-XLA266157 10 off Rotary lever – LS-XRL266126 5 off LSM-XRL266159 5 off Adjustable roller lever D = 18 mm LS-XRLA266127 4 off LSM-XRLA266160 4 off D = 30 mm LS-XRLA30266128 5 off D = 40 mm (rubber) LS-XRLA40R266130 5 off D = 40 mm LS-XRLA40266129 5 off Actuating rod Rod from insulated material LS-XRR266131 4 off LSM-XRR266161 4 off Metal rod LS-XRRM266132 4 off LSM-XRRM266162 4 off Spring rod Not to be used as a safety position switchUse only in conjunc-tion with snap-action contact. LS-XS266133 5 off LSM-XS266163 5 off Actuating rod – LS-XOR290190 1 off Fixing adapters Actuation through front element RMQ-Titan ® M22-LS266137 10/1 off UL/CSA certification not required HPL03009EN

3/10 Position Switches Accessories 2010 CA08103002Z-EN www.eaton.com LS-Titan LS-TitanAccessories Notes Description Part no.Article no. PriceSee price list Std. pack Notes Information relevant for export to North America Screw connection to fit M20 to ½" Screw connector for American pipe threadMetal V1/2"/M20-NA225269 10 off The screw connec-tion is for grounding; no total insulationFor connection thread lengthsup to 9 mm Product Standards UL 508; CSA-C22.2 No. 14 UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed,CSA Certified Specially designed for NA✓ Screw connector for American pipe threadMolded material V1/2"/M20225270 10 off For connection thread lengthsup to 9 mm UL/CSA certification not required M20 diaphragm bolt, IP65 With built in push-through diaphragmExternal diameter of cable up to 13 mmIP65 with cable inserted EMS20225271 25 off – Screw closure M20 (self-sealing grommet) For tightening/loosening using a standard spanner for sealing grommet plugs LS-X20266134 25 off – Plug connector M12x1, IP66 Molded materialI th = 4 A Fuse: 6 A gG/gL4-poleU e = 250 V For use with LS “A” coded Standard toIEC/EN 60947-5-2 M12A266135 10 off LS “B”-coded M12B266136 10 off 5-poleU e = 125 V LSM “A” coded Standard toIEC/EN 60947-5-2 M12A5272202 10 off LSM “B”-coded M12B5272203 10 off Cage clamp twin NC contacts – For opening two terminals simultaneously LS-XTW290179 1 off – UL/CSA certification not required Adapter plate, thickness 2.5 mm For additional fixing with sideways operation, together with locating plate FS-AT (order separately) LS-XAP114026 1 off Locating plate For fixing with side motion FS-AT019610 20 off – M20 1/2" 1/2" M20 1 2 1 2 3 4 B 4 2 1 3 ..-11-.. ..-20-.. 1 2 3 4 ..-02-.. A 4 2 1 3 3 4 M12A, M12B 1 2 1 2 3 4 B 4 2 1 3 ..-11-.. ..-20-.. 1 2 3 4 ..-02-.. M12A5, M12B5 A 4 2 1 3 3 4 HPL030010EN

Position Switches Notes 2010 CA08103002Z-EN www.eaton.com LS-Titan 3/11

3/12 Position Switches LS...ZB(Z), LSR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Position Switches LS...ZB(Z), LSR LS...ZB(Z), LSR System overview LS-…ZBZ 1 7 6 5 5 4 3 2 LS-...ZBZ Basic Unit 1 Spring or magnet-powered interlockFor increased personnel and process protectionTamper-proofMultiple coded actuatorsContact configuration: 1 N/O / 1 NC or 2 NC￫ Page 3/16 Flat flexible actuator 2 For doors that do not close precisely￫ Page 3/17 Angled flexible actuator 3 For doors that do not close precisely￫ Page 3/17 Flat actuator 4 For sliding doors￫ Page 3/17 Angled actuator 5 For swing doors￫ Page 3/17 Flat compensating actuator 6 For increased tolerance compensation in the direction of door closure￫ Page 3/17 Angled compensating actuator 7 For increased tolerance compensation in the direction of door closure￫ Page 3/17 LS-…ZB 1 2 LS-...ZB Complete unit 1 For personnel protectionContact configuration: 1 NC, 1 N/O / 1 NC or 2 NC5 directions of operation possible￫ Page 3/18 Actuator 2 Multiple coding protection against tampering LSR-…TKG LSR-…TS 1 1 LSR-...TKG, LSR-…TS Complete unit 1 For personnel protectionContact configuration: 1 N/O / 1 NC or 2 NCFor swing doors with fixed connection to the door/hinge pinMultiple coded actuatorsContact configuration: 1 N/O / 1 NC or 2 NCLSR-…TKG ￫ Page 3/18LSR-…TS ￫ Page 3/18 LS4…ZB 1 2 LS4.../ZB Complete unit 1 Actuator 2 Narrow enclosure version Multiple coding For personnel protection For horizontal or vertical operation Contact configuration: 1 NC, 1 N/O / 1 NC￫ Page 3/16 Product features Interlocking unit to EN 1088• For use in safety circuits•  Positive opening safety function according to IEC/EN 60947-5-1 • Protection type IP65• Operating head can be turned 4 x 90° • With M20 x 1.5 connecting thread 3/13

3/14 Position Switches LS...ZBZ, LS...ZB, LSR... 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Position Switches LS...ZBZ, LS...ZB, LSR... LS...ZBZ, LS...ZB, LSR... LS-...ZB LS4/ZB LSR-...TKG LSR-...TS “Personnel protection” by monitoring of the protective mechanism • Door open• LS...-ZB disconnects power• No danger STOP 3/15 LS-...ZB ￫ Personnel protection Closed Open Door open ￫ Enabling contact (21-22) opening positively Door open ￫ Enabling contact safely open; tamperproof against simple tools Door close ￫ Triple coded actuator closes the enabling contact Switch must never be used as a mechanical stop! LSR-...TKG LSR-...TS ￫ Personnel protection Closed Open Open of guard mechanism ￫ Enabling contact (21-22) opening positively Guard mechanism open ￫ Enabling contact safely open; tamperproof against simple tools Closing of guard mechanism ￫ Closes enabling contact (21–22) 21 22 13 14 21 22 13 14 21 22 13 14 21 22 13 14 LS/ZBZ “Increased personnel protection” by monitoring and interlocking the protective mechanism • Stop command• Waiting time• Machine is stopped• Protective mechanism open • No danger STOP LS-S02-...FT-ZBZ, spring-powered interlock (closed-circuit current principle) ￫ Increased personnel protection with separate signal for door position Interlocked Released Open Door closed and interlocked ￫ De-energized: even with mains failure or wire breakage:door interlocked = safe stateEnabling contact (21-22) To unlock door ￫ Applies voltage to coil (A1, A2) e.g. via zero-speed monitor, enabling contact (21-22) opens Door open ￫ Both contacts blocked in the open position, even with tampering with simple tools Door close ￫ Triple-coded actuator cancels enabling contact inhibit; door position contact (11-12) closes Interlock door ￫ Disconnect coil voltage: 1st actuator interlocked2nd enabling contact closed￫ Enable only when door locked Switch must never be used as a mechanical stop! A1 A2 21 22 11 12 A1 A2 21 22 11 12 U S A1 A2 21 22 11 12 U S LS-S02-...MT-ZBZ, magnet-powered interlock (operating current principle) ￫ Process protection + increased personnel protection with separate signal for door position Interlocked Released Open Door closed and inter-locked ￫ Energized: Enables immediate access in the event of mains failure and wire breakage. Both contacts closed To unlock door ￫ Applies voltage to coil (A1, A2) e.g. via zero-speed monitor, enabling contact (21-22) opens Door open ￫ Only possible once it is released, door position contact (11-12) opens Door close ￫ Triple-coded actuator cancels enabling contact inhibit; door position contact (11-12) closes Interlock door ￫ Disconnect coil voltage: 1st actuator interlocked2nd enabling contact closed￫ Enable only when door locked Switch must never be used as a mechanical stop! A1 A2 21 22 11 12 U S A1 A2 21 22 11 12 A1 A2 21 22 11 12 LS/ZBZ “Increased personnel protection” by monitoring and interlocking the protective mechanism • Stop command• Waiting time• Process sequence halted• Protective mechanism open• Product OK STOP

3/16 Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS...ZBZ LS...ZBZSafety position switches Contact configuration Circuit symbol Rated control voltage for magnet driveU s Part no.Article no. Price See price list Std. pack  Safety function by positive opening according to IEC/EN 60947-5-1N/O = normally open contact NC = normally closed contact V Basic units with spring-powered interlock (closed-circuit principle) IP65 • With interlock monitoring and auxiliary release mechanism• Monitoring of door position: continuous 1 N/O 1 NC  24 V DC LS-S11-24DFT-ZBZ/X106829 1 off – 2 NC  24 V DC LS-S02-24DFT-ZBZ/X106823 1 N/O 1 NC  120 V 50/60 Hz LS-S11-120AFT-ZBZ/X106825 – 2 NC  120 V 50/60 Hz LS-S02-120AFT-ZBZ/X106778 1 N/O 1 NC  230 V 50/60 Hz LS-S11-230AFT-ZBZ/X106827 – 2 NC  230 V 50/60 Hz LS-S02-230AFT-ZBZ/X106821 Basic units with magnet-powered interlock (open-circuit principle) IP65 1) • With interlock monitoring• Monitoring of door position: continuous 1 N/O 1 NC  24 V DC LS-S11-24DMT-ZBZ/X106830 1 off – 2 NC  24 V DC LS-S02-24DMT-ZBZ/X106824 1 N/O 1 NC  120 V 50/60 Hz LS-S11-120AMT-ZBZ/X106826 – 2 NC  120 V 50/60 Hz LS-S02-120AMT-ZBZ/X106820 1 N/O 1 NC  230 V 50/60 Hz LS-S11-230AMT-ZBZ/X106828 – 2 NC  230 V 50/60 Hz LS-S02-230AMT-ZBZ/X106822 Notes 1) Time control of the release operation possible using ESR5-NV30-30 Electric circuitry with DIL contactors and ESR5 safety relay￫ Safety manual TB02000-009, Article no. 119906 The operating head can be rotated manually in 90° steps to suit the specified level of actuation. In the event of a loss of voltage, (e.g. during commissioning), the spring-powered LS-..-...FT-ZBZ can be released with a screwdriver.The auxiliary release mechanism must be sealed! ￫ Instructional leaflet AWA 1310-2354 For protection type IP65, use V-M20 cable glands with max 9 mm long thread. With the actuator inserted, the N/O contact is open and the NC contact is closed. Switch must never be used as a mechanical stop! Cable gland V-M20 ￫ Page 2/46 Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection IEC: IP65, UL/CSA Type 3R, 4X (indoor use only), 12, 13 13 A1 A2 14 22 21 11 A1 A2 12 22 21 13 A1 A2 14 22 21 11 A1 A2 12 22 21 13 A1 A2 14 22 21 11 A1 A2 12 22 21 13 A1 A2 14 22 21 11 A1 A2 12 22 21 13 A1 A2 14 22 21 11 A1 A2 12 22 21 13 A1 A2 14 22 21 11 A1 A2 12 22 21 HPL03016EN

Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS...ZBZ 3/17 LS...ZBZSafety position switches Part no.Article no. Price See price list Std. pack Notes Information relevant for export toNorth America Actuators For combination with LS-...ZBZ/X basic unitsStainless steelFlat actuatorFor sliding doors Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified LS-XG-ZBZ106833 10 off – Angled actuatorFor swing doors above 250 mm width Short LS-XW-ZBZ106839 10 off From width: 350 mm Long LS-XWA-ZBZ106838 10 off From width: 550 mm Angled, flexible actuatorFor doors that do not close precisely LS-XF-ZBZ106832 10 off – Flat, flexible compensating actuatorFor doors that do not close precisely LS-XFG-ZBZ106831 10 off – Flat, compensating actuatorWith increased tolerance in closing direction for door that does not close precisely. LS-XNG-ZBZ106834 1 off – Angled compensating actuatorWith increased tolerance in closing direction for door that does not close precisely. LS-XNW-ZBZ106835 10 off – Accessories Dust protection capPrevents ingress of foreign matter into the unit head LS-XSK-ZBZ106837 10 off – UL/CSA certification not required HPL03017EN

3/18 Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LSR, LS...ZB LSR, LS...ZBSafety position switches Contact configuration Circuit symbol Contact travel■ = Contact closed□ = Contact open Approval mark Connection type Part no.Article no. Price See price list Std. pack  Positive opening safety function according to IEC/EN 60947-5-1N/O = normally open contact NC = normally closed contact Hasp-operated safety switch LSR-…/TKG, IP65 – 2 NC  Screwed terminal LSR-S02-1-I/TKG106848 1 off 1 N/O 1 NC  Screwed terminal LSR-S11-1-I/TKG106847 1 off Hinge-operated switch LSR-…/TS, IP65 – 2 NC  Screwed terminal LSR-S02-1-I/TS106852 1 off 1 N/O 1 NC  Screwed terminal LSR-S11-1-I/TS106851 1 off Safety position switches LS-…-ZB, IP65 – 2 NC  Cage Clamp LS-02-ZB 1) 106817 2 off – 2 NC  Screwed terminal LS-S02-ZB 1) 106874 2 off 1 N/O 1 NC  Cage Clamp LS-11-ZB 1) 106819 2 off 1 N/O 1 NC  Screwed terminal LS-S11-ZB 1) 106876 2 off 1 N/O 1 NC  Cage Clamp LS-11S-ZB 1) 106870 2 off 1 N/O 1 NC  Screwed terminal LS-S11S-ZB 1) 106877 2 off Safety position switches LS4…/ZB, IP65 1 N/O 1 NC  Screwed terminal LS4/S11-1/I/ZB 2) 106857 1 off 1 N/O 1 NC  Screwed terminal LS4/S11-1/IA/ZB 2) 106858 1 off 1 N/O 2 NC  Screwed terminal LS4/S12-7/IB/ZB 2) 106859 1 off Notes Electric circuitry with contactors DIL and safety relay ESR5￫ Safety manual TB02000-009, Article no. 119906 1) 2) Actuator can be repositioned for horizontal or vertical installation. The operating heads can be rotated manually in 90° steps to suit the specified level of actuation. Information relevant for export to North America Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection IEC: IP65, UL/CSA Type 3R, 4X (indoor use only), 12, 13 Switch must never be used as a mechanical stop! For protection type IP65 use cable glands V-M20 with max. 9 mm connection thread length.Cable gland V-M20 ￫ Page 2/46With the actuator inserted, the N/O contact is open and the NC contact is closed. 12 22 21 11 21 – 22 11 – 12 90 ° Zw = 10 ° 5 ° 5° 0 ° 90 ° 14 22 21 13 21 – 22 13 – 14 90 ° Zw = 10 ° 5 ° 5° 0 ° 90 ° 17 ° 17 ° 12 22 21 11 21 – 22 11 – 12 180 ° Zw = 10 ° 5 ° 5° 0 ° 180 ° 14 22 21 13 21 – 22 13 – 14 180 ° Zw = 10 ° 5 ° 5° 0 ° 180 ° 17 ° 17 ° 22 21 11 12 13 14 22 21 13 14 22 21 13-14 21-22 Zw = 3.9 mm 2.65 3.55 0 6.0 13 14 22 21 13-14 21-22 Zw = 3.9 mm 2.65 3.55 0 6.0 13 14 22 21 31 32 13-14 21-2231-32 Zw = 3.9 mm 2.6 3.6 0 6.05 HPL03018EN

Position Switches Contact travel diagrams 2010 CA08103002Z-EN www.eaton.com LSE 3/19 LSEContact travel diagrams Engineering LSE-11 LSE-02 Basic units Operating heads Roller plunger LS-XPLSM-XPLS-XOR Roller lever LS-XLLSM-XL LS-XLSLS-XLB Angled roller lever LS-XLA LSM-XLA Rotary lever LS-XRLLSM-XRL Adjustable roller lever LS-XRLA LSM-XRLALS-XRLA30LS-XRLA40LS-XRLA40R Actuating rod LS-XRRLSM-XRRLS-XRRMLSM-XRRM Spring rod actuator LS-XSLSM-XS Q2 Q1 Q2 Q1 Q1 Q2 0.5 5.5 default=3.0 6.1 0 Q1 Q2 0.5 5.5 default=3.0 6.1 0 Q1 Q2 0.5 5.5 default=3.0 6.1 0 Q1 Q2 0.5 5.5 default=3.0 6.1 0 Q1 Q2 0.5 9.0 default=4.4 9.6 0 Q1 Q2 0.5 9.0 default=4.4 9.6 0 Q1 Q2 0.5 10 default=5.0 10.8 0 Q1 Q2 0.5 10 default=5.0 10.8 0 Q1 Q2 5˚ 60˚ default=30˚ 65˚ 0˚ Q1 Q2 5˚ 60˚ default=30˚ 65˚ 0˚ Q1 Q2 5˚ 60˚ default=30˚ 65˚ 0˚ Q1 Q2 5˚ 60˚ default=30˚ 65˚ 0˚ Q1 Q2 5˚ 60˚ default=30˚ 65˚ 0˚ Q1 Q2 5˚ 60˚ default=30˚ 65˚ 0˚ Q1 Q2 3˚ 23˚ default=13˚ 26˚ 0˚ Q1 Q2 3˚ 23˚ default=13˚ 26˚ 0˚

3/20 Position Switches Contact travel diagrams LS, LSM 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Position Switches Contact travel diagrams LS, LSM LS, LSMContact travel diagrams Notes: LS-(S)02A, LS-(S)11A ￫ Page 3/4 LS-(S)20B ￫ Page 3/8 LS-02LS-S02LSM-02 LS-11LS-S11LSM-11 LS-11DLS-S11DLSM-11D LS-11DALS-S11DALSM-11DA LS-11SLS-S11SLSM-11S LS-20LS-S20LSM-20 LS-20ALS-S20ALSM-20A Basic units Operating heads Roller plunger LS-XPLSM-XP Roller lever LS-XL, LSM-XL Roller lever, shortLS-XLS Roller lever, largeLS-XLB Angled roller lever LS-XLA, LSM-XLA Rotary lever LS-XRL, LSM-XRL Adjustable roller lever LS-XRLA, LSM-XRLA,LS-XRLA30, LS-XRLA40,LS-XRLA40R Actuating rod LS-XRR, LSM-XRR, LS-XRRM, LSM-XRRM Spring rod actuator LS-XS, LSM-XS 11 21 22 12 NC NC 13 21 22 14 NC NO 15 27 16 NO NC 28 15 27 16 NO NC 28 13 21 22 14 NC NO 13 14 NO 23 24 NO 13 14 NO 23 24 NO NC 11-12 21-22 NC Zw = 4.5 mm 3.0 0 3.0 6.1 13-14 21-22 NO NC Zw = 4.5 mm 3.0 0 4.3 6.1 NC 15-16 27-28 NO Zw = 4.5 mm 2.1 0 3.0 6.1 NC 15-16 27-28 NO 2.1 0 4.0 6.1 ZW = 5.5 mm 13-14 13-14 21-22 21-22 Zw = 5.5 mm 1.6 0 3.0 6.1 NO 13-14 23-24 NO 2.1 0 4.3 6.1 NO 13-14 23-24 NO 2.1 0 2.1 6.1 ZW = 4.5 mm NC 11-12 21-22 NC Zw = 4.5 mm 3.0 0 3.0 6.1 13-14 21-22 NO NC Zw = 4.5 mm 3.0 0 4.3 6.1 NC 15-16 27-28 NO Zw = 4.5 mm 2.1 0 3.0 6.1 NC 15-16 27-28 NO 2.1 0 4.0 6.1 ZW = 5.5 mm 13-14 13-14 21-22 21-22 Zw = 5.5 mm 1.6 0 3.0 6.1 NO 13-14 23-24 NO 2.1 0 4.3 6.1 NO 13-14 23-24 NO 2.1 0 2.1 6.1 ZW = 4.5 mm NC 11-12 21-22 NC Zw = 6.9 mm 4.4 0 4.4 9.6 13-14 21-22 NO NC Zw = 6.9 mm 4.4 0 6.5 9.6 NC 15-16 27-28 NO Zw = 7.1 mm 2.9 0 4.4 9.6 NC 15-16 27-28 NO 3.3 0 6.3 9.6 Zw = 8.6 mm 13-14 13-14 21-22 21-22 Zw = 8.7 mm 2.3 0 4.4 9.6 NO 13-14 23-24 NO 2.5 0 6.5 9.6 NO 13-14 23-24 NO 3.3 3.3 0 9.6 NC 11-12 21-22 NC 3.3 3.3 0 6.9 Zw = 5.0 mm NO 13-14 21-22 NC 3.3 0 4.7 6.9 Zw = 5.0 mm NC 15-16 27-28 NO 2.2 0 3.3 6.9 Zw = 5.0 mm NC 15-16 27-28 NO 2.2 0 4.4 6.9 Zw = 6.2 mm 21-22 13-14 1.7 Zw = 6.2 mm 21-22 13-14 0 3.3 6.9 NO 13-14 23-24 NC 2.2 0 4.7 6.9 NO 13-14 23-24 NO 0 2.2 2.2 6.9 NC 11-12 21-22 NC 0 6.3 6.3 13.4 Zw = 9.6 mm NO 13-14 21-22 NC 6.3 0 9.1 13.4 Zw = 9.6 mm NC 15-16 27-28 NO 4.3 0 6.3 13.4 Zw = 9.6 mm NC 15-16 27-28 NO 4.3 0 8.5 13.4 Zw = 12.0 mm 21-22 13-14 3.2 Zw = 12.0 mm 21-22 13-14 0 6.3 13.4 NO 13-14 23-24 NO 4.3 0 9.1 13.4 NO 13-14 23-24 NO 4.3 4.3 0 13.4 NC 11-12 21-22 NC Zw = 7.6 mm 5.0 0 5.0 10.8 13-14 21-22 NO NC Zw = 7.6 mm 5.0 0 7.2 10.8 NC 15-16 27-28 NO Zw = 7.6 mm 3.2 0 5.0 10.8 NC 15-16 27-28 NO 3.6 0 7.0 10.6 Zw = 9.6 mm 13-14 13-14 21-22 21-22 Zw = 9.7 mm 2.4 0 5.0 10.8 NO 13-14 23-24 NO 3.2 0 7.2 10.8 NO 13-14 23-24 NO 3.6 3.6 0 10.6 NC 11-12 21-22 NC Zw = 47˚ 30˚ 0 30˚ 65˚ 13-14 21-22 NO NC Zw = 47˚ 30˚ 0 45˚ 65˚ NC 15-16 27-28 NO Zw = 47˚ 20˚ 0 30˚ 65˚ NC 15-16 27-28 NO 22° 0 43° 65° Zw = 58° 13-14 13-14 21-22 21-22 Zw = 60˚ 15˚ 0 30˚ 65˚ NO 13-14 23-24 NO 20° 0 45° 65° NO 13-14 23-24 NO 22° 22° 0 65° NC 11-12 21-22 NC 13° 0 13° 26° 13-14 21-22 NO NC 13° 0 18° 26° NC 15-16 27-28 NO 9° 0 13° 26° NC 15-16 27-28 NO 9° 0 18° 26° 13-14 13-14 21-22 21-22 7˚ 0 13˚ 26˚ NO 13-14 23-24 NO 9° 0 18° 26° NO 13-14 23-24 NO 9° 9° 0 26° 3/21

3/22 Position Switches Complete units 2010 CA08103002Z-EN www.eaton.com LS, LSM, LSE LS, LSM, LSE Complete units Technical data Complete units IP66, IP67 LS, LSM LSE11LSE02 LSE-AI LSE-AU General Standards IEC/EN 60947 IEC/EN 60947EN 61000-4 IEC/EN 60947EN 61000-4 IEC/EN 60947EN 61000-4 Climatic proofing Damp heat, constant, to IEC 60068-2-78,Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 Mounting position Any Any Any Any Protection type IP66, IP67 IP66, IP67 IP66, IP67 IP66, IP67 Terminal capacity of screw terminal and Cage Clamp Solid mm 2 1 x (0.5 - 2.5) 1 x (0.5 - 2.5) 1 x (0.5 - 2.5) 1 x (0.5 - 2.5) Flexible with ferrule to DIN 46228 mm 2 1 x (0.5 - 1.5) 1 x (0.5 - 1.5) 1 x (0.5 - 1.5) 1 x (0.5 - 1.5) Power supply Rated voltage U e V DC – 12…30 24 (-15…+20 %) 24 (-15…+20 %) Rated operational current 12 V I e mA – 15 – – 24 V I mA – 18 28…45 24 30 V I mA – 19 – – Contacts/switching capacity Rated impulse withstand voltage U imp V AC 4000 – – – Rated insulation voltage U i V 400 – – – Overvoltage category/pollution degree III/3 III/3 – – Rated operational current AC-15 24 V I e A 6 – – – 230 V/240 V I e A 6 – – – 400 V/415 V I e A 4 – – – DC-13 24 V I e A 3 0.2 – – 110 V I e A 0.8 – – – 220 V I e A 0.3 – – – Analog output Q1 Output voltage (max. 10 mA) V DC – – – 0…10 Output current mA – – 4 - 20 – Fault scenario V – – 0 0 Resolution Steps – – 100 100 Step tolerance Steps – – 1 1 Shunt resistor, resistive load Ω – – 400 1000 Digital diagnostics output Q2(positive switching PNP) Response threshold V – – approx. U e approx. U e mA – – 200 200 Fault scenario V – – 0 0 Control circuit reliability At 24 V DC/5 mA H F Fault frequency 10 -7 , 1 fault in 10 7 operations – – – At 5 V DC/1 mA H F Fault frequency 10 -6 , 1 fault in 5 x 10 6 operations – – – Mains frequency Hz max. 400 – – – Short-circuit rating to IEC/EN 60947-5-1 Max. fuse A gG/gL 6 – – – Repetition accuracy mm ± 0.02 ± 0.02 ± 0.02 ± 0.02 UL-File No. E29184 Rating data for approved types to UL/CSA Pilot Duty AC operated A300 – – – DC operated Q300 (1 A, 250 V DC) Q300 (0.2 A, 24 V DC) – – UL-approved degrees of protection NEMA 4, 12, 13 NEMA 4, 12, 13 NEMA 4, 12, 13 NEMA 4, 12, 13

Position Switches Complete units 2010 CA08103002Z-EN www.eaton.com LS, LSM, LSE 3/23 LS, LSM, LSE Complete units Complete units IP66, IP67 LS, LSM LSE11LSE02 LSE-AILSE-AU Mechanical data Lifespan Standard action contact Operations x 10 6 8 – 3 Snap-action contact Operations x 10 6 8 3 (electronic) – Contact temperature of roller head °C ≦ 100 ≦ 100 ≦ 100 Mechanical shock resistance (half-sinusoidal shock, 20 ms) Standard action contact g 25 – – Snap-action contact g – – – Basic Unit g – 30 30 Operating frequency Operations/h ≦ 6000 ≦ 3000 ≦ 3000 Switching point – 0.5 - 5.5 mm,freely adjustable – Hysteresis mm – 0.4 0.4 Resolution mm – 0.04 0.06 Drive Mechanical Actuating force at beginning/end of stroke Basic units N 1.0/8.0 3.5/8.0 3.5/8.0 LS(M)-XP N 1.0/8.0 1.0/8.0 1.0/8.0 LS(M)-XL N 1.0/8.0 1.0/8.0 1.0/8.0 LS(M)-XLA N 1.0/8.0 1.0/8.0 1.0/8.0 Actuating torque of rotary drives Nm 0.2 0.2 0.2 Max. operating speed with DIN cam Basic unit for angle of actuation α = 0°/30° m/s 1/0.5 1/0.5 1/0.5 LS(M)-XRL for angle of actuation α = 0° m/s 1.5 1.5 1.5 LS(M)-XRLA for angle of actuation α = 30°, L = 125 mm m/s 1.5 1.5 1.5 LS(M)-XRR for L = 130 mm m/s 1.5 1.5 1.5 LS(M)-XL for angle of actuation α = 30°/45° m/s 1 1 1 LS(M)-XLA for angle of actuation α = 30°/45° m/s 1 1 1 LS(M)-XP for angle of actuation α = 0°/30° m/s 1/1 1/1 1/1 Electromagnetic compatibility (EMC) Electrostatic discharge (ESD), to IEC EN 61000-4-2 Air discharge kV – 8 8 Contact discharge kV – 4 4 Electromagnetic fields (RFI), to IEC EN 61000-4-2 V/m – 10 10 Burst, to IEC/EN 61000-4-4 Supply cables kV – 2 2 Signal cables kV – 2 2 High-energy pulses (surge) (IEC/EN 61000-4-5) kV – 0.5 0.5 Radiated RFI, to IEC/EN 61000-4-6 V – 10 10 Notes Accessories for the Cage Clamp terminals from Wago:Power comb, gray, Wago Article No. 264-402 plug connectors M12A(B) M12A(B) General Pole 4 5 Protection type IP66 IP66 Lifespan, mechanical Operations 500 500 Characteristic values Rated operating voltage U e V AC 250 125 Rated operational current I e A 1 1 Overvoltage category/pollution degree II/3 II/3

3/24 Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS-...ZB LS-...ZBSafety position switches (Safety) position switchesLS-Titan Safety position switches LS-…ZBZ LS-…ZB LS4…ZB LSR... General Standards IEC/EN 60947 IEC/EN 60947 IEC/EN 60947 IEC/EN 60947 Climatic proofing Damp heat, constant, to IEC 60068-2-78,Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature °C -25 - +40 -25 - +70 -25 - +70 -25 - +70 Mounting position Any Any Any Any Protection type IP65 IP65 IP65 IP65 Terminal capacity Solid mm 2 1 x (0.75 - 2.5)2 x (0.75 - 1.5) 1 x (0.5 - 1.5)2 x (0.5 - 1.5) 1 x (0.75 - 2.5)2 x (0.75 - 1.5) 1 x (0.75 - 2.5)2 x (0.75 - 1.5) Flexible with ferrule to DIN 46228 mm 2 1 x (0.5 - 1.5)2 x (0.5 - 1.5) 1 x (0.5 - 1.5)2 x (0.5 - 1.5) 1 x (0.5 - 1.5)2 x (0.5 - 1.5) 1 x (0.5 - 1.5)2 x (0.5 - 1.5) Terminal screw PH1 PH1 PH1 PH1 Terminal screw tightening torque Nm 0.9 0.4 0.9 0.9 Contacts/switching capacity Rated impulse withstand voltage U imp V AC 4000 6000 6000 6000 Rated insulation voltage U i V 400 500 500 500 Overvoltage category/pollution degree III/3 III/3 III/3 III/3 Rated operational current AC-15 24 V I e A 6 6 10 10 230 V/240 V I e A 6 6 6 6 400 V/415 V I e A 4 4 4 4 DC-13 24 V I e A 3 3 3 3 110 V I e A 0.8 0.8 0.8 1 220 V I e A 0.3 0.3 0.3 0.5 Mains frequency Hz max. 400 max. 400 max. 400 max. 400 Short-circuit rating to IEC/EN 60947-5-1 Max. fuse A gG/gL 6 6 6 6 Repetition accuracy mm ± 0.02 ± 0.02 ± 0.02 ± 0.02 Mechanical data Lifespan Standard action contact Operations x 10 6 1 10 10 20 Snap-action contact Operations x 10 6 – – – 20 Mechanical shock resistance (half-sinusoidal shock, 20 ms) Standard action contact g 10 25 5 25 Snap-action contact g – 2 – 2 Operating frequency Operations/h ≦ 800 ≦ 1800 ≦ 1800 ≦ 1800 Drive Mechanical Actuating force at beginning/end of stroke ZB/ZBZ (push-in/pull-out) N 25/15 10/5 15/20 Mechanical holding force acc. to GS-ET-19 (04/2004) XG, XW, XNG N 1700 – – XWA, XFG, XF N 1600 – – XNW N 1200 – – Electro mechanical For magnet Power consumption At 120 V AC VA 8 – – At 230 V AC VA 11 – – At 24 V DC W 8 – – Voltage tolerance x U s 0.85 - 1.1 Magnet duty factor % DF 100 – – UL-File No. E29184 Rating data for approved types to UL/CSA 1)General Use AC operated V 300 – – AC operated A 10 – – Pilot Duty AC operated A300 A300 A300 DC operated Q300 Q300 (1 A, 250 V DC) Q300 UL-approved degrees of protection NEMA 4, 12, 13 NEMA 12, 13 –

Position Switches (Safety) position switches 2010 CA08103002Z-EN www.eaton.com LS-Titan 3/25 Dimensions Basic units, non expandable (front fixing) LS(M)-…/F ① Screw-in depth max. 12 mm Basic units, expandable, LS-…, LSM-…, LSE-… ① Tightening torque of cover screw: 0.8 Nm ±0.2 Nm② Only with LS (insulated version)③ Fixing screw 2 x M4 ≧ 30M A = 1.5 Nm Rounded plunger, center fixing Roller plunger, center fixing LS-XZS LS-XZRS Roller plunger Rotary lever LS(M)-…/P LS(M)-…/RL 10.8 f 15 1.95 4.2 21 8.2 30° 30° f 20 10.2 22 M3 a 5.3 31 55 8.2 21 a c 11.7 12.7 14 33.5 76 22 20 25 4.3 4.3 50 7.3 b o 4 1.95 M20 f 15 30° 11.7 21 8.2 12.7 30° f 20 51 M18 x 1 13 6 23 f 20 30° 30° SW 24 46 9 M18 x 1 13 2.5 23 f 20 30° 30° SW 24 26.5 9 12.7 2.5 25.5 f 20 30° 30° 30° 46.2 40.5 1.6 Nm ±0.2 23.9 27 21 5 o 14 40 f 20 30° 65° 65°

3/26 Position Switches (Safety) position switches 2010 CA08103002Z-EN www.eaton.com LS-Titan (Safety) position switchesLS-Titan Adjustable roller lever Angled roller lever LS(M)-…/RLA LS(M)-XLA ① Setting range from 54.5 to 97 Roller lever Roller lever Roller lever LS(M)-…/L LS(M)-…/LB LS(M)-…/LS Spring rod Actuating rod Actuating rod LS(M)-…/S LS(M)-…/RR LS(M)-…/OR ① Approach direction, vertical② Guide is done by customer, not included③ Max. push-through ① LS…/RR ≦ 150LS…/RRM ≦ 210 Adapter plate Locating plate LS-XAP FS-AT 54.5 46.4 a 10 32.2 o 18 – 40 f 20 f 44.5 30° 30° 65° 65° 1.6 Nm ±0.2 33.2 13 36.3 12.7 5 30° f 20 f 8 13 3.4 34.4 12.7 5 31 f 20 30° f 39 52.3 20.35 5.6 12.7 41.3 o 22 30° f 20 30° f 20 f 29.7 36.5 5 12.7 30 o 13 126 12.7 o 5.8 26° 26° 46 43 o 6 a 65° 65° o 6.5o 4 31 110 12.7 f 6.1 c b a 16.8 60 2 o 3.9 3 7.3 42.7 2.5 1.7 20 R 2.2 22 30.5 4.3 2 ɂ 14 ɂ 16

Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS...ZBZ 3/27 Safety position switchesLS...ZBZ Safety position switches LS...ZBZ 15.15 14.95 37.8 29.6 18 F 39 30.8 18.5 30.8 Z 6 5.5 1.5 5.5 0.5 4 x 90° 27 36 55 32 F 120° 145 32 19.75 o 5.2 F 60 171 F 173 136.3 M20 x 1.5 M5 x f 35 22.1 3.5 a M A = 1.4 Nm M A = 0.6 Nm 10 Z LS-XWA-ZBZ 4.3 - 7.2 16 Y 0.1 - 3.0 +1 +1 +0.5 +0.5 b LS-S...FT-ZBZ/... F U = 0 V U = 0 V IP65:V-M20UL, CSAM20-NA 15.15 +0.5 +0.5 LS-XG-ZBZLS-XW-ZBZLS-XWA-ZBZLS-XFG-ZBZLS-XF-ZBZLS-XNG-ZBZLS-XNW-ZBZ R [mm]Z350350550350350350150 Y350350550350350350250 Type Switch must not be used as a mechanical stop.a The auxiliary release mechanism must be sealed for proper operation! b Can be used as stop with the corresponding material selection and design.

3/28 Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS...ZBZ Safety position switchesLS...ZBZ Actuating element LS-XG-ZBZ LS-XW-ZBZ LS-XF-ZBZ LS-XNW-ZBZ LS-XNG-ZBZ Fixing only allowed with M5 fixing screw and washer according to DIN EN ISO 7093 Fixing only allowed with M5 fixing screw and washer according to DIN EN ISO 7093 LS-XFG-ZBZ LS-XWA-ZBZ Pin with a 4 mm pin after mounting ① Distance to unit head = 0.1 … 3.0 mm 16.5 5.75 20 35 12.45 44.35 M5 M5 a 5.75 15 16.5 2 7.3 20 35 M5 M5 33.45 a 18.9 22.5 41 6 61 28 30 16.5 54.15 M6 M6 a 58.15 28.5 16.5 21.5 10 7.5 61.35 32 20 39 M5 M5 a 16.5 2 67 7 48.35 39 20 18.8 7.5 74.5 M5 M5 a 6.5 22.5 16.5 3 2 30 2 104.5 41 39.1 6 M6 M6 a 18 2 16.5 12 6.5 5.35 24 40 20 16.5 25.5 o 4.1 55.12 a Part no. R [mm]F [N] Z Y LS-XG-ZBZ 1700 350 350 LS-XW-ZBZ 1700 350 350 LS-XWA-ZBZ 1600 550 550 LS-XFG-ZBZ 1600 350 350 LS-XF-ZBZ 1600 350 350 LS-XNG-ZBZ 1700 350 350 LS-XNW-ZBZ 1200 150 250 Z Y X

Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LSR, LS...ZB 3/29 Safety position switchesLSR, LS...ZB Hasp-operated safety switches Safety hinge switches LSR-…/TKG LSR-…/TS Safety position switches LS…-ZB Switch must not be used as a mechanical stop. 34.2 2 5.1 16 135 ° 110° 110° 16 30 M20 80 20 7.5 22 32 3.5 83 1.55 26.45 72 50 135° M20 o o o 360° 30 26.45 30 80 22 20 16 F 32 F 83 59 56.9 20 12.5 11 12 8 3 5.3 4.1 20 22 M20 x 1.5 33.35 22.65 0.1 – 2.5 R f 130 15.3 30 33.65 41 4.5 0.1 – 2.5 96 30 0.1 – 2.5 R f 150 25 +1 +1 M = 0.8 Nm 4.5 2 13 29.4 20 o 9 o 4.4 +1 +1 A M = 0.6 Nm A 30 15 25.7

3/30 Position Switches Safety position switches 2010 CA08103002Z-EN www.eaton.com LS4ZB Safety position switchesLS4ZB Safety position switches LS4…ZB LS4/.../IA/ZBLS4/.../IB/ZB Actuators Switch must not be used as a mechanical stop. 30 40 30 5.3 5.3 30 40 M20 15 17 17.8 33.5 33.5 4 M5 x 40 M5 60 44.7 42 83 7.3 9.5 12.5 60 3.5 5.0 M = 1.4 Nm a a a 2 x M A = 1 Nm 40 40 56 3.5 3.5 a M20 15 M5 17 33.5 17.8 5.0 9.5 33.5 40 5.3 44.7 42 12.5 95 b M20 M20 M5 3.5 c .../IA/ZB2 M5 x 40 .../IB/ZB4 M5 x 40 a LS4/S…/IA/ZBLS4/S…/IB/ZB a41.543 c16.729.5 b83115 a 4 x M A = 1 Nm M = 1.4 Nm R f 400 7.8 24 11.2 50 0.5 – 9 4.8 16 25 33.5 0.5 – 14 24 55 R f 400

Pressure Switches Pressure switches with main contacts 2010 CA08103002Z-EN www.eaton.com MCSN 3/31 MCSNPressure switches with main contacts Make and break pressure:Separately infinitely adjustable. Pressures can be set to any point within the area of the pressure diagram for the appropriate switch. Max. operating pressure Part no.Article no. Price See price list Std. pack Notes bar Pressure switches with main contacts IP65, 3 pole Min. switching differential: 0.6 bar Example: Cut-out pressure 3.3 bar Cut-in pressure 2.2 bar Variable switching differential 7 MCSN4057679 1 off Features:• With terminal cover as standard• 1 insulated protective wire terminal • 1 insulated N terminal• 2 cable entry knockouts for M20, without cable gland • IP65 in conjunction with V-M20 cable gland • Pressure pipe flange R ½”• Please enquire: Pressure pipe flange R ¼” • Neoprene diaphragm R ¼” corresponds to G ¼R ½” corresponds to G ½ to ISO 228-1 For use as a motor load switch to IEC/EN 60947-4-1 for: Three-phase current AC-3 Single-phase current Direct current DC-3 For use as control switch: Factory setting of cut-in and cut-out pressure via type suffix: ￫ Page 3/33 With relief valve for 6 mmcompres-sion fitting 7 MCSN4-V062425 Min. switching differential: 1.4 bar Example: Cut-out pressure 8.5 bar Cut-in pressure 4.5 bar Variable switching differential 15 MCSN11029203 With relief valve for 6 mmcompres-sion fitting 15 MCSN11-V033949 Min. switching differential: 2.4 bar Example: Cut-out pressure 14.5 bar Cut-in pressure 7.5 bar Variable switching differential 25 MCSN16038695 With relief valve for 6 mmcompres-sion fitting 25 MCSN16-V043441 Min. switching differential: 3.0 bar Example: Cut-out pressure 17.5 bar Cut-in pressure 7.8 bar Variable switching differential 25 MCSN22048187 With relief valve for 6 mmcompres-sion fitting 25 MCSN22-V052933 0 0,9 0 3,8 0,3 1 2 3 4 1 2 3 4 2,7 1 P 2 4 3 5 6 4,5 4,5 bar bar P min P max P N 1 3 5 2 4 6 M 3 M 1 1 3 5 N P 2 4 6 N M _ P 2 4 6 1 3 5 K H 1 3 5 2 4 6 N P 0 1,9 0 11 9,4 0,5 6,0 5,1 2 4 6 8 10 2 4 6 8 10 11 1 P 2 4 3 5 6 bar bar P min P max 16 13.1 8.0 0 0.7 0 2 4 6 8 10 12 14 2 4 6 8 10 12 14 3.1 7.5 16 1 P 2 4 3 5 6 bar bar P min P max 22 18.5 0 0.9 0 11.0 2 4 6 8 10 12 14 18 20 20 2 4 6 8 10 12 14 16 18 16 3.9 9.1 22 1 P 2 4 3 5 6 bar bar P min P max HPL03031EN

3/32 Pressure Switches Pressure switches with auxiliary contacts 2010 CA08103002Z-EN www.eaton.com MCS MCSPressure switches with auxiliary contacts Variable switching differential Contacts Max. operating pressure Make and break pressure:separately infinitely adjustable.Pressures can be set to any point within the area of the pressure diagram for the appropriate switch. Part no.Article no. Price See price list Std. pack Notes Number bar Pressure switch with auxiliary contacts, IP65 1 changeover contact 7 Min. switching differential: 0.2 barExample:Cut-out pressure 3.3 barCut-in pressure 2.2 bar MCS4019711 1 off Features:• Pressure pipe flange R ¼”• If required: pressure pipe flange R ½”• IP65 in conjunction with V-M20 cable gland• 1 Insulated protective wire terminal • 2 cable entry knockouts for M20• Neoprene diaphragm, resistant to aging, air, engine oil, and water min. -25 °C, max. +80 °C Factory setting of cut-in and cut-out pressure via type suffix: ￫ Page 3/33 R ¼” corresponds to G ¼R ½” corresponds to G ½ to ISO 228-1 Auxiliary contact to IEC/EN 60947-1 1) Gold contacts are specially suitable for switching small voltages and currents from 12 V AC/DC, 0.1 A. 1 changeover contact with gold-plated 7 MCS4-G 1) 058693 2 changeover contacts with gold-plated contacts 7 MCS4-SOND910-G 1) 087792 1 changeover contact 15 Min. switching differential: 0.3 bar Example: Cut-out pressure 8.5 bar Cut-in pressure 4.5 bar MCS11088527 1 changeover contact with gold-plated 15 MCS11-G 1) 058692 2 changeover contact with gold-plated contacts 15 MCS11-SOND910-G 1) 087793 1 changeover contact 25 Min. switching differential: 0.7 bar Example: Cut-out pressure 17.5 bar Cut-in pressure 7.8 bar MCS22098019 1 changeover contact with gold-plated 25 MCS22-G 1) 058691 2 changeover contact with gold-plated contacts 25 MCS22-SOND910-G 1) 087794 4 3 2 1 0.1 0 0 4.2 2.5 4.5 4 3 2 1 1.8 1 P 2 4 0.3 4.5 P bar bar min P max P N 1 2 K H 4 00.5 10.4 6.0 11 2 4 6 8 10 0.2 0 2 4 6 8 10 11 1 P 2 4 bar bar P min P max 01.1 0.4 0 9.1 21.0 11.0 2 4 6 8 10 12 14 16 18 20 2 4 6 8 10 12 14 16 18 20 22 22 1 P 2 4 bar bar P min P max HPL03032EN

Pressure Switches Accessories 2010 CA08103002Z-EN www.eaton.com 3/33 Accessories For use with Part no.Article no. Price See price list Std. pack Notes Pressure pipe flange MCS with R ½" +R1/2"-MCS001627 1 off Order no. when ordering basic unit MCS with R ½" R1/2"-MCS031617 Order no. when ordering separately MCSN(-V) with R ¼" +R1/4"-MCSN001628 Order no. when ordering basic unit MCSN(-V) with R ¼" R1/4"-MCSN033990 Order no. when ordering separately Pressure pipe flange with pressure gauge connection MCS, MCSN(-V) +M-MCS001625 1 off Order no. when ordering basic unit Pressure gauge connection R ¼”,Pressure pipe flange always R ½” also with MCS MCS, MCSN(-V) M-MCS071913 Order no. when ordering separately Compression fitting MCS, MCSN +E8-MCS001624 1 off Order no. when ordering basic unit External diameter of pipe coupling 8 mmWall fixing bracket integrated can be rotated in 180° stages MCS, MCSN E8-MCS040949 Order no. when ordering separately Wall fixing bracket MCS, MCSN +W-MCS001631 1 off Order no. when ordering basic unit Wall fixing bracket can be rotated to right or left by 90° stages MCS, MCSN W-MCS050665 10 off Order no. when ordering separately External unit plug, IP65 3 poles plus earth for socket adapters to DIN 43650-A/ISO 4400Plug configuration: MCSMCS…-GNot for use with MCS…SOND910-G +S3-MCS201854 1 off Order no. when ordering basic unit – Pressure settingStandard setting of the cut-in and cut-out pressuresWhen ordering, the type reference must include the following details:1st wildcard ≙ cut-in pressure in bar2nd wildcard ≙ cut-out pressure in bar MCS, MCSN +PMIN( )/PMAX( )203948 1 off Order no. when ordering basic unit Notes Ordering example • Desired part no.: MCS4• Required cut-in pressure in bar: 2.2• Required cut-out pressure in bar: 3.3A maximum or one decimal place after the comma is possible with the pressure definition.The correct part no. is:MCS4 + PMIN(2.2)/PMAX(3,3) ቤ ባ ቢ ቤ ባ ቢ HPL03033EN

3/34 Pressure Switches 2010 CA08103002Z-EN www.eaton.com MCS, MCSN MCS, MCSN Rating data for approved types to UL/CSA 1) Max. pressure Rated insulation voltage to UL/CSA Maximum motor rating Rated operational current Part no.Article no. Price See price list Std. pack HP = PS 115 V 200 V 230 V 460 V 575 V I e psi 2) V AC HP HP HP HP HP A MCS(N) pressure switches, IP55 With transparent hood 1 pole only for single-phase motors 4) 65 300 0.25 3) 0.5 3) – – – 10 MCS4FORMCDN024457 1 off 160 0.25 3) 0.5 3) – – – 10 MCS11FORMCDN093273 315 0.25 3) 0.5 3) – – – 10 MCS22FORMCDN014965 3 pole 4) 65 600 – 3 3 5 7.5 10 MCSN4FORMCDN064798 1 off 160 – 3 3 5 7.5 10 MCSN11FORMCDN036322 230 – 3 3 5 7.5 10 MCSN16FORMCDN045814 Notes 1) Devices for world markets IEC ≙ UL/CSA 2) In North America, pressure is stated in pounds/inch (psi) (1 bar = 14.5 psi) 3) Heavy Pilot Duty = High switching duty 4) Selection data and application notes ￫ 3/32 Dimensions MCS (N) Pressure switches MCS…, MCSN… MCSN…VWith relief valve 96 30 60 19 M20 a Part no. Pipe in-lead a MSC… 2 x M20 R 1/4“ 27 MSCN… 2 x M20 R 1/2“ 36 93 31 142 74 18 MCSN...-V MCSN...-VG 115 40 111 60 6 6 5,2 +M-MCS 22 123 R 1/4" 31 ...+W-MCS 40 134 32 40 ...+ E8 - MCS 124 6 7 5,2 HPL03034EN

Pressure Switches 2010 CA08103002Z-EN www.eaton.com MCS (N) 3/35 Pressure switches MCS MCS...SOND910-G MCSN General Standards IEC/EN 60947-5-1 Test pressure bar 32 32 32 Bursting pressure bar 90 90 90 Operating frequency Operations/h ≦ 3000 ≦ 3000 ≦ 1500 Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature °C -25 - 70 -25 - 70 -25 - 70 Protection type IP65 IP65 IP65 Mounting position Any Any Any Mechanical shock resistance to IEC 60068-2-27 Half-sinusoidal shock 20 ms g 10 10 10 Vibration resistance acc. to IEC/EN 60068-2-6 Amplitude 1 mm Hz 36 36 36 Lifespan at 50 % - 12 % pressure differential Operations x 10 6 1…2 1…2 0.5 Terminal capacity Solid mm 2 1 x (0.75 - 2.5) 1 x (0.75 - 2.5) 1 x (0.75 - 2.5)2 x (0.75 - 2.5) Flexible with ferrule to DIN 46228 mm 2 1 x (0.5 - 1.5) 1 x (0.5 - 1.5) 1 x (0.5 - 1.5)2 x (0.5 - 1.5) Terminations Tunnel-type screw terminal Tunnel-type screw terminal Flat terminal with clamping washer Terminal screw M3 M3 M4 Terminal screw tightening torque Nm 0.5 0.5 1.2 Contacts/switching capacity Rated impulse withstand voltage U imp V AC 4000 4000 4000 Rated insulation voltage U i V 400 400 400 Overvoltage category/pollution degree III/3 III/3 III/3 Max. short-circuit protective unit Fuseless Part no. PKZ2/ZM6 PKZ2/ZM6 PKZ2/ZM16 Fuse gG/gL A 10 10 20 Type of coordination – – 1 AC-15 Rated operational current 230 V A 2 – – AC-3 Rated operational current 230 V A – – 15 400 V A – – 11.5 Motor rating P 230 V kW – – 4 400 V kW – – 5.5 DC-13 Rated operational current 24 V A 2 0.8 – 110 V A 0.25 0.25 – DC-3 Rated operational current 24 V A – – 16 110 V A – – 12.5 250 V A – – 2 Rated frequency f Hz 50 50 50

3/36 Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Global Series Description ① Outputs with function display on all models.② All models with M12 plug connector or cable (2 m).③ Versions for flush or non-flush mounting available. a b c 8 mm 12 mm 18 mm 30 mm Short description Eaton’s proximity sensors of the Global series have been developed specially for OEM series production. The sensors feature only the functions required for reliable operation. This means that you do not pay for addi-tional, unnecessary functions but get the performance and features you expect from a sensor. Our DC versions feature a short-circuit protective unit and a rating of up to 2000 measuring cycles per second. The outputs of all models are equipped with a function display. The Global series includes models with various diameters from 8 to 30 mm, making it truly versatile in installation. Versions with various ranges are also available. The Global proximity sensors are DC or AC units with a 2- or 3-wire, NPN or PNP configuration. Versions for hard-wiring or with M12 plug connector are available. The DC versions have a rated load current of 100 mA, the AC versions 200 mA. Product features • The Global Proximity Line features solid performance and a basic feature set for reliable, cost-effec-tive sensing. • Available in a variety of sizes to fit in all of your applications: 8 mm, 12 mm, 18 mm und 30 mm diameters. • The input voltage of the DC versions is 10 – 30 V DC with a 2- and 3-wire configuration (PNP and NPN). • The input voltage of the AC versions is 2-AC 20...250 V. • The operating frequency of the DC versions is 2 kHz. • Versions for flush or non-flush installation available. • Connection through cable (2 meters) or M12 plug connector. • The DC versions feature short- circuit protection. Approvals cCSAus

Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/37 Inductive SensorsE57 Global Series Ordering Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no. Article no. PriceSee price list Std. pack S n mm E57 Global series 2-wire M12 x 1 10 - 30 V DC 2 Flush – 2 m connection cable 1 N/O Metal E57-12GS02-D135883 1 off 2 Flush – plug connector M12 x 1 1 N/O Metal E57-12GS02-DDB135884 4 Non-flush – 2 m connection cable 1 N/O Metal E57-12GU04-D135891 4 Non-flush – 2 m connection cable 1 NC Metal E57-12GU04-D1135892 4 Non-flush – plug connector M12 x 1 1 N/O Metal E57-12GU04-DDB135893 8 Non-flush – 2 m connection cable 1 NC Metal E57-12GE08-D1135872 8 Non-flush – plug connector M12 x 1 1 NC Metal E57-12GE08-D1DB135873 8 Non-flush – plug connector M12 x 1 1 N/O Metal E57-12GE08-DDB135874 8 Non-flush – 2 m connection cable 1 N/O Metal E57-12GE08-D135871 20 - 250 V AC 2 Flush – 2 m connection cable 1 N/O Metal E57-12GS02-A135879 2 Flush – plug connector M12 x 1 1 N/O Metal E57-12GS02-AAB135880 4 Non-flush – 2 m connection cable 1 N/O Metal E57-12GU04-A135887 4 Non-flush – plug connector M12 x 1 1 N/O Metal E57-12GU04-AAB135888 M18 x 1 10 - 30 V DC 5 Flush – 2 m connection cable 1 N/O Metal E57-18GS05-D135929 1 off 5 Flush – plug connector M12 x 1 1 N/O Metal E57-18GS05-DDB135930 8 Non-flush – 2 m connection cable 1 N/O Metal E57-18GU08-D135937 8 Non-flush – plug connector M12 x 1 1 N/O Metal E57-18GU08-DDB135938 16 Non-flush – 2 m connection cable 1 N/O Metal E57-18GE16-D135917 16 Non-flush – 2 m connection cable 1 NC Metal E57-18GE16-D1135918 16 Non-flush – plug connector M12 x 1 1 NC Metal E57-18GE16-D1DB135919 16 Non-flush – plug connector M12 x 1 1 N/O Metal E57-18GE16-DDB135920 20 - 250 V AC 5 Flush – 2 m connection cable 1 N/O Metal E57-18GS05-A135925 5 Flush – plug connector M12 x 1 1 N/O Metal E57-18GS05-AAB135926 8 Non-flush – 2 m connection cable 1 N/O Metal E57-18GU08-A135933 8 Non-flush – plug connector M12 x 1 1 N/O Metal E57-18GU08-AAB135934 16 Non-flush – plug connector M12 x 1 1 N/O Metal E57-18GE16-AAB135916 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. CSA report applies to both Canada and US UL CCN – CSA File No. 224447 CSA Class No. 4652-84 NA Certification CSA certified Max. Voltage Rating 250 V AC, 30 V DC Degree of Protection IEC: IP67; UL/CSA Type: - HPL03037EN

3/38 Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Global Series Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no. Article no. PriceSee price list Std. pack S n mm E57 Global series 2-wire M30 x 1.5 10 - 30 V DC 10 Flush – 2 m connection cable 1 N/O Metal E57-30GS10-D135973 1 off 10 Flush – 2 m connection cable 1 NC Metal E57-30GS10-D1135974 10 Flush – plug connector M12 x 1 1 NC Metal E57-30GS10-D1DB135975 10 Flush – plug connector M12 x 1 1 N/O Metal E57-30GS10-DDB135976 15 Non-flush – 2 m connection cable 1 N/O Metal E57-30GU15-D135983 15 Non-flush – plug connector M12 x 1 1 N/O Metal E57-30GU15-DDB135984 25 Non-flush – 2 m connection cable 1 N/O Metal E57-30GE25-D135961 25 Non-flush – 2 m connection cable 1 NC Metal E57-30GE25-D1135962 25 Non-flush – plug connector M12 x 1 1 NC Metal E57-30GE25-D1DB135963 25 Non-flush – plug connector M12 x 1 1 N/O Metal E57-30GE25-DDB135964 20 - 250 V AC 10 Flush – 2 m connection cable 1 N/O Metal E57-30GS10-A135969 10 Flush – plug connector M12 x 1 1 N/O Metal E57-30GS10-AAB135970 15 Non-flush – 2 m connection cable 1 N/O Metal E57-30GU15-A135979 15 Non-flush – plug connector M12 x 1 1 N/O Metal E57-30GU15-AAB135980 3-wire M8 x 1 10 - 30 V DC 1 Flush NPN 2 m connection cable 1 N/O Stainless steel E57-08GS01-C135859 1 off 1 Flush NPN plug connector M12 x 1 1 N/O Stainless steel E57-08GS01-CDB135860 1 Flush PNP 2 m connection cable 1 N/O Stainless steel E57-08GS01-G135861 1 Flush PNP plug connector M12 x 1 1 N/O Stainless steel E57-08GS01-GDB135862 2 Non-flush NPN 2 m connection cable 1 N/O Stainless steel E57-08GU02-C135863 2 Non-flush NPN plug connector M12 x 1 1 N/O Stainless steel E57-08GU02-CDB135864 2 Non-flush PNP 2 m connection cable 1 N/O Stainless steel E57-08GU02-G135865 2 Non-flush PNP plug connector M12 x 1 1 N/O Stainless steel E57-08GU02-GDB135866 3 Flush NPN 2 m connection cable 1 NC Stainless steel E57-08GBE03-C135850 3 Flush NPN 2 m connection cable 1 N/O Stainless steel E57-08GE03-C135851 3 Flush NPN plug connector M12 x 1 1 N/O Stainless steel E57-08GE03-CDB135852 3 Flush PNP 2 m connection cable 1 N/O Stainless steel E57-08GE03-G135853 3 Flush PNP plug connector M12 x 1 1 N/O Stainless steel E57-08GE03-GDB135854 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. CSA report applies to both Canada and US UL CCN – CSA File No. 224447 CSA Class No. 4652-84 NA Certification CSA certified Max. Voltage Rating 250 V AC, 30 V DC Degree of Protection IEC: IP67; UL/CSA Type: - HPL03038EN

Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/39 Inductive SensorsE57 Global Series Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no. Article no. PriceSee price list Std. pack S n mm E57 Global series 3-wire M8 x 1 10 - 30 V DC 6 Non-flush NPN 2 m connection cable 1 N/O Stainless steel E57-08GE06-C135855 1 off 6 Non-flush NPN plug connector M12 x 1 1 N/O Stainless steel E57-08GE06-CDB135856 6 Non-flush PNP 2 m connection cable 1 N/O Stainless steel E57-08GE06-G135857 6 Non-flush PNP plug connector M12 x 1 1 N/O Stainless steel E57-08GE06-GDB135858 M12 x 1 10 - 30 V DC 2 Flush NPN 2 m connection cable 1 N/O Metal E57-12GS02-C135881 1 off 2 Flush NPN plug connector M12 x 1 1 N/O Metal E57-12GS02-CDB135882 2 Flush PNP 2 m connection cable 1 N/O Metal E57-12GS02-G135885 2 Flush PNP plug connector M12 x 1 1 N/O Metal E57-12GS02-GDB135886 4 Non-flush NPN 2 m connection cable 1 N/O Metal E57-12GU04-C135889 4 Non-flush NPN plug connector M12 x 1 1 N/O Metal E57-12GU04-CDB135890 4 Non-flush PNP 2 m connection cable 1 N/O Metal E57-12GU04-G135894 4 Non-flush PNP plug connector M12 x 1 1 N/O Metal E57-12GU04-GDB135895 5 Flush NPN 2 m connection cable 1 N/O Metal E57-12GE05-C135867 5 Flush NPN plug connector M12 x 1 1 N/O Metal E57-12GE05-CDB135868 5 Flush PNP 2 m connection cable 1 N/O Metal E57-12GE05-G135869 5 Flush PNP plug connector M12 x 1 1 N/O Metal E57-12GE05-GDB135870 10 Non-flush NPN 2 m connection cable 1 N/O Metal E57-12GE10-C135875 10 Non-flush NPN plug connector M12 x 1 1 N/O Metal E57-12GE10-CDB135876 10 Non-flush PNP 2 m connection cable 1 N/O Metal E57-12GE10-G135877 10 Non-flush PNP plug connector M12 x 1 1 N/O Metal E57-12GE10-GDB135878 M18 x 1 10 - 30 V DC 5 Flush NPN 2 m connection cable 1 N/O Metal E57-18GS05-C135927 1 off 5 Flush NPN plug connector M12 x 1 1 N/O Metal E57-18GS05-CDB135928 5 Flush PNP 2 m connection cable 1 N/O Metal E57-18GS05-G135931 5 Flush PNP plug connector M12 x 1 1 N/O Metal E57-18GS05-GDB135932 8 Flush NPN 2 m connection cable 1 N/O Metal E57-18GE08-C135912 8 Flush NPN plug connector M12 x 1 1 N/O Metal E57-18GE08-CDB135913 8 Flush PNP 2 m connection cable 1 N/O Metal E57-18GE08-G135914 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. CSA report applies to both Canada and US UL CCN – CSA File No. 224447 CSA Class No. 4652-84 NA Certification CSA certified Max. Voltage Rating 250 V AC, 30 V DC Degree of Protection IEC: IP67; UL/CSA Type: - HPL03039EN

3/40 Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Global Series Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no. Article no. PriceSee price list Std. pack S n mm E57 Global series 3-wire M18 x 1 10 - 30 V DC 8 Flush PNP plug connector M12 x 1 1 N/O Metal E57-18GE08-GDB135915 1 off 8 Non-flush NPN 2 m connection cable 1 N/O Metal E57-18GU08-C135935 8 Non-flush NPN plug connector M12 x 1 1 N/O Metal E57-18GU08-CDB135936 8 Non-flush PNP 2 m connection cable 1 N/O Metal E57-18GU08-G135939 8 Non-flush PNP plug connector M12 x 1 1 N/O Metal E57-18GU08-GDB135940 18 Non-flush NPN 2 m connection cable 1 N/O Metal E57-18GE18-C135921 18 Non-flush NPN plug connector M12 x 1 1 N/O Metal E57-18GE18-CDB135922 18 Non-flush PNP 2 m connection cable 1 N/O Metal E57-18GE18-G135923 18 Non-flush PNP plug connector M12 x 1 1 N/O Metal E57-18GE18-GDB135924 3-wire M30 x 1.5 10 - 30 V DC 10 Flush NPN 2 m connection cable 1 N/O Metal E57-30GS10-C135971 1 off 10 Flush NPN plug connector M12 x 1 1 N/O Metal E57-30GS10-CDB135972 10 Flush PNP 2 m connection cable 1 N/O Metal E57-30GS10-G135977 10 Flush PNP plug connector M12 x 1 1 N/O Metal E57-30GS10-GDB135978 15 Flush NPN 2 m connection cable 1 N/O Metal E57-30GE15-C135957 15 Flush NPN plug connector M12 x 1 1 N/O Metal E57-30GE15-CDB135958 15 Flush PNP 2 m connection cable 1 N/O Metal E57-30GE15-G135959 15 Flush PNP plug connector M12 x 1 1 N/O Metal E57-30GE15-GDB135960 15 Non-flush NPN 2 m connection cable 1 N/O Metal E57-30GU15-C135981 15 Non-flush NPN plug connector M12 x 1 1 N/O Metal E57-30GU15-CDB135982 15 Non-flush PNP 2 m connection cable 1 N/O Metal E57-30GU15-G135985 15 Non-flush PNP plug connector M12 x 1 1 N/O Metal E57-30GU15-GDB135986 29 Non-flush NPN 2 m connection cable 1 N/O Metal E57-30GE29-C135965 29 Non-flush NPN plug connector M12 x 1 1 N/O Metal E57-30GE29-CDB135966 29 Non-flush PNP 2 m connection cable 1 N/O Metal E57-30GE29-G135967 29 Non-flush PNP plug connector M12 x 1 1 N/O Metal E57-30GE29-GDB135968 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. CSA report applies to both Canada and US UL CCN – CSA File No. 224447 CSA Class No. 4652-84 NA Certification CSA certified Max. Voltage Rating 250 V AC, 30 V DC Degree of Protection IEC: IP67; UL/CSA Type: - HPL03040EN

Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/41 Inductive SensorsE57 Global Series Engineering Circuit diagram E57...-A E57...-AAB 1) Internally connected to enclosure (wiring optional) 1) Internally connected to enclosure (wiring optional) E57...-DE57...-D1 E57...-DDBE57...-D1DB E57...-DE57...-D1 E57...-DDBE57...-D1DB E57...-C E57...-CDB E57...-G E57...-GDB BN BU Load Yellow/Green L1 L2 1) L2 L1 1) Load BU BN (-) +V Load (-) (+V) Load BU BN (-) +V Load (-) (+V) Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load

3/42 Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Global Series Technical data Inductive SensorsE57 Global Series E57-...(2-wire) E57-12GS...A E57-12GU...A E57-18GS...A E57-18GU...A General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 1 3 1 3 Temperature drift of S n % 10 10 10 10 Switching hysteresis of S n % 15 15 15 15 Rated operating voltage 20 - 250 V AC 20 - 250 V AC 20 - 250 V AC 20 - 250 V AC Operating current in the switched state at 24 V DC I b mA 1.8 1.8 1.8 1.8 Rated operational current I e mA 200 200 200 200 Voltage drop at I e U d V 8 8 8 8 Switching frequency Hz 25 25 25 25 Min. load current I e mA 5 5 5 5 Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.01 0.01 0.01 0.01 Switching state indication LED Red Red Red Red Function 2-wire 2-wire 2-wire 2-wire Construction type Design (outer dimensions) M12 x 1 M12 x 1 M18 x 1 M18 x 1 Material Metal Metal Metal Metal E57-...(2-wire) E57-18GE...A E57-30GS...A E57-30GU...A General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 1 1 3 Temperature drift of S n % 10 10 10 Switching hysteresis of S n % 15 15 15 Rated operating voltage 20 - 250 V AC 20 - 250 V AC 20 - 250 V AC Operating current in the switched state at 24 V DC I b mA 1.8 1.8 1.8 Rated operational current I e mA 200 200 200 Voltage drop at I e U d V 8 8 8 Switching frequency Hz 25 25 25 Min. load current I e mA 5 5 5 Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.01 0.01 0.01 Switching state indication LED Red Red Red Function 2-wire 2-wire 2-wire Construction type Design (outer dimensions) M18 x 1 M30 x 1.5 M30 x 1.5 Material Metal Metal Metal Notes Further technical data can be found in the Online Catalogue at www.moeller.net

Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/43 Inductive SensorsE57 Global Series Inductive SensorsE57 Global Series E57-...(3-wire) E57-08... E57-12... E57-18... E57-12GE... E57-12GS... E57-12GU... E57-18GE... General Standards IEC/EN 60947-5-2 Ambient temperature °C -0 - +60 -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 IP67 IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 1 1 1 1 1 Temperature drift of S n % 10 10 10 10 10 Switching hysteresis of S n % 15 15 15 15 15 Rated operating voltage 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC Residual ripple of U e % 10 10 10 10 10 Operating current in the switched state at 24 V DC I b mA 10 10 10 20 10 Rated operational current I e mA 100 100 100 100 100 Voltage drop at I e U d V 1.5 1.5 1.5 1.5 1.5 Switching frequency Hz 2000 2000 2000 1000 1000 Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.01 0.01 0.01 0.01 0.01 Switching state indication LED Red Red Red Red Red Protective functions Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 3-wire 3-wire 3-wire 3-wire 3-wire Construction type Design (outer dimensions) M8 x 1 M12 x 1 M12 x 1 M12 x 1 M18 x 1 Material Stainless steel Metal Metal Metal Metal E57-18... E57-30... E57-18GS... E57-18GU... E57-30GE... E57-30GS... E57-30GU... General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 IP67 IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 1 1 1 1 1 Temperature drift of S n % 10 10 10 10 10 Switching hysteresis of S n % 15 15 15 15 15 Rated operating voltage 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC Residual ripple of U e % 10 10 10 10 10 Operating current in the switched state at 24 V DC I b mA 10 20 10 10 20 Rated operational current I e mA 100 100 100 100 100 Voltage drop at I e U d V 1.5 1.5 1.5 1.5 1.5 Switching frequency Hz 1000 500 500 500 200 Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.01 0.01 0.01 0.01 0.01 Switching state indication LED Red Red Red Red Red Protective functions Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 3-wire 3-wire 3-wire 3-wire 3-wire Construction type Design (outer dimensions) M18 x 1 M18 x 1 M30 x 1.5 M30 x 1.5 M30 x 1.5 Material Metal Metal Metal Metal Metal Notes Further technical data can be found in the Online Catalogue at www.moeller.net

3/44 Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Global Series Dimensions Inductive SensorsE57 Global Series 2 m connection cable a b c d e a b c d e 2-wire 3-wire 20-250 V AC E57-12GS02-A M12x1 65 15 50 – 10-30 V DC E57-08GE03-C M8x1 46 6 40 – E57-12GU04-A M12x1 60 15 42 8 E57-08GE06-C M8x1 46 1 41 4 E57-18GS05-A M18x1 80 20 60 – E57-08GE03-G M8x1 46 6 40 – E57-18GU08-A M18x1 80 20 48 12 E57-08GE06-G M8x1 46 1 41 4 E57-30GS10-A M30 80 20 60 – E57-08GS01-C M8x1 45 – 45 – E57-30GU15-A M30 80 20 45 15 E57-08GS01-G M8x1 45 – 45 – 10-30 V DC E57-12GS02-D M12x1 50 – 50 – E57-08GU02-C M8x1 45 – 41 4 E57-12GU04-D M12x1 50 – 42 8 E57-08GU02-G M8x1 45 – 41 4 E57-12GU04-D1 M12x1 50 – 42 8 E57-12GE05-C M12x1 51 2 49 – E57-12GE08-D M12x1 50 – 42 8 E57-12GE05-G M12x1 51 2 49 – E57-12GE08-D1 M12x1 50 – 42 8 E57-12GE10-C M12x1 50.5 1.7 41 7.8 E57-18GS05-D M18x1 55 5 50 – E57-12GE10-G M12x1 50.5 1.7 41 7.8 E57-18GU08-D M18x1 55 5 38 12 E57-12GS02-C M12x1 50 – 50 – E57-18GE16-D M18x1 55 5 38 12 E57-12GS02-G M12x1 50 – 50 – E57-18GE16-D1 M18x1 55 5 38 12 E57-12GU04-C M12x1 50 – 42 8 E57-30GS10-D M30 55 5 50 – E57-12GU04-G M12x1 50 – 42 8 E57-30GU15-D M30 55 5 35 15 E57-18GE08-C M18x1 67.5 2.5 65 – E57-30GE25-D M30 55 5 35 15 E57-18GE08-G M18x1 65.5 2.5 65 – E57-30GE25-D1 M30 55 5 35 15 E57-18GE18-C M18x1 66 2.5 52 11.5 E57-18GE18-G M18x1 66 2.5 52 11.5 E57-18GS05-C M18x1 55 5 50 – E57-18GS05-G M18x1 55 5 50 – E57-18GU08-C M18x1 55 5 38 12 E57-18GU08-G M18x1 55 5 38 12 E57-30GE15-C M30 69 5 64 – E57-30GE15-G M30 69 5 64 – E57-30GE29-C M30 83 5 64 15 E57-30GE29-G M30 83 5 64 15 E57-30GS10-C M30 55 5 50 – E57-30GS10-G M30 55 5 50 – E57-30GU15-C M30 55 5 35 15 E57-30GU15-G M30 55 5 35 15 d e c b a LED

Sensors E57 Global Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/45 M12 plug connector a b c d e a b c d e 2-wire 3-wire 20-250 V AC E57-12GS02-AAB M12x1 68 16 42 – 10-30 V DC E57-08GE03-CDB M8x1 71 26 36 – E57-12GU04-AAB M12x1 68 16 34 8 E57-08GE03-CNB M8x1 61 19 42 – E57-18GE16-AAB M18x1 94 20 48 12 E57-08GE03-GDB M8x1 71 26 35 – E57-18GS05-AAB M18x1 91 20 60 – E57-08GE03-GNB M8x1 61 19 42 – E57-18GU08-AAB M18x1 91 20 48 12 E57-08GE06-CDB M8x1 71 25 31 4 E57-30GS10-AAB M30 80 20 60 – E57-08GE06-GDB M8x1 71 25 31 4 E57-30GU15-AAB M30 91 20 45 15 E57-08GS01-CDB M8x1 70 21 49 – 10-30 V DC E57-12GS02-DDB M12x1 69 16 42 – E57-08GS01-GDB M8x1 70 21 49 – E57-12GU04-DDB M12x1 68 16 34 8 E57-08GU02-CDB M8x1 70 21 45 4 E57-12GE08-DDB M12x1 68 16 34 8 E57-08GU02-GDB M8x1 70 21 45 4 E57-12GE08-D1DB M12x1 68 10 50 8 E57-12GE05-CDB M12x1 69 24 45 – E57-18GS05-DDB M18x1 76 15 61 – E57-12GE05-GDB M12x1 69 24 45 – E57-18GU08-DDB M18x1 80 15 49 12 E57-12GE10-CDB M12x1 68.5 10.3 36 7.8 E57-18GE16-DDB M18x1 79 15 52 12 E57-12GE10-GDB M12x1 68.5 10.3 36 7.8 E57-18GE16-D1DB M18x1 79 15 52 12 E57-12GS02-CDB M12x1 68 16 52 – E57-30GS10-DDB M30 75 15 60 – E57-12GS02-GDB M12x1 68 16 52 – E57-30GU15-DDB M30 79 15 45 15 E57-12GU04-CDB M12x1 68 20 31 8 E57-30GE25-DDB M30 78 15 48 15 E57-12GU04-GDB M12x1 68 20 31 8 E57-30GE25-D1DB M30 78 15 48 15 E57-18GE08-CDB M18x1 80 6 49 – E57-18GE08-GDB M18x1 80 16 49 – E57-18GE18-CDB M18x1 79 6 37 12 E57-18GE18-GDB M18x1 79 6 37 12 E57-18GS05-CDB M18x1 76 15 61 – E57-18GS05-GDB M18x1 76 15 61 – E57-18GU08-CDB M18x1 76 15 49 12 E57-18GU08-GDB M18x1 80 15 49 12 E57-30GS10-CDB M30 79 15 60 – E57-30GS10-GDB M30 75 15 60 – E57-30GE15-CDB M30 80 16 49 – E57-30GE15-GDB M30 80 16 49 – E57-30GE29-CDB M30 95 16 49 15 E57-30GE29-GDB M30 95 16 49 15 E57-30GU15-CDB M30 75 15 45 15 E57-30GU15-GDB M30 75 15 45 15 d e c b a LED

3/46 Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Premium Plus Series Description ① Measuring head angled 90° for difficult measuring tasks a 12 mm 18 mm 30 mm Short description Eaton’s inductive proximity sensors of the Premium+ series feature an enhanced measuring performance, durability and selection. Unlike the standard sensors, the Premium+ models feature a rugged stainless steel enclosure, impact-resistant front caps and an impact-absorbing sealant. The sensors are now avail-able in versions for AC, AC/DC and DC-only operation, with enclosure diameters of 12, 18 and 30 mm. Their interference immunity is unsurpassed at more than 20 volts/meter.The Premium+ series includes sensors with a specially short, cylindrical enclosure. Despite their small size, they feature the same measuring range as the longer standard sizes. This allows the sensors to be used in applications where mounting space is limited. All sen-sors are equipped with a LED with 360° visibility. Product features • New, wider product range – models with two-wire, three-wire, AC, DC and AC/DC connection. • Resistant against mechanical and environmental strain. • Designed with stainless steel barrel and new potting compound for robust, high temperature, high pressure washdown, as well as intense shock and vibration applica-tions. • Unmatched high noise immunity eliminates problems associated with electrical noise (all models 20 Volt/meter). • Output status lamp is visible through 360° from any direction and at all light conditions. • AC/DC and DC models have resettable short-circuit and polarity reversal protection. • Models with 90° measuring head offer unique problem-solving capabilities. • Large temperature range (-25 to 70 °C). • Small sizes for space-saving installation available. • Versions with cable for with cable for hard wiring or M12 plug connector for fast installation and simple replacement. Approvals

Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/47 Inductive SensorsE57 Premium Plus Series Ordering Function Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Premium Plus 2-wire M12 x 1 20 - 250 V AC 2 Flush – 2 m connection cable 1 N/O Stainless steel E57LAL12A2 1) 135995 1 off Flush – plug connector M12 x 1 1 N/O E57LAL12A2SA 1) 135998 Flush – 2 m connection cable 1 NC E57LBL12A2 1) 136030 Flush – plug connector M12 x 1 1 NC E57LBL12A2SA 1) 136033 4 Non-flush – 2 m connection cable 1 N/O E57LAL12A2E 1) 135996 Non-flush – plug connector M12 x 1 1 N/O E57LAL12A2EA 1) 135997 Non-flush – 2 m connection cable 1 NC E57LBL12A2E 1) 136031 Non-flush – plug connector M12 x 1 1 NC E57LBL12A2EA 1) 136032 M18 x 1 20 - 250 V AC 5 Flush – 2 m connection cable 1 N/O Stainless steel E57LAL18A2 1) 136007 Flush – 2 m connection cable 1 NC E57LBL18A2 1) 136042 Flush – M12 plug connector x 1 1 NC E57LBL18A2SA 1) 136045 20 - 250 V AC 5 Flush – 2 m connection cable 1 N/O E57RAL18A2 2) 136066 5 Flush – 2 m connection cable 1 NC E57RBL18A2 2) 136078 8 Non-flush – 2 m connection cable 1 N/O E57RAL18A2E 2) 136067 8 Non-flush – 2 m connection cable 1 NC E57RBL18A2E 2) 136079 20 - 250 V AC 8 Non-flush – 2 m connection cable 1 N/O E57LAL18A2E 1) 136008 Non-flush – plug connector M12 x 1 1 N/O E57LAL18A2EA 1) 136009 Non-flush – 2 m connection cable 1 NC E57LBL18A2E 1) 136043 . . Non-flush . – . plug connector M12 x 1 . 1 NC . . E57LBL18A2EA 1) 136044 . 20 - 250 V AC 5 Flush – plug connector M12 x 1 1 N/O E57RAL18A2SA 2) 136069 5 Flush – plug connector M12 x 1 1 NC E57RBL18A2SA 2) 136081 8 Non-flush – plug connector M12 x 1 1 N/O E57RAL18A2EA 2) 136068 8 Non-flush – plug connector M12 x 1 1 NC E57RBL18A2EA 2) 136080 Information relevant for export to North America 1) Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 250 V AC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - 2) Product Standards UL 508; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 NA Certification UL Listed Max. Voltage Rating 250 V AC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: 4, 4x, 6, 6P, 12, 13 HPL03047EN

3/48 Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Premium Plus Series Function Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Premium Plus 2-wire M30 x 1.5 20 - 250 V AC 10 Flush – 2 m connection cable 1 N/O Stainless steel E57LAL30A2 1) 136018 1 off Flush – plug connector M12 x 1 1 N/O E57LAL30A2SA 1) 136021 Flush – 2 m connection cable 1 NC E57LBL30A2 1) 136054 Flush – plug connector M12 x 1 1 NC E57LBL30A2SA 1) 136057 15 Non-flush – 2 m connection cable 1 N/O E57LAL30A2E 1) 136019 Non-flush – plug connector M12 x 1 1 N/O E57LAL30A2EA 1) 136020 Non-flush – 2 m connection cable 1 NC E57LBL30A2E 1) 136055 Non-flush – plug connector M12 x 1 1 NC E57LBL30A2EA 1) 136056 3-wire M12 x 1 6 - 48 V DC 2 Flush NPN 2 m connection cable 1 N/O Stainless steel E57LAL12T110 2) 135999 1 off Flush NPN plug connector M12 x 1 1 N/O E57LAL12T110SD 2) 136002 Flush PNP 2 m connection cable 1 N/O E57LAL12T111 2) 136003 Flush PNP plug connector M12 x 1 1 N/O E57LAL12T111SD 2) 136006 Flush NPN 2 m connection cable 1 NC E57LBL12T110 2) 136034 Flush NPN plug connector M12 x 1 1 NC E57LBL12T110SD 2) 136037 Flush PNP 2 m connection cable 1 NC E57LBL12T111 2) 136038 Flush PNP plug connector M12 x 1 1 NC E57LBL12T111SD 2) 136041 4 Non-flush NPN 2 m connection cable 1 N/O E57LAL12T110E 2) 136000 Non-flush NPN plug connector M12 x 1 1 N/O E57LAL12T110ED 2) 136001 Non-flush PNP 2 m connection cable 1 N/O E57LAL12T111E 2) 136004 Non-flush PNP plug connector M12 x 1 1 N/O E57LAL12T111ED 2) 136005 Non-flush NPN 2 m connection cable 1 NC E57LBL12T110E 2) 136035 Non-flush NPN plug connector M12 x 1 1 NC E57LBL12T110ED 2) 136036 Non-flush PNP 2 m connection cable 1 NC E57LBL12T111E 2) 136039 Non-flush PNP plug connector M12 x 1 1 NC E57LBL12T111ED 2) 136040 Information relevant for export to North America 1) Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 250 V AC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - 2) Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 48 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - HPL03048EN

Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/49 Inductive SensorsE57 Premium Plus Series Function Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configuration N/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Premium Plus 3-wire M18 x 1 6 - 48 V DC 5 Flush NPN 2 m connection cable 1 N/O Stainless steel E57RAL18T110 1) 136070 1 off Flush PNP 2 m connection cable 1 N/O E57RAL18T111 1) 136074 Flush NPN 2 m connection cable 1 NC E57RBL18T110 1) 136082 Flush PNP 2 m connection cable 1 NC E57RBL18T111 1) 136086 5 Flush NPN 2 m connection cable 1 N/O E57LAL18T110 2) 136010 Flush NPN plug connector M12 x 1 1 N/O E57LAL18T110SD 2) 136013 Flush PNP 2 m connection cable 1 N/O E57LAL18T111 2) 136014 Flush PNP plug connector M12 x 1 1 N/O E57LAL18T111SD 2) 136017 Flush NPN 2 m connection cable 1 NC E57LBL18T110 2) 136046 Flush NPN plug connector M12 x 1 1 NC E57LBL18T110SD 2) 136049 Flush PNP 2 m connection cable 1 NC E57LBL18T111 2) 136050 Flush PNP plug connector M12 x 1 1 NC E57LBL18T111SD 2) 136053 8 Non-flush NPN 2 m connection cable 1 N/O E57RAL18T110E 1) 136071 Non-flush PNP 2 m connection cable 1 N/O E57RAL18T111E 1) 136075 Non-flush NPN 2 m connection cable 1 NC E57RBL18T110E 1) 136083 Non-flush PNP 2 m connection cable 1 NC E57RBL18T111E 1) 136087 Non-flush NPN 2 m connection cable 1 N/O E57LAL18T110E 2) 136011 Non-flush NPN plug connector M12 x 1 1 N/O E57LAL18T110ED 2) 136012 Non-flush PNP 2 m connection cable 1 N/O E57LAL18T111E 2) 136015 Non-flush PNP plug connector M12 x 1 1 N/O E57LAL18T111ED 2) 136016 Non-flush NPN 2 m connection cable 1 NC E57LBL18T110E 2) 136047 Non-flush NPN plug connector M12 x 1 1 NC E57LBL18T110ED 2) 136048 Non-flush PNP 2 m connection cable 1 NC E57LBL18T111E 2) 136051 Non-flush PNP plug connector M12 x 1 1 NC E57LBL18T111ED 2) 136052 Information relevant for export to North America 1) Product Standards UL 508; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 NA Certification UL Listed Max. Voltage Rating 48 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - 2) Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 48 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - HPL03049EN

3/50 Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Premium Plus Series Function Rated operational voltage Rated switch-ing distance Installation type Switch-ing type Connection options: Contact configuration N/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Premium Plus 3-wire M18 x 1 6 - 48 V DC 5 Flush NPN plug connector M12 x 1 1 N/O Stainless steel E57RAL18T110SD 1) 136073 1 off Flush PNP plug connector M12 x 1 1 N/O E57RAL18T111SD 1) 136077 Flush NPN plug connector M12 x 1 1 NC E57RBL18T110SD 1) 136085 Flush PNP plug connector M12 x 1 1 NC E57RBL18T111SD 1) 136089 8 Non-flush NPN plug connector M12 x 1 1 N/O E57RAL18T110ED 1) 136072 Non-flush PNP plug connector M12 x 1 1 N/O E57RAL18T111ED 1) 136076 Non-flush NPN plug connector M12 x 1 1 NC E57RBL18T110ED 1) 136084 Non-flush PNP plug connector M12 x 1 1 NC E57RBL18T111ED 1) 136088 3-wire M30 x 1.5 6 - 48 V DC 10 Flush NPN 2 m connection cable 1 N/O Stainless steel E57LAL30T110 2) 136022 1 off Flush NPN plug connector M12 x 1 1 N/O E57LAL30T110SD 2) 136025 Flush PNP 2 m connection cable 1 N/O E57LAL30T111 2) 136026 Flush PNP plug connector M12 x 1 1 N/O E57LAL30T111SD 2) 136029 Flush NPN 2 m connection cable 1 NC E57LBL30T110 2) 136058 Flush NPN plug connector M12 x 1 1 NC E57LBL30T110SD 2) 136061 Flush PNP 2 m connection cable 1 NC E57LBL30T111 2) 136062 Flush PNP plug connector M12 x 1 1 NC E57LBL30T111SD 2) 136065 15 Non-flush NPN 2 m connection cable 1 N/O E57LAL30T110E 2) 136023 Non-flush NPN plug connector M12 x 1 1 N/O E57LAL30T110ED 2) 136024 Non-flush PNP 2 m connection cable 1 N/O E57LAL30T111E 2) 136027 Non-flush PNP plug connector M12 x 1 1 N/O E57LAL30T111ED 2) 136028 Non-flush NPN 2 m connection cable 1 NC E57LBL30T110E 2) 136059 Non-flush NPN plug connector M12 x 1 1 NC E57LBL30T110ED 2) 136060 Non-flush PNP 2 m connection cable 1 NC E57LBL30T111E 2) 136063 Non-flush PNP plug connector M12 x 1 1 NC E57LBL30T111ED 2) 136064 Information relevant for export to North America 1) Product Standards UL 508; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 NA Certification UL Listed Max. Voltage Rating 48 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - 2) Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 48 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - HPL03050EN

Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/51 E57 Premium Plus Short Series 2-wire M12 x 1 20 - 250 V DC40 - 250 V AC 2 Flush – 2 m connection cable 1 N/O Stainless steel E57SAL12A2136090 1 off Flush – plug connector M12 x 1 1 N/O E57SAL12A2SA136093 Flush – 2 m connection cable 1 NC E57SBL12A2136138 Flush – plug connector M12 x 1 1 NC E57SBL12A2SA136141 20 - 250 V AC Flush – 2 m connection cable 1 N/O E57SAL12A4136094 Flush – plug connector M12 x 1 1 N/O E57SAL12A4SA136097 Flush – 2 m connection cable 1 NC E57SBL12A4136142 Flush – plug connector M12 x 1 1 NC E57SBL12A4SA136145 20 - 250 V DC40 - 250 V AC 4 Non-flush – 2 m connection cable 1 N/O E57SAL12A2E136091 Non-flush – plug connector M12 x 1 1 N/O E57SAL12A2EA136092 Non-flush – 2 m connection cable 1 NC E57SBL12A2E136139 Non-flush – plug connector M12 x 1 1 NC E57SBL12A2EA136140 20 - 250 V AC Non-flush – 2 m connection cable 1 N/O E57SAL12A4E136095 Non-flush – plug connector M12 x 1 1 N/O E57SAL12A4EA136096 Non-flush – 2 m connection cable 1 NC E57SBL12A4E136143 Non-flush – plug connector M12 x 1 1 NC E57SBL12A4EA136144 M18 x 1 20 - 250 V DC40 - 250 V AC 5 Flush – 2 m connection cable 1 N/O Stainless steel E57SAL18A2136106 1 off Flush – plug connector M12 x 1 1 N/O E57SAL18A2SA136109 Flush – 2 m connection cable 1 NC E57SBL18A2136152 Flush – plug connector M12 x 1 1 NC E57SBL18A2SA136155 20 - 250 V AC Flush – 2 m connection cable 1 N/O E57SAL18A4136110 Flush – plug connector M12 x 1 1 N/O E57SAL18A4SA136113 Flush – 2 m connection cable 1 NC E57SBL18A4136156 Flush – plug connector M12 x 1 1 NC E57SBL18A4SA136159 20 - 250 V DC40 - 250 V AC 8 Non-flush – 2 m connection cable 1 N/O E57SAL18A2E136107 Non-flush – plug connector M12 x 1 1 N/O E57SAL18A2EA136108 Non-flush – 2 m connection cable 1 NC E57SBL18A2E136153 Non-flush – plug connector M12 x 1 1 NC E57SBL18A2EA136154 20 - 250 V AC Non-flush – 2 m connection cable 1 N/O E57SAL18A4E136111 Non-flush – plug connector M12 x 1 1 N/O E57SAL18A4EA136112 Non-flush – 2 m connection cable 1 NC E57SBL18A4E136157 Non-flush – plug connector M12 x 1 1 NC E57SBL18A4EA136158 Information relevant for export to North America ￫ Page 3/52 Function Rated operational voltage Rated switch-ing distance Installation type Switch-ing type Connection options: Contact configuration N/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm HPL03051EN

3/52 Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Premium Plus Series Function Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Premium Plus Short Series 2-wire M30 x 1.5 20 - 250 V DC40 - 250 V AC 10 Flush – 2 m connection cable 1 N/O Stainless steel E57SAL30A2136122 1 off Flush – plug connector M12 x 1 1 N/O E57SAL30A2SA136125 Flush – 2 m connection cable 1 NC E57SBL30A2136168 Flush – plug connector M12 x 1 1 NC E57SBL30A2SA136171 20 - 250 V AC Flush – 2 m connection cable 1 N/O E57SAL30A4136126 Flush – plug connector M12 x 1 1 N/O E57SAL30A4SA136129 Flush – 2 m connection cable 1 NC E57SBL30A4136172 Flush – plug connector M12 x 1 1 NC E57SBL30A4SA136175 20 - 250 V DC40 - 250 V AC 15 Non-flush – 2 m connection cable 1 N/O E57SAL30A2E136123 Non-flush – plug connector M12 x 1 1 N/O E57SAL30A2EA136124 Non-flush – 2 m connection cable 1 NC E57SBL30A2E136169 Non-flush – plug connector M12 x 1 1 NC E57SBL30A2EA136170 20 - 250 V AC Non-flush – 2 m connection cable 1 N/O E57SAL30A4E136127 Non-flush – plug connector M12 x 1 1 N/O E57SAL30A4EA136128 Non-flush – 2 m connection cable 1 NC E57SBL30A4E136173 Non-flush – plug connector M12 x 1 1 NC E57SBL30A4EA136174 3-wire M12 x 1 6 - 48 V DC 2 Flush NPN 2 m connection cable 1 N/O Stainless steel E57SAL12T110136098 1 off Flush NPN plug connector M12 x 1 1 N/O E57SAL12T110SD136101 Flush PNP 2 m connection cable 1 N/O E57SAL12T111136102 Flush PNP plug connector M12 x 1 1 N/O E57SAL12T111SD136105 Flush PNP 2 m connection cable 1 NC E57SBL12T111136148 Flush PNP plug connector M12 x 1 1 NC E57SBL12T111SD136151 4 Non-flush NPN 2 m connection cable 1 N/O E57SAL12T110E136099 Non-flush NPN plug connector M12 x 1 1 N/O E57SAL12T110ED136100 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 250 V AC, 250 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: 4, 4x, 6, 6P, 12, 13 HPL03052EN

Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/53 Inductive SensorsE57 Premium Plus Series Function Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Premium Plus Short Series 3-wire M12 x 1 6 - 48 V DC 4 Non-flush PNP 2 m connection cable 1 N/O Stain-less steel E57SAL12T111E136103 1 off Non-flush PNP plug connector M12 x 1 1 N/O E57SAL12T111ED136104 Non-flush NPN 2 m connection cable 1 NC E57SBL12T110E136146 Non-flush NPN plug connector M12 x 1 1 NC E57SBL12T110ED136147 Non-flush PNP 2 m connection cable 1 NC E57SBL12T111E136149 Non-flush PNP plug connector M12 x 1 1 NC E57SBL12T111ED136150 3-wire M18 x 1 6 - 48 V DC 5 Flush NPN 2 m connection cable 1 N/O Stain-less steel E57SAL18T110136114 1 off Flush NPN plug connector M12 x 1 1 N/O E57SAL18T110SD136117 Flush PNP 2 m connection cable 1 N/O E57SAL18T111136118 Flush PNP plug connector M12 x 1 1 N/O E57SAL18T111SD136121 Flush NPN 2 m connection cable 1 NC E57SBL18T110136160 Flush NPN plug connector M12 x 1 1 NC E57SBL18T110SD136163 Flush PNP 2 m connection cable 1 NC E57SBL18T111136164 Flush PNP plug connector M12 x 1 1 NC E57SBL18T111SD136167 8 Non-flush NPN 2 m connection cable 1 N/O E57SAL18T110E136115 Non-flush NPN 2 m connection cable 1 NC E57SBL18T110E136161 Non-flush NPN plug connector M12 x 1 1 N/O E57SAL18T110ED136116 Non-flush PNP 2 m connection cable 1 N/O E57SAL18T111E136119 Non-flush PNP plug connector M12 x 1 1 N/O E57SAL18T111ED136120 Non-flush NPN plug connector M12 x 1 1 NC E57SBL18T110ED136162 Non-flush PNP 2 m connection cable 1 NC E57SBL18T111E136165 Non-flush PNP plug connector M12 x 1 1 NC E57SBL18T111ED136166 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 250 V AC, 250 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - HPL03053EN

3/54 Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Premium Plus Series Function Rated operational voltage Rated switching distance Installation type Switching type Connection options: Contact configurationN/O = normally open contactNC = normally closed contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Premium Plus Short Series 3-wire M30 x 1.5 6 - 48 V DC 10 Flush NPN 2 m connection cable 1 N/O Stain-less steel E57SAL30T110136130 1 off Flush NPN plug connector M12 x 1 1 N/O E57SAL30T110SD136133 Flush PNP 2 m connection cable 1 N/O E57SAL30T111136134 Flush PNP plug connector M12 x 1 1 N/O E57SAL30T111SD136137 Flush NPN 2 m connection cable 1 NC E57SBL30T110136176 Flush NPN plug connector M12 x 1 1 NC E57SBL30T110SD136179 Flush PNP 2 m connection cable 1 NC E57SBL30T111136180 Flush PNP plug connector M12 x 1 1 NC E57SBL30T111SD136183 15 Non-flush NPN 2 m connection cable 1 N/O E57SAL30T110E136131 Non-flush NPN 2 m connection cable 1 NC E57SBL30T110E136177 Non-flush NPN plug connector M12 x 1 1 N/O E57SAL30T110ED136132 Non-flush PNP 2 m connection cable 1 N/O E57SAL30T111E136135 Non-flush PNP plug connector M12 x 1 1 N/O E57SAL30T111ED136136 Non-flush NPN plug connector M12 x 1 1 NC E57SBL30T110ED136178 Non-flush PNP 2 m connection cable 1 NC E57SBL30T111E136181 Non-flush PNP plug connector M12 x 1 1 NC E57SBL30T111ED136182 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 250 V AC, 250 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: - HPL03054EN

Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/55 Inductive SensorsE57 Premium Plus Series Engineering Circuit diagram Rated operating voltage Contacts 2 m connection cable M12 plug connector (front view plug) 2-wire sensors 20–250 V AC/DC and AC-onlyExample AC connection N/O and NC 20–250 V AC/DCExample DC connection N/O and NC (NPN) N/O and NC (PNP) 3-wire sensors 6–48 V DC N/O (NPN) N/O (PNP) NC (NPN) NC (PNP) BU BN L2 L1 Load L2 L1 Load BU BN Load L1/+V L2/(-) L1 L2 Load BU BN Load L1/+V L2/(-) L1 L2 Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load

3/56 Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Premium Plus Series Technical data Inductive SensorsE57 Premium Plus Series E57-L...L12A E57-L...L12T E57-S...L12A E57-S...L12T General Standards IEC/EN 60947-5-2 IEC/EN 60947-5-2 IEC/EN 60947-5-2 IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 IP67 Mechanical shock resistance g 30Shock duration 11 ms 30Shock duration 11 ms 30Shock duration 11 ms 30Shock duration 11 ms Characteristic values Temperature drift of S n % 10 10 10 10 Switching hysteresis of S n % 20 15 20 15 Rated operating voltage 20 - 250 V AC 6 - 48 V DC 40 - 250 V AC20 - 250 V DC 6 - 48 V DC Rated operational current I e 250 500 500 500 Switching frequency Hz 20 800 20 800 Switching state indication LED Red Red Red Red Function 2-wire 3-wire 2-wire 3-wire Construction type Design (outer dimensions) M12 x 1 M12 x 1 M12 x 1 M12 x 1 Material Stainless steel Stainless steel Stainless steel Stainless steel E57-L...L18A E57-L...L18T E57-S...L18A E57-S...L18T E57-R...L18A E57-R...L18T General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 IP67 IP67 IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Temperature drift of S n % 10 10 10 10 10 10 Switching hysteresis of S n % 20 15 20 15 20 15 Rated operating voltage 40 - 250 V AC20 - 250 V DC 6 - 48 V DC 40 - 250 V AC20 - 250 V DC 6 - 48 V DC 20 - 250 V AC 6 - 48 V DC Rated operational current I e 250 500 500 500 500 500 Switching frequency Hz 20 500 20 500 20 500 Switching state indication LED Red Red Red Red Red Red Function 2-wire 3-wire 2-wire 3-wire 2-wire 3-wire Construction type Design (outer dimensions) M18 x 1 M18 x 1 M18 x 1 M18 x 1 M18 x 1 M18 x 1 Material Stainless steel E57-L...L30A E57-L...L30T E57-S...L30A E57-S...L30T General Standards IEC/EN 60947-5-2 IEC/EN 60947-5-2 IEC/EN 60947-5-2 IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 IP67 Mechanical shock resistance g 30Shock duration 11 ms 30Shock duration 11 ms 30Shock duration 11 ms 30Shock duration 11 ms Characteristic values Temperature drift of S n % 10 10 10 10 Switching hysteresis of S n % 20 15 20 15 Rated operating voltage 20 - 250 V AC 6 - 48 V DC 40 - 250 V AC20 - 250 V DC 6 - 48 V DC Rated operational current I e 250 500 500 500 Switching frequency Hz 20 300 20 300 Switching state indication LED Red Red Red Red Function 2-wire 3-wire 2-wire 3-wire Construction type Design (outer dimensions) M30 x 1.5 M30 x 1.5 M30 x 1.5 M30 x 1.5 Material Stainless steel Stainless steel Stainless steel Stainless steel Notes Further technical data can be found in the Online Catalogue at www.moeller.net

Sensors E57 Premium Plus Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/57 Dimensions 2 m connection cable M12 plug connector Construction type Installation type Dimensions in (mm) a b c d e 2-wire, 2 m connection cable 12 mm Flush 62.4 50.3 - 16.8 M12x1 Non-flush 72.7 50.3 9.14 16.8 M12x1 18 mm Flush 64.5 50.9 - 23.8 M18x1 Non-flush 66.0 37.2 14.1 23.8 M18x1 30 mm Flush 69.3 50.3 - 35.9 M30x1.5 Non-flush 69.3 37.8 13.26 35.9 M30x1.5 2-wire, M12 plug connector 12 mm Flush 68.4 50.3 - 16.8 M12x1 Non-flush 77.7 50.3 9.14 9.14 M12x1 18 mm Flush 69.06 50.9 - 23.8 M18x1 Non-flush 69.4 37.2 14.1 23.8 M18x1 30 mm Flush 73.8 50.3 - 35.9 M30x1.5 Non-flush 73.8 37.8 13.26 35.9 M30x1.5 3-wire, 2 m connection cable 12 mm Flush 62.4 50.3 - 16.8 M12x1 Non-flush 72.7 50.3 9.14 16.8 M12x1 18 mm Flush 64.5 50.9 - 23.8 M18x1 Non-flush 66.0 37.2 14.1 23.8 M18x1 30 mm Flush 69.3 50.3 - 35.9 M30x1.5 Non-flush 69.3 37.8 13.26 35.9 M30x1.5 3-wire, M12 plug connector 12 mm Flush 68.7 50.3 - 16.8 M12x1 Non-flush 77.7 50.3 9.14 16.8 M12x1 18 mm Flush 69.3 50.9 - 23.8 M18x1 Non-flush 69.4 37.2 14.1 23.8 M18x1 30 mm Flush 74.1 50.3 - 35.9 M30x1.5 Non-flush 74.1 37.8 13.26 35.9 M30x1.5 E57R...A2...E57R...110...E57R...111... E57R...SAE57R...EAE57R...SDE57R...ED ① Sensor surface b c d a e e b c a d M18 x 1 25.4 8 o 17 50 88 25 24 a 25.4 8 o 17 50 93 25 24 a M18 x 1

3/58 Sensors E57 Premium Plus Short Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Premium Plus Short Series 2 m connection cable M12 plug connector a b c d 2-wire, AC, 2 m connection cable 12 mm Flush 51.7 39.6 0.5 M12x1 Non-flush 51.7 35.1 5 M12x1 18 mm Flush 35.4 21.82 0.5 M18x1 Non-flush 35.4 15.32 7 M18x1 30 mm Flush 40.2 25.15 0.8 M30x1.5 Non-flush 44.9 17.27 13.26 M30x1.5 2-wire, AC, M12 plug connector 12 mm Flush 57.8 39.6 0.5 M12x1 Non-flush 57.8 35.1 5 M12x1 18 mm Flush 40.0 21.82 0.5 M18x1 Non-flush 40.0 15.32 7 M18x1 30 mm Flush 44.8 25.15 0.8 M30x1.5 Non-flush 49.5 17.27 13.26 M30x1.5 2-wire, AC/DC, 2 m connection cable 12 mm Flush 62.4 50.27 - M12x1 Non-flush 62.4 45.77 5 M12x1 18 mm Flush 64.5 50.9 - M18x1 Non-flush 64.5 44.4 7 M18x1 30 mm Flush 69.3 53.8 - M30x1.5 Non-flush 69.3 41.4 13.26 M30x1.5 2-wire, AC/DC, M12 plug connector 12 mm Flush 68.4 50.27 - M12x1 Non-flush 68.4 45.77 5 M12x1 18 mm Flush 69.06 50.9 - M18x1 Non-flush 69.06 44.4 7 M18x1 30 mm Flush 73.8 53.8 - M30x1.5 Non-flush 73.8 41.4 13.26 M30x1.5 3-wire, DC, 2 m connection cable 12 mm Flush 35.2 23.9 0.5 M12x1 Non-flush 35.2 18.59 5 M12x1 18 mm Flush 35.4 21.82 0.5 M18x1 Non-flush 35.4 15.32 7 M18x1 30 mm Flush 40.2 21.26 0.8 M30x1.5 Non-flush 44.9 13.46 13.26 M30x1.5 3-wire, DC, M12 plug connector 12 mm Flush 41.5 23.9 0.5 M12x1 Non-flush 41.5 18.59 5 M12x1 18 mm Flush 40.3 21.82 0.5 M18x1 Non-flush 40.3 15.32 7 M18x1 30 mm Flush 45.0 21.26 0.8 M30x1.5 Non-flush 49.7 13.46 13.26 M30x1.5 b c a d d b c a

Sensors iProx series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/59 Inductive SensorsiProx series Description ① Two-color 360° output signal lamp② Shock absorbing Ryton face cap material ® a b Brief description The iProx is Eaton’s most powerful and versatile inductive, cylindrical sensor. With its mounting microprocessor and unique Smart-SenseTM technology this sensor has three times the range of other sensors in its class and offers unmatched configurability. Both shielded and unshielded versions of the sensor have an extended range so that the sensor can be positioned further away from the target object. This reduces the risk of a collision with the target object and increases operational reliability. The iProx also has many additional functions, which can be activated through the optionally available programming tools. With Windows software Prox-View the sensor can be programmed for any application. Sensor character-istics such as range can be set to the nearest tenth of a millimeter. The outputs can be configured as N/O or NC. Even interference immunity and response time can be adjusted. In addition the iProx features a mounting logic for timing delays and speed detection – without complex PLC programming. With its large range, high quality, sophisticated design, and adaptability to its environment, iProx is the ideal choice for demanding applications. Product features • Available as DC 3-wire version.• Reliably detect metal targets at up to three times the range of conven-tional shielded or unshielded tubular inductive sensors • Quality construction using a stainless steel barrel, 360° degree dual-color LED indicator, Ryton impact-resistant face cap ® and vibration-absorbing potting compound. • The automatic configuration automatically detects NPN and PNP connections and switches the sensor accordingly and without user intervention. • Configurable range, band detection, background (metal) object detec-tion, timing delays and speed detec-tion thanks to the microprocessor-based Smart-Sense™ technology. • Optional computer programming cable and Windows-based ProxView configuration software makes it easy to customize sensors. • Resistant to high interference levels (up to 20 V/m). • Resistant to extreme temperatures (-40 °C). Approvals

3/60 Sensors iProx series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsiProx series Ordering Rated opera-tional voltage Rated switching distance Installa-tion type Switch-ing type Connection options Contact configurationNC = Normally closed contactN/O = Normally open contact Material Part no.Article no. PriceSee price list Std. pack S n mm iProx series 3-wire M12 x 1 6 - 48 V DC 4 Flush NPNPNP 2 m connection cable 1 N/O Stainless steel E59-M12A105C02-D1136205 1 off Flush NPNPNP 2 m connection cable 1 NC Stainless steel E59-M12A105C02-D2136206 Flush NPNPNP plug connector M12 x 1 1 N/O Stainless steel E59-M12A105D01-D1136207 Flush NPNPNP plug connector M12 x 1 1 NC Stainless steel E59-M12A105D01-D2136208 6 - 48 V DC 10 Non-flush NPNPNP 2 m connection cable 1 N/O Stainless steel E59-M12C110C02-D1136209 Non-flush NPNPNP 2 m connection cable 1 NC Stainless steel E59-M12C110C02-D2136210 Non-flush NPNPNP plug connector M12 x 1 1 N/O Stainless steel E59-M12C110D01-D1136211 Non-flush NPNPNP plug connector M12 x 1 1 NC Stainless steel E59-M12C110D01-D2136212 M18 x 1 6 - 48 V DC 8 Flush NPNPNP 2 m connection cable 1 N/O Stainless steel E59-M18A108C02-D1136213 1 off Flush NPNPNP 2 m connection cable 1 NC Stainless steel E59-M18A108C02-D2136214 Flush NPNPNP plug connector M12 x 1 1 N/O Stainless steel E59-M18A108D01-D1136215 Flush NPNPNP plug connector M12 x 1 1 NC Stainless steel E59-M18A108D01-D2136216 18 Non-flush NPNPNP 2 m connection cable 1 N/O Stainless steel E59-M18C116C02-D1136217 1 off Non-flush NPNPNP 2 m connection cable 1 NC Stainless steel E59-M18C116C02-D2136218 Non-flush NPNPNP plug connector M12 x 1 1 N/O Stainless steel E59-M18C116D01-D1136219 Non-flush NPNPNP plug connector M12 x 1 1 NC Stainless steel E59-M18C116D01-D2136220 M30 x 1.5 6 - 48 V DC 15 Flush NPNPNP 2 m connection cable 1 N/O Stainless steel E59-M30A115C02-D1136221 1 off Flush NPNPNP 2 m connection cable 1 NC Stainless steel E59-M30A115C02-D2136222 Flush NPNPNP plug connector M12 x 1 1 N/O Stainless steel E59-M30A115D01-D1136223 Flush NPNPNP plug connector M12 x 1 1 NC Stainless steel E59-M30A115D01-D2136224 29 Non-flush NPNPNP 2 m connection cable 1 N/O Stainless steel E59-M30C129C02-D1136225 Non-flush NPNPNP 2 m connection cable 1 NC Stainless steel E59-M30C129C02-D2136226 Non-flush NPNPNP plug connector M12 x 1 1 N/O Stainless steel E59-M30C129D01-D1136227 Non-flush NPNPNP plug connector M12 x 1 1 NC Stainless steel E59-M30C129D01-D2136228 Programming cable RS232 – – – – – E59RP1136229 1 off Programming software CD – – – – – E59SW1136230 1 off Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. UL report applies to both Canada and US CSA Class No. – NA Certification UL Listed, certified by UL for use in Canada Max. Voltage Rating 48 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: 4, 4x, 6, 6P, 12, 13 HPL03060EN

Sensors iProx series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/61 Inductive SensorsiProx series Technical data Engineering Dimensions E59-M12A105 E59-M18A108 E59-M12C110 E59-M30A115 E59-M18C116 E59-M30C129 General Standards IEC/EN 60947-5-2 Ambient temperature °C -40 - +70 Protection type IP67 IP69K IP67 IP69K IP69K IP69K Mechanical shock resistance 30Shock duration 11 ms Characteristic values Rated switching distance Rated switching distance S n mm 4 8 10 15 18 29 Repetition accuracy of S n % 1 1 3 1 3 3 Temperature drift of S n % 10 10 10 10 10 10 Switching hysteresis of S n % 15 15 15 15 15 15 Sensing range mm – – – – – – Rated operating voltage 6 - 48 V DC 6 - 48 V DC 6 - 48 V DC 6 - 48 V DC 6 - 48 V DC 6 - 48 V DC Mains frequencyResidual ripple of U e % – – – – – – Operating current in the switched state at 24 V DC I b mA 15 15 15 15 15 15 Rated operational current I e mA 300 300 300 300 300 300 Voltage drop at I e U d V 2.5 2.5 2.5 2.5 2.5 2.5 Switching frequency Hz 580 390 300 240 150 145 Min. load current I e mA 1 1 1 1 1 1 Short-time current (10 ms, 5 Hz) A – – – – – – Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.15 0.15 0.15 0.15 0.15 0.15 Switching state indication LED Red Red Red Red Red Red Operating voltage display LED Red Red Red Red Red Red Boundary gain – – – – – – Protective functions Short-circuit protection, protection against polarity reversal, wire breakage protection Function 3-wire 3-wire 3-wire 3-wire 3-wire 3-wire Construction type Design (outer dimensions) M12 x 1 M18 x 1 M12 x 1 M30 x 1.5 M18 x 1 M30 x 1.5 Material Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Stainless steel Notes Further technical data can be found in the Online Catalogue at www.moeller.net Circuit diagram 59...CO2-D1E59...CO2-D2 E59...DO1-D1E59...DO1-D2 Pins 2 and 4 internally interconnected. 2 m connection cable M12 plug connector Construction type Installation type a b c d Construction type Installation type a b c d 12 mm Flush 62.4 50.3 0.5 17 12 mm Flush 68.7 50.3 0.5 17 Non-flush 62.4 41.6 9 17 Non-flush 68.7 41.6 9 17 18 mm Flush 64.5 50.9 0.5 24 18 mm Flush 69.3 50.9 0.5 24 Non-flush 64.5 37.4 14 24 Non-flush 69.3 37.4 14 24 30 mm Flush 69.6 54.1 0.75 36 30 mm Flush 74.1 54.1 0.75 36 Non-flush 69.6 35.8 19 36 Non-flush 74.1 35.8 19 36 BU BN (-) +V BK Load (-) Load +V Load b c d a b c a d

3/62 Sensors E57 Miniature Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Miniature Series Description ① High quality stainless steel enclosures.② M12 plug connector available for sizes 6.5 and 8 mm.③ Sizes 5 mm and 8 mm with thread; 4 mm and 6.5 mm without thread.④ Size 6.5 mm supplied complete with mounting bracket. c b d a 4 mm 5 mm 6.5 mm 8 mm Short description Eaton’s unique inductive proximity have been developed specially for use in extremely small spaces. The wide range of available models with enclosure diameters from 8 mm down to 4 mm covers a multitude of application scenarios. The sensors feature three-wire connections with an input voltage of 10 to 30 V DC. Both shielded and unshielded versions are available. Product features • Small 4, 5, 6.5 and 8 mm diameters for use in applications with limited space for mounting sensors • Stainless steel enclosure.• All models have an output status display. • Short-circuit and reverse polarity protection. • High degree of protection IP67. Approvals

Sensors E57 Miniature service 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/63 Inductive SensorsE57 Miniature service Ordering Rated operational voltage Rated switching distance Installa-tion type Switching type Connection options Contact configurationNC = Normally closed contactN/O = Normally open contact Material Part no.Article no. PriceSee price list Std. pack S n mm E57 Miniature Series 3-wire 4 mm ⌀ 10 - 30 V DC 0.8 Flush NPN 2 m connection cable 1 N/O Stainless steel E57EAL4T110SP136238 1 off 0.8 Flush PNP 2 m connection cable 1 N/O E57EAL4T111SP136239 M5 x 1 10 - 30 V DC 0.8 Flush NPN 2 m connection cable 1 N/O Stainless steel E57EAL5T110SP136240 1 off 0.8 Flush PNP 2 m connection cable 1 N/O E57EAL5T111SP136241 6.5 mm ⌀ 10 - 30 V DC 1 Flush NPN 2 m connection cable 1 N/O Stainless steel E57EAL6T110SP136243 1 off 2 Non-flush NPN 2 m connection cable 1 N/O E57EAL6T110EP136242 1 Flush PNP 2 m connection cable 1 N/O E57EAL6T111SP136245 2 Non-flush PNP 2 m connection cable 1 N/O E57EAL6T111EP136244 M8 x 1 10 - 30 V DC 1 Flush NPN 2 m connection cable 1 N/O Stainless steel E57EAL8T110SP136249 1 off 1 Flush NPN 2 m connection cable 1 NC E57EBL8T110SP136257 1 Flush NPN plug connector M12 x 1 1 N/O E57EAL8T110SD136248 1 Flush NPN plug connector M12 x 1 1 NC E57EBL8T110SD136256 1 Flush PNP 2 m connection cable 1 N/O E57EAL8T111SP136253 1 Flush PNP 2 m connection cable 1 NC E57EBL8T111SP136261 1 Flush PNP plug connector M12 x 1 1 N/O E57EAL8T111SD136252 1 Flush PNP plug connector M12 x 1 1 NC E57EBL8T111SD136260 2 Non-flush NPN 2 m connection cable 1 N/O E57EAL8T110EP136247 2 Non-flush NPN 2 m connection cable 1 NC E57EBL8T110EP136255 2 Non-flush NPN plug connector M12 x 1 1 N/O E57EAL8T110ED136246 2 Non-flush NPN plug connector M12 x 1 1 NC E57EBL8T110ED136254 2 Non-flush PNP 2 m connection cable 1 N/O E57EAL8T111EP136251 2 Non-flush PNP 2 m connection cable 1 NC E57EBL8T111EP136259 2 Non-flush PNP plug connectorM12 x 1 1 N/O E57EAL8T111ED136250 2 Non-flush PNP plug connector M12 x 1 1 NC E57EBL8T111ED136258 HPL03063EN

3/64 Sensors E57 Miniature Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE57 Miniature Series Technical data E57-EAL..., E57-EBL... General Standards IEC/EN 60947-5 Ambient temperature °C -25 - +70 Protection type IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 1 Temperature drift of S n % 10 Switching hysteresis of S n % 15 Rated operating voltage 10 - 30 V DC Operating current in the switched state at 24 V DC I b mA 10 Rated operational current I e mA 200 Voltage drop at I e U d V 1.5 Switching frequency Hz 2000 Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.01 Switching state indication LED Red Protective functions Short-circuit protection Function 3-wire Material Stainless steel Notes Further technical data can be found in the Online Catalogue at www.moeller.net

Sensors E57 Miniature Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/65 Inductive SensorsE57 Miniature Series Engineering Dimensions Circuit diagram Rated operating voltage Contacts 2 m connection cable M12 plug connector (front view plug) 3-wire sensors 10 - 30 V DC N/O (NPN) N/O (PNP) NC (NPN) NC (PNP) E57EAL4T... E57EAL5T... E57EAL6T... E57...8T...SP E57...8T...SD E57...8T...EP E57...8T...ED BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load 25 LED 4 M5 x 0.5 25 21 LED SW8 45 LED 6.5 M8 x 1 LED 30 30 SW13 36 70 39 12 6.5 LED

3/66 Sensors E55 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE55 Series Description ① LED for output status.② Corrosion-resistant PBT enclosure ① Sensor head fitted for lateral detection. Can be rotated 90º.② Non-metal enclosure is corrosion-resistant. 12 mm 18 mm 30 mm a b a b Short description Cylinder designTubular Inductive Proximity Sensors by Eaton’s electrical business are constructed of corrosion resistant PBT plastic. They are ideally suited for wash down applications such as those found in food processing plants. They are available in 12 mm, 18 mm and 30 mm diameters. Shielded sensors can be embedded in metallic surfaces. Approvals Product features Cylinder design• Versions for 2-wire AC voltage or 3-wire DC voltage. • Threaded tubular enclosures in three diameters allow easy integration into new and existing applications • Nonmetallic construction offers excellent resistance to corrosion • All models feature an output signal indicator light. Short description Rectangular designThese sensors from Eaton’s electrical business feature PBT resin enclosures for high resistance to corrosion. The enclosure is sized to offer a direct replacement for standard limit switches. The unique sensing head is factory assembled for top sensing, but can be easily converted in the field to any one of four side sensing positions. Models are available with sensing ranges from 15 mm to 40 mm. The sensors can be configured for N/O or NC operation. Product features Rectangular design• Nonmetallic enclosure offers excellent resistance to corrosion. • Same form factor and mounting as standard limit switches for easy retrofit. • Sensor head features five sensing positions (top and all four sides) that can be easily changed in the field. • Long sensing ranges up to 40 mm.

Sensors E55 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/67 Inductive SensorsE55 Series Design (outer dimensions) Rated operational voltage Rated switching distance Installa-tion type Switching type Connection option Contact configurationNC = Normally closed contactN/O = Normally open contactP = Normally closed contact/Normally open closed pro-grammable Material Part no.Article no. PriceSee price list Std. pack S n mm E55 Series 2-wire M12 x 1 20 - 250 V AC 2 Flush – 2 m connection cable 1 N/O plastic E55CAL12A2135816 1 off 2 Flush – 1 NC E55CBL12A2135834 4 Non-flush – 1 N/O E55CAL12A2E135817 4 Non-flush – 1 NC E55CBL12A2E135835 M18 x 1 5 Flush – 1 N/O E55CAL18A2135822 5 Flush – 1 NC E55CBL18A2135839 8 Non-flush – 1 N/O E55CAL18A2E135823 8 Non-flush – 1 NC E55CBL18A2E135840 M30 x 1.5 10 Flush – 1 N/O E55CAL30A2135828 10 Flush – 1 NC E55CBL30A2135844 15 Non-flush – 1 N/O E55CAL30A2E135829 15 Non-flush – 1 NC E55CBL30A2E135845 3-wire M12 x 1 10 - 30 V DC 2 Flush NPN 2 m connection cable 1 N/O plastic E55CAL12T110135818 1 off 2 Flush PNP 1 N/O E55CAL12T111135820 2 Flush PNP 1 NC E55CBL12T111135837 4 Non-flush NPN 1 N/O E55CAL12T110E135819 4 Non-flush PNP 1 N/O E55CAL12T111E135821 4 Non-flush NPN 1 NC E55CBL12T110E135836 4 Non-flush PNP 1 NC E55CBL12T111E135838 M18 x 1 5 Flush NPN 1 N/O E55CAL18T110135824 5 Flush PNP 1 N/O E55CAL18T111135826 5 Flush NPN 1 NC E55CBL18T110135841 8 Non-flush NPN 1 N/O E55CAL18T110E135825 8 Non-flush PNP 1 N/O E55CAL18T111E135827 8 Non-flush NPN 1 NC E55CBL18T110E135842 8 Non-flush PNP 1 NC E55CBL18T111E135843 HPL03067EN

3/68 Sensors E55 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3-wire M30 x 1.5 10 - 30 V DC 10 Flush NPN 2 m connection cable 1 N/O plastic E55CAL30T110135830 1 off 10 Flush PNP 1 N/O E55CAL30T111135832 10 Flush NPN 1 NC E55CBL30T110135846 10 Flush PNP 1 NC E55CBL30T111135848 15 Non-flush NPN 1 N/O E55CAL30T110E135831 15 Non-flush PNP 1 N/O E55CAL30T111E135833 15 Non-flush NPN 1 NC E55CBL30T110E135847 15 Non-flush PNP 1 NC E55CBL30T111E135849 2-wire 40 x 40 x 118 20 - 250 V AC 15 Flush – Screwed terminal 1 P plastic E55BLT1C135812 1 off 20 Non-flush – 1 P E55BLT1D135813 30 Non-flush – 1 P E55BLT1E135814 40 Non-flush – 1 P E55BLT1F135815 Design (outer dimensions) Rated operational voltage Rated switching distance Installa-tion type Switching type Connection option Contact configurationNC = Normally closed contactN/O = Normally open contactP = Normally closed contact/Normally open closed pro-grammable Material Part no.Article no. PriceSee price list Std. pack S n mm HPL03068EN

Sensors E55 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/69 Inductive SensorsE55 Series Technical data E55C...L12A E55C...L12T E55C...L12T...E E55C...L18A E55C...L18T General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP66 IP66 IP66 IP66 IP66 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 10 10 10 10 10 Temperature drift of S n % 10 10 10 10 10 Switching hysteresis of S n % 20 20 20 20 20 Rated operating voltage 20 - 250 V AC 10 - 30 V DC 10 - 30 V DC 20 - 250 V AC 10 - 30 V DC Residual ripple of U e % 10 10 10 10 10 Operating current in the switched state at 24 V DC I b mA 3 – 3 3 – Rated operational current I e mA 150 200 200 150 200 Voltage drop at I e U d V 10 8 8 10 8 Switching frequency Hz 25 2000 1000 25 1000 Switching state indication LED Red Red Red Red Red Protective functions Short-circuit protectionProtection against polarity reversal Short-circuit protectionProtection against polarity reversal Short-circuit protectionProtection against polarity reversal Function 2-wire 3-wire 3-wire 2-wire 3-wire Construction type Design outer dimensions) M12 x 1 M12 x 1 M12 x 1 M18 x 1 M18 x 1 Connection options Cable open2 m connection cable Material plastic E55C...L18T...E E55C...L30T E55C...L30A E55C...L30T...E E55BLT... General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP66 IP66 IP66 IP66 IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 10 10 10 10 10 Temperature drift of S n % 10 10 10 10 10 Switching hysteresis of S n % 20 20 20 20 20 Rated operating voltage 10 - 30 V DC 10 - 30 V DC 20 - 250 V AC 10 - 30 V DC 20 - 264 V AC Residual ripple of U e % 10 10 10 10 10 Operating current in the switched state at 24 V DC I b mA 3 – 3 3 3 Rated operational current I e mA 200 200 150 200 400 Voltage drop at I e U d V 8 8 10 8 8 Switching frequency Hz 500 300 25 150 25 Switching state indication LED Red Red Red Red Red Protective functions Short-circuit protectionProtection against polarity reversal Short-circuit protectionProtection against polarity reversal Short-circuit protectionProtection against polarity reversal Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 3-wire 3-wire 2-wire 3-wire 2-wire Construction type Design (outer Dimensions) M18 x 1 M30 x 1.5 M30 x 1.5 M30 x 1.5 40 x 40 x 118 Connection options Material Notes Further technical data can be found in the Online Catalogue at www.moeller.net

3/70 Sensors E55 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE55 Series Engineering E55CAL...AZ, E55CBL...A2E55CAL...A2E, E55CBL...A2E E55BL... E55CAL...110, E55CBL...110E55CAL...110E, E55CBL...110E E55BL... E55CAL...111, E55CBL...111EE55CAL...111, E55CBL...111E Note:Switches are supplied configured as N/O. Can be switched internally to NC. Dimensions E55CAL12... E55BL... E55CBL12... E55CAL18... E55CBL18... E55CAL30... E55CBL30... BU BN L2 L1 Load 2 1 4 3 L2 L1 Load BU BN (-) +V BK Load L2 L1 Load 2 1 4 3 BU BN (-) +V BK Load 45 55 LED M12x1 46 50 40 o 5.3 56 60 LEDs E55BLT1F 118 40 11 10 50 40 30 45 55 LED M18x1 60 80 LED M30x1.5

Sensors E52 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/71 Inductive SensorsE52 Series Description ① Adjustable sensing head for top- and side-sensing.② M12 Plug connector.③ Two LEDs status indication. b c a Short description The E52 Cube sensor from Eaton is a powerful inductive proximity sensor. It provides a long sensing range in a compact, standard-conformant enclo-sure. The outputs of this series are self-configuring as PNP or NPN, without the need for user intervention. The E52 features additional outputs for various connection types to cover many applications with just a few models. Separate indicator lights for voltage and output signal simplify installation and troubleshooting. Five different mounting methods make these sensors exceptionally versatile. The E52 Cube has been developed specially for demanding applications, for example in car production, in bulk material plants and in metal-process-ing industries. Product features • Large measuring range up to 40 mm.• Four-wire models feature additional outputs (1 × NC, 1 × N/O). • Four-wire DC models feature an automatic configuration function for independent NPN/PNP selection. • Robust design featuring vibration and impact-absorbing potting compound. • Ideal for extreme temperatures or high pressure washdown environ-ments. Approvals

3/72 Sensors E52 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE52 Series Ordering Engineering Function Design (outer dimensions) Rated operational voltage Rated switching distance Installation type Switching type Connection option Contact configurationNC = Normally closed contactN/O = Normally open contact Material Part no.Article no. PriceSee price list Std. pack S n mm E52-Serie 4-wire 40 x 40 x 40Rectangular enclosure 6 - 48 V DC 15 Flush NPNPNP M12, "A"-codedplug connectors 1 NC/1 N/O Zinc/plastic E52Q-DL15SAD01135804 1 off 6 - 48 V DC 15 Non-flush 1 NC/1 N/O E52Q-DL15UAD01135805 6 - 48 V DC 20 Flush 1 NC/1 N/O E52Q-DL20SAD01135806 6 - 48 V DC 20 Non-flush 1 NC/1 N/O E52Q-DL20UAD01135807 6 - 48 V DC 25 Non-flush 1 NC/1 N/O E52Q-DL25UAD01135808 6 - 48 V DC 30 Non-flush 1 NC/1 N/O E52Q-DL30UAD01135809 6 - 48 V DC 35 Non-flush 1 NC/1 N/O E52Q-DL35UAD01135810 6 - 48 V DC 40 Non-flush 1 NC/1 N/O E52Q-DL40UAD01135811 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. UL report applies to both Canada and US CSA Class No. – NA Certification UL Listed, certified by UL for use in Canada Max. Voltage Rating 48 V DC Degree of Protection IEC: IP68; UL Type 4, 4X, 6, 6P, 12, 13 E52... Through autoconfiguration connectable to both +V or (-). Dimensions 2 13 4 (-) +V BN WH N.C. BK N.O. BU Load Load 40 40 40 69.2 HPL03072EN

Sensors E52 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/73 Inductive SensorsE52 Series Technical data E52-Series General Standards IEC/EN 60947-5-2 Ambient temperature °C -40 - +70 Protection type IP67 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 2 Temperature drift of S n % 10 Switching hysteresis of S n % 15 Rated operating voltage 6 - 48 V DC Operating current in the switched state at 24 V DC I b mA 25 Rated operational current I e mA 300 Voltage drop at I e U d V 2.5 Switching frequency Hz 100 Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.15 Switching state indication LED Red Operating voltage display LED Green Protective functions Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 4-wire Design (outer dimensions) 40 x 40 x 40Rectangular enclosure Connection options M12, "A"-codedplug connectors Material plastic Surface Zinc alloy Notes Further technical data can be found in the Online-Catalogue at www.moeller.net

3/74 Sensors E56 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE56 Series Description ① Indicator lights for current and output status. a Short description Eaton’s E56 sensors are powerful inductive proximity sensors. The E56 Pancake provides greater sensing ranges than other inductive sensor package types. They are easy to wire and feature self-configuring complementary outputs, which automatically detect an NPN or PNP connection and configure the sensor accordingly without the need for user intervention. Indicator lights for power and output state simplify trouble-shooting compared to sensors with only an output indicator. These convenience features and their high performance make the E56 Pancake sensors ideal for applications in which a rugged design and a long range are required. Product features • Longest measuring range on the market – up to 100 mm. • Three sizes for all application scenarios; max. range 50, 70 or 100 mm. • Complementary outputs (1 × NC, 1 × N/O) on models withfour-wire connection. • Models with DC voltage four-wire connection feature an automatic configuration function for indepen-dent switchover between NPN and PNP. • Robust design featuring vibration and impact-absorbing potting compound. • Ideal for extreme temperatures or high pressure washdown environ-ments. Approvals

Sensors E56 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors 3/75 Inductive SensorsE56 Series Ordering Engineering Engineering Inductive SensorsE56-Serie Function Design (outer dimensions) Rated operational voltage Rated switching distance Installa-tion type Switching type Connection option Contact configurationNC = Normally closed contactN/O = Normally open contact Material Part no.Article no. PriceSee price list Std. pack S n mm E56 Series 4-wire 79 x 79 x 39 6 - 48 V DC 40 Flush NPNPNP plug connectors 1 NC/1 N/O plastic E56ADL40SAD01136234 1 off 79 x 79 x 39 50 Non-flush NPNPNP 1 NC/1 N/O E56ADL40UAD01136235 109 x 110 x 41 70 Non-flush NPNPNP 1 NC/1 N/O E56BDL70UAD01136236 171.5 x 171.5 x 67.4 100 Non-flush NPNPNP 1 NC/1 N/O E56CDL100UAD01136237 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. UL report applies to both Canada and US CSA Class No. – NA Certification UL Listed, certified by UL for use in Canada Max. Voltage Rating 48 V DC Degree of Protection IEC: IP67, IP69K; UL/CSA Type: 4, 4x, 6, 6P, 12, 13 Through autoconfiguration connectable to both +V or (-). Dimensions E56ADL40... E56BDL70... E56CDL100... 1 23 4 (-) +V BN WH N.C. BK N.O. BU Load Load 6579 39 65 79 110 o5 92 110 41 92 110 125.4 o5.5 149 171.5 67.5 149 171.5 184.4 o7 HPL03075EN

3/76 Sensors E56 Series 2010 CA08103002Z-EN www.eaton.com Inductive Sensors Inductive SensorsE56 Series Technical data E56ADL40S E56ADL40U E56BDL70U E56CDL100U General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 -25 - +70 -25 - +70 Protection type IP67 IP67 IP67 IP67 Characteristic values Repetition accuracy of S n % 2 2 2 2 Temperature drift of S n % 10 10 10 10 Switching hysteresis of S n % 15 15 15 15 Rated operating voltage 6 - 48 V DC 6 - 48 V DC 6 - 48 V DC 6 - 48 V DC Operating current in the switched state at 24 V DC I b mA 25 25 25 25 Rated operational current I e mA 300 300 300 300 Voltage drop at I e U d V 2.5 2.5 2.5 2.5 Switching frequency Hz 100 100 20 20 Min. load current I e mA 1 1 1 1 Residual current due to the load in locked state at 230 V AC or 24 V DC I r mA 0.15 0.15 0.15 0.15 Switching state indication LED Red Red Red Red Operating voltage display LED Red Red Red Red Protective functions Short-circuit protectionProtection against polarity reversal Function 4-wire 4-wire 4-wire 4-wire Construction type Design (outer dimensions) 79 x 79 x 39 79 x 79 x 39 109 x 110 x 41 171.5 x 171.5 x 67.4 Connection options M12, "A"-codedplug connectors Material plastic plastic plastic plastic Surface PPS PPS PPS PPS Notes Further technical data can be found in the Online Catalogue at www.moeller.net

Sensors E53 Series 2010 CA08103002Z-EN www.eaton.com Capacitive Sensors 3/77 Capacitive SensorsE53 Series Description ① Models with cable or plug connectors available.② All models feature an output signal indicator light. ① With mounting bracket. b a a Short description The capacitive proximity sensors from Eaton’s electrical business are self-contained units designed to detect both metallic and nonmetallic targets. They are ideally suited for liquid level control and for sensing powdered or granulated material. For best operation, they should be used in an environment having relatively constant temperature and humidity. Product features • Detect liquids, powders and other materials that are difficult or impossible with other sensor types. • Corrosion-resistant insulated enclosure. Adjustable sensitivity. Approvals

3/78 Sensors E53 Series 2010 CA08103002Z-EN www.eaton.com Capacitive Sensors Capacitive SensorsE53 Series Ordering Rated operational voltage Rated switching distance Installation type Switching type Connection options Contact configurationNC = Normally closed contactN/O = Normally open contact Material Part no.Article no. PriceSee price list Std. pack S n mm E53 Series 2-wire M18 x 1 20 - 250 V AC 8 Flush – 2 m connection cable 1 N/O plastic E53KAL18A2134517 1 off Flush – plug connector M12 x 1 1 N/O E53KAL18A2SA134760 Flush – 2 m connection cable 1 NC E53KBL18A2134791 Flush – plug connector M12 x 1 1 NC E53KBL18A2SA134794 15 Non-flush – 2 m connection cable 1 N/O E53KAL18A2E134518 Non-flush – plug connector M12 x 1 1 N/O E53KAL18A2EA134519 Non-flush – 2 m connection cable 1 NC E53KBL18A2E134792 Non-flush – plug connector M12 x 1 1 NC E53KBL18A2EA134793 M30 x 1.5 20 - 250 V AC 20 Flush – 2 m connection cable 1 N/O plastic E53KAL30A2134769 1 off Flush – plug connector M12 x 1 1 N/O E53KAL30A2SA134772 Flush – 2 m connection cable 1 NC E53KBL30A2134803 Flush – plug connector M12 x 1 1 NC E53KBL30A2SA134806 25 Non-flush – 2 m connection cable 1 N/O E53KAL30A2E134770 Non-flush – plug connector M12 x 1 1 N/O E53KAL30A2EA134771 Non-flush – 2 m connection cable 1 NC E53KBL30A2E134804 Non-flush – plug connector M12 x 1 1 NC E53KBL30A2EA134805 3-wire M18 x 1 10 - 30 V DC 8 Flush NPN 2 m connection cable 1 N/O plastic E53KAL18T110134761 1 off Flush NPN plug connector M12 x 1 1 N/O E53KAL18T110SD134764 Flush PNP 2 m connection cable 1 N/O E53KAL18T111134765 Flush PNP plug connector M12 x 1 1 N/O E53KAL18T111SD134768 Flush NPN 2 m connection cable 1 NC E53KBL18T110134795 Flush NPN plug connector M12 x 1 1 NC E53KBL18T110SD134798 Flush PNP 2 m connection cable 1 NC E53KBL18T111134799 Flush PNP plug connector M12 x 1 1 NC E53KBL18T111SD134802 HPL03078EN

Sensors E53 Series 2010 CA08103002Z-EN www.eaton.com Capacitive Sensors 3/79 3-wire M18 x 1 10 - 30 V DC 15 Non-flush NPN 2 m connection cable 1 N/O plastic E53KAL18T110E134762 1 off Non-flush NPN plug connector M12 x 1 1 N/O E53KAL18T110ED134763 Non-flush PNP 2 m connection cable 1 N/O E53KAL18T111E134766 Non-flush PNP plug connector M12 x 1 1 N/O E53KAL18T111ED134767 Non-flush NPN 2 m connection cable 1 NC E53KBL18T110E134796 Non-flush NPN plug connector M12 x 1 1 NC E53KBL18T110ED134797 Non-flush PNP 2 m connection cable 1 NC E53KBL18T111E134800 Non-flush PNP plug connector M12 x 1 1 NC E53KBL18T111ED134801 M30 x 1.5 10 - 30 V DC 20 Flush NPN 2 m connection cable 1 N/O plastic E53KAL30T110134773 1 off Flush NPN plug connector M12 x 1 1 N/O E53KAL30T110SD134776 Flush PNP 2 m connection cable 1 N/O E53KAL30T111134777 Flush PNP plug connector M12 x 1 1 N/O E53KAL30T111SD134780 Flush NPN 2 m connection cable 1 NC E53KBL30T110134807 Flush NPN plug connector M12 x 1 1 NC E53KBL30T110SD134810 Flush PNP 2 m connection cable 1 NC E53KBL30T111134811 Flush PNP plug connector M12 x 1 1 NC E53KBL30T111SD134814 10 - 30 V DC 25 Non-flush NPN 2 m connection cable 1 N/O E53KAL30T110E134774 Non-flush NPN plug connector M12 x 1 1 N/O E53KAL30T110ED134775 Non-flush PNP 2 m connection cable 1 N/O E53KAL30T111E134778 Non-flush PNP plug connector M12 x 1 1 N/O E53KAL30T111ED134779 Non-flush NPN 2 m connection cable 1 NC E53KBL30T110E134808 Non-flush NPN plug connector M12 x 1 1 NC E53KBL30T110ED134809 Non-flush PNP 2 m connection cable 1 NC E53KBL30T111E134812 Non-flush PNP plug connector M12 x 1 1 NC E53KBL30T111ED134813 Rated operational voltage Rated switching distance Installation type Switching type Connection options Contact configurationNC = Normally closed contactN/O = Normally open contact Material Part no.Article no. PriceSee price list Std. pack S n mm HPL03079EN

3/80 Sensors E53 Series 2010 CA08103002Z-EN www.eaton.com Capacitive Sensors 2-wire 34 ⌀ 20 - 250 V AC 35 Non-flush – 2 m connection cable 1 N/O plastic E53KAL34A2E134781 1 off 35 Non-flush – plug connector M12 x 1 1 N/O E53KAL34A2EA134782 35 Non-flush – 2 m connection cable 1 NC E53KBL34A2E134815 35 Non-flush – plug connector M12 x 1 1 NC E53KBL34A2EA134816 3-wire 34 ⌀ 10 - 30 V DC 25 Flush NPN 2 m connection cable 1 N/O plastic E53KAL34T110134783 1 off 25 Flush NPN plug connector M12 x 1 1 N/O E53KAL34T110SD134786 25 Flush PNP 2 m connection cable 1 N/O E53KAL34T111134787 25 Flush PNP plug connector M12 x 1 1 N/O E53KAL34T111SD134790 25 Flush NPN 2 m connection cable 1 NC E53KBL34T110134817 25 Flush NPN plug connector M12 x 1 1 NC E53KBL34T110SD134820 25 Flush PNP 2 m connection cable 1 NC E53KBL34T111134821 25 Flush PNP plug connector M12 x 1 1 NC E53KBL34T111SD134824 35 Non-flush NPN 2 m connection cable 1 N/O E53KAL34T110E134784 35 Non-flush NPN plug connector M12 x 1 1 N/O E53KAL34T110ED134785 35 Non-flush PNP 2 m connection cable 1 N/O E53KAL34T111E134788 35 Non-flush PNP plug connector M12 x 1 1 N/O E53KAL34T111ED134789 35 Non-flush NPN 2 m connection cable 1 NC E53KBL34T110E134818 35 Non-flush NPN plug connector M12 x 1 1 NC E53KBL34T110ED134819 35 Non-flush PNP 2 m connection cable 1 NC E53KBL34T111E134822 35 Non-flush PNP plug connector M12 x 1 1 NC E53KBL34T111ED134823 Rated operational voltage Rated switching distance Installation type Switching type Connection options Contact configurationNC = Normally closed contactN/O = Normally open contact Material Part no.Article no. PriceSee price list Std. pack S n mm HPL03080EN

Sensors E53 Series 2010 CA08103002Z-EN www.eaton.com Capacitive Sensors 3/81 Capacitive SensorsE53 Series Engineering Capacitive SensorsE53-series Technical data Circuit diagram Rated operating voltage Contacts 2 m connection cable M12 plug connector (front view plug) 2-wire sensors 20–250 V AC/DC N/O and NC 3-wire sensors 10–30 V DC N/O (NPN) N/O (PNP) NC (NPN) NC (PNP) E53...A... E53...T.. General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +70 -25 - +70 Protection type IP65 IP65 Mechanical shock resistance g 30Shock duration 11 ms Characteristic values Repetition accuracy of S n % 10 10 Temperature drift of S n % 10 10 Switching hysteresis of S n % 20 20 Rated operating voltage 20 - 250 V AC 10 - 30 V DC Residual ripple of U e % 10 10 Rated operational current I e mA 300 300 Voltage drop at I e U d V 9 2 Switching frequency Hz 15 250 Min. load current I e mA 5 5 Switching state indication LED Red Red Function 2-wire 3-wire Material plastic plastic Notes Further technical data can be found in the Online Catalogue at www.moeller.net BU BN L2 L1 Load L2 L1 Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load BU BN (-) +V BK Load (-) +V Load

3/82 Sensors E53 Series 2010 CA08103002Z-EN www.eaton.com Capacitive Sensors Capacitive SensorsE53 Series Dimensions E53KAL18...E53KBL18... ① Sensitivity setting E53KAL30...E53KBL30... ① Sensitivity setting E53KAL34...E53KBL34...M12 plug connector Fixing bracket (included as standard) 2 m connection cable ① Sensitivity setting 60 80 LED a M18x1/ M30x1.5 12 83 M12x1 M12x1 M18x1 95 70 15 LED a 60 80 LED a M18x1/ M30x1.5 15 85 M12x1 M12x1 M30 100 60 20 LED a M12 x 1 o 34 90 20 LED 48 43 60 80 LED a

Sensors Comet series 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/83 Optical sensorsComet series Description ① FO cable versions possible.② Light/dark operation selector switch on all models.③ Models with M12 plug connector.④ Sensing beam 0° or 90°.⑤ Solid polyurethane body for rugged use. e d a b a c Short description Eaton’s high-performance photo-electric sensors feature a tubular enclosure with a diameter of 18 mm and are available in a range of versions to solve virtually any sensing problem. The sensors are available in thru-beam, reflex, polarized reflex, diffuse reflective, focused diffuse reflective, wide-angle diffuse reflective, Perfect Prox ® , Fine Spot Perfect Prox ® and fiber optic sensing versions. The Perfect Prox ® sensors are among the most powerful on the market. These sensors reliably detect targets of different color, reflectance, contrast or surface shape at the same range, while ignoring background objects just a fraction of an inch away. The Comet Series includes AC/DC and DC-only models with 2-, 3- and 4-wire circuitry, and with cable or M 12 micro-connector. Each sensor features a Light/ Dark Operation switch and a gain control to provide for quick adjustment to peak optical performance. The unique threaded body with flat sides allows quick mounting in a 19 mm hole or against any flat surface. Internal components are rigidly sealed in a solid encapsulated package for excellent performance in high vibra-tion and high-shock applications. Product features • Industry standard 18 mm diameter threaded body has flat sides allowing it to be mounted like a tubular sensor or against any flat surface • Models with a 90° measurement direction can be installed in holes with a depth of only 152 mm. • Perfect Prox ® technology provides exceptional background rejection and application problem-solving. • Visible sensing beams let you see where the light barrier is aimed for quick flush mounting and alignment. • Solid polyurethane enclosure completely encapsulates internal circuits for high resistance to shock and vibration. • Adaptable modulation circuit provides immunity to cross talk from other closely mounted sensors. • Models available with both AC and DC operation in a single unit – up to 264 volts AC. • 4-wire DC sensors offer both NPN and PNP outputs. • Output status indicator visible from a wide 270° angle. Approvals

3/84 Sensors Comet Series, FO cables 2010 CA08103002Z-EN www.eaton.com Optical sensors Optical sensorsComet Series, FO cables Ordering Rated operating voltage Switching type Rated switching distance Connection options Description Type of light Part no.Article no. PriceSee price list Std. pack S n mm Comet series M18 x 1, light switching, dark switching, programmable, plastic 3-wire Thru-beam sensor (detector), forward viewing 20 - 264 V AC15 - 30 V DC NPN 6000 2 m connection cable – Visible red 12100A6513135566 1 off 6000 plug connector M12 x 1 12100AQD03135568 24000 2 m connection cable 12102A6513135574 24000 plug connector M12 x 1 12102AQD03135576 Thru-beam sensor (source), forward viewing 20 - 264 V AC15 - 30 V DC NPN 6000 2 m connection cable – Visible red 11100A6513135554 1 off 6000 plug connector M12 x 1 11100AQD03135556 24000 2 m connection cable 11102A6513135562 24000 plug connector M12 x 1 11102AQD03135564 Thru-beam sensor (detector), right-angle 20 - 264 V AC15 - 30 V DC NPN 6000 2 m connection cable – Visible red 12100R6513135570 1 off 6000 plug connector M12 x 1 12100RQD03135572 Thru-beam sensor (source), right-angle 20 - 264 V AC15 - 30 V DC NPN 6000 2 m connection cable – Visible red 11100R6513135558 1 off 6000 plug connector M12 x 1 11100RQD03135560 Diffuse reflective sensor, right-angle 20 - 264 V AC15 - 30 V DC NPN 3000 2 m connection cable For combination with reflectorwith polarisation filter Visible red 14101R6513135650 1 off 3000 plug connector M12 x 1 14101RQD03135652 4500 2 m connection cable For combination with reflector 14102R6513135658 4500 plug connector M12 x 1 14102RQD03135660 Diffuse reflective sensor, forward viewing 20 - 264 V AC15 - 30 V DC NPN 4500 2 m connection cable For combination with reflectorwith polarisation filter Visible red 14101A6513135646 1 off 4500 plug connector M12 x 1 14101AQD03135648 7600 2 m connection cable For combination with reflector Infrared 14100A6513135642 plug connector M12 x 1 14100AQD03135644 2 m connection cable Visible red 14102A6513135654 plug connector M12 x 1 14102AQD03135656 Diffuse reflective sensor, focused, forward viewing 20 - 264 V AC15 - 30 V DC NPN 40 2 m connection cable – Visible red 13102A6513135590 1 off 40 plug connector M12 x 1 13102AQD03135592 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Max. Voltage Rating 264 V AC, 30 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: 1, 2, 3, 4, 4x, 6, 12, 13 HPL03084EN

Sensors Comet Series, FO cables 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/85 Diffuse reflective sensor, forward viewing 20 - 264 V AC15 - 30 V DC NPN 50 2 m connection cable With background suppression (Perfect Prox) Visible red 13104A6513135602 1 off plug connector M12 x 1 13104AQD03135604 2 m connection cable 13105A6513135614 plug connector M12 x 1 13105AQD03135616 100 2 m connection cable Infrared 13101A6513135586 100 plug connector M12 x 1 13101AQD03135588 150 2 m connection cable – 13107AS6513135626 plug connector M12 x 1 13107ASQD03135628 2 m connection cable With background suppression (Perfect Prox) 13108A6513135634 plug connector M12 x 1 13108AQD03135636 200 2 m connection cable – 13106A6513135618 200 plug connector M12 x 1 13106AQD03135620 225 2 m connection cable With background suppression (Perfect Prox) 13103A6513135594 225 plug connector M12 x 1 13103AQD03135596 610 2 m connection cable – 13100A6513135578 610 plug connector M12 x 1 13100AQD03135580 Diffuse reflective sensor, right-angle 20 - 264 V AC15 - 30 V DC NPN 50 2 m connection cable With background suppression (Perfect Prox) Visible red 13104R6513135606 1 off 50 plug connector M12 x 1 13104RQD03135608 100 plug connector M12 x 1 13104RS5003135610 100 2 m connection cable 13104RS5013135612 150 2 m connection cable – Infrared 13107RS6513135630 plug connector M12 x 1 13107RSQD03135632 2 m connection cable With background suppression (Perfect Prox) 13108R6513135638 plug connector M12 x 1 13108RQD03135640 200 2 m connection cable – 13106R6513135622 200 plug connector M12 x 1 13106RQD03135624 225 2 m connection cable With background suppression (Perfect Prox) 13103R6513135598 225 plug connector M12 x 1 13103RQD03135600 610 2 m connection cable – 13100R6513135582 610 plug connector M12 x 1 13100RQD03135584 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Max. Voltage Rating 264 V AC, 30 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: - Rated operating voltage Switching type Rated switching distance Connection options Description Type of light Part no.Article no. PriceSee price list Std. pack S n mm HPL03085EN

3/86 Sensors Comet Series, FO cables 2010 CA08103002Z-EN www.eaton.com Optical sensors Optical sensorsComet Series, FO cables Rated operating voltage Switching type Rated switching distance Connection options Description Type of light Part no.Article no. PriceSee price list Std. pack S n mm Comet series M18 x 1, light switching, dark switching, programmable, plastic 4-wire Thru-beam sensor (detector), forward viewing 10 - 30 V DC NPNPNP 6000 2 m connection cable – Visible red 12100A6517 1) 135567 1 off 6000 plug connector M12 x 1 12100AQD07 1) 135569 24000 2 m connection cable 12102A6517 1) 135575 24000 plug connector M12 x 1 12102AQD07 1) 135577 Thru-beam sensor (source), forward viewing 10 - 30 V DC NPNPNP 6000 2 m connection cable – Visible red 11100A6517 1) 135555 1 off 6000 plug connector M12 x 1 11100AQD07 1) 135557 24000 2 m connection cable 11102A6517 1) 135563 24000 plug connector M12 x 1 11102AQD07 1) 135565 Thru-beam sensor (detector), right-angle 10 - 30 V DC NPNPNP 6000 2 m connection cable – Visible red 12100R6517 1) 135571 1 off 6000 plug connector M12 x 1 12100RQD07 1) 135573 Thru-beam sensor (source), right-angle 10 - 30 V DC NPNPNP 6000 2 m connection cable – Visible red 11100R6517 1) 135559 1 off 6000 plug connector M12 x 1 11100RQD07 1) 135561 Diffuse reflective sensor, right-angle 10 - 30 V DC NPNPNP 3000 2 m connection cable For combination with reflectorwith polarisation filter Visible red 14101R6517 1) 135651 1 off 3000 plug connector M12 x 1 14101RQD07 1) 135653 4500 2 m connection cable For combination with reflector 14102R6517 1) 135659 4500 plug connector M12 x 1 14102RQD07 1) 135661 Diffuse reflective sensor, forward viewing 10 - 30 V DC NPNPNP 4500 2 m connection cable For combination with reflectorwith polarisation filter Visible red 14101A6517 1) 135647 1 off 4500 plug connector M12 x 1 14101AQD07 1) 135649 7600 2 m connection cable For combination with reflector Infrared 14100A6517 1) 135643 plug connector M12 x 1 14100AQD07 1) 135645 2 m connection cable Visible red 14102A6517 1) 135655 plug connector M12 x 1 14102AQD07 1) 135657 Diffuse reflective sensor, focused, forward viewing 10 - 30 V DC NPNPNP 40 2 m connection cable – Visible red 13102A6517 1) 135591 1 off 40 plug connector M12 x 1 13102AQD07 1) 135593 1) Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Max. Voltage Rating 30 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: - HPL03086EN

Sensors Comet Series, FO cables 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/87 Comet series M18 x 1, light switching, dark switching, programmable, plastic Diffuse reflective sensor, forward viewing 10 - 30 V DC NPNPNP 50 2 m connection cable With background suppression (Perfect Prox) Visible red 13104A6517 1) 135603 1 off plug connector M12 x 1 13104AQD07 1) 135605 2 m connection cable 13105A6517 1) 135615 plug connector M12 x 1 13105AQD07 1) 135617 100 2 m connection cable Infrared 13101A6517 1) 135587 100 plug connector M12 x 1 13101AQD07 1) 135589 150 2 m connection cable – 13107AS6517 1) 135627 plug connector M12 x 1 13107ASQD07 1) 135629 2 m connection cable With background suppression (Perfect Prox) 13108A6517 1) 135635 plug connector M12 x 1 13108AQD07 1) 135637 200 2 m connection cable – 13106A6517 1) 135619 200 plug connector M12 x 1 13106AQD07 1) 135621 225 2 m connection cable With background suppression (Perfect Prox) 13103A6517 1) 135595 225 plug connector M12 x 1 13103AQD07 1) 135597 610 2 m connection cable – 13100A6517 1) 135579 610 plug connector M12 x 1 13100AQD07 1) 135581 Diffuse reflective sensor, right-angle 10 - 30 V DC NPNPNP 50 2 m connection cable With background suppression (Perfect Prox) Visible red 13104R6517135607 1 off 50 plug connector M12 x 1 13104RQD07135609 100 plug connector M12 x 1 13104RS5007135611 100 2 m connection cable 13104RS5020135613 150 2 m connection cable – Infrared 13107RS6517135631 plug connector M12 x 1 13107RSQD07135633 2 m connection cable With background suppression (Perfect Prox) 13108R6517135639 plug connector M12 x 1 13108RQD07135641 200 2 m connection cable – 13106R6517135623 200 plug connector M12 x 1 13106RQD07135625 225 2 m connection cable With background suppression (Perfect Prox) 13103R6517135599 225 plug connector M12 x 1 13103RQD07135601 610 2 m connection cable – 13100R6517135583 610 plug connector M12 x 1 13100RQD07135585 1) Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. 50513 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Max. Voltage Rating 30 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: - Rated operating voltage Switching type Rated switching distance Connection options Description Type of light Part no.Article no. PriceSee price list Std. pack S n mm HPL03087EN

3/88 Sensors Comet series 2010 CA08103002Z-EN www.eaton.com Optical Sensors Optical SensorsComet series Ordering Design (outer dimensions) Material Part no.Article no. PriceSee price list Std. pack Glass fiber adapter In combination with reflex sensors 13106A... or 13100A... and E51KF fiber optic – Metal 6235A-6501135759 1 off Glass fiber duplex cable 2.4 ⌀ x 914 PVC E51KF163135761 1 off 2.4 ⌀ x 914 Stainless steel E51KF563135783 1 off 1.6 ⌀ x 914 PVC E51KF183135763 1 off 1.6 ⌀ x 914 Stainless steel E51KF583135785 1 off 0.5 x 3.9 ⌀ x 914 PVC E51KF193135764 1 off 0.5 x 3.9 ⌀ x 914 Stainless steel E51KF593135786 1 off 3.2 ⌀ x 914 PVC E51KF323135771 1 off 3.2 ⌀ x 914 Stainless steel E51KF723135793 1 off 3.2 ⌀ x 914 PVC E51KF313135770 1 off 3.2 ⌀ x 914 Stainless steel E51KF713135792 1 off 0.8 x 9.7 ⌀ x 914 PVC E51KF343135773 1 off 0.8 x 9.7 ⌀ x 914 Stainless steel E51KF743135795 1 off 0.5 x 3.9 ⌀ x 914 Stainless steel E51KF553135782 1 off 0.5 x 3.9 ⌀ x 914 PVC E51KF153135760 1 off 1.6 ⌀ x 914 Stainless steel E51KF573135784 1 off 3.2 ⌀ x 914 Stainless steel E51KF733135794 1 off 1.6 ⌀ x 914 PVC E51KF173135762 1 off 3.2 ⌀ x 914 PVC E51KF333135772 1 off 3.2 ⌀ x 914 Stainless steel E51KF7A3135796 1 off 3.2 ⌀ x 914 PVC E51KF3A3135774 1 off 3.2 ⌀ x 914 Stainless steel E51KF7B3135797 1 off 3.2 ⌀ x 914 PVC E51KF3B3135775 1 off Glass fiber simplex cable 2.4 ⌀ x 914 Stainless steel E51KF663135788 1 off 2.4 ⌀ x 914 PVC E51KF263135766 1 off 1.6 ⌀ x 914 Stainless steel E51KF683135790 1 off 1.6 ⌀ x 914 PVC E51KF283135768 1 off 0.5 x 3.9 ⌀ x 914 Stainless steel E51KF693135791 1 off HPL03088EN

Sensors Comet series 2010 CA08103002Z-EN www.eaton.com Optical Sensors 3/89 3.2 ⌀ x 914 Stainless steel E51KF823135799 1 off 3.2 ⌀ x 914 PVC E51KF423135777 1 off 0.5 x 3.9 ⌀ x 914 PVC E51KF293135769 1 off 3.2 ⌀ x 914 Stainless steel E51KF813135798 1 off 3.2 ⌀ x 914 PVC E51KF413135776 1 off 0.8 x 9.7 ⌀ x 914 Stainless steel E51KF843135801 1 off 0.8 x 9.7 ⌀ x 914 PVC E51KF443135779 1 off 0.5 x 3.9 ⌀ x 914 Stainless steel E51KF653135787 1 off 0.5 x 3.9 ⌀ x 914 PVC E51KF253135765 1 off 1.6 ⌀ x 914 Stainless steel E51KF673135789 1 off 3.2 ⌀ x 914 Stainless steel E51KF833135800 1 off 1.6 ⌀ x 914 PVC E51KF273135767 1 off 3.2 ⌀ x 914 PVC E51KF433135778 1 off 3.2 ⌀ x 914 Stainless steel E51KF8A3135802 1 off 3.2 ⌀ x 914 PVC E51KF4A3135780 1 off 3.2 ⌀ x 914 Stainless steel E51KF8B3135803 1 off 3.2 ⌀ x 914 PVC E51KF4B3135781 1 off Protective bracket – Metal E58KS5200135757 1 off Fixing brackets 53 x 44 Stainless steel 6161AS5296135738 1 off 53 x 44 Stainless steel 6161AS5297135739 1 off Design (outer dimensions) Material Part no.Article no. PriceSee price list Std. pack HPL03089EN

3/90 Sensors Comet series 2010 CA08103002Z-EN www.eaton.com Optical sensors Optical sensorsComet series Engineering Circuit diagram AC/DC connection (AC units) AC/DC connection (DC units) DC connection (DC units) Note: AC/DC sensors have AC plug connectors. Take into account when using with DC voltage. L1 L2 L1 L2 Load 4 1 2 3 Load AC/DC Comet Switched L1 Switched L1 20 to 264 V AC Blue Brown Black 1) M12 plug connector (Red/White) (Red/Black) (Red) 1) No Connection (Green) Connection cable 1) Note: Cable not connected on source of thru-beam sensors. (-) +V Load 4 1 2 3 Load (-) +V AC/DC Comet NPN Output (Sink) NPN Output (Sink) Blue Brown Black 1) M12 Plug connector (Red/White) (Red/Black) (Red) 1) No Connection (Green) Connection cable 15 to 30 V DC 1) Note: Cable not connected on source of thru-beam sensors. (-) +V Load (-) +V 4 1 3 2 Load Load Load DC Comet NPN Output (Sink) NPN Output (Sink) PNP Output (Source) PNP Output (Source) Red Black Green1) (Brown) White1) White1) (Blue) (Black)1) 10 to 30 V DC M12 plug connector Connection cable 1) Note: Cable not connected on source of thru-beam sensors.

Sensors Comet series 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/91 Optical sensorsComet series Excess gain chart Thru-beam sensor① Detector 12100A and 12100R with source 11100A or 11100R② Detector 12102A with source 11102A Reflex sensor(84 mm reflector)① 14100A/14102A② 14102R③ 14101A④ 14101R Diffuse reflective sensor(90 % reflective test card)⑤ 13107⑥ 13100⑦ 13106 Focused diffuse reflective sensors(90 % reflective test card)⑧ 13102A typ.⑨ 13102A minimum Perfect Prox ® ① 13108A/13108R② 13104A③ 14104RS ④ 13103A/13103R⑤ 13101A typ.⑥ 13101A minimum ⑦ 13101AS⑧ 13104R⑨ 13105A typ.⑩ 13105A minimum Thru-beam sensorWith single FO cable E51KF823① 13100A Comet② 13106A Comet Diffuse reflective sensorsWith duplex FO cable E51KF723③ 13100A Comet④ 13106A Comet 0.03 0.3 3.0 30.5 1000 10 1 100 [m] b a d c b a 0.03 0.3 3.0 30.5 1000 10 1 100 [m] g f e 1000 10 1 100 2.5 25 254 2540 [mm] i h 1000 10 1 100 2.5 25 254 2540 [mm] 300 10 1 100 2.5 25 254 c b a [mm] 300 10 1 100 2.5 25 254 f e d [mm] 300 10 1 100 2.5 25 254 g h i j [mm] 1000 10 1 100 25 2.5 254 2540 b a [mm] 1000 10 1 100 2.5 0.25 25 254 d c [mm]

3/92 Sensors Comet series 2010 CA08103002Z-EN www.eaton.com Optical sensors Optical sensorsComet series Technical data 3-wire 111 Types 121 Types 131 Types 141 Types General Standards IEC/EN 60947-5-2 Ambient temperature °C -20 - +70 -40 - +70 -40 - +70 -40 - +70 Protection type IP67 IP67 IP67 IP67 Mechanical shock resistance g 100Shock duration 3 ms Characteristic values Rated operating voltage 20 - 264 V AC15 - 30 V DC 20 - 264 V AC15 - 30 V DC 20 - 264 V AC15 - 30 V DC 20 - 264 V AC15 - 30 V DC Operating current in the switched state at 24 V DC I b mA 25 30 30 30 Rated operational current I e mA 300 300 300 300 Switching frequency Hz – 50 50 50 Switching state indication LED – Red Red Red Operating voltage indication LED Red – – – Protective functions Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 3-wire 3-wire 3-wire 3-wire Construction type Design (outer dimensions) M18 x 1 M18 x 1 M18 x 1 M18 x 1 Connection options Cable open2 m connection cable Material plastic 4-wire 111 Types 121 Types 131 Types 141 Types General Standards IEC/EN 60947-5-2 Ambient temperature °C -20 - +70 -40 - +70 -40 - +70 -40 - +70 Protection type IP67 IP67 IP67 IP67 Mechanical shock resistance g 100Shock duration 3 ms Characteristic values Rated operating voltage 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC Operating current in the switched state at 24 V DC I b mA 25 30 30 30 Rated operational current I e mA 100 100 100 100 Switching frequency Hz – 142 500 500 Switching state indication LED – Red Red Red Operating voltage indication LED Red – – – Protective functions Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 4-wire 4-wire 4-wire 4-wire Construction type Design (outer dimensions) M18 x 1 M18 x 1 M18 x 1 M18 x 1 Connection options Cable open2 m connection cable Material plastic Notes Further technical data can be found in the Online Catalogue at www.moeller.net

Sensors Comet series 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/93 Optical sensorsComet series Dimensions Comet series, sensor with installed adapterOptical SensorsComet Series, FO cables Sensor with installed adapter ① Seal② Adapter③ Cable length ① Brightness setting② Gain adjustment③ Cable length Dimensions in (mm) Settings Housing type a b c d Light/dark Gain 11100A... 56 17 6 - No No 2 11100R... 65 17 15 5 No No 4 11102A... 70 17 28 - No No 1 12100A... 56 17 6 - Yes Yes 2 12100R... 65 17 15 5 Yes Yes 4 12102A... 66 15 7 - Yes Yes 1 13100A..., 13106A... 56 17 6 - Yes Yes 2 13100R..., 13106R... 65 17 15 5 Yes Yes 4 13101A..., 13104A... 66 15 6 - Yes No 1 13102A..., 13103A..., 13105A..., 13108A... 66 15 6 - Yes Yes 1 13104R... 77 15 28 5 Yes No 6 14100A..., 14102A... 66 15 7 - Yes Yes 1 14101R..., 14102R... 76 15 18 5 Yes Yes 5 14101A... 67 15 7 - Yes Yes 1 15100A..., 15101A... 73 15 15 - Yes Yes 3 M18x1 o 14.2 16.8 38.1 8.1 c 42.9 66 8.1 25.4 a b LED o 14.2 b o 3.2 25.4 c 8.1 c 42.9 a a b LED 2.8 15.2 d 12.7 "4" "5" "6" 11.9 M18 x 1 "2" "3" "1" Device part no.

3/94 Sensors Comet Series, FO cables 2010 CA08103002Z-EN www.eaton.com Optical Sensors Glass fiber duplex cable E51KF313 E51KF3B3 E51KF713 E51KF7B3 E51KF333 E51KF163 E51KF733 E51KF563 E51KF323 E51KF183 E51KF723 E51KF583 E51KF193 E51KF173 E51KF593 E51KF573 E51KF3A3 E51KF343 E51KF7A3 E51KF743 E51KF153E51KF553 190 o 4.7 o 4.7 13 13 o 3.2 914 5/16-24 UNF-2ATHD R 13 190 o 4.7 13 38 21 25 914 o 3.2 190 o 4.7 o 4.7 13 25 21 o 3.2 914 R 13 190 o 4.7 13 35 o 3 o 3.2 7.1 6.4 914 o 3.2 190 o 4.7 13 38 914 5/16-24 UNF-2ATHD 190 o 4.7 o 4.7 o 2.1 13 25 13 914 o 3.2 190 o 4.7 13 38 914 5/16-24 UNF-2ATHD 3.9 0.5 190 o 4.7 o 4.7 9.5 13 27 13 914 o 3.2 2.1 R 3.2 190 o 4.7 13 38 914 5/16-24 UNF-2ATHD o 4.7 25 21 o 3.2 R 13 190 o 4.7 13 11.9 19 b 914 6 6 o 3.3 3.2 b = 25 for large fiber bundleb = 19 for small fiber bundle 190 o 4.7 o 4.8 25 13 13 914 3.9 0.5 0.4 4.8 25 13

Sensors Comet Series, FO cables 2010 CA08103002Z-EN www.eaton.com Optical Sensors 3/95 Optical SensorsComet Series, FO cables Optical sensorsComet series, accessories Glass fiber simplex cable E51KF413 E51KF4B3 E51KF813 E51KF8B3 E51KF433 E51KF263 E51KF833 E51KF663 E51KF423 E51KF283 E51KF823 E51KF683 E51KF293 E51KF273 E51KF693 E51KF673 E51KF4A3 E51KF443 E51KF8A3 E51KF843 E51KF253E51KF653 o 4.7 o 4.7 13 13 o 3.2 914 5/16-24 UNF-2ATHD R 13 38 21 25 914 o 3.2 o 4.7 13 o 4.7 25 21 o 3.2 914 R 13 o 4.7 13 35 o 3 o 3.2 7.1 6.4 914 o 4.7 13 o 3.2 38 914 5/16-24 UNF-2ATHD o 4.7 13 o 4.7 o 2.1 25 13 914 o 3.2 o 4.7 13 38 914 5/16-24 UNF-2ATHD 3.9 0.5 o 4.7 13 o 4.7 9.5 27 13 914 o 3.2 2.1 R 3.2 o 4.7 13 38 914 5/16-24 UNF-2ATHD o 4.7 25 21 o 3.2 R 13 o 4.7 13 o 4.7 13 11.9 19 b 914 6 6 o 3.3 a b = 25 for large fiber bundleb = 19 for small fiber bundle o 4.8 25 13 914 3.9 0.5 0.4 4.8 25 13 o 4.7 13

3/96 Sensors Comet series, accessories 2010 CA08103002Z-EN www.eaton.com Optical sensors Dimensions Protective bracket, adjustable Clip-type fixing bracket, raised Clip-type fixing bracket, flat 68.6 50.8 62.7 35.1 30.5 30.5 101.6 66.8 109.5 41.4 17.8 76.2 19 25.5 37.5 53 16 7.6 15 17 o7.1 9.5 44 25.5 37.5 53 16 7.6 44 o7.1 9.5

Sensors E58-Series 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/97 Optical sensorsE58-Series Description ① Tempered glass lens cover protects against abrasion.② Bright 360° function indicator.③ All models with Visible red light.④ All models available in versions with M12 (micro) plug connector. b c a d Short description Eaton’s E58 series was designed to withstand the harshest physical, chemical and optical environments. Stainless steel, PVDF and tempered glass components are mechanically assembled using Viton® seals to ensure complete sealing and resistance to industry chemicals. All adhesives and potting subject to failure from chemical attack have been eliminated from the design. The result is a sensor highly resistant to chemical attack and moisture intrusion, that can withstand heavy shock and vibration in almost any application. E58 Harsh Duty sensors feature unparalleled optical perfor-mance. They are ideal for automotive applications where exposure to lubricants, cutting fluids, coolants and glycols is common. For food processing applications, a smooth enclosure version simplifies high-pressure chemical washdowns, and withstands the use of sanitizers, surfactants, and cleaning agents including diluted bases and acids. Product features • Sensor with a diameter of 18 mm and 30 mm. • Highly refined optics for long sensing ranges and to see through high levels of contamination – unmatched optical performance • Perfect Prox® technology provides exceptional background rejection and extremely high excess gain. • Resistant to the wide range of chemicals used in the automotive, food processing and forest products industries • Suitable for high temperature, high pressure washdown (82 bar). • Mechanical Viton seals hold up to extreme temperature variations. • Visible sensing beam on all models lets you see where the beam is aimed for quick flush mounting and alignment. • Output status indicator is the brightest available and is visible from any angle and in any illumina-tion condition • The industry’s only background rejection sensors with a 2-wire circuit design • Four-wire DC sensors feature an NPN and a PNP output Approvals

3/98 Sensors E58 Series 2010 CA08103002Z-EN www.eaton.com Optical sensors Optical sensorsE58 Series Optical SensorsE58 Series Function Design (outer dimensions) Rated operational voltage Rated switching distanceS n mm Switching type Connection option Material Type of light Switching principle Part no.Article no. PriceSee price list Std. pack E58 Series Reflex sensorWith background suppression (Perfect Prox) 2-wire M18 x 1 18 - 50 V DC 50 – plug connector M12 x 1 Stainless steel Visible red Dark switching E58-18DP50-DDP135668 1 off 50 – Light switching E58-18DP50-DLP135669 100 – Dark switching E58-18DP100-DDP135662 100 – Light switching E58-18DP100-DLP135663 M30 x 1.5 150 – Dark switching E58-30DP150-DDP135674 150 – Light switching E58-30DP150-DLP135675 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. UL report applies to both Canada and US CSA Class No. – NA Certification UL Listed, certified by UL for use in Canada Max. Voltage Rating 50 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: 1, 2, 3, 3R, 3S, 4, 4X, 6, 6P, 12, 12K, 13 Function Design(outer dimensions) Rated operational voltage Rated switching distanceS n mm Switching type Connection option Material Type of light Switching principle Part no.Article no. PriceSee price list Std. pack E58 Series Reflex sensorWith background suppression (Perfect Prox) 4-wire M18 x 1 10 - 30 V DC 50 NPNPNP 2 m connection cable Stainless steel Visible red Dark switching E58-18DP50-HD135670 1 off 50 NPNPNP plug connector M12 x 1 Dark switching E58-18DP50-HDP135671 50 NPNPNP 2 m connection cable Light switching E58-18DP50-HL135672 50 NPNPNP plug connector M12 x 1 Light switching E58-18DP50-HLP135673 100 NPNPNP 2 m connection cable Dark switching E58-18DP100-HD135664 100 NPNPNP plug connector M12 x 1 Dark switching E58-18DP100-HDP135665 100 NPNPNP 2 m connection cable Light switching E58-18DP100-HL135666 100 NPNPNP plug connector M12 x 1 Light switching E58-18DP100-HLP135667 M30 x 1.5 10 - 30 V DC 150 NPNPNP 2 m connection cable Dark switching E58-30DP150-HD135676 150 NPNPNP plug connector M12 x 1 Dark switching E58-30DP150-HDP135677 150 NPNPNP 2 m connection cable Light switching E58-30DP150-HL135678 150 NPNPNP plug connector M12 x 1 Light switching E58-30DP150-HLP135679 280 NPNPNP 2 m connection cable Dark switching E58-30DPS280-HD135680 280 NPNPNP plug connector M12 x 1 Dark switching E58-30DPS280-HDP135681 280 NPNPNP 2 m connection cable Light switching E58-30DPS280-HL135682 280 NPNPNP plug connector M12 x 1 Light switching E58-30DPS280-HLP135683 HPL03098EN

Sensors E58 Series 2010 CA08103002Z-EN www.eaton.com Optical Sensors 3/99 Engineering E58 Series Polarized reflexsensorFor combination with reflector 4-wire M30 x 1.5 10 - 30 V DC 10000 NPNPNP 2 m connection cable Stainless steel Visible red Dark switching E58-30RP10-HD135684 1 off M30 x 1.5 10 - 30 V DC 10000 NPNPNP plug connector M12 x 1 Dark switching E58-30RP10-HDP135685 M30 x 1.5 10 - 30 V DC 10000 NPNPNP 2 m connection cable Light switching E58-30RP10-HL135686 M30 x 1.5 10 - 30 V DC 10000 NPNPNP plug connector M12 x 1 Light switching E58-30RP10-HLP135687 Reflex sensorFor combination with reflector 4-wire M30 x 1.5 10 - 30 V DC 18000 NPNPNP 2 m connection cable Stainless steel Visible red Dark switching E58-30RS18-HD135688 1 off M30 x 1.5 10 - 30 V DC 18000 NPNPNP plug connector M12 x 1 Dark switching E58-30RS18-HDP135689 M30 x 1.5 10 - 30 V DC 18000 NPNPNP 2 m connection cable Light switching E58-30RS18-HL135690 M30 x 1.5 10 - 30 V DC 18000 NPNPNP plug connector M12 x 1 Light switching E58-30RS18-HLP135691 Thru-beam sensor (detector), forward viewing 1 off 4-wire M30 x 1.5 10 - 30 V DC 250000 NPNPNP 2 m connection cable Stainless steel – Dark switching E58-30TD250-HD135692 M30 x 1.5 10 - 30 V DC 250000 NPNPNP plug connector M12 x 1 Dark switching E58-30TD250-HDP135693 M30 x 1.5 10 - 30 V DC 250000 NPNPNP 2 m connection cable Light switching E58-30TD250-HL135694 M30 x 1.5 10 - 30 V DC 250000 NPNPNP plug connector M12 x 1 Light switching E58-30TD250-HLP135695 Thru-beam sensor (source), forward viewing 4-wire M30 x 1.5 10 - 30 V DC 250000 NPNPNP 2 m connection cable Stainless steel Visible red – E58-30TS250-HA135696 1 off M30 x 1.5 10 - 30 V DC 250000 NPNPNP plug connector M12 x 1 – E58-30TS250-HAP135697 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. UL report applies to both Canada and US CSA Class No. – NA Certification UL Listed, certified by UL for use in Canada Max. Voltage Rating 30 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: - Circuit diagram E58...HA E58...HAP E58...DDPE58...DLP E58...HDE58...HL E58...HDPE58...HLP Function Design(outer dimensions) Rated operational voltage Rated switching distanceS n mm Switching type Connection option Material Type of light Switching principle Part no.Article no. PriceSee price list Std. pack BU BN (-) +V (-) +V +V Load (-) BU WH (-) BK Load BN +V Load (-) +V Load Load HPL03099EN

3/100 Sensors E58 Series 2010 CA08103002Z-EN www.eaton.com Optical sensors Optical sensorsE58 Series Dimensions Technical data Excess gain chart Thru-beam① Thru-beamReflex② 84 mm-reflectorPolarized reflex③ 84 mm-reflector Perfect Prox ® ① 18 mm diameter, 50 mm-designs② 18 mm diameter, 100 mm-designs③ 30 mm diameter, 150 mm-designs④ 30 mm diameter, 280 mm-Design E58 Series E58-18... E58-30... 2-wire 4-wire E58-18... E58-30... E58-18... E58-30... General Standards IEC/EN 60947-5-2 Ambient temperature °C -40 - +70 -25 - +55 -40 - +55 -40 - +55 Protection type IP67 IP67 IP67 IP67 Mechanical shock resistance 100Shock duration 3 ms Characteristic values Rated operating voltage 18 - 50 V DC 18 - 50 V DC 10 - 30 V DC 10 - 30 V DC Operating current in the switched state at 24 V DC I b mA 1.7 1.7 – – Rated operational current I e mA 100 100 100 100 Switching frequency Hz 14 14 500 312 Switching state indication LED Red Red Red Red Protective functions Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 2-wire 2-wire 4-wire 4-wire Construction type Design (outer dimensions) M18 x 1 M30 x 1.5 M18 x 1 M30 x 1.5 Material Stainless steel Stainless steel Stainless steel Stainless steel Notes Further technical data can be found in the Online Catalogue at www.moeller.net 1000 10 1 100 0.3 0.03 3.0 30.5 305 [m] c b a 1000 10 1 100 2.5 25 254 2540 b a c d [mm] 80 39 o 15 40 5.5 23.8 a a 4 M18 x 1 28 Connection cable: 6.6 feet (2 m)Plug connector M12: 7 ±1 (178 ±25) 111 51 22 o 15 66 a a 5 M30 x 1.5 28 Connection cable: 6.6 feet (2 m)Plug connector M12: 7 ±1 (178 ±25)

Sensors E65 SM Series 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/101 Optical sensorsE65 SM Series Description ① 18 mm thread② Power lamp (green)③ Output lamp (red)④ Targetlock™ lamp (orange)⑤ Gain adjustment a b c d e Short description Eaton’s SM series photoelectric sensors offer a high performance and simple use in a compact, cost-effective design. Regardless how good a sensor’s performance just a slight maladjustment or incorrectly posi-tioned target will sooner or later impact reliability. In addition to simplifying sensor setup, TargetLock™ provides visual confir-mation of the correct mounting posi-tion for optimum reliability. In addition TargetLock™ outputs diag-nostic information during operation, which provides an early warning about potential problems to help prevent costly downtimes. No other sensor is easier to use. The SM sensors offer numerous performance features that simplify their use. A visible sensing beam shows you exactly where the sensor is pointing. The durable enclosure features multiple fixing possibilities to easily fit on your equipment in the tightest of spaces. Full protection from overvoltage, reverse polarity and short circuits reduces the chance of damage. Bright 360° LED indicators clearly show sensor status. Product features • Bright indicators for power, output, and TargetLock™. • TargetLock™ simplifies setup and ensures a high operational reliability. • The Perfect Prox ® models detect targets with different colors at the same range while ignoring back-ground objects. • AC/DC models work with 18 – 264 V AC or 18 – 50 V DC. • DC-only models feature PNP and NPN outputs. • Visible sensing beam on all models lets you see where the beam is aimed for quick flush mounting and alignment. • Compact design for space-saving flush mounting. • Range of fixing possibilities, including standard 18 mm thread. • Short-circuit, overload and protec- tion against polarity reversal. • Full family includes thru-beam, polarized reflex, diffuse reflective and Perfect Prox ® background rejection. Approvals

3/102 Sensors E65 SM Series 2010 CA08103002Z-EN www.eaton.com Optical sensors Optical sensorsE65 SM Series Ordering Optical SensorsE65 SM Series Rated operational voltage Function Switching principle Rated switching distance S n Switching type Connection options Part no.Article no. PriceSee price list Std. pack mm E65 SM Series 3-conductors, insulated material 18 - 264 V AC18 - 50 V DC Reflex sensorWith background suppression (Perfect Prox) Dark switching 50 NPN (DC) 2 m connection cable E65-SMPP050-GD135698 1 off Dark switching 50 NPN (DC) plug connector M12 x 1 E65-SMPP050-GDD135699 Light switching 50 NPN (DC) 2 m connection cable E65-SMPP050-GL135700 Light switching 50 NPN (DC) plug connector M12 x 1 E65-SMPP050-GLD135701 Dark switching 100 NPN (DC) 2 m connection cable E65-SMPP100-GD135706 Dark switching 100 NPN (DC) plug connector M12 x 1 E65-SMPP100-GDD135707 Light switching 100 NPN (DC) 2 m connection cable E65-SMPP100-GL135708 Light switching 100 NPN (DC) plug connector M12 x 1 E65-SMPP100-GLD135709 Diffuse reflective sensor Dark switching 200 NPN (DC) 2 m connection cable E65-SMSD200-GD135722 Dark switching 200 NPN (DC) plug connector M12 x 1 E65-SMSD200-GDD135723 Light switching 200 NPN (DC) 2 m connection cable E65-SMSD200-GL135724 Light switching 200 NPN (DC) plug connector M12 x 1 E65-SMSD200-GLD135725 Polarized reflexFor combination with reflector Dark switching 3000 NPN (DC) 2 m connection cable E65-SMPR3-GD135714 Dark switching 3000 NPN (DC) plug connector M12 x 1 E65-SMPR3-GDD135715 Light switching 3000 NPN (DC) 2 m connection cable E65-SMPR3-GL135716 Light switching 3000 NPN (DC) plug connector M12 x 1 E65-SMPR3-GLD135717 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. UL report applies to both Canada and US CSA Class No. – NA Certification UL Listed, certified by UL for use in Canada Max. Voltage Rating 132 V AC, 30 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: 1, 3, 4, 4X, 6, 6P, 12, 13 Rated operational voltage Function Switching principle Rated switching distance S n Switching type Connection options Part no.Article no. PriceSee price list Std. pack mm E65 SM Series 4-conductors, insulated material 10 - 30 V DC Reflex sensorWith background suppression (Perfect Prox) Dark switching 50 NPNPNP 2 m connection cable E65-SMPP050-HD135702 1 off Dark switching 50 NPNPNP plug connector M12 x 1 E65-SMPP050-HDD135703 Light switching 50 NPNPNP 2 m connection cable E65-SMPP050-HL135704 Light switching 50 NPNPNP plug connector M12 x 1 E65-SMPP050-HLD135705 Dark switching 100 NPNPNP 2 m connection cable E65-SMPP100-HD135710 Dark switching 100 NPNPNP plug connector M12 x 1 E65-SMPP100-HDD135711 Light switching 100 NPNPNP 2 m connection cable E65-SMPP100-HL135712 Light switching 100 NPNPNP plug connector M12 x 1 E65-SMPP100-HLD135713 HPL03102EN

Sensors E65 SM Series 2010 CA08103002Z-EN www.eaton.com Optical sensors 3/103 Technical data Optical sensorsE65 SM Series E65 SM Series 4-conductors, insulated material 10 - 30 V DC Diffuse reflective sensor Dark switching 200 NPNPNP 2 m connection cable E65-SMSD200-HD135726 1 off Dark switching 200 NPNPNP plug connector M12 x 1 E65-SMSD200-HDD135727 Light switching 200 NPNPNP 2 m connection cable E65-SMSD200-HL135728 Light switching 200 NPNPNP plug connector M12 x 1 E65-SMSD200-HLD135729 Polarized reflex photoelectric sensorFor combination with reflector Dark switching 3000 NPNPNP 2 m connection cable E65-SMPR3-HD135718 Dark switching 3000 NPNPNP plug connector M12 x 1 E65-SMPR3-HDD135719 Light switching 3000 NPNPNP 2 m connection cable E65-SMPR3-HL135720 Light switching 3000 NPNPNP plug connector M12 x 1 E65-SMPR3-HLD135721 10 - 30 V DC Thru-beam sensor (detector)For combination with sounce Dark switching 15000 NPNPNP 2 m connection cable E65-SMTD15-HD135730 1 off Dark switching 15000 NPNPNP plug connector M12 x 1 E65-SMTD15-HDD135731 Light switching 15000 NPNPNP 2 m connection cable E65-SMTD15-HL135732 Light switching 15000 NPNPNP plug connector M12 x 1 E65-SMTD15-HLD135733 Thru-beam sensor (source)For combination with detector – 15000 NPNPNP 2 m connection cable E65-SMTS15-HA135734 – 15000 NPNPNP plug connector M12 x 1 E65-SMTS15-HAD135735 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-5-2; CE marking UL File No. E166051 UL CCN NRKH, NRKH7 CSA File No. UL report applies to both Canada and US CSA Class No. – NA Certification UL Listed, certified by UL for use in Canada Max. Voltage Rating 30 V DC Degree of Protection IEC: IP68, IP69K; UL/CSA Type: - E65...-G... E65...-H... E65...15-H... E65...-HA... General Standards IEC/EN 60947-5-2 Ambient temperature °C -25 - +55 -25 - +55 -25 - +55 -25 - +55 Protection type IP67 IP67 IP67 IP67 Mechanical shock resistance g 50Shock duration 10 ms Characteristic values Rated operating voltage 18 - 264 V AC18 - 50 V DC 10 - 30 V DC 10 - 30 V DC 10 - 30 V DC Operating current in the switched state at 24 V DC I b mA 20 20 20 40 Rated operational current I e mA 200 100 100 – Switching frequency Hz 31 500 – – Switching state indication LED Red Red Red Red Operating voltage display LED Green Green Green Green Boundary gain Yellow Yellow Yellow Yellow Protective functions Short-circuit protectionProtection against polarity reversalProtection against wire breakage Function 3-wire 4-wire 4-wire 4-wire Construction type Design (outer dimensions) 33 x 41 x 43 33 x 41 x 37 33 x 41 x 37 33 x 41 x 37 Material plastic plastic plastic plastic Notes Further technical data can be found in the Online Catalogue at www.moeller.net Rated operational voltage Function Switching principle Rated switching distance S n Switching type Connection options Part no.Article no. PriceSee price list Std. pack mm HPL03103EN

3/104 Sensors E65 SM Series 2010 CA08103002Z-EN www.eaton.com Optical sensors Engineering Dimensions Circuit diagram E65...GDE65...GL E65...GDDE65...GLD E65...HA E65...HAD E65...HDE65...HL E65...HDDE65...HLD Excess gain chart ① Thru-beam sensor ② Reflex sensor with polarizing filter ① 50 mm Perfect Prox®② 100 mm Perfect Prox® Photoelectric sensors(90 % reflective test card) E65 SM Series E65...-GD E65...-HDD E65...-GDD E65...-GL E65...-HLD E65...-GLD E65...-HD E65...-HAD E65...-HLE65...-HA BU WHBK BN L1/(-) L2/+V N.C. Load L2/+V L1/(-) Load NC BU BN (-) +V (-) +V BU WH (-) BK Load BN +V Load (-) +V Load Load 0.03 0.3 3.0 30.5 10 1 100 a b 1000 [m] 1000 10 1 100 a b 2.5 25 254 [mm] 1000 10 1 100 2.5 25 254 [mm] 43 21 19 o 4 26 38 33 10 55 M18x1 9 27 37 15 2.5 41 a

Sensors Accessories 2010 CA08103002Z-EN www.eaton.com Inductive, Capacitive and Optical 3/105 Inductive, Capacitive and OpticalAccessories Design, input end Designoutput end Pole Length Part no.Article no. PriceSee price list Std. pack mm Connecting cables Coupling, straight Cable end open AC 3-pole 2000 CSAS3F3CY2202136265 1 off 5000 CSAS3F3CY2205136266 10000 CSAS3F3CY2210136267 4-pole 2000 CSAS4A4CY2202136268 5000 CSAS4A4CY2205136269 10000 CSAS4A4CY2210136312 DC 4-pole, 3-wire 2000 CSDS4A3CY2202136287 5000 CSDS4A3CY2205136288 10000 CSDS4A3CY2210136289 4-pole 2000 CSDS4A4CY2202136292 5000 CSDS4A4CY2205136294 10000 CSDS4A4CY2210136296 Coupling, straight Plug, straight DC 4-pole 1000 CSDS4A4CY2201-D136291 3000 CSDS4A4CY2203-D136293 5000 CSDS4A4CY2205-D136295 1500 CSDS4A4CY2201.5-D136316 Coupling, straight Plug, angled 4-pole 1000 CSDR4A4CY2201-D136278 5000 CSDR4A4CY2205-D136283 1500 CSDR4A4CY2201.5-D136313 2000 CSDR4A4CY2202-D136314 3000 CSDR4A4CY2203-D136315 Coupling, angled Cable end open AC 3-pole 2000 CSAR3F3CY2202136262 5000 CSAR3F3CY2205136263 10000 CSAR3F3CY2210136264 DC 2000 CSDR4A3CY2202136272 5000 CSDR4A3CY2205136273 5000 CSDR4A3CY2205-LN 1) 136274 5000 CSDR4A3CY2205-LP 2) 136275 10000 CSDR4A3CY2210136276 4-pole 2000 CSDR4A4CY2202136279 5000 CSDR4A4CY2205136282 10000 CSDR4A4CY2210136284 Notes 1) With LED (NPN) 2) With LED (PNP) HPL03105EN

3/106 Sensors Accessories 2010 CA08103002Z-EN www.eaton.com Inductive, Capacitive and Optical Inductive, Capacitive and OpticalAccessories Description Length Switching type Pole Part no.Article no. PriceSee price list Std. pack mm Coupler Angled – – – 4-pole CSDR4136271 1 off Straight – – – 4-pole CSDS4136286 1 off Plug Angled – – – 4-pole CSDRM4136285 1 off Straight – – – 4-pole CSDSM4136297 1 off M12 (micro) multi-connector block Cable 10000 DC PNP 4-pole CBDR4P10136318 1 off Cable 5000 PNP CBDR4P05136301 Spring cage – NPN CBDR4NSC136300 Spring cage – PNP CBDR4PSC136303 Cable 10000 PNP 6-pole CBDR6P10136319 Cable 5000 PNP CBDR6P05136305 Spring cage – NPN CBDR6NSC136304 Spring cage – PNP CBDR6PSC136320 Cable 10000 PNP 8-pole CBDR8P10136322 Cable 5000 PNP CBDR8P05136309 Spring cage – NPN CBDR8NSC136321 Spring cage – PNP CBDR8PSC136311 Protection cap Plug – – – – CBMCAP136298 1 off Coupling – – – – CBCAP136317 M12 sensors – – – – E57KP12136202 M18 sensors – – – – E57KP18136203 M30 sensors – – – – E57KP30136204 Cable adapters M12 sensors, metal – – – – E57KC12136184 1 off M18 sensors, metal – – – – E57KC18136185 M30 sensors, metal – – – – E57KC30136186 M8 sensors, metal – – – – E57KC8136187 M30 sensors, stainless steel – – – – E58KC30135754 HPL03106EN

Sensors Accessories 2010 CA08103002Z-EN www.eaton.com Inductive, Capacitive and Optical 3/107 Inductive, Capacitive and OpticalAccessories Description For use with Material Part no.Article no. PriceSee price list Std. pack Fixing brackets M8 sensors Stainless steel E57KM8136191 1 off M12 sensors E57KM12136188 M18 sensors E57KM18136189 M30 sensors E57KM30136190 M18 sensors Aluminium 6161A-6501135736 2 off 6161AS5295135737 1 off 6161AS7050135741 Metal 6167A-6501135742 Adjustable, insulated M18 sensors Stainless steel E58KAM18135749 Adjustable, not insulated M18 sensors E58KAM18U135751 Adjustable, insulated M30 sensors E58KAM30135752 Adjustable, not insulated M30 sensors E58KAM30U135753 with ball joint M18 sensors Plastic E58KAM18B135750 Spare nuts M8 sensors Metal E57KNM8136194 2 off M12 sensors E57KNM12136193 M12 sensors E57KNS12136195 M18 sensors Plastic E57KNC18136192 M18 sensors Metal E57KNS18136196 M30 sensors Metal E57KNS30136197 M18 sensors Stainless steel E58KNS18135755 1 off M30 sensors Stainless steel E58KNS30135756 1 off Sensor fixing M8 sensors – E57KNZ8136201 1 off M12 sensors – E57KNZ12136198 1 off M18 sensors – E57KNZ18136199 1 off M30 sensors – E57KNZ30136200 1 off HPL03107EN

3/108 Sensors E65 SM Series 2010 CA08103002Z-EN www.eaton.com Optical Sensors Optical SensorsE65 SM Series Dimensions Design (outer dimensions) Material Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Retro-reflector 84 mm ⌀ Plastic 6200A-6501135743 2 off 61 mm ⌀ Plastic 6200A-6502135744 1 off 33 mm ⌀ Plastic 6200A-6504135745 1 off 61 mm ⌀ Plastic 6200A-6505135746 1 off 84 mm ⌀ Plastic/metal 6200A-6506135747 1 off 38 x 81 Plastic 6200A-6507135748 1 off 63 mm ⌀ Plastic E65KR55135758 1 off Retro-reflector E65KR55 Multi-connection blocks Cable Spring cage a o b a b ⌀ 6200A-6501 84 9 5 6200A-6502 61 7.5 - 6200A-6504 33 6 - 6200A-6505 61 7.5 6 6200A-6506 84 7.5 5 63 74 86 2 x o 4.3 7 5 3 4 6 8 4 -Port 826 -Port 1008 -Port 126.5 12 o 4.2 4.2 36 54 27.5 4.5 73 107 17 6 32 7 5 3 4 12 6 8 17 19 6 32 36 54 4 -Port 116.56 -Port 128.58 -Port 155.0 107 73 5 o 4.2 4.2 HPL03108EN

Sensors E65 SM Series 2010 CA08103002Z-EN www.eaton.com Accessories 3/109 Accessories Dimensions Fixing brackets E58KAM18 6161A-6501 E58KAM18U 6161AS-6501 E58KAM30E58KAM30U 6167A-6501 E58KAM18B 6161AS-7050 6161AS-5295 E57KM... 23 41 38 75102 8.4 x 16.8 13 51 19 19 44 o 7 8 9 38 38 25 8 16 29 50 33 75102 8.4 x 16.8 13 51 25.4 25.4 34.3 25.6 68.6 25.4 25.4 25.1 34.3 o 7 o 30.5 76.2 63.5 36 o 4 46 7 5 15 13 5 8 36 M18 x 1-6G 19 19 44 3 x o 7 8 9 38 38 25 8 16 o 7 38 8 9 19 25 76 8 16 h d f b c g a 16 e a b c d e f g h 8 mm 76 34 29 17 31 19 8 6 12 mm 76 34 29 17 31 19 12 6 18 mm 76 34 29 17 31 19 18 6 30 mm 108 55 45 25 51 29 30 7

3/110 Sensors E65 SM Series 2010 CA08103002Z-EN www.eaton.com Accessories Cable adapters E57KC... E58KC30 Sensor fixing E57KNZ Connecting cables Coupling straight, cable end open Coupling angled, cable end open Straight coupling, straight plug Coupling angled, angled c a b a b c 8 mm 25 25 M8x1 12 mm 38 25 M12x1 18 mm 38 25 M18x1 30 mm 48 38 M30x1.5 71 ±0.02 18 57 ±0.02 15 ±0.02 o 28.5 38 30° c e b d a a b c d e 8 mm M8x1 M16x1.5 22 22 9 12 mm M12x1 M22x1.5 22 29 10 18 mm M18x1 M30x1.5 30 36 12 30 mm M30x1.5 M47x1.5 37 51 15 o 14.8 45 l 54.8 M12 x 1 (DC) 1/2“ - 20 UNF-2B (AC) o 14.8 28 l 54.8 28 M12 x 1 (DC) l o 14.8 o 14.8 45 M12 x 1 (DC) 1/2“ - 20 UNF-2B (AC) 51.3 l M12 x 1 (DC) M12 x 1 (DC) 45 28 o 14.8 o 14.8 1/2“ - 20 UNF-2B (AC)

Sensors Notes 2010 CA08103002Z-EN www.eaton.com 3/111 Notes
