06_CA08103002Z

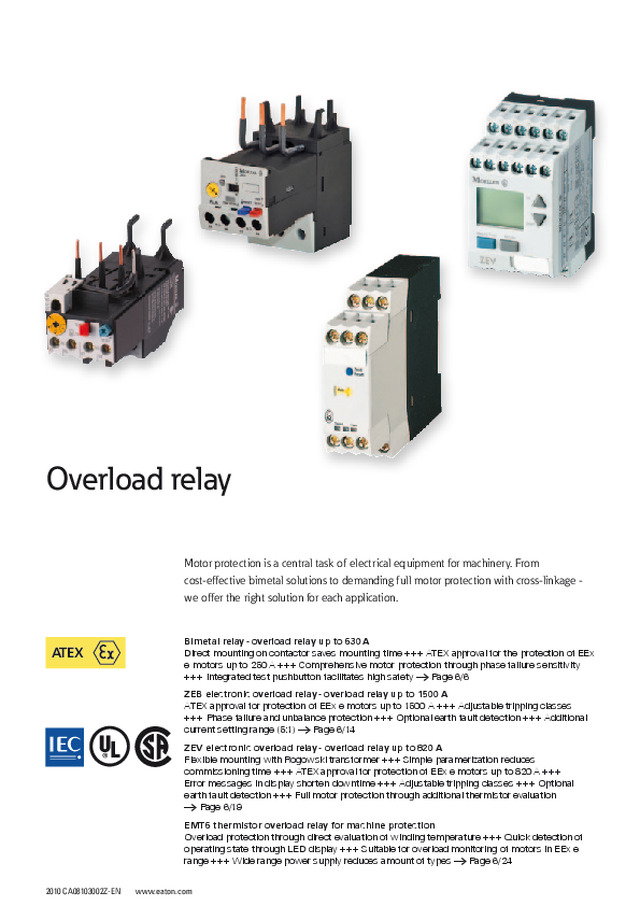

2010 CA08103002Z-EN www.eaton.com Bimetal relay - overload relay up to 630 A Direct mounting on contactor saves mounting time +++ ATEX approval for the protection of EEx e motors up to 250 A +++ Comprehensive motor protection through phase failure sensitivity +++ Integrated test pushbutton facilitates high safety ￫ Page 6/6ZEB electronic overload relay - overload relay up to 1500 A ATEX approval for protection of EEx e motors up to 1500 A +++ Adjustable tripping classes +++ Phase failure and unbalance protection +++ Optional earth fault detection +++ Additional current setting range (5:1) ￫ Page 6/14ZEV electronic overload relay - overload relay up to 820 A Flexible mounting with Rogowski transformer +++ Simple paramerization reduces commissioning time +++ ATEX approval for protection of EEx e motors up to 820 A +++ Error messages in display shorten downtime +++ Adjustable tripping classes +++ Optional earth fault detection +++ Full motor protection through additional thermistor evaluation ￫ Page 6/19EMT6 thermistor overload relay for machine protection Overload protection through direct evaluation of winding temperature +++ Quick detection of operating state through LED display +++ Suitable for overload monitoring of motors in EEx e range +++ Wide range power supply reduces amount of types ￫ Page 6/24 Motor protection is a central task of electrical equipment for machinery. From cost-effective bimetal solutions to demanding full motor protection with cross-linkage - we offer the right solution for each application. Overload relay ATEX

TNF –20° TNF TNF –5° 750 4000 12000 1650 TNF +5° TNF +15° a b c d R [ ] i [°C] 5 47 16.5 4.7 86 60 112 Technical overview Bimetal relay ZE, ZB, Z5 6/2 Overload relay ZW7 6/2 Electronic overload relays ZEB, ZEV 6/4 EMT6 thermistor overload relay for machine protection 6/4 Ordering Bimetal relays for mini-contactor relays 6/6 Bimetal relays up to 150A 6/8 Bimetal relay greater than 150 A 6/12 Overload relays 6/12 Bimetal relay accessories 6/26 ZEB Electronic overload relay 6/14 Description ZEV electronic overload relay 6/19 Ordering ZEV electronic overload relay 6/20 Engineering ZEV, ZEB electronic overload relays 6/22 Ordering EMT6 thermistor overload relay for machine protection 6/24 Overload relays Engineering EMT6 thermistor overload relay for machine protection 6/25Selection criteria ZE, ZB, Z5, ZW7 6/28 Characteristic curve ZB, Z5, ZW7 6/28 UL/CSA short-circuit strength ZE, ZB, Z5, ZEV 6/29 Technical data Bimetal relay for mini-contactor relays 6/30 Bimetal relays up to 150A 6/30 Overload relays greater than 150 A 6/31 Overload relays 6/31 ZEB electronic overload relay 6/33 ZEV electronic overload relay 6/34 EMT6 thermistor overload relay for machine protection 6/36 Dimensions Bimetal relays for mini-contactor relays 6/37 Bimetal relays up to 150A 6/37 Bimetal relays greater than 150 A 6/39 Overload relay 6/39 ZEB electronic overload relay 6/40 ZEV electronic overload relay 6/43 EMT6 thermistor overload relay for machine protection 6/42

6/2 Overload Relays Overload relays, CT-operated overload relays 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Overload Relays Overload relays, CT-operated overload relays Overload relays, CT-operated overload relays Technical overview Electronic overload relays, thermistor overload relay for machine protection Setting ranges (A)(note max. current of the contactor) DILEM DILM7 DILM12 DILM17 DILM32 DILM40 DILM65 DILM80 DILM150 DILM185A DILM250 DILM400 DILM580 DILM650 DILM9 DILM15 DILM25 DILM38 DILM50 DILM72 DILM95 DILM170 DILM225A DILM300 DILM500 DILM115 Overload relays ZE0.1-12 ZB120.1-16 ZB320.1-38 ZB656-75 ZB15035-175 Z5-.../FF225A70-250 Z5-.../FF25050-300 Current transformer-operated overload relay ZW7-...42-630 6/3

6/4 Overload Relays Electronic overload relays, thermistor overload relay for machine protection 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Overload Relays Electronic overload relays, thermistor overload relay for machine protection Setting ranges (A)(note max. current of the contactor) DILEM DILM7 DILM12 DILM17 DILM32 DILM40 DILM65 DILM80 DILM150 DILM185A DILM250 DILM400 DILM580 DILM750 DILM820 DILM1000 DILM1600 DILM9 DILM15 DILM25 DILM38 DILM50 DILM72 DILM95 DILM170 DILM225A DILM300 DILM500 DILM650 DILM115 Electronic overload relays ZEB120.33-20 ZEB320.33-45 ZEB659-100 ZEB15020-100 ZEB32-5-(GF)/KK combined with ZEB-XCT30060-300 ZEB-XCT600120-600 ZEB-XCT1000200-1000 ZEB-XCT1500300-1500 ZEV1-820 Thermistor overload relay for machine protection EMT6((DB)K) 6/5

6/6 Overload relays Bimetal relays for mini-contactor relays 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Overload relays Bimetal relays for mini-contactor relays Bimetal relays for mini-contactor relays Ordering Setting range of overload releases Circuit symbol Auxiliary contact For use with Short-circuit protection Part no.Article no. PriceSee price list Std. pack Notes N/O = normally open contactNC = normally closed contact Type “1” coordination Type “2” coordination I r gG/gL gG/gL A A A ZE overload relays for mini contactor relays • Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102• Test/off pushbutton• Reset pushbutton manual/auto• Trip-free release• Direct mounting 0.1 – 0.16 1 N/O 1 NC DILEMDIULEM/21/MVSDAINLEM 20 0.5 ZE-0.16014263 1 Off Overload release: tripping class 10 AShort-circuit protection: With direct mounting, observe the maximum permissible fuse of the contactor. Suitable for protection of EEx e motors II (2) GD PTB 01 ATEX 3331 Observe manual AWB2300-1425D/GB. With side-by-side mounting, there must be a minimum clearance of 5 mm between overload relays. 1 Contactor ￫ Chapter 5Accessories ￫ Page 6/26Manual ￫ Page 6/26 0.16 – 0.24 1 ZE-0.24014285 0.24 – 0.4 2 ZE-0.4014300 0.4 – 0.6 2 ZE-0.6014333 0.6 – 1 4 ZE-1.0014376 1 – 1.6 6 ZE-1.6014432 1.6 – 2.4 6 ZE-2.4014479 2.4 – 4 10 ZE-4014518 4 – 6 ZE-6014565 6 – 9 ZE-9014708 9 – 12 ZE-12014752 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - See also ￫ Page 6/29 2 4 6 98 96 97 95 1 6/7 ZE HPL06006EN ZE HPL06007EN

6/8 Overload relays Overload relays up to 150A 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Overload relays Overload relays up to 150A Overload relays up to 150A Overload relays up to 150A Setting range of overload releases Circuit symbol Auxiliary contact For use with Short-circuit protection Part no.Article no. PriceSee price list Std. pack Notes N/O = normally open contactNC = normally closed contact Contactors Soft starters Type “1” coordination Type “2” coordination I r gG/gL gG/gL A A A ZB12 overload relay 0.1 – 0.16 1 N/O 1 NC DILM7, DILM9, DILM12, DILM15,DIULM7, DIULM9, DIULM12,SDAINLM12,SDAINLM16,SDAINLM22 – 25 0.5 ZB12-0,16278431 1 Off Overload release: tripping class 10 AShort-circuit protection: With direct mounting, observe the maximum permissible fuse of the contactor. Suitable for protection of EEx e motors. II (2) GD PTB 04 ATEX 3022 Observe manual AWB2300-1527D/GB. • Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102 • Test/off pushbutton• Reset pushbutton manual/auto• Trip-free release• Direct mounting Fitted directly to the contactor 1 Contactor ￫ Chapter 5Accessories ￫ Page 6/26Manual ￫ Page 6/26 0.16 – 0.24 1 ZB12-0,24278432 0.24 – 0.4 2 ZB12-0,4278433 0.4 – 0.6 4 ZB12-0,6278434 0.6 – 1 4 ZB12-1278435 1 – 1.6 6 ZB12-1,6278436 1.6 – 2.4 10 ZB12-2,4278437 2.4 – 4 DS7-34…SX004… 16 ZB12-4278438 4 – 6 DS7-34…SX005… 20 ZB12-6278439 6 – 10 DS7-34…SX007…DS7-34…SX009… 50 25 ZB12-10278440 9 – 12 DS7-34…SX012… ZB12-12278441 12 – 16 – ZB12-16290168 ZB32 overload relay 0.1 – 0.16 1 N/O 1 NC DILM17, DILM25,DILM32,DILM38,DILMF8,DILMF11,DILMF14,DILMF17,DILMF25,DILMF32,DIULM17, DIULM25,DIULM32,SDAINLM30,SDAINLM45,SDAINLM55 – 25 0.5 ZB32-0,16278442 1 Off Overload release: tripping class 10 AShort-circuit protection: With direct mounting, observe the maximum permissible fuse of the contactor. Suitable for protection of EEx e motors. II (2) GD PTB 04 ATEX 3022 Observe manual AWB2300-1527D/GB. • Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102 • Test/off pushbutton• Reset pushbutton manual/auto• Trip-free release• Direct mounting 0.16 – 0.24 1 ZB32-0,24278443 0.24 – 0.4 2 ZB32-0,4278444 0.4 – 0.6 4 ZB32-0,6278445 0.6 – 1 4 ZB32-1278446 1 – 1.6 6 ZB32-1,6278447 1.6 – 2.4 10 ZB32-2,4278448 2.4 – 4 16 ZB32-4278449 4 – 6 20 ZB32-6278450 6 – 10 50 25 ZB32-10278451 10 – 16 DS7-34...SX016... 63 35 ZB32-16278452 16 – 24 DS7-34...SX024... 100 35 ZB32-24278453 24 – 32 DS7-34...SX032... 125 63 ZB32-32278454 32 – 38 – 125 63 ZB32-38112474 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. voltage RRating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - See also ￫ Page 6/29 2 4 6 98 96 A2 14/ 22 97 95 1 2 4 6 98 96 14/ 22 97 95 Fitted directly to the contactor Separate mounting 1 Contactor ￫ Chapter 52 Base ￫ Page 6/26Manual ￫ Page 6/26 1 1 2 6/9 ZB12, ZB32 HPL06008EN ZB12, ZB32 HPL06009EN

6/10 Overload relays Overload relays up to 150A 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Overload relays Overload relays up to 150A Setting range of overload releases Circuit symbol Auxiliary contact For use with Short-circuit protection Part no.Article no. PriceSee price list Std. pack Notes N/O = normally open contactNC = normally closed contact Type “1” coordination Type “2” coordination I r gG/gL gG/gL A A A ZB65 overload relay • Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102• Test/off pushbutton• Reset pushbutton manual/auto• Trip-free release• Direct mounting 6 – 10 1 N/O 1 NC DILM40, DILM50,DILM65,DILM72,DILMF40,DILMF50,DILMF65,DIULM40, DIULM50,DIULM65,SDAINLM70,SDAINLM90,SDAINLM115 50 25 ZB65-10278455 1 Off Overload release: tripping class 10 AShort-circuit protection: With direct mounting,observe the maximum permissible fuse of the contactor. Suitable for protection of EExe motors. II (2) GD PTB 04 ATEX 3022 Observe manual AWB2300-1545D/GB. 10 – 16 63 35 ZB65-16278456 16 – 24 63 50 ZB65-24278457 24 – 40 125 63 ZB65-40278458 40 – 57 160 80 ZB65-57278459 50 – 65 160 100 ZB65-65278460 65 – 75 250 160 ZB65-75108792 ZB150 overload relay • Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102• Test/off pushbutton• Reset pushbutton manual/auto• Trip-free release• Direct mounting 35 – 50 1 N/O 1 NC DILM80, DILM95,DILM115, DILM150,DILM170DILMF80,DILMF95,DILMF115,DILMF150,DIULM80, DIULM95,DIULM115, DIULM150,SDAINLM140,SDAINLM165,SDAINLM200,SDAINLM260 160 125 ZB150-50278462 1 Off Overload release: tripping class 10 AShort-circuit protection: With direct mounting, observe the maximum permissible fuse of the contactor. Suitable for protection of EEx e motors. II (2) GD PTB 04 ATEX 3022 Observe manual AWB2300-1545D/GB. 50 – 70 250 160 ZB150-70278463 70 – 100 315 200 ZB150-100278464 95 – 125 315 250 ZB150-125278465 120 – 150 315 250 ZB150-150278466 145 – 175 315 250 ZB150-175107316 ZB150 overload relay • Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102• Test/off pushbutton• Reset pushbutton manual/auto• Trip-free release• Separate mounting 35 – 50 1 N/O 1 NC DILM80, DILM95,DILM115, DILM150,DILM170DILMF80,DILMF95,DILMF115,DILMF150,DIULM80, DIULM95,DIULM115, DIULM150,SDAINLM140,SDAINLM165,SDAINLM200,SDAINLM260 160 125 ZB150-50/KK278468 1 Off Overload release: tripping class 10 AShort-circuit protection: With direct mounting, observe the maximum permissible fuse of the contactor. Suitable for protection of EEx e motors. II (2) GD PTB 04 ATEX 3022 Observe manual AWB2300-1545D/GB. 50 – 70 250 160 ZB150-70/KK278469 70 – 100 315 200 ZB150-100/KK278470 95 – 125 315 250 ZB150-125/KK278471 120 – 150 315 250 ZB150-150/KK278472 145 – 175 400 315 ZB150-175/KK107317 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - See also ￫ Page 6/29 2 4 6 98 96 97 95 Fitted directly to the contactor Separate mounting 1 Contactor ￫ Chapter 52 Base ￫ Page 6/26Manual ￫ Page 6/26 1 2 1 2 4 6 98 96 97 95 2 4 6 98 96 97 95 6/11 ZB65, ZB150 HPL06010EN ZB65, ZB150 HPL06011EN

6/12 Overload relays Overload relays greater than 150 A, CT-operated overload relays 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Overload relays Overload relays greater than 150 A, CT-operated overload relays Overload relays greater than 150 A, CT-operated overload relays Setting range of of overload releases Circuit symbol Auxiliary contacts For use with Short-circuit protection Part no.Article no. PriceSee price list Std. pack Notes Information relevant for export to North America N/O = normally open contactNC = normally closed contact Type “1” coordinationgG/gL Type “2” coordinationgG/gL I r A A A Z5 overload relays greater than 150A • Phase failure sensitivity to IEC/EN 60947, VDE 0660 Part 102 • Test/off pushbutton• Reset pushbutton manual/auto• Trip-free releaseDirect mountingSeparate mounting 50 – 70 1 N/O 1 NC DILM185ADILM225A 250250 160160 Z5-70/FF225A139572 1 Off Overload release: tripping class 10 AShort-circuit protection: With direct mounting, observe the maximum permissible fuse of the contactor. Z5-…/FF225A for protecting EEx electric motors in preparation. Fitted directly to the contactor 1 Contactor ￫ Chapter 5Accessories￫ Page 6/27 Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking NA Certification Request filed for UL and CSA Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - See also ￫ Page 6/29 70 – 100 315315 200200 Z5-100/FF225A139573 95 – 125 315315 250250 Z5-125/FF225A139574 120 – 160 400400 250250 Z5-160/FF225A139575 160 – 220 400500 315400 Z5-220/FF225A139576 200 – 250 400500 315400 Z5-250/FF225A139577 50 – 70 DILM250 250250 160160 Z5-70/FF250210070 Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - See also ￫ Page 6/29 70 – 100 315315 200200 Z5-100/FF250210071 95 – 125 315315 250250 Z5-125/FF250210072 120 – 160 400400 250250 Z5-160/FF250210073 160 – 220 400500 315400 Z5-220/FF250210074 200 – 250 400500 315400 Z5-250/FF250210075 250 – 300 DILM300A 500500 400400 Z5-300/FF250139578 Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking NA Certification Request filed for UL and CSA Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - ZW7 current transformer-operated overload relays • Test/off button• Reset pushbutton manual/auto• Trip-free release• Protection with heavy starting dutySeparate mounting 42 – 63 1 N/O 1 NC – – – ZW7-63000245 1 Off The main current characteristic values are defined by the main current wiring being used.Adjustment for smaller rated motor currents￫ Page 6/28 Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - 60 – 90 – – – ZW7-90002618 85 – 125 – – – ZW7-125004991 110 – 160 – – – ZW7-160007364 160 – 240 – – – ZW7-240009737 190 – 290 – – – ZW7-290052448 270 – 400 – – – ZW7-400045329 360 – 540 – – – ZW7-540047702 420 – 630 – – – ZW7-630050075 1 Off – 1 3 5 97 95 2 4 6 98 96 1 96 98 95 97 6/13 Z5, ZW7 HPL06012EN Z5, ZW7 HPL06013EN

6/14 Electronic overload relays to 1500 A Basic devices 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic overload relays to 1500 A Basic devices Basic devices Ground fault detection Setting range of overload releases Circuit symbol Auxiliary contact For use with Part no.Article no. PriceSee price list Std. pack Notes I r A N/O = normally open contactNC = normally closed contact ZEB12 electronic overload relay • Phase-failure sensitivity• Test/off pushbutton• Reset button• Manual/Auto reset selectable• Protection with heavy starting duty (Class 5-30)Direct mounting Without 0.33 – 1.65 1 N/O 1 NC DILM7DILM9DILM12DILM15DIULM7DIULM9DIULM12SDAINLM12SDAINLM16SDAINLM22 ZEB12-1,65136480 1 Off Suitable for protection of EEx e motors. II (2) GD PTB ATEX starting 08/2010 Observe manual AWB2320-1633D/GB. Switchgear and cable dimensioning according to CLASS ￫ Page 6/22 Fitted directly to the contactor 1 Contactor ￫ Chapter 5Accessories￫ Page 6/18 Without 1 – 5 ZEB12-5136481 Without 4 – 20 ZEB12-20136482 With 0.33 – 1.65 ZEB12-1,65-GF136483 With 1 – 5 ZEB12-5-GF136484 With 4 – 20 ZEB12-20-GF136485 ZEB32 electronic overload relay • Phase-failure sensitivity• Test/off pushbutton• Reset button• Manual/Auto reset selectable• Protection with heavy starting duty (Class 5-30)Direct mounting Without 0.33 – 1.65 1 N/O 1 NC DILM17DILM25DILM32DILM38DIULM17DIULM25DIULM32SDAINLM30SDAINLM45SDAINLM55 ZEB32-1.65136486 1 Off Suitable for protection of EEx e motors. II (2) GD PTB ATEX starting 08/2010 Observe manual AWB2320-1633D/GB. Switchgear and cable dimensioning according to CLASS ￫ Page 6/22 Fitted directly to the contactor 1 Contactor ￫ Chapter 5Accessories ￫ Page 6/18 Without 1 – 5 ZEB32-5136487 Without 4 – 20 ZEB32-20136488 Without 9 – 45 ZEB32-45136489 With 0.33 – 1.65 ZEB32-1,65-GF136490 With 1 – 5 ZEB32-5-GF136491 With 4 – 20 ZEB32-20-GF136492 With 9 – 45 ZEB32-45-GF136493 Separate mounting Without 0.33 – 1.65 1 N/O 1 NC DILM17DILM25DILM32DILM38DIULM17DIULM25DIULM32SDAINLM30SDAINLM45SDAINLM55 ZEB32-1,65/KK136494 1 Off Suitable for protection of EEx e motors. II (2) GD PTB ATEX starting 08/2010 Observe manual AWB2320-1633D/GB. Switchgear and cable dimensioning according to CLASS ￫ Page 6/22 Without 1 – 5 ZEB32-5/KK136495 Without 4 – 20 ZEB32-20/KK136496 Without 9 – 45 ZEB32-45/KK136497 With 0.33 – 1.65 ZEB32-1,65-GF/KK136498 With 1 – 5 ZEB32-5-GF/KK136499 With 4 – 20 ZEB32-20-GF/KK136500 With 9 – 45 ZEB32-45-GF/KK136501 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking NA Certification Request filed for UL and CSA Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - 2 4 6 98 96 97 95 1 2 4 6 98 96 97 95 1 1 3 5 97 95 2 4 6 98 96 6/15 ZEB12, ZEB32 HPL06014EN ZEB12, ZEB 32 HPL06015EN

6/16 Electronic overload relays to 1500 A Basic devices 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic overload relays to 1500 A Basic devices ZEB65 electronic overload relay • Phase-failure sensitivity• Test/off pushbutton• Reset button• Manual/Auto reset selectable• Protection with heavy starting duty (Class 5-30)Direct mounting Without 9 – 45 1 N/O 1 NC DILM40DILM50DILM65DILM72DIULM40DIULM50DIULM65SDAINLM70SDAINLM90SDAINLM115 ZEB65-45136502 1 Off Suitable for protection of EEx e motors. II (2) GD PTB ATEX starting 08/2010 Observe manual AWB2320-1633D/GB. Switchgear and cable dimensioning according to CLASS ￫ Page 6/22 Fitted directly to the contactor 1 Contactor ￫ Chapter 5Accessories ￫ Page 6/18 With 9 – 45 ZEB65-45-GF136503 Without 20 – 100 ZEB65-100136504 With 20 – 100 ZEB65-100-GF136505 ZEB150 electronic overload relay • Phase-failure sensitivity• Test/off pushbutton• Reset button• Manual/Auto reset selectable• Protection with heavy starting duty (Class 5-30)Direct mounting Without 20 – 100 1 N/O 1 NC DILM80DILM95DILM115DILM150DIULM80DIULM95DIULM115DIULM150SDAINLM140SDAINLM165SDAINLM200SDAINLM260 ZEB150-100136506 1 Off Suitable for protection of EEx e motors. II (2) GD PTB ATEX starting 08/2010 Observe manual AWB2320-1633D/GB. Switchgear and cable dimensioning according to CLASS ￫ Page 6/22 Fitted directly to the contactor 1 Contactor ￫ Chapter 5Accessories ￫ Page 6/18 With 20 – 100 1 N/O 1 NC ZEB150-100-GF136507 Separate mounting Without 20 – 100 1 N/O 1 NC DILM80DILM95DILM115DILM150DIULM80DIULM95DIULM115DIULM150SDAINLM140SDAINLM165SDAINLM200SDAINLM260 ZEB150-100/KK136508 1 Off Suitable for protection of EEx e motors. II (2) GD PTB ATEX starting 08/2010 Observe manual AWB2320-1633D/GB. Switchgear and cable dimensioning according to CLASS ￫ Page 6/22 With 20 – 100 1 N/O 1 NC ZEB150-100-GF/KK136509 Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking NA Certification Request filed for UL and CSA Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - Ground fault detection Setting range of overload releases Circuit symbol Auxiliary contact For use with Part no.Article no. PriceSee price list Std. pack Notes I r A N/O = normally open contactNC = normally closed contact 2 4 6 98 96 97 95 1 2 4 6 98 96 97 95 1 1 3 5 97 95 2 4 6 98 96 6/17 ZEB65, ZEB150 HPL06016EN ZEB65, ZEB150 HPL06017EN

6/18 Electronic Overload Relays to 1500 A Accessories 2010 CA08103002Z-EN www.eaton.com Accessories Setting range of overload releases Language Can be used with Part no.Article no. PriceSee price list Std. pack I r A Current sensors 60 – 300 – ZEB32-5-GF/KKZEB32-5/KK ZEB-XCT300 1) 136511 1off 120 – 600 – ZEB-XCT600 1) 136512 200 – 1000 – ZEB-XCT1000 1) 136517 300 – 1500 – ZEB-XCT1500 1) 136513 Sealable shroud Cover to prevent adjustment of motor current (tamper-proof) – – – ZEB-XSC 2) 136514 1 off Reset adapter Cover to prevent adjustment of motor current (tamper-proof) – – – ZEB-XRB 2) 136515 1 off Documentation ZEB electronic overload relayOverload monitoring of EEx e motors – DeutschEnglish ZEB12ZEB32ZEB65ZEB150 AWB2320-1633DE/EN136516 1 off 1) 2) Information relevant for export to North America Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking NA Certification Request filed for UL and CSA Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking NA Certification Request filed for UL and CSA Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - ZEB-XCT… HPL06018EN

2010 CA08103002Z-EN www.eaton.com Electronic overload relay 6/19 2010 CA08103002Z-EN Description ZEV – electronic overload relay for motor currents from 1 – 820 A General Technological advances require completely new approaches: the application of newly developed sensor systems and tripping units has made motor protection considerably simpler and more cost-effective. All Z overload relays perform the expected standard functions: protection in the event of a phase failure, overload or current imbalance. In addition to these tasks, the innova-tive ZEV motor protectionsystem can do much more today: Application Even the most severe starting situa-tions can be dealt with by the ZEV motor-protective system. The enhanced tripping classes (up to CLASS40) provide reliable protection for motors with starting times of up to 1 second. Protection for any motor starting situation can be optimally set by preselecting one of the eight tripping classes between 5 and 40 seconds. Ground faults are quickly detected with the external core-balance trans-former. The integrated thermistor connection makes it possible to expand the relay into a motor protec-tion system. Handling The LCD display guides users through setting menus and ensures easy, user-friendly operation. In the event of an error, the display shows the cause of the error and allows for quick fault detection.The 05-06 and 07-08 parameterizable auxiliary switches make it possible to implement additional signalling indications.They can each be assigned one of the following functions:• Early warning of overload• Ground fault• Thermistor tripping• Internal fault Engineering The multi-voltage module adapts automatically to different voltages of 24 - 240 V, 50/60 Hz and 24 - 240 VDC, enabling its flexible use with all popular control voltages. Mounting Current sensors enable the innovative ZEV motor protection system to be used also for small motors. With large motor currents and cable cross-sections, the sensor cables are simply wound round the feeder cables.This eliminates the need for main current wiring requiring the time-consuming adaption of cables to an additional device, as well as mounting plate drilling. Instead of this, the sensor is simply attached with a Velcro fastener.This saves mounting time and expense. The volume of 58 times less than conventional transformers enables the saving of valuable mounting space in the control panel. ZEV

6/20 Electronic motor protective relay Basic Devices, Accessories 2010 CA08103002Z-EN www.eaton.com Basic Devices, Accessories Ordering Length Diameter Overload release For use with Part no.Article no. PriceSee price list Std. pack Notes ⌀ I r mm mm A ZEV electronic motor-protective relay • Protection in the event of a phase failure• Test/off button• Reset button manual/auto• Protection with heavy starting duty• Trip-free release – – 1 – 820 DILEM…DILM820 ZEV 1) 209634 1 off Suitable for protection of EEx e motors. II (2) GD PTB 01 ATEX 3233 Observe manual AWB2300-1433. Current sensors – 6 1 – 25 DILEMDILM7…DILM25 ZEV-XSW-25 2) 209635 1 off – – 13 3 – 65 DILM7…DILM65 ZEV-XSW-65 2) 209636 – 21 10 – 145 DILM12…DILM150 ZEV-XSW-145 2) 209637 – 110 40 – 820 DILM40…DILM820 ZEV-XSW-820 2) 209641 Connecting cables 200 – – ZEV-XSW-25ZEV-XSW-65ZEV-XSW-145ZEV-XSW-820 ZEV-XVK-20 1) 209643 1 off – 400 – – ZEV-XSW-25ZEV-XSW-65ZEV-XSW-145ZEV-XSW-820 ZEV-XVK-40 1) 209644 800 – – ZEV-XSW-25ZEV-XSW-65ZEV-XSW-145ZEV-XSW-820 ZEV-XVK-80 1) 209645 1) 2) Information relevant for export to North America Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - See also ￫ Page 6/29 ZEV.... HPL06020EN

Electronic motor protective relay Accessories 2010 CA08103002Z-EN www.eaton.com 6/21 Accessories Selection aid Length Diameter Overload release For use with Part no.Article no. PriceSee price list Std. pack Notes ⌀ I r mm mm A SSW core-balance transformer For ground fault monitoring – 40 – – SSW40-0,3 1) 028286 1 off – – 40 – – SSW40-0,5 1) 028305 – 40 – – SSW40-1 1) 028306 – 65 – – SSW65-0,5 1) 028307 – 65 – – SSW65-1 1) 028316 – 120 – – SSW120-0,5 1) 028319 – 120 – – SSW120-1 1) 028321 Mounting foot For screw fixing to mounting plate – – – ZEVZEV-XSW-25ZEV-XSW-65ZEV-XSW-145 ZB4-101-GF1 2) 061360 9 off – Documentation ZEV motor protection systemOverload monitoring of EEx e motorsGerman – – – – AWB2300-1433D259711 1 off English – – – – AWB2300-1433GB267430 1 off 1) 2) Information relevant for export to North America Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - UL/CSA certification not required SSW... HPL06021EN

6/22 Electronic motor protective relay Selection aid 2010 CA08103002Z-EN www.eaton.com Engineering 1) IF: Internal fault Inputs Outputs A 1/A 2 Rated control voltage 95/96 NC overload/thermistor T 1/T 2 Thermistor sensor 97/98 N/O overload/thermistor C 1/C 2 SSW core-balance transformer 05/06 NC contact freely assignable Y 1/Y 2 Remote reset 07/08 N/O contact freely assignable Switchgear and cable sizing corresponding to the respective starting inertia (CLASS) for ZEV and ZEB Switchgear is designed according to "CLASS 10" requirements for both normal and overload operation conditions. In order for the switchgear (circuit-breaker and contactor) and the cables not to be overloaded with long tripping times, they must be overdimensioned accordingly. The rated operational current, I e , for switchgear and cables can be calculated with the following current factor taking the tripping class into account: Trippling class Class 5 Class 10 Class 15 Class 20 Class 25 Class 30 Class 35 Class 40 Current factor of rated operational current I e 1.00 1.00 1.22 1.41 1.58 1.73 1.89 2.00 Rated motor currents 1 A When working with the ZEV-XSW-25 to ZEV-XSW-145 push-through sensors, the motor feeder cables for each phase are pushed through the corresponding-push-through openings. For motor currents smaller than 1 A, the motor feeder cables are placed in loops with the ZEV-XSW-25 unit. The specific number of loops depends on the rated motor current. Number of loops n 4 3 2 Rated motor current I N A 0.25…0.32 0.33…0.49 0.5…0.99 Set current on the relay I E between the lowest and highest values A 1.00…1.28 1.00…1.47 1.00…1.98 The device's set current, I E , is calculated as follows: I E = n x I N 5 10 15 20 25 30 35 40 IF 1) IF 1) Class Y1 T1 T2 Y2 C2 C1 A1 A2 95 97 05 07 96 98 06 08 ~ = N L3 L2 L1 M 3~ Z2 Z1 l % L1 L2 L3 PE PE I e I e 105 % I e 105 % ! µP ! 1 – 820 A Mode TestReset Up Down Reset Menu ON OFF Reset Manual Auto Class Fault Free parameter 1 Free parameter 2 Free parameter 1 Free parameter 2 ZEV, ZEB

Electronic motor protective relay Selection aid 2010 CA08103002Z-EN www.eaton.com 6/23 Selection aid Tripping characteristics With a phase failure or imbalance 50 %, the ZEV will trip within 2.5 seconds. Tripping times for ZEV electronic motor-protective relay Tripping class, adjustable CLASS 5 10 15 20 25 30 35 40 Tripping times in s (±20 %) With 3-pole symmetric loading from cold state Current setting I E x 3 11.3 22.6 34 45.3 56.6 67.9 79.2 90.5 x 4 8 15.9 23.9 31.8 39.8 47.7 55.7 63.6 x 5 6.1 12.3 18.4 24.6 30.7 36.8 43 49.1 x 6 5 10 15 20 25 30 35 40 x 7.2 4.1 8.2 12.3 16.4 20.5 24.5 28.6 32.7 x 8 3.6 7.3 10.9 14.6 18.2 21.9 25.5 29.2 x 10 2.9 5.7 8.6 11.5 14.4 17.2 20.1 23 Reset time after overload trip Overview of the reset time CLASS 5 10 15 20 25 30 35 40 t reset min 5 6 7 8 9 10 11 12 Thermistor tripping Rated trip resistance R = 3200 Ω ±15 % Reset resistance R = 1500 Ω +10 % Total PTC thermistor resistance ∑ R K ≦ 1500 Ω at R K ≦ 250 Ω per sensor: 6 sensors at R K ≦ 100 Ω per sensor: 9 sensors Ready to respond after trip at 5 K under response temperature Test button tripping time: 5 s 20 CLASS 40 25 15 CLASS 5 10 t A 100 50 2010 5 2 1 2010 5 21 0.7 1 2 5 8 30 35 x I e ZEV Minutes Seconds ZEV

6/24 Overload Relays for Machine Protection Basic Devices, Accessories 2010 CA08103002Z-EN www.eaton.com Basic Devices, Accessories Ordering Function Rated opera-tional current Conven-tional thermal current Rated control voltage Part no.Article no. PriceSee price list Std. pack Notes AC-15240 V AC-14400 V I e I e I th U s A A A V EMT6 thermistor machine protection overload relays Without automatic resetMains and fault LED display 3 3 6 24 - 240 V 50/60 Hz,24 - 240 V DC EMT6 1) 2) 066166 1 off II (2) G II (2) GD only for EMT6-K PTB 02 ATEX 3162 Observe the manual AWB 2327-1446 ￫ Page 6/24Can be snap fitted on a top-hat rail to IEC/EN 60715.Device clearance ≧ 3 mm. 230 V 50/60 Hz EMT6(230V) 1) 2) 066400 Without automatic resetMains and fault LED displayTripped in the event of a short-circuit in the sensor-cable 24 - 240 V 50/60 Hz,24 - 240 V DC EMT6-K 2) 269470 Selector switch with/without automatic resetFor manual or remote resettingTest buttonMains and fault LED display 24 - 240 V 50/60 Hz,24 - 240 V DC EMT6-DB 1) 2) 066167 230 V 50/60 Hz EMT6-DB(230V) 1) 2) 066401 Selector switch with/without automatic resetFor manual or remote resettingTest buttonMains and fault LED displayTrip with short-circuit in the sensor cable 24 - 240 V 50/60 Hz,24 - 240 V DC EMT6-KDB 2) 269471 All-in-one deviceSelector switch with/without automatic resetTrip with short-circuit in the sensor cableZero-voltage safeFor manual or remote resettingTest buttonShort-circuit detection and retention can be deactivatedMains and fault LED display 24 - 240 V 50/60 Hz,24 - 240 V DC EMT6-DBK 2) 066168 Accessories Screw adapters for screw fixing CS-TE 3) 095853 10 off – Documentation EMT6 thermistor overload relayOverload monitoring of machines in the EEx e area German AWB2327-1446D264853 1 off English AWB2327-1446GB267010 1 off Notes 1) For EMT6, EMT6(230V), EMT6-DB and EMT6-DB(230V) applies: Provide additional short-circuit protection in the sensor circuit with a current monitoring relay. 2) 3) Information relevant for export to North America Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - UL/CSA certification not required EMT6 HPL06024EN

Overload Relays for Machine Protection Selection aid 2010 CA08103002Z-EN www.eaton.com 6/25 Selection aid Engineering Terminal marking according to EN 50005 EMT6(-K), EMT6-(K)DB, EMT6-DBKAuto EMT6-(K)DB, EMT6-DBKManual EMT6-DBKZero-voltage safe operation LED display Supply voltage present Device has tripped Device has tripped/short-circuit in the sensor circuit Sensor circuit At R K ≦ 250 Ω per sensor: 6 sensors, at R K ≦ 100 Ω per sensor: 9 sensors in the winding (provided by user), max. cable length to sensor 250 m (not shielded);Total PTC thermistor resistance ∑ R K ≦ 1500 Ω Sensor circuit characteristic values at U s and +20 °C EMT6… R T1-T2 U T1-T2 I T1-T2 V DC max. mA max. T1, T2 short-circuited - 1.9 4 kΩ 3 0.8 T1-T2 open 5.1 - Functions that can be disconnected on the EMT6-DBK: Function Disconnection by link Short-circuit monitoring Y 1 - Y 3 Zero-voltage safety Y 1 - Y 4 L + h h N U S A1 21 13 A2 T1 T2 22 14 PTC Power Tripped Tripped LED A1/A2 T1/T2 3.6 K 1.6 K 0 13–14, 21–22 + L h h N U S A1 21 A2 T1 T2 22 14 PTC 13 Y2 Y1 Power Tripped Tripped LED A1/A2 T1/T2 3.6 K 1.6 k 0 13–14, 21–22 Y1/Y2, RESET L + h h N – U S A1 21 A2 T1 T2 22 14 PTC 13 Y2 Y1 Y4 Y3 Power Tripped A1/A2 T1/T2 3.6 K 1.6 K 0 13–14, 21–22 Y1/Y2, RESET Short-circuit Tripped LED 60 750 1650 4000 12000 [°C] NAT NAT NAT NAT NAT –20° –5° +5° +15° 3600 Tripping 1600 Reset Tolerance limits Temperature Resistance [ ] Resettingrange IEC-Tripping range EMT6

6/26 Overload Relays Accessories 2010 CA08103002Z-EN www.eaton.com Accessories Ordering For use with Part no. Article no. PriceSee price list Std. pack Notes Information relevant for export to North America Documentation Overload relaysOverload monitoring of EEx e motors ZE… AWB2300-1425D258704 1 off German ZB12…ZB32… AWB2300-1527D/GB284910 German/English ZB65…ZB150… AWB2300-1545D/GB102065 German/English Bases For separate mounting ZB32 ZB32-XEZ278473 5 off Can be snap fitted on a top-hat rail to IEC/EN 60715 or can be screw fitted.For ZB32-38, use BK25/3-PKZ0 additionally. Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - ZB65 ZB65-XEZ278474 2 off Pushbuttons For enclosed Overload relayMounting diameter: 22.3 mm External reset button, IP65 ZW7...ZEZ5ZB12ZB32ZB65ZB150 M22-DZ-B254833 10 off Button plate, blue Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified ZW7...ZEZ5ZB12ZB32ZB65ZB150 M22-DZ-B-GB14254834 10 off Button plate, blue RESET Off button, IP65 ZW7...ZEZ5ZB12ZB32ZB65ZB150 M22-DZ-X254835 10 off Without button plate, add button plate. Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Button plates M22-DZ-X M22-XD-R216423 10 off Button plate, red UL/CSA certification not required M22-DZ-X M22-XD-R-X0218153 Red button plate with white circle M22-DZ-X M22-XD-R-GB0218194 Button plate red STOP ZB, Z5, ZW7 HPL06026EN

Overload Relays Accessories 2010 CA08103002Z-EN www.eaton.com 6/27 Accessories For use with Part no.Article no. PriceSee price list Std. pack Notes Covers Direct mounting Z5-…/FF225 toDILM185ADILM225A Z5/FF225A-XHB-Z139579 1 off Fitted directly to the contactor Z5-…/FF225AZ5-…/FF250 Z5/FF250-XHB215217 1 off Separate mounting Fitted directly to the contactor Fitted directly to the contactor Direct mounting Z5-…/FF250 toDILM250DILM300A Z5/FF250-XHB-Z215218 1 off Fitted directly to the contactor Box terminals kit Consisting of 3 individual clamps For connection of copper flat stripmax. W x Hmm With protective cover Z5-…/FF250 24 x 26 K-B-DIL6AM064062 1 off When using box terminals the protective covers must be used. With control circuit terminal and protective cover Z5-…/FF250 24 x 26 KS-B-DIL6AM064063 1 off When using box terminals the protective covers must be used. Z5-.../FF225A DILM400 -XHB Z5/FF225A -XHB-Z Z5/FF250 -XHB DILM185A/ 225A Z5/FF250 -XHB Z5/FF250 -XHB Z5-.../FF250/ FF225A Z5-.../FF250 DILM400 -XHB Z5/FF250 -XHB-Z Z5/FF250 -XHB DILM250/ 300A Z5-.../FF225A DILM400 -XHB Z5/FF225A -XHB-Z Z5/FF250 -XHB DILM185A/ 225A Z5-.../FF250 DILM400 -XHB Z5/FF250 -XHB-Z Z5/FF250 -XHB DILM250/ 300A Z5..., K-B..., KS-B... HPL06027EN

6/28 Overload relays Selection criteria 2010 CA08103002Z-EN www.eaton.com for North America Selection criteria Engineering Protection of single-phase and DC current motors: 1 pole 2 pole ZE, ZB, Z5, ZW7 Mounting position: ZE ZB12, ZB32, ZB65, ZB150, Z5 Tripping characteristics These tripping characteristics are mean values of the spread at 20 °C ambient temperature in a cold state. They show the tripping times in relation to the response current. When the devices are at operational temperature the tripping time of the overload relay drops to approx. 25 % of the value shown. Specific characteristics for each individual setting range can be found in the manual on ￫ Page 6/26 2h 100 60402010 6421 402010 6421 0.6 ZB12, ZB32, ZB65, ZE 1 1.5 2 3 4 6 8 10 15 20 x Setting current 2-phase Seconds Minutes 3-phase 2h 100 60402010 6421 402010 6421 0.6 ZB150 6 8 1015 20 3 4 1 1.5 2 x Setting current 2-phase Seconds Minutes 3-phase 2 h 100 60 402010 6 42 1 402010 6 4 2 1 1 1.5 2 3 4 6 8 10 15 20 0.6 ZW7 Minutes Seconds x Setting current Minimum Maximum 2h 100 60402010 6421 402010 6421 0.6 Z5 6 8 1015 20 3 4 1 1.5 2 x Setting current 2 phase Seconds Minutes 3 phase for North America Adaption of ZW7 to smaller rated motor currents Number of loops ZW7 -63 -90 -125 -160 -240 -290 -400 -540 -630 Rated motor current I N [A] 1 42-63 60-90 85-125 110-160 160-240 190-290 270-400 360-540 420-630 2 21-31,5 30-45 42.5-62,5 55-80 80-120 95-145 135-200 180-270 210-315 3 14-21 20-30 28.3-41,7 36.7-53,3 53.3-80 63.3-96,7 90-133,3 120-180 140-210 4 10.5-15,8 15-22,5 21.3-31,3 27.5-40 40-60 47.5-72,5 67.5-100 90-135 105-157,5 5 8.4-12,6 12-18 17-25 22-32 32-48 38-58 54-80 72-108 84-126

Overload relays UL/CSA-short-circuit strength 2010 CA08103002Z-EN www.eaton.com for North America 6/29 for North AmericaUL/CSA-short-circuit strength Overload relay short-circuit strength UL508, CSA-C22,2 No. 14/SCCR values Fuse acc. to NEC, CEC CB Fuse acc. to NEC, CEC CB A kA A kA A kA A kA 600V AC 480V AC 600V AC 600 V AC ZE-0,16 1 5 15 5 ZB150-50 225 5 200 5 ZE-0.24 1 5 15 5 ZB150-70 250 10 250 10 ZE-0.4 1 5 15 5 ZB150-100 400 CLASS J 10 400 10 ZE-0.6 1 5 15 5 ZB150-125 500 CLASS J 10 500 10 ZE-1,0 3 5 15 5 ZB150-150 600 CLASS J 10 600 10 ZE-1.6 6 5 15 5 ZB150-175 600 CLASS J 10 600 10 ZE-2.4 6 5 15 5 ZB150-50(KK) 110 CLASS J 100 200 5 ZE-4 15 5 15 5 ZB150-70(KK) 125 CLASS J 100 250 10 ZE-6 20 5 15 5 ZB150-100(KK) 200 CLASS J 100 400 10 ZE-9 35 5 15 5 ZB150-125(KK) 250 CLASS J 100 500 10 ZE-12 45 5 - - ZB150-150(KK) 300 CLASS J 100 600 10 600V AC ZB150-175(KK) 300 CLASS J 100 600 10 ZB12(32)-0,16 1 CLASS J/CC 100 - - 600V AC 600V AC ZB12(32)-0,24 1 CLASS J/CC 100 - - Z5-70/... 250 10 250 10 ZB12(32)-0,4 1 CLASS J/CC 100 - - Z5-100/... 400 CLASS J 10 400 10 ZB12(32)-0,6 1 CLASS J/CC 100 - - Z5-125/... 500 CLASS J 10 500 10 ZB-12(32)-1,0 1 CLASS J/CC 100 - - Z5-160/... 600 CLASS J 10 600 10 ZB-12(32)-1,6 3 CLASS J/CC 100 - - Z5-220/... 800 CLASS J 10 800 10 ZB-12(32)-2,4 3 CLASS J/CC 100 - - Z5-250/... 700 CLASS J 10 600 10 ZB-12(32)-4 6 CLASS J/CC 100 - - Z5-70/... 125 CLASS J 100 - - ZB-12(32)-6 10 CLASS J/CC 100 - - Z5-100/... 200 CLASS J 100 - - ZB-12(32)-10 15 CLASS J/CC 100 - - Z5-125/... 250 CLASS J 100 - - ZB12-12 15 CLASS J/CC 100 - - Z5-160/... 300 CLASS J 100 - - ZB12-16 30 CLASS J/CC 100 - - 600V AC 600V AC ZB32-16 35 CLASS J 100 - - ZEV-XSW-25 - 5 - 5 ZB32-24 45 CLASS J 100 - - ZEV-XSW-64 - 10 - 10 ZB32-32 60 CLASS J 100 - - ZEV-XSW-145 - 10 - 10 600V AC 600V AC ZEV-XSW-820 - 42 - 42 ZB65-10 15 CLASS J 100 40 5 ZB65-16 35 CLASS J 100 60 5 ZB65-24 45 CLASS J 100 90 5 ZB65-40 60 CLASS J 100 125 5 ZB65-57 110 CLASS J 100 150 10 ZB65-65 125 CLASS J 100 150 10 ZB65-75 125 CLASS J 100 150 10 ZE, ZB, Z5, ZEV

6/30 Overload relays Overload relays 2010 CA08103002Z-EN www.eaton.com Overload relays Technical data ZE ZB12, ZB32 ZB65 ZB150(KK) General Standards IEC/EN 60947, VDE 0660, UL, CSA Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature Open 1) °C -25…50 -25…55 -25…55 -25…55 Enclosed 1) °C -25…40 -25…40 -25…40 -25…40 Temperature compensation Continuous Mounting position ￫ Page 6/28 Weight kg 0.07 0.15 0.25 1.64 Mechanical shock resistance half-sinusoidal shock, 10 ms to IEC 60068-2-27 g 10 10 10 10 Protection type IP20 IP20 IP00 IP00 Protection against direct contact when actuated from front (EN 50274) Finger- and back-of-hand proof Main contacts Rated impulse withstand voltage U imp V AC 6000 6000 6000 8000 Overvoltage category/pollution degree III/3 III/3 III/3 III/3 Rated insulation voltage AC U i V AC 690 690 690 1000 Rated operating voltage U e V AC 690 690 690 1000 Safe isolation according to EN 61140 Between auxiliary contacts and main contacts V AC 300 440 440 440 Between the main contacts V AC 300 440 440 440 Overload relay setting range A 0.1…12 0.1…38 6…75 25…175 Temperature compensation residual error 40 ºC %/K ≦ 0.25 ≦ 0.25 ≦ 0.25 ≦ 0.25 Short-circuit protection rating maximum fuse ￫ Page 6/6 ￫ Page 6/8 ￫ Page 6/10 ￫ Page 6/10 Current heat loss (3 conductors) Lower value of setting range W 2.5 2.5 3 16 Upper value of setting range W 6 6 7.5 18 Terminal capacity Solid mm 2 2 x (0.75 - 2.5) 2 x (1 - 6) 5) 2 x (1 - 16) 4) 2 x (4 - 16) Flexible with ferrule mm 2 2 x (0.5 - 1.5) 2 x (1 - 4) 5) 2 x (1 - 6) 3) 1 × (1…25)2 x (1…10) 2) 1 x (4 - 70)2 x (4 - 50) Stranded mm 2 – – 1 x (16…25) 1 x (16…50)2 x (16…50) Solid or stranded AWG 18 - 14 14 - 8 5) 14 - 2 3/0 Busbar Width mm – – – – Terminal screw M3.5 M4 M6 M10 Tightening torque Nm 1.2 1.8 5) 3.5 10 Tools Pozidriv screwdriver Size 2 2 2 – Flat-blade screwdriver mm 0.8 x 5.5 1 x 6 1 x 6 – Hexagon socket SW mm – – – 5 Notes 1) Ambient temperature: Operating range to IEC/EN 60947, PTB: -5°C to +55°C 2) Use identical cross-section when using two conductors 3) 6 mm flexible with ferrules to DIN 46228 4) With ZB65-XEZ max 1 x (1… 16) 5) ZB32-38: solid and flexible with ferrule, 2.5 - 25 mm 2 , 3 Nm tightening torque. AWG10-b, 27 lb-in tightening torque for solid or stranded conductors. ZE, ZB

Overload relays Overload relays, CT-operated overload relays 2010 CA08103002Z-EN www.eaton.com 6/31 Overload relays, CT-operated overload relays Z5-…/FF225A(250) ZW7 General Standards IEC/EN 60947, VDE 0660, UL, CSA IEC/EN 60947, VDE 0660, UL, CSA Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature Open 1) °C -25…50 -25…50 Enclosed 1) °C -25…40 -25…40 Temperature compensation Continuous Continuous Mounting position ￫ Page 6/28 Any Weight kg 1.55 0.8 Mechanical shock resistance half-sinusoidal shock, 10 ms to IEC 60068-2-27 g 10 10 Protection type IP00 IP00 Protection against direct contact when actuated from front (EN 50274) With terminal cover Finger- and back-of-hand proof Main contacts Rated impulse withstand voltage U imp V AC 8000 6000 Overvoltage category/pollution degree III/3 III/3 Rated insulation voltage AC U i V AC 1000 690 Rated operating voltage U e V AC 1000 690 Safe isolation according to EN 61140 Between auxiliary contacts and main contacts V AC 440 440 Between the main contacts V AC 440 440 Overload relay setting range A 50…300 42…630 Temperature compensation residual error 40 ºC %/K ≦ 0.25 – Short-circuit protection rating maximum fuse ￫ Page 6/12 With overload relay in conjunction with a transformer as required for the contactor Current heat loss (3 conductors) Lower value of setting range W 16 3 Upper value of setting range W 28 10 Terminal capacity Flexible with ferrule mm 2 95 – Stranded with ferrule mm 2 120 – Solid or stranded AWG 250 MCM – Flat conductor. Number of segments x width x thickness mm 6 x 16 x 0.8 2) – Busbar Width mm 20 x 3 – Push-through opening ⌀ mm – 27 Terminal screw M8 x 25 – Tightening torque Nm 24 – Tools Hexagonal socket SW mm 13 – Notes 1) Ambient temperature: Operating range to IEC/EN 60947, PTB: -5°C to +50°C 2) Fixing with box terminals Z5, ZW7

6/32 Overload relays Overload relays, CT-operated overload relays 2010 CA08103002Z-EN www.eaton.com Overload relays, CT-operated overload relays ZE ZB12, ZB32 ZB65 ZB150(KK) Z5-.../FF225 Z5-.../FF250 ZW7 Auxiliary and control circuits Rated impulse withstand voltage U imp V 6000 6000 6000 6000 6000 6000 Overvoltage category/Pollution degree III/3 III/3 III/3 III/3 III/3 III/3 Terminal capacity Solid mm 2 2 x (0.75 - 2.5) 2 x (0.75 - 4) 2 x (0.75 - 4) 2 x (0.75 - 4) 2 x (0.75 - 4) 2 x (0.75 - 4) Flexible with ferrule mm 2 2 x (0.5 - 1.5) 2 x (0.75 - 2.5) 2 x (0.75 - 2.5) 2 x (0.75 - 2.5) 2 x (0.75 - 2.5) 2 x (0.75 - 2.5) Solid or stranded AWG 2 x (18 - 12) 2 x (18 - 12) 2 x (18 - 12) 2 x (18 - 12) 2 x (18 - 12) 2 x (18 - 12) Terminal screw M3.5 M3.5 M3.5 M3.5 M3.5 M3.5 Tightening torque Nm 0.8 - 1.2 0.8 - 1.2 0.8 - 1.2 0.8 - 1.2 0.8 - 1.2 0.8 - 1.2 Tools Pozidriv screwdriver Size 2 2 2 2 2 2 Flat-blade screwdriver mm 0.8 x 5.5 1 x 6 1 x 6 1 x 6 1 x 6 1 x 6 Auxiliary circuit rated insulation voltage U i V AC 690 500 500 500 500 500 Rated operating voltage U e V AC 500 500 500 500 500 500 Safe isolation according to EN 61140 Between the auxiliary contacts V AC 300 240 240 240 240 240 Conventional thermal current I th A 6 6 6 6 6 6 Rated operational current AC-15 N/O 120 V I e A 1.5 1.5 1.5 1.5 1.5 1.5 240 V I e A 1.5 1.5 1.5 1.5 1.5 1.5 415 V I e A 0.5 0.5 0.5 0.5 0.5 0.5 500 V I e A 0.3 0.5 0.5 0.5 0.5 0.5 NC 120 V I e A 1.5 1.5 1.5 1.5 1.5 1.5 240 V I e A 1.5 1.5 1.5 1.5 1.5 1.5 415 V I e A 0.7 0.9 0.9 0.9 0.9 0.9 500 V I e A 0.5 0.8 0.8 0.8 0.8 0.8 DC-13 L/R ≦ 15 ms 1) 24 V I e A 0.9 0.9 0.9 0.9 0.9 0.9 60 V I e A 0.75 0.75 3) 0.75 3) 0.75 3) 0.75 3) 0.75 3) 110 V I e A 0.4 0.4 0.4 0.4 0.4 0.4 220 V I e A 0.2 0.2 0.2 0.2 0.2 0.2 General Use AC operated V 240600 – – – – – AC operated A 1.50.6 – – – – – DC operated V – – – – – – DC operated A – – – – – – Pilot Duty AC operated D300 B300 4) B600 5) B300 4) B600 5) B300 4) B600 5) B300 4) B600 5) B300 4) B600 5) DC operated R300 R300 R300 R300 R300 R300 Short-circuit rating without welding Max. fuse 2) A gG/gL 4 6 6 6 6 6 Notes 1) Making and breaking conditions to DC-13, time constant as stated 2) See transparent overlay "Fuses" for time/current characteristics (please enquire) 3) Rated operational current DC-13, 60 V: N/O auxiliary contact 0.6 A 4) With opposite polarity 5) With same polarity ZE, ZB, Z5, ZW7

Electronic Overload Relays to 1500 A 2010 CA08103002Z-EN www.eaton.com 6/33 ZEB12, ZEB32 ZEB65-45 ZEB65-100 ZEB150 General Standards IEC/EN 60947, VDE 0660, UL, CSA Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature Open °C –25…65 –25…65 –25…65 –25…65 Enclosed °C –25…65 –25…40 –25…40 –25…40 Temperature compensation Continuous Continuous Continuous Continuous Mounting position Any Any Any Any Mechanical shock resistance half-sinusoidal shock, 10 ms to IEC 60068-2-27 g 15 15 15 15 Protection type IP20 IP20 IP20 IP20 Protection against direct contact when actuated from front (EN 50274) Finger- and back-of-hand proof Main contacts Rated impulse withstand voltage U imp V AC 6000 6000 6000 6000 Overvoltage category/pollution degree III / 3 III / 3 III / 3 III / 3 Rated insulation voltage AC U i V AC 690 690 690 690 Rated operating voltage U e V AC 690 690 690 690 Safe isolation according to EN 61140 Between auxiliary contacts and main contacts V AC 600 600 600 600 Between the main contacts V AC 600 600 600 600 Overload relay setting range A 0.3…45 9…45 20…100 20…100 Terminal capacity Solid mm 2 1 x 2.5 - 16 1 x 2.5 - 16 1 x 6 - 50 1 x 6 - 50 Solid or stranded AWG 1 x 14 - 4 1 x 14 - 4 1 x 10 - 1 1 x 10 - 1 Auxiliary and control circuits Rated impulse withstand voltage U imp V 6000 6000 6000 6000 Overvoltage category/pollution degree III / 3 III / 3 III / 3 III / 3 Terminal capacity Solid mm 2 2 x (0.75 - 4) 2 x (0.75 - 4) 2 x (0.75 - 4) 2 x (0.75 - 4) Flexible with ferrule mm 2 2 x (0.75 - 2.5) 2 x (0.75 - 2.5) 2 x (0.75 - 2.5) 2 x (0.75 - 2.5) Solid or stranded AWG 2 x (18 - 12) 2 x (18 - 12) 2 x (18 - 12) 2 x (18 - 12) Terminal screw M3.5 M3.5 M3.5 M3.5 Tightening torque Nm 0.8 - 1.2 0.8 - 1.2 0.8 - 1.2 0.8 - 1.2 lb-in 7 - 10.6 7 - 10.6 7 - 10.6 7 - 10.6 Tools Pozidriv screwdriver Size 2 2 2 2 Flat-blade screwdriver mm 1 x 6 1 x 6 1 x 6 1 x 6 Auxiliary circuit rated insulation voltage U i V AC 500 500 500 500 Rated operating voltage U e V AC 500 500 500 500 Safe isolation according to EN 61140 Between the auxiliary contacts V AC 240 240 240 240 Conventional thermal current I th A 5 5 5 5 Rated operational current AC-15 N/O 120 V I e A 1.5 1.5 1.5 1.5 240 V I e A 1.5 1.5 1.5 1.5 415 V I e A 0.5 0.5 0.5 0.5 500 V I e A 0.5 0.5 0.5 0.5 NC 120 V I e A 1.5 1.5 1.5 1.5 240 V I e A 1.5 1.5 1.5 1.5 415 V I e A 0.9 0.9 0.9 0.9 500 V I e A 0.8 0.8 0.8 0.8 DC-13 L/R ≦ 15 ms 24 V I e A 0.9 0.9 0.9 0.9 60 V I e A 0.75 0.75 0.75 0.75 110 V I e A 0 0.4 0.4 0.4 220 V I e A 0.2 0.2 0.2 0.2 Short-circuit rating without welding Max. fuse A gG/gL 6 6 6 6 ZEB

6/34 Electronic Overload Relays 2010 CA08103002Z-EN www.eaton.com ZEV GeneralStandards IEC/EN 60947, VDE 0660, UL, CSA Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature Open 1) °C -25…60 8) Enclosed 1) °C -25…40 8) Storage °C -40 - 80 Temperature compensation Continuous Mounting position Any Weight kg 0.257 Shock resistance half-sinusoidal shock 10 ms to IEC 60068-2-27 g 15 Protection type IP20 Protection against direct contact when actuated from front (EN 50274) Finger- and back-of-hand proof Main contactsOverload relay setting range A 1…820 7) Temperature compensation residual error 40 ºC %/K – Short-circuit protection rating maximum fuse 3) With overload relay in conjunction with a transformer as required for contactor Tools Pozidriv screwdriver Size 1 Flat-blade screwdriver mm 0.8 x 5.5 Auxiliary and control circuitsRated impulse withstand voltage U imp V 4000 Overvoltage category/pollution degree III/3 Terminal capacities Solid mm 2 1 x (0.5 - 2.5) 2 x (0.5 - 1.5) 4) Flexible with ferrule mm 2 1 x (0.5 - 2.5) 2 x (0.5 - 1.5) 4) Solid or stranded AWG 1 x (18 - 14) Terminal screw M3.5 Tightening torque Nm 0.8 Tools Pozidriv screwdriver Size 1 Flat-blade screwdriver mm 0.8 x 5.5 Auxiliary circuit rated insulation voltage U i V AC 250 Rated operating voltage U e V AC 240 Safe isolation according to EN 61140 Between the auxiliary contacts V AC 240 5) Conventional thermal current I th A 6 Rated operational current AC-15 N/O 120 V I e A 3 6) 240 V I e A 3 6) 415 V I e A – 500 V I e A – NC 120 V I e A 3 240 V I e A 3 415 V I e A – 500 V I e A – DC-13 L/R ≦ 15 ms 2) 24 V I e A 1 60 V I e A – 110 V I e A – 220 V I e A – Power consumption P max. W 2.5 Short-circuit rating without welding Max. fuse 3) A gG/gL 6 Voltage tolerance AC operated x U c 0.85…1.1 DC operated x U c 0.85…1.1 Thermistor protectionTotal resistance (cold) Ω 1500 Response value Ω 2720…3680 Reset range Ω 1500…1650 Reset time Overload ￫ Page 6/23 Thermistor tripping 5 K under response temperature Ground fault protection Immediate Notes 1) Ambient air temperature: open and enclosed operating range to IEC/EN 60947, PTB: -5°C to +50°C 2) Rated operational current: Making and breaking conditions to DC-13, L/R constant as stated 3) See overlay “Fuses” for short-circuit rating time/current characteristic (please enquire) 4) Terminal capacities auxiliary and control circuits, solid, flexible with ferrules: With connection of 2 conductors only the following combinations are permissible: 0.5 and 0.75 mm², 0.75 and 1 mm², 1 and 1.5 mm² 5) Safe isolation: Up to 240 V depending on contact assignment between mains and outputs no potential isolation to thermistor and summation current transformer input and current sensor (neighbouring contacts: U s = 127 V) 6) Rated operational current AC-15: contacts 95/96 and 97/98 3 A (contactor control), contacts 05/06 and 07/08 1.5 A (auxiliary contacts) 7) Overload relay main contact setting range: setting range dependant on current sensor 8) Main contacts terminal capacity solid and stranded conductors with ferrules: When using 2 conductors use identical cross-section Ambient temperature open and enclosed: limited readability of the LCD display at -15°C ZEV

Electronic Overload Relays 2010 CA08103002Z-EN www.eaton.com 6/35 ZEV-XSW-25 ZEV-XSW-65 ZEV-XSW-145 ZEV-XSW-820 General Standards IEC/EN 60947, VDE 0660, UL, CSA Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature 1) Open °C -25…60 -25…60 -25…60 -25…60 Enclosed °C -25…40 -25…40 -25…40 -25…40 Storage °C -40 - 80 -40 - 80 -40 - 80 -40 - 80 Temperature compensation Continuous Continuous Continuous Continuous Mounting position Any Any Any Any Weight kg 0.23 0.4 0.45 0.14 Mechanical shock resistance half-sinusoidal shock, 10 ms to IEC 60068-2-27 g 15 15 15 15 Protection type IP20 IP20 IP20 IP20 Protection against direct contact when actuated from front (EN 50274) Finger- and back-of-hand proof Main contacts Rated impulse withstand voltage U imp V 2) 2) 2) 8000 Overvoltage category/pollution degree 2) 2) 2) III/3 Rated insulation voltage AC U i V AC 2) 2) 2) 1000 Rated operational voltage U e V AC 2) 2) 2) 1000 Safe isolation according to EN 61140 Between busbar and sensor V AC – – – 500 Overload relay setting range Min. overload relay setting range A 1 3 10 40 Max. overload relay setting range A 25 65 145 820 Short-circuit protection rating maximum fuse With overload relay in conjunction with a transformer as required for contactor Diameter ⌀ mm 6 13 21 110 Notes 1) Operating range to IEC/EN 60947, PTB: -5°C to +50°C 2) The main current parameters are defined by the main current wiring which is used. ZEV

6/36 Thermistor machine protection relays 2010 CA08103002Z-EN www.eaton.com EMT6 General Standards IEC/EN 60947, VDE 0660, EN 55011 Climatic proofing Damp heat, constant, to IEC 60068-2-78;Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature Open °C -25…60 Enclosed °C -25…45 Storage °C -45 - 60 Mounting position Any Weight kg 0.15 Shock resistance half-sinusoidal shock 10 ms to IEC 60068-2-27 g 10 Protection type IP20 Protection against direct contact when actuated from front (EN 50274) Finger- and back-of-hand proof Safe isolation according to EN 61140 Between the contacts V AC 250 Between contacts and supply voltage V AC 250 Auxiliary and control circuits Rated impulse withstand voltage U imp V AC 6000 Overvoltage category/pollution degree III/3 Auxiliary and control circuit terminal capacity Solid mm 2 1 x 2.52 x (0.5 - 1.5) Flexible with ferrule mm 2 1 x 2.52 x (0.5 - 1.5) Solid or stranded AWG 20 - 14 Terminal screw M3.5 Tightening torque Nm 1.2 Tools Pozidriv screwdriver Size 2 Flat-blade screwdriver mm 1 x 6 Auxiliary circuit Rated insulation voltage U i V 400 Rated operational current AC-14 N/O 415 V I e A 3 NC 415 V I e A 3 AC-15 N/O 240 V I e A 3 415 V I e A 1 NC 240 V I e A 3 415 V I e A 1 Max. short-circuit protective device Fuse gG/gL A 6 Control circuit Rated insulation voltage U i V 240 Rated operational voltage U e V 240 1) Voltage tolerance x U e 0.85 - 1.1 Power consumption AC VA 3.5 DC W 2 Trip at approx. Ω ≧3600 Reset at approx. Ω ≦1600 Notes 1) EMT6(-DB)230V: U e = 230 V EMT6

Overload relays Overload relays 2010 CA08103002Z-EN www.eaton.com 6/37 Dimensions Overload relays Overload relays Base ZE-… ZB32-XEZ ZB65-XEZ ZB12 ZB32 ① OFF② Reset/ON ZB32-38 ① OFF② Reset/ON 5.5 58 = 5 45 32 49 106 5 b2 16.5 c2 b a c b1 a1 2 x d ZB32 ZB65 a 45 60 b 85 86 c 90.5 112 c2 3.8 4.7 a1 35 50 b1 75 75 b2 40.5 47 d M4 M5 45 27.5 39 88 84 53 34 120 a b 45 27.5 39 102 62 42 136 a b 45 27.5 39 102 62 2 25 42 136 120 ab ZE, ZB

6/38 Overload relays Overload relays 2010 CA08103002Z-EN www.eaton.com Overload relays Overload relays ZB65 ① OFF② Reset/ON ZB150 ① OFF② Reset/ON 172 40 60 46.5 35 7.5 132 96.5 ab a b 100 134 44 74 118 95 5 16.5 91 90 150 170 156 160 277 70 o7 ZB

Overload relays Overload relays, CT-operated overload relays 2010 CA08103002Z-EN www.eaton.com 6/39 Overload relays, CT-operated overload relays Overload relays ZB150-50/KK ① OFF② Reset/ON Z5 overload relays greater than 150A Z5-.../FF250 ① OFF② Reset/ON Current transformer-operated overload relays ZW7-… ① Reset/ON 121 74 7 5 16.5 63 129 134 100 118 99 95 o 7 ab 121 110 96 128 74 144 169 48 25 5 16.5 144 111 94 7 7 11 ab a b 200 185 65 65 71 27 7.5 26 55 21 85 71 44 33 8 4.3 185 M4 44 26 55 a a 1.5 159 172 – 250 90° 90° 90° Z5, ZW7

6/40 Overload relays Electronic overload relays 2010 CA08103002Z-EN www.eaton.com Electronic overload relays Electronic overload relays ZEB12 ZEB32 ZEB65-45 ZEB65-100 76 117 34 143 70 103 108 33.2 40.5 45 97.5 139.5 103 108 43 161 79 33.2 40.5 45 132.5 146.1 57.5 184 87 5 103 108 33.2 40.5 45 38.6 46.2 55 128.2 136.3 57.5 213.6 107 132.5 146.1 ZEB

Overload relays Electronic overload relays 2010 CA08103002Z-EN www.eaton.com 6/41 Electronic overload relaysElectronic overload relays Electronic overload relays ZEB150-100 ZEB150-100/KK 132.4 140.5 85 289.1 145.4 38.6 63.2 90 111.8 175 160 38.6 41 46.1 56 51.7 104.8 116 132.4 140.5 ZEB

6/42 Overload relays Thermistor overload relays for machine protection, electronic overload relays 2010 CA08103002Z-EN www.eaton.com Thermistor overload relays for machine protection, electronic overload relays Current sensors ZEB-XCT300 ZEB-XCT600 ZEB-XCT1000ZEB-XCT1500 EMT6 thermistor overload relays for machine protection External reset button EMT6… M22-DZ-BM22-DZ-X 190.5 165.1 106.1 127 193.5 234.2 206 89.2 205.4 304.6 330.2 317 188.9 10.1 383.5 108 108 83.5 o 73.2 102 78 22.5 3 _ 100 19 2 – 5 8 2.5 24.1 22.3 3.2 o 29.5 ZEB, EMT6

Overload relays Electronic overload relays 2010 CA08103002Z-EN www.eaton.com 6/43 Electronic overload relays Electronic overload relays Electronic overload relays ZEV ZEV + ZEV-XSW-... Current sensors ZEV-XSW-... ZEV-XSW-820 Core-balance transformers SSW… 29 4.5 7.2 45 93 37 59.2 78 103 75 c1 Part no. c1 ZEV + ZEV-XSW-25 120 ZEV + ZEV-XSW-65 128 ZEV + ZEV-XSW-145 134 93 a1 4.5 a 37 35 78 103 c 3 125 ~150 35 26 37 Part no. a a1 c d1 d2 ZEV + ZEV-XSW-25 45 24 50 6 11.2 ZEV + ZEV-XSW-65 70 49 58 13 19 ZEV + ZEV-XSW-145 90 68 65 21 26 8 d2 d2 35 d1 Part no. a a1 a2 b b1 c d e SSW40-... 64 50 38 100 80 86 4.5 40 SSW65-... 75 60 43 124 100 112 4.5 65 SSW120-... 86.5 70 54.5 200 170 205 4.5 120 a1 a2 b b1 c e a d ZEV
