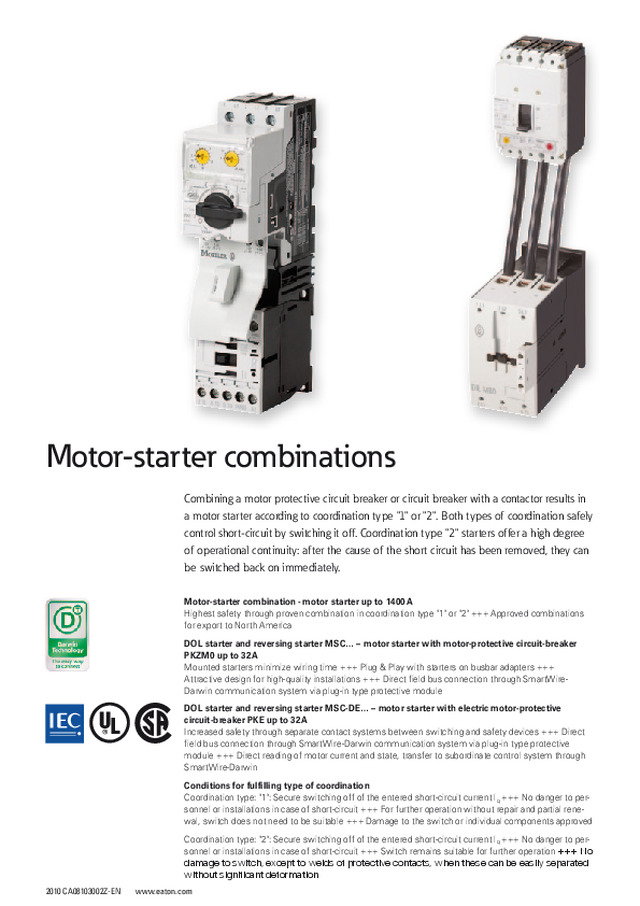

2010 CA08103002Z-EN www.eaton.com Motor-starter combination - motor starter up to 1400 A Highest safety through proven combination in coordination type "1" or "2" +++ Approved combinations for export to North AmericaDOL starter and reversing starter MSC… – motor starter with motor-protective circuit-breaker PKZM0 up to 32A Mounted starters minimize wiring time +++ Plug & Play with starters on busbar adapters +++ Attractive design for high-quality installations +++ Direct field bus connection through SmartWire- Darwin communication system via plug-in type protective moduleDOL starter and reversing starter MSC-DE… – motor starter with electric motor-protective circuit-breaker PKE up to 32A Increased safety through separate contact systems between switching and safety devices +++ Direct field bus connection through SmartWire-Darwin communication system via plug-in type protective module +++ Direct reading of motor current and state, transfer to subordinate control system through SmartWire-DarwinConditions for fulfilling type of coordination Coordination type: "1": Secure switching off of the entered short-circuit current l q +++ No danger to per- sonnel or installations in case of short-circuit +++ For further operation without repair and partial rene- wal, switch does not need to be suitable +++ Damage to the switch or individual components approvedCoordination type: "2": Secure switching off of the entered short-circuit current l q +++ No danger to per- sonnel or installations in case of short-circuit +++ Switch remains suitable for further operation +++ No damage to switch, except to welds of protective contacts, when these can be easily separated without significant deformation Combining a motor protective circuit breaker or circuit breaker with a contactor results in a motor starter according to coordination type "1" or "2". Both types of coordination safely control short-circuit by switching it off. Coordination type "2" starters offer a high degree of operational continuity: after the cause of the short circuit has been removed, they can be switched back on immediately. Motor-starter combinations

Ordering Direct-on-line starters MSC-D MSC-D complete units 8/02 MSC-US complete units 8/04 MSC-DEA complete units 8/06 Compact starters PKZ2/ZM 8/08 Modules PKZM0/PKZM4 + DILM 8/10 Modules NZMN/NZMH + DILM 8/14 Modules PKM0 + DILM + ZB 8/18 Modules NZMN + DILM + ZB/ZEV 8/18 Ordering Reversing starter MSC-R MSC-R complete units 8/20 Modules PKZM0/PKZM4 + DILM 8/22 Modules NZMN/NZMH + DILM 8/24 Ordering Starter on busbar adapter DOL starter complete units MSC-D/BBA 8/26 Reversing starters complete units MSC-R/BBA 8/28 Ordering Starter for North America DOL starters, modules PKZ2/S-SP + ZMR/ZM 8/30 Reversing starters, modules PKZ2/S-SP-FVR + 8/32 ZMR/ZMModules type F starter combinations 8/34 Modules DILEM/DILM + ZE/ZB/Z5/ZW7 8/35 Modules NZMH-…-CNA + DILM + ZB/Z5/ZW7 8/36 System overview, description Connection system SmartWire 8/37 Ordering Connection system SmartWire 8/38 Accessories 8/39 Engineering Connection system SmartWire 8/40 Technical data Connection system SmartWire 8/41 DOL starters MSC-D, MSC-DE(A) 8/45 Reversing starter MSC-R 8/45 Dimensions Direct-on-line starter MSC-D MSC-D complete units 8/45 MSC-D/BBA complete units 8/45 MSC-DE(A) complete units 8/46 Reversing starter MSC-R MSC-R complete units 8/46 MSC-R/BBA complete units 8/46 Connection system SmartWire 8/47 95 45 67 6 46 180 Motor-starter combinations

8/2 Motor-starter combinations Complete units DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Complete units DOL starters DOL startersComplete units Ordering DOL startersComplete units 400/415 V Motor data Setting range Motor startersactuating voltage230 V 50 Hz Motor startersactuating voltage24 V DC Std. pack Motor protective circuit breaker Contactor DOL starter wiring set Notes Motor rating Rated operational current Rated short-circuit current Overload trip Short-circuit release Part no.Article no. PriceSee price list Std. pack Part no.Article no. PriceSee price list Mechanical con-nection module and electrical contact module AC-3 AC-3 380 - 415 V 380 - 415 V 380 V 400 V 415 V 400 V Type “1” coordination Type “2” coordination P I e I q I q I r I rm Type Type Type kW A kA kA A A Complete units MSC-D 0.06 0.21 150 50 0.16 - 0.25 3.5 MSC-D-0.25-M7(230V50HZ) 1) 281925 1 off MSC-D-0.25-M7(24VDC) 1) 283154 1 off PKZM0-0,25 DILM7-10(...) PKZM0-XDM12 The DOL starters (complete devices) consist of a motor protective circuit breaker PKZM0 and a contactor DILM.With the adapterless top-hat rail mounting of starters up to 15 A, only the motor-protective circuit-breaker on the top-hat rail requires an adapter. The contactors are provided with mechanical support via a mechanical connection element.Control wire guide with max. 6 conductors with up to 2.5 mm external diameter or 4 conductors up to 3.5 mm external diameter.From 16 A, the motor protective circuit breaker and contactors are mounted on the top-hat rail adapter plate.The connection of the main circuit between PKZ and contactor is established with electrical contact modules.When using auxiliary contacts DILA‐XHIT… (→ 5/40) the electrical plugs can be pulled without having to remove the front mounting auxiliary contact.Cannot be combined with NHI-E-...-PKZ0-C standard auxiliary contact with spring-loaded terminal. 1) To assemble Type F starters that conform with UL508, incoming terminals BK25/3-PKZ0-E and, if necessary, three-phase terminal blocks B3.../...-PKZ0 can be added to motor starter combinations. Type F starter ￫ Page 8/34 0.09 0.31 150 50 0.25 - 0.4 5.6 MSC-D-0.4-M7(230V50HZ) 1) 281926 1 off MSC-D-0.4-M7(24VDC) 1) 283155 1 off PKZM0-0,4 DILM7-10(...) PKZM0-XDM12 0.120.18 0.410.6 150 50 0.4 - 0.63 8.82 MSC-D-0.63-M7(230V50HZ) 1) 281927 1 off MSC-D-0.63-M7(24VDC) 1) 283156 1 off PKZM0-0,63 DILM7-10(...) PKZM0-XDM12 0.25 0.8 150 50 0.63 - 1 14 MSC-D-1-M7(230V50HZ) 1) 281929 1 off MSC-D-1-M7(24VDC) 1) 283158 1 off PKZM0-1 DILM7-10(...) PKZM0-XDM12 0.370.55 1.11.5 150 50 1 - 1.6 22.4 MSC-D-1.6-M7(230V50HZ) 1) 283140 1 off MSC-D-1.6-M7(24VDC) 1) 283159 1 off PKZM0-1,6 DILM7-10(...) PKZM0-XDM12 0.75 1.9 150 50 1.6 - 2.5 35 MSC-D-2.5-M7(230V50HZ) 1) 283142 1 off MSC-D-2.5-M7(24VDC) 1) 283161 1 off PKZM0-2,5 DILM7-10(...) PKZM0-XDM12 1.11.5 2.63.6 150 50 2.5 - 4 56 MSC-D-4-M7(230V50HZ) 1) 283143 1 off MSC-D-4-M7(24VDC) 1) 283162 1 off PKZM0-4 DILM7-10(...) PKZM0-XDM12 2.2 5 150 50 4 - 6.3 88.2 MSC-D-6.3-M7(230V50HZ) 1) 283145 1 off MSC-D-6.3-M7(24VDC) 1) 283164 1 off PKZM0-6,3 DILM7-10(...) PKZM0-XDM12 3 6.6 150 – 6.3 - 10 140 MSC-D-10-M7(230V50HZ)283146 1 off MSC-D-10-M7(24VDC)283165 1 off PKZM0-10 DILM7-10(...) PKZM0-XDM12 4 8.5 150 – 6.3 - 10 140 MSC-D-10-M9(230V50HZ)283147 1 off MSC-D-10-M9(24VDC)283166 1 off PKZM0-10 DILM9-10(...) PKZM0-XDM12 5.5 11.3 50 – 8 - 12 168 MSC-D-12-M12(230V50HZ)283148 1 off MSC-D-12-M12(24VDC)283167 1 off PKZM0-12 DILM12-10(...) PKZM0-XDM12 7.5 15.2 50 – 10 - 16 224 MSC-D-16-M15(230V50HZ)100414 1 off MSC-D-16-M15(24VDC)100415 1 off PKZM0-16 DILM15-10(...) PKZM0-XDM12 34 6.68.5 50 50 6.3 - 10 140 MSC-D-10-M17(230V50HZ)101045 1 off MSC-D-10-M17(24VDC)101047 1 off PKZM0-10 DILM17-10(...) PKZM0-XDM32 5.5 11.3 50 50 8 - 12 168 MSC-D-12-M17(230V50HZ)101046 1 off MSC-D-12-M17(24VDC)101048 1 off PKZM0-12 DILM17-10(...) PKZM0-XDM32 7.5 15.2 50 50 10 - 16 224 MSC-D-16-M17(230V50HZ) 1) 283150 1 off MSC-D-16-M17(24VDC)283168 1 off PKZM0-16 DILM17-10(...) PKZM0-XDM32 11 21.7 50 50 20 - 25 350 MSC-D-25-M25(230V50HZ) 1) 283151 1 off MSC-D-25-M25(24VDC)283169 1 off PKZM0-25 DILM25-10(...) PKZM0-XDM32 15 29.3 50 50 25 - 32 448 MSC-D-32-M32(230V50HZ) 1) 283152 1 off MSC-D-32-M32(24VDC)283170 1 off PKZM0-32 DILM32-10(...) PKZM0-XDM32 I M 3 ~ I Further information Page Technical data PKZM0 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/73 DILM accessories ￫ 5/54 M 3 ~ I 8/3 MSC-D: PKZM0, DILM HPL08002EN MSC-D: PKZM0, DILM HPL08003EN

8/4 Motor-starter combinations Complete units 400/415 V DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Complete units 400/415 V DOL starters Motor data Setting range Motor startersactuating voltage230 V 50 Hz Std. pack Motor startersactuating voltage24 V DC Std. pack Motor protective circuit breaker Contactor DOL starter wiring set Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Type of coordina-tion Part no.Article no. PriceSee price list Part no.Article no. PriceSee price list Mechanical con-nection module and electrical contact module AC-3 AC-3 380 V 400 V 415 V 400 V 380 - 415 V P I e I q I r I rm Type Type Type kW A kA A A Complete units MSC-US 0.06 0.21 100 0.3 - 1.2 16.8 "1" MSC-DE-1.2-M7(230V50HZ)121735 1 off MSC-DE-1.2-M7(24VDC)121736 1 off PKE12/XTU-1.2 DILM7-10(...) PKZM0-XDM12 The DOL starters (complete devices) consist of a PKE motor protective circuit breaker and a DILM contactor.With the adapterless top-hat rail mounting of starters up to 15 A, only the motor protective circuit breaker on the top-hat rail requires an adapter. The contactors are provided with mechanical support via a mechanical connection element.Control wire guide with max. 6 conductors with up to 2.5 mm external diameter or 4 conductors up to 3.5 mm external diameter.From 16 A, the motor protective circuit breaker and contactor are mounted on the top-hat rail adapter plate.The connection of the main circuit between PKE and contactor is established with electrical contact modules.When using auxiliary contacts DILA‐XHIT… (→ 5/40) the electrical plugs can be pulled without having to remove the front mounting auxiliary contact.Cannot be combined with standard auxiliary contact NHI-E-...-PKZ0-C with spring-loaded terminals. 0.09 0.31 100 0.3 - 1.2 16.8 "1" MSC-DE-1.2-M7(230V50HZ)121735 1 off MSC-DE-1.2-M7(24VDC)121736 1 off PKE12/XTU-1.2 DILM7-10(...) PKZM0-XDM12 0.12 0.41 100 0.3 - 1.2 16.8 "1" MSC-DE-1.2-M7(230V50HZ)121735 1 off MSC-DE-1.2-M7(24VDC)121736 1 off PKE12/XTU-1.2 DILM7-10(...) PKZM0-XDM12 0.18 0.6 100 0.3 - 1.2 16.8 "1" MSC-DE-1.2-M7(230V50HZ)121735 1 off MSC-DE-1.2-M7(24VDC)121736 1 off PKE12/XTU-1.2 DILM7-10(...) PKZM0-XDM12 0.25 0.8 100 0.3 - 1.2 16.8 "1" MSC-DE-1.2-M7(230V50HZ)121735 1 off MSC-DE-1.2-M7(24VDC)121736 1 off PKE12/XTU-1.2 DILM7-10(...) PKZM0-XDM12 0.37 1.1 100 0.3 - 1.2 16.8 "1" MSC-DE-1.2-M7(230V50HZ)121735 1 off MSC-DE-1.2-M7(24VDC)121736 1 off PKE12/XTU-1.2 DILM7-10(...) PKZM0-XDM12 0.55 1.5 100 1 - 4 56 "1" MSC-DE-4-M7(230V50HZ)121737 1 off MSC-DE-4-M7(24VDC)121738 1 off PKE12/XTU-4 DILM7-10(...) PKZM0-XDM12 0.75 1.9 100 1 - 4 56 "1" MSC-DE-4-M7(230V50HZ)121737 1 off MSC-DE-4-M7(24VDC)121738 1 off PKE12/XTU-4 DILM7-10(...) PKZM0-XDM12 1.1 2.6 100 1 - 4 56 "1" MSC-DE-4-M7(230V50HZ)121737 1 off MSC-DE-4-M7(24VDC)121738 1 off PKE12/XTU-4 DILM7-10(...) PKZM0-XDM12 1.5 3.6 100 1 - 4 56 "1" MSC-DE-4-M7(230V50HZ)121737 1 off MSC-DE-4-M7(24VDC)121738 1 off PKE12/XTU-4 DILM7-10(...) PKZM0-XDM12 2.2 5 100 3 - 12 168 "1" MSC-DE-12-M7(230V50HZ)121739 1 off MSC-DE-12-M7(24VDC)121740 1 off PKE12/XTU-12 DILM7-10(...) PKZM0-XDM12 3 6.6 100 3 - 12 168 "1" MSC-DE-12-M7(230V50HZ)121739 1 off MSC-DE-12-M7(24VDC)121740 1 off PKE12/XTU-12 DILM7-10(...) PKZM0-XDM12 4 8.5 100 3 - 12 168 "1" MSC-DE-12-M9(230V50HZ)121741 1 off MSC-DE-12-M9(24VDC)121742 1 off PKE12/XTU-12 DILM9-10(...) PKZM0-XDM12 5.5 11.3 100 3 - 12 168 "1" MSC-DE-12-M12(230V50HZ)121743 1 off MSC-DE-12-M12(24VDC)121744 1 off PKE12/XTU-12 DILM12-10(...) PKZM0-XDM12 2.2 5 100 3 - 12 168 "1", "2" MSC-DE-12-M17(230V50HZ)121745 1 off MSC-DE-12-M17(24VDC)121746 1 off PKE12/XTU-12 DILM17-10(...) PKZM0-XDM32 3 6.6 100 3 - 12 168 "1", "2" MSC-DE-12-M17(230V50HZ)121745 1 off MSC-DE-12-M17(24VDC)121746 1 off PKE12/XTU-12 DILM17-10(...) PKZM0-XDM32 4 8.5 100 3 - 12 168 "1", "2" MSC-DE-12-M17(230V50HZ)121745 1 off MSC-DE-12-M17(24VDC)121746 1 off PKE12/XTU-12 DILM17-10(...) PKZM0-XDM32 5.5 11.3 100 3 - 12 168 "1", "2" MSC-DE-12-M17(230V50HZ)121745 1 off MSC-DE-12-M17(24VDC)121746 1 off PKE12/XTU-12 DILM17-10(...) PKZM0-XDM32 7.5 16.7 100 8 - 32 448 "1", "2" MSC-DE-32-M17(230V50HZ)121747 1 off MSC-DE-32-M17(24VDC)121748 1 off PKE32/XTU-32 DILM17-10(...) PKZM0-XDM32 11 21.7 100 8 - 32 448 "1", "2" MSC-DE-32-M25(230V50HZ)121749 1 off MSC-DE-32-M25(24VDC)121750 1 off PKE32/XTU-32 DILM25-10(...) PKZM0-XDM32 15 29.3 100 8 - 32 448 "1", "2" MSC-DE-32-M32(230V50HZ)121751 1 off MSC-DE-32-M32(24VDC)121752 1 off PKE32/XTU-32 DILM32-10(...) PKZM0-XDM32 I M 3 ~ I Further information Page Technical data PKE ￫ Chapter 7 Accessories PKE ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/73 DILM accessories → 5/54 M 3 ~ I 8/5 MSC-DE: PKE, DILM HPL08004EN MSC-DE: PKE, DILM HPL08005EN

8/6 Motor-starter combinations Complete units 400/415 V DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Complete units 400/415 V DOL starters DOL startersComplete units 400/415 V Motor data Setting range Motor startersactuating voltage24 V DC Std. pack Motor protective circuit breaker Contactor DOL starter wiring set Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Type of coordination Part no.Article no. PriceSee price list Mechanical con-nection module and electrical contact module AC-3 AC-3 380 V 400 V 415 V 400 V 380 - 415 V P I e I q I r I rm Type Type Type kW A kA A A Complete devices MSD-DEA 0.06 0.21 100 0.3 - 1.2 16.8 "1" MSC-DEA-1.2-M7(24VDC)121753 1 off PKE12/XTUA-1.2 DILM7-10(...) PKZM0-XDM12 The DOL starters (complete devices) consist of a PKE motor protective circuit breaker and a DILM contactor.With the adapterless top-hat rail mounting of starters up to 15 A, only the motor protective circuit breaker on the top-hat rail requires an adapter. The contactors are provided with mechanical support via a mechanical connection element.Control wire guide with max. 6 conductors with up to 2.5 mm external diameter or 4 conductors up to 3.5 mm external diameter.From 16 A, the motor protective circuit breaker and contactor are mounted on the top-hat rail adapter plate.The connection of the main circuit between PKE and contactor is established with electrical contact modules.When using auxiliary contacts DILA‐XHIT…(→ 5/40) the electrical plugs can be pulled without having to remove the front mounting auxiliary contact.Cannot be combined with standard auxiliary contact NHI-E-...-PKZ0-C with spring-loaded terminals.The DOL starters MSC-DEA... are prepared for communication via SmartWire-Darwin. For this the SWD-PKE communication must be added. 0.09 0.31 100 0.3 - 1.2 16.8 "1" MSC-DEA-1.2-M7(24VDC)121753 1 off PKE12/XTUA-1.2 DILM7-10(...) PKZM0-XDM12 0.12 0.41 100 0.3 - 1.2 16.8 "1" MSC-DEA-1.2-M7(24VDC)121753 1 off PKE12/XTUA-1.2 DILM7-10(...) PKZM0-XDM12 0.18 0.6 100 0.3 - 1.2 16.8 "1" MSC-DEA-1.2-M7(24VDC)121753 1 off PKE12/XTUA-1.2 DILM7-10(...) PKZM0-XDM12 0.25 0.8 100 0.3 - 1.2 16.8 "1" MSC-DEA-1.2-M7(24VDC)121753 1 off PKE12/XTUA-1.2 DILM7-10(...) PKZM0-XDM12 0.37 1.1 100 0.3 - 1.2 16.8 "1" MSC-DEA-1.2-M7(24VDC)121753 1 off PKE12/XTUA-1.2 DILM7-10(...) PKZM0-XDM12 0.55 1.5 100 1 - 4 56 "1" MSC-DEA-4-M7(24VDC)121754 1 off PKE12/XTUA-4 DILM7-10(...) PKZM0-XDM12 0.75 1.9 100 1 - 4 56 "1" MSC-DEA-4-M7(24VDC)121754 1 off PKE12/XTUA-4 DILM7-10(...) PKZM0-XDM12 1.1 2.6 100 1 - 4 56 "1" MSC-DEA-4-M7(24VDC)121754 1 off PKE12/XTUA-4 DILM7-10(...) PKZM0-XDM12 1.5 3.6 100 1 - 4 56 "1" MSC-DEA-4-M7(24VDC)121754 1 off PKE12/XTUA-4 DILM7-10(...) PKZM0-XDM12 2.2 5 100 3 - 12 168 "1" MSC-DEA-12-M7(24VDC)121755 1 off PKE12/XTUA-12 DILM7-10(...) PKZM0-XDM12 3 6.6 100 3 - 12 168 "1" MSC-DEA-12-M7(24VDC)121755 1 off PKE12/XTUA-12 DILM7-10(...) PKZM0-XDM12 4 8.5 100 3 - 12 168 "1" MSC-DEA-12-M9(24VDC)121756 1 off PKE12/XTUA-12 DILM9-10(...) PKZM0-XDM12 5.5 11.3 100 3 - 12 168 "1" MSC-DEA-12-M12(24VDC)121757 1 off PKE12/XTUA-12 DILM12-10(...) PKZM0-XDM12 2.2 5 100 3 - 12 168 "1", "2" MSC-DEA-12-M17(24VDC)121758 1 off PKE12/XTUA-12 DILM17-10(...) PKZM0-XDM32 3 6.6 100 3 - 12 168 "1", "2" MSC-DEA-12-M17(24VDC)121758 1 off PKE12/XTUA-12 DILM17-10(...) PKZM0-XDM32 4 8.5 100 3 - 12 168 "1", "2" MSC-DEA-12-M17(24VDC)121758 1 off PKE12/XTUA-12 DILM17-10(...) PKZM0-XDM32 5.5 11.3 100 3 - 12 168 "1", "2" MSC-DEA-12-M17(24VDC)121758 1 off PKE12/XTUA-12 DILM17-10(...) PKZM0-XDM32 7.5 16.7 100 8 - 32 448 "1", "2" MSC-DEA-32-M17(24VDC)121759 1 off PKE32/XTUA-32 DILM17-10(...) PKZM0-XDM32 11 21.7 100 8 - 32 448 "1", "2" MSC-DEA-32-M25(24VDC)121760 1 off PKE32/XTUA-32 DILM25-10(...) PKZM0-XDM32 15 29.3 100 8 - 32 448 "1", "2" MSC-DEA-32-M32(24VDC)121761 1 off PKE32/XTUA-32 DILM32-10(...) PKZM0-XDM32 I M 3 ~ I Further information Page Technical data PKE ￫ Chapter 7 Accessories PKE ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/73 DILM accessories → 5/54 M 3 ~ I 8/7 MSC-DEA: PKE, DILM HPL08006EN MSC-DEA: PKE, DILM HPL08007EN

8/8 Motor-starter combinations Compact starters, high-capacity compact starters DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Compact starters, high-capacity compact starters DOL starters DOL startersCompact starters, high-capacity compact starters Motor data Setting range Part no.Article no. PriceSee price list Std. pack Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-cir-cuit release Type of coordination AC-3 AC-3 380 V 400 V 415 V 500 V 400 V 500 V 380 - 415 V 500 V P P I e I e I q I q I r I rm kW kW A A kA kA A A Compact starter PKZ2 0.180.25 0.250.37 0.8 0.60.9 100 100 0.6 - 1 8 - 14 "1" PKZ2/ZM-1/SE1A/11(230V50HZ,240V60HZ063364 1 off The compact starters consist of a motor protective circuit breaker, which features a plug-in trip block and an attached contact module with matching profile. The devices are prefitted to a clip plate and can be snap fitted as a unit, centrally onto one or two IEC/EN 60715 top-hat rails.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = rated conditional short-circuit current 0.370.55 0.550.75 1.11.5 1.21.5 100 100 1 - 1.6 14 - 22 PKZ2/ZM-1.6/SE1A/11(230V50HZ,240V60063372 0.75 1.1 1.9 2.1 100 100 1.6 - 2.4 20 - 35 PKZ2/ZM-2.4/SE1A/11(230V50HZ,240V60063382 1.11.5 1.5 2.653.6 2.9 100 100 2.4 - 4 35 - 55 PKZ2/ZM-4/SE1A/11(230V50HZ,240V60HZ063392 2.2 2.23 5 45.3 100 100 4 - 6 50 - 80 PKZ2/ZM-6/SE1A/11(230V50HZ,240V60HZ063402 34 45.5 6.68.5 6.89 100 7 6 - 10 80 - 140 PKZ2/ZM-10/SE1A/11(230V50HZ,240V60)063412 5.57.5 7.5 11.315.2 12.1 100 7 10 - 16 130 - 220 PKZ2/ZM-16/SE1A/11(230V50HZ,240V60)063422 11 1115 21.7 17.423.4 30 7 16 - 25 200 - 350 PKZ2/ZM-25/SE1A/11(230V50HZ,240V60)063432 15 18.5 29.3 28.9 30 7 24 - 32 275 - 425 PKZ2/ZM-32/SE1A/11(230V50HZ,240V60)063442 18.5 22 36 33 30 7 32 - 40 350 - 500 PKZ2/ZM-40/SE1A/11(230V50HZ,240V60)063452 High-capacity compact starter PKZ2 0.180.25 0.250.37 0.8 0.60.9 100 100 0.6 - 1 8 - 14 "2" PKZ2/ZM-1/S(230V50HZ,240V60HZ)063472 1 off The high-capacity compact starters consist of a motor protective circuit breaker and an attached contact module with matching profile. The devices are prefitted to a clip plate and can be snap fitted as a unit, centrally onto one or two IEC/EN 60715 top-hat rails.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = rated conditional short-circuit current 0.370.55 0.550.75 1.11.5 1.21.5 100 100 1 - 1.6 14 - 22 PKZ2/ZM-1.6/S(230V50HZ,240V60HZ)063482 0.75 1.1 1.9 2.1 100 100 1.6 - 2.4 20 - 35 PKZ2/ZM-2.4/S(230V50HZ,240V60HZ)063492 1.11.5 1.5 2.63.6 2.9 100 100 2.4 - 4 35 - 55 PKZ2/ZM-4/S(230V50HZ,240V60HZ)063502 2.2 2.23 5 45.3 100 100 4 - 6 50 - 80 PKZ2/ZM-6/S(230V50HZ,240V60HZ)063512 34 45.5 6.6 6.89 100 100 6 - 10 80 - 140 PKZ2/ZM-10/S(230V50HZ,240V60HZ)063522 5.57.5 7.5 11.315.2 12.1 100 100 10 - 16 130 - 220 PKZ2/ZM-16/S(230V50HZ,240V60HZ)063532 11 1115 21.7 17.423.4 100 100 16 - 25 200 - 350 PKZ2/ZM-25/S(230V50HZ,240V60HZ)063542 15 18.5 29.3 28.9 100 100 24 - 32 275 - 425 PKZ2/ZM-32/S(230V50HZ,240V60HZ)063552 18.5 22 36 33 100 100 32 - 40 350 - 500 PKZ2/ZM-40/S(230V50HZ,240V60HZ)063562 I M 3 ~ M 3 ~ 8/9 PKZ2/ZM.../S... HPL08008EN PKZ2/ZM.../S... HPL08009EN

8/10 Motor-starter combinations Modules DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Modules DOL starters DOL startersModules Motor data Setting range Motor protective circuit breaker Contactor Contactor Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Type “1” coordination Type “2” coordination AC-3 AC-3 380 - 415 V 380 - 415 V 380 V 400 V 415 V 400 V Type “1” coordination Type “2” coordination Type Type Type P I e I q I q I r I rm kW A kA kA A A Modules PKZM0 and DILM 0.06 0.21 150 50 0.16 - 0.25 3.5 PKZM0-0,25 DILM7-…(…) DILM7-…(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor. They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current 0.09 0.31 150 50 0.25 - 0.4 5.6 PKZM0-0,4 DILM7-…(…) DILM7-…(…) 0.12 0.41 150 50 0.4 - 0.63 8.82 PKZM0-0,63 DILM7-…(…) DILM7-…(…) 0.18 0.6 150 50 0.4 - 0.63 8.82 PKZM0-0,63 DILM7-…(…) DILM7-…(…) 0.25 0.8 150 50 0.63 - 1 14 PKZM0-1 DILM7-…(…) DILM7-…(…) 0.37 1.1 150 50 1 - 1.6 22.4 PKZM0-1,6 DILM7-…(…) DILM7-…(…) 0.55 1.5 150 50 1 - 1.6 22.4 PKZM0-1,6 DILM7-…(…) DILM7-…(…) 0.75 1.9 150 50 1.6 - 2.5 35 PKZM0-2,5 DILM7-…(…) DILM7-…(…) 1.1 2.6 150 50 2.5 - 4 56 PKZM0-4 DILM7-…(…) DILM7-…(…) 1.5 3.6 150 50 2.5 - 4 56 PKZM0-4 DILM7-…(…) DILM7-…(…) 2.2 5 150 50 4 - 6.3 88.2 PKZM0-6,3 DILM7-…(…) DILM7-…(…) 3 6.6 150 50 6.3 - 10 140 PKZM0-10 DILM7-…(…) DILM17-…(…) 4 8.5 150 50 6.3 - 10 140 PKZM0-10 DILM9-…(…) DILM17-…(…) 5.5 11.3 50 50 8 - 12 168 PKZM0-12 DILM12-…(…) DILM17-…(…) 7.5 15.2 50 50 10 - 16 224 PKZM0-16 DILM15-…(…) DILM17-…(…) 11 21.7 50 50 20 - 25 350 PKZM0-25 DILM25-…(…) DILM25-…(…) 15 29.3 50 50 25 - 32 448 PKZM0-32 DILM32-…(…) DILM32-…(…) Modules PKZM4 and DILM 5.5 11.3 50 50 10 - 16 224 PKZM4-16 DILM17-…(…) DILM17-…(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor. They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current 7.5 15.2 50 50 10 - 16 224 PKZM4-16 DILM17-…(…) DILM17-…(…) 11 21.7 50 50 20 - 25 350 PKZM4-25 DILM25-…(…) DILM25-…(…) 15 29.3 50 50 25 - 32 448 PKZM4-32 DILM32-…(…) DILM32-…(…) 18.5 36 50 50 32 - 40 560 PKZM4-40 DILM40(…) DILM40(…) 22 41 50 50 40 - 50 700 PKZM4-50 DILM50(…) DILM50(…) 30 55 50 50 50 - 58 812 PKZM4-58 DILM65(…) DILM65(…) 34 63 50 50 55 - 65 882 PKZM4-63 DILM65(…) DILM65(…) I Further information Page Technical data PKZM0 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/73 DILM accessories ￫ 5/54 M 3 ~ Further information Page Technical data PKZM4 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/74 DILM accessories ￫ 5/54 M 3 ~ 8/11 PKZM, DILM HPL08010EN PKZM, DILM HPL08011EN

8/12 Motor-starter combinations Modules DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Modules DOL starters DOL startersModules Motor data Setting range Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Motor protective circuit breaker Contactor Contactor Current limiter AC-3 AC-3 500 V 500 V Type “1” coordination Type “2” coordination 500 V 500 V Type “1” coordination Type “2” coordination Type Type Type Type P I e I q I q I r I rm kW A kA kA A A Modules PKZM0 and DILM 0.06 0.17 100 50 0.16 - 0.25 3.5 PKZM0-0,25 DILM7-…(…) DILM7-…(…) – The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = rated conditional short-circuit current. 0.09 0.25 100 50 0.25 - 0.4 5.6 PKZM0-0,4 DILM7-…(…) DILM7-…(…) – 0.12 0.33 100 50 0.25 - 0.4 5.6 PKZM0-0,4 DILM7-…(…) DILM7-…(…) – 0.18 0.48 100 50 0.4 - 0.63 8.8 PKZM0-0,63 DILM7-…(…) DILM7-…(…) – 0.25 0.7 100 50 0.63 - 1 14 PKZM0-1 DILM7-…(…) DILM7-…(…) – 0.37 0.9 100 50 0.63 - 1 14 PKZM0-1 DILM7-…(…) DILM7-…(…) – 0.55 1.2 100 50 1 - 1.6 22 PKZM0-1,6 DILM7-…(…) DILM7-…(…) – 0.75 1.5 100 50 1 - 1.6 22 PKZM0-1,6 DILM7-…(…) DILM7-…(…) – 1.1 2.1 100 50 1.6 - 2.5 35 PKZM0-2,5 DILM7-…(…) DILM17-…(…) – 1.5 2.9 100 50 2.5 - 4 56 PKZM0-4 DILM7-…(…) DILM17-…(…) – 2.2 4 42 18 4 - 6.3 88 PKZM0-6,3 DILM7-…(…) DILM17-…(…) – 2.2 4 – 50 4 - 6.3 88 PKZM0-6,3 – DILM17-…(…) CL-PKZ0 3 5.3 42 18 4 - 6.3 88 PKZM0-6,3 DILM7-…(…) DILM17-…(…) – 3 5.3 – 50 4 - 6.3 88 PKZM0-6,3 – DILM17-…(…) CL-PKZ0 4 6.8 42 18 6.3 - 10 140 PKZM0-10 DILM9-…(…) DILM17-…(…) – 4 6.8 – 50 6.3 - 10 140 PKZM0-10 – DILM17-…(…) CL-PKZ0 5.5 9 42 18 6.3 - 10 140 PKZM0-10 DILM9-…(…) DILM17-…(…) – 5.5 9 – 50 6.3 - 10 140 PKZM0-10 – DILM17-…(…) CL-PKZ0 6.5 10.6 42 18 8 - 12 168 PKZM0-12 DILM12-…(…) DILM17-…(…) – 6.5 10.6 – 50 8 - 12 168 PKZM0-12 – DILM17-…(…) CL-PKZ0 7.5 12.1 15 18 10 - 16 224 PKZM0-16 DILM17-…(…) DILM17-…(…) – 7.5 12.1 – 50 10 - 16 224 PKZM0-16 – DILM17-…(…) CL-PKZ0 11 17.4 6 – 16 - 20 280 PKZM0-20 DILM25-…(…) – – 11 17.4 15 – 16 - 20 280 PKZM0-20 DILM25-…(…) – CL-PKZ0 15 23.4 6 – 20 - 25 350 PKZM0-25 DILM25-…(…) – – 15 23.4 15 – 20 - 25 350 PKZM0-25 DILM25-…(…) – CL-PKZ0 18.5 28.9 6 – 25 - 32 448 PKZM0-32 DILM32-…(…) – – 18.5 28.9 15 – 25 - 32 448 PKZM0-32 DILM32-…(…) – CL-PKZ0 Modules PKZM4 and DILM 11 17.4 50 50 16 - 25 350 PKZM4-25 DILM40(…) DILM40(…) – The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = rated conditional short-circuit current. 15 23.4 50 50 16 - 25 350 PKZM4-25 DILM40(…) DILM40(…) – 18.5 28.9 50 50 25 - 32 448 PKZM4-32 DILM40(…) DILM40(…) – 22 33 50 50 32 - 40 560 PKZM4-40 DILM40(…) DILM40(…) – 30 44 50 50 40 - 50 700 PKZM4-50 DILM50(…) DILM50(…) – 37 54 50 50 50 - 58 812 PKZM4-58 DILM65(…) DILM65(…) – 45 65 50 50 55 - 65 882 PKZM4-63 DILM65(…) DILM65(…) – I Further information Page Technical data PKZM... ￫ Chapter 7 PKZM accessories... ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/73 DILM accessories ￫ 5/56 M 3 ~ Further information Page Technical data PKZM... ￫ Chapter 7 PKZM accessories... ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/75 DILM accessories ￫ 5/56 M 3 ~ 8/13 PKZM, DILM HPL08012EN PKZM, DILM HPL08013EN

8/14 Motor-starter combinations Modules DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Modules DOL starters DOL startersModules Motor data Setting range Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Circuit-breaker Contactor Contactor AC-3 AC-3 Type “1” coordination Type “2” coordination 380 V 400 V 415 V 400 V 400/415 V P I e I q I r I rm Type Type Type kW A kA A A Modules NZMN and DILM 18.5 36 50 32 - 40 320 - 560 NZMN1-M40 DILM40(…) DILM80(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor. They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current 22 41 50 40 - 50 400 - 700 NZMN1-M50 DILM50(…) DILM80(…) 30 55 50 50 - 63 504 - 882 NZMN1-M63 DILM65(…) DILM80(…) 37 68 50 63 - 80 640 - 1120 NZMN1-M80 DILM80(…) DILM80(…) 45 81 50 80 - 100 800 - 1250 NZMN1-M100 DILM95(…) DILM95(…) 55 99 50 80 - 100 800 - 1250 NZMN1-M100 DILM115(…) DILM115(…) 75 134 50 125 - 160 1280 - 2240 NZMN2-M160 DILM150(…) DILM150(…) 90 161 50 160 - 200 1600 - 2500 NZMN2-M200 DILM185A/22(…) DILM185A/22(…) 110 196 50 160 - 200 1600 - 2500 NZMN2-M200 DILM225A/22(…) DILM225A/22(…) 132 231 50 175 - 350 350 - 4900 NZMN3-ME350 DILM250/22(…) DILM250/22(…) 160 279 50 175 - 350 350 - 4900 NZMN3-ME350 DILM300A/22(…) DILM300A/22(…) 200 349 50 175 - 350 350 - 4900 NZMN3-ME350 DILM400/22(…) DILM400/22(…) 250 437 50 225 - 450 450 - 6300 NZMN3-ME450 DILM500/22(…) DILM500/22(…) 315 544 50 275 - 550 550 - 7700 NZMN4-ME550 DILM580/22(…) – 400 683 50 438 - 875 875 - 12250 NZMN4-ME875 DILM650/22(…) – 450 750 50 438 - 875 875 - 12250 NZMN4-ME875 DILM750/22(…) – 500 820 50 438 - 875 875 - 12250 NZMN4-ME875 DILM820/22(…) – 560 947 50 700 - 1400 1400 - 19600 NZMN4-ME1400 DILM1000/22(…) – Modules NZMH and DILM 22 41 100 40 - 50 400 - 700 NZMH2-M50 DILM80(…) DILM80(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor. They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current 30 55 100 50 - 63 504 - 882 NZMH2-M63 DILM80(…) DILM80(…) 37 68 100 63 - 80 640 - 1120 NZMH2-M80 DILM80(…) DILM80(…) 45 81 100 80 - 100 800 - 1250 NZMH2-M100 DILM95(…) DILM95(…) 55 100 100 100 - 125 1000 - 1750 NZMH2-M125 DILM115(…) DILM115(…) 75 134 100 125 - 160 1280 - 2240 NZMH2-M160 DILM150(…) DILM150(…) 30 55 100 45 - 90 90 - 1260 NZMH2-ME90 DILM80(…) DILM80(…) 37 68 100 45 - 90 90 - 1260 NZMH2-ME90 DILM80(…) DILM80(…) 45 81 100 45 - 90 90 - 1260 NZMH2-ME90 DILM95(…) DILM95(…) 55 100 100 70 - 140 140 - 1960 NZMH2-ME140 DILM115(…) DILM115(…) 75 134 100 70 - 140 140 - 1960 NZMH2-ME140 DILM150(…) DILM150(…) 90 161 100 110 - 120 220 - 3080 NZMH2-ME220 DILM185A/22(…) DILM185A/22(…) 110 196 100 110 - 120 220 - 3080 NZMH2-ME220 DILM225A/22(…) DILM225A/22(…) 132 231 100 175 - 350 350 - 4900 NZMH3-ME350 DILM250/22(…) DILM250/22(…) 160 279 100 175 - 350 350 - 4900 NZMH3-ME350 DILM300A/22(…) DILM300A/22(…) 200 349 100 175 - 350 350 - 4900 NZMH3-ME350 DILM400/22(…) DILM400/22(…) I M 3 ~ M 3 ~ 8/15 NZMN, NZMH, DILM HPL08014EN NZMN, NZMH, DILM HPL08015EN

8/16 Motor-starter combinations Modules DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Modules DOL starters Motor data Setting range Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Circuit-breaker Contactor Contactor AC-3 Type “1” coordination Type “2” coordination 500 V 525 V 500 V 525 V 500/525 V P I e I e I q I r I rm Type Type Type kW A A kA A A Modules NZMH and DILM 11 17.4 17 50 16 - 20 350 - 350 NZMH2-M20 DILM40(…) DILM80(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor. They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current 15 23.4 22.5 50 20 - 25 350 - 350 NZMH2-M25 DILM40(…) DILM80(…) 18.5 28.9 28 50 25 - 32 320 - 448 NZMH2-M32 DILM40(…) DILM80(…) 22 33 32 50 32 - 40 320 - 560 NZMH2-M40 DILM40(…) DILM80(…) 30 44 43 50 40 - 50 400 - 700 NZMH2-M50 DILM80(…) DILM80(…) 37 54 54 50 50 - 63 504 - 882 NZMH2-M63 DILM80(…) DILM80(…) 45 65 64 50 63 - 80 640 - 1120 NZMH2-M80 DILM80(…) DILM80(…) 55 79 78 50 63 - 80 640 - 1120 NZMH2-M80 DILM80(…) DILM80(…) 75 107 106 50 100 - 125 1000 - 1750 NZMH2-M125 DILM115(…) DILM115(…) 90 129 127 50 125 - 160 1280 - 2240 NZMH2-M160 DILM150(…) DILM150(…) 30 44 43 50 45 - 90 90 - 1260 NZMH2-ME90 DILM80(…) DILM80(…) 37 54 54 50 45 - 90 90 - 1260 NZMH2-ME90 DILM80(…) DILM80(…) 45 65 64 50 45 - 90 90 - 1260 NZMH2-ME90 DILM80(…) DILM80(…) 55 79 78 50 45 - 90 90 - 1260 NZMH2-ME90 DILM80(…) DILM80(…) 75 107 106 50 70 - 140 140 - 1960 NZMH2-ME140 DILM115(…) DILM115(…) 90 129 127 50 70 - 140 140 - 1960 NZMH2-ME140 DILM150(…) DILM150(…) I M 3 ~ 8/17 NZMH, DILM HPL08016EN NZMH, DILM HPL08017EN

8/18 Motor-starter combinations Modules DOL starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Modules DOL starters DOL startersModules Motor data Setting range Basic unit Contactor Overload relay Contactor Overload relay Current sensor Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Type “1” coordination Type “1” coordination Type “2” coordination Type “2” coordination AC-3 AC-3 380 V 400 V 415 V 400 V 380 - 415 V P I e I q I r I rm Type Type Type Type Type Type kW A kA A A Modules PKM0, DILM and ZB with and without automatic reset 0.06 0.21 100 0.16 - 0.24 3.5 PKM0-0,25 DILM7-…(…) ZB12-0,24 DILM7-…(…) ZB12-0,24 – The motor-starter combinations consist of the motor protective circuit breaker (without overload function), a contactor and overload relay modules.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current The combinations can be operated with or without manual reset. In the Manual position, the combination is blocked against automatic restarting and must be reset locally. In the Auto position, the combination automati-cally switches on again after the bimetallic elements have cooled down. 0.09 0.31 100 0.24 - 0.4 5.6 PKM0-0,4 DILM7-…(…) ZB12-0,4 DILM7-…(…) ZB12-0,4 – 0.12 0.41 100 0.4 - 0.6 8.82 PKM0-0,63 DILM7-…(…) ZB12-0,6 DILM7-…(…) ZB12-0,6 – 0.18 0.6 100 0.4 - 0.6 8.82 PKM0-0,63 DILM7-…(…) ZB12-0,6 DILM7-…(…) ZB12-0,6 – 0.25 0.8 100 0.6 - 1 14 PKM0-1 DILM7-…(…) ZB12-1 DILM7-…(…) ZB12-1 – 0.37 1.1 100 1 - 1.6 22.4 PKM0-1,6 DILM7-…(…) ZB12-1,6 DILM7-…(…) ZB12-1,6 – 0.55 1.5 100 1 - 1.6 22.4 PKM0-1,6 DILM7-…(…) ZB12-1,6 DILM7-…(…) ZB12-1,6 – 0.75 1.9 100 1.6 - 2.4 35 PKM0-2,5 DILM7-…(…) ZB12-2,4 DILM7-…(…) ZB12-2,4 – 1.1 2.6 100 2.4 - 4 56 PKM0-4 DILM7-…(…) ZB12-4 DILM7-…(…) ZB12-4 – 1.5 3.6 100 2.4 - 4 56 PKM0-4 DILM7-…(…) ZB12-4 DILM7-…(…) ZB12-4 – 2.2 5 100 4 - 6 88.2 PKM0-6,3 DILM7-…(…) ZB12-6 DILM17-…(…) ZB32-6 – 3 6.6 100 6 - 10 140 PKM0-10 DILM9-…(…) ZB12-10 DILM17-…(…) ZB32-10 – 4 8.5 100 6 - 10 140 PKM0-10 DILM9-…(…) ZB12-10 DILM17-…(…) ZB32-10 – 5.5 11.3 50 8 - 12 168 PKM0-12 DILM12-…(…) ZB12-12 – – – 5.5 11.3 50 10 - 16 168 PKM0-12 – – DILM17-…(…) ZB32-16 – 7.5 15.2 50 10 - 16 224 PKM0-16 DILM17-…(…) ZB32-16 DILM17-…(…) ZB32-16 – 11 21.7 50 16 - 24 350 PKM0-25 DILM25-…(…) ZB32-24 DILM25-…(…) ZB32-24 – 15 29.3 50 20 - 32 448 PKM0-32 DILM32-…(…) ZB32-32 DILM32-…(…) ZB32-32 – Modules NZMN1, DILM and Z... 18.5 36 50 24 - 40 320 - 560 NZMN1-S40 DILM40(…) ZB65-40 – – – The motor-starter combinations consist of the circuit-breaker (without overload function), contactor and overload relay module.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current The combinations can be operated with or without manual reset. In the Manual position, the combination is blocked against automatic restarting and must be reset locally. In the Auto position, the combination automati-cally switches on again after the bimetallic elements have cooled down.Maximum tripping tolerance CLASS10. 18.5 36 50 3 - 65 320 - 560 NZMN1-S40 – – DILM40(…) ZEV ZEV-XSW-65 22 41 50 40 - 57 400 - 700 NZMN1-S50 DILM50(…) ZB65-57 – – – 22 41 50 3 - 65 400 - 700 NZMN1-S50 – – DILM50(…) ZEV ZEV-XSW-65 30 55 50 40 - 57 504 - 882 NZMN1-S63 DILM65(…) ZB65-57 – – – 30 55 50 3 - 65 504 - 882 NZMN1-S63 – – DILM65(…) ZEV ZEV-XSW-65 37 68 50 50 - 70 640 - 1120 NZMN1-S80 DILM80(…) ZB150-70 – – – 37 68 50 10 - 145 640 - 1120 NZMN1-S80 – – DILM80(…) ZEV ZEV-XSW-145 45 81 50 70 - 100 800 - 1250 NZMN1-S100 DILM95(…) ZB150-100 – – – 45 81 50 10 - 145 800 - 1250 NZMN1-S100 – – DILM95(…) ZEV ZEV-XSW-145 55 99 50 70 - 100 800 - 1250 NZMN1-S100 DILM115(…) ZB150-100 – – – 55 99 50 10 - 145 800 - 1250 NZMN1-S100 – – DILM115(…) ZEV ZEV-XSW-145 I M 3 ~ I Further information Page Technical data PKZMO ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/73 DIL accessories ￫ 5/56 Technical data ZB... ￫ Chapter 6 Accessories ZB... ￫ 6/26 M 3 ~ I Further information Page Technical data NZMN1 ￫ Chapter 17 Accessories NZM1 ￫ 17/78 Technical data DILM ￫ Chapter 5 Further actuating voltages ￫ 5/75 DIL accessories ￫ 5/54 Technical data ZB..., ZEV ￫ Chapter 6 Accessories ZB... ￫ 6/26 Accessories ZEV ￫ 6/20 8/19 PKZM0, DILM, ZB; NZMN1, DILM, ZB, ZEV HPL08018EN PKZM0, DILM, ZB; NZMN1, DILM, ZB, ZEV HPL08019EN

8/20 Motor-starter combinations Complete units Reversing starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Complete units Reversing starters Reversing startersComplete units Motor data Setting range Motor startersactuating voltage230 V 50 Hz PriceSee price list Motor startersactuating voltage24 V DC PriceSee price list Std. pack Motor protective circuit breaker Contactor Reversing starter wiring set Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit releases Part no.Article no. Part no.Article no. Mechanical connection module, electrical contact module and reversing connector AC-3 AC-3 380 - 415 V 380 - 415 V 380 V 400 V 415 V 400 V Type “1” coordina-tion Type “2” coordina-tion P I e I q I q I r I rm kW A kA kA A A Type Type Type Complete units MSC-R 0.06 0.21 150 50 0.16 - 0.25 3.5 MSC-R-0.25-M7(230V50HZ)283171 MSC-R-0.25-M7(24VDC)283190 1off PKZM0-0,25 DILM7-01(...) PKZM0-XRM12 The reversing starters (complete devices) consist of a PKZM0 motor protective circuit breaker and two contactors DILM.With the adapterless top-hat rail mounting of starters up to 12 A, only the motor-protective circuit-breaker on the top-hat rail requires an adapter. The contactors are provided with mechanical support via a mechanical connection element.Control wire guide with max. 6 conductors with up to 2.5 mm external diameter or 4 conductors up to 3.5 mm external diameter.From 16 A, the motor protective circuit breaker and contactors are mounted on the top-hat rail adapter plate.The connection of the main circuit between PKZ and contactor is established with electrical contact modules.Complete units with mechanical interlock, starters up to 12 A also with electrical interlock.When using auxiliary contacts DILA‐XHIT… (→ 5/40) the electrical plugs can be pulled without having to remove the front mounting auxiliary contact.Cannot be combined with standard auxiliary contact NHI-E-...-PKZ0-C with spring-loaded terminal. 0.09 0.31 150 50 0.25 - 0.4 5.6 MSC-R-0.4-M7(230V50HZ)283172 MSC-R-0.4-M7(24VDC)283191 PKZM0-0,4 DILM7-01(...) PKZM0-XRM12 0.120.18 0.410.6 150 50 0.4 - 0.63 8.82 MSC-R-0.63-M7(230V50HZ)283173 MSC-R-0.63-M7(24VDC)283192 PKZM0-0,63 DILM7-01(...) PKZM0-XRM12 0.25 0.8 150 50 0.63 - 1 14 MSC-R-1-M7(230V50HZ)283175 MSC-R-1-M7(24VDC)283194 PKZM0-1 DILM7-01(...) PKZM0-XRM12 0.370.55 1.11.5 150 50 1 - 1.6 22.4 MSC-R-1.6-M7(230V50HZ)283176 MSC-R-1.6-M7(24VDC)283195 PKZM0-1,6 DILM7-01(...) PKZM0-XRM12 0.75 1.9 150 50 1.6 - 2.5 35 MSC-R-2.5-M7(230V50HZ)283178 MSC-R-2.5-M7(24VDC)283197 PKZM0-2,5 DILM7-01(...) PKZM0-XRM12 1.11.5 2.63.6 150 50 2.5 - 4 56 MSC-R-4-M7(230V50HZ)283179 MSC-R-4-M7(24VDC)283198 PKZM0-4 DILM7-01(...) PKZM0-XRM12 2.2 5 150 50 4 - 6.3 88.2 MSC-R-6.3-M7(230V50HZ)283181 MSC-R-6.3-M7(24VDC)283200 PKZM0-6,3 DILM7-01(...) PKZM0-XRM12 3 6.6 150 – 6.3 - 10 140 MSC-R-10-M7(230V50HZ)283182 MSC-R-10-M7(24VDC)283201 PKZM0-10 DILM7-01(...) PKZM0-XRM12 4 8.5 150 – 6.3 - 10 140 MSC-R-10-M9(230V50HZ)283183 MSC-R-10-M9(24VDC)283202 PKZM0-10 DILM9-01(...) PKZM0-XRM12 5.5 11.3 50 – 8 - 12 168 MSC-R-12-M12(230V50HZ)283184 MSC-R-12-M12(24VDC)283203 PKZM0-12 DILM12-01(...) PKZM0-XRM12 3 6.6 50 50 6.3 - 10 140 MSC-R-10-M17(230V50HZ)101049 MSC-R-10-M17(24VDC)101051 PKZM0-10 DILM17-01(...) PKZM0-XRM32 4 11.3 50 50 8 - 12 168 MSC-R-12-M17(230V50HZ)101050 MSC-R-12-M17(24VDC)101052 PKZM0-12 DILM17-01(...) PKZM0-XRM32 7.5 15.2 50 50 10 - 16 224 MSC-R-16-M17(230V50HZ)283186 MSC-R-16-M17(24VDC)283204 PKZM0-16 DILM17-01(...) PKZM0-XRM32 11 21.7 50 50 20 - 25 350 MSC-R-25-M25(230V50HZ)283187 MSC-R-25-M25(24VDC)283205 PKZM0-25 DILM25-01(...) PKZM0-XRM32 15 29.3 50 50 25 - 32 448 MSC-R-32-M32(230V50HZ)283188 MSC-R-32-M32(24VDC)283206 PKZM0-32 DILM32-01(...) PKZM0-XRM32 I M 3 ~ Further information Page Technical data PKZM0 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 Further actuation voltages ￫ 5/73 DILM accessories ￫ 5/54 M 3 ~ 8/21 MSC-R: PKZM0, DILM HPL08020EN MSC-R: PKZM0, DILM HPL08021EN

8/22 Motor-starter combinations Modules Reversing starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Modules Reversing starters Reversing startersModules Motor data Setting range Motor protective circuit breaker Contactor Contactor Notes Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release Type “1” coordination Type “2” coordination 400 V AC-3 380 - 415 V 380 - 415 V 400 V Type “1” coordination Type “2” coordination P I e I q I q I r I rm Type Type Type kW A kA kA A A Modules PKZM0 and DILM 0.06 0.21 150 50 0.16 - 0.25 3.5 PKZM0-0,25 2 x DILM7-…(…) 2 x DILM7-…(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor. They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = conditional rated current 0.09 0.31 150 50 0.25 - 0.4 5.6 PKZM0-0,4 DILM7-…(…) DILM7-…(…) 0.12 0.41 150 50 0.4 - 0.63 8.82 PKZM0-0,63 DILM7-…(…) DILM7-…(…) 0.18 0.6 150 50 0.4 - 0.63 8.82 PKZM0-0,63 DILM7-…(…) DILM7-…(…) 0.25 0.8 150 50 0.63 - 1 14 PKZM0-1 DILM7-…(…) DILM7-…(…) 0.37 1.1 150 50 1 - 1.6 22.4 PKZM0-1,6 DILM7-…(…) DILM7-…(…) 0.55 1.5 150 50 1 - 1.6 22.4 PKZM0-1,6 DILM7-…(…) DILM7-…(…) 0.75 1.9 150 50 1.6 - 2.5 35 PKZM0-2,5 DILM7-…(…) DILM7-…(…) 1.1 2.6 150 50 2.5 - 4 56 PKZM0-4 DILM7-…(…) DILM7-…(…) 1.5 3.6 150 50 2.5 - 4 56 PKZM0-4 DILM7-…(…) DILM7-…(…) 2.2 5 150 50 4 - 6.3 88.2 PKZM0-6,3 DILM7-…(…) DILM7-…(…) 3 6.6 150 50 6.3 - 10 140 PKZM0-10 DILM9-…(…) DILM17-…(…) 4 8.5 150 50 6.3 - 10 140 PKZM0-10 DILM9-…(…) DILM17-…(…) 5.5 11.3 50 50 8 - 12 168 PKZM0-12 DILM12-…(…) DILM17-…(…) 7.5 15.2 50 50 10 - 16 224 PKZM0-16 DILM17-…(…) DILM17-…(…) 11 21.7 50 50 20 - 25 350 PKZM0-25 DILM25-…(…) DILM25-…(…) 15 29.3 50 50 25 - 32 448 PKZM0-32 DILM32-…(…) DILM32-…(…) Modules PKZM4 and DILM 5.5 11.3 50 50 10 - 16 224 PKZM4-16 2 x DILM17-…(…) 2 x DILM17-…(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = rated conditional short-circuit current. 7.5 15.2 50 50 10 - 16 224 PKZM4-16 DILM17-…(…) DILM17-…(…) 11 21.7 50 50 20 - 25 350 PKZM4-25 DILM25-…(…) DILM25-…(…) 15 29.3 50 50 25 - 32 448 PKZM4-32 DILM32-…(…) DILM32-…(…) 18.5 36 50 50 32 - 40 560 PKZM4-40 DILM40(…) DILM40(…) 22 41 50 50 40 - 50 700 PKZM4-50 DILM50(…) DILM50(…) 30 55 50 50 50 - 58 812 PKZM4-58 DILM65(…) DILM65(…) 34 63 50 50 55 - 65 882 PKZM4-63 DILM65(…) DILM65(…) I Further information Page Technical data PKZM0 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 Other operating voltages ￫ 5/73 DILM accessories ￫ 5/54 M 3 ~ Further information Page Technical data PKZM0 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 Other operating voltages ￫ 5/74 DILM accessories ￫ 5/54 M 3 ~ 8/23 PKZM, DILM HPL08022EN PKZM, DILM HPL08023EN

8/24 Motor-starter combinations Modules Reversing starters 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Modules Reversing starters Circuit-breaker Contactor Contactor Notes Motor data Setting range Type “1” coordination Type “2” coordination Rated operational power Rated operational current Rated short-circuit current Overload trip Short-circuit release AC-3 AC-3 380 V 400 V 415 V 400 V 400/415 V P I e I q I r I rm Type Type Type kW A kA A A Modules NZMN and DILM 15 29.3 50 25 - 32 320 - 448 NZMN1-M32 2 x DILM40(…) 2 x DILM80(…) The motor starter combinations consist of the motor protective circuit-breaker and a contactor. They comply with IEC/EN 60947-4-1 and VDE 0660 Part 102.I q = conditional rated current. 18.5 36 50 32 - 40 320 - 560 NZMN1-M40 2 x DILM40(…) 2 x DILM80(…) 22 41 50 40 - 50 400 - 700 NZMN1-M50 2 x DILM50(…) 2 x DILM80(…) 30 55 50 50 - 63 504 - 882 NZMN1-M63 2 x DILM65(…) 2 x DILM80(…) 37 68 50 63 - 80 640 - 1120 NZMN1-M80 2 x DILM80(…) 2 x DILM80(…) 45 81 50 80 - 100 800 - 1250 NZMN1-M100 2 x DILM95(…) 2 x DILM95(…) 55 99 50 80 - 100 800 - 1250 NZMN1-M100 2 x DILM115(…) 2 x DILM115(…) 75 134 50 125 - 160 1280 - 2240 NZMN2-M160 2 x DILM150(…) 2 x DILM150(…) 90 161 50 160 - 200 1600 - 2500 NZMN2-M200 2 x DILM185A/22(…) 2 x DILM185A/22(…) 110 196 50 160 - 200 1600 - 2500 NZMN2-M200 2 x DILM225A/22(…) 2 x DILM225A/22(…) 132 231 50 175 - 350 350 - 4900 NZMN3-ME350 2 x DILM250/22(…) 2 x DILM250/22(…) 160 279 50 175 - 350 350 - 4900 NZMN3-ME350 2 x DILM300A/22(…) 2 x DILM300A/22(…) 200 349 50 175 - 350 350 - 4900 NZMN3-ME350 2 x DILM400/22(…) 2 x DILM400/22(…) 250 437 50 225 - 450 450 - 6300 NZMN3-ME450 2 x DILM500/22(…) 2 x DILM500/22(…) 315 544 50 275 - 550 550 - 7700 NZMN4-ME550 2 x DILM580/22(…) 2 x – 400 683 50 438 - 875 875 - 12250 NZMN4-ME875 2 x DILM650/22(…) 2 x – 450 750 50 438 - 875 875 - 12250 NZMN4-ME875 2 x DILM750/22(…) 2 x – 500 820 50 438 - 875 875 - 12250 NZMN4-ME875 2 x DILM820/22(…) 2 x – 560 947 50 700 - 1400 1400 - 19600 NZMN4-ME1400 2 x DILM1000/22(…) 2 x – Modules NZMH and DILM 22 41 100 40 - 50 400 - 700 NZMH2-M50 2 x DILM80(…) 2 x DILM80(…) The motor-starter combinations consist of the motor protective circuit breaker or a circuit breaker and a contactor.They conform with IEC/EN 60947-4-1 or VDE 0660 Part 102.I q = rated conditional short-circuit current. 30 55 100 50 - 63 504 - 882 NZMH2-M63 2 x DILM80(…) 2 x DILM80(…) 37 68 100 63 - 80 640 - 1120 NZMH2-M80 2 x DILM80(…) 2 x DILM80(…) 55 81 100 80 - 100 800 - 1250 NZMH2-M100 2 x DILM95(…) 2 x DILM95(…) 55 100 100 100 - 125 1000 - 1750 NZMH2-M125 2 x DILM115(…) 2 x DILM115(…) 75 134 100 125 - 160 1280 - 2240 NZMH2-M160 2 x DILM150(…) 2 x DILM150(…) 30 55 100 45 - 90 90 - 1260 NZMH2-ME90 2 x DILM80(…) 2 x DILM80(…) 37 68 100 45 - 90 90 - 1260 NZMH2-ME90 2 x DILM80(…) 2 x DILM80(…) 45 81 100 45 - 90 90 - 1260 NZMH2-ME90 2 x DILM95(…) 2 x DILM95(…) 55 100 100 70 - 140 140 - 1960 NZMH2-ME140 2 x DILM115(…) 2 x DILM115(…) 75 134 100 70 - 140 140 - 1960 NZMH2-ME140 2 x DILM150(…) 2 x DILM150(…) 90 161 100 110 - 120 220 - 3080 NZMH2-ME220 2 x DILM185A/22(…) 2 x DILM185A/22(…) 110 196 100 110 - 120 220 - 3080 NZMH2-ME220 2 x DILM225A/22(…) 2 x DILM225A/22(…) 132 231 100 175 - 350 350 - 4900 NZMH3-ME350 2 x DILM250/22(…) 2 x DILM250/22(…) 160 279 100 175 - 350 350 - 4900 NZMH3-ME350 2 x DILM300A/22(…) 2 x DILM300A/22(…) 200 349 100 175 - 350 350 - 4900 NZMH3-ME350 2 x DILM400/22(…) 2 x DILM400/22(…) I M 3 ~ M 3 ~ 8/25 NZMN, NZMH, DILM HPL08024EN NZMN, NZMH, DILM HPL08025EN

8/26 Motor-starter combinations DOL starters Starters on busbar adapter 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations DOL starters Starters on busbar adapter Starters on busbar adapterDOL starters Starters on busbar adapterReversing starters Motor data Setting range Motor startersactuating voltage230 V 50 Hz PriceSee price list Std. pack Motor startersactuating voltage24 V DC PriceSee price list Std. pack Motor protective circuit breaker Contactor DOL starter wiring set Busbar adapter Notes Motor rating Rated opera-tional current Rated short-circuit current Overload trip Short-circuit release Part no.Article no. Part no.Article no. Mechanical con-nection module and electrical contact module AC-3 AC-3 380 - 415 V 380 - 415 V 380 V 400 V 415 V 400 V Type “1” coordination Type “2” coordination P I e I q I q I r I rm Type Type Type Type kW A kA kA A A Complete devices PKZ and DIL on BBA 0.06 0.21 100 50 0.16 - 0.25 3.5 MSC-D-0.25-M7(230V50HZ)/BBA 1) 102737 1 off MSC-D-0.25-M7(24VDC)/BBA 1) 102964 1 off PKZM0-0,25 DILM7-10(…) PKZM0-XDM12 BBA0-25 The DOL starters (complete devices) consist of a motor protective circuit breaker PKZM0 and a contactor DILM. These combinations are mounted on busbars. The connection of the main circuit between PKZ and contactor is established with electrical contact modules.Cannot be combined with standard auxiliary contact NHI-E-...-PKZ0-C with spring-loaded terminal. 1) To assemble Type F starters that conform with UL508, incoming terminals BK25/3-PKZ0-E and, if necessary, three-phase terminal blocks B3.../...-PKZ0 can be added to motor starter combinations. Type F starter ￫ Page 8/34 0.09 0.31 100 50 0.25 - 0.4 5.6 MSC-D-0.4-M7(230V50HZ)/BBA 1) 102738 MSC-D-0.4-M7(24VDC)/BBA 1) 102965 PKZM0-0,4 DILM7-10(…) PKZM0-XDM12 0.120.18 0.410.6 100 50 0.4 - 0.63 8.82 MSC-D-0.63-M7(230V50HZ)/BBA 1) 102739 MSC-D-0.63-M7(24VDC)/BBA 1) 102966 PKZM0-0,63 DILM7-10(…) PKZM0-XDM12 0.25 0.8 100 50 0.63 - 1 14 MSC-D-1-M7(230V50HZ)/BBA 1) 102950 MSC-D-1-M7(24VDC)/BBA 1) 102967 PKZM0-1 DILM7-10(…) PKZM0-XDM12 0.370.55 1.11.5 100 50 1 - 1.6 22.4 MSC-D-1.6-M7(230V50HZ)/BBA 1) 102951 MSC-D-1.6-M7(24VDC)/BBA 1) 102968 PKZM0-1,6 DILM7-10(…) PKZM0-XDM12 0.75 1.9 100 50 1.6 - 2.5 35 MSC-D-2.5-M7(230V50HZ)/BBA 1) 102952 MSC-D-2.5-M7(24VDC)/BBA 1) 102969 PKZM0-2,5 DILM7-10(…) PKZM0-XDM12 1.11.5 2.63.6 100 50 2.5 - 4 56 MSC-D-4-M7(230V50HZ)/BBA 1) 102953 MSC-D-4-M7(24VDC)/BBA 1) 102970 PKZM0-4 DILM7-10(…) PKZM0-XDM12 2.2 5 100 50 4 - 6.3 88.2 MSC-D-6.3-M7(230V50HZ)/BBA 1) 102954 MSC-D-6.3-M7(24VDC)/BBA102971 PKZM0-6,3 DILM7-10(…) PKZM0-XDM12 3 6.6 100 – 6.3 - 10 140 MSC-D-10-M7(230V50HZ)/BBA102955 MSC-D-10-M7(24VDC)/BBA102972 PKZM0-10 DILM7-10(…) PKZM0-XDM12 4 8.5 100 – 6.3 - 10 140 MSC-D-10-M9(230V50HZ)/BBA102956 MSC-D-10-M9(24VDC)/BBA102973 PKZM0-10 DILM9-10(…) PKZM0-XDM12 5.5 11.3 100 – 8 - 12 168 MSC-D-12-M12(230V50HZ)/BBA102957 MSC-D-12-M12(24VDC)/BBA102974 PKZM0-12 DILM12-10(…) PKZM0-XDM12 7.5 15.2 50 – 10 - 16 224 MSC-D-16-M15(230V50HZ)/BBA102958 MSC-D-16-M15(24VDC)/BBA102975 PKZM0-16 DILM15-10(…) PKZM0-XDM12 34 6.68.5 100 50 6.3 - 10 140 MSC-D-10-M17(230V50HZ)/BBA102959 MSC-D-10-M17(24VDC)/BBA102976 PKZM0-10 DILM17-10(…) PKZM0-XM32DE BBA0-32 5.5 11.3 100 50 8 - 12 168 MSC-D-12-M17(230V50HZ)/BBA102960 MSC-D-12-M17(24VDC)/BBA102977 PKZM0-12 DILM17-10(…) PKZM0-XM32DE 7.5 15.2 50 50 10 - 16 224 MSC-D-16-M17(230V50HZ)/BBA 1) 102961 MSC-D-16-M17(24VDC)/BBA102978 PKZM0-16 DILM17-10(…) PKZM0-XM32DE 11 21.7 50 50 20 - 25 350 MSC-D-25-M25(230V50HZ)/BBA 1) 102962 MSC-D-25-M25(24VDC)/BBA102979 PKZM0-25 DILM25-10(…) PKZM0-XM32DE 15 29.3 50 50 25 - 32 448 MSC-D-32-M32(230V50HZ)/BBA 1) 102963 MSC-D-32-M32(24VDC)/BBA102980 PKZM0-32 DILM32-10(…) PKZM0-XM32DE I Further information Page Technical data PKZM0 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 DILM accessories ￫ 5/54 M 3 ~ I M 3 ~ I 8/27 MSC-D.../BBA HPL08026EN MSC-D.../BBA HPL08027EN

8/28 Motor-starter combinations Reversing starters Starters on busbar adapter 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Reversing starters Starters on busbar adapter Motor startersactuating voltage230 V 50 Hz PriceSee price list Motor startersactuating voltage24 V DC PriceSee price list Std. pack Motor protective circuit breaker Contactor Wiring set Reversing starters Busbar adapter Motor data Setting range Mechanical con-nection module, electrical contact module and reversing connec-tor Notes Motor rating Rated operational current Rated short-circuit current Overload trip Short-circuit release Part no.Article no. Part no.Article no. AC-3 AC-3 380 - 415 V 380 - 415 V 380 V 400 V 415 V 400 V Type “1” coordina-tion Type “2” coordina-tion P I e I q I q I r I rm Type Type Type Type kW A kA kA A A Complete devices PKZ and DILM on BBA for reversing starters 0.06 0.21 100 50 0.16 - 0.25 3.5 MSC-R-0.25-M7(230V50HZ)/BBA102981 MSC-R-0.25-M7(24VDC)/BBA102997 1 off PKZM0-0,25 2 x DILM7-01(…) PKZM0-XRM12 BBA0R-25 The reversing starters (complete devices) consist of a PKZM0 motor protective circuit breaker and two contactors DILM.These combinations are mounted on bus-bars. The connection of the main circuit between PKZ and contactor is estab-lished with electrical contact modules. Complete units with mechanical inter-lock, starters up to 12 A also with electrical interlock. 0.09 0.31 100 50 0.25 - 0.4 5.6 MSC-R-0.4-M7(230V50HZ)/BBA102982 MSC-R-0.4-M7(24VDC)/BBA102998 PKZM0-0,4 2 x DILM7-01(…) PKZM0-XRM12 0.120.18 0.410.6 100 50 0.4 - 0.63 8.82 MSC-R-0.63-M7(230V50HZ)/BBA102983 MSC-R-0.63-M7(24VDC)/BBA102999 PKZM0-0,63 2 x DILM7-01(…) PKZM0-XRM12 0.25 0.8 100 50 0.63 - 1 14 MSC-R-1-M7(230V50HZ)/BBA102984 MSC-R-1-M7(24VDC)/BBA103000 PKZM0-1 2 x DILM7-01(…) PKZM0-XRM12 0.370.55 1.11.5 100 50 1 - 1.6 22.4 MSC-R-1.6-M7(230V50HZ)/BBA102985 MSC-R-1.6-M7(24VDC)/BBA103001 PKZM0-1,6 2 x DILM7-01(…) PKZM0-XRM12 0.75 1.9 100 50 1.6 - 2.5 35 MSC-R-2.5-M7(230V50HZ)/BBA102986 MSC-R-2.5-M7(24VDC)/BBA103002 PKZM0-2,5 2 x DILM7-01(…) PKZM0-XRM12 1.11.5 2.63.6 100 50 2.5 - 4 56 MSC-R-4-M7(230V50HZ)/BBA102987 MSC-R-4-M7(24VDC)/BBA103003 PKZM0-4 2 x DILM7-01(…) PKZM0-XRM12 2.2 5 100 50 4 - 6.3 88.2 MSC-R-6.3-M7(230V50HZ)/BBA102988 MSC-R-6.3-M7(24VDC)/BBA103004 PKZM0-6,3 2 x DILM7-01(…) PKZM0-XRM12 3 6.6 100 – 6.3 - 10 140 MSC-R-10-M7(230V50HZ)/BBA102989 MSC-R-10-M7(24VDC)/BBA103005 PKZM0-10 2 x DILM7-01(…) PKZM0-XRM12 4 8.5 100 – 6.3 - 10 140 MSC-R-10-M9(230V50HZ)/BBA102990 MSC-R-10-M9(24VDC)/BBA103006 PKZM0-10 2 x DILM9-01(…) PKZM0-XRM12 5.5 11.3 100 – 8 - 12 168 MSC-R-12-M12(230V50HZ)/BBA102991 MSC-R-12-M12(24VDC)/BBA103007 PKZM0-12 2 x DILM12-01(…) PKZM0-XRM12 34 6.68.5 100 50 6.3 - 10 140 MSC-R-10-M17(230V50HZ)/BBA102992 MSC-R-10-M17(24VDC)/BBA103008 PKZM0-10 2 x DILM17-01(…) PKZM0-XM32DE + DILM32-XRL BBA0R-32 5.5 11.3 100 50 8 - 12 168 MSC-R-12-M17(230V50HZ)/BBA102993 MSC-R-12-M17(24VDC)/BBA103009 PKZM0-12 2 x DILM17-01(…) PKZM0-XM32DE + DILM32-XRL 7.5 15.2 50 50 10 - 16 224 MSC-R-16-M17(230V50HZ)/BBA102994 MSC-R-16-M17(24VDC)/BBA103010 PKZM0-16 2 x DILM17-01(…) PKZM0-XM32DE + DILM32-XRL 11 21.7 50 50 20 - 25 350 MSC-R-25-M25(230V50HZ)/BBA102995 MSC-R-25-M25(24VDC)/BBA103011 PKZM0-25 2 x DILM25-01(…) PKZM0-XM32DE + DILM32-XRL 15 29.3 50 50 25 - 32 448 MSC-R-32-M32(230V50HZ)/BBA102996 MSC-R-32-M32(24VDC)/BBA103012 PKZM0-32 2 x DILM32-01(…) PKZM0-XM32DE + DILM32-XRL I M 3 ~ Further information Page Technical data PKZM0 ￫ Chapter 7 Accessories PKZ ￫ 7/10 Technical data DILM ￫ Chapter 5 DILM accessories ￫ 5/54 M 3 ~ 8/29 MSC-R.../BBA HPL08028EN MSC-R.../BBA HPL08029EN

8/30 Motor-starter combinations DOL starters, modules for North America 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations DOL starters, modules for North America for North AmericaDOL starters, modules Maximum motor rating Setting range Basic unit Trip block PriceTotal of module prices EuroDG Std. pack Notes Alternating current HP Overload trip Short-circuit release Rated short-circuit breaking capacity 200 V208 V 230 V240 V 460 V480 V 575 V600 V 240 V 480 Y277 V 600 Y347 V Type Type HP HP HP HP I r I rm kA kA kA A A Modules PKZ2/S-SP and trip blocks ZMR with overload relay function 1) 0.4 - 0.6 5 - 8 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-0.6-PKZ2033943 1 off Terminal capacity of high-capacity compact starters PKZ2/ZM…/SMain terminalsCables Cu 75 °C, min. AWG 14, max. AWG 6Torque 1.8 NmControl circuit terminalsCables min. AWG 20, max. AWG 16 (0.5–1 mm 2 ) With insulated/uninsulated blade terminal, nominal size 2.8 ½ ½ 0.6 - 1 8 - 14 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-1-PKZ2033950 1 off ¾ 1 1 - 1.6 14 - 22 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-1.6-PKZ2033952 1 off ½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-2.4-PKZ2033955 1 off 1 1 2 3 2.4 - 4 35 - 55 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-4-PKZ2033957 1 off 1½ 1½ 3 5 4 - 6 50 - 80 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-6-PKZ2033966 1 off 2 3 5 7½ 6 - 10 80 - 140 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-10-PKZ2033967 1 off 3 5 10 10 10 - 16 130 - 220 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-16-PKZ2033968 1 off 7½ 7½ 20 25 16 - 27 200 - 350 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-25-PKZ2033969 1 off 10 10 20 30 24 - 32 275 - 425 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-32-PKZ2033973 1 off 10 15 30 30 32 - 42 350 - 500 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZMR-40-PKZ2033975 1 off Modules PKZ2/S-SP and trip blocks ZM 1) 0.4 - 0.6 5 - 8 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-0.6-PKZ2024232 1 off ½ ½ 0.6 - 1 8 - 14 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-1-PKZ2028979 1 off ¾ 1 1 - 1.6 14 - 22 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-1.6-PKZ2031352 1 off ½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-2.4-PKZ2033725 1 off 1 1 2 3 2.4 - 4 35 - 55 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-4-PKZ2036098 1 off 1½ 1½ 3 5 4 - 6 55 - 80 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-6-PKZ2038471 1 off 2 3 5 7½ 6 - 10 80 - 140 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-10-PKZ2040844 1 off 3 5 10 10 10 - 16 130 - 220 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-16-PKZ2043217 1 off 7½ 7½ 20 25 16 - 27 200 - 350 100 65 42 PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-25-PKZ2045590 1 off 10 10 20 30 24 - 32 275 - 425 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-32-PKZ2047963 1 off 10 15 30 30 32 - 42 350 - 500 100 65 – PKZ2/S-SP(110V50HZ,120V60HZ)050940 ZM-40-PKZ2050336 1 off Notes 1) Calculate motor power in this range according to the rated operational current. Stated values to NEC Table 430 … 150 I For use with networks with grounded star point Up to 27 A 600 Y/347 V AC 480 Y/277 V AC 27 – 42 A 480 Y/277 V AC Service factor (SF) Set value Ir on the current scale, depending on the load factor SF = 1.15 ￫ I r = 1 x I n mot SF = 1 ￫ I r = 0.9 x I n mot 8/31 PKZ2/S-SP, ZMR, ZM HPL08030EN PKZ2/S-SP, ZMR, ZM HPL08031EN

8/32 Motor-starter combinations Reversing starters, modules for North America 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Motor-starter combinations Reversing starters, modules for North America for North AmericaReversing starters, modules Maximum motor rating Setting range Rated short-circuit breaking capacity I cn Basic unit Trip block PriceTotal of module prices EuroDG Std. pack Notes Alternating current HP Overload trip Short-circuit release 240 V 480 Y277 V 600 Y347 V 200 V208 V 230 V240 V 460 V480 V 575 V600 V Type2) Type I r I rm kA kA kA HP HP HP HP A A Modules PKZ2/S-SP and trip blocks ZMR with overload relay function 1) 0.4 - 0.6 5 - 8 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-0.6-PKZ2033943 1 off Terminal capacity of high-capacity compact starters PKZ2/ZM…/SMain terminalsCables Cu 75 °C, min. AWG 14, max. AWG 6Torque 1.8 NmControl circuit terminalsCables min. AWG 20, max. AWG 16 (0.5–1 mm 2 ) With insulated/uninsulated blade terminal, nominal size 2.8 ½ ½ 0.6 - 1 8 - 14 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-1-PKZ2033950 1 off ¾ 1 1 - 1.6 14 - 22 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-1.6-PKZ2033952 1 off ½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-2.4-PKZ2033955 1 off 1 1 2 3 2.4 - 4 35 - 55 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-4-PKZ2033957 1 off 1½ 1½ 3 5 4 - 6 50 - 80 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-6-PKZ2033966 1 off 2 3 5 7½ 6 - 10 80 - 140 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-10-PKZ2033967 1 off 3 5 10 10 10 - 16 130 - 220 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-16-PKZ2033968 1 off 7½ 7½ 20 25 16 - 25 200 - 350 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZMR-25-PKZ2033969 1 off 10 10 20 – 24 - 32 275 - 425 100 65 – PKZ2-SP-FVR( V HZ)925109 ZMR-32-PKZ2033973 1 off 10 15 30 – 32 - 40 350 - 500 100 65 – PKZ2-SP-FVR( V HZ)925109 ZMR-40-PKZ2033975 1 off Modules PKZ2/S-SP and trip blocks ZM 1) 0.4 - 0.6 5 - 8 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-0.6-PKZ2024232 1 off ½ ½ 0.6 - 1 8 - 14 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-1-PKZ2028979 1 off ¾ 1 1 - 1.6 14 - 22 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-1.6-PKZ2031352 1 off ½ ½ 1 1½ 1.6 - 2.4 20 - 35 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-2.4-PKZ2033725 1 off 1 1 2 3 2.4 - 4 35 - 55 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-4-PKZ2036098 1 off 1½ 1½ 3 5 4 - 6 50 - 80 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-6-PKZ2038471 1 off 2 3 5 7½ 6 - 10 80 - 140 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-10-PKZ2040844 1 off 3 5 10 10 10 - 16 130 - 220 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-16-PKZ2043217 1 off 7½ 7½ 20 25 16 - 25 200 - 350 100 65 42 PKZ2-SP-FVR( V HZ)925109 ZM-25-PKZ2045590 1 off 10 10 20 – 24 - 32 275 - 425 100 65 – PKZ2-SP-FVR( V HZ)925109 ZM-32-PKZ2047963 1 off 10 15 30 – 32 - 40 350 - 500 100 65 – PKZ2-SP-FVR( V HZ)925109 ZM-40-PKZ2050336 1 off Notes 1) Calculate motor power in this range according to the rated operational current. Stated values to NEC Table 430 … 150 2) Specify actuating voltage in the range 24 – 600 V 50 or 60 Hz. I For usewith networks withgrounded star point Up to 27 A 600 Y/347 V AC 480 Y/277 V AC 27 – 42 A 480 Y/277 V AC Service factor (SF) Set value Ir on the current scale, depending on the load factor SF = 1.15 ￫ I r = 1 x I n mot SF = 1 ￫ I r = 0.9 x I n mot 8/33 PKZ2-SP, ZMR, ZM HPL08032EN PKZ2-SP, ZMR, ZM HPL08033EN

8/34 Motor-starter combinations Type F starter combinations 2010 CA08103002Z-EN www.eaton.com for North America for North AmericaType F starter combinations Maximum motor rating Setting range Rated short-circuit breaking capacity I cn Extension terminal Motor protective circuit breaker Contactor Alternating current HP Overload trip Short-circuit release 240 V 480 Y277 V 2) 600 Y347 V 2) 200 V208 V 230 V240 V 460 V480 V 575 V600 V Type Type Type HP HP HP HP I r I rm kA kA kA A A Modules PKZM0, DIL, BK 1) 0.1 - 0.16 2.2 65 65 50 BK25/3-PKZ0 PKZM0-0,16 DILEM…(…) 0.1 - 0.16 2.2 65 65 50 BK25/3-PKZ0 PKZM0-0,16 DILM7-…(…) 0.16 - 0.25 3.4 65 65 50 BK25/3-PKZ0 PKZM0-0,25 DILEM…(…) 0.16 - 0.25 3.4 65 65 50 BK25/3-PKZ0 PKZM0-0,25 DILM7-…(…) 0.25 - 0.4 5.6 65 65 50 BK25/3-PKZ0 PKZM0-0,4 DILEM…(…) 0.25 - 0.4 5.6 65 65 50 BK25/3-PKZ0 PKZM0-0,4 DILM7-…(…) 0.4 - 0.63 8.8 65 65 50 BK25/3-PKZ0 PKZM0-0,63 DILEM…(…) 0.4 - 0.63 8.8 65 65 50 BK25/3-PKZ0 PKZM0-0,63 DILM7-…(…) ½ ½ 0.63 - 1 14 65 65 50 BK25/3-PKZ0 PKZM0-1 DILEM…(…) ½ ½ 0.63 - 1 14 65 65 50 BK25/3-PKZ0 PKZM0-1 DILM7-…(…) ¾ 1 1 - 1.6 22 65 65 50 BK25/3-PKZ0 PKZM0-1,6 DILEM…(…) ¾ 1 1 - 1.6 22 65 65 50 BK25/3-PKZ0 PKZM0-1,6 DILM7-…(…) ½ ½ 1 1½ 1.6 - 2.5 35 65 65 50 BK25/3-PKZ0 PKZM0-2,5 DILEM…(…) ½ ½ 1 1½ 1.6 - 2.5 35 65 65 50 BK25/3-PKZ0 PKZM0-2,5 DILM7-…(…) 1 1 2 3 2.5 - 4 56 65 65 50 BK25/3-PKZ0 PKZM0-4 DILEM…(…) 1 1 2 3 2.5 - 4 56 65 65 50 BK25/3-PKZ0 PKZM0-4 DILM7-…(…) 1½ 1½ 3 5 4 - 6.3 88 65 65 50 BK25/3-PKZ0 PKZM0-6,3 DILEM…(…) 1½ 1½ 3 5 4 - 6.3 88 65 65 50 BK25/3-PKZ0 PKZM0-6,3 DILM7-…(…) 3 3 7½ 10 6.3 - 11 140 65 65 50 BK25/3-PKZ0 PKZM0-10 DILM9-…(…) 3 3 7½ – 9 - 12 168 65 65 50 BK25/3-PKZ0 PKZM0-12 DILM12-…(…) 3 5 10 – 10 - 16 224 50 50 – BK50/3-PKZ4-E PKZM0-16 DILM17-…(…) 3 5 10 – 10 - 16 224 18 18 – BK50/3-PKZ4-E PKZM0-16 DILM17-…(…) 5 5 10 – 16 - 20 280 18 18 – BK50/3-PKZ4-E PKZM0-20 DILM25-…(…) 5 7½ 15 – 20 - 25 350 18 18 – BK50/3-PKZ4-E PKZM0-25 DILM25-…(…) 7½ 10 20 – 25 - 32 448 18 18 – BK50/3-PKZ4-E PKZM0-32 DILM32-…(…) Modules PKZM4, DIL, BK 3 5 10 15 10 - 16 224 65 65 50 BK50/3-PKZ4-E PKZM4-16 DILM17-…(…) 5 7½ 15 20 16 - 27 350 65 65 50 BK50/3-PKZ4-E PKZM4-25 DILM25-…(…) 7½ 10 25 30 24 - 34 448 65 65 50 BK50/3-PKZ4-E PKZM4-32 DILM32-…(…) 10 15 30 30 32 - 40 560 65 65 50 BK50/3-PKZ4-E PKZM4-40 DILM40(…) 10 15 30 – 40 - 52 700 65 65 – BK50/3-PKZ4-E PKZM4-50 DILM50(…) 15 15 40 – 50 - 56 812 65 65 – BK50/3-PKZ4-E PKZM4-58 DILM65(…) 15 15 40 – 52 - 58 882 65 65 – BK50/3-PKZ4-E PKZM4-63 DILM65(…) Notes Device for world markets IEC ≙ UL/CSAService factor (SF)Set value I r on the current scale, depending on the load factor SF=1.15 - I r = 1 x I n mot SF=1.0 - I r = 0.9 x I n mot 1) Calculate motor power in this range according to the rated operational current. Stated values to NEC Table 430 - 150. 2) Suitable for networks with grounded star-point Type F starter combinations do not need an upstream protective device.For use in Canada, the switch must be fitted with an AK-PKZ0. I PKZMO, DILM, BK... HPL08034EN

Motor-starter combinations Function Blocks 2010 CA08103002Z-EN www.eaton.com for North America 8/35 for North AmericaFunction Blocks Rating data for approved types 1) Max. rated motor current Contactor Overload relay Maximum short-circuit protective device for North America Maximum motor rating FuseCEC or NEC Circuit-breaker 2) Alternating current HP Continuous current Short-circuit release 200 V208 V 230 V240 V 460 V480 V 575 V600 V Type Type 3) HP HP HP HP A A A Modules DIL, Z – – ½ ½ 1 DILEM-…(…) ZE-1.0 3 15 – – – ¾ 1 1.4 DILEM-…(…) ZE-1.6 6 15 – ½ ½ 1 1½ 2.3 DILEM-…(…) ZE-2.4 6 15 – – 1 2 3 3.9 DILEM-…(…) ZE-4 15 15 – 1½ 1½ 3 – 6 DILEM-…(…) ZE-6 20 15 – – 2 – – 6.8 DILEM-…(…) ZE-9 35 15 – 2 2 5 5 7.8 DILEM-…(…) ZE-9 35 15 – 2 3 5 5 9.6 DILEM-…(…) ZE-12 45 – – – – ½ ½ 1 DILM7…(…) ZB12-1 3 25 200 – – ¾ 1 1.4 DILM7…(…) ZB12-1,6 6 25 200 ½ ½ 1 1½ 2.3 DILM7…(…) ZB12-2,4 6 25 200 1 1 2 3 3.9 DILM7…(…) ZB12-4 15 25 200 1½ ½ 3 – 6 DILM7…(…) ZB12-6 20 25 200 – – – 7½ 9 DILM9…(…) ZB12-10 25 25 200 – 3 5 7½ 9.6 DILM12…(…) ZE-12 25 25 200 – – 7½ 10 11 DILM12…(…) ZB12-12 45 25 200 – 5 10 – 15.2 DILM15…(…) ZB12-16 60 40 320 – – ½ ½ 1 DILM17…(…) ZB32-1 3 25 200 – – ¾ 1 1.4 DILM17…(…) 278447 6 25 200 ½ ½ 1 1½ 2.3 DILM17…(…) ZB32-2,4 6 25 200 1 1 2 3 3.9 DILM17…(…) ZB32-4 15 25 200 ½ 1½ 3 – 6 DILM17…(…) ZB32-6 20 25 200 – 3 5 7½ 9.6 DILM17…(…) ZB32-10 25 25 200 – – 7½ 10 11 DILM17…(…) ZB32-16 40 30 320 – 5 10 – 15.2 DILM17…(…) ZB32-16 40 30 320 – 7½ 15 20 22 DILM25…(…) ZB32-24 90 100 1200 – 10 20 25 32.2 DILM32…(…) ZB32-32 125 125 1200 – 3 5 7½ 9.6 DILM40(…) ZB65-10 40 40 380 – 5 10 10 15.2 DILM40(…) ZB65-16 60 60 760 – 7½ 20 25 32.2 DILM40(…) ZB65-24 90 90 1200 – 10 20 30 34 DILM40(…) ZB65-40 125 125 1200 – 20 40 50 54 DILM50(…) ZB65-57 200 150 2000 – 20 50 50 63 DILM65(…) ZB65-65 200 160 2000 – 25 50 60 68 DILM80(…) ZB150-70 250 250 2500 – 30 75 100 99 DILM95(…) ZB150-100 400 400 3200 – 40 100 100 124 DILM115(…) ZB150-125 500 500 4000 – 60 125 125 156 DILM150(…) ZB150-150 600 600 4800 50 60 125 150 156 DILM185A/22(…) Z5-160/FF225A 600 CLASS J 600 7200 60 75 150 200 192 DILM225A/22(…) Z5-220/FF225A 800 CLASS J 800 16000 75 100 200 250 248 DILM250/22(…) Z5-250/FF250 700 CLASS J 600 – 100 125 250 300 312 DILM300A/22(…) ZW7-400 1000 1000 – 125 150 300 400 382 DILM400/22(…) ZW7-400 1000 1000 – 150 200 400 500 480 DILM500/22(…) ZW7-540 1000 600 – Notes 1) Devices for world markets IEC ≙ UL/CSA 2) Circuit-breaker - Chapter 17 3) The electronic overload relay ZEV can alternatively be used on request. DILM, ZE, ZB, Z5, ZW7 HPL08035EN

8/36 Motor-starter combinations Function Blocks 2010 CA08103002Z-EN www.eaton.com for North America Rating data for approved types Setting range Circuit-breaker Contactor Overload relay Minimum enclosure volume Maximum motor rating Max. rated motor current Rated short-circuit breaking capacity Overload trip Short-circuit releases Alternating current HP 200 V208 V 230 V240 V 460 V480 V 575 V600 V 480 V 600 Y347 V 1) 600 V Type Type Type I r I rm HP HP HP HP A kA kA kA A A cm 3 Module NZMH...-S...-CNA, DILM, Z – – – ½ 0.9 100 50 – 0.6 - 1 12.8 - 22.5 NZMH2-S1.6-CNA DILM17-…(…) ZB32-1 81.5 – – ½ ¾ 1.3 100 50 – 1 - 1.6 12.8 - 22.5 NZMH2-S1.6-CNA DILM17-…(…) ZB32-1,6 81.5 – – ¾ – 1.6 100 50 – 1 - 1.6 19.2 - 33.6 NZMH2-S2.4-CNA DILM17-…(…) ZB32-1,6 81.5 – – 1 1 2.1 100 50 – 1.6 - 2.4 19.2 - 33.6 NZMH2-S2.4-CNA DILM17-…(…) ZB32-2,4 81.5 – ½ – 1½ 2.4 100 50 – 1.6 - 2.4 32 - 56 NZMH2-S5-CNA DILM17-…(…) ZB32-2,4 81.5 ¾ ¾ 2 3 3.9 100 50 – 2.4 - 4 32 - 56 NZMH2-S5-CNA DILM17-…(…) ZB32-4 81.5 – 1 – – 4.2 100 50 – 4 - 6 32 - 56 NZMH2-S5-CNA DILM17-…(…) ZB32-6 81.5 1 1½ 3 – 6 100 50 – 4 - 6 48 - 84 NZMH2-S8-CNA DILM17-…(…) ZB32-6 81.5 1½ 2 – 5 6.9 100 50 – 6 - 10 48 - 84 NZMH2-S8-CNA DILM17-…(…) ZB32-10 81.5 2 3 5 7½ 9.6 100 50 – 6 - 10 80 - 140 NZMH2-S12-CNA DILM17-…(…) ZB32-10 81.5 3 5 10 10 15.2 100 50 – 10 - 16 128 - 224 NZMH2-S18-CNA DILM17-…(…) ZB32-16 81.5 5 – – 15 17.5 100 50 – 16 - 24 200 - 350 NZMH2-S26-CNA DILM17-…(…) ZB32-24 81.5 – 7½ 15 20 22 100 50 – 16 - 24 200 - 350 NZMH2-S26-CNA DILM25-…(…) ZB32-24 81.5 7½ – – – 25.3 100 50 – 24 - 32 256 - 448 NZMH2-S33-CNA DILM25-…(…) ZB32-32 81.5 – 10 20 25 28 100 50 – 24 - 32 256 - 448 NZMH2-S33-CNA DILM32-…(…) ZB32-32 81.5 10 – – – 32.2 100 50 – 24 - 32 320 - 560 NZMH2-S40-CNA DILM32-…(…) ZB32-32 81.5 – – 25 30 34 100 50 – 32 - 40 320 - 560 NZMH2-S40-CNA DILM40(…) ZB65-40 81.5 – – 30 – 40 100 50 – 32 - 40 400 - 700 NZMH2-S50-CNA DILM40(…) ZB65-40 81.5 – 15 – 40 42 100 50 – 40 - 57 400 - 700 NZMH2-S50-CNA DILM40(…) ZB65-57 81.5 15 20 40 50 54 100 50 – 40 - 57 504 - 882 NZMH2-S63-CNA DILM50(…) ZB65-57 81.5 20 – 50 60 65 100 50 – 57 - 65 640 - 1120 NZMH2-S80-CNA DILM65(…) ZB65-65 81.5 – 25 – – 68 100 50 – 50 - 70 640 - 1120 NZMH2-S80-CNA DILM80(…) ZB150-70 163 25 30 60 75 80 100 50 – 70 - 100 800 - 1400 NZMH2-S100-CNA DILM80(…) ZB150-100 163 – 40 75 100 104 100 50 – 70 - 100 1000 - 1750 NZMH2-S125-CNA DILM95(…) ZB150-100 163 30 – – – 92 100 50 – 70 - 100 1000 - 1750 NZMH2-S125-CNA DILM115(…) ZB150-100 163 40 – 100 125 125 100 50 – 100 - 125 1280 - 2240 NZMH2-S160-CNA DILM115(…) ZB150-125 163 – 50 – – 130 100 50 – 125 - 150 1280 - 2240 NZMH2-S160-CNA DILM115(…) ZB150-150 163 – – 125 – 156 100 50 – 125 - 150 1600 - 2500 NZMH2-S200-CNA DILM150(…) ZB150-150 265 50 60 – 150 154 100 50 – 120 - 160 1600 - 2500 NZMH2-S200-CNA DILM185/22(…) Z5-160/FF250 265 60 75 150 200 192 100 50 – 160 - 220 220 - 3080 NZMH2-SE220-CNA DILM225/22(…) Z5-220/FF250 265 75 100 200 250 248 100 50 50 160 - 220 350 - 4900 NZMH3-SE350-CNA DILM250/22(…) Z5-220/FF250 306 100 – – 300 289 100 50 50 190 - 290 350 - 4900 NZMH3-SE350-CNA DILM300/22(…) ZW7-290 306 – 125 250 – 302 100 50 50 270 - 400 450 - 6300 NZMH3-SE450-CNA DILM300/22(…) ZW7-400 306 125 150 300 400 382 100 50 50 270 - 400 450 - 6300 NZMH3-SE450-CNA DILM400/22(…) ZW7-400 306 Notes 1) Suitable for networks with grounded star-point I M 3 ~ I NZMH...-S...-CNA, DILM..., ZB, Z5, ZW7 HPL08036EN

2010 CA08103002Z-EN www.eaton.com Connection system SmartWire 8/37 Description 1 2 I / ON X 4 5 10 9 8 9 13 7 3 11 12 1 Gateway easyNET/CANopen 2 Gateway PROFIBUS-DP 3 Gateway MODBUS 4 Coupling unit XI/ON with Smart-Wire Interface cardMicroInnovation AG, www.microinnovation.com 5 Interface module B & R CS1011 for X20 system, www.br-automation.com 6 SmartWire I/O module 7 DOL starter MSC-D up to 32 A 8 DOL starter MSC-D up to 15.5 A 9 SmartWire power module 10 Connection cable11 SmartWire module for DILM12 Reversing starter MSC-R up to 12 A System description With the SmartWire connection system, switchgear can be connected to a programmable logic controller without the need for complex control wiring. Plug-in SmartWire cards for DILM and a preassembled connection cable replace the control wiring, dra-matically reducing wiring complexity and completely eliminating wiring errors. SmartWire also cuts the time needed for installation, commissioning and troubleshooting.The PLC’s inputs and outputs are replaced by the SmartWire module for DILM, and no control wiring terminals are required.Connection to the various fieldbus systems is through third-party gateways or interface modules. Features • Gateway – Connects the SmartWire cards with the fieldbus – Supports the fieldbus standards PROFIBUS-DP, MODBUS, CANopen and easy-NET – Supplies the control voltage for the motor starter or contactor – Supplies the supply voltage for the SmartWire connection system – Configuration button for automatic addressing of the SmartWire modules for DILM – Supports max. 16 SmartWire modules for DILM • Interface of third-party manufactur- ers, e.g. for the XI/ON I/O system, X20 system CS1011 interface module– Connection to the field buses PROFIBUS-DP, MODBUS, CANopen and DeviceNET • SmartWire module for DILM – Pluggable on contactors– Suitable for contactors DILM7 to DILM32 (24 V DC), DILMC7 to DILMC32 (24 V DC), DILMP20 (24 V DC) or motor starter MSC-... (24 V DC) – Use the standard switchgear of the xStart range – Suitable for DOL and reversing starters – The accessories of the contactor series can be used – Suitable for contactor combina- tions with PKZ or with Z relays – Integrated switch position monitoring of the contactors – Integrated mechanical switch position display – Actuation of the contactors– Scanning of a potential-free contact, e.g. NHI-E-10-PKZ0 – Electrical interlocking, e.g. possible with reversing starters – LED for status and diagnostic display – Connection to gateway or inter- face from third party devices • SmartWire I/O module – 4 digital inputs for connection of potential-free contacts – Power supply for the digital inputs comes from the device – 2 relay outputs 250 V AC • SmartWire power module – Supply of the 24 V DC control voltage for actuation of contactors DILM – Assembly of Emergency Off groups – Increases the control voltage power in the SmartWire line • Safety engineering – Emergency switching off discon- nection as per IEC/EN 954-1, Switching Category 3 – Central switch off of control voltage at the gateway or SmartWire power module – Combination with safety-relevant switchgear possible SWIRE-…

8/38 Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com Ordering Description Part no.Article no. PriceSee price list Std. pack Notes Gateway PROFIBUS-DP Gateway with integrated supply for the SmartWire module and control voltage for the switchgear.- Connection to PROFIBUS-DP as slave.- Transmission rate: 9.6 Kbits/s to 12 MBit/s.- 9 pole SUB-D socket.- Address range 1…126.- Connection to SmartWire module as master.- Supports 16 SmartWire modules. SWIRE-GW-DP107027 1 off – MODBUS Gateway with integrated supply for the SmartWire module and control voltage for the switchgear.- Connection to MODBUS-RTU as slave.- Transmission rate: 9.6 to 57.6 Kbits/s.- 9 pole SUB-D socket RS232/RS485.- Address range 1…31.- Connection to SmartWire module as master.- Supports 16 SmartWire modules. SWIRE-GW-MB118562 1 off – Modules SmartWire module for DILM SmartWire module to assemble on the contactors DILM(C)7…DILM(C)38, DILA…, DILMP20- One module is necessary per contactor.- Connection to SmartWire gateway as slave.- Max. 16 SmartWire modules per line.- 1 digital input for floating contact.- Signaling contactor switch position. SWIRE-DIL107028 5 off • Take account of the max. current consump- tion of the contactor coils per SmartWire line. • Length of connection cable at the input and the electrical interlock 2.8 m. • The A2 connection of the contactors must not be linked. • Electrical interlocking only possible via the terminals on the module for DILM. • Wiring sets DILM 12-XRL and PKZM0- XRM12 cannot be used. • Connection terminals for electrical interlocking are not suitable for safety technology. SmartWire power module Power module for suppling the control voltage.- Connection on SmartWire gateway as interactive station (no address). SWIRE-PF107029 1 off Max. 4 power modules per SmartWire line. SmartWire I/O mod-ule 4 digital inputs2 digital relay outputs SWIRE-4DI-2DO-R107030 1 off Max. 4 SmartWire I/O modules per line. Information relevant for export to North America Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified SWIRE-… HPL08038EN

Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com 8/39 Accessory SmartWire connection cable 1) Length: 85 mm SWIRE-CAB-008107032 25 off Cable lengths: Engineering ￫ A8/40 Length: 110 mm SWIRE-CAB-011107033 Length: 150 mm SWIRE-CAB-015107034 5 off Length: 250 mm SWIRE-CAB-025107035 Length: 500 mm SWIRE-CAB-050112027 1 off Length: 1000 mm SWIRE-CAB-100107036 Length: 2000 mm SWIRE-CAB-200107037 Termination connector 1) – Termination plug for last SmartWire card, 6 pole, no electrical function. SWIRE-CAB-000107031 25 off – Data cable 1) – 6-core, ribbon cable, length: 100 m. SWIRE-CAB-100M107038 1 off Preassembly of cable only possible with special tool. Plug 1) – 6-pin plug for ribbon cable. SWIRE-CAB-CON107039 50 off For use with SWIRE-CAB-100M. NHI-E with cable 1) – NHI-E-10-PKZ0 with connection cable AWG18 blue, for connection to SmartWire module for DILM. NHI-E-10L-PKZ0107040 5 off – Plug-in reversing bridge 2) – For assembling reversing starters with tool-less plug connection DILM12-XR110099 20 off For use with DILM7…DILM15, without A2 link. Information relevant for export to North America 1)Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified 2)Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking UL File No. E36332 UL CCN NLRV CSA File No. 012528 CSA Class No. 3211-05 NA Certification UL Listed, CSA certified Description Part no.Article no. PriceSee price list Std. pack Notes SWIRE-… HPL08039EN

8/40 Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com Engineering Cable lengths For connection between motor starters and contactors DILM, the cable lengths depend on the combination and assembly of the devices. Applications PKZ accessories from to Cable length Contactors DILM None(45 grid) DILM7-…15 DILM7-…15 85 mm DILM17-…38 DILM17-…38 85 mm DILM7-…38 DILM17-…38 110 mm DILM17-…38 DILM7-…15 110 mm PKZM0 with U-/A…/NHI…/AGM… DILM7-…15 DILM7-…15 110 mm DILM17-…32 DILM17-…32 110 mm DILM7-…15 DILM17-…32 110 mm DILM17-…32 DILM7-…15 110 mm Motor starters MSC None(45 grid) DILM7-…15 DILM7-…15 85 mm DILM17-…32 DILM17-…32 85 mm DILM7-…15 DILM17-…32 110 mm DILM17-…32 DILM7-…15 110 mm PKZM0 with U-/A…/NHI…/AGM… DILM7-…15 DILM7-…15 110 mm DILM17-…32 DILM17-…32 110 mm DILM7-…15 DILM17-…32 150 mm DILM17-…32 DILM7-…15 150 mm The cable lengths for connecting SmartWire devices depend on the combination and assembly of the devices. Applications Cable length Connection from power module to SWIRE-DIL with mounting beside PKZ 250 mm Connection from power module to SWIRE-DIL with mounting beside DILM 150 mm Connection from gateway to SWIRE-DIL with mounting beside PKZ 250 mm Connection from coupling unit to SWIRE-DIL with mounting beside DILM 250 mm Magnet systems The number of motor starters or contactors DILM that can be connected is dependant on the power consumption of the magnet systems per SmartWire line. To increase the number of SmartWire modules that can be connected, power modules can be used. 24 V DC DILM7 DILM 9 DILM12 DILM15 DILM17 DILM25 DILM32/38 Pick-up power W 3 3 4.5 12 at 24 V 12 at 24 V 12 at 24 V 12 at 24 V Holding power W 3 3 4.5 0.5 at 24 V 0.5 at 24 V 0.5 at 24 V 0.5 at 24 V SWIRE-…

Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com 8/41 Technical data SWIRE-GW-DP SWIRE-PF SWIRE-DIL General Standards General IEC/EN 60947EN 55011EN 55022IEC/EN 61000-4IEC/EN 60068-2-27 Profibus-DP IEC 61158 – – Mounting Top-hat rail IEC/EN 60715 (35mm) or screw fixing with fixing brackets ZB4-101-GF1 (accessories) on DILM7…DILM38 Dimensions (w x d x h) mm 35 x 90 x 109 35 x 90 x 74 45 x 44 x 81 Weight kg 0.15 0.1 0.04 Terminal capacity Solid mm 2 0.34…1.5 0.34…1.5 0.34…1.5 Flexible with ferrule mm 2 0.34…1.5 0.34…1.5 0.34…1.5 Solid or stranded AWG 22…16 22…16 22…16 Flat-blade screwdriver mm 3.5 x 0.8 3.5 x 0.8 3.5 x 0.8 Max. tightening torque Nm 0.6 0.6 0.5 Ambient climatic conditions Ambient temperature Operation °C -25 - +55 -25 - +55 -25 - +60 Storage °C -25 - +70 -25 - +70 -25 - +70 Condensation Prevent condensation by means of suitable measures Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 795 - 1080 Ambient mechanical conditions Protection type (IEC/EN 60529) IP20 IP20 IP20 Pollution degree 2 2 2 Mounting position Vertical Vertical As per DILM7 to DILM38 Electromagnetic compatibility (EMC) Electrostatic discharge (IEC EN 61000-4-2, Level 3, ESD) Air discharge kV 8 8 8 Contact discharge kV – – – Electromagnetic fields (IEC/EN 61000-4-3, RFI) V/m 10 10 10 Radio interference suppression (EN 55011, EN 55022) Class A Class A Class A Burst pulses (IEC/EN 61000-4-4, level 3) Supply cables kV 2 2 2 Signal cables kV 2 2 2 High-energy pulses (surge) (IEC/EN 61000-4-5, level 2) kV 0.5 (supply cables, symmetrical) Emitted RFI (IEC/EN 61000-4-6) V 10 10 10 Insulation resistance Clearances and creepage distances EN 50178, EN 60947-1, UL 508, CSA C22.2 No 142 Insulation resistance EN 50178, EN 60947-1 Supply voltage, gateway electronics and SmartWire station electronics U gateway Rated operational voltage U gateway V DC 24, -15 %, +20 % – – Permissible range 20.4...28.8 20.4...28.8 Supply from gateway or power module Ripple % ≦ 5 – – Maximum coupling unit power consumption at 24 V DC mA 500 (typically 100 for gateway + typically 25 per SmartWire module) – – Voltage dips (IEC/EN 61131-2) ms 10 – – Heat dissipation at 24 V DC W Normally 6 Normally 1 Normally 0.6 Protection against polarity reversal Yes Short-circuit protection, SmartWire side Yes – – SWIRE-…

8/42 Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com General Supply voltage U AUX (supply voltage for switching SmartWire elements, e.g. contactor coils) Rated operational voltage U AUX V DC 24, -15 %, +20 % (Derating from 40 °C) 24, -15 %, +20 % (Derating from 40 °C) Supply from gateway or power module Permissible range V DC 20.4…28.8, at 45 °C: 21…28.8, at 50 °C: 21.6…28.8, at 55 °C: 22.2…27.6 20.4…28.8, at 45 °C: 21…28.8, at 50 °C: 21.6…28.8, at 55 °C: 22.2…27.6 Supply from gateway or power module Input current U AUX at 24 V DC A Normally 3 Normally 3 – Ripple % ≦ 5 ≦ 5 – Voltage dips (IEC/EN 61131-2) ms 10 10 – Protection against polarity reversal Short-circuit protection, SmartWire side No, external fuse 3 A or FAZ-Z3 No, external fuse 3 A or FAZ-Z3 – LED indicators Operational Ready: green – Ready: green Power supply, SmartWire contactors U Aux : green U Aux : green – PROFIBUS-DP status PROFIBUS-DP: green – – SmartWire status SmartWire: green – above Ready Output status – – – Connection floating contacts Number – – 1 Rated voltage (internal supply) U e V DC – – 17 Input current at “1” signal, typically mA – – 5 Potential isolation – – No Max. cable length m – – 2.8 PROFIBUS-DP Terminal type SUB-D 9-pole, socket – – Station address 1 … 125 – – Address setting DIP switches – – Potential isolation From U AUX power supply Yes From U Gateway power supply Yes To SmartWire Yes Function PROFIBUS-DPslave – – Bus protocol PROFIBUS-DP – – Bus Terminating Resistors can be connected via plug – – Baud rate Automatic, up to 12 Mbits/s – – SmartWire Terminal type Plug, 6-pole Plug, 6-pole Plug, 6-pole Data/power cable 6-core ribbon cable 6-core ribbon cable 6-core ribbon cable Maximum cable length, SmartWire system m Max. 4 Max. 4 Max. 4 Bus termination No Plug connectors Plug connectors Station address Automatic assignment None 1…16 Station max. 126 PROFIBUSstations Max. 4 SmartWire cards per line Max. 16 SmartWire cards per line Address setting None None automatically via SmartWire Potential isolation From U AUX power supply No No No From U Gateway power supply No No No Function SmartWire master no SmartWire station SmartWire slave Data transfer time, SmartWire system Write switch – – Normally 20 ms for all stations Read status information – – Normally 10 ms per station SWIRE-GW-DP SWIRE-PF SWIRE-DIL SWIRE-…

Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com 8/43 SWIRE-4DI-2DO-R SWIRE-GW-MB General Standards General IEC/EN 60947, EN 55011, EN 55022, IEC/EN 61000-4, IEC/EN 60068-2-27 Mounting Tophat rail IEC/EN 60715 (35 mm) or screw fixing with fixing brackets ZB4-101-GF1 (accessories) Dimensions (w x d x h) mm 35 x 90 x 74 35 x 90 x 109 Weight kg 0.12 0.15 Terminal capacity Solid mm 2 0.5…1.5 0.5…1.5 Flexible with ferrule mm 2 0.5…1.5 0.5…1.5 Solid or stranded AWG 22…16 22…16 Flat-blade screwdriver mm 3.5 x 0.8 3.5 x 0.8 Max. tightening torque Nm 0.6 0.6 Ambient climatic conditions Ambient temperature Operation °C -25 - +55 -25 - +55 Storage °C -25 - +70 -25 - +70 Condensation Prevent condensation by means of suitable measures Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 Ambient mechanical conditions Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 Pollution degree 2 2 Mounting position Vertical Vertical Electromagnetic compatibility (EMC) Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD) Air discharge kV 8 8 Contact discharge kV – – Electromagnetic fields (IEC/EN 61000-4-3, RFI) V/m 10 10 Radio interference suppression (EN 55011, EN 55022) Class A Class A Burst pulses (IEC/EN 61000-4-4, level 3) Supply cables kV 2 2 Signal cables kV – 2 power pulses (surge) (IEC/EN 61000-4-5, level 2) kV 0.5 (supply cables, symmetrical) Emitted RFI (IEC/EN 61000-4-6) V 10 10 Insulation resistance Clearances and creepage distances EN 50178, EN 60947-1, UL 508, CSA C22.2 No 142 Insulation resistance EN 50178, EN 60947-1 Supply voltage, gateway electronics and SmartWire station electronics U gateway Rated operational voltage U gateway V DC – 24, -15 %, +20 % Permissible range Supply from gateway or power module 20.4...28.8 Ripple % – ≦ 5 Maximum gateway current consumption at 24 V DC mA – 500 (normally 100 coupling unit + normally 25 per SmartWire card) Voltage dips (IEC/EN 61131-2) ms – 10 Heat dissipation at 24 V DC W – Normally 6 Protection against polarity reversal Yes Short-circuit protection, SmartWire side – Yes Power supply U AUX (power supply for switching the SmartWire slaves, e.g. contactor coils) Rated operational voltage U AUX V DC – 24, -15 %, +20 % (Derating from 40 °C) Permissible range V DC – 20.4…28.8, at 45 °C: 21…28.8, at 50 °C: 21.6…28.8, at 55 °C: 22.2…27.6 Input current U AUX at 24 V DC A – Normally 3 Ripple % – ≦ 5 Voltage dips (IEC/EN 61131-2) ms – 10 Protection against polarity reversal Yes Voltage U s V – Yes Short-circuit protection, SmartWire side – No, external 3 A fuse or FAZ-Z3 SWIRE-…

8/44 Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com LED indicators Operational Ready: green Ready: green Power supply, SmartWire contactors – U Aux : green MODBUS status – MODBUS: yellow SmartWire status – SmartWire: green Output status Q1, Q2: green – Connection floating contacts Number 4 – Rated voltage (internal supply) U e V DC 17 – Input current at “1” signal, typically mA 5 – Potential isolation – Yes Max. cable length m 2.8 – MODBUS Terminal type – SUB-D, 9 pole, socket RS232/RS485 Station address – 1 … 31 Address setting – DIP switches Potential isolation From U AUX power supply – Yes From U Gateway power supply – Yes To SmartWire – Yes Function – MODBUS-RTUSlave Bus protocol – MODBUS-RTU Bus Terminating Resistors – can be connected via plug Baud rate – Adjustable up to 57.6 (9.6/19.2/38.4) kbit/s SmartWire Terminal type Plug, 6-pole Plug, 6-pole Data/power cable 6-core ribbon cable 6-core ribbon cable Maximum cable length, SmartWire system m Max. 4 Max. 4 Bus termination Plug connectors No Station address 1…16 Automatic assignment Station Max. 4 SmartWire modules per line. Max. 16 Address setting automatically via SmartWire None Potential isolation From U AUX power supply No No From U Gateway power supply No No Function SmartWire slave SmartWire master Data transfer time, SmartWire system Write switch Normally 20 ms for all stations – Read status information Normally 10 ms per station – Relay outputs Rated impulse withstand voltage U imp V AC 4000 – Overvoltage category/pollution degree III/3 Rated insulation voltage U i V 250 – Rated operating voltage U e V 250 – Making capacity A 30 – Breaking capacity 380/400 V A 10 – Rated operational current AC-15, 250 V I e A 3 – DC-12, 30 V I e A 3 – Conventional thermal current I th A 6 6 Short-circuit rating without welding max. fuse A gG/gL 10 – SWIRE-4DI-2DO-R SWIRE-GW-MB SWIRE-…

Motor-starter combinations DOL starters, reversing starters 2010 CA08103002Z-EN www.eaton.com 8/45 DOL starters, reversing starters Dimensions General Standards IEC/EN 60947-4-1, VDE 0660UL 508 (please enquire)CSA C 22.2 No. 14 (please enquire) Mounting position Main contacts Rated impulse withstand voltage U imp V AC 6000 Overvoltage category/pollution degree III/3 Rated operating voltage U e V 230 - 415 Further technical data Motor protective circuit breaker PKZM0, PKE ￫ Chapter 7 Contactors DILM ￫ Chapter 5 DOL starters MSC-D-…-M7[…15]… MSC-D-…-M17[…32]… MSC-D-…-M7[…15]BBA… MSC-D-…-M17[…32]BBA… 90º 90º 90º 90º 95 45 67 6 46 180 45 180 97.4 123.4 67 46 228 95 35 63 10 45 67 40 60 60 180 200 a 35 63 10 45 67 40 60 60 180 200 a 97.4 MSC-D, MSC-R, MSC-DE(A)

8/46 Motor-starter combinations DOL starters, reversing starters 2010 CA08103002Z-EN www.eaton.com DOL starters, reversing starters Reversing starters MSC-R-…-M7[…12]… MSC-R-…-M17[…32]… MSC-R-…-M7[…12]BBA… MSC-R-…-M17[…32]BBA… DOL starters MSC-DE(A)-...-M7[...12]... MSC-DE(A)-...-M17[...32]... 95 90 67 6 46 114 180 90 180 97.4 123.4 67 46 228 95 35 63 10 67 40 60 60 a 90 114 180 35 63 10 67 40 60 60 a 97.4 90 180 97 102 189 50 45 78 242 196 128 97 102 45 MSC-DE(A), MSC-R

Connection system SmartWire 2010 CA08103002Z-EN www.eaton.com 8/47 Modules SWIRE-DIL SWIRE-PF , SWIRE-4DI-2DO-R Gateways SWIRE-GW-DP..., SWIRE-GW-MB 38 4 45 50 12 70 M4 7.5 35.5 7.5 90 102 110 66 74 4.5 M4 7.5 35.5 7.5 90 102 110 105 109 4.5 SWIRE-…
