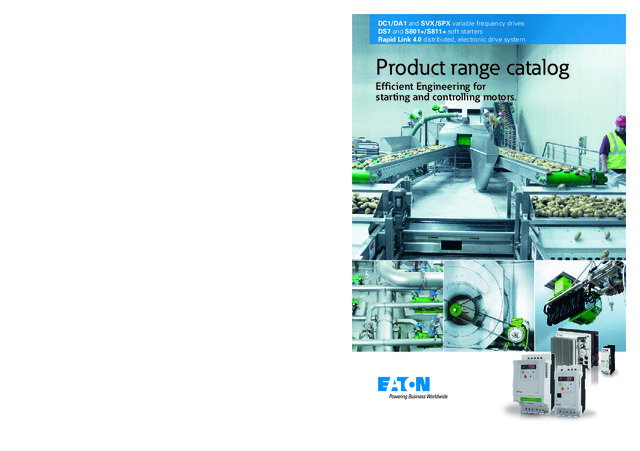

10_CA08103002Z

Changes to the products, to the information contained in this document, and to prices are reserved; so are errors and omissions. Only order confirmations and technical documenta-tion by Eaton is binding. Photos and pictures also do not warrant a specific layout or function-ality. Their use in whatever form is subject to prior approval by Eaton. The same applies to Trademarks (especially Eaton, Moeller, Cutler-Hammer). The Terms and Conditions of Eaton apply, as referenced on Eaton internet pages and Eaton order confirmations. DC1/DA1 and SVX/SPX variable frequency drivesDS7 and S801+/S811+ soft starters Rapid Link 4.0 distributed, electronic drive system Eaton is dedicated to ensuring that reliable, efficient and safe power is available when it’s needed most. With unparalleled knowledge of electrical power management across industries, experts at Eaton deliver customized, integrated solutions to solve our customers’ most critical challenges. Our focus is on delivering the right solution for the application. But, decision makers demand more than just innovative products. They turn to Eaton for an unwavering commitment to personal support that makes customer success a top priority. For more information, visit www.eaton.eu. To contact an Eaton salesperson orlocal distributor/agent, please visitwww.eaton.eu/electrical/customersupport Eaton Industries GmbHHein-Moeller-Str. 7–11D-53115 Bonn / Germany © 2012 by Eaton CorporationAll rights reservedPrinted in Germany 07/13Publication No.: CA04020001Z_EN-INTDoku/DHW/ip/MP 07/13Article No.: 170504 Eaton is a registered trademark of Eaton Corporation All other trademarks are property of their respective owners. SmartWire-DT ® is a registered trademark of Eaton Corporation. Product range catalog for variable frequency drives, soft starters, Rapid Link Product range catalog Efficient Engineering forstarting and controlling motors. CA04020001Z-EN-INT_Umschlag.indd 4-6 CA04020001Z-EN-INT_Umschlag.indd 4-6 09.07.13 13:19 09.07.13 13:19

1874 1833 1886 1911 1914 1893 1983 1962 1961 1989 1984 1977 1908 1906 1899 1897 1963 1967 1934 The power of fusion. There’s a certain energy at Eaton. It’s the power of uniting some of theworld’s most respected names to build a brand you can trust to meetyour every power management need. Eaton is dedicated to ensuring that reliable, efﬁ cient and safe poweris available when it’s needed most. Building on over 100 years ofexperience in electrical power management, the experts at Eatondeliver customized, integrated solutions to solve your most criticalchallenges. To learn more visit www.eaton.eu/electrical. All of the above are trademarks of Eaton or its afﬁ liates. ᕡ Eaton has a license to use the Westinghouse brand name in Asia Paciﬁ c. ©2013 Eaton. You can find comprehensive up-to-date product information at http://ecat.moeller.net Lookup You can search by keywords, product names, article numbers, technical data: The search understands everything and takes you straight to the product you’re looking for. Graphical navigation Graphical representation of the fields of application and product groups. Selection aids Tailored to the typical expert’s approach, this search aid helps you quickly find the product you need. Data sheets For every article the catalog can generate a technical data sheet, which you can convert to a PDF file for printing or saving with a single click. Parts lists From your search results you can create a parts list that you can then send to your Eaton sales partner as a query. You can find comprehensive up-to-date information about Eaton’s automation products and switchgear in our Online Catalog. Eaton Online Catalog – find product details quickly and efficiently! HTML data sheet; can be saved as PDF file. Parts list, e.g. for queries to Eaton Sales. CA04020001Z-EN-INT_Umschlag.indd 7-9 CA04020001Z-EN-INT_Umschlag.indd 7-9 09.07.13 13:20 09.07.13 13:20

PowerXL™ DC1, DA1 variable frequency drives Page 4 9000X variable frequency drives: SVX, SPX Page 78 DS7 soft starters Page 104 S801+, S811+ soft starters Page 132 Rapid Link distributed, electronic drive system Page 152 SmartWire-DT™ communication system Page 178 Appendix Page 189 Table of contents DC1, DA1 variable frequency drives SVX, SPX variable frequency drives S801+, S811+ soft starters Rapid Link SmartWire-DT ™ Appendix DS7 soft starters

Energizing a world that demands more. Powering business worldwide As a global diversiﬁ ed power management company, we help customers worldwide manage the power needed for buildings, aircraft, trucks, cars, machinery and businesses. Eaton’s innovative technologies help customers manage electrical, hydraulic and mechanical power more reliably, efﬁ ciently, safely and sustainably. Discover today’s Eaton. Unbenannt-1 2 25.04.13 11:24

We deliver: Electrical solutions that use less energy, improve power reliability and make the places we live and work safer and more comfortable Hydraulic and electrical solutions that enable machines to deliver more productivity without wasting power Aerospace solutions that make aircraft lighter, safer and less costly to operate, and help airports operate more efficiently Vehicle drivetrain and powertrain solutions that deliver more power to cars, trucks and buses, while reducing fuel consumption and emissions We provide integrated solutions that help make energy, in all its forms, more practical and accessible. With 2012 sales of $16.3 billion, Eaton has approximately 103,000 employees around the world and sells products in more than 175 countries. Eaton’s electrical business Eaton is a global leader with expertise in: w aton. ww.e eu Unbenannt-1 3 25.04.13 11:24

Variable frequency drives make it possible to use infinitely variable speed control with three-phase asynchronous motors and AC motors. To do so, they convert a single-phase or three-phase alternating voltage with a specific frequency and amplitudes into a single-phase or three-phase alternating voltage with a variable frequency and a variable ampli-tude. With its DC1 and DA1 device series, Eaton has just the right variable frequency drive for any machine building application or standard electric drive system application, regardless of whether your needs are extremely simple or extremely complex. DC1 variable frequency drivesOutput voltage with sinusoidal pulse-width modulation (PWM) when using Volts-per-Hertz con-trol (V/Hz control) with slip compensation and start voltage boost.DC1-12…: U IN 1~230 V/U OUT 3~230 V, allocated motor output 0.37 – 4 kW DC1-32…: U IN 3~230 V/U OUT 3~230 V, allocated motor output 0.37 – 4 kW DC1-34…: U IN 3~400 V/U OUT 3~400 V, allocated motor output 0.75 – 11 kW DC1-S2…: U IN 1~230 V/U OUT 1~230 V, allocated motor output 0.37 – 1.1 kW (Single-phase motor)DC1-S1…: U IN 1~115 V/U OUT 1~115 V, allocated motor output 0.37 – 0.55 kW DC1-1D…: U IN 1~115 V/U OUT 3~230 V, allocated motor output 0.37 – 1.1 kW (voltage doubler) DA1 variable frequency drivesOutput voltage with sinusoidal pulse-width modulation (PWM) when using Volts-per-Hertz con-trol (V/Hz control), sensorless (SLVC) and sensored vector controlDA1-12…: U IN 1~230 V/U OUT 3~230 V, allocated motor output 0.75 – 2.2 kW DA1-32…: U IN 3~230 V/U OUT 3~230 V, allocated motor output 0.75 – 75 kW DA1-34…: U IN 3~400 V/U OUT 3~400 V, allocated motor output 0.75 – 250 kW PowerXL™ DC1, DA1 variable frequency drives

PowerXL™ variable frequency drives CA04020001Z-EN-INT www.eaton.eu 5 DC1, DA1 System overview variable frequency drives DC1 6 Description variable frequency drives DC1 7 System overview variable frequency drives DA1 8 Description variable frequency drives DA1 9 Technical overview variable frequency drives DC1, DA1 10 Key to type references, Sizes and degree of protection UL/CSA variable frequency drives DC1 11 Ordering variable frequency drives DC1 14 Key to type references UL/CSA variable frequency drives DA1 18 Sizes and degree of protection variable frequency drives DA1 19 Ordering variable frequency drives DA1 20 Accessories 31 Braking resistances 34 Mains choke, motor chokes 36 Engineering Assigned switching and protective elements 39 General information on Engineering 40 Connection example for DC1 42 Assigned switching and protective elements 44 Technical data variable frequency drives DC1 48 variable frequency drives DA1 54 Mains choke, motor chokes 62 Dimensions variable frequency drives DC1 64 variable frequency drives DA1 65 Accessories 68 Mains choke, motor chokes 70 Sine filters 72 Braking resistances 74

6 PowerXL™ variable frequency drives DC1 CA04020001Z-EN-INT www.eaton.eu DC1 System overview DC1 with IP20 degree of protection DC1 variable frequency drive 1 ￫ page 12 Mains choke, motor choke, sine filter 2 ￫ page 36, ￫ page 37 Braking resistance 3 ￫ page 34 Expansion modules 4 ￫ page 33 SmartWire-DT module 5 ￫ page 33 Bluetooth communications stick 6 ￫ page 31 External Keypad 7 ￫ page 31 2 3 6 4 5 7 1

CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DC1 7 DC1, DA1 DC1 Description The DC1 is Eaton's compact variable frequency drive. It has been specifically designed for simple applications. With only 14 basic parameters and outstanding ease of mounting and installation, the DC1 is perfect for quick commissioning. This makes these compact variable frequency drive ideal for series production applications in the field of machine building. Typical applications for this series include fans, pumps, and conveyor systems. In addition, additional parameters and functionalities can be flexibly enabled in order to allow the DC1 to handle more demanding applications as well. When configured with an IP66 degree of protection, DC1 variable frequency drives can be installed in humid and wet locations as well. In addition, these variable frequency drives can also be used as stand-alone units directly on site if they are equipped with a setpoint potentiometer, a selector switch, and a mains transfer switch and are configured with an IP66 degree of protection. Essential features Accessory consideration • Fast commissioning with 14 basic parameters• Performance range (allocated motor output) – 0.37 - 4 kW (U IN : 1~ 230 V / U OUT : 3~ 230 V) – 0.37 - 4 kW (U IN : 3~ 230 V / U OUT : 3~ 230 V) – 0.75 - 11 kW (U IN : 3~ 400 V / U OUT : 3~ 400 V), up to 7.5 kW at IP66 – 0.37 - 1.1 kW (U IN : 1~230 V / U OUT : 1~230 V), single-phase motor – 0.37 - 0.55 kW (U IN : 1~ 115 V / U OUT : 1~ 115 V), single-phase motor – 0.37 - 1.1 kW (U IN : 1~ 115 V / U OUT : 3~ 230 V) with voltage doubler • Large overload capability: 150% for 60 seconds, 175% for 2 seconds• Maximum ambient temperature: 50 °C without derating (IP20) / 40 °C (IP66) • Integrated ® CANopen and Modbus • Degree of protection to IP20 and IP66• EMC filter• Optional internal braking transistor for IP20 degree of protection • Integrated PI controller• V/Hz control with start voltage boost and slip compensation • International standards (CE, UL, cUL, C-Tick, UkrSEPRO, RoHS)• Side-by-side mounting • SmartWire-DT field bus module• I/O expansion with plug-in modules• External keypad for control panel door • Mains choke• Motor choke • sine filter• braking resistances

8 PowerXL™ variable frequency drives DA1 CA04020001Z-EN-INT www.eaton.eu DA1 System overview DA1 with IP20 degree of protection DA1 variable frequency drives 1 ￫ page 20 Mains choke, motor choke, sine filter 2 ￫ page 36, ￫ page 37 Braking resistance 3 ￫ page 34 Fieldbus modules 4 ￫ page 33 Bluetooth communications stick 5 ￫ page 31 External Keypad 6 ￫ page 31 2 3 5 4 6 1

CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DA1 9 DC1, DA1 DA1 Description DA1 frequency inverters are ideal for demanding, speed-dependent applications. Their wide performance range of up to 250 kW, together with their compact dimensions and high level of functionality, are sure to leave a lasting impression. Accordingly, DA1 units come with an integrated EMC filter and braking transistor. Moreover, the Modbus RTU and CANopen protocols are integrated as standard. ® . With sensorless vector control, DA1 variable frequency drives are able to provide 200% torque at zero rpm. This makes them the perfect choice for applications that involve lifting or tractive forces.Comprehensive expansions such as additional inputs and outputs (analog, digital) and various field bus modules round off this variable frequency drive's flexibility.When configured with an IP66 degree of protection, DA1 variable frequency drives can be installed in humid and wet locations as well.In addition, these variable frequency drives can also be used as stand-alone units directly on site if they are equipped with a setpoint potentiometer, a selector switch, and a mains transfer switch. Essential features Accessory consideration • Performance range: – 0.75 - 2.2 kW (U IN : 1~ 230 V / U OUT : 3~ 230 V) – 0.75 - 75 kW (U IN : 3~ 230 V / U OUT : 3~ 230 V) – 0.75 - 250 kW (U IN : 3~ 400 V / U OUT : 3~ 400 V) • Large overload capability: 150% for 60 seconds, 200% for 4 seconds• Degrees of protection – IP20 to 11 kW at 400 V– IP40 at 200/250 kW at 400 V– IP55 for 11 to 160 kW with 400 V – IP66 up to 7.5 kW with 400 V; 0.75–4 kW with 230 V • The maximum allocated motor output is 7.5 kW with degree of protection IP66. • Integrated ® CANopen and Modbus • EMC filter, integrated • Braking transistor, integrated• Control method: V/Hz control, sensorless vector control, vector control with encoder • Safe Torque Off (STO)• Can be used to drive high-efficiency PM motors • International standards (CE, UL, cUL, C-Tick, UkrSEPRO, RoHS)• Side-by-side mounting• Ambient air temperature 50 °C without derating (IP20), max. 40 °C (IP66) • Master/Slave functionality • SmartWire-DT field bus module• Field bus modules (PROFIBUS, PROFINET, Ethernet/IP, EtherCat, Modbus TCP, BACnet, and DeviceNet) • I/O expansion with plug-in modules• External keypad for control panel door• High-resolution OLED display• Mains choke• Motor chokes• sine filter• braking resistances

10 PowerXL™ variable frequency drives DC1, DA1 CA04020001Z-EN-INT www.eaton.eu DC1, DA1 Technical overview DC1... DA1... Rated operational voltage U e 115 V AC, single-phase ✓ - 230 V AC, 1-phase ✓ ✓ 230 V AC, 3-phase ✓ ✓ 400 V AC, 3-phase ✓ ✓ Supply frequency f LN Hz 50/60 50/60 Rated operational current I e A 2.3 - 24 2.2 - 450 Overload current for 60 s every 600 s I L % 150 150 Starting current for 2 s I L % 175 - Starting current for 4 s I L % - 200 Assigned motor rating at 115 V, 50 Hz P kW 0.37 - 0.55 (Single-phase motors) - at 230 V, 50 Hz P kW 0.37 - 4 (0.37 - 4 for single-phase motors) 0.75 - 75 at 400 V, 50 Hz P kW 0.75 - 11 0.75 - 250 Ambient temperature Operation °C IP20/NEMA 0 -10 - +50 -10 - +50 IP40 - -10 - +30 IP55/NEMA 3 - -10 - +40 / -10 - +30 (I e 180 A) IP66/NEMA 4X -10 - +40 -10 - +40 Storage °C -40 - +60 -40 - +60 Operation Mode U/f control ✓ ✓ Slip compensation ✓ ✓ sensorless vector control (SLV) - ✓ Vector control with feedback (CLV) - ✓ Switching frequency f PWM kHz 4 - 32 4 - 32 Output voltage with V e U 2 115 V AC, single-phase ✓ - 230 V AC, single-phase ✓ - 230 V AC, 3-phase ✓ ✓ 400 V AC, 3-phase ✓ ✓ Output Frequency f 2 Hz 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) Protection type IP20/NEMA 0 ✓ ✓ IP40 - ✓ IP55/NEMA 3 - ✓ IP66/NEMA 4X ✓ ✓ Fitted with Radio interference suppression filter ✓ ✓ Brake chopper ✓ ✓ Additional PCB protection - ✓ 7-digital display assembly ✓ ✓ OLED display - ✓ Interface OP-Bus (RS485)/Modbus RTU, CANopen ® OP-Bus (RS485)/Modbus RTU, CANopen ® Fieldbus connection SmartWire-DT Ethernet IPDeviceNetPROFIBUSPROFINETModbus-TCPEtherCATBACnet/IPSmartWire-DT Analog inputs parameterizable, max. 2 x (0 - 10 V, 0/4 - 20 mA) parameterizable, max. 2 x (0 - 10 V, 0/4 - 20 mA) Analog outputs parameterizable, max. 1 x (0 - 10 V) parameterizable, max. 2 x (0 - 10 V, 0/4 - 20 mA) Digital inputs parameterizable, max. 4 x (max. 30 V DC) parameterizable, 3 x (max. 30 V DC) Digital outputs parameterizable, max. 1 x (24 V DC) parameterizable, max. 2 x (24 V DC) Relay outputs parameterizable, 1 x N/O, 6 A (250 V AC) / 5 A (30 V DC) parameterizable, 1 x N/O and 1 x changeover contact, 6 A (250 V AC) / 5 A (30 V DC) Production quality RoHS, ISO 9001 RoHS, ISO 9001 Safety functions - STO (Safe Torque Off) Standards EMC: EN 61800-3:2004+A1-2012 EMC: EN 61800-3:2004+A1-2012 Certifications CE, cUL, UL, c-Tick, Ukr Sepro CE, cUL, UL, c-Tick, Ukr Sepro

PowerXL™ variable frequency drives DC1 CA04020001Z-EN-INT www.eaton.eu 11 DC1, DA1 DC1 Key to type references DC1 Sizes and degree of protection Frame size Protection type Information relevant for export to North America IP20/NEMA 0 IP66/NEMA 4X IP66/NEMA 4XLocal controls FS1 Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking UL File No. E172143 UL Category Control No. NMMS, NMMS7 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-06 North America Certification UL listed, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 1~ 120 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)1~ 240 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)3~ 240 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)3~ 480 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey) FS2 FS3 DC1 - 1 2 4D1 F N - A 20 N Connection in power section 1 = single-phase mains connection/three-phase motor connection3 = three-phase mains connection/three-phase motor connectionS = single-phase mains connection/single-phase motor connection Mains voltage category 1 = 110 V (110 - 115 V ± 10 %)2 = 230 V (200 - 240 V ± 10 %)4 = 400 V (380 - 480 V ± 10 %)D = 110 V input/230 V output(voltage doubler) Device series DC1 = variable frequency drive, compact, series 1(D = Drives, C = Compact, 1 = Series 1) B = Brake chopper N = no internal brake chopperB = Brake chopper Display unit (display) A = LED display Degree of protection 20 = IP20/NEMA 066 = IP66/NEMA 4X6S = IP66 with switch/NEMA 4X, switched Type N = Standard basic device N = no internal RFI ﬁlterF = Internal RFI ﬁlter EMC (radio interference suppression ﬁlter) Rated operational current (examples) 2D2 = 2,2 A4D1 = 4,1 A024 = 24 A ⏚ L1/L L2/N L3 ⏚ U V W 1 2 3 4 5 6 7 8 9 10 11 PWR OFF ON REV FWD 0 ⏚ L1/L L2/N L3 DC- ⏚ U DC+ BR V W 1 2 3 4 5 6 7 8 9 10 11 PWR OFF ON REV FWD 0 ⏚ U DC+ BR V W ⏚ L1/L L2/N L3 DC- 1 2 3 4 5 6 7 8 9 10 11 PWR OFF ON REV FWD 0 UL/CSA

12 PowerXL™ variable frequency drives DC1, for AC motors 115 V/230 V CA04020001Z-EN-INT www.eaton.eu DC1, for AC motors 115 V/230 V Ordering Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o i n te rf er en ce su pp re ss io n filt er Br ak e ch op pe r 7- dig ita l dis pl ay as se m b ly Lo ca l c o nt ro ls A kW A U e 115 V AC, single-phase / U 2 115 V AC, single-phase Mains voltage (50/60Hz) U LN 110 (-10%) - 115 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 7 0.37 7 - - ✓ - FS1 IP20/NEMA 0 DC1-S17D0NN-A20N169497 1 off - - ✓ - IP66/NEMA 4X DC1-S17D0NN-A66N169498 - - ✓ ✓ DC1-S17D0NN-A6SN169499 10.5 0.55 10.5 - ✓ ✓ - FS2 IP20/NEMA 0 DC1-S1011NB-A20N169500 - ✓ ✓ - IP66/NEMA 4X DC1-S1011NB-A66N169501 - ✓ ✓ ✓ DC1-S1011NB-A6SN169502 U e 230 V AC, 1-phase / U 2 230 V AC, single-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 4.3 0.37 4.3 - - ✓ - FS1 IP20/NEMA 0 DC1-S24D3NN-A20N169512 1 off ✓ - ✓ - DC1-S24D3FN-A20N169521 - - ✓ - IP66/NEMA 4X DC1-S24D3NN-A66N169513 - - ✓ ✓ DC1-S24D3NN-A6SN169514 ✓ - ✓ - DC1-S24D3FN-A66N169522 ✓ - ✓ ✓ DC1-S24D3FN-A6SN169523 7 0.75 7 - - ✓ - IP20/NEMA 0 DC1-S27D0NN-A20N169515 ✓ - ✓ - DC1-S27D0FN-A20N169524 - - ✓ - IP66/NEMA 4X DC1-S27D0NN-A66N169516 - - ✓ ✓ DC1-S27D0NN-A6SN169517 ✓ - ✓ - DC1-S27D0FN-A66N169525 ✓ - ✓ ✓ DC1-S27D0FN-A6SN169526 10.5 1.1 10.5 - ✓ ✓ - FS2 IP20/NEMA 0 DC1-S2011NB-A20N169518 ✓ ✓ ✓ - DC1-S2011FB-A20N169527 - ✓ ✓ - IP66/NEMA 4X DC1-S2011NB-A66N169519 - ✓ ✓ ✓ DC1-S2011NB-A6SN169520 ✓ ✓ ✓ - DC1-S2011FB-A66N169528 ✓ ✓ ✓ ✓ DC1-S2011FB-A6SN169529 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 11

PowerXL™ variable frequency drives DC1, for three-phase motors 230 V CA04020001Z-EN-INT www.eaton.eu 13 DC1, DA1 DC1, for three-phase motors 230 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y Lo ca l c on tr ol s A kW A U e 115 V AC, single-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 110 (-10%) - 115 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 2.3 0.37 2 - - ✓ - FS1 IP20/NEMA 0 DC1-1D2D3NN-A20N169503 1 off - - ✓ - IP66/NEMA 4X DC1-1D2D3NN-A66N169504 - - ✓ ✓ DC1-1D2D3NN-A6SN169505 4.3 0.75 3.2 - - ✓ - IP20/NEMA 0 DC1-1D4D3NN-A20N169506 - - ✓ - IP66/NEMA 4X DC1-1D4D3NN-A66N169507 - - ✓ ✓ DC1-1D4D3NN-A6SN169508 5.8 1.1 4.6 - ✓ ✓ - FS2 IP20/NEMA 0 DC1-1D5D8NB-A20N169509 - ✓ ✓ - IP66/NEMA 4X DC1-1D5D8NB-A66N169510 - ✓ ✓ ✓ DC1-1D5D8NB-A6SN169511 U e 230 V AC, 1-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 2.3 0.37 2 - - ✓ - FS1 IP20/NEMA 0 DC1-122D3NN-A20N169222 1 off ✓ - ✓ - DC1-122D3FN-A20N169240 - - ✓ - IP66/NEMA 4X DC1-122D3NN-A66N169223 - - ✓ ✓ DC1-122D3NN-A6SN169224 ✓ - ✓ - DC1-122D3FN-A66N169241 ✓ - ✓ ✓ DC1-122D3FN-A6SN169242 4.3 0.75 3.2 - - ✓ - FS1 IP20/NEMA 0 DC1-124D3NN-A20N169225 ✓ - ✓ - DC1-124D3FN-A20N169243 - - ✓ - IP66/NEMA 4X DC1-124D3NN-A66N169226 - - ✓ ✓ DC1-124D3NN-A6SN169227 ✓ - ✓ - DC1-124D3FN-A66N169244 ✓ - ✓ ✓ DC1-124D3FN-A6SN169245 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 11

14 PowerXL™ variable frequency drives DC1, for three-phase motors 230 V CA04020001Z-EN-INT www.eaton.eu Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Lo ca l co nt ro ls Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o i nt er fer en ce su pp re ssi o n f ilt er Br ak e ch opp er 7- di gi ta l di sp la y as se mbl y A kW A U e 230 V AC, 1-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 7 1.5 6.3 - - ✓ - FS1 IP20/NEMA 0 DC1-127D0NN-A20N169228 1 off ✓ - ✓ - DC1-127D0FN-A20N169246 - ✓ ✓ - FS2 DC1-127D0NB-A20N169231 ✓ ✓ ✓ - DC1-127D0FB-A20N169249 - - ✓ - FS1 IP66/NEMA 4X DC1-127D0NN-A66N169229 - - ✓ ✓ DC1-127D0NN-A6SN169230 ✓ - ✓ - DC1-127D0FN-A66N169247 ✓ - ✓ ✓ DC1-127D0FN-A6SN169248 - ✓ ✓ - FS2 DC1-127D0NB-A66N169232 - ✓ ✓ ✓ DC1-127D0NB-A6SN169233 ✓ ✓ ✓ - DC1-127D0FB-A66N169250 ✓ ✓ ✓ ✓ DC1-127D0FB-A6SN169251 10.5 2.2 8.7 - ✓ ✓ - FS2 IP20/NEMA 0 DC1-12011NB-A20N169234 ✓ ✓ ✓ - DC1-12011FB-A20N169252 - ✓ ✓ - IP66/NEMA 4X DC1-12011NB-A66N169235 - ✓ ✓ ✓ DC1-12011NB-A6SN169236 ✓ ✓ ✓ - DC1-12011FB-A66N169253 ✓ ✓ ✓ ✓ DC1-12011FB-A6SN169254 15 4 14.8 - ✓ ✓ - FS3 IP20/NEMA 0 DC1-12015NB-A20N169237 - ✓ ✓ - IP66/NEMA 4X DC1-12015NB-A66N169238 - ✓ ✓ ✓ DC1-12015NB-A6SN169239 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 11

PowerXL™ variable frequency drives DC1, for three-phase motors 230 V CA04020001Z-EN-INT www.eaton.eu 15 DC1, DA1 DC1, for three-phase motors 230 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y Lo ca l c on tr ol s A kW A U e 230 V AC, 3-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 2.3 0.37 2 - - ✓ - FS1 IP20/NEMA 0 DC1-322D3NN-A20N169255 1 off - - ✓ - IP66/NEMA 4X DC1-322D3NN-A66N169256 - - ✓ ✓ DC1-322D3NN-A6SN169257 4.3 0.75 3.2 - - ✓ - IP20/NEMA 0 DC1-324D3NN-A20N169258 - - ✓ - IP66/NEMA 4X DC1-324D3NN-A66N169259 - - ✓ ✓ DC1-324D3NN-A6SN169260 7 1.5 6.3 - - ✓ - FS1 IP20/NEMA 0 DC1-327D0NN-A20N169261 - ✓ ✓ - FS2 DC1-327D0NB-A20N169264 ✓ ✓ ✓ - DC1-327D0FB-A20N169444 - - ✓ - FS1 IP66/NEMA 4X DC1-327D0NN-A66N169262 - - ✓ ✓ DC1-327D0NN-A6SN169263 - ✓ ✓ - FS2 DC1-327D0NB-A66N169436 - ✓ ✓ ✓ DC1-327D0NB-A6SN169437 ✓ ✓ ✓ - DC1-327D0FB-A66N169445 ✓ ✓ ✓ ✓ DC1-327D0FB-A6SN169446 10.5 2.2 8.7 - ✓ ✓ - FS2 IP20/NEMA 0 DC1-32011NB-A20N169438 ✓ ✓ ✓ - DC1-32011FB-A20N169447 - ✓ ✓ - IP66/NEMA 4X DC1-32011NB-A66N169439 - ✓ ✓ ✓ DC1-32011NB-A6SN169440 ✓ ✓ ✓ - DC1-32011FB-A66N169448 ✓ ✓ ✓ ✓ DC1-32011FB-A6SN169449 18 4 14.8 - ✓ ✓ - FS3 IP20/NEMA 0 DC1-32018NB-A20N169441 ✓ ✓ ✓ - DC1-32018FB-A20N169450 - ✓ ✓ - IP66/NEMA 4X DC1-32018NB-A66N169442 - ✓ ✓ ✓ DC1-32018NB-A6SN169443 ✓ ✓ ✓ - DC1-32018FB-A66N169451 ✓ ✓ ✓ ✓ DC1-32018FB-A6SN169452 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 11

16 PowerXL™ variable frequency drives DC1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu DC1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y Lo ca l c on tr ol s A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 2.2 0.75 1.9 - - ✓ - FS1 IP20/NEMA 0 DC1-342D2NN-A20N169453 1 off ✓ - ✓ - DC1-342D2FN-A20N169475 - - ✓ - IP66/NEMA 4X DC1-342D2NN-A66N169454 - - ✓ ✓ DC1-342D2NN-A6SN169455 ✓ - ✓ - DC1-342D2FN-A66N169476 ✓ - ✓ ✓ DC1-342D2FN-A6SN169477 4.1 1.5 3.6 - - ✓ - FS1 IP20/NEMA 0 DC1-344D1NN-A20N169456 ✓ - ✓ - DC1-344D1FN-A20N169478 - ✓ ✓ - DC1-344D1NB-A20N169459 ✓ ✓ ✓ - DC1-344D1FB-A20N169481 - - ✓ - FS1 IP66/NEMA 4X DC1-344D1NN-A66N169457 - - ✓ ✓ DC1-344D1NN-A6SN169458 ✓ - ✓ - DC1-344D1FN-A66N169479 - ✓ ✓ - FS2 DC1-344D1NB-A66N169460 - ✓ ✓ ✓ DC1-344D1NB-A6SN169461 ✓ - ✓ ✓ FS1 DC1-344D1FN-A6SN169480 ✓ ✓ ✓ - FS2 DC1-344D1FB-A66N169482 ✓ ✓ ✓ ✓ DC1-344D1FB-A6SN169483 5.8 2.2 5 - ✓ ✓ - FS2 IP20/NEMA 0 DC1-345D8NB-A20N169462 ✓ ✓ ✓ - DC1-345D8FB-A20N169484 - ✓ ✓ - IP66/NEMA 4X DC1-345D8NB-A66N169463 - ✓ ✓ ✓ DC1-345D8NB-A6SN169464 ✓ ✓ ✓ - DC1-345D8FB-A66N169485 ✓ ✓ ✓ ✓ DC1-345D8FB-A6SN169486 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 11

PowerXL™ variable frequency drives DC1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu 17 DC1, DA1 DC1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y Lo ca l c on tr ol s A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 9.5 4 8.5 - ✓ ✓ - FS2 IP20/NEMA 0 DC1-349D5NB-A20N169465 1 off ✓ ✓ ✓ - DC1-349D5FB-A20N169487 - ✓ ✓ - IP66/NEMA 4X DC1-349D5NB-A66N169466 - ✓ ✓ ✓ DC1-349D5NB-A6SN169467 ✓ ✓ ✓ - DC1-349D5FB-A66N169488 ✓ ✓ ✓ ✓ DC1-349D5FB-A6SN169489 14 5.5 11.3 - ✓ ✓ - FS3 IP20/NEMA 0 DC1-34014NB-A20N169468 ✓ ✓ ✓ - DC1-34014FB-A20N169490 - ✓ ✓ - IP66/NEMA 4X DC1-34014NB-A66N169469 - ✓ ✓ ✓ DC1-34014NB-A6SN169470 ✓ ✓ ✓ - DC1-34014FB-A66N169491 ✓ ✓ ✓ ✓ DC1-34014FB-A6SN169492 18 7.5 15.2 - ✓ ✓ - IP20/NEMA 0 DC1-34018NB-A20N169471 ✓ ✓ ✓ - DC1-34018FB-A20N169493 - ✓ ✓ - IP66/NEMA 4X DC1-34018NB-A66N169472 - ✓ ✓ ✓ DC1-34018NB-A6SN169473 ✓ ✓ ✓ - DC1-34018FB-A66N169494 ✓ ✓ ✓ ✓ DC1-34018FB-A6SN169495 24 11 21.7 - ✓ ✓ - IP20/NEMA 0 DC1-34024NB-A20N169474 ✓ ✓ ✓ - IP20/NEMA 0 DC1-34024FB-A20N169496 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 11

18 PowerXL™ variable frequency drives DA1 CA04020001Z-EN-INT www.eaton.eu DA1 Key to type references UL/CSA Information relevant for export to North America Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking UL File No. E172143 UL Category Control No. NMMS, NMMS7 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-06 North America Certification UL listed, certified by UL for use in CanadaSuitable for Branch circuits Max. Voltage Rating 1~ 240 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)3~ 240 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey)3~ 480 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey) DA1 - 1 2 4D3 F B - A 20 N 4D3 = 4,3 A024 = 24 A248 = 248 A Connection in power section 1 = single-phase mains connection/three-phase motor connection3 = three-phase mains connection/three-phase motor connection Mains voltage category 2 = 230 V (200 - 240 V ± 10 %)4 = 400 V (380 - 480 V ± 10 %) Device series DA1 = variable frequency drive, compact, series 1(D = Drives, A = Advanced, 1 = Series 1) Brake chopper N = no internal brake chopperB = Brake chopper Display unit (display) A = LED displayB = OLED display Degree of protection 20 = IP20/NEMA 040 = IP4055 = IP55/NEMA 366 = IP66/NEMA 4X6S = IP66 with switch/NEMA 4X, switched Type N = Standard basic deviceC = coated printed circuit boards N = no internal RFI ﬁlterF = Internal RFI ﬁlter EMC (radio interference suppression ﬁlter) Rated operational current (examples)

PowerXL™ variable frequency drives DA1 CA04020001Z-EN-INT www.eaton.eu 19 DC1, DA1 DA1 Sizes and degree of protection Frame size Protection type IP20/NEMA 0 IP66/NEMA 4X IP66/NEMA 4XLocal controls FS2 FS3 Frame size Protection type IP55/NEMA 3 IP40 FS4 - - FS5 FS5 - - FS8 - Panel version - ⏚ L1/L L2/N L3 DC- ⏚ U DC+ BR 1 2 3 4 5 6 7 8 9 1 0 11 12 13 14 15 16 17 18 COM V W PWR OFF ON REV FWD 0 ⏚ L1/L L2/N L3 DC- 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 COM ⏚ U DC+ BR V W PWR OFF ON REV FWD 0

20 PowerXL™ variable frequency drives DA1, for three-phase motors 230 V CA04020001Z-EN-INT www.eaton.eu DA1, for three-phase motors 230 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Lo ca l c on tr ol s Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y A d diti on al PC B pr ot ec tio n A kW A U e 230 V AC, 1-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 4.3 0.75 3.2 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-124D3FB-A20N169152 1 off ✓ ✓ ✓ - - ✓ DA1-124D3FB-A20C169078 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-124D3FB-A66N169153 ✓ ✓ - ✓ - - DA1-124D3FB-B66N169280 ✓ ✓ - ✓ - ✓ DA1-124D3FB-B66C169347 ✓ ✓ ✓ - ✓ - DA1-124D3FB-A6SN169154 ✓ ✓ - ✓ ✓ - DA1-124D3FB-B6SN169281 ✓ ✓ ✓ - - ✓ DA1-124D3FB-A66C169079 ✓ ✓ ✓ - ✓ ✓ DA1-124D3FB-A6SC169080 ✓ ✓ - ✓ ✓ ✓ DA1-124D3FB-B6SC169348 7 1.5 6.3 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-127D0FB-A20N169155 ✓ ✓ ✓ - ✓ ✓ DA1-127D0FB-A20C169081 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-127D0FB-A66N169156 ✓ ✓ - ✓ - - DA1-127D0FB-B66N169282 ✓ ✓ ✓ - - ✓ DA1-127D0FB-A66C169082 ✓ ✓ - ✓ ✓ - DA1-127D0FB-B6SN169283 ✓ ✓ - ✓ - ✓ DA1-127D0FB-B66C169349 ✓ ✓ ✓ - ✓ - DA1-127D0FB-A6SN169157 ✓ ✓ - ✓ ✓ ✓ DA1-127D0FB-B6SC169350 ✓ ✓ ✓ - ✓ ✓ DA1-127D0FB-A6SC169083 10.5 2.2 8.7 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-12011FB-A20N169158 ✓ ✓ ✓ - - ✓ DA1-12011FB-A20C169084 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-12011FB-A66N169159 ✓ ✓ - ✓ - - DA1-12011FB-B66N169284 ✓ ✓ ✓ - ✓ - DA1-12011FB-A6SN169160 ✓ ✓ - ✓ ✓ - DA1-12011FB-B6SN169285 ✓ ✓ - ✓ - ✓ DA1-12011FB-B66C169351 ✓ ✓ ✓ - - ✓ DA1-12011FB-A66C169085 ✓ ✓ - ✓ ✓ ✓ DA1-12011FB-B6SC169352 ✓ ✓ ✓ - ✓ ✓ DA1-12011FB-A6SC169086 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

PowerXL™ variable frequency drives DA1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu 21 DC1, DA1 DA1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Lo ca l c on tr ol s Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y A d diti on al PC B pr ot ec tio n A kW A U e 230 V AC, 3-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 4.3 0.75 3.2 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-324D3FB-A20N169161 1 off ✓ ✓ ✓ - ✓ ✓ DA1-324D3FB-A20C169087 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-324D3FB-A66N169162 ✓ ✓ - ✓ - - DA1-324D3FB-B66N169286 ✓ ✓ - ✓ ✓ - DA1-324D3FB-B6SN169287 ✓ ✓ - ✓ - ✓ DA1-324D3FB-B66C169353 ✓ ✓ ✓ - ✓ - DA1-324D3FB-A6SN169163 ✓ ✓ ✓ - - ✓ DA1-324D3FB-A66C169088 ✓ ✓ - ✓ ✓ ✓ DA1-324D3FB-B6SC169354 ✓ ✓ ✓ - ✓ ✓ DA1-324D3FB-A6SC169089 7 1.5 6.3 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-327D0FB-A20N169164 ✓ ✓ ✓ - - ✓ DA1-327D0FB-A20C169090 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-327D0FB-A66N169165 ✓ ✓ - ✓ - - DA1-327D0FB-B66N169288 ✓ ✓ ✓ - - ✓ DA1-327D0FB-A66C169091 ✓ ✓ - ✓ - ✓ DA1-327D0FB-B66C169355 ✓ ✓ ✓ - ✓ - DA1-327D0FB-A6SN169166 ✓ ✓ - ✓ ✓ - DA1-327D0FB-B6SN169289 ✓ ✓ - ✓ ✓ ✓ DA1-327D0FB-B6SC169356 ✓ ✓ ✓ - ✓ ✓ DA1-327D0FB-A6SC169092 10.5 2.2 8.7 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-32011FB-A20N169167 ✓ ✓ ✓ - - ✓ DA1-32011FB-A20C169093 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-32011FB-A66N169168 ✓ ✓ - ✓ - - DA1-32011FB-B66N169290 ✓ ✓ ✓ - ✓ - DA1-32011FB-A6SN169169 ✓ ✓ - ✓ - ✓ DA1-32011FB-B66C169357 ✓ ✓ - ✓ ✓ - DA1-32011FB-B6SN169291 ✓ ✓ ✓ - - ✓ DA1-32011FB-A66C169094 ✓ ✓ ✓ - ✓ ✓ DA1-32011FB-A6SC169095 ✓ ✓ - ✓ ✓ ✓ DA1-32011FB-B6SC169358 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

22 PowerXL™ variable frequency drives DA1, for three-phase motors 230 V CA04020001Z-EN-INT www.eaton.eu DA1, for three-phase motors 230 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y Lo ca l c on tr ol s A d diti on al PC B pr ot ec tio n A kW A U e 230 V AC, 3-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 18 4 14.8 ✓ ✓ ✓ - - - FS3 IP20/NEMA 0 DA1-32018FB-A20N169170 1 off ✓ ✓ ✓ - - ✓ DA1-32018FB-A20C169096 ✓ ✓ - ✓ - - IP66/NEMA 4X DA1-32018FB-B66N169292 ✓ ✓ ✓ - - - DA1-32018FB-A66N169171 ✓ ✓ ✓ - ✓ - DA1-32018FB-A6SN169172 ✓ ✓ - ✓ ✓ - DA1-32018FB-B6SN169293 ✓ ✓ ✓ - - ✓ DA1-32018FB-A66C169097 ✓ ✓ - ✓ - ✓ DA1-32018FB-B66C169359 ✓ ✓ ✓ - ✓ ✓ DA1-32018FB-A6SC169098 ✓ ✓ - ✓ ✓ ✓ DA1-32018FB-B6SC169360 24 5.5 19.6 ✓ ✓ ✓ - - - FS3 IP20/NEMA 0 DA1-32024FB-A20N169173 ✓ ✓ ✓ - - ✓ DA1-32024FB-A20C169099 ✓ ✓ ✓ - - - FS4 IP55 DA1-32024FB-A55N169174 ✓ ✓ - ✓ - - DA1-32024FB-B55N169294 ✓ ✓ - ✓ - ✓ DA1-32024FB-B55C169361 ✓ ✓ ✓ - - ✓ DA1-32024FB-A55C169100 39 7.5 26.5 ✓ ✓ ✓ - - - FS4 IP55/NEMA 3 DA1-32039FB-A55N169175 ✓ ✓ - ✓ - - DA1-32039FB-B55N169295 ✓ ✓ - ✓ - ✓ DA1-32039FB-B55C169362 ✓ ✓ ✓ - - ✓ DA1-32039FB-A55C169101 46 11 38 ✓ ✓ ✓ - - - DA1-32046FB-A55N169176 ✓ ✓ - ✓ - - DA1-32046FB-B55N169296 ✓ ✓ - ✓ - ✓ DA1-32046FB-B55C169363 ✓ ✓ ✓ - - ✓ DA1-32046FB-A55C169102 61 15 51 ✓ ✓ ✓ - - - DA1-32061FB-A55N169177 ✓ ✓ - ✓ - - DA1-32061FB-B55N169297 ✓ ✓ - ✓ - ✓ DA1-32061FB-B55C169364 ✓ ✓ ✓ - - ✓ DA1-32061FB-A55C169103 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

PowerXL™ variable frequency drives DA1, for three-phase motors 230 V CA04020001Z-EN-INT www.eaton.eu 23 DC1, DA1 DA1, for three-phase motors 230 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y Lo ca l c on tr ol s A d diti on al PC B pr ot ec tio n A kW A U e 230 V AC, 3-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 72 18.5 63 ✓ ✓ ✓ - - - FS5 IP55/NEMA 3 DA1-32072FB-A55N169178 1 off ✓ ✓ - ✓ - - DA1-32072FB-B55N169298 ✓ ✓ ✓ - - ✓ DA1-32072FB-A55C169104 ✓ ✓ - ✓ - ✓ DA1-32072FB-B55C169365 90 22 71 ✓ - - ✓ - - FS6 DA1-32090FN-B55N169299 ✓ - ✓ - - - DA1-32090FN-A55N169179 ✓ - ✓ - - ✓ DA1-32090FN-A55C169105 ✓ ✓ - ✓ - - DA1-32090FB-B55N169300 ✓ ✓ ✓ - - - DA1-32090FB-A55N169180 ✓ - - ✓ - ✓ DA1-32090FN-B55C169366 ✓ ✓ ✓ - - ✓ DA1-32090FB-A55C169106 ✓ ✓ - ✓ - ✓ DA1-32090FB-B55C169367 110 30 96 ✓ - - ✓ - - DA1-32110FN-B55N169301 ✓ - ✓ - - - DA1-32110FN-A55N169181 ✓ ✓ ✓ - - - DA1-32110FB-A55N169182 ✓ ✓ - ✓ - - DA1-32110FB-B55N169302 ✓ - - ✓ - ✓ DA1-32110FN-B55C169368 ✓ - ✓ - - ✓ DA1-32110FN-A55C169107 ✓ ✓ ✓ - - ✓ DA1-32110FB-A55C169108 ✓ ✓ - ✓ - ✓ DA1-32110FB-B55C169369 150 45 3) 141 ✓ - - ✓ - - DA1-32150FN-B55N169303 ✓ - ✓ - - - DA1-32150FN-A55N169183 ✓ ✓ ✓ - - - DA1-32150FB-A55N169184 ✓ ✓ - ✓ - - DA1-32150FB-B55N169304 ✓ - - ✓ - ✓ DA1-32150FN-B55C169370 ✓ - ✓ - - ✓ DA1-32150FN-A55C169109 ✓ ✓ - ✓ - ✓ DA1-32150FB-B55C169371 ✓ ✓ ✓ - - ✓ DA1-32150FB-A55C169110 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) 3) Alternatively: allocated motor output of 37 kW (230 V) with 117-A rated motor current Information relevant for export to North America ￫ page 18

24 PowerXL™ variable frequency drives DA1, for three-phase motors 230 V CA04020001Z-EN-INT www.eaton.eu DA1, for three-phase motors 230 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y Lo ca l c on tr ol s A d diti on al PC B pr ot ec tio n A kW A U e 230 V AC, 3-phase / U 2 230 V AC, 3-phase Mains voltage (50/60Hz) U LN 200 (-10%) - 240 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 180 55 3) 173 ✓ - - ✓ - - FS6 IP55 DA1-32180FN-B55N169305 1 off ✓ - ✓ - - - DA1-32180FN-A55N169185 ✓ ✓ ✓ - - - DA1-32180FB-A55N169186 ✓ - ✓ - - ✓ DA1-32180FN-A55C169111 ✓ - - ✓ - ✓ DA1-32180FN-B55C169372 ✓ ✓ - ✓ - - DA1-32180FB-B55N169306 ✓ ✓ - ✓ - ✓ DA1-32180FB-B55C169373 ✓ ✓ ✓ - - ✓ DA1-32180FB-A55C169112 202 55 173 ✓ - - ✓ - - FS7 DA1-32202FN-B55N169307 ✓ - ✓ - - - DA1-32202FN-A55N169187 ✓ ✓ ✓ - - - DA1-32202FB-A55N169188 ✓ - ✓ - - ✓ DA1-32202FN-A55C169113 ✓ ✓ - ✓ - - DA1-32202FB-B55N169308 ✓ - - ✓ - ✓ DA1-32202FN-B55C169374 ✓ ✓ - ✓ - ✓ DA1-32202FB-B55C169375 ✓ ✓ ✓ - - ✓ DA1-32202FB-A55C169114 248 75 233 ✓ - - ✓ - - DA1-32248FN-B55N169309 ✓ - ✓ - - - DA1-32248FN-A55N169189 ✓ ✓ ✓ - - - DA1-32248FB-A55N169190 ✓ ✓ - ✓ - - DA1-32248FB-B55N169310 ✓ - - ✓ - ✓ DA1-32248FN-B55C169376 ✓ - ✓ - - ✓ DA1-32248FN-A55C169115 ✓ ✓ ✓ - - ✓ DA1-32248FB-A55C169116 ✓ ✓ - ✓ - ✓ DA1-32248FB-B55C169377 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) 3) Alternatively: allocated motor output of 45 kW (230 V) with 141-A rated motor current Information relevant for export to North America ￫ page 18

PowerXL™ variable frequency drives DA1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu 25 DC1, DA1 DA1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Lo ca l c on tr ol s Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y A d diti on al PC B pr ot ec tio n A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 2.2 0.75 1.9 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-342D2FB-A20N169191 1 off ✓ ✓ ✓ - - ✓ DA1-342D2FB-A20C169117 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-342D2FB-A66N169192 ✓ ✓ - ✓ - - DA1-342D2FB-B66N169311 ✓ ✓ ✓ - ✓ - DA1-342D2FB-A6SN169193 ✓ ✓ ✓ - - ✓ DA1-342D2FB-A66C169118 ✓ ✓ - ✓ ✓ - DA1-342D2FB-B6SN169312 ✓ ✓ - ✓ - ✓ DA1-342D2FB-B66C169378 ✓ ✓ - ✓ ✓ ✓ DA1-342D2FB-B6SC169379 ✓ ✓ ✓ - ✓ ✓ DA1-342D2FB-A6SC169119 4.1 1.5 3.6 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-344D1FB-A20N169194 ✓ ✓ ✓ - - ✓ DA1-344D1FB-A20C169120 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-344D1FB-A66N169195 ✓ ✓ - ✓ - - DA1-344D1FB-B66N169313 ✓ ✓ ✓ - ✓ - DA1-344D1FB-A6SN169196 ✓ ✓ - ✓ ✓ - DA1-344D1FB-B6SN169314 ✓ ✓ ✓ - - ✓ DA1-344D1FB-A66C169049 ✓ ✓ - ✓ - ✓ DA1-344D1FB-B66C169380 ✓ ✓ - ✓ ✓ ✓ DA1-344D1FB-B6SC169381 ✓ ✓ ✓ - ✓ ✓ DA1-344D1FB-A6SC169050 5.8 2.2 5 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-345D8FB-A20N169197 ✓ ✓ ✓ - - ✓ DA1-345D8FB-A20C169051 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-345D8FB-A66N169198 ✓ ✓ - ✓ - - DA1-345D8FB-B66N169315 ✓ ✓ ✓ - ✓ - DA1-345D8FB-A6SN169199 ✓ ✓ - ✓ - ✓ DA1-345D8FB-B66C169382 ✓ ✓ - ✓ ✓ - DA1-345D8FB-B6SN169316 ✓ ✓ ✓ - - ✓ DA1-345D8FB-A66C169052 ✓ ✓ - ✓ ✓ ✓ DA1-345D8FB-B6SC169383 ✓ ✓ ✓ - ✓ ✓ DA1-345D8FB-A6SC169053 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

26 PowerXL™ variable frequency drives DA1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu DA1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Lo ca l c on tr ol s Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce s up pr es si on fi lte r Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y A d diti on al PC B pr ot ec tio n A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 9.5 4 8.5 ✓ ✓ ✓ - - - FS2 IP20/NEMA 0 DA1-349D5FB-A20N169200 1 off ✓ ✓ ✓ - ✓ ✓ DA1-349D5FB-A20C169054 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-349D5FB-A66N169201 ✓ ✓ - ✓ - - DA1-349D5FB-B66N169317 ✓ ✓ ✓ - - ✓ DA1-349D5FB-A66C169055 ✓ ✓ - ✓ ✓ - DA1-349D5FB-B6SN169318 ✓ ✓ ✓ - ✓ - DA1-349D5FB-A6SN169202 ✓ ✓ - ✓ - ✓ DA1-349D5FB-B66C169384 ✓ ✓ ✓ - ✓ ✓ DA1-349D5FB-A6SC169056 ✓ ✓ - ✓ ✓ ✓ DA1-349D5FB-B6SC169385 14 5.5 11.3 ✓ ✓ ✓ - - - FS3 IP20/NEMA 0 DA1-34014FB-A20N169203 ✓ ✓ ✓ - - ✓ DA1-34014FB-A20C169057 ✓ ✓ ✓ - - - IP66/NEMA 4X DA1-34014FB-A66N169204 ✓ ✓ - ✓ - - DA1-34014FB-B66N169319 ✓ ✓ ✓ - ✓ - DA1-34014FB-A6SN169205 ✓ ✓ - ✓ ✓ - DA1-34014FB-B6SN169320 ✓ ✓ - ✓ - ✓ DA1-34014FB-B66C169386 ✓ ✓ ✓ - - ✓ DA1-34014FB-A66C169058 ✓ ✓ ✓ - ✓ ✓ DA1-34014FB-A6SC169059 ✓ ✓ - ✓ ✓ ✓ DA1-34014FB-B6SC169387 18 7.5 15.2 ✓ ✓ ✓ - - - FS3 IP20/NEMA 0 DA1-34018FB-A20N169206 ✓ ✓ ✓ - ✓ ✓ DA1-34018FB-A20C169060 ✓ ✓ - ✓ - - IP66/NEMA 4X DA1-34018FB-B66N169321 ✓ ✓ ✓ - - - DA1-34018FB-A66N169207 ✓ ✓ - ✓ - ✓ DA1-34018FB-B66C169388 ✓ ✓ ✓ - ✓ - DA1-34018FB-A6SN169208 ✓ ✓ - ✓ ✓ - DA1-34018FB-B6SN169322 ✓ ✓ ✓ - - ✓ DA1-34018FB-A66C169061 ✓ ✓ ✓ - ✓ ✓ DA1-34018FB-A6SC169062 ✓ ✓ - ✓ ✓ ✓ DA1-34018FB-B6SC169389 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

PowerXL™ variable frequency drives DA1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu 27 DC1, DA1 DA1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y Lo ca l c on tr ol s A d diti on al PC B pr ot ec tio n A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 24 11 21.7 ✓ ✓ ✓ - - - FS3 IP20/NEMA 0 DA1-34024FB-A20N169209 1 off ✓ ✓ ✓ - - ✓ DA1-34024FB-A20C169063 ✓ ✓ ✓ - - - FS4 IP55 DA1-34024FB-A55N169210 ✓ ✓ - ✓ - - DA1-34024FB-B55N169323 ✓ ✓ - ✓ - ✓ DA1-34024FB-B55C169390 ✓ ✓ ✓ - - ✓ DA1-34024FB-A55C169064 30 15 29.3 ✓ ✓ - ✓ - - DA1-34030FB-B55N169324 ✓ ✓ ✓ - - - DA1-34030FB-A55N169211 ✓ ✓ ✓ - - ✓ DA1-34030FB-A55C169065 ✓ ✓ - ✓ - ✓ DA1-34030FB-B55C169391 39 18.5 36 ✓ ✓ - ✓ - - DA1-34039FB-B55N169325 ✓ ✓ ✓ - - - DA1-34039FB-A55N169212 ✓ ✓ ✓ - - ✓ DA1-34039FB-A55C169066 ✓ ✓ - ✓ - ✓ DA1-34039FB-B55C169392 46 22 41 ✓ ✓ ✓ - - - DA1-34046FB-A55N169213 ✓ ✓ - ✓ - - DA1-34046FB-B55N169326 ✓ ✓ - ✓ - ✓ DA1-34046FB-B55C169393 ✓ ✓ ✓ - - ✓ DA1-34046FB-A55C169067 61 30 55 ✓ ✓ ✓ - - - FS5 DA1-34061FB-A55N169214 ✓ ✓ - ✓ - - DA1-34061FB-B55N169327 ✓ ✓ ✓ - - ✓ DA1-34061FB-A55C169068 ✓ ✓ - ✓ - ✓ DA1-34061FB-B55C169394 72 37 68 ✓ ✓ ✓ - - - DA1-34072FB-A55N169215 ✓ ✓ - ✓ - - DA1-34072FB-B55N169328 ✓ ✓ ✓ - - ✓ DA1-34072FB-A55C169069 ✓ ✓ - ✓ - ✓ DA1-34072FB-B55C169395 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

28 PowerXL™ variable frequency drives DA1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu DA1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y Lo ca l c on tr ol s A d diti on al PC B pr ot ec tio n A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 90 45 81 ✓ - ✓ - - - FS6 IP55/NEMA 3 DA1-34090FN-A55N169216 1 off ✓ - - ✓ - - DA1-34090FN-B55N169329 ✓ ✓ ✓ - - - DA1-34090FB-A55N169037 ✓ - ✓ - - ✓ DA1-34090FN-A55C169070 ✓ ✓ - ✓ - - DA1-34090FB-B55N169330 ✓ - - ✓ - ✓ DA1-34090FN-B55C169396 ✓ ✓ - ✓ - ✓ DA1-34090FB-B55C169397 ✓ ✓ ✓ - - ✓ DA1-34090FB-A55C169071 110 55 99 ✓ - ✓ - - - DA1-34110FN-A55N169038 ✓ - - ✓ - - DA1-34110FN-B55N169331 ✓ ✓ ✓ - - - DA1-34110FB-A55N169039 ✓ - ✓ - - ✓ DA1-34110FN-A55C169072 ✓ - - ✓ - ✓ DA1-34110FN-B55C169398 ✓ ✓ - ✓ - - DA1-34110FB-B55N169332 ✓ ✓ - ✓ - ✓ DA1-34110FB-B55C169399 ✓ ✓ ✓ - - ✓ DA1-34110FB-A55C169265 150 75 134 ✓ - - ✓ - - DA1-34150FN-B55N169333 ✓ - ✓ - - - DA1-34150FN-A55N169040 ✓ ✓ ✓ - - - DA1-34150FB-A55N169041 ✓ ✓ - ✓ - - DA1-34150FB-B55N169334 ✓ - - ✓ - ✓ DA1-34150FN-B55C169400 ✓ - ✓ - - ✓ DA1-34150FN-A55C169266 ✓ ✓ - ✓ - ✓ DA1-34150FB-B55C169401 ✓ ✓ ✓ - - ✓ DA1-34150FB-A55C169267 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

PowerXL™ variable frequency drives DA1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu 29 DC1, DA1 DA1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y Lo ca l c on tr ol s A d diti on al PC B pr ot ec tio n A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 180 90 161 ✓ - ✓ - - - FS6 IP55 DA1-34180FN-A55N169042 1 off ✓ - - ✓ - - DA1-34180FN-B55N169335 ✓ - ✓ - - ✓ DA1-34180FN-A55C169268 ✓ ✓ ✓ - - - DA1-34180FB-A55N169043 ✓ ✓ - ✓ - - DA1-34180FB-B55N169336 ✓ - - ✓ - ✓ DA1-34180FN-B55C169402 ✓ ✓ ✓ - - ✓ DA1-34180FB-A55C169269 ✓ ✓ - ✓ - ✓ DA1-34180FB-B55C169403 202 110 196 ✓ - ✓ - - - FS7 DA1-34202FN-A55N169044 ✓ - - ✓ - - DA1-34202FN-B55N169337 ✓ ✓ ✓ - - - DA1-34202FB-A55N169045 ✓ - - ✓ - ✓ DA1-34202FN-B55C169404 ✓ - ✓ - - ✓ DA1-34202FN-A55C169270 ✓ ✓ - ✓ - - DA1-34202FB-B55N169338 ✓ ✓ - ✓ - ✓ DA1-34202FB-B55C169405 ✓ ✓ ✓ - - ✓ DA1-34202FB-A55C169271 240 132 231 ✓ - - ✓ - - DA1-34240FN-B55N169339 ✓ - ✓ - - - DA1-34240FN-A55N169046 ✓ - ✓ - - ✓ DA1-34240FN-A55C169272 ✓ - - ✓ - ✓ DA1-34240FN-B55C169406 ✓ ✓ - ✓ - - DA1-34240FB-B55N169340 ✓ ✓ ✓ - - - DA1-34240FB-A55N169047 ✓ ✓ ✓ - - ✓ DA1-34240FB-A55C169273 ✓ ✓ - ✓ - ✓ DA1-34240FB-B55C169407 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

30 PowerXL™ variable frequency drives DA1, for three-phase motors 400 V CA04020001Z-EN-INT www.eaton.eu DA1, for three-phase motors 400 V Rated operational current 1) Assigned motor rating 2) Rated motor current Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack I e P I e Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r 7- di gi tal d isp la y as se mbl y O LE D di sp la y Lo ca l c on tr ol s A d diti on al PC B pr ot ec tio n A kW A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN 380 (-10%) - 480 (+10%) V Interface OP-Bus (RS485)/Modbus RTU, CANopen ® 302 160 279 - - - ✓ - ✓ FS7 IP55 DA1-34302FN-B55C169408 1 off ✓ - - ✓ - - DA1-34302FN-B55N169341 ✓ - ✓ - - ✓ DA1-34302FN-A55C169274 ✓ ✓ - ✓ - ✓ DA1-34302FB-B55C169217 ✓ ✓ ✓ - - - DA1-34302FB-A55N169073 ✓ ✓ - ✓ - - DA1-34302FB-B55N169342 ✓ ✓ ✓ - ✓ - DA1-34302FN-A55N169048 ✓ ✓ ✓ - - ✓ DA1-34302FB-A55C169275 370 200 349 ✓ - - ✓ - - FS8 IP40 DA1-34370FN-B40N169343 1 off ✓ - ✓ - - - DA1-34370FN-A40N169074 ✓ - - ✓ - ✓ DA1-34370FN-B40C169218 ✓ ✓ ✓ - - - DA1-34370FB-A40N169075 ✓ - ✓ - - ✓ DA1-34370FN-A40C169276 ✓ ✓ - ✓ - - DA1-34370FB-B40N169344 ✓ ✓ - ✓ - ✓ DA1-34370FB-B40C169219 ✓ ✓ ✓ - - ✓ DA1-34370FB-A40C169277 450 250 437 ✓ - - ✓ - - DA1-34450FN-B40N169345 ✓ - ✓ - - - DA1-34450FN-A40N169076 ✓ ✓ - ✓ - - DA1-34450FB-B40N169346 ✓ ✓ ✓ - - - DA1-34450FB-A40N169077 ✓ - - ✓ - ✓ DA1-34450FN-B40C169220 ✓ - ✓ - - ✓ DA1-34450FN-A40C169278 ✓ ✓ - ✓ - ✓ DA1-34450FB-B40C169221 ✓ ✓ ✓ - - ✓ DA1-34450FB-A40C169279 Notes 1) Rated operational current at an operating frequency of 4 kHz and an ambient air temperature of +50°C 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ page 18

PowerXL™ variable frequency drives Accessories CA04020001Z-EN-INT www.eaton.eu 31 DC1, DA1 Accessories Description For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America External keypad with LED displayFront IP54With approx. 3 m-long, plug-in connection cable (RJ45, 8-pin) DC1, DA1 DX-KEY-LED169132 1 off UL/CSA certification not required with OLED displayFront IP54MultilingualWith approx. 3 m-long, plug-in connection cable (RJ45, 8-pin) DC1, DA1 DX-KEY-OLED169133 Bluetooth communications stick For transferring parameters to a computer with drivesConnect software via Bluetooth With 2 function keys for uploading and downloading parameterswith configuration memory DC1, DA1 DX-COM-STICK169134 1 off UL/CSA certification not required License Keys For enabling the drivesConnect program's PLC function DA1 DX-COM-SOFT169136 1 off UL/CSA certification not required Connection cable Connection cable with RJ45 plugs, 8 pole Length 0.5 m DC1, DA1 DX-CBL-RJ45-0M5169137 1 off UL/CSA certification not required Length 1 m DC1, DA1 DX-CBL-RJ45-1M0169138 Length 3 m DC1, DA1 DX-CBL-RJ45-3M0169139 Bus termination resistor With 2 resistors, 120 ΩRJ45 plug, 8-pinfor CANopen ® and Modbus RTU DX-SPL-RJ45-2SL-1PLT DX-CBL-TERM169140 1 off UL/CSA certification not required 8 poleRJ45124 ΩConnection to PIN 1 and PIN 2für CANopen® easyNeteasyNet EASY-NT-R256281 2 off Cable and splitter RJ45, 8-pin, 2 sockets/1 plug DC1, DA1 DX-SPL-RJ45-2SL1PL169142 1 off UL/CSA certification not required Interface converter For directly connecting the variable-frequency drive to a computer with drivesConnect software Interface converter USB/RS485 with connection cable, RJ45, 8 poleelectrically isolated DC1, DA1 DX-CBL-PC-1M5171018 1 off UL/CSA certification not required Interface converter USB/RS485 with connection cable, RJ45, 8 poleelectrically isolated1 × SUB-D plug, 9-poleTerminal strip, 5-terminalLED indicators DC1, DA1 DX-COM-PCKIT169135 1 off UL/CSA certification not required PWR USB RxD TxD

32 PowerXL™ variable frequency drives Accessories CA04020001Z-EN-INT www.eaton.eu Description For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America Expansion modules 110-V-input (electrically isolated) DC1 DXC-EXT-IO110169032 1 off 230-V-input (electrically isolated) DC1 DXC-EXT-IO230169033 2 relay outputs1 analog output DC1 DXC-EXT-2RO1AO169030 2 relay outputs DC1 DXC-EXT-2RO169031 3 digital inputs1 Relay output DA1 DXA-EXT-3DI1RO169036 3 relay outputs DA1 DXA-EXT-3RO169121 Simulator 3 digital inputs1 Relay output1 Potentiometer DC1 DXC-EXT-LOCSIM169034 1 off UL/CSA certification not required Encoder module 2-channelmax. 500 kHz5 V TTL, A & B, /A & /B, 5 V DC, max. 200 mA24 V HTL, A & B, /A & /B, 24 V DC, external power supply required, max. 30 V DC DA1 DXA-EXT-ENCOD169035 1 off UL/CSA certification not required 1 2 3 4 5 6 7 8 9 10 11 1 2 3 4 5 6 7 8 9 10 11 A B 1 2 3 4 5 6 7 8 9 10 11 A B

PowerXL™ variable frequency drives Accessories CA04020001Z-EN-INT www.eaton.eu 33 DC1, DA1 Fieldbus connection For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America Fieldbus modules 2 x RJ45, 8 pole Ethernet IP DA1 DX-NET-ETHERNET-2169122 1 off UL/CSA certification not required Modbus-TCP DA1 DX-NET-MODBUSTCP-2169126 EtherCAT DA1 DX-NET-ETHERCAT-2169127 BACnet/IP DA1 DX-NET-BACNETIP-2169128 PROFINET DA1 DX-NET-PROFINET-2169125 Terminal strip, plug-in, 6-terminal DeviceNet DA1 DX-NET-DEVICENET169123 SUB-D socket, 9-pole PROFIBUS-DP DA1 DX-NET-PROFIBUS169124 SmartWire-DT Modules with slot for SWD4-8SF2-5 SmartWire-DT DA1 (IP20) DX-NET-SWD1169129 1 off UL/CSA certification not required SmartWire-DT DC1/DA1 (IP55/IP66) DX-NET-SWD2169130 with slot for SWD4-8SF2-5 SmartWire-DT DC1 (IP20) DX-NET-SWD3169131 IN OUT A B OP ST PROFIBUS DP-V1 Ready Ready I O A

34 PowerXL™ variable frequency drives Braking resistances CA04020001Z-EN-INT www.eaton.eu Braking resistances Resistance value Continuous braking rating Protection type For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America R P DB Ω kW Braking resistances Braking resistance in anodized aluminium enclosurefor direct installation in frequency inverter enclosure of frame sizes FS2 und FS3 100 0.2 IP54 DC1, DA1 DX-BR3-100169150 1 off Braking resistance in aluminum housingfor direct installation in frequency inverter enclosure of frame sizes FS4 und FS5 33 0.5 IP54 DA1 DX-BR5-033169151 1 off Braking resistance in aluminum housingInstalled in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and a 1-meter connection cable 75 1.4 IP20 DC1, DA1 DX-BR075-1K4171917 1 off Product Standards UL508; C22.2 UL File No. E300773 UL Category Control No. NMTR2, NMTR8 CSA File No. E300773 CSA Class No. 14-M05 North America Certification UL listed, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 Degree of Protection IEC: IP00 100 1.4 IP20 DC1, DA1 DX-BR100-1K4171896 100 0.8 IP20 DC1, DA1 DX-BR100-0K8171907 100 1.6 IP20 DC1, DA1 DX-BR100-1K6171924 150 0.5 IP20 DC1, DA1 DX-BR150-0K5171916 150 1.4 IP20 DC1, DA1 DX-BR150-1K4171895 200 0.8 IP20 DC1, DA1 DX-BR200-0K8171894 200 0.4 IP20 DC1, DA1 DX-BR200-0K4171915 400 0.4 IP20 DC1, DA1 DX-BR400-0K4171914 Braking resistance in aluminum housingInstalled in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and internal connecting terminals 35 1.1 IP20 DA1 DX-BR035-1K1171927 1 off Product Standards UL508; C22.2 UL File No. E300773 UL Category Control No. NMTR2, NMTR8 CSA File No. E300773 CSA Class No. 14-M05 North America Certification UL listed, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 Degree of Protection IEC: IP00 50 0.4 IP20 DC1, DA1 DX-BR050-0K4171906 50 9.8 IP20 DC1, DA1 DX-BR050-0K8171910 100 0.2 IP20 DC1, DA1 DX-BR100-0K2171909 100 0.4 IP20 DC1, DA1 DX-BR100-0K4171926

PowerXL™ variable frequency drives Braking resistances CA04020001Z-EN-INT www.eaton.eu 35 DC1, DA1 Braking resistance with steel wire mesh elementsInstalled in a housing designed to prevent accidental contact and featuring a temperature monitoring switch and internal connecting terminals 2 54.3 IP20 DA1 DX-BR002-54K3171923 1 off Product Standards UL508; C22.2 UL File No. E300773 UL Category Control No. NMTR2, NMTR8 CSA File No. E300773 CSA Class No. 14-M91 North America Certification UL listed, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 1000 Degree of Protection IEC: IP00 2 102.4 IP20 DA1 DX-BR002-102K4171903 6 5.1 IP20 DA1 DX-BR006-5K1171913 6 9.2 IP20 DA1 DX-BR006-9K2171893 6 18.1 IP20 DA1 DX-BR006-18K1171922 6 33.3 IP20 DA1 DX-BR006-33K3171902 12 3.1 IP20 DA1 DX-BR012-3K1171912 12 5.1 IP20 DA1 DX-BR012-5K1171929 12 9.2 IP20 DA1 DX-BR012-9K2171921 12 18.1 IP20 DA1 DX-BR012-18K1171901 22 1.4 IP20 DA1 DX-BR022-1K4171911 22 3.1 IP20 DA1 DX-BR022-3K1171928 22 5.1 IP20 DA1 DX-BR022-5K1171920 22 9.2 IP20 DA1 DX-BR022-9K2171900 40 3.1 IP20 DA1 DX-BR040-3K1171919 40 5.1 IP20 DA1 DX-BR040-5K1171899 47 3.1 IP20 DC1, DA1 DX-BR047-3K1171908 47 5.1 IP20 DC1, DA1 DX-BR047-5K1171925 47 9.2 IP20 DC1, DA1 DX-BR047-9K2171905 50 3.1 IP20 DC1, DA1 DX-BR050-3K1171918 50 5.1 IP20 DC1, DA1 DX-BR050-5K1171898 75 5.1 IP20 DC1, DA1 DX-BR075-5K1171897 100 6.2 IP20 DC1, DA1 DX-BR100-6K2171904 Resistance value Continuous braking rating Protection type For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America R P DB Ω kW

36 PowerXL™ variable frequency drives Mains chokes, motor chokes CA04020001Z-EN-INT www.eaton.eu Mains chokes, motor chokes Rated operational current Inductance Maximum heat dissipation Part no.Article no. Pricesee price list Std. pack I e L P v A mH W Mains chokes Single-phase max. permitted mains supply voltage V AC: 260 V + 0% (50/60 Hz) 5.8 5.05 9 DX-LN1-006269490 1 off 8.6 3.41 11 DX-LN1-009269495 13 2.25 12 DX-LN1-013269496 18 1.63 17 DX-LN1-018269497 24 1.22 20 DX-LN1-024269498 32 0.92 24 DX-LN1-032169791 three-phase max. permitted mains supply voltage V AC: 550 V + 0% (50/60 Hz) 3.9 7.51 17 DX-LN3-004269500 1 off 6 4.9 19 DX-LN3-006269501 10 2.94 33 DX-LN3-010269502 16 1.84 44 DX-LN3-016269503 25 1.18 57 DX-LN3-025269504 40 0.64 59 DX-LN3-040269505 50 0.37 58 DX-LN3-050269506 60 0.31 60 DX-LN3-060269507 80 0.23 86 DX-LN3-080269508 100 0.18 101 DX-LN3-100269509 120 0.15 100 DX-LN3-120269510 160 0.11 140 DX-LN3-160269511 200 0.09 154 DX-LN3-200269512 250 0.07 155 DX-LN3-250269513 300 0.06 196 DX-LN3-300269514 303 0.06 230 DX-LN3-303169143 370 0.05 290 DX-LN3-370169144 450 0.04 300 DX-LN3-450169145 Motor chokes max. heat dissipation (pulse frequency)(12 kHz) three-phase max. permitted mains supply voltage V AC: 750 V + 0% (50/60 Hz) 5 2 24 DX-LM3-005269538 1 off 8 4.1 54 DX-LM3-008269539 11 3 71 DX-LM3-011269541 16 1.5 78 DX-LM3-016269542 35 1 116 DX-LM3-035269543 50 0.6 168 DX-LM3-050269544

PowerXL™ variable frequency drives Motor chokes, sine filters CA04020001Z-EN-INT www.eaton.eu 37 DC1, DA1 Motor chokes, sine filters Rated operational current Inductance Maximum heat dissipation Part no.Article no. Pricesee price list Std. pack I e L P v A mH W Motor chokes max. heat dissipation (pulse frequency)(12 kHz) three-phase max. permitted mains supply voltage V AC: 750 V + 0% (50/60 Hz) 63 0.5 193 DX-LM3-063269545 1 off 80 0.5 206 DX-LM3-080269546 100 0.45 294 DX-LM3-100269547 150 0.35 424 DX-LM3-150269548 180 0.3 439 DX-LM3-180269549 220 0.2 517 DX-LM3-220269560 260 0.15 520 DX-LM3-260269561 303 0.15 - DX-LM3-303169146 370 0.12 - DX-LM3-370169147 450 0.1 - DX-LM3-450169148 Sine filter three-phase 4 11 50 DX-SIN3-004271538 1 off 10 5.1 100 DX-SIN3-010271590 16.5 3.07 70 DX-SIN3-016271591 23.5 2.5 125 DX-SIN3-023271593 32 2 100 DX-SIN3-032271594 37 1.7 100 DX-SIN3-037271595 48 1.2 240 DX-SIN3-048271597 61 1 280 DX-SIN3-061271599 72 0.95 300 DX-SIN3-072271600 90 0.8 290 DX-SIN3-090271601 115 0 460 DX-SIN3-115271602 150 0.5 530 DX-SIN3-150271603 180 0.4 500 DX-SIN3-180271604 250 0.35 550 DX-SIN3-250271605 440 0.14 650 DX-SIN3-440271606 1 off 480 0.14 1550 DX-SIN3-480169149 1 off Instructions Information relevant for export to North America Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking UL File No. E167225 UL Category Control No. XPTQ2, XPTQ8 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-06 North America Certification UL listed, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 1~ 240 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey) Degree of Protection IEC: IP00

38 PowerXL™ variable frequency drives Radio interference suppression filters CA04020001Z-EN-INT www.eaton.eu Radio interference suppression filters Input current For use with Part no.Article no. Pricesee price list Std. pack I LN T Radio interference suppression filters Single-phaseMains voltage (50/60Hz) U LN [V] max. 240 + 10% Base-mounted filter 8 DC1-12DA1-12… DX-EMC12-008172273 1 off 12 DX-EMC12-012172274 16 DX-EMC12-016172275 20 DX-EMC12-020172276 30 DX-EMC12-030172277 three-phaseMains voltage (50/60Hz) U LN [V] max. 480 + 10% Base-mounted filter 8 DC1-32…DC1-34…DA1-32…DA1-34… DX-EMC34-008172278 1 off 12 DX-EMC34-012172279 16 DX-EMC34-016172280 30 DX-EMC34-030172281 Mounting to the side, next to the variable frequency drive 42 DA1-32…DA1-34… DX-EMC34-042172282 55 DX-EMC34-055172283 75 DX-EMC34-075172284 100 DX-EMC34-100172285 130 DX-EMC34-130172286 180 DX-EMC34-180172287 250 DX-EMC34-250172288 400 DX-EMC34-400172289

CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives Assigned switching and protective elements 39 DC1, DA1 Assigned switching and protective elements Engineering AC supply system: Variable-frequency drives can be connected without restriction to AC supply systems with a grounded star point (TN/TT grounding systems). Directly connecting them to and running them on unbalanced or B phase-grounded systems (e.g., USA) is not permissible. Fuses (circuit-breakers) allow the protection of lines and electrical devices. For the protection of persons, AC/DC-sensitive residual current circuit-breakers (RCD Type B) are required in addition. Contactors are used to switch the mains voltage on and off. Mains choke damp harmonic distortion (THD) and current peaks and limit inrush currents (the DC link capacitors' charging current). In addition, they protect the mains rectifier from voltage peaks coming from the mains. Radio interference suppression filter attenuate high-frequency electromagnetic emissions from devices. They ensure that the EMC limit values for conducted interference specified in the applicable product standards are complied with (variable-frequency drives).Note: External radio interference suppression filters (optional) make it possible to use longer motor cables and have low leakage currents. Normally, they should only be used with variable-frequency drives that do not feature an internal radio interference suppression filter. Exception: directly assigned variable-frequency drives with internal filters (calibrated combination) variable frequency drive allow the continuously variable speed control of three-phase motors. To do this, the variable-frequency drive converts the voltage of the AC supply system with a constant voltage and a constant frequency to a new AC voltage with a variable amplitude and a variable frequency. On brake resistor converts the variable frequency drive's regenerative braking energy into heat. The variable frequency drive must be equipped with a brake chopper, which connects the braking resistance parallel to the internal DC link. Motor choke• Compensate the capacitive capacitive currents,• Reduce current ripple and the motor’s current change noise,• Attenuate the retroaction on parallel connection of several motors. sine filter• Smoothen the output voltage sinusoidally,• reduce motor noise through du/dt reduction, and thereby increase the motor insulation’s lifespan, • Reduce the leakage currents to allow better motor performance at improved EMC values. Screened motor cables attenuate radiated and conducted high-frequency emissions within the limits defined in the applicable product standard (EMC). They must be connected to the earth potential on both sides across a large area (PES). Three-phase asynchronous motor (standard motor) converts electric power (P ~ U × I) into mechanical power (P ~ M × n). Equipment codeF = fuses and circuit-breakersQ = controlled switching within energy flow (contactors, circuit-breakers)R = limitation (reactors, resistors) K = radio interference suppression filtersT = variable-frequency drives M = motors M 3~ 3~ F Q R R K T M 3 R 3  L1/L L2/N L3  U V W 1 2 3 4 5 6 7 8 9 10 11

CA04020001Z-EN-INT www.eaton.eu 40 PowerXL™ variable frequency drives General information on Engineering General information on Engineering Electrical mains connection Frequency inverters can be connected to and operated on star point-earthed AC supply systems (as per IEC 60364) without restrictions. Connecting them to and operating them on asymmetrically earthed networks, such as phase-earthed delta networks (grounded delta, USA) or non-earthed or high-resistance earthed ( 30 Ω) IT networks is permitted with limitations. In these networks, only frequency inverters without internal radio interference suppression filters (EMC) may be used. In the case of devices with an integrated radio interference suppression filter, the filter’s protective earth connection must be disconnected.The standardized rated operating voltages of the utility companies fulfil the following conditions at the point of transfer to the consumer:• maximum deviation from the rated voltage (U LN ): ±10 % • Maximum deviation in the voltage symmetry: ±3 % • Maximum deviation from the rated frequency: ±4 % A further voltage drop of up to 4% in the consumer networks is permissible relative to the lower voltage value (U LN -10%) of the mains voltage. In ring-operated mesh networks (such as in the EU) the standardized consumer voltages (230/400/690 V) are identical to the utility company’s supply voltages. In star networks (for example in North America/USA), the stated consumer voltages take the voltage drop from the utility company’s infeed point to the last consumer into account. Safety and switching For frequency inverters, the components placed on the mains-side are assigned as per the input-side rated operational current I LN and the AC-1 utilization category.Fuses, circuit-breakers and conductor cross-sections must meet the national and regional requirements and the required approvals at the point of operation.For fire prevention and the protection of persons and domestic animals from excessive contact voltages residual current devices (RCD) must be used.Only AC/DC sensitive residual current devices (RCD, type B) may be used in connection with a frequency inverter. Marking on residual current devices for AC/DC sensitive RCDs, type B: Earth leakage currents will be produced when using frequency-controlled drives due to the nature of the system. The main reasons for this consist of external capacitances between the phases of the motor cable, the motor cable's screening, Y capacitors in the frequency inverter, and radio interference suppression filters, as well as earthing measures at the motor's site of operation. These leakage currents can exceed 3.5 mA and require improved PDS earthing as per EN 50178 (earth conductor cross-section ≥ 10 mm 2 ). EMC compliance Frequency inverters work with fast electronic switches (IGBT) in the inverter. This can cause radio interference in a drive system, which, in turn, can adversely affect nearby electronic equipment. To provide protection from this high-frequency interference, these should be spatially separated and screened from frequency-controlled drives.In Europe, adherence to the EMC Directive is mandatory. The EMC product standard for power drive systems (PDS) is IEC/EN 61800-3. This standard covers the complete drive system, from mains infeed to the motor.Both versions of DC1 and DA1 series frequency inverters (with internal/external radio interference suppression filter) meet the requirements of the EMC product standard for residential areas (first environment) and therefore the higher limits for industrial environment (second environment) as well. L2 N L1 L3 PE L2 PEN L1 L3 Table: North American voltage level Supply voltage U LN of the EVU Motor voltage according to UL 508 C Consumer voltage, rated value for the motors 120 V 110 - 120 V 115 V 240 V 220 - 240 V 230 V 480 V 440 - 480 V 460 V 600 V 550 - 600 V 575V Frequency inverters A frequency inverter is an electronic apparatus used for the variable-speed control of three-phase motors. It is intended for installation in a machine or for assembly with other components to a machine or plant. The main components of a modern compact frequency inverter are a power section ① and a control section ②. The functional control of the frequency inverter and the output values in the power section (such as frequency, voltage and current) can be adjusted through:• Control terminals (I/O) with analog and digital (binary) inputs, • A keypad with function keys and display units, • Serial interfaces (BUS) with RS485 (Modbus RTU) and optional fieldbus connections (CANopen, PROFIBUS-DP etc.) and an optional PC connection. Internal open and closed-loop control circuits monitor all variable values in the frequency inverter and automatically switch the process off if a value reaches a dangerous level.The power section of a static compact frequency generally consists of three subgroups:• Rectifier (A),• Internal DC link (B),• Inverter module (C). 1. Environment Public medium-voltage system PCC Category C1 Category C2 Category C1 / C2 Category C1 / C2Category C3 / C4 Category C3 / C4 1.or 2. environment 2. Environment Publiclow-voltage system Privatemains Industrialmains ① Power section with: A = RectifierB = Internal DC linkC = inverter (IGBT) ② Control section with: I/O = Analog and binary inputs and outputsKEYPAD = Operating unit with display unitBUS = Serial ports/interfaces (RS485, field bus, PC interface) L1/L L2/N L3 DC- U DC+ BR 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 COM V W ① ②   U LN = phase voltage fromsupplying AC mains U DC = DC link voltage U DC = 1.41 x U LN Output voltage = switched DC link voltage with sinusoidal pulse width modula-tion (PWM) Block diagram with main components of a frequency inverter CPU A B C BUS M 3 ∼ KEYPAD I/O

CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives General information on Engineering 41 DC1, DA1 General information on Engineering Control methods The IGBTs in the variable frequency series' inverter are controlled with sinusoidal pulse-width modulation (PWM). In real-life applications, the industry draws a distinction between the following control methods: • Voltage frequency control (U/f control), • V/Hz control with slip compensation• Sensorless vector control (speed control) • Vector control (closed-loop) The Voltage frequency control is the best known and most commonly used method. A simple characteristic curve (linear or quadratic) defines the motor’s rotating field frequency and the corresponding three-phase line-to-line motor voltage is selected such that the motor is neither over nor under-magnetized. Main applications of U/f control: • pump and fan drives,• horizontal conveying and transportation systems, • multiple motor drives (parallel operation of several motors at the variable frequency drive’s output). Bei der V/Hz control with slip compensation can compensate for the load-dependent speed change in individual drives (sensorless). Bei der In sensorless vector control the magnetic fields of the stator and rotor windings are aligned so as to oppose each other. With asynchronous motors the magnetic flux in the rotor must be mapped in an electronic model of the motor. This requires the physical parameters on the motor’s rating plate to be entered.In vector operation the frequencyinverter can control only one motor. A parallel operation of several motors is not possible here. The exact calculation of the phase voltages at the variable frequency drive’s output, however, improves the motor’s operational behavior. The motor also heats up less in the lower speed range. The field-oriented vector control results in a significant improvement in the drive dynamics as well as optimizing performance; it also increases the range of possible applications.The main applications of sensorlessvector control are: • Material machining and processing equipment • Condensors (compressor),• Heavy starting duty (extruder, agitators, mixer), • Horizontal conveying equipment (cranes, elevators). Bei der Vector control uses the variable frequency drive's output current as a controlled variable. This makes it possible to perfectly adjust the three-phase motor in line with the corresponding torque boost. The motor speed can be controlled in connection with an rpm sensor (tachometer, pulse generator) (closed loop). Motor model Regardless of the control method used, a variable frequency drive uses the measured voltage and current values on the stator winding (u1, i1) to calculate the required manipulated variable for flux-generating component i μ and torque-generating component in the rotor iw. The motor's load dependent slip is represented as resistor R‘2/s. During no-load operation, this value approaches infinity (iw → 0). On the other hand, the value approaches zero as the load increases. The current in the rotor grows at this point. Explanation: EMC = Electromagnetic compatibilityEVU = Utility companyIGBT = Insulated-gate bipolar transistorPDS = Magnet system RCD = Residual current device ① Stator winding② Air gap ③ Transformed rotor winding Simplified equivalent circuit diagram for a three-phase motor R 1 ① ③ ② X' 2 X 1 i 1 i w u 1 X h i μ R' 2 s Technical information concerning braking resistances: The braking resistors' specified P DB power dissipation applies to continuous operation.In short-time operation these values can be increased by multiplying them with thetype-specific power factor using the following formula: P max ≤ (P DB × 100 %) ÷ ED [%] P max = maximum pulse rating P DB = continuous rating at a duty factor of 100 % ED = duty factort c = Cycle time (max. 120 seconds) The duty factor is stated as a percentage (%) and is calculated with the formula: ED [%] = (ED × 100 %) ÷ t c P DB t [s] ED t C (F 120 s) P DB ED P max 1 2 6 1.1 1.25 1.4 1.7 2.6 3.4 10 20 100 90 80 70 60 50 40 30 20 10 5 ED [%]

CA04020001Z-EN-INT www.eaton.eu 42 PowerXL™ variable frequency drives Connection example for DC1 Connection example for DC1 Connecting example for a 0.75 kW motor with the rating plate illustrated here. The variable frequency drives are configured by default in such a way that they can be operated immediately with V/Hz control when connected to the assigned motor rating without having to configure any additional parameters. To ensure ideal operational behavior (e.g., slip compensation, vector control, etc.), the data on the motor’s rating plate should be entered into the variable frequency drive (electric motor map). The following example shows the necessary parameter settings for a variable frequency drive (a DC1 in this example) 1410 min 230/400 V 3.2/1.9 A 50 Hz -1 0.75 kW cos ϕ 0.79 P-07 P-08 P-10 P-09 and connection examples for single-phase and three-phase mains voltages: Block diagram for DC1-32... and DC1-34... with internal radio interference suppression filter① Only sizes FS2 and FS3 have connection terminals DC+ and BR- for an external braking resistance (optional).  DC+ BR DC- 3 AC 230/400/460 V W V U M 3 ~  2 DI1 FWD 24 V 3 DI2 REV 4 DI3 AI2 FF1 5 +10 V Out 10 mA 10 V 6 AI1 DI4 f-Soll 7 0 V 1 +24 V Out 100 mA L1/L L3 EMC 8 0...+10 V 20 mA AO +24 V DO f-Out + 9 0 V PIN 8 (PIN2) PIN 7 (PIN 1) 10 L2/N VAR 11 RUN 6 A, 250 VAC 5 A, 30 VDC RS485 CPU 0...+10 V 3 AC 230 V3 AC 400/480 V50/60 Hz PES X1 ① ① FS2, FS3  The control signal terminals are factory set as follows:1: 24 V: +24 V control voltage, max. 100 mA 2: DI1: FWD = Clockwise rotating field enable (Forward) 3: DI2: REV = Anticlockwise rotating field enable (Reverse) 4: DI3: FF1 = Fixed frequency 1or AI2 5: 10 V: +10 V reference voltage, max. 10 mA 6: AI1: f-setpoint = Frequency setpoint value (0 - +10 V) 7: 0 V, reference potential 8: AO: f-Out = Output frequency to motor (0 - +10 V) 9: 0 V, reference potential 10/11: Relay: RUN = Operating signal (N/O) DI: Digital input = +24 VDC digital input AI: Analog input = 0 - 10 V, 0/4 - 20 mA analog input DO: Digital output = +24 VDC, max. 20 mA digital output AO: Analog output = 0 - +10 V, max. 20 mA analog output Parameters are used to define the function and mode of operation for the digital and analog inputs/outputs. These parameters are described in manual MN04020003Z.

CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives Connection example for DC1 43 DC1, DA1 Connection example for DC1 Connection example for a 0.75 kW motor Motor: P = 0.75 kWMains: 3/N/PE 400 V 50/60 HzConnection examples meeting EMC requirements: Power section (see figure below) Variant A: Motor in delta configuration DC1… frequency inverter with single-phase mains supply (230 V) ① Optional connection option for single-phase connections PE LN PE 2 1 R1 ① PE 1 ∼ 230 V, 50/60 Hz L1 T1 Q1 U V W PE PES PES PES PES M M1 X1 3 ~ F1 FAZ-B10/1N DX-LN1-009 DC1-124D3…(4.3 A) 230 V 3.2 A 0.75 kW DILM7(+DILM12-XP1)  U1 V1 W1 W2 U2 V2 L2/N The previously indicated 0.75 kW motor can be connected in a delta configuration for a single-phase 230-V supply system (version A) or in a star configuration for a 400-V supply system (version B).The frequency inverter and the type-specific accessories are selected for 1 AC 230 V (DC1-124D3...) or for 3 AC 400 V (MMX34AA2D4) depending on the mains voltage selected. Variant B: Motor in star configuration DC1… frequency inverter with three-phase mains supply (400 V) 3 ∼ 400 V, 50/60 Hz W2 L1 L2/N L3 PE L1L2L3PE Q11 Q1 V2 U2 W1 V1 U1 R1 PE I I I U1 V1 W1 W2 U2 V2 T1 U V W PE PES PES PES PES M M1 X1 3 ~ PKM0-6,3 DX-LN3-004 DC1-342D2…(2.2 A) 400 V 1.9 A 0.75 kW DILEM-10 

44 PowerXL™ variable frequency drives Assigned switching and protective elements CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives Assigned switching and protective elements DC1, DA1 Assigned switching and protective elements Engineering Part no. Motor Frequency inverters Power Wiring Motor connection Braking resistances for duty factors (DF) as a % 3) Assigned motor rating 1) Rated motor current Rated operational current 2) Input current Protection device Protection device Contactor Mains choke Motor choke Sine filter 10% 20% 40% P P I e I e I LN kW HP A A T U e 230 V AC, 1-phase/U 2 230 V AC, 3-phase DC1-122D3 0.37 0.5 2 2.3 5 FAZ-B10/1N - DILM7 DX-LN1-006 DX-LM3-005 DX-SIN3-004 - - - DC1-124D3 0.75 1 3.2 4.3 8.5 FAZ-B10/1N - DILM7 DX-LN1-013 DX-LM3-005 DX-SIN3-010 - - - DC1-127D0 1.5 2 6.3 7 13.9 FAZ-B16/1N - DILM7 DX-LN1-018 DX-LM3-008 DX-SIN3-010 DX-BR050-0K4 DX-BR050-0K8 DX-BR047-3K1 DC1-12011 2.2 3 8.7 10.5 19.5 FAZ-B25/1N - DILM7 DX-LN1-024 DX-LM3-011 DX-SIN3-016 DX-BR050-0K4 DX-BR050-0K8 DX-BR047-3K1 DC1-12015 4 5 14.8 15 30.5 FAZ-B40/1N - DILM7 DX-LN1-032 DX-LM3-016 DX-SIN3-016 DX-BR050-0K4 DX-BR050-0K8 DX-BR047-3K1 U e 230 V AC, 3-phase/U 2 230 V AC, 3-phase DC1-322D3 0.37 0.5 2 2.3 3 FAZ-B6/3 PKM0-6,3 DILM7 DX-LN3-004 DX-LM3-005 DX-SIN3-004 - - - DC1-324D3 0.75 1 3.2 4.3 4.5 FAZ-B6/3 PKM0-6,3 DILM7 DX-LN3-006 DX-LM3-005 DX-SIN3-010 - - - DC1-327D0 1.5 2 6.3 7 7.3 FAZ-B10/3 PKM0-10 DILM7 DX-LN3-010 DX-LM3-008 DX-SIN3-010 DX-BR050-0K4 DX-BR050-0K8 DX-BR047-3K1 DC1-32011 2.2 3 8.7 10.5 11 FAZ-B16/3 PKM0-16 DILM7 DX-LN3-016 DX-LM3-011 DX-SIN3-016 DX-BR050-0K4 DX-BR050-0K8 DX-BR047-3K1 DC1-32018 4 5 14.8 18 18.8 FAZ-B20/3 PKM0-20 DILM7 DX-LN3-025 DX-LM3-035 DX-SIN3-023 DX-BR050-0K4 DX-BR050-0K8 DX-BR047-3K1 U e 400 V AC, 3-phase/U 2 400 V AC, 3-phase DC1-342D2 0.75 1 1.9 2.2 2.4 FAZ-B6/3 PKM0-6,3 DILM7 DX-LN3-004 DX-LM3-005 DX-SIN3-004 - - - DC1-344D1 1.5 2 3.6 4.1 4.3 FAZ-B6/3 PKM0-6,3 DILM7 DX-LN3-006 DX-LM3-005 DX-SIN3-010 DX-BR100-0K8 DX-BR100-1K6 DX-BR100-6K2 DC1-345D8 2.2 3 5 5.8 6.1 FAZ-B10/3 PKM0-10 DILM7 DX-LN3-010 DX-LM3-008 DX-SIN3-010 DX-BR100-0K8 DX-BR100-1K6 DX-BR100-6K2 DC1-349D5 4 5 8.5 9.5 9.8 FAZ-B16/3 PKM0-16 DILM7 DX-LN3-010 DX-LM3-011 DX-SIN3-010 DX-BR100-0K8 DX-BR100-1K6 DX-BR100-6K2 DC1-34014 5.5 7.5 11.3 14 14.6 FAZ-B20/3 PKM0-20 DILM7 DX-LN3-016 DX-LM3-016 DX-SIN3-016 DX-BR047-3K1 DX-BR047-5K1 DX-BR047-9K2 DC1-34018 7.5 10 15.2 18 18.1 FAZ-B25/3 PKM0-25 DILM7 DX-LN3-025 DX-LM3-035 DX-SIN3-023 DX-BR047-3K1 DX-BR047-5K1 DX-BR047-9K2 DC1-34024 11 15 21.7 24 24.7 FAZ-B32/3 PKM0-32 DILM17 DX-LN3-025 DX-LM3-035 DX-SIN3-023 DX-BR047-3K1 DX-BR047-5K1 DX-BR047-9K2 U e 230 V AC, 1-phase/U 2 230 V AC, 3-phase DA1-124D3 0.75 1 3.2 4.3 8.5 FAZ-B10/1N - DILM7 DX-LN1-013 DX-LM3-005 DX-SIN3-010 DX-BR100-0K2 DX-BR100-0K4 - DA1-127D0 1.5 2 6.3 7 13.9 FAZ-B16/1N - DILM7 DX-LN1-018 DX-LM3-008 DX-SIN3-010 DX-BR050-0K4 DX-BR050-0K8 - DA1-12011 2.2 3 8.7 10.5 19.5 FAZ-B25/1N - DILM7 DX-LN1-024 DX-LM3-011 DX-SIN3-016 DX-BR050-0K8 DX-BR035-1K1 - U e 230 V AC, 3-phase/U 2 230 V AC, 3-phase DA1-324D3 0.75 1 3.2 4.3 4.5 FAZ-B6/3 PKM0-6,3 DILM7 DX-LN3-006 DX-LM3-005 DX-SIN3-010 DX-BR100-0K2 DX-BR100-0K4 - DA1-327D0 1.5 2 6.3 7 7.3 FAZ-B10/3 PKM0-10 DILM7 DX-LN3-010 DX-LM3-008 DX-SIN3-010 DX-BR050-0K4 DX-BR050-0K8 - DA1-32011 2.2 3 8.7 10.5 11 FAZ-B16/3 PKM0-16 DILM7 DX-LN3-016 DX-LM3-011 DX-SIN3-016 DX-BR050-0K8 DX-BR035-1K1 - DA1-32018 4 5 14.8 18 18.8 FAZ-B20/3 PKM0-20 DILM7 DX-LN3-025 DX-LM3-035 DX-SIN3-023 DX-BR022-1K4 DX-BR022-3K1 - DA1-32024 5.5 7.5 19.6 24 24.8 FAZ-B32/3 PKM0-32 DILM17 DX-LN3-025 DX-LM3-035 DX-SIN3-032 DX-BR022-1K4 DX-BR022-3K1 - DA1-32039 7.5 10 26.4 39 40 FAZ-B50/3 - DILM25 DX-LN3-040 DX-LM3-050 DX-SIN3-048 DX-BR022-1K4 DX-BR022-3K1 - DA1-32046 11 15 38 46 47.1 FAZ-B63/3 - DILM40 DX-LN3-050 DX-LM3-050 DX-SIN3-048 DX-BR022-1K4 DX-BR022-3K1 - DA1-32061 15 20 51 61 62.4 NZMC1-S80 - DILM50 DX-LN3-080 DX-LM3-063 DX-SIN3-061 DX-BR012-3K1 DX-BR012-5K1 - DA1-32072 18.5 25 63 72 74.1 NZMC1-S80 - DILM65 DX-LN3-080 DX-LM3-080 DX-SIN3-072 DX-BR012-3K1 DX-BR012-5K1 - DA1-32090 22 30 71 90 92.3 NZMC2-S100 - DILM80 DX-LN3-100 DX-LM3-100 DX-SIN3-090 DX-BR006-5K1 DX-BR006-9K2 - DA1-32110 30 40 96 110 112.7 NZMC2-S125 - DILM95 DX-LN3-120 DX-LM3-150 DX-SIN3-115 DX-BR006-5K1 DX-BR006-9K2 - DA1-32150 45 50 141 150 153.5 NZMC2-S160 - DILM150 DX-LN3-160 DX-LM3-150 DX-SIN3-150 DX-BR006-5K1 DX-BR006-9K2 - DA1-32180 55 60 173 180 183.8 NZMC2-S200 - DILM170 DX-LN3-200 DX-LM3-180 DX-SIN3-180 DX-BR006-5K1 DX-BR006-9K2 - DA1-32202 55 75 173 202 206.2 NZMC3-S250 - DILM185A DX-LN3-250 DX-LM3-220 DX-SIN3-250 DX-BR006-5K1 DX-BR006-9K2 - DA1-32248 75 100 233 248 252.8 NZMC3-S320 - DILM185A DX-LN3-300 DX-LM3-260 DX-SIN3-250 DX-BR006-5K1 DX-BR006-9K2 - 1) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) 2) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 3) Only for devices with an internal braking chopper 45

46 PowerXL™ variable frequency drives Assigned switching and protective elements CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives Assigned switching and protective elements DC1, DA1 U e 400 V AC, 3-phase/U 2 400 V AC, 3-phase DA1-342D2 0.75 1 1.9 2.2 2.4 FAZ-B6/3 PKM0-6,3 DILM7 DX-LN3-004 DX-LM3-005 DX-SIN3-004 DX-BR400-0K4 DX-BR400-0K4 - DA1-344D1 1.5 2 3.6 4.1 4.3 FAZ-B6/3 PKM0-6,3 DILM7 DX-LN3-006 DX-LM3-005 DX-SIN3-010 DX-BR200-0K4 DX-BR200-0K8 - DA1-345D8 2.2 3 5 5.8 6.1 FAZ-B10/3 PKM0-10 DILM7 DX-LN3-010 DX-LM3-008 DX-SIN3-010 DX-BR150-0K5 DX-BR150-1K4 - DA1-349D5 4 5 8.5 9.5 9.8 FAZ-B16/3 PKM0-16 DILM7 DX-LN3-010 DX-LM3-011 DX-SIN3-010 DX-BR100-0K8 DX-BR100-1K4 - DA1-34014 5.5 7.5 11.3 14 14.6 FAZ-B20/3 PKM0-20 DILM7 DX-LN3-016 DX-LM3-016 DX-SIN3-016 DX-BR075-1K4 DX-BR075-5K1 - DA1-34018 7.5 10 15.2 18 18.1 FAZ-B25/3 PKM0-25 DILM7 DX-LN3-025 DX-LM3-035 DX-SIN3-023 DX-BR050-3K1 DX-BR050-5K1 - DA1-34024 11 15 21.7 24 24.7 FAZ-B32/3 PKM0-32 DILM17 DX-LN3-025 DX-LM3-035 DX-SIN3-023 DX-BR040-3K1 DX-BR040-5K1 - DA1-34030 15 20 29.3 30 30.8 FAZ-B40/3 - DILM17 DX-LN3-040 DX-LM3-035 DX-SIN3-032 DX-BR022-5K1 DX-BR022-9K2 - DA1-34039 18.5 25 36 39 40 FAZ-B50/3 - DILM25 DX-LN3-040 DX-LM3-050 DX-SIN3-048 DX-BR022-5K1 DX-BR022-9K2 - DA1-34046 22 30 41 46 47.1 FAZ-B63/3 - DILM40 DX-LN3-050 DX-LM3-050 DX-SIN3-048 DX-BR022-5K1 DX-BR022-9K2 - DA1-34061 30 40 55 61 62.8 NZMC1-S80 - DILM50 DX-LN3-080 DX-LM3-063 DX-SIN3-061 DX-BR012-9K2 DX-BR012-18K1 - DA1-34072 37 50 68 72 73.8 NZMC1-S80 - DILM65 DX-LN3-080 DX-LM3-080 DX-SIN3-090 DX-BR012-9K2 DX-BR012-18K1 - DA1-34090 45 60 81 90 92.2 NZMC1-S100 - DILM80 DX-LN3-100 DX-LM3-100 DX-SIN3-115 DX-BR006-18K1 DX-BR006-33K3 - DA1-34110 55 75 99 110 112.5 NZMC2-S125 - DILM95 DX-LN3-120 DX-LM3-150 DX-SIN3-115 DX-BR006-18K1 DX-BR006-33K3 - DA1-34150 75 100 134 150 153.2 NZMC2-S160 - DILM150 DX-LN3-160 DX-LM3-150 DX-SIN3-150 DX-BR006-18K1 DX-BR006-33K3 - DA1-34180 90 150 161 180 183.7 NZMC2-S200 - DILM170 DX-LN3-200 DX-LM3-180 DX-SIN3-180 DX-BR006-18K1 DX-BR006-33K3 - DA1-34202 110 175 196 202 205.9 NZMC3-S250 - DILM185A DX-LN3-250 DX-LM3-220 DX-SIN3-250 DX-BR006-18K1 DX-BR006-33K3 - DA1-34240 132 200 231 240 244.5 NZMC3-S320 - DILM185A DX-LN3-250 DX-LM3-260 DX-SIN3-250 DX-BR006-18K1 DX-BR006-33K3 - DA1-34302 160 250 279 302 307.8 NZMC3-S400 - DILM225A DX-LN3-370 DX-LM3-303 DX-SIN3-440 DX-BR006-18K1 DX-BR006-33K3 - DA1-34370 200 300 349 370 - NZMC3-S400 - - - - - DX-BR002-54K3 DX-BR002-102K4 - DA1-34450 250 350 437 450 - NZMC3-S500 - - - - - DX-BR002-54K3 DX-BR002-102K4 - 1) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) 2) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 3) Only for devices with an internal braking chopper Part no. Motor Frequency inverters Power Wiring Motor connection Braking resistances for duty factors (DF) as a % 3) Assigned motor rating 1) Rated motor current Rated operational current 2) Input current Protection device Protection device Contactor Mains choke Motor choke Sine filter 10% 20% 40% P P I e I e I LN kW HP A A T 47

48 PowerXL™ variable frequency drives DC1 (Ue: 115 V AC, single-phase, U2: 115 V AC, single-phase/230 V AC, 3 phase) CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DC1 (Ue: 230 V AC, single-phase, U2: 230 V AC, single-phase) DC1, DA1 DC1 (Ue: 115 V AC, single-phase, U2: 115 V AC, single-phase/230 V AC, 3 phase)DC1 (Ue: 230 V AC, single-phase, U2: 230 V AC, single-phase) DC1-S17D0… DC1-S1011… DC1-1D2D3… DC1-1D4D3… DC1-1D5D3… DC1-S24D3… DC1-S27D0… General Climatic proofing ρ w % 95 %, average relative humidity (RH), non-condensing (EN 50178) 95 %, average relative humidity (RH), non-condensing (EN 50178) Mounting position Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Radio interference level Radio interference class (EMC) C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments longest permissible length of motor cable I m 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) Main circuit Supply Rated operational voltage U e 115 V AC, single-phase 230 V AC, 1-phase Notes - - The mains voltage of 115 V is raised to 230 V (output voltage) through an internal voltage double connection. - - - Mains voltage (50/60Hz) U LN V 110 (-10%) - 115 (+10%) 200 (-10%) - 240 (+10%) Input current I LN T 8.5 12.5 11 19 25 6 9.3 14 Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz Mains switch-on frequency Maximum of one time every 30 seconds Maximum of one time every 30 seconds Maximum of one time every 30 seconds Power section Overload current for 60 s every 600 s I L A 10.5 15.75 3.45 6.45 8.7 6.45 10.5 15.75 Starting current for 2 s I L A 12.25 18.38 4.03 7.53 10.15 7.53 12.25 18.38 Output voltage with V e U 2 115 V AC, single-phase 230 V AC, 3-phase 230 V AC, single-phase 230 V AC, single-phase 230 V AC, single-phase Output Frequency f 2 Hz 0 - 50 Hz (max. 120 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 120 Hz) 0 - 50 Hz (max. 120 Hz) 0 - 50 Hz (max. 120 Hz) Switching frequency f PWM kHz 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) Operation Mode U/f controlSlip compensation U/f controlSlip compensation Frequency resolution (setpoint value) Δf Hz 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Rated operational current I e A 7 10.5 2.3 4.3 5.8 4.3 7 10.5 Power loss Heat dissipation at rated operational current P V W 18.5 22 18.5 37.5 44 18.5 37.5 44 Efficiency η % 95 96 95 95 96 95 95 96 Maximum leakage current to ground (PE) without motor I PE mA 2.49 2.49 1 1 1 2.49 2.49 2.49 Frame size FS1 FS2 FS1 FS1 FS2 FS1 FS1 FS2 Motor feeder Assigned motor rating at 115 V, 50 Hz P kW 0.37 0.55 - - - - - - at 230 V, 50 Hz P kW - - 0.37 0.75 1.1 - - - 110 - 120 V, 60 Hz P HP 0.5 0.75 - - - - - - at 220 - 240 V, 60 Hz P HP - - 0.5 1 1.5 - - - Apparent power Apparent power at rated operation 230 V S kVA 0 0 - - - 0.99 1.61 2.42 Apparent power at rated operation 240 V S kVA 0 0 - - - 1.03 1.68 2.52 Braking function Standard braking torque - - max. 30% M N max. 30% M N max. 30% M N - - - DC braking torque max. 100% of rated operational current I e, variable max. 100% of rated operational current I e, variable Braking torque with external braking resistance - max. 100% rated operational current I e , with external braking resistance - - max. 100% rated operational current I e , with external braking resistance - - max. 100% rated operational current I e , with external braking resistance minimum external braking resistance R min Ω - 47 - - 47 - - 47 Switch-on threshold for the braking transistor U DC V - - - - 390 V DC - - 390 V DC DC braking % I/I e - - - - - - - - Braking torque % I/I e - - - - - - - - Control section External control voltage U c V 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) Note 1) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 49 DC1 (U e : 115 V AC, single-phase, U 2 : 115 V AC, single-phase/230 V AC, 3 phase) DC1 (U e : 115 V AC, single-phase, U 2 : 115 V AC, single-phase/230 V AC, 3 phase)

50 PowerXL™ variable frequency drives DC1 (Ue: 230 V AC, single-phase, U2: 230 V AC, 3 phase) CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DC1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) DC1, DA1 DC1 (Ue: 230 V AC, single-phase, U2: 230 V AC, 3 phase)DC1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) Part no. DC1-122D3… DC1-124D3… DC1-127D0… DC1-12011… DC1-12015… DC1-322D3… DC1-324D3… DC1-327D0… DC1-32011… DC1-32018… General Climatic proofing ρ w % 95 %, average relative humidity (RH), non-condensing (EN 50178) 95 %, average relative humidity (RH), non-condensing (EN 50178) Mounting position Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Radio interference level Radio interference class (EMC) C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments longest permissible length of motor cable I m 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) Main circuit Supply Rated operational voltage U e 230 V AC, 1-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase Mains voltage (50/60Hz) U LN V 200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) Input current I LN T 5 8.5 13.9 19.5 30.5 3 4.5 7.3 11 18.8 Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz Mains switch-on frequency Maximum of one time every 30 seconds Maximum of one time every 30 seconds Power section Overload current for 60 s every 600 s I L A 3.45 6.45 10.5 15.75 22.5 3.45 6.45 10.5 15.75 27 Starting current for 2 s I L A 4.03 7.53 12.25 18.38 26.25 4.03 7.53 12.25 18.38 31.5 Output voltage with V e U 2 230 V AC, 3-phase 230 V AC, 3-phase Output Frequency f 2 Hz 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz(max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz(max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) Switching frequency f PWM kHz 16(adjustable 4 - 32) 8(adjustable 4 - 24) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 8(adjustable 4 - 24) Operation Mode U/f controlSlip compensation U/f controlSlip compensation Frequency resolution (setpoint value) Δf Hz 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Rated operational current I e A 2.3 4.3 7 10.5 15 2.3 4.3 7 10.5 18 Power loss Heat dissipation at rated operational current P V W 18.5 45.75 63 103.4 160 14.8 39.75 61.5 90.2 160 Efficiency η % 95 93.9 95.8 95.3 96 96 94.7 95.9 95.9 96 Maximum leakage current to ground (PE) without motor I PE mA 2.49 2.49 2.49 2.49 1 1 1 1 1 1 Frame size FS1 FS1 FS2 FS2 FS3 FS1 FS1 FS2 FS2 FS3 Motor feeder Assigned motor rating at 230 V, 50 Hz P kW 0.37 0.75 1.5 2.2 4 0.37 0.75 1.5 2.2 4 at 220 - 240 V, 60 Hz P HP 0.5 1 2 3 5 0.5 1 2 3 5 Apparent power Apparent power at rated operation 230 V S kVA 0.92 1.71 2.79 4.18 5.98 0.92 1.71 2.79 4.18 7.17 Apparent power at rated operation 240 V S kVA 0.96 1.79 2.91 4.36 6.24 0.96 1.79 2.91 4.36 7.48 Braking function Standard braking torque max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N DC braking torque max. 100% of rated operational current I e, variable max. 100% of rated operational current I e, variable Braking torque with external braking resistance - - max. 100% rated operational current I e , with external braking resistance - max. 100% rated operational current I e , with external braking resistance max. 100% rated operational current I e , with external braking resistance max. 100% rated operational current I e , with external braking resistance minimum external braking resistance R min Ω - - 100 47 47 - 100 47 47 Switch-on threshold for the braking transistor U DC V - - 390 V DC 390 V DC 390 V DC - 390 V DC 390 V DC 390 V DC DC braking % I/I e - - - - - - - - - Braking torque % I/I e - - - - - - - - - Control section External control voltage U c V 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) Note 1) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 51 DC1 (U e : 230 V AC, single-phase, U 2 : 230 V AC, 3 phase) DC1 (U e : 230 V AC, single-phase, U 2 : 230 V AC, 3 phase)

52 PowerXL™ variable frequency drives DC1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase) CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DC1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase) DC1, DA1 DC1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase)DC1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase) Part no. DC1-342D2… DC1-344D1… DC1-345D8… DC1-349D5… DC1-34014… DC1-34018… DC1-34024… General Climatic proofing ρ w % 95 %, average relative humidity (RH), non-condensing (EN 50178) 95 %, average relative humidity (RH), non-condensing (EN 50178) Mounting position Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Radio interference level Radio interference class (EMC) C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments longest permissible length of motor cable I m 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) Main circuit Supply Rated operational voltage U e 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Mains voltage (50/60Hz) U LN V 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) Input current I LN T 2.4 4.3 6.1 9.8 14.6 18.1 24.7 Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz Mains switch-on frequency Maximum of one time every 30 seconds Maximum of one time every 30 seconds Power section Overload current for 60 s every 600 s I L A 3.3 6.15 8.7 14.25 21 27 36 Starting current for 2 s I L A 3.85 7.18 10.15 16.63 24.5 31.5 42 Output voltage with V e U 2 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Output Frequency f 2 Hz 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) Switching frequency f PWM kHz 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 8(adjustable 4 - 24) 8(adjustable 4 - 24) 8(adjustable 4 - 24) Operation Mode U/f controlSlip compensation U/f controlSlip compensation Frequency resolution (setpoint value) Δf Hz 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Rated operational current I e A 2.2 4.1 5.8 9.5 14 18 24 Power loss Heat dissipation at rated operational current P V W 63.75 76.5 101.2 136 209 300 297 Efficiency η % 91.5 94.9 95.4 96.6 96.2 97 97.3 Maximum leakage current to ground (PE) without motor I PE mA 1 1 1 1 1 1 2.49 Frame size FS1 FS2 FS2 FS2 FS3 FS3 FS3 Motor feeder Assigned motor rating at 400 V, 50 Hz P kW 0.75 1.5 2.2 4 5.5 7.5 11 at 440 - 480 V, 60 Hz P HP 1 2 3 5 7.5 10 15 Apparent power Apparent power at rated operation 400 V S kVA 1.52 2.84 4.02 6.58 9.67 12.47 16.63 Apparent power at rated operation 480 V S kVA 1.83 3.41 4.82 7.9 11.64 14.96 19.95 Braking function Standard braking torque max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N DC braking torque max. 100% of rated operational current I e, variable max. 100% of rated operational current I e, variable Braking torque with external braking resistance - max. 100% rated operational current I e , with external braking resistance max. 100% rated operational current I e , with external braking resistance minimum external braking resistance R min Ω - 200 200 100 100 47 47 Switch-on threshold for the braking transistor U DC V - 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC DC braking % I/I e - - - - - - - Braking torque % I/I e - - - - - - - Control section External control voltage U c V 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) Note 1) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 53 DC1 (U e : 400 V AC, 3 phase, U 2 : 400 V AC, 3 phase) DC1 (U e : 400 V AC, 3 phase, U 2 : 400 V AC, 3 phase)

54 PowerXL™ variable frequency drives DA1 (Ue: 230 V AC, single-phase, U2: 230 V AC, single-phase) CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) DC1, DA1 DA1 (Ue: 230 V AC, single-phase, U2: 230 V AC, single-phase)DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) Typ DA1-124D3… DA1-127D0… DA1-12011… DA1-324D3… DA1-327D0… DA1-32011… DA1-32018… DA1-32024… General Climatic proofing ρ w % 95 %, average relative humidity (RH), non-condensing (EN 50178) 95 %, average relative humidity (RH), non-condensing (EN 50178) Mounting position Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Radio interference level Radio interference class (EMC) C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments longest permissible length of motor cable I m 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) Main circuit Supply Rated operational voltage U e 230 V AC, 1-phase 230 V AC, 1-phase 230 V AC, 1-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase Mains voltage (50/60Hz) U LN V 200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) Input current I LN T 8.5 13.9 19.5 4.5 7.3 11 18.8 24.8 Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz Mains switch-on frequency Maximum of one time every 30 seconds Maximum of one time every 30 seconds Power section Overload current for 60 s every 600 s I L A 6.45 10.5 15.75 6.45 10.5 15.75 27 36 Starting current for 4 s I L A 8.6 14 21 8.6 14 21 36 48 Output voltage with V e U 2 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase Output Frequency f 2 Hz 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) Switching frequency f PWM kHz 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 32) 16(adjustable 4 - 24) 16(adjustable 4 - 16) Operation Mode U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Rated operational current I e A 4.3 7 10.5 4.3 7 10.5 18 24 Power loss Heat dissipation at rated operational current P V W 45.75 63 103.4 39.75 61.5 90.2 160 170.5 Efficiency η % 93.9 95.8 95.3 94.7 95.9 95.9 96 96.9 Maximum leakage current to ground (PE) without motor I PE mA 2.49 2.49 2.49 1.73 1.73 1.73 0.93 0.93 Frame size FS2 FS2 FS2 FS2 FS2 FS2 FS3 FS3 Motor feeder Assigned motor rating at 230 V, 50 Hz P kW 0.75 1.5 2.2 0.75 1.5 2.2 4 5.5 at 220 - 240 V, 60 Hz P HP 1 2 3 1 2 3 5 7.5 Apparent power Apparent power at rated operation 230 V S kVA 1.71 2.79 4.18 1.71 2.79 4.18 7.17 9.56 Apparent power at rated operation 240 V S kVA 1.79 2.91 4.36 1.79 2.91 4.36 7.48 9.98 Braking function Standard braking torque max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N DC braking torque max. 100% of rated operational current I e, variable max. 100% of rated operational current I e, variable Braking torque with external braking resistance max. 100% rated operational current I e , with external braking resistance max. 100% rated operational current I e , with external braking resistance minimum external braking resistance R min Ω 100 50 35 100 50 35 20 20 Switch-on threshold for the braking transistor U DC V 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC Control section External control voltage U c V 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) Note 1) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 55 DA1 (U e : 230 V AC, single-phase, U 2 : 230 V AC, 3 phase) DA1 (U e : 230 V AC, 3 phase, U 2 : 230 V AC, 3 phase)

56 PowerXL™ variable frequency drives DA1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase) CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DA1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase) DC1, DA1 DA1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase)DA1 (Ue: 400 V AC, 3 phase, U2: 400 V AC, 3 phase) Part no. DA1-342D2… DA1-344D1FB… DA1-345D8… DA1-349D5… DA1-34014… DA1-34018… DA1-34024… DA1-34030… DA1-34039… DA1-34046… General Climatic proofing ρ w % 95 %, average relative humidity (RH), non-condensing (EN 50178) 95 %, average relative humidity (RH), non-condensing (EN 50178) Mounting position Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Radio interference level Radio interference class (EMC) C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments longest permissible length of motor cable I m 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) Main circuit Supply Rated operational voltage U e 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Mains voltage (50/60Hz) U LN V 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) Input current I LN T 2.4 4.3 6.1 9.8 14.6 18.1 24.7 30.8 40 47.1 Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz Mains switch-on frequency Maximum of one time every 30 seconds Maximum of one time every 30 seconds Power section Overload current for 60 s every 600 s I L A 3.3 6.15 8.7 14.25 21 27 36 45 58.5 69 Starting current for 4 s I L A 4.4 8.2 11.6 19 28 36 48 60 78 92 Output voltage with V e U 2 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Output Frequency f 2 Hz 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) Switching frequency f PWM kHz 8(adjustable 4 - 24) 8(adjustable 4 - 24) 8(adjustable 4 - 32) 8(adjustable 4 - 32) 8(adjustable 4 - 24) 8(adjustable 4 - 24) 8(adjustable 4 - 24) 8(adjustable 4 - 24) 8(adjustable 4 - 24) 8(adjustable 4 - 24) Operation Mode U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Rated operational current I e A 2.2 4.1 5.8 9.5 14 18 24 30 39 46 Power loss Heat dissipation at rated operational current P V W 63.75 76.5 101.2 136 209 300 297 375 444 506 Efficiency η % 91.5 94.9 95.4 96.6 96.2 97 97.3 97.5 97.6 97.7 Maximum leakage current to ground (PE) without motor I PE mA 4.65 4.65 4.65 4.65 1.55 1.55 2.47 2.47 2.47 2.47 Frame size FS2 FS2 FS2 FS2 FS3 FS3 FS4 FS4 FS4 FS4 Motor feeder Assigned motor rating at 400 V, 50 Hz P kW 0.75 1.5 2.2 4 5.5 7.5 11 15 18.5 22 at 440 - 480 V, 60 Hz P HP 1 2 3 5 7.5 10 15 20 25 30 Apparent power Apparent power at rated operation 400 V S kVA 1.52 2.84 4.02 6.58 9.67 12.47 16.63 20.78 27.02 31.87 Apparent power at rated operation 480 V S kVA 1.83 3.41 4.82 7.9 11.64 14.96 19.95 24.94 32.42 38.24 Braking function Standard braking torque max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N DC braking torque max. 100% of rated operational current I e, variable max. 100% of rated operational current I e, variable Braking torque with external braking resistance max. 100% rated operational current I e , with external braking resistance max. 100% rated operational current I e , with external braking resistance minimum external braking resistance R min Ω 400 200 150 100 75 50 40 22 22 22 Switch-on threshold for the braking transistor U DC V 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC Control section External control voltage U c V 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) Note 1) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 57 DA1 (U e : 400 V AC, 3 phase, U 2 : 400 V AC, 3 phase) DA1 (U e : 400 V AC, 3 phase, U 2 : 400 V AC, 3 phase)

58 PowerXL™ variable frequency drives DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) DC1, DA1 DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase)DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) Part no. DA1-34090… General Climatic proofing ρ w % 95 %, average relative humidity (RH), non-condensing (EN 50178) 95 %, average relative humidity (RH), non-condensing (EN 50178) Mounting position Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Radio interference level Radio interference class (EMC) C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments longest permissible length of motor cable I m 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) Main circuit Supply Rated operational voltage U e 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Mains voltage (50/60Hz) U LN V 380 (-10%) - 480 (+10%) 380 (-10%) - 480 (+10%) Input current I LN T 62.8 73.8 92.2 112.5 153.2 183.7 205.9 244.5 307.8 Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz Mains switch-on frequency Maximum of one time every 30 seconds Maximum of one time every 30 seconds Power section Overload current for 60 s every 600 s I L A 91.5 105 135 165 225 270 303 360 453 Starting current for 4 s I L A 122 140 180 220 300 360 404 480 604 Output voltage with V e U 2 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Output Frequency f 2 Hz 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) Switching frequency f PWM kHz 8(adjustable 4 - 24) 8(adjustable 4 - 24) 4(adjustable 4 - 16) 4(adjustable 4 - 16) 4(adjustable 4 - 12) 4(adjustable 4 - 8) 4(adjustable 4 - 16) 4(adjustable 4 - 12) 4(adjustable 4 - 8) Operation Mode U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Rated operational current I e A 61 72 90 110 150 180 202 240 302 Power loss Heat dissipation at rated operational current P V W 840 925 1080 1210 1575 1800 2090 2376 3040 Efficiency η % 97.2 97.5 97.6 97.8 97.9 98 98.1 98.2 98.1 Maximum leakage current to ground (PE) without motor I PE mA 0.49 0.49 2.68 2.68 2.68 2.68 4.75 4.75 4.75 Frame size FS5 FS5 FS6 FS6 FS6 FS6 FS7 FS7 FS7 Motor feeder Assigned motor rating at 400 V, 50 Hz P kW 30 37 45 55 75 90 110 132 160 at 440 - 480 V, 60 Hz P HP 40 50 60 75 100 150 175 200 250 Apparent power Apparent power at rated operation 400 V S kVA 42.26 48.5 62.35 76.21 103.92 124.71 139.95 166.28 209.23 Apparent power at rated operation 480 V S kVA 50.71 58.2 74.82 91.45 124.71 149.65 167.94 199.53 251.08 Braking function Standard braking torque max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N DC braking torque max. 100% of rated operational current I e, variable max. 100% of rated operational current I e, variable Braking torque with external braking resistance max. 100% rated operational current I e , with external braking resistance max. 100% rated operational current I e , with external braking resistance minimum external braking resistance R min Ω 12 12 6 6 6 6 6 6 6 Switch-on threshold for the braking transistor U DC V 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC 780 V DC Control section External control voltage U c V 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) Note 1) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 59 DA1 (U e : 400 V AC, 3 phase, U 2 : 400 V AC, 3 phase) DA1 (U e : 400 V AC, 3 phase, U 2 : 400 V AC, 3 phase)

60 PowerXL™ variable frequency drives DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu PowerXL™ variable frequency drives DA1 (Ue: 230 V AC, 3 phase, U2: 230 V AC, 3 phase) DC1, DA1 Typ DA1-32039… DA1-32046… DA1-32061… DA1-32072… DA1-32090… DA1-32110… DA1-32150… DA1-32180… DA1-32202… DA1-32248… General Climatic proofing ρ w % 95 %, average relative humidity (RH), non-condensing (EN 50178) 95 %, average relative humidity (RH), non-condensing (EN 50178) Mounting position Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 4000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Radio interference level Radio interference class (EMC) C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C1, C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments longest permissible length of motor cable I m 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) 25 (200) Main circuit Supply Rated operational voltage U e 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase Mains voltage (50/60Hz) U LN V 200 (-10%) - 240 (+10%) 200 (-10%) - 240 (+10%) Input current I LN T 40 47.1 62.4 74.1 92.3 112.7 153.5 183.8 206.2 252.8 Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz 48 - 62 Hz Mains switch-on frequency Maximum of one time every 30 seconds Maximum of one time every 30 seconds Power section Overload current for 60 s every 600 s I L A 45 69 91.5 108 135 165 225 270 303 372 Starting current for 4 s I L A 60 92 122 144 180 220 300 360 404 496 Output voltage with V e U 2 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase 230 V AC, 3-phase Output Frequency f 2 Hz 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz(max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz (max. 500 Hz) 0 - 50 Hz(max. 500 Hz) 0 - 50 Hz (max. 500 Hz) Switching frequency f PWM kHz 8(adjustable 4 - 24) 4(adjustable 4 - 16) 4(adjustable 4 - 16) 4(adjustable 4 - 12) 4(adjustable 4 - 8) 4(adjustable 4 - 16) 4(adjustable 4 - 12) Operation Mode U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlSlip compensationsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Rated operational current I e A 39 46 61 72 90 110 150 180 202 248 Power loss Heat dissipation at rated operational current P V W 187.5 264 345 518 550 720 814 945 1100 1425 Efficiency η % 97.5 97.6 97.7 97.2 97.5 97.6 97.8 97.9 98 98.1 Maximum leakage current to ground (PE) without motor I PE mA 1.42 1.42 0.28 0.28 1.54 1.54 1.54 1.54 2.74 2.74 Frame size FS4 FS4 FS5 FS5 FS6 FS6 FS6 FS6 FS7 FS7 Motor feeder Assigned motor rating at 230 V, 50 Hz P kW 7.5 11 15 18.5 22 30 45 55 55 75 at 220 - 240 V, 60 Hz P HP 10 15 20 25 30 40 50 60 75 100 Apparent power Apparent power at rated operation 230 V S kVA 11.95 18.33 24.3 28.68 35.85 43.82 59.76 71.71 80.47 98.8 Apparent power at rated operation 240 V S kVA 12.47 19.12 25.36 29.93 37.41 45.73 62.35 74.82 83.97 103.09 Braking function Standard braking torque max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N max. 30% M N DC braking torque max. 100% of rated operational current I e, variable max. 100% of rated operational current I e, variable Braking torque with external braking resistance max. 100% rated operational current I e , with external braking resistance max. 100% rated operational current I e , with external braking resistance minimum external braking resistance R min Ω 22 12 12 6 6 6 6 6 6 6 Switch-on threshold for the braking transistor U DC V 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC 390 V DC Control section External control voltage U c V 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) 24 V DC (max. 100 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) Note 1) With a switching frequency of 4 kHz and an ambient air temperature of +40°C or +50°C for IP20/NEMA 0 61 DA1 (U e : 230 V AC, 3 phase, U 2 : 230 V AC, 3 phase) DA1 (U e : 230 V AC, 3 phase, U 2 : 230 V AC, 3 phase)

62 PowerXL™ variable frequency drives Mains chokes, motor chokes CA04020001Z-EN-INT www.eaton.eu Mains chokes, motor chokes Technical data DX-LN1… DX-LN3… DX-LM3… General Standards IEC/EN 61558-2-20-2000,VDE 0570 Part 2-20/2001-04, UL, CSA IEC/EN 61558-2-20-2000, VDE 0570 Part 2-20/2001-04, UL, CSA IEC/EN 61558-2-20-2000, VDE 0570 Part 2-20/2001-04, UL, CSA Operating temperature °C -25 to +40, up to 70 with current derating (see the note) -25 to +40, up to 70 with current derating (see the note) -25 to +40, up to 70 with current derating (see the note) Storage temperature ϑ °C -25 - +85 -25 - +85 -25 - +85 Mechanical shock resistance g 11 ms 2 /15 3 shocks 11 ms 2 /15 3 shocks 11 ms 2 /15 3 shocks Vibration resistance g 1 (0 - 150 Hz) 1 (0 - 150 Hz) 1 (0 - 150 Hz) Vibration 0.35 mm at 10 - 55 Hz 0.35 mm at 10 - 55 Hz 0.35 mm at 10 - 55 Hz Altitude m 0 – 1000 above sea level, up to 5000 with current reduction (see notes) 0 – 1000 above sea level, up to 5000 with current reduction (see notes) 0 – 1000 above sea level, up to 5000 with current reduction (see notes) Mounting position Standing vertically, suspended horizontally Standing vertically, suspended horizontally Standing vertically, suspended horizontally Free surrounding areas MM 50 50 50 Protection type IP20 (terminal) IP20 (terminal) IP20 (terminal) Rated duty factor % DF 100 100 100 Weight kg 0.7 1.5 1.5 Electrical data Rated operational voltage 1 AC 230 V 3 AC 400 V 3 AC 400 V Max. supply voltage V AC 260 V + 0% (50/60 Hz) 550 V + 0% (50/60 Hz) 750 V + 0% (50/60 Hz) Operating frequency f Hz 50/60 50/60 0…200 Insulation class B B B Connection Terminations ✓ ✓ ✓ Connection lugs - ✓ (≧ 50 A) ✓ (≧ 63 A) PE stud ✓ ✓ ✓

PowerXL™ variable frequency drives Mains chokes, motor chokes CA04020001Z-EN-INT www.eaton.eu 63 DC1, DA1 Part no. Rated operational current Induct-ance Maximum heat dissipation Cu factor Voltage sag Connection Drilling Tightening torque Weight I e L P v U k Terminal Terminal Connection lug A mH W kg % mm 2 AWG mm 2 mm Nm kg Mains choke Rated operational voltage 1 AC 230 VDX-LN1-006 5.8 5.05 9 0,09 4 4 20 - 10 - - 0.8 0.7 DX-LN1-009 8.6 3.41 11 0,11 4 4 20 - 10 - - 0.8 0.7 DX-LN1-013 13 2.25 12 0,18 4 4 20 - 10 - - 0.8 1.5 DX-LN1-018 18 1.63 17 0,27 4 4 20 - 10 - - 0.8 1.5 DX-LN1-024 24 1.22 20 0,33 4 4 20 - 10 - - 0.8 2 DX-LN1-032 32 0.92 24 0,00 4 4 20 - 10 - 0 0.8 3 Rated operational voltage 3 AC 400 VDX-LN3-004 3.9 7.51 17 0,25 4 4 20 - 10 - - 0.8 1.5 DX-LN3-006 6 4.9 19 0,34 4 4 20 - 10 - - 0.8 1.5 DX-LN3-010 10 2.94 33 0,45 4 4 20 - 10 - - 0.8 2.2 DX-LN3-016 16 1.84 44 0,53 4 4 20 - 10 - - 0.8 2.9 DX-LN3-025 25 1.18 57 0,90 4 4 20 - 10 - - 0.8 4.8 DX-LN3-040 40 0.64 59 0,91 2.5 10 20 - 6 - - 1.5 4.8 DX-LN3-050 50 0.37 58 1,08 2.5 - - Cu 15 x 2 7 3 5.9 DX-LN3-060 60 0.31 60 1,51 2.5 - - Cu 15 x 2 7 3 5.9 DX-LN3-080 80 0.23 86 1,67 2.5 - - Cu 20 x 3 9 6 7.3 DX-LN3-100 100 0.18 101 1,68 2.5 - - Cu 20 x 3 9 6 10.2 DX-LN3-120 120 0.15 100 2,26 2.5 - - Cu 25 x 5 11 10 10.2 DX-LN3-160 160 0.11 140 2,35 2.5 - - Cu 25 x 5 11 10 12.3 DX-LN3-200 200 0.09 154 3,81 2.5 - - Cu 25 x 5 11 10 14.9 DX-LN3-250 250 0.07 155 4,26 2.5 - - Cu 40 x 5 14 15.5 20.6 DX-LN3-300 300 0.06 196 4,28 2.5 - - Cu 40 x 5 14 15.5 20.6 DX-LN3-303 303 0.06 230 0,00 2.5 - - Cu 40 x 5 14 15.5 20.6 DX-LN3-370 370 0.05 290 0,00 2.5 - - Cu 40 x 5 14 15.5 24.3 DX-LN3-450 450 0.04 300 0,00 2.5 - - Cu 40 x 10 14 15.5 23.8 Part no. Rated operational current Induct-ance max. heat dissipation (pulse frequency) Cu factor Connection Drilling Tightening torque Weight (3 kHz) (5 kHz) (12 kHz) Terminal Terminal Connection lug I e L P v P v P v A mH W W W kg mm 2 AWG mm 2 mm Nm kg Motor chokes Rated operational voltage 3 AC 400 VDX-LM3-005 5 2 12 14 24 0,29 4 20 - 10 - - 0.8 1.5 DX-LM3-008 8 4.1 32 46 54 1,09 4 20 - 10 - - 0.8 4.8 DX-LM3-011 11 3 45 66 71 1,23 4 20 - 10 - - 0.8 4.8 DX-LM3-016 16 1.5 50 75 78 0,88 4 20 - 10 - - 0.8 4.8 DX-LM3-035 35 1 75 114 116 2,30 4 20 - 10 - - 0.8 7.3 DX-LM3-050 50 0.6 110 157 168 3,60 10 20 - 6 - - 1.5 12.3 DX-LM3-063 63 0.5 130 190 193 3,01 - - Cu 15 x 2 7 3 14.9 DX-LM3-080 80 0.5 132 206 206 5,88 - - Cu 20 x 2 9 6 20.6 DX-LM3-100 100 0.45 177 279 294 10,10 - - Cu 20 x 2 9 6 31 DX-LM3-150 150 0.35 293 418 424 8,22 - - Cu 25 x 5 11 10 45 DX-LM3-180 180 0.3 418 298 439 14,75 - - Cu 25 x 5 11 10 45 DX-LM3-220 220 0.2 344 512 517 11,37 - - Cu 40 x 5 14 15.5 45 DX-LM3-260 260 0.15 358 526 520 11,10 - - Cu 40 x 5 14 15.5 45 DX-LM3-303 303 0.15 685 - - 0,00 - - Cu 40 x 5 14 15.5 48.7 DX-LM3-370 370 0.12 685 - - 0,00 - - Cu 40 x 5 14 15.5 61.7 DX-LM3-450 450 0.1 730 - - 0,00 - - Cu 40 x 10 14 15.5 81.7

64 PowerXL™ variable frequency drives DC1 CA04020001Z-EN-INT www.eaton.eu DC1 Dimensions DC1, sizes FS1 - FS3, degree of protection IP20/NEMA 0 DC1, sizes FS1 - FS3, degree of protection IP66/NEMA 4X c c1 VAR EMC b b1 a a1 1 2 3 4 5 6 7 8 9 10 11 ⌀1 ⌀2 ⌀ b2 a a1 b b1 b2 c c1 ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg 81 (3.19) 50 (1.97) 184 (7.24) 170 (6.69) 7 (0.28) 124 (4.88) 4 (0.16) 6 (0.24) 12 (0.47) 1.1 FS1 107 (4.21) 75 (2.95) 231 (9.09) 215 (8.46) 8 (0.31) 152 (5.98) 5 (0.2) 6 (0.24) 12 (0.47) 2.6 FS2 131 (5.16) 100 (3.94) 273 (10.75) 255 (10.04) 8.5 (0.33) 175 (6.89) 5 (0.2) 6 (0.24) 12 (0.47) 4 FS3 b b1 b2 a c a1 c1 ⌀1 ⌀2 a1 b1 a a1 b b1 b2 c c1 ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) 161 (6.34) 148.5 (5.85) 232 (9.13) 189 (7.44) 25 (0.98) 184 (7.24) 3.5 (0.14) 4 (0.15) 8 (0.31) 2.5 (5.51) FS1 188 (7.4) 176 (6.93) 257 (10.12) 200 (7.87) 28.5 (1.12) 192 (7.56) 3.5 (0.14) 4.2 (0.16) 8.5 (0.33) 4.7 (10.36) FS2 210.5 (8.29) 197.5 (7.78) 310 (12.2) 251.5 (9.9) 33.4 (1.31) 234 (9.21) 3.5 (0.14) 4.2 (0.16) 8.5 (0.33) 7.9 (17.42) FS3

PowerXL™ variable frequency drives DC1, DA1 CA04020001Z-EN-INT www.eaton.eu 65 DC1, DA1 DC1, DA1 DC1, sizes FS1 - FS3, degree of protection IP66/NEMA 4X, with local controls DA1, sizes FS2 - FS3, degree of protection IP20/NEMA 0 REV FWD 0 ON OFF PWR b a c a1 c1 b1 b2 a1 b1 ⌀1 ⌀2 a a1 b b1 b2 c c1 ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) 161 (6.34) 148.5 (5.85) 232 (9.13) 189 (7.44) 25 (0.98) 184 (7.24) 3.5 (0.14) 4 (0.15) 8 (0.31) 2.8 (6.17) FS1 188 (7.4) 176 (6.93) 257 (10.12) 200 (7.87) 28.5 (1.12) 192 (7.56) 3.5 (0.14) 4.2 (0.16) 8.5 (0.33) 5 (11.02) FS2 210.5 (8.29) 197.5 (7.78) 310 (12.2) 251.5 (9.9) 33.4 (1.31) 234 (9.21) 3.5 (0.14) 4.2 (0.16) 8.5 (0.33) 8.2 (18.08) FS3 EMC VAR c ⌀1 ⌀2 L2/N L3 DC- L1/L DC+ BR U V W 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 COM b1 b a a1 c1 ⌀ b2 a a1 b b1 b2 c c1 ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg 107 (4.21) 75 (2.95) 231 (9.09) 215 (8.46) 8 (0.31) 186 (7.32) 5 (0.2) 6 (0.24) 12 (0.47) 1.8 FS2 131 (5.16) 100 (3.94) 273 (10.75) 255 (10.04) 8.5 (0.33) 204 (8.03) 5 (0.2) 6 (0.24) 12 (0.47) 3.5 FS3

66 PowerXL™ variable frequency drives DA1 CA04020001Z-EN-INT www.eaton.eu DA1 DA1, sizes FS2 - FS3, degree of protection IP66/NEMA 4X DA1, sizes FS2 - FS3, degree of protection IP66/NEMA 4X, with local controls b b1 a c b2 a1 ⌀1 ⌀2 a1 b1 a a1 b b1 b2 c ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) 188 (7.4) 176 (6.93) 257 (10.12) 200 (7.87) 20 (0.79) 239.3 (9.42) 4.2 (0.16) 8.5 (0.33) 4.5 (10.4) FS2 211 (8.29) 198 (7.78) 310 (12.2) 252 (9.9) 25 (0.98) 266.3 (10.48) 4.2 (0.16) 8.5 (0.33) 7 (15.9) FS3 b b1 a c b2 a1 ⌀1 ⌀2 a1 b1 REV FWD 0 ON OFF PWR a a1 b b1 b2 c ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) 188 (7.4) 176 (6.93) 257 (10.12) 200 (7.87) 20 (0.79) 239.3 (9.42) 4.2 (0.16) 8.5 (0.33) 4.8 (10.6) FS2 211 (8.29) 198 (7.78) 310 (12.2) 252 (9.9) 25 (0.98) 266.3 (10.48) 4.2 (0.16) 8.5 (0.33) 7.3 (16.1) FS3

PowerXL™ variable frequency drives DA1 CA04020001Z-EN-INT www.eaton.eu 67 DC1, DA1 DA1, sizes FS4 - FS7, degree of protection IP55 DA1, size FS8, degree of protection IP40 Control panel version b a1 c c1 a b1 b2 ⌀1 ⌀2 ⌀ a a1 b b1 b2 c c1 ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg 171 (6.73) 110 (4.33) 450 (17.72) 428 (16.85) 9 (0.35) 240 (9.45) 2 (0.08) 8 (0.31) 15 (0.59) 11.5 FS4 235 (9.25) 175 (6.89) 540 (20.28) 515 (20.28) 12 (0.47) 270 (10.63) 2 (0.08) 8 (0.31) 15 (0.59) 22.5 FS5 330 (12.99) 200 (7.87) 865 (34.06) 840 (33.07) 15 (0.59) 330 (12.99) 2 (0.08) 11 (0.43) 22 (0.87) 50 FS6 330 (12.99) 200 (7.87) 1280 (50.39) 1255 (44.41) 15 (0.59) 360 (14.17) 2 (0.08) 11 (0.43) 22 (0.87) 80 FS7 a a1 b b1 b2 c c1 ⌀1 ⌀2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg 500 (19.69) 350 (13.78) 2000 (78.74) 1950 (76.77) 33 (1.3) 516 (20.31) 2 (0.08) 18 (0.71) 35 (1.38) 270 FS8

68 PowerXL™ variable frequency drives Accessories CA04020001Z-EN-INT www.eaton.eu Accessories Expansion modules for DC1 DXC-EXT-IO110DXC-EXT-IO230DXC-EXT-2RO1AO DXC-EXT-2RO DXC-EXT-LOCSIM Expansion modules for DA1 DXA-EXT-3DI1RODXA-EXT-3RODXA-EXT-ENCOD Fieldbus module for DA1 DX-NET-PROFIBUS 56 mm (2.2") 18 mm (0.71") 24 mm (0.95") 39 mm (1.54") 41 mm (1.61") 56 mm (2.2") 18 mm (0.71") 39 mm (1.54") 41 mm (1.61") 27 mm (1.06") 36 mm (1.42") 56 mm (2.2") 12.3 mm (0.48") 48 mm (1.89") 41 mm (1.61") 60 mm (2.36") 70 mm (2.75") 33.7 mm (1.33") 23 mm (0.91") 21 mm (0.83") OP ST PROFIBUS DP-V1 51.8 mm (2.04") 48 mm (1.89") 41 mm (1.61") 33.7 mm (1.33") 22.3 mm (0.88")

PowerXL™ variable frequency drives Accessories CA04020001Z-EN-INT www.eaton.eu 69 DC1, DA1 External keypad DX-KEY-LED DX-KEY-OLED Cable and splitter DX-SPL-RJ45-2SL1PL Interface converter DX-COM-PCKIT 66 mm (2.6") 81 mm (3.19") 26 mm (1.02") 4 mm (0.16") 110 mm (4.33") 90 mm (3.54") 23.5 mm (0.93") 4.5 mm (0.18") Hand Auto 42 mm (1.65") 19 mm (0.75") 145 mm (5.7") 81 mm (3.19") 77 mm (3.03") 23 mm (0.91") 6 3 4 5 2 1 PWR USB RxD Serial SW TxD

70 PowerXL™ variable frequency drives Mains chokes, motor chokes CA04020001Z-EN-INT www.eaton.eu Mains chokes, motor chokes Mains chokes DX-LN1-… Mains chokes, motor chokes DX-LN3-004…-DX-LN3-040DX-LM3-005…-DX-LM3-050 b2 b1 o d a a1 PE 1 2 c1 ± 5 mm (c1 ± 0.20”) b ± 5 mm(b ± 0.20”) c ± 5 mm (c ± 0.20”) a a1 b b1 b2 c c1 d Weight mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg DX-LN1-006 66 (2.6) 50 (1.97) 71 (2.8) 44 (1.73) 55 (2.17) 80 (3.15) 61 (2.36) 4.5 x 8 (0.18 x 0.31) 0.7 DX-LN1-009 66 (2.6) 50 (1.97) 71 (2.8) 44 (1.73) 55 (2.17) 80 (3.15) 61 (2.36) 4.5 x 8 (0.18 x 0.31) 0.7 DX-LN1-013 84 (3.31) 64 (2.52) 67 (2.64) 47 (1.85) 60 (2.36) 90 (3.54) 75 (2.95) 4.8 x 8 (0.18 x 0.31) 1.5 DX-LN1-018 84 (3.31) 64 (2.52) 67 (2.64) 47 (1.85) 60 (2.36) 90 (3.54) 75 (2.95) 4.8 x 8 (0.18 x 0.31) 1.5 DX-LN1-024 84 (3.31) 64 (2.52) 81 (3.19) 61 (2.4) 74 (2.91) 90 (3.54) 75 (2.95) 4.8 x 8 (0.18 x 0.31) 2 DX-LN1-032 105 (4.13) 84 (3.31) 102 (4.02) 65 (2.56) 81 (3.19) 121 (4.76) 94 (3.7) 5.8 x 11 (0.23 x 0.43) 3 a1 a b1b2 o d W1W2 V1 V2 U1 U2 PE PE b ± 5 mm (b ± 0.20”) c1 ± 5 mm (c1 ± 0.20”) c ± 5 mm (c ± 0.20”) a a1 b b1 b2 c c1 d Weight mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg DX-LN3-004 115 (4.53) 100 (3.94) 66 (2.6) 50 (1.97) 66 (2.6) 118 (4.65) 84 (3.31) 5 x 10 (0.2 x 0.39) 1.5 DX-LN3-006 115 (4.53) 100 (3.94) 66 (2.6) 50 (1.97) 66 (2.6) 118 (4.65) 84 (3.31) 5 x 10 (0.2 x 0.39) 1.5 DX-LN3-010 140 (5.51) 125 (4.92) 61 (2.4) 50 (1.97) 61 (2.4) 138 (5.43) 105 (4.13) 5 x 10 (0.2 x 0.39) 2.2 DX-LN3-016 140 (5.51) 125 (4.92) 71 (2.8) 50 (1.97) 71 (2.8) 138 (5.43) 105 (4.13) 5 x 10 (0.2 x 0.39) 2.9 DX-LN3-025 195 (7.68) 175 (6.89) 104 (4.09) 50 (1.97) 76.5 (3.01) 175 (6.89) 134 (5.28) 8 x 13 (0.31 x 0.51) 4.8 DX-LN3-040 195 (7.68) 175 (6.89) 104 (4.09) 50 (1.97) 76.5 (3.01) 188 (7.4) 134 (5.28) 8 x 13 (0.31 x 0.51) 4.8 DX-LM3-005 115 (4.53) 100 (3.94) 66 (2.6) 50 (1.97) 66 (2.6) 118 (4.65) 84 (3.31) 5 x 10 (0.2 x 0.39) 1.5 DX-LM3-008 195 (7.68) 175 (6.89) 104 (4.09) 50 (1.97) 76.5 (3.01) 175 (6.89) 134 (5.28) 8 x 13 (0.31 x 0.51) 4.8 DX-LM3-011 195 (7.68) 175 (6.89) 104 (4.09) 50 (1.97) 76.5 (3.01) 175 (6.89) 134 (5.28) 8 x 13 (0.31 x 0.51) 4.8 DX-LM3-016 195 (7.68) 175 (6.89) 104 (4.09) 50 (1.97) 76.5 (3.01) 175 (6.89) 134 (5.28) 8 x 13 (0.31 x 0.51) 4.8 DX-LM3-035 220 (8.66) 200 (7.87) 132 (5.2) 75 (2.95) 101.5 (4) 195 (7.68) 160 (6.3) 8 x 13 (0.31 x 0.51) 7.3 DX-LM3-050 270 (10.63) 250 (9.84) 106 (4.17) 75 (2.95) 96 (3.78) 228 (8.98) 198 (7.8) 8 x 13 (0.31 x 0.51) 12.3

PowerXL™ variable frequency drives Mains chokes, motor chokes CA04020001Z-EN-INT www.eaton.eu 71 DC1, DA1 Mains chokes, motor chokes Mains chokes, motor chokes DX-LN3-050…-DX-LN3-450DX-LM3-063…-DX-LM3-450 Height tolerance depends on gapThe position of connection lugs U2-V2-W2 depends on the coil material and can deviate from the position illustrated here. ⌀ d b1 a1 a PE U1 V1 W1 U2 V2 W2 U2 V2 W2 b2 PE b ± 10 mm (b ± 0.39”) c ± 5 mm (c ± 0.20”) a a1 b b1 b2 c d Weight mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg DX-LN3-050 195 (7.68) 175 (6.89) 105 (4.13) 75 (2.95) 91.5 (3.6) 132 ±5 (5.2 ±0.2) 8 x 13 (0.31 x 0.51) 5.9 DX-LN3-060 195 (7.68) 175 (6.89) 105 (4.13) 75 (2.95) 91.5 (3.6) 132 ±5 (5.2 ±0.2) 8 x 13 (0.31 x 0.51) 5.9 DX-LN3-080 220 (8.66) 200 (7.87) 110 (4.33) 50 (1.97) 81.5 (3.21) 160 ±5 (6.3 ±0.2) 8 x 13 (0.31 x 0.51) 7.3 DX-LN3-100 220 (8.66) 200 (7.87) 130 (5.12) 75 (2.95) 101.5 (4) 160 ±5 (6.3 ±0.2) 8 x 13 (0.31 x 0.51) 10.2 DX-LN3-120 220 (8.66) 200 (7.87) 130 (5.12) 75 (2.95) 101.5 (4) 160 ±5 (6.3 ±0.2 ) 8 x 13 (0.31 x 0.51) 10.2 DX-LN3-160 270 (10.63) 250 (9.84) 125 (4.92) 75 (2.95) 96 (3.75) 200 ±5 (7.87 ±0.2) 8 x 13 (0.31 x 0.51) 12.3 DX-LN3-200 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 120 (4.72) 202 ±5 (7.95 ±0.2) 8 x 13 (0.31 x 0.51) 14.9 DX-LN3-250 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±5 (8.27 ±0.2) 10 x 18 (0.39 x 0.71) 20.6 DX-LN3-300 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±5 (8.27 ±0.2) 10 x 18 (0.39 x 0.71) 20.6 DX-LN3-303 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±5 (8.27 ±0.2) 10 x 18 (0.39 x 0.71) 20.6 DX-LN3-370 384 (15.12) 350 (13.78) 215 (8.46) 100 (3.94) 130 (5.12) 258 ±5 (10.16 ±0.2) 12 x 20 (0.47 x 0.79) 24.3 DX-LN3-450 384 (15.12) 350 (13.78) 215 (8.46) 100 (3.94) 130 (5.12) 258 ±5 (10.16 ±0.2) 12 x 20 (0.47 x 0.79) 23.8 DX-LM3-063 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 120 (4.72) 202 ±10 (7.95 ±0.39) 8 x 13 (0.31 x 0.51) 14.9 DX-LM3-080 270 (10.63) 250 (9.84) 155 (6.1) 100 (3.94) 125 (4.92) 210 ±10 (8.27 ±0.39) 10 x 18 (0.39 x 0.71) 20.6 DX-LM3-100 384 (15.12) 350 (13.78) 215 (8.46) 100 (3.94) 130 (5.12) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 31 DX-LM3-150 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45 DX-LM3-180 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45 DX-LM3-220 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45 DX-LM3-260 384 (15.12) 350 (13.78) 260 (10.24) 150 (5.91) 180 (7.09) 258 ±30 (10.16 ±1.18) 12 x 20 (0.47 x 0.79) 45 DX-LM3-303 454 (17.87) 425 (16.73) 270 (10.63) 100 (3.94) 150 (5.9) 313 ±5 (12.32 ±0.2) 12 x 20 (0.47 x 0.79) 48.7 DX-LM3-370 454 (17.87) 425 (16.73) 285 (11.22) 125 (4.92) 165 (6.5) 313 ±5 (12.32 ±0.2) 12 x 20 (0.47 x 0.79) 61.7 DX-LM3-450 454 (17.87) 425 (16.73) 300 (11.81) 150 (5.9) 180 (7.09) 313 ±5 (12.32 ±0.2) 12 x 20 (0.47 x 0.79) 81.7

72 PowerXL™ variable frequency drives Sine filter CA04020001Z-EN-INT www.eaton.eu Sine filter Sine filter DX-SIN3-004 - DX-SIN3-180 a1 a b1 b c ⌀ d2 ⌀ d1   a a1 b b1 c d1 d2 Weight mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg DX-SIN3-004 155 (6.1) 130 (5.12) 105 (4.13) 56 (2.2) 160 (6.3) 4 x M5 M4 4.2 DX-SIN3-010 155 (6.1) 130 (5.12) 120 (4.72) 71 (2.8) 160 (6.3) 4 x M5 M4 6.1 DX-SIN3-016 190 (7.48) 170 (6.69) 160 (6.3) 67 (2.64) 185 (7.28) 4 x M5 M4 9.4 DX-SIN3-023 240 (9.45) 190 (7.48) 190 (7.48) 105 (4.13) 280 (11.02) 4 x M6 M6 14.5 DX-SIN3-032 240 (9.45) 190 (7.48) 200 (7.87) 105 (4.13) 280 (11.02) 4 x M6 M6 19.7 DX-SIN3-037 240 (9.45) 190 (7.48) 210 (8.27) 115 (4.53) 280 (11.02) 4 x M6 M6 21.3 DX-SIN3-048 240 (9.45) 190 (7.48) 220 (8.66) 125 (4.92) 280 (11.02) 4 x M6 M6 26.2 DX-SIN3-061 300 (11.81) 240 (9.45) 228 (8.97) 133 (5.24) 315 (12.4) 4 x M8 M8 35 DX-SIN3-072 300 (11.81) 240 (9.45) 240 (9.45) 145 (5.71) 315 (12.4) 4 x M8 M8 39 DX-SIN3-090 300 (11.81) 240 (9.45) 270 (10.63) 171 (6.73) 320 (12.6) 4 x M8 M8 53.3 DX-SIN3-115 360 (14.17) 264 (10.39) 210 (8.27) 125 (4.92) 415 (16.34) 4 x M8 M8 66 DX-SIN3-150 360 (14.17) 264 (10.39) 225 (8.86) 140 (5.51) 415 (16.34) 4 x M10 M8 69 DX-SIN3-180 360 (14.17) 264 (10.39) 240 (9.45) 154 (6.06) 415 (16.34) 4 x M10 M8 88.7

PowerXL™ variable frequency drives Sine filter CA04020001Z-EN-INT www.eaton.eu 73 DC1, DA1 Sine filter Sine filter DX-SIN3-250 DX-SIN3-440 DX-SIN3-480 ≦ 450 mm (≦ 17.7")≦ 500 mm (≦ 19.7") ≦ 320 mm (≦ 12.6") ≦ 450 mm (≦ 17.7") ± 3 mm (0.1") ≦ 400 mm (≦ 15.7") ⌀ 4 x M10 PE = M12 180 mm (7.1") 610 mm (24") 540 mm (21.3") 480 mm (18.9") 450 mm (17.7") ± 3 mm (0.1") 185 mm (7.3") 180 mm (7.1") 32.5 mm (1.3") ⌀ 6 x M10 PE = M12 ≦ 730 mm (≦ 28.7") 110 mm (4.3") 125 mm (4.9") 165 mm (6.5") 160 mm (6.3") ≦ 370 mm (≦ 14.6") 425 mm (16.7") ± 3 mm (0.1") 408 mm (16.1") ± 3 mm (0.1") d1 13 x 26 mm (0.5 x 1") 8 x M10 PE = M12

74 PowerXL™ variable frequency drives Braking resistances DX-BR... CA04020001Z-EN-INT www.eaton.eu Braking resistances DX-BR... DX-BR3-100 DX-BR5-033 DX-BR… with connection cable 41 mm (1.61") 9 mm (0.35") 188 mm (7.4") 330 mm (12.99") 310 mm (12.2") 80 mm (3.15") 70 mm (2.76") 10 mm (0.39") ⌀ 5.3 mm (⌀ 0.21") b1 a1 c a b 6 x 12 1 m (3.28 ft) a a1 b b1 c Weight mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) DX-BR200-0K4DX-BR400-0K4 95 (3.07) 70 (2.76) 445 (17.52) 425 (16.73) 95 (3.07) 2.4 (5.29) DX-BR150-0K5 140 (5.51) 120 (4.72) 395 (15.55) 375 (14.76) 120 (4.72) 3.7 (8.16) DX-BR100-0K8DX-BR200-0K8 140 (5.51) 120 (4.72) 445 (17.52) 425 (16.73) 120 (4.72) 4 (8.82) DX-BR075-1K4DX-BR100-1K4DX-BR150-1K4 230 (9.06) 210 (8.27) 445 (17.52) 425 (16.73) 120 (4.72) 5.7 (12.57) DX-BR100-1K6 2 x 140 (5.51) 2 x120 (4.72) 445 (17.52) 425 (16.73) 120 (4.72) 2 x 4 (8.82)

PowerXL™ variable frequency drives Braking resistances DX-BR... CA04020001Z-EN-INT www.eaton.eu 75 DC1, DA1 DX-BR… with connection cable DX-BR… with connection cable b1 a a1 c b 6 x 12 a a1 b b1 c Weight mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) DX-BR050-0K4DX-BR100-0K4 95 (3.07) 70 (2.76) 445 (17.52) 425 (16.73) 95 (3.07) 2.1 (4.63) DX-BR100-0K2 95 (3.07) 70 (2.76) 345 (13.58) 325 (12.8) 95 (3.07) 1.7 (3.75) DX-BR050-0K8 140 (5.51) 120 (4.72) 445 (17.52) 425 (16.73) 120 (4.72) 4 (8.82) DX-BR035-1K1 230 (9.06) 210 (8.27) 445 (17.52) 425 (16.73) 120 (4.72) 5.5 (12.13) a1 a ⌀ b1 b c a a1 b b1 c Ø1 Weight mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) DX-BR022-1K4 226 (8.9) 200 (7.87) 485 (19.09) 380 (14.96) 301 (11.85) 9 (0.35) 8.6 (18.96) DX-BR012-3K1DX-BR022-3K1DX-BR040-3K1DX-BR047-3K1DX-BR050-3K1 326 (12.83) 300 (11.81) 485 (19.09) 380 (14.96) 301 (11.85) 9 (0.35) 12 (26.46) DX-BR006-5K1DX-BR012-5K1DX-BR022-5K1DX-BR040-5K1DX-BR047-5K1DX-BR050-5K1DX-BR075-5K1 426 (16.77) 400 (15.75) 485 (19.09) 380 (14.96) 301 (11.85) 9 (0.35) 15.5 (34.17) DX-BR100-6K2 526 (20.71) 500 (19.69) 485 (19.09) 380 (14.96) 301 (11.85) 9 (0.35) 18 (39.68) DX-BR006-9K2DX-BR012-9K2DX-BR022-9K2DX-BR047-9K2 626 (24.65) 600 (23.62) 485 (19.09) 380 (14.96) 301 (11.85) 9 (0.35) 20.5 (45.19)

76 PowerXL™ variable frequency drives Braking resistances DX-BR... CA04020001Z-EN-INT www.eaton.eu DX-BR002-54K3, DX-BR006-18K1, DX-BR012-18K1 DX-BR002-102K4, DX-BR006-33K3 600 mm (23.62")626 mm (24.65") 380 mm (14.96") 485 mm (19.09") 601 mm (23.66") ⌀ 9 mm (⌀ 0.35") 40 kg (88.18 lbs) 700 mm (27.56")736 mm (28.98") 380 mm (14.96") 485 mm (19.09") 1020 mm (40.16") ⌀ 9 mm (⌀ 0.35") 85 kg (185.19 lbs)

PowerXL™ variable frequency drives Notes CA04020001Z-EN-INT www.eaton.eu 77 DC1, DA1 Notes

9000X variable frequency drives are ideal for sophisticated applications. With two different device series, they make a compelling case in a variety of scenarios: SVX stan-dard variable frequency drives when it comes to simple and complex motor control systems in industrial machine building environments, and SPX application frequency drives when it comes to sophisticated, high-performance requirements. In both open-loop and closed-loop modes, their vector control guarantees reliable, dynamic, and sophisticated motor control performance when working with three-phase induction or permanent magnet motors. SVX variable frequency driveVariable frequency drives for operation with two overload options: 150% or 110%. The com-pact enclosures are rated IP21 (NEMA 1) and IP54 (NEMA 12) and come with an integrated radio interference suppression filter. A braking chopper is integrated into all units up to size FR6, and, in addition, there are two different models.SVX…-4A…: U IN 3~400 V/U OUT 3~400 V, allocated motor outputs 0.75 – 132 kW SVX…-5A…: U IN 3~690 V/U OUT 3~690 V, allocated motor outputs 2.2 – 160 kW SPX variable frequency driveVariable frequency drives for operation with two overload options: 150% or 110%. The enclo-sures for the compact devices are rated IP21 (NEMA 1) and IP54 (NEMA 12) and come with an integrated radio interference suppression filter. A braking chopper is integrated into all units up to size FR6, and, in addition, there are two different models.SPX…-4A…: U IN 3~400 V/U OUT 3~400 V, allocated motor outputs 0.75 – 132 kW 1) SPX…-5A…: U IN 3~690 V/U OUT 3 ~690 V, allocated motor outputs 2.2 – 160 kW 1) 1) Higher outputs of up to 1,100 kW (400 V) and 2,000 kW (690 V) are covered by variable frequency drives with sizes FR10 to FR14. These devices are available upon request from your sales office. 9000X SVX, SPX variable frequency drive

Variable frequency drive 9000X CA04020001Z-EN-INT www.eaton.eu 79 SVX , SPX Description variable frequency drives SVX, SPX 80 Technical overview variable frequency drives SVX, SPX 81 Key to type references variable frequency drives SVX, SPX 82 Ordering variable frequency drives SVX 83 variable frequency drives SPX 88 Accessories 92 Technical data variable frequency drives SVX, SPX 94 Dimensions variable frequency drives SVX, SPX 102

80 Variable frequency drive 9000X SVX, SPX CA04020001Z-EN-INT www.eaton.eu SVX, SPX Description SVX, SPX SVX variable frequency drive SPX variable frequency drive SVX units are heavy-duty, all-purpose standard variable frequency drives. Featuring a variety of application settings, they can be configured to meet virtually any challenge that arises when used to control induction motors, including applications involving multiple motors or multiple pumps run in parallel. SVX variable frequency drives are suitable for all standard applications in machines, buildings, and industrial projects. One of the factors contributing to this is their sturdy design, which features integrated chokes and EMC filters and provides effective protection against interference from the grid. In addition, their sophisticated motor control design and effective protection features for both motor and variable frequency drive guarantee reliable operation. SPX variable frequency drives are the perfect choice when it comes to demanding applications in which reliability, a highly dynamic response, precision, and power are a must. Popular applications include lifting equipment and conveyances (cranes, winches, elevators, lifts), compressors and oil pumps, chippers, crushers, mixers, extruders, take-up and pay-off units, and tunnel boring machines. Multi-purpose SPX variable frequency drives are designed to cover a wide variety of applications while keeping things simple. In fact, with their excellent flexibility, they make it easy to adapt to additional process requirements for custom and complex applications used to control induction and permanent magnet motors. On top of this, their sturdy design, which features integrated chokes and EMC filters, provides effective protection against interference from the grid. Finally, their sophisticated motor control design and effective protection features for both motor and variable frequency drive guarantee reliable operation. Essential features Essential features • Performance range: – 0.75 - 132 kW (U IN : 3~ 400 V / U OUT : 3~ 400 V) – 2.2 - 160 kW (U IN : 3~ 690 V / U OUT : 3~ 690 V) • High load capacity: – H = 2x rated operational current (2 seconds/20 seconds) and 150% overload (60 seconds/600 seconds) – L = 2x rated operational current (2 seconds/20 seconds) and 110% overload (60 seconds/600 seconds) • Ambient air temperature: -10 °C up to +50 °C without derating• Degree of protection with compact design: IP21 (NEMA1) and IP54 (NEMA12) • I/O expansion with plug-in modules (5 slots)• Optional fieldbus connection (CANopen, PROFIBUS-DP, DeviceNet), LonWorks • PID control and power factor correction (PFC) for 1 to 5 pumps • Programmable start and application wizard for an easy parameter configuration process • Multiple display (multi-monitoring) for monitoring up to 3 different readings at the same time • V/Hz control with boost and slip compensation• Dynamic open-loop and closed-loop vector control • Internal braking chopper available in sizes of up to FR9 (compact design) • Performance range: – 0.75 - 132 kW (U IN : 3~ 400 V / U OUT : 3~ 400 V) – 2.2 - 160 kW (U IN : 3~ 690 V / U OUT : 3~ 690 V) • Expanded performance range with distributed design (IP00). Please enquire: – up to 1100 kW (U IN : 3~ 400 V / U OUT : 3~ 400 V) – up to 2000 kW (U IN : 3~ 690 V / U OUT : 3~ 690 V) • High load capacity: – H = 2x rated operational current (2 seconds/20 seconds) and 150% overload (60 seconds/600 seconds) – L = 2x rated operational current (2 seconds/20 seconds) and 110% overload (60 seconds/600 seconds) • Ambient air temperature: -10 °C up to +50 °C without derating• Degree of protection with compact design: Up to 132/160 kW: IP21 (NEMA1) and IP54 (NEMA12) • I/O expansion with plug-in modules (5 slots)• Optional fieldbus connection (CANopen, PROFIBUS-DP, DeviceNet), LonWorks • PID control and power factor correction (PFC) • Direct and parallel circuit solutions, even for PM motors with high outputs • Programmable start and application wizard for an easy parameter configuration process • Multiple display (multi-monitoring) for monitoring up to 3 different readings at the same time • V/Hz control with boost and slip compensation • Dynamic open-loop and closed-loop vector control• Internal braking chopper available in sizes up to FR9 Charg Res 3~ 3~ W V U L3 L2 L1 PE RS232 Output Measure- ments Motor IGBT Inverter Current Sensors Voltage Sensors Utility EMC Rectiﬁer Brake Chopper Brake Resistor Gate Drivers Power Module Control Module ControlKeypad Power Supply Input EMC Fan AC Choke Motor Control ASIC Motor and App lication Control Control I/O Control I/O Control I/O Control I/O Control I/O

Variable frequency drive 9000X SVX, SPX CA04020001Z-EN-INT www.eaton.eu 81 SVX , SPX Technical overview SVX SPX Rated operational voltage U e 400 V AC, 3-phase ✓ ✓ 690 V AC, 3-phase ✓ ✓ Mains voltage (50/60Hz) U LN V 380 (-15%) - 500 (+10%) ✓ ✓ 525 (-15%) - 690 (±10%) ✓ ✓ Supply frequency f LN Hz 50/60 50/60 Rated operational current 1) At 110% overload I e A 3.3 - 300 3.3 - 300 (2250) 2) At 150% overload I e A 2.2 - 245 2.2 - 245 (1940) 2) Assigned motor rating 1) With 400 V, 50 Hz (110% overload) P kW 1.1 - 160 1.1 - 160 (1200) 2) With 400 V, 50 Hz (150% overload) P kW 0.75 - 132 0.75 - 132 (1100) 2) With 690 V, 60 Hz (110% overload) P kW 3 - 200 3 - 200 (2000) 2) With 690 V, 60 Hz (150% overload) P kW 2.2 - 160 2.2 - 160 (1800) 2) Ambient temperature Operation ϑ °C -10 - +40 -10 - +40 Storage ϑ °C -40 - +70 -40 - +70 Operation Mode U/f control - ✓ sensorless vector control (SLV) ✓ ✓ Vector control with feedback (CLV) ✓ ✓ Switching frequency f PWM kHz 1 - 16 1 - 16 Output voltage with V e U 2 400 V AC, 3-phase ✓ ✓ 690 V AC, 3-phase ✓ ✓ Output Frequency f 2 Hz 0 - 320 Hz 0 - 320 Hz Protection type IP00 - (✓) 2) IP21 ✓ ✓ IP54 ✓ ✓ Fitted with Radio interference suppression filter ✓ ✓ Brake chopper ✓ ✓ Analog inputs parameterizable, 2 x (0 - 10 V, 0/4 - 20 mA) parameterizable, 2 x (0 - 10 V, 0/4 - 20 mA) Analog outputs parameterizable, 1 x (0/4 - 20 mA) parameterizable, 1 x (0/4 - 20 mA) Digital inputs parameterizable, 6 x (max. 30 V DC) parameterizable, 6 x (max. 30 V DC) Digital outputs parameterizable, 1 x (48 V DC / 50mA) parameterizable, 1 x (48 V DC / 50mA) Relay outputs Parameterizable, two N/Os, 8 A (24 VDC) / 8 A (250 VAC) / 0.4 A (125 VDC) Parameterizable, two N/Os, 8 A (24 VDC) / 8 A (250 VAC) / 0.4 A (125 VDC) Production quality RoHS, ISO 9001 RoHS, ISO 9001 Standards EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 EMC: EN 61800-3:2004+A1-2012 ✓ ✓ Safety: EN 61800-5-1: 2003 ✓ ✓ Certifications CE, cUL, c-Tick CE, cUL, c-Tick Notes 1) 2) L = 110% overload for 60 s every 10 min.H = 150% overload for 60 s every 10 min.Higher outputs are covered by variable frequency drives with sizes FR10 to FR14. These devices are available as modules with protection class IP 00 upon request from your sales office.

82 Variable frequency drive 9000X SVX, SPX CA04020001Z-EN-INT www.eaton.eu SVX, SPX Key to type references Information relevant for export to North America Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking UL File No. E134360 UL Category Control No. NMMS, NMMS2, NMMS7. NMMS8 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-06 North America Certification UL listed, certified by UL for use in Canada Specially designed for North America No Suitable for Branch circuits Max. Voltage Rating SVX/SPX…-4… 3~ 480 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey) SVX/SPX…-5… 3~ 690 V AC IEC: TN-S UL/CSA: "Y" (Solidly Grounded Wey) Degree of Protection SPX…A0… IEC: IP00 SVX/SPX…A1… IEC: IP21 SVX/SPX…A2… IEC: IP54 SVX 007 A 1 - 4 A 1 B 1 0 = IP00/open chassis1 = IP21/NEMA 12 = IP54/NEMA 12 F07 = 0.75 HP = 0.55 kW001 = 1 HP = 0.75 kW...007 = 7.5 HP = 5.5 kW...H20 = 2000 HP = 1800 kW 4 = 380 (-15 %) - 500 (+10 %)5 = 525 (-15 %) - 690 (+10 %) Assigned motor rating according tomains voltage category 4, 5 Device series SVX = Standard frequency driveSPX = Performance frequency drive Type 1 = Standard basic device Brake Chopper N = no internal brake chopperB = internal brake chopper Mains voltage category Display A = alpha numeric Radio interference suppression ﬁlters 1 = C2 class in 1 st and 2 nd environments 2 = no internal RFI ﬁlter4 = C3 class in 2 nd environment AFD software series A = Standard version Degree of protection UL/CSA

Variable frequency drive 9000X SVX, for three-phase motors 400 V AC CA04020001Z-EN-INT www.eaton.eu 83 SVX , SPX SVX, for three-phase motors 400 V AC Ordering Rated operational current 1) Assigned motor rating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra dio in te rf er en ce su pp re ss io n filt er Br ak e ch op pe r I e I e P P I e I e A A kW kW A A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN : 380 (-15%) - 500 (+10%) V 3.3 2.2 1.1 0.75 2.6 1.9 ✓ ✓ FR4 IP21 SVX001A1-4A1B1125676 1 off ✓ ✓ IP54 SVX001A2-4A1B1125677 4.3 3.3 1.5 1.1 3.6 2.6 ✓ ✓ IP21 SVXF15A1-4A1B1125707 ✓ ✓ IP54 SVXF15A2-4A1B1125708 5.6 4.3 2.2 1.5 5 3.6 ✓ ✓ IP21 SVX002A1-4A1B1125748 ✓ ✓ IP54 SVX002A2-4A1B1125678 7.6 5.6 3 2.2 6.6 5 ✓ ✓ IP21 SVX003A1-4A1B1125679 ✓ ✓ IP54 SVX003A2-4A1B1125680 9 7.6 4 3 8.5 6.6 ✓ ✓ IP21 SVX005A1-4A1B1125749 ✓ ✓ IP54 SVX005A2-4A1B1125753 12 9 5.5 4 11.3 8.5 ✓ ✓ IP21 SVX006A1-4A1B1125682 ✓ ✓ IP54 SVX006A2-4A1B1125683 16 12 7.5 5.5 15.2 11.3 ✓ ✓ FR5 IP21 SVX007A1-4A1B1125684 ✓ ✓ IP54 SVX007A2-4A1B1125685 23 16 11 7.5 21.7 15.2 ✓ ✓ IP21 SVX010A1-4A1B1125686 ✓ ✓ IP54 SVX010A2-4A1B1125687 31 23 15 11 29.3 21.7 ✓ ✓ IP21 SVX015A1-4A1B1125688 ✓ ✓ IP54 SVX015A2-4A1B1125689 38 31 18.5 15 36 29.3 ✓ ✓ FR6 IP21 SVX020A1-4A1B1125690 ✓ ✓ IP54 SVX020A2-4A1B1125754 46 38 22 18.5 41 36 ✓ ✓ IP21 SVX025A1-4A1B1125691 ✓ ✓ IP54 SVX025A2-4A1B1125692 61 46 30 22 55 41 ✓ ✓ IP21 SVX030A1-4A1B1125693 ✓ ✓ IP54 SVX030A2-4A1B1125694 72 61 37 30 68 55 ✓ - FR7 IP21 SVX040A1-4A1N1125695 ✓ - IP54 SVX040A2-4A1N1125696 ✓ ✓ IP21 SVX040A1-4A1B1132656 ✓ ✓ IP54 SVX040A2-4A1B1138452 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82

84 Variable frequency drive 9000X SVX, for three-phase motors 400 V AC CA04020001Z-EN-INT www.eaton.eu U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN : 380 (-15%) - 500 (+10%) V 87 72 45 37 81 68 ✓ ✓ FR7 IP21 SVX050A1-4A1B1138430 1 off ✓ - IP54 SVX050A2-4A1N1125697 ✓ - IP21 SVX050A1-4A1N1125750 ✓ ✓ IP54 SVX050A2-4A1B1138453 105 87 55 45 99 81 ✓ - IP54 SVX060A2-4A1N1125698 ✓ ✓ IP54 SVX060A2-4A1B1138454 ✓ ✓ IP21 SVX060A1-4A1B1138431 ✓ - IP21 SVX060A1-4A1N1125751 140 105 75 55 134 99 ✓ - FR8 IP21 SVX075A1-4A1N1125699 ✓ - IP54 SVX075A2-4A1N1125700 ✓ ✓ IP21 SVX075A1-4A1B1132657 ✓ ✓ IP54 SVX075A2-4A1B1138455 170 140 90 75 161 134 ✓ - IP21 SVX100A1-4A1N1125701 ✓ - IP54 SVX100A2-4A1N1125755 ✓ ✓ IP21 SVX100A1-4A1B1132658 ✓ ✓ IP54 SVX100A2-4A1B1138456 205 170 110 90 196 161 ✓ - IP21 SVX125A1-4A1N1125702 ✓ - IP54 SVX125A2-4A1N1125703 ✓ ✓ IP21 SVX125A1-4A1B1135242 ✓ ✓ IP54 SVX125A2-4A1B1138457 261 205 132 110 231 196 ✓ - FR9 IP21 SVX150A1-4A1N1125704 ✓ - IP54 SVX150A2-4A1N1125705 ✓ ✓ IP54 SVX150A2-4A1B1138458 ✓ ✓ IP21 SVX150A1-4A1B1138432 300 245 160 132 279 231 ✓ - IP21 SVX200A1-4A1N1125752 ✓ - IP54 SVX200A2-4A1N1125706 ✓ ✓ IP54 SVX200A2-4A1B1138459 ✓ ✓ IP21 SVX200A1-4A1B1132900 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82 Rated operational current 1) Assigned motor rating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o i nt er fer en ce su pp re ssi o n f ilt er Br ak e ch opp er I e I e P P I e I e A A kW kW A A

Variable frequency drive 9000X SVX, for three-phase motors 690 V AC CA04020001Z-EN-INT www.eaton.eu 85 SVX , SPX SVX, for three-phase motors 690 V AC Rated operational current 1) Assigned motorrating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r I e I e P P I e I e A A kW kW A A U e 690 V AC, 3-phase / U 2 690 V AC, 3-phase Mains voltage (50/60Hz) U LN : 525 (-15%) - 690 (±10%) V 4.5 3.2 3 2.2 3.8 2.9 ✓ - FR6 IP21 SVX002A1-5A4N1125756 1 off ✓ - IP54 SVX002A2-5A4N1125774 ✓ ✓ IP54 SVX002A2-5A4B1138498 ✓ ✓ IP21 SVX002A1-5A4B1138480 5.5 4.5 4 3 4.9 3.8 ✓ - IP21 SVX003A1-5A4N1125757 ✓ - IP54 SVX003A2-5A4N1125775 ✓ ✓ IP21 SVX003A1-5A4B1138481 ✓ ✓ IP54 SVX003A2-5A4B1138499 7.5 5.5 5.5 4 6.5 4.9 ✓ - IP21 SVX004A1-5A4N1125758 ✓ - IP54 SVX004A2-5A4N1125776 ✓ ✓ IP21 SVX004A1-5A4B1138482 ✓ ✓ IP54 SVX004A2-5A4B1138500 10 7.5 7.5 5.5 8.8 6.5 ✓ - IP21 SVX005A1-5A4N1125759 ✓ - IP54 SVX005A2-5A4N1125777 ✓ ✓ IP21 SVX005A1-5A4B1138483 ✓ ✓ IP54 SVX005A2-5A4B1138501 13.5 10 11 7.5 12.6 8.8 ✓ - IP21 SVX007A1-5A4N1125760 ✓ - IP54 SVX007A2-5A4N1125778 ✓ ✓ IP21 SVX007A1-5A4B1138484 ✓ ✓ IP54 SVX007A2-5A4B1138502 18 13.5 15 11 17 12.6 ✓ - IP21 SVX010A1-5A4N1125761 ✓ - IP54 SVX010A2-5A4N1125779 ✓ ✓ IP21 SVX010A1-5A4B1138485 ✓ ✓ IP54 SVX010A2-5A4B1138503 22 18 18.5 15 20.9 17 ✓ - IP21 SVX015A1-5A4N1125762 ✓ - IP54 SVX015A2-5A4N1125780 ✓ ✓ IP21 SVX015A1-5A4B1138486 ✓ ✓ IP54 SVX015A2-5A4B1138504 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82

86 Variable frequency drive 9000X SVX, for three-phase motors 690 V AC CA04020001Z-EN-INT www.eaton.eu U e 690 V AC, 3-phase / U 2 690 V AC, 3-phase Mains voltage (50/60Hz) U LN : 525 (-15%) - 690 (±10%) V 27 22 22 18.5 23.8 20.9 ✓ - FR6 IP21 SVX020A1-5A4N1125763 1 off ✓ - IP54 SVX020A2-5A4N1125781 ✓ ✓ IP21 SVX020A1-5A4B1138487 ✓ ✓ IP54 SVX020A2-5A4B1138505 34 27 30 22 32 23.8 ✓ - IP21 SVX025A1-5A4N1125764 ✓ - IP54 SVX025A2-5A4N1125782 ✓ ✓ IP21 SVX025A1-5A4B1138488 ✓ ✓ IP54 SVX025A2-5A4B1138506 41 34 37 30 39 32 ✓ - FR7 IP21 SVX030A1-5A4N1125765 ✓ - IP54 SVX030A2-5A4N1125783 ✓ ✓ IP21 SVX030A1-5A4B1138489 ✓ ✓ IP54 SVX030A2-5A4B1138507 52 41 45 37 47 39 ✓ - IP54 SVX040A2-5A4N1125784 ✓ - IP21 SVX040A1-5A4N1125766 ✓ ✓ IP21 SVX040A1-5A4B1138490 ✓ ✓ IP54 SVX040A2-5A4B1138508 62 52 55 45 58 47 ✓ - FR8 IP21 SVX050A1-5A4N1125767 ✓ - IP54 SVX050A2-5A4N1125785 ✓ ✓ IP54 SVX050A2-5A4B1138509 ✓ ✓ IP21 SVX050A1-5A4B1138491 80 62 75 55 78 58 ✓ - IP21 SVX060A1-5A4N1125768 ✓ - IP54 SVX060A2-5A4N1125786 ✓ ✓ IP21 SVX060A1-5A4B1138492 ✓ ✓ IP54 SVX060A2-5A4B1138510 100 80 90 75 93 78 ✓ - IP21 SVX075A1-5A4N1125769 ✓ - IP54 SVX075A2-5A4N1125787 ✓ ✓ IP21 SVX075A1-5A4B1138493 ✓ ✓ IP54 SVX075A2-5A4B1138511 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82 Rated operational current 1) Assigned motorrating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o i nt er fer en ce su pp re ssi o n f ilt er Br ak e ch opp er I e I e P P I e I e A A kW kW A A

Variable frequency drive 9000X SVX, for three-phase motors 690 V AC CA04020001Z-EN-INT www.eaton.eu 87 SVX , SPX U e 690 V AC, 3-phase / U 2 690 V AC, 3-phase Mains voltage (50/60Hz) U LN : 525 (-15%) - 690 (±10%) V 125 100 110 90 114 93 ✓ - FR9 IP21 SVX100A1-5A4N1125770 1 off ✓ - IP54 SVX100A2-5A4N1125788 ✓ ✓ IP21 SVX100A1-5A4B1138494 ✓ ✓ IP54 SVX100A2-5A4B1138512 144 125 132 110 134 114 ✓ - IP21 SVX125A1-5A4N1125771 ✓ - IP54 SVX125A2-5A4N1125789 ✓ ✓ IP54 SVX125A2-5A4B1138513 ✓ ✓ IP21 SVX125A1-5A4B1138495 170 144 160 132 162 134 ✓ - IP21 SVX150A1-5A4N1125772 ✓ - IP54 SVX150A2-5A4N1125790 ✓ ✓ IP21 SVX150A1-5A4B1138496 ✓ ✓ IP54 SVX150A2-5A4B1138514 208 170 200 160 202 162 ✓ - IP21 SVX175A1-5A4N1125773 ✓ - IP54 SVX175A2-5A4N1125791 ✓ ✓ IP21 SVX175A1-5A4B1138497 ✓ ✓ IP54 SVX175A2-5A4B1138515 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82 Rated operational current 1) Assigned motorrating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o i nt er fer en ce su pp re ssi o n f ilt er Br ak e ch opp er I e I e P P I e I e A A kW kW A A

88 Variable frequency drive 9000X SPX, for three-phase motors 400 V AC CA04020001Z-EN-INT www.eaton.eu SPX, for three-phase motors 400 V AC Rated operational current 1) Assigned motor rating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r I e I e P P I e I e A A kW kW A A U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN : 380 (-15%) - 500 (+10%) V 3.3 2.2 1.1 0.75 2.6 1.9 ✓ ✓ FR4 IP21 SPX001A1-4A1B1125203 1 off ✓ ✓ IP54 SPX001A2-4A1B1125207 4.3 3.3 1.5 1.1 3.6 2.6 ✓ ✓ IP21 SPXF15A1-4A1B1125675 ✓ ✓ IP54 SPXF15A2-4A1B1125480 5.6 4.3 2.2 1.5 5 3.6 ✓ ✓ IP21 SPX002A1-4A1B1125657 ✓ ✓ IP54 SPX002A2-4A1B1125216 7.6 5.6 3 2.2 6.6 5 ✓ ✓ IP21 SPX003A1-4A1B1125658 ✓ ✓ IP54 SPX003A2-4A1B1125226 9 7.6 4 3 8.5 6.6 ✓ ✓ IP21 SPX005A1-4A1B1125659 ✓ ✓ IP54 SPX005A2-4A1B1125245 12 9 5.5 4 11.3 8.5 ✓ ✓ IP21 SPX006A1-4A1B1125249 ✓ ✓ IP54 SPX006A2-4A1B1125251 16 12 7.5 5.5 15.2 11.3 ✓ ✓ FR5 IP21 SPX007A1-4A1B1125660 ✓ ✓ IP54 SPX007A2-4A1B1125260 23 16 11 7.5 21.7 15.2 ✓ ✓ IP21 SPX010A1-4A1B1125661 ✓ ✓ IP54 SPX010A2-4A1B1125662 31 23 15 11 29.3 21.7 ✓ ✓ IP21 SPX015A1-4A1B1125663 ✓ ✓ IP54 SPX015A2-4A1B1125664 38 31 18.5 15 36 29.3 ✓ ✓ FR6 IP21 SPX020A1-4A1B1125665 ✓ ✓ IP54 SPX020A2-4A1B1125291 46 38 22 18.5 41 36 ✓ ✓ IP21 SPX025A1-4A1B1125666 ✓ ✓ IP54 SPX025A2-4A1B1125302 61 46 30 22 55 41 ✓ ✓ IP21 SPX030A1-4A1B1125667 ✓ ✓ IP54 SPX030A2-4A1B1125313 72 61 37 30 68 55 ✓ - FR7 IP21 SPX040A1-4A1N1125319 ✓ - IP54 SPX040A2-4A1N1125325 ✓ ✓ IP21 SPX040A1-4A1B1134844 ✓ ✓ IP54 SPX040A2-4A1B1138609 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82

Variable frequency drive 9000X SPX, for three-phase motors 400 V AC CA04020001Z-EN-INT www.eaton.eu 89 SVX , SPX U e 400 V AC, 3-phase / U 2 400 V AC, 3-phase Mains voltage (50/60Hz) U LN : 380 (-15%) - 500 (+10%) V 87 72 45 37 81 68 ✓ - FR7 IP21 SPX050A1-4A1N1125331 1 off ✓ - IP54 SPX050A2-4A1N1125337 ✓ ✓ IP21 SPX050A1-4A1B1138606 ✓ ✓ IP54 SPX050A2-4A1B1138610 105 87 55 45 99 81 ✓ - IP21 SPX060A1-4A1N1125668 ✓ - IP54 SPX060A2-4A1N1125348 ✓ ✓ IP21 SPX060A1-4A1B1138607 ✓ ✓ IP54 SPX060A2-4A1B1138611 140 105 75 55 134 99 ✓ - FR8 IP21 SPX075A1-4A1N1125354 ✓ - IP54 SPX075A2-4A1N1125359 ✓ ✓ IP21 SPX075A1-4A1B1138608 ✓ ✓ IP54 SPX075A2-4A1B1138612 170 140 90 75 161 134 ✓ - IP21 SPX100A1-4A1N1125365 ✓ - IP54 SPX100A2-4A1N1125370 ✓ ✓ IP21 SPX100A1-4A1B1131744 ✓ ✓ IP54 SPX100A2-4A1B1138613 205 170 110 90 196 161 ✓ - IP21 SPX125A1-4A1N1125669 ✓ - IP54 SPX125A2-4A1N1125377 ✓ ✓ IP21 SPX125A1-4A1B1134489 ✓ ✓ IP54 SPX125A2-4A1B1138614 261 205 132 110 231 196 ✓ - FR9 IP21 SPX150A1-4A1N1125381 ✓ - IP54 SPX150A2-4A1N1125385 ✓ ✓ IP21 SPX150A1-4A1B1129701 ✓ ✓ IP54 SPX150A2-4A1B1138615 300 245 160 132 279 231 ✓ - IP21 SPX200A1-4A1N1125670 ✓ - IP54 SPX200A2-4A1N1125398 ✓ ✓ IP21 SPX200A1-4A1B1134845 ✓ ✓ IP54 SPX200A2-4A1B1138616 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82 Rated operational current 1) Assigned motor rating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o i nt er fer en ce su pp re ssi o n f ilt er Br ak e ch opp er I e I e P P I e I e A A kW kW A A

90 Variable frequency drive 9000X SPX, for three-phase motors 690 V AC CA04020001Z-EN-INT www.eaton.eu SPX, for three-phase motors 690 V AC Rated operational current 1) Assigned motor rating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o in te rf er en ce su pp re ss io n f ilt er Br ak e ch op pe r I e I e P P I e I e A A kW kW A A U e 690 V AC, 3-phase / U 2 690 V AC, 3-phase Mains voltage (50/60Hz) U LN : 525 (-15%) - 690 (±10%) V 4.5 3.2 3 2.2 3.8 2.9 ✓ - FR6 IP21 SPX002A1-5A4N1125212 1 off ✓ - IP54 SPX002A2-5A4N1125218 ✓ ✓ IP21 SPX002A1-5A4B1138638 ✓ ✓ IP54 SPX002A2-5A4B1129582 5.5 4.5 4 3 4.9 3.8 ✓ - IP54 SPX003A2-5A4N1125228 ✓ - IP21 SPX003A1-5A4N1125222 ✓ ✓ IP21 SPX003A1-5A4B1138639 ✓ ✓ IP54 SPX003A2-5A4B1129583 7.5 5.5 5.5 4 6.5 4.9 ✓ - IP21 SPX004A1-5A4N1125232 ✓ ✓ IP54 SPX004A2-5A4B1129584 ✓ ✓ IP21 SPX004A1-5A4B1138640 ✓ - IP54 SPX004A2-5A4N1125236 10 7.5 7.5 5.5 8.8 6.5 ✓ - IP21 SPX005A1-5A4N1125241 ✓ - IP54 SPX005A2-5A4N1125247 ✓ ✓ IP21 SPX005A1-5A4B1138641 ✓ ✓ IP54 SPX005A2-5A4B1129585 13.5 10 11 7.5 12.6 8.8 ✓ - IP21 SPX007A1-5A4N1125256 ✓ - IP54 SPX007A2-5A4N1125262 ✓ ✓ IP21 SPX007A1-5A4B1138642 ✓ ✓ IP54 SPX007A2-5A4B1129586 18 13.5 15 11 17 12.6 ✓ - IP21 SPX010A1-5A4N1125267 ✓ - IP54 SPX010A2-5A4N1125272 ✓ ✓ IP21 SPX010A1-5A4B1138643 ✓ ✓ IP54 SPX010A2-5A4B1129587 22 18 18.5 15 20.9 17 ✓ - IP21 SPX015A1-5A4N1125277 ✓ - IP54 SPX015A2-5A4N1125282 ✓ ✓ IP21 SPX015A1-5A4B1138644 ✓ ✓ IP54 SPX015A2-5A4B1129588 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82

Variable frequency drive 9000X SPX, for three-phase motors 690 V AC CA04020001Z-EN-INT www.eaton.eu 91 SVX , SPX U e 690 V AC, 3-phase / U 2 690 V AC, 3-phase Mains voltage (50/60Hz) U LN : 525 (-15%) - 690 (±10%) V 27 22 22 18.5 23.8 20.9 ✓ - FR6 IP21 SPX020A1-5A4N1125287 1 off ✓ - IP54 SPX020A2-5A4N1125293 ✓ ✓ IP21 SPX020A1-5A4B1138645 ✓ ✓ IP54 SPX020A2-5A4B1129589 34 27 30 22 32 23.8 ✓ - IP21 SPX025A1-5A4N1125298 ✓ - IP54 SPX025A2-5A4N1125304 ✓ ✓ IP54 SPX025A2-5A4B1129590 ✓ ✓ IP21 SPX025A1-5A4B1138646 41 34 37 30 39 32 ✓ - FR7 IP21 SPX030A1-5A4N1125309 ✓ - IP54 SPX030A2-5A4N1125315 ✓ ✓ IP21 SPX030A1-5A4B1138647 ✓ ✓ IP54 SPX030A2-5A4B1129591 52 41 45 37 47 39 ✓ - IP21 SPX040A1-5A4N1125321 ✓ - IP54 SPX040A2-5A4N1125327 ✓ ✓ IP21 SPX040A1-5A4B1138648 ✓ ✓ IP54 SPX040A2-5A4B1129592 62 52 55 45 58 47 ✓ - FR8 IP21 SPX050A1-5A4N1125333 ✓ - IP54 SPX050A2-5A4N1125339 ✓ ✓ IP21 SPX050A1-5A4B1138649 ✓ ✓ IP54 SPX050A2-5A4B1129593 80 62 75 55 78 58 ✓ - IP21 SPX060A1-5A4N1125344 ✓ - IP54 SPX060A2-5A4N1125350 ✓ ✓ IP21 SPX060A1-5A4B1138650 ✓ ✓ IP54 SPX060A2-5A4B1129594 100 80 90 75 93 78 ✓ - IP21 SPX075A1-5A4N1125356 ✓ - IP54 SPX075A2-5A4N1125361 ✓ ✓ IP54 SPX075A2-5A4B1129595 ✓ ✓ IP21 SPX075A1-5A4B1138651 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82 Rated operational current 1) Assigned motor rating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o i nt er fer en ce su pp re ssi o n f ilt er Br ak e ch opp er I e I e P P I e I e A A kW kW A A

92 Variable frequency drive 9000X SPX, for three-phase motors 690 V AC, Accessories CA04020001Z-EN-INT www.eaton.eu SPX, for three-phase motors 690 V AC, Accessories Accessories U e 690 V AC, 3-phase / U 2 690 V AC, 3-phase Mains voltage (50/60Hz) U LN : 525 (-15%) - 690 (±10%) V 125 100 110 90 114 93 ✓ - FR9 IP21 SPX100A1-5A4N1125367 1 off ✓ - IP54 SPX100A2-5A4N1125372 ✓ ✓ IP21 SPX100A1-5A4B1138652 ✓ ✓ IP54 SPX100A2-5A4B1129596 144 125 132 110 134 114 ✓ - IP21 SPX125A1-5A4N1125375 ✓ - IP54 SPX125A2-5A4N1125379 ✓ ✓ IP21 SPX125A1-5A4B1138653 ✓ ✓ IP54 SPX125A2-5A4B1129597 170 144 160 132 162 134 ✓ - FR9 IP21 SPX150A1-5A4N1125383 1 off ✓ - IP54 SPX150A2-5A4N1125387 ✓ ✓ IP21 SPX150A1-5A4B1138654 ✓ ✓ IP54 SPX150A2-5A4B1129598 208 170 200 160 202 162 ✓ - IP21 SPX175A1-5A4N1125389 ✓ - IP54 SPX175A2-5A4N1125391 ✓ ✓ IP21 SPX175A1-5A4B1138655 ✓ ✓ IP54 SPX175A2-5A4B1129599 Notes 1) L = 110% overload for 60 s every 10 min. H = 150% overload for 60 s every 10 min. 2) Assigned motor rating for normal internally and externally ventilated four-pole, three-phase asynchronous motors with 1500 rpm (at 50 Hz) or 1800 rpm (at 60 Hz) Information relevant for export to North America ￫ Page 82 Description For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America External keypad With illuminated LCD displayPlain text, multi-lineWith control buttons and function keysFront IP54 SVX, SPX KEYPAD-LOC/REM139787 1 off Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking UL File No. E134360 UL Category Control No. NMMS, NMMS2, NMMS7. NMMS8 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-06 North America Certification UL listed, certified by UL for use in Canada Suitable for Branch circuits Mounting unit Mounting frame for control panel door 3 m KEYPAD-LOC/REM OPTRMT-KIT126868 1 off Connection cable Connection between variable frequency drive and PC 1.5 m SVX, SPX SVDRIVECABLE129001 1 off Rated operational current 1) Assigned motor rating 1), 2) Rated motor current 1), 2) Fitted with Frame size Protection type Part no.Article no. Pricesee price list Std. pack L = 110 % H = 150 % L = 110 % H = 150 % L = 110 % H = 150 % Ra di o i nt er fer en ce su pp re ssi o n f ilt er Br ak e ch opp er I e I e P P I e I e A A kW kW A A

Variable frequency drive 9000X Accessories CA04020001Z-EN-INT www.eaton.eu 93 SVX , SPX Accessories Description For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America Expansion modules The expansion module is plugged into the variable-frequency drive.Adapters Product Standards UL 508C; CSA-C22.2 No. 14; IEC/EN61800-3; IEC/EN61800-5; CE marking UL File No. E134360 UL Category Control No. NMMS, NMMS2, NMMS7. NMMS8 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-06 North America Certification UL listed, certified by UL for use in Canada Suitable for Branch circuits System bus adapter SPX OPTD1125077 1 off System bus adapter with CANopen® interface SPX OPTD2125078 RS232 adapter SPX OPTD3125079 Output expansion 1 relay output (NO/NC)1 relay output (NC)1 Thermistor input SPX OPTA3125050 1 off 2 relay outputs (NO/NC) SVX, SPX OPTA2125049 1 relay output (NO)5 digital inputs (42 - 240 V AC) SVX, SPX OPTB9125064 3 relay outputs (NO) SVX, SPX OPTB5125062 1 relay output (NO/NC)1 relay output (NO)1 Thermistor input SVX, SPX OPTB2125060 I/O expansion 6 digital inputsExternal 24 V supply SVX, SPX OPTB1125059 1 off 6 digital inputs1 digital output2 analog inputs (mA/V)1 analog output SVX, SPX OPTA9125055 3 digital inputs1 relay output (NO/NC)1 digital output SVX, SPX OPTAA125056 6 digital inputs1 digital output2 analog inputs (mA/V)1 analog output SPX OPTA8125054 1 analog input (mA, isolated)2 analog outputs (mA, isolated) SVX, SPX OPTB4125061 Encoder module HTL (+15 V/24 V)Master / Slave capability SPX OPTA7125053 1 off Temperature sensor expansion 3 Pt100External 24 V supply SVX, SPX OPTB8125063 1 off Fieldbus modules The field bus module is plugged into the variable-frequency drive. Modbus RS485Screw terminals SVX, SPX OPTC2125067 1 off PROFIBUS-DPScrew terminals SVX, SPX OPTC3125068 LonWorksScrew terminals SVX, SPX OPTC4125069 CANopen®Screw terminals SVX, SPX OPTC6125710 PROFIBUS-DPSUB-D 9 pole, socket SVX, SPX OPTC5125070 DeviceNetSUB-D 9 pole, socket SVX, SPX OPTC7125071 Modbus RS485SUB-D 9 pole, socket SVX, SPX OPTC8125072 Modbus-TCPRJ45, 8-pole SVX, SPX OPTCI125075 BACnet/IPRJ45, 8-pole SVX, SPX OPTCJ125076

94 Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase SVX , SPX SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase Technical data SVX001…SPX001… SVXF15…SPXF15… SVX002…SPX002… SVX003…SPX003… SVX005…SPX005… SVX006…SPX006… SVX007…SPX007… SVX010…SPX010… SVX015…SPX015… SVX020…SPX020… General Standards EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 Certifications CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick Production quality RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 Climatic proofing ρ w % 95% relative humidity, no condensation, no corrosion, no dripping water 95% relative humidity, no condensation, no corrosion, no dripping water Ambient temperature Operation ϑ °C -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 Storage ϑ °C -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 Radio interference level Radio interference class (EMC) C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments Mounting position Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Weight kg 5 5 5 5 5 5 8.1 8.1 8.1 18.5 Main circuit Supply Rated operational voltage U e V 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Mains voltage (50/60Hz) U LN V 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz Power section Function Frequency inverter with internal DC link and IGBT inverter Frequency inverter with internal DC link and IGBT inverter Output voltage with V e U 2 V 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Output Frequency f 2 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz Switching frequency f PWM kHz 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) 10(adjustable 1 - 16) Operation Mode SVX… U/f controlsensorless vector control (SLV) U/f controlsensorless vector control (SLV) SPX… U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Rated operational current At 110% overload I e A 3.3 4.3 5.6 7.6 9 12 16 23 31 38 At 150% overload I e A 2.2 3.3 4.3 5.6 7.6 9 12 16 23 31 Motor feeder Assigned motor rating Note For AC motors with internal and external ventilation with 50 Hz / 60 Hz For AC motors with internal and external ventilation with 50 Hz / 60 Hz With 400 V, 50 Hz (110% overload) P kW 1.1 1.5 2.2 3 4 5.5 7.5 11 15 18.5 With 400 V, 50 Hz (150% overload) P kW 0.75 1.1 1.5 2.2 3 4 5.5 7.5 11 15 With 440 - 480 V, 60 Hz (110% overload) P HP 1.5 2 3 5 6 7.5 10 15 20 25 With 440 - 480 V, 60 Hz (150% overload) P HP 1 1.5 2 3 5 6 7.5 10 15 20 Control section External control voltage U c V 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 95 SVX, SPX (U e : 400 V AC, 3-phase, U 2 : 400 V AC, 3-phase SVX, SPX (U e : 400 V AC, 3-phase, U 2 : 400 V AC, 3-phase)

96 Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase SVX , SPX SVX025…SPX025… SVX030…SPX030… SVX040…SPX040… SVX050…SPX050… SVX060…SPX060… SVX075…SPX075… SVX100…SPX100… SVX125…SPX125… SVX150…SPX150… SVX200…SPX200… General Standards EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 Certifications CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick Production quality RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 Climatic proofing ρ w % 95% relative humidity, no condensation, no corrosion, no dripping water 95% relative humidity, no condensation, no corrosion, no dripping water Ambient temperature Operation ϑ °C -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 Storage ϑ °C -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 Radio interference level Radio interference class (EMC) C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments Mounting position Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Weight kg 18.5 18.5 35 35 35 58 58 58 146 146 Main circuit Supply Rated operational voltage U e V 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Mains voltage (50/60Hz) U LN V 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) 380 (-15%) - 500 (+10%) Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz Power section Function Frequency inverter with internal DC link and IGBT inverter Frequency inverter with internal DC link and IGBT inverter Output voltage with V e U 2 V 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase 400 V AC, 3-phase Output Frequency f 2 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz Switching frequency f PWM kHz 10(adjustable 1 - 16) 10(adjustable 1 - 16) 3.6(adjustable 1 - 10) 3.6(adjustable 1 - 10) 3.6(adjustable 1 - 10) 3.6(adjustable 1 - 10) 3.6(adjustable 1 - 10) 3.6(adjustable 1 - 10) 3.6(adjustable 1 - 10) 3.6(adjustable 1 - 10) Operation Mode SVX… U/f controlsensorless vector control (SLV) U/f controlsensorless vector control (SLV) SPX… U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Rated operational current At 110% overload I e A 46 61 72 87 105 140 170 205 261 300 At 150% overload I e A 38 46 61 72 87 105 140 170 205 245 Motor feeder Assigned motor rating Note For AC motors with internal and external ventilation with 50 Hz / 60 Hz For AC motors with internal and external ventilation with 50 Hz / 60 Hz With 400 V, 50 Hz (110% overload) P kW 22 30 37 45 55 75 90 110 132 160 With 400 V, 50 Hz (150% overload) P kW 18.5 22 30 37 45 55 75 90 110 132 With 440 - 480 V, 60 Hz (110% overload) P HP 30 40 50 60 75 100 125 150 200 250 With 440 - 480 V, 60 Hz (150% overload) P HP 25 30 40 50 60 75 100 125 150 200 Control section External control voltage U c V 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 97 SVX, SPX (U e : 400 V AC, 3-phase, U 2 : 400 V AC, 3-phase) SVX, SPX (U e : 400 V AC, 3-phase, U 2 : 400 V AC, 3-phase)

98 Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase SVX , SPX SVX002…SPX002… SVX003…SPX003… SVX004…SPX004… SVX005…SPX005… SVX007…SPX007… SVX010…SPX010… SVX015…SPX015… SVX020…SPX020… SVX025…SPX025… SVX030…SPX030… General Standards EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 Certifications CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick Production quality RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 Climatic proofing ρ w % 95% relative humidity, no condensation, no corrosion, no dripping water 95% relative humidity, no condensation, no corrosion, no dripping water Ambient temperature Operation ϑ °C -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 Storage ϑ °C -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 Radio interference level Radio interference class (EMC) C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments Mounting position Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Weight kg 18.5 18.5 18.5 18.5 18.5 18.5 18.5 18.5 18.5 35 Main circuit Supply Rated operational voltage U e V 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase Mains voltage (50/60Hz) U LN V 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz Power section Function Frequency inverter with internal DC link and IGBT inverter Frequency inverter with internal DC link and IGBT inverter Output voltage with V e U 2 V 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase Output Frequency f 2 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz Switching frequency f PWM kHz 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) Operation Mode SVX… U/f controlsensorless vector control (SLV) U/f controlsensorless vector control (SLV) SPX… U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Rated operational current At 110% overload I e A 4.5 5.5 7.5 10 13.5 18 22 27 34 41 At 150% overload I e A 3.2 4.5 5.5 7.5 10 13.5 18 22 27 34 Motor feeder Assigned motor rating Note For AC motors with internal and external ventilation with 50 Hz / 60 Hz For AC motors with internal and external ventilation with 50 Hz / 60 Hz With 690 V, 60 Hz (110% overload) P kW 3 4 5.5 7.5 11 15 18.5 22 30 37 With 690 V, 60 Hz (150% overload) P kW 2.2 3 4 5.5 7.5 11 15 18.5 22 30 With 550 - 600 V, 60 Hz (110% overload) P HP 3 4 5 7.5 10 15 20 25 30 40 With 550 - 600 V, 60 Hz (150% overload) P HP 2 3 4 5 7.5 10 15 20 25 30 Control section External control voltage U c V 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 99 SVX, SPX (U e : 690 V AC, 3-phase, U 2 : 690V AC, 3-phase) SVX, SPX (U e : 690 V AC, 3-phase, U 2 : 690V AC, 3-phase)

100 Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Variable frequency drive 9000X SVX, SPX (Ue: 400 V AC, 3-phase/U2: 400 V AC, 3-phase SVX , SPX SVX040…SPX040… SVX050…SPX050… SVX060…SPX060… SVX075…SPX075… SVX100…SPX100… SVX125…SPX125… SVX150…SPX150… SVX175…SPX175… SVX200…SPX200… General Standards EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 EMC: EN 61800-3:2004+A1-2012Safety: EN 61800-5-1: 2003 Certifications CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick CE, cUL, c-Tick Production quality RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 RoHS, ISO 9001 Climatic proofing ρ w % 95% relative humidity, no condensation, no corrosion, no dripping water 95% relative humidity, no condensation, no corrosion, no dripping water Ambient temperature Operation ϑ °C -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 -10 - +40 Storage ϑ °C -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 -40 - +70 Radio interference level Radio interference class (EMC) C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. C2, C3, depending on the motor cable length, the connected load, and ambient conditions. External radio interference suppression filters (optional) may be necessary. Environment (EMC) 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments 1st and 2nd environments Mounting position Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 3000 m Protection against direct contact BGV A3 (VBG4, finger- and back-of-hand proof) BGV A3 (VBG4, finger- and back-of-hand proof) Weight kg 35 58 58 58 146 146 146 146 176 Main circuit Supply Rated operational voltage U e V 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase Mains voltage (50/60Hz) U LN V 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) 525 (-15%) - 690 (±10%) Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz 45 - 66 Hz Power section Function Frequency inverter with internal DC link and IGBT inverter Frequency inverter with internal DC link and IGBT inverter Output voltage with V e U 2 V 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase 690 V AC, 3-phase Output Frequency f 2 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz 0 - 320 Hz Switching frequency f PWM kHz 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) 1.5(adjustable 1 - 6) Operation Mode SVX… U/f controlsensorless vector control (SLV) U/f controlsensorless vector control (SLV) SPX… U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) U/f controlsensorless vector control (SLV)Vector control with feedback (CLV) Frequency resolution (setpoint value) Δf Hz 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 0.01 Rated operational current At 110% overload I e A 52 62 80 100 125 144 170 208 261 At 150% overload I e A 41 52 62 80 100 125 144 170 208 Motor feeder Assigned motor rating Note For AC motors with internal and external ventilation with 50 Hz / 60 Hz For AC motors with internal and external ventilation with 50 Hz / 60 Hz With 690 V, 60 Hz (110% overload) P kW 45 55 75 90 110 132 160 200 250 With 690 V, 60 Hz (150% overload) P kW 37 45 55 75 90 110 132 160 200 With 550 - 600 V, 60 Hz (110% overload) P HP 50 60 75 100 125 150 175 200 250 With 550 - 600 V, 60 Hz (150% overload) P HP 40 50 60 75 100 125 150 175 200 Control section External control voltage U c V 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) 24 V DC (max. 250 mA) Reference voltage U s V 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 10 V DC (max. 10 mA) 101 SVX, SPX (U e : 690 V AC, 3-phase, U 2 : 690V AC, 3-phase) SVX, SPX (U e : 690 V AC, 3-phase, U 2 : 690V AC, 3-phase)

102 Variable frequency drive 9000X SVX, SPX CA04020001Z-EN-INT www.eaton.eu SVX, SPX Dimensions Sizes FR4 - FR6 Protection type IP20/NEMA 0 and IP20/NEMA 0 Sizes FR7 Protection type IP20/NEMA 0 and IP20/NEMA 0 c c1 c2 a a1 ⌀1 ⌀2 ⌀1 ⌀1 b b1 a a1 b b1 b2 c c1 c2 Ø1 Ø2 Weight Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) kg (lbs) 128 (5) 100 (3.9) 327 (12.9) 313 (12.3) 292 (11.5) 190 (7.5) 77 (3) 126 (4.9) 7 (0.3) 13 (0.5) 5 (11) FR4 143 (5.6) 100 (3.9) 419 (16.5) 406 (16) 389 (15.3) 214 (8.4) 100 (3.9) 148 (5.9) 7 (0.3) 13 (0.5) 8 (17.9) FR5 195 (7.6) 148 (5.8) 558 (22) 541 (21.3) 519 (20.4) 237 (9.3) 105 (4.2) 165 (6.5) 9 (0.4) 15.5 (0.6) 19 (40.8) FR6 ⌀ 9 mm(⌀ 0.4") 190 mm (7.5") 237 mm (9.3") 257 mm (10.1") ⌀ 9 mm (⌀ 0.4") ⌀ 9 mm (⌀ 0.4") ⌀ 18 mm (⌀ 0.7") 35 kg(77.2 lbs) 630 mm (25.8") 614 mm (24.2")

Variable frequency drive 9000X SVX, SPX CA04020001Z-EN-INT www.eaton.eu 103 SVX , SPX Sizes FR8 Protection type IP20/NEMA 0 and IP20/NEMA 0 Sizes FR9 Protection type IP20/NEMA 0 and IP20/NEMA 0 ⌀ 9 mm (⌀ 0.4") ⌀ 18 mm (⌀ 0.7") 58 kg(127 lbs) ⌀ 9 mm (⌀ 0.4") ⌀ 9 mm (⌀ 0.4") 255 mm (10") 291 mm (11.5") 344 mm (13.5") 732 mm (28.8") 764 mm (30.1") ⌀ 9 mm (⌀ 0.4") 1120 mm (44.1") 1150 mm (45.3") 480 mm (18.9") 362 mm (14.3") 400 mm (15.7") 340 mm (13.4") 146 kg(321.9 lbs) ⌀ 9 mm (⌀ 0.4") ⌀ 29 mm (⌀ 0.9") ⌀ 9 mm (⌀ 0.4")

The soft starters have become increasingly established as an alternative to the star-delta starter. The DS7 replaces the mechanical contactor and extends the function “Motor soft start”. Motor run-up is soft but still at a higher torque than other available solutions using the patented method. Extended service intervals and reduced operating costs are welcomed side effects. Designed for normal applications such as pumps, fans and small conveyors, the compact DS7 is ideal. The DS7 is also available with a SmartWire-DT connection to simplify wiring and enhance functionality as an automation solution. DS7 soft starters in xStart system –Soft to start, powerful in torque

DS7 soft starters CA04020001Z-EN-INT www.eaton.eu 105 DS7 System overview DS7 soft starters 32 A 106 DS7 soft starters 32 A 108 Key to type references DS7 soft starters 109 Description DS7 soft starters 110 Ordering DS7 soft starters 111 Accessories DS7 112 Engineering General information on Engineering 116 Design with different load cycles 118 Setting of potentiometer 119 Connection examples 120 Assigned switching and protective elements 122 Technical data DS7 soft starters 124 Dimensions DS7 soft starters 130 Superfast semiconductor fuses, Fuse Bases 131

106 DS7 soft starters DS7 32 A CA04020001Z-EN-INT www.eaton.eu DS7 32 A System overview 2 T1 4 T2 6 T3 2 T1 4 T2 6 T3 21 17 15 13 16 11 12 8 9 9 3 1 5 6 7 4 4 2 14 10 15 19 20 18 25 26 27 24 7 23 22 4 10

DS7 soft starters DS7 32 A CA04020001Z-EN-INT www.eaton.eu 107 DS7 Soft starter DS7 with SmartWire-DT 1 ￫ page 111 DS7 soft starters in construction size 1 for assigned motor current up to 12 A 2 ￫ page 111 DS7 soft starters in construction size 2 for assigned motor current up to 32 A 3 ￫ page 111 DS7-FAN-32 device fan 4 ￫ page 115 SmartWire-DT gateway 5 ￫ page 182 SmartWire-DT external device plug 6 ￫ page 182 SmartWire-DT flat band conductor 7 ￫ page 182 overload relay 8 ￫ page 113 Motor plugs in tool-less plug connection 9 ￫ page 113 Base for motor plugs 10 ￫ page 113 PKZM0-XDM wiring set in tool-less plug connection 11, 12 ￫ page 113 PKZM0-XM wiring set 13 ￫ page 113 three-phase commoning link 14 ￫ page 114 Standard auxiliary contact 15 ￫ Industrial Switchgear 2011 catalog, chapter 7 Early-make auxiliary contact 16 ￫ Industrial Switchgear 2011 catalog, chapter 7 Door coupling handle 17 ￫ Industrial Switchgear 2011 catalog, chapter 7 PKZM0 motor-protective circuit-breakers 18 ￫ Industrial Switchgear 2011 catalog, chapter 7 PKE motor-protective circuit-breakers 19 ￫ Industrial Switchgear 2011 catalog, chapter 7 Extension terminal 20 ￫ Industrial Switchgear 2011 catalog, chapter 7 Voltage release 21 ￫ Industrial Switchgear 2011 catalog, chapter 7 trip indicator switch 22 ￫ Industrial Switchgear 2011 catalog, chapter 7 Standard auxiliary contact 23 ￫ Industrial Switchgear 2011 catalog, chapter 7 Motor-starter combination with PKZ 24 ￫ Industrial Switchgear 2011 catalog, chapter 8 Motor-starter combination with PKE 25 ￫ Industrial Switchgear 2011 catalog, chapter 8 Busbar adapter 26 ￫ page 113 top-hat rail adapter 27 ￫ page 113

108 DS7 soft starters DS7 32 A CA04020001Z-EN-INT www.eaton.eu DS7 32 A 22 23 19 13 12 11 15 10 14 21 20 6 18 4 3 9 8 16 17 7 1 10 2 5 7

DS7 soft starters DS7 32 A CA04020001Z-EN-INT www.eaton.eu 109 DS7 DS7 32 A Key to type references DS7 with SmartWire-DT 1 ￫ page 111 DS7 size 4 up to 200 A 2 ￫ page 111 DS7 size 3 up to 100 A 3 ￫ page 111 Device fan 4 ￫ page 115 Superfast semiconductor fuses 5 ￫ page 112 Fuse bases for superfast semiconductor fuses 6 ￫ page 113 IP2X protection against contact with a finger 7 ￫ page 115 overload relay 8 ￫ Industrial Switchgear 2011 catalog, chapter 6 Gateways for SmartWire-DT 9 ￫ page 182 SmartWire-DT external device plug 10 ￫ page 182 NZM circuit-breaker 11 ￫ Industrial Switchgear 2011 catalog, chapter 17 spacer 12 ￫ Industrial Switchgear 2011 catalog, chapter 17 Standard auxiliary contact/Trip-indicating auxiliary switch 13 ￫ Industrial Switchgear 2011 catalog, chapter 17 NZM communication module for SmartWire-DT 14 ￫ Industrial Switchgear 2011 catalog, chapter 17 data management interface (DMI module) 15 ￫ Industrial Switchgear 2011 catalog, chapter 17 Voltage release/Early-make auxiliary contact 16 ￫ Industrial Switchgear 2011 catalog, chapter 17 Terminal cover for terminals 17 ￫ page 114 IP2X protection against contact with a finger 18 ￫ page 115 Terminal cover for cable lugs 19 ￫ page 114 connection width extension 20 ￫ Industrial Switchgear 2011 catalog, chapter 17 Control circuit terminal 21 ￫ Industrial Switchgear 2011 catalog, chapter 17 Box terminals 22 ￫ Industrial Switchgear 2011 catalog, chapter 17 Tunnel terminals for Al and Cu cable 23 ￫ Industrial Switchgear 2011 catalog, chapter 17 DS7 - 3 4 0 SX 004 N 0 - N 004 = 4 A :200 = 200 A Device series Radio interference suppression ﬁlters Control voltage supply SX = Standard soft starters with internal bypass Protection type Rated operational current N = No internal radio interferencesuppression ﬁlter 0 = IP20 Options Number of phases 3 = Three-phase mains supply voltage Voltage class 4 = 400 V (380 V - 15 % to 480 V + 10 %) Generation 7 Device version 0 = 24 V AC/DC2 = 110/230 V ACD = 24 V DC SmartWire-DT N = No optionD = SmartWire-DTL = Expanded temperature range down to -40 °C

CA04020001Z-EN-INT www.eaton.eu 110 DS7 soft starters System System Description Application The DS7 series soft starters are two-phased controlled soft starters used for soft starting three-phase AC motors for applications with a normal operating frequency and a performance range of 3 to 200 A (1.1 to 110 kW with a 400 V mains voltage).Closing transients and DC components during startup are effectively suppressed and guarantee even motor starting.The special actuation method (asymmetrical trigger phase control) for the soft starter function avoids the DC components (Eaton patent) that would normally occur in two-phase-controlled soft starters. This suppresses the generation of an elliptical rotating field, which would cause uneven motor starting and increase the motor's acceleration. The true run behavior of the DS7 is therefore comparable with that of a three-phase controlled soft starter. Functions Typical fields of application for Series DS7 soft starters are:• Pump drives: pressure surges are prevented through soft starting. The mechanical load on the whole plant is reduced and its service life increases. • Fan drives: soft starting keeps fan belts from slipping, preventing premature wear. This lowers operating costs and extends the system's lifespan. • Conveyor belts: conveyor belts start running smoothly, instead of starting with a jolt. This ensures that any goods being conveyed do not topple over. Mechanical damage to the belt itself is avoided, making it more durable. Features • The ramp time can be adjusted by potentiometer within a range of 1 to 30 s (for starting) or 0 to 30 s (for stopping) with a potentiometer • The start voltage (or start torque) can be adjusted within a range of 30 to 100 percent of the mains voltage with a potentiometer • Significant reduction in switch-on current, achieved with a short soft start ramp time (min. 1 s) for lamp and heating loads • Internal bypass relay: switches on automatically after the end of the ramp, bypassing the internal thyristors. • This makes it possible to comply with radio interference level B without any additional measures. • The motor's thermal load is smaller than it would be without asymmetric ignition control. • Designed specifically for long cables Documentation Surface mounting and standard mounting procedures are described in the corresponding mounting instructions and in the manual. Instructional leaflets:IL03902003Z: for size 1 devices (up to 12 A motor output)IL03902004Z: for size 2 devices(up to 32 A motor output)IL03902005Z: for size 3, 4 devices (up to 200 A motor output) Manual:MN03901001Z You can download the documentation for the DS7 soft starters from the Internetat: www.moeller.net/support Communication interface SmartWire-DT Our SmartWire-DT interface completely eliminates the need for conventional control wiring. This has several advantages:• No incorrect wiring • Faster wiring• Cost savingThe interface can be used to send control commands to the DS7-SWD and change and diagnose its parameter configuration; in addition, the control electronics can be powered via the SmartWire-DT cable.The device is controlled with one of three selectable profiles:• A "start/stop" profile, which should already be familiar from the PKE motor-protective circuit-breaker and contactor combination • An 8 bit-wide profile for the soft starter, which is provided the same way for the variable frequency drive and features more options • A control profile comparable to a PROFIdrive profile, just like the one available for the variable frequency drive. Regardless of the profile chosen, the DS7-SWD's parameters can be read and written to at any time by using acyclic services.DS7-SWD makes it possible to read and write to all device parameters. The mechanisms of the parameter channel that is described for the drives in the PROFIdrive profile are used for this purpose. This profile provides a standardized parameter access method for variable frequency drives and soft starters.It is also possible to overwrite the potentiometer settings on the DS7-SWD, which can come in handy, for instance, when a change made to the machine needs to be undone. The DS7-SWD comes with a detailed diagnostic system with options that extend far beyond those of wired devices. In addition to having an error log, the DS7-SWD can detect and report nine different device faults. A warning parameter reports any present alarm messages. Moreover, the response to each individual fault can be customized. Finally, there are 35 additional messages for communication errors. Using the DS7 in connection with the PKE opens up new functionalities that were previously thought impossible to implement with a low-cost soft starter and that were reserved to significantly more expensive devices. Combining a PKE unit and a DS7-SWD makes it possible to completely protect the DS7-SWD device against overloads. In addition, it provides a current limiting function and can report thermal capacity utilization levels to higher level controllers. Expanded temperature range DS7-340SX…-L soft starters can operate at temperatures as low as -40 °C.

DS7 soft starters Basic devices CA04020001Z-EN-INT www.eaton.eu 111 DS7 Basic devices Ordering Rated operational current Assigned motor rating Part no. Article no. Pricesee price list Part no. Article no. Pricesee price list Std. pack Device (AC-53) at 400 V, 50 Hz at 480 V, 60 Hz I e P P A kW HP U C 24 V AC/DC U s 24 V AC/DC Standard temperature range U C 24 V AC/DC U s 24 V AC/DC Expanded temperature range down to -40 °C Soft starters Soft starters for three-phase loadsMains supply voltage (50/60 Hz) U LN 200 - 480 V AC 4 1.5 2 DS7-340SX004N0-N 134847 DS7-340SX004N0-L 171740 1 off 7 3 5 DS7-340SX007N0-N 134849 DS7-340SX007N0-L 171741 9 4 5 DS7-340SX009N0-N 134910 DS7-340SX009N0-L 171742 12 5.5 10 DS7-340SX012N0-N 134911 DS7-340SX012N0-L 171743 16 7.5 10 DS7-340SX016N0-N 134912 DS7-340SX016N0-L 171744 24 11 15 DS7-340SX024N0-N 134913 DS7-340SX024N0-L 171745 32 15 25 DS7-340SX032N0-N 134914 DS7-340SX032N0-L 171746 41 22 30 DS7-340SX041N0-N 134916 DS7-340SX041N0-L 171747 55 30 40 DS7-340SX055N0-N 134917 DS7-340SX055N0-L 171748 70 37 50 DS7-340SX070N0-N 134918 DS7-340SX070N0-L 171749 81 45 60 DS7-340SX081N0-N 134919 DS7-340SX081N0-L 171750 100 55 75 DS7-340SX100N0-N 134920 DS7-340SX100N0-L 171751 135 75 100 DS7-340SX135N0-N 134921 DS7-340SX135N0-L 171752 160 90 125 DS7-340SX160N0-N 134922 DS7-340SX160N0-L 171753 200 110 150 DS7-340SX200N0-N 134923 DS7-340SX200N0-L 171754 U C 110 - 230 V AC U s 110/230 V AC U C 24 V DC U s 24 V DC 4 1.5 2 DS7-342SX004N0-N 134925 DS7-34DSX004N0-D 134943 1 off 7 3 5 DS7-342SX007N0-N 134927 DS7-34DSX007N0-D 134945 9 4 5 DS7-342SX009N0-N 134928 DS7-34DSX009N0-D 134946 12 5.5 10 DS7-342SX012N0-N 134929 DS7-34DSX012N0-D 134947 16 7.5 10 DS7-342SX016N0-N 134930 DS7-34DSX016N0-D 134948 24 11 15 DS7-342SX024N0-N 134931 DS7-34DSX024N0-D 134949 32 15 25 DS7-342SX032N0-N 134932 DS7-34DSX032N0-D 134950 41 22 30 DS7-342SX041N0-N 134934 DS7-34DSX041N0-D 134952 55 30 40 DS7-342SX055N0-N 134935 DS7-34DSX055N0-D 134953 70 37 50 DS7-342SX070N0-N 134936 DS7-34DSX070N0-D 134954 81 45 60 DS7-342SX081N0-N 134937 DS7-34DSX081N0-D 134955 100 55 75 DS7-342SX100N0-N 134938 DS7-34DSX100N0-D 134956 135 75 100 DS7-342SX135N0-N 134939 DS7-34DSX135N0-D 134957 160 90 125 DS7-342SX160N0-N 134940 DS7-34DSX160N0-D 134958 200 110 150 DS7-342SX200N0-N 134941 DS7-34DSX200N0-D 134959 Notes Information relevant for export to North America UL/CSA applies only for DS7…-N Product Standards IEC/EN 60947-4-2; GB 14048.6; UL 508; CSA-C22.2 No 0-M91; CSA-C22.2 No 14-05 CE marking UL File No. E251034 CSA File No. 2511305 CSA Class No. 321106 Suitable for Branch circuits Max. Voltage Rating 480 V Degree of Protection IP20; UL/CSA Type 1 4 - 12 A 16 - 32 A 41 - 100 A 135 - 200 A

112 DS7 soft starters Accessories CA04020001Z-EN-INT www.eaton.eu Accessories Rated device current Maximum power loss Frame size For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America P v A W Superfast semiconductor fuses DIN 43653, 690/700 V (IEC/UL) Inside micrometer 80 mm 16 5.5 000 DS7-34…SX004N0-… 170M1359171968 1 off Product Standards IEC/EN 60269-4; UL 248-1; CSA-C22.2 No. 248.14; CE marking UL File No. E125085 UL Category Control No. JFHR2 CSA File No. 053787_C_000 CSA Class No. 1422-30 North America Certification UL recognized, CSA certified Suitable for semiconductor protection 25 9 000 DS7-34…SX007N0-… 170M1361171969 32 10 000 DS7-34…SX009N0-…DS7-34…SX012N0-… 170M1362171970 40 12 000 DM4-340-7K5 170M1363171971 50 15 000 DS4-340-2K2-MDS4-340-2K2-MRDS4-340-2K2-M-DCDS7-34…SX016N0-… 170M1364171972 63 16 000 DS4-340-4K0-MDS4-340-4K0-MRDS4-340-7K5-MXDS4-340-7K5-MXRDS7-34…SX024N0-… 170M1365171973 80 19 000 DS4-340-5K5-MDS4-340-5K5-MRDS4-340-11K-MXDS4-340-11K-MXR DS7-34…SX032N0-… 170M1366171974 100 21 S1 DS6-340-22K-MX 170M3012171976 125 25 000 DM4-340-22KDM4-340-30K 170M2615171975 Product Standards IEC/EN 60269-4; UL 248-1; CE marking UL File No. E125085 UL Category Control No. JFHR2 North America Certification UL recognized Suitable for semiconductor protection 160 30 S1 DS4-340-11K-MDS4-340-11K-MR 170M3014171977 Product Standards IEC/EN 60269-4; UL 248-1; CSA-C22.2 No. 248.14; CE marking UL File No. E125085 UL Category Control No. JFHR2 CSA File No. 053787_C_000 CSA Class No. 1422-30 North America Certification UL recognized, CSA certified Suitable for semiconductor protection 200 45 S1 DM4-340-37KDM4-340-45KDS6-340-37K-MXDS6-340-45K-MXDS6-340-55K-MXDS7-34…SX070N0-…DS7-34…SX081N0-…DS7-34…SX100N0-… 170M4008171978 315 58 S1 DS6-340-75K-MXDS7-34…SX135N0-… 170M4010171979 350 60 S1 DM4-340-55KDM4-340-75K 170M4011171980 400 65 S2 DS6-340-90K-MXDS7-34…SX160N0-… 170M5008171984 450 70 S1 DM4-340-90KDM4-340-110K 170M4013171981 500 72 S1 DM4-340-132KDM4-340-160K 170M4014171982 500 95 S3 DS6-340-110K-MXDS7-34…SX200N0-…DM4-340-132KDM4-340-160K 170M6008171985 630 80 S1 DM4-340-200K 170M4016171983 900 120 S3 DM4-340-250KDM4-340-315K 170M6013171986 1250 140 S3 DM4-340-400KDM4-340-500K 170M6016171987

DS7 soft starters Accessories CA04020001Z-EN-INT www.eaton.eu 113 DS7 For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America Fuse Bases Dimensions (W x H x D)mm145 x 43 x 50 000, 00 170H1007171988 1 off Product Standards IEC/EN 60269-1; UL 512; CE marking UL File No. E14853 UL Category Control No. IZLT2 North America Certification UL listed Suitable for DIN 43653 fuses 205 x 88 x 80 S1 , S1, S2, S3 170H3004171989 Overload relays DS7-34…SX004… ZB12-4278438 1 off Product Standards UL 508; CSA-C22.2 No. 14; IEC/EN 60947-4-1; IEC/EN 60947-5-1; CE marking UL File No. E29184 UL Category Control No. NKCR CSA File No. 12528 CSA Class No. 3211-03 North America Certification UL listed, CSA certified Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP20, UL/CSA Type: - DS7-34…SX007…DS7-34…SX009… ZB12-10278440 DS7-34…SX012… ZB12-12278441 DS7-34…SX016… ZB32-16278452 DS7-34…SX024… ZB32-24278453 DS7-34…SX032… ZB32-32278454 Wiring set For DOL Starter DS7-34…SX004…DS7-34…SX007…DS7-34…SX009…DS7-34…SX012… PKZM0-XDM12283149 1 off Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking UL File No. E36332 UL Category Control No. NLRV CSA File No. 165628 CSA Class No. 3211-05 North America Certification UL listed, CSA certified Electric contact module DS7-34…SX016…DS7-34…SX024…DS7-34…SX032… PKZM0-XM32DE239349 5 off Product Standards UL 508; CSA-C22.2 No. 14; IEC60947-4-1; CE marking UL File No. E36332 UL Category Control No.NLRVCSA File No. 165628 CSA Class No. 3211-05 North America Certification UL listed, CSA certified Motor feeder plug DS7-34…SX004…DS7-34…SX007…DS7-34…SX009…DS7-34…SX012… DILM12-XMCP/T121770 1 off Product Standards IEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking North America Certification Request filed for UL and CSA Busbar adapters PKZM0, PKE + DS7...004N...PKZM0, PKE + DS7...007N...PKZM0, PKE + DS7...009N...PKZM0, PKE + DS7...012N... BBA0L-25142526 1 off PKZM0, PKE + DS7...016N...PKZM0, PKE + DS7...024N...PKZM0, PKE + DS7...032N... BBA0L-32142527 1 off Top-hat rail adapter 45 mm wide adapter plate PKZM0, PKE + DS7...004N...PKZM0, PKE + DS7...007N...PKZM0, PKE + DS7...009N...PKZM0, PKE + DS7...012N... PKZM0-XC45L142529 1 off PKZM0, PKE + DS7...016N...PKZM0, PKE + DS7...024N...PKZM0, PKE + DS7...032N... PKZM0-XC45L/2142570 1 off

114 DS7 soft starters Accessories CA04020001Z-EN-INT www.eaton.eu For use with Part no.Article no. Pricesee price list Std. pack Notes Information relevant for export to North America Three-phase commoning links For the primary side of DS7Suitable for 3 DS7 soft startersLength 112 mmprotected against accidental contact, short-circuit proof, U e = 690 V, I u = 35 A can be extended by rotating by mounting DS7-34…SX004…DS7-34…SX007…DS7-34…SX009…DS7-34…SX012… DILM12-XDSB0/3240084 5 off For the primary side of DS7Suitable for 3 DS7 soft startersLength 112 mm Product StandardsIEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking UL File No. E36332 UL Category Control No. NLRV CSA File No. 012528 CSA Class No. 2411-03 North America Certification UL listed, CSA certified DILM12-XDSB0/4240085 For the primary side of DS7Suitable for 4 DS7 soft startersLength 157 mm DILM12-XDSB0/5240086 For the primary side of DS7Suitable for 5 DS7 soft startersLength 202 mm Incoming connection block DS7-34…SX004…DS7-34…SX007…DS7-34…SX009…DS7-34…SX012… DILM12-XEK240083 5 off For three-phase commoning link, protected against accidental contact, U e = 690 V, I u = 35 A. Connection cross section: Stranded 2.5…16 mm 2 Flexible with ferrule 2.5…16 mm 2 AWG14…8 Product StandardsIEC/EN 60947-4-1; UL 508; CSA-C22.2 No. 14-05; CE marking UL File No. E36332 UL Category Control No. NLRV CSA File No. 012528 CSA Class No. 2411-03 North America Certification UL listed, CSA certified Terminal cover Type contains parts for a terminal located at top or bottom for 3 pole circuit-breakers.Enhancement of the busbar tag shroud (simple protection against contact with a finger).Cannot be combined with NZM-XSTK control circuit terminal.knockoutFor box terminal DS7-34…SX041…DS7-34…SX055…DS7-34…SX070…DS7-34…SX081…DS7-34…SX100… NZM1-XKSFA100780 1 off Type contains parts for a terminal located at top or bottom for 3 pole circuit-breakers.Enhancement of the busbar tag shroud (simple protection against contact with a finger).Cannot be combined with NZM-XSTK control circuit terminal. knockout DS7-34…SX135…DS7-34…SX160…DS7-34…SX200… NZM2-XKSFA104640 1 off Type contains parts for a terminal located at top or bottom for 3 pole circuit-breakers.Enhancement of the busbar tag shroud (simple protection against contact with a finger).Protection when reaching into the cable connection area with the connection of cables in the box terminal.With 2 conductors max cross section 22 mm 2 or AWG4. Cannot be combined with NZM-XSTK control circuit terminal. DS7-34…SX135…DS7-34…SX160…DS7-34…SX200… NZM2-XKSA260038 1 off Type contains parts for a terminal located at top or bottom for 3 pole circuit-breakers.Busbar tag shroud where cable lugs, busbars or tunnel terminals are used.When using insulated conductor material to IP1X. Product Standards UL489; CSA-C22.2 No. 5-09; IEC60947, CE marking UL File No. E31593 UL Category Control No. DIHS CSA File No. 22086 CSA Class No. 1432-01 North America Certification UL listed, CSA certified Suitable for Refer to main component information 2 T1 4 T2 6 T3 1 L3 3 L2 5 L1

DS7 soft starters Accessories CA04020001Z-EN-INT www.eaton.eu 115 DS7 Accessories For use with Part no.Article no. Pricesee price list Std. pack Notes Information relevant for export to North America IP2X protection against contact with a finger Typ enthält Teile für eine Schalterseite oben oder unten für 3-polige Schalter.Erhöhung des Berührungsschutzes auf IP2X.For box terminal NZM2, PN2, N(S)2 NZM2-XIPK266773 1 off Type contains parts for a terminal located at top or bottom for 3 pole circuit-breakers.Enhancement of the busbar tag shroud to IP2X.Protection when reaching into the cable connection area with the connection of cables in the box terminal.With 2 conductors max cross section 25 mm 2 or AWG4. Cannot be combined with NZM-XSTK control circuit terminal. for cover NZM2-XKSA or NZM2 or NZM2...(C)NA und N(S)2...NA NZM2, PN2, N(S)2 NZM2-XIPA266777 1 off Type contains parts for a terminal located at top or bottom for 3 pole circuit-breakers.Enhancement of the busbar tag shroud to IP2X.When mounting NZM2-..-(C)NA or NZM...-NA the following applies:with 2 conductors max cross section 25 mm 2 or AWG4. Mounting kit when using covers NZM1-XKSFA and NZM2-XKSA DS7-34xSX041N0-xDS7-34xSX055N0-xDS7-34xSX070N0-xDS7-34xSX081N0-xDS7-34xSX100N0-xDS7-34xSX135N0-xDS7-34xSX160N0-xDS7-34xSX200N0-x DE6-MNT-NZM107323 1 off - Device fans Device fan for increasing the load cycle (more starts per hour higher or longer-lasting starting current) DS7-34…SX004…DS7-34…SX007…DS7-34…SX009…DS7-34…SX012…DS7-34…SX016…DS7-34…SX024…DS7-34…SX032… DS7-FAN-032135553 1 off North America Certification Request filed for UL and CSA DS7-34…SX041…DS7-34…SX055…DS7-34…SX070…DS7-34…SX081…DS7-34…SX100… DS7-FAN-100169021 1 off DS7-34…SX135…DS7-34…SX160…DS7-34…SX200… DS7-FAN-200169022 1 off PKE communications cable 6-PolePrefabricated with two plugsFor connecting the PKE to DS7-SWD DS7…SWD PKE32-COM168970 1 off

CA04020001Z-EN-INT www.eaton.eu 116 DS7 soft starters General information on Engineering General information on Engineering Engineering Generalized phase control of motor voltage By means of generalized phase control, the soft starter adjusts the grid's voltage (U LN smoothly from an adjustable start value to 100 % of the rated value U LN . U LN :Mains supply voltage U-Start: start voltaget-Start: Ramp time of the voltage change at startTOR (Top of Ramp): Signals the end of the set "t-Start" ramp time (output voltage U 2 = Mains supply voltage U LN ). The internal bypass contacts are closed after this. This voltage control enables the inrush current of a three-phase asynchronous motor to be limited and its starting torque to be reduced. This enables a smooth and jerk-free increase in torque, adjusted in line with the machine's load behavior. This has a positive effect on the lifespan, operating behavior, and operating processes of the mechanical equipment and prevents negative effects such as:• Impacting of cog edges in the gearbox• Pressure surge in pipe systems (water impact),• Slipping of V belts or• Jitter with conveyor systems. TOR U LN t U-Start t-Start In DS7 and S801+/S811+ series soft starters, generalized phase control is achieved with anti-parallel thyristors that are bypassed for continuous operation by using bypass contacts (TOR = Top Of Ramp) after the time for a time-triggered voltage change (t-Start) has elapsed. The transition resistance of these bypass contacts is considerably lower than the transition resistance of the power semiconductors. This reduces the heat dissipation in the soft starter and extends the lifespan of the power semiconductors.As well as the time-controlled startup of a motor, the soft starter also enables a time-controlled reduction of the motor voltage and thus a controlled stopping of the motor. The output voltage of a soft starter determines the torque of the motor (M ~ U 2 ). Because of this, it is necessary to make sure that, when a machine starts up, the selected U-Start start voltage is not too low and the t-Start ramp time for the linear voltage change is set to be as short as possible. Please note:• Long ramp times (t-Start) will produce a soft startup behavior, but will also result in a higher thermal load on the thyristors • A high start voltage (U-Start) will produce a higher torque and a high starting current • Set the lowest possible start voltage and the shortest possible start ramps. The following pages include application and setting configuration examples for DS7 soft starters.If controlled deceleration is required, t-Stop must be set to a longer time than would be necessary for the machine to coast freely based on the load. For the thyristors, the controlled deceleration constitutes a load comparable to that produced during startup. If, for example, the deceleration ramp is activated on a soft starter with a maximum of 10 permissible starts per hour, the number of permissible starts will be reduced to five per hour (plus five stops within that hour). U-Start U t-Start t-Stop t

CA04020001Z-EN-INT www.eaton.eu DS7 soft starters General information on Engineering 117 DS7 Selection criteria Soft starters ③ are selected based on the supply voltage of the corresponding grid ① (ULN) and the rated operational current of the assigned motor ②. The motor's circuit configuration (Δ/Y) must be selected in such a way that it matches the supply voltage. In addition, the soft starter's rated operational current (Ie) must be at least equal to that of the motor. Additional selection criteria include:• Ambient air temperature (rated value +40 °C)• The number of starts per hour ( 10 starts, take stops into account)• Load torque (quadratic, linear)• Starting torque Centrifugal pumps, centrifugal fans, simple and smooth-running conveyor belts and traction drives, and circular saws and ribbon saws are some of the typical applications for which soft starters are used. Reciprocating compressors, mixers, mills, crushers, and lifting gear are instead categorized as heavy starting duty machines. In this case, the soft starter must be oversized in terms of its overload capacity. In the case of applications that are typical for a soft starter, such as water pumps (centrifugal pumps), and that feature comparable operational data (operating frequency, run-up time, and/or inrush currents) a soft starter can be assigned directly to the motor on the basis of the rated operational current. Example:• 15 kW Pump motor• 400 V • Rated operational current 29 A• About three times the starting current (I LRP = 87 A), • A maximum of 10 starts per hour • 5-second start-up time • ambient air temperature 40 °C. = DS7-34…032… (I e = 32 A) 230 / 400 V ∆ /  4.6 / 2.6 1.1 kW 0.81 min -1 1430 50 Hz A ② ③ ① U, I, f cos ϕ 10/h 1/h20/h s 5 s 10 s 15 s 20 s 25 s 30 s 32 A 64 A 96 A 128 A 160 A When different operating frequencies, run-up times and/or starting currents are involved, the thermal capacity of the DS7 soft starter must be taken into account in the design. This can be done by using the following diagrams or by calculating the I 2 t values. These I 2 t values define the corresponding load capacity and overload cycle and are defined in product standard IEC/EN 60947-4-2. DS7-34…SX032…soft starter: • 32A: AC-53a: 3-5: 75-10• Rated operational current (I e ) 32 A • Load cycle AC-53a• 300% overcurrent for 5 seconds• 75% duty factor with 10 starts per hour The resulting I 2 t value is: (3 x 32 A) 2 x 5 s = 46.080 A 2 s The maximum I 2 t value of the connected motor load must be smaller: (3 x 29 A) 2 x 5 s = 37.845 A 2 s Soft starter DS7-34…SX032… is the right choice for this application. If the motor had a higher inrush current, e.g., 5 times the starting current, a more powerful soft starter would have to be selected:• Motor inrush current: I LRP = 5 x 29 = 145 A, I 2 t value = (5 x 29 A) 2 x 5 s = 105.125 A 2 s • DS7-34…SX041…: 41A: AC-53a: 3-5: 75-10= (3 x 41 A) 2 x 5 s = 75.645 A 2 s Soft starter DS7-34…SX041… cannot meet the required startup and load conditions required in this case. DS7-34…SX055…:55A: AC-53a: 3-5: 75-10= (3 x 55 A) 2 x 5 s = 136.125 A 2 s Soft starter DS7-34…SX055…, however, does meet the required startup and load conditions. Note: As the following diagram shows, the DS7-34…SX055… unit can handle even more demanding startup and load requirements, e.g., up to 20 starts per hour and longer start-up times (up to 10 seconds). SX041 1/h SX041 10/hSX041 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 60 A 70 A 80 A 90 A 100 A 110 A 120 A 130 A 140 A 150 A SX055 1/h SX055 10/h SX055 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 80 A 100 A 120 A 140 A 180 A 160 A 200 A

118 DS7 soft starters Design with different load cycles CA04020001Z-EN-INT www.eaton.eu Design with different load cycles DS7-34...SX041N0-... DS7-34...SX055N0-... DS7-34...SX070N0-... DS7-34...SX081N0-... DS7-34...SX100N0-... DS7-34...SX135N0-... DS7-34...SX160N0-... DS7-34...SX200N0-... Note: Additional diagrams for 4-32 A soft starters can be found in the manual for DS7 soft starters (MN03901001Z). 22K 1/h22K 10/h22K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 60 A 70 A 80 A 90 A 100 A 110 A 120 A 130 A 140 A 150 A 30K 1/h30K 10/h30K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 80 A 100 A 120 A 140 A 180 A 160 A 200 A 37K 1/h37K 10/h37K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 100 A 125 A 150 A 175 A 225 A 200 A 250 A 45K 1/h45K 10/h45K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 100 A 125 A 175 A 150 A 200 A 275 A 250 A 225 A 300 A 55K 1/h55K 10/h55K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 175 A 150 A 200 A 275 A 250 A 225 A 300 A 325 A 350 A 75K 1/h75K 10/h75K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 125 A 150 A 175 A 200 A 225 A 250 A 300 A 275 A 325 A 350 A 375 A 400 A 425 A 450 A 475 A 500 A 550 A 525 A 90K 1/h90K 10/h90K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 150 A 200 A 250 A 300 A 350 A 400 A 450 A 500 A 550 A 600 A 650 A 110K 1/h110K 10/h110K 20/h s 5 s 10 s 15 s 20 s 25 s 30 s 200 A 250 A 300 A 350 A 400 A 450 A 550 A 600 A 500 A 650 A 700 A 750 A 800 A

DS7 soft starters Potentiometer settings CA04020001Z-EN-INT www.eaton.eu 119 DS7 Potentiometer settings Setting of potentiometer U I (R) (L) (AC11 I min U min 250 V ∼ 0.2 A 1 A 10 mA 250 V ∼ 30 V H 0.7 A 0.5 A 100 mA 5 V H t-Start (s) U-Start % t-Stop (s) ∼10 ∼30 0 J ￫ 0Low flywheel mass ∼25 ∼30 ∼30 Conveyor belt with loose belt ∼20 ∼40 0 Roller conveyers ∼10 ∼30 ∼20 Centrifugal pump ∼15 ∼40 0 Fan general (building) with belt drive ∼18 ∼40 0 J ￫ ∞Large gyrating mass￫ The DS7 soft starter's rating should be higher than the assigned motor output. ∼15 ∼50 0 Tunnel fanAxial fan￫ a Soft starter DS7 should have a higher rating than the assigned motor. ∼10 ∼60 0 Bulk conveyorEscalator ∼10 ∼60 0 MixersAgitators￫ a Soft starter DS7 should have a higher rating than the assigned motor. U-Start U t-Start t-Stop t 13 14 TOR (Top Of Ramp) 23 24 RUN 13 14 TOR 23 24 RUN t-Start (s) U-Start (%) t-Stop (s) 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10 30 1 20 10 100 30 30 0 20 10

120 DS7 soft starters Connection examples CA04020001Z-EN-INT www.eaton.eu Connection examples Standard connectionup to 12 A Standard connectionup to 32 A M 3 ~ 1L1 3L2 5L3 + U s TOR - A2 + A1 13 2T1 4T2 6T3 L1 L2 L3 PE Q1 Q21 F3 M1 I I I Q1 (+) U s 24 V AC/DC, 120/230 V AC (–) U s M 3 ~ RUN - U s + U s 1L1 3L2 5L3 TOR - A2 + A1 13 14 24 23 2T1 4T2 6T3 L1 L2 L3 PE Q1 Q1 S3 Q21 F3 M1 I I I (+) U s 24 V AC/DC, 120/230 V AC (–) U s

DS7 soft starters Connection examples CA04020001Z-EN-INT www.eaton.eu 121 DS7 Standard connection41 - 200 A With Emergency switching off function according to IEC/EN 60 204-1 and VDE 0113 Part 1 = EMERGENCY SWITCHING OFF Q 1 = Cable and motor protection (NZM (NZM1, NZM2) Q21 = Soft starter DS7 M1 = Motor F3 = superfast semiconductor fuse, optional for type 2 coordination (in addition to Q1) ① Control circuit terminal ② Undervoltage release with early-make auxiliary contact M 3 ~ 1L1 3L2 5L3 PE PE D2 D1 3.13 3.14 TOR - A2 EN + A1 13 14 24 23 2T1 4T2 6T3 L1L2L3PE Q1 Q1 S3 Q21 F3 M1 I U I I RUN - U s + U s (+) U s 24 V AC/DC, 110/230 V AC (–) U s ① ②

122 DS7 soft starters Assigned switching and protective elements CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu DS7 soft starters Assigned switching and protective elements DS7 Assigned switching and protective elements assigned Rated operational current 1) Part no. Soft starter function Soft starter function with soft stop in case of overload Mains contactor Semiconductor contactor (optional, in addition to the protec-tive devices for type 1 coordination, required for type 2 coordi-nation) 5) Motor output at Soft starters (device to be selected) 400 V 480 V Motor Soft starters Cable protection 2) Cable protection 2) overload relay 3) optional 4) Fuses Fuse holders P P I e I e Type “1” coordination Type “1” coordination kW HP A_x A_x Number x Part no. Number x Part no. Soft starters for three-phase mains connection, low operating frequency (5 s, 3 x I e , 10 starts/h) 1.5 2 3.6 4 DS7-34xSX004N0-x PKZM0-4 (+ CL-PKZ0) PKM0-4 (+ CL-PKZ0) ZB12-4 DILM7 3 × 170M1359 3 x 170H1007 3 3 6.6 7 DS7-34xSX007N0-x PKZM0-10 (+ CL-PKZ0) PKM0-10 (+ CL-PKZ0) ZB12-10 DILM9 3 × 170M1361 3 x 170H1007 4 5 8.5 9 DS7-34xSX009N0-x PKZM0-10 (+ CL-PKZ0) PKM0-10 (+ CL-PKZ0) ZB12-10 DILM9 3 × 170M1362 3 x 170H1007 5.5 7.5 11.3 12 DS7-34xSX012N0-x PKZM0-12 (+ CL-PKZ0) PKM0-12 (+ CL-PKZ0) ZB12-12 DILM12 3 × 170M1362 3 x 170H1007 7.5 10 15.2 16 DS7-34xSX016N0-x PKZM0-16 (+ CL-PKZ0) PZM0-16 (+ CL-PKZ0) ZB32-16 DILM17 3 × 170M1364 3 x 170H1007 11 15 21.7 24 DS7-34xSX024N0-x PKZM0-25 (+ CL-PKZ0) PZM0-25 (+ CL-PKZ0) ZB32-24 DILM25 3 × 170M1365 3 x 170H1007 15 20 29.3 32 DS7-34xSX032N0-x PKZM0-32 (+ CL-PKZ0) PZM0-32 (+ CL-PKZ0) ZB32-32 DILM32 3 × 170M1366 3 x 170H1007 22 25 41 41 DS7-34xSX041N0-x NZMN1-M50 / PKZM4-50 NZMN1-M50 / PKZM4-50 ZB65-40+ZB65-XEZ DILM50 3 × 170M1366 3 x 170H1007 30 30 55 55 DS7-34xSX055N0-x NZMN1-M63 / PKZM4-58 NZMN1-M63 / PKZM4-58 ZB65-57+ZB65-XEZ DILM65 3 × 170M2615 3 x 170H1007 37 40 68 70 DS7-34xSX070N0-x NZMN1-M80 NZMN1-M80 ZB150-70/KK DILM80 3 × 170M4008 3 x 170H3004 45 50 81 81 DS7-34xSX081N0-x NZMN1-M100 NZMN1-M100 ZB150-100/KK DILM95 3 × 170M4008 3 x 170H3004 55 60 99 100 DS7-34xSX100N0-x NZMN1-M100 NZMN1-M100 ZB150-100/KK DILM115 3 × 170M4008 3 x 170H3004 75 75 134 135 DS7-34xSX135N0-x NZMN2-M160 NZMN2-M160 ZB150-150/KK DILM150 3 × 170M4011 3 x 170H3004 90 100 160 160 DS7-34xSX160N0-x NZMN2-M200 NZMN2-M200 Z5-160/FF250 DILM185 3 × 170M5008 3 x 170H3004 110 125 196 200 DS7-34xSX200N0-x NZMN2-M200 NZMN2-M200 Z5-220/FF250 DILM225 3 × 170M6008 3 x 170H3004 Notes 1) Rated operational current based on the load cycle specified here. 2) Used to specify the circuit-breaker required for the specified load cycle. At different duty cycles (operating frequency, overcurrent, overcurrent time, duty factor), this value changes and must then be adapted accordingly. 3) An external overload relay is required if the main contacts should not be disconnected in the event of an overload and a controlled soft stop is desired instead. 4) A mains contactor is not required. Disconnection characteristics in accordance with VDE can only be ensured with the specified circuit-breaker. 5) The superfast semiconductor fuses protect the soft starter from short circuits on the motor side. This can not, however, prevent damage caused by voltage peaks, for example through lightning strike. 123

124 DS7 soft starters Basic devices CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu DS7 soft starters Basic devices DS7 Basic devices Technical data DS7…004… DS7…007… DS7…009… DS7…012… DS7…016… DS7…024… DS7…032… DS7…041… DS7…055… DS7…070… DS7…081… DS7…100… DS7…135… DS7…160… DS7…200… General Standards IEC/EN 60947-4-2UL 508CSA22.2-14 IEC/EN 60947-4-2UL 508CSA22.2-14 Approvals CE CE Approvals ULCSAC-TickUkrSEPRO ULCSAC-TickUkrSEPRO Climatic proofing Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10 Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10 DS7…-L Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10Cold test as per EN 60068-2-4 Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10Cold test as per EN 60068-2-4 Ambient temperature Operation ϑ °C -5 - +40up to 60 at 2% derating per Kelvin temperature rise -5 - +40up to 60 at 2% derating per Kelvin temperature rise DS7…-L -40 - +40up to 60 at 2% derating per Kelvin temperature rise -40 - +40up to 60 at 2% derating per Kelvin temperature rise Storage ϑ °C -25 - +60 -25 - +60 DS7…-L -40 - +40up to 60 at 2% derating per Kelvin temperature rise -40 - +60 Altitude m 0 - 1000 m, above that 1 % derating per 100 m , up to 2000 m 0 - 1000 m, above that 1 % derating per 100 m , up to 2000 m Mounting position Vertical Vertical Degree of protection Protection type IP20 IP20 (terminals IP00) Integrated - Protection type IP40 can be achieved on all sides with covers from the NZM range. Protection against direct contact Finger- and back-of-hand proof Finger- and back-of-hand proof Rated insulation voltage U i V AC 500 500 Overvoltage category/pollution degree II/2 II/2 Shock resistance 8 g/11 ms 8 g/11 ms Vibration resistance to EN 60721-3-2 2M2 2M2 Radio interference level (IEC/EN 55011) B B …342SX… A A Heat dissipation W 0.2 0.35 0.45 0.6 0.8 1.1 1.5 7 10 13 18 25 24 30 42 Weight kg …340SX…-N 0.35 0.4 1.8 1.8 3.7 …340SX…-L 0.44 0.49 0.44 1.8 3.7 …342SX… 0.4 0.45 0.4 1.8 3.7 …34DSX… 0.41 0.46 0.41 1.8 3.7 Main conducting paths Rated operating voltage U e V AC 200 - 480 200 - 480 Supply frequency f LN Hz 50/60 50/60 Rated operational current Device (AC-53) I e A 4 7 9 12 16 24 24 41 55 70 81 100 135 160 200 Assigned motor rating (Standard connection, In-Line) at 230 V, 50 Hz P kW 0.75 1.5 2.2 3 4 5.5 5.5 11 15 15 22 30 30 45 55 at 400 V, 50 Hz P kW 1.5 3 4 5.5 7.5 11 11 22 30 37 45 55 75 90 110 at 200 V, 60 Hz P HP 0.75 2 2 3 5 7.5 7.5 10 15 20 25 30 40 50 60 at 230 V, 60 Hz P HP 1 2 3 3 5 7.5 7.5 15 20 25 30 30 50 60 75 at 480 V, 60 Hz P HP 2 5 5 10 10 15 15 30 40 50 60 75 100 125 150 Overload cycle to IEC/EN 60947-4-2 AC-53a (without bypass) 4 A: AC-53a: 3 - 5: 75 - 10 7 A: AC-53a: 3 - 5: 75 - 10 9 A: AC-53a: 3 - 5: 75 - 10 12 A: AC-53a: 3 - 5: 75 - 10 16 A: AC-53a: 3 - 5: 75 - 10 24 A: AC-53a: 3 - 5: 75 - 10 32 A: AC-53a: 3 - 5: 75 - 10 41 A: AC-53a: 3 - 5: 75 - 10 55 A: AC-53a: 3 - 5: 75 - 10 70 A: AC-53a: 3 - 5: 75 - 10 81 A: AC-53a: 3 - 5: 75 - 10 100 A: AC-53a: 3 - 5: 75 - 10 135 A: AC-53a: 3 - 5: 75 - 10 160 A: AC-53a: 3 - 5: 75 - 10 200 A: AC-53a: 3 - 5: 75 - 10 Internal bypass contacts ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ 125

126 DS7 soft starters Basic devices CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu DS7 soft starters Basic devices DS7 Short-circuit rating Type “1” coordination Type “1” coordination PKM0-4 (+ CL-PKZ0) PKM0-10(+ CL-PKZ0) PKM0-10 (+ CL-PKZ0) PKM0-12 (+ CL-PKZ0) PKM0-16 (+ CL-PKZ0) PKM0-25 (+ CL-PKZ0) PKM0-32 (+ CL-PKZ0) NZMN1-M50/PKZM4-49 NZMN1-M63/PKZM4-57 NZMN1-M80 NZMN1-M100 NZMN1-M100 NZMN2-M160 NZMN2-M200 NZMN2-M200 Type „2“ coordination short-circuit rating (additional with the fuses for coordination type „1“) 3 x 170M1359 3 x 170M1361 3 x 170M1362 3 x 170M1362 3 x 170M1364 3 x 170M1365 3 x 170M1366 3 x 170M3012 3 x 170M2615 3 x 170M4008 3 x 170M4008 3 x 170M4008 3 x 170M4010 3 x 170M5008 3 x 170M6008 Fuse base (number x part no.) 3 x 170H1007 3 x 170H1007 3 x 170H1007 3 x 170H1007 3 x 170H1007 3 x 170H1007 3 x 170H1007 3 x 170H3004 3 x 170H1007 3 x 170H3004 3 x 170H3004 3 x 170H3004 3 x 170H3004 3 x 170H3004 3 x 170H3004 Terminal capacities Cable lengths Solid mm 2 1 x (0.75 - 4)2 x (0.75 - 2.5) 1 x (0.75 - 16)2 x (0.75 - 10) 1 x (25 - 70)2 x (6 - 25) 1 x (4 - 185)2 x (4 - 70) Flexible with ferrule mm 2 1 x (0.75 - 2.5)2 x (0.75 - 2.5) 1 x (0.75 - 16)2 x (0.75 - 10) - - Stranded mm 2 - 1 x 16 1 x (25 - 70)2 x (6 - 25) 1 x (4 - 185)2 x (4 - 70) Solid or stranded AWG 18 - 10 18 - 6 1 x (12 - 2/0) 1 x (12 - 350 kcmil) 2 x (12 - 00) Copper band MM - - 2 x 9 x 0.89 x 9 x 0.8 Tightening torque Nm 1.2 3.2 6 (≤ 10 mm²); 9 ( 10 mm²) 5 (≤ 10 mm²); 14 ( 10 mm²) Screwdriver (PZ: Pozidriv) mm PZ2; 1 x 6 mm PZ2; 1 x 6 mm PZ2; 1 x 6 mm PZ2; 1 x 6 mm Control cables Solid mm 2 1 x (0.75 - 4)2 x (0.75 - 2.5) 1 x (0.5 - 2.5)2 x (0.5 - 1.0) 1 x (0.5 - 2.5)2 x (0.5 - 1.0) 1 x (0.5 - 2.5)2 x (0.5 - 1.0) Flexible with ferrule mm 2 1 x (0.75 - 2.5)2 x (0.75 - 2.5) 1 x (0.5 - 1.5)2 x (0.5 - 0.75) 1 x (0.5 - 1.5)2 x (0.5 - 0.75) 1 x (0.5 - 1.5)2 x (0.5 - 0.75) Stranded mm 2 - 1 x (0.5 - 1.5)2 x (0.5 - 1.0) 1 x (0.5 - 1.5)2 x (0.5 - 1.0) 1 x (0.5 - 1.5)2 x (0.5 - 1.0) Solid or stranded AWG 18 - 10 1 x (21 - 14)2 x (21 - 18) 1 x (21 - 14)2 x (21 - 18) 1 x (21 - 14)2 x (21 - 18) Tightening torque Nm 1.2 1.2 0.4 0.4 Screwdriver mm 0,8 x 5,51 x 6 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 Control circuit Regulator supply NotesExternal supply voltage Voltage U s V …340SX… 24 V AC/DC +10 %/- 15 % 24 V AC/DC +10 %/- 15 % …342SX… 110 V AC -15 % - 230 V AC +10 % 110 V AC -15 % - 230 V AC +10 % …34DSX… 24 V DC +10 %/- 15 % 24 V DC +10 %/- 15 % Current consumption I e mA 50 50 Current consumption at peak performance (close bypass) at 24 V DC I Peak mA/ms - 600/50 Digital inputs Control voltage DC-operated V DC …340SX…-N 24 V DC +10 %/- 15 % 24 V DC +10 %/- 15 % …340SX…-L 24 V DC +10 %/- 15 % 24 V DC +10 %/- 15 % …34DSX… 24 V DC +10 %/- 15 % oder über SWD 24 V DC +10 %/- 15 % oder über SWD AC operated V AC …340SX…-N 24 V AC +10 %/- 15 % 24 V AC +10 %/- 15 % …342SX…-N 110 V AC - 15 % - 230 V AC +10 % 110 V AC - 15 % - 230 V AC +10 % Current consumption 24 V External 24 V mA 1.6 1.6 Current consumption 230 V 230 V AC mA …342SX… 4 4 Pick-up voltage DC-operated V DC 17.3 - 27 17.3 - 27 AC operated V AC …340SX… 17.3 - 27 17.3 - 27 …342SX… 108 - 253 108 - 253 DS7…004… DS7…007… DS7…009… DS7…012… DS7…016… DS7…024… DS7…032… DS7…041… DS7…055… DS7…070… DS7…081… DS7…100… DS7…135… DS7…160… DS7…200… 127

128 DS7 soft starters Basic devices CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu DS7 soft starters Basic devices DS7 Drop-out voltage DC operated V DC 0 - 3 0 - 3 AC operated V AC …340SX… 0 - 3 0 - 3 …342SX… 0 - 15 0 - 15 Pick-up time DC operated ms 250 250 AC operated ms 250 250 Drop-out time DC operated ms 350 350 AC operated ms 350 350 Relay outputs Number 1 (TOR) 2 (TOR, Ready) 2 (TOR, Ready) Voltage range V AC = U s 250 250 AC-11 current range A 1 A, AC-11 1 A, AC-11 1 A, AC-11 Soft start function Ramp times Acceleration s 1 - 30 1 - 30 Deceleration s 0 - 30 0 - 30 Start pedestal % 30 - 100 30 - 100 Current limitation …34DSX…(+PKE) (0 - 8) x I e (0 - 8) x I e Fields of application Fields of application Soft starting of three-phase asynchronous motors Soft starting of three-phase asynchronous motors 3-phase motors ✓ ✓ Functions Fast switching (semiconductor contactor) - (minimum ramp time 1s) - (minimum ramp time 1s) Soft start function ✓ ✓ Reversing starter External solution required External solution required Suppression of closing transients ✓ ✓ Current limitation …34DSX… ✓, with PKE ✓, with PKE Overload monitoring - - - - - - - - - - - - - - - Underload monitoring - - - - - - - - - - - - - - - Thermistor input - - - - - - - - - - - - - - - Fault memory Faults …34DSX… 8 8 Pre-programmed parameter sets - - - - - - - - - - - - - - - Suppression of DC components for motors ✓ ✓ Potential isolation between power and control sections ✓ ✓ Built-in interfaces …34DSX… SmartWire-DT SmartWire-DT DS7…004… DS7…007… DS7…009… DS7…012… DS7…016… DS7…024… DS7…032… DS7…041… DS7…055… DS7…070… DS7…081… DS7…100… DS7…135… DS7…160… DS7…200… 129

130 DS7 soft starters Soft starters CA04020001Z-EN-INT www.eaton.eu Soft starters Dimensions DS7-340SX004N0-N DS7-342SX004N0-N DS7-340SX041N0-N DS7-342SX041N0-N DS7-34DSX041N0-D DS7-340SX007N0-N DS7-342SX007N0-N DS7-340SX055N0-N DS7-342SX055N0-N DS7-34DSX055N0-D DS7-340SX009N0-N DS7-342SX009N0-N DS7-340SX070N0-N DS7-342SX070N0-N DS7-34DSX070N0-D DS7-340SX012N0-N DS7-342SX012N0-N DS7-340SX081N0-N DS7-342SX081N0-N DS7-34DSX081N0-D DS7-340SX100N0-N DS7-342SX100N0-N DS7-34DSX100N0-D DS7-34DSX004N0-D DS7-34DSX009N0-D DS7-34DSX007N0-D DS7-34DSX012N0-D ① DS7-...-D DS7-340SX016N0-N DS7-342SX016N0-N DS7-340SX135N0-N DS7-342SX135N0-N DS7-34DSX135N0-D DS7-340SX024N0-N DS7-342SX024N0-N DS7-340SX160N0-N DS7-342SX160N0-N DS7-34DSX160N0-D DS7-340SX032N0-N DS7-342SX032N0-N DS7-340SX200N0-N DS7-342SX200N0-N DS7-34DSX200N0-D DS7-34DSX016N0-D DS7-34DSX024N0-D DS7-34DSX032N0-D ① DS7-...-D 4 x M4 35 mm(1.38”) 45 mm (1.77”) 130 mm (5.12”) 122 mm (4.80”) 95 mm (3.74”) 125 mm (4.92”) 30 mm 30 mm 22.5 mm  PE ① 156 mm (6.14”) (0.89”) (1.18”) (1.18”) 161 mm 129 mm 175 mm (5.08”) (6.34”) (6.89”) 40 mm (1.58”) 22.5 mm 93 mm 35 mm 139 mm (3.66”) (0.89”) (1.38”) (5.47”)  PE ① 4 x M4 35 mm(1.38”) 45 mm (1.77”) 130 mm (5.12”) 122 mm (4.80”) 125 mm (4.92”) 95 mm (3.74”) 103 mm (4.05”) 4 x M4 35 mm(1.38”) 45 mm (1.77”) 150 mm (5.90”) 140 mm (5.51”) 118 mm (4.65”) (0.59”) (1.38”) (1.38”) 35 mm 35 mm 15 mm ① 195 mm (7.68”)  PE (6.22”) (7.87”) (8.46”) 215 mm 200 mm 158 mm 40 mm (1.58”) (4.25”) (0.59”) (2.07”) (7.01”) 52.5 mm 178 mm 15 mm 108 mm  PE ① 2 x M4 35 mm(1.38”) 45 mm (1.77”) 150 mm (5.90”) 140 mm (5.51”) 118 mm (4.65”) 126 mm (4.96”)

DS7 soft starters Superfast semiconductor fuses, Fuse Bases CA04020001Z-EN-INT www.eaton.eu 131 DS7 Superfast semiconductor fuses, Fuse Bases Device fans DS7-FAN-100 DS7-FAN-200 Superfast semiconductor fuses Sizes 000, 00 Sizes S1 , S1, S2, S3 Fuse Bases 170H3004 170H1007 192 211 69 90 17 50 238 259 83 105 17 70 a2 80 mm (3.15") a2 2 mm (0.08") a1 a 55 mm (2.17") 100 mm (3.9") a a1 a2 Size mm (inch) mm (inch) mm (inch) (size) 40 (1.57) 20 (0.79) 8 (0.31) 000 51 (2.01) 28 (1.1) 10 (0.39) 00 b 11 mm (0.43") a1 a2 a 11 mm (0.43") b1 b 6 mm (0.24") a a1 a2 b b1 Size mm (inch) mm (inch) mm (inch) mm (inch) mm (inch) (size) 104 (4.09) 78 (3.07) 50 (1.97) 45 (1.77) 22 (0.87) S1 108 (4.25) 78 (3.07) 50 (1.97) 53 (2.09) 25 (0.98) S1 108 (4.25) 78 (3.07) 50 (1.97) 61 (2.40) 25 (0.98) S2 109 (4.29) 78 (3.07) 51 (2.01) 76 (2.99) 30 (1.18) S3 64 mm (2.52") 77 mm (3.03") 9 mm (0.35") 40 mm (1.57) 85 mm (3.35") 150 mm (5.91") 50 mm (1.97) 80 mm (3.15") 205 mm (8.07") M10 M8 M10 43 mm (1.69") 146 mm (5.75") 80 mm (3.15") 126 mm (4.9") 25 mm (0.98") 40.5 mm (1.59") 50.5 mm (1.99") 25 mm (0.98") 4 x ⌀ 7 mm (4 x ⌀ 0.3") M8

The incredible performance of our two new S801+ and S811+ soft starter series is shaped by the expanded functionality that we have integrated into our tried-and-true series of soft starters. With only five sizes and rated operational currents of 37 A to 1,000 A for line voltages of 200 V to 690 V, the S801+ and S811+ are two of the smallest, most compact soft starters in the world. These three-phase controlled soft starters, which feature an internal bypass and exten-sive monitoring and protection mechanisms, guarantee not only soft motor start-ups, but also the safe and reliable continuous operation of three-phase motors even in applica-tions involving high load torques. In addition, these soft starters can be connected with a standard in-line configuration or with an inside-the-delta (also called "six wire connec-tion") configuration as needed. S801+ soft starters were designed with standard applications in mind and owe an important part of their appeal to their ease of use, while the devices in the S811+ series are characterized by a digital control and display unit that provides access to extended functions for sophisticated applications. S801+/S811+ Soft Starters – Powerful Performance in a Small Package

Soft starter S801+, S811+ CA04020001Z-EN-INT www.eaton.eu 133 S801+, S811 + System overview Soft starter S801+, S811+ 134 Description Soft starter S801+, S811+ 135 Key to type references, UL/CSA Soft starter S801+, S811+ 136 Ordering Soft starter S801+, S811+ 137 Accessories 139 Engineering Connection examples S811+...N3S 141 Technical data Soft starter S801+, S811+ 142 Dimensions Soft starter S801+, S811+ 150

134 Soft starter S801+, S811+ CA04020001Z-EN-INT www.eaton.eu System overview S801+ / S811+ 1 ￫ page 137 Fuse base for superfast semiconductor fuses 2 ￫ page 111 Superfast semiconductor fuses 3 ￫ page 112 3 2 1

Soft starter S801+, S811+ CA04020001Z-EN-INT www.eaton.eu 135 S801+, S811 + Description S801+ series soft starters are an innovative addition that further enhances their tried-and-true predecessors. They are designed to guarantee reliable operation even under harsh and challenging ambient conditions. In addition, the series makes a compelling case as a result of its ease of use and is the perfect choice for standard applications such as pumps, fans, compressors, and conveyor belts. S801+ soft starters are three-phase controlled and come with internal bypass contacts for continuous operation. With them, motors can be connected with a standard in-line circuit or inside the delta circuit (inside-the-delta circuit, √3 circuit). Using an inside-the-delta circuit will reduce the current flowing through the soft starter by approximately 42%. This makes it possible, for example, to start and run a motor with a rated operational current of 100 A using a 58-A soft starter. In addition, their comprehensive protection and monitoring features enable S801+ soft starters to ensure that three-phase motors with rated operational currents of 11 A to 1000 A will have soft startups and safe and reliable continuous operation at mains voltages of 200 V to 600 V – up to 690 V in the case of S811+ soft starters. Accordingly, for instance, their controlled coasting (soft stop control) and torque monitoring features can be used to prevent water impact in pumps and to reduce the mechanical loads on pump systems significantly. Essential features S801+ / S811+ • Rated operational current: 37 - 1000 A• Parameterizable overload settings: 31–100%• Adjustable overload classes: class 5, 10, 20, 30• Base setting: 15 s start ramp, 4 starts per hour, 300% starting current at 40 °C ambient temperature • Allocated motor outputs for in-line connection: – 7.5 - 277 kW (3~ 230 V)– 18.5 - 525 kW (3~ 400 V)– 30 - 900 kW (3~ 690 V) • Ambient air temperature: -30 °C to +50 °C• any required mounting position • Degree of protection with compact design (IP20 optional)• 5 compact designs• Adjustable torque control• Adjustable kick start• Efficient use of power achieved with internal bypass contacts during continuous operation • 24-V control voltage: – External supply required– 1 A continuous current– 10 A starting current (peak value for 15 ms) S801+ specific characteristics • Microswitches and potentiometers make it easy to configure these soft starters S811+ series soft starters provide all the features and characteristics of S801+ soft starters, plus expanded functionality and an operating unit (DIM = digital interface module). Important operating unit characteristics (S811+) • Language-neutral LCD display with backlight• Easy to use and configure with function keys• System parameter configuration• Diagnostic and monitoring options • Reading display (e.g., L1, L2, L3 phase currents)• Error display• Offset placement (mounted on door), connection via plug-in patch cord with RJ45 plug • Front IP54 S811+ specific characteristics • Mains voltage up to 690 V?• Special pump control algorithm with prolonged soft stop ramp PREV Monitoring ONLN SS OXFDO1 H STOP ENTER NEXT

136 Soft starter S801+, S811+ CA04020001Z-EN-INT www.eaton.eu Key to type references UL/CSA Information relevant for export to North America S801+N…, S801+R…, S801+T… (600 V) S801+U…, S801+V... bis 850 A (600 V) S811+N…, S811+R…, S811+T… (600 V) S811+U…, S811+V... bis 850 A (600 V) Product Standards IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking UL File No. E202571 E202571 UL CCN NMFT NMFT CSA File No. LR 353 LR 353 CSA Class No. 3211-06, 2411-01 3211-06 NA Certification UL Listed, CSA Certified UL Listed, CSA Certified Conditions of Acceptability None None Suitable for Branch Circuits, not as BCPD Branch Circuits, not as BCPD Max. Voltage Rating 600 Vac 600 Vac Degree of Protection IP20 with kit IP20 with kit S801+V…, 1000 A (600 V) S811+V…, 1000 A (600 V) S811+…V3S (690 V) Product Standards IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking IEC/EN 60947-4-2; UL 508; CE marking UL File No. E202571 E202571 UL CCN NMFT2 NMFT CSA File No. LR 353 CSA Class No. 3211-06 NA Certification UL Recognized, CSA Certified UL Listed Conditions of Acceptability 98-115 CFM fan and 4" x 4" vent req'd None Suitable for Branch Circuits, not as BCPD Branch Circuits, not as BCPD Max. Voltage Rating 600 Vac 690 Vac Degree of Protection IP20 with kit IP20 with kit S 801+ N 66 N 3 S N = 65 mmR = 110 mmT = 200 mmU = 200 mmV = 290 mm 37 = 37 A66 = 66 A10 = 105 A13 = 135 A18 = 180 A24 = 240 A30 = 304 A36 = 361 A42 = 420 A50 = 500 A65 = 650 A72 = 720 A85 = 850 A10 = 1000 A Version S = soft starters Fitted with Rated operational current I e Number of poles N = Basic device (S801+/S811+)P = Pump control (S811+)V = 690 V rated (S811+) 3 = Three-pole device S = Standard version 801+ = with adjustable elements811+ = with keypad Frame size

Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu 137 S801+, S811 + Basic devices Ordering Frame size Rated operational current Assigned motor rating Part no. Article no. Pricesee price list Std. pack Device (AC-53) at 400 V, 50 Hz at 480 V, 60 Hz I e P P A kW HP Soft starters Mains supply voltage (50/60 Hz) U LN : 200 - 600 V AC Supply voltage U s : 24 V DC Control voltage U C : 24 V DC, With internal bypass contacts Soft starters for three-phase loadsN 37 18.5 25 S801+N37N3S 169852 1 off 66 30 50 S801+N66N3S 169853 R 105 55 75 S801+R10N3S 169854 135 75 100 S801+R13N3S 169855 T 180 90 150 S801+T18N3S 169856 240 132 200 S801+T24N3S 169857 304 160 250 S801+T30N3S 169858 U 361 200 300 S801+U36N3S 169859 420 200 350 S801+U42N3S 169860 V 361 200 300 S801+V36N3S 169863 420 200 350 S801+V42N3S 169864 500 250 400 S801+V50N3S 169865 650 315 500 S801+V65N3S 169866 720 400 600 S801+V72N3S 169867 850 450 600 S801+V85N3S 169868 1000 560 750 S801+V10N3S 169862 Soft starter for three-phase loads, with control unitN 37 18.5 25 S811+N37N3S 168976 1 off 66 30 50 S811+N66N3S 168978 R 105 55 75 S811+R10N3S 168980 135 75 100 S811+R13N3S 168982 T 180 90 150 S811+T18N3S 168984 240 132 200 S811+T24N3S 168987 304 160 250 S811+T30N3S 168990 U 361 200 300 S811+U36N3S 169869 420 200 350 S811+U42N3S 169870 V 361 200 300 S811+V36N3S 168993 420 200 350 S811+V42N3S 168996 500 250 400 S811+V50N3S 168999 650 315 500 S811+V65N3S 169002 720 400 600 S811+V72N3S 169005 850 450 600 S811+V85N3S 169008 1000 560 750 S811+V10N3S 169011 Soft starter for three-phase loads, with control unit and pump algorithmN 37 18.5 25 S811+N37P3S 168977 1 off 66 30 50 S811+N66P3S 168979 R 105 55 75 S811+R10P3S 168981 135 75 100 S811+R13P3S 168983 T 180 90 150 S811+T18P3S 168985 240 132 200 S811+T24P3S 168988 304 160 250 S811+T30P3S 168991 U 361 200 300 S811+U36P3S 169872 420 200 350 S811+U42P3S 169873 V 361 200 300 S811+V36P3S 168994 420 200 350 S811+V42P3S 168997 500 250 400 S811+V50P3S 169000 650 315 500 S811+V65P3S 169003 720 400 600 S811+V72P3S 169006 850 450 600 S811+V85P3S 169009 1000 560 750 S811+V10P3S 169012 Notes Information relevant for export to North America ￫ Page 136

138 Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu Frame size Rated operational current Assigned motor rating Part no. Article no. Pricesee price list Std. pack Device (AC-53) at 400 V, 50 Hz at 690 V, 50 Hz at 480 V, 60 Hz I e P P P A kW kW HP Soft starters Mains supply voltage (50/60 Hz) U LN : 200 - 690 V AC Supply voltage U s : 24 V DC Control voltage U C : 24 V DC With internal bypass contactsSoft starter for three-phase loads, with control unit and pump algorithm, for 690-V gridsT 180 90 160 150 S811+T18V3S 168986 1 off 240 132 200 200 S811+T24V3S 168989 304 160 250 250 S811+T30V3S 168992 V 361 200 315 300 S811+V36V3S 168995 420 200 400 350 S811+V42V3S 168998 500 250 500 400 S811+V50V3S 169001 650 315 630 500 S811+V65V3S 169004 720 400 630 600 S811+V72V3S 169007 850 450 710 600 S811+V85V3S 169010 Notes Sizes S801+, S811+ N R T U V Information relevant for export to North America ￫ Page 136 L1 L2 L3 1 3 5 1 L1 L2 3 L3 5

Soft starter S801+, S811+ Accessories CA04020001Z-EN-INT www.eaton.eu 139 S801+, S811 + Accessories Description For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America Control unit With adjusting elements (potentiometer, microswitch) S801+ EMA71144346 1 off Product Standards IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking UL File No. E202571 CSA File No. LR 353 Conditions of Acceptability UL unlisted component, CSA Investigated Component With illuminated LCD displayWith control buttons and function keysFront IP54RJ45 plug, 8-pin S811+ EMA91144570 Cover Protection for installation space in S811+ if the control unit is set up externally.- S811+ EMA68144556 1 off Mounting frame For mounting the EMA91 control unit externally with surface mounting (e.g., installation in control panel door).- EMA91 EMA69A144557 1 off Product Standards IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking UL File No. E202571 UL Category Control No. NMFT2 CSA File No. LR 353 CSA Class No. 3211-06 North America Certification UL listed, CSA certified Connection cable Connection cable with RJ45 plugs, 8 pole EMA91 EMA69B144558 1 off Product Standards IEC/EN 60947-4-2; UL 508; CSA C22.2 No. 14; CE marking UL File No. E202571 UL Category Control No. NMFT2 CSA File No. LR 353 CSA Class No. 3211-06 North America Certification UL listed, CSA certified EMA91 EMA69C144559 EMA91 EMA69D144560 Control terminal strip - S801+, S811+ EMA75144561 1 off IP20 Kits - S801+, S811+, Baugröße N SS-IP20-N171990 1 off - S801+, S811+, Baugröße R SS-IP20-R171991 - S801+, S811+, Baugrößen T und U SS-IP20-TU171992 - S801+, S811+, Baugröße V SS-IP20-V158650

140 Soft starter S801+, S811+ Accessories CA04020001Z-EN-INT www.eaton.eu Terminal blocks Tools with dimensions in inches required Terminal capacities2 x 4-1/0MCM, 2 x 25-50 mm² S801+, S811+, Baugrößen T und U EML22127661 1 off Product Standards UL 1059 UL File No. E60693 UL Category Control No. NMFT CSA File No. LR 353 CSA Class No. 6223-02 North America Certification UL listed, CSA certifiedConditions of Acceptability 10A min, Use group C or D, 30 to 12 AWG solid/stranded Max. Voltage Rating 300 V ac 4/0-500 MCM, 120-150 mm² EML23127662 Product Standards UL508, CSA C22.2 No. 65 UL File No. E202571 UL Category Control No. NMFT CSA File No. LR 353 CSA Class No. 6223-02 North America Certification UL listed, CSA certified 2 x 4/0-500 MCM, 2 x 120-150 mm² EML24127663 2 x 2/0-300 MCM, 2 x 70-150 mm² EML25127664 2/0-300 MCM, 70-150 mm² EML26127665 4/0-500 MCM, 120-150 mm² S801+, S811+, Baugröße V EML27144549 2 x 4/0-500 MCM, 2 x 120-150 mm² EML28127666 4 x 4/0-500 MCM, 4 x 120-150 mm² EML30127667 6 x 4/0-500 MCM, 6 x 120-150 mm² EML32127668 4 x 2/0-300 MCM, 4 x 70-150 mm² EML33127669 TVSS SMD metal-oxide varistors (MOVs) with connection cables for the grid and motor connection sides S801+, S811+, bis 600 V EMS39127671 1 off Product Standards UL 508; CSA C22.2 No. 14 UL File No. E202571 CSA File No. LR 353 Conditions of Acceptability UL and CSA Investigated Component Max. Voltage Rating 1000 V ac 3 ph S811+, bis 690 V EMS41127672 1 off EtherNet/IP - Modbus/TCP adapter - S801+, S811+ C441V172306 1 off Product Standards IEC/EN 60947-4-1; UL 508; CSA C22.2 No. 14; CE marking UL File No. E1230 UL Category Control No. NKCR CSA File No. LR 353 CSA Class No. 3211-03 Max. Voltage Rating 240 Vac (auxiliary contacts) Description For use with Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America

Soft starter S801+, S811+ Connection examples CA04020001Z-EN-INT www.eaton.eu 141 S801+, S811 + Connection examples Engineering Connection examples for S811+…N3S Standard connection (in-line connection) ① Snap-on ferrite core, included as standard② External control voltage (24 VDC) required, IS 100 mA, IPeak = 10 A for 15 ms when bypass contacts are switched Delta circuit (inside-the-delta circuit) ① Snap-on ferrite core, included as standard② External control voltage (24 VDC) required, IS 100 mA, IPeak = 10 A for 15 ms when bypass contacts are switchedShort-circuit and cable protection: Q1 circuit-breakers or F1 fuses. M 3 ~ PE L1 L2 L3 TOR Enable Start Jog Hand/Auto Fault/Reset P 1 2 6T3 4T2 2T1 5L3 3L2 1L1 + – (+) U s (–) U s 3 4 13 14 95 96 98 Q21 M1 Ready/Fault (+) U s 24 V DC (–) U s b a M 3 ~ TOR Enable Start Jog Hand/Auto Fault/Reset P 1 2 6T3 4T2 2T1 5L3 3L2 1L1 3 4 13 14 95 96 98 Q21 M1 Ready/Fault (+) U s 24 V DC (–) U s L1L2L3PE Q11 F2 Q1 I I I F1 V1 W1 U1 V2 W2 U2 + – (+) U s (–) U s ② ①

142 Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Soft starter S801+, S811+ Basic devices S801+, S811+ Basic devices Technical data S8x1+N37… S8x1+N66… S8x1+R10… S8x1+R13… S8x1+T18… S8x1+T24… S8x1+T30… S8x1+U36… S8x1+U42… General Standards IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 Approvals CE CE CE CE CE CE Approvals ULCSAC-TickCCC ULCSAC-TickCCC Climatic proofing Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10 Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10 Ambient temperature Operation ϑ °C -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 Storage ϑ °C -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 Altitude m 0 - 2000 m, above that each 100 m 0.5% Derating 0 - 2000 m, above that each 100 m 0.5% Derating Mounting position As required As required As required As required As required As required As required As required As required Degree of protection Protection type IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) Integrated Protection type IP40 can be achieved on all sides with covers SS-IP20-N. An IP20 degree of protection can be achieved on all sides by using optional terminal covers SS-IP20-TU. Protection against direct contact Finger- and back-of-hand proof Finger- and back-of-hand proof Overvoltage category/pollution degree II/3 II/3 II/3 II/3 II/3 II/3 II/3 II/3 II/3 Shock resistance 15 g 15 g 15 g 15 g 15 g 15 g 15 g 15 g 15 g Radio interference level (IEC/EN 55011) A A A A A A A A A Heat dissipation W 25 25 25 25 25 25 25 25 25 Weight kg 2.6 2.6 4.8 4.8 18.6 18.6 18.6 18.6 18.6 Main conducting paths Rated operating voltage U e V AC 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 …V3S - - - - 200 - 690 200 - 690 200 - 690 - - Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Rated operational current Device (AC-53) I e A 37 66 105 135 180 240 304 361 420 Assigned motor rating (Standard connection, In-Line) at 230 V, 50 Hz P kW 7.5 18.5 30 37 55 75 90 110 132 at 400 V, 50 Hz P kW 18.5 30 55 75 90 132 160 200 200 at 500 V, 50 Hz P kW 22 45 55 90 110 160 200 250 250 at 690 V, 50 Hz P kW - - - - 160 200 250 - - at 200 V, 60 Hz P HP 10 20 30 40 60 75 100 125 125 at 230 V, 60 Hz P HP 10 20 40 50 60 75 100 150 150 at 480 V, 60 Hz P HP 25 50 75 100 150 200 250 300 350 at 600 V, 60 Hz P HP 30 60 100 125 150 200 300 350 450 Internal bypass contacts ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Terminal capacities Cable lengths Solid mm 2 1 x (2.5 - 35) 1 x (2.5 - 35) 1 x (2.5 - 95) 1 x (2.5 - 95) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) Flexible with ferrule mm 2 1 x (2.5 - 35) 1 x (2.5 - 35) 1 x (2.5 - 95) 1 x (2.5 - 95) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) Stranded mm 2 1 x (2.5 - 35) 1 x (2.5 - 35) 1 x (2.5 - 95) 1 x (2.5 - 95) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 240)2 x (25 - 240) 1 x (70 - 150)2 x (25 - 240) 1 x (70 - 150)2 x (25 - 240) Solid or stranded AWG 1 x (14 - 2) 1 x (14 - 2) 1 x (14 - 4/0) 1 x (14 - 4/0) 1 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 1 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 1 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 1 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 1 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) Tightening torque Nm 4 (≤ 6 mm²); 4.5 (≤ 10 mm²); 5 (≤ 25 mm²); 5.6 ( 25 mm²) 11.3 11.3 25.5 (≤ 150 mm²); 28.3 ( 150 mm²) 25.5 (≤ 150 mm²); 28.3 ( 150 mm²) 25.5 (≤ 150 mm²); 28.3 ( 150 mm²) - - Screwdriver (PZ: Pozidriv) mm 1,5 x 6 mm 1,5 x 6 mm 4 mm Hexagon socket-head screw 4 mm Hexagon socket-head screw 4 mm Hexagon socket-head screw - - 143

144 Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Soft starter S801+, S811+ Basic devices S801+, S811+ Control cables Solid mm 2 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) Flexible with ferrule mm 2 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) Stranded mm 2 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) Solid or stranded AWG 1 x (12 - 14)2 x (12 - 14) 3 x (12 - 14)2 x (12 - 14) 5 x (12 - 14)2 x (12 - 14) 7 x (12 - 14)2 x (12 - 14) 9 x (12 - 14)2 x (12 - 14) 12 x (12 - 14)2 x (12 - 14) 15 x (12 - 14)2 x (12 - 14) 18 x (12 - 14)2 x (12 - 14) 21 x (12 - 14)2 x (12 - 14) Tightening torque Nm 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 0.4 Screwdriver mm 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 Control circuit Regulator supply NotesExternal supply voltage Voltage U s V 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % Current consumption I e mA 1000 1000 1000 1000 1000 1000 1000 1000 1000 Current consumption at peak performance (close bypass) at 24 V DC I Peak mA/ms 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 Digital inputs Control voltage DC-operated V DC 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % Current consumption 24 V External 24 V (no-load) mA 100 100 100 100 100 100 100 100 100 Pick-up voltage DC-operated V DC 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 Drop-out voltage DC operated V DC 3 3 3 3 3 3 3 3 3 Pick-up time DC operated ms 100 100 100 100 100 100 100 100 100 Drop-out time DC operated ms 100 100 100 100 100 100 100 100 100 Relay outputs Number 2 2 2 2 2 2 2 2 2 Voltage range V AC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC AC-11 current range A 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 Soft start function Ramp times Acceleration s 180 180 180 180 180 180 180 180 180 Deceleration s 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 Start pedestal % 85 85 85 85 85 85 85 85 85 Kickstart Voltage % 100 100 100 100 100 100 100 100 100 Duration 50 Hz ms 2000 2000 2000 2000 2000 2000 2000 2000 2000 60 Hz ms 2000 2000 2000 2000 2000 2000 2000 2000 2000 Fields of application Fields of application Soft starting of three-phase asynchronous motors Soft starting of three-phase asynchronous motors 3-phase motors ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Functions Fast switching (semiconductor contactor) - (minimum ramp time 1s) - (minimum ramp time 1s) Soft start function ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Reversing starter External solution required (reversing contactor) External solution required (reversing contactor) Suppression of closing transients ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Current limitation ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Overload monitoring ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Underload monitoring ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Fault memory Faults 10 10 10 10 10 10 10 10 10 Suppression of DC components for motors ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Potential isolation between power and control sections ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓ Built-in interfaces Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU S8x1+N37… S8x1+N66… S8x1+R10… S8x1+R13… S8x1+T18… S8x1+T24… S8x1+T30… S8x1+U36… S8x1+U42… 145

146 Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Soft starter S801+, S811+ Basic devices S801+, S811+ S8x1+V36… S8x1+V42… S8x1+V50… S8x1+V65… S8x1+V72… S8x1+V85… S8x1+V10… General Standards IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 IEC/EN 60947-4-2UL 508CSA22.2-14-1995GB14048 Approvals CE CE CE CE CE CE CE Approvals ULCSAC-TickCCC ULCSAC-TickCCC ULCSAC-TickCCC ULCSAC-TickCCC ULCSAC-TickCCC ULCSAC-TickCCC ULCSAC-TickCCC Climatic proofing Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10 Damp heat, constant, to IEC 60068-2-3Damp heat, cyclic, to IEC 60068-2-10 Ambient temperature Operation ϑ °C -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 -30 - +50 Storage ϑ °C -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 -50 - +70 Altitude m 0 - 2000 m, above that each 100 m 0.5% Derating 0 - 2000 m, above that each 100 m 0.5% Derating Mounting position As required As required As required As required As required As required As required Degree of protection Protection type IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) IP20 (terminals IP00) Integrated Protection type IP40 can be achieved on all sides with covers SS-IP20-N. Protection type IP40 can be achieved on all sides with covers SS-IP20-N. Protection against direct contact Finger- and back-of-hand proof Finger- and back-of-hand proof Overvoltage category/pollution degree II/3 II/3 II/3 II/3 II/3 II/3 II/3 Shock resistance 15 g 15 g 15 g 15 g 15 g 15 g 15 g Radio interference level (IEC/EN 55011) A A A A A A A Heat dissipation W 25 25 25 25 25 25 25 Weight kg 41.4 41.4 41.4 41.4 41.4 41.4 41.4 Main conducting paths Rated operating voltage U e V AC 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 200 - 600 …V3S 200 - 690 200 - 690 200 - 690 200 - 690 200 - 690 200 - 690 - Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 50/60 Rated operational current Device (AC-53) I e A 361 420 500 650 720 850 1000 Assigned motor rating (Standard connection, In-Line) at 230 V, 50 Hz P kW 110 132 160 200 200 200 200 at 400 V, 50 Hz P kW 200 200 250 315 400 450 560 at 500 V, 50 Hz P kW 250 250 315 450 500 560 630 at 690 V, 50 Hz P kW 315 400 500 630 630 710 - at 200 V, 60 Hz P HP 125 150 150 200 200 200 200 at 230 V, 60 Hz P HP 150 150 200 250 250 350 400 at 480 V, 60 Hz P HP 300 350 400 500 600 600 750 at 600 V, 60 Hz P HP 350 450 500 600 750 850 850 Internal bypass contacts ✓ ✓ ✓ ✓ ✓ ✓ ✓ Terminal capacities Cable lengths Solid mm 2 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) Flexible with ferrule mm 2 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) Stranded mm 2 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) 2 x (120 - 240)4 x (70 - 240)6 x (120 - 240) Solid or stranded AWG 2 x (4 - 500 kcmil) 4 x (4 - 500 kcmil) 6 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 4 x (4 - 500 kcmil) 6 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 4 x (4 - 500 kcmil) 6 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 4 x (4 - 500 kcmil) 6 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 4 x (4 - 500 kcmil) 6 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 4 x (4 - 500 kcmil) 6 x (4 - 500 kcmil) 2 x (4 - 500 kcmil) 4 x (4 - 500 kcmil) 6 x (4 - 500 kcmil) Tightening torque Nm - - - - - - - Screwdriver (PZ: Pozidriv) mm - - - - - - - 147

148 Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Soft starter S801+, S811+ Basic devices S801+, S811+ Control cables Solid mm 2 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) Flexible with ferrule mm 2 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) Stranded mm 2 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) 1 x (2.5 - 4)2 x (1.0 - 2.5) Solid or stranded AWG 27 x (12 - 14)2 x (12 - 14) 30 x (12 - 14)2 x (12 - 14) 33 x (12 - 14)2 x (12 - 14) 36 x (12 - 14)2 x (12 - 14) 39 x (12 - 14)2 x (12 - 14) 42 x (12 - 14)2 x (12 - 14) 45 x (12 - 14)2 x (12 - 14) Tightening torque Nm 0.4 0.4 0.4 0.4 0.4 0.4 0.4 Screwdriver mm 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 0,6 x 3,5 Control circuit Regulator supply NotesExternal supply voltage Voltage U s V 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % Current consumption I e mA 1400 1400 1400 1400 1400 1400 1400 Current consumption at peak performance (close bypass) at 24 V DC I Peak mA/ms 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 10.000 / 15 Digital inputs Control voltage DC-operated V DC 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % 24 V DC +10 %/- 10 % Current consumption 24 V External 24 V (no-load) mA 100 100 100 100 100 100 100 Pick-up voltage DC-operated V DC 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 21.6 - 26.4 Drop-out voltage DC operated V DC 3 3 3 3 3 3 3 Pick-up time DC operated ms 100 100 100 100 100 100 100 Drop-out time DC operated ms 100 100 100 100 100 100 100 Relay outputs Number 2 2 2 2 2 2 2 Voltage range V AC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC 120 V AC/DC AC-11 current range A 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 3 A, AC-11 Soft start function Ramp times Acceleration s 180 180 180 180 180 180 180 Deceleration s 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 0 - 60 Start pedestal % 85 85 85 85 85 85 85 Kickstart Voltage % 100 100 100 100 100 100 100 Duration 50 Hz ms 2000 2000 2000 2000 2000 2000 2000 60 Hz ms 2000 2000 2000 2000 2000 2000 2000 Fields of application Fields of application Soft starting of three-phase asynchronous motors Soft starting of three-phase asynchronous motors 3-phase motors ✓ ✓ ✓ ✓ ✓ ✓ ✓ Functions Fast switching (semiconductor contactor) - (minimum ramp time 1s) - (minimum ramp time 1s) Soft start function ✓ ✓ ✓ ✓ ✓ ✓ ✓ Reversing starter External solution required (reversing contactor) External solution required (reversing contactor) Suppression of closing transients ✓ ✓ ✓ ✓ ✓ ✓ ✓ Current limitation ✓ ✓ ✓ ✓ ✓ ✓ ✓ Overload monitoring ✓ ✓ ✓ ✓ ✓ ✓ ✓ Underload monitoring ✓ ✓ ✓ ✓ ✓ ✓ ✓ Fault memory Faults 10 10 10 10 10 10 10 Suppression of DC components for motors ✓ ✓ ✓ ✓ ✓ ✓ ✓ Potential isolation between power and control sections ✓ ✓ ✓ ✓ ✓ ✓ ✓ Built-in interfaces Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU Modbus RTU S8x1+V36… S8x1+V42… S8x1+V50… S8x1+V65… S8x1+V72… S8x1+V85… S8x1+V10… 149

150 Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu Basic devices Dimensions S8x1+N… S8x1+R… S8x1+T… 165 mm (6.50") 187 mm (7.36") 174.5 mm (6.87") 67.5 mm (2.66") 50 mm (1.97") 170 mm (6.69") 201 mm (7.91") 189 mm (7.44") 111 mm (4.37") 90 mm (3.54") 196 mm (7.72") 323 mm (12.72") 299 mm (11.77") 164 mm (6.46") 75 mm (2.95") 75 mm (2.95")

Soft starter S801+, S811+ Basic devices CA04020001Z-EN-INT www.eaton.eu 151 S801+, S811 + S8x1+U… S8x1+V… 182 mm (7.16") 323 mm (12.72") 299 mm (11.77") 196 mm (7.72") 66.4 mm (2.6") 66.4 mm (2.6") 281 mm (11.06") 421 mm (16.57") 188 mm (7.40") 385 mm (15.16") 95 mm (3.74")

Standardized installation procedures, the ability to directly and locally configure para-meters with a plug and play configuration, and networked communications – these are the needs of material handling system applications today when it comes to state-of-the-art drive engineering and the systems it produces.Eaton delivers a modern answer with the Rapid Link 4.0 distributed electronic drive system. With its flexible power spectrum, its simple handling and its intelligent program-ming options, this new motor starter and variable frequency drives generation is the first choice for all kinds of conveying engineering applications. RAMO electronic motor startersElectronic DOL and reversing starters with a lifespan of more than 10 million switching opera-tions, IP 65 degree of protection. Rated adjustable operational current of 0.3 – 6.6 A with three-phase mains connection of 400 V; allocated motor output of 0.09 – 3.0 kWRAMO-D…: DOL starterRAMO-W…: reversing starter RASP speed controllers Frequency-controlled motor starters with Volts-per-Hertz control (V/Hz control) and slip com-pensation or voltage-controlled vector control, as well as an integrated radio interference sup-pression filter (EMC), IP65 degree of protection.RASP-2…: Rated operational current of 0.48 – 2.4 A with three-phase mains connection of 400 V; assigned motor output of up to 0.75 kWRASP-3…: Rated operational current of 0.66 – 3.3 A with three-phase mains connection of 400 V; assigned motor output of up to 1.1 kWRASP-4…: Rated operational current of 0.86 – 4.3 A with three-phase mains connection of 400 V; assigned motor output of up to 1.5 kWRASP-5…: Rated operational current of 1.12 – 5.6 A with three-phase mains connection of 400 V; allocated motor output of up to 2.2 kW Rapid Link 4.0 distributed, electronic drive system

Rapid Link 4.0 CA04020001Z-EN-INT www.eaton.eu 153 Ra pi d L ink System overview 154 Description Application and function 156 Key to type references 157 Ordering Motor starter RAMO 158 RASP speed controllers 159 Accessories 160 Engineering General information on Engineering 164 Block diagram RAMO-D DOL starter 166 Block diagram RAMO-W reversing starter 168 Block diagram RASP 170 Technical data Motor starter RAMO 172 RASP speed controllers 172 Accessories 174 Dimensions Motor starter RAMO 175 RASP speed controllers 176 Accessories 177

154 Rapid Link 4.0 Rapid Link 4.0 CA04020001Z-EN-INT www.eaton.eu Rapid Link 4.0 System overview 3 AC, (N), PE 50/60 Hz M 3 M 3 18 21 5 10 15 6 1 7 2 3 4 8 9 11 12 12 10 11 13 14 17 20 22 16 19

Rapid Link 4.0 Rapid Link 4.0 CA04020001Z-EN-INT www.eaton.eu 155 Ra pi d L ink Function modules Motor feeder Power and data bus Motor starter (Motor Control Unit) 1 Three-phase electronic DOL starter or reversing starter￫ page 158 Speed controller RASP (Speed Control Unit) 2 Three phase frequency-controlled motor starter (fixed speeds, two rotational directions, adjustable acceleration and deceleration ramps)￫ page 159 operating unit 3 for parameter setting￫ page 160 Fan 4 for operation at high temperatures without derating￫ page 160 Unscreened motor cable 5 ￫ page 160 Screened motor supply cable (EMC) 6 ￫ page 160 Energy supply (3 AC 400 V) via circuit-breaker for overload and short-circuit protection 7 for protection against short-circuit and overload AS-Interface ® feeder unit 8 AS-Interface® flat cable 9 AS-Interface® connection cable 10 ￫ page 163 AS-Interface® junction 11 ￫ page 163 Sensor connection 12 ￫ page 163 End-piece for flat cable 13 ￫ page 162 distributor module 14 for 400-V-AC incoming unit of the flat cable￫ page 161 Power connection cable 15 to flexible busbar junction￫ page 160 flexible busbar junction 16 ￫ page 161 Ribbon cable for 400 V AC 17 ￫ page 160 Power connection cable 18 to round cable junction￫ page 162 Round cable junction 19 ￫ page 162 Round cable for 400 V AC 20 Power connection cable 21 to round cable junction￫ page 162 Round cable junction 22 ￫ page 162

CA04020001Z-EN-INT www.eaton.eu 156 Rapid Link 4.0 System System Overview of features Rapid Link 4.0 is a modern, efficient drive and PLC. It is the competent further development of the Rapid Link 2.1/3.0 device series, suitable for simple and complex tasks in all aspects of material handling. For example in airports, industrial production and logistics centers.The Rapid Link system consists of the RAMO electronic motor starters and the RASP frequency controlled motor starters. The RAMO and RASP motor starters are designed with IP65 protection and can be installed in direct proximity to the drive. Their versions and mounting depend on the required specifications and the local conditions.The RAMO and RASP are connected with standard plug connectors to the energy and databus systems predominantly used in material handling systems (AS-Interface). Connection can be implemented without interrupting the required location. This simplifies installation and reduces the wiring requirement. RAMO 4.0 electronic motor starters Frequency controlled motor starter RASP 4.0 Application and function Application and function The RAMO motor starters enable the electronic DOL or reversing starting of three-phase motors in automatic or manual mode. The electronic overload protection for motor ratings from 90 W to 3 kW at 400 V (50/60 Hz) is configured with DIP switches. Full motor protection is ensured when used in connection with temperature sensors.The operating mode is set via the AUTO - OFF/RESET – MANUAL key switch and can be combined with the 'Quick stop' and 'Interlocked manual operation' via the two sensor inputs (M12 sockets). Operating states are diagnosed and error messages (Reset) acknowledged on the device or via the AS-Interface.RAMO is available in different versions:• with actuator output (24 V DC) for a direct actuation of external switching devices, e.g. solenoid valves. • with electronic actuation for mechanical motor brakes.• with lockable repair switch for diagnostic and maintenance work, making it possible to safely de-energize the device locally. Essential features• Standard size in square enclosure. The bottom section with the two power terminals (power plug, motor feeder socket) and the repair and maintenance switch can be turned 90° clockwise and counterclockwise. • Long lifespan up to 10 million switching operations and up to 3,000 switch cycles per hour at 2.2 kW. • Rated operational current 6.6 A.• Operating and ambient temperature from -10 to +55 °C, without derating.• Monitoring of thermistor and motor cable.• Maximum motor cable length: 10 m. The RASP motor starter enables the infinitely variable speed control of three-phase motors in the range from zero to 320 Hz . The standard sizefor 400 V (50/60 Hz) is assigned four motor ratings: 0.75 kW, 1.1 kW, 1.5 kW and 2.2 kW. Full motor protection is ensured by the adjustable current limitation (I 2 t controller). The operating mode is set via the AUTO - OFF/RESET – MANUAL key switch and can be combined with the 'Quick stop' and 'Interlocked manual operation' via the two sensor inputs (M12 sockets). Settable fixed frequencies and cyclical program sequences extend the application range and relieve the load on the higher-level head-end controller (PLC). Operating states are diagnosed and error messages (Reset) acknowledged on the device or via the AS-Interface. A hand-held programmer and a PC interface are available for the parameterization of the variable frequency drive module.RASP is available in different versions:• with integrated brake chopper with braking resistance for dynamic braking.• with electronic actuation for mechanical motor brakes.• with lockable repair switch for diagnostic and maintenance work, making it possible to safely de-energize the device locally. Essential features• Standard size in square enclosure. The bottom section with the two power terminals (power plug, motor feeder socket) and the repair and maintenance switch can be turned 90° clockwise and counterclockwise. • Monitoring of thermistor and motor cable. • Operating and ambient temperatures from 0 to +40 °C without derating, with optional fan in the performance range up to 1.5 kW max. +55 °C. • Rated operational current: 2.4 A, 3.3 A, 4.3 A, 5.6 A • EMC class C3 in 2nd environment• Maximum motor cable length: 5 m.

CA04020001Z-EN-INT www.eaton.eu Rapid Link 4.0 Key to type references 157 Ra pi d L ink Key to type references Electronic motor starters RAMO Frequency controlled motor starter RASP RAMO - D A 2 AI1 S - C32 R S1 RAMO AS-Interface ® 2 = 230 V AC4 = 400 V AC S = Standard (-10 - 55 °C) AI1 = S-7.4AI2 = S-7.A.E. Type Option Breaking resistance Power connections Version S1 = Standard 0 = no optionR = manual override switch C32 = pluggable at bottom Ambient temperature during operation Starters D = DOL starterW = Reversing starter Output 0 = no outputA = Actuator output 0 = no breaking voltage RAMO - D A 2 AI1 S - C32 R S1 RAMO AS-Interface ® 2 = 230 V AC4 = 400 V AC S = Standard (-10 - 55 °C) AI1 = S-7.4AI2 = S-7.A.E. Type Option Breaking resistance Power connections Version S1 = Standard 0 = no optionR = manual override switch C32 = pluggable at bottom Ambient temperature during operation Starters D = DOL starterW = Reversing starter Output 0 = no outputA = Actuator output 0 = no breaking voltage

158 Rapid Link 4.0 Motor starter RAMO CA04020001Z-EN-INT www.eaton.eu Motor starter RAMO Ordering Rated operational current Control voltage external brake (50/60 Hz) 1) Actuator output 2) AS-Interface profile cable Part no.Article no. Pricesee price list Std. pack I e S- 7. 4 for 3 1 m odu le s S- 7. A. E. fo r 6 2 m o du le s A V AC Number Motor starter RAMO Rated operational voltage 400 V AC DOL starters 6.6 - - ✓ - RAMO-D00AI1S-C320S1150150 1 off 6.6 230 - ✓ - RAMO-D02AI1S-C320S1150152 6.6 230 - - ✓ RAMO-D02AI2S-C320S1171776 6.6 230 1 ✓ - RAMO-DA2AI1S-C320S1164321 6.6 400 - ✓ - RAMO-D04AI1S-C320S1169799 6.6 400 - - ✓ RAMO-D04AI2S-C320S1171778 6.6 400 1 ✓ - RAMO-DA4AI1S-C320S1169800 with manual override switch 6.6 - - ✓ - RAMO-D00AI1S-C32RS1150158 1 off 6.6 230 - ✓ - RAMO-D02AI1S-C32RS1150160 6.6 230 - - ✓ RAMO-D02AI2S-C32RS1171782 6.6 400 - ✓ - RAMO-D04AI1S-C32RS1169801 6.6 400 - - ✓ RAMO-D04AI2S-C32RS1171784 Reversing starterwith selector switch REV - OFF - FWD 6.6 - - ✓ - RAMO-W00AI1S-C320S1150151 1 off 6.6 230 - ✓ - RAMO-W02AI1S-C320S1150153 6.6 230 - - ✓ RAMO-W02AI2S-C320S1171777 6.6 230 1 ✓ - RAMO-WA2AI1S-C320S1164322 6.6 400 - ✓ - RAMO-W04AI1S-C320S1169802 6.6 400 - - ✓ RAMO-W04AI2S-C320S1171779 6.6 400 1 ✓ - RAMO-WA4AI1S-C320S1169803 with manual override switch 6.6 - - ✓ - RAMO-W00AI1S-C32RS1150159 1 off 6.6 230 - ✓ - RAMO-W02AI1S-C32RS1150161 6.6 230 - - ✓ RAMO-W02AI2S-C32RS1171783 6.6 400 - ✓ - RAMO-W04AI1S-C32RS1169804 6.6 400 - - ✓ RAMO-W04AI2S-C32RS1171785 Instructions 1) for actuation of motors with mechanical brake 2) Operation with external 24V DC supply

Rapid Link 4.0 RASP speed controllers CA04020001Z-EN-INT www.eaton.eu 159 Ra pi d L ink RASP speed controllers Rated operational current 1) assigned motor rating P 2) Control voltage external brake (50/60 Hz) 3) with braking resistance 4) Part no.Article no. Pricesee price list Part no.Article no. Pricesee price list Std. pack at 400 V, 50 Hz I e P A A V AC RASP speed controllers Rated operational voltage 400 V ACAS-Interface profile cable S-7.4 for 31 modules 2.4 - - RASP-200AI1S0-C320S1150168 RASP-210AI1S0-C320S1150172 1 off 2.4 - 230 RASP-202AI1S0-C320S1150176 RASP-212AI1S0-C320S1150180 2.4 - 400 RASP-204AI1S0-C320S1169805 RASP-214AI1S0-C320S1169809 3.3 - - RASP-300AI1S0-C320S1150169 RASP-310AI1S0-C320S1150173 3.3 - 230 RASP-302AI1S0-C320S1150177 RASP-312AI1S0-C320S1150181 3.3 - 400 RASP-304AI1S0-C320S1169806 RASP-314AI1S0-C320S1169810 4.3 - - RASP-400AI1S0-C320S1150170 RASP-410AI1S0-C320S1150174 4.3 - 230 RASP-402AI1S0-C320S1150178 RASP-412AI1S0-C320S1150182 4.3 - 400 RASP-404AI1S0-C320S1169807 RASP-414AI1S0-C320S1169811 5.6 - - RASP-500AI1SL-C320S1150171 RASP-510AI1SL-C320S1150175 5.6 - 230 RASP-502AI1SL-C320S1150179 RASP-512AI1SL-C320S1150183 5.6 - 400 RASP-504AI1SL-C320S1169808 RASP-514AI1SL-C320S1169812 with manual override switch 2.4 - - RASP-200AI1S0-C32RS1150200 RASP-210AI1S0-C32RS1150204 1 off 2.4 - 230 RASP-202AI1S0-C32RS1150208 RASP-212AI1S0-C32RS1150212 2.4 - 400 RASP-204AI1S0-C32RS1169813 RASP-214AI1S0-C32RS1169817 3.3 - - RASP-300AI1S0-C32RS1150201 RASP-310AI1S0-C32RS1150205 3.3 - 230 RASP-302AI1S0-C32RS1150209 RASP-312AI1S0-C32RS1150213 3.3 - 400 RASP-304AI1S0-C32RS1169814 RASP-314AI1S0-C32RS1169818 4.3 - - RASP-400AI1S0-C32RS1150202 RASP-410AI1S0-C32RS1150206 4.3 - 230 RASP-402AI1S0-C32RS1150210 RASP-412AI1S0-C32RS1150214 4.3 - 400 RASP-404AI1S0-C32RS1169815 RASP-414AI1S0-C32RS1169819 5.6 - - RASP-500AI1SL-C32RS1150203 RASP-510AI1SL-C32RS1150207 5.6 - 230 RASP-502AI1SL-C32RS1150211 RASP-512AI1SL-C32RS1150215 5.6 - 400 RASP-504AI1SL-C32RS1169816 RASP-514AI1SL-C32RS1169820 Instructions 1) for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm -1 at 50 Hz or 1800 min -1 at 60 Hz 2) Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +40 °C 3) for actuation of motors with mechanical brake 4) integrated brake chopper with braking resistance for dynamic braking

160 Rapid Link 4.0 Accessories CA04020001Z-EN-INT www.eaton.eu Accessories Description For use with Part no.Article no. Pricesee price list Std. pack Instructions Communications Operating unitfor setting the device parameters with non-volatile parameter memory for copying parameter setsEquipment supplied: including 1 m connection cable with RJ45 connectors RASP RASP-KEY-S1156644 1 off - Programming cablefor connecting the device to the PC For configuring the device's parameters with the MaxConnect computer programwith RJ 45 plug and USB plug Length 3.4 m RASP XMX-CBL-3M4-USB153448 1 off - Device fans RASP device fanfor operation at high temperatures without derating Power supply and control via RASP through M12 plug connectorEnhanced cooling for ambient temperatures of up to +55 °C for RASP-2…, RASP-3…., and RASP-4...Spare part for RASP-5... RASP RASP-FAN-S1156643 1 off - Motor feeder Motor cablefor connecting the motor starter to the motor Lengthm halogen free, 8 x 1.5 mm 2 , plastic plug 2 RAMO RAMO-CM1-2M0164282 1 off - 5 RAMO RAMO-CM1-5M0164283 1 off - 10 RAMO RAMO-CM1-10M164284 1 off - halogen free, screened, 4 x 1.5 mm 2 + 2 x (2 x 0.75 mm 2 ), plastic plug 2 RASP RASP-CM1-2M0164285 1 off - 5 RASP RASP-CM1-5M0164286 1 off - Locking bracketsfor the safe isolation of the motor cables from power For motor cables and motor plugs, disconnection device to EN 60204-1 RAMO-CM1…RASP-CM1… SET-M-LOCK272085 1 off For padlocks with hasp thickness up to 8 mm Power supply at flat cable RA-C1 Flat cablefor 400 V AC/24 V DC decentralized power supply or AS-Interface halogen free, 7 x 4 mm 2 RA-C1… RA-C1-7X4HF230860 100 runn. m Paint film contaminant/silicon-free Power connection cablefor connecting the device with the 400 V AC flexible busbar junction with power plug and plug for flexible busbar junction, halogen-free, 5 x 1.5 mm 2 RAMORASPRA-C1-PLF RA-C3/C1-1,5HF290210 1 off - I OK BACK RESET LOC REM USB RJ 45

Rapid Link 4.0 Accessories CA04020001Z-EN-INT www.eaton.eu 161 Ra pi d L ink Description For use with Part no.Article no. Pricesee price list Std. pack Instructions Power supply at flat cable RA-C1 Flexible busbar junction 400 V AC/24 V DCConnection socket for power connection cable Insulation piercing terminals, terminal socket with lock mechanism RA-C1-7X4HFRA-C3/C1-1,5HF RA-C1-PLF290188 5 off - Protection coverfor protecting the 400 V AC/24 V DC flexible busbar junction - RA-C1-PLF RA-C1-COV254693 10 off - Plug connector for 400 V AC/24 V DC flexible busbar junction Plug insert with hood RA-C1-PLF RA-C1-VP-PLM231574 5 off Order cable gland V-M25 separately. Distributor modulefor feeding the 400-V-AC/24-V-DC of the ribbon cable with a round cable Termination with piercing screws, 2 x V-M25 and 2 x V-M20 knockout plates, connection module with spring-loaded terminals, connection of round cables up to 4 mm 2 . RA-C1-7X4HF RA-C1-AM-7290214 5 off Order cable gland V-M25 or V-M20 separately. Power/AS-Interface connection cablefor connecting the device with the 400 V AC AS-Interface flexible busbar junction Double cable with outgoer plug (flexible busbar end) and M12 plug and power plug (device end) RAMORASPRA-C1-PLF1 RA-C1-PLM/C3-1M5112624 1 off Can be used when AS‐Interface implemented in flat cable. 400 V AC/AS-Interface flexible busbar junctionConnection socket for power/AS-Interface cable Insulation piercing terminals, terminal socket with lock mechanism RA-C1-7X4HFRA-C1-PLM/C3-1M5 RA-C1-PLF1116904 1 off Can be used when AS‐Interface implemented in flat cable. Power/AS-Interface connection cableFor connecting the device with 400 V AC/24 V DC/AS-Interface flexible busbar Double cable with connection module (flexible busbar end) and M12 plug as well as power plug (device end), termination with piercing screws, knockoutsLength 1.5 m RAMORASPRA-C1-7X4HF RA-C1-AM/C3-1M5112625 1 off Can be used when AS‐Interface implemented in flat cable. Distributor modulefor the 400V AC feeding to the ribbon cable with a round cable With 3 flexible busbar inputs and 2 round cable inputsConnection of round cables 4 mm 2 RA-C1-7X4HF RA-C1-VM-7264244 2 off Order V-M25/V-M20 cable gland and RA-C1-DF bushing separately. Flexible busbar bushingfor bushing for flat cable in distributor module or control cabinet - RA-C1-VM-7 RA-C1-DF264243 10 off - Distributor module24 V DC control voltage is taken from the ribbon cable Termination with piercing screws, connection sockets with screw contacts RA-C1-7X4HF RA-C1-VP-AM-2264315 5 off Order cable gland V-M20 separately Flexible busbarsfor fastening the ribbon cable - RA-C1-7X4HF RA-C1-FIX272086 100 off One set with 100 clips.

162 Rapid Link 4.0 Accessories CA04020001Z-EN-INT www.eaton.eu Description Length For use with Part no.Article no. Pricesee price list Std. pack Instructions m Power supply at flat cable RA-C1 End-piecefor terminating the ribbon cable - RA-C1-7X4HF RA-C1-END1290189 10 off - Tools For cutting flat cable RA-C1-7X4HF RA-C1-CUT254690 1 off - for removing casing at the ends of the flat cable RA-C1-7X4HF RA-C1-AZ-4272087 1 off A standard engineer's pliers is required. Power supply at round cable RA-C2 Power connection cablefor connecting the device with the round cable junction with power plug and plug for round cable junction, halogen-free, 5 x 1.5 mm 2 1.5 RAMORASPRA-C2-S1-4 RA-C3/C2-1,5HF290211 1 off - Round cable junctionConnection socket for power connection cable for 7 x 2.5/4 mm 2 , 400 V AC and 24 V DC, termination with insulation piercing technology, cable fixing with metal screws, pre-wired socket insert, suitable for cable outer diameters 10 - 13 mm. RA-C3/C2-1,5HF RA-C2-S1-4257830 1 off Equipment supplied: 1 pairs of gaskets for these cable diameters, 1 lock mechanism. Blanking plugfor closing the last round cable junction in the power line - RA-C2-S1-4 RA-C2-SBL265357 10 off One set with 10 blanking plugs. Power supply at round cable RA-C4 Round cable junctionConnection socket for power cables from 2.5 - 6 mm 2 T junction via spring-cage terminal, 1.5 to 6 mm 2 and/or plug connection of 0.5 - 4 mm 2 , Enclosure IP65 RA-C4-PPB/C3-1M5RA-C4-X/C3-1M5 RA-C4-PB65116905 1 off Tools required: Stripping tool AM16 from Weidmüller or similar.Enclosure continuous seals must be ordered separately. GasketSlotted enclosure bushing seal for Ø 11 - 13 mm EPDM round cable, silicon free and halogen free, IP65 RA-C4-PB65 RA-C4-D13116907 10 off - for Ø 13 - 15 mm EPDM round cable, silicon free and halogen free, IP65 RA-C4-PB65 RA-C4-D15116908 10 off - for Ø 15 - 17 mm EPDM round cable, silicon free and halogen free, IP65 RA-C4-PB65 RA-C4-D17116909 10 off - Blanking plugfor closing off unused housing openings Enclosure seal, closed, EPDM, silicon free and halogen free, IP65 RA-C4-PB65 RA-C4-D0116960 10 off One set with 10 blanking plugs. Power connection cablefor connecting the device with the round cable junction Cable 5 x 1.5 mm 2 , halogen-free, with RA-C4-PPB plug for round cable junction, power plug and gasket IP65 1.5 RAMORASPRA-C4-PB65 RA-C4-PPB/C3-1M5116962 1 off -

Rapid Link 4.0 Accessories CA04020001Z-EN-INT www.eaton.eu 163 Ra pi d L ink Power connection cable for user assemblyfor connecting the device with the round cable junction Cable 5 x 1.5 mm 2 halogen free, with ferrules, power plug and IP65 gasket 1.5 RAMORASPRA-C4-PB65 RA-C4-X/C3-1M5116961 1 off - Plug connectorsfor wiring the power connection cable for user assembly Plug with spring-cage terminal 0.5 - 4 mm 2 , printed with 1; N; 2; PE; 3. RA-C4-PB65 RA-C4-PPB116906 10 off - AS-Interface connection and sensors Connection clip for AS-Interface flat cableto AS-Interface incomer/outgoer for connection modules with integrated AS‐Interface overvoltage protection, protection against interference on switch operations or short-circuit, cable termination with insulation displacement RA-C1-AM-7RA-C1-AM/C3-1M5RA-C1-VP-AM-2 RA-C1-AZPG112978 1 off - AS-Interface linkM12 connection socket for AS-Interface connection cable IDC termination RAMORASP ZB2-100-AZ1082667 1 off - 24V/AS-Interface connection cablefor supplying the device with 24 V/AS-Interface with M12 socket and double outgoer for AS-Interface and 24 V, cable termination with insulation displacement 1 RASPRASP RA-XAZ2-1M292253 1 off - AS-Interface connection cablefor connecting the device with AS-Interface junction with M12 socket and M12 plug, 3-pole 1 RAMORASP RA-XM12-1M272057 1 off Pins 1, 3, 4 are assigned Y connectorFor connecting up to 2 sensors per M12 socket - RASP RA-XM12-Y290424 1 off - AS-Interface connection and sensors Spare keysfor AUTO - OFF/RESET - HAND key-switches Lock mechanism MS1 RAMORASP M22-ES-MS1216416 5 off - Description Length For use with Part no.Article no. Pricesee price list Std. pack Instructions m

164 Rapid Link 4.0 General information on Engineering CA04020001Z-EN-INT www.eaton.eu Motor starter selection All motor starters (RAMO, RASP) can provide electronic motor protection and the additional connection of temperature sensors (thermistor, ThermoClick, PTC). The motor starters are available in the following variants, with or without a lockable repair switch (mains transfer switch): • RAMO-D, electronic DOL starter for one operating direction. • RAMO-W, electronic reversing starter (two operating directions). • RASP, frequency-controlled motor starter with several speeds for two operating direction in assigned ratings. Electrical mains connection The motor starters can be connected to and operated on 400 V three-phase, star point-earthed AC supply systems (in accordance with IEC 60364) without any restriction. The neutral conductor must be connected for motor starter variants that actuate a 230 V motor brake. Safety and protective device The power bus must have short-circuit protection. The length of the power bus depends on the upstream group protection. Calculations for design examples are provided in the Rapid Link manual (MN03406003Z): • PKZM0-25 motor-protective circuit- breaker, max. approx. 40 m. • FAZ C25/3 miniature circuit-breaker, max. approx. 60 m. • PKE32/XTU-32 system protective circuit-breaker, 50 m to 220 m. The group protective devices listed here protect: • the power bus from overloads and short-circuits. • the spur lines to the motor starter (RAMO, RASP) from overloads and short-circuits. • the motor feeder of the RAMO On the RASP frequency-controlled motor starter, the motor feeder is protected by the internal variable frequency drive. When using residual current devices, a Type B AC/DC sensitive residual current circuit-breaker must be used with the RASP frequency-controlled motor starter. EMC compliance All motor starters observe the required EMC limit values when connected as specified. The RASP frequency-controlled motor starter must be provided with a shielded motor cable (RASP-CM1-…) and installed with the specified EMC measures. The internal RFI filter then allows operation in accordance with category C3 in the second environment. The Rapid Link 4.0 electronic drive system enables remote and flexible installation in the direct proximity of the drive unit. The entire system is designed with protection to IP65. All electrical connections (mains voltage, motor feeder, sensors) are implemented simply with the standard connectors that are primarily used in materials handling applications. a Sensor (light barriers)b RAMOc Motor connection cabled Mains connection on power buse AS-Interface ① ② ③ ④ ⑤ 

Rapid Link 4.0 General information on Engineering CA04020001Z-EN-INT www.eaton.eu 165 Ra pi d L ink Terminal Models The electrical connection in the power section (mains voltage, motor feeder) is implemented with plug-in terminals in the base. a 5-pole power connector for connecting the 3 AC 400 V mains voltage, (N), PE. b 8-pole motor feeder socket as per DESINA specification. By rotating the base 90 degrees, connection is also possible from the right or left. This makes it possible to keep the operating and connection area and the heat sink on the RASP in the preferred vertical position. Example RASP: Connection from below (standard) Connection from the right (90 degree rotation of the base to the left) Three installation systems are avail-able for connecting the power plug to the mains: RA-C1, flat cable system RA-C2, round cable system with plug connectors RA-C4, round cable system with contact connectors Device variants with a repair switch (RAMO-…-C32R…, RASP-….-C32R…) ensure that the drive can be isolated locally from the power supply for repair or maintenance work, even when it is still connected. A padlock can be used to secure the repair switch. The 8-pole motor feeder can be used to connect: • a three-phase AC motor (U1, V1, W1, PE), • a motor brake (B1, B2) with a control voltage of 230 V AC or 400 V AC, • a thermistor or temperature switch (ThermoClick). These connection cables (T1, T2) can at the same time be used to monitor the motor cable and the connection of the motor feeder plug. Example: Motor feeder with shielded motor cable on the RASP Control level The control level features a selector switch (key switch) for selecting automatic mode and manual mode locally. The RAMO-W and RASP motor starters are also provided with a selector switch for reversing the motor direction in manual mode. The automatic mode and the control voltage power supply are implemented via the AS-Interface. All connections in the control level (AS-i, sensors etc.) are implemented with M12 plug connectors. For this the M12 connectors just have to be fitted on [1] and rotated to secure them [2] (see illustration below). The sensor inputs (I3, I4) enable the Rapid Link motor starters to execute sensor-controlled functions immediately and independently of PLC and bus cycle times: • Interlocked manual operation, • Quick Stop,• Rotation direction change (on RAMO-W and RASP), • Controlled speeds (only RASP) On the RAMO-DA… and RAMO-WA… a 24 V DC output (max. 1 A, O3) also makes it possible to control external actuators (valves, couplings, indicator lights) directly. The functions are selected directly on the motor starter via microswitches. On the RASP additional settings (variable frequency drives) can be made from a hand-held terminal or from the parameter software. ① ② 3 AC, (N), PE50/60 Hz 3 AC, (N), PE50/60 Hz 3 AC, (N), PE50/60 Hz 5 8 1 7 3 PE T1 T2 M 3 ∼ ϑ U V W PE 4 6 B2 B1  PES ≦ 5 m (≦ 16.4 ft) I3 I4 UV ≦ 20 m (≦ 65.6 ft) 1 2 M 3 ~ 0 I II OFF/RESET OFF REV FWD

166 Rapid Link 4.0 Connection examples CA04020001Z-EN-INT www.eaton.eu Connection examples Engineering Block diagram RAMO-D DOL starter Optional features:① RAMO-D…-C32R… Repair and maintenance switch② Actuation of external brake (230 V), RAMO-Dx2…③ Actuator output, RAMO-DA… 1 2 3 L1 L2 L3 PE 1 2 3 4 5 4 N 1 U VW T1 T2 7 3 PE PE 1 2 +24 V 160 m A I3 I4 O3 0 V 3 64 B1 B2 58 12 34 4 M 3 ∼ ϑ 2 1 3 4 (4) ① ② ③ 146 358 PE 7 1 (2) 3 +24 V ≤ 1 A 2 4 53 1   ASi+ ASi- (0 V) (+24 V) 3 1 4 3 4

Rapid Link 4.0 Connection examples CA04020001Z-EN-INT www.eaton.eu 167 Ra pi d L ink Block diagram DOL starter RAMO-D ① RAMO-D…-C32R… Repair and maintenance switch② Actuation of external brake (400 V), RAMO-Dx4…③ Actuator output, RAMO-DA… 1 2 3 L1 L2 L3 PE 1 2 3 4 5 4 1 U VW T1 T2 7 3 PE PE 1 2 +24 V 160 m A I3 I4 O3 0 V 3 64 B1 B2 58 12 34 4 M 3 ∼ ϑ 2 1 3 4 ① ② 146 358 PE 7 1 3 (2) (4) +24 V ≤ 1 A 2 4 53 1   ASi+ ASi- (0 V) (+24 V) ③ 3 1 4 3 4

168 Rapid Link 4.0 Connection examples CA04020001Z-EN-INT www.eaton.eu Block diagram RAMO-W reversing starter Optional features:① Repair and maintenance switch RAMO-W…-C32R…② Actuation of external brake (230 V), RAMO-Wx2…③ Actuator output, RAMO-WA… 1 2 3 L1 L2 L3 PE 1 2 3 4 5 4 N 1 U VW T1 T2 7 3 PE PE 1 2 +24 V 160 m A I3 I4 O3 0 V 3 64 B1 B2 58 12 34 4 M 3 ∼ ϑ 2 1 3 4 ① ② ③ 146 358 PE 7 1 3 (2) (4) +24 V ≤ 1 A 2 4 53 1   ASi+ ASi- (0 V) (+24 V) 3 1 4 3 4

Rapid Link 4.0 Connection examples CA04020001Z-EN-INT www.eaton.eu 169 Ra pi d L ink Block diagram RAMO-W reversing starter Optional features:① Repair and maintenance switch RAMO-W…-C32R…② Actuation of external brake (400 V), RAMO-Wx4…③ Actuator output, RAMO-WA… 1 2 3 L1 L2 L3 PE 1 2 3 4 5 4 1 U VW T1 T2 7 3 PE PE 1 2 +24 V 160 m A I3 I4 O3 0 V 3 64 B1 B2 58 12 34 4 M 3 ∼ ϑ 2 1 3 4 ① ② 146 358 PE 7 1 3 3 1 4 3 4 (2) (4) +24 V ≤ 1 A 2 4 53 1   ASi+ ASi- (0 V) (+24 V) ③

170 Rapid Link 4.0 Connection examples CA04020001Z-EN-INT www.eaton.eu Block diagram RASP Optional features:① Repair and maintenance switch, RASP-…-C32R…② Actuation of external brake (230 V), RASP-…xx2…③ Device fan, RASP-…L-C32…④ internal braking resistance, RASP-x1… Note:Y connector RA-XM12-Y is required in order to connect 4 sensors (I3a, I3b/I4a, I4b) (￫ accessory) +24 V RJ 45 0 V M 1 2 3 L1 L2 L3 PE 1 2 3 4 ASi+ ASi- (0 V) (+24 V) 5 4 N 1 U VW T1 T2 7 3 PE PE 1 2 +24 V 160 m A I3a I3(b) I4a I4(b) F +24 V ≤ 100 mA 0 V 3 64 B1 B2 58 12 34 4 M 3 ∼ ϑ 1 2 3 4 3 2 (b) 1 (4) (2) 4 (a) 3 4 ① ② ④ ③ 146 358 PE 7 1 3 2 4 53 1  

Rapid Link 4.0 Connection examples CA04020001Z-EN-INT www.eaton.eu 171 Ra pi d L ink Block diagram RASP Optional features:① Repair and maintenance switch, RASP-…-C32R…② Actuation of external brake (400 V), RASP-…xx4…③ Device fan, RASP-…L-C32…④ internal braking resistance, RASP-x1… Note:Y connector RA-XM12-Y is required in order to connect 4 sensors(I3a, I3b/I4a, I4b) (￫ accessory) +24 V RJ 45 0 V M 1 2 3 L1 L2 L3 PE 1 2 3 4 ASi+ ASi- (0 V) (+24 V) 5 4 1 U VW T1 T2 7 3 PE PE 1 2 +24 V 160 m A I3a I3(b) I4a I4(b) F +24 V ≤ 100 mA 0 V 3 64 B1 B2 58 12 34 4 M 3 ∼ ϑ 1 2 3 4 3 2 (b) 1 (4) (2) 4 (a) 3 4 ① ② ④ ③ 146 358 PE 7 1 3 2 4 53 1  

172 Rapid Link 4.0 Motor starter RAMO, speed controller RASP CA04020001Z-EN-INT www.eaton.eu Motor starter RAMO, speed controller RASP Technical data RAMO-D… RAMO-W… RASP-2… RASP-3… RASP-4… RASP-5… General Standards IEC/EN 60947-4-2IEC/EN 60947-5-1IEC/EN 61000-6-2IEC/EN 61000-6-4Directive 2002/95/EG (RoHS)CE approval EN 61800-5-1EN 61800-3Directive 2002/95/EG (RoHS)CE approval Climatic proofing ρ w % 95%, non-condensingIEC/EN 50178 Ambient temperature Operation ϑ °C -10 - +55 -10 - +55 0 - +400 - +55 (with fan RASP-FAN-1) 0 - +45 Storage ϑ °C -30 - +70 -30 - +70 -30 - +70 -30 - +70 -30 - +70 -30 - +70 Overvoltage category III III III III III III Rated impulse withstand voltage U imp kV 4 4 2 2 2 2 Radio interference level Environment (EMC) Device class A Device class A 2. Environment, Class C3 2. Environment, Class C3 2. Environment, Class C3 2. Environment, Class C3 longest permissible length of motor cable I m 10 10 5 5 5 5 Mechanical shock resistance g 1000 shocks per shaft, semi-sinusoidal 15 g/11 msIEC/EN 60068-2-27 Vibration Oscillation frequency: 10 - 150 HzAmplitude 0.15 mm: 6 HzAmplitude transition frequency on acceleration: 57 HzIEC/EN 60068-2-6 Mounting position Vertical Vertical Vertical Vertical Vertical Vertical Altitude m 0 - 1000 m above sea levelabove 1000 m with 1 % performance reduction per 100 mmax. 2000 m Protection type IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 Weight without manual override switch kg 1.6 1.7 4.2 4.2 4.2 4.4 with manual override switch kg 1.9 1.9 4.4 4.4 4.4 4.6 Main circuit Supply Rated operational voltage U e 400 V AC 400 V AC Mains voltage (50/60Hz) U LN V 400 (-15%) - 415 (+10%) 380 (-15%) - 400 (+10%) Input current I LN T ≤ 6.6 ≤ 6.6 3.2 4 5.6 7.3 System configuration AC voltageCenter-point earthed star network (TN-S network)Phase-earthed AC supply systems are not permitted. Supply frequency f LN Hz 50/60 50/60 50/60 50/60 50/60 50/60 Frequency range f LN Hz 47 - 63 Hz (± 0%) 47 - 63 Hz (± 0%) 47 - 66 Hz (± 0%) 47 - 66 Hz (± 0%) 47 - 66 Hz (± 0%) 47 - 66 Hz (± 0%) Mains switch-on frequency max. one time per minute Mains current distortion THD % - - 120 120 120 120 Rated conditional short-circuit current I q kA 10 10 5 5 5 5 Short-circuit protective device Type 1 coordination via the power bus' feeder unit

Rapid Link 4.0 Motor starter RAMO, speed controller RASP CA04020001Z-EN-INT www.eaton.eu 173 Ra pi d L ink Power section Function DOL starter with thyristors and bypass contacts, 2-phase Reversing starter with relays, thyristors and bypass contacts, 2-phase controlled Frequency inverter with internal DC link and IGBT inverter On-delay t ON ms 20 - 35 20 - 35 30 - 50 30 - 50 30 - 50 30 - 50 Off-delay t OFF ms 20 - 35 20 - 35 15 - 35 15 - 35 15 - 35 15 - 35 Lifespan, mechanical Operations AC3: 10.000.000 AC3: 10.000.000 - - - - Lifespan, electrical Operations AC3: 10.000.000 AC3: 10.000.000 - - - - Overload cycle AC-53a AC-53a - - - - Overload current for 60 s every 600 s I L A - - 3.6 (at 40 °C) 5 (at 40 °C) 6.5 (at 40 °C) 8.4 (at 40 °C) Starting current for 2 s I L A - - 4.8 (at 40 °C) 6.6 (at 40 °C) 8.6 (at 40 °C) 11.2 (at 40 °C) Output voltage with V e U 2 = U LN = U LN 0 - U LN 0 - U LN 0 - U LN 0 - U LN Output Frequency f 2 Hz = f LN = f LN 0 - 50 Hz (max. 320 Hz) Switching frequency f PWM kHz - - 6(adjustable 1.5 - 16) Operation Mode - - linear, parameterizable Frequency resolution (setpoint value) Δf Hz - - 0.01 0.01 0.01 0.01 Rated operational current I e A 6.6 6.6 2.4 3.3 4.3 5.6 Note - - Rated operational current at an operating frequency of 6 kHz and an ambient air temperature of +40 °C Motor current limit I A 0.3 - 6.6adjustable 0.3 - 6.6adjustable 0.48 - 4.8adjustable 0.66 - 6.6adjustable 0.86 - 8.6adjustable 1.12 - 11.2adjustable Efficiency η % - - 0.95 0.95 0.96 0.96 Maximum leakage current to ground (PE) without motor I PE mA - - 3.5 3.5 3.5 3.5 Fan - - internal, temperature controlledoptional RASP-FAN-S1 on heat sink, temperature-controlled internal and on heat sink, temperature-controlled Motor feeder Assigned motor rating Note for normal internally and externally ventilated 4 pole, three-phase asynchronous motors with 1500 rpm -1 at 50 Hz or 1800 min -1 at 60 Hz at 400 V, 50 Hz P A - - - - - - Actuator for external motor brake Breaking voltage U V 230 V AC -15% / +10%400 V AC -15% / +10% 230 V AC -15% / +10%400 V AC -15% / +10% Braking current I A ≤ 0.6 A(max. 6 A for 120 ms) ≤ 0.6 A(max. 6 A for 120 ms) ≤ 0.6 A(max. 6 A for 120 ms) ≤ 0.6 A(max. 6 A for 120 ms) ≤ 0.6 A(max. 6 A for 120 ms) ≤ 0.6 A(max. 6 A for 120 ms) Braking function Braking torque % I/I e - - ≦ 30 ≦ 30 ≦ 30 ≦ 30 Switch-on threshold for the braking transistor U DC V - - 765 V DC 765 V DC 765 V DC 765 V DC DC braking % I/I e - - ≦ 100, adjustable Control section External control voltage U c V 24 V DC - 15 % / + 20 % via AS-Interface ® plug AS-Interface ® max. total power consumption from AS-Interface® power supply unit (30 V): 250 mA RAMO-…AI1…RASP… Specification: S-7.4Number of slave addresses: 31 Specification: S-7.4Number of slave addresses: 31 RAMO-…AI2… Specification: S-7.A.E.Number of slave addresses: 62 - RAMO-D… RAMO-W… RASP-2… RASP-3… RASP-4… RASP-5…

174 Rapid Link 4.0 Accessories CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu Rapid Link 4.0 Accessories Rapid Link Accessories Flat cable Distributor module Distributor module Flexible busbar junction 400 V AC/24 V DC Round cable junction Round cable junction RA-C1-7X4HF RA-C1-AM-7 RA-C1-VM-7 RA-C1-PLF RA-C2-S1-4 RA-C4-PB65 General Standards IEC 60332-1DIN VDE 0295 Class 6DIN VDE 0281 Part 404 DIN/EN 60664-1DIN/EN 60529DIN/EN 60999DIN VDE 0470 Part 1 IEC/EN 60047-7-1DIN VDE 0470 Part 1 IEC/EN 68000-2-27IEC/EN 60998-3DIN VDE 0660 Part 1535 EN 61684DIN VDE 0110DESINA - Protection type IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 IP65IEC/EN 60529 Mounting position As required As required As required As required As required As required Ambient temperature Operation ϑ °C -15 - +50 -15 - +40 -15 - +50 -15 - +50 -15 - +50 -40 - +55 Storage ϑ °C -5 - +70 -5 - +50 -5 - +50 -5 - +50 -5 - +50 -10 - +40 Flame retardance, fire propagation Self-extinguishing to IEC 60332-1 - - - - - Resistance to oils and acids To VDE 0473, Part 811-2-1 - - - - - Sheathing Material according to DIN VDE 0282, EVA mixture EM4, black - - - - - Minimum bending radius mm 18 - - - - - Cable weight kg/km 440 - - - - - Outer dimensions L x W x H mm L x 34.8 x 6.0 160 x 60.2 x 59.5 175 x 83 x 78 119 x 57.5 x H 158 x 112.5 x 55 181 x 104 x 67 Overvoltage category - III III III III III Pollution degree - 3 3 3 3 3 Termination - Springloaded terminals 1.5 to 4 mm² Twin-level terminal block, 1.5 to 4 mm² IDC termination Piercing/screw terminals Insulation piercing terminals Outer cable diameter mm - V-M25: 9 - 17V-M20: 6 - 13 9 - 17 - 10 - 1313 - 16 11 - 1313 - 1515 - 17 Main circuit Rated operational voltage U e 500 V AC 500 V AC 500 V AC 500 V AC 500 V AC 690 V AC Rated operational current I e A 25 25 25 - 20/25 (2.5 mm 2 /4 mm 2 ) 25 (4 mm 2 ) Line protection Type PKE32/XTU-32PKZM0-25FAZ-C25/3 PKE32/XTU-32PKZM0-25FAZ-C25/3 PKE32/XTU-32PKZM0-25FAZ-C25/3 PKE32/XTU-32PKZM0-25FAZ-C25/3 PKE32/XTU-32PKZM0-25FAZ-C25/3 PKE32/XTU-32PKZM0-25FAZ-C25/3 Control circuit Rated operational voltage U e V 24 V DC 24 V DC 24 V DC 24 V DC 24 V DC - Rated operational current I e A 25 10 25 - 20/25 (2.5 mm 2 /4 mm 2 ) - Motor cable and motor feeder plug Motor cable and motor feeder plug RAMO-CM1-2M0 /-5MO /-10MO RASP-CM1-2M0 /-5MO General Standards EN 61684DIN VDE 0110 EN 61684DIN VDE 0110 Protection type IP65IEC/EN 60529 IP65IEC/EN 60529 Ambient temperature Operation ϑ °C -30 - +70 -30 - +70 Connection cable Terminal capacities mm 2 8 x 1.5 4 x 1.5 + 2 x (2 x 0.75) screened Outer cable diameter mm 9 - 13 9 - 13 Minimum bending radius mm 6 x outer cable diameter 10 x outer cable diameter Conductor material - - Material Outer casing halogen freeCable: Cu flexible to VDE 0295 Class 5 Outer casing halogen freeCable: Cu flexible to VDE 0295 Class 6 Colour Silver grey (RAL 7001) Orange (RAL 2003) Resistance to oils and acids VDE 0472 Part 803 B VDE 0472 Part 803 A/B Flame retardance, fire propagation EN 50265-2-1 IEC 60332-2 Metal housing with plug-in connection Conductor cross-section mm 2 Contact pins: 8 x 1.5 Contact pins: 4 x 1.5 + 4 x 0.75 Material Contacts Polycarbonate Polycarbonate Contact material Cu silver-plated Cu silver-plated Housing Polycarbonate Polycarbonate Locking facility Polyamide Polyamide Dimensions Motor starter RAMO without manual override switch with manual override switch 245 120 270 173 220  0 I II ⌀ 6.2 245 145 173 220 285  0 I II ⌀ 6.2 175

176 Rapid Link 4.0 RASP speed controllers CA04020001Z-EN-INT www.eaton.eu RASP speed controllers RASP speed controllers Device fans RASP-FAN-S1 without fan without manual override switch with fan without manual override switch with manual override switch with manual override switch 146 45 190 245 270 173 220 157  0 I II ⌀ 6.2 195 245 270 173 220  0 I II ⌀ 6.2  0 I II ⌀ 6.2 182 245 173 220 285 220 245 173 220 285  0 I II ⌀ 6.2

Rapid Link 4.0 Accessories CA04020001Z-EN-INT www.eaton.eu 177 Ra pi d L ink Accessories Accessories flexible busbar junction Locking brackets RA-C1-PLFRA-C1-PLF1 SET-M-LOCK Distributor module RA-C1-AM-7 RA-C1-VM-7 RA-C1-VP-AM-2 Round cable junction RA-C2-S1-4 Locking brackets RA-C4-PB65 57.5 119 109 47.5 M4 35 o 8.5 50 65 M 5 35 60.2 59.5 37.2 36.7 5 160 48.2 132 M4 162.5 4.5 6.5 175 70 83 3.3 78 107 115 6 54.5 47.5 55 4.5 6.5 55 27 130 158 78.5 112.5 25.5 5.5 142.5 165 181 89 7 104 6 67

® Manufacturers of machines and systems strive to achieve a balance between the maximum level of functionality and cost optimization. Designed for further develop-ment, SmartWire-DT is a communication system for industrial switchgear in control panels and the periphery: from control, protection and switching to actuation, operation and monitoring. One technology from which you will profit, now and in the future. PowerXL variable frequency drives and DS7 soft starters – Communicate with Smart-Wire-DTBeing able to use a controller to directly access all of a soft starter's and/or variable frequency drive's parameters via SmartWire-DT is the epitome of ease of operation. Users can read and overwrite potentiometer settings. Extended status, error, and diagnostic messages can be ret-rieved directly. The result: absolute data transparency. The plug-in units make installation fast and foolproof, and the resulting connection includes the soft starter's control current supply.SmartWire-DT modules for expanding the functionality of the variable frequency drives in the DC1 and DA1 series are scheduled to hit the market soon. This will enable users to communi-cate with their variable frequency drives via SmartWire-DT on the basis of the relevant Profid-rive profile. Other profiles will also be available for simple applications. Another important func-tion that will complement the ability to change parameters in variable frequency drives will be the ability to use extended diagnostic functions. Within this context, function blocks will make it easy to connect to Eaton PLCs and HMIs. SmartWire-DT™ – Cost-optimized commu-nication for switchgear Contac-tors Operation &monitoring Taxes Switching Driving

SmartWire-DT™ CA04020001Z-EN-INT www.eaton.eu 179 Smar tW ir e -DT ® SmartWire-DT System overview 180 Ordering SmartWire-DT Gateways 182 SmartWire-DT accessories 182 Technical Data SmartWire-DT Gateways 184 SmartWire-DT accessories 186 Dimensions SmartWire-DT Gateways 188 SmartWire-DT accessories 188

180 SmartWire-DT® CA04020001Z-EN-INT www.eaton.eu Moeller® series System overview 4 20 20 1 5 5 21 14 15 16 17 18 25 22 6 19 10 4 5 6 6 6 6 6 2 4 2 3 4 5 5 5 13 9 11 8 7 10 6 6 6 6 24 10 23 11 12 10 12 4

SmartWire-DT® System overview CA04020001Z-EN-INT www.eaton.eu 181 Moeller® series Smar tW ir e -DT ® System overview SmartWire-DT HMI-PLC 1 ￫ Industrial Switchgear 2011 catalog Data plug Sub-D 9 pole 2 SmartWire-DT Gateways 3 ￫ page 182 SmartWire-DT blade terminal 8 pole 4 ￫ page 182 SmartWire-DT flat ribbon cable 8 pole 5 ￫ page 182 SmartWire-DT external device plug 8 pole 6 ￫ page 182 SmartWire-DT PKE module (motor starter) 7 ￫ Industrial Switchgear 2011 catalog Motor starter with PKE electronic motor protection 8 ￫ Industrial Switchgear 2011 catalog Soft starter DS7 with electronic motor protection from PKE 9 ￫ Industrial Switchgear 2011 catalog SmartWire-DT module for variable frequency drives 10 ￫ page 33 DC1 variable frequency drive 11 ￫ page 12 DA1 variable frequency drives 12 ￫ page 20 SmartWire-DT universal module, front mount 13 ￫ page 183 SmartWire-DT control panel cable entry for flat to round cable 14 ￫ page 183 SmartWire-DT plug connector 15 ￫ page 183 RMQ-Titan surface-mounting enclosure with RMQ-Titan elements 16 ￫ Industrial Switchgear 2011 catalog SmartWire-DT plug connector 17 ￫ page 183 SmartWire-DT round cable, 8-pole 18 ￫ page 183 SmartWire-DT adapter for flat/round cable for top-hat rail mounting 19 ￫ page 183 SmartWire-DT PKE (motor-protective circuit-breaker) 20 ￫ Industrial Switchgear 2011 catalog Motor-protective circuit-breaker PKE12, PKE32 21 ￫ Industrial Switchgear 2011 catalog Soft starter DS7 32 A 22 ￫ page 111 Soft starter DS7 32 A 23 ￫ page 111 SmartWire-DT bus termination resistor for 8-pole flat band conductor 24 ￫ page 183 SmartWire-DT planning and ordering aid, SWD-Assist 25 Note: You can find the entire SmartWire-DT range of products by consulting our industrial main catalog or our online catalog at http://ecat.moeller.net Features SmartWire-DT HMI-PLC• with SmartWire-DT master interface and PLC function • Compact design with light plastic enclosures • Wide selection of onboard interfaces • 3.5” , 5.7” or 7” TFT-LCD screen SmartWire-DT Gateways• Connection of SmartWire-DT to field bus. • Field bus address setting with dip switches • Automatic baud rate detection• Feeding the supply voltage for the SmartWire-DT modules • Supplies the control voltage for the motor starter or contactor • Configuration button for automatic addressing of the SmartWire-DT module. • Support of up to 99 SmartWire-DT modules. SmartWire-DT module• Function element for connecting to RMQ-Titan pilot devices. • Function element for connecting to DLM contactors • Function element for connecting to PKZ/PKE motor-protective circuit-breakers • Function module for connecting to NZM2,3,4 circuit-breakers • Connection of digital and analog input/output modules • DS7 Soft starter connection• Function element for connecting to PowerXL™ DC1, DA1 variable frequency drives SmartWire-DT Assist (SWD-Assist)• Easy creation of SmartWire-DT networks • Integrated validity check• Generation of ordering lists. • Online-Functionality – Simple pre-commissioning– Configuration check and comparison – Display of parameters and diagnostics – Easy diagnostics of SmartWire-DT module • Free download under: http://downloadcenter.moeller.net

182 SmartWire-DT® Gateways, accessories CA04020001Z-EN-INT www.eaton.eu Moeller® series Gateways, accessories Ordering Description Baud Rates Number of SmartWire-DT slaves Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America SmartWire-DT Gateways supply of the SmartWire-DT modules and switchgear For connection to PROFIBUS-DP field busfield bus connection through 9-pin SUB-D socketSeparate RS232 diagnostics interface (RJ45) up to 12 MBit/s Max. 58 EU5C-SWD-DP116308 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified For connection to CANopen® field busField bus connection through 9-pin SUB-D plugSeparate RS232 diagnostics interface (RJ45) up to 1 MBit/s Max. 99 EU5C-SWD-CAN116307 For connection to the Ethernet-IP/MODBUS-TCP field busField bus connection via Ethernet SwitchSeparate RS232 diagnostics interface (RJ45) 10/100 MBit/s Max. 99 EU5C-SWD-EIP-MODTCP153163 for connection to field bus PROFINET as PROFINET IO-DeviceField bus connection via Ethernet SwitchSeparate USB diagnostics interface (Mini-USB) 100 MBit/s Max. 99 EU5C-SWD-PROFINET170124 1off UL File No. E221530 UL Category Control No. NRQA CSA File No. UL report applies to both US and Canada North America Certification UL listed, CSA certified Flat band conductor, 8 pole For connecting the SmartWire-DT modules within the control panel8 pole not ready-assembled Length 100 m SWD4-100LF8-24116026 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified not ready-assembled Length 3 m SWD4-3LF8-24-2S116027 Length 5 m SWD4-5LF8-24-2S116028 Length 10 m SWD4-10LF8-24-2S116029 External device plugs For connecting the ribbon cable to SmartWire-DT modules SWD4-8SF2-5116022 10 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified Link For bridging open mounting locations for external device plugsFront fixing SWD4-SEL8-10116021 5 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified Blade terminal For connecting the ribbon cable to the gateway, power feeder module, coupling, bus termination resistor SWD4-8MF2116023 10 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified Coupling Coupling blade terminal 8-pole SWD4-8SFF2-5116024 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified SWD4-8SF2 SWD4-8SF2 SWD4-8S + 15V SWD4-8SFF2-5

SmartWire-DT® Accessories CA04020001Z-EN-INT www.eaton.eu 183 Moeller® series Smar tW ir e -DT ® Accessories Description Part no.Article no. Pricesee price list Std. pack Information relevant for export to North America Network terminator For connecting each SmartWire-DT line SWD4-RC8-10116020 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified Cable adapters for connection flat cable (plug) on round cable (terminal) SWD4-8FRF-10121377 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified Switch cabinet bushing for transition from SmartWire-DT ribbon cable to round cableConnection of ribbon cable with blade terminal SWD4-8MF28 poledouble conductor run pluggableAdditional control voltage feeder for the motor starter and contactors. Connection round cable via socket SWD4-SFL8-20121380 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified Connection round cable via plug SWD4-SML8-20121381 1 off Round conductor For laying the SmartWire-DT network outside of the control panel. For connecting the SmartWire-DT module outside the control panel8 poleHK-S0-Li2YY, 8 mm diameterLength 50 m SWD4-50LR8-24116030 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified Connectors for SWD round conductors 8 pole socketStraight SWD4-SF8-67116033 1 off UL File No. E29184 UL Category Control No. NKCR CSA File No. 2324643 CSA Class No. 3211-07 North America Certification UL listed, CSA certified 8-pinplug connectorStraight SWD4-SM8-67116034 8 pole socket90° angled SWD4-SF8-67W116035 8-pinplug connector90° angled SWD4-SM8-67W116036 Tools for plugs Pliers for connecting external device plug and ribbon cable SWD4-CRP-1116025 1 off UL/CSA certification not required Pliers for making contacts with blade terminals and ribbon cables SWD4-CRP-2116699 Universal slave for configured but not yet installed SmartWire-DT slavesFront mount Configuration M22-SWD-NOP147637 20 off North America Certification Request filed for UL and CSA + 15V SWD4-RC8-10 1 2 3 4 5 6 7 8 + 15 V 1 4 3 6 2 5

184 SmartWire-DT® Gateways CA04020001Z-EN-INT www.eaton.eu Gateways Technical data EU5C-SWD-DP EU5C-SWD-CAN EU5C-SWD-EIP-MODTCP General Standards IEC/EN 61131-2EN 50178 Dimensions (W x H x D) mm 35 x 90 x 127 35 x 90 x 124 Weight kg 0.16 0.16 0.17 Mounting Top-hat rail IEC/EN 60715, 35 mm Mounting position As required Ambient conditions, mechanical Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 IP20 Vibrations (IEC/EN 61131-2:2008) Constant amplitude 3,5 mm Hz 5 - 8.4 5 - 8.4 5 - 8.4 Constant acceleration 1 g Hz 8.4 - 150 8.4 - 150 8.4 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Impacts 9 9 9 Drop to IEC/EN 60068-2-31 Fallhöhe mm 50 50 50 Free fall, packaged (IEC/EN 60068-2-32) m 0.3 0.3 0.3 Electromagnetic compatibility (EMC) Overvoltage category II II II Pollution degree 2 2 2 Electrostatic discharge (IEC/EN 61131-2:2008) Air discharge (Level 3) kV 8 8 8 Contact discharge (Level 2) kV 4 4 4 Electromagnetic fields (IEC/EN 61131-2:2008) 80 - 1000 MHz V/m 10 10 10 1.4 - 2 GHz V/m 3 3 3 2 - 2.7 GHz V/m 1 1 1 Radio interference suppression (SmartWire-DT) EN 55011 Class A Burst (IEC/EN 61131-2:2008, Level 3) Supply cables kV 2 2 2 CAN/DP bus cable kV 1 1 1 SmartWire-DT cables kV 1 1 1 Surge (IEC/EN 61131-2:2008, Level 1) Supply cables/CAN/DP bus cable Supply cables 0.5 kV, CAN/DP bus cable 1 kV Radiated RFI (IEC/EN 61131-2:2008, Level 3) V 10 10 10 Climatic environmental conditions Operating ambient temperature (IEC 60068-2) °C - 25 - + 55 - 25 - + 55 - 25 - + 55 Condensation Take appropriate measures to prevent condensation Storage °C - 40 - + 70 - 40 - + 70 - 40 - + 70 relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 5 - 95 Supply voltage U Aux Rated operational voltage V 24 V DC (-15/+20%) Residual ripple on the input voltage % ≦ 5 ≦ 5 ≦ 5 Protection against polarity reversal Yes Yes Yes Max. current I max A 3 3 3 If contactors with a total power consumption 3 A are connected, a power feeder module EU5C-SWD-PF1/2 has to be used. Short-circuit rating no, external fuse FAZ Z3 Power loss W Normally 1 Normally 1 Normally 1 Potential isolation No No No Rated operating voltage of 24-V-DC slaves V typ. U Aux - 0.2 typ. U Aux - 0.2 typ. U Aux - 0.2

SmartWire-DT® Gateways CA04020001Z-EN-INT www.eaton.eu 185 Smar tW ir e -DT ® Supply voltage U Pow Supply voltage V 24 DC -15 % + 20 % 24 DC -15 % + 20 % 24 DC -15 % + 20 % Input voltage ripple % ≦ 5 ≦ 5 ≦ 5 Siemens MPI, (optional) yes yes yes Rated current I A 0.7 0.7 0.7 Overload proof yes yes yes Inrush current and duration A 12.5 A/6 ms 12.5 A/6 ms 12.5 A/6 ms Heat dissipation at 24 V DC W 3.8 3.8 3.8 Potential isolation between U Pow and 15 V SmartWire-DT supply voltage No No No Bridging voltage dips ms 10 10 10 Repetition rate s 1 1 1 Status indication LED yes yes yes SmartWire-DT supply voltage Rated operating voltage U e V 14,5 ± 3 % 14,5 ± 3 % 14,5 ± 3 % max. current I max A 0.7 0.7 0.7 If SmartWire-DT modules with a total power consumption 0.7 A are connected, a power feeder module EU5C-SWD-PF2 has to be used. Short-circuit rating Yes Yes Yes Connection supply and inputs/outputs Connection type Push in terminals Solid mm 2 0.2 - 1.5 0.2 - 1.5 0.2 - 1.5 Flexible with ferrule mm 2 0.25 - 1.5 0.25 - 1.5 0.25 - 1.5 UL/CSA solid or stranded AWG 24 - 16 24 - 16 24 - 16 SmartWire-DT network Station type SmartWire-DT master Number of SmartWire-DT slaves 58 99 99 Baud Rates kBd 125250 125250 125250 Address allocation automatic automatic automatic Status indication LED SmartWire-DT master LED: greenConfigurations LED: red Connection SmartWire-DT Plug, 8-pole Plug connectors Blade terminal SWD4-8MF2 Fieldbus interface Function PROFIBUS DP slave CANopen® slave Ethernet IP/MODBUS-TCP Slave Protocol PROFIBUS-DP CANopen® Ethernet IP/MODBUS-TCP Input data, max. Byte 240 128 Ethernet-IP: 546MODBUS-TCP: 800 Output data, max. Byte 240 128 Ethernet-IP: 496MODBUS-TCP: 642 Baud Rates up to 12 MBit/s up to 1 MBit/s 10/100 MBit/s Baud rates switching automatic automatic automatic Address 2 … 125 2 … 32 - Address allocation DIP switch DIP switch Dip switch/DHCP/BOOTPSelection via DIP switch Status display interface LED Two-coloured red/green Two-coloured red/green Link status: yellow (10 MBit), green (100 MBit) flashing Terminating resistor switchable via plug DIP switches - Terminal type 1 x D-SUB socket, 9-pin 1 x D-SUB socket, 9-pin 2 x RJ45 (2-channel switch) Potential isolation Yes Yes Yes EU5C-SWD-DP EU5C-SWD-CAN EU5C-SWD-EIP-MODTCP

186 SmartWire-DT® Accessories CA04020001Z-EN-INT www.eaton.eu CA04020001Z-EN-INT www.eaton.eu SmartWire-DT® Accessories Smar tW ir e -DT ® Accessories Part no. M22-SWD-NOP... SWD4-RC8-10 SWD4-8SF2-5 SWD4-8SFF2-5 SWD4-8FRF-10 SWD4-SFL8-20 SWD4-SML8-20 General Standards IEC/EN 61131-2EN 50178 IEC/EN 61131-2EN 50178 IEC/EN 61131-2EN 50178 IEC/EN 61131-2EN 50178 IEC/EN 61131-2EN 50178 IEC/EN 61131-2EN 50178 IEC/EN 61131-2EN 50178 Dimensions (W x H x D) mm 12 x 42 x 39 48.5 x 34.5 x 10 15 x 36.5 x 17.5 48.5 x 34.5 x 10 35 x 90 x 35 35 x 83 x 40 35 x 83 x 46 Weight kg - - - - - - - Weight g 10 10 5.5 4.5 42 50 50 Mounting position As required As required As required As required As required As required As required Ambient conditions, mechanical Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 IP20 IP20 IP20 IP67 IP67 Vibrations (IEC/EN 61131-2:2008) Constant amplitude 3,5 mm Hz 5 - 8.4 5 - 8.4 5 - 8.4 5 - 8.4 5 - 8.4 5 - 8.4 5 - 8.4 Constant acceleration 1 g Hz 8.4 - 150 8.4 - 150 8.4 - 150 8.4 - 150 8.4 - 150 8.4 - 150 8.4 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Impacts 9 9 9 9 9 9 9 Drop to IEC/EN 60068-2-31 Fallhöhe mm 50 50 - - - - - Free fall, packaged (IEC/EN 60068-2-32) m 0.3 0.3 - - - - - Electromagnetic compatibility (EMC) Overvoltage category Not applicable II - - - - - Pollution degree 2 2 - - - - - Electrostatic discharge (IEC/EN 61131-2:2008) Air discharge (Level 3) kV 8 8 - 8 8 8 8 Contact discharge (Level 2) kV 4 4 - 4 4 4 4 Electromagnetic fields (IEC/EN 61131-2:2008) 80 - 1000 MHz V/m 10 10 - - - 10 10 1.4 - 2 GHz V/m 3 3 - - - 3 3 2 - 2.7 GHz V/m 1 1 - - - 1 1 Radio interference suppression (SmartWire-DT) EN 55011 Class A EN 55011 Class A - - - - - Burst (IEC/EN 61131-2:2008, Level 3) Supply cables kV 2 - - - SmartWire-DT cables kV 1 1 - - - - - Radiated RFI (IEC/EN 61131-2:2008, Level 3) V 10 10 - - - 10 10 Climatic environmental conditions Operating ambient temperature (IEC 60068-2) °C - 30 - + 55 - 25 - + 55 - 25 - + 55 - 25 - + 55 - 25 - + 55 - 25 - + 55 - 25 - + 55 Condensation Take appropriate measures to prevent condensation Take appropriate measures to prevent condensation Take appropriate measures to prevent condensation Take appropriate measures to prevent condensation Take appropriate measures to prevent condensation Take appropriate measures to prevent condensation Take appropriate measures to prevent condensation Storage °C - 40 - 80 - 40 - 70 - 40 - 70 - 40 - 70 - 40 - 70 - 40 - 70 - 40 - 70 relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 5 - 95 5 - 95 5 - 95 5 - 95 5 - 95 SmartWire-DT network Station type SmartWire-DT slave - - - - - - Number - - - - - - - Baud rate setting automatic - - - - - - SmartWire-DT status LED LED Green - - - - - - Connections Plug, 8-pole - - - - - - Plug connectors SWD4-8SF2-5 - - - - - - Number of insertion cycles ≥ 50 - - - - - - Function element Contacts - - - - - - - Lifespan mechanical/electrical Opera-tions - - - - - - - LED display LED No - - - - - - Diagnostics Yes - - - - - - Fixing Front fixing - - - - - - Connection options SWD-In Plug, 8-pole Plug connector Plug, 8-pole Plug, 8-pole Plug, 8-pole Plug, 8-pole Number of insertion cycles ≥ 200 ≥ 1 ≥ 200 ≥ 200 ≥ 200 ≥ 500 SWD-Out - Socket, 8-pole Plug, 8-pole Push in terminals Socket, 8-pole Plug, 8-pole Number of insertion cycles - ≥ 200 ≥ 200 - ≥ 500 ≥ 200 187

188 SmartWire-DT® Gateways, accessories CA04020001Z-EN-INT www.eaton.eu Gateways, accessories Dimensions SmartWire-DT Gateways External device plugs Network terminator Coupling SWD4-8SF2-5 SWD4-RC8-10 SWD4-8SFF2-5 Switch cabinet bushing plug Switch cabinet bushing socket Adapter flat cable on round cable SWD4-SM8-20 SWD4-SFL8-20 SWD4-8FRF-10 Connectors for SmartWire-DT round cables, angled Plug connectors for SmartWire-DT round cables, flat SWD4-SF8-67W SWD4-SM8-67W SWD4-SF8-67 SWD4-SM8-67 4.5 a 35 90 a b EU5C-SWD-DP 122 90 EU5C-SWD-CAN 122 90 EU5E-SWD-... 97 90 EU5C-SWD-PF... 120 90 EU5C-SWD-EIP-MODTCP... 120 90 EU5C-SWD-PROFINET 120 NZM-XSWD-704... 97 90 30 36.4 12.8 17.2 14.9 34.3 25.9 10.15 4 48.4 34.3 25.9 10.15 4 48.4 82.4 21 M18 x 0.75 14 35 4 82.4 35 4 21 M18 x 0.75 14 90 35 36 23.2 M16 x 0.75 o 18 37.4 54 30.8 20 55 30.8 M16 x 0.75 o 18 20 37.1 45 o 18.5 44.5 o 18.5 M16 x 0.75

Eaton is providing its customers with CAD data to offer optimum support during plan-ning. Both electrical and mechanical design data can be called up quickly and conve-niently from the Internet at any time. This reduces processing times, minimizes errors and thus reduces costs already in the engineering phase of control panels, systems and machinery. eCAD: Eaton makes product data and macros available for the EPLAN planning system and the Electric P8 version. Device data for over 9,500 products can be downloaded from the Eaton website and integrated in customer article databases using a specially developed selec-tor. mCAD: Eaton makes 2D and 3D data available for more than 10,000 products. Over 70 diffe-rent neutral and native formats guarantee compatibility with the project engineering systems of the customer. The models can either be integrated directly into the planning software from the Partcommunity Portal on the Internet or via the CADENAS Partsolution software. Planning safety and process optimization – CAD data at theclick of a mouse! • 9,500 article data items and macros • Convenient selection tool • Version P8 • Models for approx. 10,000 products • 70 different neutral & native formats URL www.moeller.net/cad

Worldwide export of machines and plants European machine and system building and worldwide exports are closely related. Even if you don't export your machines at present, you should be prepared for it in the future. Eaton provides switchgear and protective devices with all the essential approvals and certificates for machine and system building. In most countries around the world, conformity with international standards is the sole requirement for successful exports. This is because components in these locations are governed by compliance with well known and established IEC standards. In this respect, the European CE mark is not only the passport for exports within Europe but also far beyond its borders. World market equipment for machine building Nearly all the switchgear and protective devices of Eaton's Moeller ® series are world market devices. Each product line thus carries all the approvals and certification marks required for worldwide use. These product lines include those for • Pilot devices, limit switches • Contactors and various timing and special relays • Motor-protective circuit-breakers and relays • Electronic components and systems. With circuit-breakers and switch-disconnectors, Eaton offers IEC devices for use in most countries in the world and NA devices with virtually the same dimensions and the same accessories for the North American market. This considerably simplifies device selection since the North American standards often involve the need for considerably different technical specifications.

Electrical engineering products and their applications are not harmonized internationally. The greatest differences to the IEC world are in North Ame-rica, i.e. the USA and Canada. For many newcomers to the export business, it is initially surprising to experience the very different approaches and solutions. Special components, such as handles for main switches that can only be operated by the intentional switching of an additional handle when the control panel door is opened, may sometimes be required for export to North America. Like-wise, the European motor-protective circuit-breaker is only accepted with an upstream protective device or with larger air and creepage distances at the incoming terminals. Eaton is the competent partner of choice for export-related issues here. Qualified information is a critical key to success The Eaton Main Catalogue for Moeller ® series products provides reliable information for machine and panel builders on the approval of compo-nents deployed for North American market. Each selection page provides information such as the relevant product standard, the E-File Number, the Category Control Number or the CSA Class Number. Many customers incorporate this information in their parts lists in order to be well prepared for the acceptance procedures. Anyone wishing to avoid unfortunate experiences, should make use beforehand of the large number of publications that Eaton is offering on the issue of exports to North America. They contain the implementation of the codes & standards and a description of different practices. These technical articles can be accessed via http://www.moeller.net/en/company/news/publications/index.jsp They can be downloaded or ordered free of charge. The link http://www.moeller.net/eaton-approbationen/en/index.jsp shows the relevant approvals or permits for each component type. This therefore enables you to view the certificates provided or, depending on the test authority, also the product report. The information given is the same as what is provided in the databases of the authorities. Up to 13 data items are listed here for each product, such as the suitability for use in feeders or branch circuits, the maximum operating voltage, or the North American degree of protection, such as UL / CSA Type 4X. The Main Catalogue also contains a glossary with explanations of the American terms. Components and Systems for Global Markets Switchgear and SystemsMoeller® series www.eaton.com/moellerproducts VKF0211-563.indd 1 28.06.11 13:53 Technical PaperDipl.-Ing. Wolfgang EsserSecond, supplemented edition 2010 Special considerations governing the application of Manual Motor Controllers and Motor Starters in North America Motor Starters for USA and CanadaMoeller® series www.eaton.com/moellerproducts Packaging Machine SAFETY GA TE 4 OPEN Product selection for North American exports made easy Technical PaperDipl.-Ing. Wolfgang Esser S USA and Canada Moeller® series www.eaton.com/moellerproducts witchgear for Technical PaperDipl.-Ing. Wolfgang Esser Safe Isolation of Main Circuits with Switch-Disconnectors N or with Molded Case Switches NS USA and Canada Moeller® series www.eaton.com/moellerproducts Main Switch for

At Eaton, an efficient customer relationship management is standard practice. This guarantees you our support right from the start of any new project. Use these contact addresses to find your personal customer contact: In just a few steps we can direct you to specialist local support spe-cifically for your business sector. How to find the right contact: Your customer contact in your region: http://salesbonn.moeller.net Your customer contact worldwide: www.eaton.eu/electrical/contact

Service and consulting for UPS systems and hydraulic solutions. Hotline Free hotline for round-the-clock support.+49 (0)180 522 3822 (24/7)0.12 euros per minute for calls from within the German Telecom network Onsite service Repair and replacement service for Eaton devices. Repairs Onsite service, analysis, conversions, expansions and main-tenance. Online services Downloads, FAQs and interactive troubleshooting Are your questions about uninterruptible power supplies (USPs)? Technical support If you have any questions about our products and for technical advice send an email to our support team: [email protected] or contact our telephone hotline at Tel.: +49 (0)7841 604 - 334 ServiceIf you have a problem or a fault on one of our products contact us by email: [email protected] or contact us by phone at: Tel.: +49 (0)7841 604 - 334 We can be contacted here between Monday – Thursday from 08.00 – 17.00 CET and Friday from 08.00 – 16.00 CET. Are your questions about hydraulic solutions? Please contact the help desk of our Customer Service in Baden-Baden. This service will put you in touch with a customer contact in your locality. Our customer service:Eaton Hydraulics GroupDr.-Reckeweg-Straße 1D-76532 Baden-BadenTel.: +49 (0)7221 682 - 0Fax: +49 (0)7221 682 - 788Email: [email protected] This is the new name of Moeller‘s tried and trusted Field Service. Only the name has changed. The reliable and first-class service has stayed the same. Further informa-tion and general terms and conditions can be found at www.moeller.net/en/support/fieldservice/index.jsp . Service specialistsUse our service personnel. Extensive know-how, combined with many years of experience and state-of-the-art equipment to help you find a solution for your tasks. MaterialComponents, assemblies and spare parts for the Eaton prod-uct range are available for your applications. Service productsEaton‘s After Sales Service offers the right service packages for your products. Further developing relations with our customers is particularly important to us. Your requirements and suggestions will be passed on promptly to the relevant specialists. After all, we take up the challenges you give us as if they were our own. Eaton's After Sales Service

194 Full-load motor-running currents in amperes corresponding to various AC horsepower ratings CA04020001Z-EN-INT www.eaton.eu HP 110 - 120 V 220 - 240 V a,b 360 - 380 V 440 - 480 V 550 - 600 V Single phase Two phase Three phase Single phase Two phase Three phase Single phase Three phase Single phase Two phase Three phase Single phase Two phase Three phase 1/10 3.0 - - 1.5 - - 1.0 - - - - - - - 1/8 3.8 - - 1.9 - - 1.2 - - - - - - - 1/6 4.4 - - 2.2 - - 1.4 - - - - - - - 1/4 5.8 - - 2.9 - - 1.8 - - - - - - - 1/3 7.2 - - 3.6 - - 2.3 - - - - - - - 1/2 9.8 4.0 4.4 4.9 2.0 2.2 3.2 1.3 2.5 1.0 1.1 2.0 0.8 0.9 3/4 13.8 4.8 6.4 6.9 2.4 3.2 4.5 1.8 3.5 1.2 1.6 2.8 1.0 1.3 1 16.0 6.4 8.4 8.0 3.2 4.2 5.1 2.3 4.0 1.6 2.1 3.2 1.3 1.7 1-1/2 20.0 9.0 12.0 10.0 4.5 6.0 6.4 3.3 5.0 2.3 3.0 4.0 1.8 2.4 2 24.0 11.8 13.6 12.0 5.9 6.8 7.7 4.3 6.0 3.0 3.4 4.8 2.4 2.7 3 34.0 16.6 19.2 17.0 8.3 9.6 10.9 6.1 8.5 4.2 4.8 6.8 3.3 3.9 5 56.0 26.4 30.4 28.0 13.2 15.2 17.9 9.7 14.0 6.6 7.6 11.2 5.3 6.1 7-1/2 80.0 38.0 44.0 40.0 19.0 22.0 27.0 14.0 21.0 9.0 11.0 16.0 8.0 9.0 10 100 48.0 56.0 50.0 24.0 28.0 33.0 18.0 26.0 12.0 14.0 20.0 10.0 11.0 15 135 72.0 84.0 68.0 36.0 42.0 44.0 27.0 34.0 18.0 21.0 27.0 14.0 17.0 20 - 94.0 108 88.0 47.0 54.0 56.0 34.0 44.0 23.0 27.0 35.0 19.0 22.0 25 - 118 136 110 59.0 68.0 70.0 44.0 55.0 29.0 34.0 44.0 24.0 27.0 30 - 138 160 136 69.0 80.0 87.0 51.0 68.0 35.0 40.0 54.0 28.0 32.0 40 - 180 208 176 90.0 104 112 66.0 88.0 45.0 52.0 70.0 36.0 41.0 50 - 226 260 216 113 130 139 83.0 108 56.0 65.0 86.0 45.0 52.0 60 - - - - 133 154 - 103 - 67.0 77.0 - 53.0 62.0 75 - - - - 166 192 - 128 - 83.0 96.0 - 66.0 77.0 100 - - - - 218 248 - 165 - 109 124 - 87.0 99.0 125 - - - - - 312 - 208 - 135 156 - 108 125 150 - - - - - 360 - 240 - 156 180 - 125 144 200 - - - - - 480 - 320 - 208 240 - 167 192 250 - - - - - 602 - 403 - - 302 - - 242 300 - - - - - - - 482 - - 361 - - 289 350 - - - - - - - 560 - - 414 - - 336 400 - - - - - - - 636 - - 477 - - 382 500 - - - - - - - 786 - - 590 - - 472 a) To obtain full-load currents for 200 and 208 V motors, increase corresponding 220 - 240 V ratings by 15 and 10 percent, respectively. b) To obtain full-load currents for 265 and 277 V motors, decrease corresponding 220 - 240 V ratings by 13 and 17 percent, respectively. Quote from "Power Conversion Equipment - UL 508C, May 3, 2002".Reproduced from UL 508 C, Power Conversion Equipment, 3rd edition (May 2, 2002) with permission of Underwriters Laboratories Inc.

CA04020001Z-EN-INT www.eaton.eu Ap pen d ix Full-load motor-running currents in amperes corresponding to various AC horsepower ratings 195 Minimum fuse sizes for short-circuit protection of three-phase motorsThe maximum value depends on the switching device or the overload relay. Motor power 230 V 400 V 440 V 500 V 690 V Motor rated opera-tional current Fuse Motor rated opera-tional current Fuse Motor rated opera-tional current Fuse Motor rated opera-tional current Fuse Motor rated opera-tional current Fuse Starting Starting Starting Starting Starting DOL Y/ DOL Y/ DOL Y/ DOL Y/ DOL Y/ kWh p.f.  (%) A A A A A A A A A A A A A A A 0.06 0.7 58 0.37 2 – 0.21 2 – 0.19 2 – 0.17 2 – 0.12 2 – 0.09 0.7 60 0.54 2 – 0.31 2 – 0.28 2 – 0.25 2 – 0.18 2 – 0.12 0.7 60 0.72 4 2 0.41 2 – 0.37 2 – 0.33 2 – 0.24 2 – 0.18 0.7 62 1.04 4 2 0.6 2 – 0.54 2 – 0.48 2 – 0.35 2 – 0.25 0.7 62 1.4 4 2 0.8 4 2 0.76 2 – 0.7 2 – 0.5 2 – 0.37 0.72 66 2 6 4 1.1 4 2 1 4 2 0.9 2 2 0.7 2 – 0.55 0.75 69 2.7 10 4 1.5 4 2 1.4 4 2 1.2 4 2 0.9 4 2 0.75 0.79 74 3.2 10 4 1.9 6 4 1.7 4 2 1.5 4 2 1.1 4 2 1.1 0.81 74 4.6 10 6 2.6 6 4 2.4 4 2 2.1 6 4 1.5 4 2 1.5 0.81 74 6.3 16 10 3.6 6 4 3.3 6 4 2.9 6 4 2.1 6 4 2.2 0.81 78 8.7 20 10 5 10 6 4.6 10 6 4 10 4 2.9 10 4 3 0.82 80 11.5 25 16 6.6 16 10 6 16 10 5.3 16 6 3.8 10 4 4 0.82 83 14.8 32 16 8.5 20 10 7.7 16 10 6.8 16 10 4.9 16 6 5.5 0.82 86 19.6 32 25 11.3 25 16 10.2 20 10 9 20 16 6.5 16 10 7.5 0.82 87 26.4 50 32 15.2 32 16 13.8 25 16 12.1 25 16 8.8 20 10 11 0.84 87 38 80 40 21.7 40 25 19.8 32 25 17.4 32 20 12.6 25 16 15 0.84 88 51 100 63 29.3 63 32 26.6 50 32 23.4 50 25 17 32 20 18.5 0.84 88 63 125 80 36 63 40 32.8 63 32 28.9 50 32 20.9 32 25 22 0.84 92 71 125 80 41 80 50 37 80 40 33 63 32 23.8 50 25 30 0.85 92 96 200 100 55 100 63 50 100 63 44 80 50 32 63 32 37 0.86 92 117 200 125 68 125 80 61 125 80 54 100 63 39 80 50 45 0.86 93 141 250 160 81 160 100 74 125 100 65 125 80 47 80 63 55 0.86 93 173 250 200 99 200 125 90 125 100 79 160 80 58 100 63 75 0.86 94 233 315 250 134 200 160 122 160 125 107 200 125 78 160 100 90 0.86 94 279 400 315 161 250 200 146 200 160 129 200 160 93 160 100 110 0.86 94 342 500 400 196 315 200 179 250 200 157 250 160 114 200 125 132 0.87 95 401 630 500 231 400 250 210 250 250 184 250 200 134 250 160 160 0.87 95 486 630 630 279 400 315 254 315 250 224 315 250 162 250 200 200 0.87 95 607 800 630 349 500 400 318 400 315 279 400 315 202 315 250 250 0.87 95 – – – 437 630 500 397 630 400 349 500 400 253 400 315 315 0.87 96 – – – 544 800 630 495 630 630 436 630 500 316 500 400 400 0.88 96 – – – 683 1000 800 621 800 800 547 800 630 396 630 400 450 0.88 96 – – – 769 1000 800 699 800 800 615 800 630 446 630 630 500 0.88 97 – – – – – – – – – – – – 491 630 630 560 0.88 97 – – – – – – – – – – – – 550 800 630 630 0.88 97 – – – – – – – – – – – – 618 800 630 Instructions The rated motor currents apply to normal internally and surface-cooled three-phase motors with 1500 rpm.DOL starting: Starting current max. 6 × rated motor current.Starting time max. 5 s. Y/-start: Starting current max. 2 × motor rated current.Starting time max. 15 s. Set overload relay in line to 0.58 × motor rated current. Fuse ratings at Y/ starting apply also to three-phase slipring motors.For higher rated currents, starting currents and/or longer starting times, larger fuses will be required. Table applies for time delay and gL fuses (VDE 0636) For LV h.b.c. fuse with aM characteristicsthe fuse should be equal to the rated operational current.

CA04020001Z-EN-INT www.eaton.eu 196 Motor lore Drives egineering selection criteria Each drive task requires a drive motor. The speed, torque and controllability of each motor must fulfill the requirements of the task. The following generally applies:the application determines the drive.The drive motor most frequently used worldwide in industrial plants and large buildings is the 3-phase asynchronous motor. Its robust and simple construction as well as its high degrees of protection and standard types are the main features of this inexpensive electric motor. Motor connection When connecting a 3-phase motor to the mains supply, the data on the rating plate of the motor must correspond to the mains voltage and frequency.The standard connection is implemented via six screw terminals in the terminal box of the motor and with two types of circuit, the star connection and the delta circuit, depending on the mains voltage. The rotation direction of a motor is always determined by directly looking at the drive shaft of the motor (from the drive end). On motors with two shaft ends, the driving end is denoted with D (= Drive), the non-driving end with N (= No drive). Regardless of the circuit type and the type of three-phase asynchronous motor, the connections must be labeled, so that their alphabetical sequence (e.g. U1, V1, W1) corresponds with the order of the mains voltage phase sequence (L1, L2, L3) and causes the motor to rotate clockwise. On the three-phase asynchronous motor, three windings are arranged offset from each other by 120°/p (p = number of pole pairs). To generate a rotating field in the motor, an alternating voltage is applied to each phase in turn at a time delay of 120 °. The effect of inductance causes the rotation field and torque to be formed in the rotor winding. The speed of the motor thus depends on the number of pole pairs and the frequency of the supply voltage. The operating direction can be reversed by swapping over two of the supply phases. Information on the rating plate The electrical and mechanical rating data of the motor must be stated on its rating plate (IEC 34-1, VDE 0530). The data on the rating plate describes the stationary operation of the motor in the area of its operating point (MN, e.g. at 400 V and 50 Hz). The operational data is unstable in the motor start phase.The following examples show the rating plates for two motors with a motor shaft output of 4 kW and the respective connection circuits on a 3-phase AC network with 400 V and 50 Hz. U1 V1 W1 W2 U2 V2 90° 0 L 1 L 2 L 3 360° L 120° 120° 120° 180° 270° Clockwise (FWD) Anticlockwise operation (REV) FWD = forward run (clockwise rotation field)REV = reverse run (anticlockwise rotation field) L1 L2 L3 U1 V2 W3 L1 L2 L3 U1 V2 W3 Star circuit Delta circuit , , • With the specified 230/400 V voltage, this motor must be connected to the 3-phase system (U LN = 400 V) in a star-connected circuit. • With the specified 400/690 V voltage, this motor must be connected to the 3-phase system (U LN = 400 V) in a delta circuit. • The voltage of each motor winding is designed for 230 V. The windings must therefore be connected in sequence to the phase voltage (400 V). • Each motor winding is designed here for the maximum phase voltage of 400 V and can be connected directly. • The three winding phases (W2-U2-V2) are configured in the terminal box to the so-called star point. The voltage of the individual phases to the star point is 230 V (= U W ). • The three winding phases (U1 – W2, V1 – U2, W1 – V2) are combined in the terminal box and connected directly to the individual phases. 1410 min -1 230 / 400 V 14.5 / 8.5 A 50 Hz IP 54 Iso. KI F 4.0 KW S1 cos ϕ 0.82 △ /  1410 min -1 400 / 690 V 8.5 / 4.9 A 50 Hz IP 54 Iso. KI F 4.0 KW S1 cos ϕ 0.82 △ /  L1 L3 L2 V1 V2 U1 W1 W2 U2 U LN I LN L1 L3 L2 U1 W1 V1 V2 W2 U2 U LN I LN U LN 3 U W  = LN I W = U LN U W = LN 3 I W  = U1 V1 W1 W2 U2 V2 U1 V1 W1 W2 U2 V2 Startup characteristics The following figure shows the characteristic startup curves of a 3-phase asynchronous motor. I A : Starting current I N : Rated operational current at the operating point M A : Starting torque M B : Accelerating torque (M M M L ) M K : Breakdown torque M L : Load torque M M : Motor torque M N : Rated load torque, (stable operating point, intersection point of the 3-phase speed torque characteristic with the load characteristic) M S : Pull-up torque n: Speed (actual value) n N : Rated speed at the operating point n S : Synchronous speed (n S - n N = slip speed s) Synchronous speed: Slip speed in %: 3-phase asynchronous motor speed: f Frequency of voltage in Hz (= s -1 ) n: Speed in r.p.m.p Number of pole pairss: Slip speed in r.p.m. Electric power: P 1 : Electrical power in W U: Rated operating voltage in VI: Rated operational current in Acos ?: Power factor Motor output (power equation): P 2 : Mechanical shaft output power in kW M N : Rated torque in Nm n: Speed in r.p.m. Efficiency: M N n N n n S M A M M M B M K M L M S I A I N M, I 0 n s f p --- = s n s n – n s -------------- 100%  = n f p --- 1 s –    = P 1 U I 3  cos    = P 2 M N n  9550 ----------------- =  P 2 P 1 ----- =

Yayınlandı: 9 Nisan 2015 Kategori: Kataloglar
