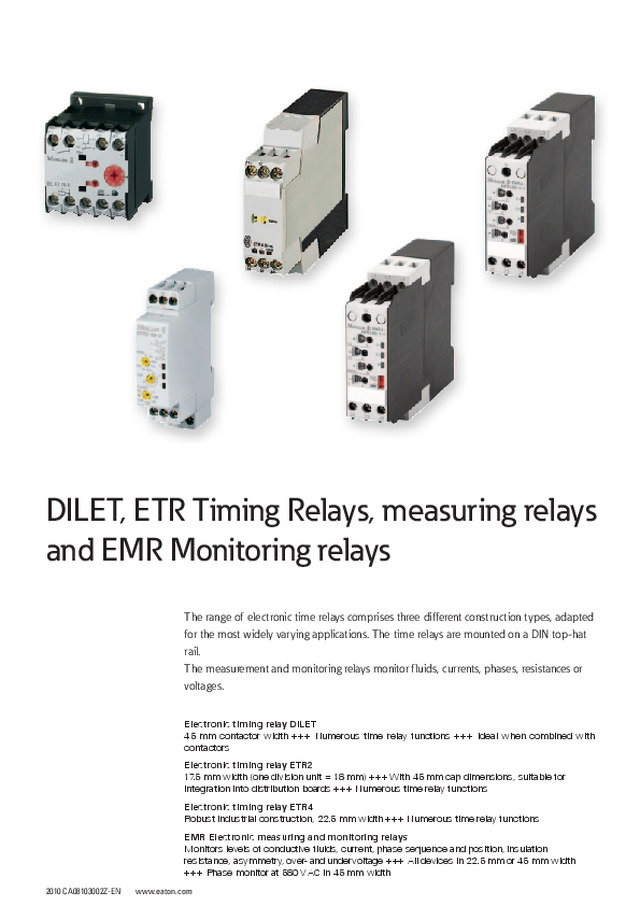

11_CA08103002Z

2010 CA08103002Z-EN     www.eaton.com Electronic timing relay DILET 45 mm contactor width +++ Numerous time relay functions +++ Ideal when combined with   contactorsElectronic timing relay ETR2 17.5 mm width (one division unit = 18 mm) +++ With 45 mm cap dimensions, suitable for   integration into distribution boards +++ Numerous time relay functionsElectronic timing relay ETR4 Robust industrial construction, 22.5 mm width +++ Numerous time relay functionsEMR Electronic measuring and monitoring relays Monitors levels of conductive fluids, current, phase sequence and position, insulation   resistance, asymmetry, over- and undervoltage +++ All devices in 22.5 mm or 45 mm width  +++ Phase monitor at 580 V AC in 45 mm width The range of electronic time relays comprises three different construction types, adapted for the most widely varying applications. The time relays are mounted on a DIN top-hat rail.The measurement and monitoring relays monitor fluids, currents, phases, resistances or voltages. DILET, ETR Timing Relays, measuring relays and  EMR Monitoring relays

DILET, ETR timing relay Ordering DILET timing relays  11/2 ETR4 timing relays  11/4 ETR2 timing relays  11/6 Engineering DILET, ETR timing relay Contact sequence diagram  11/8 Load limit curves  11/10 Technical data DILET, ETR4 timing relays  11/11 ETR2 timing relays  11/13 Dimensions DILET, ETR timing relays  11/15 EMR Measuring and monitoring relays Ordering EMR measuring and monitoring relays  11/16 Engineering EMR Measuring and monitoring relays Load limit curves  11/19 Technical data EMR Measuring and monitoring relays EMR4-I... current monitoring relay  11/20 Phase sequence relay EMR5 (300 V)  11/24 Phase imbalance monitor  11/26 Liquid level monitoring relays  11/28 Insulation monitoring relays  11/30 Phase monitoring relays  11/32 Dimensions EMR measuring and monitoring relays  11/36 17.5  5  58  80  45  43.4  I [A] 105 106 104 S 4 3 2 1 5 6 7 8 109.5 102 5.5 1 100  22.5   78 Timing relay, measuring relay and monitoring relay Our product range of measurement and monitoring relays has been   partially updated. Old device Old article no. New device New article no. EMR4-W500-2-C 221785 EMR5-W500-1-D 134221 EMR4-W500-2-D 221786 EMR5-W500-1-D 134221 EMR4-W580-2-D 221787 EMR5-AWM720-2 134236 EMR4-A400-1 221788 EMR5-A400-1 134222 EMR4-AW300-1-C 290243 EMR5-AW300-1-C 134223 EMR4-AW500-1-D 290244 EMR5-AW500-1-D 134224 EMR4-AWN170-1-E 290245 EMR5-AWN170-1-E 134225 EMR4-AWN280-1-F 290246 EMR5-AWN280-1-F 134226 EMR4-W300-1-C 290182 EMR5-W300-1-C 134227 EMR4-W500-1-D 290183 EMR5-W500-1-D 134221 EMR4-W380-1 290184 EMR5-W380-1 134228 EMR4-W400-1 290185 EMR5-W400-1 134229 EMR4-A300-1-C 290180 EMR5-A300-1-C 134230 EMR4-A500-1-D 290181 EMR5-A400-1 134222 This table provides assistance in replacing EMR4 articles with current EMR5  products.

11/2 Electronic relays Timing relays DILET 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays DILET DILETTiming relays Rated operational current AC-11 Conventional thermal current Time Range Voltage range Part no.Article No. PriceSee price list Std. pack Notes Information relevant for export to North America 230 V 400 V I th I e I e A A A A A Timing relays DILET On-delayedTiming functions ￫ Page 11/8Component lifespan ￫ Page 11/10  3 3 6 1.5 - 30 s 24 - 240 V AC, 50/60 Hz24 - 240 V DC DILET11-30-A048878 1 off Fixed11, On-delayed Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection IEC: IP20, UL/CSA Type: - 3 3 6 1.5 - 30 s 400 V AC, 50/60 Hz DILET11-30-W048904 3 3 6 0.05  -  1  s0.15 - 3 s0.5 - 10 s3 - 60 s0.15 - 3 min0.5 - 10 min3 - 60 min0.15 - 3 h0.5 - 10 h3 - 60 h 24 - 240 V AC, 50/60 Hz24 - 240 V DC DILET11-M-A048886 3 3 6 400 V AC, 50/60 Hz DILET11-M-W048891 Multi-functional with remote potentiometerTiming functions ￫ Page 11/8  Component lifespan ￫ Page 11/10  3 3 6 0.05  -  1s0.15 - 3 s0.2217925 - 10 s3 - 60 s0.15 - 3 min0.5 - 10 min3 - 60 min0.15 - 3 h0.5 - 10 h3 - 60 h 24 - 240 V AC, 50/60 Hz24 - 240 V DC DILET70-A048893 1 off Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing81, Pulse generatingON-OFF Adjustable12, Off-delayed16, On- and off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection IEC: IP20, UL/CSA Type: - 11 ON-DELAYED21 FLEETING CONTACT ON ENERGIZATION42 FLASHING81 PULSE GENERATING CONTACT 3 3 6 400 V AC, 50/60 Hz DILET70-W048899    A1 A2 15 16 18 A1 A2 15 16 18 Cable connection with Y1/Y2, Z1/Z2Permissible cable length (cable unshielded, with cable cross-section 0.5-1.5 mm 2 ): Two-core cable 250 m Two-core cable in the same cable duct with mains cable, 50/60 Hz 50 m A1 A2 Z2 Z1 15 16 18 A1 A2 Z2 Z1 Y1 Y2 15 16 18 A2 A1 16 18 15 Z1 Z2 Resistance Rated power For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America R P kΩ W Remote potentiometer, IP66 10 ≦ 0.5 DILET…ETR4-70 M22-R10K229491 1 off Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection UL/CSA part no. 3R, 4X, 12, 13 10 – DILET…ETR4-70 M22S-R10K232233 1 off Screw adapters For screw fixing – – EWDILETS4-VS3ETR4 CS-TE095853 10 off UL/CSA certification not required 11/3 HPL11002EN HPL11003EN

11/2 Electronic relays Timing relays DILET 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays DILET DILETTiming relays Rated operational current AC-11 Conventional thermal current Time Range Voltage range Part no.Article No. PriceSee price list Std. pack Notes Information relevant for export to North America 230 V 400 V I th I e I e A A A A A Timing relays DILET On-delayedTiming functions ￫ Page 11/8Component lifespan ￫ Page 11/10  3 3 6 1.5 - 30 s 24 - 240 V AC, 50/60 Hz24 - 240 V DC DILET11-30-A048878 1 off Fixed11, On-delayed Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection IEC: IP20, UL/CSA Type: - 3 3 6 1.5 - 30 s 400 V AC, 50/60 Hz DILET11-30-W048904 3 3 6 0.05  -  1  s0.15 - 3 s0.5 - 10 s3 - 60 s0.15 - 3 min0.5 - 10 min3 - 60 min0.15 - 3 h0.5 - 10 h3 - 60 h 24 - 240 V AC, 50/60 Hz24 - 240 V DC DILET11-M-A048886 3 3 6 400 V AC, 50/60 Hz DILET11-M-W048891 Multi-functional with remote potentiometerTiming functions ￫ Page 11/8  Component lifespan ￫ Page 11/10  3 3 6 0.05  -  1s0.15 - 3 s0.2217925 - 10 s3 - 60 s0.15 - 3 min0.5 - 10 min3 - 60 min0.15 - 3 h0.5 - 10 h3 - 60 h 24 - 240 V AC, 50/60 Hz24 - 240 V DC DILET70-A048893 1 off Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing81, Pulse generatingON-OFF Adjustable12, Off-delayed16, On- and off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection IEC: IP20, UL/CSA Type: - 11 ON-DELAYED21 FLEETING CONTACT ON ENERGIZATION42 FLASHING81 PULSE GENERATING CONTACT 3 3 6 400 V AC, 50/60 Hz DILET70-W048899    A1 A2 15 16 18 A1 A2 15 16 18 Cable connection with Y1/Y2, Z1/Z2Permissible cable length (cable unshielded, with cable cross-section 0.5-1.5 mm 2 ): Two-core cable 250 m Two-core cable in the same cable duct with mains cable, 50/60 Hz 50 m A1 A2 Z2 Z1 15 16 18 A1 A2 Z2 Z1 Y1 Y2 15 16 18 A2 A1 16 18 15 Z1 Z2 Resistance Rated power For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America R P kΩ W Remote potentiometer, IP66 10 ≦ 0.5 DILET…ETR4-70 M22-R10K229491 1 off Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection UL/CSA part no. 3R, 4X, 12, 13 10 – DILET…ETR4-70 M22S-R10K232233 1 off Screw adapters For screw fixing – – EWDILETS4-VS3ETR4 CS-TE095853 10 off UL/CSA certification not required 11/3 HPL11002EN HPL11003EN

11/4 Electronic relays Timing relays ETR2 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays ETR2 ETR2Timing relays 24 - 240 V AC, 50/60 Hz24 - 240 V DC 400 V AC, 50/60 Hz Rated operational current AC-15 Conventional thermal current Time Range Part no.Article no. PriceSee price list Std. pack Part no.Article no. PriceSee price list Std. pack Notes 230 V 400 V I th I e I e A A A Electronic timing relays ETR4, 22.5 mm wide Star-delta switchingTiming functions ￫ Page 11/8  3 3 6 3  -  60  s ETR4-51-A031884 1 off ETR4-51-W031885 1 off On-delayedTiming functions ￫ Page 11/8  3 3 6 0.05 - 1 s0.15 - 3 s0.5 - 10 s1.5 - 30 s5 - 100 s15 - 300 s1.5 - 30 min15 - 300 min1.5 - 30 h5 - 100 h ETR4-11-A031882 ETR4-11-W031883 MultifunctionalTiming functions ￫ Page 11/8  3 3 6 ETR4-69-A031891 ETR4-69-W031887 Multifunctionalwith connection for potentiometer, and two changeover contacts that can be converted to two timed contacts or one non-delayed contact and one timed contact.Timing functions ￫ Page 11/8  3 – 6 ETR4-70-A031888 Notes Information relevant for export to North America Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Function Terminal marking according to EN 50042 Fixed51, Star-delta A1 A2 18 17 28 Cable connection with B1, Z1/Z2Permissible cable length (cable unshielded, with cable cross-section 0.5--1.5 mm 2 ): Two-core cable 250 m Two-core cable in the same cable duct with mains cable, 50/60 Hz 50 m Function Terminal marking according to EN 50042 Fixed11, On-delayed A1 A2 15 16 18 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating81, Pulse generatingON-OFF Adjustable12, Off-delayed16, On- and off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF A1 A2 16 15 18 A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 A2/X1 linked11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating81, Pulse generatingON-OFF A2/X1 linked12, Off-delayed16, On- and off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF A2/X1 not linked11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating81, Pulse generatingON-OFF A2/X1 not linked12, Off-delayed16, On- and Off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF A1 A2 X1 Z2 Z1 15 16 18 25 26 28 A1 A2 X1 Z1 Z2 15 16 18 21 22 24 A1 A2 X1 Z2 Z1 15 16 18 25 26 28 B1 A1 A2 X1 Z1 Z2 15 16 18 21 22 24 B1 ETR4-11 ETR4-69 ETR4-70 ON-DELAYED 11 ON-DELAYED21 FLEETING CONTACT ON ENERGIZATION42 FLASHING81 PULSE GENERATING CONTACT 11 ON-DELAYED21 FLEETING CONTACT ON ENERGIZATION42 FLASHING81 PULSE GENERATING CONTACT A1 A2 15 16 18 15 16 18 A1 A2 Z1 Z2 A1 15 X1 A2 16 18 25 28 26 Z1 A1 Z2 15 21 X1 A2 16 18 22 24 ETR4-51 ON-DELAYED 12 OFF-DELAYED16 ON- and OFF-DELAYED22 FLEETING CONTACT ON DE-ENERGIZATION82 PULSE SHAPING CONTACT 12 OFF-DELAYED16 ON- and OFF-DELAYED22 FLEETING CONTACT ON DE-ENERGIZATION82 PULSE SHAPING CONTACT 17 28 18 A1 A2 15 16 18 A2 A1 B1 15 16 18 Y2 A2 Y1 A1 Z1 Z2 Z1 Z2 A1 15 25 28 26 18 16 A2 X1 B1 Z1 Z2 A1 B1 15 18 16 A2 X1 21 24 22 11/5 HPL11004EN HPL11005EN

11/4 Electronic relays Timing relays ETR2 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays ETR2 ETR2Timing relays 24 - 240 V AC, 50/60 Hz24 - 240 V DC 400 V AC, 50/60 Hz Rated operational current AC-15 Conventional thermal current Time Range Part no.Article no. PriceSee price list Std. pack Part no.Article no. PriceSee price list Std. pack Notes 230 V 400 V I th I e I e A A A Electronic timing relays ETR4, 22.5 mm wide Star-delta switchingTiming functions ￫ Page 11/8  3 3 6 3  -  60  s ETR4-51-A031884 1 off ETR4-51-W031885 1 off On-delayedTiming functions ￫ Page 11/8  3 3 6 0.05 - 1 s0.15 - 3 s0.5 - 10 s1.5 - 30 s5 - 100 s15 - 300 s1.5 - 30 min15 - 300 min1.5 - 30 h5 - 100 h ETR4-11-A031882 ETR4-11-W031883 MultifunctionalTiming functions ￫ Page 11/8  3 3 6 ETR4-69-A031891 ETR4-69-W031887 Multifunctionalwith connection for potentiometer, and two changeover contacts that can be converted to two timed contacts or one non-delayed contact and one timed contact.Timing functions ￫ Page 11/8  3 – 6 ETR4-70-A031888 Notes Information relevant for export to North America Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 12528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Function Terminal marking according to EN 50042 Fixed51, Star-delta A1 A2 18 17 28 Cable connection with B1, Z1/Z2Permissible cable length (cable unshielded, with cable cross-section 0.5--1.5 mm 2 ): Two-core cable 250 m Two-core cable in the same cable duct with mains cable, 50/60 Hz 50 m Function Terminal marking according to EN 50042 Fixed11, On-delayed A1 A2 15 16 18 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating81, Pulse generatingON-OFF Adjustable12, Off-delayed16, On- and off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF A1 A2 16 15 18 A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 A2/X1 linked11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating81, Pulse generatingON-OFF A2/X1 linked12, Off-delayed16, On- and off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF A2/X1 not linked11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating81, Pulse generatingON-OFF A2/X1 not linked12, Off-delayed16, On- and Off-delayed22, Fleeting contact on de-energization82, Pulse shapingON-OFF A1 A2 X1 Z2 Z1 15 16 18 25 26 28 A1 A2 X1 Z1 Z2 15 16 18 21 22 24 A1 A2 X1 Z2 Z1 15 16 18 25 26 28 B1 A1 A2 X1 Z1 Z2 15 16 18 21 22 24 B1 ETR4-11 ETR4-69 ETR4-70 ON-DELAYED 11 ON-DELAYED21 FLEETING CONTACT ON ENERGIZATION42 FLASHING81 PULSE GENERATING CONTACT 11 ON-DELAYED21 FLEETING CONTACT ON ENERGIZATION42 FLASHING81 PULSE GENERATING CONTACT A1 A2 15 16 18 15 16 18 A1 A2 Z1 Z2 A1 15 X1 A2 16 18 25 28 26 Z1 A1 Z2 15 21 X1 A2 16 18 22 24 ETR4-51 ON-DELAYED 12 OFF-DELAYED16 ON- and OFF-DELAYED22 FLEETING CONTACT ON DE-ENERGIZATION82 PULSE SHAPING CONTACT 12 OFF-DELAYED16 ON- and OFF-DELAYED22 FLEETING CONTACT ON DE-ENERGIZATION82 PULSE SHAPING CONTACT 17 28 18 A1 A2 15 16 18 A2 A1 B1 15 16 18 Y2 A2 Y1 A1 Z1 Z2 Z1 Z2 A1 15 25 28 26 18 16 A2 X1 B1 Z1 Z2 A1 B1 15 18 16 A2 X1 21 24 22 11/5 HPL11004EN HPL11005EN

11/6 Electronic relays Timing relays DILET, ETR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays DILET, ETR DILET, ETRTiming relays Rated operation current Conventional thermal current Time Range Voltage range Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America N/O230 V 230 V (N/C) I e I e I th A A A Electronic timing relays ETR2, 17.5 mm wide One changeover contact On-delayedTiming functions ￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 0.05  -  1  s0.5 - 10 s5 - 100 s0.5 - 10 min5 - 100 min0.5 - 10 h5 - 100 h 24 - 240 V AC, 50/60 Hz24 - 48 V DC ETR2-11262684 1 off Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Off-delayedTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-12262686 Fleeting contact on energizationTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-21262687 Flashing, pulse initiatingTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-42262688 Flashing, 2 speeds(ON/OFFtimes variable)Timing functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-44262730 Multifunction relayTiming functions ￫ Page 11/8Load limit curves ￫ Page 11/10 3 – 6 ETR2-69262689 Two changeover contacts On-delayedTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 0.05  -  1  s0.5 - 10 s5 - 100 s0.5 - 10 min5 - 100 min0.5 - 10 h5 - 100 h 24 - 240 V AC, 50/60 Hz24 - 48 V DC ETR2-11-D119426 1 off Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Off-delayedTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-12-D119427 MultifunctionalTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 0.75 6 12 - 240 V AC, 50/60 Hz ETR2-69-D119428 Function Terminal marking according to EN 50042 Fixed11, On-delayed A1 A2 15 16 18 Function Terminal marking according to EN 50042 Fixed12, Off-delayed A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Fixed21, Fleeting contact on energization A1 A2 16 15 18 Function Terminal marking according to EN 50042 Fixed42, Flashing, pulse initiating A1 A2 16 15 18 Function Terminal marking according to EN 50042 Fixed44, Flashing, 2 variable timesCan be set to either pulse or pause initiating A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating43, Flashing, pause initiating Adjustable12, Off-delayed22, Fleeting contact on de-energization82, Pulse shaping A1 A2 16 15 18 A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Fixed11, On-delayed A1 A2 16 15 18 26 25 28 Function Terminal marking according to EN 50042 Fixed12, Off-delayed A1 A2 B1 16 15 18 26 25 28 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating43, Flashing, pause initiating Adjustable12, Off-delayed22, Fleeting contact on de-energization82, Pulse shaping A1 A2 16 15 18 26 25 28 A1 A2 B1 16 15 18 26 25 28 11/7 HPL11006EN HPL11007EN

11/6 Electronic relays Timing relays DILET, ETR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays DILET, ETR DILET, ETRTiming relays Rated operation current Conventional thermal current Time Range Voltage range Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America N/O230 V 230 V (N/C) I e I e I th A A A Electronic timing relays ETR2, 17.5 mm wide One changeover contact On-delayedTiming functions ￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 0.05  -  1  s0.5 - 10 s5 - 100 s0.5 - 10 min5 - 100 min0.5 - 10 h5 - 100 h 24 - 240 V AC, 50/60 Hz24 - 48 V DC ETR2-11262684 1 off Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Off-delayedTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-12262686 Fleeting contact on energizationTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-21262687 Flashing, pulse initiatingTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-42262688 Flashing, 2 speeds(ON/OFFtimes variable)Timing functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-44262730 Multifunction relayTiming functions ￫ Page 11/8Load limit curves ￫ Page 11/10 3 – 6 ETR2-69262689 Two changeover contacts On-delayedTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 0.05  -  1  s0.5 - 10 s5 - 100 s0.5 - 10 min5 - 100 min0.5 - 10 h5 - 100 h 24 - 240 V AC, 50/60 Hz24 - 48 V DC ETR2-11-D119426 1 off Product Standards IEC/EN 61812-1; IEC/EN 60947-5-1; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Off-delayedTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 – 6 ETR2-12-D119427 MultifunctionalTiming functions￫ Page 11/8 Load limit curves ￫ Page 11/10 3 0.75 6 12 - 240 V AC, 50/60 Hz ETR2-69-D119428 Function Terminal marking according to EN 50042 Fixed11, On-delayed A1 A2 15 16 18 Function Terminal marking according to EN 50042 Fixed12, Off-delayed A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Fixed21, Fleeting contact on energization A1 A2 16 15 18 Function Terminal marking according to EN 50042 Fixed42, Flashing, pulse initiating A1 A2 16 15 18 Function Terminal marking according to EN 50042 Fixed44, Flashing, 2 variable timesCan be set to either pulse or pause initiating A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating43, Flashing, pause initiating Adjustable12, Off-delayed22, Fleeting contact on de-energization82, Pulse shaping A1 A2 16 15 18 A1 A2 B1 15 16 18 Function Terminal marking according to EN 50042 Fixed11, On-delayed A1 A2 16 15 18 26 25 28 Function Terminal marking according to EN 50042 Fixed12, Off-delayed A1 A2 B1 16 15 18 26 25 28 Function Terminal marking according to EN 50042 Function Terminal marking according to EN 50042 Adjustable11, On-delayed21, Fleeting contact on energization42, Flashing, pulse initiating43, Flashing, pause initiating Adjustable12, Off-delayed22, Fleeting contact on de-energization82, Pulse shaping A1 A2 16 15 18 26 25 28 A1 A2 B1 16 15 18 26 25 28 11/7 HPL11006EN HPL11007EN

11/8 Electronic relays Timing relays DILET, ETR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays DILET, ETR Engineering Electronic timing relays Contact sequence diagram DILET 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing, pulse initiating 81 Pulse generating 82 Pulse shaping On-Off function Legend to contact sequence diagramsLED display Time not running,Contact 15 – 18 closed Time running,Contact 15 – 18 closed Time running,Contact 15 – 18 not closed ETR2..., ETR4... 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing, pulse initiating 43 Flashing, pause initiating 44 Flashing, 2 speeds 81 Pulse generating 82 Pulse shaping 51 Star-delta On-Off function Legend to contact sequence diagramsLED display Time not running,Contact 15 – 18 closed Time running,Contact 15 – 18 closed Time running,Contact 15 – 18 not closed ETR4-70...A2/X1 linked 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing 81 Pulse generating 82 Pulse shaping On-Off function ETR4-70...A2/X1 not linked 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing 81 Pulse generating 82 Pulse shaping On-Off function Legend to contact sequence diagramsLED display Time not running,Contact 15 – 18 closed Time running,Contact 15 – 18 closed Time running,Contact 15 – 18 not closed LED A1-A2 15-18 t A1-A2 Y1-Y2 15-18 t LED A1-A2 Y1-Y2 15-18 t t LED A1-A2 15-18 t LED A1-A2 Y1-Y2 15-18 t LED LED t t t t A1-A2 15-18 LED A1-A2 15-18 0.5 s t A1-A2 Y1-Y2 15-18 t LED A1-A2 15-18 OFF ON OFF  LED A1-A2 15-18 t Rel LED Power LED Rel LED A1-A2 B1 15-18 t Power LED A1-A2 B1 15-18 t t Power LED Rel LED A1-A2 15-18 t Rel LED Power LED A1-A2 B1 15-18 t Power LED Rel LED LED t t t t A1-A2 15-18 LED t t t t A1-A2 15-18 t A1-B1 A1-A2 Rel LED A1-B1 Rel LED t t t t 15-18 t t 1 2 1 2 1 2 15-18 t t t t t t 1 2 1 2 1 2 t A1-A2 15-18 0.5 s Rel LED Power LED A1-A2 B1 15-18 t Power LED Rel LED 17-18 t t u A1-A2 17-28 Power LED     LED    LED 15-18 A1-A2 OFF ON OFF Rel LED Power LED (25-28) A1-A2 15-18 t Power LED Rel 1,2 LED A1-A2 B1 15-18 t (25-28) Power LED Rel 1,2 LED A1-A2 B1 t t (25-28) 15-18 Power LED Rel 1,2 LED A1-A2 t (25-28) 15-18 Rel 1,2 LED Power LED A1-A2 B1 t (25-28) 15-18 Rel 1,2 LED Power LED A1-A2 15-18 t t t t (25-28) Rel 1,2 LED Power LED 15-18 A1-A2 0,5 s t (25-28) Rel 1,2 LED Power LED 15-18 A1-A2 B1 t (25-28) Rel 1,2 LED Power LED 15-18(25-28) A1-A2 Rel 1,2 LED OFF ON OFF Power LED A1-A2 15-18 t 21-24 Power LED Rel 1 LED Rel 2 LED A1-A2 B1 15-18 t 21-24 Power LED Rel 1 LED Rel 2 LED A1-A2 B1 15-18 t t 21-24 Power LED Rel 1 LED Rel 2 LED 15-18 t 21-24 A1-A2 Rel 1 LED Power LED Rel 2 LED A1-A2 B1 15-18 t 21-24 Rel 1 LED Power LED Rel 2 LED 15-18 t t t t 21-24 A1-A2 A1-A2  Rel 2 LED Rel 1 LED Power LED A1-A2 15-18 0.5 s t 21-24 Rel 1 LED Power LED Rel 2 LED B1 A1-A2 15-18 t 21-24 Rel 1 LED Power LED Rel 2 LED 15-18(25-28) A1-A2 Rel 1,2 LED OFF ON OFF Power LED 11/9

11/8 Electronic relays Timing relays DILET, ETR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Timing relays DILET, ETR Engineering Electronic timing relays Contact sequence diagram DILET 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing, pulse initiating 81 Pulse generating 82 Pulse shaping On-Off function Legend to contact sequence diagramsLED display Time not running,Contact 15 – 18 closed Time running,Contact 15 – 18 closed Time running,Contact 15 – 18 not closed ETR2..., ETR4... 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing, pulse initiating 43 Flashing, pause initiating 44 Flashing, 2 speeds 81 Pulse generating 82 Pulse shaping 51 Star-delta On-Off function Legend to contact sequence diagramsLED display Time not running,Contact 15 – 18 closed Time running,Contact 15 – 18 closed Time running,Contact 15 – 18 not closed ETR4-70...A2/X1 linked 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing 81 Pulse generating 82 Pulse shaping On-Off function ETR4-70...A2/X1 not linked 11 On-delayed 12 Off-delayed 16 On- and Off-delayed 21 Fleeting contact on energization 22 Fleeting contact on de-energization 42 Flashing 81 Pulse generating 82 Pulse shaping On-Off function Legend to contact sequence diagramsLED display Time not running,Contact 15 – 18 closed Time running,Contact 15 – 18 closed Time running,Contact 15 – 18 not closed LED A1-A2 15-18 t A1-A2 Y1-Y2 15-18 t LED A1-A2 Y1-Y2 15-18 t t LED A1-A2 15-18 t LED A1-A2 Y1-Y2 15-18 t LED LED t t t t A1-A2 15-18 LED A1-A2 15-18 0.5 s t A1-A2 Y1-Y2 15-18 t LED A1-A2 15-18 OFF ON OFF  LED A1-A2 15-18 t Rel LED Power LED Rel LED A1-A2 B1 15-18 t Power LED A1-A2 B1 15-18 t t Power LED Rel LED A1-A2 15-18 t Rel LED Power LED A1-A2 B1 15-18 t Power LED Rel LED LED t t t t A1-A2 15-18 LED t t t t A1-A2 15-18 t A1-B1 A1-A2 Rel LED A1-B1 Rel LED t t t t 15-18 t t 1 2 1 2 1 2 15-18 t t t t t t 1 2 1 2 1 2 t A1-A2 15-18 0.5 s Rel LED Power LED A1-A2 B1 15-18 t Power LED Rel LED 17-18 t t u A1-A2 17-28 Power LED     LED    LED 15-18 A1-A2 OFF ON OFF Rel LED Power LED (25-28) A1-A2 15-18 t Power LED Rel 1,2 LED A1-A2 B1 15-18 t (25-28) Power LED Rel 1,2 LED A1-A2 B1 t t (25-28) 15-18 Power LED Rel 1,2 LED A1-A2 t (25-28) 15-18 Rel 1,2 LED Power LED A1-A2 B1 t (25-28) 15-18 Rel 1,2 LED Power LED A1-A2 15-18 t t t t (25-28) Rel 1,2 LED Power LED 15-18 A1-A2 0,5 s t (25-28) Rel 1,2 LED Power LED 15-18 A1-A2 B1 t (25-28) Rel 1,2 LED Power LED 15-18(25-28) A1-A2 Rel 1,2 LED OFF ON OFF Power LED A1-A2 15-18 t 21-24 Power LED Rel 1 LED Rel 2 LED A1-A2 B1 15-18 t 21-24 Power LED Rel 1 LED Rel 2 LED A1-A2 B1 15-18 t t 21-24 Power LED Rel 1 LED Rel 2 LED 15-18 t 21-24 A1-A2 Rel 1 LED Power LED Rel 2 LED A1-A2 B1 15-18 t 21-24 Rel 1 LED Power LED Rel 2 LED 15-18 t t t t 21-24 A1-A2 A1-A2  Rel 2 LED Rel 1 LED Power LED A1-A2 15-18 0.5 s t 21-24 Rel 1 LED Power LED Rel 2 LED B1 A1-A2 15-18 t 21-24 Rel 1 LED Power LED Rel 2 LED 15-18(25-28) A1-A2 Rel 1,2 LED OFF ON OFF Power LED 11/9

11/10 Electronic relays Timing relays 2010 CA08103002Z-EN www.eaton.com DILET, ETR Timing relaysDILET, ETR Load limit curves, ETR2-11/12/21/42/44/69 AC load (resistive) DC load (resistive) Derating factor with inductive AC load Contact life Derating factor F with inductive load Contact lifeOperations S220 V 50 Hz AC-1360 operations/h Load limit curves, ETR2...-D  AC load (resistive) DC load (resistive) Derating factor with inductive AC load Contact life Derating factor F with inductive load Contact lifeOperations S220 V 50 Hz AC-1360 operations/h DILET (AC-11) Component lifespan (operations)I e  = Rated operational current 300200 10 20 30 40 60 50 80 100 0.1 0.2 0.5 1 2 4 6 10 [V] U I [A] 300200 10 20 30 40 60 80 100 0.1 0.2 0.5 1 2 4 6 10 I [A] [V] U 0.5 0.6 0.7 0.8 0.9 1.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0cos v F I [A] S 2 3 4 6 8 1 2 3 4 5 6 7 8 10 5 10 6 400 300200 10 20 30 40 60 80 100 0.1 0.2 0.5 1 2 4 6 10 I [A] [V] U 400 300200 10 20 30 40 60 80 100 0.1 0.2 0.5 1 2 4 6 10 I [A] [V] U 0.5 0.6 0.7 0.8 0.9 1.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0cos v F 1 0 2 3 4 5 6 7 8 I [A] S 10 7 10 6 10 5 10 4 240 V 0.01 0.05 0.02 2 0.1 0.5 1 0.2 5 10 A 2010 52 1 0.50.2 0.1 x 10 6 I e AC-11

Electronic relays Timing relays 2010 CA08103002Z-EN www.eaton.com DILET, ETR4 11/11 DILET, ETR4Timing relays DILET-A DILET-W ETR4-A ETR4-W General Standards IEC/EN 61812VDE 0435 IEC/EN 61812VDE 0435 IEC/EN 61812VDE 0435 IEC/EN 61812VDE 0435 Lifespan, mechanical AC operated Switch operations x 10 6 30 30 30 30 DC operated Switch operations x 10 6 30 30 30 30 Climatic proofing Damp heat, constant, to IEC 60068-2-78;Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature Storage °C -45 - 60 -45 - 60 Open °C -20 - 60 -20 - 60 -25 - 60 -25 - 60 Encapsulated °C -20 - 45 -20 - 45 -25 - 45 -25 - 45 Mounting position Any Any Any Any Mechanical shock resistance (IEC/EN 60068-2-27) Half-sinusoidal shock 20 ms N/O g 4 4 4 4 Degree of protection Clamps IP20 IP20 IP20 IP20 Weight kg 0.09 0.09 0.1 0.1 Terminal capacity Solid mm 2 1 x (0.75 - 2.5)2 x (0.75 - 2.5) 1 x (0.75 - 2.5)2 x (0.75 - 2.5) 1 x (0.75 - 2.5)2 x (0.75 - 1.5) 1 x (0.75 - 2.5)2 x (0.75 - 1.5) Flexible with ferrule mm 2 1 x (0.75 - 1.5)2 x (0.75 - 1.5) 1 x (0.75 - 1.5)2 x (0.75 - 1.5) 1 x (0.75 - 2.5)2 x (0.75 - 1.5) 1 x (0.75 - 2.5)2 x (0.75 - 1.5) Solid or stranded AWG 1 x (18 - 14) 1 x (18 - 14) 1 x (20 - 14) 1 x (20 - 14) Contacts Rated impulse withstand voltage  U imp V AC 6000 6000 6000 6000 Overvoltage category/pollution degree III/2 III/2 III/2 III/2 Rated insulation voltage U i V AC 600 600 600 600 Rated operating voltage U e V AC 440 440 440 440 Safe isolation according to EN 61140 Between coil and auxiliary contacts V AC 250 250 250 250 Between the auxiliary contacts V AC 250 250 250 250 Making capacity AC-14 p.f. ϕ = 0.3  440 V A 48 48 48 48 AC-15 p.f. ϕ = 0.3  220 V A 50 50 50 50 DC-11 L/R ≦ 40 ms x I e 1.1 1.1 1.1 1.1 Breaking capacity  AC-14 p.f. ϕ = 0.3  440 V A 3 3 3 3 AC-15 p.f. ϕ = 0.3  220 V A 3 3 3 3 DC-11 L/R ≦ 40 ms x I e 1.1 1.1 1.1 1.1 Rated operation current AC-14 440 V I e A 3 3 3 3 AC-15 220 V (230 V) I e A 3 3 3 3 DC-11 1) L/R max. 15 ms 24 V I e A 1.5 1.5 1.5 1.5 L/R max. 50 ms A 1.2 1.2 1.2 1.2 Conventional thermal current  I th A 6 6 6 6 General use AC operated V 250 250 250 250 AC operated A 6 6 6 6 Pilot duty AC operated B300 B300 B300 B300 Short-circuit rating without welding 2) Max. fuse, N/O (normally open) A gG/gL 6 6 6 6 Max. fuse, N/C (normally closed) A gG/gL 6 6 6 6 Max. overcurrent protective device, 220/230 V Part no. – – FAZ-B4/1-HI FAZ-B4/1-HI Notes 1)  Making and breaking conditions to DC13, time constant as stated 2)  When supplied directly from mains or transformer  1000 VA

11/12 Electronic relays Timing relays 2010 CA08103002Z-EN www.eaton.com DILET, ETR4 DILET-A DILET-W ETR4-A ETR4-W Magnet systems Rated operating voltage AC 24 - 240 400 24 - 240 400 DC 24 - 240 – 24 - 240 – Rated frequency Hz 47 - 63 47 - 63 47 - 63 47 - 63 AC operated Pick-up x U c 0.85 - 1.1 0.85 - 1.1 0.85 - 1.1 0.85 - 1.1 DC operated Pick-up x U c 0.7 - 1.1 – 0.7 - 1.1 – Power consumption AC pick-up rating VA 2 0.5 2 0.5 AC holding rating VA 2 0.5 2 0.5 DC pick-up rating W 1.8 – 1.8 – DC holding rating W 1.8 – 1.8 –  Duty factor  % duty factor 100 100 100 100 Maximum operating frequency Ops/h 4000 4000 4000 4000 Minimum command time AC ms 50 50 50 50 DC ms 30 – 30 – Repetition accuracy (deviation) % ≦ 0.5 ≦ 0.5 ≦ 0.5 ≦ 0.5 Recovery time (after 100% time delay) ms 70 70 70 70 Contact changeover time 1) t u ms – – 4 4 Electromagnetic compatibility (EMC) Electrostatic discharge (IEC/EN 61000-4-2, Level 3, ESD) kV – – – – Air discharge kV 8 8 8 8 Contact discharge kV 6 6 6 6 Electromagnetic fields (IEC/EN 61000-4-3, RFI) V/m 10 10 10 10 Radio interference suppression (EN 55011) EN 55011 Class A EN 55011 Class A EN 55011 Class A EN 55011 Class A Burst pulses (IEC/EN 61000-4-4, level 3) 2 2 2 2 High-energy pulses (surge) (IEC/EN 61000-4-5, level 2) kV 1 1 1 1 Immunity to line-conducted interference  (IEC/EN 61000-4-6) V 10 10 10 10 Notes 1)  ETR4-51: 50 ms

Electronic relays Timing relays 2010 CA08103002Z-EN www.eaton.com ETR2 11/13 Timing relaysETR2 Technical data Part no. ETR2-11(12, 21, 42, 44, 69) ETR2-69-D ETR2-11-D/ETR2-12-D Input circuit - power supply circuit  Rated control voltage U S A1 - A2 24 - 240 V AC/24 - 48 V DC 12-240 V AC/DC 24 - 240 V AC/24 - 48 V DC Tolerance of rated control voltage U S -15 - +10 % -15 - +10 % -15 - +10 % Rated frequency DC or 50/60 Hz DC or 50/60 Hz DC or 50/60 Hz Frequency range  DC or 47 - 63 Hz DC or 47 - 63 Hz DC or 47 - 63 Hz Typical current/power consumption 12 V DC – 35 mA – 24 V DC 0.6 W – 24.1mA 230 V AC  1.3 VA 6.25 mA 31.3 mA 115 V AC  1.3 VA 34.25 mA 20 mA Mains failure buffering time min. 30 ms min. 30 ms min. 30 ms Input circuit - control circuit  Type of actuation  Non-isolated actuation Non-isolated actuation Non-isolated actuation Control input, control function External time start External time start External time start Parallel connection possible/polarized  Yes/yes Yes/yes Yes/yes Maximum cable length at the control inputs 50 m - 100 pF/m 50 m - 100 pF/m 50 m - 100 pF/m Minimum control pulse length/duration 30 ms 30 ms 30 ms Control voltage potential see Rated control voltage see Rated control voltage see Rated control voltage Power consumption of control input  Max. 4 mA 12 V DC – 0.018 mA – 24 V DC – – 0.92 mA 230 V AC – 0.01 mA 6.43 mA 115 V AC – 0.01 mA 3.27 mA Timing circuit Time ranges 7 time ranges 0.05 s - 100 h 0.05 - 1 s, 0.5 - 10 s, 5 - 100 s, 0.5 - 10 min, 5 - 100 min, 0.5 - 10 h, 5 - 100 h 0.05 - 1 s, 0.5 - 10 s, 5 - 100 s, 0.5 - 10 min, 5 - 100 min, 0.5 - 10 h, 5 - 100 h 0.05 - 1 s, 0.5 - 10 s, 5 - 100 s, 0.5 - 10 min, 5 - 100 min, 0.5 - 10 h, 5 - 100 h Recovery time 50 ms  50 ms 50 ms Accuracy within the rated control voltage tolerance Δt   0.005 %/V Δt   0.005 %/V Δt  0.005 %/V Accuracy within temperature range Δt   0.06 %/°C Δt   0.06 %/°C Δt  0.06 %/°C Operating status indication U control voltage/time running: green LED Continuous light: control voltage present; slow flashing: time running Relay status R: yellow LED Continuous light: output relay 1 picked up Continuous light: output relay 1 or 2 picked up Continuous light: output relay 1 or 2 picked up Output circuits Output type 15 - 16/18 Relay, 1 changeover contact – – 15 - 16/18; 25 - 26/28 – Relay, 2 changeover contacts Relay, 2 changeover contacts Contact material Cadmium-free Cadmium-free Cadmium-free Rated operational voltage Ue 250 V 250 V 250 V Minimum switching voltage/minimum switching current 12 V/100 mA 12 V/100 mA 12 V/100 mA Rated operational current (IEC 60947-5-1) AC12 (resistive) 230 V 6 A 5 A 5 A AC15 (inductive) 230 V N/O 3 A 3 A 3 A AC15 (inductive) 230 V N/C 3 A 0.75 A 0.75 A DC12 (resistive) 24 V 6 A 5 A 5 A DC13 (inductive) 24 V N/O 2 A 3 A 3 A DC13 (inductive) 24 V N/C 2 A 1 A 1 A Rated operational data AC (UL 508) Utilization category (Control Circuit Rating Code) B300 N/O: B300; N/C: C300 N/O: B300; N/C: C300 Max. rated operational voltage 300 V AC 300 V AC 300 V AC Max. thermal continuous current at B300 = 5 A at B300 = 5 A; at C300 = 2.5 A at B300 = 5 A; at C300 = 2.5 A Max. input/output rating (N/O / N/C) at B300 = 3600/360 VA at B300 = 3600/360 VA; at C300 = 1800/180 VA at B300 = 3600/360 VA; at C300 = 1800/180 VA Mechanical lifespan 30 x 10 6  operations 30 x 10 6  operations 30 x 10 6  operations Electrical lifespan (AC12, 230 V, 4 A) 0.1 x 10 6  operations 0.1 x 10 6  operations 0.1 x 10 6  operations Short-circuit rating, max. fuse(IEC/EN 60947-5-1)  N/C  6 A fast 6 A fast 6 A fast N/O  10 A fast 10 A fast 10 A fast

11/14 Electronic relays Timing relays 2010 CA08103002Z-EN www.eaton.com ETR2 General data Duty factor (DF)  100 % 100 % 100 % Repetition accuracy (constant parameters)  Δt   0.5 % Δt   0.5 % Δt  0.5 % Weight  0.060 kg 0.065 kg 0.065 kg Enclosure measurements (w x h x d) 17.5 mm x 70 mm x 58 mm (0.69 x 2.76 x 2.28 inches) 17.5 mm x 80 mm x 58 mm (0.69 x 3.15 x 2.28 inches) 17.5 mm x 80 mm x 58 mm (0.69 x 3.15 x 2.28 inches) Mounting position Any Any Any Degree of protection of enclosures/terminals  IP50/IP20 IP50/IP20 IP50/IP20 Minimum horizontal/vertical distance to adjacent devices  None/none None/none None/none Mounting DIN rail (IEC/EN 60715), clip-type toolless DIN rail (IEC/EN 60715), clip-type toolless DIN rail (IEC/EN 60715), clip-type toolless Electrical connection Terminal capacity Flexible with/without ferrule 2 x 0.5 - 1.5 mm 2   (2 x 20 - 16 AWG)/1 x 0.5 - 2.5 mm 2   (1 x 20 - 14 AWG) 3 x 0.5 - 1.5 mm 2 (2 x 20 - 16 AWG)/1 x 0.5 - 2.5 mm 2   (1 x 20 - 14 AWG) 4 x 0.5 - 1.5 mm 2   (2 x 20 - 16 AWG)/1 x 0.5 - 2.5 mm 2   (1 x 20 - 14 AWG) Rigid  2 x 0.5 - 1.5 mm 2   (2 x 20 - 16 AWG)1 x 0.5 - 4 mm 2  (1 x 20 - 12 AWG) 2 x 0.5 - 1.5 mm 2   (2 x 20 - 16 AWG)1 x 0.5 - 4 mm 2  (1 x 20 - 12 AWG) 2 x 0.5 - 1.5 mm 2 (2 x 20 - 16 AWG)1 x 0.5 - 4 mm 2  (1 x 20 - 12 AWG) Stripped length  7 mm (0.28 incheses) 7 mm (0.28 incheses) 7 mm (0.28 incheses) Tightening torque 0.5 - 0.8 Nm 0.5 - 0.8 Nm 0.5 - 0.8 Nm Environmental data  Ambient temperature range, operation/storage -20 - +60 °C/-40 - +85 °C -20 - +60 °C/-40 - +85 °C -20 - +60 °C/-40 - +85 °C Damp heat (cyclic) (IEC/EN 60068-2-30) 6 x 24 h cycle, 55 °C, 95 % RH 6 x 24 h cycle, 55 °C, 95 % RH 6 x 24 h cycle, 55 °C, 95 % RH Vibration (sinusoidal) (IEC/EN 60068-2-6) 40 m/s 2 , 20 cycles, 10...150...10 Hz 40 m/s 2 , 20 cycles, 10...150...10 Hz 40 m/s 2 , 20 cycles, 10...150...10 Hz Impact (half-sinusoidal) (IEC/EN 60068-2-27) 100 m/s 2 , 11 ms 100 m/s 2 , 11 ms 100 m/s 2 , 11 ms Insulation data Rated impulse withstand voltage Uimpbetween all insulated circuits  (VDE 0110, IEC/EN 60664-1) 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs Pollution degree (IEC/EN 60664-1, VDE 0110, UL 508) 3 3 3 Overvoltage category (IEC/EN 60664-1, VDE 0110, UL 508) III III III Rated insulation voltage Ui Input circuit/output circuit  300V 300V 300V Output circuit 1/output circuit 2 300 V  300 V  300 V  Basic isolation (IEC/EN 61140) input circuit/output circuit 300 V 300 V 300 V Safe isolation (VDE 0106 Part 101 and Part 101/A1; IEC/EN 61140) input circuit/output circuit 250 V 250 V 250 V Power-frequency withstand voltage test (test voltage, part test) between all insulated circuits 2.5 kV, 50 Hz, 1s 2.5 kV, 50 Hz, 1s 2.5 kV, 50 Hz, 1s Directives and standards Product standard IEC 61812-1, EN 61812-1 + A11, DIN VDE 0435 Part 2021 IEC 61812-1, EN 61812-1 + A11, DIN VDE 0435 Part 2021 IEC 61812-1, EN 61812-1 + A11, DIN VDE 0435 Part 2021 Low-Voltage Directive 2006/95/EC 2006/95/EC 2006/95/EC EMC Directive 2004/108/EC 2004/108/EC 2004/108/EC RoHS Directive 2002/95/EC 2002/95/EC 2002/95/EC Electromagnetic compatibility Interference immunity IEC/EN 61000-6-1, IEC/EN 61000-6-2 IEC/EN 61000-6-1, IEC/EN 61000-6-2 IEC/EN 61000-6-1, IEC/EN 61000-6-2 Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Electromagnetic field (immunity to RF interference) IEC/EN 61000-4-3 Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Fast transients (burst) IEC/EN 61000-4-4 Level 3 (2 kV/5 kHz) Level 3 (2 kV/5 kHz) Level 3 (2 kV/5 kHz) High-energy pulses (surge) IEC/EN 61000-4-5 Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Cable-borne HF IEC/EN 61000-4-6 Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Emitted interference IEC/EN 61000-6-3, IEC/EN 61000-6-4 IEC/EN 61000-6-3, IEC/EN 61000-6-4 IEC/EN 61000-6-3, IEC/EN 61000-6-4 Electromagnetic field (resistance to RF interference) IEC/CISPR 22, EN 55022 Class B Class B Class B Cable-borne HF IEC/CISPR 22; EN 55022 Class B Class B Class B Part no. ETR2-11(12, 21, 42, 44, 69) ETR2-69-D ETR2-11-D/ETR2-12-D

Electronic relays Timing relays, potentiometers 2010 CA08103002Z-EN www.eaton.com DILET, ETR 11/15 DILET, ETR Timing relays, potentiometers Dimensions Electronic timing relays DILET… DILET… + HDILE ETR4-… ETR2-… ETR2-…-D 250 x 006 Potentiometers M22-R…K… 45 58 52 5,5 65.3 43 45 50 35 M4 45 5 8 103 98 78 22.5 82.5 17.5 5 43.4 58 70 45 17.5 5 58  80  45  43.4  29.7 29.2 32.9 o  29.5 1 – 6

11/16 Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR EMR Measuring and monitoring relays Ordering Current measurement range Contact sequences Supply voltage connection Part no.Article no. PriceSee price list Std. pack I∼/I= A Current monitoring relays EMR4-I…, single-phase Load limit curves ￫ Page 11/21Circuit and contact sequence diagrams ￫ Instructional leaflet (AWA) under www.moeller.net/support • Switching hysteresis adjustable  from 3 - 30 % • Response delay 0.1 - 30 s• Monitoring of one upper or lower  limit • Extension of the measurement  range possible with current transformers 3 - 30 mA10 - 100 mA0.1 - 1 A 24 - 240 V AC, 50/60 Hz24 - 240 V DC EMR4-I1-1-A106942 1 off 0.3 - 1.5 A1 - 5 A3 - 15 A 24 - 240 V AC, 50/60 Hz24 - 240 V DC EMR4-I15-1-A106943 1 off 0.3 - 1.5 A1 - 5 A3 - 15 A 220 - 240 V AC, 50/60 Hz EMR4-I15-1-B106944 1 off Monitoring voltage per phase Contact sequences Supply voltage connection Part no.Article no. PriceSee price list Std. pack U N V AC EMR4-F… phase sequence relay Load limit curves ￫ Page 11/21Circuit and contact sequence diagrams ￫ Instructional leaflet (AWA) under www.moeller.net/support • Monitors three-phase systems  for phase sequence and phase failure (  0.6 x U e ) • Supply voltage connection =  monitored voltage 200 - 500 V AC, 50/60 Hz 200 - 500 V AC, 50/60 Hz EMR4-F500-2221784 1 off Threshold value Contact sequences Supply voltage connection Part no.Article no. PriceSee price list Std. pack EMR5-A... phase imbalance monitoring relays Load limit curves ￫ Page 11/21Circuit and contact sequence diagrams ￫ Instructional leaflet (AWA) under www.moeller.net/support Power supply from measuring circuitThree-phase monitoring• Phase sequence• Phase failure• Asymmetry• Imbalance threshold values  adjustable 2 - 25 % of mean value of phase voltages • On-delay: None = 0  or adjustable from 0.1 to 30 s Imbalance = 2 - 25 % of phase voltage mean value 160 - 300 V AC, 50/60 Hz EMR5-A300-1-C134230 1 off Power supply from measuring circuitThree-phase monitoring• Phase sequence• Phase failure• Asymmetry• Imbalance threshold values  adjustable • On-delay: None = 0  or adjustable from 0.1 to 30 s Imbalance = 2 - 25 % of phase voltage mean value 300 - 500 V AC, 50/60 Hz EMR5-A400-1134222 1 off Notes Information relevant for export to North America Product Standards IEC 255-6; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - C 15 25 B1 B2 B3 18 16 26 28 A1 A2 15 L1 L2 L3 11 16 12 18 14 26 22 28 24 25 21 15 L1 L2 L3 11 16 12 18 14 26 22 28 24 25 21 15 L1 L2 L3 11 16 12 18 14 26 22 28 24 25 21 HPL11016EN

Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/17 Response sen-sitivity Contact sequences Supply voltage connection Part no.Article no. PriceSee price list Std. pack Liquid level monitoring relays EMR4-N… Load limit curves ￫ Page 11/21Circuit and contact sequence diagrams ￫ Instructional leaflet (AWA) under www.moeller.net/support • Fill level monitoring of conductive  liquids • Mixture ratio monitoring of  conductive liquids • Selectable dry-running or  overflow protection 5 kΩ - 100 kΩ 220 - 240 V AC, 50/60 Hz EMR4-N100-1-B221789 1 off • Fill level monitoring of conductive  liquids • Mixture ratio monitoring of  conductive liquids • Selectable on-delay or off-delay  between 0.5 - 10 s 250 Ω - 500 kΩ 24 - 240 V AC, 50/60 Hz24 - 240 V DC EMR4-N500-2-A221791 1 off 250 Ω - 500 kΩ 220 - 240 V AC, 50/60 Hz EMR4-N500-2-B221790 1 off Liquid level monitoring relays EMR5N... Load limit curves ￫ Page 11/21Circuit and contact sequence diagrams ￫ Instructional leaflet (AWA) under www.moeller.net/support • Fill level monitoring of conductive  liquids • Conductivity (mixture ratio)  monitoring of conductive liquids 5 kΩ - 100 kΩ 220 - 240 V AC, 50/60 Hz EMR5-N80-1-B134232 1 off Notes Information relevant for export to North America Product Standards IEC 255-6; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - 15 C MAX MIN 18 16 A1 A2 15 25 C 18 16 26 28 A1 A2 MAX MIN 15 C MAX MIN 18 16 A1 A2 HPL11017EN

11/18 Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR EMRMeasuring and monitoring relays Monitoring voltage per phase Threshold value 1) Contact sequences Supply voltage connection Width Part no.Article no. PriceSee price list Std. pack mm Phase monitoring relay EMR5-(A)W... MultifunctionalLoad limit curves ￫ Page 11/21 Connections and contact sequence diagrams ￫ Instructional leaflet (AWA) under www.moeller.net Power supply from measuring circuitThree-phase monitoring• Phase sequence• Phase failure• Overvoltage• Undervoltage• Asymmetry• Adjustable  threshold values for overvoltage/undervoltage and imbalance • On-/Off-delay:  None = 0 or adjustable between 0.1 - 30 s 160 - 300 V AC, 50/60 Hz U max  220 - 300 V AC U min  160 - 230 V AC 160 - 300 V AC, 50/60 Hz 22.5 EMR5-AW300-1-C134223 1 off 300 - 500 V AC, 50/60 Hz U max  420 - 500 V AC U min  300 - 380 V AC 300 - 500 V AC, 50/60 Hz 22.5 EMR5-AW500-1-D134224 350 - 580 V AC, 50/60 Hz U max  480 - 580 V AC U min  350 - 460 V AC 350 - 580 V AC, 50/60 Hz 45 EMR5-AWM580-2134235 450 - 720 V AC; 50/60 Hz U max  600 - 720 V AC U min  450 - 570 V AC 350 - 720 V AC, 50/60 Hz 45 EMR5-AWM720-2134236 530 - 820 V AC; 50/60 Hz U max  690 - 820 V AC U min  530 - 660 V AC 530 - 820 V AC, 50/60 Hz 45 EMR5-AWM820-2134237 1 off Power supply from measuring circuitThree-phase monitoring• Phase sequence• Phase failure• Overvoltage• Undervoltage• Asymmetry• Neutral cable  break (not EMR5-AWN500-1) • Adjustable  threshold values for overvoltage/undervoltage and imbalance • On-/Off-delay:  None = 0 or adjustable between 0.1 - 30 s 90 - 170 V AC, 50/60 Hz U max  120 - 170 V AC U min.  90 - 130 V AC 90 - 170 V AC, 50/60/400 Hz 22.5 EMR5-AWN170-1-E134225 1 off 180 - 280 V AC, 50/60 Hz U max  240 - 280 V AC U min  180 - 220 V AC 180 - 280 V AC, 50/60/400 Hz 22.5 EMR5-AWN280-1134233 180 - 280 V AC, 50/60 Hz U max  240 - 280 V AC U min  180 - 220 V AC 180 - 280 V AC, 50/60 Hz 22.5 EMR5-AWN280-1-F134226 300 - 500 V AC, 50/60 Hz U max  420 - 500 V AC U min  300 - 380 V AC 300 - 500 V AC, 50/60 Hz 22.5 EMR5-AWN500-1134234 Notes 1)  Imbalance = 2 - 25% of phase voltage mean value Information relevant for export to North America Product Standards IEC 255-6; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - 15 L1 L2 L3 11 16 12 18 14 26 22 28 24 25 21 15 25 L1 L2 L3 18 16 N 26 28 HPL11018EN

Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/19 On- and Off-delayedLoad limit curves ￫ Page 11/21 Connections and contact sequence diagrams ￫ Instructional leaflet (AWA) under www.moeller.net Power supply from measuring circuitThree-phase monitoring of phase parameters• Phase sequence• Phase failure• Overvoltage• Undervoltage• Adjustable  threshold values for overvoltage/undervoltage and imbalance • On-/Off-delay:  None = 0 or adjustable between 0.1 - 30 s 160 - 300 V AC, 50/60 Hz U max  220 - 300 V AC U min  160 - 230 V AC 160 - 300 V AC, 50/60 Hz 22.5 EMR5-W300-1-C134227 1 off 300 - 500 V AC, 50/60 Hz U max  420 - 500 V AC U min  300 - 380 V AC 300 - 500 V AC, 50/60 Hz 22.5 EMR5-W500-1-D134221 Power supply from measuring circuitThree-phase monitoring of phase parameters• Phase sequence• Phase failure• Overvoltage• Undervoltage• Adjustable  threshold values for overvoltage/undervoltage per-manently set at ± 10% • On-/Off-delay:  None = 0 or adjustable between 0.1 - 30 s 380 V AC, 50/60 Hz U max  418 V AC U min  342 V AC 380 V, 50/60 Hz 22.5 EMR5-W380-1134228 400 V AC, 50/60 Hz U max  440 V AC U min  360 V AC 400 V, 50/60 Hz 22.5 EMR5-W400-1134229 Notes 1)  Imbalance = 2 - 25% of phase voltage mean value Information relevant for export to North America Product Standards IEC 255-6; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. UL report valid CSA Class No. 3211-03 NA Certification UL Listed, Certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Monitoring voltage per phase Threshold value 1) Contact sequences Supply voltage connection Width Part no.Article no. PriceSee price list Std. pack mm Phase monitoring relay EMR5-(A)W... 15 L1 L2 L3 11 16 12 18 14 26 22 28 24 25 21 HPL11019EN

11/20 Electronic relays Measuring and monitoring relays, accessories 2010 CA08103002Z-EN www.eaton.com EMR EMRMeasuring and monitoring relays, accessories Description Insulation resistance range Contact sequences Supply voltage connection Part no.Article no. PriceSee price list Std. pack Ω V AC Insulation monitoring relays EMR4-R... Monitors the insulation resistance between non-grounded AC supply systems and the protective ground conductorInsulation monitoring in 1- and 3-phase AC voltage networksTest via local test button or remote test operationStatus display via LED (according to VDE 0413/Part 2)Tripping function memory 1 - 110 kΩ 24 - 240 V AC, 50/60 Hz24 - 240 V DC EMR4-RAC-1-A221793 1 off Monitors the insulation resistance in non-grounded DC supply systemsSelector switch for open- or closed-circuit principleTest and reset via local test button or remote test operationStatus indication via LEDs 10 - 110 kΩ 24 - 240 V AC, 50/60 Hz24 - 240 V DC EMR4-RDC-1-A221792 1 off Information relevant for export to North America Product Standards IEC 255-6; UL 508; CSA-22.2 No. 14-05; CE marking UL File No. E29184 UL CCN NKCR, NKCR7 CSA File No. 203843 CSA Class No. 3211-03 NA Certification UL Listed, CSA Certified Degree of Protection IEC: IP20, UL/CSA Type: - Width Part no.Article no. PriceSee price list Std. pack mm Sealable shroud EMR4-PH... 22.5 EMR4-PH22221795 1 off 45 EMR4-PH45221794 1 off 15 L R   18 16 A1 A2 15 L+ R   L– 18 16 A1 A2 HPL11020EN

Electronic  relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/21 Engineering Load limit curves, 22.5 mm range AC load (resistive) DC load (resistive) Derating factor with inductive AC load Contact life Derating factor F with inductive load Contact lifeOperations S220 V 50 Hz AC-1360 operations/h Load limit curves, 45 mm range  AC load (resistive) DC load (resistive) Derating factor with inductive AC load Contact life Derating factor F with inductive load Contact lifeOperations S220 V 50 Hz AC-1360 operations/h 300200 10 20 30 40 60 50 80 100 0.1 0.2 0.5 1 2 4 6 10 [V] U I [A] 300200 10 20 30 40 60 80 100 0.1 0.2 0.5 1 2 4 6 10 I [A] [V] U 0.5 0.6 0.7 0.8 0.9 1.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0cos v F I [A] S 2 3 4 6 8 1 2 3 4 5 6 7 8 10 5 10 6 400 300200 10 20 30 40 60 80 100 0.1 0.2 0.5 1 2 4 6 10 I [A] [V] U 400 300200 10 20 30 40 60 80 100 0.1 0.2 0.5 1 2 4 6 10 I [A] [V] U 0.5 0.6 0.7 0.8 0.9 1.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 0.8 0.9 1.0cos v F I [A] 10 5 10 6 10 4 S 4 3 2 1 5 6 7 8

11/22 Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR Measuring and monitoring relaysEMR Technical data EMR4-I1-1-A EMR4-I15-1-A EMR4-I15-1-B Input circuit, power supply circuit A1-A2 Rated control voltage U S  - power consumption: A1-A2 24 - 240 V AC/DC 24 - 240 V AC/DC 220 - 240 V AC Tolerance of rated control voltage U S -15 - +10 % -15 - +10 % -15 - +10 % Rated frequency AC versions  50/60 Hz 50/60 Hz 50/60 Hz AC/DC versions  50/60 Hz or DC 50/60 Hz or DC 50/60 Hz or DC Current/power consumption 24 V DC 30 mA/0.75 W 30 mA/0.75 W 115 V AC 24 mA/2.6 VA 24 mA/2.6 VA 230 V AC 11 mA/2.6 VA 11 mA/2.6 VA 12 mA/2.6 VA Duty factor (DF) 100 % 100 % 100 % Mains failure buffering  20 ms 20 ms 20 ms Transient overvoltage protection  Varistors Varistors Varistors Input circuit measuring circuit B1/B2/B3-C Monitoring functions Overcurrent or undercurrent monitoring can be configured Overcurrent or undercurrent monitoring can be configured Overcurrent and undercurrent monitoring Measurement method  True RMS value measurement, any curve shapes Measuring inputs  Terminal assignment B1 - C – – – Measurement ranges AC/DC  3 - 30 mA 0.3 - 1.5 A 0.3 - 1.5 A Input resistance  3.3 Ω 0.05 Ω 0.05 Ω Pulse overload capacity t  1 s 500 mA 15 A 15 A Long-term overload  50 mA 2 A 2 A Measuring inputs  Terminal assignment B2 - C – – Measurement ranges AC/DC  10 - 100 mA 1 - 5 A 1 - 5 A Input resistance  1 Ω 0.01 Ω 0.01 Ω Pulse overload capacity t  1 s 1 A 50 A 50 A Long-term overload  150 mA 7 A 7 A Measuring inputs  Terminal assignment B3 - C 0.1 - 1 A 3 - 15 A 3 - 15 A Measurement ranges AC/DC  0.1 Ω 0.0025 Ω 0.0025 Ω Input resistance  10 A 100 A 100 A Pulse overload capacity t  1 s 1.5 A 17 A 17 A Long-term overload  – – – Threshold value(s)  Adjustable within specified measuring range Threshold value setting accuracy 0.1 0.1 0.1 Repetition accuracy (constant parameters) ±0.07 % of full-scale value ±0.07 % of full-scale value ±0.07 % of full-scale value Hysteresis relative to threshold value 3 - 30 % adjustable 3 - 30 % adjustable 3 - 30 % adjustable Frequency range of measuring signal DC/15 Hz - 2 kHz DC/15 Hz - 2 kHz DC/15 Hz - 2 kHz Rated frequency range of measuring signal DC/50 - 60 Hz DC/50 - 60 Hz  DC/50 - 60 Hz Maximum response time AC: 80 ms/DC: 120 ms AC: 80 ms/DC: 120 ms AC: 80 ms/DC: 120 ms Measuring error within control voltage tolerance ≤ 0.5 % ≤ 0.5 % ≤ 0.5 % Measuring error within temperature range ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C Timing circuits Release delay T v 0 or 0.1 - 30 s adjustable 0 or 0.1 - 30 s adjustable 0 or 0.1 - 30 s adjustable Repetition accuracy (constant parameters) None ±0.07 % of full-scale value ±0.07 % of full-scale value Time error within control voltage tolerance ≤ 0.5 % ≤ 0.5 % ≤ 0.5 % Timeout error within temperature range ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C Operating status indication Control voltage U/T: green LED Continuous light: control voltage present; slow flashing: trip delay T v  active Measured value I: red LED Continuous light: overcurrent; slow flashing: undercurrent Relay status R: yellow LED Continuous light: relay picked up, no storageSlow flashing: duty factor long: relay picked up, active storage  Slow flashing: duty factor short: relay dropped out, active storage Output circuits 11(15) - 12(16)/14(18), 21(25) -22(26)/24(28) - relays 11(15) - 12(16)/14(18), 21(25) - 22(26)/24(28) - relays 11(15) - 12(16)/14(18), 21(25) -22(26)/24(28) - relays Output type Two changeover contacts Two changeover contacts Two changeover contacts Operating principle Open-circuit principle: Output relays pick up when actual value exceeds or is below set threshold value.

Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/23 Contact material AgNi AgNi AgNi Rated operating voltage (VDE 0110, IEC 947-1) 250 V 250 V 250 V Minimum switching voltage/minimum switching current 24 V/10 mA 24 V/10 mA 24 V/10 mA Maximum switching voltage/maximum switching current 250 V AC/4 A AC 250 V AC/4 A AC 250 V AC/4 A AC Rated operational current (IEC 60947-5-1) AC12 (resistive) at 230 V 4 A 4 A 4 A AC15 (inductive) at 230 V 3 A 3 A 3 A DC12 (resistive) at 24 V 4 A 4 A 4 A DC13 (inductive) at 24 V 2 A 2 A 2 A Rating data AC (UL 508)  Utilization category (Control Circuit Rating Code) B 300 B 300 B 300 Max. rated operational voltage 300 V AC 300 V AC 300 V AC Max. thermal uninterrupted current at B 300 5 A 5 A 5 A Max. input/output rating (N/O / N/C) for B 300 3600/360 VA 3600/360 VA 3600/360 VA Mechanical lifespan 30 x 10 6  operations 30 x 10 6  operations 30 x 10 6  operations Electrical lifespan (AC12, 230 V, 4 A) 0.1 x 10 6  operations 0.1 x 10 6  operations 0.1 x 10 6  operations Short-circuit strength/maximum fuse rating Normally closed contact  6 A fast 10 A fast 10 A fast Normally open contact  6 A fast 10 A fast 10 A fast General data Enclosure measurements (w x h x d) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) Mounting DIN rail (EN 50022) DIN rail (EN 50022) DIN rail (EN 50022) Mounting position Any Any Any Degree of protection of enclosures/terminals IP50/IP20 IP50/IP20 IP50/IP20 Electrical connection Terminal capacities  Flexible with/without ferrule 2 x 0.75 - 2.5 mm² (2 x 18 - 14 AWG)With measuring currents  10 A lateral clearance of 10 mm required Rigid  2 x 0.5-4 mm² (2 x 20-12 AWG)With measuring currents  10 A lateral clearance of 10 mm required Stripped length 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) Tightening torque 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm Environmental data Ambient temperature range (operation/storage) -20 - +60 °C/-40 - +85 °C -20 - +60 °C/-40 - +85 °C -20 - +60 °C/-40 - +85 °C Damp heat (IEC 60068-2-30) 55 °C, 6 cycles 55 °C, 6 cycles 56 °C, 6 cycles Vibration (sinusoidal) (IEC/EN 60255-21-1) Class 2 Class 2 Class 2 Impact (IEC/EN 60255-21-2) Class 2 Class 2 Class 2 Insulation data Rated insulation voltage (VDE 0110, IEC 60947-1, IEC/EN 60255-5) Power supply/measuring circuit/output  600 V  600 V  600 V  Power supply/output 1/output 2 250 V  250 V  250 V  Rated impulse withstand voltage Uimp (IEC/EN 60947-1, IEC/EN 60255-5) Power supply/measuring circuit/output  6 kV 1.2/50 μs 6 kV 1.2/50 μs 6 kV 1.2/50 μs Power supply/output 1/output 2 4 kV 1.2/50 μs 4 kV 1.2/50 μs 4 kV 1.2/50 μs Pollution degree (VDE 0110, IEC 664, IEC/EN 60255-5) 3 3 3 Overvoltage category (VDE 0110, IEC 664, IEC/EN 60255-5) III III III Directives and standards Product standard IEC/EN 60255-6 IEC/EN 60255-6 IEC/EN 60255-6 Low-Voltage Directive 2006/95/EC 2006/95/EC 2006/95/EC EMC Directive 2004/108/EC 2004/108/EC 2004/108/EC Electromagnetic compatibility Noise immunity IEC/EN 61000-6-2 IEC/EN 61000-6-2 IEC/EN 61000-6-2 Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 Level 3 Level 3 Electromagnetic field (immunity to RF interference) IEC/EN 61000-4-3 Level 3 Level 3 Level 3 Fast transients (burst) IEC/EN 61000-4-4 Level 3 Level 3 Level 3 High-energy pulses (surge) IEC/EN 61000-4-9 Level 3 Level 3 Level 3 Cable-borne HF IEC/EN 61000-4-6 Level 3 Level 3 Level 3 Interference emission IEC/EN 61000-6-3 IEC/EN 61000-6-3 IEC/EN 61000-6-3 Electromagnetic field (immunity to RF interference) IEC/CISPR 22, EN 55022 Class B Class B Class B Cable-borne HF IEC/CISPR 22; EN 55022 Class B Class B Class B EMR4-I1-1-A EMR4-I15-1-A EMR4-I15-1-B

11/24 Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR Measuring and monitoring relaysEMR EMR4-F500-2 Input circuit, measuring circuit Phase conductor L1-L2-L3 Rated control voltage U S   3 x 200 - 500 V AC Power consumption  Approx. 15 VA Tolerance of rated control voltage U S -15 - +10 % Rated frequency 50/60 Hz Duty factor (DF) 100% Measuring circuit Monitoring functions Phase failure  Yes Phase sequence  Yes Measuring range  3 x 200 - 500 V AC Threshold value 0.6 x U N Frequency of measuring signal 50/60 Hz Response time 500 ms Measuring error within rated control voltage tolerance ≤ 0.5 % Measuring error within temperature range ≤ 0.06 %/°C Timing circuit On-delay T s Fixed 500 ms Operating status indication Relay status R: yellow LED Continuous light: output relay picked up Output circuits Output circuits 11(15) -12(16)/14(18), 21(25) -22(26)/24(28) Output type Two changeover contacts Operating principle Closed-circuit principle: output relays drop out when value exceeds/below set threshold value Contact material AgNi Rated operating voltage (VDE 0110, IEC 60947-1) 250 V Maximum switching voltage  250 V AC, 250 V DC Rated operational current (IEC 60947-5-1) AC12 (resistive) at 230 V 4 A AC15 (inductive) at 230 V 3 A DC12 (resistive) at 24 V 4 A DC13 (inductive) at 24 V 2 A Rating data AC (UL 508)  Utilization category (Control Circuit Rating Code) B 300 Max. rated operational voltage 300 V AC Max. thermal uninterrupted current at B 300 5 A Max. input/output rating (N/O / N/C) for B 300 3600/360 VA Mechanical lifespan 30 x 10 6  operations Electrical lifespan (AC12, 230 V, 4 A) 0.1 x 10 6  operations Short-circuit strength/maximum fuse rating Normally closed contact  4 A fast Normally open contact  6 A fast General data Enclosure measurements (w x h x d) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) Mounting position Any Degree of protection of enclosures/terminals IP50/IP20 Mounting  DIN rail (EN 50022) Electrical connection Terminal capacities  Flexible with ferrule 2 x 0.75- 2.5 mm² (2 x 18 - 14 AWG) Flexible without ferrule 2 x 0.75- 2.5 mm² (2 x 18 - 14 AWG) Rigid  2 x 0.5 - 4 mm² (2 x 20 - 12 AWG) Stripped length 7 mm (0.28 inches) Tightening torque 0.6 - 0.8 Nm

Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/25 EMR4-F500-2 Environmental data Ambient temperature range, operation/storage -20 - +60 °C / -40 - +85 °C Climatic testing (IEC 68-2-30) 24 h cycle, 55 °C, 93 % rel., 96 h Operating safety (IEC 68-2-6) 4 g Mechanical strength (IEC 68-2-6) 6 g Insulation data Rated voltage between supply, measuring, and output circuits (VDE 0110, IEC 60947-1) 500V  Rated impulse withstand voltage U imp  between all insulated circuits  (VDE 0110, IEC 664) 2.5 kV, 50 Hz, 1 min. Test voltage between all insulated circuits (routine test)  4 kV, 50 Hz, 1 min. Pollution degree (VDE 0110, IEC 664, IEC 255-5) 3 Overvoltage category (VDE 0110, IEC 664, IEC 255-5) III Directives and standards Product standard IEC 255-6, EN 60255-6 Low-Voltage Directive 2006/95/EC EMC Directive 2004/108/EC Electromagnetic compatibility Noise immunity EN 61000-6-2 Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 (6 kV/8 kV) Electromagnetic field (immunity to RF interference)  IEC/EN 61000-4-3 Level 3 (10 V/m) Fast transients (burst) IEC/EN 61000-4-4 Level 3 (2 kV/5 kHz) High-energy pulses (surge) IEC 1000-4-5, EN 61000-4-5 Level 4 (2 kV L-L) Cable-borne HF IEC 100-4-6, EN 61000-4-6 Level 3 (10 V) Interference emission EN 61000-6-4

11/26 Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR EMRMeasuring and monitoring relays EMR5-A300-1-C EMR5-A400-1 Input circuit, measuring circuit L1,L2,L3 L1,L2,L3 Rated control voltage, monitored voltage  U s 3 x 160 - 300 V AC  3 x 300 - 500 V AC  Typical current/power consumption 25 mA/10 VA/230 V AC 25 mA/18 VA/400 V AC Rated control voltage tolerance U s % -15 - +10 -15 - +10 Rated frequency Hz 50/60 50/60 Frequency range  Hz 45 - 65 45 - 65 Measuring circuit Monitoring functions Phase failure  Yes Yes Phase sequence  Yes Yes Automatic phase sequence correction No No Asymmetry  Yes Yes Overvoltage/undervoltage  No No Neutral conductor  No No Measuring range  Overvoltage  No No Undervoltage No No Asymmetry  2 - 25 % of phase voltage mean value Adjustable threshold values  Overvoltage  No No Undervoltage No No Imbalance (disconnection value)  Adjustable within measuring range Adjustable within measuring range Hysteresis relative to threshold value Overvoltage/undervoltage  No No Asymmetry  Fixed 20 %  Fixed 20 %  Rated frequency of measuring signal Hz 50/60 50/60 Frequency range of measuring signal Hz 45 - 65  45 - 65 Maximum monitoring cycle ms  100 100  Measuring error within rated control voltage toleranceMeasuring error within temperature rangeMeasurement method  True RMS value measurement True RMS value measurement Timing circuit On-delay T s ms  Fixed 200 Fixed 200 Response delay T v s On-delayed: none = 0; adjustable 0.1 - 30 On-delayed: none = 0; adjustable 0.1 - 30 Timeout error within rated control voltage tolerance % ≤ 0.5 ≤ 0.5 Timeout error within temperature range % /°C ≤ 0.06 ≤ 0.06 Repetition accuracy (constant parameters)  % ±0.2 ±0.2 Operating status indication Relay status R: yellow LED See instructional leaflet See instructional leaflet Output circuits Output circuits 15-16/18, 25-26/28 15-16/18, 25-26/28 Output type 2 x 1 relay (changeover contact)  2 x 1 relay (changeover contact)  Operating principle Closed-circuit principle: output relays drop out when value above/below set threshold value Contact material AgNi alloy, Cd-free AgNi alloy, Cd-free Rated operating voltage (VDE 0110, IEC 60947-1) V  250  250  Minimum switching voltage/minimum switching current No 24 V/10 mA 24 V/10 mA Minimum switching duty V/mA 24/10 24/10 Maximum switching voltage  ￫ Page 11/21 ￫ Page 11/21 Rated operational current (IEC 60947-5-1) AC12 (resistive) at 230 V A 4 4 AC15 (inductive) at 230 V A 3 3 DC12 (resistive) at 24 V A 4 4 DC13 (inductive) at 24 V A 2 2 Rating data AC (UL 508)  Utilization category (Control Circuit Rating Code) B 300 B 300 Max. rated operational voltage V AC 300 300 Max. thermal uninterrupted current at B 300 A 5 5 Max. input/output rating (N/O / N/C) for B 300 VA 3600/360 3600/360 Mechanical lifespan Operations 30 x 10 6 30 x 10 6 Electrical lifespan (AC12, 230 V, 4 A) Operations 0.1 x 10 6 0.1 x 10 6

Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/27 Short-circuit strength/maximum fuse rating Normally closed contact  6 A fast 6 A fast Normally open contact  10 A fast 10 A fast General data Enclosure measurements (w x h x d) mm (inch) 22.5 x 78 x 100 (0.89 x 3.07 x 3.94) 22.5 x 78 x 100 (0.89 x 3.07 x 3.94) Mounting position Any Degree of protection of enclosures/terminals IP50/IP20 Mounting  DIN rail (EN 60715), clip-type toolless Minimum distance to adjacent devices  Horizontal (min. 10 mm of continuous voltage) V 220 400 Vertical  None None Electrical connection Terminal capacities  Flexible with ferrule mm² (AWG) 2 x 0.75-2.5 (2 x 18 - 14) 2 x 0.75-2.5 (2 x 18 - 14) Flexible without ferrule mm² (AWG) 2 x 0.75-2.5 (2 x 18 - 14) 2 x 0.75-2.5 (2 x 18 - 14) Rigid mm²  (AWG) 2 x 0.5-4 (2 x 20 - 12) 2 x 0.5-4 (2 x 20 - 12) Stripped length mm (inch) 7 (0.28) 7 (0.28) Tightening torque Nm 0.6 - 0.8 0.6 - 0.8 Environmental data Ambient temperature range, operation/storage °C -25 - +60/-40 - +85 -25 - +60 /-40 - +85 Damp heat (IEC 60068-2-30) 55 °C, 6 cycles 55 °C, 6 cycles Climate class  3K3 3K3 Vibration (sinusoidal) (IEC/EN) 60255-21-1)  Class 2 2 Impact (IEC/EN 60255-21-2) Class 2 2 Insulation data Rated voltage between supply, measuring, and output circuits (VDE 0110, IEC 60947-1)Rated impulse withstand voltage Uimp between all insulated circuits (VDE 0110,IEC 664)Rated insulation voltage Ui Input circuit/output circuit  V  600  600 Input circuit 1/output circuit 2 V 300 300 Rated impulse withstand voltage Uimp (VDE 0110, IEC/EN 60664)  Input circuit 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs Output circuits  4 kV; 1.2/50 μs 4 kV; 1.2/50 μs Test voltage between all insulated circuits (routine test)  2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s Basic insulation, input circuit/output circuit  V  600  600  Safe isolation (VDE 0160 Part 101 and 101/A; IEC/EN 61140) input circuit/output circuit No No Pollution degree (VDE 0110, IEC/EN 60664, UL 508)  3 3 Overvoltage category (VDE 0110, IEC 60664, UL 508)  III III Directives/Standards Product standard IEC/EN 60255-6, EN 50178 IEC/EN 60255-6, EN 50178 Low-Voltage Directive 2006/95/EC 2006/95/EC EMC Directive 2004/108/EC 2004/108/EC RoHS Directive 2002/95/EC 2002/95/EC Electromagnetic compatibility Noise immunity EN 61000-6-1, EN 61000-6-2 EN 61000-6-1, EN 61000-6-2 Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 (6 kV/8 kV) 3 (6 kV/8 kV) Electromagnetic field (immunity to RF interference) IEC/EN 61000-4-3 Level 3 (10 V/m) 3 (10 V/m) Fast transients (burst) IEC/EN 61000-4-4 Level 3 (2 kV/2 kHz) 3 (2 kV/2 kHz) High-energy pulses (surge) IEC 1000-4-5, EN 61000-4-5 Level 4 (2 kV L-L) 4 (2 kV L-L) Cable-borne HF IEC 100-4-6, EN 61000-4-6 Level 3 (10 V) 3 (10 V) Resistance to harmonics EN 61000-4-13 Class 3 3 Interference emission EN 61000-6-3, EN 61000-6-4 EN 61000-6-3, EN 61000-6-4 Electromagnetic field (immunity to RF interference) IEC/CISPR 22, EN 50022 Class B B Cable-borne HF  Class B B EMR5-A300-1-C EMR5-A400-1

11/28 Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR Measuring and monitoring relaysEMR EMR5-N080-1-B EMR4-N100-1-B EMR4-N500-2-B EMR4-N500-2-A Input circuit Rated control voltage U S  - power consumption: A1 - A2 220 - 240 V AC approx. 1.5 VA 220 - 240 V AC approx. 4 VA 220 - 240 V AC approx. 3 VA 24 - 240 V AC/DC approx. 2 VA/W Tolerance of rated control voltage U S -15 % - 10 % -15 % - 10 % -15 % - +10 % -15 % - +10 % Rated frequency 50 - 60 Hz 50 - 60 Hz 50 - 60 Hz or DC 50 - 60 Hz or DC Duty factor (DF) 100 % 100 % 100 % 100 % Measuring circuit MAX-MIN-C MAX-MIN-C MAX-MIN-C MAX-MIN-C Monitoring functions Level control Level control Level control Level control Response sensitivity 5 - 100 kΩ, adjustable 5 - 100 kΩ, adjustable 250 Ω - 5 kΩ, adjustable 250 Ω - 5 kΩ, adjustable Maximum electrode voltage 30 V AC 30 V AC 20 V AC 20 V AC Maximum electrode current 1 mA 1 mA 8 mA 8 mA Electrode supply cable Cable capacity max. 10 nF 10 nF 200 nF 200 nF Cable length max. 100 m  100 m  1000 m 1000 m Response sensitivity 2.5-50 kΩ, adjustable 2.5-50 kΩ, adjustable Maximum electrode voltage 20 V AC 20 V AC Maximum electrode current 2 mA 2 mA Electrode supply cable Cable capacity max. 20 nF 20 nF Cable length max. 100 m 100 m Response sensitivity 25 - 500 kΩ, adjustable 25 - 500 kΩ, adjustable Maximum electrode voltage 20 V AC 20 V AC Maximum electrode current 0.5 mA 0.5 mA Electrode supply cable Cable capacity max. 4 nF 4 nF Cable length max. 20 m 20 m Timing circuit Release delay Approx. 250 ms Approx. 250 ms Delay time 0.1 - 10 s, adjustable, on-delay without off-delay 0.1 - 10 s, adjustable, on-delay without off-delay Operating status indication Control voltage U: green LED U: green LED U: green LED U: green LED Output relay energized R MAX/MIN: yellow LED Alarm relay AL1 – R AL1: yellow LED U: green LED U: green LED Alarm relay AL2 – R AL2: yellow LED R: yellow LED R: yellow LED Output circuits Output circuits 11-12/14, 21-22, 31-32 11-12/14, 21-22, 31-32 15-16/18, 25-26/28 15-16/18, 25-26/28 Output type 1 changeover contact, 1 normally closed contact + 1 normally  open contact 1 changeover contact, 1 normally closed contact + 1 normally open contact Two changeover contacts Two changeover contacts Operating principle Live current principle 1) Open- 1)   and closed-circuit principle 2) Live current principle 1) Live current principle 1) Contact material AgCdO AgCdO AgCdO AgCdO Rated voltage (VDE 0110, IEC 60947-1) 250 V 250 V 400 V 400 V Maximum switching voltage 250 V 250 V 400 V 400 V Rated operational current (IEC 60947-5-1) AC12 (resistive) 230 V 4 A 4 A 5 A 5 A AC15 (inductive) 230 V 3 A 3 A 3 A 3 A DC12 (resistive) 24 V 4 A 4 A 5 A 5 A DC13 (inductive) 24 V 2 A 2 A 2 A 2 A Notes 1)  Output relays pick up when value above/below set threshold value 2)  Output relays drop out when value above/below set threshold value

Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/29 Rated operational data AC (UL 508) Utilization category (Control Circuit Rating Code) B 300 B 300 B 300 B 300 Max. rated operational voltage 300 V AC 300 V AC 300 V AC Max. thermal uninterrupted current at B 300 5 A 5 A 5A 5A Max. input/output rating (N/O / N/C) for B 300 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA Mechanical lifespan 30 x 10 6  operations 30 x 10 6  operations 30 x 10 6  operations 30 x 10 6  operations Electrical lifespan (AC12, 230 V, 4 A) 0.3 x 10 6  operations 0.3 x 10 6  operations 0.1 x 10 6  operations 0.1 x 10 6  operations Short-circuit rating, max. fuse rating,  N/C / N/O contact 10 A fast/10 A fast 10 A fast/10 A fast 4 A fast/6 A fast 4 A fast/6 A fast General data Enclosure measurements (w x h x d) 22.5 x 70 x 100 mm (0.89 x 3.07 x 3.94 in) 22.5 x 70 x 100 mm (0.89 x 3.07 x 3.94 in) 45 x 78 x 100 mm (1.77 x 3.07 x 3.94 in) 45 x 78 x 100 mm (1.77 x 3.07 x 3.94 in) Mounting position Any Any Any Any Degree of protection of enclosures/terminals IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 Ambient temperature range,  operation/storage -20 - +60 °C / -40 - +85 °C -20 - +60 °C / -40 - +85 °C -25 - +65°C / -40 - 85°C -25 - +65°C / -40 - 85°C Mounting DIN rail (EN 50022) DIN rail (EN 50022) DIN rail (EN 50022) DIN rail (EN 50022) Electrical connection Terminal capacity 2 x 2.5 mm² (2 x 14 AWG) 2 x 2.5 mm² (2 x 14 AWG) 2 x 2.5 mm² (2 x 14 AWG) 2 x 2.5 mm² (2 x 14 AWG) Flexible with ferrule Directives and standards Product standard IEC 255 - 6, EN 60255-6 IEC 255 - 6, EN 60255-6 IEC 255-6, EN 60255-6 IEC 255-6, EN 60255-6 Low-Voltage Directive 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC EMC Directive 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC Electromagnetic compatibility (EMC) No No No No Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8kV) Level 3 (6 kV/8kV) Electromagnetic field (immunity to RF interference) IEC/EN 61000-4-3 Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Fast transients (burst) IEC/EN 61000-4-4 Level 3 (2 kV/5 kHz) Level 3 (2 kV/5 kHz) Level 3 (2 kV/5 kHz) Level 3 (2 kV/5 kHz) High-energy pulses (surge) IEC1000-4-5, EN 61000-4-5 Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Immunity to line-conducted interference, IEC 1000-4-6, IEC 1000-4-6, EN 61000-4-6 Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Operating safety (IEC 68-2-6) 4 g 4 g 5 g 5 g Mechanical strength (IEC 68-2-6) 6 g 6 g 10 g 10 g Insulation data Rated voltage between supply, measuring, and output circuits (VDE 0110, IEC 60947-1) 250 V 250 V 500 V 500 V Rated impulse withstand voltage between all  insulated circuits (VDE 0110, IE C664) 4 kV/1.2 - 50 μs 4 kV / 1.2 - 50 μs 4 kV/1.2 - 50 μs 4 kV/1.2 - 50 μs Test voltage between all insulated circuits 2.5 kV, 50 Hz, 1 min. 2.5 kV, 50 Hz, 1 min. 2.5 kV, 50 Hz, 1 min. 2.5 kV, 50 Hz, 1 min. Pollution degree (VDE 0110, IEC 664, IEC 255-5) 3/C 3/C 3/C 3/C Overvoltage category (VDE 0110, IEC 664,  IEC 255-5) III/C III/C III/C III/C Climatic testing (IEC 68-2-30) 24 h cycle, 55 °C, 93 %  rel., 96 h 24 h cycle, 55 °C, 93 %  rel., 96 h 24 h cycle, 55 °C, 93 %  rel., 96 h 24 h cycle, 55 °C, 93 %  rel., 96 h EMR5-N080-1-B EMR4-N100-1-B EMR4-N500-2-B EMR4-N500-2-A

11/30 Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR Measuring and monitoring relaysEMR EMR4-RDC-1-A EMR4-RAC-1-A Input circuit Rated control voltage U S   power consumption: A1-B2 24 - 240 V AC/DC - approx. 8 VA / 2 W 24 - 240 V AC/DC - approx. 8 VA / 2 W Tolerance of rated control voltage U S -15 % - +10 % -15 % - +10 % Rated frequency AC/DC versions  15 - 400 Hz or DC 15 - 400 Hz or DC AC versions  – 50 - 60 Hz Duty factor (DF) 100 % 100 % Measuring circuit L-PE Monitoring function, insulation monitoring for isolated AC networks Isolated DC networks   Measuring range, threshold value setting range min-max. 10 - 110 kΩ 1 - 11 kΩ , 10 - 110 kΩ Minimum internal resistance – 57 kΩ Minimum internal AC resistance  – 100 kΩ Internal DC resistance – 100 kΩ Test resistance – 820 Max. voltage at measuring input 300 V DC 415 V AC Max. DC measuring voltage 24 - 240 V DC 30 V DC Max. cable length for clear-test button  10 m Time delay  1 s with insulation,  0.9 x response value Proportional to insulation resistance and dependent on set threshold value Operating status indication Control voltage U: green LED U: green LED Insulation fault L+: red LED, L-: red LED F: red LED Output circuits Output circuits 15-16/18 15-16/18 Output type One changeover contact One changeover contact Operating principle Open-circuit principle: Output relays pick up when value above/below set threshold value Closed-circuit principle: output relays drop out when value above/below set threshold value Open-circuit principle: Output relays pick up when value above/below set threshold value Contact material AgCdO AgCdO Rated operating voltage (VDE 0110, IEC 664-1, IEC 60947-1) 250 V 250 V Maximum switching voltage 400 V AC, 300 V DC 400 V AC, 300 V DC Rated operational current(IEC 60947-5-1, EN 60947-5-1) AC12 (resistive) 230 V 5A 5A AC15 (inductive) 230 V 3A 3A DC12 (resistive) 24 V 5A 5A DC13 (inductive) 24 V 2A 2A Rated operational data AC (UL 508) Utilization category (Control Circuit Rating Code) B300 B300 Max. rated operational voltage 300 V AC 300 V AC Max. thermal uninterrupted current at B 300 5A 5A Max. input/output rating (N/O / N/C) for B 300 3600/360 VA 3600/360 VA Mechanical lifespan 30 x 10 6  operations 30 x 10 6  operations Electrical lifespan (AC12, 230 V, 4 A) 0.1 x 10 6  operations 0.1 x 10 6  operations Short-circuit rating, max. fuse protection, N/C / N/O contact 4 A fast/6 A fast 4 A fast/6 A fast

Electronic relays Measuring and monitoring relays 2010 CA08103002Z-EN www.eaton.com EMR 11/31 General data Enclosure measurements  45 x 78 x 100 mm (1.77 x 3.07 x 3.94 in) 45 x 78 x 100 mm (1.77 x 3.07 x 3.94 in) Weight approx. 0.3 kg (0.66 lb) approx. 0.3 kg (0.66 lb) Mounting position Any Any Degree of protection of enclosures/terminals IP50/IP20 IP50/IP20 Ambient temperature range, operation/storage -25 - +65 °C / -40 - +85 °C -25 - +65 °C / -40 - +85 °C Mounting DIN rail (EN 50022) DIN rail (EN 50022) Electrical connection Terminal capacity Flexible with ferrule 2 x 2.5 mm² (2 x 14 AWG) 2 x 2.5 mm² (2 x 14 AWG) Directives and standards Product standard IEC 255-6, EN 60255-6 IEC 255-6, EN 60255-6 Low-Voltage Directive 2006/95/EC 2006/95/EC EMC Directive 2004/108/EC, 91/263/EEC, 92/31/EEC, 93/68/EEC, 93/67/EEC 2004/108/EC, 91/263/EEC, 92/31/EEC, 93/68/EEC, 93/67/EEC Electromagnetic compatibility (EMC) EN 61000-6-2, EN 61000-6-4 EN 61000-6-2, EN 61000-6-4 Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Electromagnetic field (immunity to RF interference)IEC/EN 61000-4-3 Level 3 (10(3)V/m) Level 3 (10(3)V/m) Fast transients (burst) IEC/EN 61000-4-4 Level 3 (2(1) kV/5 kHz) Level 3 (2(1) kV/5 kHz) High-energy pulses (surge) IEC 1000-4-5, EN 61000-4-5 Level 3 (2(1) kV L-L) Level 3 (2(1) kV L-L) Immunity to line-conducted interference, IEC 1000-4-6, EN 61000-4-6 Level 3 (10(3) V) Level 3 (10(3) V) Operating safety (IEC 68-2-6) 5 g 5 g Mechanical strength (IEC 68-2-6) 10 g 10 g Climatic testing (IEC 68-2-30) 24 h cycle, 55 °C, 93 % rel., 96 h 24 h cycle, 55 °C, 93 % rel., 96 h Insulation data Rating (HD 625.1 S1, VDE 0110, IEC 664-1, IEC 60255-5) Rated voltage between supply, measuring, and output circuits 250 V 250 V Rated impulse withstand voltage between all insulated circuits 4 kV / 1.2 - 50 μs 4 kV / 1.2 - 50 μs Test voltage between all insulated circuits 2.5 kV, 50 Hz, 1 min. 2.5 kV, 50 Hz, 1 min. Pollution degree 3 3 Overvoltage category III III EMR4-RDC-1-A EMR4-RAC-1-A

11/32 Electronic relays Measuring and monitoring relays EMR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Measuring and monitoring relays EMR Measuring and monitoring relaysEMR EMR5-W300-1-C EMR5-W380-1 EMR5-W400-1 EMR5-W500-1-D EMR5-AW300-1-C EMR5-AW500-1-D EMR5-AWM580-2 EMR5-AWM720-2 EMR5-AWM820-2 EMR5-AWN170-1-E EMR5-AWN280-1 EMR5-AWN280-1-F EMR5-AWN500-1 Input circuit, measuring circuit  Main pole, neutral conductor L1,L2,L3 L1,L2,L3 L1,L2,L3 L1,L2,L3 L1, L2, L3 L1, L2, L3 L1, L2, L3 L1, L2, L3 L1, L2, L3 L1, L2, L3, N L1,L2,L3 N L1, L2, L3, N L1,L2,L3 Rated control voltage U S  = monitored voltage  3 x 160 - 300 V AC  3 x 380 V AC  3 x 400 V AC 3 x 300 - 500 V AC  3 x 160 - 300 V AC 3 x 300 - 500 V AC 3 x 350 - 580 V AC 3 x 450 - 720 V AC 3 x 530 - 820 V AC 3 x 90 - 170 V AC 3 x 180 - 280 V AC 3 x 180 - 280 V AC 3 x 300 - 500 V AC Tolerance of rated control voltage U S -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % Rated frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60/400 Hz 50/60 Hz 50/60/400 Hz Frequency range  45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 440 Hz 45 - 65 Hz 45 - 440 Hz Typical current/power consumption 25 mA/10 VA /at 250 V AC 25 mA/18 VA /at 380 V AC 25 mA/18 VA /at 400 V AC 25 mA/18 VA /at 400 V AC 25 mA/10 VA (230 V AC) 25 mA/18 VA (400 V AC) 29 mA/41 VA (480 V AC) 29 mA/52 VA (600 V AC) 29 mA/59 VA (690 V AC) 25 mA / 10 VA (115 V AC) 5 mA/4 VA (230 V AC) 25 mA/18 VA (230 V AC) 5 mA/4 VA (400 V AC) Duty factor (DF) 100% 100% 100% 100% 100% Measuring circuit Monitoring functions Phase failure  Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Phase sequence  Can be deactivated  Can be deactivated Can be deactivated  Can be deactivated  Can be deactivated  Can be deactivated  Can be deactivated Can be deactivated Can be deactivated Can be deactivated Can be deactivated Can be deactivated  Can be deactivated Automatic phase sequence correction No No No No No No Yes Yes Yes No Yes No Yes Asymmetry  No No No No Yes Yes Yes Yes Yes Yes Yes Overvoltage/undervoltage  Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Neutral conductor/break No No No No No Yes Yes Yes No Neutral conductor  No No No No Measuring range  Overvoltage  3 x 220 - 300 v AC  3 x 418 V AC 3 x 440 V AC  3 x 420 - 500 V AC  3 x 220 - 300 V AC 3 x 420 - 500 V AC 3 x 480 - 580 V AC 3 x 690 - 820 V AC 3 x 690 - 820 V AC 3 x 120 - 170 V AC 3 x 240 - 280 V AC 3 x 240 - 280 V AC 3 x 420 - 500 V AC Undervoltage  3 x 160 - 230 V AC  3 x 342 V AC 3 x 360 V AC  3 x 300 - 380 V AC  3 x 160 - 230 V AC 3 x 300 - 380 V AC 3 x 450 - 570 V AC 3 x 530 - 660 V AC 3 x 530 - 660 V AC 3 x 90 - 130 V AC 3 x 180 - 220 V AC 3 x 180 - 220 V AC 3 x 300 - 380 V AC Asymmetry  No No No No 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value Adjustable threshold values  Overvoltage  Adjustable within measuring range Fixed Fixed Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring  range Undervoltage Adjustable within measuring range Fixed  Fixed  Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Imbalance (disconnection value)  No No No No Adjustable within measuring  range Adjustable within measuring range 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value Adjustable within measuring range Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring  range Asymmetry  Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring  range Hysteresis relative to threshold value Overvoltage/undervoltage  Fixed 5 %  Fixed 5 %  Fixed 5 %  Fixed 5 %  Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Asymmetry  No No No No Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Rated frequency of measuring signal 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60/400 Hz 50/60 Hz 50/60/400 Hz Frequency range of measuring signal 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 440 Hz 45 - 65 Hz 45 - 440 Hz Reaction time No No No No Maximum monitoring cycle 100 ms  100 ms  100 ms  100 ms  100 ms 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms Measuring error within rated control voltage tolerance ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %   ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 % ≤ 0.5 %   ≤ 0.5 % ≤ 0.5 %   ≤ 0.5 % Measuring error within temperature range ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C  ≤ 0.06 %/°C   ≤ 0.06 %/°C   ≤ 0.06 %/°C   ≤ 0.06 %/°C   ≤ 0.06 %/°C  ≤ 0.06 %/°C  ≤ 0.06 %/°C  Measurement method  True RMS value measurement True RMS value measurement Timing circuit On-delay T s Fixed 200 ms  Fixed 200 ms  Fixed 200 ms  Fixed 200 ms  Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms On-delay T s1 Fixed 250 ms Fixed 250 ms Fixed 250 ms Fixed 250 ms Fixed 250 ms Response delay T v On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay; none = 0,  adjustable 0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0,  adjustable 0.1 - 30 s On- or off-delay; none = 0,  adjustable 0.1 - 30 s On- or off-delay; none = 0,  adjustable 0.1 - 30 s Timeout error within rated control voltage tolerance ≤ 0.5 % ≤ 0.5 % ≤ 0.5 % ≤ 0.5 % ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  Timeout error within temperature range ≤ 0.06 % /°C ≤ 0.06 % /°C ≤ 0.06 % /°C ≤ 0.06 % /°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C Repetition accuracy (constant parameters)   ±0.2 %  ±0.2 %  ±0.2 %  ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % Operating status indication Relay status R: yellow LED See instructional leaflet See instructional leaflet See instructional leaflet See instruc-tional leaflet See instruc-tional leaflet See instructional leaflet See instructional leaflet See instructional leaflet See instructional leaflet See instructional leaflet See instruc-tional leaflet See instruc-tional leaflet See instruc-tional leaflet 11/33

11/32 Electronic relays Measuring and monitoring relays EMR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Measuring and monitoring relays EMR Measuring and monitoring relaysEMR EMR5-W300-1-C EMR5-W380-1 EMR5-W400-1 EMR5-W500-1-D EMR5-AW300-1-C EMR5-AW500-1-D EMR5-AWM580-2 EMR5-AWM720-2 EMR5-AWM820-2 EMR5-AWN170-1-E EMR5-AWN280-1 EMR5-AWN280-1-F EMR5-AWN500-1 Input circuit, measuring circuit  Main pole, neutral conductor L1,L2,L3 L1,L2,L3 L1,L2,L3 L1,L2,L3 L1, L2, L3 L1, L2, L3 L1, L2, L3 L1, L2, L3 L1, L2, L3 L1, L2, L3, N L1,L2,L3 N L1, L2, L3, N L1,L2,L3 Rated control voltage U S  = monitored voltage  3 x 160 - 300 V AC  3 x 380 V AC  3 x 400 V AC 3 x 300 - 500 V AC  3 x 160 - 300 V AC 3 x 300 - 500 V AC 3 x 350 - 580 V AC 3 x 450 - 720 V AC 3 x 530 - 820 V AC 3 x 90 - 170 V AC 3 x 180 - 280 V AC 3 x 180 - 280 V AC 3 x 300 - 500 V AC Tolerance of rated control voltage U S -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % -15 - +10 % Rated frequency 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60/400 Hz 50/60 Hz 50/60/400 Hz Frequency range  45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 440 Hz 45 - 65 Hz 45 - 440 Hz Typical current/power consumption 25 mA/10 VA /at 250 V AC 25 mA/18 VA /at 380 V AC 25 mA/18 VA /at 400 V AC 25 mA/18 VA /at 400 V AC 25 mA/10 VA (230 V AC) 25 mA/18 VA (400 V AC) 29 mA/41 VA (480 V AC) 29 mA/52 VA (600 V AC) 29 mA/59 VA (690 V AC) 25 mA / 10 VA (115 V AC) 5 mA/4 VA (230 V AC) 25 mA/18 VA (230 V AC) 5 mA/4 VA (400 V AC) Duty factor (DF) 100% 100% 100% 100% 100% Measuring circuit Monitoring functions Phase failure  Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Phase sequence  Can be deactivated  Can be deactivated Can be deactivated  Can be deactivated  Can be deactivated  Can be deactivated  Can be deactivated Can be deactivated Can be deactivated Can be deactivated Can be deactivated Can be deactivated  Can be deactivated Automatic phase sequence correction No No No No No No Yes Yes Yes No Yes No Yes Asymmetry  No No No No Yes Yes Yes Yes Yes Yes Yes Overvoltage/undervoltage  Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Yes Neutral conductor/break No No No No No Yes Yes Yes No Neutral conductor  No No No No Measuring range  Overvoltage  3 x 220 - 300 v AC  3 x 418 V AC 3 x 440 V AC  3 x 420 - 500 V AC  3 x 220 - 300 V AC 3 x 420 - 500 V AC 3 x 480 - 580 V AC 3 x 690 - 820 V AC 3 x 690 - 820 V AC 3 x 120 - 170 V AC 3 x 240 - 280 V AC 3 x 240 - 280 V AC 3 x 420 - 500 V AC Undervoltage  3 x 160 - 230 V AC  3 x 342 V AC 3 x 360 V AC  3 x 300 - 380 V AC  3 x 160 - 230 V AC 3 x 300 - 380 V AC 3 x 450 - 570 V AC 3 x 530 - 660 V AC 3 x 530 - 660 V AC 3 x 90 - 130 V AC 3 x 180 - 220 V AC 3 x 180 - 220 V AC 3 x 300 - 380 V AC Asymmetry  No No No No 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value Adjustable threshold values  Overvoltage  Adjustable within measuring range Fixed Fixed Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring  range Undervoltage Adjustable within measuring range Fixed  Fixed  Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Imbalance (disconnection value)  No No No No Adjustable within measuring  range Adjustable within measuring range 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value 2 - 25 % of phase voltage mean value Adjustable within measuring range Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring  range Asymmetry  Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring range Adjustable within measuring  range Adjustable within measuring  range Adjustable within measuring  range Hysteresis relative to threshold value Overvoltage/undervoltage  Fixed 5 %  Fixed 5 %  Fixed 5 %  Fixed 5 %  Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Fixed 5 % Asymmetry  No No No No Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Fixed 20 %  Rated frequency of measuring signal 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60 Hz 50/60/400 Hz 50/60 Hz 50/60/400 Hz Frequency range of measuring signal 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 65 Hz 45 - 440 Hz 45 - 65 Hz 45 - 440 Hz Reaction time No No No No Maximum monitoring cycle 100 ms  100 ms  100 ms  100 ms  100 ms 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms 100 ms Measuring error within rated control voltage tolerance ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %   ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 % ≤ 0.5 %   ≤ 0.5 % ≤ 0.5 %   ≤ 0.5 % Measuring error within temperature range ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C  ≤ 0.06 %/°C   ≤ 0.06 %/°C   ≤ 0.06 %/°C   ≤ 0.06 %/°C   ≤ 0.06 %/°C  ≤ 0.06 %/°C  ≤ 0.06 %/°C  Measurement method  True RMS value measurement True RMS value measurement Timing circuit On-delay T s Fixed 200 ms  Fixed 200 ms  Fixed 200 ms  Fixed 200 ms  Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms Fixed 200 ms On-delay T s1 Fixed 250 ms Fixed 250 ms Fixed 250 ms Fixed 250 ms Fixed 250 ms Response delay T v On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay 0; 0, 1-30 s adjustable On- or off-delay; none = 0,  adjustable 0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0, adjustable  0.1 - 30 s On- or off-delay; none = 0,  adjustable 0.1 - 30 s On- or off-delay; none = 0,  adjustable 0.1 - 30 s On- or off-delay; none = 0,  adjustable 0.1 - 30 s Timeout error within rated control voltage tolerance ≤ 0.5 % ≤ 0.5 % ≤ 0.5 % ≤ 0.5 % ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  ≤ 0.5 %  Timeout error within temperature range ≤ 0.06 % /°C ≤ 0.06 % /°C ≤ 0.06 % /°C ≤ 0.06 % /°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C ≤ 0.06 %/°C Repetition accuracy (constant parameters)   ±0.2 %  ±0.2 %  ±0.2 %  ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % ±0.2 % Operating status indication Relay status R: yellow LED See instructional leaflet See instructional leaflet See instructional leaflet See instruc-tional leaflet See instruc-tional leaflet See instructional leaflet See instructional leaflet See instructional leaflet See instructional leaflet See instructional leaflet See instruc-tional leaflet See instruc-tional leaflet See instruc-tional leaflet 11/33

11/34 Electronic relays Measuring and monitoring relays EMR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Measuring and monitoring relays EMR EMR5-W300-1-C EMR5-W380-1 EMR5-W400-1 EMR5-W500-1-D EMR5-AW300-1-C EMR5-AW500-1-D EMR5-AWM580-2 EMR5-AWM720-2 EMR5-AWM820-2 EMR5-AWN170-1-E EMR5-AWN280-1 EMR5-AWN280-1-F EMR5-AWN500-1 Output circuits Output circuits 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 Output type 2 x 1 relay (changeover contact)  2 x 1 relay (changeover contact)  2 x 1 relay (changeover contact)  2 x 1 relay (changeover contact)  1 x 2 relays (changeover contact) 1 x 2 relays (changeover contact) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 1 x 2 relays (changeover contact) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 1 x 2 relays (changeover contact) 2 x 1 or 1 x 2 changeover contact, select- able (relay) Operating principle Closed-circuit principle:Output relays drop out when value above/below set threshold value Contact material AgNi alloy, Cd-free Rated operating voltage (VDE 0110, IEC 60947-1) 250 V  250 V 250 V  250 V  250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V Minimum switching voltage/minimum switching current No No No No Minimum switching duty 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 25 V/10 mA 26 V/10 mA 27 V/10 mA 28 V/10 mA Maximum switching voltage  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_02 See TB_EMR_PRO_02 See TB_EMR_PRO_02 See TB_EMR_PRO_01  See TB_EMR_PRO_01 See TB_EMR_PRO_01 Rated operational current (IEC 60947-5-1) AC12 (resistive) at 230 V 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A AC15 (inductive) at 230 V 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A DC12 (resistive) at 24 V 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A DC13 (inductive) at 24 V 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A Rated operational data AC (UL 508) Utilization category (Control Circuit Rating Code) B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 Max. rated operational voltage 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC Max. thermal uninterrupted current at B 300 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A Max. input/output rating (N/O / N/C) for B 300 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA Mechanical lifespan 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations Electrical lifespan (AC12, 230 V, 4 A) 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 31 x 10 6   operations 31 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations Short-circuit strength, maximum fuse rating Normally closed contact  6 A fast 6 A fast 6 A fast 6 A fast 6 A fast 6 A fast 10 A fast 10 A fast 10 A fast 6 A fast 6 A fast 6 A fast 6 A fast Normally open contact  10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast Duty factor (DF) 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % General data Enclosure measurements (w x h x d) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94  inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 45 x 78 x 100 mm (1.78 x 3.07 x 3.94 inches) 45 x 78 x 100 mm (1.78 x 3.07 x 3.94 inches) 45 x 78 x 100 mm (1.78 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) Mounting position Any Any Any Any Any Any Any Any Any Any Any Any Any Weight  0.13 kg (0.29 lb) 0.13 kg (0.29 lb) 0.22 kg (0.49 lb) 0.22 kg (0.49 lb) 0.22 kg (0.49 lb) 0.14 kg (0.31 lb) 0.14 kg (0.31 lb) 0.14 kg (0.31 lb) 0.13 kg (0.29 lb) Degree of protection of enclosures/terminals IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP21 IP50/IP20 IP50/IP20 IP50/IP20 Mounting DIN rail (IEC/EN 60715), clip-type toolless Minimum distance to adjacent devices Horizontal (min. 10 mm from continuous voltage)  220 V  400 V 400 V 400 V  220 V 400 V None None None 120 V None 240 V None Vertical  None None None None None None None None None None None None None Electrical connection Terminal capacities  Flexible with ferrule 2 x 0.75-2.5 mm² (2 x 18 - 14 AWG) Flexible without ferrule 2 x 0.75-2.5 mm² (2 x 18 - 14 AWG) Rigid  2 x 0.5-4 mm² (2 x 20 - 12 AWG) Stripped length 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28  inches) 7 mm (0.28 inches) Tightening torque 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm Environmental data Ambient temperature range, operation/storage -25 - +60 °C /-40 - +85 °C Damp heat (IEC 60068-2-30) 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles Climate class  3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 Vibration (sinusoidal) (IEC/EN) 60255-21-1)  Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Impact (IEC/EN 60255-21-2) Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 11/35

11/34 Electronic relays Measuring and monitoring relays EMR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays Measuring and monitoring relays EMR EMR5-W300-1-C EMR5-W380-1 EMR5-W400-1 EMR5-W500-1-D EMR5-AW300-1-C EMR5-AW500-1-D EMR5-AWM580-2 EMR5-AWM720-2 EMR5-AWM820-2 EMR5-AWN170-1-E EMR5-AWN280-1 EMR5-AWN280-1-F EMR5-AWN500-1 Output circuits Output circuits 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 15-16/18, 25-26/28 Output type 2 x 1 relay (changeover contact)  2 x 1 relay (changeover contact)  2 x 1 relay (changeover contact)  2 x 1 relay (changeover contact)  1 x 2 relays (changeover contact) 1 x 2 relays (changeover contact) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 1 x 2 relays (changeover contact) 2 x 1 or 1 x 2 changeover contact, select- able (relay) 1 x 2 relays (changeover contact) 2 x 1 or 1 x 2 changeover contact, select- able (relay) Operating principle Closed-circuit principle:Output relays drop out when value above/below set threshold value Contact material AgNi alloy, Cd-free Rated operating voltage (VDE 0110, IEC 60947-1) 250 V  250 V 250 V  250 V  250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V 250 V Minimum switching voltage/minimum switching current No No No No Minimum switching duty 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 24 V/10 mA 25 V/10 mA 26 V/10 mA 27 V/10 mA 28 V/10 mA Maximum switching voltage  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_01  See TB_EMR_PRO_02 See TB_EMR_PRO_02 See TB_EMR_PRO_02 See TB_EMR_PRO_01  See TB_EMR_PRO_01 See TB_EMR_PRO_01 Rated operational current (IEC 60947-5-1) AC12 (resistive) at 230 V 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A AC15 (inductive) at 230 V 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A 3 A DC12 (resistive) at 24 V 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A 4 A DC13 (inductive) at 24 V 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A 2 A Rated operational data AC (UL 508) Utilization category (Control Circuit Rating Code) B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 B 300 Max. rated operational voltage 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC 300 V AC Max. thermal uninterrupted current at B 300 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A 5 A Max. input/output rating (N/O / N/C) for B 300 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA 3600/360 VA Mechanical lifespan 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations 30 x 10 6   operations Electrical lifespan (AC12, 230 V, 4 A) 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 31 x 10 6   operations 31 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations 0.1 x 10 6   operations Short-circuit strength, maximum fuse rating Normally closed contact  6 A fast 6 A fast 6 A fast 6 A fast 6 A fast 6 A fast 10 A fast 10 A fast 10 A fast 6 A fast 6 A fast 6 A fast 6 A fast Normally open contact  10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast 10 A fast Duty factor (DF) 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % 100 % General data Enclosure measurements (w x h x d) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94  inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 45 x 78 x 100 mm (1.78 x 3.07 x 3.94 inches) 45 x 78 x 100 mm (1.78 x 3.07 x 3.94 inches) 45 x 78 x 100 mm (1.78 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) 22.5 x 78 x 100 mm (0.89 x 3.07 x 3.94 inches) Mounting position Any Any Any Any Any Any Any Any Any Any Any Any Any Weight  0.13 kg (0.29 lb) 0.13 kg (0.29 lb) 0.22 kg (0.49 lb) 0.22 kg (0.49 lb) 0.22 kg (0.49 lb) 0.14 kg (0.31 lb) 0.14 kg (0.31 lb) 0.14 kg (0.31 lb) 0.13 kg (0.29 lb) Degree of protection of enclosures/terminals IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP20 IP50/IP21 IP50/IP20 IP50/IP20 IP50/IP20 Mounting DIN rail (IEC/EN 60715), clip-type toolless Minimum distance to adjacent devices Horizontal (min. 10 mm from continuous voltage)  220 V  400 V 400 V 400 V  220 V 400 V None None None 120 V None 240 V None Vertical  None None None None None None None None None None None None None Electrical connection Terminal capacities  Flexible with ferrule 2 x 0.75-2.5 mm² (2 x 18 - 14 AWG) Flexible without ferrule 2 x 0.75-2.5 mm² (2 x 18 - 14 AWG) Rigid  2 x 0.5-4 mm² (2 x 20 - 12 AWG) Stripped length 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28 inches) 7 mm (0.28  inches) 7 mm (0.28 inches) Tightening torque 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm 0.6 - 0.8 Nm Environmental data Ambient temperature range, operation/storage -25 - +60 °C /-40 - +85 °C Damp heat (IEC 60068-2-30) 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles 55 °C, 6 cycles Climate class  3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 3K3 Vibration (sinusoidal) (IEC/EN) 60255-21-1)  Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Impact (IEC/EN 60255-21-2) Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 Class 2 11/35

11/36 Electronic relays EMR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays EMR Dimensions EMR5-W300-1-C EMR5-W380-1 EMR5-W400-1 EMR5-W500-1-D EMR5-AW300-1-C EMR5-AW500-1-D EMR5-AWM580-2 EMR5-AWM720-2 EMR5-AWM820-2 EMR5-AWN170-1-E EMR5-AWN280-1 EMR5-AWN280-1-F EMR5-AWN500-1 Insulation data Rated insulation voltage U i   Input circuit/output circuit  600 V  600 V  600 V  600 V  600 V 600 V 1000 V 1000 V 1000 V 600 V 600 V 600 V 600 V Input circuit 1/output circuit 2 300 V 300 V  300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V Rated impulse withstand voltage U imp (VDE 0110, IEC/EN 60664)  Input circuit 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 8 kV; 1.2/50 μs 8 kV; 1.2/50 μs 8 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs Output circuits  4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs Test voltage between all insulated circuits (routine test)  2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s Input circuit and insulated output circuits 4 kV, 50 Hz, 1 s 4 kV, 50 Hz, 1 s 4 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s Basic insulation, input circuit/output circuit  600 V  600 V  600 V  600 V  600 V 600 V 1000 V 1000 V 1000 V 600 V 600 V 600 V 600 V Safe isolation (VDE 0160 Part 101 and 101/A1, IEC/EN 61140)  input circuit/output circuit No No No No No No No No No Yes No Yes No Pollution degree (VDE 0110, IEC/EN 60664, UL 508)  3 3 3 3 3 3 III III III 3 III 3 III Overvoltage category (VDE 0110, IEC 60664, UL 508)  III III III III III III 3 3 3 III 3 III 3 Directives and standards Product standard IEC/EN 60255-6, EN 50178 Low-Voltage Directive 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC EMC Directive 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC RoHS Directive 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC Electromagnetic compatibility Interference immunity EN 61000-6-1, EN 61000-6-2 Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV / 8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Electromagnetic field (immunity to RF interference) IEC/EN 61000-4-3 Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Fast transients (burst) IEC/EN 61000-4-4 Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV / 2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) High-energy pulses (surge) IEC 1000-4-5, EN 61000-4-5 Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-N) Level 4 (2 kV L-N) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-N) Level 4 (2 kV L-N) Level 4 (2 kV L-N) Level 4 (2 kV L-L) Cable-borne HF IEC 100-4-6, EN 61000-4-6 Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Resistance to harmonics EN 61000-4-13 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Emitted interference EN 61000-6-3, EN 61000-6-4 Electromagnetic field (immunity to RF interference) IEC/CISPR 22, EN 50022 Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Cable-borne HF  Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Measuring and monitoring relays EMR-… 109.5 102 78  5.5 1 100 45    22.5   Sealable shrouds EMR4-PH… 22.5   20  68.5  45   68.5  20  11/37

11/36 Electronic relays EMR 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Electronic relays EMR Dimensions EMR5-W300-1-C EMR5-W380-1 EMR5-W400-1 EMR5-W500-1-D EMR5-AW300-1-C EMR5-AW500-1-D EMR5-AWM580-2 EMR5-AWM720-2 EMR5-AWM820-2 EMR5-AWN170-1-E EMR5-AWN280-1 EMR5-AWN280-1-F EMR5-AWN500-1 Insulation data Rated insulation voltage U i   Input circuit/output circuit  600 V  600 V  600 V  600 V  600 V 600 V 1000 V 1000 V 1000 V 600 V 600 V 600 V 600 V Input circuit 1/output circuit 2 300 V 300 V  300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V 300 V Rated impulse withstand voltage U imp (VDE 0110, IEC/EN 60664)  Input circuit 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 8 kV; 1.2/50 μs 8 kV; 1.2/50 μs 8 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs 6 kV; 1.2/50 μs Output circuits  4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs 4 kV; 1.2/50 μs Test voltage between all insulated circuits (routine test)  2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s Input circuit and insulated output circuits 4 kV, 50 Hz, 1 s 4 kV, 50 Hz, 1 s 4 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s 2.5 kV, 50 Hz, 1 s Basic insulation, input circuit/output circuit  600 V  600 V  600 V  600 V  600 V 600 V 1000 V 1000 V 1000 V 600 V 600 V 600 V 600 V Safe isolation (VDE 0160 Part 101 and 101/A1, IEC/EN 61140)  input circuit/output circuit No No No No No No No No No Yes No Yes No Pollution degree (VDE 0110, IEC/EN 60664, UL 508)  3 3 3 3 3 3 III III III 3 III 3 III Overvoltage category (VDE 0110, IEC 60664, UL 508)  III III III III III III 3 3 3 III 3 III 3 Directives and standards Product standard IEC/EN 60255-6, EN 50178 Low-Voltage Directive 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC 2006/95/EC EMC Directive 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC 2004/108/EC RoHS Directive 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC 2002/95/EC Electromagnetic compatibility Interference immunity EN 61000-6-1, EN 61000-6-2 Electrostatic discharge (ESD) IEC/EN 61000-4-2 Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV / 8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Level 3 (6 kV/8 kV) Electromagnetic field (immunity to RF interference) IEC/EN 61000-4-3 Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Level 3 (10 V/m) Fast transients (burst) IEC/EN 61000-4-4 Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV / 2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) Level 3 (2 kV/2 kHz) High-energy pulses (surge) IEC 1000-4-5, EN 61000-4-5 Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-N) Level 4 (2 kV L-N) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-L) Level 4 (2 kV L-N) Level 4 (2 kV L-N) Level 4 (2 kV L-N) Level 4 (2 kV L-L) Cable-borne HF IEC 100-4-6, EN 61000-4-6 Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Level 3 (10 V) Resistance to harmonics EN 61000-4-13 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Class 3 Emitted interference EN 61000-6-3, EN 61000-6-4 Electromagnetic field (immunity to RF interference) IEC/CISPR 22, EN 50022 Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Cable-borne HF  Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Class B Measuring and monitoring relays EMR-… 109.5 102 78  5.5 1 100 45    22.5   Sealable shrouds EMR4-PH… 22.5   20  68.5  45   68.5  20  11/37
