12_CA08103002Z
12_CA08103002Z

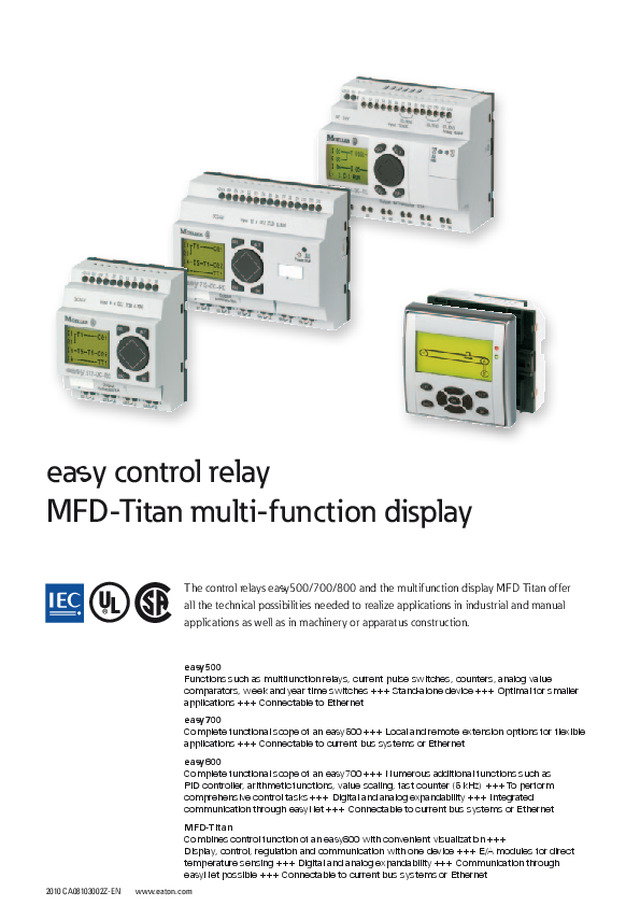

2010 CA08103002Z-EN www.eaton.com eay500 Functions such as multifunction relays, current pulse switches, counters, analog value comparators, week and year time switches +++ Stand-alone device +++ Optimal for smaller applications +++ Connectable to Etherneteay700 Complete functional scope of an eay500 +++ Local and remote extension options for flexible applications +++ Connectable to current bus systems or Etherneteay800 Complete functional scope of an eay700 +++ Numerous additional functions such as PID controller, arithmetic functions, value scaling, fast counter (5 kHz) +++ To perform comprehensive control tasks +++ Digital and analog expandability +++ Integrated communication through eayNet +++ Connectable to current bus systems or EthernetMFD-Titan Combines control function of an eay800 with convenient visualization +++ Display, control, regulation and communication with one device +++ E/A modules for direct temperature sensing +++ Digital and analog expandability +++ Communication through eayNet possible +++ Connectable to current bus systems or Ethernet The control relays ea y500/700/800 and the multifunction display MFD Titan offer all the technical possibilities needed to realize applications in industrial and manual applications as well as in machinery or apparatus construction. ea y control relay MFD-Titan multi-function display
90 102 110 M4 107.5 75 16.25 16.25 45 58 56.5 47.5 4.5 Control relay eay Technical overview Control relay, multi-function display 12/3 System overview Control relays eay500, eay700 12/4 Ordering Basic devices eay500 12/6 eay700 12/7 Expansion Devices I/O expansions 12/8 Coupling module 12/8 Bus modules 12/8 Ethernet gateway 12/8 Accessories 12/9 System overview Control relay eay800 12/12 Ordering Basic devices eay800 12/14 Expansion Devices I/O expansions 12/15 Coupling module 12/15 Bus modules 12/16 Ethernet gateway 12/16 Accessories 12/16 MFD-Titan Multi-function display System overview MFD-Titan Multi‐function‐display 12/20 Ordering Display/keypad 12/22 Power supply unit/CPU module 12/22 Power supply unit/communication module 12/23 Input/output modules 12/24 Expansion Devices I/O expansions 12/25 Coupling module 12/25 Bus modules 12/26 Ethernet gateway 12/26 Accessories 12/27 Control relay, multi-function display Technical data Basic devices, Expansion Devices eay... 12/30 eay...DA... 12/31 eay…AB... 12/32 eay...DC... 12/33 eay…AC... 12/35 Display/operating unit, CPU, communication modules 12/36Input/output modules 12/39 Basic devices, Expansion Devices Transistor outputs 12/42 Relay outputs 12/44 Bus modules 12/45 Ethernet coupling unit, upstream device 12/47 Switched-mode power supply units 12/49 Dimensions Basic device, expansion units, 12/51 display/operating unitCentral processing unit, communication module, 12/52 inputs/outputs modulesAccessories 12/53 ea y control relay, MFD-Titan multi-function display
12/2 Control relays, multi-function display Notes 2010 CA08103002Z-EN www.eaton.com Notes
Control relays, multi-function display Technical overview 2010 CA08103002Z-EN www.eaton.com 12/3 Technical overview Functions Technical overview ea sy500/700 ea sy800 MFD-...CP8... Counter functions Counter relay(up, down counting) 16 (0 to 32000) 32 ( g2 31 ) 32 ( g2 31 ) Frequency counters 2 (max. 1 kHz) 4 (max. 5 kHz) 4 (max. 3 kHz) High-Speed counter 2 (max. 1 kHz) 4 (max. 5 kHz) 4 (max. 3 kHz) Incremental counters – 2 (max. 3 kHz) 2 (max. 3 kHz) Hour meter 4 (operating hours value is stored super-retentively (e.g also with program change) Time functions Weekly timer (4 channels per timer, each channel offers one On/Off time) 8 32 32 Year time switch 8 32 Set cycle time – 1 1 Timing relay 16 (0.01 s … 99 h 59 min) 32 (0.005 s … 2³² min), On-delayed and/or off-delayed (optionally random switching), pulse shaping, flashing Program sequencing functions Jump 8 32 32 Conditional jump – 32 32 Master reset 3 32 32 Maths functions Analog value comparator 16 32 32 Arithmetic – 32 (ADD, SUB, MUL, DIV) 32 (ADD, SUB, MUL, DIV) PID controller – 32 32 PT1 signal smoothing filter – 32 32 Value scaling – 32 32 Numerical converter – 32 32 Pulse output – 2 – Pulse width modulation – 2 2 Value limit – 32 32 Memory functions Block comparison – 32 32 Block transfer – 32 32 Boolean operation – 32 (AND, OR, NOT) 32 (AND, OR, NOT) Comparator 16 32 32 Data function block – 32 32 Data multiplexer – 32 – Shift register – 32 32 Table function – 32 32 Communication functions Get value from the NET – 32 32 Put value on the NET – 32 32 Bit output via NET – 32 32 Bit input via NET – 32 32 Diagnostic alarm – 9 9 Serial protocol – 32 – Synchronize clock via NET – 1 1 Text functions Text display(can be edited via software) 16 x (4 x 12 characters) 32 x (4 x 16 characters) Yes Static text Yes Message text Yes Screen menu Yes Running text Yes Rolling text Yes Value entry functions Date and time information Yes Year time switch entry Yes Latching pushbutton Yes Button field Yes Timing relay value entry Yes Yes Yes Value entry Yes Week clock input Yes Enter counter value/reference value/OT Yes Yes Yes Value display functions Bit display Yes Message bitmap Yes Bargraph Yes Numerical value Yes Timing relay value display Yes Actual values Yes Yes Yes Date and time Yes Yes Yes
12/4 Control relays 500, 700 2010 CA08103002Z-EN www.eaton.com 500, 700 System overview POW BUS POWERCOM-ERR ADR ERR MS NS 4 3 3 2 2 1 1 5 6 7 8 12 11 11 9 10 10
2010 CA08103002Z-EN www.eaton.com Control relays 500, 700 12/5 Basic devices 500 1 Stand-alone12 V DC = easy...DA...24 V DC = easy...DC...24 V AC = easy...AB...100 - 240 V AC = easy...AC...8 digital inputs2 usable as analog inputs (DA, DC or AB versions)4 relay outputs (max. 10 A, UL) or4 transistor outputsDisplay and keypad optional Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/6 700 2 Expandable: Digital inputs/outputs and bus systems AS-Interface, CANopen, PROFIBUS-DP, DeviceNet12 V DC = easy...DA...24 V DC = easy...DC...24 V AC = easy...AB...100 - 240 V AC = easy...AC...12 digital inputs4 usable as analog inputs (DA, DC or AB versions)6 relay outputs (max. 10 A, UL) or8 transistor outputsDisplay and keypad optional Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/7 Remote text display Consists of: Display/operating unit MFD-80(-B) 3 Power supply unit/communica-tion module MFD(-AC)-CP4-500 3 Including connection cable (5 m, can be cut to length) for easy500/70024 V DC = MFD-CP4-500100 - 240 V AC = MFD-AC-CP4-500Spring-loaded terminals￫ Page 12/16 Ethernet gateway EASY209-SE 4 24 V DCSerial interface easyRelay to Ethernet￫ Page 12/16 Bus modules EASY204-DP 5 PROFIBUS-DP slave connection, 24 V DC￫ Page 12/16 EASY205-ASI 6 AS-Interface connection as slave￫ Page 12/16 EASY221-CO 7 CANopen connection, 24 V DC￫ Page 12/16 EASY222-DN 8 DeviceNet connection, 24 V DC￫ Page 12/16 Output expansion EASY202-RE 9 2 relay outputs (max. 10 A, UL)Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 I/O expansions EASY410... 10 24 V DC6 digital inputs4 relay outputs (max. 10 A, UL) or4 transistor outputsBolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 EASY6... 11 24 V DC12 digital inputs6 relay outputs (max. 10 A, UL) or8 transistor outputsBolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 Coupling module EASY200-EASY 12 For remote connection of a digital I/O expansion through two-pole connection cable (max. 30 m); e.g. NYM 3 × 1.5 mm 2 Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/15
12/6 Control relays Basic devices 2010 CA08103002Z-EN www.eaton.com 500/700 500/700Basic devices Ordering Inputs Outputs Other features Supply voltage Part no.Article no. PriceSee price list Std. pack Digital Of which can be used as analog Relays 10 A (UL) Transistor Display + keypad Real-time clock 500 Stand alone 8 2 4 – √ √ 24 V AC EASY512-AB-RC274101 1 off 8 2 4 – – √ 24 V AC EASY512-AB-RCX274102 8 – 4 – √ – 100 - 240 V AC EASY512-AC-R274103 8 – 4 – √ √ 100 - 240 V AC EASY512-AC-RC274104 8 – 4 – – √ 100 - 240 V AC EASY512-AC-RCX274105 8 2 4 – √ √ 12 V DC EASY512-DA-RC274106 8 2 4 – – √ 12 V DC EASY512-DA-RCX274107 8 2 4 – √ – 24 V DC EASY512-DC-R274108 8 2 4 – √ √ 24 V DC EASY512-DC-RC274109 8 2 4 – – √ 24 V DC EASY512-DC-RCX274110 8 2 – 4 √ √ 24 V DC EASY512-DC-TC274111 8 2 – 4 – √ 24 V DC EASY512-DC-TCX274112 Customized inscription, user program • Customized inscription of easy control relay trough labeling software Labeleditor or • Supply of easy control relay programmed with user program EASY-COMBINATION- 1)257823 1 off Notes Procedure and ordering example for Labeleditor inscription software Individually inscribe your device in 4 stages: – Download the inscription software: www.moeller.net/support, keyword: “Labeleditor” – Creation of label template (menu-guided in the software)– Send the label template to the factory by email. The email address is automatically set for the selected product by the program. When your template is sent, the Labeleditor issues a file namesuch as “EASY_12345.zip”. This file name is part of the article to be ordered (see Ordering examples). – Send order to the Eaton office or the electrical wholesalers. Ordering example EASY719-DC-RC with “Company logo”:1 x EASY-COMBINATION- 1 x EASY719-DC-RC1 x the file name “EASY_xxxxx.zip” issued by the Labeleditor Information relevant for export to North America Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 1) UL/CSA certification not required Accessories Page 1 Ethernet gateway ￫ Page 12/16 2 Connection cable ￫ Page 12/27 3 Power supply unit/communication ￫ Page 12/23 4 Display/keypad ￫ Page 12/16 5 Programming software ￫ Page 12/9 6 PC programming cable ￫ Page 12/9 7 Switched-mode power supply unit ￫ Page 12/10 8 Memory card ￫ Page 12/9 easy 500 Power 2, 6 7 1 2 2 4 3 5 6 6 8 HPL12006EN
Control relays Basic devices 2010 CA08103002Z-EN www.eaton.com 500/700 12/7 500/700Basic devices Inputs Outputs Other features Supply voltage Part no.Article no. PriceSee price list Std. pack Digital Of which can be used as analog Relays 10 A (UL) Transistor Display + keypad Real-time clock 700 Expandable: Digital inputs/outputs and bus systems AS-Interface, CANopen, PROFIBUS-DP, DeviceNet 12 4 6 – √ √ 24 V AC EASY719-AB-RC274113 1 off 12 4 6 – – √ 24 V AC EASY719-AB-RCX274114 12 – 6 – √ √ 100 - 240 V AC EASY719-AC-RC274115 12 – 6 – – √ 100 - 240 V AC EASY719-AC-RCX274116 12 4 6 – √ √ 12 V DC EASY719-DA-RC274117 12 4 6 – – √ 12 V DC EASY719-DA-RCX274118 12 4 6 – √ √ 24 V DC EASY719-DC-RC274119 12 4 6 – – √ 24 V DC EASY719-DC-RCX274120 12 4 – 8 √ √ 24 V DC EASY721-DC-TC274121 12 4 – 8 – √ 24 V DC EASY721-DC-TCX274122 Customized inscription, user program • Customized inscription of easy control relay trough labeling software Labeleditor or• Supply of easy control relay programmed with user program EASY-COMBINATION- 1) 257823 1 off Notes Procedure and ordering example for Labeleditor inscription software Individually inscribe your device in 4 stages: – Download the inscription software: www.moeller.net/support, keyword: “Labeleditor” – Creation of label template (menu-guided in the software)– Send the label template to the factory by email. The email address is automatically set for the selected product by the program. When your template is sent, the Labeleditor issues a file name such as “EASY_12345.zip”. This file name is part of the article to be ordered (see Ordering examples). – Send order to the Eaton office or the electrical wholesalers. Ordering example EASY719-DC-RC with “Company logo”:1 x EASY-COMBINATION- 1 x EASY719-DC-RC1 x the file name “EASY_xxxxx.zip” issued by the Labeleditor Information relevant for export to North America Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 1) UL/CSA certification not required Accessories Page 1 Ethernet gateway ￫ Page 12/16 2 Connection cable ￫ Page 12/27 3 Power supply unit/communication module ￫ Page 12/23 4 Display/keypad ￫ Page 12/16 5 Programming software ￫ Page 12/9 6 PC programming cable ￫ Page 12/9 7 Switched-mode power supply unit ￫ Page 12/10 8 Memory card ￫ Page 12/9 9 Inputs/outputs expansion ￫ Page 12/15 10 output expansion, bus module, coupling module ￫ Page 12/16 ESC OK DEL ALT easy 700 Power 1 4 3 2 5 9 9 10 2, 6 8 7 2 6 6 Power Power HPL12007EN
12/8 Control relays Expansion devices 2010 CA08103002Z-EN www.eaton.com 500/700 Expansion devices500/700 Inputs Outputs Supply voltage Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Digital Relay 10 A (UL) Transistor I/O expansions Can be used through easyLink 12 6 – 100 - 240 V AC EASY618-AC-RE212314 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 12 – 8 24 V DC EASY620-DC-TE212313 12 6 – 24 V DC EASY618-DC-RE232112 Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - – 2 – 24 V DC EASY202-RE1)232186 6 4 – 24 V DC EASY410-DC-RE114293 NA Certification Request filed for UL and CSA Degree of Protection IEC: IP20, UL/CSA Type: - 6 – 4 24 V DC EASY410-DC-TE114294 Coupling module Can be used through easyLink For remote connection of a digital I/O expansion up to 30 m. EASY200-EASY212315 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Bus modules Can be used through easyLink AS-Interface Slave4 inputs, 4 outputs, 4 parameter bitsAddresses available 0 to 31 – EASY205-ASI221598 1 off PROFIBUS-DP SlaveAddresses available 1 to 126 24 V DC EASY204-DP212316 CANopen Addresses available 1 to 127 24 V DC EASY221-CO233539 DeviceNet Addresses available 0 to 63 24 V DC EASY222-DN233540 Ethernet gateway Serial interface easyRelay or MFD-...CP8/CP10... to Ethernet, for connecting to easyOPC server, easySoft, or easyCom 24 V DC EASY209-SE101520 1 off Notes 1) Not for use in combination with basic unit EASY719-DA-...Cannot be used on the EASY200‐EASY coupling module Power HPL12008EN
Control relays Accessories 2010 CA08103002Z-EN www.eaton.com 500/700 12/9 Accessories500/700 Supply voltage Description Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Remote text display Display/keypadMonochrome display 132 × 64 pixels with switchable backlightIP65, removable silver front frame With keypad, with Moeller company logotypeNEMA 4x in conjunction with MFD-XM-80 protective diaphragm ￫ 12/29 MFD-80-B265251 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP65, in combination with MFD-XM-80: UL/CSA Type 4X With keypad, without Moeller company logotypeNEMA 4x in conjunction with MFD-XM-80 protective diaphragm ￫ 12/29 MFD-80-B-X284905 Without keypad, with Moeller company logotype MFD-80265250 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP65, UL/CSA Type 4X Without keypad, without Moeller company logotype NEMA 4x MFD-80-X284904 Power supply unit/communication modulesIP20, can be combined with display/operating unit MFD-80... as remote text display 24 V DC With connection cable (5 m, can be cut to length) MFD-CP4-500274094 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 100 - 240 V AC With connection cable (5 m, can be cut to length) MFD-AC-CP4-500286823 24 V DC Without connection cable MFD-CP4280888 100 - 240 V AC Without connection cable MFD-AC-CP4286822 Programming software Menu selection in 13 languagesOperating systems: Windows 2000 SP4, Windows XP SP3, Windows Vista (32 Bit), Windows 7 (32 Bit) EASY-SOFT-BASIC284545 1 off UL/CSA certification not required EASY-SOFT-PRO266040 Programming cable SUB-D, 9 pole, serial, 2 m EASY-PC-CAB202409 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - USB, 2 m EASY-USB-CAB107926 1 off Connecting cables For connecting the MFD(-AC)-CP4 or EASY209-SE with easy500/easy700,5 m, can be cut to length MFD-CP4-500-CAB5280886 1 off Memory cards 32-kB module EASY-M-32K270884 1 off Manuals Deutsch AWB2528-1508D278499 1 off English AWB2528-1508GB278500 1 off HPL12009EN
12/10 Control relays Accessories 2010 CA08103002Z-EN www.eaton.com 500/700 Accessories500/700 Accessories Supply voltage Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Input/output simulators 24 V DC With plug-in power supply unit 100 - 240 V AC/24 V DC easy500-DC EASY412-DC-SIM212318 1 off 24 V DC With plug-in power supply unit 120 V AC/24 V DC, plug for North America easy500-DC EASY412-DC-SIM-NA222566 24 V DC With plug-in power supply unit 100 - 240 V AC/24 V DC easy700-DCeasy800-DCEC4P EASY800-DC-SIM256278 Description Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Switched-mode power supply units Primary-switched mode, stabilized Rated input voltage: 50/60 Hz: 100 - 240 VRated output voltage: 24 V/12 V DCRated output current: 0.35 A/20 mA EASY200-POW229424 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 1.25 A EASY400-POW212319 1 off EASY430-POW110940 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 107.1-01; CE marking UL File No. E300415 UL CCN NMTR, NMTR7 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-87, 3211-07 NA Certification UL Listed, certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 2.5 A EASY500-POW110941 1 off Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 4.2 A EASY600-POW262399 1 off Power Power HPL12010EN
Control relays Accessories 2010 CA08103002Z-EN www.eaton.com 500/700 12/11 Accessories500/700 800Basic devices Description Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Ballast To increase the AC input current 6 channels, cable length up to 100 m EASY256-HCI231168 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - PROFIBUS-DP data cable Twisted pair, without plug, 2-core, 2 x 0.64 mm²(only suitable for fixed wiring)100 m ZB4-900-KB1206983 100 m PROFIBUS-DP bus connector plug Pins, 9 poleCable entry, angled 90° ZB4-209-DS2206982 1 off Metallized insulated housingMaximum transfer rate 12 MBit/sIntegrated switch (accessible from the outside) for the bus terminating resistorsTerminal block for two cable entries, with straight or 90° angled cable entry, as required ZB4-209-DS3217820 1 off Connection plug Bus connector plug between base unit and expansion unit/bus module EASY-LINK-DS221607 1 off UL/CSA certification not required Fixing bracket For screw fixing to mounting plate 3 fixing brackets per easy400, 500, 600, 700, 800, EC4P, ES4P2 fixing brackets per easy2003 fixing brackets per, MFD...-CP8/CP10… ZB4-101-GF1061360 9 off UL/CSA certification not required Telescopic clip With 35mm top-hat rail to IEC/EN 60715 for adjusting the mounting depth when rear mounting in CI-K… enclosures and cabinets.Stepless adjustment via scale from 75 – 115 mm.Screw and snap fastening M22-TA226161 1 off Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Top-hat rail adapter for inspection flap window 12 mm x 66 mm x 82 mmMounting on hinged inspection window, for front fitting of devices.Complete set, consisting of 2 brackets and 4 screws SKF-HA233782 1 off UL/CSA certification not required Inspection window 94 mm x 77 mm x 25 mm (4 space units)For use with easy500 SKF-FF4233780 1 off UL/CSA certification not required 130 mm x 77 mm x 25 mm (6 space units)For use with EASY700, EASY800, EC4P, ES4P SKF-FF6233781 1 off HPL12011EN
12/12 Control relays Basic devices 2010 CA08103002Z-EN www.eaton.com 800 System overview POW BUS MS NS DEL OK ALT ESC 3 2 2 15 1 1 4 15 5 6 7 11 10 10 8 14 14 9, 12 12
2010 CA08103002Z-EN www.eaton.com Control relays 800 12/13 800 Basic device 800 1 Expandable: Digital and analog inputs/outputs and bus systems AS-Interface, CANopen, PROFIBUS-DP, DeviceNetBus system easyNet on board24 V DC = easy...DC...100 - 240 V AC = easy...AC...12 digital inputs4 usable as analog inputs (DC ver-sions)6 relay outputs (max. 10 A, UL) or8 transistor outputs1 analog output, optional on DC versionsDisplay and keypad optional Bolt-on and top-hat rail mountingScrew terminalsTechnical overview￫ Page 12/14 Remote text display Consists of: Display/operating unit MFD-80(-B) 2 Power supply/communication module 2 Including connection cable (5 m, can be cut to length) for easy80024 V DC = MFD-CP4-800100 - 240 V AC = MFD-AC-CP4-800Spring-loaded terminals￫Page 12/16 Ethernet gateway EASY209-SE 3 24 V DCSerial interface easyRelay to Ethernet￫ Page 12/16 Bus modules EASY204-DP4 4 PROFIBUS DP connection as slave, 24 V DC￫ Page 12/16 EASY205-ASI 5 AS-Interface connection as slave￫ Page 12/16 EASY221-CO 6 CANopen connection, 24 V DC￫ Page 12/16 EASY222-DN 7 DeviceNet connection, 24 V DC￫ Page 12/16 Output expansion EASY202-RE 8 2 relay outputs (max. 10 A, UL)Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 I/O expansions EASY406-DC-ME 9 24 V DC1 digital input 2 analog inputs (2 × 0–10 V, 2 × 0 – 20 mA, or 2 × x Pt100; voltage inputs can be combined in any arrangementVoltage inputs (0 – 10 V) can optionally be used as digital inputs2 transistor outputs1 analog output (0 - 10 V)Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 EASY411-DC-ME 9 24 V DC1 digital input6 analog inputs (2 × 0–10 V, 2 × 0–20 mA and 2 × Pt100; voltage inputs (0–10 V) can optionally be used as digital inputs2 transistor outputs/2 analog outputs (0–10 V) Bolt-on and top-hat rail mounting Screw terminals￫ Page 12/15 EASY6... 10 24 V DC12 digital inputs6 relay outputs (max. 10 A, UL) or8 transistor outputsBolt-on and top-hat rail mounting Screw terminals￫ Page 12/15 EASY410... 12 24 V DC6 digital inputs4 relay outputs (max. 10 A, UL) or4 transistor outputsBolt-on and top-hat rail mounting Screw terminals￫ Page 12/15 Coupling module EASY200-EASY 11 For remote connection of a digital I/O expansion through two-pole connection cable (max. 30 m); e.g. NYM 3 × 1.5 mm²Bolt-on and top-hat rail mounting Screw terminals￫ Page 12/15 Compact PLC Control EC4P 13 ￫ Page 14/64 Safety control relays Safety ES4P 14 ￫ Page 13/5 Multi-function display MFD-Titan 15 ￫ Page 12/22
12/14 Control relays Basic devices 2010 CA08103002Z-EN www.eaton.com 800 800Basic devices Ordering Inputs Outputs Other features Supply voltage Part no.Article no. PriceSee price list Std. pack Digital Of which can be used as analog Relay 10 A (UL) Transistor Analog Display + keypad Real-time clock 800 Expandable: Digital and analog inputs/outputs and bus systems AS-Interface, CANopen, PROFIBUS-DP, DeviceNetBus system easyNet on boardIndividual laser inscription possible with EASY-COMBINATION- ￫ Page 12/6 easyNet on board 12 – 6 – – √ √ 100 - 240 V AC EASY819-AC-RC256267 1 off 12 – 6 – – – √ 100 - 240 V AC EASY819-AC-RCX256268 12 4 6 – – √ √ 24 V DC EASY819-DC-RC256269 12 4 6 – – – √ 24 V DC EASY819-DC-RCX256270 12 4 6 – 1 √ √ 24 V DC EASY820-DC-RC256271 12 4 6 – 1 – √ 24 V DC EASY820-DC-RCX256272 12 4 – 8 – √ √ 24 V DC EASY821-DC-TC256273 12 4 – 8 – – √ 24 V DC EASY821-DC-TCX256274 12 4 – 8 1 √ √ 24 V DC EASY822-DC-TC256275 12 4 – 8 1 – √ 24 V DC EASY822-DC-TCX256276 Information relevant for export to North America Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Accessories Page 1 Ethernet gateway ￫ Page 12/16 2 Connection cable ￫ Page 12/27 3 Power supply unit/communication module ￫ Page 12/23 4 Display/keypad ￫ Page 12/16 5 Programming software ￫ Page 12/9 6 PC programming cable ￫ Page 12/9 7 Switched-mode power supply unit ￫ Page 12/10 8 Memory card ￫ Page 12/9 9 Inputs/outputs expansion ￫ Page 12/15 10 output expansion units, bus module, coupling module ￫ Page 12/16 11 easyNet ￫ Page 12/18 12 Multi-function display MFD-Titan ￫ Page 12/22 easy 800 easy 800 Power easyNet 3 1 5 2 6 4 12 8 2, 6 9 9 10 2, 6 7 8 2 11 6 MFD Titan Power Power HPL12014EN
Control relays Expansion devices 2010 CA08103002Z-EN www.eaton.com 800 12/15 800Expansion devices Inputs Outputs Supply voltage Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Digital Relay 10 A (UL) Transistor I/O expansions Can be used through easyLink 12 6 – 100 - 240 V AC EASY618-AC-RE212314 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 12 – 8 24 V DC EASY620-DC-TE212313 12 6 – 24 V DC EASY618-DC-RE232112 Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - – 2 – 24 V DC EASY202-RE1)232186 6 4 – 24 V DC EASY410-DC-RE114293 NA Certification Request filed for UL and CSA Degree of Protection IEC: IP20, UL/CSA Type: - 6 – 4 24 V DC EASY410-DC-TE114294 Coupling module Can be used through easyLink For remote connection of a digital I/O expansion up to 30 m. EASY200-EASY212315 1 off Product Standards IEC/EN see Technical Data; UL 508; CE marking;CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987 UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Inputs Outputs Supply voltage Part no.Article no. PriceSee price list Std. pack Digital / analog Of which usable as digital Relays 10 A (UL) Transistor Analog I/O expansions Can be used through easyLink 1 / 2 2) 2 – 2 1 24 V DC EASY406-DC-ME114295 1 off 1 / 6 3) 2 – 2 2 24 V DC EASY411-DC-ME116567 1 off Notes 1) Not for use in combination with EASY719-DA-…basic unitCannot be used on the EASY200‐EASY coupling module 2) 2 × 0 - 10 V, 2 × 0 - 20 mA, 2 × RTD (2/3-wire connection); any combinationVoltage inputs (0–10 V) can optionally be used as digital inputs 3) 2 x 0 - 10 V, 2 x 0 - 20 mA, 2 x Pt100 (2/3 wire connection); Voltage inputs (0–10 V) can optionally be used as digital inputs Information relevant for export to North America NA Certification Request filed for UL and CSA Degree of Protection IEC: IP20, UL/CSA Type: - Power HPL12015EN
12/16 Control relays Expansion units, accessories 2010 CA08103002Z-EN www.eaton.com 800 800Expansion units, accessories Description Supply voltage Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Bus modules Can be used through easyLink AS-Interface Slave4 inputs, 4 outputs, 4 parameter bitsAddresses available 0 to 31 – EASY205-ASI221598 1 off Product Standards IEC/EN see Technical Data; UL 508; CE marking;CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987 UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - PROFIBUS-DP SlaveAddresses available 1 to 126 24 V DC EASY204-DP212316 CANopen Addresses available 1 to 127 24 V DC EASY221-CO233539 DeviceNet Addresses available 0 to 63 24 V DC EASY222-DN233540 Ethernet gateway Serial interface easyRelay or MFD-...CP8/CP10... to Ethernet, for connecting to easyOPC server, easySoft, or easyCom 24 V DC EASY209-SE101520 1 off Remote text display Display/keypadMonochrome display 132 × 64 pixels with switchable backlightIP65, removable silver front frame With keypad, with Moeller company logotypeNEMA 4x in conjunction with MFD-XM-80 protective diaphragm ￫ 12/29 MFD-80-B265251 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP65, in combination with MFD-XM-80: UL/CSA Type 4X With keypad, without Moeller company logotypeNEMA 4x in conjunction with MFD-XM-80 protective diaphragm ￫ 12/29 MFD-80-B-X284905 1 off Without keypad, with Moeller company logotype MFD-80265250 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP65, UL/CSA Type 4X Without keypad, without Moeller company logotypeNEMA 4x MFD-80-X284904 1 off Power supply unit/communication modules IP20, can be combined with display/operating unit MFD-80... as remote text display Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - With connection cable (5 m, can be cut to length) 24 V DC MFD-CP4-800274095 1 off With connection cable (5 m, can be cut to length) 100 - 240 V AC MFD-AC-CP4-800286824 Without connection cable 24 V DC MFD-CP4280888 Without connection cable 100 - 240 V AC MFD-AC-CP4286822 HPL12016EN
Control relays Accessories 2010 CA08103002Z-EN www.eaton.com 800 12/17 800Accessories 800Accessories Description Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Programming software Menu selection in 13 languagesOperating systems: Windows 2000 SP4, Windows XP SP3, Windows Vista (32 Bit), Windows 7 (32 Bit) EASY-SOFT-PRO266040 1 off UL/CSA certification not required Programming cable Sub-D, 9 pole, serial, 2 m EASY800-PC-CAB256277 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified USB, 2 m EASY800-USB-CAB106408 1 off Modem cable Configurable modem, printer and programming cable, possible transfer rate 56 kbaud, 9 pole Sub-D plug (plug + socket for assembly by user) EASY800-MO-CAB286079 1 off Connecting cables For connecting MFD(-AC)-CP4 with easy800/MFD-..-CP8/CP10...5 m, can be cut to length MFD-CP4-800-CAB5280887 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Memory cards 256-kB module EASY-M-256K256279 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Supply voltage Description For use with Part no.Article no. PriceSee price list Std. pack Input/output simulator 24 V DC With plug-in power supply unit 100 - 240 V AC/24 V DC easy700-DCeasy800-DCEC4P EASY800-DC-SIM256278 1 off Manual User manual, German AWB2528-1423D261371 1 off User manual, English AWB2528-1423GB262671 1 off HPL12017EN
12/18 Control relays Accessories 2010 CA08103002Z-EN www.eaton.com 800 800Accessories 800Accessories Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Network connection cables Length: 0.3 m easyNet EASY-NT-30256283 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Length: 0.8 m easyNet EASY-NT-80256284 Length: 1.5 m easyNet EASY-NT-150256285 Bus termination resistor 8 pole, RJ45, 124 ΩConnection to PIN 1 and PIN 2 easyNet EASY-NT-R256281 2 off Data cable 4 x 0.14 mm², twisted pair, AWG 26Length: 100 m easyNet EASY-NT-CAB256286 1 off UL File No. E135462 UL CCN NRAQ NA Certification UL Listed Degree of Protection IEC: IP 20, UL/CSA Type: - Bus connector plug 8 pole, RJ45 easyNet EASY-NT-RJ45256280 10 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Crimping tool For RJ45 plug EASY-NT-CABEASY-NT-RJ45 EASY-RJ45-TOOL256282 1 off Point-to-point connection cable Serial interface for connecting MFD-…-CP8/CP10... to easy800 or MFD-…-CP8/CP10..., 5 m, can be cut to length MFD-800-CAB5266041 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Switched-mode power supply units Primary-switched mode, stabilized Rated input voltage: 50/60 Hz: 100 - 240 VRated output voltage: 24 V/12 V DCRated output current: 0.35 A/20 mA EASY200-POW229424 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 1.25 A EASY400-POW212319 1 off EASY430-POW110940 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 107.1-01; CE marking UL File No. E300415 UL CCN NMTR, NMTR7 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-87, 3211-07 NA Certification UL Listed, certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 2.5 A EASY500-POW110941 1 off Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 4.2 A EASY600-POW262399 1 off Power Power HPL12018EN
Control relays Accessories 2010 CA08103002Z-EN www.eaton.com 800 12/19 800Accessories MFD-Titan Description Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Ballast To increase the AC input current 6 channels, cable length up to 100 m EASY256-HCI231168 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - PROFIBUS-DP data cable Twisted pair, without plug, 2-core, 2 x 0.64 mm²(only suitable for fixed wiring)100 m ZB4-900-KB1206983 100 m PROFIBUS-DP bus connector plug Pins, 9 poleCable entry, angled 90° ZB4-209-DS2206982 1 off Metallized insulated housingMaximum transfer rate 12 Mbits/sIntegrated plug, accessible from outside, for bus terminating resistorsTerminal block for two cable entries, with straight or 90° angled cable entry, as required ZB4-209-DS3217820 1 off Connection plug Bus connector plug between base unit and expansion unit/bus module EASY-LINK-DS221607 1 off UL/CSA certification not required Fixing bracket For screw fixing to mounting plate 3 fixing brackets per easy400, 500, 600, 700, 800, EC4P, ES4P2 fixing brackets per easy2003 fixing brackets per MFD...-CP8/CP10-… ZB4-101-GF1061360 9 off UL/CSA certification not required Telescopic clip With 35 mm top-hat rail to IEC/EN 60715 for mounting depth compensation when rear mounting in CI-K… enclosures and cabinets.Stepless adjustment via scale from 75 – 115 mm.Screw and snap fastening M22-TA226161 1 off Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Top-hat rail adapter for inspection flap window 12 mm x 66 mm x 82 mmMounting on hinged inspection window, for front fitting of devices.Complete set, consisting of 2 brackets and 4 screws SKF-HA233782 1 off UL/CSA certification not required Inspection window 130 mm x 77 mm x 25 mm (6 space units)For use with EASY700, EASY800, EC4P, ES4P SKF-FF6233781 1 off UL/CSA certification not required HPL12019EN
12/20 Multi-function display 2010 CA08103002Z-EN www.eaton.com MFD-Titan System overview POW BUS MS NS 13 12 13 14 2 1 3 1 4 5 6 11 9 9 7 8, 10 10
2010 CA08103002Z-EN www.eaton.com Multi-function display Display/operating unit, power supply unit/CPU module MFD-Titan 12/21 MFD-TitanDisplay/operating unit, power supply unit/CPU module MFD-Titan The multi-function display MFD-Titan can be used in the following combinations:Power supply unit/CPUPower supply unit/CPU + I/O modulesPower supply unit/CPU + display and operating unitPower supply unit/CPU + display and operating unit + I/O modules￫ Page 12/22 I/O modules 1 24 V DC100 - 240 V AC12 digital inputs4 usable as analog inputs (DC versions)4 relay outputs (max. 10 A,UL) or 4 transistor outputs1 analog output, optional on DC versionsSpring-loaded terminals￫ Page 12/24 I/O modules with temperature measuring 1 24 V DC6 digital inputs2 of which usable as analog inputs2 Pt 100 or 2 Ni1000 RTD inputs4 transistor outputs1 Analog output, optionalSpring-loaded terminals￫ Page 12/24 Power supply unit/CPU module 1 24 V DC100 - 240 V ACBus system easyNet optionally on-board￫ Page 12/22 Display/keypad 1 24 V DCMonochrome display 132 × 64 pixelsWith or without keypadCustom laser labeling possible￫ Page 12/16 Ethernet gateway EASY209-SE 2 24 V DCSerial interface, PSU/CPU module to Ethernet ￫ Page 12/16 Bus modules EASY204-DP 3 PROFIBUS DP connection as slave, 24 V DC￫ Page 12/16 EASY221-CO 5 CANopen connection, 24 V DC￫ Page 12/16 EASY205-ASI 4 AS-Interface connection as slave￫ Page 12/16 EASY222-DN 6 DeviceNet connection, 24 V DC￫ Page 12/16 Output expansion EASY202-RE 7 2 relay outputs (max. 10 A, UL)Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 I/O expansions EASY406-DC-ME 8 24 V DC1 digital input2 analog inputs (2 × 0–10 V, 2 × 0–20 mA, 2 × RTD); any combination Voltage inputs (0–10 V) can optionally be used as digital inputs2 transistor outputs1 analog output (0 - 10 V)Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 EASY411-DC-ME 8 24 V DC1 digital input6 analog inputs (2 x 0 - 10 V, 2 x 0 - 20 mA, 2 x Pt100); Voltage inputs (0–10 V) can optionally be used as digital inputs2 transistor outputs/ 2 Analog outputs (0 - 10 V)Bolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 EASY6... 9 24 V DC12 digital inputs6 relay outputs (max. 10 A,UL) or 8 transistor outputsBolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 EASY410... 10 24 V DC6 digital inputs4 relay outputs (max. 10 A,UL) or 4 transistor outputsBolt-on and top-hat rail mountingScrew terminals￫ Page 12/15 Coupling module EASY200-EASY 11 For remote connection of a digital I/O expansion through two-pole connection cable (max. 30 m); e.g. NYM 3 × 1.5 mm²￫ Page 12/15 Compact PLC Control EC4P 12 ￫ Page 14/64 Safety control relays Safety ES4P 13 ￫ Page 13/5 Control relays 800 EASY8… 14 ￫ Page 12/14
12/22 Multi-function display Display/operating units, CPU, communication modules 2010 CA08103002Z-EN www.eaton.com MFD-Titan Ordering MFD-TitanDisplay/operating units, CPU, communication modules Supply voltage Description Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Display/keypad Monochrome display 132 × 64 pixels with switchable backlightIP65, removable silver front frame With keypad, with Moeller company logotypeNEMA 4x in conjunction with MFD-XM-80 protective diaphragm ￫ 12/29 MFD-80-B265251 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP65, in combination with MFD-XM-80: UL/CSA Type 4X With keypad, without Moeller company logotypeNEMA 4x in conjunction with MFD-XM-80 protective diaphragm ￫ 12/29 MFD-80-B-X284905 1 off Without keypad, with Moeller company logotype NEMA 4x MFD-80265250 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP65, UL/CSA Type 4X Without keypad, without Moeller company logotypeNEMA 4x MFD-80-X284904 1 off Power supply unit/CPU module Can be combined with display and control unit MFD-80-.. and I/O module; expandable: Digital and analog inputs/outputs and bus systems AS-Interface, CANopen, PROFIBUS-DP, DeviceNet; bus system easyNet optional on-board IP20 Spring-loaded terminals Supply voltage100 - 240 V AC Program and screen memory,with easyNet MFD-AC-CP8-NT274092 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 100 - 240 V AC Program and screen memory,without easyNet MFD-AC-CP8-ME274091 24 V DC Program and screen memory,without easyNet MFD-CP8-ME267164 24 V DC Program and screen memory,with easyNet MFD-CP8-NT265253 24 V DC Dual program and screen memory as MFD-...-CP8...,without easyNet MFD-CP10-ME 1) 133801 1 off 24 V DC Dual program and screen memory as MFD-...-CP8...,with easyNet MFD-CP10-NT 1) 133800 1 off 1) Note 1) For availability please inquire HPL12022EN
Multi-function display Communication modules 2010 CA08103002Z-EN www.eaton.com MFD-Titan 12/23 MFD-TitanCommunication modules Supply voltage Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Power supply unit/communication modules IP20, can be combined with display/operating unit MFD-80... as remote text display 24 V DC With connection cable (5 m, can be cut to length) easy500easy700 MFD-CP4-500274094 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 24 V DC With connection cable (5 m, can be cut to length) easy800EC4PES4P MFD-CP4-800274095 100 - 240 V AC With connection cable (5 m, can be cut to length) easy500easy700 MFD-AC-CP4-500286823 100 - 240 V AC With connection cable (5 m, can be cut to length) easy800EC4PES4P MFD-AC-CP4-800286824 24 V DC Without connection cable MFD-CP4280888 100 - 240 V AC Without connection cable MFD-AC-CP4286822 Customized inscription, user program • Customized inscription of multi-function display with labeling software Labeleditor or • Supply of multi-function display programmed with user program MFD-80-...MFD-CP8...MFD-CP10... MFD-COMBINATION- 265260 1 off UL/CSA certification not required Notes Procedure and ordering example for Labeleditor inscription softwareIndividually inscribe your device in 4 stages: – Download the inscription software: www.moeller.net/support, keyword: “Labeleditor”– Creation of label template (menu-guided in the software)– Send the label template to the factory by email. The email address is automatically set for the selected product by the program. When your template is sent, the Labeleditor issues a file name such as “EASY_12345.zip”. This file name is part of the article to be ordered (see Ordering examples). – Send order to the Eaton office or the electrical wholesalers. Ordering example: MFD-TitanMFD-80-B multi-function display with “company name”:1 x MFD-COMBINATION- 1 x MFD-80-B1 x the file name “MFD_xxxxx.zip” issued by the Labeleditor Accessories Page 1 Ethernet gateway ￫ Page 12/16 2 Connection cable ￫ Page 12/27 3 Programming software ￫ Page 12/9 4 PC programming cable ￫ Page 12/9 5 Inputs/outputs expansion ￫ Page 12/15 6 output expansion, bus module, coupling module ￫ Page 12/16 7 Display/keypad ￫ Page 12/16 8 Power supply unit/CPU module ￫ Page 12/23 9 I/O module ￫ Page 12/17 10 Memory card ￫ Page 12/9 11 easyNet ￫ Page 12/18 12 Switched-mode power supply unit ￫ Page 12/10 easy 800 MFD Titan easyNet Power 1 2 3 12 9 8 10 9 8 7 2, 4 5 5 11 10 6 4 4 HPL12023EN
12/24 Multi-function display I/O modules 2010 CA08103002Z-EN www.eaton.com MFD-Titan MFD-TitanI/O modules Power supply For use with Inputs Outputs Temperature range Part no.Article no. PriceSee price list Std. pack Digital Of which can be used as analog Pt100 Relays 10 A (UL) Transistor Analog I/O modules IP20, spring-loaded terminals 24 V DC MFD-CP8... MFD-CP10... 12 4 – 4 – – – MFD-R16265254 1 off 24 V DC MFD-CP8... MFD-CP10... 12 4 – – 4 – – MFD-T16265255 1 off 24 V DC MFD-CP8... MFD-CP10... 12 4 – 4 – 1 – MFD-RA17265364 1 off 24 V DC MFD-CP8... MFD-CP10... 12 4 – – 4 1 – MFD-TA17265256 1 off 100 - 240 V DC MFD-AC-CP8... 12 – – 4 – – – MFD-AC-R16274093 1 off I/O module with temperature measuring IP20, spring-loaded terminalsTemperature range configurable 24 V DC MFD-CP8... as of device version 08, MFD-CP10... 6 2 2 – 4 – -40…+90 °C0…+250 °C0…+400 °C MFD-TP12-PT-A106042 1 off 6 2 2 – 4 – -200…+200 °C0…+850 °C MFD-TP12-PT-B106043 1 off 6 2 – – 4 – -40…+90 °C0…+250 °C MFD-TP12-NI-A106044 1 off 6 2 2 – 4 1 -40…+90 °C0…+250 °C0…+400 °C MFD-TAP13-PT-A106045 1 off 6 2 2 – 4 1 -200…+200 °C0…+850 °C MFD-TAP13-PT-B106046 1 off 6 2 – – 4 1 -40…+90 °C0…+250 °C MFD-TAP13-NI-A106047 1 off Information relevant for export to North America Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - HPL12024EN
Multi-function display Expansion devices 2010 CA08103002Z-EN www.eaton.com MFD-Titan 12/25 MFD-TitanExpansion devices Inputs Outputs Supply voltage Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Digital Relay 10 A (UL) Transistor I/O expansions Can be used through easyLink 12 6 – 100 - 240 V AC EASY618-AC-RE212314 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 12 – 8 24 V DC EASY620-DC-TE212313 12 6 – 24 V DC EASY618-DC-RE232112 Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - – 2 – 24 V DC EASY202-RE1)232186 6 4 – 24 V DC EASY410-DC-RE114293 NA Certification Request filed for UL and CSA Degree of Protection IEC: IP20, UL/CSA Type: - 6 – 4 24 V DC EASY410-DC-TE114294 Coupling module Can be used through easyLink For remote connection of a digital I/O expansion up to 30 m. EASY200-EASY212315 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Inputs Outputs Supply voltage Part no.Article no. PriceSee price list Std. pack Digital / Analog Of which usable as digital Relay 10 A (UL) Transistor Analog I/O expansions Can be used through easyLink 1 / 2 2) 2 – 2 1 24 V DC EASY406-DC-ME114295 1 off 1 / 6 3) 2 – 2 2 24 V DC EASY411-DC-ME116567 1 off Notes 1) Not for use in combination with basic unit EASY719-DA-...Cannot be used on the EASY200‐EASY coupling module 2) 2 × 0 - 10 V, 2 × 0 - 20 mA, 2 × RTD (2/3-wire connection); any combinationVoltage inputs (0–10 V) can optionally be used as digital inputs 3) 2 x 0 - 10 V, 2 x 0 - 20 mA, 2 x Pt100 (2/3 wire connection); Voltage inputs (0 –10 V) can optionally be used as digital inputs Information relevant for export to North America NA Certification Request filed for UL and CSA Degree of Protection IEC: IP20, UL/CSA Type: - Power HPL12025EN
12/26 Multi-function display Expansion devices 2010 CA08103002Z-EN www.eaton.com MFD-Titan MFD-TitanExpansion devices MFD-TitanAccessoriesMFD-TitanAccessories Description Supply voltage Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Bus modules Can be used through easyLink AS-Interface Slave4 inputs, 4 outputs, 4 parameter bitsAddresses available 0 to 31 – EASY205-ASI221598 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ, NRAQ7 CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of ProtectionIEC: IP20, UL/CSA Type: - PROFIBUS-DP SlaveAddresses available 1 to 126 24 V DC EASY204-DP212316 CANopen Addresses available 1 to 127 24 V DC EASY221-CO233539 DeviceNet Addresses available 0 to 63 24 V DC EASY222-DN233540 Ethernet gateway Serial interface easyRelay or MFD-...CP8/CP10... to Ethernet,for connection to easyOPC server, easySoft, or easyCom 24 V DC EASY209-SE101520 1 off Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Programming software Menu selection in 13 languagesOperating systems: Windows 2000 SP4, Windows XP SP3, Windows Vista (32-bit), Windows 7 (32-bit) EASY-SOFT-PRO266040 1 off Programming cable SUB-D, 9 pole, serial, 2 m EASY800-PC-CAB256277 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified USB, 2 m EASY800-USB-CAB106408 1 off Modem cable Configurable modem, printer and programming cable, possible transfer rate 56 kbaud, 9 pole Sub-D plug (plug + socket for self connection) EASY800-MO-CAB286079 1 off Connecting cables HPL12026EN
Multi-function display Accessories 2010 CA08103002Z-EN www.eaton.com MFD-Titan 12/27 MFD-TitanAccessories For connecting the MFD(-AC)-CP4 or EASY209-SE with easy500/easy700,5 m, can be cut to length MFD-CP4-500-CAB5280886 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - For connecting the MFD(-AC)-CP4 or EASY209-SE with easy800/MFD-..-CP8/CP10...,5 m, can be cut to length MFD-CP4-800-CAB5280887 1 off Memory cards 256-kB module MFD-…-CP8 EASY-M-256K256279 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - 512-kB module MFD-CP10... EASY-M-512K 1) 134969 1 off Manuals German MFD-Titan AWB2528-1480D267187 1 off English MFD-Titan AWB2528-1480GB267188 1 off Network connection cables Length: 0.3 m easyNet EASY-NT-30256283 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Length: 0.8 m easyNet EASY-NT-80256284 1 off Length: 1.5 m easyNet EASY-NT-150256285 1 off Bus termination resistor 8 pole, RJ45, 124 ΩConnection to PIN 1 and PIN 2 easyNet EASY-NT-R256281 2 off Data cable 4 x 0.14 mm², twisted pair, AWG 26Length: 100 m easyNet EASY-NT-CAB256286 1 off UL File No. E135462 UL CCN NRAQ NA Certification UL Listed Degree of Protection IEC: IP 20, UL/CSA Type: - Note 1) For availability please inquire Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Bus connector plug 8 pole, RJ45 easyNet EASY-NT-RJ45256280 10 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Crimping tool – For RJ45 plug EASY-NT-CABEASY-NT-RJ45 EASY-RJ45-TOOL256282 1 off Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America HPL12027EN
12/28 Multi-function display Accessories 2010 CA08103002Z-EN www.eaton.com MFD-Titan Point-to-point connection cable Serial interface for connecting MFD-…-CP8/CP10... to easy800 or MFD-…-CP8/CP10..., 5 m, can be cut to length easy800MFD-…-CP8 MFD-800-CAB5266041 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Description Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Switched-mode power supply units Primary-switched mode, stabilized Rated input voltage: 50/60 Hz: 100 - 240 VRated output voltage: 24 V/12 V DCRated output current: 0.35 A/20 mA EASY200-POW229424 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 1.25 A EASY400-POW212319 1 off EASY430-POW110940 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 107.1-01; CE marking UL File No. E300415 UL CCN NMTR, NMTR7 CSA File No. UL report applies to both US and Canada CSA Class No. 3211-87, 3211-07 NA Certification UL Listed, certified by UL for use in Canada Degree of Protection IEC: IP20, UL/CSA Type: - Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 2.5 A EASY500-POW110941 1 off Rated input voltage: 50/60 Hz: 100 - 240 V ACRated output voltage (residual ripple): 24 V DC (± 3 %)Rated output current: 4.2 A EASY600-POW262399 1 off Ballast To increase the AC input current 6 channels, cable length up to 100 m EASY256-HCI231168 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 NA Certification UL Listed, CSA certified Degree of Protection IEC: IP20, UL/CSA Type: - Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Power Power HPL12028EN
Multi-function display Accessories 2010 CA08103002Z-EN www.eaton.com MFD-Titan 12/29 MFD-TitanAccessories Description For use with Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America PROFIBUS-DP data cable Twisted pair, without plug, 2-core, 2 x 0.64 mm²(only suitable for fixed wiring)100 m ZB4-900-KB1206983 100 m PROFIBUS-DP bus connector plug Pins, 9 poleCable entry, angled 90° ZB4-209-DS2206982 1 off Metallised insulated housingMaximum transfer rate 12 MBit/sIntegrated switch (accessible from the outside) for the bus terminating resistorsTerminal block for two cable entries, with straight or 90° angled cable entry, as required ZB4-209-DS3217820 1 off Connection plug Bus connector plug between base unit and expansion unit/bus module EASY-LINK-DS221607 1 off UL/CSA certification not required Fixing bracket For screw fixing to mounting plate 3 fixing brackets per easy400, 500, 600, 700, 800, EC4P, ES4P2 fixing brackets per easy2003 fixing brackets per MFD...-CP8/CP10… ZB4-101-GF1061360 9 off UL/CSA certification not required Telescopic clip With 35mm top-hat rail to IEC/EN 60715 for mounting depth compensation when rear mounting in CI-K… enclosures and cabinets.Stepless adjustment via scale from 75 – 115 mm.Screw and snap fastening M22-TA226161 1 off Product Standards IEC/EN 60947-5; UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94-91; CE marking UL File No. E29184 UL CCN NKCR CSA File No. 012528 CSA Class No. 3211-03 NA Certification UL Listed, CSA certified Mounting rail to IEC/EN 60715 Mounting rail with cutout specifically for MFD...-CP8/CP10… for fixing easy expansion units (2 space units)Length: 142.5 mm easy200 MFD-TS-144274090 1 off UL/CSA certification not required Protective cover TransparentProtection against accidental actuationsealableApplication without front frames MFD-80… MFD-XS-80265259 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Protective diaphragm Transparent version for harsh environmental conditions and application in the food industryFor increasing the degree of protection to NEMA 4X for MFD-80-B MFD-80… MFD-XM-80265258 1 off Product Standards IEC/EN see Technical Data; UL 508; CSA C22.2 No. 142-M1987; CSA C22.2 No. 213-M1987; CE marking UL File No. E135462 UL CCN NRAQ CSA File No. 012528 CSA Class No. 2252-01 + 2258-02 NA Certification UL Listed, CSA certified Degree of ProtectionIEC: IP65, UL/CSA Type 4X HPL12029EN
12/30 Control relays Basic devices, expansion devices 2010 CA08103002Z-EN www.eaton.com ... ...Basic devices, expansion devices EASY200-EASY EASY202-RE EASY4…-DC-…E EASY6... EASY8..-… EASY512-… EASY7… General Standards EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27 Dimensions (W x H x D) mm 35.5 x 90 x 58 (2 space units) 71.5 x 90 x 58 (4 space units) 107.5 x 90 x 58 (6 space units) 107.5 x 90 x 72 (6 space units) Weight kg 0.07 0.2 0.3 0.3 Mounting Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories). Terminal capacity Solid mm 2 0.2 - 4 (AWG 22 - 12) Flexible with ferrule mm 2 0.2 - 2.5 (AWG 22 - 12) Flat-blade screwdriver mm 3.5 x 0.8 Max. tightening torque Nm 0.6 Ambient climatic conditions Operating ambient temperature °C -25…55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 Condensation Prevent condensation by means of suitable measures LCD display (clearly legible) °C 0 - 55 0 - 55 0 - 55 0 - 55 Storage °C -40 - 70 -40 - 70 -40 - 70 -40 - 70 Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 795 - 1080 795 - 1080 Ambient mechanical conditions Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 IP20 IP20 Vibrations (IEC/EN 60068-2-6) Constant amplitude 0.15 mm Hz 10 - 57 10 - 57 10 - 57 10 - 57 Constant acceleration, 2 g Hz 57 - 150 57 - 150 57 - 150 57 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Shocks 18 18 18 18 Drop to IEC/EN 60068-2-31 Drop height mm 50 50 50 50 Free fall, packaged (IEC/EN 60068-2-32) m 1 1 1 1 Mounting position Vertical or horizontal Electromagnetic compatibility (EMC) Overvoltage category/pollution degree II/2 II/2 II/2 II/2 Electrostatic discharge (ESD), to IEC EN 61000-4-2 Air discharge kV 8 8 8 8 Contact discharge kV 6 6 6 6 Electromagnetic fields (RFI), to IEC EN 61000-4-2 V/m 10 10 10 10 Radio interference suppression EN 55011 Class B, EN 55022 Class B Burst to IEC/EN 61000-4-4 Supply cables kV 2 2 2 2 Signal cables kV 2 2 2 2 Power pulses (surge), to IEC/EN 61000-4-5 kV 2 (supply cables, symmetrical, EASY…AC) Power pulses (surge), to IEC/EN 61000-4-5 kV 0.5 (supply cables, symmetrical, EASY…DC) Radiated RFI, to IEC/EN 61000-4-6 V 10 10 10 10 Insulation resistance Clearance in air and creepage distances EN 50178, UL 508, CSA C22.2, No. 142 Insulation resistance EN 50178 EN 50178 EN 50178 EN 50178 Back-up/accuracy of the real-time clock Back-up time – – 1) – 1) 1) Accuracy of the real-time clock at 55 °C s/day – – Normally ± 5 (± 0.5 h⁄Year) – Normally ± 5 (± 0.5 h⁄Year) Normally ± 5 (± 0.5 h⁄Year) Repetition accuracy of timing relays Accuracy of timing relay (of value) % – – ± 1 ± 0.02 ± 0.02 Resolu-tion Range “S” ms – – 10 10 5 Range “M:S” s – – 1 1 1 Range “H:M” min – – 1 1 Retentive memory Write cycles of the retentive memory (minimum) – – 1000000 (106) 1000000 (106) 10000000 (10 10 ) (read/write cycles) Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D 1) ① Back-up time (hours) ② Service life (years) a b 180 200 160 140 120100 80 60 40 20 0 0 2 4 6 8 10 20 12 14 1 3 5 7 9 11 13 55°C 25°C 15 17 19 16 18 Technical data
Control relays Basic devices 2010 CA08103002Z-EN www.eaton.com ...DA... 12/31 ...DA...Basic devices EASY512-DA-… EASY719-DA-… Power supply Rated operational voltage U e V 12 DC (-15/+30%) 12 DC (-15/+30%) Permissible range V DC 10.2…15.6 10.2…15.6 Ripple % ≦ 5 ≦ 5 Input current At rated voltage mA Normally 140 Normally 200 Voltage dips (IEC/EN 61131-2) ms 10 10 Heat dissipation W Normally 2 Normally 3.5 Digital inputs 12 V DC Number 8 12 Inputs can be used as analog inputs 2 (I7, I8) 4 (I7, I8, I11, I12) Status display LCD display (if provided) LCD display (if provided) Potential isolation From power supply No No Between digital inputs No No From the outputs Yes Yes Rated operating voltage U e V DC 12 12 On signal ”0” U e V DC 4 (I1 - I8) 4 (I1 - I12) On signal ”1” U e V DC 8 (I1 - I8) 8 (I1 - I12) Input current on signal "1" I1 to I6 mA 3.3 (at 12 V DC) 3.3 (at 12 V DC) I7, I8, I11, I12 mA 1.1 (at 12 V DC) 1.1 (At 12 V DC) I9 to I10 mA – 3.3 (at 12 V DC) Delay time from 0 to 1 Debounce ON ms 20 20 Debounce OFF ms Normally 0.3 (I1 - I6), 0.35 (I7, I8) Normally 0.3 (I1 - I6, I9, I10), 0.35 (I7, I8, I11, I12) Delay time from 1 to 0 Debounce ON ms 20 20 Debounce OFF ms Normally 0.3 (I1 - I6), 0.15 (I7, I8) Normally 0.4 (I1 - I6, I9, I10), 0.35 (I7, I8, I11, I12) Cable length (unshielded) m 100 100 Frequency counters 2 (I3, I4) 2 (I3, I4) High-speed counter inputs 2 (I1, I2) 2 (I1, I2) Maximum counter frequency kHz 1 1 Pulse shape Square Square Cable length shielded m 30 30 Analog inputs Number 2 (I7, I8) 4 (I7, I8, I11, I12) Potential isolation From power supply No No From the digital inputs No No From the outputs Yes Yes Between the inputs No No Input type DC voltage DC voltage Signal range V DC 0 - 10 0 - 10 Resolution, analog V 0.01 0.01 Resolution, digital V 0.01 0.01 Resolution Bit 10 (value 1 - 1023) 10 (value 0 - 1023) Input impedance kΩ 11.2 11.2 Accuracy of actual value Two EASY devices % ± 3 ± 3 Within a single device % ± 2, (I7, I8, I11, I12) ± 0.12 V ± 2, (I7, I8, I11, I12) ± 0.12 V Conversion time analog/digital ms Input delay ON: 20; Input delay OFF: each cycle time Input delay ON: 20; Input delay OFF: each cycle time Input current mA 1 1 Cable length shielded m 30 30 Relay outputs ￫ See technical data, relay outputs Notes For additional Technical Data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D
12/32 Control relays Basic devices 2010 CA08103002Z-EN www.eaton.com ...AB... ...AB...Basic devices EASY512-AB-… EASY719-AB-… Power supply Rated operational voltage U e V 24 AC 24 AC Permissible range V AC 20.4…26.4 20.4…26.4 Frequency Hz 50/60 (± 5%) 50/60 (± 5%) Input current At 24 V AC 50/60 Hz mA Normally 200 Normally 300 Voltage dips (IEC/EN 61131-2) ms 20 20 Heat dissipation At 24 V AC VA Normally 5 Normally 7 Digital inputs 24 V DC Number 8 12 Inputs can be used as analog inputs 2 (I7, I8) 4 (I7, I8, I11, I12) Status display LCD display (if provided) LCD display (if provided) Potential isolation From power supply No No Between digital inputs No No From the outputs Yes Yes Rated operational voltage U e V 24 AC 24 AC Rated voltage L (sinusoidal) On signal ”0” V AC 0 - 6 0 - 6 On signal ”1” U e V (I7, I8) 7 AC, 9.5 DC (I1 - I6) 14 - 26.4 AC (I7, I8, I11, I12) 7 AC, 9.5 DC (I1 - I6, I9, I10) 14 - 26.4 AC Rated frequency Hz 50 - 60 50 - 60 Input current on signal "1" I1 to I6 mA 4 (at 24 V AC, 50 Hz) 4 (at 24 V AC, 50 Hz) I7, I8 mA 2 (at 24 V AC, 50 Hz) 2 (at 24 V DC) 2 (at 24 V AC, 50 Hz) 2 (at 24 V DC) I9, I10 mA – 4 (At 24 V AC, 50 Hz) I11, I12 mA – 2 (at 24 V AC, 50 Hz) 2 (at 24 V DC) Delay time (0 - 1/1 - 0) I1 - I12 Debounce ON, 50/60 Hz ms 80⁄66⅔ 80⁄66⅔ Debounce OFF, 50/60 Hz ms 20⁄16⅔ 20⁄16⅔ Max. admissible cable length (per input) Maximum remote installation distance m 40 40 I9, I10 m – Normally 40 Analog inputs Number 2 (I7, I8) 4 (I7, I8, I11, I12) Potential isolation From power supply No No From the digital inputs No No From the outputs Yes Yes Between the inputs No No Input type DC voltage DC voltage Signal range V DC 0 - 10 0 - 10 Resolution, analog V 0.01 0.01 Resolution, digital V 0.01 0.01 Resolution Bit 10 (value 1 - 1023) 10 (value 0 - 1023) Input impedance kΩ 11.2 11.2 Accuracy of actual value Two EASY devices % ± 3 ± 3 Within a single device % ± 2, (I7, I8) ± 0.12 V ± 2, (I7, I8, I11, I12) ± 0.12 V Conversion time analog/digital ms Input delay ON: 20; Input delay OFF: each cycle time Input delay ON: 20; Input delay OFF: each cycle time Input current mA 1 1 Cable length shielded m 30 30 Relay outputs ￫ See technical data, relay outputs Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D
Control relays, multi-function display Basic devices, expansion devices 2010 CA08103002Z-EN www.eaton.com ...DC... 12/33 ...DC...Basic devices, expansion devices EASY410-DC-REEASY410-DC-TE EASY512-DC-… EASY6..-DC-.E EASY7..-DC-… EASY7..-DC-… EASY8..-DC-… Power supply Rated operational voltage U e V 24 DC (-15/+20%) Permissible range V DC 20.4…28.8 20.4…28.8 20.4…28.8 20.4…28.8 20.4…28.8 20.4…28.8 Ripple % ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 Input current At rated voltage mA Normally 140 Normally 80 Normally 140 Normally 140 Normally 140 Normally 140 Voltage dips (IEC/EN 61131-2) ms 10 10 10 10 10 10 Heat dissipation W Normally 3.5 Normally 2 Normally 3.4 Normally 3.5 Normally 3.5 Normally 3.4 Digital inputs 24 V DC Number 6 8 12 12 12 12 Inputs can be used as analog inputs - 2 (I7, I8) – 4 (I7, I8, I11, I12) 4 (I7, I8, I11, I12) 4 (I7, I8, I11, I12) Status display LCD display (if provided) Potential isolation From power supply No No No No No No Between digital inputs No No No No No No From the outputs Yes Yes Yes Yes Yes Yes From PC interface, memory card, easyNet, easyLink – – – – – Yes Rated operating voltage U e V DC 24 24 24 24 24 24 On signal ”0” U e V DC 5 (R1 - R6) 5 (I1 - I8) 5 (I1 - I12, R1 - R12) 5 (I1 - I12, R1 - R12) 5 (I1 - I12, R1 - R12) 5 (I1 - I6, I9, I10) 8 (I7, I8, I11, I12) On signal ”1” U e V DC 15.0 (R1 - R6) 15 (I1 - I6), 8 (I7, I8) – 15.0 (I1 - I6, I9, I10), 8.0 (I7, I8, I11, I12) 15.0 (I1 - I6, I9, I10), 8.0 (I7, I8, I11, I12) 15.0 (I1 - I6, I9, I10), 8.0 (I7, I8, I11, I12) Input current on signal "1" R1 - R6 (R12) mA 3.3 (at 24 V DC) – 3.3 (at 24 V DC) – – – I1 to I6 mA – 3.3 (at 24 V DC) – 3.3 (at 24 V DC) 3.3 (at 24 V DC) 3.3 (at 24 V DC) I7, I8 mA – 2.2 (at 24 V DC) – 2.2 (at 24 V DC) 2.2 (at 24 V DC) 2.2 (at 24 V DC) I9, I10 mA – – – 3.3 (at 24 V DC) 3.3 (at 24 V DC) 3.3 (at 24 V DC) I11, I12 mA – – – 2.2 (at 24 V DC) 2.2 (at 24 V DC) 2.2 (at 24 V DC) Delay time from 0 to 1 Debounce ON ms 20 20 20 20 20 20 Debounce OFF ms Normally 0.25 (R1 - R6) Normally 0.25 (I1 - I8) Normally 0.25(R1 - R12) Normally 0.25 (I1 - I12) Normally 0.25 (I1 - I12) Normally 0.1 (I1 - I4), normally 0.25 (I5 - I12) Delay time from 1 to 0 Debounce ON ms 20 20 20 20 20 20 Debounce OFF ms – – – – – Normally 0.1 (I1 - I4), normally 0.4 (I5, I6, I9, I12), normally 0.2 (I7, I8, I11, I12) Cable length (unshielded) m 100 100 100 100 100 100 Frequency counters Number – 2 (I3, I4) – 2 (I3, I4) 2 (I3, I4) 4 (I1, I2, I3, I4) Counter frequency kHz – 1 – 1 1 5 Pulse shape – Square – Square Square Square Incremental counters Number – – – – – 2 (I1 + I2, I3 + I4) Counter frequency kHz – ≦ 1 – ≦ 1 ≦ 1 ≦ 3 Pulse shape – – – – – Square Counter inputs I1 and I2, I3 and I4 – – – – – 2 Signal offset – – – – – 90° Mark-to-space ratio – – – – – 1:1 High-speed counter inputs Number – 2 (I1, I2) – 2 (I1, I2) 2 (I1, I2) 4 (I1, I2, I3, I4) Cable length, shielded m – 20 – 20 20 20 Counter frequency kHz – 1 – 1 1 5 Pulse shape – Square – Square Square Square Cable length (unshielded) m – 100 100 100 100 100 Relay outputs ￫ See technical data, relay outputs Transistor outputs ￫ See technical data, transistor outputs Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D
12/34 Control relays, multi-function display Basic devices, expansion devices 2010 CA08103002Z-EN www.eaton.com ...DC... ...DC...Basic devices, expansion devices EASY406…-DC-ME EASY411-DC-ME EASY512-DC-… EASY7..-DC-… EASY8..-DC-… Analog inputs Number 2 6 2 (I7, I8) 4 (I7, I8, I11, I12) 4 (I7, I8, I11, I12) Potential isolation From power supply No No No No No From the digital inputs No No No No No From the outputs No No Yes Yes Yes From PC interface, memory card, easyNet, easyLink Yes Yes No No Yes Input type DC voltage DC voltage DC voltage DC voltage DC voltage Signal range V DC 0 - 10 0 - 10 0 - 10 0 - 10 0 - 10 Resolution, analog V – – 0.01 0.01 0.01 Resolution, digital V – – 0.01 0.01 0.01 Resolution Bit 10 (value 0 - 1023) Input impedance kΩ 11.2 11.2 11.2 11.2 11.2 Accuracy of actual value Two EASY devices % ± 3 ± 3 ± 3 ± 3 ± 3 Within a single device % ± 3 % ± 3 % ± 2, (I7, I8, I11, I12) ± 0.12 V ± 2, (I7, I8, I11, I12) ± 0.12 V ± 2, (I7, I8, I11, I12) ± 0.12 V Conversion time analog/digital ms 800 800 Input delay ON: 20; input delay OFF: every cycle time Each CPU cycle Input current mA 1 1 1 1 1 Cable length shielded m 10 10 30 30 30 Analog outputs Number 1 2 – – 1 Potential isolation From power supply No No No No No From the digital inputs No No No No No From the digital outputs No No No No Yes easyLink Yes Yes No No Yes Output type DC voltage DC voltage – – DC voltage Signal range Signal range min. voltage V 0 0 – – 0 Signal range max. voltage V 10 10 – – 10 Max. output current A 0.01 0.01 – – 0.01 Load resistance 1 kΩ 1 kΩ – – 1 kΩ Overload and short-circuit protection Yes Yes – – Yes Resolution, analog V DC 0.01 0.01 – – 0.01 Resolution, digital Bit 10 (value 0 - 1023) 10 (value 0 - 1023) – – 10, (value: 0 – 1023) Recovery time μs – – – – 100 Accuracy -25 °C - 55 °C % 2 2 – – 2 25C % 1 1 – – 1 Conversion time analog/digital ms 200 200 Input delay ON: 20; input delay OFF: every cycle time Each CPU cycle Network easyNet Stations Number – – – – Max. 8 Data transfer rate/distance – – – – 1000 Kbit/s, 6 m500 Kbit/s, 25 m250 Kbit/s, 60 m125 Kbit/s, 125 m50 Kbit/s, 300 m20 Kbit/s, 700 m10 Kbit/s, 1000 m Potential isolation Of the 2 additional inputs – – – – Yes Potential isolation – – – – Yes Electrical isolation between inputs and internal power supply – – – – Yes Potential isolation – – – – Yes Bus termination (first and last station) – – – – Yes Terminal type – – – – RJ45, 8 pole Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D
Control relays, multi-function display Basic devices, expansion devices 2010 CA08103002Z-EN www.eaton.com ...AC... 12/35 ...AC...Basic devices, expansion devices EASY512-AC-R.. EASY618-AC-RE EASY719-AC-RC. EASY819-AC-RC. Power supply Rated operational voltage U e V 100/110/115/120/230/240 AC (+10/-15 %) Permissible range V AC 85…264 85…264 85…264 85…264 Frequency Hz 50/60 (± 5%) 50/60 (± 5%) 50/60 (± 5%) 50/60 (± 5%) Input current At 115/120 V AC 60 Hz mA Normally 40 Normally 70 Normally 70 Normally 70 At 230/240 V AC 50 Hz mA Normally 20 Normally 35 Normally 35 Normally 35 Voltage dips (IEC/EN 61131-2) ms 20 20 20 20 Heat dissipation At 115/120 V AC VA Normally 5 Normally 10 Normally 10 Normally 10 At 115/230 V AC VA Normally 5 Normally 10 Normally 10 Normally 10 Digital inputs 115/230 V AC Number 8 12 12 12 Status display LCD display (if provided) Potential isolation From power supply No No No No Between digital inputs No No No No From the outputs Yes Yes Yes Yes Potential isolation – – – Yes Rated voltage L (sinusoidal) On signal ”0” V AC 0 - 40 0 - 40 0 - 40 0 - 40 On signal ”1” V AC 79 - 264 79 - 264 79 - 264 79 - 264 Rated frequency Hz 50 - 60 50 - 60 50 - 60 50 - 60 Input current on signal "1" R1 to R12 mA 12 x 0.25 (at 115 V AC, 60 Hz)12 x 0.5 (at 230 V AC, 50 Hz) I1 to I6 mA 6 x 0.25 (at 115 V AC, 60 Hz)6 x 0.5 (at 230 V AC, 50 Hz) 6 x 0.25 (at 115 V AC, 60 Hz)6 x 0.5 (at 230 V AC, 50 Hz) 6 x 0.25 (at 115 V AC, 60 Hz)6 x 0.5 (at 230 V AC, 50 Hz) I7, I8 mA 2 x 4 (at 115 V AC, 60 Hz)2 x 6 (at 230 V AC, 50 Hz) 2 x 4 (at 115 V AC, 60 Hz)2 x 6 (at 230 V AC, 50 Hz) 2 x 4 (at 115 V AC, 60 Hz)2 x 6 (at 230 V AC, 50 Hz) I9 to I12 mA 4 x 0.25 (at 115 V AC, 60 Hz)4 x 0.5 (at 230 V AC, 50 Hz) 4 x 0.25 (at 115 V AC, 60 Hz)4 x 0.5 (at 230 V AC, 50 Hz) Delay time Delay time (0 - 1/1 - 0) I1 - I6, I9 - I12, R1 - R12 Debounce ON, 50/60 Hz ms 80⁄66⅔ 80⁄66⅔ 80⁄66⅔ 80⁄66⅔ Debounce OFF, 50/60 Hz ms 20⁄16⅔ 20⁄16⅔ 20⁄16⅔ 20⁄16⅔ Delay time I7, I8 (1 - 0) Debounce ON, 50/60 Hz ms 160⁄150 80⁄66⅔ 80⁄66⅔ 120⁄100 Debounce OFF, 50/60 Hz ms 100⁄100 20⁄16⅔ 20⁄16⅔ 40⁄33⅔ Delay time I7, I8 (0 - 1) Debounce ON, 50/60 Hz ms 80⁄66⅔ 80⁄66⅔ 80⁄66⅔ 80⁄66⅔ Debounce OFF, 50/60 Hz ms 20⁄16⅔ 20⁄16⅔ 20⁄16⅔ 20⁄16⅔ Max. admissible cable length (per input) R1 to R12 m – Normally 40 – – I1 to I6 m Normally 40 Normally 40 Normally 40 Normally 60 I7, I8 m Normally 100 Normally 100 Normally 100 Normally 100 I9 to I12 m – Normally 40 Normally 40 Normally 60 Relay outputs ￫ See technical data, relay outputs Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D
12/36 Control relays, multi-function display Display/operating units, CPU, communication modules 2010 CA08103002Z-EN www.eaton.com MFD-80, MFD-(AC)-CP... MFD-80, MFD-(AC)-CP...Display/operating units, CPU, communication modules MFD-80.. MFD-CP4… MFD-AC-CP4.. MFD-CP10.. MFD-AC-CP8.. MFD-CP8.. General Standards EN 61000-6-1/-2/-3/-4, IEC 60068-2-6, IEC 60068-2-27 Dimensions (W x H x D) mm 86.5 x 86.5 x 21.5 (with buttons) 86.5 x 86.5 x 20 (without buttons) 75 x 58 x 36.2 107.5 x 90 x 30 107.5 x 90 x 30 Weight kg 0.13 0.16 0.14 0.14 Mounting 2 x 22.5 mm, display fastened using 2° threaded fixing rings. Wall thickness:without top-hat rail (CPU) 1 – 6 mmwith top-hat rail 1 – 4 mm Plug-fitted to the display fixing shaft Fitted on the fixing shaft of the display or on top-hat rail according to IEC/EN 60715, 35 mm deep (without display) Fitted on the fixing shaft of the display or on top-hat rail according to IEC/EN 60715, 35 mm deep (without display) Terminal capacity Solid mm 2 – – 0.2⁄4 (AWG 24 - 12) 0.2⁄4 (AWG 24 - 12) Flexible with ferrule mm 2 – – 0.2⁄2.5 (AWG 24 - 12) 0.2⁄2.5 (AWG 24 - 12) Flat-blade screwdriver mm – – 3.5 x 0.6 3.5 x 0.6 Max. tightening torque Nm – – – – Ambient climatic conditions Operating ambient temperature °C -25 - 55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 Condensation Prevent condensation by means of suitable measures LCD display (clearly legible) °C -5 - 50 Storage °C -40 - 70 -40 - 70 -40 - 70 -40 - 70 Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 795 - 1080 795 - 1080 Ambient mechanical conditions Protection type (IEC/EN 60529, EN50178, VBG 4) IP65 IP20 IP20 IP20 Vibrations (IEC/EN 60068-2-6) Constant amplitude 0.15 mm Hz 10 - 57 10 - 57 10 - 57 10 - 57 Constant acceleration, 2 g Hz 57 - 150 57 - 150 57 - 150 57 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Shocks 18 18 18 18 Drop to IEC/EN 60068-2-31 Drop height mm 50 50 50 50 Free fall, packaged (IEC/EN 60068-2-32) m 1 1 1 1 Mounting position Vertical or horizontal
Control relays, multi-function display Display/operating units, CPU, communication modules 2010 CA08103002Z-EN www.eaton.com MFD-80, MFD-(AC)-CP... 12/37 Electromagnetic compatibility (EMC) Overvoltage category/pollution degree – – – – Electrostatic discharge (ESD),to IEC EN 61000-4-2 Air discharge kV 8 8 8 8 Contact discharge kV 6 6 6 6 Electromagnetic fields (RFI), to IEC EN 61000-4-2 V/m 10 10 10 10 Radio interference suppression EN 55011 Class B, EN 55022 Class B Burst to IEC/EN 61000-4-4 Supply cables kV 2 2 2 2 Signal cables kV 2 2 2 2 High-energy pulses (surge) (IEC/EN 61000-4-5, Level 2) Supply cables, symmetrical – 0.5 1 0.5 Radiated RFI, to IEC/EN 61000-4-6 V 10 10 10 10 Insulation resistance Clearance in air and creepage distances EN 50178, UL 508, CSA C22.2, No. 142 Insulation resistance EN 50178 Back-up/accuracy of the real-time clock Back-up time – – 1) 1) Accuracy of the real-time clock at 55 °C s/day – – Normally ±5 s/day (±0.5 h⁄Year) Normally ±5 s/day (±0.5 h⁄Year) Repetition accuracy of timing relays Accuracy of timing relay (of value) % – – ± 0.02 ± 0.02 Resolution Range “S” ms – – 5 5 Range “M:S” s – – 1 1 Range “H:M” min – – 1 1 Retentive memory Write cycles of the retentive memory (minimum) – – 10 10 (read ⁄ write cycles) 10 10 (read ⁄ write cycles) Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D 1) ① Backup time (hours)② Service life (years) MFD-80.. MFD-CP4… MFD-AC-CP4.. MFD-CP10.. MFD-AC-CP8.. MFD-CP8.. a b 180 200 160 140 120100 80 60 40 20 0 0 2 4 6 8 10 20 12 14 1 3 5 7 9 11 13 55°C 25°C 15 17 19 16 18
12/38 Control relays, multi-function display CPU, communication modules 2010 CA08103002Z-EN www.eaton.com MFD-(AC)-CP... MFD-(AC)-CP...CPU, communication modules MFD-CP4.. MFD-CP8..MFD-CP10.. MFD-AC-CP4..MFD-AC-CP8.. Power supply Rated operational voltage U e V 24 DC (-15⁄+20 %) 24 DC (-15⁄+20 %) 100/110/115/120//230/240 AC (+10/-15 %) Permissible range V AC 85…264 Permissible range V DC 20.4…28.8 20.4…28.8 Ripple % ≦ 5 ≦ 5 – Frequency Hz – – 50⁄60 (± 5%) Input current At 115/120 V AC 60 Hz mA – – Normally 90 At 230/240 V AC 50 Hz mA – – Normally 60 At 24 V DC mA Normally 185 Normally 200 – Voltage dips (IEC/EN 61131-2) ms 10 10 10 Heat dissipation At 115/120 V AC VA – – Normally 11 At 230⁄240 V AC VA – – Normally 15 At 24 V DC W 1.5 3.4 – Point-to-point connection Stations 1 – – Baud rate easy500, easy700 MBit/s 9.6 kBaud – – easy800, MFD, EC4P 19.2 kBaud – – Distance m Max. 5 Max. 5 Max. 5 Potential isolation From power supply Yes – – From the connected device Yes – – Terminal type Spring-loaded terminals – – Power pulses Stations Num-ber Max. 1 Max. 8 Max. 8 Data transfer rate/distance – 1000 Kbit/s, 6 m500 Kbit/s, 25 m250 Kbit/s, 40 m125 Kbit/s, 125 m50 Kbit/s, 300 m20 Kbit/s, 700 m10 Kbit/s, 1000 m 1000 Kbit/s, 6 m500 Kbit/s, 25 m250 Kbit/s, 40 m125 Kbit/s, 125 m50 Kbit/s, 300 m20 Kbit/s, 700 m10 Kbit/s, 1000 m Potential isolation From power supply – Yes Yes From the inputs – – Yes From the outputs – Yes Yes From PC interface, memory card, easyNet, easyLink – Yes Yes Bus termination (first and last station) – Yes Yes Terminal type – RJ45, 8 pole RJ45, 8 pole
Control relays, multi-function display I/O modules 2010 CA08103002Z-EN www.eaton.com MFD-(AC)-R..., MFD-T... 12/39 MFD-(AC)-R..., MFD-T...I/O modules MFD-(AC)-R..., MFD-TI/O modules MFD-R16MFD-RA17 MFD-AC-R16 MFD-T16MFD-TA17 MFD-T.P.. General Standards EN 61000-6-1/-2/-3/-4, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27 EN 61000-6-1/-2/-3/-4, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27 EN 61000-6-1/-2/-3/-4, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27 EN 61000-6-1/-2/-3/-4, IEC 60068-2-6, IEC 60068-2-27 Dimensions (W x H x D) mm 89 x 90 x 44 89 x 90 x 44 89 x 90 x 25 (built-in) 89 x 90 x 25 (built-in) Weight kg 0.15 0.15 0.14 0.14 Mounting Fitted into the power supply unit. Terminal capacity Solid mm 2 0.2⁄4 (AWG 24 - 12) 0.2⁄4 (AWG 24 - 12) 0.2⁄4 (AWG 24 - 12) 0.2⁄4 (AWG 24 - 12) Flexible with ferrule mm 2 0.2⁄2.5 (AWG 24 - 12) 0.2⁄2.5 (AWG 24 - 12) 0.2⁄2.5 (AWG 24 - 12) 0.2⁄2.5 (AWG 24 - 12) Flat-blade screwdriver mm 3.5 x 0.6 3.5 x 0.6 3.5 x 0.6 3.5 x 0.6 Power supply Solid mm 2 – – – – Flexible with ferrule mm 2 – – – – Flat-blade screwdriver mm – – – – Data cable Solid mm 2 0.08⁄2.5 (AWG 28 - 12) 0.08⁄2.5 (AWG 28 - 12) 0.08⁄2.5 (AWG 28 - 12) 0.08⁄2.5 (AWG 28 - 12) Flexible with ferrule mm 2 0.08⁄1.5 (AWG 28 - 12) 0.08⁄1.5 (AWG 28 - 12) 0.08⁄1.5 (AWG 28 - 12) 0.08⁄1.5 (AWG 28 - 12) Ambient climatic conditions Operating ambient temperature °C -25 - 55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 Condensation Prevent condensation by means of suitable measures LCD display (clearly legible) °C Storage °C -40 - 70 -40 - 70 -40 - 70 -40 - 70 Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 795 - 1080 795 - 1080 Ambient mechanical conditions Pollution degree 2 2 2 2 Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 IP20 IP20 Vibrations (IEC/EN 60068-2-6) Constant amplitude 0.15 mm Hz 10 - 57 10 - 57 10 - 57 10 - 57 Constant acceleration, 2 g Hz 57 - 150 57 - 150 57 - 150 57 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Shocks 18 18 18 18 Drop to IEC/EN 60068-2-31 Drop height mm 50 50 50 50 Free fall, packaged (IEC/EN 60068-2-32) m 1 1 1 1 Mounting position Vertical or horizontal Electromagnetic compatibility (EMC) Electrostatic discharge (ESD),to IEC EN 61000-4-2 Air discharge kV 8 8 8 8 Contact discharge kV 6 6 6 6 Electromagnetic fields (RFI), to IEC EN 61000-4-2 V/m 10 10 10 10 Radio interference suppression EN 55011 Class B, EN 55022 Class B Burst to IEC/EN 61000-4-4 Supply cables kV 2 2 2 2 Signal cables kV 2 2 2 2 Power pulses (surge) (IEC/EN 61000-4-5) kV 2 (supply cables, symmetrical) 2 (supply cables, symmetrical) 2 (supply cables, symmetrical) 2 (supply cables symmetrical, MFD-AC-CP8..) Power pulses (surge), to IEC/EN 61000-4-5 kV 0.5 (supply cables, symmetrical) 0.5 (supply cables, symmetrical) 0.5 (supply cables, symmetrical) 0.5 (supply cables, symmetrical, MFD-CP8..) Radiated RFI, to IEC/EN 61000-4-6 V 10 10 10 10 Insulation resistance Clearance in air and creepage distances EN 50178, UL 508, CSA C22.2, No. 142 Insulation resistance EN 50178
12/40 Multi-function display I/O modules 2010 CA08103002Z-EN www.eaton.com MFD-(AC)-R..., MFD-T MFD-R16 MFD-RA17 MFD-T16 MFD-TA17 MFD-T...P... MFD-AC-R16 Digital inputs 24 V DC Number 12 12 6 Inputs can be used as analog inputs 4 (I7, I8, I11, I12) 4 (I7, I8, I11, I12) 2 (I11, I12) Potential isolation From power supply No No No Between digital inputs No No No From the outputs Yes Yes Yes From PC interface, memory card, easy NET, easyLink Yes Yes Yes Rated operating voltage U e V DC 24 24 24 On signal ”0” U e V DC 5.0 (I1 - I6, I9 - I10), 8 (I7, I8, I11, I12) 5.0 (I1 - I6, I9 - I10), 8 (I7, I8, I11, I12) 5.0 (I1 - I4), 8.0 (I11, I12) On signal ”1” U e V DC 15.0 (I1 - I6, I9 - I10), 8.0 (I7, I8, I11, I12) 15.0 (I1 - I6, I9 - I10), 8.0 (I7, I8, I11, I12) 15.0 (I1 - I4), 8.0 (I11, I12) Input current on signal "1" I1 to I6 mA 3.3 (at 24 V DC) 3.3 (at 24 V DC) – I1 to I4 mA – – 3.3 (at 24 V DC) I7, I8 mA 2.2 (at 24 V DC) 2.2 (at 24 V DC) – I9, I10 mA 3.3 (at 24 V DC) 3.3 (at 24 V DC) – I11, I12 mA 2.2 (at 24 V DC) 2.2 (at 24 V DC) 2.2 (at 24 V DC) Delay time from 0 to 1 Debounce ON ms 20 20 20 Debounce OFF ms Normally 0.1 (I1 - I4), normally 0.25 (I5 - I12) Delay time from 1 to 0 Debounce ON ms 20 20 20 Debounce OFF ms Normally 0.1 (I1 - I4), normally 0.4 (I5, I6, I9, I10), normally 0.2 (I7, I8, I11, I12) Normally 0.1 (I1 - I4), normally 0.4 (I5, I6, I9, I10), normally 0.2 (I7, I8, I11, I12) Normally 0.1 (I1 - I4), normally 0.2 (I11, I12) Cable length (unshielded) m 100 100 100 Frequency counters Number 4 (I1, I2, I3, I4) 4 (I1, I2, I3, I4) 4 (I1, I2, I3, I4) Counter frequency kHz 3 3 3 Pulse shape Square Square Square Incremental counters Number 2 (I1 + I2, I3 + I4) 2 (I1 + I2, I3 + I4) 2 (I1 + I2, I3 + I4) Counter frequency kHz ≦ 3 ≦ 3 ≦ 3 Pulse shape Square Square Square Signal offset 90° 90° 90° High-speed counter inputs Number 4 (I1, I2, I3, I4) 4 (I1, I2, I3, I4) 4 (I1, I2, I3, I4) Counter frequency kHz 3 3 3 Pulse shape Square Square Square Cable length, shielded m 20 20 20 Digital inputs 115/230 V AC Number 12 Status display LCD display (if provided) Potential isolation From power supply No Between digital inputs No From the outputs Yes From PC interface, memory card, easyNet, easyLink Yes Rated voltage L (sinusoidal) On signal ”0” V AC 0 - 40 On signal ”1” V AC 79 - 264 Rated frequency Hz 50 - 60 Input current on signal "1" I1 to I12 mA 12 x 0.2 (at 115 V AC, 60 Hz), 12 x 0.5 (at 230 V AC, 50 Hz) Delay time Delay time (0 - 1⁄1 - 0) I1 - I12, 50⁄60 Hz 10⁄100 Max. admissible cable length (per input) I1 to I12 m Normally 60
Control relays, multi-function display I/O modules 2010 CA08103002Z-EN www.eaton.com MFD-R..., MFD-T... 12/41 MFD-R..., MFD-T...I/O modules MFD-R...MFD-T... MFD-RA17MFD-TA17 MFD-TAP Analog inputs Analog outputs Number 4 (I7, I8, I11, I12)2 (I11, I12) for MFD-T(A)P Number 1 1 Potential isolation Potential isolation From power supply No From power supply No No From the digital inputs No From the digital inputs No No From the outputs Yes From the digital outputs Yes Yes From PC interface, memory card, easyNet, easyLink Yes From PC interface, memory card, easyNet, easyLink Yes Yes Input type DC voltage Output type DC voltage DC voltage Signal range V DC 0 - 10 Signal range V DC 0 - 10 0 - 10 Resolution, analog V 0.01 Max. output current A 0.01 0.01 Resolution, digital V 0.01 Load resistance kΩ 1 1 Resolution Bit 10 (value 0 - 1023) Overload and short-circuit protection Yes Yes Input impedance kΩ 11.2 Resolution, analog V DC 0.01 0.01 Accuracy of actual value Resolution, digital Bit 10 (value 0 - 1023) 12 (value 0 - 4095) at QA01, MD Two MFD devices % ± 3 Resolution, digital V DC – 0.1, 0.01, 0.001 at MD Within a single device % ± 2 % Recovery time μs 100 100 Conversion time analog/digital ms Each CPU cycle Accuracy Input current mA 1 -25 °C - 55 °C % 2 2 Cable length shielded m 30 25C % 1 1 Conversion time, analog/digital ms Each CPU cycle Each CPU cycle MFD-TP, MFD-TAP Analog input temperature resistance Pt100 or Ni1000 sensors Number 2 x Pt 100 or 2 x Ni1000 (according to part no.) Input type resistance sensor Platinum sensor Pt100 according to DIN EN 60751, IEC 751 MFD-TP12-PT... Nickel sensor Ni1000 according to DIN 43760 MFD-TP12-NI... Temperature range Pt100, range A, selectable °C, (°F) -40 - +90, (-40 - 194); 0 - 250, (32 - 482); 0 - 400, (32 - 752) Ni1000, range A, selectable °C, (°F) -40 - +90, (-40 - 194); 0 - 250, (32 - 482) Pt100, range B °C, (°F) -0 - +8500, (32 - 1562); -200 - 200, (-328 - 392) Potential isolation From power supply No From the digital inputs No From the outputs Yes From PC interface, memory card, easyNet, easyLink Yes Resolution digital, scaling per sensor With operands "IA" and "MD", selectable under scaling Bit 12 (0 - 4095) With operand "MD", selectable under scaling °C, (°F) 1, 0.1, (1), (0.1) Measurement value resolution analog/digital Bit Depending upon the scaling Measuring current mA 1.6 Damage limit (in the case of a wiring error) Apply external voltage Measurement method Two or three wire per sensor, selectable by connection of sensor Accuracy (without EMC interference) Two MFD devices one above the other % Normally 1; maximal 1.6 (Pt), 1.2 (Ni) Pt100 RTD (offset error, linearity error, repetition accuracy, temperature dependency of the device included) % ± 0.8 of measurement range Ni1000 RTD (offset error, linearity error, repetition accuracy, temperature dependency of the device included) % ± 0,6 of measurement range Conversion time analog/digital Without sampling time setting, selectable per sensor ms 200 With sampling time (adjustable), selectable per sensor ms 200 - 65535 Additional measurement aids Filtering (software), analog input signal smoothing (Pt1 characteristic), only with set sampling time, selectable for each detector Yes Filter for suppression of certain frequencies and their multiples Hz 50, 60, 250, 500 Diagnostics Card diagnostic Yes Wire break diagnostic per sensor Yes Wire break diagnostic per sensor Yes Below lower measurement range Yes Upper measuring range limit of sensor exceeded Yes Cable length shielded m 10
12/42 Control relays, multi-function display Basic devices, expansion devices ...T..., MFD...T... 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Control relays, multi-function display Basic devices, expansion devices ...T..., MFD...T... ...T..., MFD...T...Basic devices, expansion devices EASY4…-DC-ME EASY512-DC-T.. EASY410-DC-TEEC4E-221-DT… EASY620-DC-TE EASY721-DC-T.. EASY8..-DC-T.. MFD-T.. Transistor outputs Number 2 4 4 8 8 8 4 Rated operating voltage U e V DC 24 24 24 24 24 24 24 Permissible range U e V DC 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 Ripple % ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 Supply current On signal ”0” Normally⁄max. mA 24V/2A 9/16 9/16 18/32 18/32 18/32 18/32 On signal ”1” Normally⁄max. mA 12/22 12/22 12/22 24/44 24/44 24/44 24 /44 Protection against polarity reversal Yes (Caution: A short circuit will result if 0 V or GND is applied to the outputs in the event that the supply voltage is connected to the wrong poles.) Yes (Caution: A short circuit will result if 0 V or GND is applied to the outputs in the event that the supply voltage is connected to the wrong poles.) Potential isolation Potential isolation from power supply, inputs No Yes Yes Yes Yes Yes Yes From PC interface, memory card, easyNet, easyLink Yes Yes Yes Yes Yes Yes – From the inputs – – – – – Yes Yes Rated operational current on signal "1" DC I e A 1 Max. 0.5 Max. 0.5 Max. 0.5 Max. 0.5 Max. 0.5 Max. 0.5 Lamp load without R v W 5 5 5 5 5 3 (Q1 - Q4) 5 (Q5 - Q8) 5 (Q1 - Q4) Residual current on signal "0" per channel mA 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Max. output voltage On "0" at external load 10 MΩ V 2.5 2.5 2.5 2.5 2.5 2.5 2.5 On “1” at I e = 0.5 A V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V Short-circuit protection Yes, thermal (analysis via diagnostics input R16) Yes, thermal (analysis via diagnostics input I16, I15; R15, R16) Yes, thermal (analysis via diagnostics input R16) Yes, thermal (analysis via diagnostics input I16, I15; R15, R16) Yes, thermal (analysis via diagnostics input I16, I15; R15, R16) Yes, electronic (Q1 – Q4), thermal (Q5 – Q8), (analysis via diagnostics input I16, I15) Thermal (Q1 – Q4), (analysis via diagnostics input I16) Short-circuit tripping current for R a ≦ 10 mΩ A 1.4 ≦ I e ≦ 4 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 per output Total short-circuit current A 8 8 8 16 16 16 8 Peak short-circuit current A 16 16 16 32 32 32 16 Thermal cutout Yes Yes Yes Yes Yes Yes Yes Max. operating frequency at constant resistive load R L 100 kΩ (dependent on program and load) Ops/h 40000 40000 40000 40000 40000 40000 40000 Parallel connection of outputs With resistive load, inductive load with external suppressor circuit, combination within a group Q1 and Q2 Group 1: Q1 to Q4 Group 1: Q1 to Q4 Group 1: S1 - S4Group 2: S5 - S8 Group 1: Q1 to Q4Group 2: Q5 to Q8 Group 1: Q1 to Q4Group 2: Q5 to Q8 Group 1: Q1 to Q4 Number of outputs Max. 2 4 4 4 4 4 4 Max. total current A 2 (Attention! Outputs must be activated simultaneously and for the same duration) 2 (Attention! Outputs must be activated simultaneously and for the same duration) Status indication of the outputs LCD display (if provided) LCD display (if provided) Inductive load to EN 60947-5-1 Without external suppressor circuit T 0.95 = 1 ms, R = 48 Ω, L = 16 mH Utilization factor g 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Duty factor % DF 100 100 100 100 100 100 100 Max. operating frequency f = 0.5 Hz (max. ED = 50 %) Operations 1500 1500 1500 1500 1500 1500 1500 DC-13, T 0.95 = 72 ms, R = 48 Ω, L = 1.15 H Utilization factor g 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Duty factor % DF 100 100 100 100 100 100 100 Max. operating frequency f = 0.5 Hz (max. ED = 50 %) Operations 1500 1500 1500 1500 1500 1500 1500 T 0.95 = 15 ms, R = 48 Ω, L = 0.24 H Utilization factor g 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Duty factor % DF 100 100 100 100 100 100 100 Max. operating frequency f = 0.5 Hz (max. ED = 50 %) Operations 1500 1500 1500 1500 1500 1500 1500 With external suppressor circuit Utilization factor g 1 1 1 1 1 1 1 Duty factor % DF 100 100 100 100 100 100 100 Max. switching frequency, max. duty factor Operations Depending on the suppressor circuit Depending on the suppressor circuit Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D, MFD-Titan ￫AWB2528-1480D 12/43
12/42 Control relays, multi-function display Basic devices, expansion devices ...T..., MFD...T... 2010 CA08103002Z-EN www.eaton.com 2010 CA08103002Z-EN www.eaton.com Control relays, multi-function display Basic devices, expansion devices ...T..., MFD...T... ...T..., MFD...T...Basic devices, expansion devices EASY4…-DC-ME EASY512-DC-T.. EASY410-DC-TEEC4E-221-DT… EASY620-DC-TE EASY721-DC-T.. EASY8..-DC-T.. MFD-T.. Transistor outputs Number 2 4 4 8 8 8 4 Rated operating voltage U e V DC 24 24 24 24 24 24 24 Permissible range U e V DC 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 20.4 - 28.8 Ripple % ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 ≦ 5 Supply current On signal ”0” Normally⁄max. mA 24V/2A 9/16 9/16 18/32 18/32 18/32 18/32 On signal ”1” Normally⁄max. mA 12/22 12/22 12/22 24/44 24/44 24/44 24 /44 Protection against polarity reversal Yes (Caution: A short circuit will result if 0 V or GND is applied to the outputs in the event that the supply voltage is connected to the wrong poles.) Yes (Caution: A short circuit will result if 0 V or GND is applied to the outputs in the event that the supply voltage is connected to the wrong poles.) Potential isolation Potential isolation from power supply, inputs No Yes Yes Yes Yes Yes Yes From PC interface, memory card, easyNet, easyLink Yes Yes Yes Yes Yes Yes – From the inputs – – – – – Yes Yes Rated operational current on signal "1" DC I e A 1 Max. 0.5 Max. 0.5 Max. 0.5 Max. 0.5 Max. 0.5 Max. 0.5 Lamp load without R v W 5 5 5 5 5 3 (Q1 - Q4) 5 (Q5 - Q8) 5 (Q1 - Q4) Residual current on signal "0" per channel mA 0.1 0.1 0.1 0.1 0.1 0.1 0.1 Max. output voltage On "0" at external load 10 MΩ V 2.5 2.5 2.5 2.5 2.5 2.5 2.5 On “1” at I e = 0.5 A V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V U = U e -1 V Short-circuit protection Yes, thermal (analysis via diagnostics input R16) Yes, thermal (analysis via diagnostics input I16, I15; R15, R16) Yes, thermal (analysis via diagnostics input R16) Yes, thermal (analysis via diagnostics input I16, I15; R15, R16) Yes, thermal (analysis via diagnostics input I16, I15; R15, R16) Yes, electronic (Q1 – Q4), thermal (Q5 – Q8), (analysis via diagnostics input I16, I15) Thermal (Q1 – Q4), (analysis via diagnostics input I16) Short-circuit tripping current for R a ≦ 10 mΩ A 1.4 ≦ I e ≦ 4 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 per output 0.7 ≦ I e ≦ 2 per output Total short-circuit current A 8 8 8 16 16 16 8 Peak short-circuit current A 16 16 16 32 32 32 16 Thermal cutout Yes Yes Yes Yes Yes Yes Yes Max. operating frequency at constant resistive load R L 100 kΩ (dependent on program and load) Ops/h 40000 40000 40000 40000 40000 40000 40000 Parallel connection of outputs With resistive load, inductive load with external suppressor circuit, combination within a group Q1 and Q2 Group 1: Q1 to Q4 Group 1: Q1 to Q4 Group 1: S1 - S4Group 2: S5 - S8 Group 1: Q1 to Q4Group 2: Q5 to Q8 Group 1: Q1 to Q4Group 2: Q5 to Q8 Group 1: Q1 to Q4 Number of outputs Max. 2 4 4 4 4 4 4 Max. total current A 2 (Attention! Outputs must be activated simultaneously and for the same duration) 2 (Attention! Outputs must be activated simultaneously and for the same duration) Status indication of the outputs LCD display (if provided) LCD display (if provided) Inductive load to EN 60947-5-1 Without external suppressor circuit T 0.95 = 1 ms, R = 48 Ω, L = 16 mH Utilization factor g 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Duty factor % DF 100 100 100 100 100 100 100 Max. operating frequency f = 0.5 Hz (max. ED = 50 %) Operations 1500 1500 1500 1500 1500 1500 1500 DC-13, T 0.95 = 72 ms, R = 48 Ω, L = 1.15 H Utilization factor g 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Duty factor % DF 100 100 100 100 100 100 100 Max. operating frequency f = 0.5 Hz (max. ED = 50 %) Operations 1500 1500 1500 1500 1500 1500 1500 T 0.95 = 15 ms, R = 48 Ω, L = 0.24 H Utilization factor g 0.25 0.25 0.25 0.25 0.25 0.25 0.25 Duty factor % DF 100 100 100 100 100 100 100 Max. operating frequency f = 0.5 Hz (max. ED = 50 %) Operations 1500 1500 1500 1500 1500 1500 1500 With external suppressor circuit Utilization factor g 1 1 1 1 1 1 1 Duty factor % DF 100 100 100 100 100 100 100 Max. switching frequency, max. duty factor Operations Depending on the suppressor circuit Depending on the suppressor circuit Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D, MFD-Titan ￫AWB2528-1480D 12/43
12/44 Control relays, multi-function display Basic devices, expansion devices 2010 CA08103002Z-EN www.eaton.com ...R..., MFD...R... ...R..., MFD...R...Basic devices, expansion devices EASY202-RE EASY410-DC-REEASY512-..-R..MFD-R.. MFD-AC-R.. EASY618/719-..-R..EASY8..-…-R… Relay outputs Number 2 4 6 Outputs in groups of 2 1 1 Parallel switching of outputs to increase performance Not permissible Not permissible Not permissible Protection of an output relay Miniature circuit-breaker B16 or fuse 8 A (slow) Potential isolation From power supply Yes Yes Yes From the inputs Yes Yes Yes Electrical isolation in groups Yes Yes Yes Safe isolation according to EN 50178 V AC 300 300 300 Basic insulation V AC 600 600 600 Lifespan, mechanical Operations x 10 6 10 10 10 Contacts Conventional thermal current (10 A UL) A 8 8 8 Recommended for load: 12 V AC/DC mA 500 500 500 Short-circuit proof p.f. = 1, characteristic B16 at 600 A A 16 16 16 Short-circuit proof p.f. = 0.5 - 0.7; characteristic B16 at 900 A A 16 16 16 Rated impulse withstand voltage U imp contact coil kV 6 6 6 Rated operating voltage U e V AC 250 250 250 Rated insulation voltage U i V AC 250 250 250 Safe isolation to EN 50178 between coil and contact V AC 300 300 300 Safe isolation to EN 50178 between two contacts V AC 300 300 300 Making capacity AC-15, 230 V AC, 3 A Operations 300000 300000 300000 DC-13, 24 V DC, 5 A, 0.1 Hz Operations 200000 200000 200000 Breaking capacity AC–-15, 250 V AC, 3 A (600 ops./h) Operations 300000 300000 300000 DC-13, L/R ≦ 150 ms, 24 V DC, 1 A (500 S/h) Operations 200000 200000 200000 Filament bulb load 1000 W at 230/240 V AC Operations 25000 25000 25000 500 W at 115/120 V AC Operations 25000 25000 25000 Fluorescent lamp load Fluorescent lamp load 10 x 58 W at 230/240 V AC With upstream electrical device Operations 25000 25000 25000 Uncompensated Operations 25000 25000 25000 Fluorescent lamp load 1 x 58 W at 230/240 V AC, conventionally compensated Operations 25000 25000 25000 Switching frequency Mechanical operations x 10 6 10 10 10 Switching frequency Hz 10 10 10 Resistive load/lamp load Hz 2 2 2 Inductive load Hz 0.5 0.5 0.5 UL/CSA Continuous current at 240 V AC A 10 10 10 Continuous current at 24 V DC A 8 8 8 AC Control circuit rating codes (utilization category) B 300 Light Pilot Duty Max. rated operational voltage V AC 300 300 300 Max. thermal continuous current p.f. = 1 at B 300 A 5 5 5 Max. make/break p.f. ≠ capacity 1 at B 300 VA 3600/360 3600/360 3600/360 DC Control circuit rating codes (utilization category) R 300 Light Pilot Duty Max. rated operational voltage V DC 300 300 300 Max. thermal continuous current at R 300 A 1 1 1 Max. make/break capacity at R 300 VA 28/28 28/28 28/28 Notes For additional technical data EASY5… and EASY7… ￫ AWB2528-1508D, EASY8… ￫ AWB2528-1423D, MFD ￫ AWB2528-1480D
Control relays, multi-function display Bus modules 2010 CA08103002Z-EN www.eaton.com ...ASI/DP/CO/DN 12/45 ...ASI/DP/CO/DNBus modules EASY205-ASI EASY221-CO EASY204-DP EASY222-DN General Standards EN 55011, EN 55022, IEC/EN 61000-4, IEC 62026 EN 55011, EN 55022, IEC/EN 61000-4, EN 50325 EN 55011, EN 55022, IEC/EN 61000-4, IEC 61158 EN 55011, EN 55022, IEC/EN 61000-4, IEC 62026 Dimensions (W x H x D) mm 35.5 x 90 x 58 (2 space units) 35.5 x 90 x 58 (2 space units) Weight kg 0.12 0.15 0.15 Mounting Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories). Terminal capacity Solid mm 2 0.2 - 4 (AWG 22 - 12) 0.2 - 4 (AWG 22 - 12) Flexible with ferrule mm 2 0.2 - 2.5 (AWG 22 - 12) 0.2 - 2.5 (AWG 22 - 12) Flat-blade screwdriver mm 3.5 x 0.8 3.5 x 0.8 Max. tightening torque Nm 0.6 0.6 Ambient climatic conditions Operating ambient temperature °C -25…55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 Condensation Prevent condensation by means of suitable measures Storage °C -40 - 70 -40 - 70 Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 Ambient mechanical conditions Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 Vibrations (IEC/EN 60068-2-6) Constant amplitude 0.15 mm Hz 10 - 57 10 - 57 Constant acceleration, 2 g Hz 57 - 150 57 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Shocks 18 18 Drop to IEC/EN 60068-2-31 Drop height mm 50 50 Free fall, packaged (IEC/EN 60068-2-32) m 1 1 Mounting position Vertical or horizontal Vertical or horizontal Electromagnetic compatibility (EMC) Overvoltage category/pollution degree II/2 II/2 Electrostatic discharge (ESD), to IEC EN 61000-4-2 Air discharge kV 8 8 Contact discharge kV 6 6 Electromagnetic fields (IEC/EN 61000-4-3, RFI) V/m 10 10 Radio interference suppression EN 55011 Class B, EN 55022 Class B Burst to IEC/EN 61000-4-4 AS-Interface cables kV 2 – Supply cables kV – 2 Signal cables kV – 2 Power pulses (surge), to IEC/EN 61000-4-5 kV – 0.5 (supply cables, symmetrical) 0.5 (supply cables, symmetrical) Radiated RFI, to IEC/EN 61000-4-6 V 10 10 Insulation resistance Clearance in air and creepage distances EN 50178, UL 508, CSA C22.2, No. 142 Insulation resistance EN 50178 EN 50178
12/46 Control relays, multi-function display Bus modules 2010 CA08103002Z-EN www.eaton.com ...ASI/DP/CO/DN EASY205-ASI EASY204-DP EASY221-CO EASY222-DN Power supply Rated operational voltage U e V 26.5 - 31.6 24 (-15/+20 %) 24 (-15/+20 %) 24 (-15/+20 %) Permissible range V DC 20.4…28.8 20.4…28.8 20.4…28.8 Total power consumption of the AS interface mA ≦ 30 – – – Ripple % – ≦ 5 ≦ 5 ≦ 5 Max. current consumption (at 24 V DC) mA – Normally 200 Normally 200 Normally 200 Voltage dips (IEC/EN 61131-2) ms – 10 10 10 Heat dissipation at 24 V DC W – 4.8 4.8 4.8 Protection against polarity reversal AS-Interface protection against polarity reversal Yes – – – AS-Interface profile 7F (hex) – – – Slave address 0 - 31 Addressing unit interface 3.5 mm socket – – – Power supply – Yes Yes Yes LED indicators Supply Power: green Power LED (POW): green RUN LED (RUN): green Module status LED (MS): green LED display Com Error: red LED PROFIBUS-DP (BUS): red LED ERROR (ERR): red Network status LED (NS): red/green I/O addresses easy700/easy800 contact and coil ↔ AS-Interface S1 → input 0S2 → input 1S3 → input 2S4 → input 3R1 ← outputs 0R2 ← outputs 1R3 ← outputs 2R4 ← outputs 3R5 ← PARAMETEROUTPUT 0R6 ← PARAMETEROUTPUT 1R7 ← PARAMETEROUTPUT 2R8 ← PARAMETEROUTPUT 3 – – – Network Terminal type – SUB-D 9 pole, socket RJ45 5 pole, pluggable screw terminal Potential isolation – Between bus and power supply (simple), between bus and power supply and easy base unit (safe isolation) Function – PROFIBUS-DP slave CANopen slave DeviceNet slave Interface – RS485 CAN CAN Bus protocol AS-Interface PROFIBUS-DP CANopen DeviceNet Baud rates – Automatic search up to 12 MBit⁄s Automatic search up to 1 MBit⁄s Automatic search up to 500 kBit⁄s Bus terminating resistors – Can be connected via plug Separate external bus termination required (120 Ω) Separate external bus termination required (120 Ω) Bus addresses – 1 - 126 can be addressed via easy base unit with display or via EASY-SOFT 1 - 127 can be addressed via easy basic units with display or via easySoft 0 - 63 can be addressed via easy basic units with display or via easySoft Services Cyclical – All data R1 - R16, S1 - S8 Acyclical – Read⁄write, time, day, daylight saving timeAll parameters of the EASY function relay
Control relays, multi-function display Ethernet coupling unit, upstream device 2010 CA08103002Z-EN www.eaton.com EASY209-SE, EASY256-HCI 12/47 EASY209-SE, EASY256-HCIEthernet coupling unit, upstream device EASY209-SE EASY256-HCI General Standards EN 55011, EN 55022, IEC/EN 61000-4, EN 50178 Dimensions (W x H x D) mm 35.5 x 90 x 58 (2 space units) 35.5 x 90 x 58 (2 space units) Weight kg 0.15 0.15 Mounting Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories). Channels Number – 6 Voltage range for U e 0 - 264 Current increase 115/230 V AC mA – 4/6 Delay time ms – 40/37 Cable length m – 100 Parallel switching of outputs to increase performance – Several possible (Off-delay extended depending on the number of parallel channels) Type of resistance – Capacitive Terminal capacity Solid mm 2 0.2 - 4 (AWG 22 - 12) 0.2 - 4 (AWG 22 - 12) Flexible with ferrule mm 2 0.2 - 2.5 (AWG 22 - 12) 0.2 - 2.5 (AWG 22 - 12) Flat-blade screwdriver mm 3.5 x 0.8 3.5 x 0.8 Max. tightening torque Nm 0.6 0.6 Data cable Solid mm 2 0.25/1.5 (AWG 24/16) – Flexible with ferrule mm 2 0.14/ 1 (AWG 26/17) – Ambient climatic conditions Operating ambient temperature °C -25…55 -25…55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 Condensation Prevent condensation by means of suitable measures Storage °C -40 - 70 -40 - 70 Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 Ambient mechanical conditions Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 Vibrations (IEC/EN 60068-2-6) Constant amplitude 0.15 mm Hz 10 - 57 10 - 57 Constant acceleration, 2 g Hz 57 - 150 57 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Shocks 18 18 Drop to IEC/EN 60068-2-31 Drop height mm 50 50 Free fall, packaged (IEC/EN 60068-2-32) m 1 1 Mounting position Vertical or horizontal Electromagnetic compatibility (EMC) Overvoltage category/pollution degree II/2 II/2 Electrostatic discharge (ESD), to IEC EN 61000-4-2 Air discharge kV 8 8 Contact discharge kV 6 6 Electromagnetic fields (IEC/EN 61000-4-3, RFI) V/m RS-232 line unshielded: 3, shielded: 10 10 Radio interference suppression EN 55011 Class B, EN 55022 Class B Burst to IEC/EN 61000-4-4 AS-Interface cables kV – – Supply cables kV 2 – Signal cables kV – – Ethernet interface cable kV 2 – COM interface cable kV 2 – Power pulses (surge), to IEC/EN 61000-4-5 kV 1 (supply cables, symmetrical) 2 (supply cables, symmetrical, EASY…DC) Radiated RFI, to IEC/EN 61000-4-6 V RS-232 line unshielded: 3, shielded: 10 10 Insulation resistance Clearance in air and creepage distances EN 50178, UL 508, CSA C22.2, No. 142 Insulation resistance EN 50178 EN 50178
12/48 Control relays, multi-function display Ethernet gateway 2010 CA08103002Z-EN www.eaton.com EASY209-SE, EASY256-HCI EASY209-SE, EASY256-HCIEthernet gateway EASY209-SE Power supply Rated operational voltage U e V 24 (-15/+20 %) Permissible range V DC 20.4…28.8 Ripple % ≦ 5 Max. current consumption (at 24 V DC) mA Normally 65 Voltage dips (IEC/EN 61131-2) ms – Heat dissipation at 24 V DC W 1.7 Protection against polarity reversal Power supply Yes LED indicators Supply Front-LED Power: ON LED display Front-LED COM active: flashes RJ-45 socket, top No Activity: OFF, Amber: Half Duplex, Green: Full Duplex RJ-45 socket, bottom No Link: OFF, Amber: 10 MBit/s, Green: 100 MBit/s Gateway ready for operation – Power supply SmartWire (contactor) – Network Status (easyNet/CANopen) – Status SmartWire LED – Reset Front: per pushbuttons 2s Strain relief By cable tie in fastener Network Terminal type – Potential isolation – Bus protocol – Bus terminating resistors – Bus addresses Default settings Ethernet: IP adress 0.0.0.0 SUBNET screen: 255.255.0.0 coupling unit address 0.0.0.0 remote address 0.0.0.0
Control relays, multi-function display Switched-mode power supply units 2010 CA08103002Z-EN www.eaton.com ...POW 12/49 ...POWSwitched-mode power supply units EASY200-POW EASY400-POW EASY500-POW EASY600-POW EASY430-POW General Standards EN 55011, EN 55022, IEC/EN 61000-4, IEC 60068-2-6, IEC 60068-2-27, EN 61000-6-2 Dimensions (W x H x D) mm 35.5 x 90 x 58 (2 space units) 71.5 x 90 x 58 (4 space units) 71.5 x 90 x 58 (4 space units) 107.5 x 90 x 58 (6 space units) Weight kg 0.1 0.25 0.28 0.3 Mounting Top-hat rail IEC/EN 60715, 35 mm or screw fixing using fixing brackets ZB4-101-GF1 (accessories). Terminal capacity Solid mm 2 0.2 - 4 (AWG 22 - 12) Flexible with ferrule mm 2 0.2 - 2.5 (AWG 22 - 12) Flat-blade screwdriver mm 3.5 x 0.8 3.5 x 0.8 3.5 x 0.8 3.5 x 0.8 Max. tightening torque Nm 0.6 0.6 0.6 0.6 Ambient climatic conditions Operating ambient temperature °C -25…55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 -25…55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 -25 - 55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2; -25 - 45 to UL/CSA -25…55, low temperatures to IEC 60068-2-1, high temperatures to IEC 60068-2-2 Condensation Prevent condensation by means of suitable measures Storage °C -40 - 70 -40 - 70 -40 - 70 -40 - 70 Relative humidity, non-condensing (IEC/EN 60068-2-30) % 5 - 95 5 - 95 5 - 95 5 - 95 Air pressure (in operation) hPa 795 - 1080 795 - 1080 795 - 1080 795 - 1080 Max. installation altitude above sea level, observe derating at higher altitudes m 2000 2000 2000 2000 Ambient mechanical conditions Pollution degree 2 2 2 2 Protection type (IEC/EN 60529, EN50178, VBG 4) IP20 IP20 IP20 IP20 Vibrations (IEC/EN 60068-2-6) Constant amplitude 0.15 mm Hz 10 - 57 10 - 57 10 - 57 10 - 57 Constant acceleration, 2 g Hz 57 - 150 57 - 150 57 - 150 57 - 150 Mechanical shock resistance (IEC/EN 60068-2-27) semi-sinusoidal 15 g/11 ms Shocks 18 18 18 18 Drop to IEC/EN 60068-2-31 Drop height mm 50 50 50 50 Free fall, packaged (IEC/EN 60068-2-32) m 1 1 1 1 Mounting position Vertical or horizontal Vertical or horizontal Horizontal, terminals at top Horizontal, terminals at top Electromagnetic compatibility (EMC) Electrostatic discharge (ESD), to IEC EN 61000-4-2 Air discharge kV 8 8 8 8 Contact discharge kV 6 6 6 6 Electromagnetic fields (RFI), to IEC EN 61000-4-2 V/m 10 10 10 10 Radio interference suppression EN 55011 Class B; EN 55022 Class B, EN 50081-2 Class B Burst pulses (IEC/EN 61000-4-4, level 3) kV 2 2 2 2 Power pulses (surge) (IEC/EN 61000-4-5) kV 2 (supply cables, symmetrical) Power pulses (surge) (IEC/EN 61000-4-5, Level 2), 24 V kV 0.5 (output cables, symmetrical) Radiated RFI, to IEC/EN 61000-4-6 V 10 10 10 10 Surge voltage (EN 50 178), 24 V kV 6 6 6 6 Insulation resistance Clearance in air and creepage distances EN 50178 Insulation resistance EN 50178 Protection class U out to U in Class II to IEC 60536 Potential isolation primary/secondary Yes, SELV (VDE 0100 Part 410; IEC 60364-4-41, HD 384.4.41 S2) EN 60950, EN 50178 Input voltage Rated input voltage AC V 100/120/230/240 (-15/+10 %) Protective switches AC FAZ-C1/1 or FAZ-B6/1 Rated input voltage DC V 85 - 264 85 - 264 85 - 264 85 - 264 DC protective switches FAZ-C2/1-DC FAZ-C2/1-DC FAZ-C2/1-DC FAZ-C2/1-DC Voltage range V AC 85 - 264 85 - 264 85 - 264 85 - 264 Frequency range Hz 47 - 63 47 - 63 47 - 63 47 - 63 Mains failure bridging 115/230 V (IEC/EN 61000-4-11) ms 10/ 20 20/ 40 20/ 40 20/ 40 Fuse 115/230 V A 1.5 slow 2/1 time delay 2/1 time delay 2/1 time delay
12/50 Control relays, multi-function display Switched-mode power supply units 2010 CA08103002Z-EN www.eaton.com ...POW Rating data Efficiency % 80 83 85 85 Power consumption W Normally 7 Normally 35 Normally 70 Normally 115 Heat dissipation W Normally 1 Normally 5 Normally 10 Normally 18 Input current Rated input current value 115/230 V AC A Approx. 0.17/0.05 Approx. 0.6/0.3 Approx. 0.8/0.4 Approx. 1/0.5 Inrush current at 230 C 25 V A 5 18 30 30 Output voltage 12 V DC (reference voltage) Rated value V DC 12 – – – Tolerance % ± 4 – – – Switching peaks mV SS 7 – – – Effect of input voltage % ± 1 – – – Effect with 25 – 100 % load change % ± 1 – – – 24 V DC Rated value V DC 24 24 24 24 Tolerance % ± 3 ± 3 ± 3 ± 3 Switching peaks 115/230 mV SS 50/30 5 5 5 Effect of input voltage % ± 1 ± 1 ± 1 ± 1 Effect with 25 – 100 % load change % ± 1 ± 2 ± 2 ± 2 Can be connected in parallel to increase power – – Yes Yes Yes Output current 12 V DC (reference voltage) Output current mA 0 - 20 – – – Effectiveness of current limitation mA 20 – – – Reduction of output voltage after current limitation V 12 – – – Overload proof Yes, by current limitation perma-nently short-circuit proof – – – Proof against sustained short circuit Yes – – – 24 V DC Output current A 0 - 0.35 0 - 1.25 0 - 2.5 0 - 4.2 Effectiveness of current limitation A 0.4 1.5 2.8 4.8 Reduction of output voltage after current limitation V – 18 18 18 Overload proof Yes, by current limitation Proof against sustained short circuit Yes, hickup-mode Yes, hickup mode, approx. 2 Hz Special load conditions Lamp load, cold, 24 V DC W 2 10 – – Base load present W 1 5 – – Behavior in the event of emergency switch off in 24 V circuit, switch off using contactor (contactor load, no damage) W 6 30 – – Indication Indication of output voltage (LED, continuous green light = OK) V DC 24 24 24 24 EASY200-POW EASY400-POW EASY500-POW EASY600-POW EASY430-POW
Control relays, multi-function display Basic devices, expansions, display/operating unit 2010 CA08103002Z-EN www.eaton.com ..., MFD-80... 12/51 ..., MFD-80...Basic devices, expansions, display/operating unit Dimensions easy200 easy400 easy600 easy500 easy700 easy200 easy800 easy400easy500 easy600easy700 MFD-80... MFD-80 MFD-80-B M4 7.5 35.5 7.5 90 102 110 90 102 110 71.5 M4 10.75 50 35.75 90 102 110 M4 107.5 75 16.25 16.25 90 102 110 M4 107.5 75 16.25 16.25 48.5 45 4.5 70.5 72 45 58 56.5 47.5 4.5 32 17 20 13.7 86.5 30 62 86.5 28.25 28.25 MFD-CP... 22.3 30 22.3 +0.4 21.5 13.7 MFD-CP... 30
12/52 Control relays, multi-function display Central processing unit, communication module, inputs/outputs modules 2010 CA08103002Z-EN www.eaton.com MFD... MFD...Central processing unit, communication module, inputs/outputs modules MFD-CP... , MFD-AC-CP... MFD-R... , MFD-T... , MFD-AC-R16 MFD-80... + MFD-CP... + MFD-R.../MFD-T... MFD-80... + MFD-CP4 MFD-80... + MFD-AC-CP... + MFD-AC-R16 90 38.75 38.75 4.5 29.5 75 16.25 16.25 107.5 30 g0.2 90 88.1 19 25 90 88.2 107.5 20 43.2 33.7 65.5 29.3 36.2 86.5 75 86.5 58
Control relays, multi-function display Accessories 2010 CA08103002Z-EN www.eaton.com MFD..., SKF... 12/53 MFD..., SKF...Accessories Hinged inspection windows SKF-FF4 SKF-FF6 Top-hat rail adapter for hinged inspection window SKF-HA Protective diaphragm Protective cover MFD-XM-80 MFD-XS-80 Mounting rail MFD-TS-144 76 16 25 94 76 16 25 130 66 48 82 11 88.5 22.5 88.5 86.5 25 95 24 35 38.75 142.5 23.75 60 30 g0.2
