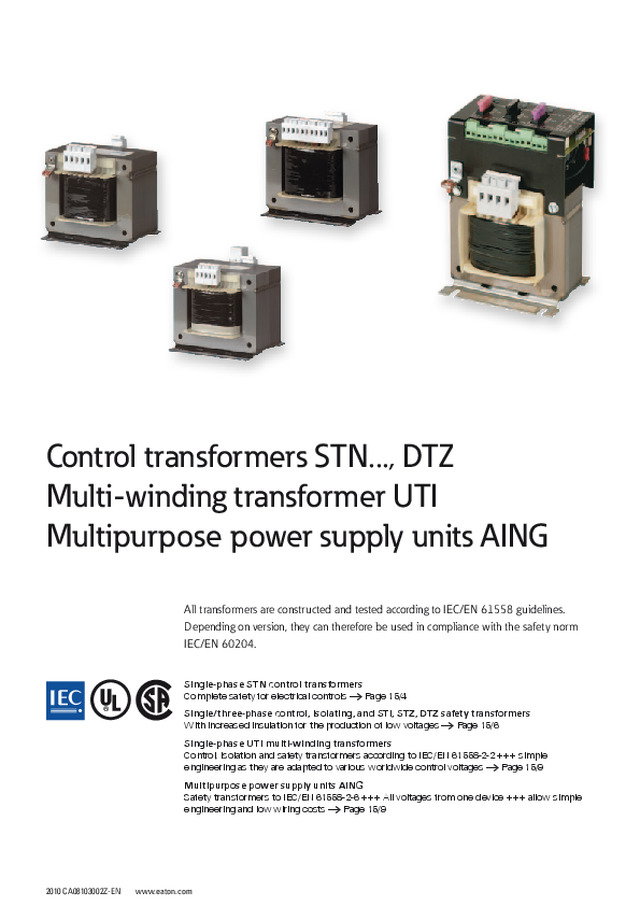

2010 CA08103002Z-EN www.eaton.com Single-phase STN control transformers Complete safety for electrical controls ￫ Page 15/4Single/three-phase control, isolating, and STI, STZ, DTZ safety transformers With increased insulation for the production of low voltages ￫ Page 15/6Single-phase UTI multi-winding transformers Control, isolation and safety transformers according to IEC/EN 61558-2-2 +++ simple engineering as they are adapted to various worldwide control voltages ￫ Page 15/9Multipurpose power supply units AING Safety transformers to IEC/EN 61558-2-6 +++ All voltages from one device +++ allow simple engineering and low wiring costs ￫ Page 15/9 All transformers are constructed and tested according to IEC/EN 61558 guidelines. Depending on version, they can therefore be used in compliance with the safety norm IEC/EN 60204. Control transformers STN..., DTZ Multi-winding transformer UTI Multipurpose power supply units AING
f a e b c ɂ g 1) System overview Transformers, universal power supply units 15/2 Ordering Single-phase control transformers with 15/4 STN standard voltages Single-phase STN control transformers 15/5 Single-phase control, isolating and 15/6 STI safety transformersSingle-phase control, isolating and 15/7 STZ safety transformersThree-phase control, isolating, and 15/8 DTZ safety transformersSingle-phase UTI multi-winding transformers 15/9 Multipurpose power supply units AING 15/9 IP23 enclosures 15/10 Shielding winding 15/10 Inrush current limiters 15/10 Additional tappings 15/11 Additional windings 15/11 Engineering Size selection for control transformers 15/12 Protection of control transformers 15/12 Technical data Transformers 15/13 Multipurpose power supply units AING 15/13 Dimensions Single-phase STN control transformers 15/15 Single-phase control, isolating, and 15/16 STI, STZ safety transformersThree-phase control, isolating, and 15/17 DTZ safety transformersMultipurpose power supply units AING 15/18 Single-phase UTI multi-winding transformers 15/18 IP23 enclosures for transformers 15/19 Control transformers, multi-winding transformers, universal power supply units Further transformers can be obtained from: Trafomodern Transformatoren Ges.m.b.H. Industriestraße II/11 A-7053 Hornstein E-Mail: [email protected] Internet: www.trafomodern.com
15/2 Transformers 2010 CA08103002Z-EN www.eaton.com System overview 7 6 1 3 2 4 5 8
2010 CA08103002Z-EN www.eaton.com Transformers 15/3 Standard transformers Single-phase control transformers STZsafety transformers STZisolating transformers STZ 1 Primary tapping ± 5 %Built and tested to IEC/EN 61558-2-2/2-4/2-6, VDE 0570-2-2/2-4/2-6, UL 506, CSA 22.2 No. 66 ￫ Page 15/7 Three-phase control transformers DTZ safety transformers DTZ isolating transformers DTZ 2 Primary tapping ± 5 %Built and tested to IEC/EN 61558-2-2/2-4/2-6, VDE 0570-2-2/2-4/2-6, UL 506, CSA 22.2 No. 66￫ Page 15/8 Single-phase control transformers STI safety transformers STI isolating transformers STI 3 Primary tapping ± 5 %Built and tested to IEC/EN 61558-2-2/2-4/2-6, VDE 0570-2-2/2-4/2-6, UL 506, CSA 22.2 No. 66 ￫ Page 15/6 Single-phase control transformers STN 3 Primary tapping ± 5 %Built and tested to IEC/EN 61558-2-2, VDE 0570-2-2 UL 506, CSA 22.2 No. 66 ￫ Page 15/4 Single-phase multi-winding transformers UTI 4 Primary tapping 208 to 600 VBuilt and tested to IEC/EN 61558-2-2/2-4/2-6, VDE 0570-2-2/2-4/2-6, UL 506, CSA 22.2 No. 66￫ Page 15/9 Universal power supply unit AING 5 Primary tapping ± 5 %Safety transformer to IEC/EN 61558-2-2/2-6, VDE 0570-2-2/2-6, For every output voltage • a fuse• an LED• a changeover contact￫ Page 15/9 Transformer features Additional tappings 6 Primary, secondary￫ Page 15/11 Shielding winding 7 ￫ Page 15/10 Sheet-steel enclosure, degree of protection IP23 8 Enclosure for enhanced degree of protectionSelection of features ￫ Ordering details of the respective transformer￫ Page 15/10
15/4 Transformers Single-phase control transformers with standard voltages 2010 CA08103002Z-EN www.eaton.com Single-phase control transformers with standard voltages Ordering Preferred voltage 400/230 V Preferred voltage 400/24 V Preferred voltage 230/24 V Rated outputkVA Short-time ratingkVA Part no.Article no. PriceSee price list Part no.Article no. PriceSee price list Part no.Article no. PriceSee price list Std. pack Single-phase control transformers with standard voltages IEC/EN 61558-2-2VDE 0570 Part 2-2Rated input voltage 230 ± 5 % V , 400 ± 5 % VRated output voltage 24 V , 230 V 0.06 0.095 STN0.06(400/230)204936 STN0.06(400/24)204937 STN0.06(230/24)204935 1 off 0.1 0.16 STN0.1(400/230)204942 STN0.1(400/24)204943 STN0.1(230/24)204941 0.16 0.32 STN0.16(400/230)204948 STN0.16(400/24)204949 STN0.16(230/24)204947 0.2 0.38 STN0.2(400/230)204977 STN0.2(400/24)204978 STN0.2(230/24)204976 0.25 0.44 STN0.25(400/230)204980 STN0.25(400/24)221509 STN0.25(230/24)221508 0.315 0.6 STN0.315(400/230)204982 STN0.315(400/24)221511 STN0.315(230/24)221510 0.4 0.62 STN0.4(400/230)204984 STN0.4(400/24)221514 STN0.4(230/24)221513 0.5 0.88 STN0.5(400/230)204986 STN0.5(400/24)221516 STN0.5(230/24)221515 0.63 1.51 STN0.63(400/230)204988 STN0.63(400/24)221518 STN0.63(230/24)221517 0.8 2.25 STN0.8(400/230)204990 STN0.8(400/24)221520 STN0.8(230/24)221519 1 3.28 STN1.0(400/230)204992 STN1.0(400/24)221522 STN1.0(230/24)221521 1.3 4.8 STN1.3(400/230)221523 1.6 3.98 STN1.6(400/230)221524 2 5.75 STN2.0(400/230)221525 2.5 7.24 STN2.5(400/230)221526 3 8.36 STN3.0(400/230)221527 4 12.2 STN4.0(400/230)221528 Notes Information relevant for export to North America Product Standards UL 506; UL5085-1; UL 5085-2; CSA-C22.2 No. 66; CSA-C22.2 No. 66.1-06; CSA-C22.2 No. 66.2-06; IEC/EN 61558-2-2; CE marking UL File No. E167225 UL CCN XPTQ2, XPTQ8 CSA File No. UL report applies to both US and Canada CSA Class No. – NA Certification UL Recognized, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - STN HPL15004EN
Transformers Single-phase control transformers 2010 CA08103002Z-EN www.eaton.com 15/5 Single-phase control transformers Rated output Short-time rating Part no.Article no. PriceSee price list Std. pack Notes kVA kVA Single-phase control transformers IEC/EN 61558-2-2VDE 0570 Part 2-2Rated input voltage 100 – 690 ± 5 % VRated output voltage 12 – 250 V 0.06 0.095 STN0.06( / )204938 1 off Ordering exampleWhen ordering, the part number must include the following details:STN0, 1( / )First asterisk ≙ rated input voltageSecond asterisk ≙ rated output voltage• Desired part no. STN0, 1• Desired rated input voltage 200 V• Desired rated output voltage 18.5 VThe correct part no. is STN0. 1(200/18.5)Transformer-protective circuit-breakers PKZMO-…-T ￫ Page 7/6 0.1 0.16 STN0.1( / )204939 0.16 0.32 STN0.16( / )204944 0.2 0.38 STN0.2( / )204950 0.25 0.44 STN0.25( / )204979 0.315 0.6 STN0.315( / )204981 0.4 0.62 STN0.4( / )204983 0.5 0.88 STN0.5( / )204985 0.63 1.51 STN0.63( / )204987 0.8 2.25 STN0.8( / )204989 1 3.28 STN1.0( / )204991 1.3 4.8 STN1.3( / )204993 1.6 3.98 STN1.6( / )204994 2 5.75 STN2.0( / )204995 2.5 7.24 STN2.5( / )204996 3 8.36 STN3.0( / )204997 4 12.2 STN4.0( / )204998 Notes Information relevant for export to North America Product Standards UL 506; UL5085-1; UL 5085-2; CSA-C22.2 No. 66; CSA-C22.2 No. 66.1-06; CSA-C22.2 No. 66.2-06; IEC/EN 61558-2-2; CE marking UL File No. E167225 UL CCN XPTQ2, XPTQ8 CSA File No. UL report applies to both US and Canada CSA Class No. – NA Certification UL Recognized, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - STN HPL15005EN
15/6 Transformers Single-phase control, isolating and safety transformers 2010 CA08103002Z-EN www.eaton.com Single-phase control, isolating and safety transformers Standard voltage400/230 V Standard voltage400/24 V Standard voltage230/230 V Standard voltage230/24 V PriceSee price list Rated output Short-time rating Part no.Article no. Part no.Article no. Part no.Article no. Part no.Article no. Std. pack kVA kVA Single-phase control, isolating and safety transformers with standard voltages IEC/EN 61558-2-2/2-4/2-6VDE 0570 Part 2-2, Part 2-6 (safety transformers), Part 2-4 (isolating transformers)Rated input voltage 230 ± 5 % V, 400 ± 5 % VRated output voltage 24 , 230 V 0.06 0.13 STI0.06(400/230)029975 STI0.06(400/24)029971 STI0.06(230/230)029968 STI0.06(230/24)029977 1 off 0.1 0.24 STI0.1(400/230)046630 STI0.1(400/24)046631 STI0.1(230/230)029976 STI0.1(230/24)046629 0.16 0.36 STI0.16(400/230)046633 STI0.16(400/24)046634 STI0.16(230/230)035247 STI0.16(230/24)046632 0.2 0.44 STI0.2(400/230)046636 STI0.2(400/24)046637 STI0.2(230/230)035248 STI0.2(230/24)046635 0.25 0.6 STI0.25(400/230)046638 STI0.25(400/24)035249 STI0.25(230/230)036400 STI0.25(230/24)035262 0.315 0.75 STI0.315(400/230)046639 STI0.315(400/24)035250 STI0.315(230/230)040641 STI0.315(230/24)036392 0.4 1.1 STI0.4(400/230)046640 STI0.4(400/24)035251 STI0.4(230/230)040642 STI0.4(230/24)036393 0.5 1.6 STI0.5(400/230)046641 STI0.5(400/24)035252 STI0.5(230/230)040643 STI0.5(230/24)036394 0.63 1.7 STI0.63(400/230)046883 STI0.63(400/24)035253 STI0.63(230/230)040644 STI0.63(230/24)036395 0.8 2 STI0.8(400/230)046889 STI0.8(400/24)035254 STI0.8(230/230)026641 STI0.8(230/24)036396 1 2.8 STI1.0(400/230)046895 STI1.0(400/24)035255 STI1.0(230/230)026642 STI1.0(230/24)036397 1.3 3.7 STI1.3(400/230)046918 STI1.3(230/230)035256 1.6 5.5 STI1.6(400/230)046952 STI1.6(230/230)035257 2 7 STI2.0(400/230)035258 STI2.0(230/230)036398 2.5 9 STI2.5(400/230)035259 STI2.5(230/230)036399 3 11.5 STI3.0(400/230)035260 4 15 STI4.0(400/230)035261 Notes Information relevant for export to North America Product Standards UL 506; UL5085-1; UL 5085-2; CSA-C22.2 No. 66; CSA-C22.2 No. 66.1-06; CSA-C22.2 No. 66.2-06; IEC/EN 61558-2-2; CE marking UL File No. E167225 UL CCN XPTQ2, XPTQ8 CSA File No. UL report applies to both US and Canada CSA Class No. – NA Certification UL Recognized, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - STI HPL15006EN
Transformers Single-phase control, isolating and safety transformers 2010 CA08103002Z-EN www.eaton.com 15/7 Single-phase control, isolating and safety transformers Rated output Short-time rating Part no.Article no. PriceSee price list Std. pack Notes kVA kVA Single-phase control, isolating and safety transformers IEC/EN 61558-2-2/2-4/2-6VDE 0570 Part 2-2, Part 2-6 (safety trans-formers), Part 2-4 (isolating transformers)Rated input voltage 50 – 950 ± 5 % VRated output voltage 12 – 1000 V 0.06 0.13 STZ0.06( / )914761 1 off • Transformers with rated output voltages ≦ 50 V can be used as safety transformers to IEC/EN 61558. Ordering exampleWhen ordering, the part number must include the following details:STZ0.06( / )First asterisk ≙ rated input voltageSecond asterisk ≙ rated output voltage• Desired part no. STZ0.06• Desired rated input voltage 230 V• Desired rated output voltage 12 VThe correct type reference isSTZ0.06(230/12) Caution! Standard voltages 400/230 V, 400/24 V,230/230 V, 230/24 V are only supplied as STI ￫ Page 15/6 if other suffixes, e.g. shield winding, are not ordered. Accessories ￫ Page 15/10 0.1 0.24 STZ0.1( / )914762 0.16 0.36 STZ0.16( / )914763 0.2 0.44 STZ0.2( / )914764 0.25 0.6 STZ0.25( / )914765 0.315 0.75 STZ0.315( / )914766 0.4 1.1 STZ0.4( / )914767 0.5 1.6 STZ0.5( / )914768 0.63 1.7 STZ0.63( / )914769 0.8 2 STZ0.8( / )914770 1 2.8 STZ1.0( / )914771 1.3 3.7 STZ1.3( / )914772 1.6 5.5 STZ1.6( / )914773 2 7 STZ2.0( / )914774 2.5 9 STZ2.5( / )914775 3 11.5 STZ3.0( / )914776 4 15 STZ4.0( / )914777 5.3 13 STZ5.3( / )201060 8.3 21 STZ8.3( / )201062 13.3 34 STZ13.3( / )201064 Notes Information relevant for export to North America Product Standards UL 506; UL5085-1; UL 5085-2; CSA-C22.2 No. 66; CSA-C22.2 No. 66.1-06; CSA-C22.2 No. 66.2-06; IEC/EN 61558-2-2; CE marking UL File No. E167225 UL CCN XPTQ2, XPTQ8 CSA File No. UL report applies to both US and Canada CSA Class No. – NA Certification UL Recognized, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - STZ HPL15007EN
15/8 Transformers Three-phase control, isolating and safety transformers 2010 CA08103002Z-EN www.eaton.com Three-phase control, isolating and safety transformers Rated output Short-time rating Part no.Article no. PriceSee price list Std. pack Notes kVA kVA Three-phase control, isolating and safety transformers IEC/EN 61558-2-2/2-4/2-6VDE 0570 Part 2-2, Part 2-6 (safety trans-formers), Part 2-4 (isolating transformers)Rated input voltage 50 – 950 ± 5 % VRated output voltage 18.5 – 1000 V 0.1 0.2 DTZ0.1( / ) 914799 1 off • Transformers with rated output voltages ≦ 50 V can be used as safety transformers in accordance with IEC/EN 61558. Ordering exampleWhen ordering, the part number must include the following details:DTZ0.1( / ) First asterisk ≙ rated input voltageSecond asterisk ≙ rated output voltageThird asterisk ≙ configuration• Desired part no. DTZ0.1• Desired rated input voltage 200 V• Desired rated output voltage 18.5 V• Desired configuration Dy(n)5The correct type reference isDTZ0.1(200/18.5)DY(N)5) Accessories ￫ Page 15/10 0.16 0.32 DTZ0.16( / ) 914800 0.25 0.5 DTZ0.25( / ) 914801 0.4 0.8 DTZ0.4( / ) 914802 0.5 1 DTZ0.5( / ) 914803 0.63 1.38 DTZ0.63( / ) 914804 1 2.2 DTZ1.0( / ) 914805 1.6 3.5 DTZ1.6( / ) 914806 2 4.4 DTZ2.0( / ) 914807 2.5 5.5 DTZ2.5( / ) 914808 4 6.2 DTZ4.0( / ) 914809 6.3 15.7 DTZ6.3( / ) 914810 8 20 DTZ8.0( / ) 914811 10 25 DTZ10( / ) 914812 12.5 31 DTZ12.5( / ) 914813 16 40 DTZ16( / ) 914814 20 50 DTZ20( / ) 914815 25 62 DTZ25( / ) 914816 1 off Notes Information relevant for export to North America Product Standards UL 506; UL5085-1; UL 5085-2; CSA-C22.2 No. 66; CSA-C22.2 No. 66.1-06; CSA-C22.2 No. 66.2-06; IEC/EN 61558-2-2; CE marking UL File No. E167225 UL CCN XPTQ2, XPTQ8 CSA File No. UL report applies to both US and Canada CSA Class No. – NA Certification UL Recognized, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - DTZ HPL15008EN
Transformers Single-phase multi-winding transformers 2010 CA08103002Z-EN www.eaton.com 15/9 Single-phase multi-winding transformers Rated output Rated input voltage Rated output voltage Part no.Article no. PriceSee price list Std. pack Notes kVA V V Single-phase multi-winding transformers (Universal) control, isolating and safety transformers to VDE 0550,IEC/EN 61558-2-2/2-4/2-6VDE 0570 Part 2-2, Part 2-6 (safety transformers), Part 2-4 (isolating transformers) 0.1 208230380400415440460480500525550575600 2 x 115 UTI0.1-115206923 1 off Transformer-protective circuit-breakers PKZM0-...-T ￫ Page 7/6 0.2 UTI0.2-115206924 0.315 UTI0.315-115206925 0.5 UTI0.5-115206926 0.63 UTI0.63-115206927 0.8 UTI0.8-115206928 1 UTI1.0-115206929 Rated output Max. output current Part no.Article no. PriceSee price list Std. pack Notes kVA A Multipurpose power supply units AING Safety transformer to IEC/EN 61558-2-2/2-6VDE 0570 Part 2-2/2-6For every output voltage a fuse, an LED and a changeover contact for monitoring and annunciation.Non-standard voltages please enquireRated input voltage 230 ± 5 % VRated output voltage 24 AC, 10 DC, 24 DC V 0.1 4.213 AING4269516 1 off • Circuit diagram: Signal contactsSwitching voltage max. 250 V AC/110 V DCmax. 1 ASwitching duty 62 VA/30 W LED indicators• Output voltage present: LED = green• Fuse fault/missing: LED = red Size/type FK2 fuses are used. 0.192 813 AING8269517 Notes Information relevant for export to North America Product Standards UL 506; UL5085-1; UL 5085-2; CSA-C22.2 No. 66; CSA-C22.2 No. 66.1-06; CSA-C22.2 No. 66.2-06; IEC/EN 61558-2-2; CE marking UL File No. E167225 UL CCN XPTQ2, XPTQ8 CSA File No. UL report applies to both US and Canada CSA Class No. – NA Certification UL Recognized, certified by UL for use in Canada Suitable for Branch circuits Max. Voltage Rating 600 V AC Degree of Protection IEC: IP00, UL/CSA Type: - +5 % 230 V –5 % 0 24 V AC +10 V DC _+24 V DC _ 0 UTI, AING HPL15009EN
15/10 Transformers Accessories 2010 CA08103002Z-EN www.eaton.com Accessories For use with Part no. suffixArticle no. for ordering only with basic unit PriceSee price list Std. pack Notes Information relevant for export to North America IP23 enclosures STZ0.06 … STZ0.16 +IP23/01200618 1 off Enclosure can be used with primary or secondary voltages 110 V. For lower voltages, please enquire. STZ0.2 … STZ0.5 +IP23/02200623 STZ0.63 … STZ1.3 +IP23/03200624 STZ1.6 … STZ2.0 +IP23/04226100 STZ5.3 … STZ8.3 +IP23/05200648 STZ13.3 +IP23/06200649 STZ2.5 … STZ4.0DTZ1.0 … DTZ2.0 +IP23/32A200763 Enclosure can be used with primary or secondary voltages from 42 V to max. 1000 V incl. taps. DTZ0.1 … DTZ0.16 +IP23/30200706 DTZ0.25 … DTZ0.63 +IP23/31200753 DTZ2.5 … DTZ6.3 +IP23/33200754 DTZ8.0 … DTZ25 +IP23/34200755 Shielding winding STZ0.06 … STZ1.6 +W1.8082270 1 off Shielding winding means additional shielding between the primary and secondary winding. UL/CSA approval not required STZ2.0 … STZ13.3 +W4.0082271 DTZ0.1… DTZ6.3 +W6.0082274 DTZ8.0 … DTZ20 +W20.0082275 Primary current For use with TypeArticle no. when ordered separately PriceSee price list Type suffixArticle no. for ordering only with basic unit PriceSee price list Std. pack Notes I N A Inrush current limiters For single-phase transformers 1 STISTZ EEB1226102 +EEB1226101 1 off Primary current: from the transformer rating plate or by calculation Single-phase: I N = S N /(U Nprim x η) Three-phase: I N = S N /(√3 U Nprim x η) S N = rated transformer output U Nprim = Transformer´s primary rated voltageη = efficiency (from the technical data table) 2 EEB2226104 +EEB2226103 3 EEB3226106 +EEB3226105 +IP23..., +W..., EEB..., +EEB... HPL15010EN
2010 CA08103002Z-EN www.eaton.com Transformers Accessories 15/11 Accessories Current rangeA For use with Part no. suffixArticle no. for ordering only with basic unit PriceSee price list Std. pack Notes Additional tappings For deviations in the rated input or output voltage of more than ± 10 %:• Ask about size of the transformer.• Also state distribution of rating in addition to the tapping. 16 STZ Primary side Single-phase transformers +ZA16P( )931897 1 off Selection of the correct tap.Ordering example for single-phase transformers:• Selected transformer STZ0.25(400/24)• Required voltage of additional tapping 22 V• The current for selection of the tapping is calculated as follows: I = S/U I = currentS = apparent powerU = voltage of the tapping I = 250/22 = 11.4 A ￫ +ZA16 For the secondary tapping, the correct suffix is:+ZA16S(22)A primary side additional tapping is determined in the same manner. 16 STZ Second-ary Single-phase transformers +ZA16S( )931895 16 DTZ Primary side Three-phase transformers +DZA16P( )930200 Selection of the correct tap.Ordering example for three-phase transformers:• Selected transformer DTZ0.25(400/24)• Required voltage of additional tapping 22 V• The current for selection of the tapping is calculated as follows: I = S/(√3 x U) I = currentS = apparent powerU = voltage of the tapping I = 250/( √3 x 22) = 6.6 A ￫ +DZA16 For the secondary tapping, the correct suffix is:+DZA16S(22)A primary side additional tapping is determined in the same manner. 16 DTZ Second-ary Three-phase transformers +DZA16S( )200406 Additional windings For primary extra winding please enquireA maximum of 5 additional windings can be ordered for the primary and/or secondary side. 16 STZ Second-ary Single-phase transformers +ZW16S( V VA)279276 1 off Ordering example for single-phase transformers:Transformer STZ...(400 V/200 V) with 1000 VA and a secondary additional winding for 100 V and 200 VA, resulting in the required rating of 1200 VA. The correct part no. is:STZ1.3(400/200) For pricing of the additional winding, the current is calculated as follows.: I = S/U I = currentS = apparent power of the additional windingU = voltage of the additional winding I = 200/100 = 2 A ￫ +ZW16 For the secondary additional winding, the correct suffix is:+ZW16S(100V200VA) Notes Information relevant for export to North America UL/CSA approval not required +ZA..., +DZA..., +ZW... HPL15011EN
2010 CA08103002Z-EN www.eaton.com 15/12 Transformers Selection and protection of control transformers Selection and protection of control transformers Engineering Size selection for control transformers Determination of the continuous ratingThe control transformer must be rated in size so that the voltage drop remains within the permissible tolerance range even under unfavorable conditions. The determination of the transformer rating is performed by the addition of all the sealing powers of all loads which are to be connected simultaneously as well as addition of the inrush power of the largest load, and multiplying the result by a factor of 0.8. If the ratings of the loads are very similar, the sum of all inrush powers of the simultaneously connected loads is added to the sum of all the sealing powers and the result is multiplied by a factor of 0.8. Determination of the short-time ratingIf the primary requirement is to switch large contactors, it is recommended that the control transformer is selected on the basis of the short-time rating. In most cases, this will mean that the transformer rating is reduced. It is important to ensure that the sealing power does not exceed the continuous rating. Protection of control transformers Operational conditionsThe protective device shown in the table below must be connected upstream of the primary. The overload release of the circuit-breaker must be set to the stated current. The current to be set must also be stated on the rating plate of the transformer. If a short-circuit release is present it must be set to the maximum value. The setting values of the circuit-breaker apply up to 1.06 times the rated voltage. For a higher mains voltage the +5 % terminal is to be used. In the case of transformers 2.0 kVA (DT... 4.0 kVA) the circuit-breaker may trip under certain mains supply conditions (I k 6 kA) and with unfavorable starting torque. In such cases we recommend the use of an inrush current limiter. The inrush current limiter can be ordered as an accessory. Ordering details ￫ Accessories ST..., DT... For all other transformers use transformer-protective circuit-breakers PKZM0-...-T. ￫ Page 7/6 Setting range of the motor-protective circuit-breaker as a function of the STI, STZ and DTZ transformer rated power (VA) Part no. Primary voltage 200 V 230 V 400 V 415 V 440 V 500 V 690 V Protective device Set-ting Protective device Set-ting Protective device Set-ting Protective device Set-ting Protective device Set-ting Protective device Set-ting Protective device Set-ting A A A A A A A ST…0.06 - PKZM0-0.4 0.3 PKZM0-0.25 0.2 PKZM0-0.25 0.2 PKZM0-0.25 0.2 PKZM0-0.16 0.2 PKZM0-0.16 0.1 ST…0.1 - PKZM0-0.63 0.5 PKZM0-0.4 0.3 PKZM0-0.4 0.3 PKZM0-0.4 0.3 PKZM0-0.25 0.2 PKZM0-0.25 0.2 ST…0.16 - PKZM0-1 0.8 PKZM0-0.63 0.5 PKZM0-0.63 0.5 PKZM0-0.63 0.4 PKZM0-0.4 0.4 PKZM0-0.4 0.3 ST…0.2 - PKZM0-1.6 1.0 PKZM0-0.63 0.6 PKZM0-0.63 0.6 PKZM0-0.63 0.5 PKZM0-0.63 0.5 PKZM0-0.4 0.3 ST…0.25 - PKZM0-1.6 1.3 PKZM0-1 0.7 PKZM0-1 0.7 PKZM0-1 0.7 PKZM0-0.63 0.6 PKZM0-0.63 0.4 ST…0.315 - PKZM0-1.6 1.5 PKZM0-1 0.9 PKZM0-1 0.9 PKZM0-1 0.8 PKZM0-1 0.7 PKZM0-0.63 0.5 ST…0.4 - PKZM0-2.5 2.0 PKZM0-1.6 1.1 PKZM0-1.6 1.1 PKZM0-1.6 1.0 PKZM0-1 0.9 PKZM0-1 0.7 ST…0.5 - PKZM0-2.5 2.4 PKZM0-1.6 1.4 PKZM0-1.6 1.3 PKZM0-1.6 1.2 PKZM0-1.6 1.1 PKZM0-1 0.8 ST…0.63 - PKZM0-4 3.0 PKZM0-2.5 1.7 PKZM0-2.5 1.7 PKZM0-1.6 1.6 PKZM0-1.6 1.4 PKZM0-1.6 1.0 ST…0.8 - PKZM0-4 3.8 PKZM0-2.5 2.2 PKZM0-2.5 2.1 PKZM0-2.5 2.0 PKZM0-2.5 1.7 PKZM0-1.6 1.3 ST…1.0 - PKZM0-6.3 4.7 PKZM0-4 2.7 PKZM0-4 2.6 PKZM0-4 2.5 PKZM0-2.5 2.2 PKZM0-1.6 1.6 ST…1.3 - PKZM0-10 6.3 PKZM0-4 3.5 PKZM0-4 3.4 PKZM0-4 3.2 PKZM0-4 2.8 PKZM0-2.5 2.0 ST…1.6 - PKZM0-10 7.4 PKZM0-6.3 4.2 PKZM0-6.3 4.1 PKZM0-4 4.0 PKZM0-4 3.4 PKZM0-2.5 2.5 ST…2.0 - PKZM0-16 10.0 PKZM0-6.3 5.3 PKZM0-6.3 5.1 PKZM0-6.3 4.8 PKZM0-6.3 4.2 PKZM0-4 3.1 ST…2.5 - PKZ2/ZM-16 11.5 PKZ2/ZM-10 6.6 PKZ2/ZM-10 6.4 PKZ2/ZM-10 6.0 PKZ2/ZM-6 5.3 PKZ2/ZM-4 4.0 ST…3.0 - PKZ2/ZM-25 16.0 PKZ2/ZM-16 10.0 PKZ2/ZM-16 10.0 PKZ2/ZM-10 7.1 PKZ2/ZM-10 6.2 PKZ2/ZM-6 4.5 ST…4.0 - PKZ2/ZM-25 18.1 PKZ2/ZM-16 10.4 PKZ2/ZM-16 10.0 PKZ2/ZM-10 10.0 PKZ2/ZM-10 8.3 PKZ2/ZM-6 6.0 DT…0.1 PKZM0-0.4 0.4 PKZM0-0.4 0.3 PKZM0-0.25 0.2 PKZM0-0.25 0.2 PKZM0-0.25 0.2 PKZM0-0.16 0.1 PKZM0-0.16 0.1 DT…0.16 PKZM0-0.63 0.5 PKZM0-0.63 0.5 PKZM0-0.4 0.3 PKZM0-0.4 0.3 PKZM0-0.4 0.3 PKZM0-0.25 0.2 PKZM0-0.25 0.2 DT…0.25 PKZM0-1 0.8 PKZM0-1 0.7 PKZM0-0.63 0.4 PKZM0-0.63 0.4 PKZM0-0.4 0.4 PKZM0-0.4 0.3 PKZM0-0.4 0.3 DT…0.4 PKZM0-1.6 1.3 PKZM0-1.6 1.1 PKZM0-1 0.7 PKZM0-1 0.6 PKZM0-0.63 0.6 PKZM0-0.63 0.5 PKZM0-0.63 0.4 DT…0.5 PKZM0-2.5 1.6 PKZM0-1.6 1.4 PKZM0-1 0.8 PKZM0-1 0.8 PKZM0-1 0.7 PKZM0-1 0.6 PKZM0-0.63 0.5 DT…0.63 PKZM0-2.5 2.0 PKZM0-2.5 1.8 PKZM0-1.6 1.0 PKZM0-1.6 1.0 PKZM0-1 0.9 PKZM0-1 0.8 PKZM0-0.63 0.6 DT…1.0 PKZM0-4 3.1 PKZM0-4 2.7 PKZM0-2.5 1.6 PKZM0-1.6 1.5 PKZM0-1.6 1.4 PKZM0-1.6 1.3 PKZM0-1 0.9 DT…1.6 PKZM0-6.3 5.0 PKZM0-6.3 4.3 PKZM0-4 2.5 PKZM0-2.5 2.4 PKZM0-2.5 2.3 PKZM0-2.5 2.0 PKZM0-1.6 1.4 DT…2.0 PKZM0-6.3 6.2 PKZM0-6.3 5.4 PKZM0-4 3.1 PKZM0-4 3.0 PKZM0-4 2.8 PKZM0-2.5 2.5 PKZM0-2.5 1.8 DT…2.5 PKZM0-10 7.6 PKZM0-10 6.7 PKZM0-4 3.8 PKZM0-4 3.7 PKZM0-4 3.5 PKZM0-4 3.1 PKZM0-2.5 2.2 DT…4.0 PKZM0-16 12.0 PKZM0-16 10.4 PKZM0-6.3 6.0 PKZM0-6.3 5.8 PKZM0-6.3 5.5 PKZM0-6.3 4.8 PKZM0-4 3.5 DT…6.3 PKZ2/ZM-25 18.9 PKZ2/ZM-25 16.4 PKZ2/ZM-10 9.5 PKZ2/ZM-10 9.1 PKZ2/ZM-10 8.6 PKZ2/ZM-10 7.6 PKZM0-6.3 5.5
Transformers Transformers, universal power supply units 2010 CA08103002Z-EN www.eaton.com 15/13 Transformers, universal power supply units Technical data Control transformers Multi-winding transformers Universal power supply units STI, STZ DTZ STN UTI AING General Standards Built and tested to IEC/EN 61558-2-2/2-4/2-6VDE 0570 Part 2-2, Part 2-6 (safety transformers), Part 2-4 (isolating transformers) IEC/EN 61558-2-2/2-4/2-6VDE 0570 Part 2-2, Part 2-6 (safety transformers), Part 2-4 (isolating transformers) IEC/EN 61558-2-2VDE 0570 Part 2-2 (Universal)control, isolating and safety trans-formers to VDE 0550,IEC/EN 61558-2-2/2-4/2-6VDE 0570 Part 2-2, Part 2-6 (safety transformers), Part 2-4 (isolating transformers) Safety transformer to IEC/EN 61558-2-2/2-6VDE 0570 Part 2-2/2-6 Suitable for use to IEC/EN 60204-1, ÖVE-EN 13VDE 0113, VDE 0100 Part 410 IEC/EN 60204-1, ÖVE-EN 13VDE 0113, VDE 0100 Part 410 IEC/EN 60204-1, ÖVE-EN 13VDE 0113, VDE 0100 Part 410 IEC/EN 60204-1, ÖVE-EN 13VDE 0113, VDE 0100 Part 410 IEC/EN 60204-1VDE 0113 Ambient temperature °C -25 - +40 -25 - +40 -25 - +40 -25 - +40 -25 - +40 Characteristics Terminals ● ( 115 A) ● ( 115 A) ● ( 115 A) ● ● Connection lugs ● ( 115 A) ● ( 115 A) ● ( 115 A) – – Insulation class B B B B B Rated frequency Hz 50 - 60 50 - 60 50 - 60 50 - 60 50 - 60 Primary tapping ± 5 % ± 5 % ± 5 % ± 20 % ± 5 % Degree of protection IP00 IP00 IP00 IP00 IP20 Separate windings ● ● ● ● ● Completely vacuum-impregnated ● ● ● ● ● Reinforced insulation ● ● – ● ● Rated duty factor % DF 100 100 100 100 100 STI, STZ, DTZ, STN, UTI, AING
15/14 Transformers Transformers 2010 CA08103002Z-EN www.eaton.com Transformers Total weight No-load losses Short-circuit losses Short-circuit voltage Efficiency Total weight No-load losses Short-circuit losses Short-circuit voltage Efficiency kg W W % kg W W % Single-phase control, isolating, and safety transformers 1) Three-phase control, isolating, and safety transformers 1) ST…0.06 1.5 6 5 7.8 0.85 DTZ0.1 1.9 5 28 15 0.75 ST…0.1 2 7 8 6.9 0.87 DTZ0.16 2.5 8 20 9.5 0.85 ST…0.16 2.3 9 12 6.6 0.88 DTZ0.25 3.6 11 25 8.5 0.88 ST…0.2 3 11 17 6.6 0.88 DTZ0.4 5.1 15 40 8 0.88 ST…0.25 3.8 13 14 5.1 0.9 DTZ0.5 6.1 20 35 6 0.9 ST…0.315 4.3 10 18 5.5 0.92 DTZ0.63 8.9 25 50 5.5 0.9 ST…0.4 5.2 17 18 4.4 0.92 DTZ1.0 12.9 35 50 4 0.92 ST…0.5 6.8 15 24 3.9 0.93 DTZ1.6 18.5 55 60 3 0.93 ST…0.63 7.7 15 27 4.1 0.94 DTZ2.0 22.4 60 75 3.5 0.94 ST…0.8 9.6 17 25 3.2 0.95 DTZ2.5 29.3 80 85 2.5 0.94 ST…1.0 13.4 27 29 2.9 0.95 DTZ4.0 39.6 60 100 2 0.96 ST…1.3 14.9 32 35 3 0.95 DTZ6.3 50.2 66 170 2 0.96 ST…1.6 17.4 21 37 2.4 0.96 DTZ8.0 55 60 250 4 0.96 ST…2.0 21.5 27 33 2 0.97 DTZ10 70 80 280 3.5 0.97 ST…2.5 21.5 39 43 2.4 0.97 DTZ12.5 80 95 300 4 0.97 ST…3.0 26 30 55 2.1 0.97 DTZ16 95 100 420 4.5 0.97 ST…4.0 35 38 88 2.2 0.97 DTZ20 125 140 400 3.5 0.98 STZ5.3 40 40 165 4 0.96 DTZ25 160 180 350 3 0.98 STZ8.3 55 65 200 4 0.97 STZ13.3 80 95 265 3.5 0.97 Single-phase control transformers 1) Single-phase multi-winding transformers STN0.06 1 7 10 11 0.79 UTI0.1 2 8 11 7.5 0.84 STN0.1 1.5 7 15 10 0.84 UTI0.2 3 10 19 6.5 0.87 STN0.16 2.4 11 16 6.7 0.87 UTI0.315 4.3 15 23 5 0.89 STN0.2 2.8 9 19 6.8 0.88 UTI0.5 6.8 26 23 3.5 0.92 STN0.25 2.9 9 21 6.3 0.9 UTI0.63 7.7 25 32 3.8 0.92 STN0.315 3.5 11 21 5.3 0.91 UTI0.8 9.6 33 29 2.8 0.93 STN0.4 4.2 12 27 5.3 0.92 UTI1.0 13.4 46 30 2.1 0.93 STN0.5 5.1 15 27 4.1 0.93 STN0.63 7.1 21 32 3.8 0.93 STN0.8 9.8 24 24 2.5 0.94 STN1.0 12.4 33 26 2.2 0.94 STN1.3 14.1 46 33 2.1 0.94 STN1.6 14.3 43 44 2.5 0.95 STN2.0 19.9 56 42 2 0.95 STN2.5 20 21 145 2.4 0.95 STN3.0 23 32 94 2.4 0.96 STN4.0 27 28 143 2.4 0.96 1) All no-load loss, short-circuit loss, short-circuit voltage and efficiency values apply at a temperature of 20 °C. STI, STZ, DTZ, UTI
Transformers Single-phase control transformers 2010 CA08103002Z-EN www.eaton.com 15/15 Single-phase control transformers Dimensions Single-phase control transformers STN0.06...2.0 ① Connection lugs② Maximum space requirement③ With STN0,06-0.2 ground connection at bottom STN2.5...4.0 ① Connection lugs② Maximum space requirement e 2) a g f b1 c1 1) 3) o 2) b±5 2) c±5 12 V 24 V 42 V 110 V 230 V Part no. a b c b c b c b c b c e f ⌀g b1 c1 STN0.06 66 79 78 79 78 79 78 79 78 79 78 50 56 4.8x8 67 60 STN0.1 85 75 91 75 91 75 91 75 91 75 91 64 47 4.8x8 60 76 STN0.16 85 97 91 97 91 97 91 97 91 97 91 64 70 4.8x8 83 76 STN0.2 106 83 112 83 112 83 112 83 112 83 112 80 61 5.8x9 80 97 STN0.25 106 103 121 83 112 83 112 83 112 83 112 80 61 5.8x9 80 97 STN0.315 106 111 121 91 112 91 112 91 112 91 112 80 70 5.8x9 89 97 STN0.4 121 108 133 88 124 88 124 88 124 88 124 90 68 5.8x12 86 106 STN0.5 121 120 133 120 133 100 124 100 124 100 124 90 80 5.8x12 98 106 STN0.63 151 121 157 121 157 107 145 107 145 107 145 122 82 7x15 104 132 STN0.8 151 124 196 138 157 124 145 124 145 124 145 122 99 7x15 121 132 STN1.0 151 150 196 164 157 164 157 150 145 150 145 122 125 7x15 147 132 STN1.3 175 138 213 148 169 148 169 138 157 138 157 135 110 7x15 135 152 STN1.6 175 183 170 138 216 148 169 138 157 138 157 135 110 7x15 135 152 STN2.0 175 213 170 168 216 178 169 168 157 168 157 135 141 7x15 165 152 2) a e g л f c1 b 2) c±5 2) b1±5 1) b1 c b1 c b1 c b1 c b1 c Part no. a b c1 e f ⌀g 12 V 12 V 24V 24V 42 V 42 V 110 V 110 V 230 V 230 V STN2.5 230 130 250 190 200 11 185 260 185 250 205 255 160 275 145 255 STN3.0 230 155 250 190 200 11 210 260 230 250 230 255 185 275 170 255 STN4.0 230 170 250 190 200 11 225 260 245 250 245 255 200 275 185 255 STN
15/16 Transformers Single-phase control, isolating, and safety transformers 2010 CA08103002Z-EN www.eaton.com Single-phase control, isolating, and safety transformers Single-phase control, isolating, and safety transformers ST...0.06...2.5 ① Connection lugs② With STI/STZ0.06 … 0.16 ground connection at bottom ST...3.0...4.0 e a g f b1 c1 2) 1) b ±5 c± 5 12 V 24 V 42 V 110 V 230 V Part no. a b c b c b c b c b c b1 c1 e f ⌀g ST…0.06 85 75 91 75 91 75 91 75 91 75 91 60 76 64 47 4.8x8 ST…0.1 85 89 91 89 91 89 91 89 91 89 91 74 76 64 61 4.8x8 ST…0.16 85 97 91 97 91 97 91 97 91 97 91 83 76 64 70 4.8x8 ST…0.2 106 83 112 83 112 83 112 83 112 83 112 80 97 80 61 5.8x9 ST…0.25 106 111 124 91 112 91 112 91 112 91 112 89 97 80 70 5.8x9 ST…0.315 121 - - 88 119 88 119 88 119 88 119 86 106 90 68 5.8x12 ST…0.4 121 - - 100 119 100 119 100 119 100 119 98 106 90 80 5.8x12 ST…0.5 121 - - 140 131 120 119 120 119 120 119 118 106 90 100 5.8x12 ST…0.63 151 - - 121 157 107 145 107 145 107 145 104 132 122 82 7x15 ST…0.8 151 - - 138 157 124 145 124 145 124 145 121 132 122 99 7x15 ST…1.0 151 - - 164 157 164 157 150 145 150 145 147 132 122 125 7x15 ST…1.3 175 - - 148 169 148 169 138 157 138 157 135 152 135 110 7x15 ST…1.6 195 - - 142 240 149 186 142 174 142 174 140 166 150 110 10x18 ST…2.0 195 - - 154 240 161 186 154 174 154 174 152 166 150 122 10x18 ST…2.5 195 - - 154 240 154 240 161 186 154 174 152 166 150 122 10x18 f a e b c ɂ g 1) 12 V 24 V 42 V 110 V 230 V Part no. a b c b c b c b c b c e f ⌀g ST…3.0 230 - - 210 250 230 255 185 275 170 255 190 200 11 ST…4.0 230 - - 235 250 255 255 210 275 200 255 190 200 11 STI, STZ
Transformers Three-phase control, isolating, and safety transformers 2010 CA08103002Z-EN www.eaton.com 15/17 Three-phase control, isolating, and safety transformers STZ5.3...13.3 Three-phase control, isolating, and safety transformers DTZ0.1...25 ① The higher rated operating voltage applies② Terminals ≦ 25 A③ Connection lugs 63 A c±5 e a b±5 f ɂ g 12 V 24 V 42 V 110 V 230 V Part no. a b c b c b c b c b c e f ⌀g STZ5.3 260 200 ) 200 ) 200 ) 214 374 214 360 230 126 10x18 STZ8.3 260 - - 230 ) 230 ) 244 374 244 374 230 156 10x18 STZ13.3 320 - - 240 ) 240 ) 270 440 270 440 270 172 13x20 ) The higher rated voltage is valid e c c1 f b1 b a o g 2) 3) 18.5 V 24 V 42 V 110 V 230-690 V Part no. a b c b c b c b c b c e f ⌀g b1 c1 DTZ0.1 125 65 134 65 134 65 134 65 134 65 134 100 45 8 x 5 61 102 DTZ0.16 125 75 134 75 134 75 134 75 134 75 134 100 55 8 x 5 71 102 DTZ0.25 155 77 154 77 154 77 154 77 154 77 154 130 57 8 x 12 77 128 DTZ0.4 155 92 154 92 154 92 154 92 154 92 154 130 72 8 x 12 92 128 DTZ0.5 190 82 180 112 191 82 180 82 180 82 180 170 58 8 x 12 82 155 DTZ0.63 190 102 180 132 191 102 180 102 180 102 180 170 78 8 x 12 102 155 DTZ1.0 210 137 210 137 210 137 210 117 199 117 199 175 97 8 x 12 117 174 DTZ1.6 230 144 234 114 269 144 234 114 223 114 223 176 95 7 x 13 114 198 DTZ2.0 240 117 279 117 279 117 279 141 244 117 233 185 95 10 x 18 117 208 DTZ2.5 265 132 299 132 299 132 299 152 264 132 253 200 102 10 x 18 132 228 DTZ4.0 300 166 317 166 333 147 333 157 296 157 296 224 119 10 x 18 147 260 DTZ6.3 300 193 285 210 285 193 333 173 333 173 296 224 145 10 x 18 173 260 DTZ8.0 390 200 1) 200 1) 200 1) 184 374 184 374 350 126 10 x 18 152 310 DTZ10.0 390 - - 216 1) 216 1) 199 374 199 374 350 141 10 x 18 167 310 DTZ12.5 390 - - 231 1) 231 1) 214 374 214 374 350 156 10 x 18 182 310 DTZ16 450 - - 221 1) 221 1) 204 434 204 434 400 142 13 x 20 172 360 DTZ20 450 - - 251 1) 251 1) 234 1) 234 434 400 172 13 x 20 202 360 DTZ25 450 - - 281 1) 281 1) 264 1) 264 434 400 202 13 x 20 232 360 STZ, DTZ
15/18 Transformers Single-phase multi-winding transformers, universal power supply units 2010 CA08103002Z-EN www.eaton.com Single-phase multi-winding transformers, universal power supply units Universal power supply units AING4, AING8 Single-phase multi-winding transformers UTI... 80.5 110 155 a 90 5.8 14.5 Part no. a AING4 62 AING8 70 1) a±5 2) e c1 b1 f o 1) b±5 c±5 g U s = 115 V Part no. a b c e f ⌀g b1 c1 UTI0.1… 85 89 93 64 61 4.8x8 74 76 UTI0.2… 106 82 112 80 61 5.8x9 80 97 UTI0.315… 121 88 124 90 68 5.8x12 86 106 UTI0.5… 121 120 124 90 100 5.8x12 118 106 UTI0.63… 151 107 150 122 82 7x15 104 132 UTI0.8… 151 124 150 122 99 7x15 121 132 UTI1.0… 151 150 150 122 125 7x15 147 132 U s … Secondary voltage 1) Maximum space requirement 2) With type UTI0,1… ground connection at bottom UTI, AING
Transformers Enclosure for transformers 2010 CA08103002Z-EN www.eaton.com 15/19 Enclosure for transformers IP23 enclosures+IP23/01, +IP23/02 +IP23/03 +IP23/04, +IP23/31, +IP 23/32A +IP23/30 +IP23/05, +IP23/06, +IP 23/33, +IP23/34 b a c Part no. a b c +IP23/01 122 118 145 +IP23/02 160 192 184 +IP23/03 203 192 184 +IP23/04 203 231 254 +IP23/30 160 192 184 +IP23/31 203 231 254 +IP23/32A 315 263 360 b a c b a c b a c b c a f c1 ɂ g e Part no. a b c c1 e f ⌀g +IP23/05 570 390 390 430 230 390 10 +IP23/06 690 500 480 540 270 500 13 +IP23/33 520 410 340 360 212 330 10 +IP23/34 620 560 440 460 350 430 12 IP23
