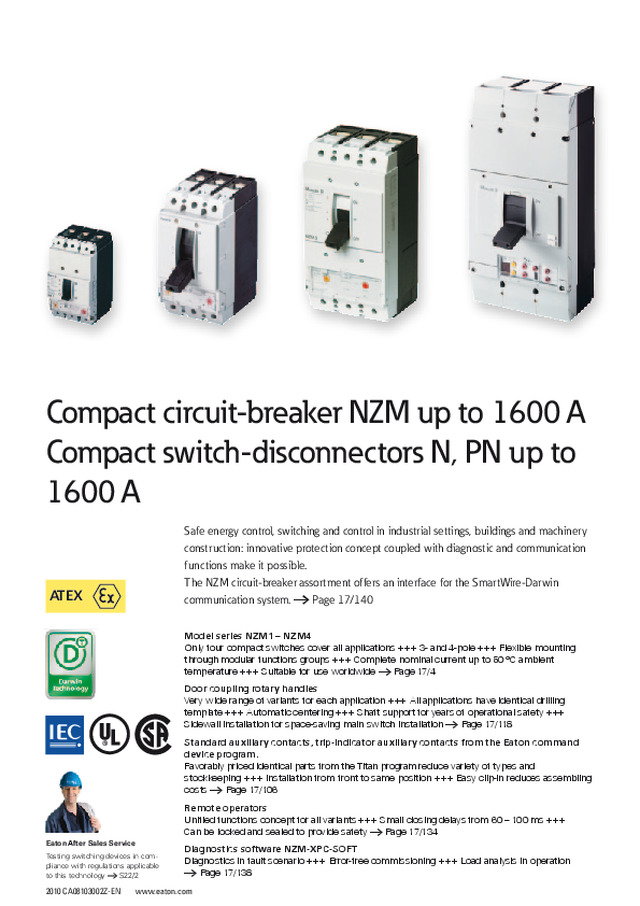

Compact circuit-breaker NZM up to 1600 A Compact switch-disconnectors N, PN up to 1600 A ATEX Safe energy control, switching and control in industrial settings, buildings and machinery construction: innovative protection concept coupled with diagnostic and communication functions make it possible. The NZM circuit-breaker assortment offers an interface for the SmartWire-Darwin communication system. Page 17/140 Model series NZM1 NZM4 Only four compact switches cover all applications +++ 3- and 4-pole +++ Flexible mounting through modular functions groups +++ Complete nominal current up to 50 C ambient temperature +++ Suitable for use worldwide Page 17/4 Door coupling rotary handles Very wide range of variants for each application +++ All applications have identical drilling template +++ Automatic centering +++ Shaft support for years of operational safety +++ Sidewall installation for space-saving main switch installation Page 17/118 Standard auxiliary contacts, trip-indicator auxiliary contacts from the Eaton command device program. Favorably priced identical parts from the Titan program reduce variety of types and stockkeeping +++ Installation from front to same position +++ Easy clip-in reduces assembling costs Page 17/106 Eaton After Sales Service Testing switching devices in compliance with regulations applicable to this technology S22/2 Remote operators Unified functions concept for all variants +++ Small closing delays from 60 100 ms +++ Can be locked and sealed to...
