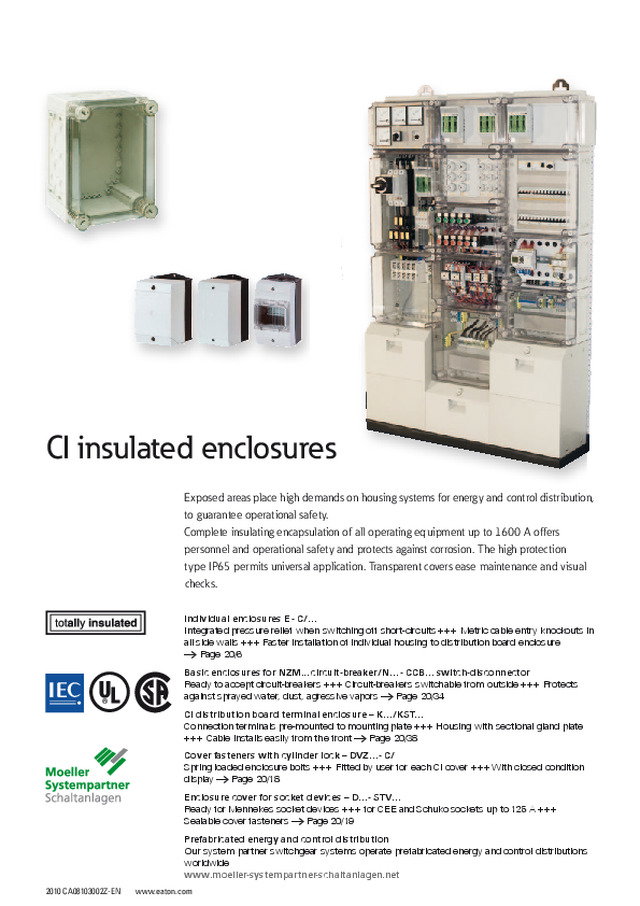

2010 CA08103002Z-EN     www.eaton.com Individual enclosures E - C/… Integrated pressure relief when switching off short-circuits +++ Metric cable entry knockouts in  all side walls +++ Faster installation of individual housing to distribution board enclosure   ￫ Page 20/6Basic enclosures for NZM... circuit-breaker/N… - CCB… switch-disconnector Ready to accept circuit-breakers +++ Circuit-breakers switchable from outside +++ Protects  against sprayed water, dust, agressive vapors ￫ Page 20/34CI distribution board terminal enclosure – K…/KST… Connection terminals pre-mounted to mounting plate +++ Housing with sectional gland plate  +++ Cable installs easily from the front ￫ Page 20/38Cover fasteners with cylinder lock – DVZ…- C/ Spring loaded enclosure bolts +++ Fitted by user for each CI cover +++ With closed condition  display ￫ Page 20/18Enclosure cover for socket devices – D…- STV… Ready for Mennekes socket devices +++ for CEE and Schuko sockets up to 125 A +++   Sealable cover fasteners ￫ Page 20/19Prefabricated energy and control distribution Our system partner switchgear systems operate prefabricated energy and control distributions  worldwide  www.moeller-systempartner-schaltanlagen.net Exposed areas place high demands on housing systems for energy and control distribution, to guarantee operational safety.Complete insulating encapsulation of all operating equipment up to 1600 A offers personnel and operational safety and protects against corrosion. The high protection type IP65 permits universal application. Transparent covers ease maintenance and visual checks. CI insulated enclosures

CI insulated enclosures, CI-K small enclosures  CI insulated enclosures System overview Technical overview – CI insulated enclosures  20/2 System overview - CI insulated enclosures  20/4 Ordering Basic enclosures Individual enclosures  20/6 Individual enclosure for North America  20/9 Distribution board enclosure without   20/10   gland plates fittedPanel enclosure with  20/10   gland plates fittedDistribution board enclosures for North America  20/14Enclosure bases  20/16 Enclosure cover Without apertures  20/17 Lockable, without apertures  20/18 For socket devices  20/19 With door  20/20 Enclosure covers for North America  20/21 Accessories  20/22 Accessories for North America  20/25 Mounting systems  20/26 Fitting of meters  20/28 Accessories for  20/29   enclosure assembly Prepared enclosures MCB individual enclosures  20/31 Enclosures for miniature circuit-breakers  20/32 Modular MCB enclosure system  20/33 Enclosures for circuit-breakers,   20/34   switch-disconnectorsMeter enclosures  20/36 Distribution board terminal enclosure  20/38 Busbar housing  20/40 Accessories for  20/41   busbar enclosuresModular busbar system  20/44 Module for fuse enclosures  20/46 Corner enclosures  20/48 Enclosures with devices fitted Individual fuse enclosures without/with  20/50   door in coverPanel enclosures for fuses  20/52 Individual enclosures with  20/54   LV h.b.c. fuse basesDistribution board enclosure with  20/57   LV h.b.c. fuse basesIndividual enclosure with  20/59   LV h.b.c. fuse switch-disconnectorsDistribution board enclosure with  20/62  LV h.b.c. fuse switch-disconnector distribution board assembly Mounting frames  20/64 Accessories  20/67 Engineering Basic enclosures  20/71 Modular busbar system  20/73 Mounting frame selection  20/77 Socket combinations, energy distributor  20/80  for construction siteSelection of wiring  20/81 Technical data Standards, measured values  20/84 Radiated heat dissipation  20/86 Dimensions CI insulated enclosures  20/87 CI-K small enclosures System overview CI-K small enclosures  20/92 Ordering CI-K basic enclosures  20/93 CI-K accessories  20/96 CI small enclosures  20/98 Technical data CI-K small enclosures  20/99 Dimensions CI-K small enclosures  20/100 125 270 270 270 125 375 375

20/2 CI insulated enclosures  2010 CA08103002Z-EN www.eaton.com Technical overview Basic enclosures CI... individual enclosure Distribution board enclosure with gland plates fitted KST...CI: ￫ Page 20/6KST...: CI: ￫ Page 20/10 CI23.-125...Transparent coverNon-transparent coverCI23.-150...Transparent coverNon-transparent cover KST32-125 (-150)Transparent coverKST34-125 (-150, -200)Transparent cover CI43.-125...Transparent coverNon-transparent coverKST43-125Transparent coverCI43.-150...Transparent coverNon-transparent coverKST43-150Transparent coverCI43.-200...Transparent coverNon-transparent coverKST43-200Transparent cover CI44.-125...Transparent coverNon-transparent coverKST44-125Transparent coverCI44.-150...Transparent coverNon-transparent coverKST44-150Transparent coverCI44,200...Transparent coverNon-transparent coverKST44-200Transparent coverCI44.-250Transparent coverKST44-250Transparent cover CI45.-200Transparent coverNon-transparent cover CI48-200...Transparent coverKST48-200Transparent coverCI48-250...Transparent coverKST48-250Transparent cover CI..., AE..., MCCB..., ZG... Prepared enclosures MCB enclosures - With PE/N terminals- For flush mounting devices with size 1 to DIN 43880 ￫ Page 20/31 Enclosure MCCB... - For circuit-breaker NZM...- Switch-disconnector N...- 3- and 4 pole ￫ Page 20/34 AE/IE...AV/123-125AV/123-1509 x 1-pole AE43E...IAV/143-125AV/143-20027 x 1-pole AE/I44E...AV/144-125AV/144-20045 x 1-pole MCCB1-63/I23E-1501 x 63 A MCCB1-125/I43E-1501 x 125 AMCCB1-160/I43E-2001 x 160 AMCCB2-200/I43E-2001 x 200 A MCCB2-250/I45E-2001 x 250 AMCCB3-400/I45E-2001 x 400 A MCCB3-630/I48/I43E-2001 x 630 A Prepared enclosures Meter enclosures ￫ Page 20/36 Distribution board enclosure KST with terminals K... ￫ Page 20/38 ZG/I43E-G-150Transparent coverZG/I43E-G-200Transparent cover ZG/I44E-150Transparent coverZG/I44E-200Transparent cover ZG/I45E-200-TTransparent doorZG/I45E-200Transparent cover ZG/I48-200Transparent cover Enclosure depth 175 mm:K...KST32 Enclosure depth 225 mm:K...KST34K...KST43K...KST44K...KST48

CI insulated enclosures  2010 CA08103002Z-EN www.eaton.com 20/3 Prepared enclosures Busbar enclosures -250 A, 400 A, 630 A ￫ Page 20/40 Corner enclosures - E...I, in corner: ￫ Page 20/48- E...U, around corner: ￫ Page 20/48 Distribution boards back-to-back RSK..., RPEN...: ￫ Page 20/49 SKA254-I44250 A, 4 poleSKA404-I44400 A, 4 poleSKA634-I44630 A, 4 poleSKA255-I44250 A, 5 poleSKA405-I44400 A, 5 poleSKA635-I44630 A, 5 pole SKA254-2I44250 A, 4 poleSKA404-2I44400 A, 4 poleSKA634-2I44630 A, 4 poleSKA255-2I44250 A, 5 poleSKA405-2I44400 A, 5 poleSKA635-2I44630 A, 5 pole ESKI...250-1600 A3 main conductors1 or 2 PE/NEPENI...1000-1600 A1 or 2 PE/N ESKU...250-1600 A3 main conductors1 or 2 PE/NEPENU...1000-1600 A1 or 2 PE/NRSK...250-1600 A3 main conductors1 or 2 PE/N SKA..., E...I(U), RSK...., RPEN..., RS..., GS... Enclosures with components fitted Fuse enclosure - With PE/N terminals- DII/E27, D02/E18, DIII/E33 ￫ Page 20/50 RS27/I23ERS27/I23-125RS27/I23-1503 x 3 x 25 ADII/E27 RS18/I23ERS18/I23-125RS18/I23-1504 x 3 x 63 AD02/E18 RS33/I23ERS33/I23-125RS33/I23-1502 x 3 x 63 ADIII/E33 RS27/I43ERS27/I43-125RS27/I43-2006 x 3 x 25 ADII/E27 RS18/I43ERS18/I43-125RS18/I43-2008 x 3 x 63 AD02/E18 RS33/I43ERS33/I43-125RS33/I43-2004 x 3 x 63 ADIII/E33 RS27/I44E6 x 3 x 25 ADII/E27 RS18/I44E8 x 3 x 63 AD02/E18 RS33/I44E4 x 3 x 63 ADIII/E33 Enclosures with components fitted Enclosures with LV h.b.c. fuse bases GS    Enclosures with LV h.b.c. fuse switch-disconnectors GSTA...- With PE/N terminals- 5th terminal can be retrofittedNH00, NH1, NH2 GS, GSTA: ￫ Page 20/54 GS00/I23E1 x 100 A, 1 X NH00GSTA00/I23E1 x 100 A, 1 X NH00 2GS00/I43E2 x 100 A, 2 X NH002GSTA00/I43E2 x 100 A, 2 X NH00 GS00-160/I43E-G1 x 160 A, 1 X NH00GSTA00-160/I43E-G1 x 160 A, 1 X NH00 GS1/I45E1 x 250 A, 1 X NH1GSTA1/I45E1 x 250 A, 1 X NH1 GS2/I45E1 x 400 A, 1 X NH2GSTA2/I45E1 x 400 A, 1 X NH2

20/4 CI insulated enclosures  System overview 2010 CA08103002Z-EN www.eaton.com System overview A  A  6 2 1 3 5 4 4 7 CI...

2010 CA08103002Z-EN www.eaton.com CI insulated enclosures  System overview 20/5 Basic enclosures Five sizes can be combinedWidth ≧ 187.5 ≦ 375 mmHeight ≧ 250 ≦ 750 mmDepth ≧ 150 ≦ 275 mmMetric cable entry knockouts in the sidesCover fasteners withI/0 status indication,sealable, pressure relief through built-in springCovertransparent, with/without doorNon-transparent, RAL 7032￫ Page 20/17 Product features • Totally insulated• Protection type IP65• Safety class 2• Distribution board system with  25 mm grid • Modular system• Captive, sponge-rubber gaskets• Insulating wedge-lock fastener for  connecting the enclosures with each other • Enclosure of self-extinguishing,  -halogen free polycarbonate Standards • IEC/EN 60439-1• VDE 0660 Part 500• BS 5486 Part 1• NF EN 60439-1• SN EN 60439-1 Busbar systems 1 5-conductor systemsRated operational current up to 630 ATinned copper busbars up to 630 ABusbar terminals ￫ Page 20/40 Fixing 2 Support frames for wall-mounted and floor-standing distribution boardsWall fixing bracketFixing straps ￫ Page 20/64 Cable compartment 3 PlinthsCable compartment cladding ￫ Page 20/68 ￫ Page 20/70 Cable entries 4 Gland plates for large cross-sectionsFlangesMetric cable glands/cable grommets ￫ Page 20/23 ￫ Page 20/29 Terminals, copper band  ￫ Chapter 16, Accessories for control panel building Mounting systems for basic enclosures 5 Sheet steel mounting plates and  insulating materialPre-drilled mounting plate for surface mounting standard devices  ￫ Online catalogueMounting rails and module mounting rails to IEC/EN 60715Mounting depths 125 to 250 mmMeter equipment ￫ Page 20/26 Enclosures with components fitted/service distribution boards (TTA) 6 MCB enclosuresFuse enclosures  ￫ Page 20/52Enclosures with LV h.b.c. fuse bases ￫ Page 20/57Enclosures with LV h.b.c. fuse switch-disconnectors￫ Page 20/62 CI enclosures for NZM1, 2, 3 circuit-breakers and N1, 2, 3, PN1, 2, 3 switch-disconnectors ￫ Page 20/34 Meter enclosures ￫ Page 20/37 Cover fasteners 7 Fixable or with cylinder lock ￫ Page 20/22 Enclosure styles The enclosure cover is identical for all three construction types. CI...E-... individual enclosure• Metric cable entry knockouts in all sides• All enclosure sides can also be knocked out• Also for use in CI distribution board systems CI...X-... individual enclosure• All four enclosure side plates walls smooth  without knockouts CI...-... panel enclosure•  Horizontal enclosure sides open• Vertical enclosure sides with large knockouts• Suitable for surface mounting CI distribution  board systems CI...

20/6 CI insulated enclosures  Individual enclosures 2010 CA08103002Z-EN www.eaton.com Basic enclosures Individual enclosuresBasic enclosures Ordering Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth for mounting rail 15 mm height4. Enclosure depth Type cover / Type Enclosure base  Part no.Article no. PriceSee price list Std. pack mm mm Individual enclosures E and X • Protection type IP65• Cover transparent or non-transparent (RAL 7032, pebble grey)• Fixing straps for wall fixing• Sealable cover fastenersE individual enclosures• With metric knockouts in all enclosure side plates; see illustrations A to F• Full-area knockouts in the sides• Can be converted to distribution board enclosureX individual enclosures• Smooth side plates, without knockouts Transparent/knockout CI23E-125019570 1 off Non-transparent/knockout CI23E-125-RAL7032090152 Transparent/plain CI23X-125010408 Transparent/knockout CI23E-150021943 Non-transparent/knockout CI23E-150-RAL7032090153 Transparent/plain CI23X-150015154 Transparent/knockout CI43E-125093133 1off Non-transparent/knockout CI43E-125-RAL7032090154 Transparent/plain CI43X-125019900 Transparent/knockout CI43E-150095506 Non-transparent/knockout CI43E-150-RAL7032090155 Transparent/plain CI43X-150024646 Transparent/knockout CI43E-200097879 Non-transparent/knockout CI43E-200-RAL7032090156 Transparent/plain CI43X-200029392 A A 250 187.5 B B 150 117.5 125 110 150 135 175 142.5 D C 250 C D 375 150 117.5 125 110 150 135 175 142.5 200 225 185 192.5 CI...E, CI...X HPL20006EN

CI insulated enclosures  Individual enclosures 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/7 Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth for mounting rail 15 mm height4. Enclosure depth Type cover / Type Enclosure base  Part no.Article no. PriceSee price list Std. pack mm mm Transparent/knockout CI44E-125031436 1off Non-transparent/knockout CI44E-125-RAL7032090157 Transparent/plain CI44X-125031765 Transparent/knockout CI44E-150033809 Non-transparent/knockout CI44E-150-RAL7032090158 Transparent/plain CI44X-150034138 Transparent/knockout CI44E-200036182 transparent with transparent door/knockout CI44E-200-T090147 Non-transparent/knockout CI44E-200-RAL7032090159 Transparent/plain CI44X-200036511 Notes A B C D 1 x M32/206 x M202 x M16 2 x M32/204 x M25/164 x M204 x M16 2 x M50/206 x M25/168 x M20 1 x M50/326 x M25/16 E F 1 x M50/322 x M40/258 x M25/162 x M20 1 x M63/406 x M25/1610 x M202 x M16 E F F 375 E 375 150 117.5 125 110 142.5 175 135 150 225 192.5 200 185 CI...E, CI...X HPL20007EN

20/8 CI insulated enclosures  Individual enclosures 2010 CA08103002Z-EN www.eaton.com Basic enclosures Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth for mounting rail 15 mm height4. Enclosure depth Type cover / Type Enclosure base  Part no.Article no. PriceSee price list Std. pack mm mm Individual enclosures E and X • Protection type IP65• Cover transparent or non-transparent (RAL 7032, pebble grey)• Fixing straps for wall fixing• Sealable cover fastenersE individual enclosures• With metric knockouts in all enclosure side plates; see illustrations A to F• Full-area knockouts in the sides• Can be converted to distribution board enclosureX individual enclosures• Smooth side plates, without knockouts Transparent/knockout CI44E-250038555 1 off Transparent/plain CI44X-250038884 Transparent/knockout CI45E-200001891 Non-transparent/knockout CI45E-200-RAL7032090160 Transparent/plain CI45X-200098469 Notes A B C D 1 x M32/206 x M202 x M16 2 x M32/204 x M25/164 x M204 x M16 2 x M50/206 x M25/168 x M20 1 x M50/326 x M25/16 E F 1 x M50/322 x M40/258 x M25/162 x M20 1 x M63/406 x M25/1610 x M202 x M16 E F F 375 E 375 275 242.5 250 235 D E D 250 500 D E D 375 192.5 200 225 185 CI...E, CI...X HPL20008EN

CI insulated enclosures  Individual enclosure for North America 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/9 Individual enclosure for North AmericaBasic enclosures Dimensions Mounting depth Part no.Article no. PriceSee price list Std. pack Width Height Depth mm mm mm mm Individual enclosures • Protection type IP65• Enclosure base RAL 7032 with smooth sides• Fixing straps for wall fixing Individual enclosures without/with door in cover • Transparent cover, cover locks can be sealed187.5 250 150 125 CI23X-125-NA002209 1 off 175 150 CI23X-150-NA002212 375 250 150 125 CI43X-125-NA002213 175 150 CI43X-150-NA002232 225 200 CI43X-200-NA002217 375 150 125 CI44X-125-NA002218 175 150 CI44X-150-NA002219 225 200 CI44X-200-NA002220 275 250 CI44X-250-NA002224 500 225 200 CI45X-200-NA264023 Individual enclosures with cover and doors • Transparent cover with door, cover fasteners can be sealed• Transparent door, with handle latches and 180° door opening angle• Door hinges can be subsequently changed to left, right, top or bottom.187.5 250 166 125 CI23X-125/T-NA002210 1 off 191 150 CI23X-150/T-NA002211 375 250 166 125 CI43X-125/T-NA002214 191 150 CI43X-150/T-NA002215 241 200 CI43X-200/T-NA002216 375 241 200 CI44X-200/T-NA002221 191 150 CI44X-150/T-NA002222 291 200 CI44X-250/T-NA002223 166 125 CI44X-125/T-NA002233 Notes Information relevant for export to North America Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Industrial Control Panels Degree of Protection IEC: IP65; UL/CSA Types 1, 12, 13, 4X, indoor only CI...X...-NA HPL20009EN

20/10 CI insulated enclosures  Distribution board with/without gland plates fitted 2010 CA08103002Z-EN www.eaton.com Basic enclosures Distribution board with/without gland plates fittedBasic enclosures Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth for mounting rail 15 mm height4. Enclosure depth Cable entry outer diameter Part no.Article no. PriceSee price list Std. pack mm mm mm Distribution board with/without gland plates fitted • Transparent cover, cover fasteners can be sealed. CI distribution board enclosure without cable gland plates • Protection type IP65• Sides closed, but with full area knockout, open top and bottom KST distribution board enclosure with cable gland plates fitted • Protection type IP65 (from bottom)• Sides closed, but with full area knockout, open at top• Mounting of cable supports in the distribution board with wedge-lock fastener• Gland plate can be split, cables can be inserted from the front – CI23-125098208 1 off – CI23-150012781 2 x 14 - 54 KST32-125069774 2 x 14 - 54 KST32-150072147 2 x 14 - 54 KST34-125076893 250 187,5 150 117.5 125 110 150 135 175 142.5 187.5 250 150 117.5 125 110 175 142.5 150 135 375 250 150 117.5 125 110 CI..., KST... HPL20010EN

CI insulated enclosures  Distribution board with/without gland plates fitted 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/11 2 x 14 - 54 KST34-150074520 1 off 2 x 14 - 54 KST34-200079266 – CI43-125017527 3 x 14 - 68 KST43-125081639 – CI43-150022273 3 x 14 - 68 KST43-150084012 – CI43-200027019 3 x 14 - 68 KST43-200086385 Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth for mounting rail 15 mm height4. Enclosure depth Cable entry outer diameter Part no.Article no. PriceSee price list Std. pack mm mm mm 375 250 142.5 175 135 150 225 192.5 200 185 250 375 KST43-... 150 117.5 125 110 150 135 175 142.5 200 225 185 192.5 CI..., KST... HPL20011EN

20/12 CI insulated enclosures  Distribution board with/without gland plates fitted 2010 CA08103002Z-EN www.eaton.com Basic enclosures – CI44-125012452 1 off 3 x 14 - 68 KST44-125088758 – CI44-150017198 3 x 14 - 68 KST44-150091131 – CI44-200021944 3 x 14 - 68 KST44-200093504 – CI44-250026690 3 x 14 - 68 KST44-250095877 – CI45-200001896 Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth for mounting rail 15 mm height4. Enclosure depth Cable entry outer diameter Part no.Article no. PriceSee price list Std. pack mm mm mm 375 375 KST44-... 150 117.5 125 110 142.5 175 135 150 225 192.5 200 185 275 242.5 250 235 500 375 192.5 200 225 185 CI..., KST... HPL20012EN

CI insulated enclosures  Distribution board with/without gland plates fitted 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/13 Distribution board with/without gland plates fitted • Transparent cover, cover fasteners can be sealed. CI distribution board enclosure without cable gland plates • Protection type IP65• Sides closed, but with full area knockout, open top and bottom KST distribution board enclosure with cable gland plates fitted • Protection type IP65 (from bottom)• Sides closed, but with full area knockout, open at top• Mounting of cable supports in the distribution board with wedge-lock fastener• Gland plate can be split, cables can be inserted from the front – CI48-200078896 1 off 3 x 14 - 68 KST48-200098250 – CI48-250083642 3 x 14 - 68 KST48-250010450 Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth for mounting rail 15 mm height4. Enclosure depth Cable entry outer diameter Part no.Article no. PriceSee price list Std. pack mm mm mm 750 375 KST48-... 225 185 192.5 200 275 235 242.5 250 CI..., KST... HPL20013EN

20/14 CI insulated enclosures  Distribution board enclosures for North America 2010 CA08103002Z-EN www.eaton.com Basic enclosures Basic enclosuresDistribution board enclosures for North America Dimensions Mounting depth Part no.Article no. PriceSee price list Std. pack Width Height Depth mm mm mm mm • Protection type IP65• Base color RAL7032, fitted with removable smooth flanges on all four sides• Fixing straps for wall fixing Panel enclosures with cover and flanges • Transparent cover, cover fasteners can be sealed.234 296 150 125 CI23-125-NA002234 1 off 234 296 175 150 CI23-150-NA002237 421 296 150 125 CI43-125-NA002238 421 296 175 150 CI43-150-NA002241 421 296 225 200 CI43-200-NA002242 421 421 150 125 CI44-125-NA002245 421 421 175 150 CI44-150-NA002246 421 421 225 200 CI44-200-NA002249 421 421 275 225 CI44-250-NA002250 421 546 225 200 CI45-200-NA264024 421 796 225 200 CI48-200-NA 1) 002253 421 796 275 250 CI48-250-NA 1) 002254 Panel enclosures with door and flanges 1) • Transparent cover with door, cover fasteners can be sealed• Transparent door with quick-release fasteners and 180° door opening angle• Door hinges can be subsequently changed to left, right, top or bottom.234 296 166 125 CI23-125/T-NA002235 1 off 234 296 191 150 CI23-150/T-NA002236 421 296 166 125 CI43-125/T-NA002239 421 296 191 150 CI43-150/T-NA002240 421 296 241 200 CI43-200/T-NA002243 421 421 166 125 CI44-125/T-NA002244 421 421 191 150 CI44-150/T-NA002247 421 421 241 200 CI44-200/T-NA002248 421 421 291 250 CI44-250/T-NA002251 421 796 241 200 CI48-200/T-NA002252 421 796 291 250 CI48-250/T-NA002255 421 796 241 200 CI48-200/2T-NA002256 421 796 291 250 CI48-250/2T-NA002257 Notes Information relevant for export to North America Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA YesSuitable for Industrial Control Panels Degree of Protection IEC: IP65; UL/CSA Types 1, 12, 13, 4X, indoor only 1) IEC: IP65; UL/CSA Types 1, 12,13, indoor only CI...-NA HPL20014EN

CI insulated enclosures  Distribution board enclosures for North America 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/15 Dimensions Mounting depth Part no.Article no. PriceSee price list Std. pack Width Height Depth Base design mm mm mm mm Distribution board enclosures with cover and preassembled side walls • Protection type IP65• Base RAL 7032, with different side plates on all four sides• Transparent cover, cover fasteners can be sealed. 234 296 175 150 1 × without knockouts1 x side plates knockout2 × side plates with knockout CI23-2210-150-NA234059 1 off 421 296 175 150 2 × without knockouts2 × side plates with knockout CI43-2200-150-NA234060 421 296 175 150 3 × without knockouts1 × side plates with knockout CI43-2000-150-NA234061 421 296 175 150 1 × without knockouts3 × side plates with knockout CI43-2022-150-NA234062 421 296 225 200 2 × without knockouts2 × side plates with knockout CI43-2200-200-NA234063 421 421 175 150 2 × without knockouts2 × side plates with knockout CI44-2200-150-NA234064 421 421 175 150 1 × without knockouts3 × side plates with knockout CI44-2220-150-NA234065 421 421 225 200 2 × without knockouts2 × side plates with knockout CI44-2200-200-NA234066 421 421 275 225 2 × without knockouts2 × side plates with knockout CI44-2200-250-NA234067 Notes Ordering example: Information relevant for export to North America Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Industrial Control Panels Degree of Protection IEC: IP65; UL/CSA Types 1, 12, 13, 4X, indoor only 0 = without knockouts1 = knockout2 = knocked out CI23-2210-150-NA Features of the two short base sides Features of the two long base sides 2 2 0 1 CI...-NA HPL20015EN

20/16 CI insulated enclosures  Enclosure bases 2010 CA08103002Z-EN www.eaton.com Basic enclosures Enclosure basesBasic enclosures Dimensions Cable entry Part no.Article no. PriceSee price list Std. pack Width Height Top and bottom Sideways mm mm Bases for E-type individual enclosures • Metric cable entry knockouts in all sides• Full-area knockouts in the sides 187.5 250 1 x M32/206 x M202 x M16 2 x M32/204 x M25/164 x M204 x M16 U-CI23E038793 1 off 375 250 2 x M50/326 x M25/168 x M20 1 x M50/326 x M25/16 U-CI43E064896 375 1 x M50/322 x M40/258 x M25/162 x M20 1 x M63/406 x M25/1610 x M202 x M16 U-CI44E069642 500 1 x M50/322 x M40/258 x M25/162 x M20 On each 2:1 x M50/326 x M25/16 U-CI45E001893 Bases for X type individual enclosures • Smooth side plates, without knockouts 187.5 250 Drill as required Drill as required U-CI23X057909 1 off 375 250 U-CI43X062655 375 U-CI44X067401 500 U-CI45X098470 Bases for panel enclosures • Sides closed, but with full area knockout• Open tip and bottom 187.5 250 Via FL2... flange Via FL3... flange U-CI23060282 1 off 375 250 Via FL4... flange Via FL3... flange U-CI43065028 375 Via FL4... flange Via FL4... flange U-CI44067269 500 Via FL4... flange Via FL3... flange U-CI45001894 750 Via FL4... flange Via FL4... flange U-CI48083880 Notes Flange ￫ Page 20/23 Enclosure intermediate frame • For increased mounting depth• Smooth side plates, without knockouts• Color RAL 7032, pebble grey• Screw-fitting cover fastener• Equipment supplied: gasket, mounting accessories Dimensions Mounting depth 1) For use with Part no.Article no. PriceSee price list Std. pack Width Height mm mm mm 375 500 275 U-CI45...D200-CI45CI45... U-CI45-DR110103 1 off Notes 1)  with cover D200-CI45 U-CI... HPL20016EN

CI insulated enclosures  Enclosure cover 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/17 Enclosure cover Dimensions Mounting depth For use with Part no.Article no. PriceSee price list Std. pack Width Height mm mm mm Enclosure covers without openings • Sealable cover fasteners• SealingCover, transparent 187.5 250 125 U-CI23… D125-CI23014830 10 off 150 U-CI23… D150-CI23024322 4 off 375 250 125 U-CI43… D125-CI43017203 5 off 150 D150-CI43038560 2 off 200 D200-CI43074155 2 off 375 125 U-CI44… D125-CI44019576 5 off 150 D150-CI44040933 2 off 200 D200-CI44076528 2 off 250 D250-CI44081274 1 off 500 200 U-CI45… D200-CI45001895 2 off 750 200 U-CI48… D200-CI48078901 2 off 250 U-CI48… D250-CI48083647 1 off Enclosure covers without openings Cover, non-transparent ; color RAL 7032, pebble grey  187.5 250 125 U-CI23… D125-CI23-RAL7032098471 10 off 150 U-CI23… D150-CI23-RAL7032098472 4 off 375 250 125 U-CI43… D125-CI43-RAL7032002843 5 off 200 D200-CI43-RAL7032005216 2 off 150 D150-CI43-RAL7032098473 2 off 375 125 U-CI44… D125-CI44-RAL7032007589 5 off 200 D200-CI44-RAL7032009962 2 off 150 D150-CI44-RAL7032098474 2 off 250 D250-CI44-RAL7032098475 1 off 500 200 U-CI45… D200-CI45-RAL7032098476 2 off 750 200 U-CI48… D200-CI48-RAL7032098477 2 off 750 250 U-CI48… D250-CI48-RAL7032098478 1 off D...-CI... HPL20017EN

20/18 CI insulated enclosures  Enclosure cover 2010 CA08103002Z-EN www.eaton.com Basic enclosures Enclosure coverBasic enclosures Dimensions Mounting depth For use with Number Cylindrical locks Part no.Article no. PriceSee price list Std. pack Width Height mm mm mm Lockable enclosure covers without openings • Two or four lockable cover fasteners, diagonal with cylinder lock• Cylindrical locks, uniformly locking• Two diagonal lead-sealable cover locks. When also replacing all DV...-CI with DVZ...-CI,  the sealing function is not available. • Equipment supplied: gasket, keyTransparent cover 187.5 250 125 U-CI23… 2 D125-CI23-DVZ138354 4 off 187.5 250 150 U-CI23… 2 D150-CI23-DVZ138355 4 off 375 250 125 U-CI43… 2 D125-CI43-DVZ138356 2 off 150 U-CI43… 2 D150-CI43-DVZ138357     200 U-CI43… 2 D200-CI43-DVZ138358     375 125 U-CI44… 2 D125-CI44-DVZ138359     150 U-CI44… 2 D150-CI44-DVZ138520     200 U-CI44… 2 D200-CI44-DVZ138521     250 U-CI44… 2 D250-CI44-DVZ138522     500 200 U-CI45… 2 D200-CI45-DVZ138523     750 200 U-CI48… 4 D200-CI48-DVZ138524     750 250 U-CI48… 4 D250-CI48-DVZ138525     Non-transparent cover RAL7032 187.5 250 125 U-CI23… 2 D125-CI23-RAL7032-DVZ138526 4 off 187.5 250 150 U-CI23… 2 D150-CI23-RAL7032-DVZ138527 4 off 375 250 125 U-CI43… 2 D125-CI43-RAL7032-DVZ138528 2 off 150 U-CI43… 2 D150-CI43-RAL7032-DVZ138529     200 U-CI43… 2 D200-CI43-RAL7032-DVZ138530     375 125 U-CI44… 2 D125-CI44-RAL7032-DVZ138531     150 U-CI44… 2 D150-CI44-RAL7032-DVZ138532     200 U-CI44… 2 D200-CI44-RAL7032-DVZ138533     250 U-CI44… 2 D250-CI44-RAL7032-DVZ138534     500 200 U-CI45… 2 D200-CI45-RAL7032-DVZ138535     750 200 U-CI48… 4 D200-CI48-RAL7032-DVZ138536     750 250 U-CI48… 4 D250-CI48-RAL7032-DVZ138537     D...-CI...-DVZ HPL20018EN

CI insulated enclosures  Enclosure cover 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/19 Dimensions Mounting depth Plug-in units For use with Part no.Article no. PriceSee price list Std. pack For use with Width Height Number of openings mm mm mm Enclosure cover prepared for 16 to 125 A plug-in units • For individual enclosures or in distribution boards• For distribution board applications observe the characteristic  data of the other apparatus. • Cover with knockouts for standardized 5-pole plug-in units• Plug-in units not included as standard• Order plug-in units separately, e.g. from Mennekes• Sealable cover fasteners• For retrofitting for various lockable covers, order also DVZ...-CI• Protection type IP44, gasket Schuko socket 16 A 187.5 250 125 3 U-CI23... D125-CI23-RAL7032-STV3/16A138545 4 off Schuko socket 16 A 187.5 250 150 3 U-CI23... D150-CI23-RAL7032-STV3/16A138546 4 off Schuko socket 16 A 375 250 125 8 U-CI43... D125-CI43-RAL7032-STV8/16A138547 2 off 150 U-CI43... D150-CI43-RAL7032-STV8/16A138548 2 off 200 U-CI43... D200-CI43-RAL7032-STV8/16A138549 2 off CEE 16 A 375 250 125 3 U-CI43... D125-CI43-RAL7032-STV3/16A138550 2 off 150 U-CI43... D150-CI43-RAL7032-STV3/16A138551 2 off 200 U-CI43... D200-CI43-RAL7032-STV3/16A138552 2 off CEE 32 A 125 U-CI43... D125-CI43-RAL7032-STV3/32A138553 2 off 150 U-CI43... D150-CI43-RAL7032-STV3/32A138554 2 off 200 U-CI43... D200-CI43-RAL7032-STV3/32A138555 2 off CEE 63 A 125 U-CI43... D125-CI43-RAL7032-STV3/63A138556 2 off 150 U-CI43... D150-CI43-RAL7032-STV3/63A138557 2 off 200 U-CI43... D200-CI43-RAL7032-STV3/63A138558 2 off CEE 125 A 375 250 125 2 U-CI43... D125-CI43-RAL7032-STV2/125A138559 2 off 150 U-CI43... D150-CI43-RAL7032-STV2/125A138560 2 off 200 U-CI43... D200-CI43-RAL7032-STV2/125A138561 2 off 4 x Schuko sockets 16 A2 x CEE 16 A1 CEE 32 A 375 250 125 7 U-CI43... D125-CI43-RAL7032-STV7/16-32A 2 off 150 U-CI43... D150-CI43-RAL7032-STV7/16-32A 2 off 200 U-CI43... D200-CI43-RAL7032-STV7/16-32A138564 2 off 4 x Schuko sockets 16 A2 x CEE 16 A1 CEE 32 A 375 375 125 7 U-CI44... D125-CI44-RAL7032-STV7/16-32A 2 off 150 U-CI44... D150-CI44-RAL7032-STV7/16-32A 2 off 200 U-CI44... D200-CI44-RAL7032-STV7/16-32A 2 off 250 U-CI44... D250-CI44-RAL7032-STV7/16-32A 2 off D...-CI...-RAL7032-STV... HPL20019EN

20/20 CI insulated enclosures  Enclosure covers and doors 2010 CA08103002Z-EN www.eaton.com Basic enclosures Enclosure covers and doorsBasic enclosures Mounting depth For use with Part no.Article no. PriceSee price list Std. pack mm Enclosure covers with door • Protection type IP65• Transparent door, with quick-release fasteners and 180° door opening angle• Door hinges can be subsequently changed to left, right, top or bottom. 125 U-CI23… D125-CI23/T072476 10 off 150 U-CI23… D150-CI23/T074849 4 off 125 U-CI43… D125-CI43/T077222 2 off 150 U-CI43… D150-CI43/T079595 2 off 200 U-CI43… D200-CI43/T081968 2 off 125 U-CI44… D125-CI44/T084341 2 off 150 U-CI44… D150-CI44/T086714 2 off 200 U-CI44… D200-CI44/T089087 2 off 250 U-CI44… D250-CI44/T091460 1 off For use with Part no.Article no. PriceSee price list Std. pack Doors • Protection type IP65• Door opening angle to 180°• Door hinges can be subsequently changed to right, left, top or bottom.• Adhesive film for marking the cutout• Fixing screws• Transparent CI23…, D…-CI23 T-CI23093833 2 off CI43…, D…-CI43CI45…, D…-CI45 T-CI43096206 1 off CI44…, D…-CI44CI48…, D…-CI48 T-CI44098579 Hinged flaps • For positioning on cover, change as required• Protection type IP55• Opening angle to 180°• Hinge on one side cannot be changed• Transparent D...-CI...145 x 80 mm K-A043372 D...-CI...185 x 90 mm KG-A055244 D...-CI...T, T-CI... HPL20020EN

CI insulated enclosures  Doors for CI enclosure covers, North America 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/21 Basic enclosuresDoors for CI enclosure covers, North America For use with Mounting depth Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America mm Cover • Transparent• Sealable cover fasteners• Gaskets U-CI23… 125 D125-CI23-NA014286 10 off Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Refer to main component information 150 D150-CI23-NA014334 4 off U-CI43… 125 D125-CI43-NA014433 5 off 150 D150-CI43-NA014480 2 off 200 D200-CI43-NA014771 2 off U-CI44… 125 D125-CI44-NA014838 5 off 150 D150-CI44-NA010937 2 off 200 D200-CI44-NA010985 2 off 250 D250-CI44-NA011049 1 off U-CI45... 200 D200-CI45-NA264022 2 off U-CI48… 200 D200-CI48-NA011878 1 off 250 D250-CI48-NA011906 1 off Covers with door • Transparent• Protection type IP65 U-CI23… 125 D125-CI23/T-NA012038 1 off Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Refer to main component information 150 D150-CI23/T-NA012097 U-CI43… 125 D125-CI43/T-NA012115 150 D150-CI43/T-NA012147 200 D200-CI43/T-NA012195 U-CI44… 125 D125-CI44/T-NA012335 150 D150-CI44/T-NA012357 200 D200-CI44/T-NA012780 250 D250-CI44/T-NA012809 U-CI48… 200 D200-CI48/T-NA012842 250 D250-CI48/T-NA012863 200 D200-CI48/2T-NA012392 250 D250-CI48/2T-NA012411 D...-CI...-NA HPL20021EN

20/22 CI insulated enclosures  Accessories 2010 CA08103002Z-EN www.eaton.com Basic enclosures Basic enclosuresAccessories For use with Part no.Article no. PriceSee price list Std. pack Cover fasteners for CI enclosures CI23: 4 offCI43: 4 offCI44: 4 off DV125-CI001923 10 off CI23: 4 offCI43: 4 offCI44: 4 offCI45: 4 offCI48: 6 off DV150-250-CI001924 10 off Cover fasteners with cylinder lock for CI enclosures 1) • Lockable cover fasteners with cylinder lock, uniform locking• Key CI23... max. 4 offCI43... max. 4 offCI44... max. 4 off DVZ125-CI133100 2 off CI23... max. 4 offCI43... max. 4 offCI44... max. 4 offCI45... max. 4 offCI48... max. 6 off DVZ150-250-CI133101 2 off Set of cover hinges • For CI...E, CI...X individual enclosures• For CI... panel enclosure on the sides if a flange is not installed CI23: 1 setCI43: 1 setCI44: 1 setCI45: 1 setCI48: 1 setEach set consists of 2 hinges. DSCH-CI034224 5 off Handgrip • Quick-release fastener for opening enclosures manually• Higher cover in conjunction with the extension for the handle CI23(…)-125, 150: 4 offCI43(…)-125, 150: 4 offCI44(…)-125, 150: 4 off HG-CI046382 20 off Extension for handle • Can be fitted to cover CI43-200/(D200-CI43): 4 offCI44-200/(D200-CI44): 4 offCI48-200/(D200-CI48): 6 off VHG50-CI044880 8 off Sealing kit • At the top edge of cover with D200-... Use one set diagonally per enclosure.One set consists of 2 sealable locks. PLV200-CI044881 5 off Notes 1)  For sealing, use at least one cover fastener DV125-CI or DV150-250-CI. Information relevant for export to North America Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Industrial Control Panels Degree of Protection IEC: IP65; UL/CSA Types 1, 12, 13, 4X, indoor only D...-CI HPL20022EN

CI insulated enclosures  Accessories 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/23 Basic enclosuresAccessories Cable entry Part no.Article no. PriceSee price list Std. pack Flanges • Captive, sponge-rubber gaskets• Quick mounting using wedge lock fasteners (included as standard)For enclosure dimension 375 mm Drill as required FL4-X024355 10 off 26 x M16, 14 x M20 FL4-2014863     5 x M25, 6 x M25/16, 6 x M32/20 FL4-3017236     4 x M16, 2 x M25/16, 8 x M40/25 FL4-4019609     2 x M16, 4 x M20, 2 x M25/16, 2 x M40/25, 3 x M50/32 FL4-5021982     For enclosure dimension 250 mm Drill as required FL3-X093171 10 off 18 x M16, 4 x M20 FL3-1088425     6 x M20, 4 x M25, 4 x M25/16 FL3-2090798     1 x M16, 5 x M40/25 FL3-3022644     For enclosure dimension 187.5 mm Drill as required FL2-X086052 10 off 10 x M16, 3 x M20 FL2-2017898     6 x M20, 2 x M25/16 FL2-3020271     For enclosure dimension 125 mm Drill as required FL1-X078933 10 off FL... HPL20023EN

20/24 CI insulated enclosures  Accessories 2010 CA08103002Z-EN www.eaton.com Basic enclosures External diameter of cable For use with Part no.Article no. PriceSee price list Std. pack mm Sponge-rubber flange IP54 • Protection type IP54• For enclosure dimension 375 mm 42 x 10 - 134 x 15 - 192 x 20 - 30 NYY, NYM 3 x 1.5 mm 2  - 5 x 2.5 mm 2 NYY, NYM 4 x 4 mm 2  - 5 x 10 mm 2 NYY, NYM 4 x 10 mm 2  - 4 x 50 mm 2 FL4-D044879 10 off Spacers • To enlarge the connection compartment by 25 mm – For fitting to enclosure side,250 mm for FL3-... flange ZRF3067734 2 off – For fitting to enclosure side,375 mm for FL4-... flange ZRF4070107 2 off For use with enclosure size Plug-in units Part no.Article no. PriceSee price list Std. pack Number of openings For use with Flanges prepared for Schuko or high-voltage sockets up to 32 A • Flange non-transparent RAL7032• Captive, sponge-rubber gaskets• Quick mounting using wedge lock fasteners (included as standard)• Flanges milled out and predrilled for standardized 5-pole plug-in units• Order plug-in units separately, e.g. from Mennekes• Protection type IP44 375 mm 3 Schuko sockets 16 A FL4-STV3/16A138569 2 off 375 mm 2 Schuko sockets 16 A FL4-STV2/16A138570     375 mm 3 1 x CEE 32 A2 x Schuko sockets 16 A FL4-STV3/16-32A138571     250 mm 2 Schuko sockets 16 A FL3-STV2/16A138572     250 mm 1 1 x CEE 16 A FL3-STV/1/16A138573     FL..., ZRF..., FL...-STV... HPL20024EN

CI insulated enclosures  Accessories for North America 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/25 Basic enclosuresAccessories for North America Mounting systemBasic enclosures For use with Mounting depth Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America mm Doors • Protection type IP65• Door opening angle 180°• Door hinges can be subsequently changed to left,  right, top or bottom. • Adhesive film for marking the cutout• Fixing screws• Transparent Mounting on all enclosure covers D…-CI23-NA T-CI23-NA011925 1 off Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Refer to main component information Mounting on all enclosure covers D…-CI43-NA T-CI43-NA011957     Mounting on all enclosure covers D…-CI44-NA and D…-CI48-NA T-CI44-NA012001     For use with enclosure size Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Flanges 187.5 mm FL2-X-NA208310 10 off Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Refer to main component information 250 mm FL3-X-NA012462     375 mm FL4-X-NA208309     Spacers For enlarging the cable entry space, in conjunction with flange FL3‐X‐NA ZRF3-NA012479 2 off Product Standards UL 508A; CSA-C22.2 No.94; IEC/EN 60529; CE marking UL File No. E54120, E337418 UL CCN NITW CSA File No. 27130 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Suitable for Refer to main component information T-CI...NA, FL...NA, ZRF...NA HPL20025EN

20/26 CI insulated enclosures  Mounting system 2010 CA08103002Z-EN www.eaton.com Basic enclosures For use with Thread Part no.Article no. PriceSee price list Std. pack Mounting plates Including 4 captive fixing screwsGalvanized steel, 3 mm thick CI23 – M3-CI23019709 5 off CI43...: 1 xCI45...: 2 x – M3-CI43029201     CI44 – M3-CI44031574     CI45 – M3-CI45003036     CI48 – M3-CI48036320     Glass-fibre reinforced insulating material, 4 mm thickDevices are secured using hank nuts CI23 – IM4-CI23086081 5 off CI43...: 1 xCI45...: 2 x – IM4-CI43088454     CI44 – IM4-CI44090827     CI48 – IM4-CI48093200     Hank nuts for insulating material mounting plate M4 EM4-CI002293 100 off – M5 EM5-CI002294 – M6 EM6-CI002295     Notes 1)  CI…-125… CI…-150… CI…-200… CI…-250… Mounting depth with mounting plate Mounting depth with mounting rail 7.5 mm or 15 mm Enclosure depth 125 150 110 117.5 175 135 150 142.5 200 225 185 192.5 250 275 235 242.5 M3-CI..., IM4-CI..., EM...-CI HPL20026EN

CI insulated enclosures  Mounting systems 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/27 Mounting systemsBasic enclosures Part no.Article no. PriceSee price list Std. pack For use with Module mounting rail • Useful length 330 mm for enclosure dimension 375 mm• Galvanized steel, 3 mm thick• Including fixing screws Horizontal  CI43  CI44  CI45  CI48Vertical  CI44 ML4041069 10 off Mounting rails according to IEC/EN 60715 • Galvanized sheet steel• Including 2 captive fixing screwsHeight 7.5 mm Useful length 145 mm for enclosure dimension 187.5 mm CL2029064 20 off Useful length 207 mm for enclosure dimension 250 mm CL3033810     Useful length 332 mm for enclosure dimension 375 mm CL4038556     Height 15 mm Useful length 145 mm for enclosure dimension 187.5 mm CL2-15031437 10 off Useful length 207 mm for enclosure dimension 250 mm CL3-15036183     Useful length 332 mm for enclosure dimension 375 mm CL4-15040929     Accessories for mounting systems Spacers• For raising the mounting systems• (4 off required for mounting plate, 2 off required for mounting rail) by 25 mm HS25-CI002291 25 off by 50 mm HS50-CI002292 25 off by 10 mm ADT200-190002289 10 off by 15 mm ADT125-110002290 10 off Captive screw• For fixing the mounting systems• Spare  parts– Mounting plates, pre-drilled mounting plates, mounting rails, module mounting rails UBS4.8002288 25 off Mounting rail support CL4-15Weight without TS… ≦ 4 kg, with TS… ≦ 10 kg, without TS… with HS25… ≦ 3 kg,without TS… with HS50… ≦ 1.5 kg TSCL4-15098480 10 off 7,5 15 CI..., HS...-CI HPL20027EN

20/28 CI insulated enclosures  Fitting of meters 2010 CA08103002Z-EN www.eaton.com Basic enclosures Basic enclosuresFitting of meters For use with Part no.Article no. PriceSee price list Std. pack Meter covers In CI43E-200, CI44E-250 enclosuresFor up to six 96 × 96 mm snap-on metering devices.The meter shroud is secured using AH-GA support brackets. CI43E-200, CI44E-200 enclosures GA-MS-I43053502 1 off CI44E-250 enclosure GA-MS-I44055875 1 off Set of support brackets For meter and protective shrouds (order meter shroud GA-MS-I43 separately).Each set consists 4 brackets. AH-GA002305 10 off Retaining frame To cover unused spaces:Also required as an adapter with snap-on 72 × 72 mm meters and when fitting PKZM0 (voltmeters) as well as T0-... (meter changeover switch).(Order GA-MS-I43 meter shroud separately) HBA-4344002316 10 off Fixing kits For mounting up to two PKZM0, T0Fitting parallel to 250 mm side of the enclosure.(Order GA-MS-I43 meter shroud separately) BFS-PT3002317 5 off For mounting up to three PKZM0, T0Fitting parallel to 375 mm side of the enclosure.(Order GA-MS-I43 meter shroud separately) BFS-PT4002318 5 off GA...I..., AH-GA, HBA-..., BFS-... HPL20028EN

CI insulated enclosures  Accessories for enclosure assembly 2010 CA08103002Z-EN www.eaton.com Basic enclosures 20/29 Basic enclosuresAccessories for enclosure assembly For use with Part no.Article no. PriceSee price list Std. pack For use with enclosure size Connection kits Insulating wedge-lock fastener for connecting the enclosures with each other 187.5 mm BS2-CI090750 10 off 250 mm500 mmUse two off BS3-CI097869     375 mm750 mmUse two off BS4-CI014815     Flange adapters For connecting enclosures with sides of different lengths – FT-CI002319 10 off Cross strut kits Enables fitting of cables or busbars from the front 250 mm STB3-CI219217 1 off 375 mm STB4-CI034223 1 off Stepped cable grommets Enables fitting of cables or busbars from the front 250 mmFor 2 cables of 14 – 54 mm KS3-CI057621 1 off 375 mmFor 3 cables of 14 – 68 mm KS4-CI062367 1 off BS...CI, FT-CI, STB...CI, KS...CI HPL20029EN

20/30 CI insulated enclosures  Accessories for enclosure assembly 2010 CA08103002Z-EN www.eaton.com Basic enclosures Part no.Article no. PriceSee price list Std. pack For use with Fixing strap kits • For securing CI enclosures directly to the wall• For max. 4 CI43... enclosures Each set contains 4 straps. BL-CI036168 5 off  Steel type V2AEach set contains 4 straps. BL-CI-VA038541 5 off Wall fixing bracket • For securing CI enclosures directly to the wall with a clearance of 50 mm• Fit one wall fixing bracket to every second enclosure across the width, for transport purposes add more brackets at  the bottom Section length 2125 mm, cut to fit. W16/32090146 1 off Max. 2 × CI43 one above the other W4/8048755     Max. 2 × CI44 one above the other W6/12051128     Max. 4 × CI43 one above the other W8/16053501     Max. 5 × CI43 one above the other W10/20055874     Fixing screw For securing CI enclosures to wall fixing brackets W...For fixing CI enclosures on WS..., WW... profiles LT284-M6X20-C050325 100 off Coupling piece Enclosure assembly and flange connection,K-CI required VS-CI002315 100 off For attatching gland plates,K-CI required VS-KS-CI038460 25 off Wedge With VS-CI or VS-KS-CI for enclosure assembly and attaching flanges and gland plates K-CI002314 100 off Bracket Enclosure assemblies, enclosure dimension 375 mm KD4-CI002313 25 off Gaskets For enclosure assembly Enclosure dimension 187.5 mm D2-CI002310 20 off Enclosure dimension 250 mm D3-CI002311     Enclosure dimension 375 mm D4-CI002312     BL...CI, W..., LT284..., VS...CI, K...CI, D...CI HPL20030EN

CI insulated enclosures  MCB individual enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/31 MCB individual enclosuresPrepared enclosures Dimensions mm Single-pole miniature circuit-breakers (space unit) Number PE and N terminals Number x cross-section mm 2 Model Part no.Article no. PriceSee price list Std. pack Type cover Type door MCB individual enclosures • Metric cable entry knockouts in all sides• Protection type IP65• For flush mounting devices with size 1 to DIN 43880• Transparent cover with quick-release fasteners, transparent door for operator access to devices fitted• Mounting rails for snap-fitting the devices• Blanking strip for unused locations, protective shroud with inscription label• PE/N bars• Fixing straps for wall mounting, cover fasteners can be sealed• Enclosure depth 150 mm 9 On each 2 x (6 - 16)On each 7 x (1 - 4) Transparent – AE/I23E029766 1 off 9 On each 2 x (6 - 16)On each 7 x (1 - 4) – Transparent AE/I23E/T032139     27 On each 4 x (6 - 35)On each 20 x (1 - 4) Transparent – AE/I43E000239     27 On each 4 x (6 - 35)On each 20 x (1 - 4) – Transparent AE/I43E/T002612     45 On each 4 x (6 - 35)On each 20 x (1 - 4) Transparent – AE/I44E004985     45 On each 4 x (6 - 35)On each 20 x (1 - 4) – Transparent AE/I44E/T061937     Notes - - - PE/N bars 1)  2)  1)  2)  1)  2)  250 187.5 250 375 125 125 125 125 375 375 A 1 x M32/206 x M202 x M16 B 2 x M32/204 x M25/164 x M204 x M16 C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 E 1 x M50/322 x M40/258 x M25/162 x M20 F 1 x M63/406 x M25/1610 x M202 x M16 AE/I... HPL20031EN

20/32 CI insulated enclosures  Enclosures for miniature circuit-breakers 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresEnclosures for miniature circuit-breakers Dimensions mm Enclosure depth mm Single-pole miniature circuit-breakers (space unit) Number Part no.Article no. PriceSee price list Std. pack Enclosures for miniature circuit-breakers • Sides closed, but with full area knockout, open top and bottom• Protection type IP65• For flush mounting devices with size 1 to DIN 43880• Transparent cover with quick-release fasteners• Mounting rails for snap-fitting the devices• Blanking strip for unused locations, protective shroud with inscription label• Fixing straps for wall mounting, cover fasteners can be sealed 150 9 AV/I23-125036089 1 off 175 9 AV/I23-150043208     150 27 AV/I43-125047954     225 27 AV/I43-200045581     150 45 AV/I44-125059819     225 45 AV/I44-200062192     250 187.5 250 125 125 375 375 125 125 375 AV/I... HPL20032EN

CI insulated enclosures  MCB modular enclosure 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/33 MCB modular enclosurePrepared enclosures For use with Part no.Article no. PriceSee price list Std. pack Notes Mounting rail supports One row CI23 TG23044004 1 off 162 mm busbar lengthsFor 9 space units Three rows CI43 TG43046377 1 off 162 mm busbar lengthsfor 3 x 9  space units CI44 TG44048750 1 off 270 mm busbar lengthsfor 3 x 15 space units Protective shroud Busbar tag shroud with inscription label TG23 GA-O/I23051123 5 off – TG43 GA-O/I43053496     – TG44 GA-O/I44055869     – Blanking strips For blanking off unused locations GA-O/I… VST12002322 10 off For 12 space units PE and N terminals Quantity x Cross-section Gauge pin IEC/EN 60947-1 For use with Part no.Article no. PriceSee price list Std. pack mm 2 N bars 2 x 6 - 357 x 1 - 4 B8, A3 TG23 N23AE058242 1 off 4 x 6 - 3520 x 1 - 4 B8, A3 TG43TG44 N434AE060615 1 off PE (PEN) bars 4 x 6 - 3520 x 1 - 4 B8, A3 TG43TG44 PEN434AE062988 1 off 2 x 6 - 357 x 1 - 4 B8, A3 TG23 PEN23AE065361 1 off 12 PLE TG..., GA-0/I..., VST..., N...AE, PEN...AE HPL20033EN

20/34 CI insulated enclosures  Enclosures for circuit-breakers, switch-disconnectors 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresEnclosures for circuit-breakers, switch-disconnectors Rated uninterrupted current Can be used for basic device Can be used with terminals 2) Basic enclosure Part no.Article no. PriceSee price list Std. pack  I u A Enclosures for NZM... circuit-breakers/N... switch-disconnectors, 3- and 4-pole • For use as individual enclosures 1)  or in distribution boards • For distribution board applications observe the characteristic data of other apparatus.• Protection type IP65, when enclosures closed throughout• Metric cable entry knockouts in all sides. Exception: CI48...:  Side panels without knockouts, open at bottom • Sidewalls with knockouts; can be grouped with other devices• With door coupling rotary handle NZM...-XTVD and extension shaft• Transparent cover, predrilled• Mounting plate predrilled for switches and one PE and N terminal each• Mounting plate, 3 mm sheet steel• Sealable cover fasteners• Fixing material for fixing material• Fixing strap BL-CI• Can not be combined with remote operator NZM...-XR, plug-in unit NZM...-XSV or  withdrawable unit NZM...-XAV. • Rated operating voltage 690 V AC 63 NZM1(-4)N1(-4)N(S)1(-4) K10/1K25/1K50/1K95/1N... CI23E-150 MCCB1-63/I23E-150138538 1 off 125 NZM1(-4)N1(-4)N(S)1(-4) K10/1K25/1K50/1K95/1N... CI43E-150 MCCB1-125/I43E-150138539     160 NZM1(-4)N1(-4)N(S)1(-4) K10/1K25/1K50/1K95/1N... CI43E-200 MCCB1-160/I43E-200138540     200 NZM2(-4)N2(-4)N(S)2(-4) K10/1K25/1K50/1K95/1N...K150/1N... CI43E-200 MCCB2-200/I43E-200138541     250 NZM2(-4)N2(-4)N(S)2(-4) K10/1K25/1K50/1K95/1N...K150/1N... CI45E-200 MCCB2-250/I45E-200138542     187.5 250 C C D D 250 375 375 500 MCCB1-..., MCCB2-... HPL20034EN

CI insulated enclosures  Enclosures for circuit-breakers, switch-disconnectors 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/35 400 NZM3(-4)N3(-4)N(S)3(-4) K50/1K95/1N...K150/1N...K240/1N... CI45E-200 MCCB3-400/I45E-200138543     1 off 630 NZM3(-4)N3(-4)N(S)3(-4) K50/1K95/1N...K150/1N...K240/1N...K2X240/1N... CI combination of CI48-200 + CI43E-200 + STB4-CI  MCCB3-630/I48/I43E-200138544     Notes 1)  Order insulated additional terminal for fourth or fifth pole separately ￫ Chapter 16, Accessories for control panels 2)  Observe short-circuit values of individual enclosures ￫ Chapter 17: Compact circuit-breakers NZM, compact switch-disconnectors N up to 1600 A Rated uninterrupted current Can be used for basic device Can be used with terminals 2) Basic enclosure Part no.Article no. PriceSee price list Std. pack  I u A 375 500 375 750 250 C D D A 1 x M32/206 x M202 x M16 B 2 x M32/204 x M25/164 x M204 x M16 C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 E 1 x M50/322 x M40/258 x M25/162 x M20 MCCB3-... HPL20035EN

20/36 CI insulated enclosures  Meter enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Meter enclosuresPrepared enclosures Dimensions Enclosure depth:dimensions from top:1. Meter rail2. Enclosure depth Type cover Part no.Article no. PriceSee price list Std. pack mm mm Meter enclosures , meter rail • Metric cable entry knockouts in all sides (exception: ZG/I48-200)• Protection type IP65• Cover/door transparent• ZG/I48-200 top and bottom with full area knockouts for FL4... flange• Meter rail to DIN 43853 including meter fixing screws and nuts• Fixing straps for wall fixing• Sealable fasteners at the top edge of the cover Transparent ZG/I43E-G-150013151 1 off Transparent ZG/I43E-G-200015524 Transparent ZG/I44E-150017897 Transparent ZG/I44E-200020270 250 375 136 175 225 186 375 375 136 175 225 186 ZG/I... HPL20036EN

CI insulated enclosures  Meter enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/37 Meter enclosuresPrepared enclosures Dimensions Enclosure depth:dimensions from top:1. Meter rail2. Enclosure depth Type cover/Type door Part no.Article no. PriceSee price list Std. pack mm mm Meter enclosures , meter rail Transparent ZG/I45E-200-T090145 1 off Transparent ZG/I45E-200098479 Transparent ZG/I48-200022643 Meter rail – To DIN 43853, including three counter fixing bolts with nuts to DIN 46300. For fitting on mounting plates, sealing￫ Page 20/22￫ Page 20/26 ZK1001892 5 off Notes 375 500 225 186 750 375 225 186 C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 E 1 x M50/322 x M40/258 x M25/162 x M20 F 1 x M63/406 x M25/1610 x M202 x M16 ZG/I... HPL20037EN

20/38 CI insulated distribution boards  Distribution board terminal enclosure 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresDistribution board terminal enclosure Distribution board terminal enclosure • Distribution board enclosure with terminals and fitted gland plate• External connection for round and solid sector conductors, internal for copper strip,  conversion kits to round and solid sector conductors ￫ Chapter 16: Accessories for control panels • Large knockouts at top, and apertures for wedge-lock fasteners• Closed side walls with full area knockouts• Fitting of cable supports in the distribution board with wedge-lock fastener• Protection type IP65 (gland plates at bottom) • Stepped cable grommet• Split gland plate• Cables can be inserted from the front• Enclosure KST... with fitted gland plate• Subsequent conversion of CI distribution board enclosures and CI individual enclosures possible Rated uninterrupted current Pole Enclosure depth Terminal capacity (stranded conductors) mm 2 Strip terminal (max.) mm Basic enclosureMounting system Part no.Article no. PriceSee price list Std. pack  I u Devices ( Number ) A mm mm 2 160 4 225 1 x 16...956 x 9 x 0.8 KST34-200L5-CI43K95/... (4 or 5) K95/4/KST34025031 1 off 5 K95/5/KST34027404 250 4 1 x 35...1502 x 16...706 x 16 x 0.8 KST34-200L5-CI43K150/... (4 or 5) K150/4/KST34029777 5 K150/5/KST34032150 160 4 225 1 x 16...956 x 9 x 0.8 KST43-200L5-CI43K95/... (4 or 5) K95/4/KST43041642 5 K95/5/KST43039269 250 4 1 x 35...1202 x 16...706 x 16 x 0.8 KST43-200L5-CI43K150/... (4) K150/4/KST43034523 400 4 225 1 x 50...2402 x 25 x 12010 x 16 x 0.8 KST44-200L5-CI43K240/... (4 or 5) K240/4/KST44044015 5 K240/5/KST44046388 375 45 45 200 50 250 250 100 110 110 35 375 375 230 75 75 25 375 K...KST HPL20038EN

CI insulated distribution boards  Distribution board terminal enclosure 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/39 400 4 225 1 x 50...2402 x 25 x 12010 x 16 x 0.8 KST48-200L5-CI43K240/... (4 or 5) K240/4/KST48048761 1 off 5 K240/5/KST48051134 630 4 1 x 150...3002 x 50 x 24011 x 21 x 1.0 KST48-200L5-CI43K2x240/... (4 or 5) K2X240/4/KST48055880 5 K2X240/5/KST48053507 800 4 2 x 120...2403 x 50 x 1852 x (21 x 11 x 1) KST48-200L5-CI43K3x185/4 K3X185/4/KST48058253 1000 4 225 2 x 150...3003 x 50...24050 x 12 KST48-200L5-CI43K3x240/4 K3X240/4/KST48060626 2 x 100 2 x 4 175 1 x 16...503 x 9 x 0.8 CI23E-150L3/5-CI23K50/1 2K50/4/KST32067745 2 x 5 2K50/5/KST32070118 2 x 160 2 x 4 225 1 x 16...956 x 9 x 0.8 KST43-200L3/5-CI23K95/... (4 or 5) 2K95/4/KST43074864 2 x 5 2K95/5/KST43072491 2 x 250 2 x 4 225 1 x 35...1502 x 16x706 x 16 x 0.8 KST44-200L5-CI43K150/... (4 or 5) 2K150/4/KST44077237 2 x 5 2K150/5/KST44079610 2 x 400 2 x 4 275 1 x 50...2402 x 25 x 12010 x 16 x 0.8 KST48-200L5-CI43K240/... (4 or 5) 2K240/4/KST48062999 2 x 5 2K240/5/KST48065372 Rated uninterrupted current Pole Enclosure depth Terminal capacity (stranded conductors) mm 2 Strip terminal (max.) mm Basic enclosureMounting system Part no.Article no. PriceSee price list Std. pack  I u Devices ( Number ) A mm mm 2 750 610 25 375 95 95 750 545 35 375 20 20 187.5 70 50 250 30 250 110 25 375 25 25 375 235 25 375 25 25 750 240 75 375 75 K...KST HPL20039EN

20/40 CI insulated enclosures  Busbar enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresBusbar enclosures Dimensions Rated operational currentI e A Features Copper factor 1) Part no.Article no. PriceSee price list Std. pack mm Busbar enclosures • Protection type IP65• Transparent cover• Top and bottom with full  area knockouts• Sides closed, but with full area knockout• Fixing straps for wall fixing• Sealable cover fasteners• Enclosure depth 225 mm• 50 mm between busbar centres 250 L1, L2, L3, PEN SKA254-I44034221 1 off 400 L1, L2, L3, PEN SKA404-I44034220     630 L1, L2, L3, PEN SKA634-I44090135     250 L1, L2, L3, PE, N SKA255-I44034209     400 L1, L2, L3, PE, N SKA405-I44034208     630 L1, L2, L3, PE, N SKA635-I44090138     250 L1, L2, L3, PEN SKA254-2I44034207     400 L1, L2, L3, PEN SKA404-2I44034204     630 L1, L2, L3, PEN SKA634-2I44090141     250 L1, L2, L3, PE, N SKA255-2I44034203     400 L1, L2, L3, PE, N SKA405-2I44034202     630 L1, L2, L3, PE, N SKA635-2I44090144     Busbar coupling kits Including sealing and fixing material 250 - 630 L1, L2, L3, PE, N SVS250630-5002066 1 off 1000 L1, L2, L3 for copper busbars 2 × 30 × 10 mm AVS30L093842 3 off 500 PE, N, PEN for copper busbar30 × 10 mm AVS30PEN096215 2 off 1600 L1, L2, L3 for copper busbars3 × 40 × 10 mm AVS40098588 3 off Notes 1)  Calculation of additional material cost ￫ Page 23/2  Selection of busbar cross-section and usable device ￫ Page 20/73 PE (PEN) PE (PEN) SKA..., SVS..., AVS... HPL20040EN

CI insulated enclosures  Accessories for busbar enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/41 Accessories for busbar enclosuresPrepared enclosures For use with busbars mm Terminal capacity for flat strip mm Operating current of the flat stripI e A Terminal capacity Round conductor mm 2 Part no.Article no. PriceSee price list Std. pack Notes Busbar terminals For connection of flat strip or round conductor Cu 12 x 5 3 x 9 x 0.8 100  16 - 35 16 - 25 K12X5-1002281 10 off Cu 12 x 5 3 x 9 x 0.810 x 16 x 0.8 100400  25 - 120 25 - 95 K12X5-2002282     Cu 20 x 5 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.8 100160200250  35 - 70 35 - 50 K20X5002286     Cu 20 x 5 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.811 x 21 x 1 100160200250400630  35 - 240 35 - 185     K20X10002283     Cu 20 x 10 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.811 x 21 x 1 100160200250400630  35 - 185 35 - 95     Cu 20 x 15 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.811 x 21 x 1 100160200250400630  35 - 70 35 - 50 Cu 20 x 10-15Cu 20 x 5-15 3 x 9 x 0.811 x 21 x 1 100630  35 - 300 35 - 240 K20X15002284     Connection for flat strip and copper busbar Cu 2 x 30 x 10 2 x 50 x 12 – – K30X10L081977 3 off For main conductor L1, L2, L3 Cu 1 x 30 x 10 50 x 12 – – K30X10PEN084350 2 off For protective or neutral conductor PE, N, PEN Cu 3 x 40 x 10 2 x 50 x 12 – – K40X10086723 3 off For main conductor L1, L2, L3 Cu 1 x 30 x 10 3 x 9 x 0.8 - 11 x 21 x 1 100630 – AW3040L-K20089096 5 off In combination with busbar terminals K20X5, K20X10, K20X15 Cu 2 x 30 x 10Cu 2 x 40 x 10 3 x 9 x 0.8 - 11 x 21 x 1 100630 – AW30PEN-K20091469 5 off In combination with busbar terminals K20X5, K20X10, K20X15 Notes 1)  Terminal capacity: ⊙solid  stranded  flexible with ferruleTerminals AK... ￫ Chapter 16, Accessories for control panels  K..., AW...-K20 HPL20041EN

20/42 CI insulated enclosures  Accessories for busbar enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresAccessories for busbar enclosures For use with busbars Terminal capacity for flat strip Operating current of the flat strip Terminal capacity for round conductor 1) Part no.Article no. PriceSee price list Std. pack I e mm mm A mm 2 Connection flat strip Cu 12 x 5 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.8 100160200250 ○ 1.5 - 10 1.5 - 6 K12X5/25002324 10 off Cu 20 x 5 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.8 100160200250 ○ 1.5 - 10 1.5 - 6 K20X5/25002327 10 off Cu 20 x 5Cu 20 x 10 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.8 100160200250400 ○ 1.5 - 10 1.5 - 6 K20X10/35002325 10 off Cu 20 x 5Cu 20 x 10 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.8 100160200250400 ○ 1.5 - 10 1.5 - 6    K20X15/40002285 10 off Cu 20 x 10Cu 20 x 15 3 x 9 x 0.86 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.811 x 21 x 1 100160200250400630 ○ 1.5 - 10 1.5 - 6 K20X15/40002285 10 off Cu 20 x 15 11 x 21 x 12 x (11 x 21 x 1) 630800 ○ 1.5 - 10 1.5 - 6 K20X15/50002326 5 off Notes 1)  Terminal capacity: ⊙ solid  stranded  flexible with ferrule K...X HPL20042EN

CI insulated enclosures  Accessories for busbar enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/43 Prepared enclosuresAccessories for busbar enclosures Rated operational current For use with Part no.Article no. PriceSee price list Std. pack I e A Busbar support For use between two enclosures• Component mounting possible on busbar, ￫ Page 20/46• Interval between busbar supports max. 375 mmInterval between busbar centres 40 mm 160 L1, L2, L3, PE, N: 12 x 5 SH0165/2010774 5 off Interval between busbar centres 50 mm  250400630 L1, L2, L3, PE, N: 20 x 5L1, L2, L3: 20 x 10; PE, N, PEN: 20 x 5L1, L2, L3, PE, N: 20 x 15 SH0635/3058247 5 off 250400630 L1, L2, L3, PE, N, PEN: 20 x 5L1, L2, L3: 20 x 10; PE, N, PEN: 20 x 5L1, L2, L3: 20 x 10 + 20 x 5; PE, N, PEN: 20 x 10 SH0635/4060620     1000 L1, L2, L3: 2 x 30 x 10; PE, N: 30 x  10 SH1005/4062993     1600 L1, L2, L3: 3 x 40 x 10 SH1603/4065366     187.5 250 375 375 375 SH0... HPL20043EN

20/44 CI insulated enclosures  Modular busbar system 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresModular busbar system Rated operational current Supplied in lengths of For use with Copper factor Dimensions Part no.Article no. PriceSee price list Std. pack I e A mm mm Busbars Flat copper busbars Tinned 160 1500 SH0165/2 12 x 5  CU12X5034121 10 off Tinned 160 2250 SH0165/2 12 x 5  CU12X5-2250005093 10 off Tinned 250 1500 SH0635/3 20 x 5  CU20X5044092 10 off Tinned 250 2250 SH0635/4SH0632 20 x 5  CU20X5-2250007466 10 off Tinned 400 1500 SH0635/3 20 x 10  CU20X10041719 5 off Tinned 400 2250 SH0635/4SH0632 20 x 10  CU20X10-2250009839 5 off Untreated – 1500 SH1005/4 30 x 10  CU30X10051211 1 off Untreated – 1500 SH1603/4 40 x 10  CU40X10063076 3 off PE/N busbar supports For relocating PE/N bars from the busbar enclosure to the terminal compartment (floor-standing distribution boards) 250400630 – – 20 x 520 x 1020 x 15 SH0632067739 5 off Support bracket for busbar supports To secure busbar supports in the first and last enclosures when using busbar links and transport splits – – SH0635/… – HSH-CI002320 5 off – – SH0165/2 to SH0632 – HSH0632002321 5 off Notes Calculation of additional material cost  ￫ Page 23/2  Selection of busbar cross-section and usable device ￫ Page 20/73 CU..., SH..., HSH... HPL20044EN

CI insulated enclosures  Modular busbar system 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/45 Prepared enclosuresModular busbar system For use with Part no.Article no. PriceSee price list Std. pack Notes Busbar bracing Fitting in the centre between two SH0635/... busbar supports when fitting RS...3-50 busbar mounting fuses on 20 x 5 copper busbars – SVCU20X5002323 10 off – Busbar assemblies • For mounting busbar mounting fuse bases• 3 pole, for 250 A rated operational current CI23 SE-RS-I23041632 1 off Set of connecting links ￫ Page 20/47 CI43 SE-RS-I43044005 CI44 SE-RS-I44001890 Cross terminal For fuse enclosure and busbar fuse enclosures as well as SE-RS-I43 busbar assemblies CU20X5CU20X10CU20X15 K20X15/40-A012783 10 off Terminal capacity for flat strip:from 3 x 9 x 0.8 mmUp to 10 x 16 x 0.8 mm⌀ 4 - 10 mm 2  (solid) Notes LV h.b.c. fuse switch-disconnector, Insulating surround ￫ Chapter 19: Circuit-breakers, fusesBusbar mounting fuse bases, covers for busbar mounting fuse bases ￫ Online Catalog  F 225 375 SVCU..., SE-RS-I..., K... HPL20045EN

20/46 CI insulated enclosures  Modular busbar system, modules for fuse enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresModular busbar system, modules for fuse enclosures Conductor cross section For use with Part no.Article no. PriceSee price list Std. pack solid stranded mm 2 mm 2 N bars 2 x 2.5 - 356 x 1.5 - 16 2 x 2.5 - 256 x 1.5 - 16 SE-RS-I23(RS18/I23) N23RS18055870 1 off 2 x 2.5 - 359 x 0.5 - 6 2 x 2.5 - 259 x 0.5 - 4 SE-RS-I23(RS27/I23) N23RS27058243 2 x 2.5 - 352 x 1.5 - 16 2 x 2.5 - 252 x 1.5 - 16 SE-RS-I23(RS33/I23) N23RS33060616 2 x 2.5 - 3512 x 1.5 - 16 2 x 2.5 - 2512 x 1.5 - 16 SE-RS-I43 (I44)RS18/I43 (I44) N43RS18067735 2 x 2.5 - 3518 x 0.5 - 6 2 x 2.5 - 2518 x 0.5 - 4 SE-RS-I43 (I44)RS27/I43 (I44) N43RS27065362 2 x 2.5 - 354 x 1.5 - 16 2 x 2.5 - 254 x 1.5 - 16 SE-RS-I43 (I44)RS33/I43 (I44) N43RS33062989 PE (PEN) bars 2 x 2.5 - 356 x 1.5 - 16 2 x 2.5 - 256 x 1.5 - 16 SE-RS-I23(RS18/I23) PEN23RS18081973 1 off 2 x 2.5 - 359 x 0.5 - 6 2 x 2.5 - 259 x 0.5 - 4 SE-RS-I23(RS27/I23) PEN23RS27079600 2 x 2.5 - 352 x 1.5 - 16 2 x 2.5 - 252 x 1.5 - 16 SE-RS-I23(RS33/I23) PEN23RS33077227 2 x 2.5 - 3512 x 1.5 - 16 2 x 2.5 - 2512 x 1.5 - 16 SE-RS-I43 (I44)RS18/I43 (I44) PEN43RS18070108 2 x 2.5 - 3518 x 0.5 - 6 2 x 2.5 - 2518 x 0.5 - 4 SE-RS-I43 (I44)RS27/I43 (I44) PEN43RS27072481 2 x 2.5 - 354 x 1.5 - 16 2 x 2.5 - 254 x 1.5 - 16 SE-RS-I43 (I44)RS33/I43 (I44) PEN43RS33074854 N...RS..., PEN...RS... HPL20046EN

CI insulated enclosures  Modular busbar system, modules for fuse enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/47 Prepared enclosuresModular busbar system, modules for fuse enclosures For use with Permissible devices Part no.Article no. PriceSee price list Std. pack Protective shroud Always also order fixing kit AH-GA. CI23… RS...3-50 busbar mounting fuse base GA-RS-I23046378 1 off CI43… RS...3-50 busbar mounting fuse baseGSTA00-160-40-60-AOU fuse switch-disconnector GA-RS-I43048751 1 off CI43… RS...3-50 busbar mounting fuse baseGSTA00-160-40-60-AOU fuse switch-disconnector GA-RS-I43-G017907 1 off CI44… RS...3-50 busbar mounting fuse baseGSTA00-160-40-60-AOU fuse switch-disconnector GA-RS-I44022653 2 off CI43… RS...3-50 busbar mounting fuse baseGSTA1 fuse switch-disconnector,with A-GSTA1/...adapter plate GA-1-I43-G020280 4 off CI44… Fuse switch-disconnector with A-GSTA1/... adapter plate, GSTA1 GA-1-I44025026 2 off CI44… Fuse switch-disconnector with A-GSTA2/... adapter plate, GSTA2 GA-2-I44027399 4 off Insulating surround for fuse switch-disconnectors For compensation between the GA... protective cover and the device (for use in the CI insulated distribution board system) GST00 – B-GST00-40-60/CI/1224553 5 off Blanking strips To cover unused spaces GA-RS-I43GA-RS-I44 – AS-RS-CI002304 10 off Set of connecting links For connection of the busbars for RS…/I23, RS…/I43, RS…/I44E, 250 A for L1, L2, L3.Each set contains 3 links RS.../I23ERS.../I43ERS.../I44E – VBS-RS002307 5 off 66 GA-..., B-GST00-..., AS...-CI, VBS... HPL20047EN

20/48 CI insulated distribution boards  Corner enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures Prepared enclosuresCorner enclosures Rated operational current Part no.Article no. PriceSee price list Std. pack Notes I e A Corner enclosures • Protection type IP65• Up to 5-pole and up to 1000 A• 3 pole 1600 A• For 1600 A busbars additional enclosure for PE/N bars Design "In the corner" 1) • Connection material  (transport split) • Busbars pre-bent• Non-transparent cover 250400630 ESKI630-310/I44002144 1 off For main conductor L1, L2, L3For protective or neutral conductor PE, PEN ESKI630-320/I44002169 For main conductor L1, L2, L3For protective or neutral conductor PE, N 1000 ESKI1000-310/I44002171 For main conductor L1, L2, L3For protective or neutral conductor PE, PEN ESKI1000-320/I44002170 For main conductor L1, L2, L3For protective or neutral conductor PE, N 1600 ESKI1600-300/I44002172 For main conductor L1, L2, L3 1000 EPENI1000-010/I44002173 For protective or neutral conductor PE, PEN EPENI1000-020/I44002174 For protective or neutral conductor PE, N 1600 EPENI1600-010/I44002176 For protective or neutral conductor PE, PEN EPENI1600-020/I44002175 For protective or neutral conductor PE, N Design "Around the corner" 2) • Connection material  (transport split) • Busbars pre-bent• Transparent cover 250400630 ESKU630-310/I44002178 For main conductor L1, L2, L3For protective or neutral conductor PE, PEN ESKU630-320/I44002179 For main conductor L1, L2, L3For protective or neutral conductor PE, N 1000 ESKU1000-310/I44002181 For main conductor L1, L2, L3For protective or neutral conductor PE, PEN ESKU1000-320/I44002180 For main conductor L1, L2, L3For protective or neutral conductor PE, N 1600 ESKU1600-300/I44002182 For main conductor L1, L2, L3 1000 EPENU1000-010/I44002183 For protective or neutral conductor PE, PEN EPENU1000-020/I44002184 For protective or neutral conductor PE, N 1600 EPENU1600-010/I44002186 For protective or neutral conductor PE, PEN EPENU1600-020/I44002185 For protective or neutral conductor PE, N Notes 1)  2)  ESKI..., EPENI..., ESKU..., EPENU... HPL20048EN

CI insulated distribution boards  Corner enclosures 2010 CA08103002Z-EN www.eaton.com Prepared enclosures 20/49 Rated operational current Part no.Article no. PriceSee price list Std. pack Notes I e A Design "Back-to-back" • Protection type IP65• Connection material• Transparent cover• For 1600 A busbars additional enclosure for PE/N bars 630 A busbar 1) 250400630 RSK630-310/I44002154 1 off For main conductor L1, L2, L3For protective or neutral conductor PE, PEN RSK630-320/I44002195 For main conductor L1, L2, L3For protective or neutral conductor PE, N 1000 RSK1000-310/I44002197 For main conductor L1, L2, L3For protective or neutral conductor PE, PEN RSK1000-320/I44002196 For main conductor L1, L2, L3For protective or neutral conductor PE, N 1600 RSK1600-300/I44002198 For main conductor L1, L2, L3 PE/N busbars 2) 1000 RPEN1000-010/I44002199 For protective or neutral conductor PE, PEN RPEN1000-020/I44002200 For protective or neutral conductor PE, N 1600 RPEN1600-010/I44002202 For protective or neutral conductor PE, PEN RPEN1600-020/I44002201 For protective or neutral conductor PE, N Notes 1)  2)  PE, PEN RSK..., RPEN... HPL20049EN

20/50 CI insulated enclosures  Individual enclosures without/with door in cover 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted Enclosures with components fittedIndividual enclosures without/with door in cover Dimensions Rated operational current Rated operating voltage Max. fuse-link Fused circuits PE and N terminals Number x Cross-section Part no.Article no. PriceSee price list Std. pack Notes I e U e mm A V AC A Number mm 2 Individual fuse enclosures (RS...E: cover without opening, RS...T: cover with door) • Metric cable entry knockouts in all sides• Protection type IP65• With 3-pole busbar mounting fuse base on busbars, replaceable from front• Transparent cover with quick-release fasteners• PE/N bars, protective shroud with inscription label• Fixing straps for wall fixing• Cover fasteners can be sealed, enclosure depth 150 mm 25 500 25, DII/E27 9 x 1-pole3 x 3 pole On each 2 x (6 - 35)On each 9 x (1 - 6) RS27/I23E013156 1 off 25, DII/E27 9 x 1-pole3 x 3 pole On each 2 x (6 - 35)On each 9 x (1 - 6) RS27/I23E/T015529 63 400 35, D02/E18 6 x 1-pole4 x 3 pole On each 2 x (6 - 35)On each 6 x (4 - 25) RS18/I23E020275 35, D02/E18 6 x 1-pole4 x 3 pole On each 2 x (6 - 35)On each 6 x (4 - 25) RS18/I23E/T017902 63 690 35, DIII/E33 2 x 3 pole On each 2 x (6 - 35)On each 2 x (4 - 25) RS33/I23E022648 35, DIII/E33 2 x 3 pole On each 2 x (6 - 35)On each 2 x (4 - 25) RS33/I23E/T025021 25 500 25, DII/E27 18 x 1-pole6 x 3 pole On each 2 x (6 - 35)On each 18 x (1 - 6) RS27/I43E029767 25, DII/E27 18 x 1-pole6 x 3 pole On each 2 x (6 - 35)On each 18 x (1 - 6) RS27/I43E/T027394 63 400 35, D02/E18 12 x 1-pole8 x 3 pole On each 2 x (6 - 35)On each 12 x (4 - 25) RS18/I43E032140 35, D02/E18 12 x 1-pole8 x 3 pole On each 2 x (6 - 35)On each 12 x (4 - 25) RS18/I43E/T034513 A A 250 187,5 B B A 1 x M32/206 x M202 x M16 B 2 x M32/204 x M25/164 x M204 x M16 A A 250 187,5 B B A A 250 187,5 B B C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 D C 250 C D 375 RS...I...E, RS...I...E/T HPL20050EN

CI insulated enclosures  Individual enclosures without/with door in cover 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted 20/51 Enclosures with components fittedIndividual enclosures without/with door in cover Dimensions Rated operational current Rated operating voltage Max. fuse-link Fused circuits PE and N terminals Number x Cross-section Part no.Article no. PriceSee price list Std. pack Notes I e U e mm A V AC A Number mm 2 Individual fuse enclosures (RS...E: cover without opening, RS...T: cover with door) 63 690 35, DIII/E33 4 x 3 pole On each 2 x (6 - 35)On each 4 x (4 - 25) RS33/I43E039259 1 off 35, DIII/E33 4 x 3 pole On each 2 x (6 - 35)On each 4 x (4 - 25) RS33/I43E/T036886 25 500 25, DII/E27 18 x 1-pole6 x 3 pole On each 2 x (6 - 35)On each 18 x (1 - 6) RS27/I44E001884 25, DII/E27 18 x 1-pole6 x 3 pole On each 2 x (6 - 35)On each 18 x (1 - 6) RS27/I44E/T001885 63 400 63, D02/E18 12 x 1-pole8 x 3 pole On each 2 x (6 - 35)On each 12 x (4 - 25) RS18/I44E001886 ---PE/N bars 63, D02/E18 12 x 1-pole8 x 3 pole On each 2 x (6 - 35)On each 12 x (4 - 25) RS18/I44E/T001887 Accessories for fuse enclosures ￫ Page 20/46 63 690 63, DIII/E33 4 x 3 pole On each 2 x (6 - 35)On each 12 x (4 - 25) RS33/I44E001888 Fuses, fuse adapters and screw-on caps￫ Chapter 19: Circuit-breakers, fuses 63, DIII/E33 4 x 3 pole On each 2 x (6 - 35)On each 12 x (4 - 25) RS33/I44E/T001889 Accessories Set of connecting links For connection of the busbars for RS…/I23, RS…/I43, RS…/I44E, 250 A for L1, L2, L3.Each set contains 3 links 250 – – – – VBS-RS002307 5 off D C 250 C D 375 E F F 375 E 375 E 1 x M50/322 x M40/258 x M25/162 x M20 F 1 x M63/406 x M25/1610 x M202 x M16 E F F 375 E 375 E F F 375 E 375 RS...I...E, RS...I...E/T HPL20051EN

20/52 CI insulated enclosures  Panel enclosures for fuses 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted Enclosures with components fittedPanel enclosures for fuses Dimensions Enclosure depth Rated operational current Rated operating voltage Max. fuse-link Fused circuits Part no.Article no. PriceSee price list Std. pack I e U e mm mm A V AC A Number Panel enclosures for fuses • Sides closed, but with full area knockout, open top and bottom• Protection type IP65• With 3-pole busbar mounting fuse base on busbars, replaceable from front• Transparent cover with quick-release fasteners• Protective shroud with inscription label• Sealable cover fasteners 150 25 500 25 A DII/E27 9 x 1-pole3 x 3 pole RS27/I23-125074056 1 off 175 25 500 25 A DII/E27 9 x 1-pole3 x 3 pole RS27/I23-150005240     150 63 400 35 A D02/E18 6 x 1-pole4 x 3 pole RS18/I23-125081175     175 63 400 35 A D02/E18 6 x 1-pole4 x 3 pole RS18/I23-150007613     150 63 690 35 A DIII/E33 2 x 3 pole RS33/I23-125083548     175 63 690 35 A DIII/E33 2 x 3 pole RS33/I23-150014732     Notes Accessories for fuse enclosures ￫ Page 20/46Fuses, fuse adapters and screw-on cap￫ Chapter 19: Circuit-breakers, fuses 250 187.5 250 187.5 250 187.5 RS...I... HPL20052EN

CI insulated enclosures  Panel enclosures for fuses 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted 20/53 Panel enclosures for fuses 150 25 500 25 A DII/E27 18 x 1-pole6 x 3 pole RS27/I43-125090667 1 off 225 25 500 25 A DII/E27 18 x 1-pole6 x 3 pole RS27/I43-200024224     150 63 400 35 A D02/E18 12 x 1-pole8 x 3 pole RS18/I43-125093040     225 63 400 35 A D02/E18 12 x 1-pole8 x 3 pole RS18/I43-200026597     150 63 690 35 A DIII/E33 4 x 3 pole RS33/I43-125097786     225 63 690 35 A DIII/E33 4 x 3 pole RS33/I43-200033716     Accessories Set of connecting linksFor connection of the busbars for RS…/I23, RS…/I43, RS…/I44E, 250 A for L1, L2, L3.Each set contains 3 links – – 250 – – – VBS-RS002307 5 off Notes Accessories for fuse enclosures ￫ Page 20/46Fuses, fuse adapters and screw-on cap ￫ Chapter 19: Circuit-breakers, fuses Dimensions Enclosure depth Rated operational current Rated operating voltage Max. fuse-link Fused circuits Part no.Article no. PriceSee price list Std. pack I e U e mm mm A V AC A Number 375 250 250 375 375 250 RS...I... HPL20053EN

20/54 CI insulated enclosures  Individual enclosures with LV h.b.c. fuse bases 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted Enclosures with components fittedIndividual enclosures with LV h.b.c. fuse bases Dimensions Rated operational current Rated operational voltage Fuse-link 5th terminal can be retrofitted (neutral conductor) Part no.Article no. PriceSee price list Std. pack I e U e mm A V AC Sizes Individual enclosures with LV h.b.c. fuse bases • Metric cable entry knockouts in all sides• Protection type IP65• Transparent cover• Enclosure depth 150 mm• Terminal for connecting the 4th conductor (PEN)• Fuse base fitted to steel mounting plate• Fixing straps for wall fixing• Sealable cover fasteners 100 690 NH00 K50/1 GS00/I23E027395 1 off 100 690 NH00 K50/1 GS00/I23E-G029768 1 off 100 690 NH00 K50/1 GS00/I43E032141 1 off 160100 500690 NH00 K95/1N/BR GS00-160/I43E034514 1 off 2 x 100 690 NH00 K50/1 2GS00/I43E044006 1 off Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses 1)  2)  1)  2)  A A 250 187,5 55 55 B B 250 25 25 187.5 D C 250 C D 55 55 375 A 1 x M32/206 x M202 x M16 B 2 x M32/204 x M25/164 x M204 x M16 C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 GS00/I..., 2GS00/I... HPL20054EN

CI insulated enclosures  Individual enclosures with LV h.b.c. fuse bases 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted 20/55 Individual enclosures with LV h.b.c. fuse bases 2 x 100 690 NH00 K50/1 2GS00/I43E-G041633 1 off 100 690 NH00 K50/1 GS00/I43E-G039260 1 off 160100 500690 NH00 K95/1N/BR GS00-160/I43E-G036887 1 off Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses Dimensions Rated operational current Rated operational voltage Fuse-link 5th terminal can be retrofitted (neutral conductor) Part no.Article no. PriceSee price list Std. pack I e U e mm A V AC Sizes 375 250 C C D D 120 120 C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 2GS00/I..., GS00/I... HPL20055EN

20/56 CI insulated enclosures  Individual enclosures with LV h.b.c. fuse bases 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted Individual enclosures with LV h.b.c. fuse bases 250200 500690 NH1 K150/1 GS1/I45E090148 1 off 400315 500690 NH2 K240/1 GS2/I45E090149 1 off Two-way fuse box With parallel link between the incoming sidesIncoming cable max. 35 mm 2 Max. fuse-link 63 A 2 x 100 690 NH00 – 2GS00/I43E-V2K046379 1 off Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses Dimensions Rated operational current Rated operational voltage Fuse-link 5th terminal can be retrofitted (neutral conductor) Part no.Article no. PriceSee price list Std. pack I e U e mm A V AC Sizes D D D E D E 500 150 150 375 112 148 D D E E D D 500 375 375 250 PE/N PE/N D D C C C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 E 1 x M50/322 x M40/258 x M25/162 x M20 GS1/I..., GS2/I..., 2GS00/I... HPL20056EN

CI insulated enclosures  Distribution board enclosures with LV h.b.c. fuse bases 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted 20/57 Distribution board enclosures with LV h.b.c. fuse basesEnclosures with components fitted Dimensions Fuse-link Rated operational current Rated operational voltage Part no.Article no. PriceSee price list Std. pack NH component Basic enclosure Mounting system I e U e Basic unitW x H x D mm Sizes A V AC Location Other Distribution board enclosures with LV h.b.c. fuse bases without PE/N terminals • Sides closed, but with full area knockout, open top and bottom• Transparent cover, cover fasteners can be sealed.• Protection type IP65• Fuse base fitted to steel mounting plate• Mounting plate brought forward by 50 mm• Terminal for connecting the 4th conductor (PEN)• Stepped cable grommets ￫ Page 20/29 NH00 100 690 GS00/I43/L067740 1 off Left CI43-200L3-CI43GS00(-160)HS 50-CI GS00/I43/M070113     Centre GS00/I43/R072486     Right 160 500 GS00-160/I43/L086724     Left GS00-160/I43/M089097     Centre GS00-160/I43/R091470     Right NH00 2 x 100 690 2GS00/I43/L/R020281     LeftRight CI43-200L3-CI43GS00(-160)HS 50-CI 2GS00/I43/L/M022654     LeftCentre 2GS00/I43/M/R025027     CentreRight 2 x 160 500 2GS00-160/I43/L/R010789     LeftRight 2GS00-160/I43/L/M013162     LeftCentre 2GS00-160/I43/M/R015535     CentreRight NH00 3 x 100 690 3GS00/I43029773     – CI43-200L3-CI43GS00(-160)HS 50-CI 3 x 160 500 3GS00-160/I43017908     – 100 690 GS00/I43-G/L074859     Left CI43-200 (rotated 90°)L3-CI43GS00(-160)HS 50-CI 100 690 GS00/I43-G/R077232     Right 160 500 GS00-160/I43-G/L093843     Left 160 500 GS00-160/I43-G/R096216     Right NH00 2 x 100 690 2GS00/I43-G027400     – CI43-200 (rotated 90°)L3-CI43GS00(-160)HS 50-CI 2 x 160 500 2GS00-160/I43-G098589     – Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses 250 375 00 /L 00 /M 00 /R 00 /L 00 /M 00 /R 60 60 25 25 00 /L 00 /R 375 75 170 250 GS00/I..., 2GS00/I..., 3GS00/I... HPL20057EN

20/58 CI insulated enclosures  Distribution board enclosures with LV h.b.c. fuse bases 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted Dimensions Fuse-link Rated operational current Rated operational voltage Part no.Article no. PriceSee price list Std. pack Basic enclosure Mounting system I e U e Basic unitW x H x D Sizes A V AC mm Other Distribution board enclosures with LV h.b.c. fuse bases without PE/N terminals • Sides closed, but with full area knockout, open top and bottom• Transparent cover, cover fasteners can be sealed.• Protection type IP65• Fuse base fitted to steel mounting plate• Mounting plate brought forward by 50 mm• Terminal for connecting the 4th conductor (PEN)• Stepped cable grommets ￫ Page 20/29 NH1 250200 500660690 GS1/I43034519 1 off CI43-200L3-CI43GS1HS 50-CI NH1 250200 500660690 GS1/I43-G036892     CI43-200 (rotated 90°)L3-CI43GS1HS 50-CI NH2 315315 500660690 GS2/I44039265     CI44-200L3-CI43GS2HS 50-CI NH2 400315 500660690 GS2/I48041638     CI48-200L3-CI43GS2HS 50-CI NH3 500400 500660690 GS3/I48044011     CI48-200L3-CI43GS3HS 50-CI Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses 250 15 15 375 95 95 375 80 80 250 35 35 375 65 65 85 85 750 355 150 65 65 85 85 355 150 GS...I... HPL20058EN

CI insulated enclosures  Individual enclosures with LV h.b.c. fuse switch-disconnectors 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted 20/59 Enclosures with components fittedIndividual enclosures with  LV h.b.c. fuse switch-disconnectors Dimensions Enclosure depth Rated operational current Rated operational voltage  Fuse-link 5th terminal can be retrofitted (neutral conductor) Part no.Article no. PriceSee price list Std. pack I e U e mm mm A V AC Sizes Individual enclosures with LV h.b.c. fuse switch-disconnector • Metric cable entry knockouts in all sides• Protection type IP65• Transparent cover• Terminal for connecting the 4th conductor (PEN)• Fuse switch-disconnector fitted to steel mounting plate• Fixing straps for wall fixing• Sealable cover fasteners 150 100 690 NH00 K50/1 GSTA00/I23E048752 1 off 150 100 690 NH00 K50/1 GSTA00/I43E051125     150 160100 500690 NH00 K95/1N/BR GSTA00-160/I43E053498     150 2 x 100 690 NH00 K50/1 2GSTA00/I43E070109     Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses A 1 x M32/206 x M202 x M16 B 2 x M32/204 x M25/164 x M204 x M16 C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 GSTA00/I..., 2GSTA00/I... HPL20059EN

20/60 CI insulated enclosures  Individual enclosures with LV h.b.c. fuse switch-disconnectors 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted Individual enclosures with LV h.b.c. fuse switch-disconnector • Metric cable entry knockouts in all sides• Protection type IP65• Transparent cover• Terminal for connecting the 4th conductor (PEN)• Fuse switch-disconnector fitted to steel mounting plate• Fixing straps for wall fixing• Sealable cover fasteners 150 100 690 NH00 K50/1 GSTA00/I43E-G058244 1 off 150 160100 500690 NH00 K95/1N/BR GSTA00-160/I43E-G055871     150 100 690 NH00 K50/1 GSTA00/I44E060617     150 160100 500690 NH00 K95/1N/BR GSTA00-160/I44E062990     150 2 x 100 690 NH00 K50/1 2GSTA00/I44E067736     150 2 x 1602 x 100 500690 NH00 K95/1N/BR 2GSTA00-160/I44E065363     Dimensions Enclosure depth Rated operational current Rated operational voltage  Fuse-link 5th terminal can be retrofitted (neutral conductor) Part no.Article no. PriceSee price list Std. pack I e U e mm mm A V AC Sizes GSTA00/I..., 2GSTA00/I... HPL20060EN

CI insulated enclosures  Individual enclosures with LV h.b.c. fuse switch-disconnectors 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted 20/61 Individual enclosures with LV h.b.c. fuse switch-disconnector 225 250200 500690 NH1 K150/1 GSTA1/I45E090150 1 off 225 400315 500690 NH2 K240/1 GSTA2/I45E090151 1 off Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses Dimensions Enclosure depth Rated operational current Rated operational voltage  Fuse-link 5th terminal can be retrofitted (neutral conductor) Part no.Article no. PriceSee price list Std. pack I e U e mm mm A V AC Sizes C 2 x M50/206 x M25/168 x M20 D 1 x M50/326 x M25/16 E 1 x M50/322 x M40/258 x M25/162 x M20 F 1 x M63/406 x M25/1610 x M202 x M16 GSTA...I... HPL20061EN

20/62 CI insulated enclosures  Distribution board enclosure with LV h.b.c. fuse switch-disconnector 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted Enclosures with components fittedDistribution board enclosure with LV h.b.c. fuse switch-disconnector Dimensions Fuse-link Rated operational current Rated operational voltage Part no.Article no. PriceSee price list Std. pack NH component Basic enclosure Location Mounting system I e U e Basic unitW x H x D mm Sizes A V AC Other Distribution board enclosures with  LV h.b.c. fuse switch-disconnectors • Sides closed, but with full area knockout, open top and bottom• Transparent cover, cover fasteners can be sealed.• Protection type IP65• Fuse base fitted to steel mounting plate• Mounting plate brought forward by 50 mm• Terminal for connecting the fourth conductor (PEN)• Stepped cable grommets ￫ Page 20/29 NH00 100 660 GSTA00/I43/L046384 1 off Left CI43-200L3-CI43GSTA00(-160)HS 50-CI 100 690 GSTA00/I43/R048757     Right 160 500 GSTA00-160/I43/L034520     Left 160 500 GSTA00-160/I43/R036893     Right NH00 2 x 100 660 2GSTA00/I43060622     LeftRight CI43-200L3-CI43GSTA00(-160)HS 50-CI 2 x 160 500 2GSTA00-160/I43053504     LeftRight NH00 100 660 GSTA00/I43-G058249     Centre CI43-200 (rotated 90°)L3-CI43GSTA00(-160)HS 50-CI 160 500 GSTA00-160/I43-G055877     Centre NH00 100 660 GSTA00/I44/L051130     Left CI44-200L3-CI43GSTA00(-160)HS 50-CI GSTA00/I44/M053503     Centre GSTA00/I44/R055876     Right 160 500 GSTA00-160/I44/L039266     Left GSTA00-160/I44/M041639     Centre GSTA00-160/I44/R044012     Right NH00 2 x 100 660 2GSTA00/I44/L/R062995     LeftRight CI44-200L3-CI43GSTA00(-160)HS 50-CI 2GSTA00/I44/L/M065368     LeftCentre 2GSTA00/I44/M/R067741     CentreRight 2 x 160 500 2GSTA00-160/I44/L/R046385     LeftRight 2GSTA00-160/I44/L/M048758     LeftCentre 2GSTA00-160/I44/M/R051131     CentreRight NH00 3 x 100 660 3GSTA00/I44070114     LeftCentreRight CI44-200L3-CI43GSTA00(-160)HS 50-CI NH00 3 x 160 500 3GSTA00-160/I44058250     LeftCentreRight Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses 00 /L 00 /R 250 35 50 375 80 80 375 100 107.5 250 00 /L 00 /M /R 00 /L 00 /M 00 /R 375 375 22.5 22.5 100 107.5 GSTA00/I..., 2GSTA00/I..., 3GSTA00/I... HPL20062EN

CI insulated enclosures  Distribution board enclosure with LV h.b.c. fuse switch-disconnector 2010 CA08103002Z-EN www.eaton.com Enclosures with components fitted 20/63 Enclosures with components fittedDistribution board enclosure with LV h.b.c. fuse switch-disconnector Distribution board assemblyMounting frames Dimensions Fuse-link Rated operational current Rated operational voltage Part no.Article no. PriceSee price list Std. pack Basic enclosure Mounting system I e U e Basic unitW x H x D mm Sizes A V AC Other Distribution board enclosures with  LV h.b.c. fuse switch-disconnectors NH1 250200 500660690 GSTA1/I44013163 1 off CI44-200L3-CI43GSTA1HS 50-CI NH2 315315 500660690 GSTA2/I44015536     CI44-200L3-CI43GSTA2HS 50-CI NH2 400315 500660690 GSTA2/I48017909     CI48-200L3-CI43GSTA2HS 50-CI NH3 500400 500660690 GSTA3/I48020282     CI48-200L3-CI43GSTA3HS 50-CI Notes Fuse-links ￫  Chapter 19: Circuit-breakers, fuses 95 95 55 70 375 375 82.5 42.5 60 375 375 750 85 345 125 375 60 345 125 GSTA...I... HPL20063EN

20/64 CI insulated enclosures  Mounting frames 2010 CA08103002Z-EN www.eaton.com Distribution board assembly 125 mm grid spacing Length For use with Part no.Article no. PriceSee price list Std. pack Quantity mm Section for mounting frames • Galvanized C sections• Order fixing screws separatelyFor wall-mounting distribution system Vertical section (outside) 6 x 125 750 WS6-ID098594 1 off 7 x 125 875 WS7-ID010794 1 off 8 x 125 1000 WS8-ID013167 1 off 9 x 125 1125 WS9-ID015540 1 off 10 x 125 1250 WS10-ID017913 1 off 11 x 125 1375 WS11-ID020286 1 off 12 x 125 1500 WS12-ID022659 5 off 13 x 125 1625 WS13-ID025032 1 off 14 x 125 1750 WS14-ID027405 1 off 15 x 125 1875 WS15-ID029778 1 off Horizontal profiles 2 x 125 150 WW2-ID041643 5 off 3 x 125 275 WW3-ID044016 5 off 4 x 125 400 WW4-ID046389 5 off 5 x 125 525 WW5-ID048762 5 off 6 x 125 650 WW6-ID051135 1 off 7 x 125 775 WW7-ID053508 5 off 8 x 125 900 WW8-ID055881 1 off 9 x 125 1025 WW9-ID058254 1 off For wall-mounting distribution system supported on the floor Vertical section (outside) 10 x 125 1250 WS10-ID017913 1 off 11 x 125 1375 WS11-ID020286 1 off 12 x 125 1500 WS12-ID022659 5 off 13 x 125 1625 WS13-ID025032 1 off 14 x 125 1750 WS14-ID027405 1 off 15 x 125 1875 WS15-ID029778 1 off 16 x 125 2000 WS16-ID032151 1 off 17 x 125 2125 WS17-ID034524 1 off 18 x 125 2250 WS18-ID036897 1 off 19 x 125 2375 WS19-ID039270 1 off n  x  125 F  750 50 50 n x 125 WW...-ID n = 2 – 9 n  x  125 4  x  125 WS...-ID, WW...-ID HPL20064EN

CI insulated enclosures  Mounting frames 2010 CA08103002Z-EN www.eaton.com Distribution board assembly 20/65 Section for mounting frames • Galvanized C sections• Order fixing screws separately Horizontal profiles 2 x 125 150 WW2-ID041643 5 off 3 x 125 275 WW3-ID044016 5 off 4 x 125 400 WW4-ID046389 5 off 5 x 125 525 WW5-ID048762 5 off 6 x 125 650 WW6-ID051135 1 off 7 x 125 775 WW7-ID053508 5 off 8 x 125 900 WW8-ID055881 1 off 9 x 125 1025 WW9-ID058254 1 off For floor-standing distribution boards, 3 panels wide Vertical section (outside) 14 x 125 1750 WS14-ID027405 1 off 15 x 125 1875 WS15-ID029778 1 off 16 x 125 2000 WS16-ID032151 1 off 17 x 125 2125 WS17-ID034524 1 off 18 x 125 2250 WS18-ID036897 1 off 19 x 125 2375 WS19-ID039270 1 off 20 x 125 2500 WS20-ID034525 1 off 21 x 125 2625 WS21-ID036898 5 off 22 x 125 2750 WS22-ID039271 5 off 23 x 125 2875 WS23-ID041644 1 off Horizontal profiles 3 x 125 275 WW3-ID044016 5 off 6 x 125 650 WW6-ID051135 1 off 9 x 125 1025 WW9-ID058254 1 off 125 mm grid spacing Length For use with Part no.Article no. PriceSee price list Std. pack Quantity mm n = 2 – 9 50 50 n x 125 WW...-ID F  750 2  x  125 50 4  x  125 6  x  125 n  x  125 WS...-IDn = 14 – 23 F  750 n x 125 50 50 3 x 125 n = 3, 6, 9 WW...-ID WS...-ID, WW...-ID HPL20065EN

20/66 CI insulated enclosures  Mounting frames 2010 CA08103002Z-EN www.eaton.com Distribution board assembly Section for mounting frames • Galvanized C sections• Order fixing screws separatelyFor floor-standing distribution boards, 4 panels wide Vertical section (outside) 14 x 125 1750 WS14-ID027405 1 off 15 x 125 1875 WS15-ID029778 1 off 16 x 125 2000 WS16-ID032151 1 off 17 x 125 2125 WS17-ID034524 1 off 18 x 125 2250 WS18-ID036897 1 off 19 x 125 2375 WS19-ID039270 1 off 20 x 125 2500 WS20-ID034525 1 off 21 x 125 2625 WS21-ID036898 5 off 22 x 125 2750 WS22-ID039271 5 off 23 x 125 2875 WS23-ID041644 1 off Vertical section (centre) 14 x 125 1700 WSM14-ID044017 5 off 15 x 125 1825 WSM15-ID046390 5 off 16 x 125 1950 WSM16-ID048763 5 off 17 x 125 2075 WSM17-ID051136 5 off 18 x 125 2200 WSM18-ID053509 5 off 19 x 125 2325 WSM19-ID055882 5 off 20 x 125 2450 WSM20-ID058255 5 off 21 x 125 2575 WSM21-ID060628 5 off 22 x 125 2700 WSM22-ID063001 5 off 23 x 125 2825 WSM23-ID065374 5 off Horizontal profiles 6 x 125 675 WW6A-ID067747 1 off 12 x 125 1400 WW12-ID070120 1 off 125 mm grid spacing Length For use with Part no.Article no. PriceSee price list Std. pack Quantity mm 2  x  125 50 4  x  125 6  x  125 n  x  125 WS...-IDn = 14 – 23 3 x 125 2  x  125 50 4  x  125 6  x  125 n  x  125 WSM...-ID n = 14 – 23 3 x 125 WW12-ID WW6A-ID WW6A-ID WW6A-ID WW6A-ID 2  x  125 50 4  x  125 6  x  125 n  x  125 3 x 125 WS...-ID, WW...-ID HPL20066EN

CI insulated enclosures  Accessories 2010 CA08103002Z-EN www.eaton.com Distribution board assembly 20/67 AccessoriesDistribution board assembly 125 mm grid spacing Length For use with Part no.Article no. PriceSee price list Std. pack Quantity mm Cable anchoring rails For T-slot cleats 2 x 125 250 KSV2-ID060627 1 off 3 x 125 375 KSV3-ID063000 1 off 4 x 125 500 KSV4-ID065373 1 off 5 x 125 625 KSV5-ID067746 1 off 6 x 125 750 KSV6-ID070119 5 off 7 x 125 875 KSV7-ID072492 1 off 8 x 125 1000 KSV8-ID074865 1 off 9 x 125 1125 KSV9-ID077238 5 off For use with Part no.Article no. PriceSee price list Std. pack Wall fixing bracket • Including fixing material• For wall-mounting distribution system To secure the mounting frame at a distance of 12 mm from the wall WBW12-ID001925 4 off To secure the mounting frame at a distance of 25 mm from the wallFloor-standing distribution board top mount WBW25-ID081983 10 off To secure the mounting frame at a distance of 100 mm from the wallFloor-standing distribution board top mount WBW100-ID084356 10 off Corner plate for wall-mounting and floor-standing distribution boards  • For the connection of horizontal and vertical sections• Including fixing material EVB-ID002299 10 off 16 n x 125 n = 2 – 9 KSV...-ID KSV...-ID, WBW...-ID, EVB... HPL20067EN

20/68 CI insulated enclosures  Accessories 2010 CA08103002Z-EN www.eaton.com Distribution board assembly AccessoriesDistribution board assembly For use with For use with Part no.Article no. PriceSee price list Std. pack Cross plates for wall-mounting and floor-standing distribution boards • For the connection of horizontal and vertical sections• Including fixing material – KVB-ID002300 10 off Assembly bracket • For the connection of distribution boards and for transport units• Including fixing material Wall-mounting distribution board top and bottom on WW... sectionWall-mounting distribution board 2 off, floor-standing distri-bution board 1 off ARB-ID002302 10 off For enclosure assembly at transport splits – VS-TR-CI002330 25 off Lifting eye fixing For securing TOR-GG eyebolts, M12 thread Wall-mounting distribution boards, floor-standing distribution boardsMounting in WS... vertical profiles – TOB-ID093848 10 off Lifting eyes kit For lift eye fix, M12 thread Wall-mounting distribution boards, floor-standing distribution boardsFor fixing using TOB-ID to the vertical sectionsOne set consists of 4 lifting eyes – TOR-GG048276 1 off Fixing screw For securing CI enclosures to the sections For securing CI enclosures to wall fixing brackets W...and to profiles WS..., WW... – LT284-M6X20-C050325 100 off Plinths For mounting floor-standing distribution boards Width 375 mm – SS5-ID0375079611 1 off Width 750 mm – SS5-ID0750081984 1 off Width 1125 mm – SS5-ID1125084357 1 off Width 1500 mm – SS5-ID1500086730 1 off Spray can for CI enclosure covers For painting covers, color RAL 7032Contents 400 ml/300 g – SP-CI-RAL7032005741 1 off 300 KVB..., SS5-ID... HPL20068EN

CI insulated enclosures  Accessories 2010 CA08103002Z-EN www.eaton.com Distribution board assembly 20/69 For use with Part no.Article no. PriceSee price list Std. pack Foot For fixing to the floor Left and right on base SS5-ID(on SS5-ID1500 also in middle) FHF-ID089103 2 off Support struts For floor-standing distribution boards to support the vertical section on the floor For plinth height 50 cm STR50-ID072493 1 off For plinth height 75 cm STR75-ID074866 1 off Strap For the connection of distribution boards (and with transport splits) In the base, 1 off for base heights ≦ 50 cm2 off for plinth heights 75 cm LPS-ID086731 5 off Foot prop Supports for the front plate (bottom)• 1 off per section width Between the externally fitted FHF-ID feet SLHF-ID091476 5 off Support brackets Support bracket for the top plate• 2 off per section width – HDP-ID093849 5 off Support bracket Additional fixing for the HPD-ID holder For SS5-ID0375: 0 offFor SS5-ID0750: 1 offFor SS5-ID1125: 2 offFor SS5-ID1500: 2 off SWHDP-ID032152 5 off Top plate • Simultaneous support for the front plate (top)• 1 off per section width – DP-ID096222 5 off STR...-ID HPL20069EN

20/70 CI insulated enclosures  Accessories 2010 CA08103002Z-EN www.eaton.com Distribution board assembly Cable compartment cladding Front plates• For covering the plinth area (cabling area)• 1 off per section width Height 750 mm FP75-ID013168 2 off Height 500 mm FP50-ID010795 4 off Height 250 mm FP25-ID098595 4 off Enclosure side plates• Cover for external sides• Can be fitted to left or right Height 750 mm SWRL75-ID020287 1 off Height 500 mm SWRL50-ID017914 1 off Height 250 mm SWRL25-ID015541 1 off Intermediate plates• For cover between base of different heights Right side Between plinth heights 750 mm - 250 mm ZPR50-ID022660 1 off Between plinth heights of 750 mm - 500 mm or 500 mm - 230 mm ZPR25-ID025033 1 off Left side Between plinth heights 750 mm - 250 mm ZPL50-ID029779 1 off Between plinth heights of 750 mm - 500 mm or 500 mm - 230 mm ZPL25-ID027406 1 off For use with Part no.Article no. PriceSee price list Std. pack FP...-ID, SWRL...-ID, ZP...-ID HPL20070EN

CI insulated enclosures  Basic enclosures 2010 CA08103002Z-EN www.eaton.com 20/71 Basic enclosures Engineering Enclosure size selection Enclosure measurementsWidth:187.5 mm375 mm Height:250 mm 375 mm 500 mm 750 mm Suitable for distribution board systems with section widths in 375 mm grid. Rotation of enclosure by 90° allows section widths in 250 mm grid. With various cover depths, four standardized mounting depths can be implemented in a 25 mm grid (upper edge of mounting plate to lower edge of cover):125 mm 150 mm 200 mm 250 mm 750 375 500 375 250 250 CI…, U-CI…, D...-CI...

20/72 CI insulated enclosures  Basic enclosures 2010 CA08103002Z-EN www.eaton.com Basic enclosures Mounting of switchgear in distribution board enclosures To install LV h.b.c. fuse bases, switch-disconnectors and circuit-breakers, pre-drilled mounting plates are available. In some cases, additional spacers HS50-CI are required.The following table gives the largest number of devices that can be installed. PE and N terminals for the distribution board enclosures have not been included. Device Rated operational current Max. no. of devices installable in distribution board combinations Pre-drilled mounting plate or  mounting plate Spacer CI43(E)-200 CI43(E)-200 (rotated by 90°) CI44(E)-200 CI45(E)-200 CI48(E)-200 CI48(E)-250 A Number Number Number Number Number Number LV h.b.c. fuse bases GS00-160 100, 160 3 2 3 3 L3-CI43 HS50-CI GS1 250 1 1 1 1 L3-CI43 HS50-CI GS2 400 - - 1 1 1 L3-CI43 HS50-CI GS3 500 - - - 1 1 L3-CI43 HS50-CI LV h.b.c.  fuse switch-disconnectors GSTA00-160 100, 160 2 1 3 3 L3-CI43 HS50-CI GSTA1 250 - - 1 1 L3-CI43 HS50-CI GSTA2 400 - - 1 1 1 L3-CI43 HS50-CI GSTA3 500 - - - 1 1 L3-CI43 HS50-CI Switch-disconnectors, circuit-breakers 1) NZM1 160 2 1 2 2 M3-CI... - NZM2 250 1 1 2 2 M3-CI... - NZM3 630 - - - 1 1 1 M3-CI... - NZM4 1600 - - - - - 1 M3-CI... - Notes 1) Switches and accessories ￫ Chapter 17: Compact circuit-breakers NZM, compact switch-disconnectors N up to 1600 A CI…, U-CI

CI insulated enclosures  Modular busbar system 2010 CA08103002Z-EN www.eaton.com 20/73 Modular busbar system Overview of busbar systems up to 1600 A  (CI…, RS…, SKA…) • 5-conductor system up to 400 A with 1/1 cross-section possible• 5-conductor system up to 630 A L1 - L3 with 1/1 cross-section,  PE/N with 1/2 cross-section • 25 A to 400 A fuses for mounting on busbar system up to 630 A• Tinned copper busbars from 160 A to 630 A Rated operational current I e Busbar cross-section Busbar center-to-center distance Surface-mounting devices   A L1, L2, L3 mm PE, N, PEN mm  mm RS..3-50 GST…00 GSTA… 160 12 x 5 12 x 5 40 - ● - 250 20 x 5 20 x 5 50 ● ● ● 400 20 x 10 20 x 5 50 ● ● ● 630 20 x 15 20 x 10 50 ● ● ● 1000 2 x 30 x 10 30 x 10 - - - - 1600 3 x 40 x 10 2 x 20x15 - - - - Selection diagrams up to 630 Aup to 5-pole (with or without fitted components)(CI…, SKA…) Busbar system in CI enclosure: Assembled from individual componentsfor 1 up to 4 CI enclosures Rated operational  current  A Part no. CI44-200 SH0635/4 CU20X5 1) CU20X10 1) CU20X15 1)2) FL4-X BS4-CI 250 1 2 1.875 - - 2 - 400 1 2 0.75 1.125 - 2 - 630 1 2 - 0.75 1.125 2 - 250 2 3 3.75 - - 2 1 400 2 3 1.50 2.25 - 2 1 630 2 3 - 1.50 2.25 2 1 250 3 4 5.625 - - 2 2 400 3 4 2.25 3.375 - 2 2 630 3 4 - 2.25 3.375 2 2 250 4 5 7.50 - - 2 3 400 4 5 3.00 4.50 - 2 3 630 4 5 - 3.00 4.50 2 3 Notes 1) In meters; applies for 5-pole system 2) Assemble from CU20X10 and CU20X5 NL1L2L3PE 375 NL1L2L3PE 750 NL1L2L3PE 1175 NL1L2L3PE 1500 CI..., RS..., SKA...

20/74 CI insulated enclosures  Modular busbar system 2010 CA08103002Z-EN www.eaton.com 3-pole with fitted components(5-pole without fitted components possible)630 A-system max. 3 pole(CI…, SKA…) Busbar system in CI enclosure: Assembled from individual componentsfor 1 up to 4 CI enclosures Rated operational current  A Part no. CI43-200 SH0635/3 CU20X5 1) CU20X10 1) CU20X15 1)2) FL4-X BS4-CI 250 1 2 1.875 - - 2 - 400 1 2 0.75 1.125 - 2 - 630 1 2 - - 1.125 2 - 250 2 3 3.75 - - 2 1 400 2 3 1.50 2.25 - 2 1 630 2 3 - - 2.25 2 1 250 3 4 5.625 - - 2 2 400 3 4 2.25 3.375 - 2 2 630 3 4 - - 3.375 2 2 250 4 5 7.50 - - 2 3 400 4 5 3.00 4.50 - 2 3 630 4 5 - - 4.50 2 3 Notes 1) In meters; applies for 5-pole system 2) Assemble from CU20X10 and CU20X5 ￫ 630 A system 3-pole only L1L2L3 NPE/N 375 L1L2L3 NPE/N 750 L1L2L3 NPE/N 1175 L1L2L3 NPE/N 1500 Selection diagrams up to 1000 Aup to 5 pole (CI…, SKA…) Busbar system in CI enclosure: Assembled from individual componentsfor 1 up to 4 CI enclosures Rated operational current  A Part no. CI44-200 SH1005/4 CU30X10 1) FL4-X BS4-CI ) 1000 1 2 3.00 2 - 1000 2 3 6.00 2 1 1000 3 4 9.00 2 2 1000 4 5 12.00 2 3 Notes 1) In meters; applies for 5-pole system To achieve even current loading (and heating) of the individual busbars, they must be connected in parallel with busbar terminals at a maximum spacing of 375 mm. Incoming and outgoing terminals are parallel switching points. NL1L2L3 375 NL1L2L3 750 NL1L2L3 1175 NL1L2L3 1500 CI..., SKA...

CI insulated enclosures  Modular busbar system 2010 CA08103002Z-EN www.eaton.com 20/75 N, PE, PEN at 1600 AIn the 1600 A busbar system, two CU20X15 are each used as N, PE and PEN conductor. For an even current load, connect the busbars in parallel with a spacing of no more than 375 mm. Transport split, busbar connectionWith transport splits the busbar supports are offset from the knockouts to the enclosure inner and secured with an additional holder.This reduces the mounting area for components fitted on the busbars by distance 'a' between the busbar supports. In end enclosures, transport splits should always be fitted to facilitate subsequent expansion. Selection diagrams up to 1600 A3 pole Busbar system in CI enclosure: Assembled from individual componentsfor 1 up to 4 CI enclosures Operating current A Part no. CI44-200 SH1603/4 CU40X10 1) FL4-X BS4-CI 1600 1 2 3.375 2 - 1600 2 3 6.75 2 1 1600 3 4 10.125 2 2 1600 4 5 13.50 2 3 Notes 1) In meters; applies for 5-pole system To achieve even current loading (and heating) of the individual busbars, they must be connected in parallel with busbar terminals at a maximum spacing of 375 mm. Incoming and outgoing terminals are parallel switching points. L1L2L3 375 L1L2L3 750 L1L2L3 1175 L1L2L3 1500 N, PE, PEN 375 375 a CI..., SKA...

20/76 CI insulated enclosures  Modular busbar system 2010 CA08103002Z-EN www.eaton.com Modular busbar system Clearance between busbar supports with transport split, busbar coupling kits For fitting a busbar support outside the knockouts, 2 × HSH-CI or 2 × HSH0632 are required. Exception: For SH0632 only 1 × HSH0632 is required. Busbar support Busbar system Additional support bracket for busbar support Clearance between busbar support Terminal L1, L2, L3 N, PE, PEN mm SH0165/2 160 A, 5 pole HSH0632 125 K12X5-1 K12X5-1 SH0635/3 250 A, 5 pole HSH-CI 175 K20X5 K20X5 400 A, 5 pole HSH-CI 175 K20X10 K20X5 630 A, 3 pole HSH-CI 125 K20X10 - SH0635/4 250 A, 5 pole HSH-CI 125 K20X5 K20X5 400 A, 5 pole HSH-CI 125 K20X10 K20X5 630 A, 5 pole HSH-CI 125 K20X10 K20X10 SH1005/4 1000 A, 5 pole HSH-CI 125 AVS30L AVS30PEN SH1603/4 1600 A, 3 pole HSH-CI 125 AVS40 - SH0632 HSH0632 ~170 - K12X5, K20X5 CI…, SKA...

CI insulated enclosures  Mounting frame selection 2010 CA08103002Z-EN www.eaton.com 20/77 Mounting frame selection Wall-mounted distributor Profiles are selected in a 125 mm grid according to enclosure widths or heights. Vertical sections:WS…-ID Number of 125 mm "steps“= 6, 7, 8, 9, 10, 11, 12, 13, 14, 15Vertical wall profile Horizontal section:WW…-ID Number of 125 mm "steps“= 2, 3, 4, 5, 6, 7, 8, 9Horizontal wall profile Vertical and horizontal profiles are connected with corner plates EVB-ID and cross plates KVB-ID (order separately). The vertical profiles of the supporting frame are wall-mounted with two wall fixing brackets WBW…-ID each (order separately). Where wall-mounted distribution boards wider than 1125 mm are required, these are split into several transportation units. The wall-mounted profiles are mechanically interconnected at the top or bottom with the help of an assembly bracket ARB-ID.  ①  Transport unit  F  750 F  1875 F 1125 WW...-ID WW2-ID WW3-ID WW4-ID WW5-ID WW6-ID WW7-ID WW8-ID WW9-ID WS6-ID WS7-ID WS8-ID WS9-ID WS10-ID WS11-ID WS12-ID WS13-ID WS14-ID WS15-ID WS ...-ID WW...-ID WS ...-ID WW...-ID WS ...-ID WW...-ID ARB-ID a WW...-ID, WS...-ID

20/78 CI insulated enclosures  Mounting frame selection 2010 CA08103002Z-EN www.eaton.com Mounting frame selection Wall-mounting distribution board, supported on the floor Profiles are selected in a 125 mm grid according to enclosure widths or heights.For vertical profiles, an additional 500 mm (4 × 125 mm) must be added (for KSV…). Vertical sections:WS…-ID Number of 125 mm "steps“= 10, 11, 12, 13, 14, 15, 16, 17, 18, 19Vertical wall profile Horizontal section:WW…-ID Number of 125 mm "steps“= 2, 3, 4, 5, 6, 7, 8, 9Horizontal wall profile Vertical and horizontal profiles are connected with corner plates EVB-ID and cross plates KVB-ID (order separately). The vertical profiles of the supporting frame are wall-mounted with two wall fixing brackets WBW…-ID each (order separately). Where larger wall-mounted distribution boards are  required, these are split into several transportation units. The wall-mounted profiles are mechanically interconnected with the help of an assembly bracket ARB-ID and straps LPS-ID. ①  Transport unit  500 (4  x  125) F  750 F  2375 WS ...-ID F 1125 WW...-ID WW2-ID WW3-ID WW4-ID WW5-ID WW6-ID WW7-ID WW8-ID WW9-ID KSV...-ID KSV2-ID KSV3-ID KSV4-ID KSV5-ID KSV6-ID KSV7-ID KSV8-ID KSV9-ID WS10-ID WS11-ID WS12-ID WS13-ID WS14-ID WS15-ID WS16-ID WS17-ID WS18-ID WS19-ID FHF-ID STR-ID50 500 (4  x  125) a LPS-ID ARB-ID WW...-ID, WS...-ID

CI insulated enclosures  Mounting frame selection 2010 CA08103002Z-EN www.eaton.com 20/79 Mounting frame selection Floor-standing distributor Larger distribution systems are assembled on support frames and laid out as floor-standing distribution boards with cable compartment cladding. Floor-standing distribution board with 4 section width Profiles are selected in a 125 mm grid according to enclosure widths or heights. Vertical sections:WS…-ID Number of 125 mm "steps“= 10, 11, 12, 13, 14, 15, 16, 17, 18, 19Vertical wall profile Horizontal section:WW…-ID Number of 125 mm "steps“= 2, 3, 4, 5, 6, 7, 8, 9Horizontal wall profile For distribution boards wider than 1500 mm a vertical center profile is required in addition. The horizontal profiles are then correspondingly smaller. WSM…-ID Number of 125 mm "steps“= 14, 15, 16, 17, 18, 19, 20, 21, 22, 23Vertical center wall profile Vertical and horizontal profiles are connected with corner plates EVB-ID and cross plates KVB-ID (order separately). The vertical profiles of the supporting frame are wall-mounted with two wall fixing brackets WBW…-ID each (order separately). When mounting very heavy devices, e.g. NZM4, a reinforced framework is recommended. This can be achieved with the addition of a further center profile WSM…-ID and a foot FHF-ID. 500/750 250 50 F  750 F  2875 F 1500 WS ...-ID WS14-ID WW12-ID WS15-ID WS16-ID WS17-ID WS18-ID WS19-ID WS20-ID WS21-ID WS22-ID WS23-ID WSM14-ID WSM15-ID WSM16-ID WSM17-ID WSM18-ID WSM19-ID WSM20-ID WSM21-ID WSM22-ID WSM23-ID WW6A-ID WW6A-ID STR...-ID SS5-ID1500 FHF-ID WW...-ID, WS...-ID

20/80 CI insulated enclosures  Selection of mounting frames; socket combinations, and site distribution boards 2010 CA08103002Z-EN www.eaton.com Cable compartement cladding for floor-standing distribution board Floor-standing distribution boards are mounted on a base. Three cable compartment heights (250 mm, 500 mm and 750 mm plus 50 mm for the base) are available for inserting, sorting and marshalling cables. In addition, the base contains internal cable anchoring rails for T-foot clips. The front of the cable compartments is closed off with insulating front plates. Tested to EN 60 439-4 Individual enclosure CI…X-… and distribution board assembled from CI enclosures up to 630 A fulfil the additional requirements of EN 60 439-4. They are therefore suited for socket combinations and as system components for site distribution boards. HDP-ID DP-ID FP...-ID SLHF-ID SWHDP-ID SWRL50-ID SWRL50-ID Combinability:In addition, cable compartments of different heights can be combined. The side openings are closed off with intermediate plates. Left and righthand versions are available. The height is the difference of the different front plates. R = right-hand intermediate plate25 = 250 mm high intermediate plate ZP… …-ID 25 = 500 mm high intermediate plateL = left-hand intermediate plate ZPR25-ID WW...-ID, WS...-ID

CI insulated enclosures  Selection of wiring 2010 CA08103002Z-EN www.eaton.com 20/81 Selection of wiring Connections to busbars Type of connection Terminal typeK 12 x 5-1  K 12 x 5-2 Copper busbar with Copper busbar (2x) 12 x 5 (2x) 12 x 5(3x) 12 x 5 Copper busbar with (1x) strap L-KL-R(can be fitted with AK 16, AK 35) (1x) 12 x 5 + L-KL-R (1x) 12 x 5(2x) 12 x 5 + L-KL-R Copper busbar with (2x) strap L-KL-R(can be fitted with AK 16, AK 35) - (1x) 12 x 5(2x) 12 x 5  + (2x) L-KL-R Copper busbar with copper strip 12 x 5 + 3 x 9 x 0.8 6 x 9 x 0.8 12 x 5 3 x 9 x 0.86 x 9 x 0.89 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.8 Copper busbar with (2x) copper strip - 12 x 5 + (2x) 3 x 9 x 0.8 (2x) 4 x 16 x 0.8 Copper busbar with (4x) copper strip - 12 x 5 + (4x) 3 x 9 x 0.8 Copper busbar with round copper conductor 1) 12 x 5 + 16² … 25² 12 x 5 + 25² 1)  Flexible with ferrule 15 13 23 21 CI...

20/82 CI insulated enclosures  Selection of wiring 2010 CA08103002Z-EN www.eaton.com Type of connection Terminal typeK 20 x 5 K 20 x 10 K20 x 15 Copper busbar with Copper busbar (2x) 20 x 5(2x) 20 x 10 (2x) 20 x 5(2x) 20 x 10(2x) 20 x 15 (2x) 20 x 10(2x) 20 x 15 Copper busbar with (1x) strap L-KL-R(can be fitted with AK 16, AK 35) (1x) 20 x 5 (2x) 20 x 5(1x) 20 x 10 +  L-KL-R (1x) 20 x 5(2x) 20 x 5(1x) 20 x 10(2x) 20 x 10(1x) 20 x 15 + L-KL-R (2x) 20 x 10(1x) 20 x 15(2x) 20 x 15 + L-KL-R Copper busbar with (2x) strap L-KL-R (can be fitted with AK 16, AK 35) (1x) 20 x 5  +  (2x) L-KL-R (1x) 20 x 5(2x) 20 x 5(1x) 20 x 10(2x) 20 x 10(1x) 20 x 15 +  (2x) L-KL-R (2x)20 x 10(1x)20 x 15(2x)20 x 15 +  (2x) L-KL-R Copper busbar with copper strip 20 x 5  + 3 x 9 x 0.8 6 x 9 x 0.89 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.8 20 x 520 x 1020 x 15 + 3 x 9 x 0.8 6 x 9 x 0.89 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.811 x 21 x 1 20 x 5 20 x 1020 x 15 + + 10 x 16 x 0.811 x 21 x 1 3 x 9 x 0.86 x 9 x 0.89 x 9 x 0.84 x 16 x 0.86 x 16 x 0.810 x 16 x 0.811 x 21 x 1 Copper busbar with (2x) copper strip 20 x 5 + 2x)  3 x 9 x 0.8(2x)4 x 16 x 0.8 20 x 5  20 x 10 20 x 15 + + + 2x) 3 x 9 x 0.8 (2x) 6 x 9 x 0.8(2x) 9 x 9 x 0.8(2x) 4 x 16 x 0.8(2x) 6 x 16 x 0.8(2x) 10 x 16 x 0.8 (2x) 3 x 9 x 0.8 (2x) 6 x 9 x 0.8(2x) 9 x 9 x 0.8(2x) 4 x 16 x 0.8(2x) 6 x 16 x 0.8 (2x) 3 x 9 x 0.8(2x) 6 x 9 x 0.8(2x) 4 x 16 x 0.8(2x) 6 x 16 x 0.8 20 x 520 x 10 20 x 15 + + (2x) 6 x 9 x 0.8(2x) 9 x 9 x 0.8(2x) 6 x 16 x 0.8(2x) 10 x 16 x 0.8(2x) 11 x 21 x 1 (2x) 3 x 9 x 0.8(2x) 6 x 9 x 0.8 (2x) 9 x 9 x 0.8(2x) 4 x 16 x 0.8(2x) 6 x 16 x 0.8(2x) 10 x 16 x 0.8(2x) 11 x 21 x 1  Copper busbar with (4x) copper strip 20 x 5 + (4x) 3 x 9 x 0.8 20 x 5 20 x 1020 x 15 + + 4x) 3 x 9 x 0.8(4x) 6 x 9 x 0.8 (4x) 9 x 9 x 0.8 (4x) 3 x 9 x 0.8(4x) 6 x 9 x 0.8 20 x 520 x 1020 x 15 + (4 x ) 6 x 9 x 0.8 (4 x ) 9 x 9 x 0.8 23 22 37 22 47 25 CI...

CI insulated enclosures  Selection of wiring 2010 CA08103002Z-EN www.eaton.com 20/83 Terminal type Type of connectionCopper busbar with copper strip Copper busbar with round conductor 1) Copper busbar with strap L-KL-R (can be fitted with   AK 16, AK 35) (1x) L-KL-R max. 200A (2x) L-KL-R max. (2x) 200A K 12 x 5/25 12 x 5 + (1x) 3 x 9 x 0.8 (2x) 3 x 9 x 0.8(1x) 6 x 9 x 0.8(2x) 6 x 9 x 0.8(1x) 4 x 16 x 0.8(2x) 4 x 16 x 0.8(1x) 6 x 16 x 0.8(2x) 6 x 16 x 0.8 12 x 5 + 1.5² … 6² 12 x 5 + (1x) L-KL-R (2x) L-KL-R K 20 x 5/25 20 x 5 + (1x) 3 x 9 x 0.8 (2x) 3 x 9 x 0.8(1x) 6 x 9 x 0.8(2x) 6 x 9 x 0.8(1x) 4 x 16 x 0.8(2x) 4 x 16 x 0.8(1x) 6 x 16 x 0.8(2x) 6 x 16 x 0.8 20 x 5 + 1.5² … 6² 20 x 5 + (1x) L-KL-R (2x) L-KL-R K 20 x 10/35 20 x 520 x 10 + (1x) 3 x 9 x 0.8 (2x) 3 x 9 x 0.8(1x) 6 x 9 x 0.8, (2x) 6 x 9 x 0.8(1x) 9 x 9 x 0.8(2x) 9 x 9 x 0.8(1x) 4 x 16 x 0.8(2x) 4 x 16 x 0.8(1x) 6 x 16 x 0.8(2x) 6 x 16 x 0.8(1x) 10 x 16 x 0.8(2x) 10 x 16 x 0.8 20 x 10 + 1.5² … 6² 20 x 10 + 1x) L-KL-R (2x) L-KL-R K 20 x 15/40 20 x 520 x 1020 x 15 + + (1x) 3 x 9 x 0.8(2x) 3 x 9 x 0.8(1x) 6 x 9 x 0.8(2x) 6 x 9 x 0.8(1x) 9 x 9 x 0.8(2x) 9 x 9 x 0.8(1x) 4 x 16 x 0.8(2x) 4 x 16 x 0.8(1x) 6 x 16 x 0.8(2x) 6 x 16 x 0.8(1x) 10 x 16 x 0.8(2x) 10 x 16 x 0.8(1x) 11 x 21 x 1 20 x 520 x 1020 x 15 + 1.5² … 6² 20 x 520 x 1020 x 15 + (1x) L-KL-R (2x) L-KL-R K 20 x 15/50 20 x 15 + (1x) 11 x 21 x 1 (2x) 11 x  21 x 1 20 x 15 + 1.5² … 6² 20 x 15 + (1x) L-KL-R (2x) L-KL-R 1)  Flexible with ferrule 25 25 35 40 50 CI...

20/84 CI insulated enclosures  Standards, measured values 2010 CA08103002Z-EN www.eaton.com Standards, measured values Technical data CI23… CI43… CI44… CI45… CI48… General Standards IEC/EN 60529EN 50262DIN 43656DIN 43660EN 60439-4 for individual CI...X enclosures and distribution boards assembled from CI enclosures up to 680 A. Can  therefore be used for socket combinations and as components for site distribution boxes. Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature °C -40 - 80 Protection type IP65 Radiated heat dissipation ￫ Page 20/86  Additional technical data for UL/CSA approved devices See UL report File No. E54120 ￫ Chapter 23 Material properties Material Base Glass-fibre reinforced polycarbonate Cover Non-reinforced polycarbonate Surface treatment Corrosion-resistant Color Base RAL 7032, pebble grey Cover Transparent, opaque or RAL 7032, pebble grey Material properties Electrical Creepage resistance to IEC 60112 Base KB160, KC175 Cover KB100, KC200 Surface treatment to IEC 60093 Ω x 10 13 1 Dielectric strength to IEC 60243-1 kV/mm 30 Thermal Continuous thermal stability Housing °C -40…120 Enclosure bolt °C 85 Sealing °C 80 Mechanical IK code to EN 50102 Please enquire Load bearing capacity kg 5 10 20 30 40 Chemical resistance Resistant Acids  10 %, mineral oil, alcohol, petrol, grease, saline solutions Partially resistant Acids  10 % Non-resistant Alkalis, paraffin Atmospheric Saline spray IEC 60068-2-11 UV resistance Beneath protective canopy Water absorption to EN ISO 62 % 0.29 Flammability characteristics Glow wire to VDE 0471 Part 2 °C 960 UL Base UL94V1 Cover UL94V2 Halogen free Yes (lower section and cover) CI...

CI insulated enclosures  Standards, measured values 2010 CA08103002Z-EN www.eaton.com Insulated distribution boards 20/85 Insulated distribution boardsStandards, measured values CI… General Components Components of switchgear assemblies are type-tested. They are suitable for self-assembly of switchgear installations, distribution boards and control panels. Mounting units The reference values stated apply to the basic elements of the distribution board. For devices fitted, terminals etc., their reference and rated values apply. Standards TTA – Type Tested Assemblies IEC/EN 60439-1, VDE 0660 Part 500 Low-voltage fuses IEC/EN 60269, VDE 0636 Type test VDE 0660 Part 500, IEC/EN 60439-1 Creepage and clearance distances III/3 to IEC/EN 60439-1 Flammability characteristics - Glow rod test VDE 0304 Part 3 level IIb, level IIb to IEC 60707 Regulations for fire-resistance tests of electrical products, their modules and components, glow wire test VDE 0471 Part 2 Operating and environmental conditions to VDE 0660 Part 500 Ambient temperature Mean value over 24 hours °C 35 Limit values °C -5…40 Indoor installation Relative humidity at 20 °C % 90 at 40 °C % 50 Installation altitude m max. 2000 Protection type CI enclosure IP65 KST cable entry from below IP65 KST cable entry from above IP64 Cable entry open IP00 Modular grid (enclosure basic dimensions) mm 25 (DIN 43660) Color Base RAL 7032, pebble grey Cover Transparent, opaque or RAL 7032, pebble grey CI...-NA: Transparent cover, opaque Surface protection with metals Galvanized, passivated Radiated heat dissipation ￫ Page 20/86 Electrical characteristics Busbar system Rated operating voltage U e V AC 690 690 690 690 690 690 Rated insulation voltage AC U i V AC 690 690 690 690 690 690 DC U i V DC 800 800 800 800 800 800 Rated operational current I e A 160 250 400 630 1000 1600 Rated short-time withstand current t = 0.1 s cos ϕ = 0.2 I cw kA 20 25 35 40 80 80 Rated short-time withstand current t = 1 s I cw kA 4 7 14 28 50 66 Rated peak withstand current I pk kA 40 52.5 73.5 84 176 176 Distance between busbar supports mm ≦ 375 ≦ 375 ≦ 375 ≦ 375 ≦ 375 ≦ 375 WW...-ID, WS...-ID

20/86 CI insulated enclosures  Radiated heat dissipation 2010 CA08103002Z-EN www.eaton.com Insulated distribution boards Radiated heat dissipation CI... Radiated heat dissipation of the insulated enclosures CI Part no. DimensionsW x H x Dmm Heat dissipation W Max. radiated heat dissipation of the CI insulated enclosures with separate mounting, ambient air temperature +20 °C CI23...-125CI23...-150 187.5 x 250 x 150187.5 x 250 x 175 3336 CI43...-125CI43...-150CI43...-200 375 x 250 x 150375 x 250 x 175375 x 250 x 225 465056 CI44...-125CI44...-150CI44...-200CI44...-250 375 x 375 x 150375 x 375 x 175375 x 375 x 225375 x 375 x 275 66687278 CI45...-200 375 x 500 x 225 89 CI48...-200CI48...-250 375 x 750 x 225375 x 750 x 275 138164 Max. radiated heat dissipation of the CI insulated enclosures with use in distribution boards to VDE 0660 Part 500 CI23-... 187.5 x 250 x 150187.5 x 250 x 175 25 CI43-... 375 x 250 x 150375 x 250 x 175375 x 250 x 225 42 CI44-... 375 x 375 x 150375 x 375 x 175375 x 375 x 225375 x 375 x 275 54 CI45-... 375 x 500 x 225 67 CI48-... 375 x 750 x 225375 x 750 x 275 93 Notes When calculating the heat dissipation, the quadratic relationship of current with the rated diversity factor α must be considered.P v  = I 2  x R P v ’ = P v  x α 2 If no data is available concerning the load relationships of the individual circuits, the rated diversity factor is selected conform to  VDE 0660 Part 500. CI...

CI insulated enclosures  2010 CA08103002Z-EN www.eaton.com 20/87 Dimensions Insulated enclosures CI123...RS.../I23...GS00/I23...GSTA00/I23E CI43...KST43..., Dimension with gland plates ￫ Page 20/11K...KST43..., Dimension with gland plates ￫ Page 20/38ZG/I43E-G-...RS.../I43...GS00-.../I43...GSTA00-../I43... CI44...KST44..., Dimension with gland plates ￫ Page 20/12K...KST44..., Dimension with gland plates ￫ Page 20/39SKA...-I44,  ZG/I44E-...ESK.../I44,  EPEN.../I44RSK.../I44,  RS.../I44...GS2/I44, GSTA.../I44... t = 150/175 mm t = 150/175/225 mm t = 150/175/225//275 mm CI45...ZG/I45E-...GS.../I45EGSTA.../I45E CI48...KST48..., Dimension with gland plates ￫ Page 20/13K...KST48..., Dimension with gland plates ￫ Page 20/39ZG/I48-...GSTA.../I48E GS.../I48E 25 187.5 162.5 25 250 225 147 177 t 92 27 225 250 25 25 375 350 147 177 t 92 27 25 375 25 375 350 350 302 272 t 92 27 92 27 114.5 84.5 27 92 272 302 272 27  92 302 25 375 350 25 500 475 t 92 27 147 177 92 25 27 25 750 375 725 350 302 272 375 302 272 t 92 27 272 27  92 302 t = 225 mm t = 225/275 mm Mounting rails Module mounting rail CL... ML... 86 6 7,3 35 a l 7,5 15 Part no. l a CL2 170.5 162.5 CL3 233 225 CL4 358 350 CL2-15 170.5 162.5 CL3-15 233 225 CL4-15 358 350 6 6 7.3 45 25 9 330 350 358 10 55 3 CI..., CL..., ML...

20/88 CI insulated enclosures  2010 CA08103002Z-EN www.eaton.com Mounting plates M3-CI-… IM4-CI… M3-CI48 IM4-CI48 Insulated mounting plate IM4-...: 4 mm thickMounting plate M3-... 3 mm thick Wall fixing bracket W…/… Flangesspacers FL1-... FL2-... FL3-...ZRF3 FL4-...ZRF4 FL… ZRF3ZRF4 MCB enclosureMCB distribution board enclosure AE/I23AV/I23 Dimensions identical but rotated by 90° AE/I43AV/I43 Dimensions identical but rotated by 90° AE/I44AV/I44 Dimensions identical but rotated by 90° a b a1 b1 a1 a2 b1 b2 b1 a b Part no. a b a1 b1 a2 b2 M3-CI23, IM4-CI23 142.5 205 62.5 125 - - M3-CI43, IM4-CI43 330 205 250 125 - - M3-CI44, IM4-CI44 330 330 250 250 - - M3-CI45 330 455 250 375 - - M3-CI48, IM4-CI48 330 705 250 250 296 125 62,5 125 n     125 (l) 95 50 62,5 m     62,5 2 50 40 27 15 20 50 R2 50 Part no. l n m W4/8 625 4 8 W6/8 875 6 12 W8/16 1125 8 16 W10/20 1375 10 20 W16/32 2125 16 32 79 40 142 204 165 116 329 56 23 103 290 25 162 18 7,5 250 162 375 162 162 250 125 125 125 270 270 270 125 375 375 M3-CI..., IM4-CI..., W..., FL..., ZRF..., AE/..., AV/...

CI insulated enclosures  2010 CA08103002Z-EN www.eaton.com 20/89 Protective cover GA-0/I23 GA-0/I43 GA-0/I44 GA-RS-I23 GA-RS-I43 GA-RS-I43-G GA-RS-I44 Prepared MCCB enclosures  MCCB1-63/I23E-150 MCCB.../I43E-... 173 235 162 360 235 162 360 360 270 172 235 176 135 150 360 319 338 176 235 360 176 213 137  235 360 319 262  176 360 187.5 175 248.5 250 375 250 b a Part no. a b MCCB1-125/I43E-150 175 248.5 MCCB1-160/I43E-200 225 298.5 MCCB2-200/I43E-200 225 298.5 GA-..., MCCB1-..., MCCB2-...

20/90 CI insulated enclosures  2010 CA08103002Z-EN www.eaton.com Prepared MCCB enclosures  MCCB.../I45E-200 MCCB3-630/I48/I43E-200 Doors T-CI23 T-CI43 T-CI44 Hinged flaps K-A KG-A 225 b 500 375 225 320 750 250 375 Part no. b MCCB2-250/I45E-200 298.5 MCCB3-400/I45E-200 320 217 225 62 69 155 163 119 181 342 350 124 132 217 225 181 306 342 350 249 257 342 350 306 306 146 80 185 90 MCCB2-..., MCCB3-..., T-CI..., K...-A

CI insulated enclosures  2010 CA08103002Z-EN www.eaton.com 20/91 Openings of covers (D...STV) and flanges (FL...) for socket devices European socket (Schuko) with grounding provisions, 16 A, 5-pole CEE, 16–125 A, 5-pole d b c a Part no. amm bmm cmm dmm Cover 45 45 - 47 16 AFlange 52 52 - 57 16 A Part no. amm bmm cmm dmm 16 A 90 90 - 78 32 A 90 90 - 87 63  A 90 90 98 92 125 A 90 90 107 94 Terminals K.../1 K.../4 a3 a2 a a1 b1 b c a5 Part no. a a1 a2 a3 b b1 c a5 K95/1/N 37 - 18.5 3 115 100 88 - K95/4 130 100 15 3 115 100 88 31 K150/1 37 - 18.5 3 115 100 105 - K150/4 130 100 15 3 115 100 105 31 K240/1 52 - 26 3 115 100 120 - K240/4 190 150 20 3 115 100 120 46 K2X240/1 68 - 34 4 140 125 127 - K2X240/4 254 200 27 4 140 125 127 62 D...-Ci...-RAL7032-STV, FL... STV..., K...

20/92 Small enclosures, basic enclosures Small enclosures 2010 CA08103002Z-EN www.eaton.com CI-K Small enclosures System overview  1 2 1 1 3 1 3 3 • Laser labellingWe can label the cover surface of the small enclosures CI-K according to your specifications. Washable and permanent with modern laser inscription. Please contact: Technical information/product adviceTel. +49 (0)228 602-3704Fax. +49 (0)0228 602-69403E-mail: [email protected]  ￫ Page 20/94Approved enclosures for use in UL/CSA ￫ Page 20/96• Cutouts in enclosure coversWe can drill cutouts in enclosure covers to your requirements.  Please contact:Technical information/product adviceTel. +49 (0)228 602-3704Fax. +49 (0)0228 602-69403E-mail: [email protected] General Protection type IP65 (except CI-K2-80-A) Five basic sizes (floor area of enclosure lower  section)Two overall depths per base surface (exception: CI-K1 enclosure depth always 95 mm, CI-K2-80-... enclosure depth always 80 mm)Enclosure made of glass-fibre reinforced with self-extinguishing polycarbonate, halogen freeCaptive gasketEnclosure base RAL 9005 ) Black (matt)Enclosure cover RAL 7035, light grey (matt) Metric cable entries 1 CI-K1 and CI-K2:metric cable entry knockouts with push-through cable entry diaphragm in the sides, top and bottom  and also in the rear wallCI-K1H, CI-K2H:metric cable entry knockouts in the enclosure sides,  top and bottomCI-K3 to CI-K5:metric cable entry knockouts in the sides, top and bottom and also in the rear wallControl cable entry with CI-K2Metric cable glands to EN 50 262Push-through metric cable grommets￫ Page 20/95, ￫ Chapter 16: Accessories for control panel building Mounting systems for basic enclosures 2 Mounting rails to IEC/EN 60 715Sheet steel mounting platesAccessories for mounting systems￫ Page 20/97 Mounting 3 Horizontal and vertical slot apertures for wall-mounting enclosuresCaptive cover screwsRubber feet on the back plate to compensate for uneven walls for CI-K1 and CI-K2External fixing bracket for CI-K4 and CI-K5￫ Page 4/67 Mounting units Miniature circuit breakers (MCB)Rotary switchesSwitch-disconnectorsContactorseasy control relays Timing relayPilot devices

Small enclosures, basic enclosures Basic enclosures 2010 CA08103002Z-EN www.eaton.com 20/93 Basic enclosures Ordering Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth Mounting depth Features Part no.Article no. PriceSee price list Std. pack For mounting plate For 7.5 mm mounting rail mm mm mm mm CI-K basic enclosures  • Protection type IP65 (exception: CI-K2-80-A), material characteristic glass-fibre reinforced polycarbonate• Enclosure base RAL 9005, black/enclosure top only RAL 7035, light grey• Metric cable entry knockouts top, bottom and in the back plate• Push-through cable membrane with CI-K1 and CI-K2• Hard metric knockouts with CI-K1H and CI-K2H• Hard metric knockouts with CI-K3 to CI-K5• Control cable entry with CI-K2 • Indicator light L-. can be mounted in base knock out M20/M25 – 72 With mounting rail CI-K1-95-TS206881 1 off – 72 With mounting rail CI-K1H-95-TS105853 1 off – 73 With mounting rail CI-K2-100-TS206882 1 off – 73 With mounting rail CI-K2H-100-TS229304 1 off 79 – With mounting plate CI-K2-100-M206893 1 off 79 – With mounting plate CI-K2H-100-M229306 1 off – 118 With mounting rail CI-K2-145-TS206883 1 off – 118 With mounting rail CI-K2H-145-TS229305 1 off 124 – With mounting plate CI-K2-145-M206894 1 off 124 – With mounting plate CI-K2H-145-M229307 1 off 124 – With adapter plate for contactor DILE with overload relay ZE CI-K2-145-AD207632 1 off 124 – With adapter plate for contactor DILE with overload relay ZE CI-K2H-145-AD229308 1 off – 93 With mounting rail CI-K3-125-TS206884 1 off 98 – With mounting plate CI-K3-125-M206895 1 off – 128 With mounting rail CI-K3-160-TS206885 1 off 133 – With mounting plate CI-K3-160-M206896 1 off Notes Number and size of cable entries ￫ Page 20/95 120 82 80 L S L 95 72 160 116 100 T Q M 79 73 100 160 116 100 T Q M 124 118 145 200 152 120 U N R 125 98 93 200 152 120 U N R 160 133 128 CI-K, CI-K2, CI-K3 HPL20093EN

20/94 Small enclosures, basic enclosures Basic enclosures 2010 CA08103002Z-EN www.eaton.com Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth Mounting depth Features Part no.Article no. PriceSee price list Std. pack For mounting plate For 7.5 mm mounting rail mm mm mm mm CI-K basic enclosures • Protection type IP65 (exception: CI-K2-80-A), material characteristic glass-fibre reinforced polycarbonate• Enclosure base RAL 9005, black/enclosure top only RAL 7035, light grey• Metric cable entry knockouts top, bottom and in the back plate• Push-through cable membrane with CI-K1 and CI-K2• Hard metric knockouts with CI-K1H and CI-K2H• Hard metric knockouts with CI-K3 to CI-K5• Control cable entry with CI-K2 • Indicator light L-. can be mounted in base knock out M20/M25 – 93 With mounting rail CI-K4-125-TS206886 1 off 98 – With mounting plate CI-K4-125-M206897 1 off – 128 With mounting rail CI-K4-160-TS206890 1 off 133 – With mounting plate CI-K4-160-M206898 1 off – 93 With mounting rail (Weight of fitted components max. 0.65 kg) CI-K5-125-TS206891 1 off 98 – With mounting plate (weight of fitted components max. 1.7 kg) CI-K5-125-M206899 1 off – 128 With mounting rail (Weight of fitted components max. 0.65 kg) CI-K5-160-TS206892 1 off 133 – With mounting plate (weight of fitted components max. 1.7 kg) CI-K5-160-M206900 1 off Customised cutouts and laser inscriptions • Only with operator only• The necessary data (laser data, symbols, text and their respective positions) as well as the position of the cutouts  must be provided as a DXF file. CI-K1-COMBINATION- 102060 1 off CI-K2-COMBINATION- 102061 1 off CI-K3-COMBINATION- 102062 1 off CI-K4-COMBINATION- 102063 1 off CI-K5-COMBINATION- 102064 1 off Notes Number and size of cable entries ￫ Page 20/95 V O O 160 240 194 125 98 93 160 133 128 200 280 234 P W P 125 98 93 160 133 128 CI-K, CI-K2, CI-K3 HPL20094EN

Small enclosures, basic enclosures Basic enclosures 2010 CA08103002Z-EN www.eaton.com 20/95 Dimensions Enclosure depth:Dimensions from top:1. Mounting depth for mounting plate 2. Mounting depth for mounting rail 7.5 mm height3. Enclosure depth Mounting depth Features Part no.Article no. PriceSee price list Std. pack For mounting plate For 7.5 mm mounting rail mm mm mm CI-K2 basic enclosures  • Protection type IP30, material characteristic glass-fibre reinforced polycarbonate • Enclosure base RAL 9005, black/enclosure top only RAL 7035, light grey• Metric cable entry knockouts top, bottom and in the back plate• Push-through cable entry diaphragm with CI-K2• Hard metric knockouts with CI-K2H• Control cable entry• Indicator light L-. can be mounted in base knock out M20/M25 – – 46 With standard cutout dimensions Standard cutout dimen-sions and mounting rail for mounting devices requir-ing 2 to 4 space units. Push-through cable entry membrane. Close off of unused space units (max. 2) using blanking strips VST1,  ￫ Page 20/98 CI-K2-80-A211107 1 off – 46 With standard cutout dimensions Standard cutout dimensions and mounting rail for mounting devices requiring 2 to 4 space units. Hard metric knock-outs. Close off of unused space units (max. 2) using blanking strips VST1,  ￫ Page 20/98 CI-K2H-80-A229309 1 off – 70 With hinged cover Transparent hinged cover for mounting devices requiring 2 to 4 space units. Push-through cable entry diaphragm. CI-K2-80-K211108 1 off – 70 With hinged cover Transparent hinged cover for mounting devices requiring 2 to 4 space units. Hard metric knockouts. CI-K2H-80-K229310 1 off Notes Diaphragm grommets, cable glands ￫ Chapter 16: Accessories for panel construction L M N O P q R Knockouts Knockouts Knockouts Knockouts Knockouts Knockouts Knockouts 2 X M20 or push- through membrane up to max. ⌀ 12 mm 2 x M25 or push-through membrane up to max. ⌀ 16 mmCI-K2H: 2 x M25/20 2 x M25/20 2 x M32/25 2 x M50/40/25 2 x M25 or push-through membrane up to max. ⌀ 16 mm and 1 push-through membrane up to max. ⌀ 8 mmCI-K2H: 2 x M25/20 2 x M25/20 1 x M20 1 x M20 1 x M20 S T U V W Back plate:  Back plate:  Back plate:  Back plate:  Back plate:  2 x push-through membrane up to max. ⌀ 8mm 2 x push-through mem-brane up to max. ⌀ 11mm  2 x M25/20 2 x M32/25 2 x M50/40/25 (not for CI-K2H) 100 160 T Q M 46 80 Q M T 100 160 80 70 115 CI-K2 HPL20095EN

20/96 Small enclosures, basic enclosures Basic enclosures for North America 2010 CA08103002Z-EN www.eaton.com Basic enclosures for North America Dimensions Mounting depth Features Part no.Article no. PriceSee price list Std. pack Width Height Depth mm mm mm mm CI-K basic enclosures  • Protection type IP65• Enclosure base RAL 9005, black/enclosure top only RAL 7035, light grey• Approved for UL, CSA• CI-K2X…: 4 x ½ inch knockouts• CI-K3X…, CI-K4X…, CI-K5X…: smooth overall with sharp corners 100 160 100 73 With mounting rail CI-K2X-100-TS-NA231220 1 off 79 With mounting plate CI-K2X-100-M-NA231228    145 118 With mounting rail CI-K2X-145-TS-NA231221    124 With mounting plate CI-K2X-145-M-NA231229    120 200 125 93 With mounting rail CI-K3X-125-TS-NA231222    98 With mounting plate CI-K3X-125-M-NA231230    160 128 With mounting rail CI-K3X-160-TS-NA231223    133 With mounting plate CI-K3X-160-M-NA231231    160 240 125 93 With mounting rail CI-K4X-125-TS-NA231224    98 With mounting plate CI-K4X-125-M-NA231232    160 128 With mounting rail CI-K4X-160-TS-NA231225    133 With mounting plate CI-K4X-160-M-NA231233    200 280 125 93 With mounting rail CI-K5X-125-TS-NA231226    160 128 With mounting rail CI-K5X-160-TS-NA231227    280 125 98 With mounting plate CI-K5X-125-M-NA231234    160 133 With mounting plate CI-K5X-160-M-NA231236    Information relevant for export to North America Product Standards UL 508; CSA-C22.2 No. 14-05; CSA-C22.2 No. 94; IEC/EN 60947-3; CE marking UL File No. E54120, E337418 UL CCN MITW2 CSA File No. 12528 CSA Class No. 3211-07 NA Certification UL Listed, CSA certified Specially designed for NA Yes Degree of Protection IEC: IP65; UL/CSA Type 1, 3R, 4X, 12, 13 – indoor and outdoor use CI-K...-NA HPL20096EN

Small enclosures, basic enclosures Accessories 2010 CA08103002Z-EN www.eaton.com 20/97 Accessories For use with Mounting position Features Useful length Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Mounting rails Height 7.5 mm, with fixing screws CI-K1 Crosswise – 60 mm TS-CI-K1206901 10 off UL/CSA certification not required CI-K2 Crosswise – 82 mm TS-CI-K2206902    CI-K3 Lengthwise and cross-wise – 98  mm TS-CI-K3206903    CI-K4 Crosswise – 133 mm TS-CI-K4206904    CI-K5 Lengthwise and cross-wise, CI-K4 lengthwise – 173  mm TS-CI-K5206905    Mounting plates 2 mm sheet steel with fixing screws CI-K2 – – – M-CI-K2206906 10 off UL/CSA certification not required CI-K3 – – – M-CI-K3206907    CI-K4 – – – M-CI-K4206908    CI-K5 – – – M-CI-K5206909    Accessories for mounting systems Spacers• For raising the mounting systems• (4 off required for mounting plate, 2 off required for mounting rail) – – by  25  mm – HS25-CI002291 25 off UL/CSA certification not required – – by  50  mm – HS50-CI002292    – – by  10  mm – ADT200-190002289 10 off UL/CSA certification not required – – by  15  mm – ADT125-110002290    7.5 TS-CI, M-CI HPL20097EN

20/98 Small enclosures, basic enclosures Accessories 2010 CA08103002Z-EN www.eaton.com For use with Terminal capacity Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America Flexible mm 2 Accessories for small enclosures CI-K Set of external fixing bracketsTo secure CI-K4 and CI-K5 directly on the wall. Each set contains four brackets. T5B-…/I4,T5-…/I5,P3-63/I4,P3-100/I5, – AB-CI-K4/5206914 1 off UL/CSA certification not required Mounting rail adapter, screw fixingTo secure enclosure on mounting rails to IEC/EN 60715 CI-K1 – TB-CI-K206918 1 off UL/CSA certification not required Blanking stripsTo blank off one space unit; cannot be removed from outside CI-K2-80-A – VST1211258 5 off UL/CSA certification not required N terminals, PE terminalsScrewed onto support bosses in the enclosure base plate CI-K2-PKZ0-...CI-K1/2 1 - 4 mm 2 K-CI-K1/2207451 20 off UL/CSA certification not required Insulated individual terminals• With PE, N adhesive labels• For snap-fitting onto mounting rail CI-K3 1 - 10 mm 2 K-CI-K3206915 20 off UL/CSA certification not required CI-K4T5B-.../I4CI-K4-T5B-...P3-.../I4 1.5 - 16 mm 2 K-CI-K4206916 20 off UL/CSA certification not required CI-K5T5-.../I5CI-K5-T5-...P3-.../I5 10 - 35 mm 2 K-CI-K5218488 20 off UL/CSA certification not required Protective covers for push-through cable membrane with CI-K1(2)To cover push-through cable membranes – CI-K1 (M20) – SK-CI-K1226766 100 off – CI-K1 (M25) – SK-CI-K2226767 100 off CI-K, CI-K2, CI-K3 HPL20098EN

Small enclosures, basic enclosures Basic enclosure, accessories 2010 CA08103002Z-EN www.eaton.com 20/99 Basic enclosure, accessories Dimensions For use with Enclosure depth:Dimensions from top1. Mounting depth for mounting plate2. Mounting depth Mounting depth Part no.Article no. PriceSee price list Std. pack Notes Dimensions Enclosure depth For mounting plate mm mm mm CI-B, C, D basic enclosures • Transparent cover• Metric knockouts top, bottom• With PEN terminal• IP55 individual enclosure with pre-drilled mounting plate DIL00AM 110 CI-B024315 1 off S27 110 CI-C031434 1 off DIL0AMS27 110 CI-D038553 1 off PE terminal (fifth conductor) Rated operational current 25 Afor ⌀  1.5 - 6 mm 2  solid – CI-BCI-CCI-D – – K6/1002270 100 off Information relevant for export to North America UL/CSA certification not required 149 87 L L 128 110 L Knockouts2 x M20 L 165 110 L 128 110 L 222 110 L 128 110 CI HPL20099EN

20/100 Small enclosures, basic enclosures Small enclosures CI-K 2010 CA08103002Z-EN www.eaton.com Small enclosures CI-K Technical data CI-K1 CI-K2 CI-K2...-80-A CI-K2...-80-K CI-K3 CI-K4 CI-K5 General Standards IEC/EN 60529DIN 43660EN 50262 Climatic proofing Damp heat, constant, to IEC 60068-2-78Damp heat, cyclic, to IEC 60068-2-30 Ambient temperature °C -25 - 70 Ambient air temperature with push-through cable entry °C -25…40 Protection type Front IP65 Front IP30 Front IP65 The degree of protection specifications do not apply to CI-K2-80-A Protection type with push-through cable entry IP65 IP30 IP65 Radiated heat dissipation ￫ Page 20/101 Material properties Material Base, cover Glass-fibre reinforced polycarbonate Surface treatment Corrosion-resistant Color Base RAL 9005, black (matt) Cover Enclosure cover RAL 7035, light grey (matt) Material properties Electrical Creepage resistance to IEC 60112 Base CTI 175 Cover CTI 175 Surface treatment to IEC 60093 Ω x 10 13 1 Dielectric strength to IEC 60243-1 kV/mm 30 Thermal Continuous thermal stability Housing °C -40…120 Sealing °C -40…80 Mechanical IK code to EN 50102 04 06 06 06 06 06 Weight of fitted components Per mounting rail kg 0.2 0.7 0.7 0.85 0.75 0.65 With mounting plate kg – – 0.7 0.85 0.9 1 Chemical resistance Base, cover Resistant Acids  10 %, mineral oil, petrol, grease, saline solutions Partially resistant Acids   10 %, Alcohol Non-resistant Alkalis, benzol Push-through membrane (CI-K1/CI-K2) and sealing material Resistant Acids  10 %, alkalis, alcohol, saline solutions – – – Partially resistant Acids   10 %, grease, benzene – – – Non-resistant Mineral oil, petrol – – – Atmospheric Saline spray IEC 60068-2-11 UV resistance Beneath protective canopy Water absorption to EN ISO 62 % 0.29 Flammability characteristics Glow-wire test Base, cover Glow wire to VDE 0471 Part 2 °C 960/1 mm thick According to UL 94 VO/1.5 mm thickness Push-through membrane (CI-K1/CI-K2) and sealing material To VDE 0471 Part 2 °C 650/1 mm thick – – – According to UL 94 HB – – – Halogen free Yes – – – Notes  The degree of protection specifications do not apply to CI-K2-80-A CI-K

Small enclosures, basic enclosures Small enclosures CI-K 2010 CA08103002Z-EN www.eaton.com 20/101 Small enclosures CI-K Small enclosures CI-K CI-K... Radiated heat dissipation Part no. Dimensions W x H x Dmm Heat dissipation W Max. radiated heat dissipation of the insulated enclosures CI-K with separate mounting, ambient air temperature +20 °C CI-K1-95 80 x 137 x 95 10 CI-K2-100CI-K2-145 100 x 181 x 100100 x 181 x 145 12.518.5 CI-K3-125CI-K3-160 120 x 222 x 125120 x 222 x 160 21.525.5 CI-K4-125CI-K4-160 160 x 240 x 125160 x 240 x 160 2629.5 CI-K5-125CI-K5-160 200 x 280 x 125200 x 280 x 160 3541

20/102 Small enclosures, basic enclosures Small enclosures 2010 CA08103002Z-EN www.eaton.com Small enclosures Dimensions Small insulated material enclosures CI-K1...-95-TS Mounting rails TS-CI-K1 CI-K2-... Mounting plates Mounting rails M-CI-K2 TS-CI-K2 CI-K3-... Mounting plates Mounting rails M-CI-K3 TS-CI-K3 17.5 12 74 120 82 127 137 1.5 39 5 37.5 57.5 95 39 45 4.5 80 7.5 35 61 72 4.7 171 181 57 18 100 46 160 52 5 52 100 20 22 47.5 b a 22 1.5 4.5 116 Part no. a b CI-K2-100-... 100 52.5 CI-K2-145-... 145 97.5 7.5 92 7 65 116 4.7 7.5 35 77 5.2 92 70  5  24.5  1.5  200  152  210  222  120  70  21  24.5  50.5  b  a  70  140  27  65  5.5  Part no. a b CI-K3-125-... 125 74.5 CI-K3-160-... 160 109.5 7.5 116 5.3 10 8 7.5 35 93 5.2 108 CI-K…

Small enclosures, basic enclosures Small enclosures 2010 CA08103002Z-EN www.eaton.com 20/103 Small enclosures Small insulated material enclosures CI-K4-... Mounting plates Mounting rails M-CI-K4 TS-CI-K4 CI-K5-... Mounting plates Mounting rails M-CI-K5 TS-CI-K5 Basic enclosures CI-B, CI-C, CI-D 1.5 74 160 5 240 194 30 23 52.5 72.5 125 72 142 27 80 154 193 5.6 Part no. a b CI-K4-125-... 125 72.5 CI-K4-160-... 160 107.5 5.3 90 154 7.5 143.8 7.5 35 128 5.2 143 110 181 233 50.5 280 234 1.5 91 33.5 200 5 a b 73.5 27 5.6 87 182 Part no. a b CI-K5-125-... 125 51.5 CI-K5-160-... 160 85.5 7.5 5.3 18 3 170 7.5 35 168 5.2 183 b2 12 c c1c2 a1 a b2 b b3 4,5 b1 M4 Part  no. a a1 b b1 b2 b3 c c1 c2 CI-B 87 71 149 106 128 10.5 128 115 84.4 CI-C 110 95 165 122 144 10.5 128 115 84.4 CI-D 110 97 222 179 201 10.5 128 115 84.4 CI-K…, CI-B. CI-C, CI-D
