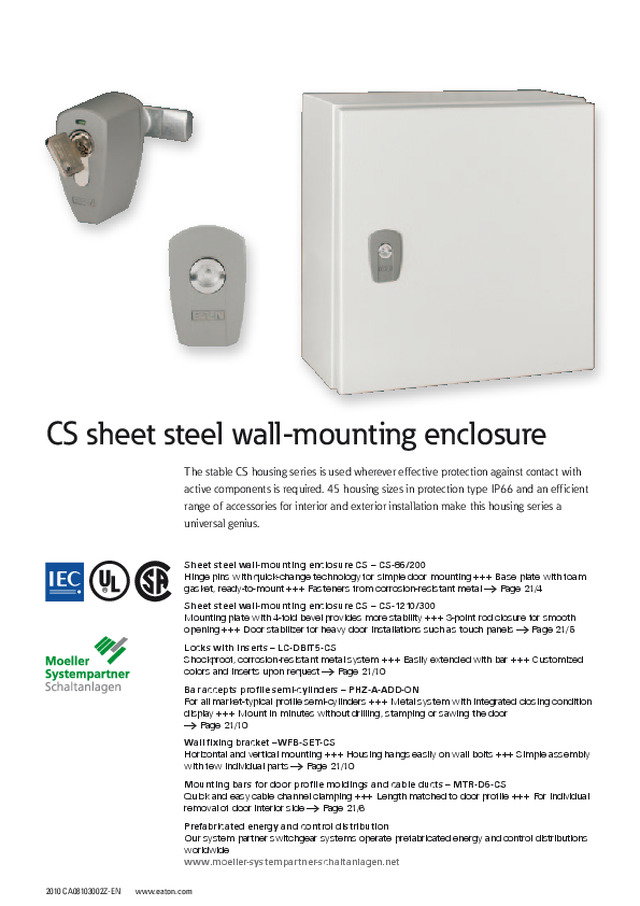

2010 CA08103002Z-EN www.eaton.com Sheet steel wall-mounting enclosure CS – CS-86/200 Hinge pins with quick-change technology for simple door mounting +++ Base plate with foam gasket, ready-to-mount +++ Fasteners from corrosion-resistant metal ￫ Page 21/4Sheet steel wall-mounting enclosure CS – CS-1210/300 Mounting plate with 4-fold bevel provides more stability +++ 3-point rod closure for smooth opening +++ Door stabilizer for heavy door installations such as touch panels ￫ Page 21/5Locks with inserts – LC-DBIT5-CS Shockproof, corrosion -resistant metal system +++ Easily extended with bar +++ Customized colors and inserts upon request ￫ Page 21/10Bar accepts profile semi-cylinders – PHZ-A-ADD-ON For all market-typical profile semi-cylinders +++ Metal system with integrated closing condition display +++ Mount in minutes without drilling, stamping or sawing the door ￫ Page 21/10Wall fixing bracket – WFB-SET-CS Horizontal and vertical mounting +++ Housing hangs easily on wall bolts +++ Simple assembly with few individual parts ￫ Page 21/10Mounting bars for door profile moldings and cable ducts – MTR-D6-CS Quick and easy cable channel clamping +++ Length matched to door profile +++ For individual removal of door interior side ￫ Page 21/6Prefabricated energy and control distribution Our system partner switchgear systems operate prefabricated energy and control distributions worldwide www.moeller-systempartner-schaltanlagen.net The stable CS housing series is used wherever effective protection against contact with active components is required. 45 housing sizes in protection type IP66 and an efficient range of accessories for interior and exterior installation make this housing series a universal genius. CS sheet steel wall-mounting enclosure
System overview Sheet steel wall-mounting enclosure CS 21/2 Ordering Sheet steel wall-mounting enclosure CS 21/4 with mounting plateAccessories 21/6 Internal configuration 21/6 Door detent 21/6 Universal brackets for door position switches, 21/6 cable conduit holdersMounting bracket, inclined 21/6 Mounting rail module for soft starters 21/6 Quick-C 21/6 Mounting bars for door profile moldings and 21/6 cable ductsDepth adjustment elements for 21/7 mounting platesMounting plate, perforated, for cage nuts 21/7 Cage nuts for perforated mounting plates 21/7 Mounting plate, without apertures RAL2000 21/8 Mounting plate, without apertures, galvanized 21/8Door for internal partitions 21/9 External configuration 21/10 Wall fixing brackets 21/10 Universal locks 21/10 Comfort rotary handle 21/10 Cylinder locks for comfort handles 21/10 Spare key for cylinder lock 21/10 Bottom plates with apertures for flanges F3A 21/11Bottom plates without openings 21/11 Flanges F3A 21/12 Cable marshalling bases 21/12 Rain protection roofs 21/13 Ventilation gill 21/14 Mast fastening 21/14 Lift eye kit with profile bracket 21/14 Doors with inspection window 21/15 Doors closed 21/16 General panel construction 21/17 Door earthing set 21/17 Paint RAL 7035 21/17 Circuit diagram pockets insulating material 21/17Metric cable glands 21/17 PG cable glands 21/18 Ventilation cable gland 21/18 Pressure equalization plug 21/18 Cable grommets 21/19 Stepped cable grommets 21/19 Pressure compensating grommet 21/19 Cable ducts 21/20 Cable duct cover 21/21 Cable support bracket for cable duct 21/21 Clamping brackets for cable ducts 21/21 Technical data Sheet steel wall-mounting enclosure CS, a 21/22 general datPower loss 21/23 Weight of fitted components 21/24 Dimensions Internal configuration 21/25 External configuration 21/31 CS sheet steel wall-mounting enclosure
21/2 CS sheet steel wall-mounting enclosure 2010 CA08103002Z-EN www.eaton.com System overview 3 5 2 11 10 7 25 14 15 19 13 12 1 23 12 8 9 6 4 3 22 20 18 17 16 24 21 12
CS sheet steel wall-mounting enclosure 2010 CA08103002Z-EN www.eaton.com 21/3 Indoor installation CS sheet steel wall-mounting enclosure 1 Internal concealed horizon-tal door hinge pins with quick change technology so that the door can be rapidly taken off its hinges to per- form further processing or to change the door stop Door profile molding with perforation at 25 mm intervals for fastening DIN mounting rails or for fixing cable conduits and leadsThe supplied galvanized sheet steel mounting plate permits safe installation of the switchgear and basic EMC protection. Slots facilitate insertion of the equipped mounting plate into the control panel.In the case of enclosure dimensions larger than 600 x 400 mm bended sides increase the stability of the mounting plates when heavy built-in devices units are being used.Optional internal door for additional personal and system protection￫ Page 21/4 Mounting plate, unperforated, galvanized or RAL 2000 3 ￫ Page 21/8 Mounting plate, perforated, galvanized, for cage nuts 4 For quick mounting of switchgear and protective devices without drilling￫ Page 21/7 Mounting rail module for soft starters 5 Allows convenient connection and operation of Eaton soft starter through pivoting in and out￫ Page 21/6 Depth adjustment elements for mounting plates 6 Depth adjustment in a 25 mm grid for tailored surface-mounting on front or back of mounting plate￫ Page 21/7 Mounting bars for door profile moldings and cable ducts 7 For screw- and hole-less mounting of Eaton cable ducts KL... ￫ Page 21/6, ￫ 21/21 Universal brackets for door contact switches and cable conduit holders 8 ￫ Page 21/6 Quick-C hinge pin 9 Door hinge pin with quick-change technology for retrofitting or as spare part￫ Page 21/6 Outdoor installation CS sheet steel wall-mounting enclosure 2 Degree of protection IP66, resistance of impact IK09, UL/CSA Type 1 and 1245 enclosure sizes from 250 x 200 x 150 mm to 1200 x 1200 x 250 mm (h x w x d) also with an enclosure depth of 300 mm.Impact-resistant designer metal locks, standard 3 mm two-way key bitRain gutter profileFoamed polyurethane sealing throughout.￫ Page 21/4 Rain canopy 10 With edge sloping toward rear. ￫ Page 21/13 Lift eye kit with profile bracket 11 Stable profile bracket for internal enclosure reinforcement for lifting eye￫ Page 21/14 Wall fixing bracket 12 Elongated holes simplify mounting the equipped enclosures on the wall bolts. Simple subsequent alignment of enclosureVertical and horizontal mounting possible￫ Page 21/10 Mast fastening 13 For stable, reliable fixing on round or rectangular masts￫ Page 21/14 Bottom panels without apertures 14 Sheet steel bottom panels with foamed gasket for assembly by userSuitable for indoor or outdoor installation.The enclosure can be turned through 180° for cable entry from above or below.The flange aperture is in the rear area of the enclosure, enabling easy wiring onto the mounting plate.￫ Page 21/11 Bottom panels with apertures for F3A flanges 15 Sheet steel bottom panels with foamed gasket, preassembled for Eaton F3A flanges ￫ Page 21/11 F3A flanges 16 Insulating material flanges with metric knockouts, cable grommets or push-through seals.￫ Page 21/12 Metric cable glands to EN 50262, metric ventilation cable glands 17 Innovative ventilating cable glandsProtection type IP69K￫Page 21/17, ￫ 21/18 Metric diaphragm grommets, cable grommet 18 Protection type up to IP66￫ Page 21/19 Cable interconnect frame 19 Cable clamp rails can be fitted at an adjustable height and depth￫ Page 21/12 Lock for half-cylinder comfort rotary handle 20 Standard locks can be quickly equipped with cylinder locks.New and unique on the market: With built-in “closed” position indica-tion; rugged metal designNo complicated drilling, punching or sawing of the door requiredThe standard lock does not even have to be dismounted.￫Page 21/10 Cylinder locks 21 High-grade cylinder locks with adjustable hammer￫ Page 21/10 Locks with inserts, lock cylinder 22 Lock for retrofitting￫Page 21/10 Locks with inserts, two-way key bit 23 Lock for retrofitting with 3 mm or 5 mm two-way key bitMade completely of pressure-cast zinc, there-fore suitable for indoor and outdoor installation￫Page 21/10 Ventilating louvers 24 For passive control panel ventilation￫ Page 21/14 Circuit diagram pockets insulating material 25 ￫ Page 21/17
21/4 CS sheet steel wall-mounting enclosure Wall-mounting enclosure 2010 CA08103002Z-EN www.eaton.com Wall-mounting enclosure Ordering Dimensions Locks Hinges Door profile molding Flange plates Max. F3A flanges Mounting plates Weight Part no.Article no. PriceSee price list Std. pack Height Width Depth Number Number Number Width Depth Number Height Width mm mm mm mm mm mm mm kg CS wall-mounting enclosure with mounting plate • Protection type IP66.• Foamed polyurethane sealing throughout.• Resistance to impact regarding IK09 to EN 62262.• Sheet steel mounting plate• Bottom panel with foamed gasket. CS-1212/250 with two apertures for bottom panel.• Single door, hinges on the right, door opening angle 120°.• Door hinge pins with quick change technology.• Standardized locking system with two-way key bit. From enclosure height 1000 mm: 3-point locking system.• Equipment supplied: Lock, 3 mm two-way key bit• Powder coating (textured surface) in the colour RAL 7035 inside and outside. 250 200 150 1 2 1 112 182 - 220 150 3.4 CS-2520/150111646 1 off 300 200 150 1 2 1 112 182 - 270 150 3.9 CS-32/150111647 300 300 150 1 2 2 112 232 - 270 250 5.2 CS-33/150111648 300 300 200 1 2 2 172 262 1 270 250 6.1 CS-33/200111649 300 400 200 1 2 2 172 332 1 270 350 7.4 CS-34/200111680 400 300 150 1 2 2 112 232 - 370 250 6.6 CS-43/150111681 400 300 200 1 2 2 172 262 1 370 250 7.6 CS-43/200111682 400 400 150 1 2 2 112 332 - 370 350 8.7 CS-44/150111683 400 400 200 1 2 2 172 332 1 570 350 9.7 CS-44/200111684 400 600 200 1 2 2 172 532 2 370 550 13.4 CS-46/200111685 400 600 250 1 2 2 172 532 2 370 550 14.3 CS-46/250111686 400 600 300 1 2 2 172 532 2 370 550 15.7 CS-46/300111687 500 400 150 2 2 2 112 332 - 470 350 10.1 CS-54/150111688 500 400 200 2 2 2 172 332 1 470 350 10.9 CS-54/200111689 500 400 250 2 2 2 172 332 1 470 350 11.9 CS-54/250111690 500 500 250 2 2 2 172 432 1 470 450 14.5 CS-55/250111691 600 400 150 2 2 2 112 332 - 570 350 12.4 CS-64/150111692 600 400 200 2 2 2 172 332 1 570 350 13.2 CS-64/200111693 600 400 250 2 2 2 172 332 1 570 350 14.5 CS-64/250111694 600 500 150 2 2 2 112 332 - 570 450 15.4 CS-65/150111695 600 500 200 2 2 2 172 432 1 570 450 16.8 CS-65/200111696 600 500 250 2 2 2 172 432 1 570 450 17.1 CS-65/250111697 600 600 200 2 2 2 172 532 2 570 550 21.8 CS-66/200111698 600 600 250 2 2 2 172 532 2 570 550 23.1 CS-66/250111699 600 600 300 2 2 2 172 532 2 570 550 24.5 CS-66/300111700 600 800 300 2 2 2 172 732 3 570 750 34.8 CS-68/300111701 700 500 200 2 2 2 172 432 1 670 450 21.1 CS-75/200111702 700 500 250 2 2 2 172 432 1 670 450 21.6 CS-75/250111703 800 400 200 2 3 2 172 332 1 770 350 21.7 CS-84/200111704 CS HPL21004EN
CS sheet steel wall-mounting enclosure Wall-mounting enclosure 2010 CA08103002Z-EN www.eaton.com 21/5 CS wall-mounting enclosure with mounting plate 800 400 250 2 3 2 172 332 1 770 350 23.2 CS-84/250111705 1 off 800 600 200 2 3 2 172 532 2 770 550 30.2 CS-86/200111706 800 600 250 2 3 2 172 532 2 770 550 32.8 CS-86/250111707 800 600 300 2 3 2 172 532 2 770 550 34.9 CS-86/300111708 800 800 200 2 3 2 172 732 3 770 750 39.0 CS-88/200111709 800 800 300 2 3 2 172 732 3 770 750 42.8 CS-88/300111710 800 1000 300 2 3 2 172 932 3 770 950 54.2 CS-810/300111711 1000 600 250 1 (3-point) 3 2 172 532 2 970 550 43.2 CS-106/250111712 1000 600 300 1 (3-point) 3 2 172 532 2 970 550 45.4 CS-106/300111713 1000 800 250 1 (3-point) 3 2 172 732 3 970 750 55.5 CS-108/250111714 1000 800 300 1 (3-point) 3 2 172 732 3 970 750 56.1 CS-108/300111715 1000 1000 300 1 (3-point) 3 2 172 932 3 970 950 68.0 CS-1010/300111716 1200 600 250 1 (3-point) 3 2 172 532 2 1170 550 50.2 CS-126/250111717 1200 800 300 1 (3-point) 3 2 172 732 3 1170 750 67.7 CS-128/300111718 1200 1000 300 1 (3-point) 3 2 172 932 3 1170 950 83.2 CS-1210/300111719 1200 1200 250 1 (3-point) 3 2 2 x 172 532 4 (2x2) 1170 1150 94.2 CS-1212/250111720 Information relevant for export to North America Product Standards UL 508A; CSA-C22.2 No.14; IEC/EN 60529; CE marking UL File No. E336299 UL CCN NITW CSA File No. – CSA Class No. – NA Certification Request filed for UL and CSA Conditions of Acceptability Series CS may be provided with metal sub-panel. No back mounted components are allowed between sub-panel and the back sheet metal enclosure Suitable for Industrial Control Panels Degree of Protection IEC: IP66, indoor and outdoor; UL/CSA Types 1, 12, indoor only. Dimensions Locks Hinges Door profile molding Flange plates Max. F3A flanges Mounting plates Weight Part no.Article no. PriceSee price list Std. pack Height Width Depth Number Number Number Width Depth Number Height Width mm mm mm mm mm mm mm kg CS HPL21005EN
21/6 CS sheet steel wall-mounting enclosure Indoor installation: Mounting accessories 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesIndoor installation: Mounting accessories Dimensions Enclosure Part no.Article no. PriceSee price list Std. pack Width mm Door retainer • For retaining the door in a defined position• Galvanized sheet steel• Including fixing material 50060080010001200 DOOR-RET-CS138737 1 off Universal brackets for door contact switches and cable conduit holders • For fixing door contact switches or cable conduit holders• Galvanized sheet steel 30040050060080010001200 UNI-BRA-CS140535 2 off Mounting bracket, inclined • For fitting mounting rails TS35X7.5 or TS35X15 in inclined position• Galvanized sheet steel – TS1-BRA-CS138772 2 off Mounting rail module for soft starters • Pivoting module for soft starters up to and including construction size DS4• Soft starters pivoted into vertical position require less enclosure depth.• Including fixing material for fitting on mounting plate – TS35-DS4-CS140537 1 off Quick-C hinge pin • With Quick-Change technology for tool-less removal – QUICK-C-CS138773 6 off Mounting bars for door profiles and cable ducts • For fitting to vertical door profiles• For screwless mounting of cabling ducts KL... through snap fitting of cable duct covers on rear• Fixing holes M6 spaced at 25 mm• Galvanized sheet steel 300 MTR-D3-CS140530 2 off 400 MTR-D4-CS140531 500 MTR-D5-CS140532 600 MTR-D6-CS140533 800 MTR-D8-CS140534 HPL21006EN
CS sheet steel wall-mounting enclosure Indoor installation: Mounting plates 2010 CA08103002Z-EN www.eaton.com Accessories 21/7 AccessoriesIndoor installation: Mounting plates Dimensions Enclosure Thread Part no.Article no. PriceSee price list Std. pack Height Width Depth mm mm mm Depth adjustment elements for mounting plates • Depth-adjustable in 25 mm grid• Galvanized sheet steel• Including fixing material – – 150 – DAS-SET/150-CS138656 1 off – – 200 – DAS-SET/200-CS138657 – – 250 – DAS-SET/250-CS138658 – – 300 – DAS-SET/300-CS138659 Mounting plate, perforated, for cage nuts • Galvanized sheet steel• Perforated for cage nuts M6 or M8• without fixing material 250 200 – – MPP-2520-CS138685 1 off 300 200 – – MPP-3020-CS138686 300 300 – – MPP-3030-CS138687 300 400 – – MPP-3040-CS138688 400 300 – – MPP-4030-CS138689 400 400 – – MPP-4040-CS138690 400 600 – – MPP-4060-CS138691 500 400 – – MPP-5040-CS138692 500 500 – – MPP-5050-CS138693 600 400 – – MPP-6040-CS138694 600 500 – – MPP-6050-CS138695 600 600 – – MPP-6060-CS138696 600 800 – – MPP-6080-CS138697 700 500 – – MPP-7050-CS138698 800 400 – – MPP-8040-CS138699 800 600 – – MPP-8060-CS138700 800 800 – – MPP-8080-CS138701 800 1000 – – MPP-80100-CS138702 1000 600 – – MPP-10060-CS138703 1000 800 – – MPP-10080-CS138704 1000 1000 – – MPP-100100-CS138705 1200 600 – – MPP-12060-CS138706 1200 800 – – MPP-12080-CS138707 1200 1000 – – MPP-120100-CS138708 1200 1200 – – MPP-120120-CS138709 Cage nuts for perforated MPP... mounting plates – – – M6 CANU-M6-CS138710 100 off – – – M8 CANU-M8-CS138711 MPP-CS HPL21007EN
21/8 CS sheet steel wall-mounting enclosure Indoor installation: Mounting plates 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesIndoor installation: Mounting plates Dimensions Enclosure Part no.Article no.without apertures RAL2000With powder coating PriceSee price list Part no.Article no.without apertures, galvanized PriceSee price list Std. pack Height Width mm mm Mounting plates without apertures • Sheet steel• Without fixing material 250 200 MPL-2520/RAL2000-CS138712 MPL-2520-CS138747 1 off 300 200 MPL-3020/RAL2000-CS138713 MPL-3020-CS138748 300 300 MPL-3030/RAL2000-CS138714 MPL-3030-CS138749 300 400 MPL-3040/RAL2000-CS138715 MPL-3040-CS138750 400 300 MPL-4030/RAL2000-CS138716 MPL-4030-CS138751 400 400 MPL-4040/RAL2000-CS138717 MPL-4040-CS138752 400 600 MPL-4060/RAL2000-CS138718 MPL-4060-CS138753 500 400 MPL-5040/RAL2000-CS138719 MPL-5040-CS138754 500 500 MPL-5050/RAL2000-CS138720 MPL-5050-CS138755 600 400 MPL-6040/RAL2000-CS138721 MPL-6040-CS138756 600 500 MPL-6050/RAL2000-CS138722 MPL-6050-CS138757 600 600 MPL-6060/RAL2000-CS138723 MPL-6060-CS138758 600 800 MPL-6080/RAL2000-CS138724 MPL-6080-CS138759 700 500 MPL-7050/RAL2000-CS138725 MPL-7050-CS138760 800 400 MPL-8040/RAL2000-CS138726 MPL-8040-CS138761 800 600 MPL-8060/RAL2000-CS138727 MPL-8060-CS138762 800 800 MPL-8080/RAL2000-CS138728 MPL-8080-CS138763 800 1000 MPL-80100/RAL2000-CS138729 MPL-80100-CS138764 1000 600 MPL-10060/RAL2000-CS138730 MPL-10060-CS138765 1000 800 MPL-10080/RAL2000-CS138731 MPL-10080-CS138766 1000 1000 MPL-100100/RAL2000-CS138732 MPL-100100-CS138767 1200 600 MPL-12060/RAL2000-CS138733 MPL-12060-CS138768 1200 800 MPL-12080/RAL2000-CS138734 MPL-12080-CS138769 1200 1000 MPL-120100/RAL2000-CS138735 MPL-120100-CS138770 1200 1200 MPL-120120/RAL2000-CS138736 MPL-120120-CS138771 MPL-CS, MPL-RAL2000-CS HPL21008EN
CS sheet steel wall-mounting enclosure Indoor installation: Door for internal partition 2010 CA08103002Z-EN www.eaton.com Accessories 21/9 AccessoriesIndoor installation: Door for internal partition Dimensions Enclosure Part no.Article no. PriceSee price list Std. pack Height Width mm mm Door for internal partitions • Sheet steel with powder coating RAL 7035• Internal door for operator control and display units• Depth adjustment elements for mounting plates required in addition 250 200 DI-2520-CS138660 1 off 300 200 DI-3020-CS138661 300 300 DI-3030-CS138662 300 400 DI-3040-CS138663 400 300 DI-4030-CS138664 400 400 DI-4040-CS138665 400 600 DI-4060-CS138666 500 400 DI-5040-CS138667 500 500 DI-5050-CS138668 600 400 DI-6040-CS138669 600 500 DI-6050-CS138670 600 600 DI-6060-CS138671 600 800 DI-6080-CS138672 700 500 DI-7050-CS138673 800 400 DI-8040-CS138674 800 600 DI-8060-CS138675 800 800 DI-8080-CS138676 800 1000 DI-80100-CS138677 1000 600 DI-10060-CS138678 1000 800 DI-10080-CS138679 1000 1000 DI-100100-CS138680 1200 600 DI-12060-CS138681 1200 800 DI-12080-CS138682 1200 1000 DI-120100-CS138683 1200 1200 DI-120120-CS138684 DI-CS HPL21009EN
21/10 CS sheet steel wall-mounting enclosure Outdoor installation: Wall mounting, locking systems 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesOutdoor installation: Wall mounting, locking systems Part no.Article no. PriceSee price list Std. pack Wall fixing brackets sets • For fixing on the wall• Vertical or horizontal mounting• Bracket material: 3 mm galvanized sheet steel• One set contains 4 wall fixing brackets with fixing material and gasket IP66. WFB-SET-CS112639 1 off Universal locks • Lock label made from high-grade, impact-resistant pressure-cast zinc• Metal lock and inserts• Powder coated RAL 7037• For indoor and outdoor applications• Metal lock nut, notched• Compatible with standard latches • For standardized door cutouts 22.5 × 20.4 mm – 3 mm two-way key bit LC-DBIT3-CS133102 1 off – 5 mm two-way key bit LC-DBIT5-CS133103 1 off Common locking mechanism Key with two-way key bit LC-ZSBIT-CS133104 1 off Comfort rotary handle • Rotary handle for standardized cylinder locks• With built-in “locked” indication • As retrofitting or complete kit• Handle made from high-grade, impact-resistant pressure-cast zinc• Suitable for all universal locks LC-... • For standardized door cutouts 22.5 × 20.4 mm• Powder coated RAL 7037• Order cylinder locks separately Complete kit Cylinder lock PHZ-A-COMP133105 1 off Retrofitting kit Cylinder lock PHZ-A-ADD-ON133106 1 off Cylinder locks for comfort handles • For comfort rotary and toggle handles• Lock cylinder designed to DIN 18252 and DIN EN 1303 • Cylinder locks 10/30 with nickel silver pin tumblers • Lock bit with eight adjustment positions, five pin pairs• Common locking or individual key mechanism• One key included per cylinder keyed alike – PHZ-E10/30-GS138574 1 off keyed different – PHZ-E10/30-VS138575 1 off Spare key for cylinder lock • For cylinder lock PHZ-E…-GS keyed alike Cylinder lock KEY-E10/30-GS138576 4 off WFB-CS, LC-CS, PHZ HPL21010EN
CS sheet steel wall-mounting enclosure Outdoor installation: Bottom panels 2010 CA08103002Z-EN www.eaton.com Accessories 21/11 AccessoriesOutdoor installation: Bottom panels For enclosure dimensionsWidth Flange apertures For use with Part no.Article no. PriceSee price list Std. pack Number mm Bottom panels with flange cutouts • Not suitable for enclosure CS-…/150• For flange F3A-…• With foamed gasket, maximum protection type IP66 for proper application with F3A-…• Material: sheet steel with powder coating RAL 7035• Usable as a top panel by turning the enclosure through 180° 300 1 CS-33/200CS-43/200 AFP-3-CS112914 1 off 400 1 CS-34-200CS-44/200CS-54/200CS-54/250CS-64/200CS-64/250CS-84/200CS-84/250 AFP-4-CS112915 1 off 500 1 CS-55/250CS-65/200CS-65/250CS-75/200CS-75/250 AFP-5-CS112916 1 off 600 2 CS-46/200CS-46/250CS-46/300CS-66/200CS-66/250CS-66/300CS-86/200CS-86/250CS-86/300CS-106/250CS-106/300CS-126/250 AFP-6-CS112917 1 off 800 3 CS-68/300CS-88/200CS-88/300CS-108/250CS-108/300CS-128/300 AFP-8-CS112918 1 off 1000 3 CS-810/300CS-1010/300CS-1210/300 AFP-10-CS112919 1 off 1200 2 x 2 CS-1212/250 AFP-12-CS112920 1 off Dimensions Enclosure Part no.Article no. PriceSee price list Std. pack Width Depth mm mm Bottom panels without apertures • Enclosure protection type IP66• With continuous foamed gasket• Gasket protected in deep-drawn area• With powder coating RAL 7035 182 112 SFP-112X182-CS138738 1 off 232 112 SFP-112X232-CS138739 1 off 332 112 SFP-112X332-CS138740 1 off 262 172 SFP-172X262-CS138741 1 off 332 172 SFP-172X332-CS138742 1 off 432 172 SFP-172X432-CS138743 1 off 532 172 SFP-172X532-CS138744 1 off 732 172 SFP-172X732-CS138745 1 off 932 172 SFP-172X932-CS138746 1 off AFP-CS, SFP-CS HPL21011EN
21/12 CS sheet steel wall-mounting enclosure Outdoor installation: Flanges, cable marshalling bases 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesOutdoor installation: Flanges, cable marshalling bases Material Features Cable entry Part no.Article no. PriceSee price list Std. pack Flanges Insulation material Blank plate - F3A-0074182 10 off Insulation material With metric cable entry knockouts 6 x M25/16;8 x M32/20, 4 x M16 F3A-4081301 10 off Insulation material With metric cable entry knockouts 2 x M208 x M25/164 x M32/201 x M50/32 F3A-8091468 10 off Insulation material With metric cable entry knockouts 12 x M20, 2 x M162 x M40/252 x M50/32 F3A-12076555 10 off Insulation material With metric cable entry knockouts 24 x M1613 x M20 F3A-34078928 10 off Insulation material With cable grommets 2 cables up to 70 mm ⌀ F3A-KTD083674 5 off Insulation material Sponge-rubber flange 40 cables, 10 – 13 mm ⌀ 4 cables, 17 - 21 mm ⌀ 2 cables, 27 - 30 mm ⌀ F3A-D010145 10 off Sheet steel Blank plate 2 mm, with powder coating RAL 7035, sponge-rubbed gasket - F3A-XP113426 1 off Insulation material Diaphragm flange for cabling 14 x 11 mm ⌀8 x 15 mm ⌀2 x 28 mm ⌀ ZSD-2K/FLA272166 1 off Dimensions Enclosure Part no.Article no. PriceSee price list Std. pack Width Depth mm mm Cable interconnect frame • Height 200 mm• Sheet steel, with powder coating RAL 7035• Including fixing material• Cable clamp rail not included as standard 600 250 PLI-6/250-200-CS140472 1 off 600 300 PLI-6/300-200-CS140473 1 off 800 250 PLI-8/250-200-CS140474 1 off 800 300 PLI-8/300-200-CS140475 1 off 1000 300 PLI-10/300-200-CS140476 1 off 1200 250 PLI-12/250-200-CS140477 1 off F3A, PLI-CS HPL21012EN
CS sheet steel wall-mounting enclosure Outdoor installation: Rain canopies 2010 CA08103002Z-EN www.eaton.com Accessories 21/13 AccessoriesOutdoor installation: Rain canopies Dimensions Enclosure Cover For use with Part no.Article no. PriceSee price list Std. pack Width Depth Height mm mm mm Rain canopies • For direct fastening to the body of the enclosure• Material properties: sheet steel with powder coating RAL 7035• Delivery with fixing material and drilling template 200 150 30 CS-2520/150CS-32/150 CNP-2/150-CS112890 1 off 300 150 30 CS-33/150CS-43/150 CNP-3/150-CS112891 1 off 300 200 34 CS-33/200CS-43/200 CNP-3/200-CS112892 1 off 400 150 30 CS-44/150CS-54/150CS-64/150 CNP-4/150-CS112893 1 off 400 200 34 CS-34/200CS-44/200CS-54/200CS-64/200CS-84/200 CNP-4/200-CS112894 1 off 400 250 38 CS-54/250CS-64/250CS-84/250 CNP-4/250-CS112895 1 off 500 150 30 CS-65/150 CNP-5/150-CS112896 1 off 500 200 34 CS-65/200CS-75/200 CNP-5/200-CS112897 1 off 500 250 38 CS-55/250CS-65/250CS-75/250 CNP-5/250-CS112898 1 off 600 200 34 CS-46/200CS-66/200CS-86/200 CNP-6/200-CS112899 1 off 600 250 38 CS-46/250CS-66/250CS-86/250CS-106/250CS-126/250 CNP-6/250-CS112900 1 off 600 300 42 CS-46/300CS-66/300CS-86/300CS-106/300 CNP-6/300-CS112901 1 off 800 200 34 CS-88/200 CNP-8/200-CS112902 1 off 800 250 38 CS-108/250 CNP-8/250-CS112903 1 off 800 300 42 CS-68/300CS-88/300CS-108/300CS-128/300 CNP-8/300-CS112904 1 off 1000 300 42 CS-810/300CS-1010/300CS-1210/300 CNP-10/300-CS112905 1 off 1200 250 38 CS-1212/250 CNP-12/250-CS112906 1 off CNP-CS HPL21013EN
21/14 CS sheet steel wall-mounting enclosure Outdoor installation: Mounting accessories 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesOutdoor installation: Mounting accessories Dimensions Part no.Article no. PriceSee price list Std. pack Height Width mm mm Ventilating louvers • For direct fastening to the body of the enclosure• Protection type IP23• Material: sheet steel with powder coating RAL 7035• Delivery with fixing material Arrangement of the ventilation slits vertically 157 105 LVP-20V12-CS112907 1 off Arrangement of the ventilation slits horizontally 164 105 LVP-20H12-CS112908 1 off Arrangement of the ventilation slits vertically 180 130 LVP-30V15-CS112909 1 off Arrangement of the ventilation slits horizontally 250 130 LVP-30H15-CS112910 1 off Length Dimensions Enclosure Part no.Article no. PriceSee price list Std. pack Width mm mm Mast fastening • For fixing on round or rectangular masts• Set consisting of profiled busbar, clamping strap and clamping screw• Sheet steel, galvanized, stainless steel clamping strap• For mast diameters from 150 mm to 215 mm – 300400500600800 MAST-FIT-CS140478 1 off Lift eye kit with profile bracket • For internal enclosure reinforcement for lifting eye• Eyebolts with thread M12• Profile bracket of rigid 3 mm sheet steel• For protection type IP66• Each set contains 2 lifting eyes, profiles and gaskets 135 – TOR-SET/135-CS140479 2 off LVP-CS, MAST-FIT, TOR-SET HPL21014EN
CS sheet steel wall-mounting enclosure Outdoor installation: Doors with inspection window 2010 CA08103002Z-EN www.eaton.com Accessories 21/15 AccessoriesOutdoor installation: Doors with inspection window Dimensions Enclosure Part no.Article no. PriceSee price list Std. pack Height Width mm mm Doors with inspection window • Enclosure protection type IP65• Frame: sheet steel with powder coating, transparent window: safety glass• Without hinges, without lock 250 200 DT-2520-CS140480 1 off 300 200 DT-3020-CS140481 300 300 DT-3030-CS140482 300 400 DT-3040-CS140483 400 300 DT-4030-CS140484 400 400 DT-4040-CS140485 400 600 DT-4060-CS140486 500 400 DT-5040-CS140487 500 500 DT-5050-CS140488 600 400 DT-6040-CS140489 600 500 DT-6050-CS140490 600 600 DT-6060-CS140491 600 800 DT-6080-CS140492 700 500 DT-7050-CS140493 800 400 DT-8040-CS140494 800 600 DT-8060-CS140495 800 800 DT-8080-CS140496 800 1000 DT-80100-CS140497 1000 600 DT-10060-CS140498 1000 800 DT-10080-CS140499 1000 1000 DT-100100-CS140500 1200 600 DT-12060-CS140501 1200 800 DT-12080-CS140502 1200 1000 DT-120100-CS140503 1200 1200 DT-120120-CS140504 DT-CS HPL21015EN
21/16 CS sheet steel wall-mounting enclosure Outdoor installation: Doors closed 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesOutdoor installation: Doors closed Dimensions Enclosure Part no.Article no. PriceSee price list Std. pack Height Width mm mm Doors closed • Enclosure protection type IP66• Sheet steel with powder coating• Without hinges, without lock 250 200 DS-2520-CS140505 1 off 300 200 DS-3020-CS140506 300 300 DS-3030-CS140507 300 400 DS-3040-CS140508 400 300 DS-4030-CS140509 400 400 DS-4040-CS140510 400 600 DS-4060-CS140511 500 400 DS-5040-CS140512 500 500 DS-5050-CS140513 600 400 DS-6040-CS140514 600 500 DS-6050-CS140515 600 600 DS-6060-CS140516 600 800 DS-6080-CS140517 700 500 DS-7050-CS140518 800 400 DS-8040-CS140519 800 600 DS-8060-CS140520 800 800 DS-8080-CS140521 800 1000 DS-80100-CS140522 1000 600 DS-10060-CS140523 1000 800 DS-10080-CS140524 1000 1000 DS-100100-CS140525 1200 600 DS-12060-CS140526 1200 800 DS-12080-CS140527 1200 1000 DS-120100-CS140528 1200 1200 DS-120120-CS140529 DS-CS HPL21016EN
CS sheet steel wall-mounting enclosure General panel construction: Cable glands 2010 CA08103002Z-EN www.eaton.com Accessories 21/17 AccessoriesGeneral panel construction: Cable glands Features Part no.Article no. PriceSee price list Std. pack Door earthing set • Cross-section 6 mm 2 • Including installation accessories – BFZ-DES101665 1 off Paint finish • Brush bottle• For repairing paint damage– RAL 7035 BPZ-CPS-7035286771 1 off Circuit diagram pockets • Plastic with self-adhesive rear side• RAL 7035 light grey DIN A4 landscape SPT4002275 10 off DIN A5 landscape SPT5002276 DIN A6 landscape SPT6002277 Cable entry Drilling diameter External diameter of cable For use with NYM/NYY cable, 4-core Part no.Article no. PriceSee price list Std. pack mm mm mm 2 Metric cable glands to EN 50262 • With lock nut and built-in strain relief• IP68 up to 5 bar, polyamide, halogen-free• Flammability classification V2 according to UL94• Colour RAL 7035 M12 12.5 3 - 7 H03VV-F3 x 0.75 mm 2 , NYM 1 x 2.5 mm 2 V-M12215078 20 off M16 16.5 4.5 - 10 H05VV-F3 x 1.5 mm 2 , NYM 1 x 16/3 x 1.5 mm 2 V-M16215077 20 off M20 20.5 6 - 13 H05VV-F4 x 2.5/3 x 4 mm 2 , NYM 5 x 1.5/5 x 2.5 mm 2 V-M20206910 20 off M25 25.5 9 - 17 H05VV-F5 x 2.5/5 x 4 mm 2 , NYM 5 x 2.5/5 x 6 mm 2 V-M25206911 20 off M32 32.5 13 - 21 NYM 5 x 10 mm 2 V-M32206912 10 off M40 40.5 16 - 28 NYM 5 x 16 mm 2 V-M40209668 10 off M50 50.5 21 - 35 NYM 4 x 35/5 x 25 mm 2 V-M50206913 5 off M63 63.5 34 - 48 NYM 4 x 35 mm 2 V-M63214835 3 off Multiple gaskets for V-M... cable glands, metric M25 – 4 x 5 - 6 H03VV-F2 x 0.75/3 x 0.75 mm 2 MFD25215451 50 off M32 – 4 x 3.5 - 7 H03VV-F4 x 0.75 mm 2 MFD32215452 25 off Stoppers for unused apertures in MFD... multiple gaskets M25 – 6 – MFV25-6215453 50 off M32 – 7 – MFV32-7215454 50 off BFZ, BPZ, SPT, V-M, MFD HPL21017EN
21/18 CS sheet steel wall-mounting enclosure General panel construction: PG cable glands, ventilation cable glands 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesGeneral panel construction: PG cable glands, ventilation cable glands Part no.Article no. PriceSee price list Std. pack Information relevant for export to North America PG cable glands • Conduit union and lock nut with earthing screw• Suitable for normal commercial conduit• Suitable for all CI...‐NA enclosures ￫ Page 20/9 ½ " STB1/2ZOLL045878 1 off Product Standards UL 467; UL 514B; CSA-C22.2 No. 18 UL File No. E23018, E3060 UL CCN DWTT, KDER CSA File No. LR 2884 CSA Class No. 4412-03, 4414-04 NA Certification UL Listed, CSA certified Conditions of Acceptability Only used in combination with CI-…-NA enclosures Specially designed for NA Yes Suitable for Conduit, Tubing, and Cable Fittings, Grounding and Bonding Equipment Degree of Protection Refer to main component information See also Refer to basic component information ¾ " STB3/4ZOLL060116 1 " STB1ZOLL052997 1 ¼ " STB1-1/4ZOLL043505 1 ½ " STB1-1/2ZOLL041132 2 " STB2ZOLL002203 Cable entry Drilling diameter External diameter of cable For use with NYM/NYY cable, 4-core Part no.Article no. PriceSee price list Std. pack mm mm mm 2 Ventilation cable gland • Colour RAL 7035 Ventilation cable gland IP69K M20 20.5 6 - 13 H05VV-F 4 x 2.5/3 x 4 mm 2 , NYM 5 x 1.5/5 x 2.5 mm2 V-M20-VENT120814 1 off Ventilation cable gland IP56• Permeable to air, impermeable to dust• For the prevention of condensationFor use in the enclosure bottom or sides, polyamide, halogen free M20 20.5 – – STB-M20F224557 20 off M25 25.5 – – STB-M25F224558 20 off Pressure compensating plug Pressure compensating plug, IP66, metric Colour RAL 7035 M40 x 1.5 – – – DAV-M40107225 2 off Pressure compensating plug, IP66, PG Colour RAL 7032 PG29 – – – DA412079219 2 off STB-ZOLL, V-M20-VENT, STB HPL21018EN
CS sheet steel wall-mounting enclosure General panel construction: Cable grommets, pressure compensating grommets 2010 CA08103002Z-EN www.eaton.com Accessories 21/19 AccessoriesGeneral panel construction: Cable grommets, pressure compensating grommets Cable entry Drilling diameter External diameter of cable For use with NYM/NYY cables, 4-core Part no.Article no. PriceSee price list Std. pack mm mm mm 2 Cable grommets, metric • IP66, with integrated push-through diaphragm• PE and thermoplastic elastomer, halogen free• Colour RAL 7035 M16 16.5 1 - 9 H03VV-F3 x 0.75 mm 2 , NYM 1 x 16/3 x 1.5 mm 2 KT-M16216983 100 off M20 20.5 1 - 13 H03VV-F3 x 0.75 mm 2 , NYM 5 x 1.5/5 x 2.5 mm 2 KT-M20207602 M25 25.5 1 - 18 H03VV-F3 x 0.75 mm 2 , NYM 4 x 10 mm 2 KT-M25207603 M32 32.5 1 - 25 H03VV-F3 x 0.75 mm 2 , NYM 4 x 16/5 x 10 mm 2 KT-M32207604 PG cable grommets • For wall thickness 2 - 8 mm• Soft PVC, cadmium and lead-free• Colour similar to RAL 7035 PG13.5 21.5 7 - 16 1.5 - 4 KT13.5019658 100 off PG16 23.5 7 - 17 1.5 - 10 KT16022031 100 off PG21 29.5 12.5 - 20 1.5 - 16 KT21026777 100 off PG29 38 12.5 - 31 1.5 - 35 KT29029150 50 off PG36 48 18 - 40 10 - 70 KT36033896 20 off PG42 55 18 - 47 10 - 95 KT42038642 10 off Stepped cable grommets • For wall thickness 2 - 3 mm, • PVC• Colour RAL 7035 – 58 14 - 54 KT3031523 2 off – 75 14 - 68 KT4036269 3 off Pressure compensating grommet • Ventilation grommet with filter• Fitting below or on side of enclosure • PE and PVC• Colour RAL 7035• Metric and PG M25 25.5 – KT-M25F224556 100 off PG16 23.5 – KT16F024404 100 off KT-M..., KT..., KT-M...F HPL21019EN
21/20 CS sheet steel wall-mounting enclosure General panel construction: Cable ducts 2010 CA08103002Z-EN www.eaton.com Accessories AccessoriesGeneral panel construction: Cable ducts Length Loading capacity max. no. of cables (recommended value) Type and cross-section Part no.Article no. PriceSee price list Std. pack H 0… V-K mm mm 2 Cable ducts Screwable 1500 60402515 0.751.52.54 KL25/35012531 60 off 1500 10070453025 0.751.52.546 KL25/60017277 40 off 1500 2601801208065 0.751.52.546 KL60/60029142 20 off Self-adhesivemax. ambient temperature +55°C 650 60402515 0.751.52.54 KL25/35K014904 50 off 14 34 37 27 27 34 63 14 66 73 63 14 14 34 37 27 KL... HPL21020EN
CS sheet steel wall-mounting enclosure General panel construction: Cable ducts 2010 CA08103002Z-EN www.eaton.com Accessories 21/21 Cable duct cover Supplied as spares 1500 – – KD25019649 200 off 1500 – – KD60024395 100 off Cable support bracket • Can be used in KL25/35 (K) cable ducts • Screw fixing – 15 4 KH25/35078974 20 off Clamping brackets for cable ducts KL25/…: Mounting spacing:≦ 500 mm – – – KK25081347 100 off KL60/60: Mounting spacing: ≦ 300 mm – – – KK60083720 100 off Length Loading capacity max. no. of cables (recommended value) Type and cross-section Part no.Article no. PriceSee price list Std. pack H 0… V-K mm mm 2 34 14 73 14 35 30 19 20 o 7 14 19 19 o 4.5 59 19 14 o 4.5 KD..., KH..., KK... HPL21021EN
21/22 CS sheet steel wall-mounting enclosure General 2010 CA08103002Z-EN www.eaton.com General Technical data CS-... General Standards IEC/EN 60529, IEC 62262, IEC/EN 62208 RoHS In accordance with Directive 2002/95/EC of the European Parliament and Council Climatic proofing Damp heat constant to IEC 60068-2-78; Damp heat, cyclical to IEC 60068-2-30 Ambient temperature °C -40 - +70 Protection type IP66 Protection type with ventilating louvers IP23 Installation site conditions Installation indoor/outdoor Mounting grid mm 25 Heat dissipation See separate table Material properties Material Sheet steel Surface treatment Structured powder spray polyester based paint finish Colour RAL 7035, light grey Surface Semi-textured Gloss Brilliant Body mm ≤ CS-65/…: 1.2; ≥ CS-66/…: 1.5 Mounting plate mm 2; from height 800 × width 400 mm: 3 Door mm ≤ CS-43/…: 1.0; ≤ CS-64/…: 1.2; ≤ CS-88/…: 1.5; ≤ CS-1212/…: 2.0 Bottom panel mm 1.5 Material properties Mechanical Impact resistance IK09 according to EN 62262 Total assembly weight of switch cabinet See separate table Assembly weight of door See separate table Assembly weight of mounting plate See separate table Assembly weight of wall fixing bracket See separate table Description/standard features Construction Canted and seam welded, including two M6 threaded bolts for earth conductor connections inside the enclosure. Rear panel 9 mm drilling dimensions for wall mounting Enclosure side panels Closed Top plate flanges Closed Bottom panel Enclosed, foamed gasket, can be unscrewed for F3A flanges -… or for assembly by user Mounting panel Basic features, sheet steel, sendzimir galvanized. Distance from back plate 15 mm. Mounted on M8 copper threaded welded studs on inside of back plate. An additional earth conductor connection is therefore not imperative. Door Including 1 one threaded welded stud M6 for earth conductor connections in the door. If electrical apparatus is to be installed in the door, a continuous, permanent protective contactor connection must be established with a protective ground cable. The threaded welded studs on the door and on the cabinet side wall must be used as connecting points for the ground leads. Hinge position On the right, can be converted by user Door opening angle ° 120 Locking system Twist lock with protective insulation. Standard locking 3 mm two-way key bit. Locks Number See Ordering pages CS-...
CS sheet steel wall-mounting enclosure Technical data: Heat dissipation 2010 CA08103002Z-EN www.eaton.com 21/23 Technical data: Heat dissipation Part no. Maximum heat dissipation P v Individual enclosure for wall mounting Starting enclosure for wall mounting Middle enclosure for wall mounting P V P V P V W W W Heat dissipation Dissipatable heat P v [W] for fully-enclosed CS sheet steel enclosures without internal partitioning walls for wall mounting.Example: max. ambient air temperature 35 °C; overtemperature ΔT = 20 K; relative humidity = 75%. CS-2520/150 11 10 9 CS-32/150 13 11 10 CS-33/150 16 15 14 CS-33/200 19 18 16 CS-34/200 23 22 21 CS-43/150 21 19 18 CS-43/200 24 22 20 CS-44/150 25 24 22 CS-44/200 29 27 25 CS-46/200 39 37 35 CS-46/250 44 42 39 CS-46/300 49 46 43 CS-54/150 30 28 27 CS-54/200 35 32 30 CS-54/250 39 36 33 CS-55/250 45 42 39 CS-64/150 35 33 31 CS-64/200 40 37 34 CS-64/250 45 42 38 CS-65/150 42 39 37 CS-65/200 47 44 41 CS-65/250 55 49 45 CS-66/200 54 51 48 CS-66/250 60 56 52 CS-66/300 65 61 57 CS-68/300 81 76 72 CS-75/200 53 50 47 CS-75/250 59 55 51 CS-84/200 51 47 44 CS-84/250 57 53 48 CS-86/200 68 64 60 CS-86/250 75 70 65 CS-86/300 82 76 70 CS-88/200 85 81 77 CS-88/300 101 95 89 CS-810/300 120 113 108 CS-106/250 91 85 79 CS-106/300 99 91 84 CS-108/250 112 106 100 CS-108/300 121 113 106 CS-1010/300 143 136 128 CS-126/250 106 99 92 CS-128/300 141 132 123 CS-1210/300 166 158 149 CS-1212/250 180 173 166 CS-...
21/24 CS sheet steel wall-mounting enclosure Technical data: Weights of fitted components 2010 CA08103002Z-EN www.eaton.com Technical data: Weights of fitted components Max. assembly weights Part no. Total assembly weight Assembly weight mounting plate Assembly weight door kg kg kg WFB-SET-CS1 set (4 off)wall fixing brackets – – – 500 kg payload, when brackets fitted in all four enclosure corners (vertically or horizontally) and the weights are symmetrically distributed within the enclosure. CS-2520/150 150 125 25 – CS-32/150 150 125 25 – CS-33/150 150 125 25 – CS-33/200 150 125 25 – CS-34/200 175 150 25 – CS-43/150 175 150 25 – CS-43/200 175 150 25 – CS-44/150 225 200 25 – CS-44/200 225 200 25 – CS-46/200 225 200 25 – CS-46/250 225 200 25 – CS-46/300 225 200 25 – CS-54/150 225 200 25 – CS-54/200 225 200 25 – CS-54/250 225 200 25 – CS-55/250 225 200 25 – CS-64/150 225 200 25 – CS-64/200 225 200 25 – CS-64/250 225 200 25 – CS-65/150 275 250 25 – CS-65/200 275 250 25 – CS-65/250 275 250 25 – CS-66/200 275 250 25 – CS-66/250 275 250 25 – CS-66/300 275 250 25 – CS-68/300 275 250 25 – CS-75/200 275 250 25 – CS-75/250 275 250 25 – CS-84/200 325 300 25 – CS-84/250 325 300 25 – CS-86/200 325 300 25 – CS-86/250 325 300 25 – CS-86/300 325 300 25 – CS-88/200 325 300 25 – CS-88/300 325 300 25 – CS-810/300 390 350 40 – CS-106/250 390 350 40 – CS-106/300 390 350 40 – CS-108/250 390 350 40 – CS-108/300 390 350 40 – CS-1010/300 390 350 40 – CS-126/250 390 350 40 – CS-128/300 390 350 40 – CS-1210/300 390 350 40 – CS-1212/250 390 350 40 – CS-...
CS sheet steel wall-mounting enclosure Indoor installation 2010 CA08103002Z-EN www.eaton.com 21/25 Indoor installation Dimensions CS wall-mounting enclosures with door and blank plate CS-... t2 = = b b-2.5 a c c-43 15.2 c-20 a-5 t1 4 c c+6 c-21 CS-...
21/26 CS sheet steel wall-mounting enclosure Indoor installation 2010 CA08103002Z-EN www.eaton.com CS wall-mounting enclosures without door, without blank plate CS-... Internal view, door without enclosure CS-2520/150, CS-32/150 CS-33/..., CS-34/..., CS-4.../... DT-2520-CS, DT-3020-CS DT-3030-CS, DT-3040-CS, DT-4...-CS DS-2520-CS, DS-3020-CS DS-3030-CS, DS-3040-CS, DS-4...-CS t4 b-45 t3 a-45 32.5 47.5 b-2.5 a = = 27.5 27.5 25 o4 32.5 13 47.5 b-2.5 a = = 27.5 27.5 25 o4 CS-..., DT-...-CS, DS-...-CS
CS sheet steel wall-mounting enclosure Indoor installation 2010 CA08103002Z-EN www.eaton.com 21/27 Enclosure dimensions Door dimensions Housing Door Height Width Height Width 250 200 248 197.5 300 200 298 197.5 300 300 298 297.5 300 400 298 397.5 400 300 398 297.5 400 400 398 397.5 400 600 398 597.5 500 400 498 397.5 500 500 498 497.5 600 400 598 397.5 600 500 598 497.5 600 600 598 597.5 600 800 598 797.5 700 500 698 497.5 800 400 798 397.5 800 600 798 597.5 800 800 798 797.5 800 1000 798 997.5 1000 600 998 597.5 1000 800 998 797.5 1000 1000 998 997.5 1200 600 1198 597.5 1200 800 1198 797.5 1200 1000 1198 997.5 1200 1200 1198 1197.5 Part no. a b c t1 t2 t3 t4 CS-2520/150 250 200 150 112 182 80 150 CS-32/150 300 200 150 112 182 80 150 CS-33/150 300 300 150 112 232 80 200 CS-33/200 300 300 200 172 262 140 230 CS-34/200 300 400 200 172 332 140 300 CS-43/150 400 300 150 112 232 140 200 CS-43/200 400 300 200 172 262 140 230 CS-44/150 400 400 150 112 332 140 300 CS-44/200 400 400 200 172 332 140 300 CS-46/200 400 600 200 172 532 140 500 CS-46/250 400 600 250 172 532 140 500 CS-46/300 400 600 300 172 532 140 500 CS-54/150 500 400 150 112 332 80 300 CS-54/200 500 400 200 172 332 140 300 CS-54/250 500 400 250 172 332 140 300 CS-55/250 500 500 250 172 432 140 400 CS-64/150 600 400 150 112 332 80 300 CS-64/200 600 400 200 172 332 140 300 CS-64/250 600 400 250 172 332 140 300 CS-65/150 600 500 150 112 332 80 300 CS-65/200 600 500 200 172 432 140 400 CS-65/250 600 500 250 172 432 140 400 CS-66/200 600 600 200 172 532 140 500 CS-66/250 600 600 250 172 532 140 500 CS-66/300 600 600 300 172 532 140 500 CS-68/300 600 800 300 172 732 140 700 CS-75/200 700 500 200 172 432 140 400 CS-75/250 700 500 250 172 432 140 400 CS-84/200 800 400 200 172 332 140 300 CS-84/250 800 400 250 172 332 140 300 CS-86/200 800 600 200 172 532 140 500 CS-86/250 800 600 250 172 532 140 500 CS-86/300 800 600 300 172 532 140 500 CS-88/200 800 800 200 172 732 140 700 CS-88/300 800 800 300 172 732 140 700 CS-810/300 800 1000 300 172 932 140 900 CS-106/250 1000 600 250 172 532 140 500 CS-106/300 1000 600 300 172 532 140 500 CS-108/250 1000 800 250 172 732 140 700 CS-108/300 1000 800 300 172 732 140 700 CS-1010/300 1000 1000 300 172 932 140 900 CS-126/250 1200 600 250 172 532 140 500 CS-128/300 1200 800 300 172 732 140 700 CS-1210/300 1200 1000 300 172 932 140 900 CS-1212/250 1200 1200 250 2 x 172 532 2 x 140 500 CS-..., DT-...-CS, DS-...-CS
21/28 CS sheet steel wall-mounting enclosure Indoor installation 2010 CA08103002Z-EN www.eaton.com Internal view, door without enclosure CS-5.../..., CS-6.../..., CS-7.../... CS-10.../..., CS-12.../... DT-5...-CS, DT-6...-CS, DT-7...-CS DT-10...-CS, DT-12...-CS DS-5...-CS, DS-6...-CS, DS-7...-CS DS-10...-CS, DS-12...-CS Internal view, door without enclosure Mounting aperture Position of the 4 drilling dimensions for wall fixing in the enclosure rear panel CS-8.../... CS-… CS-… DT-8...-CSDS-8...-CS Position of the 4 threaded studs in the enclosure rear panelCS-… 32.5 13 47.5 47.5 b-2.5 123 a 123 27.5 27.5 25 o4 32.5 47.5 73.5 b-2.5 a = = 27.5 27.5 25 o4 q 20.4 +0.1 o22.5 +0.5 20 20 o 9 4 x 32.5 13 47.5 47.5 b-2.5 123 a 123 27.5 27.5 25 o4 40 4 x M8 x 25 40 CS-..., DT-...-CS, DS-...-CS
CS sheet steel wall-mounting enclosure Indoor installation 2010 CA08103002Z-EN www.eaton.com 21/29 F3A enclosure base with flange apertures 300 x 200 400 x 200 500 x 200 600 x 200 400 x 250 500 x 250 600 x 250 600 x 300 800 x 200 800 x 250 800 x 300 1000 x 300 1200 x 250 42 110 153 27 179 200 258 92 110 153 27 179 200 308 142 110 153 27 179 200 358 67 110 153 27 179 200 283 34 92 110 153 27 229 200 308 142 110 153 27 229 200 358 67 110 153 27 229 200 283 34 67 110 153 27 279 200 283 34 57 110 153 27 179 200 273 19 57 110 153 27 229 200 273 19 57 110 153 27 279 200 273 19 113 110 153 27 279 200 329 63 92 110 153 27 229 200 308 34 84 CS-...
21/30 CS sheet steel wall-mounting enclosure Indoor installation 2010 CA08103002Z-EN www.eaton.com Blank plate (equipment supplied) 300 x 200 400 x 200 500 x 200 600 x 200 800 x 200 1000 x 200 Mounting plates Mounting rail module for soft starters MPP-...-CS TS35-DS4-CS MPL-.../RAL2000-CS MPL-...-CS a, b = Enclosure dimensions 172 262 172 332 172 432 172 532 172 732 172 932 Part no. Mounting plate Height Width CS-2520/150 220 150 CS-32/150 270 150 CS-33/150 270 250 CS-33/200 270 250 CS-34/200 270 350 CS-43/150 370 250 CS-43/200 370 250 CS-44/150 370 350 CS-44/200 370 350 CS-46/200 370 550 CS-46/250 370 550 CS-46/300 370 550 CS-54/150 470 350 CS-54/200 470 350 CS-54/250 470 350 CS-55/250 470 450 CS-64/150 570 350 CS-64/200 570 350 CS-64/250 570 350 CS-65/150 570 450 CS-65/200 570 450 CS-65/250 570 450 CS-66/200 570 550 CS-66/250 570 550 CS-66/300 570 550 CS-68/300 550 770 CS-75/200 670 450 CS-75/250 670 450 CS-84/200 770 350 CS-84/250 770 350 CS-86/200 770 550 CS-86/250 770 550 CS-86/300 770 550 CS-88/200 770 750 CS-88/300 770 750 CS-810/300 770 950 CS-106/250 970 550 CS-106/300 970 550 CS-108/250 970 750 CS-108/300 970 750 CS-1010/300 970 950 CS-126/250 1170 550 CS-128/300 1170 750 CS-1210/300 1170 950 CS-1212/250 1170 1150 5 x 45° 20 10 o 12 27 45 X b-90 b-50 a-70 a-30 X 120 130 o 5.5 67 12 95.6 67 7 CS-..., MPP, MPL, TS
CS sheet steel wall-mounting enclosure Outdoor installation 2010 CA08103002Z-EN www.eaton.com 21/31 Outdoor installation Wall fixing bracket Base panels with flange apertures (for F3A-...flange) WFB-SET-CS AFP-3-CS AFP-4-CS Base panels with flange apertures (for F3A-...flange) AFP-5-CS AFP-6-CS AFP-8-CS AFP-12-CS = 2 x AFP-6-CS AFP-10-CS Flanges Flange aperture F3A-..., ZSD-2K/FLA R 5 8 9 11 38 42 28 37 27 20 43 11 10.5 12 78 31 o 10.5 o 8 172 262 23 172 332 23 172 432 108 23 33 249 283 172 532 23 172 732 23 23 258 493 709 172 23 932 79 358 637 853 110 140 200230 6 15 190 100 110 120 200210 WFB, AFP, F3A
21/32 CS sheet steel wall-mounting enclosure Outdoor installation 2010 CA08103002Z-EN www.eaton.com Rain canopies CNP-...-CS c = Enclosure depth Ventilating louvers LVP-20V12-CS LVP-20H12-CS LVP-30V15-CS LVP-30H15-CS Cable glands, ventilation cable glands, cable grommet ￫ See chapter 16, Accessories for panel building Part no. c + 23 t CNP-2/150-CS 173 30 CNP-3/150-CS 173 30 CNP-3/200-CS 223 34 CNP-4/150-CS 173 30 CNP-4/200-CS 223 34 CNP-4/250-CS 273 38 CNP-5/150-CS 173 30 CNP-5/200-CS 223 34 CNP-5/250-CS 273 38 CNP-6/200-CS 223 34 CNP-6/250-CS 273 38 CNP-6/300-CS 323 42 CNP-8/200-CS 223 34 CNP-8/250-CS 273 38 CNP-8/300-CS 323 42 CNP-10/300-CS 323 42 CNP-12/250-CS 273 38 20 t c+23 6590 105 18 152 167 o 4 65 139154 18 90 105 o 4 90 115130 18 165 180 o 4 65 45 65 37.5 37.5 235250 18 90 105 o 4 CNP, LVP
