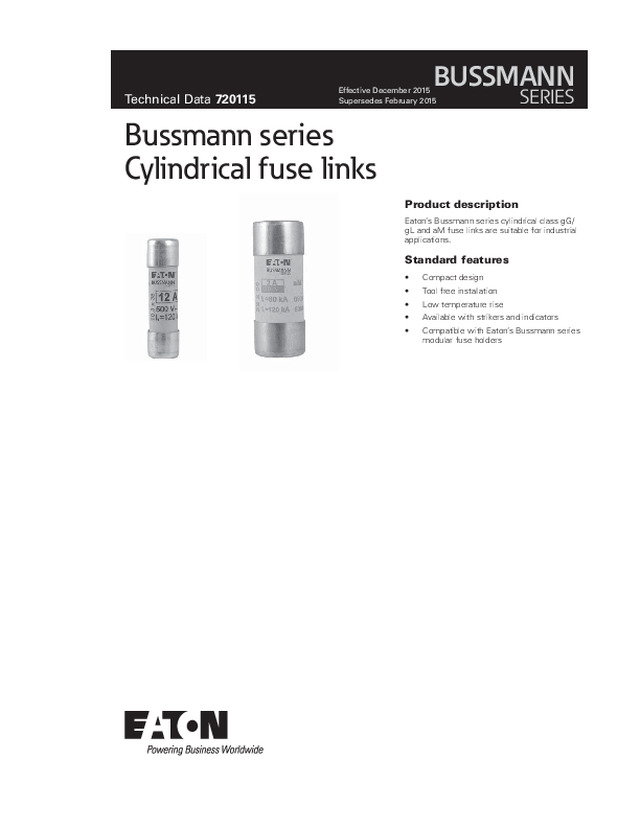

BUSSMANN Technical Data 720115 Effective December 2015 Supersedes February 2015 SERIES Bussmann series Cylindrical fuse links Product description Eatons Bussmann series cylindrical class gG/ gL and aM fuse links are suitable for industrial applications. Standard features Compact design Tool free installation Low temperature rise Available with strikers and indicators Compatible with Eatons Bussmann series modular fuse holders Technical Data 720115 Bussmann series Cylindrical fuse links Effective December 2015 Table 1. Catalogue Symbol: Size (mm) Without indicator (example) With indicator (example) With striker* (example) C10G(amps) C10G4) C14G(amps) (C14G4) C22G(amps) (C22G4) C10G(amps)I (C10G4I) C14G(amps)I (C14G4I) C22G(amps)I (C22G4I) N/A C10M(amps) (C10M4) C14M(amps) (C14M4) C22M(amps) (C22M12) C10M(amps)I (C10M4I) C14M(amps)I (C14M4I) C22M(amps)I (C22M12I) N/A Class gG/gL 10 x 38 14 x 51 22 x 58 C14G(amps)S* (C14G4S) C22G(amps)S* (C22G4S) Class aM 10 x 38 14 x 51 22 x 58 C14M(amps)S* (C14M4S) C22M(amps)S* (C22M12S) * Striker fuse links can operate a microswitch for remote fuse link operated indication Fuse size: 10 x 38, 14 x 51 and 22 x 58 mm Technical data: Volts: 400 to 690 V a.c. Amps: 0.25 to 125 A Breaking capacity: 80 and 120 kA AC Class of operation: gG/gL and aM Standards/Approvals: IEC 60269 Packaging: 10 per carton Dimensions - mm Fuse links with or without indicator Fuse links with striker Size (mm) A B Size (mm) A B C D E 10 x 38 mm 14 x 51 mm 22 x 58 mm...
