Bussmann series
500 Volts gG/gL NH Fuse links
Eaton
Bussmann series
Yayınlandı: 22 Eylül 2020 · Kategori: Diğer
500 Volts gG/gL NH Fuse links
Bu belgeden

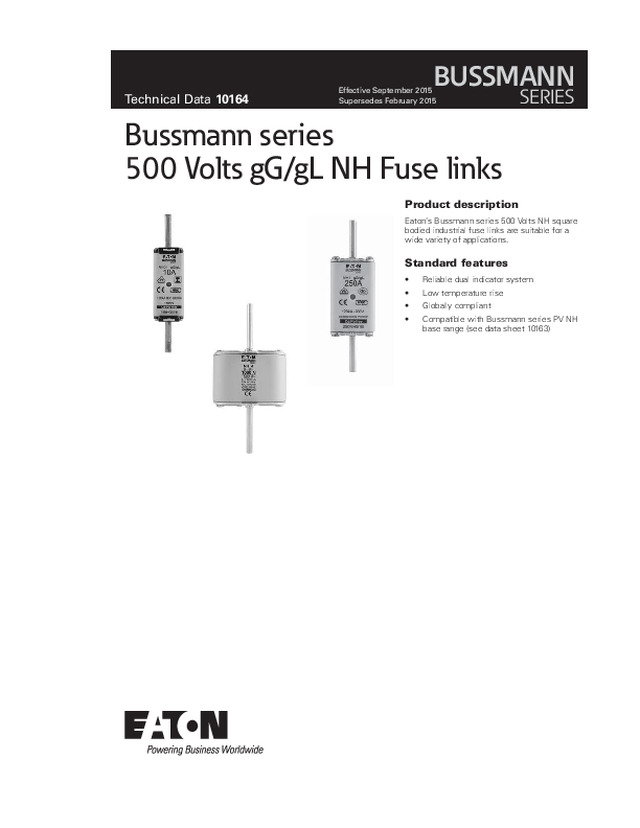

BUSSMANN Technical Data 10164 Effective September 2015 Supersedes February 2015 SERIES Bussmann series 500 Volts gG/gL NH Fuse links Product description Eaton’s Bussmann series 500 Volts NH square bodied industrial fuse links are suitable for a wide variety of applications. Standard features • Reliable dual indicator system • Low temperature rise • Globally compliant • Compatible with Bussmann series PV NH base range (see data sheet 10163) Technical Data 10164 Bussmann series 500 Volts gG/gL NH Fuse links Effective September 2015 Catalogue symbol: Fuse holders (ordered separately) (amp)NHG(size)B • • Fuse size: • 000 to 4 • Fuse bases: • DIN-Rail mounting and screw mounting: 1-pole SD(size)-D, 3-pole TD(size)-D Technical data: • Volts: 500 V a.c. • Amps: 2 to 1250 A • Breaking capacity: 120 kA AC • Operating frequency: 45-62 Hz • Class of operation: gG/gL Screw mounting only: SD(size)-S • Fuse rails - vertical: BFR Series • Fuse switch disconnectors vertical: BFD Series • Fuse switch disconnectors horizontal: BFH Series Standards/Approvals: • IEC 60269 • VDE 0636 • DIN 43620 • CE Microswitches: • 170H0236 • BVL50 Packaging: • Sizes 000 to 3: 3 per carton • Size 4: 1 per carton Size - mm Table 1. NH Sizes Size a1 a2 (max) a3 a4 b c1 c2 d e1 (max) e2 (max) e3 (max) e4 f (max) 000 78.5 ± 1.5 54 45±1.5 49±1.5 15 35 10 2±0.5 41 21 16 6 8 00 78.5 ± 1.5 54 45±1.5 49±1.5 15 35 11 2±0.5 48 30 25 6 15 0 125±2.5 68 +3 -1.5 62 +3 -1.5 68 15 35 11 2.5±0.5 48 30 25 6 15 01 135±2.5 75...
