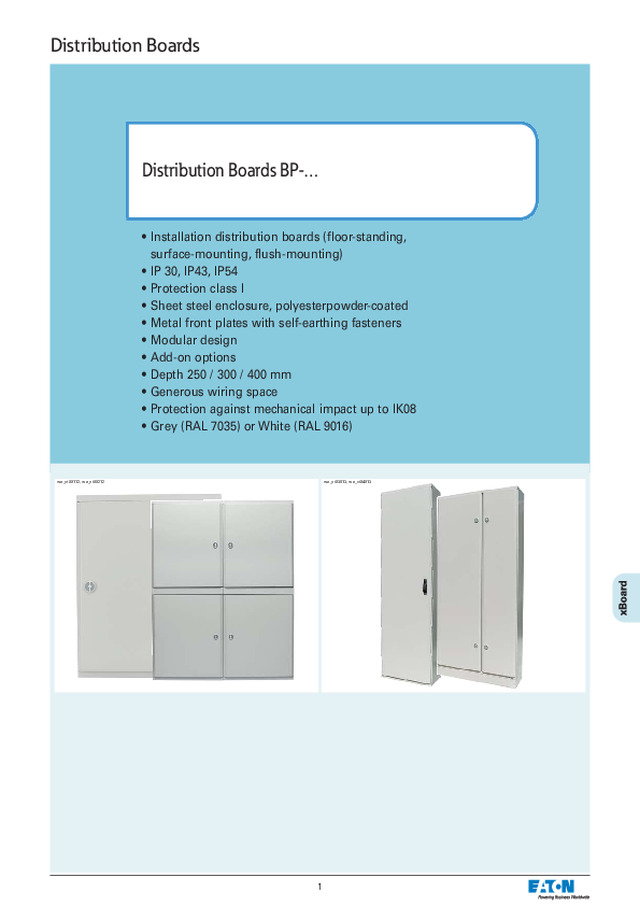

Distribution Boards Distribution Boards BP- Installation distribution boards (floor-standing, surface-mounting, flush-mounting) IP 30, IP43, IP54 Protection class I Sheet steel enclosure, polyesterpowder-coated Metal front plates with self-earthing fasteners Modular design Add-on options Depth 250 / 300 / 400 mm Generous wiring space Protection against mechanical impact up to IK08 Grey (RAL 7035) or White (RAL 9016) wa_vt03613, wa_vt04013 wa_vt00112, wa_vt00212 1 Distribution Boards Surface-Mounting Installation Distribution Boards - Fully Assembled, IP30, BP-O-...-C including base frame, side panels, top/bottom panels and door including DIN-rail sets BPZ-DINR...B including front plates (150 mm) with device cutout (45 mm) including cable entry at the top, with pass-through flange with Bottom Panel blind assembling from the base frame - no mounting side wall MSW Width / Outside Height (mm) / MU / Rows Type Designation Article No. Units per package 293307 293308 293309 293310 293311 293312 293313 293314 1 1 1 1 1 1 1 1 Rotary door handle, Grey wa_vt07713 BP-O-600/7-C BP-O-600/10-C BP-O-600/12-C BP-O-600/15-C BP-O-800/7-C BP-O-800/10-C BP-O-800/12-C BP-O-800/15-C 600 / 760 / 96 / 4 600 / 1060 / 144 / 6 600 / 1260 / 168 / 7 600 / 1560 / 216 / 9 800 / 760 / 140 / 4 800 / 1060 / 210 / 6 800 / 1260 / 245 / 7 800 / 1560 / 315 / 9 Rotary door handle, White additional cable entry at the bottom, with pass-through flange wa_vt07813 600 / 760 / 96 / 4 600 / 1060 / 144 / 6 600 / 1260 / 168...
