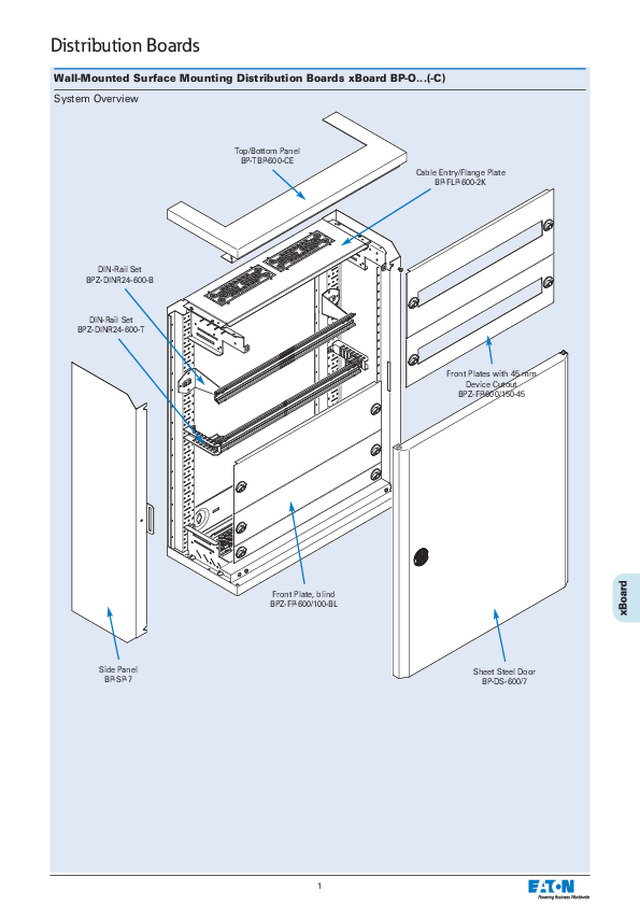

Distribution Boards Wall-Mounted Surface Mounting Distribution Boards xBoard BP-O...(-C) System Overview Top/Bottom Panel BP-TBP-600-CE Cable Entry/Flange Plate BP-FLP-600-2K DIN-Rail Set BPZ-DINR24-600-B DIN-Rail Set BPZ-DINR24-600-T Front Plates with 45 mm Device Cutout BPZ-FP-600/150-45 Front Plate, blind BPZ-FP-600/100-BL Side Panel BP-SP-7 Sheet Steel Door BP-DS-600/7 1 Distribution Boards Surface-Mounting Installation Distribution Boards, BP-O...(-C) (EW) Modular design Grounded metal covers Flat-pack or fully assembled Add-on options Generous wiring space Variable interior layout with/without removable mounting frame Structured, multilayer construction for easy accessible installation: base frame - DIN-rails ... - enclosure Reversible door hinging Type BP-O-...-EW is equipped with a fireproof door (metal hinges and lock) Technical Data Electrical Design according to EN 60439-1/3, IEC 62208 Protection class I Degree of protection IP30 Rated voltage 415 VAC / 50Hz Rated current 630 A depending on the busbar support system Earth connections Base frame M5 earthing point screw Side wall, top/bottom panel M5 tapping screw Door M6 welding bolt Max. power loss (W) for all devices in the dist. board at 35 C ambient temperature: Height \ Width (mm) 400 600 800 1000 1200 460 74 101 129 760 104 137 156 1060 133 147 203 264 1260 118 170 232 302 374 1560 144 207 281 364 429 Mechanical Material Paint coat Sheet steel Phosphatised and polyesterpowder- coated Grey RAL 7035, white RAL...
