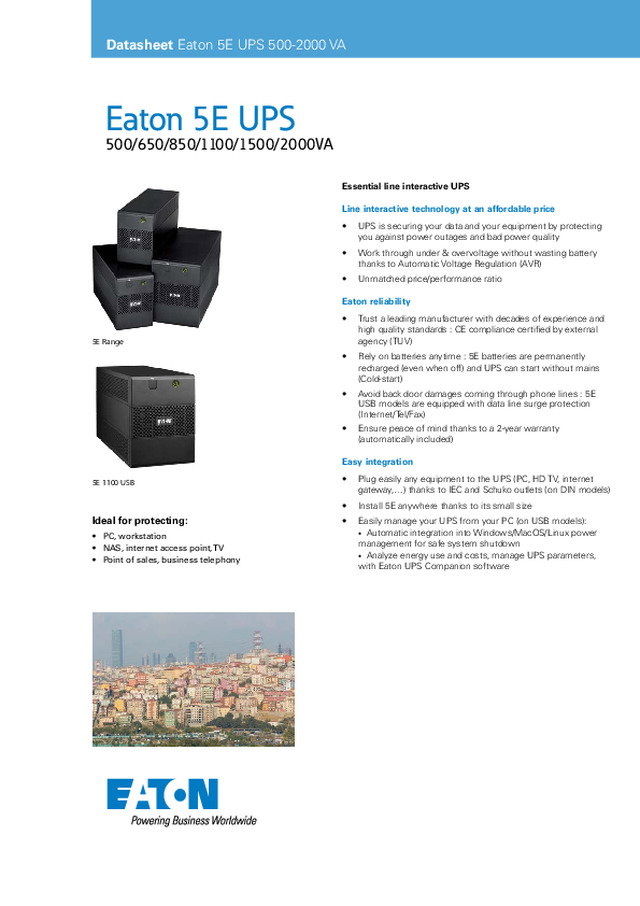

Eaton 5E UPS 500/650/850/1100/1500/2000VA Essential line interactive UPS Line interactive technology at an affordable price •  UPS is securing your data and your equipment by protecting you against power outages and bad power quality •  Work through under & overvoltage without wasting battery thanks to Automatic Voltage Regulation (AVR) •  Unmatched price/performance ratio Eaton reliability •  Trust a leading manufacturer with decades of experience and high quality standards : CE compliance certified by external agency (TUV) •  Rely on batteries anytime : 5E batteries are permanently recharged (even when off) and UPS can start without mains (Cold-start) •  Avoid back door damages coming through phone lines : 5E USB models are equipped with data line surge protection (Internet/Tel/Fax) •  Ensure peace of mind thanks to a 2-year warranty (automatically included) Easy integration •  Plug easily any equipment to the UPS (PC, HD TV, internet gateway,…) thanks to IEC and Schuko outlets (on DIN models) •  Install 5E anywhere thanks to its small size•  Easily manage your UPS from your PC (on USB models): •  Automatic integration into Windows/MacOS/Linux power management for safe system shutdown •  Analyze energy use and costs, manage UPS parameters, with Eaton UPS Companion software 5E Range  5E 1100 USB Datasheet Eaton 5E UPS 500-2000 VA  Ideal for protecting: •  PC, workstation•  NAS, internet access point, TV•  Point of sales, business telephony

© 2013 Eaton Corporation All Rights Reserved 5E01DAT Rev A, November 2013 Eaton is a registered trademark of Eaton Corporation. All other trademarks are property of their respective owners. www.eaton.eu/5E Part Numbers 500 650 650 USB 850 USB 1100 USB 1500 USB 2000 USB IEC outlets 5E500i 5E650i 5E650iUSB 5E850iUSB 5E1100iUSB 5E1500iUSB 5E2000iUSB Schuko outlets (DIN) - 5E650iDIN 5E650iUSBDIN 5E850iUSBDIN - - - 1   USB port 2   Panel for batteries replacement 3   IEC320 10A socket TECHNICAL SPECIFICATIONS 500 650 650 USB 850 USB 1100 USB 1500 USB 2000 USB Rating (VA/W) 500 VA / 300 W 650 VA / 360 W 650 VA / 360 W 850 VA / 480 W 1100 VA / 660 W 1500 VA / 900 W 2000 VA / 1200 W Format Tower Electrical CharacteristicsTechnology Line-Interactive Input voltage range without using batteries 170V - 264V 170V - 264V 170V - 280V 170V - 280V 170V - 280V 170V - 280V 170V - 280V Output voltage 230V  Data line surge protection (Internet/Tel/Fax) No No Yes Yes Yes Yes Yes ConnectionsInput 1 IEC C14 (10A) Outputs 4 IEC C13 (10A) IEC models: 4 IEC C13 (10A)   DIN models: 1 Schuko (DIN) + 2 IEC C13 (10A) 6 IEC C13 (10A) 6 IEC C13 (10A) 6 IEC C13 (10A) BatteriesTypical backup times for 1 PC 7 min 16 min 16 min 20 min 45 min 50 min 50 min Typical backup times for 2 PC - 6 min 6 min 8 min 20 min 26 min 26 min Typical backup times for 3 PC - - - - 7 min 10 min 10 min Typical backup times for 4 PC - - - - - - 5 min Battery management Permanent battery recharge, cold start Power ManagementCommunication ports No No 1 USB port 1 USB port 1 USB port 1 USB port 1 USB port Eaton UPS Companion software No No Yes (available on www.eaton.eu/powerquality) Operating conditions, Standards and ApprovalsOperating temperature 0 to 40° Noise level 40dB  40dB  40dB  40dB  45dB 45dB 45dB Safety IEC/EN 62040-1 EMC, Performance IEC/EN 62040-2  Approvals CE, CB report (TUV) Dimensions D x H x W / WeightDimensions 288 x 148 x 100mm 288 x 148 x 100mm 288 x 148 x 100mm 288 x 148 x 100mm 330 x 180 x 133mm 330 x 180 x 133mm 330 x 180 x 133mm Weight 3.66kg 4.6kg 4.64kg 5.16kg 9.22 10.46 10.46 Customer Service & Support Warranty 2 years  In the interests of continuous product improvement, all specifications are subject to change without notice. 1 2 Eaton 5E 1100i USB 3 4 4   6 IEC 10A sockets 5   Internet/Tel/Fax protection Eaton 5E UPS Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. 5
