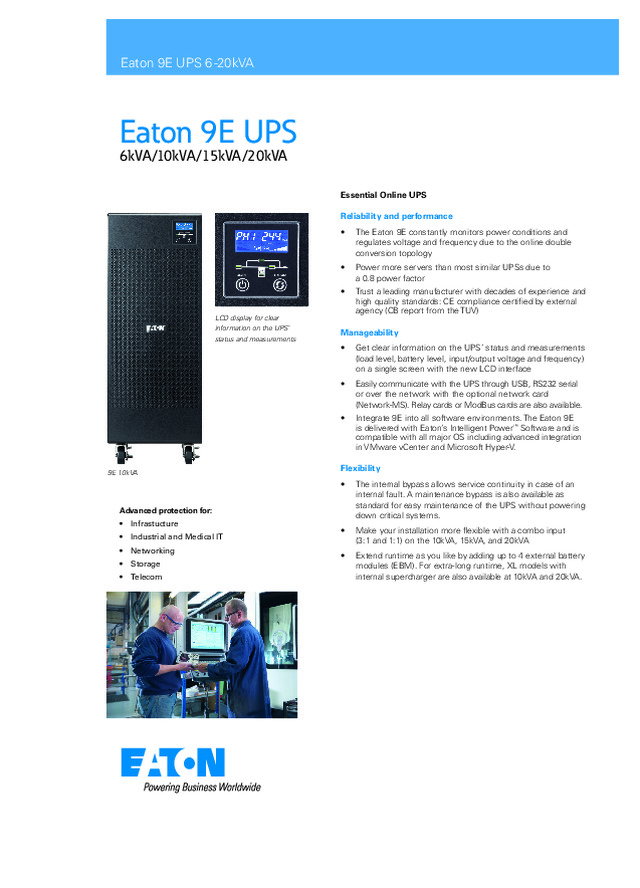

Eaton 9E UPS

Eaton 9E UPS 6kVA/10kVA/15kVA/20kVA Essential Online UPS Reliability and performance •  The Eaton 9E constantly monitors power conditions and  regulates voltage and frequency due to the online double conversion topology •  Power more servers than most similar UPSs due to   a 0.8 power factor  •  Trust a leading manufacturer with decades of experience and  high quality standards: CE compliance certified by external  agency (CB report from the TUV) Manageability •  Get clear information on the UPS’ status and measurements  (load level, battery level, input/output voltage and frequency) on a single screen with the new LCD interface •  Easily communicate with the UPS through USB, RS232 serial   or over the network with the optional network card  (Network-MS). Relay cards or ModBus cards are also available. •  Integrate 9E into all software environments. The Eaton 9E   is delivered with Eaton’s Intelligent Power ™  Software and is  compatible with all major OS including advanced integration   in VMware vCenter and Microsoft Hyper-V. Flexibility •  The internal bypass allows service continuity in case of an  internal fault. A maintenance bypass is also available as standard for easy maintenance of the UPS without powering down critical systems. •  Make your installation more flexible with a combo input   (3:1 and 1:1) on the 10kVA, 15kVA, and 20kVA •  Extend runtime as you like by adding up to 4 external battery  modules (EBM). For extra-long runtime, XL models with internal supercharger are also available at 10kVA and 20kVA. Eaton 9E UPS 6 -20kVA 9E 10kVA LCD display for clear  information on the UPS’ status and measurements Advanced protection for:•   Infrastucture•   Industrial and Medical IT•   Networking•   Storage•   Telecom

© 2014 Eaton All Rights Reserved Publication No. 9E01 DAT Rev A,  April 2014 Eaton is a registered trademark.  All other trademarks are property   of their respective owners. www.eaton.eu/9E Part Numbers 6kVA 1:1 10kVA 1:1 or 3:1 15kVA 1:1 or 3:1 20kVA 1:1 or 3:1 UPS 9E6Ki 9E10Ki 9E15Ki 9E20Ki EBM 9EEBM180 9EEBM240 9EEBM480 9EEBM480 UPS with supercharger  (and no batteries) - 9E10KiXL - 9E20KiXL Options Network-MS,  ModBus-MS or Relay-MS cards TECHNICAL SPECIFICATIONS 6kVA 1:1 10kVA 1:1 and 3:1 15kVA 1:1 and 3:1 20kVA 1:1 and 3:1 Rating (VA/W) 6kVA/4.8kW 10kVA/8kW 15kVA/12kW 20kVA/16kW Format Tower Electrical CharacteristicsTechnology Online double conversion Input voltage 220/230/240V Input voltage range without using batteries 176-276V without derating (up to 110-276V with derating) Output voltage/THDU 220V/230V/240V ±2 %, THDU 3%  Input frequency range 45Hz-66Hz, 50/60Hz autoselection Efficiency Up to 93% in Online mode, 97% in ECO mode Short circuit current 82A 137A 205A 273A Overload capacity 105%-110% : 5min, 110%-130% : 1min, 130%-150% : 10s, 150% : 100ms ConnectionsInput Terminal block Outputs Terminal block Typical backup times at 50% and 75% load9E 20/12 15/9 16/9 15/9 9E + 1 EBM 75/47 60/36 38/26 27/19 9E + 4 EBM 222/140 170/110 117/76 82/54 CommunicationCommunication ports 1USB port + 1 RS232 serial port (USB and RS232 ports cannot be used simultaneously) Communication slot 1 slot for Network-MS,  ModBus-MS or Relay-MS cards Software Intelligent Power Software Operating conditions, Standards and ApprovalsOperating temperature 0 to 40°C Noise level 55dB Safety IEC/EN 62040-1 EMC, Performance IEC/EN 62040-2  Approvals CE, CB report (TUV) Dimensions D x H x W / WeightUPS Dimensions  (mm) 612.9 x 708.5 x262.4 612.9 x 708.5 x262.4 706 x 815.5 x 350 706 x 815.5 x 350 UPS Weight  (kg) 68 85.4 145.3 159.9 EBM dimensions  (mm) 579.4 x 708.5 x 262.4 579.4 x 708.5 x 262.4 579.4 x 708.5 x 262.4 579.4 x 708.5 x 262.4 EBM weight  (kg) 105.5 132 132 132 UPS with supercharger  (and no batteries)  dimensions  (mm) - 612.9 x 708.5 x 262.4 - 706 x 815.5 x 350 UPS with supercharger  (and no batteries)  weight  (kg) - 28.9 - 47.8 Customer Service & Support Warranty 1 year  In the interests of continuous product improvement, all specifications are subject to change without notice.   available September 2014. Eaton 9E UPS Backup times are approximate and may vary with equipment, configuration, battery age, temperature, etc. 1   LCD Interface :   Clear information on UPS   status and measurements 2   1 USB port + 1 serial port 3   Slot for Network-MS,  ModBusMS or Relay-MS cards 1 2 Eaton 9E 6Ki 3 4 4  Input/Maintenance/  Ouput connection 5   External battery module  (EBM) terminal block 6  Casters 5 6
