Eaton Circuit Breaker LZM

Eaton

Eaton Circuit Breaker LZM

Yayınlandı: 9 Nisan 2015 · Kategori: Kataloglar

Bu belgeden

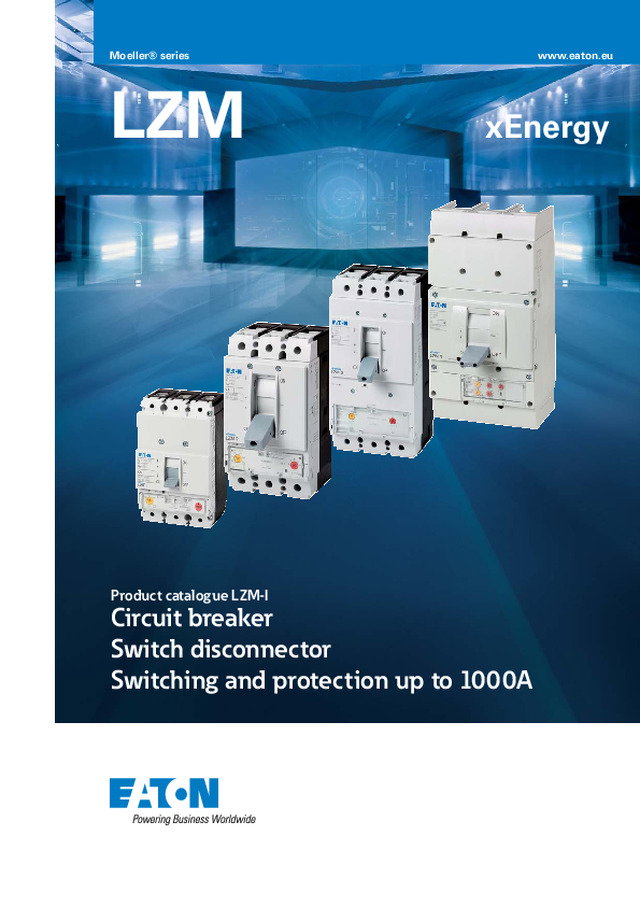

Moeller series LZM www.eaton.eu xEnergy Product catalogue LZM-I Circuit breaker Switch disconnector Switching and protection up to 1000A Circuit breaker LZM series up to 1000A Reliable, safe and simple products for energy distribution systems in high density residential, commercial and industrial buildings. Enabled by innovative protection concepts. Circuit-breaker series LZM1 to LZM4 Standard/trip-indicating auxiliary contact from the Titan range - reduced number of variants and stockholding requirement - simple front installation at the same position - simple clip-on feature saves mounting costs - attractively priced identical parts from the control circuit device range - just 4 compact frame sizes - available as 3 and 4-pole device up to 1000A - equal dimension as NZM range - flexible mounting using modular function groups - suitable for 50C according derating table - switch suitable for world-wide use Page 4 Page 26 CA012002EN Remote operators Door coupling rotary handles - common functional concept of all variants - low closing delays 60 ms to 100 ms - locking and sealing features provide security - identical drilling template for all variants - innovative automatic centring - axis support for long-term reliable operation Page 35 Page 30 www.eaton.com Rated Current (A) Only 4 frame sizes with nominal current up to 1000 A reduce time and effort to design and build up energy distribution boards. Rated ultimate short-circuit breaking capacity (kA at 400/415V) Continuous...
