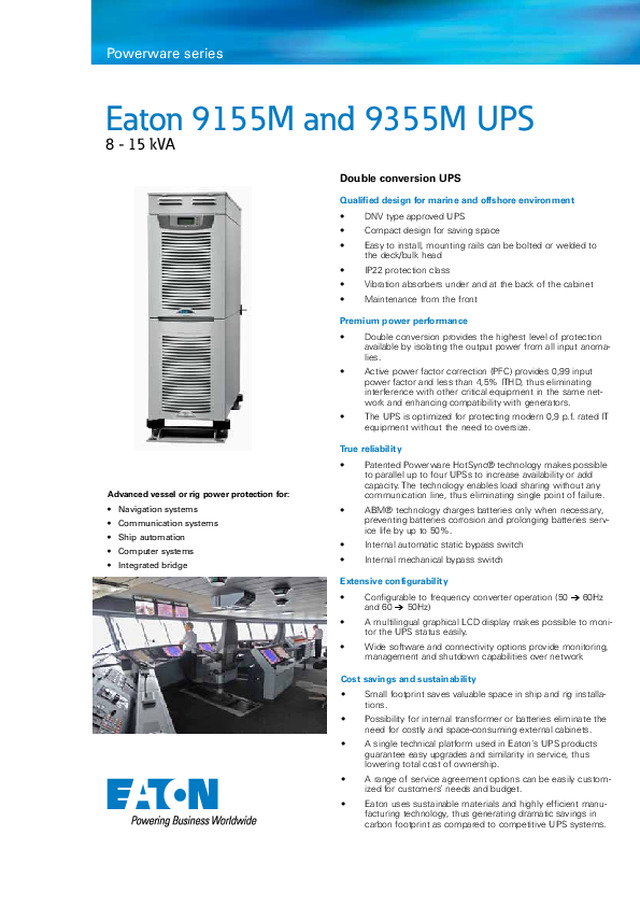

Eaton 9155M and 9355M UPS 8 - 15 kVA Powerware series Advanced vessel or rig power protection for:•  Navigation systems•  Communication systems•  Ship automation•  Computer systems•  Integrated bridge Double conversion UPS Qualified design for marine and offshore environment • DNV type approved UPS • Compact design for saving space • Easy to install, mounting rails can be bolted or welded to the deck/bulk head • IP22 protection class • Vibration absorbers under and at the back of the cabinet • Maintenance from the front Premium power performance • Double conversion provides the highest level of protection available by isolating the output power from all input anoma- lies. • Active power factor correction (PFC) provides 0,99 input power factor and less than 4,5% ITHD, thus eliminating interference with other critical equipment in the same net- work and enhancing compatibility with generators. • The UPS is optimized for protecting modern 0,9 p.f. rated IT equipment without the need to oversize. True reliability • Patented Powerware HotSync® technology makes possible to parallel up to four UPSs to increase availability or add capacity. The technology enables load sharing without any communication line, thus eliminating single point of failure. • ABM® technology charges batteries only when necessary, preventing batteries corrosion and prolonging batteries serv- ice life by up to 50%. • Internal automatic static bypass switch • Internal mechanical bypass switch Extensive configurability • Configurable to frequency converter operation (50 Ô 60Hz and 60 Ô 50Hz) • A multilingual graphical LCD display makes possible to moni- tor the UPS status easily. • Wide software and connectivity options provide monitoring, management and shutdown capabilities over network Cost savings and sustainability • Small footprint saves valuable space in ship and rig installa- tions. • Possibility for internal transformer or batteries eliminate the need for costly and space-consuming external cabinets. • A single technical platform used in Eaton´s UPS products guarantee easy upgrades and similarity in service, thus lowering total cost of ownership. • A range of service agreement options can be easily custom- ized for customers’ needs and budget. • Eaton uses sustainable materials and highly efficient manu- facturing technology, thus generating dramatic savings in carbon footprint as compared to competitive UPS systems.

Eaton 9155M/9355M UPS 8-15 kVA © 2011 Eaton Corporation, All Rights Reserved, 00DATA1018143 rev B, March 2011 Technical specificaTionsUPS output power rating (0,9 p.f.)kVA 8 10 12 15 kW 7,2 9 10,8 13,5 GeneralEfficiency in double   conversion mode (full load) 92% (without transformer) Efficiency in double   conversion mode (half load) 90% (without transformer)Distributed parallelling with  Hot Sync technology 4 Field upgradeable yes Inverter/rectifier topology transformer-free IGBT with PWM Audible noise 50 dB Colour RAL 7035 InputNominal voltage rating   (configurable) 380, 400, 415 V 50/60 Hz With internal transformer (9155): e.g. 230, 400, 440, 480, 690V With external  transformer (9355): e.g. 230, 400, 440, 480, 690V Input voltage range Low -20% at 100% load/-50% at 50% load without  battery discharge; High +10% /max +20% Input frequency range 45-65 Hz Input power factor 0,99 Input ITHD less than 4,5% Soft start capability Yes Internal backfeed protection YesOutputNominal voltage rating   (configurable) 380, 400, 415 V 50/60 Hz With external transformer (9155): e.g. 230, 400, 440, 480, 690V With internal  transformer (9355): e.g. 230, 400, 440, 480, 690V Output UTHD  3% (100% linear load); 5% (reference non  linear load) Output power factor 0,9 (e.g. 9 kW at 10 kVA) Permitted load power factor 0,7 lagging - 0,8 leadingBatteryType Maintenance free VRLA batteries, NiCd Charging method ABM technology or Float Temperature compensation Optional Battery nominal voltage  (lead-acid) 384 V (32x12 V, 192 cells) Charging current / Model Default 3 A   Max 30 A May be limited by maximum UPS input current rating Accessories Isolation transformer, long-life batteries, external  battery cabinets, UPS Center (input, bypass,  distribution), X-Slot connectivity (Web/SNMP,  ModBus/Jbus, Relay, Hot Sync, ViewUPS-X  remote display), Hot Sync parallel tie cabinet,  integrated manual bypass, external maintenance  bypass switch CommunicationsX-Slot 2 communication bays Serial ports 1 available Relay inputs/outputs 2/1 programmable Compliance with standardsSafety IEC 62040-1, IEC 60950-1 EMC IEC 62040-2, IEC 60945 Performance IEC 62040-3 Approvals CE, DNV Type Approval Other classification survey reports On request In the interests of continuous product improvement all specifications are subject to change without notice. Stand-alone UPS with 1-phase inputDescription Rating Dimensions (HxWxD) Weight with input transformer (net/gross) 9155-8-ST-M 8 kVA / 7.2 kW 960x313x714 (+150 mm) 170/190 kg 9155-10-ST-M 10 kVA / 9 kW 960x313x714 (+150 mm) 170/190 kg Stand-alone UPS with 3-phase inputDescription Rating Dimensions (HxWxD) Weight with input transformer (net/gross) 9155-8-NT-M 8 kVA / 7.2 kW 960x313x714 (+150 mm) 170/190 kg 9155-10-NT-M 10 kVA / 9 kW 960x313x714 (+150 mm) 170/190 kg 9155-12-NT-M 12 kVA / 10.8 kW 960x313x714 (+150 mm) 170/190 kg 9155-15-NT-M 15 kVA / 13.5 kW 960x313x714 (+150 mm) 170/190 kg External battery cabinetsDescription Rating Back-up  Dimensions (HxWxD) Weight (net/gross) 9X55-BAT-M-64x7Ah 2x32x7 Ah See runtime spec. 880x347x718 (+150 mm) 217/237 kg 9X55-BAT-M-96x7Ah 3x32x7 Ah See runtime spec. 1278x347x718 (+150 mm) 323/348 kg www.eaton.com/powerquality/marine TYPE APPROVED  PRODUCT
