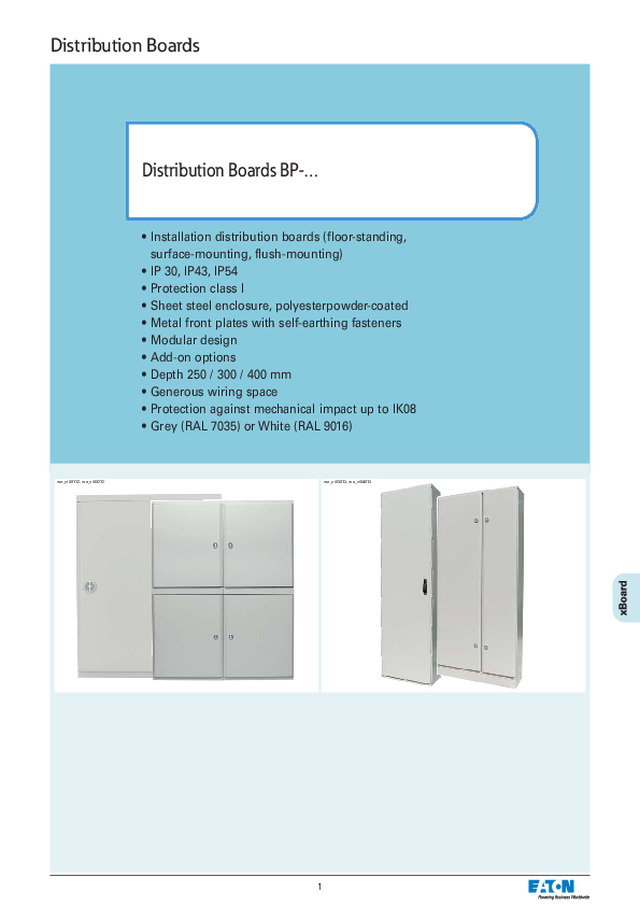

1 • Installation distribution boards (floor-standing,  surface-mounting, flush-mounting) • IP 30, IP43, IP54• Protection class I• Sheet steel enclosure, polyesterpowder-coated• Metal front plates with self-earthing fasteners• Modular design• Add-on options• Depth 250 / 300 / 400 mm• Generous wiring space• Protection against mechanical impact up to IK08• Grey (RAL 7035) or White (RAL 9016) Distribution Boards BP-… Distribution Boards  wa_vt00112, wa_vt00212 wa_vt03613, wa_vt04013

2 Distribution Boards  Surface-Mounting Installation Distribution Boards - Fully Assembled, IP30, BP-O-...-C • including base frame, side panels, top/bottom panels and door• including DIN-rail sets BPZ-DINR...B• including front plates (150 mm) with device cutout (45 mm)• including cable entry at the top, with pass-through flange• with Bottom Panel blind• assembling from the base frame - no mounting side wall MSW 600 / 760 / 96 / 4600 / 1060 / 144 / 6600 / 1260 / 168 / 7600 / 1560 / 216 / 9800 / 760 / 140 / 4800 / 1060 / 210 / 6800 / 1260 / 245 / 7800 / 1560 / 315 / 9 BP-O-600/7-C 293307 1 BP-O-600/10-C 293308 1 BP-O-600/12-C 293309 1 BP-O-600/15-C 293310 1 BP-O-800/7-C 293311 1 BP-O-800/10-C 293312 1 BP-O-800/12-C 293313 1 BP-O-800/15-C 293314 1 Width / Outside Height (mm) / MU / Rows Type Designation Article No. Units per package Rotary door handle, Grey wa_vt07713 wa_vt07813 600 / 760 / 96 / 4600 / 1060 / 144 / 6600 / 1260 / 168 / 7600 / 1560 / 216 / 9800 / 760 / 140 / 4800 / 1060 / 210 / 6800 / 1260 / 245 / 7800 / 1560 / 315 / 9 BP-O-600/7-C-W 105534 1 BP-O-600/10-C-W 105535 1 BP-O-600/12-C-W 105536 1 BP-O-600/15-C-W 105537 1 BP-O-800/7-C-W 105538 1 BP-O-800/10-C-W 105539 1 BP-O-800/12-C-W 105540 1 BP-O-800/15-C-W 105541 1 Rotary door handle, White • additional cable entry at the bottom, with pass-through flange Surface-Mounting Installation Distribution Boards - Fully Assembled, IP30, BP-O-... • including base frame, side panels, top/bottom panels and door• including cable entry at the top, with pass-through flange• with bottom panel blind• assembling from the base frame - no mounting side wall MSW 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 / 1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501200 / 1260 / 11501200 / 1560 / 1450 BP-O-400/4 100959 1 BP-O-400/7 100960 1 BP-O-400/10 100961 1 BP-O-400/12 100962 1 BP-O-600/4 100963 1 BP-O-600/7 100964 1 BP-O-600/10 100965 1 BP-O-600/12 100966 1 BP-O-600/15 100967 1 BP-O-800/7 100968 1 BP-O-800/10 100969 1 BP-O-800/12 100970 1 BP-O-800/15 100971 1 BP-O-1000/10 100972 1 BP-O-1000/12 100973 1 BP-O-1000/15 100974 1 BP-O-1200/12 100975 1 BP-O-1200/15 100976 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Rotary door handle, Grey  wa_vt04713

3 Distribution Boards  Surface-Mounting Installation Distribution Boards - Fully Assembled, IP30, BP-O-...-MSW • including base frame, side panels with MSW assembling, top/bottom panels and door• including cable entry at the top, with pass-through flange• with bottom panel blind• Snap Element BPZ-SNAP-MSW-CTS already mounted• MSW assembling 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 / 1150400 / 1560 / 1450600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 460 / 350800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501200 / 1260 / 11501200 / 1560 / 1450 BP-O-400/4-MSW 149116 1 BP-O-400/7-MSW 149117 1 BP-O-400/10-MSW 149118 1 BP-O-400/12-MSW 149119 1 BP-O-400/15-MSW 149150 1 BP-O-600/4-MSW 149151 1 BP-O-600/7-MSW 149152 1 BP-O-600/10-MSW 149153 1 BP-O-600/12-MSW 149154 1 BP-O-600/15-MSW 149155 1 BP-O-800/4-MSW 149156 1 BP-O-800/7-MSW 149157 1 BP-O-800/10-MSW 149158 1 BP-O-800/12-MSW 149159 1 BP-O-800/15-MSW 149160 1 BP-O-1000/10-MSW 149161 1 BP-O-1000/12-MSW 149162 1 BP-O-1000/15-MSW 149163 1 BP-O-1200/12-MSW 149164 1 BP-O-1200/15-MSW 149165 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Rotary door handle, Grey  wa_vt04713

4 Distribution Boards  Surface-Mounting Installation Distribution Boards - Fully Assembled, IP30, fire resistance, BP-O-...-EW • including base frame, side panels, top/bottom panels and door• including cable entry at the top, with pass-through flange• with Bottom Panel blind• fire resistance• assembling from the base frame - no mounting side wall MSW 400 / 460 / 350400 / 760 /650400 / 1060 / 950400 / 1260 / 1150400 / 1560 / 1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 460 / 350800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 1450 BP-O-400/4-EW 116614 1 BP-O-400/7-EW 116615 1 BP-O-400/10-EW 116616 1 BP-O-400/12-EW 116617 1 BP-O-400/15-EW 116618 1 BP-O-600/4-EW 116619 1 BP-O-600/7-EW 116620 1 BP-O-600/10-EW 116621 1 BP-O-600/12-EW 116622 1 BP-O-600/15-EW 116623 1 BP-O-800/4-EW 116624 1 BP-O-800/7-EW 116625 1 BP-O-800/10-EW 116626 1 BP-O-800/12-EW 116627 1 BP-O-800/15-EW 116628 1 BP-O-1000/10-EW 116629 1 BP-O-1000/12-EW 116630 1 BP-O-1000/15-EW 116631 1 Width / Outside Height (mm) / MU Type Designation Article No. Units per package Rotary door handle, Grey wa_vt23813 400 / 460 / 350400 / 760 /650400 / 1060 / 950400 / 1260 / 1150400 / 1560 / 1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 460 / 350800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 1450 BP-O-400/4-EW-W 116632 1 BP-O-400/7-EW-W 116633 1 BP-O-400/10-EW-W 116634 1 BP-O-400/12-EW-W 116635 1 BP-O-400/15-EW-W 116636 1 BP-O-600/4-EW-W 116637 1 BP-O-600/7-EW-W 116638 1 BP-O-600/10-EW-W 116639 1 BP-O-600/12-EW-W 116640 1 BP-O-600/15-EW-W 116641 1 BP-O-800/4-EW-W 116642 1 BP-O-800/7-EW-W 116643 1 BP-O-800/10-EW-W 116644 1 BP-O-800/12-EW-W 116645 1 BP-O-800/15-EW-W 116646 1 BP-O-1000/10-EW-W 116647 1 BP-O-1000/12-EW-W 116648 1 BP-O-1000/15-EW-W 116649 1 wa_vt23713 Rotary door handle, White

5 Distribution Boards  Surface-Mounting Istallation Distribution Boards - Flatpack, IP30, BP-O-…FLAT • incl. Base frame, side panels, top/bottom panels and door (rotary door handle)• including cable entry at the top with pass-through flange• with Bottom Panel blind• assembling from the base frame - no mounting side wall MSW 600 / 760 / 96600 / 1060 / 144600 / 1260 / 168600 / 1560 / 216800 / 1060 / 210800 / 1260 / 245800 / 1560 / 315 BP-O-600/7-FLAT 113170 1 BP-O-600/10-FLAT 113171 1 BP-O-600/12-FLAT 113172 1 BP-O-600/15-FLAT 113173 1 BP-O-800/10-FLAT 113174 1 BP-O-800/12-FLAT 113175 1 BP-O-800/15-FLAT 113176 1 Width / Outside Height (mm) / MU Type Designation Article No. Units per package Rotary door handle, Grey VT10808 600 / 760 / 96600 / 1060 / 144600 / 1260 / 168600 / 1560 / 216800 / 1060 / 210800 / 1260 / 245800 / 1560 / 315 BP-O-600/7-FLAT-W 113177 1 BP-O-600/10-FLAT-W 113178 1 BP-O-600/12-FLAT-W 113179 1 BP-O-600/15-FLAT-W 113180 1 BP-O-800/10-FLAT-W 113181 1 BP-O-800/12-FLAT-W 113182 1 BP-O-800/15-FLAT-W 113183 1 Rotary door handle, White

6 Distribution Boards  Surface-Mounting Installation Distribution Board - Components Base Frame, BP-MF • including base plate, 4 towers and screws 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 / 1150400 / 1560 / 1450600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 460 / 350800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501200 / 1260 / 11501200 / 1560 / 1450 BP-MF-400/4 286653 1 BP-MF-400/7 286654 1 BP-MF-400/10 286655 1 BP-MF-400/12 286656 1 BP-MF-400/15 286657 1 BP-MF-600/4 286658 1 BP-MF-600/7 286659 1 BP-MF-600/10 286660 1 BP-MF-600/12 286661 1 BP-MF-600/15 286662 1 BP-MF-800/4 286663 1 BP-MF-800/7 286664 1 BP-MF-800/10 286665 1 BP-MF-800/12 286666 1 BP-MF-800/15 286667 1 BP-MF-1000/10 293521 1 BP-MF-1000/12 293522 1 BP-MF-1000/15 293523 1 BP-MF-1200/12 293524 1 BP-MF-1200/15 293525 1 Grey VT11404 Width / Outside Height / Front plate Height (mm) Type Designation Article No. Units per package Top/Bottom Panels, BP-TBP • pair (for top and bottom), screws included• with or without opening for cable entry 400 / blind (without cutout)600 / blind (without cutout)800 / blind (without cutout)1000 / blind (without cutout)1200 / blind (without cutout)400 / with opening for cable entry600 / with opening for cable entry800 / with opening for cable entry1000 / with opening for cable entry1200 / with opening for cable entry BP-TBP-400-BL 286698 1 BP-TBP-600-BL 286700 1 BP-TBP-800-BL 286702 1 BP-TBP-1000-BL 293550 1 BP-TBP-1200-BL 293554 1 BP-TBP-400-CE 286699 1 BP-TBP-600-CE 286701 1 BP-TBP-800-CE 286703 1 BP-TBP-1000-CE 293552 1 BP-TBP-1200-CE 293556 1 wa_vt02213 Width / Description Type Designation Article No. Units per package White 400 / blind (without cutout)600 / blind (without cutout)800 / blind (without cutout)1000 / blind (without cutout)1200 / blind (without cutout)400 / with opening for cable entry600 / with opening for cable entry800 / with opening for cable entry1000 / with opening for cable entry1200 / with opening for cable entry BP-TBP-400-BL-W 292420 1 BP-TBP-600-BL-W 292422 1 BP-TBP-800-BL-W 292424 1 BP-TBP-1000-BL-W 293551 1 BP-TBP-1200-BL-W 293555 1 BP-TBP-400-CE-W 292421 1 BP-TBP-600-CE-W 292423 1 BP-TBP-800-CE-W 292425 1 BP-TBP-1000-CE-W 293553 1 BP-TBP-1200-CE-W 293557 1 wa_vt51213 VT16504 VT03605

7 Distribution Boards  Grey Top/Bottom Panels, BP-TBP1 • single item, screws included• with or without opening for cable entry 400 / blind (without cutout)600 / blind (without cutout)800 / blind (without cutout)1000 / blind (without cutout)1200 / blind (without cutout)400 / with opening for cable entry600 / with opening for cable entry800 / with opening for cable entry1000 / with opening for cable entry1200 / with opening for cable entry BP-TBP1-400-BL 144689 1 BP-TBP1-600-BL 144700 1 BP-TBP1-800-BL 144701 1 BP-TBP1-1000-BL 144702 1 BP-TBP1-1200-BL 144703 1 BP-TBP1-400-CE 144704 1 BP-TBP1-600-CE 144705 1 BP-TBP1-800-CE 144706 1 BP-TBP1-1000-CE 144707 1 BP-TBP1-1200-CE 144708 1 wa_vt02213 Width / Description Type Designation Article No. Units per package White 400 / blind (without cutout)600 / blind (without cutout)800 / blind (without cutout)1000 / blind (without cutout)1200 / blind (without cutout)400 / with opening for cable entry600 / with opening for cable entry800 / with opening for cable entry1000 / with opening for cable entry1200 / with opening for cable entry BP-TBP1-400-BL-W 144709 1 BP-TBP1-600-BL-W 144710 1 BP-TBP1-800-BL-W 144711 1 BP-TBP1-1000-BL-W 144712 1 BP-TBP1-1200-BL-W 144713 1 BP-TBP1-400-CE-W 144714 1 BP-TBP1-600-CE-W 144715 1 BP-TBP1-800-CE-W 144716 1 BP-TBP1-1000-CE-W 144717 1 BP-TBP1-1200-CE-W 144718 1 vt03605

8 Distribution Boards  Grey Cable Entry/Flange Plate, BP-FLP 400 / blind600 / blind800 / blind1000 / blind1200 / blind BP-FLP-400-BL 286704 1 BP-FLP-600-BL 286707 1 BP-FLP-800-BL 286710 1 BP-FLP-1000-BL 293558 1 BP-FLP-1200-BL 293564 1 Width (mm) / Description Type Designation Article No. Units per package 400 / pass-through flange600 / pass-through flange800 / pass-through flange1000 / pass-through flange1200 / pass-through flange BP-FLP-400-2K 286705 1 BP-FLP-600-2K 286708 1 BP-FLP-800-2K 286711 1 BP-FLP-1000-2K 293560 1 BP-FLP-1200-2K 293566 1 VT00505 400 / prepared for F3A flanges600 / prepared for F3A flanges800 / prepared for F3A flanges1000 / prepared for F3A flanges1200 / prepared for F3A flanges BP-FLP-400-F3A 286706 1 BP-FLP-600-F3A 286709 1 BP-FLP-800-F3A 286712 1 BP-FLP-1000-F3A 293562 1 BP-FLP-1200-F3A 293568 1 White 400 / blind600 / blind800 / blind1000 / blind1200 / blind BP-FLP-400-BL-W 292426 1 BP-FLP-600-BL-W 292429 1 BP-FLP-800-BL-W 292432 1 BP-FLP-1000-BL-W 293559 1 BP-FLP-1200-BL-W 293565 1 400 / pass-through flange600 / pass-through flange800 / pass-through flange1000 / pass-through flange1200 / pass-through flange BP-FLP-400-2K-W 292427 1 BP-FLP-600-2K-W 292430 1 BP-FLP-800-2K-W 292433 1 BP-FLP-1000-2K-W 293561 1 BP-FLP-1200-2K-W 293567 1 VT02705 400 / prepared for F3A flanges600 / prepared for F3A flanges800 / prepared for F3A flanges1000 / prepared for F3A flanges1200 / prepared for F3A flanges BP-FLP-400-F3A-W 292428 1 BP-FLP-600-F3A-W 292431 1 BP-FLP-800-F3A-W 292434 1 BP-FLP-1000-F3A-W 293563 1 BP-FLP-1200-F3A-W 293569 1 for IP30 applications, for surface- and floor standing boards VT00705 for IP54 applications, for surface- and floor standing boards VT00605 for IP54 applications, for surface- and floor standing boards VT02805 for IP30 applications, for surface- and floor standing boards VT02905

9 Distribution Boards  Grey Shift-back flange, BP-FLP-…-VS • for IP30 applications, for surface- and floor standing boards• flange rotable for inside and outside mounting• for wall mounting and floor standing boards with a width of 400, 600, 800 mm is one shift-back flange necessary • for floor standing boards with a width of 1000 and 1200 mm two shift-back flanges, width 600 and 400 mm or width 600 and 600 mm are necessary 40060080010001200 BP-FLP-400-VS 119355 1 BP-FLP-600-VS 119356 1 BP-FLP-800-VS 119357 1 BP-FLP-1000-VS 119358 1 BP-FLP-1200-VS 119359 1 VT13208 Width (mm) Type Designation Article No. Units per package White 40060080010001200 BP-FLP-400-VS-W 131573 1 BP-FLP-600-VS-W 131574 1 BP-FLP-800-VS-W 131575 1 BP-FLP-1000-VS-W 131576 1 BP-FLP-1200-VS-W 131577 1 14 cables Ø 11mm8 cables Ø 15mm2 cables Ø 28mm ZSD-2K/FLA 272166 1 Pass-through Flange ZSD-2K/FLA F3A Flanges Type Designation Article No. Units per package Blind flange Blind flange sheet-steel Flange with ventilating 4xM16, 6xM25/16, 8xM32/20 2xM20, 8xM25/16, 4xM32/20,1xM50/32 2xM16, 12xM20, 2xM40/25,2xM50/32 24xM16, 13xM20 2 Grommets for cables up to Ø 70mm Cellular rubber insertion flange40 cables Ø 10-13mm4 cables Ø 17-21mm2 cables Ø 27-30mm F3A-0 074182 1 F3A-XP 113426 1 F3A-V 149194 1 F3A-4 081301 1 F3A-8 091468 1 F3A-12 076555 1 F3A-34 078928 1 F3A-KTD 083674 1 F3A-D 010145 1 for IP54 applications, for surface- and floor standing boards VT17407, VT09208, VT28210, VT17507, VT17307, VT17607, VT17707, VT17807, VT17207 pass-through flange for diverse wire cross-section, for IP30 applications wa_vt07113 Grey Cover 2K Flange, 2K/BLIND • flange cover sheet steel for 2K pass-through flange 2K/BLIND 151178 1 Width (mm) Type Designation Article No. Units per package

10 Distribution Boards  Grey Side Panels, BP-SP • pair (for left and right side), screws included• assembling from the base frame 460760106012601560 BP-SP-4 286693 1 BP-SP-7 286694 1 BP-SP-10 286695 1 BP-SP-12 286696 1 BP-SP-15 286697 1 VT16704, VT16804 Outside Height (mm) Type Designation Article No. Units per package White 460760106012601560 BP-SP-4-W 292415 1 BP-SP-7-W 292416 1 BP-SP-10-W 292417 1 BP-SP-12-W 292418 1 BP-SP-15-W 292419 1 VT03805, VT03905 Grey Side Panels, BP-SP-MSW • pair (for left and right side), screws included• for MSW applications 460760106012601560 BPZ-SP-MSW-4 111339 1 BPZ-SP-MSW-7 111341 1 BPZ-SP-MSW-10 111342 1 BPZ-SP-MSW-12 111343 1 BPZ-SP-MSW-15 111344 1 VT12007, VT12007 Outside Height (mm) Type Designation Article No. Units per package White 460760106012601560 BPZ-SP-MSW-4-W 111345 1 BPZ-SP-MSW-7-W 111347 1 BPZ-SP-MSW-10-W 111348 1 BPZ-SP-MSW-12-W 111349 1 BPZ-SP-MSW-15-W 111350 1

11 Distribution Boards  Rotary door handle, Grey Sheet Steel Doors IP30, BP-DS 400 / 400400 / 700400 / 1000400 / 1200400 / 1500600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 400800 / 700800 / 1000800 / 1200800 / 1500600+400L / 1000 600+400L / 1200 600+400L / 1500 600+600L / 1200 600+600L / 1500 BP-DS-400/4 286713 1 BP-DS-400/7 286714 1 BP-DS-400/10 286715 1 BP-DS-400/12 286716 1 BP-DS-400/15 286717 1 BP-DS-600/4 286718 1 BP-DS-600/7 286719 1 BP-DS-600/10 286720 1 BP-DS-600/12 286721 1 BP-DS-600/15 286722 1 BP-DS-800/4 286723 1 BP-DS-800/7 286724 1 BP-DS-800/10 286725 1 BP-DS-800/12 286726 1 BP-DS-800/15 286727 1 BP-DS-600/10 286720 1 BP-DS-400/10-L 293570 1 BP-DS-600/12 286721 1 BP-DS-400/12-L 293572 1 BP-DS-600/15 286722 1 BP-DS-400/15-L 293574 1 BP-DS-600/12 286721 1 BP-DS-600/12-L 293576 1 BP-DS-600/15 286722 1 BP-DS-600/15-L 293578 1 wa_vt80613 Width / Height (mm) Type Designation Article No. Units per package Rotary door handle, White 400 / 400400 / 700400 / 1000400 / 1200400 / 1500600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 400800 / 700800 / 1000800 / 1200800 / 1500600+400L / 1000 600+400L / 1200 600+400L / 1500 600+600L / 1200 600+600L / 1500 BP-DS-400/4-W 292435 1 BP-DS-400/7-W 292436 1 BP-DS-400/10-W 292437 1 BP-DS-400/12-W 292438 1 BP-DS-400/15-W 292439 1 BP-DS-600/4-W 292440 1 BP-DS-600/7-W 292441 1 BP-DS-600/10-W 292442 1 BP-DS-600/12-W 292443 1 BP-DS-600/15-W 292444 1 BP-DS-800/4-W 292445 1 BP-DS-800/7-W 292446 1 BP-DS-800/10-W 292447 1 BP-DS-800/12-W 292448 1 BP-DS-800/15-W 292449 1 BP-DS-600/10-W 292442 1 BP-DS-400/10-L-W 293571 1 BP-DS-600/12-W 292443 1 BP-DS-400/12-L-W 293573 1 BP-DS-600/15-W 292444 1 BP-DS-400/15-L-W 293575 1 BP-DS-600/12-W 292443 1 BP-DS-600/12-L-W 293577 1 BP-DS-600/15-W 292444 1 BP-DS-600/15-L-W 293579 1 wa_vt03313

12 Distribution Boards  Clip-down handle, Grey 400 / 400400 / 700400 / 1000400 / 1200400 / 1500600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 400800 / 700800 / 1000800 / 1200800 / 1500 BP-DS-400/4-P 119063 1 BP-DS-400/7-P 119064 1 BP-DS-400/10-P 119065 1 BP-DS-400/12-P 119066 1 BP-DS-400/15-P 119067 1 BP-DS-600/4-P 119068 1 BP-DS-600/7-P 119069 1 BP-DS-600/10-P 119070 1 BP-DS-600/12-P 119071 1 BP-DS-600/15-P 119072 1 BP-DS-800/4-P 119073 1 BP-DS-800/7-P 119074 1 BP-DS-800/10-P 119075 1 BP-DS-800/12-P 119076 1 BP-DS-800/15-P 119077 1 wa_vt03913 Width / Height (mm) Type Designation Article No. Units per package Clip-down handle, White 400 / 400400 / 700400 / 1000400 / 1200400 / 1500600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 400800 / 700800 / 1000800 / 1200800 / 1500 BP-DS-400/4-P-W 119078 1 BP-DS-400/7-P-W 119079 1 BP-DS-400/10-P-W 119080 1 BP-DS-400/12-P-W 119081 1 BP-DS-400/15-P-W 119082 1 BP-DS-600/4-P-W 119083 1 BP-DS-600/7-P-W 119084 1 BP-DS-600/10-P-W 119085 1 BP-DS-600/12-P-W 119086 1 BP-DS-600/15-P-W 119087 1 BP-DS-800/4-P-W 119088 1 BP-DS-800/7-P-W 119089 1 BP-DS-800/10-P-W 119090 1 BP-DS-800/12-P-W 119091 1 BP-DS-800/15-P-W 119092 1

13 Distribution Boards  Rotary door handle, Grey Transparent Doors (Sheet Steel), IP30, BP-DT 400 / 400400 / 700400 / 1000400 / 1200400 / 1500600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 400800 / 700800 / 1000800 / 1200800 / 1500600+400L / 1000 600+400L / 1200 600+400L / 1500 600+600L / 1200 600+600L / 1500 BP-DT-400/4 286728 1 BP-DT-400/7 286729 1 BP-DT-400/10 286730 1 BP-DT-400/12 286731 1 BP-DT-400/15 286732 1 BP-DT-600/4 286733 1 BP-DT-600/7 286734 1 BP-DT-600/10 286735 1 BP-DT-600/12 286736 1 BP-DT-600/15 286737 1 BP-DT-800/4 286738 1 BP-DT-800/7 286739 1 BP-DT-800/10 286740 1 BP-DT-800/12 286741 1 BP-DT-800/15 286742 1 BP-DT-600/10 286735 1 BP-DT-400/10-L 293580 1 BP-DT-600/12 286736 1 BP-DT-400/12-L 293582 1 BP-DT-600/15 286737 1 BP-DT-400/15-L 293584 1 BP-DT-600/12 286736 1 BP-DT-600/12-L 293586 1 BP-DT-600/15 286737 1 BP-DT-600/15-L 293588 1 wa_vt80813 Width / Height (mm) Type Designation Article No. Units per package Rotary door handle, White 400 / 400400 / 700400 / 1000400 / 1200400 / 1500600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 400800 / 700800 / 1000800 / 1200800 / 1500600+400L / 1000 600+400L / 1200 600+400L / 1500 600+600L / 1200 600+600L / 1500 BP-DT-400/4-W 292450 1 BP-DT-400/7-W 292451 1 BP-DT-400/10-W 292452 1 BP-DT-400/12-W 292453 1 BP-DT-400/15-W 292454 1 BP-DT-600/4-W 292455 1 BP-DT-600/7-W 292456 1 BP-DT-600/10-W 292457 1 BP-DT-600/12-W 292458 1 BP-DT-600/15-W 292459 1 BP-DT-800/4-W 292460 1 BP-DT-800/7-W 292461 1 BP-DT-800/10-W 292462 1 BP-DT-800/12-W 292463 1 BP-DT-800/15-W 292464 1 BP-DT-600/10-W 292457 1 BP-DT-400/10-L-W 293581 1 BP-DT-600/12-W 292458 1 BP-DT-400/12-L-W 293583 1 BP-DT-600/15-W 292459 1 BP-DT-400/15-L-W 293585 1 BP-DT-600/12-W 292458 1 BP-DT-600/12-L-W 293587 1 BP-DT-600/15-W 292459 1 BP-DT-600/15-L-W 293589 1 wa_vt80713

Vertical/Middle Add-on Connection Element, BP-MSL • for different heights• vert. add-on connection element between 2 distr. boards (one next to the other), screws incl.• for surface-mounted boards IP30• for connection of boards with side panel BP-SP• inner side panel are not used, one set is used for both connected boards• to preserve max. opening angle the left board must have left closing door and the right board must have right closing door • add-on with side panel BP-SP 460760106012601560 BP-MSL-4 286746 1 BP-MSL-7 286747 1 BP-MSL-10 286748 1 BP-MSL-12 286749 1 BP-MSL-15 286750 1 Height (mm) Type Designation Article No. Units per package Grey VT16304, VT16904 460760106012601560 BP-MSL-4-W 292468 1 BP-MSL-7-W 292469 1 BP-MSL-10-W 292470 1 BP-MSL-12-W 292471 1 BP-MSL-15-W 292472 1 White VT03405, VT16904 Horizontal/Middle Add-on Connection Element, BP-MFL • for different widths• horiz. add-on connection element between 2 distr. boards (one on top of the other), screws incl.• for surface-mounted boards IP30• bottom panel of the top board and top panel of the bottom board are not used, one set is used for both connected boards 40060080010001200 BP-MFL-400 286743 1 BP-MFL-600 286744 1 BP-MFL-800 286745 1 BP-MFL-1000 111431 1 BP-MFL-1200 111432 1 Width (mm) Type Designation Article No. Units per package Grey VT16204, VT17004 40060080010001200 BP-MFL-400-W 292465 1 BP-MFL-600-W 292466 1 BP-MFL-800-W 292467 1 BP-MFL-1000-W 111433 1 BP-MFL-1200-W 111434 1 White VT03305, VT04005 14 Distribution Boards

15 Distribution Boards  Vertical/Middle Add-on Connection Element, BP-MSL-MSW • for different heights• vert. add-on connection element between 2 distr. boards (one next to the other), screws incl. for MSW applications • for surface-mounted boards IP30• for connection of boards with side panel BP-SP-...-MSW• inner side panel are not used, one set is used for both connected boards• to preserve max. opening angle the left board must have left closing door and the right board must have right closing door 460760106012601560 BP-MSL-MSW-4 111419 1 BP-MSL-MSW-7 111421 1 BP-MSL-MSW-10 111422 1 BP-MSL-MSW-12 111423 1 BP-MSL-MSW-15 111424 1 Height (mm) Type Designation Article No. Units per package Grey vt16304, vt16904 460760106012601560 BP-MSL-MSW-4-W 111425 1 BP-MSL-MSW-7-W 111427 1 BP-MSL-MSW-10-W 111428 1 BP-MSL-MSW-12-W 111429 1 BP-MSL-MSW-15-W 111430 1 White

16 Distribution Boards  Moisture Proof-Surface Mounting Installation Distribution Boards IP54, BPM-O-... • welded construction with door and two-way key bit• open cable entry above, prepared for F3A-Flanges• interior fitting system possible via MSW or Towers• to assemble with MSW, 2 pair Corner Tower Sets BPZ-CTS-S and 1 piece Snap Element BPZ-SNAP-MSW-CTS have to be ordered separately • to assemble on the main frame 2 pieces Frontplate Support BPZ-FPS have to be ordered separately 400 / 460 / 350400 / 760 /650400 / 1060 / 950400 / 1260 / 1150400 / 1560 / 1450600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 460 / 350800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501200 / 1260 / 11501200 / 1560 / 1450 BPM-O-400/4 110837 1 BPM-O-400/7 110838 1 BPM-O-400/10 110839 1 BPM-O-400/12 111020 1 BPM-O-400/15 111021 1 BPM-O-600/4 111022 1 BPM-O-600/7 111023 1 BPM-O-600/10 111024 1 BPM-O-600/12 111025 1 BPM-O-600/15 111026 1 BPM-O-800/4 111027 1 BPM-O-800/7 111028 1 BPM-O-800/10 111029 1 BPM-O-800/12 111030 1 BPM-O-800/15 111031 1 BPM-O-1000/10 111032 1 BPM-O-1000/12 111033 1 BPM-O-1000/15 111034 1 BPM-O-1200/12 111035 1 BPM-O-1200/15 111036 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Two-way key bit, Grey wa_vt17413 400 / 460 / 350400 / 760 /650400 / 1060 / 950400 / 1260 / 1150400 / 1560 / 1450600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 460 / 350800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501200 / 1260 / 11501200 / 1560 / 1450 BPM-O-400/4-W 111057 1 BPM-O-400/7-W 111058 1 BPM-O-400/10-W 111059 1 BPM-O-400/12-W 111060 1 BPM-O-400/15-W 111061 1 BPM-O-600/4-W 111062 1 BPM-O-600/7-W 111063 1 BPM-O-600/10-W 111064 1 BPM-O-600/12-W 111065 1 BPM-O-600/15-W 111066 1 BPM-O-800/4-W 111067 1 BPM-O-800/7-W 111068 1 BPM-O-800/10-W 111069 1 BPM-O-800/12-W 111070 1 BPM-O-800/15-W 111071 1 BPM-O-1000/10-W 111072 1 BPM-O-1000/12-W 111073 1 BPM-O-1000/15-W 111074 1 BPM-O-1200/12-W 111075 1 BPM-O-1200/15-W 111076 1 Two-way key bit, White wa_vt17513

400 / 460 / 350400 / 760 /650400 / 1060 / 950400 / 1260 / 1150400 / 1560 / 1450600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 460 / 350800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501200 / 1260 / 11501200 / 1560 / 1450 BPM-O-400/4-P 116653 1 BPM-O-400/7-P 116654 1 BPM-O-400/10-P 116655 1 BPM-O-400/12-P 116656 1 BPM-O-400/15-P 116657 1 BPM-O-600/4-P 116658 1 BPM-O-600/7-P 116659 1 BPM-O-600/10-P 116660 1 BPM-O-600/12-P 116661 1 BPM-O-600/15-P 116662 1 BPM-O-800/4-P 116663 1 BPM-O-800/7-P 116664 1 BPM-O-800/10-P 116665 1 BPM-O-800/12-P 116666 1 BPM-O-800/15-P 116667 1 BPM-O-1000/10-P 116668 1 BPM-O-1000/12-P 116669 1 BPM-O-1000/15-P 116670 1 BPM-O-1200/12-P 116671 1 BPM-O-1200/15-P 116672 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Clip-down handle, Grey wa_vt03613 17 Distribution Boards  600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 14501000 / 1560 / 1450 BPM-O-600/7-F 174358 1  BPM-O-600/10-F 174359 1  BPM-O-600/12-F 174360 1  BPM-O-600/15-F 174361 1  BPM-O-800/10-F 174364 1  BPM-O-800/12-F 174365 1  BPM-O-800/15-F 174366 1  BPM-O-1000/15-F 174369 1  Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Basic Enclosure without door, Grey 570 / 730570 / 1030570 / 1230570 / 1530770 / 1030770 / 1230770 / 1530600+370 / 1530 BPZ-DMS-600/7-P 174372 1  BPZ-DMS-600/10-P 174373 1  BPZ-DMS-600/12-P 174374 1  BPZ-DMS-600/15-P 174341 1  BPZ-DMS-800/10-P 174344 1  BPZ-DMS-800/12-P 174345 1  BPZ-DMS-800/15-P 174346 1  BPZ-DMS-1000/15-P 174349 1  Width / Height (mm) Type Designation Article No. Units per package Steel sheet Doors with clip-down handle, Grey, IP54, BPZ-DMS

18 Distribution Boards  370 / 430370 / 730370 / 1030370 / 1230370 / 1530570 / 430570 / 730570 / 1030570 / 1230570 / 1530770 / 430770 / 730770 / 1030770 / 1230770 / 1530600+370 / 1030600+370 / 1230600+370 / 1530600+570 / 1230600+570 / 1530 BPZ-DMT-400/4-P 173575 1  BPZ-DMT-400/7-P 173576 1  BPZ-DMT-400/10-P 173577 1  BPZ-DMT-400/12-P 173578 1  BPZ-DMT-400/15-P 173579 1  BPZ-DMT-600/4-P 173580 1  BPZ-DMT-600/7-P 173581 1  BPZ-DMT-600/10-P 173582 1  BPZ-DMT-600/12-P 173583 1  BPZ-DMT-600/15-P 173584 1  BPZ-DMT-800/4-P 173587 1  BPZ-DMT-800/7-P 173588 1  BPZ-DMT-800/10-P 173589 1  BPZ-DMT-800/12-P 173590 1  BPZ-DMT-800/15-P 173591 1  BPZ-DMT-1000/10-P 173594 1  BPZ-DMT-1000/12-P 173595 1  BPZ-DMT-1000/15-P 173596 1  BPZ-DMT-1200/12-P 173599 1  BPZ-DMT-1200/15-P 173600 1  Width / Height (mm) Type Designation Article No. Units per package Transparent Doors (steel sheet) with clip-down handle, Grey, IP54, BPZ-DMT

19 Distribution Boards  Flush-Mounting Installation Distribution Boards-Fully Assembled, IP30, BP-U-...-C • including wall-box, top/bottom panels for the wall-Box , flush-mounting door frame and mounting side wall • only for MSW mounting• installation depth 240 mm• including DIN-rail sets• including front plates (150 mm) with device cutout (45 mm) 600 / 700 / 96 / 4600 / 1000 / 144 / 6600 / 1200 / 168 / 7600 / 1500 / 216 / 9800 / 700 / 140 / 4800 / 1000 / 210 / 6800 / 1200 / 245 / 7800 / 1500 / 315 / 9 BP-U-600/7-C 293315 1 BP-U-600/10-C 293316 1 BP-U-600/12-C 293317 1 BP-U-600/15-C 293318 1 BP-U-800/7-C 293319 1 BP-U-800/10-C 293320 1 BP-U-800/12-C 293321 1 BP-U-800/15-C 293322 1 Width / Outside Height (mm) / MU / Rows Type Designation Article No. Units per package Rotary door handle, Grey wa_vt04113 wa_vt04213 600 / 700 / 96 / 4600 / 1000 / 144 / 6600 / 1200 / 168 / 7600 / 1500 / 216 / 9800 / 700 / 140 / 4800 / 1000 / 210 / 6800 / 1200 / 245 / 7800 / 1500 / 315 / 9 BP-U-600/7-C-W 105937 1 BP-U-600/10-C-W 105938 1 BP-U-600/12-C-W 105939 1 BP-U-600/15-C-W 105940 1 BP-U-800/7-C-W 105941 1 BP-U-800/10-C-W 105942 1 BP-U-800/12-C-W 105943 1 BP-U-800/15-C-W 105944 1 Rotary door handle, White

20 Distribution Boards  Flush-Mounting Installation Distribution Boards - 2-Step System Wall Box - for 2-Step System, BPZ-WBO2S • without top/bottom panel  400 / 400400 / 700400 / 1000400 / 1200600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 700800 / 1000800 / 1200800 / 15001000 / 10001000 / 12001000 / 15001200 / 12001200 / 1500 BPZ-WBO2S-400/4/1 293349 1 BPZ-WBO2S-400/7/1 293351 1 BPZ-WBO2S-400/10/1 293353 1 BPZ-WBO2S-400/12/1 293355 1 BPZ-WBO2S-600/4/1 293357 1 BPZ-WBO2S-600/7/1 293359 1 BPZ-WBO2S-600/10/1 293361 1 BPZ-WBO2S-600/12/1 293363 1 BPZ-WBO2S-600/15/1 293365 1 BPZ-WBO2S-800/7/1 293371 1 BPZ-WBO2S-800/10/1 293373 1 BPZ-WBO2S-800/12/1 293375 1 BPZ-WBO2S-800/15/1 293377 1 BPZ-WBO2S-1000/10/1 293383 1 BPZ-WBO2S-1000/12/1 293385 1 BPZ-WBO2S-1000/15/1 293387 1 BPZ-WBO2S-1200/12/1 293393 1 BPZ-WBO2S-1200/15/1 293395 1 Width / Outside Height (mm) Type Designation Article No. Units per package Depth 1 (180 mm) wa_vt04513 400 / 400400 / 700400 / 1000400 / 1200600 / 400600 / 700600 / 1000600 / 1200600 / 1500800 / 700800 / 1000800 / 1200800 / 15001000 / 10001000 / 12001000 / 15001200 / 12001200 / 1500 BPZ-WBO2S-400/4/2 293350 1 BPZ-WBO2S-400/7/2 293352 1 BPZ-WBO2S-400/10/2 293354 1 BPZ-WBO2S-400/12/2 293356 1 BPZ-WBO2S-600/4/2 293358 1 BPZ-WBO2S-600/7/2 293360 1 BPZ-WBO2S-600/10/2 293362 1 BPZ-WBO2S-600/12/2 293364 1 BPZ-WBO2S-600/15/2 293366 1 BPZ-WBO2S-800/7/2 293372 1 BPZ-WBO2S-800/10/2 293374 1 BPZ-WBO2S-800/12/2 293376 1 BPZ-WBO2S-800/15/2 293378 1 BPZ-WBO2S-1000/10/2 293384 1 BPZ-WBO2S-1000/12/2 293386 1 BPZ-WBO2S-1000/15/2 293388 1 BPZ-WBO2S-1200/12/2 293394 1 BPZ-WBO2S-1200/15/2 293396 1 Depth 2 (240 mm) 400 / 2600 / 2800 / 21000 / 21200 / 2 BPZ-WB2STBP-400/2 293401 1 BPZ-WB2STBP-600/2 293402 1 BPZ-WB2STBP-800/2 293403 1 BPZ-WB2STBP-1000/2 293404 1 BPZ-WB2STBP-1200/2 293405 1 Top/Bottom Panel for Wall Box, Depth 2 (240 mm), BPZ-WB2STBP Width (mm) / Depth Type Designation Article No. Units per package VT07005

21 Distribution Boards  2-Step Flush-Mounting Door Frame, with Door, BP-U 400 / 400 / 350400 / 700 / 650400 / 1000 / 950400 / 1200 / 1150600 / 400 / 350600 / 700 / 650600 / 1000 / 950600 / 1200 / 1150600 / 1500 / 1450800 / 700 / 650800 / 1000 / 950800 / 1200 / 1150800 / 1500 / 14501000 / 1000 / 9501000 / 1200 / 11501000 / 1500 / 14501200 / 1200 / 11501200 / 1500 / 1450 BP-U-400/4 100977 1 BP-U-400/7 100978 1 BP-U-400/10 100979 1 BP-U-400/12 100980 1 BP-U-600/4 100981 1 BP-U-600/7 100982 1 BP-U-600/10 100983 1 BP-U-600/12 100984 1 BP-U-600/15 100985 1 BP-U-800/7 100986 1 BP-U-800/10 100987 1 BP-U-800/12 100988 1 BP-U-800/15 100989 1 BP-U-1000/10 100990 1 BP-U-1000/12 100991 1 BP-U-1000/15 100992 1 BP-U-1200/12 100993 1 BP-U-1200/15 100994 1 Width / Outside Height / Front plate Height (mm) Type Designation Article No. Units per package Mounting Side Wall, BPZ-MSW 3506509501150145016501950 BPZ-MSW-4 293406 1 pair BPZ-MSW-7 293407 1 pair BPZ-MSW-10 293408 1 pair BPZ-MSW-12 293409 1 pair BPZ-MSW-15 293410 1 pair BPZ-MSW-17 293411 1 pair BPZ-MSW-20 293412 1 pair Frontplate Height (mm) Type Designation Article No. Units per package wa_vt04413 Rotary door handle, Grey wa_vt04313 • application without snap element, fixed mounting• enable assembling into mounting frame and connection of devices outside of the board• for assembling of inner equipment into flush-mounted boards• enables also a comfort assembling of installation devices into surface-mounted and floor- standing boards wa_vt51513

22 Distribution Boards  Flush-Mounting Installation Distribution Boards - 3-Step System • only MSW mounting Wall Box - for 3-Step System, BPZ-WBO3S 400 / 460400 / 760400 / 1060400 / 1260600 / 460600 / 760600 / 1060600 / 1260600 / 1560600 / 1760600 / 2060800 / 760800 / 1060800 / 1260800 / 1560800 / 1760800 / 20601000 / 10601000 / 12601000 / 15601000 / 17601000 / 20601200 / 12601200 / 15601200 / 17601200 / 2060 BPZ-WB3S-400/4/1 111097 1 BPZ-WB3S-400/7/1 111098 1 BPZ-WB3S-400/10/1 111099 1 BPZ-WB3S-400/12/1 111100 1 BPZ-WB3S-600/4/1 111101 1 BPZ-WB3S-600/7/1 111102 1 BPZ-WB3S-600/10/1 111103 1 BPZ-WB3S-600/12/1 111104 1 BPZ-WB3S-600/15/1 111105 1 BPZ-WB3S-600/17/1 111106 1 BPZ-WB3S-600/20/1 111107 1 BPZ-WB3S-800/7/1 111108 1 BPZ-WB3S-800/10/1 111109 1 BPZ-WB3S-800/12/1 111110 1 BPZ-WB3S-800/15/1 111111 1 BPZ-WB3S-800/17/1 111112 1 BPZ-WB3S-800/20/1 111113 1 BPZ-WB3S-1000/10/1 111114 1 BPZ-WB3S-1000/12/1 111115 1 BPZ-WB3S-1000/15/1 111116 1 BPZ-WB3S-1000/17/1 111117 1 BPZ-WB3S-1000/20/1 111118 1 BPZ-WB3S-1200/12/1 111119 1 BPZ-WB3S-1200/15/1 111120 1 BPZ-WB3S-1200/17/1 111121 1 BPZ-WB3S-1200/20/1 111122 1 Width / Outside Height (mm) Type Designation Article No. Units per package Depth 1 (180 mm) wa_vt17913 400 / 460400 / 760400 / 1060400 / 1260600 / 460600 / 760600 / 1060600 / 1260600 / 1560600 / 1760600 / 2060800 / 760800 / 1060800 / 1260800 / 1560800 / 1760800 / 20601000 / 10601000 / 12601000 / 15601000 / 17601000 / 20601200 / 12601200 / 15601200 / 17601200 / 2060 BPZ-WB3S-400/4/2 111123 1 BPZ-WB3S-400/7/2 111124 1 BPZ-WB3S-400/10/2 111125 1 BPZ-WB3S-400/12/2 111126 1 BPZ-WB3S-600/4/2 111127 1 BPZ-WB3S-600/7/2 111128 1 BPZ-WB3S-600/10/2 111129 1 BPZ-WB3S-600/12/2 111130 1 BPZ-WB3S-600/15/2 111131 1 BPZ-WB3S-600/17/2 111132 1 BPZ-WB3S-600/20/2 111133 1 BPZ-WB3S-800/7/2 111134 1 BPZ-WB3S-800/10/2 111135 1 BPZ-WB3S-800/12/2 111136 1 BPZ-WB3S-800/15/2 111137 1 BPZ-WB3S-800/17/2 111138 1 BPZ-WB3S-800/20/2 111139 1 BPZ-WB3S-1000/10/2 111140 1 BPZ-WB3S-1000/12/2 111141 1 BPZ-WB3S-1000/15/2 111142 1 BPZ-WB3S-1000/17/2 111143 1 BPZ-WB3S-1000/20/2 111144 1 BPZ-WB3S-1200/12/2 111145 1 BPZ-WB3S-1200/15/2 111146 1 BPZ-WB3S-1200/17/2 111147 1 BPZ-WB3S-1200/20/2 111148 1 Depth 2 (240 mm) 180240 BPZ-BR/WB3S/1 111337 1 BPZ-BR/WB3S/2 111338 1 Coupling Flange, BPZ-BR/WB3S/ • for mutual connection of wall boxes BPZ-WB3S• defines respective distance between wall boxes Depth (mm) Type Designation Article No. Units per package VT11807

23 Distribution Boards  Rear Walls,  BPZ-RP... 400 / 460400 / 760400 / 1060400 / 1260600 / 460600 / 760600 / 1060600 / 1260600 / 1560600 / 1760600 / 2060800 / 760800 / 1060800 / 1260800 / 1560800 / 1760800 / 20601000 / 10601000 / 12601000 / 15601000 / 17601000 / 20601200 / 12601200 / 15601200 / 17601200 / 2060 BPZ-RP-400/4 111285 1 BPZ-RP-400/7 111286 1 BPZ-RP-400/10 111287 1 BPZ-RP-400/12 111288 1 BPZ-RP-600/4 111289 1 BPZ-RP-600/7 111290 1 BPZ-RP-600/10 111291 1 BPZ-RP-600/12 111292 1 BPZ-RP-600/15 111293 1 BPZ-RP-600/17 111294 1 BPZ-RP-600/20 111295 1 BPZ-RP-800/7 111296 1 BPZ-RP-800/10 111297 1 BPZ-RP-800/12 111298 1 BPZ-RP-800/15 111299 1 BPZ-RP-800/17 111300 1 BPZ-RP-800/20 111301 1 BPZ-RP-1000/10 111302 1 BPZ-RP-1000/12 111303 1 BPZ-RP-1000/15 111304 1 BPZ-RP-1000/17 111305 1 BPZ-RP-1000/20 111306 1 BPZ-RP-1200/12 111307 1 BPZ-RP-1200/15 111308 1 BPZ-RP-1200/17 111309 1 BPZ-RP-1200/20 111310 1 Width / Height (mm) Type Designation Article No. Units per package Steel Sheet VT1298 400 / 460400 / 760400 / 1060400 / 1260600 / 460600 / 760600 / 1060600 / 1260600 / 1560600 / 1760600 / 2060800 / 760800 / 1060800 / 1260800 / 1560800 / 1760800 / 20601000 / 10601000 / 12601000 / 15601000 / 17601000 / 20601200 / 12601200 / 15601200 / 17601200 / 2060 BPZ-RPP-400/4 111311 1 BPZ-RPP-400/7 111312 1 BPZ-RPP-400/10 111313 1 BPZ-RPP-400/12 111314 1 BPZ-RPP-600/4 111315 1 BPZ-RPP-600/7 111316 1 BPZ-RPP-600/10 111317 1 BPZ-RPP-600/12 111318 1 BPZ-RPP-600/15 111319 1 BPZ-RPP-600/17 111320 1 BPZ-RPP-600/20 111321 1 BPZ-RPP-800/7 111322 1 BPZ-RPP-800/10 111323 1 BPZ-RPP-800/12 111324 1 BPZ-RPP-800/15 111325 1 BPZ-RPP-800/17 111326 1 BPZ-RPP-800/20 111327 1 BPZ-RPP-1000/10 111328 1 BPZ-RPP-1000/12 111329 1 BPZ-RPP-1000/15 111330 1 BPZ-RPP-1000/17 111331 1 BPZ-RPP-1000/20 111332 1 BPZ-RPP-1200/12 111333 1 BPZ-RPP-1200/15 111334 1 BPZ-RPP-1200/17 111335 1 BPZ-RPP-1200/20 111336 1 Plastic VT1398

24 Distribution Boards  3-Step Flush-Mounting Door Frame IP30, with Door, BP-U-3S... 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BP-U-3S-400/4 111149 1 BP-U-3S-400/7 111150 1 BP-U-3S-400/10 111151 1 BP-U-3S-400/12 111152 1 BP-U-3S-600/4 111153 1 BP-U-3S-600/7 111154 1 BP-U-3S-600/10 111155 1 BP-U-3S-600/12 111156 1 BP-U-3S-600/15 111157 1 BP-U-3S-600/17 111158 1 BP-U-3S-600/20 111159 1 BP-U-3S-800/7 111162 1 BP-U-3S-800/10 111163 1 BP-U-3S-800/12 111164 1 BP-U-3S-800/15 111165 1 BP-U-3S-800/17 111166 1 BP-U-3S-800/20 111167 1 BP-U-3S-1000/10 111170 1 BP-U-3S-1000/12 111171 1 BP-U-3S-1000/15 111172 1 BP-U-3S-1000/17 111173 1 BP-U-3S-1000/20 111174 1 BP-U-3S-1200/12 111177 1 BP-U-3S-1200/15 111178 1 BP-U-3S-1200/17 111179 1 BP-U-3S-1200/20 111180 1 Width / Outside Height / Front plate Height (mm) Type Designation Article No. Units per package Rotary door handle, Grey wa_vt17613 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BP-U-3S-400/4-W 111183 1 BP-U-3S-400/7-W 111184 1 BP-U-3S-400/10-W 111185 1 BP-U-3S-400/12-W 111186 1 BP-U-3S-600/4-W 111187 1 BP-U-3S-600/7-W 111188 1 BP-U-3S-600/10-W 111189 1 BP-U-3S-600/12-W 111190 1 BP-U-3S-600/15-W 111191 1 BP-U-3S-600/17-W 111192 1 BP-U-3S-600/20-W 111193 1 BP-U-3S-800/7-W 111196 1 BP-U-3S-800/10-W 111197 1 BP-U-3S-800/12-W 111198 1 BP-U-3S-800/15-W 111199 1 BP-U-3S-800/17-W 111200 1 BP-U-3S-800/20-W 111201 1 BP-U-3S-1000/10-W 111204 1 BP-U-3S-1000/12-W 111205 1 BP-U-3S-1000/15-W 111206 1 BP-U-3S-1000/17-W 111207 1 BP-U-3S-1000/20-W 111208 1 BP-U-3S-1200/12-W 111211 1 BP-U-3S-1200/15-W 111212 1 BP-U-3S-1200/17-W 111213 1 BP-U-3S-1200/20-W 111214 1 Rotary door handle, White

400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BP-U-3S-400/4-P-W 119111 1 BP-U-3S-400/7-P-W 119112 1 BP-U-3S-400/10-P-W 119113 1 BP-U-3S-400/12-P-W 119114 1 BP-U-3S-600/4-P-W 119115 1 BP-U-3S-600/7-P-W 119116 1 BP-U-3S-600/10-P-W 119117 1 BP-U-3S-600/12-P-W 119118 1 BP-U-3S-600/15-P-W 119119 1 BP-U-3S-600/17-P-W 111194 1 BP-U-3S-600/20-P-W 111195 1 BP-U-3S-800/7-P-W 119120 1 BP-U-3S-800/10-P-W 119121 1 BP-U-3S-800/12-P-W 119122 1 BP-U-3S-800/15-P-W 119123 1 BP-U-3S-800/17-P-W 111202 1 BP-U-3S-800/20-P-W 111203 1 BP-U-3S-1000/10-P-W 119124 1 BP-U-3S-1000/12-P-W 119125 1 BP-U-3S-1000/15-P-W 119126 1 BP-U-3S-1000/17-P-W 111209 1 BP-U-3S-1000/20-P-W 111210 1 BP-U-3S-1200/12-P-W 119127 1 BP-U-3S-1200/15-P-W 119128 1 BP-U-3S-1200/17-P-W 111215 1 BP-U-3S-1200/20-P-W 111216 1 Clip-down handle, White Width / Outside Height / Front plate Height (mm) Type Designation Article No. Units per package 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BP-U-3S-400/4-P 119093 1 BP-U-3S-400/7-P 119094 1 BP-U-3S-400/10-P 119095 1 BP-U-3S-400/12-P 119096 1 BP-U-3S-600/4-P 119097 1 BP-U-3S-600/7-P 119098 1 BP-U-3S-600/10-P 119099 1 BP-U-3S-600/12-P 119100 1 BP-U-3S-600/15-P 119101 1 BP-U-3S-600/17-P 111160 1 BP-U-3S-600/20-P 111161 1 BP-U-3S-800/7-P 119102 1 BP-U-3S-800/10-P 119103 1 BP-U-3S-800/12-P 119104 1 BP-U-3S-800/15-P 119105 1 BP-U-3S-800/17-P 111168 1 BP-U-3S-800/20-P 111169 1 BP-U-3S-1000/10-P 119106 1 BP-U-3S-1000/12-P 119107 1 BP-U-3S-1000/15-P 119108 1 BP-U-3S-1000/17-P 111175 1 BP-U-3S-1000/20-P 111176 1 BP-U-3S-1200/12-P 119109 1 BP-U-3S-1200/15-P 119110 1 BP-U-3S-1200/17-P 111181 1 BP-U-3S-1200/20-P 111182 1 Clip-down handle, Grey 25 Distribution Boards

26 Distribution Boards  3-Step Flush-Mounting Door Frame IP30, with Door, fireproof, BP-U-3S...-EW 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 1950 BP-U-3S-400/4-EW 116570 1 BP-U-3S-400/7-EW 116571 1 BP-U-3S-400/10-EW 116572 1 BP-U-3S-400/12-EW 116573 1 BP-U-3S-600/4-EW 116574 1 BP-U-3S-600/7-EW 116575 1 BP-U-3S-600/10-EW 116576 1 BP-U-3S-600/12-EW 116577 1 BP-U-3S-600/15-EW 116578 1 BP-U-3S-600/17-EW 116579 1 BP-U-3S-600/20-EW 116580 1 BP-U-3S-800/7-EW 116581 1 BP-U-3S-800/10-EW 116582 1 BP-U-3S-800/12-EW 116583 1 BP-U-3S-800/15-EW 116584 1 BP-U-3S-800/17-EW 116585 1 BP-U-3S-800/20-EW 116586 1 BP-U-3S-1000/10-EW 116587 1 BP-U-3S-1000/12-EW 116588 1 BP-U-3S-1000/15-EW 116589 1 BP-U-3S-1000/17-EW 116590 1 BP-U-3S-1000/20-EW 116591 1 Width / Outside Height / Front plate Height (mm) Type Designation Article No. Units per package Rotary door handle, Grey wa_vt23913 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 1950 BP-U-3S-400/4-EW-W 116592 1 BP-U-3S-400/7-EW-W 116593 1 BP-U-3S-400/10-EW-W 116594 1 BP-U-3S-400/12-EW-W 116595 1 BP-U-3S-600/4-EW-W 116596 1 BP-U-3S-600/7-EW-W 116597 1 BP-U-3S-600/10-EW-W 116598 1 BP-U-3S-600/12-EW-W 116599 1 BP-U-3S-600/15-EW-W 116600 1 BP-U-3S-600/17-EW-W 116601 1 BP-U-3S-600/20-EW-W 116602 1 BP-U-3S-800/7-EW-W 116603 1 BP-U-3S-800/10-EW-W 116604 1 BP-U-3S-800/12-EW-W 116605 1 BP-U-3S-800/15-EW-W 116606 1 BP-U-3S-800/17-EW-W 116607 1 BP-U-3S-800/20-EW-W 116608 1 BP-U-3S-1000/10-EW-W 116609 1 BP-U-3S-1000/12-EW-W 116610 1 BP-U-3S-1000/15-EW-W 116611 1 BP-U-3S-1000/17-EW-W 116612 1 BP-U-3S-1000/20-EW-W 116613 1 Rotary door handle, White

27 Distribution Boards  3-Step Flush-Mounting Door Frame for Outdoor Installation, IP43, with Door, BPA-U-3S... 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BPA-U-3S-400/4 111217 1 BPA-U-3S-400/7 111218 1 BPA-U-3S-400/10 111219 1 BPA-U-3S-400/12 111220 1 BPA-U-3S-600/4 111221 1 BPA-U-3S-600/7 111222 1 BPA-U-3S-600/10 111223 1 BPA-U-3S-600/12 111224 1 BPA-U-3S-600/15 111225 1 BPA-U-3S-600/17 111226 1 BPA-U-3S-600/20 111227 1 BPA-U-3S-800/7 111230 1 BPA-U-3S-800/10 111231 1 BPA-U-3S-800/12 111232 1 BPA-U-3S-800/15 111233 1 BPA-U-3S-800/17 111234 1 BPA-U-3S-800/20 111235 1 BPA-U-3S-1000/10 111238 1 BPA-U-3S-1000/12 111239 1 BPA-U-3S-1000/15 111240 1 BPA-U-3S-1000/17 111241 1 BPA-U-3S-1000/20 111242 1 BPA-U-3S-1200/12 111245 1 BPA-U-3S-1200/15 111246 1 BPA-U-3S-1200/17 111247 1 BPA-U-3S-1200/20 111248 1 Width / Outside Height / Front plate Height (mm) Type Designation Article No. Units per package Dual-bit lock, Grey wa_vt17813 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BPA-U-3S-400/4-P 119129 1 BPA-U-3S-400/7-P 119130 1 BPA-U-3S-400/10-P 119131 1 BPA-U-3S-400/12-P 119132 1 BPA-U-3S-600/4-P 119133 1 BPA-U-3S-600/7-P 119134 1 BPA-U-3S-600/10-P 119135 1 BPA-U-3S-600/12-P 119136 1 BPA-U-3S-600/15-P 119137 1 BPA-U-3S-600/17-P 111228 1 BPA-U-3S-600/20-P 111229 1 BPA-U-3S-800/7-P 119138 1 BPA-U-3S-800/10-P 119139 1 BPA-U-3S-800/12-P 119140 1 BPA-U-3S-800/15-P 119141 1 BPA-U-3S-800/17-P 111236 1 BPA-U-3S-800/20-P 111237 1 BPA-U-3S-1000/10-P 119142 1 BPA-U-3S-1000/12-P 119143 1 BPA-U-3S-1000/15-P 119144 1 BPA-U-3S-1000/17-P 111243 1 BPA-U-3S-1000/20-P 111244 1 BPA-U-3S-1200/12-P 119145 1 BPA-U-3S-1200/15-P 119146 1 BPA-U-3S-1200/17-P 111249 1 BPA-U-3S-1200/20-P 111250 1 Clip-down handle, Grey

28 Distribution Boards  3-Step Flush-Mounting Moisture-proof Door Frame, IP54, with Door, BPM-U-3S... 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BPM-U-3S-400/4 111251 1 BPM-U-3S-400/7 111252 1 BPM-U-3S-400/10 111253 1 BPM-U-3S-400/12 111254 1 BPM-U-3S-600/4 111255 1 BPM-U-3S-600/7 111256 1 BPM-U-3S-600/10 111257 1 BPM-U-3S-600/12 111258 1 BPM-U-3S-600/15 111259 1 BPM-U-3S-600/17 111260 1 BPM-U-3S-600/20 111261 1 BPM-U-3S-800/7 111264 1 BPM-U-3S-800/10 111265 1 BPM-U-3S-800/12 111266 1 BPM-U-3S-800/15 111267 1 BPM-U-3S-800/17 111268 1 BPM-U-3S-800/20 111269 1 BPM-U-3S-1000/10 111272 1 BPM-U-3S-1000/12 111273 1 BPM-U-3S-1000/15 111274 1 BPM-U-3S-1000/17 111275 1 BPM-U-3S-1000/20 111276 1 BPM-U-3S-1200/12 111279 1 BPM-U-3S-1200/15 111280 1 BPM-U-3S-1200/17 111281 1 BPM-U-3S-1200/20 111282 1 Width / Outside Height / Front plate Height (mm) Type Designation Article No. Units per package Dual-bit lock, Grey wa_vt17713 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BPM-U-3S-400/4-P 119147 1 BPM-U-3S-400/7-P 119148 1 BPM-U-3S-400/10-P 119149 1 BPM-U-3S-400/12-P 119150 1 BPM-U-3S-600/4-P 119151 1 BPM-U-3S-600/7-P 119152 1 BPM-U-3S-600/10-P 119153 1 BPM-U-3S-600/12-P 119154 1 BPM-U-3S-600/15-P 119155 1 BPM-U-3S-600/17-P 111262 1 BPM-U-3S-600/20-P 111263 1 BPM-U-3S-800/7-P 119156 1 BPM-U-3S-800/10-P 119157 1 BPM-U-3S-800/12-P 119158 1 BPM-U-3S-800/15-P 119159 1 BPM-U-3S-800/17-P 111270 1 BPM-U-3S-800/20-P 111271 1 BPM-U-3S-1000/10-P 119160 1 BPM-U-3S-1000/12-P 119161 1 BPM-U-3S-1000/15-P 119162 1 BPM-U-3S-1000/17-P 111277 1 BPM-U-3S-1000/20-P 111278 1 BPM-U-3S-1200/12-P 119163 1 BPM-U-3S-1200/15-P 119164 1 BPM-U-3S-1200/17-P 111283 1 BPM-U-3S-1200/20-P 111284 1 Clip-down handle, Grey

29 Distribution Boards  Segaration frame, BPZ-USF • for flush-mounting boards• only for width of 1000 or 1200 mm• for MSW application• angle accessories are included 1012151720 BPZ-USF-10 119302 1 BPZ-USF-12 119303 1 BPZ-USF-15 119304 1 BPZ-USF-17 119305 1 BPZ-USF-20 119306 1 Height (mm) Type Designation Article No. Units per package Grey wa_vt61813 1012151720 BPZ-USF-10-W 131568 1 BPZ-USF-12-W 131569 1 BPZ-USF-15-W 131570 1 BPZ-USF-17-W 131571 1 BPZ-USF-20-W 131572 1 White Mounting Side Wall for 3-Step System, BPZ-MSW • incl. pre-mounted snap-on element 3506509501150145016501950 BPZ-MSW-4/SNAP 112284 1 pair BPZ-MSW-7/SNAP 112285 1 pair BPZ-MSW-10/SNAP 112286 1 pair BPZ-MSW-12/SNAP 112287 1 pair BPZ-MSW-15/SNAP 112288 1 pair BPZ-MSW-17/SNAP 112289 1 pair BPZ-MSW-20/SNAP 112300 1 pair wa_vt18013 Frontplate Height (mm) Type Designation Article No. Units per package 400 / 460 / 350400 / 760 / 650400 / 1060 / 950400 / 1260 /1150600 / 460 / 350600 / 760 / 650600 / 1060 / 950600 / 1260 / 1150600 / 1560 / 1450600 / 1760 / 1650600 / 2060 / 1950800 / 760 / 650800 / 1060 / 950800 / 1260 / 1150800 / 1560 / 1450800 / 1760 / 1650800 / 2070 / 19501000 / 1060 / 9501000 / 1260 / 11501000 / 1560 / 14501000 / 1760 / 16501000 / 2060 / 19501200 / 1260 / 11501200 / 1560 / 14501200 / 1760 / 16501200 / 2060 / 1950 BPM-U-3S-400/4-W 144237 1 BPM-U-3S-400/7-W 144238 1 BPM-U-3S-400/10-W 144239 1 BPM-U-3S-400/12-W 144240 1 BPM-U-3S-600/4-W 144241 1 BPM-U-3S-600/7-W 144242 1 BPM-U-3S-600/10-W 144243 1 BPM-U-3S-600/12-W 144244 1 BPM-U-3S-600/15-W 144245 1 BPM-U-3S-600/17-W 144246 1 BPM-U-3S-600/20-W 144247 1 BPM-U-3S-800/7-W 144248 1 BPM-U-3S-800/10-W 144249 1 BPM-U-3S-800/12-W 144250 1 BPM-U-3S-800/15-W 144251 1 BPM-U-3S-800/17-W 144252 1 BPM-U-3S-800/20-W 144253 1 BPM-U-3S-1000/10-W 144254 1 BPM-U-3S-1000/12-W 144255 1 BPM-U-3S-1000/15-W 144256 1 BPM-U-3S-1000/17-W 144257 1 BPM-U-3S-1000/20-W 144258 1 BPM-U-3S-1200/12-W 144259 1 BPM-U-3S-1200/15-W 144260 1 BPM-U-3S-1200/17-W 144261 1 BPM-U-3S-1200/20-W 144262 1 Dual-bit lock, White wa_vt17713

30 Distribution Boards  Floor-Standing Distribution Board with Rotary Door Handle, IP30, BP-F-... • depth 300 mm• including pass-through flange on top and bottom• including metal door with rotary door handle• to assemble with MSW, 2 pair Corner Tower Sets BPZ-CTS-S and 1 piece Snap Element BPZ-SNAP-MSW-CTS have to be ordered separately • to assemble on the main frame 2 pieces Frontplate Support BPZ-FPS have to be ordered separately Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BP-F-400/17/3 102055 1 BP-F-400/20/3 102056 1 BP-F-600/17/3 102057 1 BP-F-600/20/3 102058 1 BP-F-800/17/3 102059 1 BP-F-800/20/3 102320 1 BP-F-1000/17/3 102321 1 BP-F-1000/20/3 102322 1 BP-F-1200/17/3 102323 1 BP-F-1200/20/3 102324 1 Rotary door handle, Grey wa_vt03513 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BP-F-400/17/3-W 102335 1 BP-F-400/20/3-W 102336 1 BP-F-600/17/3-W 102337 1 BP-F-600/20/3-W 102338 1 BP-F-800/17/3-W 102339 1 BP-F-800/20/3-W 102340 1 BP-F-1000/17/3-W 102341 1 BP-F-1000/20/3-W 102342 1 BP-F-1200/17/3-W 102343 1 BP-F-1200/20/3-W 102344 1 Rotary door handle, White

Floor-Standing Distribution Board with Clip-Down Handle, IP30, BP-F-...-P • depth 300 mm• including pass-through flange on top and bottom• including metal door with clip-down handle• to assemble with MSW, 2 pair Corner Tower Sets BPZ-CTS-S and 1 piece Snap Element BPZ-SNAP-MSW-CTS have to be ordered separately • to assemble on the main frame 2 pieces Frontplate Support BPZ-FPS have to be ordered separately 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BP-F-400/17/3-P 102355 1 BP-F-400/20/3-P 102356 1 BP-F-600/17/3-P 102357 1 BP-F-600/20/3-P 102358 1 BP-F-800/17/3-P 102359 1 BP-F-800/20/3-P 102360 1 BP-F-1000/17/3-P 102361 1 BP-F-1000/20/3-P 102362 1 BP-F-1200/17/3-P 102363 1 BP-F-1200/20/3-P 102364 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Clip-down handle, Grey wa_vt03613 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BP-F-400/17/3-P-W 102375 1 BP-F-400/20/3-P-W 102376 1 BP-F-600/17/3-P-W 102377 1 BP-F-600/20/3-P-W 102378 1 BP-F-800/17/3-P-W 102379 1 BP-F-800/20/3-P-W 102380 1 BP-F-1000/17/3-P-W 102381 1 BP-F-1000/20/3-P-W 102382 1 BP-F-1200/17/3-P-W 102383 1 BP-F-1200/20/3-P-W 102384 1 Clip-down handle, White 31 Distribution Boards

32 Distribution Boards  Floor-Standing Distribution Board with Clip-Down Handle, tightened door construction, IP30, BP-F-T-...-P • depth 300 mm• including pass-through flange on top and bottom• including metal door with clip-down handle• tightened door construction• to assemble with MSW, 2 pair Corner Tower Sets BPZ-CTS-S and 1 piece Snap Element BPZ-SNAP-MSW-CTS have to be ordered separately • to assemble on the main frame 2 pieces Frontplate Support BPZ-FPS have to be ordered separately 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BP-F-T-400/17/3-P 142284 1 BP-F-T-400/20/3-P 142285 1 BP-F-T-600/17/3-P 142286 1 BP-F-T-600/20/3-P 142287 1 BP-F-T-800/17/3-P 142288 1 BP-F-T-800/20/3-P 142289 1 BP-F-T-1000/17/3-P 142430 1 BP-F-T-1000/20/3-P 142431 1 BP-F-T-1200/17/3-P 142432 1 BP-F-T-1200/20/3-P 142433 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Clip-down handle, Grey wa_vt03613

33 Distribution Boards  Floor-Standing Distribution Board flexible assembling, IP30, BP-F-...-F • depth 300 mm• no body• no flange• no door• no frontplate support BPZ-FPS• to assemble with MSW, 2 pair Corner Tower Sets BPZ-CTS-S and 1 piece Snap Element BPZ-SNAP-MSW-CTS have to be ordered separately • to assemble on the main frame 2 pieces Frontplate Support BPZ-FPS have to be ordered separately 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BP-F-400/17/3-F 102395 1 BP-F-400/20/3-F 102396 1 BP-F-600/17/3-F 102397 1 BP-F-600/20/3-F 102398 1 BP-F-800/17/3-F 102399 1 BP-F-800/20/3-F 102400 1 BP-F-1000/17/3-F 120691 1 BP-F-1000/20/3-F 120692 1 BP-F-1200/17/3-F 120693 1 BP-F-1200/20/3-F 120694 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Grey wa_vt03713 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BP-F-400/17/3-F-W 102407 1 BP-F-400/20/3-F-W 102408 1 BP-F-600/17/3-F-W 102409 1 BP-F-600/20/3-F-W 102410 1 BP-F-800/17/3-F-W 102411 1 BP-F-800/20/3-F-W 102412 1 BP-F-1000/17/3-F-W 120695 1 BP-F-1000/20/3-F-W 120696 1 BP-F-1200/17/3-F-W 120697 1 BP-F-1200/20/3-F-W 120698 1 White Floor-Standing Distribution Board flexible assembling, IP30, BP-F-...-F • depth 250 mm• empty housing without buildup, flange plates, door or frontplate support• installation frame (rear side) without mounting holm• only MSW application (no Corner Tower BPZ-CTS-... necessary) 400 / 2060 / 1950600 / 2060 / 1950800 / 2060 / 19501000 / 2060 / 19501200 / 2060 / 1950 BP-F-400/20/2,5-F 120754 1 BP-F-600/20/2,5-F 120755 1 BP-F-800/20/2,5-F 120756 1 BP-F-1000/20/2,5-F 120757 1 BP-F-1200/20/2,5-F 120758 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Grey wa_vt03713

34 Distribution Boards  Floor-Standing Distribution Board flexible assembling, IP30, BP-F-...-F • depth 400  mm• empty housing without buildup, flange plates, door or frontplate support• installation frame (rear side) without mounting holm• only MSW application (no Corner Tower BPZ-CTS-... necessary) 400 / 2060 / 1950600 / 2060 / 1950800 / 2060 / 19501000 / 2060 / 19501200 / 2060 / 1950 BP-F-400/20/4-F 120759 1 BP-F-600/20/4-F 120760 1 BP-F-800/20/4-F 120761 1 BP-F-1000/20/4-F 120762 1 BP-F-1200/20/4-F 120763 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Grey wa_vt03713

Floor-Standing Distribution Board with Clip-down Handle, IP30, BP-F-...-P • depth 400 mm• including pass-through flange on top and bottom• including metal door with clip-down handle• installation frame (rear side) without mounting holm• only MSW application (no Corner Tower BPZ-CTS-... necessary) 400 / 2060 / 1950600 / 2060 / 1950800 / 2060 / 19501000 / 2060 / 19501200 / 2060 / 1950 BP-F-400/20/4-P 119192 1 BP-F-600/20/4-P 119193 1 BP-F-800/20/4-P 119194 1 BP-F-1000/20/4-P 119195 1 BP-F-1200/20/4-P 119196 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Clip-down handle, Grey wa_vt03613 Floor-Standing Distribution Board with Rotary Door Handle, IP30, BP-F-... • depth 250 mm• including pass-through flange on top and bottom• including metal door with rotary door handle• installation frame (rear side) without mounting holm• only MSW application (no Corner Tower BPZ-CTS-... necessary) 400 / 2060 / 1950600 / 2060 / 1950800 / 2060 / 19501000 / 2060 / 19501200 / 2060 / 1950 BP-F-400/20/2,5 119187 1 BP-F-600/20/2,5 119188 1 BP-F-800/20/2,5 119189 1 BP-F-1000/20/2,5 119190 1 BP-F-1200/20/2,5 119191 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Rotary door handle, Grey wa_vt03513 35 Distribution Boards

36 Distribution Boards  Rotary door handle, Grey Sheet Steel Doors, BPZ-DS-... 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DS-400/17 102419 1 BPZ-DS-400/20 102420 1 BPZ-DS-600/17 102421 1 BPZ-DS-600/20 102422 1 BPZ-DS-800/17 102423 1 BPZ-DS-800/20 102424 1 BPZ-DS-600/17 102421 1 BPZ-DS-400/17-L 106374 1 BPZ-DS-600/20 102422 1 BPZ-DS-400/20-L 106375 1 BPZ-DS-600/17 102421 1 BPZ-DS-600/17-L 106376 1 BPZ-DS-600/20 102422 1 BPZ-DS-600/20-L 106377 1 wa_vt51313 Width / Height (mm) Type Designation Article No. Units per package Rotary door handle, White 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DS-400/17-W 102443 1 BPZ-DS-400/20-W 102444 1 BPZ-DS-600/17-W 102445 1 BPZ-DS-600/20-W 102446 1 BPZ-DS-800/17-W 102447 1 BPZ-DS-800/20-W 102448 1 BPZ-DS-600/17-W 102445 1 BPZ-DS-400/17-L-W 106378 1 BPZ-DS-600/20-W 102446 1 BPZ-DS-400/20-L-W 106379 1 BPZ-DS-600/17-W 102445 1 BPZ-DS-600/17-L-W 106420 1 BPZ-DS-600/20-W 102446 1 BPZ-DS-600/20-L-W 106421 1 Clip-down handle, Grey Sheet Steel Doors, BPZ-DS-...-P 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DS-400/17-P 102425 1 BPZ-DS-400/20-P 102426 1 BPZ-DS-600/17-P 102427 1 BPZ-DS-600/20-P 102428 1 BPZ-DS-800/17-P 102429 1 BPZ-DS-800/20-P 102430 1 BPZ-DS-600/17-P 102427 1 BPZ-DS-400/17-L 106374 1 BPZ-DS-600/20-P 102428 1 BPZ-DS-400/20-L 106375 1 BPZ-DS-600/17-P 102427 1 BPZ-DS-600/17-L 106376 1 BPZ-DS-600/20-P 102428 1 BPZ-DS-600/20-L 106377 1 wa_vt03913 Width / Height (mm) Type Designation Article No. Units per package Clip-down handle, White 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DS-400/17-P-W 102449 1 BPZ-DS-400/20-P-W 102450 1 BPZ-DS-600/17-P-W 102451 1 BPZ-DS-600/20-P-W 102452 1 BPZ-DS-800/17-P-W 102453 1 BPZ-DS-800/20-P-W 102454 1 BPZ-DS-600/17-P-W 102451 1 BPZ-DS-400/17-L-W 106378 1 BPZ-DS-600/20-P-W 102452 1 BPZ-DS-400/20-L-W 106379 1 BPZ-DS-600/17-P-W 102451 1 BPZ-DS-600/17-L-W 106420 1 BPZ-DS-600/20-P-W 102452 1 BPZ-DS-600/20-L-W 106421 1

37 Distribution Boards  Clip-down handle, Grey Sheet Steel Doors, tightened construction, BPZ-DS-T-...-P 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DS-T-400/17-P 142434 1 BPZ-DS-T-400/20-P 142435 1 BPZ-DS-T-600/17-P 142436 1 BPZ-DS-T-600/20-P 142437 1 BPZ-DS-T-800/17-P 142438 1 BPZ-DS-T-800/20-P 142439 1 BPZ-DS-T-600/17-P 142436 1 BPZ-DS-T-400/17-L 142440 1 BPZ-DS-T-600/20-P 142437 1 BPZ-DS-T-400/20-L 142441 1 BPZ-DS-T-600/17-P 142436 1 BPZ-DS-T-600/17-L 142442 1 BPZ-DS-T-600/20-P 142437 1 BPZ-DS-T-600/20-L 142443 1 wa_vt03913 Width / Height (mm) Type Designation Article No. Units per package

38 Distribution Boards  Rotary door handle, Grey Transparent Doors (Sheet Steel), BPZ-DT-... 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DT-400/17 102431 1 BPZ-DT-400/20 102432 1 BPZ-DT-600/17 102433 1 BPZ-DT-600/20 102434 1 BPZ-DT-800/17 102435 1 BPZ-DT-800/20 102436 1 BPZ-DT-600/17 102433 1 BPZ-DT-400/17-L 106422 1 BPZ-DT-600/20 102434 1 BPZ-DT-400/20-L 106423 1 BPZ-DT-600/17 102433 1 BPZ-DT-600/17-L 106424 1 BPZ-DT-600/20 102434 1 BPZ-DT-600/20-L 106425 1 VT00106 Width / Height (mm) Type Designation Article No. Units per package Rotary door handle, White 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DT-400/17-W 102455 1 BPZ-DT-400/20-W 102456 1 BPZ-DT-600/17-W 102457 1 BPZ-DT-600/20-W 102458 1 BPZ-DT-800/17-W 102459 1 BPZ-DT-800/20-W 102460 1 BPZ-DT-600/17-W 102457 1 BPZ-DT-400/17-L-W 106426 1 BPZ-DT-600/20-W 102458 1 BPZ-DT-400/20-L-W 106427 1 BPZ-DT-600/17-W 102457 1 BPZ-DT-600/17-L-W 106428 1 BPZ-DT-600/20-W 102458 1 BPZ-DT-600/20-L-W 106429 1 Clip-down handle, Grey Transparent Doors (Sheet Steel), BPZ-DT-...-P 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DT-400/17-P 102437 1 BPZ-DT-400/20-P 102438 1 BPZ-DT-600/17-P 102439 1 BPZ-DT-600/20-P 102440 1 BPZ-DT-800/17-P 102441 1 BPZ-DT-800/20-P 102442 1 BPZ-DT-600/17-P 102439 1 BPZ-DT-400/17-L 106422 1 BPZ-DT-600/20-P 102440 1 BPZ-DT-400/20-L 106423 1 BPZ-DT-600/17-P 102439 1 BPZ-DT-600/17-L 106424 1 BPZ-DT-600/20-P 102440 1 BPZ-DT-600/20-L 106425 1 VT00206 Width / Height (mm) Type Designation Article No. Units per package Clip-down handle, White 400 / 1696,5400 / 1996,5600 / 1696,5600 / 1996,5800 / 1696,5800 / 1996,5600+400L / 1696,5 600+400L / 1996,5 600+600L / 1696,5 600+600L / 1996,5 BPZ-DT-400/17-P-W 102461 1 BPZ-DT-400/20-P-W 102462 1 BPZ-DT-600/17-P-W 102463 1 BPZ-DT-600/20-P-W 102464 1 BPZ-DT-800/17-P-W 102465 1 BPZ-DT-800/20-P-W 102466 1 BPZ-DT-600/17-P-W 102463 1 BPZ-DT-400/17-L-W 106426 1 BPZ-DT-600/20-P-W 102464 1 BPZ-DT-400/20-L-W 106427 1 BPZ-DT-600/17-P-W 102463 1 BPZ-DT-600/17-L-W 106428 1 BPZ-DT-600/20-P-W 102464 1 BPZ-DT-600/20-L-W 106429 1

39 Distribution Boards  Moisture Proof-Floor-Standing Board, IP54, BPM-F-... • depth 320 mm• welded construction with door and two-way key bit• open cable entry below and above, prepared for F3A-Flanges• interior fitting system possible via MSW or Towers• to assemble with MSW, 2 pair Corner Tower Sets BPZ-CTS-S and 1 piece Snap Element BPZ-SNAP-MSW-CTS have to be ordered separately • to assemble on the main frame 2 pieces Frontplate Support BPZ-FPS have to be ordered separately 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BPM-F-400/17 111037 1 BPM-F-400/20 111038 1 BPM-F-600/17 111039 1 BPM-F-600/20 111040 1 BPM-F-800/17 111041 1 BPM-F-800/20 111042 1 BPM-F-1000/17 111043 1 BPM-F-1000/20 111044 1 BPM-F-1200/17 111045 1 BPM-F-1200/20 111046 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Two-way heybit, Grey wa_vt17213 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BPM-F-400/17-W 111077 1 BPM-F-400/20-W 111078 1 BPM-F-600/17-W 111079 1 BPM-F-600/20-W 111080 1 BPM-F-800/17-W 111081 1 BPM-F-800/20-W 111082 1 BPM-F-1000/17-W 111083 1 BPM-F-1000/20-W 111084 1 BPM-F-1200/17-W 111085 1 BPM-F-1200/20-W 111086 1 Two-way heybit, White wa_vt17313

40 Distribution Boards  Moisture Proof-Floor-Standing Board with Clip-down Handle, IP54, BPM-F-...-P • depth 320 mm• welded construction with door and clip-down handle• open cable entry below and above, prepared for F3A-Flanges• interior fitting system possible via MSW or Towers• to assemble with MSW, 2 pair Corner Tower Sets BPZ-CTS-S and 1 piece Snap Element BPZ-SNAP-MSW-CTS have to be ordered separately • to assemble on the main frame 2 pieces Frontplate Support BPZ-FPS have to be ordered separately 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BPM-F-400/17-P 111047 1 BPM-F-400/20-P 111048 1 BPM-F-600/17-P 111049 1 BPM-F-600/20-P 111050 1 BPM-F-800/17-P 111051 1 BPM-F-800/20-P 111052 1 BPM-F-1000/17-P 111053 1 BPM-F-1000/20-P 111054 1 BPM-F-1200/17-P 111055 1 BPM-F-1200/20-P 111056 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Clip-down handle, Grey wa_vt03613 400 / 1760 / 1650400 / 2060 / 1950600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 19501200 / 1760 / 16501200 / 2060 / 1950 BPM-F-400/17-P-W 111087 1 BPM-F-400/20-P-W 111088 1 BPM-F-600/17-P-W 111089 1 BPM-F-600/20-P-W 111090 1 BPM-F-800/17-P-W 111091 1 BPM-F-800/20-P-W 111092 1 BPM-F-1000/17-P-W 111093 1 BPM-F-1000/20-P-W 111094 1 BPM-F-1200/17-P-W 111095 1 BPM-F-1200/20-P-W 111096 1 Clip-down handle, White 600 / 1760 / 1650600 / 2060 / 1950800 / 1760 / 1650800 / 2060 / 19501000 / 1760 / 16501000 / 2060 / 1950 BPM-F-600/17-F 174362 1  BPM-F-600/20-F 174363 1  BPM-F-800/17-F 174367 1  BPM-F-800/20-F 174368 1  BPM-F-1000/17-F 174370 1  BPM-F-1000/20-F 174371 1  Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Basic Enclosure without door, Grey 570 / 1730570 / 2030770 / 1730770 / 2030600+370 / 1730600+370 / 2030 BPZ-DMS-600/17-P 174342 1  BPZ-DMS-600/20-P 174343 1  BPZ-DMS-800/17-P 174347 1  BPZ-DMS-800/20-P 174348 1  BPZ-DMS-1000/17-P 174350 1  BPZ-DMS-1000/20-P 174351 1  Width / Height (mm) Type Designation Article No. Units per package Steel sheet Doors with clip-down handle, Grey, IP54, BPZ-DMS

41 Distribution Boards  570 / 1730570 / 2030770 / 1730770 / 2030600+370 / 1730600+370 / 2030 BPZ-DMT-600/17-P 173585 1  BPZ-DMT-600/20-P 173586 1  BPZ-DMT-800/17-P 173592 1  BPZ-DMT-800/20-P 173593 1  BPZ-DMT-1000/17-P 173597 1  BPZ-DMT-1000/20-P 173598 1  Width / Height (mm) Type Designation Article No. Units per package Transparent Doors (steel sheet) with clip-down handle, Grey, IP54, BPZ-DMT

42 Distribution Boards  Mounting insert, Front Plates steel, BPZ-MES-…-ST 400 / 7 / 4400/ 10 / 5400 / 12 / 6600 / 4 / 3600 / 7 / 4600 / 10 / 5600 / 12 / 6600 / 15 / 7600 / 17 / 8600 / 20 /9800 / 10 / 5800 / 12 / 6800 / 15 / 7800 / 17 / 8800 / 20 / 91000 / 10 / 51000 / 12 / 61000 / 15 / 71000 / 17 / 81000 / 20 / 91200 / 12 / 61200 / 15 / 71200 / 17 / 81200 / 20 / 9 BPZ-MES-400/7-ST 119307 1 BPZ-MES-400/10-ST 119308 1 BPZ-MES-400/12-ST 119309 1 BPZ-MES-600/4-ST 119310 1 BPZ-MES-600/7-ST 119311 1 BPZ-MES-600/10-ST 119312 1 BPZ-MES-600/12-ST 119313 1 BPZ-MES-600/15-ST 119314 1 BPZ-MES-600/17-ST 119315 1 BPZ-MES-600/20-ST 119316 1 BPZ-MES-800/10-ST 119317 1 BPZ-MES-800/12-ST 119318 1 BPZ-MES-800/15-ST 119319 1 BPZ-MES-800/17-ST 119320 1 BPZ-MES-800/20-ST 119321 1 BPZ-MES-1000/10-ST 119322 1 BPZ-MES-1000/12-ST 119323 1 BPZ-MES-1000/15-ST 119324 1 BPZ-MES-1000/17-ST 119325 1 BPZ-MES-1000/20-ST 119326 1 BPZ-MES-1200/12-ST 119327 1 BPZ-MES-1200/15-ST 119328 1 BPZ-MES-1200/17-ST 119329 1 BPZ-MES-1200/20-ST 119330 1 • overview scheme at the technic part• with MSW application• Insert fits in Surface-, Flush-mounting and Open Distribution Board IP30• 2 pair Corner Tower BPZ-CTS-S and 1 set Snap Elements BPZ-SNAP-MSW-CTS are in the scope of delivery of the floor standing boards (hights 17, 20) • 1 set Snap Elements BPZ-SNAP-MSW-CTS are in the scope of delivery of the surface boards (hights 4, 7, 10, 12, 15), Corner Tower BPZ-CTS-S are in the scope of delivery • 2 pair Corner Tower BPZ-CTS-S are needed additional for wall boards IP54 (BPM-O-...) Width / Height  / Rows Type Designation Article No. Units per package Mounting insert, Plastic Front Plates, BPZ-MES-…-K 400 / 7 / 4400/ 10 / 5400 / 12 / 6600 / 4 / 3600 / 7 / 4600 / 10 / 5600 / 12 / 6600 / 15 / 7600 / 17 / 8600 / 20 /9800 / 10 / 5800 / 12 / 6800 / 15 / 7800 / 17 / 8800 / 20 / 91000 / 10 / 51000 / 12 / 61000 / 15 / 71000 / 17 / 81000 / 20 / 91200 / 12 / 61200 / 15 / 71200 / 17 / 81200 / 20 / 9 BPZ-MES-400/7-K 119331 1 BPZ-MES-400/10-K 119332 1 BPZ-MES-400/12-K 119333 1 BPZ-MES-600/4-K 119334 1 BPZ-MES-600/7-K 119335 1 BPZ-MES-600/10-K 119336 1 BPZ-MES-600/12-K 119337 1 BPZ-MES-600/15-K 119338 1 BPZ-MES-600/17-K 119339 1 BPZ-MES-600/20-K 119340 1 BPZ-MES-800/10-K 119341 1 BPZ-MES-800/12-K 119342 1 BPZ-MES-800/15-K 119343 1 BPZ-MES-800/17-K 119344 1 BPZ-MES-800/20-K 119345 1 BPZ-MES-1000/10-K 119346 1 BPZ-MES-1000/12-K 119347 1 BPZ-MES-1000/15-K 119348 1 BPZ-MES-1000/17-K 119349 1 BPZ-MES-1000/20-K 119350 1 BPZ-MES-1200/12-K 119351 1 BPZ-MES-1200/15-K 119352 1 BPZ-MES-1200/17-K 119353 1 BPZ-MES-1200/20-K 119354 1 • overview scheme at the technic part• with MSW application• Insert fits in Surface-, Flush-mounting and Open Distribution Board IP30• 2 pair Corner Tower BPZ-CTS-S and 1 set Snap Elements BPZ-SNAP-MSW-CTS are in the scope of delivery of the floor standing boards (hights 17, 20) • 1 set Snap Elements BPZ-SNAP-MSW-CTS are in the scope of delivery of the surface boards (hights 4, 7, 10, 12, 15), Corner Tower BPZ-CTS-S are in the scope of delivery • 2 pair Corner Tower BPZ-CTS-S are needed additional for wall boards IP54 (BPM-O-...) wa_vt24113 Width / Height  / Rows Type Designation Article No. Units per package wa_vt24113

43 Distribution Boards  Open Distribution Board, IP30, BP-MN-… • with MSW application but without mounting insert• only the board without insert BPZ-MES• Shift-back flange on top• welded board• Depth 175 mm 573 / 400 / 350573 / 700 / 650573 / 1000 / 950573 / 1200 / 1150573 / 1500 / 1450573 / 1700 / 1650573 / 2000 / 1950773 / 1000 / 950773 / 1200 / 1150773 / 1500 / 1450773 / 1700 / 1650773 / 2000 / 1950973 / 1000 / 950973 / 1200 / 1150973 / 1500 / 1450973 / 1700 / 1650973 / 2000 / 1950 BP-MN-600/4/1,75 119197 1 BP-MN-600/7/1,75 119198 1 BP-MN-600/10/1,75 119199 1 BP-MN-600/12/1,75 119200 1 BP-MN-600/15/1,75 119201 1 BP-MN-600/17/1,75 119202 1 BP-MN-600/20/1,75 119203 1 BP-MN-800/10/1,75 119204 1 BP-MN-800/12/1,75 119205 1 BP-MN-800/15/1,75 119206 1 BP-MN-800/17/1,75 119207 1 BP-MN-800/20/1,75 119208 1 BP-MN-1000/10/1,75 119209 1 BP-MN-1000/12/1,75 119210 1 BP-MN-1000/15/1,75 119211 1 BP-MN-1000/17/1,75 119212 1 BP-MN-1000/20/1,75 119213 1 Width / Outside Height / Frontplate Height (mm) Type Designation Article No. Units per package Grey wa_vt24013 Outdoor Distribution Board, IP43, BP-VF-… • aluminium enclosure, power coated• fits for base A-KU• for MSW application• for Mounting Insert BPZ-MES 400 / 1060400 / 1260600 / 1060600 / 1260800 / 1060800 / 1260 BP-VF-400/10 125830 1 BP-VF-400/12 125833 1 BP-VF-600/10 125831 1 BP-VF-600/12 125834 1 BP-VF-800/10 125832 1 BP-VF-800/12 125835 1 Width / Outside Height Type Designation Article No. Units per package Grey Plastic Cover for Base, A-KU • for outdoor enclosure BP-VF 400600800 A-KU3 274823 1 A-KU4 274824 1 A-KU5 274825 1 For Width  Type Designation Article No. Units per package Symbolic picture

44 Distribution Boards  Front Cover for Base, BPZ-FS 400 / 100400 / 200600 / 100600 / 200800 / 100800 / 2001000 / 1001000 / 2001200 / 1001200 / 200 BPZ-FS-400/1 293493 1 BPZ-FS-400/2 293495 1 BPZ-FS-600/1 293497 1 BPZ-FS-600/2 293499 1 BPZ-FS-800/1 293501 1 BPZ-FS-800/2 293503 1 BPZ-FS-1000/1 293505 1 BPZ-FS-1000/2 293507 1 BPZ-FS-1200/1 293509 1 BPZ-FS-1200/2 293511 1 Width / Height (mm) Type Designation Article No. Units per package Grey wa_vt51413 400 / 100400 / 200600 / 100600 / 200800 / 100800 / 2001000 / 1001000 / 2001200 / 1001200 / 200 BPZ-FS-400/1-W 293494 1 BPZ-FS-400/2-W 293496 1 BPZ-FS-600/1-W 293498 1 BPZ-FS-600/2-W 293500 1 BPZ-FS-800/1-W 293502 1 BPZ-FS-800/2-W 293504 1 BPZ-FS-1000/1-W 293506 1 BPZ-FS-1000/2-W 293508 1 BPZ-FS-1200/1-W 293510 1 BPZ-FS-1200/2-W 293512 1 White Side Cover for Base, BPZ-SS 100 / 250100 / 300100 / 400200 / 250200 / 300200 / 400 BPZ-SS-1/250 119166 1 BPZ-SS-1/3 293513 1 BPZ-SS-1/400 119165 1 BPZ-SS-2/250 119170 1 BPZ-SS-2/3 293517 1 BPZ-SS-2/400 119169 1 Grey, IP30 VT06905 Height / Depth (mm) Type Designation Article No. Units per package Floor Standing Board 100 / 320200 / 320 BPZ-SS-1/320 112348 1 BPZ-SS-2/320 112349 1 Grey, IP54 100 / 320200 / 320 BPZ-SS-1/320-W 112350 1 BPZ-SS-2/320-W 112351 1 White , IP54 100 / 300200 / 300 BPZ-SS-1/3-W 293514 1 BPZ-SS-2/3-W 293518 1 White, IP30

45 Distribution Boards  Height / Depth (mm) / Design Type Designation Article No. Units per package 100 / 249200 / 249 BPZ-SS-1/249 119168 1 BPZ-SS-2/249 119172 1 Grey, IP30 VT06905 100 / 270200 / 270 BPZ-SS-1/270-W 119173 1 BPZ-SS-2/270-W 119175 1 White , IP54 Surface Mounting 100 / 270200 / 270 BPZ-SS-1/270 119167 1 BPZ-SS-2/270 119171 1 Grey , IP54 100 / 249200 / 249 BPZ-SS-1/249-W 119174 1 BPZ-SS-2/249-W 119176 1 White, IP30 Side Cover Set for Base, BPZ-SS-.../SET Height / Depth (mm) / Design Type Designation Article No. Units per package Floor Standing Board, BO . . . blind-open, OO . . . open-open 100 / 300100 / 300100 / 400100 / 400 BPZ-SS-1/300/SET/BO 119181 1 BPZ-SS-1/300/SET/OO 119182 1 BPZ-SS-1/400/SET/BO 119177 1 BPZ-SS-1/400/SET/OO 119178 1 Grey, IP30 100 / 320100 / 320 BPZ-SS-1/320/SET/BO-W 119183 1 BPZ-SS-1/320/SET/OO-W 119184 1 White, IP54 100 / 320100 / 320 BPZ-SS-1/320/SET/BO 119179 1 BPZ-SS-1/320/SET/OO 119180 1 Grey, IP54 100 / 300100 / 300 BPZ-SS-1/300/SET/BO-W 119185 1 BPZ-SS-1/300/SET/OO-W 119186 1 White, IP30 Front cover for Base, BPZ-MN-FS-… Width / Height (mm) Type Designation Article No. Units per package • for open installation boards 573 / 100573 / 200773 / 100773 / 200973 / 100973 / 200 BPZ-MN-FS-600/1 120685 1 BPZ-MN-FS-600/2 120686 1 BPZ-MN-FS-800/1 120687 1 BPZ-MN-FS-800/2 120688 1 BPZ-MN-FS-1000/1 120689 1 BPZ-MN-FS-1000/2 120690 1 wa_vt51413 100 / 270 BPZ-SS-1/270/SET/OO 174352 1 Grey , IP54 Surface Mounting, OO ... open-open Height / Depth (mm) / Design Type Designation Article No. Units per package

46 Distribution Boards  Side Cover for Base, PBZ-MN-SS… 100 / 175200 / 175 BPZ-MN-SS/1/175 119214 1 BPZ-MN-SS/2/175 119215 1 Grey Height / Depth (mm) / Design Type Designation Article No. Units per package Open Distribution Board VT06905

47 Distribution Boards  Light Grey  Cable Interconnect Frame, BPZ-KR Width / Height / Depth (mm) Type Designation Article No. Units per package • For IP30 Profi+ enclosures • Delivery fully assembled • Sheet steel, powder-coated in RAL 7035 light grey or RAL 9016 white • Panelling can be removed from all sides • Can be mounted at the top and bottom of the enclosure • Fixing material included  400 / 100 / 300400 / 200 / 300600 / 100 / 300600 / 200 / 300830 / 100 / 300830 / 200 / 3001200 / 100 / 3001200 / 200 / 300 BPZ-KR41/300 116269 1 BPZ-KR42/300 116270 1 BPZ-KR61/300 116271 1 BPZ-KR62/300 116272 1 BPZ-KR81/300 116273 1 BPZ-KR82/300 116274 1 BPZ-KR121/300 116275 1 BPZ-KR122/300 116276 1 wa_vt23313 400 / 100 / 300400 / 200 / 300600 / 100 / 300600 / 200 / 300830 / 100 / 300830 / 200 / 3001200 / 100 / 3001200 / 200 / 300 BPZ-KR41/300-W 116277 1 BPZ-KR42/300-W 116278 1 BPZ-KR61/300-W 116279 1 BPZ-KR62/300-W 116280 1 BPZ-KR81/300-W 116281 1 BPZ-KR82/300-W 116282 1 BPZ-KR121/300-W 116283 1 BPZ-KR122/300-W 116284 1 White Light Grey Cable Interconnect Frame, BPZ-KR Width / Height / Depth (mm) Type Designation Article No. Units per package • For IP54 Profi+ enclosures • Delivery fully assembled• Sheet steel, powder-coated in RAL 7035 light grey• Panelling can be removed from all sides • Can be mounted at the top and bottom of the enclosure • Fixing material included  400 / 100 / 320400 / 200 / 320600 / 100 / 320600 / 200 / 320830 / 100 / 320830 / 200 / 3201200 / 100 / 3201200 / 200 / 320 BPZ-KR41/320 116285 1 BPZ-KR42/320 116286 1 BPZ-KR61/320 116287 1 BPZ-KR62/320 116288 1 BPZ-KR81/320 116289 1 BPZ-KR82/320 116290 1 BPZ-KR121/320 116291 1 BPZ-KR122/320 116292 1 wa_vt23313 Cable Strain-Relief Rails, C-Profile, BPZ-KFS Width (mm) Type Designation Article No. Units per package • Suitable for use with cable interconnect frame BPZ-KR… • C-Profile 16mm, for hammerfoot yoke clamps, galvanized • Fixing material included  4006008301200 BPZ-KFS-400 116293 1 BPZ-KFS-600 116294 1 BPZ-KFS-830 116295 1 BPZ-KFS-1200 116296 1 wa_vt23413

48 Distribution Boards  Corner Tower Set, BPZ-CTS shortlong BPZ-CTS-S 106445 1 BPZ-CTS-L 106446 1 • pair (for left and right), including screws• enables mounting of BPZ-MSW into floor standing boards or surface-mounting boards• for mounting of terminal support bar BPZ-TSB• Corner Tower Set short - for mounting MSW in floor standing boards or floor standing boards with separation frame • Corner Tower Set long - used for wall mounted boards Description Type Designation Article No. Units per package wa_vt09413 BPZ-CTS-L wa_vt09513 BPZ-CTS-S Separation Frame for split build up, BPZ-SF 1655 1955 BPZ-SF-17 108374 1 BPZ-SF-20 108375 1 • for Floor Standing Distribution Board with a width of 1000 or 1200 mm, IP 30 and IP54 Hight (mm) Type Designation Article No. Units per package Grey White VT10106 1655 1955 BPZ-SF-17-W 108376 1 BPZ-SF-20-W 108377 1 Frontplate Support, BPZ-FPS 2003003505006507008009501000115013001450160016501950 BPZ-FPS/2 106439 1 BPZ-FPS/3 106438 1 BPZ-FPS/350 112343 1 BPZ-FPS/5 106437 1 BPZ-FPS/650 112344 1 BPZ-FPS/7 106436 1 BPZ-FPS/8 106435 1 BPZ-FPS/950 112345 1 BPZ-FPS/10 106434 1 BPZ-FPS/1150 112346 1 BPZ-FPS/13 106433 1 BPZ-FPS/1450 112347 1 BPZ-FPS/16 106432 1 BPZ-FPS/17 106431 1 BPZ-FPS/20 106430 1 • pair (for left and right), including screws• intended for mounting of front plates without using BPZ-MSW• shorter types enables combination of an installation section with BPZ-MSW and power section without BPZ-MSW in one board • must be used for mounting of meter troughs into surface-mounted boards IP54 or floor- standing boards if BPZ-MSW is not used VT10206 Frontplate Height (mm) Type Designation Article No. Units per package Snap element, BPZ-SNAP-MSW-CTS • designed for comfort inserting and fixing BPZ-MSW with use BPZ-SNAP to board• for boards with MSW application fpr BP-O, BPM-O and BP-F, BPM-F boards• for IP30 and IP54 boards • mount on Corner Tower Set BPZ-CTS BPZ-SNAP-MSW-CTS 131559 1 Type Designation Article No. Units per package VT01310

49 Distribution Boards  Mounting Side Wall, BPZ-MSW • incl. pre-mounted snap-on element 3506509501150145016501950 BPZ-MSW-4/SNAP 112284 1 pair BPZ-MSW-7/SNAP 112285 1 pair BPZ-MSW-10/SNAP 112286 1 pair BPZ-MSW-12/SNAP 112287 1 pair BPZ-MSW-15/SNAP 112288 1 pair BPZ-MSW-17/SNAP 112289 1 pair BPZ-MSW-20/SNAP 112300 1 pair wa_vt18013 Frontplate Height (mm) Type Designation Article No. Units per package C-Profile rail for Door Support bar, BPZ-CP 1200 BPZ-CP-TP1,2 119223 1 • standard lenght 1200 mm• zinc coated Lenght (mm) Type Designation Article No. Units per package wa_vt24213 Separation horizontal, BPZ-AS 40060080010001200 BPZ-AS-400 119224 1 BPZ-AS-600 119225 1 BPZ-AS-800 119226 1 BPZ-AS-1000 119227 1 BPZ-AS-1200 119228 1 • metal base frame with plastic insert• for MSW application Width (mm) Type Designation Article No. Units per package VT13508 Door Support bar, BPZ-TP-… 3005508501000135015501850 BPZ-TP-4 119216 1 BPZ-TP-7 119217 1 BPZ-TP-10 119218 1 BPZ-TP-12 119219 1 BPZ-TP-15 119220 1 BPZ-TP-17 119221 1 BPZ-TP-20 119222 1 • door support bar for mounting the C-Profile Rail BPZ-CP• overview at the technical part Hight (mm) Type Designation Article No. Units per package Grey White VT13608 3005508501000135015501850 BPZ-TP-4-W 131561 1 BPZ-TP-7-W 131562 1 BPZ-TP-10-W 131563 1 BPZ-TP-12-W 131564 1 BPZ-TP-15-W 131565 1 BPZ-TP-17-W 131566 1 BPZ-TP-20-W 131567 1 Unit for MSW, BPZ-SNAP BPZ-SNAP 116677 1 Type Designation Article No. Units per package VT12008

Separation Add-on board, BPZ-ASB/.. 40070010001200150017002000 BPZ-ASB/4 120727 1 BPZ-ASB/7 120728 1 BPZ-ASB/10 120729 1 BPZ-ASB/12 120730 1 BPZ-ASB/15 120731 1 BPZ-ASB/17 152617 1 BPZ-ASB/20 152618 1 • vertical separation between 2 boards without knockouts• fixing on the rear frame - no mounting side wall MSW Height Type Designation Article No. Units per package VT01510 50 Distribution Boards  Separation, BPZ-ASMF-… 40060080010001200 BPZ-ASMF-400 120722 1 BPZ-ASMF-600 120723 1 BPZ-ASMF-800 120724 1 BPZ-ASMF-1000 120725 1 BPZ-ASMF-1200 120726 1 • mounted on main frame• mounted horizontal with knockouts Width (mm) Type Designation Article No. Units per package wa_vt27613 Depth Straps, TIW-1 75 x 90 TIW-1 275430 1 • mounting onto BPZ-MSW• for assembling of mounting plates deeper than it is possible with BPZ-MSW itself• pairs Height x depth (mm) Type Designation Article No. Units per package wa_vt39413

51 Distribution Boards  Front Plates, Blind, BPZ-FP-..-BL • Sheet steel• self-earthing fasteners 400 / 50400 / 100400 / 125400 / 150400 / 175400 / 200400 / 250400 / 300400 / 350400 / 400400 / 500400 / 800600 / 50600 / 100600 / 125600 / 150600 / 175600 / 200600 / 250600 / 300600 / 350600 / 400600 / 500600 / 800800 / 50800 / 100800 / 125800 / 150800 / 175800 / 200800 / 250800 / 300800 / 350800 / 400800 / 500800 / 8001000 / 501000 / 1001000 / 1251000 / 1501000 / 1751000 / 2001000 / 2501000 / 3001000 / 3501000 / 4001000 / 5001000 / 8001200 / 501200 / 1001200 / 1251200 / 1501200 / 1751200 / 2001200 / 2501200 / 3001200 / 5001200 / 800 BPZ-FP-400/050-BL 286675 1 BPZ-FP-400/100-BL 286676 1 BPZ-FP-400/125-BL 151252 1 BPZ-FP-400/150-BL 286677 1 BPZ-FP-400/175-BL 151257 1 BPZ-FP-400/200-BL 286679 1 BPZ-FP-400/250-BL 108389 1 BPZ-FP-400/300-BL 108390 1 BPZ-FP-400/350-BL 119229 1 BPZ-FP-400/400-BL 119230 1 BPZ-FP-400/500-BL 119231 1 BPZ-FP-400/800-BL 119232 1 BPZ-FP-600/050-BL 286681 1 BPZ-FP-600/100-BL 286682 1 BPZ-FP-600/125-BL 151253 1 BPZ-FP-600/150-BL 286683 1 BPZ-FP-600/175-BL 151258 1 BPZ-FP-600/200-BL 286685 1 BPZ-FP-600/250-BL 108391 1 BPZ-FP-600/300-BL 108392 1 BPZ-FP-600/350-BL 119233 1 BPZ-FP-600/400-BL 119234 1 BPZ-FP-600/500-BL 119235 1 BPZ-FP-600/800-BL 119236 1 BPZ-FP-800/050-BL 286687 1 BPZ-FP-800/100-BL 286688 1 BPZ-FP-800/125-BL 151254 1 BPZ-FP-800/150-BL 286689 1 BPZ-FP-800/175-BL 151259 1 BPZ-FP-800/200-BL 286691 1 BPZ-FP-800/250-BL 108393 1 BPZ-FP-800/300-BL 108394 1 BPZ-FP-800/350-BL 119237 1 BPZ-FP-800/400-BL 119238 1 BPZ-FP-800/500-BL 119239 1 BPZ-FP-800/800-BL 119240 1 BPZ-FP-1000/050-BL 293526 1 BPZ-FP-1000/100-BL 293528 1 BPZ-FP-1000/125-BL 151255 1 BPZ-FP-1000/150-BL 293530 1 BPZ-FP-1000/175-BL 151730 1 BPZ-FP-1000/200-BL 293534 1 BPZ-FP-1000/250-BL 108395 1 BPZ-FP-1000/300-BL 108396 1 BPZ-FP-1000/350-BL 119241 1 BPZ-FP-1000/400-BL 119242 1 BPZ-FP-1000/500-BL 119243 1 BPZ-FP-1000/800-BL 119244 1 BPZ-FP-1200/050-BL 293538 1 BPZ-FP-1200/100-BL 293540 1 BPZ-FP-1200/125-BL 151256 1 BPZ-FP-1200/150-BL 293542 1 BPZ-FP-1200/175-BL 151731 1 BPZ-FP-1200/200-BL 293546 1 BPZ-FP-1200/250-BL 108397 1 BPZ-FP-1200/300-BL 108398 1 BPZ-FP-1200/500-BL 152516 1 BPZ-FP-1200/800-BL 152517 1 Width / Height (mm) Type Designation Article No. Units per package Grey VT00305

400 / 50400 / 100400 / 150400 / 200400 / 250400 / 300400 / 350400 / 400400 / 500400 / 800600 / 50600 / 100600 / 150600 / 200600 / 250600 / 300600 / 350600 / 400600 / 500600 / 800800 / 50800 / 100800 / 150800 / 200800 / 250800 / 300800 / 350800 / 400800 / 500800 / 8001000 / 501000 / 1001000 / 1501000 / 2001000 / 2501000 / 3001000 / 3501000 / 4001000 / 5001000 / 8001200 / 501200 / 1001200 / 1501200 / 2001200 / 2501200 / 3001200 / 5001200 / 800 BPZ-FP-400/050-BL-W 292397 1 BPZ-FP-400/100-BL-W 292398 1 BPZ-FP-400/150-BL-W 292399 1 BPZ-FP-400/200-BL-W 292401 1 BPZ-FP-400/250-BL-W 108399 1 BPZ-FP-400/300-BL-W 108400 1 BPZ-FP-400/350-BL-W 119245 1 BPZ-FP-400/400-BL-W 119246 1 BPZ-FP-400/500-BL-W 119247 1 BPZ-FP-400/800-BL-W 119248 1 BPZ-FP-600/050-BL-W 292403 1 BPZ-FP-600/100-BL-W 292404 1 BPZ-FP-600/150-BL-W 292405 1 BPZ-FP-600/200-BL-W 292407 1 BPZ-FP-600/250-BL-W 108401 1 BPZ-FP-600/300-BL-W 108402 1 BPZ-FP-600/350-BL-W 119249 1 BPZ-FP-600/400-BL-W 119250 1 BPZ-FP-600/500-BL-W 119251 1 BPZ-FP-600/800-BL-W 119252 1 BPZ-FP-800/050-BL-W 292409 1 BPZ-FP-800/100-BL-W 292410 1 BPZ-FP-800/150-BL-W 292411 1 BPZ-FP-800/200-BL-W 292413 1 BPZ-FP-800/250-BL-W 108403 1 BPZ-FP-800/300-BL-W 108404 1 BPZ-FP-800/350-BL-W 119253 1 BPZ-FP-800/400-BL-W 119254 1 BPZ-FP-800/500-BL-W 119255 1 BPZ-FP-800/800-BL-W 119256 1 BPZ-FP-1000/050-BL-W 293527 1 BPZ-FP-1000/100-BL-W 293529 1 BPZ-FP-1000/150-BL-W 293531 1 BPZ-FP-1000/200-BL-W 293535 1 BPZ-FP-1000/250-BL-W 108405 1 BPZ-FP-1000/300-BL-W 108406 1 BPZ-FP-1000/350-BL-W 119257 1 BPZ-FP-1000/400-BL-W 119258 1 BPZ-FP-1000/500-BL-W 119259 1 BPZ-FP-1000/800-BL-W 119260 1 BPZ-FP-1200/050-BL-W 293539 1 BPZ-FP-1200/100-BL-W 293541 1 BPZ-FP-1200/150-BL-W 293543 1 BPZ-FP-1200/200-BL-W 293547 1 BPZ-FP-1200/250-BL-W 108407 1 BPZ-FP-1200/300-BL-W 108408 1 BPZ-FP-1200/500-BL-W 152518 1 BPZ-FP-1200/800-BL-W 152519 1 White VT02505 52 Distribution Boards

53 Distribution Boards  Front Plattes, blind, BPZ-FPK-..-BL • Plastic (PVC) 400 / 50400 / 100400 / 150400 / 200600 / 50600 / 100600 / 150600 / 200600 / 250600 / 300600 / 350800 / 50800 / 100800 / 150800 / 200800 / 250800 / 300800 / 3501000 / 501000 / 1001000 / 1501000 / 2001000 / 2501000 / 3001000 / 3501200 / 1001200 / 1501200 / 2001200 / 2501200 / 3001200 / 350 BPZ-FPK-400/50-BL 119261 1 BPZ-FPK-400/100-BL 119262 1 BPZ-FPK-400/150-BL 119263 1 BPZ-FPK-400/200-BL 119264 1 BPZ-FPK-600/50-BL 119265 1 BPZ-FPK-600/100-BL 119266 1 BPZ-FPK-600/150-BL 119267 1 BPZ-FPK-600/200-BL 119268 1 BPZ-FPK-600/250-BL 119269 1 BPZ-FPK-600/300-BL 119270 1 BPZ-FPK-600/350-BL 119271 1 BPZ-FPK-800/50-BL 119272 1 BPZ-FPK-800/100-BL 119273 1 BPZ-FPK-800/150-BL 119274 1 BPZ-FPK-800/200-BL 119275 1 BPZ-FPK-800/250-BL 119276 1 BPZ-FPK-800/300-BL 119277 1 BPZ-FPK-800/350-BL 119278 1 BPZ-FPK-1000/50-BL 119279 1 BPZ-FPK-1000/100-BL 119280 1 BPZ-FPK-1000/150-BL 119281 1 BPZ-FPK-1000/200-BL 119282 1 BPZ-FPK-1000/250-BL 119283 1 BPZ-FPK-1000/300-BL 119284 1 BPZ-FPK-1000/350-BL 119285 1 BPZ-FPK-1200/100-BL 119286 1 BPZ-FPK-1200/150-BL 119287 1 BPZ-FPK-1200/200-BL 119288 1 BPZ-FPK-1200/250-BL 119289 1 BPZ-FPK-1200/300-BL 119290 1 BPZ-FPK-1200/350-BL 119291 1 Width / Height (mm) Type Designation Article No. Units per package Grey vt00305 Front Plates with 45 mm Device Cutout, BPZ-FP-..-45 • Sheet steel• self-earthing fasteners Width (mm) / Height (mm) / MU Type Designation Article No. Units per package Grey VT00405 400 / 125 / 13400 / 150 / 13400 / 175 / 13400 / 200 / 13600 / 125 / 24600 / 150 / 24600 / 175 / 24600 / 200 / 24800 / 125 / 35800 / 150 / 35800 / 175 / 35800 / 200 / 351000 / 125 / 461000 / 150 / 461000 / 175 / 46 1000 / 200 / 461200 / 125 / 571200 / 150 / 571200 / 150 / 571200 / 200 / 57 BPZ-FP-400/125-45 120783 1 BPZ-FP-400/150-45 286678 1 BPZ-FP-400/175-45 120784 1 BPZ-FP-400/200-45 286680 1 BPZ-FP-600/125-45 120785 1 BPZ-FP-600/150-45 286684 1 BPZ-FP-600/175-45 120786 1 BPZ-FP-600/200-45 286686 1 BPZ-FP-800/125-45 120787 1 BPZ-FP-800/150-45 286690 1 BPZ-FP-800/175-45 120788 1 BPZ-FP-800/200-45 286692 1 BPZ-FP-1000/125-45 120789 1 BPZ-FP-1000/150-45 293532 1 BPZ-FP-1000/175-45 120790 1 BPZ-FP-1000/200-45 293536 1 BPZ-FP-1200/125-45 120791 1 BPZ-FP-1200/150-45 293544 1 BPZ-FP-1200/175-45 120792 1 BPZ-FP-1200/200-45 293548 1

54 Distribution Boards  Front Plates with 45 mm Device Cutout, BPZ-FPK-..-45 • Plastic (PVC) Width (mm) / Height (mm) / MU Type Designation Article No. Units per package Grey 400 / 150 / 13400 / 200 / 13600 / 150 / 24600 / 200 / 24800 / 150 / 35800 / 200 / 351000 / 150 / 461000 / 200 / 461200 / 150 / 571200 / 200 / 57 BPZ-FP-400/150-45-W 292400 1 BPZ-FP-400/200-45-W 292402 1 BPZ-FP-600/150-45-W 292406 1 BPZ-FP-600/200-45-W 292408 1 BPZ-FP-800/150-45-W 292412 1 BPZ-FP-800/200-45-W 292414 1 BPZ-FP-1000/150-45-W 293533 1 BPZ-FP-1000/200-45-W 293537 1 BPZ-FP-1200/150-45-W 293545 1 BPZ-FP-1200/200-45-W 293549 1 White VT02605 400 / 125 / 13400 / 150 / 13400 / 175 / 13400 / 200 / 13600 / 125 / 24600 / 150 / 24600 / 175 / 24600 / 200 / 24800 / 125 / 35800 / 150 / 35800 / 175 / 35800 / 200 / 351000 / 125 / 461000 / 150 / 461000 / 175 / 461000 / 200 / 461200 / 125 / 571200 / 150 / 571200 / 175 / 571200 / 200 / 57 BPZ-FPK-400/125-45 120793 1 BPZ-FPK-400/150-45 119292 1 BPZ-FPK-400/175-45 120794 1  BPZ-FPK-400200-45 119293 1 BPZ-FPK-600/125-45 120795 1 BPZ-FPK-600/150-45 119294 1 BPZ-FPK-600/175-45 120796 1  BPZ-FPK-600/200-45 119295 1 BPZ-FPK-800/125-45 120797 1 BPZ-FPK-800/150-45 119296 1 BPZ-FPK-800/175-45 120798 1  BPZ-FPK-800/200-45 119297 1 BPZ-FPK-1000/125-45 120799 1 BPZ-FPK-1000/150-45 119298 1 BPZ-FPK-1000/175-45 120800 1  BPZ-FPK-1000/200-45 119299 1 BPZ-FPK-1200/125-45 120801 1 BPZ-FPK-1200/150-45 119300 1 BPZ-FPK-1200/175-45 120802 1  BPZ-FPK-1200/200-45 119301 1

Blanking Strips Blanking strip, white, 0.5 mod.Blanking strip, white, 2x 10 mod.Blanking strip, white, 6 mod.Blanking strip, grey, 1m longBlanking strip, white, 1m longBlanking strip, grey, 12 mod. AM-45 275409 10 units AP-45 275410 2 units+4 wedges AP-45-W 275411 1 unit NBP-1000 275413 1 unit NBP-1000-W 101666 1 unit VST12 002322 10 units Description Type Designation Article No. Units per package Front Plates for Command Devices RMQ-Titan, BPZ-FP-...-RMQ • Sheet steel• self-earthing fasteners 400 / 100 / 7600 / 100 / 12 BPZ-FP-400/100-RMQ 108370 1 BPZ-FP-600/100-RMQ 108371 1 Width (mm) / Height (mm) / RMQ (pcs.) Type Designation Article No. Units per package Grey  VT25506 400 / 100 / 7600 / 100 / 12 BPZ-FP-400/100-RMQ-W 108372 1 BPZ-FP-600/100-RMQ-W 108373 1 White  Front Plates, Steel sheet with Plastic Insert, BPZ-FPP-...-BL • Sheet steel frame with plastic insert• self-earthing fasteners• universal front plate suitable for different outputs Width (mm) / Height (mm) / MU Type Designation Article No. Units per package Grey VT25306 400 / 150400 / 300600 / 150600 / 300600 / 500800 / 150800 / 300800 / 5001000 / 1501000 / 3001000 / 5001200 / 1501200 / 3001200 / 500 BPZ-FPP-400/150-BL 120732 1 BPZ-FPP-400/300-BL 108291 1 BPZ-FPP-600/150-BL 120733 1 BPZ-FPP-600/300-BL 108292 1 BPZ-FPP-600/500-BL 108293 1 BPZ-FPP-800/150-BL 120734 1 BPZ-FPP-800/300-BL 108294 1 BPZ-FPP-800/500-BL 108295 1 BPZ-FPP-1000/150-BL 120735 1 BPZ-FPP-1000/300-BL 134202 1 BPZ-FPP-1000/500-BL 134203 1 BPZ-FPP-1200/150-BL 120736 1 BPZ-FPP-1200/300-BL 134204 1 BPZ-FPP-1200/500-BL 134205 1 400 / 150400 / 300600 / 150600 / 300600 / 500800 / 150800 / 300800 / 5001000 / 1501000 / 3001000 / 5001200 / 1501200 / 3001200 / 500 BPZ-FPP-400/150-BL-W 120737 1 BPZ-FPP-400/300-BL-W 108296 1 BPZ-FPP-600/150-BL-W 120738 1 BPZ-FPP-600/300-BL-W 108297 1 BPZ-FPP-600/500-BL-W 108298 1 BPZ-FPP-800/150-BL-W 120739 1 BPZ-FPP-800/300-BL-W 108299 1 BPZ-FPP-800/500-BL-W 108330 1 BPZ-FPP-1000/150-BL-W 120740 1 BPZ-FPP-1000/300-BL-W 134206 1 BPZ-FPP-1000/500-BL-W 134207 1 BPZ-FPP-1200/150-BL-W 120741 1 BPZ-FPP-1200/300-BL-W 134208 1 BPZ-FPP-1200/500-BL-W 134209 1 Weiß 55 Distribution Boards  wa_vt38213 AP-45-W wa_vt07213 AP-45 VT19505 AM-45 wa_vt07313 NPB-1000..

56 Distribution Boards  Front plate screw, BPZ-FPV • Replacement part (plastic part and screw) Front plate BPZ-FPV 120721 1 for Type Designation Article No. Units per package VT01210 Blanking Strip for  SASY 60i, AM-195/54 • plastic cover for SASY 60i cut outs, RAL 7035• to clip on and click onto place• possibility to shorten 54 / 195 / 3 AM-195/45 107963 1 Width (mm) / Height (mm) / MU Type Designation Article No. Units per package SG13506

Universal Mounting Plate, BPZ-MPL • suitable for mounting into flush-, surface- and floorstanding boards• screws included 400 / 30600 / 30800 / 301000 / 301200 / 30400 / 80600 / 80800 / 801000 / 801200 / 80400 / 180600 / 180800 / 1801000 / 1801200 / 180400 / 350600 / 350800 / 3501000 / 3501200 / 350400 / 650600 / 650800 / 6501000 / 6501200 / 650400 / 950600 / 950800 / 9501000 / 9501200 / 950400 / 1150600 / 1150800 / 11501000 / 11501200 / 1150400 / 1450600 / 1450800 / 14501000 / 14501200 / 1450400 / 1650600 / 1650800 / 16501000 / 16501200 / 1650400 / 1950600 / 1950800 / 19501000 / 19501200 / 1950 BPZ-MPL30-400 104316 1 BPZ-MPL30-600 104317 1 BPZ-MPL30-800 104318 1 BPZ-MPL30-1000 104319 1 BPZ-MPL30-1200 104330 1 BPZ-MPL80-400 286765 1 BPZ-MPL80-600 286766 1 BPZ-MPL80-800 286767 1 BPZ-MPL80-1000 293609 1 BPZ-MPL80-1200 293610 1 BPZ-MPL180-400 102472 1 BPZ-MPL180-600 102473 1 BPZ-MPL180-800 102474 1 BPZ-MPL180-1000 102475 1 BPZ-MPL180-1200 102476 1 BPZ-MPL350-400 108333 1 BPZ-MPL350-600 108340 1 BPZ-MPL350-800 108347 1 BPZ-MPL350-1000 153022 1 BPZ-MPL350-1200 153023 1 BPZ-MPL650-400 108334 1 BPZ-MPL650-600 108341 1 BPZ-MPL650-800 108348 1 BPZ-MPL650-1000 153024 1 BPZ-MPL650-1200 153025 1 BPZ-MPL950-400 108335 1 BPZ-MPL950-600 108342 1 BPZ-MPL950-800 108349 1 BPZ-MPL950-1000 153026 1 BPZ-MPL950-1200 153027 1 BPZ-MPL1150-400 108336 1 BPZ-MPL1150-600 108343 1 BPZ-MPL1150-800 108350 1 BPZ-MPL1150-1000 153028 1 BPZ-MPL1150-1200 153029 1 BPZ-MPL1450-400 108337 1 BPZ-MPL1450-600 108344 1 BPZ-MPL1450-800 108351 1 BPZ-MPL1450-1000 153030 1 BPZ-MPL1450-1200 153031 1 BPZ-MPL1650-400 108338 1 BPZ-MPL1650-600 108345 1 BPZ-MPL1650-800 108352 1 BPZ-MPL1650-1000 153032 1 BPZ-MPL1650-1200 153033 1 BPZ-MPL1950-400 108339 1 BPZ-MPL1950-600 108346 1 BPZ-MPL1950-800 108353 1 BPZ-MPL1950-1000 153034 1 BPZ-MPL1950-1200 153035 1 Width / Height (mm) Type Designation Article No. Units per package VT00805 VT24806 57 Distribution Boards

58 Distribution Boards  Mounting Plate for multiple mounting NZM, BPZ-MPL-NZM..-…-MV • without front plate• for vertical use of NZM switches 400600800100012004006008001000120060080010001200 BPZ-MPL-NZM1X-400-MV 120742 1  BPZ-MPL-NZM1X-600-MV 120743 1  BPZ-MPL-NZM1X-800-MV 120744 1  BPZ-MPL-NZM1X-1000-MV 173619 1  BPZ-MPL-NZM1X-1200-MV 173620 1  BPZ-MPL-NZM2X-400-MV 120745 1  BPZ-MPL-NZM2X-600-MV 120746 1  BPZ-MPL-NZM2X-800-MV 120747 1  BPZ-MPL-NZM2X-1000-MV 173621 1  BPZ-MPL-NZM2X-1200-MV 173622 1  BPZ-MPL-NZM3X-600-MV 120748 1  BPZ-MPL-NZM3X-800-MV 120749 1  BPZ-MPL-NZM3X-1000-MV 173623 1  BPZ-MPL-NZM3X-1200-MV 173624 1 Width (mm) Type Designation Article No. Units per package VT00905 Width (mm) / Height (mm) /  Type Designation Article No. Units per package max. No. of 3-/4-pole NZM Front plate multiple mounting NZM, BPZ-FP • sheet steel• fastening connected with electrical grounding• prepared cut-outs in the front plate• without mounting plate• only for mounting in the XVTL system• incl. cover for not used openings (NZM2, NZM3 and NZM4)• use AP-45 cover strip with NZM1 front plates Vertical - grey Grey Front plate single mounting NZM4, BPZ-FP-NZM4-...-M.-XVTL • sheet steel• fastening connected with electrical grounding• prepared cut-outs in the front plate• without mounting plate• only for mounting in the XVTL system 400 / 800 / 1xNZM4 vertical600 / 800 / 1xNZM4 vertical800 / 800 / 1xNZM4 vertical800 / 400 / 1xNZM4 horizontal BPZ-FP-NZM4-400-MV-XVTL 173603 1   BPZ-FP-NZM4-600-MV-XVTL 173604 1   BPZ-FP-NZM4-800-MV-XVTL 173605 1   BPZ-FP-NZM4-800-MH-XVTL 173606 1   400 / 200 / 2xNZM1/2xNZM1600 / 200 / 4xNZM1/3xNZM1800 / 200 / 7xNZM1/5xNZM11000 / 200 / 9xNZM1/6xNZM11200 / 200 / 11xNZM1/8xNZM1400 / 300 / 2xNZM2/---600 / 300 / 3xNZM2/2xNZM2800 / 300 / 4xNZM2/4xNZM21000 / 300 / 4xNZM2/4xNZM21200 / 300 / 4xNZM2/4xNZM2600 / 500 / 2xNZM3/2xNZM3800 / 500 / 3xNZM3/3xNZM31000 / 500 / 3xNZM3/3xNZM31200 / 500 / 3xNZM3/3xNZM3800 / 800 / 2xNZM4/2xNZM4  ) 1000 / 800 / 3xNZM4/2xNZM4  ) 1200 / 800 / 3xNZM4/3xNZM4  ) ) only for mounting in the XVTLsystem BPZ-FP-400/200-45 286680 1   BPZ-FP-600/200-45 286686 1   BPZ-FP-800/200-45 286692 1   BPZ-FP-1000/200-45 293536 1   BPZ-FP-1200/200-45 293548 1   BPZ-FP-NZM2X-2/0-400-MV 173607 1   BPZ-FP-NZM2X-3/2-600-MV 173608 1   BPZ-FP-NZM2X-4/4-800-MV 173609 1   BPZ-FP-NZM2X-4/4-1000-MV 173610 1   BPZ-FP-NZM2X-4/4-1200-MV 173611 1   BPZ-FP-NZM3X-2/2-600-MV 173612 1   BPZ-FP-NZM3X-3/3-800-MV 173613 1   BPZ-FP-NZM3X-3/3-1000-MV 173614 1   BPZ-FP-NZM3X-3/3-1200-MV 173615 1   BPZ-FP-NZM4X-2/2-800-MV-XVTL 173616 1   BPZ-FP-NZM4X-3/2-1000-MV-XVTL 173617 1   BPZ-FP-NZM4X-3/3-1200-MV-XVTL 173618 1

59 Distribution Boards  Mounting Plate NZM symmetrical, prepared for rear connection, BPZ-MPL-NZM..-...-MX • without front plate• for vertical and horizontal use of NZM switches• only 1 NZM with horizontal use 600 / 3xNZM1 vertical 800 / 4xNZM1 vertical600 / 2xNZM2 vertical800 / 3xNZM2 vertical600 / 1xNZM3 vertical800 / 1xNZM3 vertical600 / 1xNZM4 vertical  ) 800 / 1xNZM4 vertical  ) ) only for mounting in the XVTLsystem BPZ-MPL-NZM1X-600-MX 174390 1   BPZ-MPL-NZM1X-800-MX 174399 1   BPZ-MPL-NZM2X-600-MX 174391 1   BPZ-MPL-NZM2X-800-MX 174400 1   BPZ-MPL-NZM3-600-MX 174395 1   BPZ-MPL-NZM3-800-MX 174404 1   BPZ-MPL-NZM4-600-MX-XVTL 174397 1   BPZ-MPL-NZM4-800-MX-XVTL 174406 1   Width (mm) / max. No. of NZM Type Designation Article No. Units per package DIN-Rail, BPZ-DINR • installation onto mounting plate BPZ-MPL-NZM1X-...-MX• in case of use 1xNZM1 vertical 17 / Art.-No. 174390 27 / Art.-No. 174399 BPZ-DINR17-MPL-NZM1X-600-MV 174382 1   BPZ-DINR27-MPL-NZM1X-800-MV 174383 1   MU / suitable for  Type Designation Article No. Units per package Width (mm) / Height (mm) /  Type Designation Article No. Units per package max. No. of 4-pole NZM Front plate NZM symmetrical, BPZ-FP/S • sheet steel• fastening connected with electrical grounding• prepared cut-outs in the front plate• without mounting plate• only useful in combination with mounting plate NZM symmetrical Vertical - grey 600 / 200 / 3xNZM1600 / 200 / 1xNZM1+XFI600 / 300 / 1xNZM2600 / 300 / 2xNZM2600 / 400 / 1xNZM2+XFI600 / 400 / 1xNZM3600 / 600 / 1xNZM4  ) 800 / 200 / 4xNZM1800 / 200 / 2xNZM1+XFI800 / 300 / 1xNZM2800 / 300 / 3xNZM2800 / 400 / 1xNZM2+XFI800 / 400 / 1xNZM3800 / 600 / 1xNZM4  ) ) only for mounting in the XVTLsystem BPZ-FP-600/200-45 286686 1   BPZ-FP-600/200-45 286686 1   BPZ-FP/S-NZM2-600-MV 174392 1   BPZ-FP/S-NZM2-2/2-600-MV 174393 1   BPZ-FP/S-NZM2-XFI-600-MV 174394 1   BPZ-FP/S-NZM3-600-MV 174396 1   BPZ-FP/S-NZM4-600-MV-XVTL 174398 1   BPZ-FP-800/200-45 286692 1   BPZ-FP-800/200-45 286692 1   BPZ-FP/S-NZM2-800-MV 174401 1   BPZ-FP/S-NZM2X-3/3-800-MV 174402 1   BPZ-FP/S-NZM2-XFI-800-MV 174403 1   BPZ-FP/S-NZM3-800-MV 174405 1   BPZ-FP/S-NZM4-800-MV-XVTL 174407 1

60 Distribution Boards  Horizontal - grey 600 / 200 / 1xNZM1600 / 200 / 1xNZM2600 / 200 / 1xNZM2+XFI600 / 400 / 1xNZM3600 / 600 / 1xNZM4  ) 800 / 200 / 1xNZM1800 / 200 / 1xNZM2800 / 200 / 1xNZM2+XFI800 / 400 / 1xNZM3800 / 600 / 1xNZM4 ) ) only for mounting in the XVTLsystem BPZ-FP/S-NZM1-600-MH 174408 1   BPZ-FP/S-NZM2-600-MH 174409 1   BPZ-FP/S-NZM2-XFI-600-MH 174410 1   BPZ-FP/S-NZM3-600-MH 174411 1   BPZ-FP-NZM4-600-MH-XVTL 174375 1   BPZ-FP/S-NZM1-800-MH 174376 1   BPZ-FP/S-NZM2-800-MH 174377 1   BPZ-FP/S-NZM2-XFI-800-MH 174378 1   BPZ-FP/S-NZM3-800-MH 174379 1   BPZ-FP/S-NZM4-800-MH-XVTL 174380 1   Width (mm) / Height (mm) /  Type Designation Article No. Units per package max. No. of 4-pole NZM Mounting Set, BPZ-NZM • kits for NZM1, 2 and 3 (horizontal or vertical), front plate and screws included 400 / 300400 / 400400 / 500600 / 300600 / 400600 / 500800 / 300800 / 400800 / 500 BPZ-NZM1-400-MV 286757 1 BPZ-NZM2-400-MV 286758 1 BPZ-NZM3-400-MV 286759 1 BPZ-NZM1-600-MV 286762 1 BPZ-NZM2-600-MV 286763 1 BPZ-NZM3-600-MV 286764 1 BPZ-NZM1-800-MV 293603 1 BPZ-NZM2-800-MV 293605 1 BPZ-NZM3-800-MV 293607 1 Width / Height (mm) Type Designation Article No. Units per package Vertical - grey VT01005, VT00905 400 / 300400 / 400400 / 500600 / 300600 / 400600 / 500800 / 300800 / 400800 / 500 BPZ-NZM1-400-MV-W 292473 1 BPZ-NZM2-400-MV-W 292474 1 BPZ-NZM3-400-MV-W 292475 1 BPZ-NZM1-600-MV-W 292478 1 BPZ-NZM2-600-MV-W 292479 1 BPZ-NZM3-600-MV-W 292480 1 BPZ-NZM1-800-MV-W 293604 1 BPZ-NZM2-800-MV-W 293606 1 BPZ-NZM3-800-MV-W 293608 1 Vertical - white VT03205, VT03005 Horizontal - grey Horizontal - white 400 / 200400 / 200600 / 200600 / 200600 / 300800 / 200800 / 200800 / 300 BPZ-NZM1-400-MH 173601 1  BPZ-NZM2-400-MH 173602 1  BPZ-NZM1-600-MH 286760 1  BPZ-NZM2-600-MH 286761 1  BPZ-NZM3-600-MH 120750 1  BPZ-NZM1-800-MH 293599 1  BPZ-NZM2-800-MH 293601 1  BPZ-NZM3-800-MH 120751 1  600 / 200600 / 200600 / 300800 / 200800 / 200800 / 300 BPZ-NZM1-600-MH-W 292476 1 BPZ-NZM2-600-MH-W 292477 1 BPZ-NZM3-600-MH-W 120752 1 BPZ-NZM1-800-MH-W 293600 1 BPZ-NZM2-800-MH-W 293602 1 BPZ-NZM3-800-MH-W 120753 1

Mounting-Set NZM for MSW, BPZ-NZM./MSW • mounting on MSW• mounting with BEL into side wall (MSW) Width (mm) / Height (mm) Type Designation Article No. Units per package 400 / 300400 / 400600 / 300600 / 400800 / 300800 / 400 BPZ-NZM1/MSW-400-MV-W 116929 1 BPZ-NZM2/MSW-400-MV-W 116930 1 BPZ-NZM1/MSW-600-MV-W 116931 1 BPZ-NZM2/MSW-600-MV-W 116932 1 BPZ-NZM1/MSW-800-MV-W 116933 1 BPZ-NZM2/MSW-800-MV-W 116934 1 Vertical - white 600 / 200600 / 200800 / 200800 / 200 BPZ-NZM1/MSW-600-MH 116935 1 BPZ-NZM2/MSW-600-MH 116936 1 BPZ-NZM1/MSW-800-MH 116937 1 BPZ-NZM2/MSW-800-MH 116938 1 Horizontal - grey VT10908 400 / 300400 / 400600 / 300600 / 400800 / 300800 / 400 BPZ-NZM1/MSW-400-MV 116923 1 BPZ-NZM2/MSW-400-MV 116924 1 BPZ-NZM1/MSW-600-MV 116925 1 BPZ-NZM2/MSW-600-MV 116926 1 BPZ-NZM1/MSW-800-MV 116927 1 BPZ-NZM2/MSW-800-MV 116928 1 Vertical - grey vt10908 600 / 200600 / 200800 / 200800 / 200 BPZ-NZM1/MSW-600-MH-W116939 1 BPZ-NZM2/MSW-600-MH-W116940 1 BPZ-NZM1/MSW-800-MH-W116941 1 BPZ-NZM2/MSW-800-MH-W116942 1 Horizontal - white 61 Distribution Boards  Mounting-Set for NZM with rotary door handle, BPZ-NZM...-RH 400 / 300400 / 400400 / 500600 / 300600 / 400800 / 300800 / 400 BPZ-NZM1-400-MV-RH-W 105217 1 BPZ-NZM2-400-MV-RH-W 105218 1 BPZ-NZM3-400-MV-RH-W 105527 1 BPZ-NZM1-600-MV-RH-W 105219 1 BPZ-NZM2-600-MV-RH-W 105520 1 BPZ-NZM1-800-MV-RH-W 105521 1 BPZ-NZM2-800-MV-RH-W 105522 1 Width (mm) / Height (mm) Type Designation Article No. Units per package Vertical - white vt03205 600 / 200600 / 200800 / 200800 / 200 BPZ-NZM1-600-MH-RH-W 105523 1 BPZ-NZM2-600-MH-RH-W 105524 1 BPZ-NZM1-800-MH-RH-W 105525 1 BPZ-NZM2-800-MH-RH-W 105526 1 Horizontal - white vt03205 400 / 300400 / 400400 / 500600 / 300600 / 400800 / 300800 / 400 BPZ-NZM1-400-MV-RH 116679 1 BPZ-NZM2-400-MV-RH 116680 1 BPZ-NZM3-400-MV-RH 116681 1 BPZ-NZM1-600-MV-RH 116682 1 BPZ-NZM2-600-MV-RH 116683 1 BPZ-NZM1-800-MV-RH 116684 1 BPZ-NZM2-800-MV-RH 116685 1 Vertical - grey vt00905 600 / 200600 / 200800 / 200800 / 200 BPZ-NZM1-600-MH-RH 116686 1 BPZ-NZM2-600-MH-RH 116687 1 BPZ-NZM1-800-MH-RH 116688 1 BPZ-NZM2-800-MH-RH 116689 1 Horizontal - grey vt00905

62 Distribution Boards  Mounting-Set NZM for multiple mounting, BPZ-NZM.X... Width (mm) / Height (mm) / for 3-/4-pole Type Designation Article No. Units per package Vertical - grey VT25406 VT25606 400 / 200 / 2xNZM1/2xNZM1600 / 200 / 4xNZM1/3xNZM1800 / 200 / 7xNZM1/5xNZM11000 / 200 / 9xNZM1/6xNZM11200 / 200 / 11xNZM1/8xNZM1400 / 300 / 2xNZM2/1xNZM2600 / 300 / 3xNZM2/3xNZM2800 / 300 / 5xNZM2/4xNZM21000 / 300 / 7xNZM2/5xNZM21200 / 300 / 9xNZM2/7xNZM2600 / 500 / 3xNZM3/2xNZM3800 / 500 / 4xNZM3/3xNZM31000 / 500 / 5xNZM3/4xNZM31200 / 500 / 7xNZM3/5xNZM3 BPZ-NZM1X-400-MV 108354 1 BPZ-NZM1X-600-MV 108355 1 BPZ-NZM1X-800-MV 108356 1 BPZ-NZM1X-1000-MV 134190 1 BPZ-NZM1X-1200-MV 134191 1 BPZ-NZM2X-400-MV 108357 1 BPZ-NZM2X-600-MV 108358 1 BPZ-NZM2X-800-MV 108359 1 BPZ-NZM2X-1000-MV 134192 1 BPZ-NZM2X-1200-MV 134193 1 BPZ-NZM3X-600-MV 108360 1 BPZ-NZM3X-800-MV 108361 1 BPZ-NZM3X-1000-MV 134194 1 BPZ-NZM3X-1200-MV 134195 1 400 / 200 / 2xNZM1/2xNZM1600 / 200 / 4xNZM1/3xNZM1800 / 200 / 7xNZM1/5xNZM11000 / 200 / 9xNZM1/6xNZM11200 / 200 / 11xNZM1/8xNZM1400 / 300 / 2xNZM2/1xNZM2600 / 300 / 3xNZM2/3xNZM2800 / 300 / 5xNZM2/4xNZM21000 / 300 / 7xNZM2/5xNZM21200 / 300 / 9xNZM2/7xNZM2600 / 500 / 3xNZM3/2xNZM3800 / 500 / 4xNZM3/3xNZM31000 / 500 / 5xNZM3/4xNZM31200 / 500 / 7xNZM3/5xNZM3 BPZ-NZM1X-400-MV-W 108362 1 BPZ-NZM1X-600-MV-W 108363 1 BPZ-NZM1X-800-MV-W 108364 1 BPZ-NZM1X-1000-MV-W 134196 1 BPZ-NZM1X-1200-MV-W 134197 1 BPZ-NZM2X-400-MV-W 108365 1 BPZ-NZM2X-600-MV-W 108366 1 BPZ-NZM2X-800-MV-W 108367 1 BPZ-NZM2X-1000-MV-W 134198 1 BPZ-NZM2X-1200-MV-W 134199 1 BPZ-NZM3X-600-MV-W 108368 1 BPZ-NZM3X-800-MV-W 108369 1 BPZ-NZM3X-1000-MV-W 134200 1 BPZ-NZM3X-1200-MV-W 134201 1 Vertical - white Mounting-Set for max. Installation depth, BPZ-KIT-MPL-… 400 / 300600 / 300800 / 3001000 / 3001200 / 300 BPZ-KIT-MPL-400 134210 1 BPZ-KIT-MPL-600 134211 1 BPZ-KIT-MPL-800 134212 1 BPZ-KIT-MPL-1000 134213 1 BPZ-KIT-MPL-1200 134214 1 Width (mm) / Height (mm) Type Designation Article No. Units per package Grey White 400 / 300600 / 300800 / 3001000 / 3001200 / 300 BPZ-KIT-MPL-400-W 134215 1 BPZ-KIT-MPL-600-W 134216 1 BPZ-KIT-MPL-800-W 134217 1 BPZ-KIT-MPL-1000-W 134218 1 BPZ-KIT-MPL-1200-W 134219 1 • set contains bended mounting plate, bended front plate and screws• for max. installation depth 224mm• mounting plate with steel front plate wa_vt27513 Mounting Plate for multiple mounting, BZM1, BZM2, BPZ-MPL-BZM1/2 40060080010001200 BPZ-MPL-BZM1/2-400-MV 144232 1 BPZ-MPL-BZM1/2-600-MV 144233 1 BPZ-MPL-BZM1/2-800-MV 144234 1 BPZ-MPL-BZM1/2-1000-MV 144235 1 BPZ-MPL-BZM1/2-1200-MV 144236 1 Width(mm) Type Designation Article No. Units per package • without front plate

Mounting Set for Yellow Tarification, BPZ-KIT-TJ • 250 A and 400 A• prepared for Socomec switch together with NZM2 (“250 A”) or NZM3 (“400 A”) Socomec lateral to NZM; screws included • for boxes of 600 mm width 250A / 400400A / 450+500 BPZ-KIT-TJ-250A-600 286768 1 BPZ-KIT-TJ-400A-600 286769 1 Rated Current / Height (mm) Type Designation Article No. Units per package Grey VT08905, VT08805 250A / 400400A / 450+500 BPZ-KIT-TJ-250A-600-W 292481 1 BPZ-KIT-TJ-400A-600-W 292482 1 White Sealing angle, BPZ-PW-… • sealing angle for IP30 Surface-Mounting board• set includes 2 angles and 8 screws BPZ-PW-ZVT 120764 1 Type Designation Article No. Units per package VT01410 Mounting Set for Disjoncteur d’Abonné, BPZ-KIT-PD 600 / 350 / 1600 / 650 / 3 BPZ-KIT-PD-600 293611 1 BPZ-KIT-PD3-600 102469 1 Width (mm) / Height (mm) / Phases Type Designation Article No. Units per package Grey VT08605, VT08705 White 600 / 350 / 1600 / 650 / 3 BPZ-KIT-PD-600-W 293612 1 BPZ-KIT-PD3-600-W 102470 1 63 Distribution Boards  Mounting-Set BZM for multiple mounting, BPZ-BZM1/2 400 / 300600 / 300800 / 3001000 / 3001200 / 300 BPZ-BZM1/2-400-MV 144222 1 BPZ-BZM1/2-600-MV 144223 1 BPZ-BZM1/2-800-MV 144224 1 BPZ-BZM1/2-1000-MV 144225 1 BPZ-BZM1/2-1200-MV 144226 1 Width (mm) / Height (mm) / Phases Type Designation Article No. Units per package Grey White 400 / 300600 / 300800 / 3001000 / 3001200 / 300 BPZ-BZM1/2-400-MV-W 144227 1 BPZ-BZM1/2-600-MV-W 144228 1 BPZ-BZM1/2-800-MV-W 144229 1 BPZ-BZM1/2-1000-MV-W 144230 1 BPZ-BZM1/2-1200-MV-W 144231 1 • for BZM1 and BZM2 mounting (2-, 3- and 4-pole)• mounting plate with steel front plate (300 mm) with cutout (45 mm)

Meter Troughs,  BPZ-MT-... 400 / 400 / 1600 / 400 / 2800 / 400 / 31000 / 400 / 41200 / 400 / 5400 / 450 / 1600 / 450 / 2800 / 450 / 31000 / 450 / 41200 / 450 / 5 BPZ-MT-400/400-1 108383 1 BPZ-MT-600/400-2 108384 1 BPZ-MT-800/400-3 108385 1 BPZ-MT-1000/400-4 108386 1 BPZ-MT-1200/400-5 108387 1 BPZ-MT-400/450-1 112293 1 BPZ-MT-600/450-2 112294 1 BPZ-MT-800/450-3 112295 1 BPZ-MT-1000/450-4 112296 1 BPZ-MT-1200/450-5 112297 1 Width / Height (mm) / Meter Plates Type Designation Article No. Units per package VT25906 Accessories DIN-Rail Set instead of MeterPlates Meter Plate 370 x 210 mm BPZ-DRS-MT/400-1 108388 1 ZBR 279261 1 wa_vt14613 wa_vt41613 BPZ-DRS-MT/400-1 ZBR 64 Distribution Boards  Sealing Set, BPZ-SS • for sealing of front plates• set consists of 4 pcs. of sealing strips, 4 pcs. of sealing screws M5 and 1 pc. of taptite screw M5 BPZ-SS 116652 1 Type Designation Article No. Units per package Sealing Screw to seal meter trough, BPZ-S • sealing screw BPZ-S 120765 1 Type Designation Article No. Units per package Meter Troughs, assembled with Meter Plates, BPZ-MT-...-A 400 / 450 / 1600 / 450 / 2800 / 450 / 31000 / 450 / 41200 / 450 / 5 BPZ-MT-400/450-1-A 112298 1 BPZ-MT-600/450-2-A 112299 1 BPZ-MT-800/450-3-A 112340 1 BPZ-MT-1000/450-4-A 112341 1 BPZ-MT-1200/450-5-A 112342 1 Width / Height (mm) / Meter Plates Type Designation Article No. Units per package VT25806 Meter Troughs Switzerland, BPZ-MT-...-CH 400 / 450 / 1600 / 450 / 1800 / 450 / 21000 / 450 / 31200 / 450 / 4 BPZ-MT-400/450-1-CH 109164 1 BPZ-MT-600/450-1-CH 109165 1 BPZ-MT-800/450-2-CH 109166 1 BPZ-MT-1000/450-3-CH 109167 1 BPZ-MT-1200/450-4-CH 109168 1 Width / Height (mm) / Meter Plates Type Designation Article No. Units per package VT25706 VT11408

65 Distribution Boards  Meter Troughs,  BPZ-MT-MSW-… 400 / 400 / 1400 / 425 / 1600 / 400 / 2600 / 425 / 2800 / 400 / 3800 / 425 / 31000 / 400 / 41000 / 425 / 41200 / 400 / 51200 / 425 / 5 BPZ-MT-MSW-400/400-1-A 120767 1 BPZ-MT-MSW-400/425-1-A 120768 1 BPZ-MT-MSW-600/400-2-A 120769 1 BPZ-MT-MSW-600/425-2-A 120770 1 BPZ-MT-MSW-800/400-3-A 120771 1 BPZ-MT-MSW-800/425-3-A 120772 1 BPZ-MT-MSW-1000/400-4-A 120773 1 BPZ-MT-MSW-1000/425-4-A 120774 1 BPZ-MT-MSW-1200/400-5-A 120775 1 BPZ-MT-MSW-1200/425-5-A 120776 1 Width / Height (mm) / Meter Plates Type Designation Article No. Units per package VT25806 DIN Rail Set, BPZ-DRS-MT-MSW 1000 / 400 / 21000 / 425 / 21200 / 400 / 21200 / 425 / 21200 / 400 / 31200 / 425 / 3 BPZ-DRS-MT-MSW-1000/400-2-A 120777 1 BPZ-DRS-MT-MSW-1000/425-2-A 120778 1 BPZ-DRS-MT-MSW-1200/400-2-A 120779 1 BPZ-DRS-MT-MSW-1200/425-2-A 120780 1 BPZ-DRS-MT-MSW-1200/400-3-A 120781 1 BPZ-DRS-MT-MSW-1200/425-3-A 120782 1 Width / Height (mm) / Meter Plates Type Designation Article No. Units per package wa_vt27413 Door Grounding Set, BFZ-DES 6 / 300 BFZ-DES 101665 1 Cross-section (mm 2 ) / Length (mm) Type Designation Article No. Units per package VT19305 Cable Strain Relief C-Profile, BPZ-KAS 40060080010001200 BPZ-KAS-400 106440 1 BPZ-KAS-600 106441 1 BPZ-KAS-800 106442 1 BPZ-KAS-1000 106443 1 BPZ-KAS-1200 106444 1 Width (mm) Type Designation Article No. Units per package wa_vt08913 Cable Ø (mm) Type Designation Article No. Units per package Cable Clamps NWS-K/AC • relief of mechanical strain of installed devices (cable strain relief)• mounting onto BPZ-KAS 12-1616-2020-2424-2836-4048-52 NWS-K/AC16 255197 1 NWS-K/AC20 255198 1 NWS-K/AC24 255199 1 NWS-K/AC28 255200 1 NWS-K/AC40 255201 1 NWS-K/AC52 255202 1 wa_nt09013  Width / Height (mm) / Meter Plates Type Designation Article No. Units per package Counter Wire Protection, BPZ-ZDS • plastic cover (PVC) 125 / 425 (400) / 1335 / 425 (400) / 2545 / 425 (400) / 3670 / 425 (400) / 4 880 / 425 (400) / 5 BPZ-ZDS-1 144879 1   BPZ-ZDS-2 144880 1   BPZ-ZDS-3 144881 1   BPZ-ZDS-2 (2x) 144880 (2x) 1   BPZ-ZDS-2 + BPZ-ZDS-3 144880 1   +144881 1

66 Distribution Boards  Terminal Support Bar, BPZ-TSB 40060080010001200 BPZ-TSB-400 106447 1 BPZ-TSB-600 106448 1 BPZ-TSB-800 106449 1 BPZ-TSB-1000 106450 1 BPZ-TSB-1200 106451 1 Width (mm) Type Designation Article No. Units per package wa_vt09313

67 Distribution Boards  General Accessories Busbar with Thread, BPZ-BB/T 15 x 5 x 1000, M6, 218 A20 x 5 x 1000, M6, 274 A32 x 5 x 1000, M6, 400 A15 x 5 x 2000, M6, 218 A20 x 5 x 2000, M6, 274 A20 x 10 x 1000, M8, 427 A30 x 10 x 1000, M8, 573 A BPZ-BB/T-15/5/1000 289861 4 BPZ-BB/T-20/5/1000 289862 4 BPZ-BB/T-32/5/1000 289863 4 BPZ-BB/T-15/5/2000 289864 4 BPZ-BB/T-20/5/2000 289865 4 BPZ-BB/T-20/10/1000 289866 4 BPZ-BB/T-30/10/1000 289867 4 Height x Thickness x Length (mm) Type Designation Article No. Units per package wa_vt51013 Spacer, BPZ-BBS/DH-M6 • for protective covers and other elements 70120 BPZ-BBS/DH-M6/70 289940 100 BPZ-BBS/DH-M6/120 289941 100 Length (mm) Type Designation Article No. Units per package wa_vt34613 Protective Cover, BPZ-BBS/PC-1000/250/3 1000 x 250 x 3 BPZ-BBS/PC-1000/250/3 289942 1 Width x Height x Thickness (mm) Type Designation Article No. Units per package 4-Pole Busbar Support, BPZ-BBS-4 160-250 A / 15x5 and 20x5160-630 A / 15x5 up to 30x10 BPZ-BBS-4/250 289868 10 BPZ-BBS-4/630 289869 2 Rated Current / Rail Dimensions (mm)Type Designation Article No. Units per package vt60513, vt60313 Mounting elements for 4-pole Busbar Support 630 A, BPZ-BR/BBS630/V • Pair  400 BPZ-BR/BBS630/V 104331 1 wa_vt04913 Width (mm) Type Designation Article No. Units per package

68 Distribution Boards  DIN-Rail Set, BPZ-DINR • sets inclusive of towers and fixing elements (BEL01)• not assembled 400 / 13600 / 24800 / 351000 / 461200 / 57 BPZ-DINR13-400-T 286751 10 BPZ-DINR24-600-T 286753 10 BPZ-DINR35-800-T 286755 10 BPZ-DINR46-1000-T 293590 10 BPZ-DINR57-1200-T 293592 10 Width (mm) / MU Type Designation Article No. Units per package Towers - adjustable  400 / 13600 / 24800 / 351000 / 461200 / 57 BPZ-DINR13-400-B 286752 10 BPZ-DINR24-600-B 286754 10 BPZ-DINR35-800-B 286756 10 BPZ-DINR46-1000-B 293591 10 BPZ-DINR57-1200-B 293593 10 Towers - fixed wa_vt51613 wa_vt51713 Description Type Designation Article No. Units per package Towers, BPZ-T Description Type Designation Article No. Units per package fixedadjustable BPZ-TF/2 116651 1 pair BPZ-TA/2 116650 1 pair wa_vt61513, wa_vt61413 Towers - fix, BPZ-DINR • protruding DIN-Rail cutted on both sides• for better mounting of vertical cable ducts 600 / 24800 / 35 BPZ-DINR24S-600-B 174384 10 BPZ-DINR35S-800-B 174385 10 Width (mm) / MU Type Designation Article No. Units per package Fastening Elements, BEL • BEL12 insulated, pre-mounted (grout screws)• BEL01 for conductive connection, pre-mounted (grout screws) Pairs whitegreen BEL12 275199 1 pair  BEL01 275200 1 pair wa_nt19713 200 Stk. lose im Karton whitegreen ) Article No. and price per piece BEL12-E 237837  ) 200 pcs. BEL01-E 237836  ) 200 pcs. wa_nt19713 • BEL12A insulated, delivery in single parts Pairs white BEL12A 275201 1 pair  wa_nt19713

69 Distribution Boards  Support Plate, STL / Adapter, SAA • for mounting LTS-00 type HRC load breakers in series onto mounting support rails of dif- ferent heights • for mounting of PE/PEN busbars and nonstandard components onto fastening elements BEL Support plate (set of 2 pieces)Support plate (set of 2 pieces)Adapter (set of 4 pieces) STL-1 275427 1 STL-2 275428 1 SAA 275429 1 Description Type Designation Article No. Units per package Grey wa_vt39713, wa_vt42813 Cable Duct Angles, KKW • for MSW mounting• enable fixing of vertical cable ducts• KKW-40 for 60 mm cable ducts• KKW-DIN for 80 mm cable ducts• device rails has to be shortened KKW-40 275242 1 KKW-DIN 275243 1 Type Designation Article No. Units per package wa_vt39513 Fixing Material for Cable Duct, BPZ-CDB • mounting on main frame• enable fixing of vertical and horizontal cable ducts• for boards of width 400,600 82358 BPZ-CDB 102471 1 BPZ-CDB23 105216 1 BPZ-CDB58 109169 1 wa_vt07013 Height (mm) Type Designation Article No. Units per package DIN-Rail, BPZ-DINR 400 / 13600 / 24800 / 351000 / 461200 / 57 BPZ-DINR13-400 293594 1 BPZ-DINR24-600 293595 1 BPZ-DINR35-800 293596 1 BPZ-DINR46-1000 293597 1 BPZ-DINR57-1200 293598 1 Width (mm) / MU Type Designation Article No. Units per package wa_vt51813 DIN-Rail, BPZ-TSK Width (mm) / MU / for width of cable duct (mm) Type Designation Article No. Units per package • DIN-Rail cutted on one side• enable fixing of vertical cable ducts on one side 600 / 23 / 40600 / 22 / 60600 / 21 / 80800 / 34 / 40800 / 33 / 60800 / 32 / 801000 / 45 / 401000 / 44 / 601000 / 43 / 801200 / 56 / 401200 / 55 / 601200 / 54 / 80 BPZ-TSK-600/40 151166 1   BPZ-TSK-600/60 151167 1   BPZ-TSK-600/80 151168 1   BPZ-TSK-800/40 151169 1   BPZ-TSK-800/60 151170 1   BPZ-TSK-800/80 151171 1   BPZ-TSK-1000/40 151172 1   BPZ-TSK-1000/60 151173 1   BPZ-TSK-1000/80 151174 1   BPZ-TSK-1200/40 151175 1   BPZ-TSK-1200/60 151176 1   BPZ-TSK-1200/80 151177 1

70 Distribution Boards  C-Profil Rail for Cable Duct Angles, BPZ-CP 400 60080010001200 BPZ-CP-400 116918 1 BPZ-CP-600 116919 1 BPZ-CP-800 116920 1 BPZ-CP-1000 116921 1 BPZ-CP-1200 116922 1 Width (mm) Type Designation Article No. Units per package VT11008 Fixing Material for Cable Duct C-profile, BPZ-CDB../CP • mounting on main frame• enable fixing of vertical and horizontal cable ducts• for boards of width 600, 800, 1000, 1200• in combination with C-Profil Rail BPZ-CP-... 82358 BPZ-CDB/CP 116915 1 BPZ-CDB23/CP 116916 1 BPZ-CDB58/CP 116917 1 VT11108 Height (mm) Type Designation Article No. Units per package • for better mounting of vertical cable ducts• in combination with DIN-Rail Set BPZ-DINR..S-...-B (DIN-Rail shortened) 849 BPZ-CDB08/CP 174384 1 BPZ-CDB49/CP 174385 1 Mounting Set for 3-pole IEC Busbar Support 630A SASY 60i, BPZ-BR/SASY/ • mounted on base frame• Set  1 / 400 / 1001 / 600 / 1001 / 800 / 1001 / 1000 / 1001 / 1200 / 100- / 400 / -- / 600 / -- / 800 / -- / 1000 / -- / 1200 / - BPZ-BR/SASY/MSW/H-1/400 152837 1 BPZ-BR/SASY/MSW/H-1/600 152838 1 BPZ-BR/SASY/MSW/H-1/800 152839 1 BPZ-BR/SASY/MSW/H-1/1000 153020 1 BPZ-BR/SASY/MSW/H-1/1200 153021 1 BPZ-BR/SASY/H-400 108378 1 BPZ-BR/SASY/H-600 108379 1 BPZ-BR/SASY/H-800 108380 1 BPZ-BR/SASY/H-1000 108381 1 BPZ-BR/SASY/H-1200 108382 1 VT25106 Poles / Width / Hight (mm) Type Designation Article No. Units per package VT25206 BPZ-BR/SASY/H-400 VT24906 VT25006 BPZ-BR/SASY/H-1200 Aluminum Rail for vertical interior fittings, BPZ-MAH Width (mm) Type Designation Article No. Units per package • enable fixing of busbar support and other devices 400 60080010001200 BPZ-MAH-400 154953 1  BPZ-MAH-600 154954 1  BPZ-MAH-800 154955 1  BPZ-MAH-1000 154956 1  BPZ-MAH-1200 154957 1

71 Distribution Boards  4-Phase Busbar, BPZ-KB-24/250 12 outputs per phase, neutral wiring 24 outputs BPZ-KB-24/250 289971 1 Outputs Type Designation Article No. Units per package VT28704 Mounting elements for 4-Phase Busbar, BPZ-BR/KB24 • pair BPZ-BR/KB24 102477 1 VT07805 Flask with Brush Applicator, BPZ-CPS, PAINT-RAL; Spray BPZ-SPRAY-7035 RAL 7035, 30mlRAL 9016, 30mlRAL 9010, 30ml Spray RAL 7035,  400ml BPZ-CPS-7035 286771 1 PAINT-RAL9016 288948 1 PAINT-RAL9010 288947 1 BPZ-SPRAY-7035 116678 1 Colour Type Designation Article No. Units per package VT09405 VT12208 Mounting Set for IEC Busbar Support 630A SASY60i, BPZ-BR/SASY/H-… • for MSW application• at the 5 pole completion -2 frontplates (300 mm and 150 mm)• 2, 3, 4, 5 poles availible• set includes support bars, copper, frontplates 2 / 400 / 2002 / 600 / 2002 / 800 / 2002 / 1000 / 2002 / 1200 / 2003 / 400 / 3003 / 600 / 3003 / 800 / 3003 / 1000 / 3003 / 1200 / 3004 / 400 / 3004 / 600 / 3004 / 800 / 3004 / 1000 / 3004 / 1200 / 3005 / 400 / 4505 / 600 / 4505 / 800 / 4505 / 1000 / 4505 / 1200 /450 BPZ-BR/SASY/MSW/H-2/400 120699 1 BPZ-BR/SASY/MSW/H-2/600 120700 1 BPZ-BR/SASY/MSW/H-2/800 120701 1 BPZ-BR/SASY/MSW/H-2/1000 120702 1 BPZ-BR/SASY/MSW/H-2/1200 120703 1 BPZ-BR/SASY/MSW/H-3/400 120704 1 BPZ-BR/SASY/MSW/H-3/600 120705 1 BPZ-BR/SASY/MSW/H-3/800 120706 1 BPZ-BR/SASY/MSW/H-3/1000 120707 1 BPZ-BR/SASY/MSW/H-3/1200 120708 1 BPZ-BR/SASY/MSW/H-4/400 120709 1 BPZ-BR/SASY/MSW/H-4/600 120710 1 BPZ-BR/SASY/MSW/H-4/800 120711 1 BPZ-BR/SASY/MSW/H-4/1000 120712 1 BPZ-BR/SASY/MSW/H-4/1200 120713 1 BPZ-BR/SASY/MSW/H-5/400 120714 1 BPZ-BR/SASY/MSW/H-5/600 120715 1 BPZ-BR/SASY/MSW/H-5/800 120716 1 BPZ-BR/SASY/MSW/H-5/1000 120717 1 BPZ-BR/SASY/MSW/H-5/1200 120718 1 wa_vt73913 Poles / Width / Height (mm) Type Designation Article No. Units per package WFB-SET-CS 112639 1 Wall Angle Bracket Set, for Moisture Proof-Surface Mounting InstallationBoard Description Type Designation Article No. Units per package • for IP54 Surface mounting boards• for fixing the enclosures on the wall• vertical or honrizontal mounting• galvanized shett steel 3 mm• one set includes 4 wall-mounting angles plus mounting accessories VT08209

72 Distribution Boards  BPZ-WW 142474 1 Wall Angle Bracket Set, for Floor-Standing boards Description Type Designation Article No. Units per package • for IP30 and IP54 Floor-Standing boards• one set includes 2 angles plus mounting accessories VT28610 Flexible Connector for 4-Phase Busbar, BPZ-P • 6  mm 2 black 120 mm blue 120 mm black 320 mm blue 320 mm BPZ-P/L-6/120 102692 10 BPZ-P/N-6/120 102693 10 BPZ-P/L-6/320 102696 10 BPZ-P/N-6/320 102697 10 Colour Length Type Designation Article No. Units per package VT18705 • 10  mm 2 black 120 mm blue 120 mm black 320 mm blue 320 mm BPZ-P/L-10/120 102694 10 BPZ-P/N-10/120 102695 10 BPZ-P/L-10/320 102698 10 BPZ-P/N-10/320 102699 10 Connector with Insulated Crimp, BPZ-P/C-4/6 4 - 6 BPZ-P/C-4/6 102700 20 Cross section (mm 2 ) Type Designation Article No. Units per package wa_vt08213 Connector with Screw Terminal, BPZ-P/S-2/10 2.5 - 10 BPZ-P/S-2/10 102701 10 VT18605 1-Pole Terminal Blocks, BPZ-KB • Mounting onto DIN-rail and mounting plate  80 A 6 125 A 6 160 A 6 175 A 10 250 A 11 400 A 11 BPZ-KB-4/80 289969 1 BPZ-KB-6/125 102714 1 BPZ-KB-6/160 289970 1 BPZ-KB-10/175 102715 1 BPZ-KB-11/250 289967 1 BPZ-KB-11/400 102713 1 VT29004 BPZ-KB-4/80 VT28904 BPZ-KB-6/160 wa_vt03113 BPZ-KB-11/250 • Mounting onto DIN-Rail and mounting plate, aluminium 80 A 6 125 A 6 160 A 6 175 A 1 175 A 10 250 A 11 400 A 1 400 A 11 800 A 2 800 A 2 BPZ-KB-6/80-ALU 102702 1 BPZ-KB-6/125-ALU 102703 1 BPZ-KB-6/160-ALU 102704 1 BPZ-KB-1/175-ALU 102709 1 BPZ-KB-10/175-ALU 102707 1 BPZ-KB-11/250-ALU 102705 1 BPZ-KB-1/400-ALU 102710 1 BPZ-KB-11/400-ALU 102706 1 BPZ-KB-1/2/800-ALU 102712 1 BPZ-KB-2/2/800-ALU 102711 1 wa_vt08113 BPZ-KB-6/80-ALU wa_vt08013 BPZ-KB-10/175-ALU wa_vt07913 BPZ-KB-2/2/800-ALU Rated current  Output Terminals Type Designation Article-No. Units per package

73 Distribution Boards  Connection Latch for 1-Pole Terminal Block, BPZ-CL 7x65x25 289967 9x70x30 102713 BPZ-CL-65/25 102720 10 BPZ-CL-70/30 102721 10 Dimensions LxWxH (mm) Suitable for Type Designation Article No. Units per package VT18505 3-Pole Terminal Block, BPZ-KB/6/175 • Mounting onto DIN-rail and mounting plate  175 A 1 6 BPZ-KB-6/175 102717 1 Rated current  Inputs Outputs Type Designation Article No. Units per package wa_vt06913 Connection Bar 27 mm for 1-Pole Terminal Block, BPZ-CB 16x44x14 102714 BPZ-CB-44/14 102722 10 Dimensions LxWxH (mm) Suitable for Type Designation Article No. Units per package wa_vt08313 • Mounting onto DIN-rail and mounting plate, aluminium 175 A 1 6 BPZ-KB-6/175-ALU 102708 1 125A, in: 1x(L1/L2/L3/N), out: 7x(L1/L2/L3), 10xN 125 A125 A 160A, in: 1x(L1/L2/L3/N), out: 11x(L1/L2/L3/N) BPZ-KB-8/125 289968 1 BPZ-KB-9/125 102718 1 BPZ-KB-13/125 102719 1 BPZ-KB-11/160 102716 1 4-Pole Terminal Blocks, BPZ-KB wa_vt50913 BPZ-KB-8/125 wa_vt03013 BPZ-KB-11/160 Rated current  Inputs Outputs Type Designation Article No. Units per package Lifting-Eye Bolt, BPZ-LE BPZ-LE 286770 1 Type Designation Article No. Units per package VT1698 Fixing Material, EGM, KM-6 Fixing cage (set of 100 pieces)Slide nut M4 (set of 100 pieces)Slide nut M5 (set of 100 pieces)Castel nut M6 (set of 20 pieces) EGM-F 275417 1 EGM-4 275418 1 EGM-5 275419 1 KM-6 275420 1 Description Type Designation Article No. Units per package wa_vt38713

74 Distribution Boards  Locks, 61005 • Type SS-KS-61005: lock and key set 61005• Number of locks required per door in the technic part! Lock and key set 61005Metal key 61005Plastic key 61005 Clip-down handle Softline shortClip-down handle Softline long(overview sheme at the tech-nical specifications) Comfort handle (changablejust with clip-down handleSoftline long) SS-KS-61005 275422 1 MS-61005 275423 1 KS-61005 275424 1 BPZ-SH 116690 1 BPZ-SH-L 131560 1 DH-COMF 133107 1 Description Type Designation Article No. Units per package wa_vt36813 VT18305 VT12108 wa_vt27713 Locks, BPZ-LOCK • Simultaneous locking• Cylinder with 2 keys• Change of rotary door lock for all IP30 and IP54 enclosures• Number of locks required per door in the technic part! GreyWhite BPZ-LOCK 102467 1 BPZ-LOCK-W 102468 1 Locks, BPZ-LOCK • Profile half cylinder with 2 keys• For all boards with clip down handles• Number of locks required per door in the technic part! Lock Z BPZ-LOCK/Z 120766 1 Accessory for BPZ-LOCK • Set for change to a cylinder insert• Position indicator• Profile half cylinder is not in the scope of delivery PHZ-A-ADD-ON 133106 1 VT12110 VT12010 Description Type Designation Article No. Units per package Profile Half-Cylinder for diverse Handles  • For rotary and clip-down ease-of-use handles• Lock-cylinder finish according to DIN 18252 and DIN EN 1303• Profile half-cylinder 10/30 with pin closures made of nickel silver• 8-fold adjustable lock bit,  5 pairs of pins • Identical or different locking• Number of locks required per door in the technic part! Description Type Designation Article No. Units per Package 1 Key included, keyed alike3 Keys included, keyed diffe-rent PHZ-E10/30-GS 138574 1 PHZ-E10/30-VS 138575 1 VT33610

75 Distribution Boards  Spare Key for Profile Half-Cylinder  • For profile half-cylinder PHZ-E...-GS Description Type Designation Article No. Units per Package Identical locking  KEY-E10/30-GS 138576 4 VT12510 Locks with keys SH6, DH; BPZ-LOCK, BPZ-KEY Lock SH6 (cylinder lock)Key SH6Lock SH6 with accessory(change of rotary door lock) Lock DH (cylinder lock)Key DHLock DH with accessory(change of rotary door lock) BPZ-LOCK/SH6 116673 1 BPZ-KEY/SH6 116674 1 BPZ-LOCK/SH6METAL 116913 1 BPZ-LOCK/DH 116675 1 BPZ-KEY/DH 116676 1 BPZ-LOCK/DHMETAL 116914 1 VT11608 VT11808 VT11708 VT11908 Terminal Supports, KT horizontalvertical KT-3 275445 1 KT-5 275447 1 VT01705, VT01805 Terminal Strips, KL 7152945601 meterConnection terminal for 35 mm 2 KL-7 219724 1 KL-15 219726 1 KL-29 275449 1 KL-45 275450 1 KL-60 275451 1 KLM 275452 1 KLA 275453 1 VT01905 Terminal Points / Description Type Designation Article No. Units per package KT-3 KT-5 No. of Photo / Version Type Designation Article No. Units per package Lock inserts NWS-SHE 1 7mm square lock insert 2 8mm square lock insert 3 7mm triangular lock insert 4 8mm triangular lock insert 5 Two-way key bit, 3mm pin 6 Two-way key bit, 5mm pin 7 Daimler-Benz insert 8 Screw driver-type insert NWS-SHE/4K/7 255306 1 NWS-SHE/4K/8 255307 1 NWS-SHE/3K/7 255304 1 NWS-SHE/3K/8 255305 1 NWS-SHE/DLB/DN3 255309 1 NWS-SHE/DLB/DN5 255310 1 NWS-SHE/DB 255308 1 NWS-SHE/SZ 255311 1 wa_nt08913  8 7 6 5 4 3 2 1 No. of Photo / Version Type Designation Article No. Units per package Keys for Lock Inserts NWS-SL 1 7mm square lock insert 2 8mm square lock insert 3 7mm triangular lock insert 4 8mm triangular lock insert 5 Two-way key bit, 3mm pin 6 Two-way key bit, 5mm pin 7 Daimler-Benz NWS-SL/4K/7 255314 1 NWS-SL/4K/8 255315 1 NWS-SL/3K/7 255312 1 NWS-SL/3K/8 255313 1 NWS-SL/DLB/3 255317 1 NWS-SL/DLB/5 255318 1 NWS-SL/DB 255316 1 N8299 1 2 3 4 5 6 7

Screws, BPZ-S-… • M5x12 (standard screw of the board)• M4x8 (flange plate) M5 / 12M4 / 8 BPZ-S-M5x12 120719 20 BPZ-S-M4x8 120720 20 Thread / Length  (mm) Type Designation Article No. Units per package wa_vt10103.eps 76 Distribution Boards  Accessories Inscription Strip LAB emptyimprint LAB-TAPE_A4_BLANK 107952 10 LAB-TAPE_A4_PRINT 107953 10 Type Designation Article No. Units per package Enclosure leaves for the inscription strips, LAB-TAPE_A4 Size A4 LAB-BAG_A4 107913 1 Circuit Diagram Bag, LAB-BAG_A4 wa_vt14513 Inscription Strip LAB-BAR Module units (MU) Type Designation Article No. Units per package 1324354657 LAB-BAR_13TE 107884 10 LAB-BAR_24TE 107901 10 LAB-BAR_35TE 107903 10 LAB-BAR_46TE 107906 10 LAB-BAR_57TE 107909 10 Holder for Inscription Strip, LAB-BAR wa_vt14413 1 m3 m LAB-BAR_1000 107911 10 LAB-BAR_3000 107912 10 Holder for Inscription Strip universal, LAB-BAR Length Type Designation Article No. Units per package XAB4 Circuit Diagram Box Description Type Designation Article No. Units per package A4 panel format, self-adhe-sive XAB4 283482 1 wa_vt08413

77 Distribution Boards  Cable ducts Screw fixing 1500 60 0.75 – KL25/35 012531 60 40 1.5 14 25 2.5 10 15 4 – Supplied in Cable carrying Type and cross-section Designation Article No. Units per lengths of capacity. Max. no. of H 0... V-K H 0... V-K package mm cables (approximate) mm 2 AWG 1500 100 0.75 – KL25/60 017277 40 70 1.5 14 45 2.5 10 30 4 – 25 6 1500 260 0.75 – KL60/60 029142 20 180 1.5 14 120 2.5 10 80 4 – 65 6 Self-adhesive• Max. ambient temperature +55°C 650 60 0.75 – KL25/35K 014904 50 40 1.5 2 25 2.5 10 Cable duct cover• Supplied as spares 1500 – – – KD25 019649 1 1500 – – – KD60 024395 1 14 34 37 27 00006555_0, VT08709, VT08609 27 34 63 14 00006558_0, VT08709, VT08509 66 73 63 14 00006558_0, VT08409, VT08309 14 34 37 27 00006555_0, VT08709, VT08609 34 14 00008397_0, VT08709 73 14 00025953_0, VT08409

78 • Installation Distribution Boards (floor-standing and surface-moun- ting boards) • IP54• Protection class I• Sheet steel enclosure, polyesterpowder coated• Frontplates useable as trayer or coater lid• Modular construction EP• Depth 250 mm• Generous wiring space• Protection against mechanical impact up to IK08• Grey (RAL 7035) Distribution Boards BP-…for installation system EP Distribution Boards  VT04110

79 Distribution Boards  Floor Standing Distribution Board • Distribution Installation board• Degree of protection IP54• Powder coated RAL 7035 • Protection class I• Closed enclosure with 3 point clip down handle• Changeable door hinges• Prepared top/bottom cable entry for F3A flanges (flanges not in the scope of delivery)• Prepared for norm insert system EP• BPZ-TW mounting angles included (left and right) with left and right vertical rail• BPZ-WW wall brackets included• Depth 250 mm 350 x 1910 x 250600 x 1910 x 250850 x 1910 x 2501100 x 1910 x 2501350 x 1910 x 250350 x 2060 x 250600 x 2060 x 250850 x 2060 x 2501100 x 2060 x 2501350 x 2060 x 250 BPM-F-350/19/2-P-EP 147399 1 BPM-F-600/19/2-P-EP 147410 1 BPM-F-850/19/2-P-EP 147411 1 BPM-F-1100/19/2-P-EP 147412 1 BPM-F-1350/19/2-P-EP 147413 1 BPM-F-350/20/2-P-EP 142444 1 BPM-F-600/20/2-P-EP 142445 1 BPM-F-850/20/2-P-EP 142446 1 BPM-F-1100/20/2-P-EP 142447 1 BPM-F-1350/20/2-P-EP 142448 1 Width x Height x  Depth (mm) Type Designation Article No. Units per package VT03710 Doors • Sheet steel door with 3 point clip down handle 350 x 1910600 x 1910850 x 19101100 x 1910 (600+500)1350 x 1910 (600+750)350 x 2060600 x 2060850 x 20601100 x 2060 (600+500)1350 x 2060 (600+750) BPZ-DMS-350/19-P-EP 147414 1 BPZ-DMS-600/19-P-EP 147415 1 BPZ-DMS-850/19-P-EP 147416 1 BPZ-DMS-1100/19-P-EP 147417 1 BPZ-DMS-1350/19-P-EP 147418 1 BPZ-DMS-350/20-P-EP 142449 1 BPZ-DMS-600/20-P-EP 142450 1 BPZ-DMS-850/20-P-EP 142451 1 BPZ-DMS-1100/20-P-EP 142452 1 BPZ-DMS-1350/20-P-EP 142453 1 Width x Height (mm) Type Designation Article No. Units per package wa_vt03913

80 Distribution Boards  Cover for base • 1 pair side covers (right and left) incl. fixing material• Sheet steel powder coated RAL 7035 250 x 100250 x 200 BPZ-SS-1/250-EP 142454 1 BPZ-SS-2/250-EP 142455 1 Depth x Height (mm) Type Designation Article No. Units per package VT06905 • 1 front cover for base incl. fixing material• Sheet steel powder coated RAL 7035 350 x 100600 x 100850 x 1001100 x 1001350 x 100350 x 200600 x 200850 x 2001100 x 2001350 x 200 BPZ-FS-350/1 142456 1 BPZ-FS-600/1 293497 1 BPZ-FS-850/1 142457 1 BPZ-FS-1100/1 142458 1 BPZ-FS-1350/1 142459 1 BPZ-FS-350/2 142460 1 BPZ-FS-600/2 293499 1 BPZ-FS-850/2 142461 1 BPZ-FS-1100/2 142462 1 BPZ-FS-1350/2 142463 1 Width x Height (mm) Type Designation Article No. Units per package wa_vt51413 Cable Interconnect Frame • For floorstanding board IP54• Pre-assembled delivery• Sheet steel powder coated RAL 7035• Inner cover removeable• Frame can be mounted on top or bottom• Suitable for use with cable strain relief rail• Fixing material included 350 x 100 x 250600 x 100 x 250850 x 100 x 2501100 x 100 x 2501350 x 100 x 250350 x 200 x 250600 x 200 x 250850 x 200 x 2501100 x 200 x 2501350 x 200 x 250 BPZ-KR3.51/250 142464 1 BPZ-KR61/250 142465 1 BPZ-KR8.51/250 142466 1 BPZ-KR111/250 142467 1 BPZ-KR131/250 142468 1 BPZ-KR3.52/250 142469 1 BPZ-KR62/250 142470 1 BPZ-KR8.52/250 142471 1 BPZ-KR112/250 142472 1 BPZ-KR132/250 142473 1 Width x Height x  Depth (mm) Type Designation Article No. Units per package wa_vt23313 Wall Bracket • Sheet steel zink coated• Fixing material included• Scope of delivery: 1 pair BPZ-WW 142474 1 Type Designation Article No. Units per package vt28610 Cable Strain Relief Rail • Suitable for use with BPZ-KR… cable interconnect frame• C-Profil 16mm, zink coated• Fixing material included 35060085011001350 BPZ-KFS-350 142475 1 BPZ-KFS-600 116294 1 BPZ-KFS-850 142476 1 BPZ-KFS-1100 142477 1 BPZ-KFS-1350 142478 1 Width (mm) Type Designation Article No. Units per package wa_vt23413

81 Distribution Boards  Universal Angle • For fixing horizontal rail elements WEQV 143993 1 Type Designation Article No. Units per package VT08910 Spicial Angle • For fixing horizontal rail elements WMPO 143994 1 Type Designation Article No. Units per package VT09010 Support Rail • For vertical interior fittings• With drilled holes for mounting devices• Interior fitting of the Profi+ board with: – vertical support rail EPTV– assembly equipment BPZ-TW (for 250 mm)  18001950 EPTV1800 143844 1 EPTV1950A-BP 143850 1 Height (mm) Type Designation Article No. Units per package VT07810 Support Rail Angle, 250 mm depth, for Profi+  • For mount the vertical rail EPTV• Fixing material included• Scope of delivery: 1 pair 250 BPZ-TW 143864 1 Depth (mm) Type Designation Article No. Units per package VT08710
