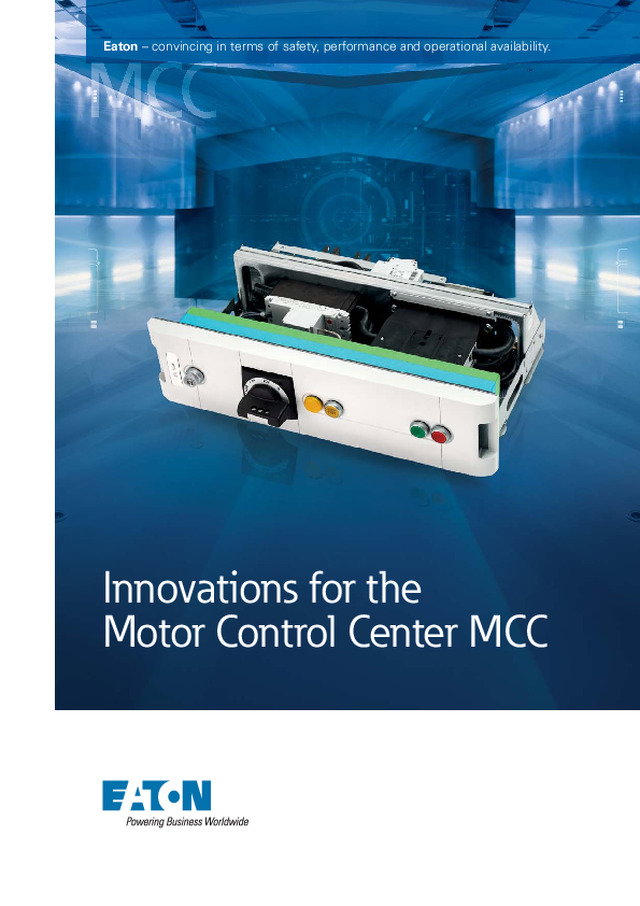

Eaton – convincing in terms of safety, performance and operational availability. Innovations for the  Motor Control Center MCC

2 Safe. Smart. Soft. Eaton upgrades its proven Motor Control Center MCC with a number of technical innovations. For panel builders, this means reliable switchgear systems with the highest personnel and plant protection - while integrating the latest communica-tion technology. Advantages •  Front plates and   doors can be opened   at any time, even  under  normal   operation  conditions    (with additional tools)• Electrical components   are accessible at all   times and adjustable  during  ongoing   operation•  Sturdy hinges at the  fronts•  Stable structure with   front plates and doors• If necessary,  additional  sections    can be added Openable front Coding system Control terminals with connection lines With a metal thickness of 2mm at both the front plate and the support plate, the steel front plate provides maximum stabili-ty. Both parts are available with a RAL7035 coated structure (on request also in a special colour) with an IP31 and IP55 degree of protection, and are provided with right-hand hinges. In addition, the bolting of the support front plates to the body results in an extremely solid and robust structure. Perfect water protection is guaranteed by a 2-component foam sealant (2-component polyurethane). The doors are equipped with heavy duty hinges and handles as well as a double-bit lock (3 mm) as closure system. The body of the individual modules, all the electrical components and the mechanical lock can be used with both versions of the fronts (steel or plastic). The new coding system prevents accidental inter-changing of drawout units by assigning each drawout unit to a particular shelf. Coding is performed using 5 fi xable metal rollers which are tightly screwed on the shelf and on the underside of the body in  the appropriate positions or combinations.  After applying the coding system it is thus impossible to position equal-height drawout units incorrectly. As of now, 3 new assembly installation kits with 2-, 12- and 24-pole auxiliary current con-tacts are available. Included in the set is the appropriate wiring (orange colour, 0.75 mm 2) and 2-pole, double-level terminal blocks. Furthermore, a termi-nal side wall is included in the delivery of the 12- and 24-pole sets.  The side wall of the assembly installation kit is provided with four-square punchings through which the complete terminals package can be carried without prior disassembly. The matching recess is subsequently closed with AP45 (blank cover).

3 Advantages •  No downtime through   early detection of errors•  Time and cost savings in  control  wiring • Higher availability•  All parameters can be  continuously  recorded •  Complete tests of  individual  drawout units    can be carried out with   the SWD-Assist planning   and startup software -  without  PLC •  Easy assembly and  disassembly•  The connection of the   power line wiring from  the  drawout unit to    the cable terminal   compartment is identical   for all drawout unit   versions (SWDT or  conventionally  wired   ones) SmartWire-DT TM Catch hook For communication within the control cabinet, Eaton‘s communication and connection system Smart Wire-DT TM  is  used. It replaces the existing control wiring in the MCC drawout units and cabling for control  and status information of the drawout units in the cabinet. Standard fi eld bus systems such as Profi bus-DP, CANopen, Modbus-TCP or Ethernet/IP allow data to be transferred from the control cabinet to the higher-level PLC. Continuously communicating – without conventional control wiring• Smart Wire-DT TM  replaces the    conventional control wiring to  operating  elements,    switchgear, circuit breakers,   other inputs and outputs   (such as auxiliary switches)   as well as from drawout units   to the PLC•  Data of all drawout units   is transferred to the Fieldbus   Interface via Smart Wire-DT TM Available drawout units•  Direct starters (0.06 – 160kW)•  Reversing starters (0.06 –  110kW)•  Star Delta starters (5,5 – 75kW)•  Power outgoer 3/4 p   (16/20 - 400A)•  Soft starters up to 32A Available drawout units with SWD•  Basic: Use of a conventional circuit breaker with thermo-magnetic release  •  Only status recorded  •  CB type: PKZ, NZM1-3•  Complete: Use of a circuit   breaker with electronic  release  •  Status, power, overload,   settings  are  recorded   •  CB type: PKE12/32/65,   NZM2-3  (ME/AE/VE)  (with    electronic  release  unit) To prevent drawout units from being pulled completely out of the cabinet with a jolt, the newly developed catch hook can be used.  Thus, the drawout unit can be placed in the  ”Disconnect“  position. To further pull out the drawout unit, it is suffi cient to release the detent.

4 AC motors are used as the ideal drive in various industrial and commercial machines. In many cases, however, direct starting or star-delta starting is not always the best choice. At least then it is time for soft starters to be used. With soft starters you do not have high starting currents or an abrupt insertion of full torque, but you can properly ramp up time, inrush current and torque. The two-phase controlled DS7 soft starter is available in 2 sizes for applications in the power spectrum of 3 - 32A (1.1 and 15kW at 400V). Typical application examples• Centrifugal pumps• Luggage conveyor belts• Mixers Versions•  Standard drawout unit  •  Circuit breakers with   thermomagnetic  release    unit  •  Reversing contactor circuit   with  230V/AC  coil   •  Standard control wiring•  Basic version (A) with  SmartWire-DT TM  (SW-DT)   •  Circuit breakers with   thermomagnetic  release    unit •  Reversing  contactor      circuit with 24V/DC coil up     to DILM32, 230V/AC coil     up to DILM50, DILA (24V/DC)  •  Connection of the   contactor  circuit  and    components  control  wiring      by means of SW-DT data   cable  (without  circuit    breaker)•  Complete version (B) with  SmartWire-DT TM  (SW-DT)    •  Access to all parameters  •  Circuit breaker with   electronic  release  unit   •  Contactor circuit with     230V/AC coil up to   DILM50,  DILA  (24V/DC)   •  Connection of the   contactor  circuit  and    components  control  wiring      by means of SW-DT data   cable Technical dataStandard, basic version SW-DT-A, complete version SW-DT-B•  Direct-on-line (DOL) and  Forward  Reverse (FR) •  Power range of 1.5 – 15kW•  Assignment type 2•  Low cycle fatigue assessment   50kA and 80kA•  IP31 and IP55 degree of  protection•  Ambient temperature 35°C•  Module height 75mm,   150mm, 225mm (drawout  compartment) All components from one source • Circuit breakers:  PKZM0,  PKE12/32,   NZM1-2• Protection:   DILM7/9/12  /17/25/32   (230V/AC,  24V/DC),   DILA  (24V/DC) •  Soft starter: DS7 size  1  (4A/7A/9A/12A),    DS7 size 2  (16A/24A/32A) DS7 Soft Starter

5 Order data – MCC individual parts Order no. per P.U. (P.U. = 1 set) Metal fronts to be opened for drawout unit, PKZ design Consisting of: front plate incl. locks, hinges, screw material and handlesA factory-applied foam gasket is used for sealing in IP55. Precuts for a total of 7 x RMQ-Titan command and signalling devices available up to a 22.5 diameter. Opening for the mechanical lock push-button available. In addition, holes/indentations for the door coupling rotary handle have been already set. If not all precuts are used, they must be sealed with blanking caps. Please see MCC accessories. Height 75mm Height 150mm Height 225mm Design IP31ventilated XMW0306CDV172190 / 172334 XMW0606CDV172191 / 172335 XMW0906CDV172193 / 172319 Design IP55closed XMW0606CDC172182 / 172326 XMW0606CDC172183 / 172327 XMW0906CDC172185 / 172329 Metal fronts to be opened for drawout unit, NZM design BConsisting of: front plate incl. locks, hinges, screw material and handlesA factory-applied foam gasket is used for sealing in IP55. Precuts for a total of 7 x RMQ-Titan command and signalling devices available up to a 22.5 diameter. Opening for the mechanical lock push-button available. In addition, holes/indentations for the door coupling rotary handle have been already set. If not all precuts are used, they must be sealed with blanking caps. Please see MCC accessories. Height 150mm Height 225mm Height 300mm Height 450mmAusnehmung für Hauptschalter-drehgriff im unteren Drittel Height 450mmAusnehmung für Hauptschalter-drehgriff ist mittig Design IP31ventilated XMW0606CDV-NZM172192 / 172318 XMW0906CDV-NZM172194 / 172320 XMW1206CDV-NZM172195 / 172321 XMW1806CDV-NZM-0172196 / 172322 XMW0606CDV-NZM-190172197 / 172323 Design IP55closed XMW0606CDC-NZM172184 / 172328 XMW0906CDC-NZM172186 / 172330 XMW1206CDC-NZM172187 / 172331 XMW1806CDC-NZM-0172188 / 172332 XMW0606CDC-NZM-190172189 / 172333 Coding system XMW-CP172198 Control terminals with connection lines 2-pole terminal incl. connection cable (orange, 0.75 mm²) and 2-pole auxiliary current contacts 6 x 2-pole terminal incl. connection cable (orange, 0.75 mm²), end plate, 6 x 2-pole auxiliary current contacts and numbering 12 x 2-pole terminal incl. connection cable (orange, 0.75 mm²), end plate, 12 x 2-pole auxiliary current contacts and numbering XMW-AC-1-2171641 XMW-AC-1-12171642 XMW-AC-1-24171643

6 Catch hook Consisting of: metal hooks, springs, screws XMW-L172177 Upgrade kits for SWD Consisting of: various DIN rails and mounting brackets, adapted to the drawout unit height, including total screw material Upgrade kit H = 75mm Upgrade kit H = 150mm Upgrade kit H = 225mm Upgrade kit H = 300mm Upgrade kit H = 450mm XMW0306SWD 169875 XMW0606SWD 169876 XMW0906SWD 169877 XMW1206SWD 169878 XMW1806SWD 169879 Upgrade kit for Soft Starter Consisting of: var. DIN rails incl. screw material Upgrade kit H = 75mm Upgrade kit H = 150mm Upgrade kit H = 225mm XMW0306SS172204 XMW0606SS 172205 XMW0906SS 172206

7 Note
