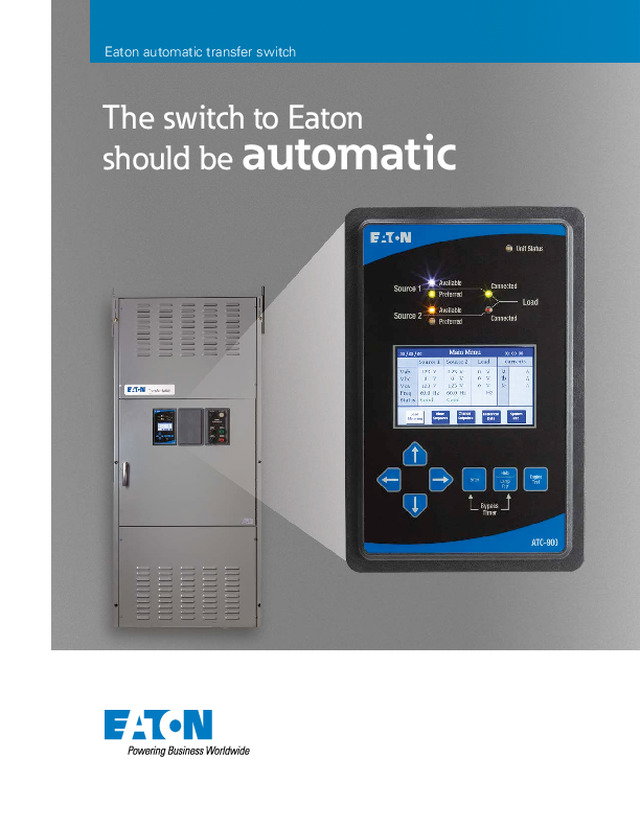

The switch to Eaton should be  automatic Eaton automatic transfer switch

In critical power applications, there is no room for error. You need a transfer switch that is built to last. With more than 100 years of experience, Eaton can engineer reliable solutions to meet the specific demands of your application—completely designed and customized to your needs. In today’s business critical environment, customers are driving our  transformation from a leading global electrical assemblies provider  into a customer-centric solutions partner who understands your  business. We do this through in-depth collaboration with customers  combined with subject-matter experts who study the issues  inherent in electrical power distribution and control systems.Eaton offers the broadest selection of ULT 1008 Listed automatic  transfer switches in the market, which deliver a host of features  and benefits to meet your application needs, including: •  Contactor and circuit breaker construction •  Open-delayed, open-in-phase and closed transition switching •  Bypass isolation type •  Three tiers of automatic transfer switch controllers •  Integrated service entrance option •  Field adaptable design •  Industry-leading UL 1008 Listed withstand close-on ratings •  Easy integration into switchboards and motor control centers  •  Three-source switching solutions Around-the-clock reliable power Built  with  experience 2 EATON Eaton automatic transfer switch

Contactor transfer switches •  Compact design and user- friendly front access interface  simplifies routine operation,  testing, maintenance and user  programming  •  Rated for 40–1600 A   up to 480 V and 40–1200 A   up to 600 V in two-, three-   or four-pole configurations •  Available in open-delayed,  open-in-phase and closed  transition  •  Automatic and non-automatic  styles •  Bypass isolation option   provides industry-leading Dual  ATS technology that allows   for automatic operation in both  the ATS and Bypass modes •  Field-selectable multi-tap  transformer panel permits  operation on a wide range   of system voltages Molded-case circuit breaker  transfer switches •  High withstand close-on  ratings on low amperage  transfer switches without  frame derating. •  100% rated for 30–1000 A   up to 600 V in two-, three-   or four-pole configurations •  Available in open-delayed  transition  •  Automatic, non-automatic  and manual styles •  Integral service entrance rated  option •  Permanently affixed operating  handle allows for safe manual  operation under full load •  Field-selectable multi-tap  transformer panel permits  operation on a wide range   of system voltages •  Self-protecting switching  contacts MagnumT breaker transfer switches •  UL 1008 Listed with a 30-cycle short-time rating.  The use of optional electronic trip units allows  performance curve shaping to facilitate proper  system coordination and application •  Rated for 200–5000 A up to 600 V in two-,  three- or four-pole configurations, and available  in open-delayed, open-in-phase and closed  transition •  Automatic and non-automatic styles •  Drawout construction is available for applications  such as critical life support systems where  preventive maintenance, inspection and testing  must be accomplished while maintaining  continuous power to the load •  Available with Eaton’s Arcflash Reduction  Maintenance SystemE to reduce the incident  energy levels for downstream equipment during  periods of maintenance •  Optional bus flange connections •  Open frame design for integration into new   or existing distribution lineup •  Integral service entrance rated option •  Bypass isolation option Specifically engineered to meet  electrical reliability requirements CONTACTOR CIRCUIT BREAKER MAGNUM 3 EATON Eaton automatic transfer switch

Bypass isolation transfer switches The bypass isolation switch is designed for applications where maintenance, inspection  and testing must be performed while maintaining continuous power to the load. This is  typically required in critical life support systems and standby power situations calling for  safe system maintenance with no power disruptions. Eaton offers bypass options in both  Contactor and Magnum breaker switches.   Contactor bypass   isolation transfer switches •  Rated for 100–1600 A up to 480 V and up to  1200 A at 600 V  •  Available in open-in-phase, open-delayed or  closed transition •  Front accessible with top and/or bottom entry  available •  Dual ATS technology allows both the ATS and  the bypass switch to operate as automatic  transfer switches •  Drawout capabilities on both ATS and bypass  compartments allow preventive maintenance,  inspection and testing to be accomplished while  maintaining continuous power to the load •  Safety interlock system •  Field-selectable multi-tap transformer   panel permits operation on a wide range   of system voltages Magnum breaker-bypass   isolation transfer switches •  Rated for 200–5000 A in open-delayed, open-  in-phase and closed transition configurations •  UL 1008 Listed with a 30-cycle short-time  rating. The use of optional electronic trips allows  performance curve shaping to facilitate proper  system coordination and application •  Rear/side/top or bottom entry cable access with  an optional front access cubicle •  Reliable microprocessor logic •  No service interruption when transferring   to bypass •  Drawout capabilities on both ATS and bypass  compartments allow preventive maintenance,  inspection and testing to be accomplished while  maintaining continuous power to the load  CONTACTOR MAGNUM 4 EATON Eaton automatic transfer switch

UL 1008 listed withstand and close-on rating (kA), 480 V  Short-circuit (3-cycle) Short-circuit with specific upstream breaker   Ampere rating Number   of poles Contactor MCCB Contactor  bypass Magnum Contactor MCCB Contactor  bypass Magnum 30 2, 3, 4 NA 65 NA NA NA 65 NA NA 40 2, 3, 4 10 NA NA NA 22 NA NA NA 70 2, 3, 4 10 65 NA NA 22 65 NA NA 100 2, 3, 4 10 65 30 NA 22 65 30 NA 200  2, 3, 4 10 65 30 100 22 65 30 100 225 2, 3, 4 30 65 30 100 50 65 30 NA 260 2, 3, 4 30 NA 30 100 50 NA 30 NA 300 2, 3, 4 NA 65 30 100 NA 65 30 100 400 2, 3, 4 30 65 30 100 50 65 30 100 600 2, 3 50 65 50 100 65 65 50 100 600  4 50  35 50 100 65 35 50 100 800–1200   2, 3  50 50 50 100 65 50 50 100 800–1200   4 50 35 50 100 65 35 50 100 1600 2, 3, 4 50 NA 50 100 65 NA 65 100 2000 2, 3, 4 NA NA NA 100 NA NA NA 100 2600 2, 3, 4 NA NA NA 100 NA NA NA 100 3000 2, 3, 4 NA NA NA 100 NA NA NA 100 3200 2, 3, 4 NA NA NA 100 NA NA NA 100 4000 2, 3, 4 NA NA NA 100 NA NA NA NA  MCCB 800–1000 A only. UL 1008 listed withstand and close-on rating (kA), 600 V Specific upstream fuse Short-time (30-cycle) Ampere rating Number   of poles Contactor MCCB Contactor  bypass Magnum Magnum 30 2, 3, 4 100 200 NA NA NA 40 2, 3, 4 100 200 NA NA NA 70 2, 3, 4 100 200 200 NA NA 100 2, 3, 4 100 200 200 NA 85 200  2, 3, 4 100 200 200 NA 85 225 2, 3, 4 200 200 200 NA NA 260 2, 3, 4 200 200 200 NA NA 300 2, 3, 4 200 200 200 NA 85 400 2, 3, 4 200 200 200 NA 85 600 2, 3 200 200 200 NA 85 600  4 200 200 200 NA 85 800–1200 2, 3  200 200 200 NA 85 800–1200 4 200 200 200 NA 85 1600 2, 3, 4 200 NA 200 NA 85 2000 2, 3, 4 NA NA NA NA 85 2600 2, 3, 4 NA NA NA NA 85 3000 2, 3, 4 NA NA NA NA 85 3200 2, 3, 4 NA NA NA NA 85 4000 2, 3, 4 NA NA NA NA 85   5000 2, 3, 4 NA NA NA NA 85    UL 1066 short-time withstand rating. ATS withstand and close-on ratings 5 EATON Eaton automatic transfer switch

Automatic transfer switch controllers An automatic transfer switch controller is the key component that provides the intelligence  to sense the proper conditions to initiate a transfer and retransfer of the switch. Eaton’s  transfer switches come with the design flexibility of being applied with a variety of controllers.  Source availability indication  Source position indication  Diagnostic status indication  Liquid crystal display (LCD)  Engine start pushbutton  Help/lamp test pushbutton  Step/enter pushbutton  Navigation pushbuttons  Bypass timer pushbuttons  Increase/decrease pushbuttons  Alarm reset pushbuttons  Set generator test pushbutton  System test pushbutton                                ATS CONTROLLER FEATURES  6 EATON Eaton automatic transfer switch

HMi Remote Annunciator controller Eaton’s HMi Remote Annunciator Controller series provides users   with the ability to remotely monitor and control multiple transfer  switches from one intuitive, touchscreen user interface. •  Seven-inch color display with touchscreen graphical interface •  Remote monitor and control to include set point programming   and metering data  •  Password protection for all control and setup functions •  Mimic bus to include source availability, position indication   and preferred source  •  Date and time-stamped alarm history •  Flush-mount design  •  Compatible with Eaton’s ATC-300+, ATC-600, ATC-800   and ATC-900 automatic microprocessor controllers  •  Modbus RTU and Ethernet communication •  Audible alarm with silence feature ATS controllers Power XpertT Gateway The Power Xpert Gateway allows you to easily integrate your Eaton  automatic transfer switch directly into your Ethernet infrastructure.  •  Remotely monitor and manage your automatic transfer switch  from any computer, via a secure Web browser interface  •  Provides access to real time information from the ATC-300+   and ATC-900 automatic transfer switch controllers and other  Eaton communicating devices  •  Ability to integrate your automatic transfer switch into existing  building management or network management systems to  include protocol translation •  Provides optional email notification of user-defined events  •  Serial networked •  Ethernet networked Standard and optional controller features Automatic controller Description ATC-100 ATC-300+ ATC-900 Basic transfer control plant exerciser time delays self diagnostics and system settings Standard Standard Standard Source mimic diagram with LED indication Standard Standard Standard Engine test and start contact Standard Standard Standard Dual source control power input Standard Standard Standard Liquid crystal display (LCD) Standard Standard Programmable set points and plant exerciser Standard Standard Password protection Standard Standard Time-stamped history and event log Standard Standard Time delay bypass Standard Standard Go to source 2 control input Standard Standard Pre-transfer and general alarm control outputs Standard Standard Lockout and monitor modes Standard Standard Source status output relay contacts Standard Standard ModbusT RTU communication Standard Standard Manual retransfer control input Optional Standard Source 2 inhibit / load shed input  Optional Standard USB port—profile and data management Standard Preferred source selection  Standard Dual generator capability Standard User configurable inputs/outputs  Standard Advanced diagnostics and troubleshooting with pre-/post-event data capture Standard Integrated load metering Optional Load management with selective load shed Optional DC voltage control power input Optional Three-source ATS—master/slave control Optional Modbus TCP/IP communication   Optional Optional  Modbus TCP/IP option requires use of Modbus RTU port. ATS connectivity 7 EATON Eaton automatic transfer switch

Available metering options with Eaton transfer switches Feature ATC-900 DCT IQ 100 Series IQ 200 Series Power Xpert  2000 Series Power Xpert  4000/6000/8000 Series InstrumentationCurrent, per phase ■ ■ ■ ■ ■ Current demand — ■ ■ ■ ■ Calculated neutral current — ■ ■ ■ ■ Voltage, per phase (L–L, L–N) L–L only ■ ■ ■ ■ Min./max. readings I, V — ■ ■ ■ ■ Min./max. readings PF, F, W, VAR,VA — Opt ■ ■ ■ Frequency ■ Opt ■ ■ ■ PowerReal, reactive and apparent power (W, VAR, VA) ■ Opt ■ ■ ■ Power factor, total ■ Opt ■ ■ ■ Real, reactive and apparent power demand — Opt ■ ■ ■ Demand methodsBlock interval (sliding, fixed) — Opt ■ ■ ■ EnergyReal, reactive and apparent energy, total (Wh, VAR, VAh) — Opt ■ ■ ■ Data loggingStorage — — Opt 128 KB 256 MB Std 2 GB Opt 4 or 8 GB THD% THD amps and volts — — 40th 40th 127th Interharmonics — — — — Opt WaveformWaveform recording, samples/cycle — — — Opt 64 or 512 4,096 Ind. bar harmonics view — — — Opt 40th 85th Single cycle waveform view — — — Opt X I/ODigital input — — Opt 2 or 3 Opt 2 or 4 8 Digital output — — Opt 2 Form-C Opt 2 Form-C 3 Analog output — — Opt 3 Opt 4 — CommunicationsRS-485, Modbus RTU ■ Opt ■ ■ ■ RS-485, Modbus RTU/ASCII, KYZ output — Opt ■ ■ ■ Modbus TCP/IP (RJ-45) — Opt ■ ■ ■ HTTP (Web pages), SMTP (email), NTP (time sync), SNMP — — ■ ■ ■ BACnet/IP — — ■ ■ ■ Revenue accuracyANSI C12.20 (0.5 or 0.2%) — 0.50% 0.20% 0.20% 0.20% ■  = Standard feature. Meter overview  Eaton’s advanced meters provide accurate real-time system  values, capture waveforms and system events, and display  data directly on the device through on-board Web servers  or through a software monitoring solution. Featuring options that can be integrated in Eaton’s automatic transfer switches. For details, go to Eaton.com/meters. 8 EATON Eaton automatic transfer switch

Power Xpert Architecture Power Xpert  Insight ®  Gateway HMi Remote Annunciator  Controller MODBUS ETHERNET ETHERNET INTERNET ATC-300+ ATC-900 ATC-900 IQ 100/200 Power Xpert  Meter Power Xpert  Meter HMi Remote Annunciator  Controller Ethernet Switch Third-Party  Gateway Featuring Eaton’s ATC-900 controller  and Power Xpert 2000 series  9 EATON Eaton automatic transfer switch

Surge product series comparison Product  series L–N protection  mode L–G & L–N  protection mode Per 0 kA  range EMI/RFI filtering  attenuation Nominal discharge  current (In) Short-circuit  rating (SCCR) Alarm  contacts Surge  counter  (option) Warranty  (years) SPD Yes Yes 50–400 50 dB 20 kA 200 kA Yes Yes 15 SPV Yes Yes 50–200 40 dB 20 kA   42 kA  Yes No 10 CVX Yes Yes   50–100 No 20 kA   100 kA No No 5  100 kA units only.  208Y, 240S, 240D, 400Y and 480YL units rated in 10 kA.  480L, 600D and 600Y units rated 10 kA.  5 kA SCCR for 400D and 480D. SPD Series    The Eaton SPD Series is the  latest and most advanced  portfolio of surge protectors  for commercial and industrial  applications. Units are available  in all common voltages and  configurations, and in a variety  of surge current capacity ratings  from 50 to 400 kA. SPV Series    The Eaton SPV Series is  designed to simplify protection  of sensitive electronics in  commercial light industrial  applications by combining surge  suppression components and  EMI/RFI filtering into a single,  compact device. CVX Series The Eaton CVX Series is ideal  for light industrial, commercial  and OEM applications, providing  high-quality protection from  voltage transients. Designed for  installation on service entrance,  branch panels or individual  equipment disconnects, the CVX  Series provides enhanced surge  protection for mission-critical  applications. Units are available  for all voltage configurations with  surge capacity ratings of 50 and  100 kA. Surge protection devices Eaton provides a full range of innovative, reliable surge  protection solutions to help reduce costly downtime  and protect sensitive electronic equipment against the  damaging effects of transients caused by lightning, utility  switching, load switching and more.  For more information, visit Eaton.com/SPD 10 EATON Eaton automatic transfer switch

Technical support services Combining strong technical product expertise with in-depth industry  applications experience, the transfer switch technical support   organization possesses an innate ability to answer your questions   and troubleshoot issues remotely. From guiding a customer through   a system setup to resolving critical alarms, this dedicated team of  industry professionals is here to help. Primary services •  Installation, setup, usage and troubleshooting •  Internal field engineer support for complex installations •  Advanced application diagnostic support services The Eaton advantage SpeedThe support staff is available 24x7 and, on average, answers your  call and begins working on your question or issue in an average of  120 seconds. KnowledgeSupport engineers average 11 years of experience plus continuing  education in the field and classroom. TechnologyOur field service engineers are armed with the latest equipment,  including Dranetz PX5 disturbance analyzers, Fluke 1750/435 power  quality recorders and Hioki power quality analyzers. Services and support Eaton’s comprehensive, world-class service solutions for all Eaton power distribution, software  and connectivity products are designed to improve costs, uptime, reliability, power quality and safety. We demonstrate our commitment to strong, lasting customer relationships through our technical expertise and expansive support network. With 240 field technicians in North America, 1,200 international authorized service providers and more than 100 dedicated customer support team members, we are well-positioned to solve your toughest power management challenges.  CUSTOM ORDER ENGINEERING In many cases, standard product can be custom- order engineered to meet your application needs.  For additional information, please contact your  local Eaton sales representative. 11 EATON Eaton automatic transfer switch

For more details, visit Eaton.com/ATS The critical need for reliable backup power Eaton offers the broadest range of automatic transfer switches available in today’s   critical power market, backed by a world-class service team with expert knowledge   in electrical systems. Our expertise helps customers implement an automatic transfer  switch solution specifically engineered to meet electrical reliability requirements  regardless of application, budget or required customizations.  Featuring Eaton’s automatic transfer switches Eaton is a registered trademark.   All other trademarks are property   of their respective owners. Eaton 1000 Eaton Boulevard Cleveland, OH 44122 United States Eaton.com © 2015 Eaton All Rights Reserved Printed in USA Publication No. BR140001EN / Z16016 January 2015
