Electrical installation with unlimited possibilities

Eaton

Electrical installation with unlimited possibilities

Yayınlandı: 22 Eylül 2020 · Kategori: Diğer

Bu belgeden

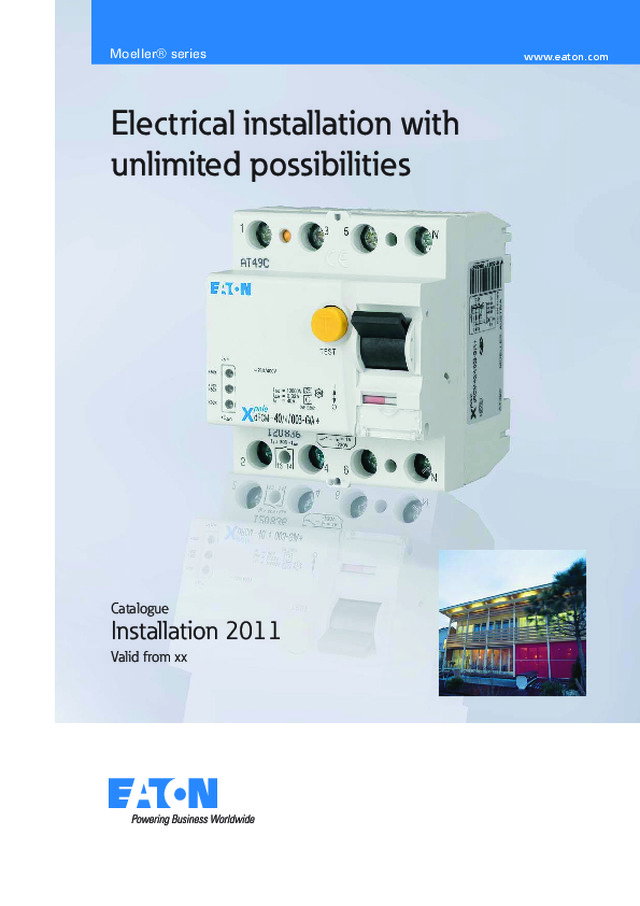

Moeller series Electrical installation with unlimited possibilities Catalogue Installation 2011 Valid from xx www.eaton.com Table of Contents Protective Devices / Components Protective Devices Miniature Circuit Breakers (MCBs) Page 2 Residual Current Devices (RCDs) Page 33 Residual Current Devices Digital (RCDs) Page 44 Add-on Residual Current Protection Unit Page 48 Main Protective Device Page 55 Leakage Current Monitor Page 57 Combined RCD/MCB Devices Page 59 Electronic Combined RCD/MCB Devices Page 70 Accessories for Protective Devices Page 79 Auxiliary Switch, RCD-Tripping Module, Shunt Trip Release, Undervoltage Release, Remote Control and Automatic Switching Device Surge Protection Page 82 Controlling & Switching Page 92 Main Load Disconnector Switch, Installation Contactor, Relay, Signalling Devices, Transformer Busbar Systems Page 110 Plug-in Busbar System, Busbar block (fork and pin) SASY Busbar System Fuse Devices (Protective Devices) Page 128 Measuring Devices Page 161 Other Accessories Page 165 Technical Data Page 177 1 Protective Devices Miniature Circuit Breakers CLS4 DE High-quality miniature circuit breakers for residential applications Contact position indicator red - green Comprehensive range of accessories suitable for subsequent installation Rated currents up to 63 A Tripping characteristics B, C Rated breaking capacity 4.5 kA according to IEC/EN 60898-1 SG83711 2 Protective Devices Miniature Circuit Breakers CLS4 Characteristic B Rated Current In (A)...
