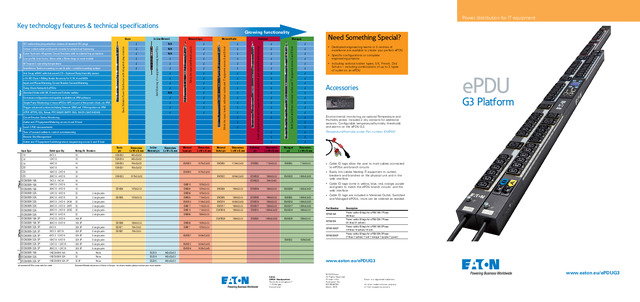

ePDU G3 Platform

Eaton

ePDU G3 Platform

Yayınlandı: 22 Eylül 2020 · Kategori: Diğer

Bu belgeden

Power distribution for IT equipment Key technology features & technical specifications Installation: Button mounting on rear & side + variable mounting system Hot-Swap eNMC with Advanced LCD + Optional Temp/Humidity sensor 1% IEC Class 1 Billing Grade Accuracy for V, W, A and kWh Input and Phase Metering, Circuit Breaker Current Metering Better Daisy-Chain Network 8 ePDUs Standard Units with UK, French and Schuko outlets En masse configuration and update available via IPM software Single Pane Monitoring of many ePDUs+UPS as part of the power chain, via IPM Trigger advanced actions including Vmware SRM and VM migration via IPM HTTP, HTTPS, SSL, Telnet, FTP, SNMP, SMTP, DNS, DHCP, LDAP, RADIUS N/A N/A N/A Circuit Breaker Status Monitoring Best Outlet and IT Equipment Metering across A and B feed Level 3 PUE measurements Switched Turn off unused outlets to control commissioning Remote Site Management In-Line 3 Phase 1 Phase Outlet and IT Equipment Switching/reboot /sequencing across A and B feed Input Type Outlet type: Qty Rating (A) Breakers Basic p/n Dimensions L x W x D, mm C14 C14 C14 C20 C20 C20 IEC60309 16A IEC60309 16A IEC60309 16A IEC60309 32A IEC60309 32A IEC60309 32A IEC60309 32A IEC60309 32A IEC60309 32A IEC60309 16A 3P IEC60309 16A 3P IEC60309 32A 3P IEC60309 32A 3P IEC60309 32A 3P IEC60309 32A 3P IEC60309 32A 3P IEC60309 32A 3P IEC60309 16A IEC60309 32A IEC60309 32A 3P 8XC13 10 EBAB02 443x52x53 12XC13 10 EBAB19 443x52x53 16XC13 10 EBAB03 704x52x53 16XC13 16 EBAB21...
