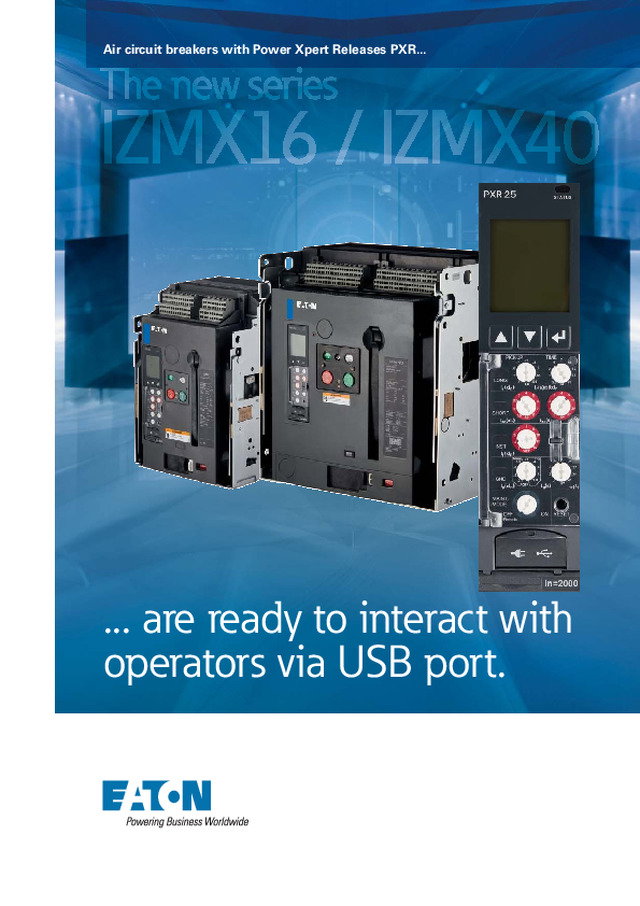

Air circuit breakers with Power Xpert Releases PXR... ... are ready to interact with operators via USB port. Performance list. Circuit breakers IZMX offer a wite range of technical performance, accessories and settings to optimize the breaker for the individual application. Breaker specications IEC/EN 60947 IZMX16 IZMX40 Rated Current (In) 630 A, 800 A, 1000 A, 1250 A, 1600 A 800 A, 1000 A, 1250 A, 1600 A, 2000 A, 2500 A, 3200 A, 4000 A Type of circuit breaker B N H B N H Rated impulse withstand voltage (Uimp, VAC) 12000 12000 12000 12000 12000 12000 Rated insulation voltage (Ui, VAC) 1000 1000 1000 1000 1000 1000 Rated operational voltage (Ue, VAC) 690 690 690 690 690 690 240V 50/60Hz 42 85 85 66 85 105 440V 50/60Hz 42 50 66 66 85 105 690V 50/60Hz 42 42 42 66 75 75 240V 50/60Hz 42 50 66 66 85 105 440V 50/60Hz 42 50 50 66 85 105 690V 50/60Hz 42 42 42 66 75 75 1s/3s 42/- 42/- 42/- 66/50 85/66 85/66 440V 50/60Hz 88 105 145 145 187 231 690V 50/60Hz 88 88 88 145 166 166 630A-1600A 800A-1600A 2000A 2500A-4000A 10000 10000 10000 10000 20000 20000 20000 20000 10000 10000 8000 6000 Ultimate breaking capacity (Icu, kA) Rated service breaking capacity (Ics, kA) Rated short-time withstand current (Icw, kA) Rated short-circuit making capacity (Icm, kA) Lifespan Mechanical, w/o Dimensions (H W D, mm) Weight (kg) Mechanical, w maintenance Electrical, 440V, w/o maintenance Fixed 3P 338210184 398376298 Fixed 4P 338279184 398492298 Withdrawable 3P 360254289 456426393 Withdrawable 4P 360324289...
