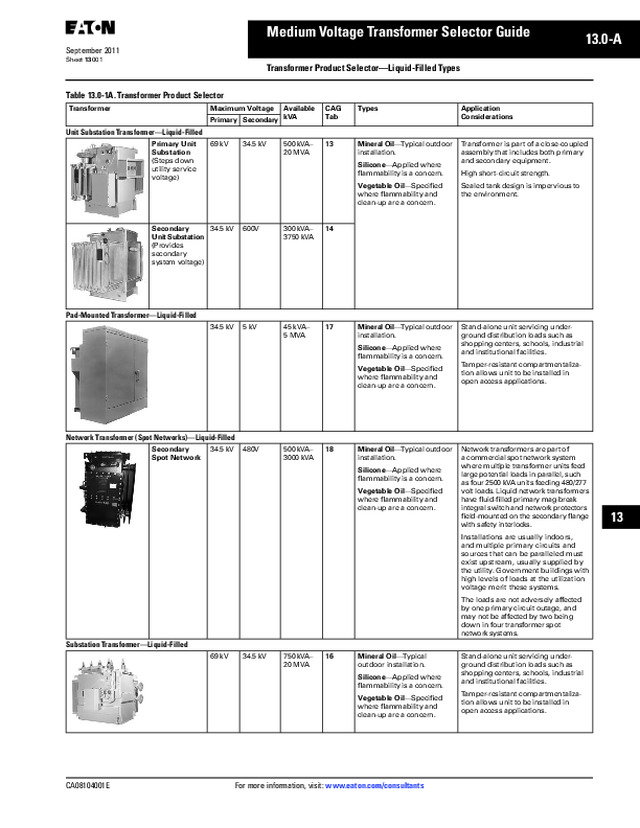

Medium Voltage Transformer Selector Guide 13.0-A September 2011 Sheet 13 001 Transformer Product Selector—Liquid-Filled Types Table 13.0-1A. Transformer Product Selector Transformer Maximum Voltage Available Primary Secondary kVA CAG Tab Types Application Considerations 69 kV 13 Mineral Oil—Typical outdoor installation. Transformer is part of a close-coupled assembly that includes both primary and secondary equipment. ii Unit Substation Transformer—Liquid-Filled Primary Unit Substation (Steps down utility service voltage) i 34.5 kV 500 kVA– 20 MVA Silicone—Applied where flammability is a concern. Vegetable Oil—Specified where flammability and clean-up are a concern. Secondary 34.5 kV Unit Substation (Provides secondary system voltage) 600V 300 kVA– 3750 kVA 1 High short-circuit strength. Sealed tank design is impervious to the environment. 2 3 14 4 5 6 Pad-Mounted Transformer—Liquid-Filled 34.5 kV 5 kV 45 kVA– 5 MVA 17 Mineral Oil—Typical outdoor installation. Silicone—Applied where flammability is a concern. Vegetable Oil—Specified where flammability and clean-up are a concern. Stand-alone unit servicing underground distribution loads such as shopping centers, schools, industrial and institutional facilities. 7 Tamper-resistant compartmentalization allows unit to be installed in open access applications. 8 9 10 Network Transformer (Spot Networks)—Liquid-Filled Secondary Spot Network 34.5 kV 480V 500 kVA– 3000 kVA 18 Mineral Oil—Typical outdoor installation....
