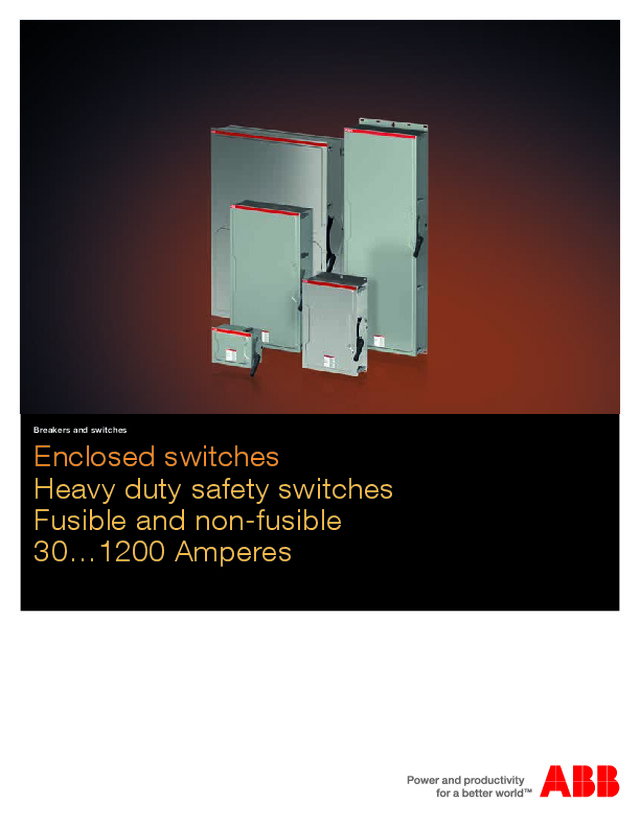

Enclosed switches Heavy duty safety switches Fusible and non-fusible 30…1200 Amperes Breakers and switches

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 3 Heavy duty fusible and non-fusible safety switches 30…1200 Amperes Features, product overview Features 4 Enclosed heavy duty fusible 3-pole safety switches 6 Enclosed heavy duty non-fusible 3-pole safety switches 8 Product overview 10 Technical data Enclosed heavy duty fusible safety switches 12 Enclosed heavy duty non-fusible safety switches 14 Catalog numbering system Heavy duty safety switches 16 Ordering information Heavy duty fusible safety switches NEMA 1, 12, 3R, 4X 17 Heavy duty non-fusible safety switches NEMA 1, 12, 3R, 4X 20 Accessories Selection overview 23 Ordering information, field-installable accessories Neutral assembly, auxiliary contact blocks 24 Hubs, rejection members, fuse adapter kits 25 Terminal shrouds 26 Replacement parts Selection overview 27 Ordering information, replacement parts Switch-disconnects 28 Fuse bases 29 Handle kit, door interlock mechanism 30 Line side lug assembly, load side lug assembly 31 Dimensional drawings Fusible safety switches, NEMA 1, 12, 3R, 4X 32 Fusible safety switches, cable outlets / knockouts 35 Non-fusible safety switches, NEMA 1, 12, 3R, 4X 36 Non-fusible safety switches, cable outlets / knockouts 39 Index List of products with page number in alphabetical order 40

4 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes New range of heavy duty safety switches Safe, modern, high performance range The next generation of heavy duty safety switches offer a com-plete range of fusible and non-fusible solutions from 30 to 1200 Amperes. Our new range meets all relevant standards UL98, UL50, UL50E, NEMA KS-1 and CSA. Designed for heavy duty applications ABB‘s safety switches are designed for applications requiring heavy duty performance and are suitable for use as service equipment where applicable. Our products are well suited for the food & beverage industry, HVAC, water/wastewater treat-ment facilities, commercial buildings and much more. Choose safety and high performance – choose ABB Our next generation engineered heavy duty safety switches are designed to live up to our customers needs. High performance 200 kA short-circuit withstand capability across the whole range makes EOH and EOHU suitable for the most demanding appli-cations. Increased safety Visible double break contacts through windows in the modern touch safe switch insert. Easy installation Spacious interior and rounded edges make wiring safe, easy and fast. Gasket included in all NEMA classes. Savings in maintenance The modular switch insert and related components can easily be replaced creating savings in both downtime and money. Complete range of fusible and non-fusible HD safety swit-ches from 30 to 1200 Amperes The robust enclosures are made in steel, stainless steel or acid proof steel sheet covering all NEMA classes up to 4X.

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 5 The next generation of heavy duty safety switches offer a com-plete range of fusible and non-fusible solutions from 30 to 1200 Amperes. Our new range meets all relevant standards UL98, UL50, UL50E, NEMA KS-1 and CSA.

NEMA 1, Steel sheet enclosed EOH361K EOH362K EOH363K EOH364K EOH365K EOH366K EOH367 EOH368 General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 7.5 15 30 60 125 200 250 250 fuses are used 480 V [HP] 15 30 60 125 250 400 500 500 600 V [HP] 20 50 75 150 350 500 500 500 NEMA 12, Steel sheet enclosed EOH361JK EOH362JK EOH363JK EOH364JK EOH365JK EOH366JK EOH367J EOH368J NEMA 3R, Steel sheet enclosed EOH361RK EOH362RK EOH363RK EOH364RK EOH365RK EOH366RK EOH367R EOH368R General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 7.5 15 30 60 125 200 250 250 fuses are used 480 V [HP] 15 30 60 125 250 400 500 500 600 V [HP] 20 50 75 150 350 500 500 500 NEMA 4X, Stainless steel sheet enclosed, Grade 304 EOH361S EOH362S EOH363S EOH364S EOH365S EOH366S EOH367S EOH368S NEMA 4X, Stainless steel sheet enclosed, Grade 316 EOH361SS EOH362SS EOH362SS EOH364SS EOH365SS EOH366SS EOH367SS EOH368SS General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 7.5 15 30 60 125 200 250 250 fuses are used 480 V [HP] 15 30 60 125 250 400 500 500 600 V [HP] 20 50 75 150 350 500 500 500 6 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Enclosed heavy duty fusible 3-pole safety switches From 30 to 1200 Amperes

NEMA 1, Steel sheet enclosed EOH361K EOH362K EOH363K EOH364K EOH365K EOH366K EOH367 EOH368 General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 7.5 15 30 60 125 200 250 250 fuses are used 480 V [HP] 15 30 60 125 250 400 500 500 600 V [HP] 20 50 75 150 350 500 500 500 NEMA 12, Steel sheet enclosed EOH361JK EOH362JK EOH363JK EOH364JK EOH365JK EOH366JK EOH367J EOH368J NEMA 3R, Steel sheet enclosed EOH361RK EOH362RK EOH363RK EOH364RK EOH365RK EOH366RK EOH367R EOH368R General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 7.5 15 30 60 125 200 250 250 fuses are used 480 V [HP] 15 30 60 125 250 400 500 500 600 V [HP] 20 50 75 150 350 500 500 500 NEMA 4X, Stainless steel sheet enclosed, Grade 304 EOH361S EOH362S EOH363S EOH364S EOH365S EOH366S EOH367S EOH368S NEMA 4X, Stainless steel sheet enclosed, Grade 316 EOH361SS EOH362SS EOH362SS EOH364SS EOH365SS EOH366SS EOH367SS EOH368SS General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 7.5 15 30 60 125 200 250 250 fuses are used 480 V [HP] 15 30 60 125 250 400 500 500 600 V [HP] 20 50 75 150 350 500 500 500 Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 7

NEMA 1, Steel sheet enclosed EOHU361K EOHU362K EOHU363K EOHU364K EOHU365K EOHU366K EOHU367 EOHU368 General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 10 20 40 60 125 200 250 250 fuses are used 480 V [HP] 20 50 75 125 250 400 500 500 600 V [HP] 30 60 100 150 350 500 500 500 NEMA 12, Steel sheet enclosed EOHU361JK EOHU362JK EOHU363JK EOHU364JK EOHU365JK EOHU366JK EOHU367J EOHU368J NEMA 3R, Steel sheet enclosed EOHU361RK EOHU362RK EOHU363RK EOHU364RK EOHU365RK EOHU366RK EOHU367R EOHU368R General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 10 20 40 60 125 200 250 250 fuses are used 480 V [HP] 20 50 75 125 250 400 500 500 600 V [HP] 30 60 100 150 350 500 500 500 NEMA 4X, Stainless steel sheet enclosed, Grade 304 EOHU361S EOHU362S EOHU363S EOHU364S EOHU365S EOHU366S EOHU367S EOHU368S NEMA 4X, Stainless steel sheet enclosed, Grade 316 EOHU361SS EOHU362SS EOHU363SS EOHU364SS EOHU365SS EOHU366SS EOHU367SS EOHU368SS General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 10 20 40 60 125 200 250 250 fuses are used 480 V [HP] 20 50 75 125 250 400 500 500 600 V [HP] 30 60 100 150 350 500 500 500 8 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Enclosed heavy duty non-fusible 3-pole safety switches From 30 to 1200 Amperes

NEMA 1, Steel sheet enclosed EOHU361K EOHU362K EOHU363K EOHU364K EOHU365K EOHU366K EOHU367 EOHU368 General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 10 20 40 60 125 200 250 250 fuses are used 480 V [HP] 20 50 75 125 250 400 500 500 600 V [HP] 30 60 100 150 350 500 500 500 NEMA 12, Steel sheet enclosed EOHU361JK EOHU362JK EOHU363JK EOHU364JK EOHU365JK EOHU366JK EOHU367J EOHU368J NEMA 3R, Steel sheet enclosed EOHU361RK EOHU362RK EOHU363RK EOHU364RK EOHU365RK EOHU366RK EOHU367R EOHU368R General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 10 20 40 60 125 200 250 250 fuses are used 480 V [HP] 20 50 75 125 250 400 500 500 600 V [HP] 30 60 100 150 350 500 500 500 NEMA 4X, Stainless steel sheet enclosed, Grade 304 EOHU361S EOHU362S EOHU363S EOHU364S EOHU365S EOHU366S EOHU367S EOHU368S NEMA 4X, Stainless steel sheet enclosed, Grade 316 EOHU361SS EOHU362SS EOHU363SS EOHU364SS EOHU365SS EOHU366SS EOHU367SS EOHU368SS General purpose current rating [A] 30 60 100 200 400 600 800 1200 Max. horse power rating (Three phase), when time delay 240 V [HP] 10 20 40 60 125 200 250 250 fuses are used 480 V [HP] 20 50 75 125 250 400 500 500 600 V [HP] 30 60 100 150 350 500 500 500 Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 9

10 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes 5 3 2 11 14 12 15 6 16 7 9 10 13 8 Product overview Enclosed heavy duty fusible 3-pole safety switches 1. Door latches, provision for padlocking2. Handle3. Knockouts4. Keyslot mounting hole5. Mounting holes (4 pcs)6. 3-pole switch, double breaking contacts with viewing windows7. Line side (switch terminals) terminal lugs8. Fuse base9. Load side (fuse base terminals) terminal lugs 10. Ground bus (2 lugs)11. Operating mechanism, inside place for auxiliary contacts (optional)12. Door interlock mechanism13. Locking hook for door interlock mechanism14. Door interlock bypass shaft (Only qualified personnel should perform this procedure) 15. Hole for padlocking the handle (3 padlocks)16. Place for neutral assembly (optional) 1 3 4 1 5

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 11 Product overview Enclosed heavy duty non-fusible 3-pole safety switches 1. Door latches, provision for padlocking2. Handle3. Knockouts4. Keyslot mounting hole5. Mounting holes (4 pcs)6. 3-pole switch, double breaking contacts with viewing windows7. Line side terminal lugs8. Load side terminal lugs 9. Ground bus (2 lugs)10. Operating mechanism, inside place for auxiliary contacts (optional)11. Door interlock mechanism12. Locking hook for door interlock mechanism13. Door interlock bypass shaft (Only qualified personnel should perform this procedure) 14. Hole for padlocking the handle (3 padlocks)15. Place for neutral assembly (optional) 3 2 11 13 10 14 6 15 7 9 12 1 4 3 1 5 5 8

12 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Technical data Enclosed heavy duty fusible safety switches Technical data according to UL98, UL50, UL4248-1, NEMA KS1 and CSA standards Catalog numberEOH_61 EOH_62 EOH_63 EOH_64 EOH_65 EOH_66 EOH_67 EOH_68 UL file: E314773, CSA: LR58077 A 30 60 100 200 400 600 800 1200 General purpose current rating 600 V ac / 250 V dc A 30 60 100 200 400 600 800 1200 Max. horse power rating Single phase 240 V ac HP 3 10 15 15 480 V ac HP 7.5 20 30 50 600 V ac HP 10 25 40 50 Max. horse power rating Three phase 240 V ac HP 7.5 15 30 60 125 200 250 250 480 V ac HP 15 30 60 125 250 400 500 500 600 V ac HP 20 50 75 150 350 500 500 500 Max. horse power rating 125 V dc / 250 V dc HP 3 / 5 5 / 10 5 / 20 - / 40 - / 50 - / 50 - / 50 - / 50 Standard horse power rating Single phase 240 V ac HP 1.5 3 7.5 15 480 V ac HP 3 5 10 25 600 V ac HP 3 10 15 30 Standard horse power rating Three phase 240 V ac HP 3 7.5 15 25 50 75 100 100 480 V ac HP 5 15 25 50 100 150 200 200 600 V ac HP 7.5 15 30 60 125 200 250 250 Max. motor FLA current Single phase 240 V ac A 17 50 68 68 480 V ac A 21 44 68 108 600 V ac A 20 44 70 86 Max. motor FLA current Three phase 240 V ac A 22 42 80 164 312 480 600 600 480 V ac A 21 40 77 156 302 477 590 590 600 V ac A 22 52 77 144 336 472 472 472 Short circuit rating Class R fuses 480 V ac kA 200 200 200 200 200 200 Class J fuses 480 V ac kA 200 200 200 200 200 200 Class T fuses 480 V ac kA 200 200 200 200 200 200 Class L fuses 480 V ac kA 200 200 Short circuit rating Class R fuses 600 V ac kA 200 200 200 200 100 1) 200 Class J fuses 600 V ac kA 200 200 200 200 200 200 Class T fuses 600 V ac kA 200 200 200 200 200 200 Class L fuses 600 V ac kA 200 200 Maximum fuse size A 30 60 100 200 400 600 800 1200 Standard fuse clips R, H, K R, H, K R, H, K R, H, K R, H, K R, H, K L L Fuse conversion kits J J, T J, T J, T J, T J Electrical endurance Power factor 0.75...0.8 op. cycles 8 000 8 000 7 000 6 000 1500 1200 600 600 Mechanical endurance operations 15000 15000 14000 12000 7500 6000 3500 2500 Cabling Terminal lug Line terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800 OZXA-800 OZXA-1200 OZXA-1200E Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 45 (#6 - 4) 50 (#3 - 2/0) 375 500 500 500 620 Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 40 (#8), 45 (#6) 50 (#2) 50 (#3 - 2/0) 375 500 500 500 620 Lug mounting torque Line terminals Ibs.in. 132 132 132 228 480 480 443 319 Wire range Line terminals #14 - 6 #14 - 2 #14 - 2/0 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (6) #2 - 500 kcmil Terminal lug Load terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800E OZXA-800 OZXA-1200 OZXA-1200 Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 45 (#6 - 4) 50 (#3 - 2/0) 375 500 500 500 500 Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 40 (#8), 45 (#6) 50 (#2) 50 (#3 - 2/0) 375 500 500 500 500 Lug mounting torque Load terminals Ibs.in. 132 132 132 72 480 480 443 319 Wire range Load terminals #14 - 6 #14 - 2 #14 - 2/0 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (4) #2 - 500 kcmil 1) 600V 200kA rating available. See page 16 for additional information.

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 13 Technical data according to UL98, UL50, UL4248-1, NEMA KS1 and CSA standards Catalog numberEOH_61 EOH_62 EOH_63 EOH_64 EOH_65 EOH_66 EOH_67 EOH_68 UL file: E314773, CSA: LR58077 A 30 60 100 200 400 600 800 1200 General purpose current rating 600 V ac / 250 V dc A 30 60 100 200 400 600 800 1200 Max. horse power rating Single phase 240 V ac HP 3 10 15 15 480 V ac HP 7.5 20 30 50 600 V ac HP 10 25 40 50 Max. horse power rating Three phase 240 V ac HP 7.5 15 30 60 125 200 250 250 480 V ac HP 15 30 60 125 250 400 500 500 600 V ac HP 20 50 75 150 350 500 500 500 Max. horse power rating 125 V dc / 250 V dc HP 3 / 5 5 / 10 5 / 20 - / 40 - / 50 - / 50 - / 50 - / 50 Standard horse power rating Single phase 240 V ac HP 1.5 3 7.5 15 480 V ac HP 3 5 10 25 600 V ac HP 3 10 15 30 Standard horse power rating Three phase 240 V ac HP 3 7.5 15 25 50 75 100 100 480 V ac HP 5 15 25 50 100 150 200 200 600 V ac HP 7.5 15 30 60 125 200 250 250 Max. motor FLA current Single phase 240 V ac A 17 50 68 68 480 V ac A 21 44 68 108 600 V ac A 20 44 70 86 Max. motor FLA current Three phase 240 V ac A 22 42 80 164 312 480 600 600 480 V ac A 21 40 77 156 302 477 590 590 600 V ac A 22 52 77 144 336 472 472 472 Short circuit rating Class R fuses 480 V ac kA 200 200 200 200 200 200 Class J fuses 480 V ac kA 200 200 200 200 200 200 Class T fuses 480 V ac kA 200 200 200 200 200 200 Class L fuses 480 V ac kA 200 200 Short circuit rating Class R fuses 600 V ac kA 200 200 200 200 100 1) 200 Class J fuses 600 V ac kA 200 200 200 200 200 200 Class T fuses 600 V ac kA 200 200 200 200 200 200 Class L fuses 600 V ac kA 200 200 Maximum fuse size A 30 60 100 200 400 600 800 1200 Standard fuse clips R, H, K R, H, K R, H, K R, H, K R, H, K R, H, K L L Fuse conversion kits J J, T J, T J, T J, T J Electrical endurance Power factor 0.75...0.8 op. cycles 8 000 8 000 7 000 6 000 1500 1200 600 600 Mechanical endurance operations 15000 15000 14000 12000 7500 6000 3500 2500 Cabling Terminal lug Line terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800 OZXA-800 OZXA-1200 OZXA-1200E Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 45 (#6 - 4) 50 (#3 - 2/0) 375 500 500 500 620 Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 40 (#8), 45 (#6) 50 (#2) 50 (#3 - 2/0) 375 500 500 500 620 Lug mounting torque Line terminals Ibs.in. 132 132 132 228 480 480 443 319 Wire range Line terminals #14 - 6 #14 - 2 #14 - 2/0 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (6) #2 - 500 kcmil Terminal lug Load terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800E OZXA-800 OZXA-1200 OZXA-1200 Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 45 (#6 - 4) 50 (#3 - 2/0) 375 500 500 500 500 Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 40 (#8), 45 (#6) 50 (#2) 50 (#3 - 2/0) 375 500 500 500 500 Lug mounting torque Load terminals Ibs.in. 132 132 132 72 480 480 443 319 Wire range Load terminals #14 - 6 #14 - 2 #14 - 2/0 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (4) #2 - 500 kcmil 1) 600V 200kA rating available. See page 16 for additional information.

14 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Technical data Enclosed heavy duty non-fusible safety switches Technical data according to UL98, UL50, NEMA KS1 and CSA standards Catalog numberEOHU_61 EOHU_62 EOHU_63 EOHU_64 EOHU_65 EOHU_66 EOHU_67 EOHU_68 UL file: E314773, CSA: LR58077 A 30 60 100 200 400 600 800 1200 General purpose current rating 600 V ac / 250 V dc A 30 60 100 200 400 600 800 1200 Max. horse power rating Single phase 240 V ac HP 5 10 20 40 480 V ac HP 10 25 40 50 600 V ac HP 20 30 50 50 Max. horse power rating Three phase 240 V ac HP 10 20 40 60 125 200 250 250 480 V ac HP 20 50 75 125 250 400 500 500 600 V ac HP 30 60 100 150 350 500 500 500 Max. horse power rating 125 V dc / 250 V dc HP 3 / 5 5 / 10 10 / 25 - / 40 - / 50 - / 50 - / 50 - / 50 Max. motor FLA current Single phase 240 V ac A 28 50 88 176 480 V ac A 26 55 88 108 600 V ac A 25 54 86 86 Max. motor FLA current Three phase 240 V ac A 28 54 104 192 360 480 600 600 480 V ac A 27 65 96 156 302 477 590 590 600 V ac A 32 62 99 144 336 472 472 472 Short circuit rating Class R fuses 480 V ac kA 200 200 200 200 200 200 Class J fuses 480 V ac kA 200 200 200 200 200 200 Class T fuses 480 V ac kA 200 200 200 200 200 200 Class L fuses 480 V ac kA 200 200 Short circuit rating Class R fuses 600 V ac kA 200 200 200 200 100 1) 200 Class J fuses 600 V ac kA 200 200 200 200 200 200 Class T fuses 600 V ac kA 200 200 200 200 200 200 Class L fuses 600 V ac kA 200 200 Short circuit rating Class R fuses 250 V dc kA 100 100 100 100 100 100 Class J fuses 250 V dc kA 100 100 100 100 100 100 Class T fuses 250 V dc kA 100 100 100 100 100 Class L fuses 250 V dc kA 100 100 Min. electrical endurance Power factor 0.75...0.8 op. cycles 8 000 8 000 7 000 6 000 6 000 1200 600 600 Mechanical endurance operations 20 000 20 000 20 000 20 000 16 000 10 000 6 000 6 000 Cabling Terminal lug Line terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800 OZXA-800 OZXA-1200 OZXA-1200E Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 35 (#14 - 10), 40 (#8) 50 (#3-1) 375 500 500 500 620 Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 40 (#8) 45 (#6 - 4), 50 (#3) 50 (#3-1) 375 500 500 500 620 Lug mounting torque Line terminals Ibs.in. 132 132 132 228 480 480 443 319 Wire range Line terminals #14 - 8 #14 - 3 #14 - 1 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (6) #2 - 500 kcmil Terminal lug Load terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800 OZXA-800 OZXA-1200 OZXA-1200E Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 35 (#14 - 10), 40 (#8) 50 (#3-1) 375 500 500 500 620 Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 40 (#8) 45 (#6 - 4), 50 (#3 - 1) 50 (#3-1) 375 500 500 500 620 Lug mounting torque Load terminals Ibs.in. 132 132 132 228 480 480 443 319 Wire range Load terminals #14 - 8 #14 - 1 #14 - 1 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (6) #2 - 500 kcmil 1) 600V 200kA rating available. See page 16 for additional information.

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 15 Technical data according to UL98, UL50, NEMA KS1 and CSA standards Catalog numberEOHU_61 EOHU_62 EOHU_63 EOHU_64 EOHU_65 EOHU_66 EOHU_67 EOHU_68 UL file: E314773, CSA: LR58077 A 30 60 100 200 400 600 800 1200 General purpose current rating 600 V ac / 250 V dc A 30 60 100 200 400 600 800 1200 Max. horse power rating Single phase 240 V ac HP 5 10 20 40 480 V ac HP 10 25 40 50 600 V ac HP 20 30 50 50 Max. horse power rating Three phase 240 V ac HP 10 20 40 60 125 200 250 250 480 V ac HP 20 50 75 125 250 400 500 500 600 V ac HP 30 60 100 150 350 500 500 500 Max. horse power rating 125 V dc / 250 V dc HP 3 / 5 5 / 10 10 / 25 - / 40 - / 50 - / 50 - / 50 - / 50 Max. motor FLA current Single phase 240 V ac A 28 50 88 176 480 V ac A 26 55 88 108 600 V ac A 25 54 86 86 Max. motor FLA current Three phase 240 V ac A 28 54 104 192 360 480 600 600 480 V ac A 27 65 96 156 302 477 590 590 600 V ac A 32 62 99 144 336 472 472 472 Short circuit rating Class R fuses 480 V ac kA 200 200 200 200 200 200 Class J fuses 480 V ac kA 200 200 200 200 200 200 Class T fuses 480 V ac kA 200 200 200 200 200 200 Class L fuses 480 V ac kA 200 200 Short circuit rating Class R fuses 600 V ac kA 200 200 200 200 100 1) 200 Class J fuses 600 V ac kA 200 200 200 200 200 200 Class T fuses 600 V ac kA 200 200 200 200 200 200 Class L fuses 600 V ac kA 200 200 Short circuit rating Class R fuses 250 V dc kA 100 100 100 100 100 100 Class J fuses 250 V dc kA 100 100 100 100 100 100 Class T fuses 250 V dc kA 100 100 100 100 100 Class L fuses 250 V dc kA 100 100 Min. electrical endurance Power factor 0.75...0.8 op. cycles 8 000 8 000 7 000 6 000 6 000 1200 600 600 Mechanical endurance operations 20 000 20 000 20 000 20 000 16 000 10 000 6 000 6 000 Cabling Terminal lug Line terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800 OZXA-800 OZXA-1200 OZXA-1200E Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 35 (#14 - 10), 40 (#8) 50 (#3-1) 375 500 500 500 620 Torque: wire tightening Line terminals For Cu and Al cables Ibs.in. 40 (#8) 45 (#6 - 4), 50 (#3) 50 (#3-1) 375 500 500 500 620 Lug mounting torque Line terminals Ibs.in. 132 132 132 228 480 480 443 319 Wire range Line terminals #14 - 8 #14 - 3 #14 - 1 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (6) #2 - 500 kcmil Terminal lug Load terminals OZXA-100 OZXA-100 OZXA-100 OZXA-400 OZXA-800 OZXA-800 OZXA-1200 OZXA-1200E Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 35 (#14 - 10) 35 (#14 - 10), 40 (#8) 50 (#3-1) 375 500 500 500 620 Torque: wire tightening Load terminals For Cu and Al cables Ibs.in. 40 (#8) 45 (#6 - 4), 50 (#3 - 1) 50 (#3-1) 375 500 500 500 620 Lug mounting torque Load terminals Ibs.in. 132 132 132 228 480 480 443 319 Wire range Load terminals #14 - 8 #14 - 1 #14 - 1 #2 - 250 kcmil (2) #2 - 500 kcmil (2) #2 - 600 kcmil (4) #2 - 500 kcmil (6) #2 - 500 kcmil 1) 600V 200kA rating available. See page 16 for additional information.

16 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Catalog numbering system Heavy duty safety switches Explanation of the catalog number EO H U 3 6 1 N R W K R6 - 0 1 2 3 4 5 6 7 8 9 10 11 12 1 Brand EO: ABB brand 2 Duty H: Heavy duty 3 Fusible or non-fusible Blank: Fusible U: Non-fusible 4 Number of poles 3: Three poles 5 Maximum voltage 6: 600V 6 Ampere rating 1: 30A 2: 60A 3: 100A 4: 200A 5: 400A 6: 600A 7: 800A 8: 1200A 7 Neutral Blank: No neutral N: Neutral included 8 Enclosure NEMA type Blank: TYPE 1: Indoor, painted steel J: TYPE 12: Indoor, painted steel R: TYPE 3R: Indoor/outdoor, painted steel S: TYPE 4X: Indoor/outdoor, stainless steel grade 304 SS: TYPE 4X: Indoor/outdoor, stainless steel grade 316 9 Special constructions and applications W: Viewing window 10 Cable entries Blank: Without knockouts K: With concentric knockouts 11 Special ratings Blank: Standard ratings R6: 600V/200kA with RK-fuses (400A switch only) 12 Auxiliary contacts Blank without dash: No auxiliary contacts - 0: One normally closed 1nc - 1: One normally open 1no Coming soon

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 17 Ordering information Steel sheet enclosed heavy duty fusible safety switches Side operated fusible safety switch, black handle, NEMA 1 Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: ANSI 61 (light grey). Standards: UL98, UL50, UL4248-1, NEMA KS1, CSA. Units/catalog number = 1 piece. Note: 30A – 600A fusible switches are supplied as standard with fuse clips spaced to accept class R fuses. To prevent installation of any other fuse classes, rejection pins/members are available as optional accessories. To convert for class J or class T fuses, move the load side fuse bases/clips to the alternate holes indicated inside the enclosure. Note that 600A class J and all class T fuses also require an accessory adapter kit. See page 25 for all noted accessories. General purpose current rating [A] Max. Horse power Standard fuse link Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight/ unit [kg] rating [HP] Three phase 240 V 480 V 600 V NEMA 1, indoor, modest amounts of falling dirt 30 7,5 15 20 R 2no+2nc Knockouts EOH361K 10 60 15 30 50 R 2no+2nc Knockouts EOH362K 10 100 30 60 75 R 2no+2nc Knockouts EOH363K 14 200 60 125 150 R 4no+4nc Knockouts EOH364K 24 400 125 250 350 R 4no+4nc Knockouts EOH365K 48 600 200 400 500 R 4no+4nc Knockouts EOH366K 61 800 250 500 500 L 2no+2nc Blank EOH367 59 1200 250 500 500 L 2no+2nc Blank EOH368 145 Cable outlets, knock-outs Catalog number Cable entry/exit, knockouts / top and bottom [ø inch] Cable entry/exit, knockouts / top and bottom [ø mm] EOH361K 3×(ø1.12+ø0.76+ø0.5+ø0.32)+ø0.25 3×(ø28.2+ø19.1+ø12.7+ø8.0)+ø6.4 EOH362K 3×(ø1.4+ø1.12+ø0.76+ø0.5)+ø0.25+ø0.8 3×(ø35.2+ø28.2+ø19.1+ø12.7)+ø6.4+ø20.0 EOH363K 2×(ø1.4+ø1.12+ø0.76+ø0.5)+ 2×(ø35.2+ø28.2+ø19.1+ø12.7)+ 1×(ø2.03+ø1.4+ø1.125+ø0.89+ø0.64)+ø0.25+ø0.8 1×(ø50.8+ø35.2+ø28.2+ø22.4+ø16.0)+ø6.4+ø20.0 EOH364K 3×(ø2.5+ø2.03+ø1.4+ø1.125+ø0.89+ø0.64)+ø0.25+ø0.8 3×(ø62.5+ø50.8+ø35.2+ø28.2+ø22.4+ø16.0)+ø6.4+ø20.0 EOH365K 3×(ø3.68+ø3.06+ø2.5+ø2.03+ø1.77)+2×(ø0.76+ø0.5) 3×(ø92.0+ø76.5+ø62.5+ø50.8+ø44.4)+2×(ø19.1+ø12.7) EOH366K 4×(ø3.68+ø3.06+ø2.5+ø2.03+ø1.77)+2×(ø0.76+ø0.5) 4×(ø92.0+ø76.5+ø62.5+ø50.8+ø44.4)+2×(ø19.1+ø12.7) EOH367 Blank Blank EOH368 Blank Blank EOH361K EOH363K EOH365K EOH366K EOH362K EOH368 EOH364K EOH367

18 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Side operated fusible safety switch, black handle, NEMA 12 and 3R Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: ANSI 61 (light grey). Standards: UL98, UL50, UL4248-1, NEMA KS1, CSA. Units/catalog number = 1 piece. Note: 30A – 600A fusible switches are supplied as standard with fuse clips spaced to accept class R fuses. To prevent installation of any other fuse classes, rejection pins/members are available as optional accessories. To convert for class J or class T fuses, move the load side fuse bases/clips to the alternate holes indicated inside the enclosure. Note that 600A class J and all class T fuses also require an accessory adapter kit. See page 25 for all noted accessories. General purpose current rating [A] Max. Horse power Standard fuse link Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight/ unit [kg] rating [HP] Three phase 240 V 480 V 600 V NEMA 12, indoor, dust-tight/watertight/driptight, circulating dust, falling dirt, dripping non-corrosive liquids 30 7,5 15 20 R 2no+2nc Knockouts EOH361JK 12 60 15 30 50 R 2no+2nc Knockouts EOH362JK 13 100 30 60 75 R 2no+2nc Knockouts EOH363JK 16 200 60 125 150 R 4no+4nc Knockouts EOH364JK 26 400 125 250 350 R 4no+4nc Knockouts EOH365JK 54 600 200 400 500 R 4no+4nc Knockouts EOH366JK 68 800 250 500 500 L 2no+2nc Blank EOH367J 67 1200 250 500 500 L 2no+2nc Blank EOH368J 145 NEMA 3R, outdoor, weather-proof/rainproof, windblown rain, sleet, ice 30 7,5 15 20 R 2no+2nc Knockouts EOH361RK 12 60 15 30 50 R 2no+2nc Knockouts EOH362RK 13 100 30 60 75 R 2no+2nc Knockouts EOH363RK 16 200 60 125 150 R 4no+4nc Knockouts EOH364RK 26 400 125 250 350 R 4no+4nc Knockouts EOH365RK 54 600 200 400 500 R 4no+4nc Knockouts EOH366RK 68 800 250 500 500 L 2no+2nc Blank EOH367R 67 1200 250 500 500 L 2no+2nc Blank EOH368R 145 Cable outlets, knock-outs Catalog number Cable entry/exit, knockouts / top and bottom [ø inch] Cable entry/exit, knockouts / top and bottom [ø mm] EOH361_K 3×(ø1.12+ø0.76+ø0.5+ø0.32)+ø0.25 3×(ø28.2+ø19.1+ø12.7+ø8.0)+ø6.4 EOH362_K 3×(ø1.4+ø1.12+ø0.76+ø0.5)+ø0.25+ø0.8 3×(ø35.2+ø28.2+ø19.1+ø12.7)+ø6.4+ø20.0 EOH363_K 2×(ø1.4+ø1.12+ø0.76+ø0.5)+ 2×(ø35.2+ø28.2+ø19.1+ø12.7)+ 1×(ø2.03+ø1.4+ø1.125+ø0.89+ø0.64)+ø0.25+ø0.8 1×(ø50.8+ø35.2+ø28.2+ø22.4+ø16.0)+ø6.4+ø20.0 EOH364_K 3×(ø2.5+ø2.03+ø1.4+ø1.125+ø0.89+ø0.64)+ø0.25+ø0.8 3×(ø62.5+ø50.8+ø35.2+ø28.2+ø22.4+ø16.0)+ø6.4+ø20.0 EOH365_K 3×(ø3.68+ø3.06+ø2.5+ø2.03+ø1.77)+2×(ø0.76+ø0.5) 3×(ø92.0+ø76.5+ø62.5+ø50.8+ø44.4)+2x(ø19.1+ø12.7) EOH366_K 4×(ø3.68+ø3.06+ø2.5+ø2.03+ø1.77)+2×(ø0.76+ø0.5) 4×(ø92.0+ø76.5+ø62.5+ø50.8+ø44.4)+2x(ø19.1+ø12.7) EOH367_ Blank Blank EOH368_ Blank Blank Ordering information Steel sheet enclosed heavy duty fusible safety switches EOH361JK/RK EOH363JK/RK EOH364JK/RK EOH366JK/RK EOH362JK/RK EOH367J/R EOH365JK/RK EOH368J/R

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 19 Ordering information Stainless steel enclosed heavy duty fusible safety switches Side operated fusible safety switch, black handle, NEMA 4X, Grade 304 Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: Grade 304 stainless steel sheet enclosure. Standards: UL98, UL50, UL4248-1, NEMA KS1, CSA. Cable outlets / top and bottom: Blank. Units/catalog number = 1 piece. Note: 30A – 600A fusible switches are supplied as standard with fuse clips spaced to accept class R fuses. To prevent installation of any other fuse classes, rejection pins/members are available as optional accessories. To convert for class J or class T fuses, move the load side fuse bases/clips to the alternate holes indicated inside the enclosure. Note that 600A class J and all class T fuses also require an accessory adapter kit. See page 25 for all noted accessories. General purpose current rating [A] Max. Horse power Standard fuse link Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight/ unit [kg] rating [HP] Three phase240 V 480 V 600 V NEMA 4X, outdoor, watertight/raintight, splashing and hose-directed water, windblown dust, ice, corrosion resistance 30 7,5 15 20 R 2no+2nc Blank EOH361S 12 60 15 30 50 R 2no+2nc Blank EOH362S 13 100 30 60 75 R 2no+2nc Blank EOH363S 16 200 60 125 150 R 4no+4nc Blank EOH364S 26 400 125 250 350 R 4no+4nc Blank EOH365S 54 600 200 400 500 R 4no+4nc Blank EOH366S 68 800 250 500 500 L 2no+2nc Blank EOH367S 67 1200 250 500 500 L 2no+2nc Blank EOH368S 145 Side operated fusible safety switch, black handle, NEMA 4X, Grade 316 Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: Grade 316 stainless steel sheet enclosure. Standards: UL98, UL50, UL4248-1, NEMA KS1, CSA. Cable outlets / top and bottom: Blank. Units/catalog number = 1 piece. Note: 30A – 600A fusible switches are supplied as standard with fuse clips spaced to accept class R fuses. To prevent installation of any other fuse classes, rejection pins/members are available as optional accessories. To convert for class J or class T fuses, move the load side fuse bases/clips to the alternate holes indicated inside the enclosure. Note that 600A class J and all class T fuses also require an accessory adapter kit. See page 25 for all noted accessories. General purpose current rating [A] Max. Horse power Standard fuse link Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight/ unit [kg] rating [HP] Three phase240 V 480 V 600 V NEMA 4X, outdoor, watertight/raintight, splashing and hose-directed water, windblown dust, ice, corrosion resistance 30 7,5 15 20 R 2no+2nc Blank EOH361SS 12 60 15 30 50 R 2no+2nc Blank EOH362SS 13 100 30 60 75 R 2no+2nc Blank EOH363SS 16 200 60 125 150 R 4no+4nc Blank EOH364SS 26 400 125 250 350 R 4no+4nc Blank EOH365SS 54 600 200 400 500 R 4no+4nc Blank EOH366SS 68 800 250 500 500 L 2no+2nc Blank EOH367SS 67 1200 250 500 500 L 2no+2nc Blank EOH368SS 145 EOH361S/SS EOH363S/SS EOH364S/SS EOH365S/SS EOH366S/SS EOH362S/SS EOH367S/SS EOH368S/SS

20 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Ordering information Steel sheet enclosed heavy duty non-fusible safety switches Side operated non-fusible safety switch, black handle, NEMA 1 Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: ANSI 61 (light grey). Standards: UL98, UL50, NEMA KS1, CSA. Units/catalog number = 1 piece. General purpose current rating [A] Max. Horse power rating [HP] Three phase Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight/ unit [kg] 240 V 480 V 600 V NEMA 1, indoor, modest amounts of falling dirt 30 10 20 30 2no+2nc Knockouts EOHU361K 7 60 20 50 60 2no+2nc Knockouts EOHU362K 7 100 40 75 100 2no+2nc Knockouts EOHU363K 8 200 60 125 150 4no+4nc Knockouts EOHU364K 16 400 125 250 350 4no+4nc Knockouts EOHU365K 33 600 200 400 500 4no+4nc Knockouts EOHU366K 47 800 250 500 500 2no+2nc Blank EOHU367 56 1200 250 500 500 2no+2nc Blank EOHU368 135 Cable outlets, knock-outs Catalog number Cable entry/exit, knockouts / top and bottom [ø inch] Cable entry/exit, knockouts / top and bottom [ø mm] EOH361K 3×(ø1+ø0.75+ø0.5+ø0.315)+ø0.25+2×(ø0.19) 3×(ø25.4+ø19.0+ø12.7+ø8.0)+ø6.4+2×(ø4.9) EOH362K 3×(ø1.25+ø1+ø0.75+ø0.5+ø0.315)+ø0.25+ø0.8 3×(ø31.8+ø25.4+ø19.0+ø12.7+ø8)+ø6.4+ø20.4 EOH363K 2×(ø1.5+ø1.25+ø1+ø0.75+ø0.5)+ 2×(ø38.1+ø31.8+ø25.4+ø19.0+ø12.0)+ 1×(ø2+ø1.5+ø1.25+ø1+ø0.63)+ø0.25+ø0.8 1×(ø50.8+ø38.1+ø31.8+ø25.4+ø16.0)+ø6.4+ø20.4 EOH364K 3×(ø2.5+ø2+ø1.5+ø1.25+ø0.79)+ø0.25+ø0.9 3×(ø63.5+ø50.8+ø38.1+ø31.75+ø20)+ø6.35+ø22.4 EOH365K 3×(ø3.5+ø3+ø2.5+ø2+ø1.57)+2×(ø0.75+ø0.5) 3×(ø88.9+ø76.2+ø63.5+ø50.8+ø40)+2×(ø19.05+ø12.7) EOH366K 4×(ø3.5+ø3+ø2.5+ø2+ø1.57)+2×(ø0.75+ø0.5) 4×(ø88.9+ø76.2+ø63.5+ø50.8+ø40)+2×(ø19.05+ø12.7) EOH367 Blank Blank EOH368 Blank Blank EOHU361K EOHU363K EOHU364K EOHU362K EOHU367 EOHU368 EOHU365K EOHU366K

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 21 Ordering information Steel sheet enclosed heavy duty non-fusible safety switches Side operated non-fusible safety switch, black handle, NEMA 12 and 3R Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: ANSI 61 (light grey). Standards: UL98, UL50, NEMA KS1, CSA. Units/catalog number = 1 piece. General purpose current rating [A] Max. Horse power rating [HP] Three phase Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight/ unit [kg] 240 V 480 V 600 V NEMA 12, indoor, dust-tight/watertight/driptight, circulating dust, falling dirt, dripping non-corrosive liquids 30 10 20 30 2no+2nc Knockouts EOHU361JK 8 60 20 50 60 2no+2nc Knockouts EOHU362JK 9 100 40 75 100 2no+2nc Knockouts EOHU363JK 9 200 60 125 150 4no+4nc Knockouts EOHU364JK 18 400 125 250 350 4no+4nc Knockouts EOHU365JK 39 600 200 400 500 4no+4nc Knockouts EOHU366JK 50 800 250 500 500 2no+2nc Blank EOHU367J 59 1200 250 500 500 2no+2nc Blank EOHU368J 135 NEMA 3R, outdoor, weather-proof/rainproof, windblown rain, sleet, ice 30 10 20 30 2no+2nc Knockouts EOHU361RK 8 60 20 50 60 2no+2nc Knockouts EOHU362RK 9 100 40 75 100 2no+2nc Knockouts EOHU363RK 9 200 60 125 150 4no+4nc Knockouts EOHU364RK 18 400 125 250 350 4no+4nc Knockouts EOHU365RK 39 600 200 400 500 4no+4nc Knockouts EOHU366RK 50 800 250 500 500 2no+2nc Blank EOHU367R 59 1200 250 500 500 2no+2nc Blank EOHU368R 135 Cable outlets, knock-outs Catalog number Cable entry/exit, knockouts / top and bottom [ø inch] Cable entry/exit, knockouts / top and bottom [ø mm] EOH361_K 3×(ø1+ø0.75+ø0.5+ø0.315)+ø0.25+2×(ø0.19) 3×(ø25.4+ø19.0+ø12.7+ø8.0)+ø6.4+2×(ø4.9) EOH362_K 3×(ø1.25+ø1+ø0.75+ø0.5+ø0.315)+ø0.25+ø0.8 3×(ø31.8+ø25.4+ø19.0+ø12.7+ø8)+ø6.4+ø20.4 EOH363_K 2×(ø1.5+ø1.25+ø1+ø0.75+ø0.5)+ 2×(ø38.1+ø31.8+ø25.4+ø19.0+ø12.0)+ 1×(ø2+ø1.5+ø1.25+ø1+ø0.63)+ø0.25+ø0.8 1×(ø50.8+ø38.1+ø31.8+ø25.4+ø16.0)+ø6.4+ø20.4 EOH364_K 3×(ø2.5+ø2+ø1.5+ø1.25+ø0.79)+ø0.25+ø0.9 3×(ø63.5+ø50.8+ø38.1+ø31.75+ø20)+ø6.35+ø22.4 EOH365_K 3×(ø3.5+ø3+ø2.5+ø2+ø1.57)+2×(ø0.75+ø0.5) 3×(ø88.9+ø76.2+ø63.5+ø50.8+ø40)+2×(ø19.05+ø12.7) EOH366_K 4×(ø3.5+ø3+ø2.5+ø2+ø1.57)+2×(ø0.75+ø0.5) 4×(ø88.9+ø76.2+ø63.5+ø50.8+ø40)+2×(ø19.05+ø12.7) EOH367_ Blank Blank EOH368_ Blank Blank EOHU361JK/RK EOHU363JK/RK EOHU364JK/RK EOHU365JK/RK EOHU366JK/RK EOHU362JK/RK EOHU367J/R EOHU368J/R

22 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Ordering information Stainless steel enclosed heavy duty non-fusible safety switches Side operated non-fusible safety switch, black handle, NEMA 4X, Grade 304 Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: Grade 304 stainless steel sheet enclosure. Standards: UL98, UL50, NEMA KS1, CSA. Cable outlets / top and bottom: Blank. Units/catalog number = 1 piece. General purpose current rating [A] Max. Horse power rating [HP] Three phase Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight/ unit [kg] 240 V 480 V 600 V NEMA 4X, outdoor, watertight/raintight, splashing and hose-directed water, windblown dust, ice, corrosion resistance 30 10 20 30 2no+2nc Blank EOHU361S 8 60 20 50 60 2no+2nc Blank EOHU362S 9 100 40 75 100 2no+2nc Blank EOHU363S 9 200 60 125 150 4no+4nc Blank EOHU364S 18 400 125 250 350 4no+4nc Blank EOHU365S 39 600 200 400 500 4no+4nc Blank EOHU366S 50 800 250 500 500 2no+2nc Blank EOHU367S 59 1200 250 500 500 2no+2nc Blank EOHU368S 135 Side operated non-fusible safety switch, black handle, NEMA 4X, Grade 316 Ground bus included. Cabling accessories, fuses and auxiliary contacts are to be ordered separately. Colour: Grade 316 stainless steel sheet enclosure. Standards: UL98, UL50, NEMA KS1, CSA. Cable outlets / top and bottom: Blank. Units/catalog number = 1 piece. General purpose current rating [A] Max. Horse power rating [HP] Three phase Auxiliary contacts max. Cable outlets, top and bottom Catalog number Weight [kg] 240 V 480 V 600 V NEMA 4X, outdoor, watertight/raintight, splashing and hose-directed water, windblown dust, ice, corrosion resistance 30 10 20 30 2no+2nc Blank EOHU361SS 8 60 20 50 60 2no+2nc Blank EOHU362SS 9 100 40 75 100 2no+2nc Blank EOHU363SS 9 200 60 125 150 4no+4nc Blank EOHU364SS 18 400 125 250 350 4no+4nc Blank EOHU365SS 39 600 200 400 500 4no+4nc Blank EOHU366SS 50 800 250 500 500 2no+2nc Blank EOHU367SS 59 1200 250 500 500 2no+2nc Blank EOHU368SS 135 EOHU361S/SS EOHU363S/SS EOHU364S/SS EOHU365S/SS EOHU366S/SS EOHU362S/SS EOHU367S/SS EOHU368S/SS

24 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Ordering information Field-installable accessories Neutral assembly Mounting screws included as standard. Units/catalog number = 1 piece. Catalog number Weight/ Suitable for unit safety switch [kg] EOH/EOHU361_, 362_, 363_ EOHXSN13 0.15 EOH/EOHU364_ EOHXSN4 0.30 EOH/EOHU365_, 366_ EOHXSN56 0.70 EOH/EOHU367_, 368_ EOHXSN78 1.50 Auxiliary contact blocks, IP20 Contact numbering according to EN 50013. Units/catalog number = 1 piece. Mounting under the mechanism cover: EOH/EOHU361_, 362_, 363_: Max. 4 auxiliary contactsEOH/EOHU363_, 364_: Max. 8 auxiliary contactsEOH/EOHU366_, 367_, 368_: Max. 2 auxiliary contacts (Max. 4 auxiliary contacts if the mechanism cover is not placed) Delivery Weight/ batch 2) unit Function Catalog number [pcs] [kg] 1NO OA1G10 10 0.03 1NO OA1G10AU 1) 10 0.03 1NC OA3G01 10 0.03 1NC OA3G01AU 1) 10 0.03 1) Types _AU are gold plated for extremely difficult circumstances and low voltages. 2) Auxiliary contacts OA1G_ are available in larger packing as well. A bulk package includes 50 switches. Catalog number: add a suffix: /B, e.g. OA1G01/B. Performance data of auxiliary contacts / IEC / NEMA For OA1G_, OA3G_, according to IEC 60947-5-1U e /[V] AC15/I e [A] U e /[V] DC12/I e [A] DC12/P [W] DC13/I e [A] DC13/P [W] 230 6 24 10 240 2 50 400 4 72 4 290 0.8 60 415 4 125 2 250 0.55 70 690 2 250 0.55 140 0.27 70 440 0.1 44 For OA1G_, OA3G_ / NEMA Nema ratings, AC, AC600 AC maximum AC maximum AC rated voltage [VAC] AC rated thermal current [A] volt-ampere making [VA] volt-amperage breaking [VA] 600 10 7200 720 Nema ratings, DC, R300 DC rated voltage [VDC] DC rated thermal current [A] DC maximum make-break [VA] Wire size [AWG] 300 1 28 18 - 14, 1(2) For OA1G_, OA3G_ / IECU i [V] U imp [kV] Pollution degree I th [A] Cable size [mm 2 ] Maximum fuse [A] 690 4 3 16 1...2 x 0.75...2.5 16 / gG

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 25 Ordering information Field-installable accessories Hubs Hexagonal/splined body design for fast, easy installation with wrench or hammer and screwdriver.- Hub and locknut: Zinc or copper-free aluminum. Insulating throat: Thermoplastic temp. rating – 105° C.- Flammability rating – 94V-0. Sealing ring: Nitrile (BUNA “N“).Meets NEMA sealing requirements for NEMA 1 and 3R enclosures, with suffix CP and SST also rated NEMA12 and 4X. UL Listed per NEC® 501.10(B). CSA Certified for hazardous locations Class II Groups E, F, G, Class III. UL File No. E-23018 CSA File No. 4484. Weight/ unit [kg] Suitable for fusible and non-fusible safety switches Conduit size [in] Catalog number EOH/EOHU361_K, 362_K, 363_K, 365_K, 366_K 1/2 H050-TB 0.093 EOH/EOHU361_K, 362_K, 363_K, 365_K, 366_K 3/4 H075-TB 0.125 EOH/EOHU362_K, 363_K, 364_K 1 1/4 H125-TB 0.244 EOH/EOHU363_K, 364_K 1 1/2 H150-TB 0.281 EOH/EOHU363_K,_364_K, 365_K, 366_K 2 H200-TB 0.505 EOH/EOHU364_K, 365_K, 366_K 2 1/2 H250-TB 0.847 EOH/EOHU365_K, 366_K 3 H300-TB 1.052 EOH/EOHU365_K, 366_K 3 1/2 H350-TB 1.347 Rejection members The rejection members for class R -fuse clips prevent any other class of fuses from being installed. Units/catalog number = 3 pieces. Weight/ unit [kg] Suitable for fusible safety switches Suitable for fuse / size Catalog number EOH361_ RK 30A EOHRM1R 0.020 EOH362_ RK 60A EOHRM2R 0.020 EOH363_, EOH364_ RK 100A, RK 200A EOHRM34R 0.020 EOH365_ RK 400A EOHRM5R 0.065 EOH366_ RK 600A EOHRM6R 0.095 Fuse adapter kits Units/catalog number = 6 pieces. Weight/ unit [kg] Suitable for fusible Suitable for safety switches fuse / size Screw size Catalog number Fuse clip EOH362_ T 60 A EOHFC2T 0.110 Class T-fuse mounting kits Include the mounting bolts, allied washers and connection bars.EOH363_ T -fuse /100 A UNC 1/4-20x1/2“ EOHFBK3 0.535 EOH364_ T -fuse / 200 A UNC 5/16-18x5/8“ EOHFBK4 0.905 EOH365_ T -fuse / 400 A UNC 3/8-16x5/8“ EOHFBK5 1.525 Include the mounting bolts and allied washersEOH366_ J-fuse/600A UNC7/16-14X7/8” EOHFBK6 0.313

26 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Therminal shrouds, grey plastic Units/catalog number = 3 pieces. Snap-on mounting on the switches. Shrouds can be used on either side of the switch. Transparent shrouds available on request, please replace the letter “G” with “T”. Weight/ Suitable for unit safety switch Description Catalog number [kg] For heavy duty fusible and non-fusible safety switch EOH/EOHU361_, 362_, 363_ Short type OTS250G1S/3 0.06 EOH/EOHU364 Short type OTS400G1S/3 0.10 EOH/EOHU364 Long type OTS400G1L/3 0.15 Ordering information Field-installable accessories

28 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Ordering information Replacement parts Switch-disconnects Includes terminal lugs, 6 pcs. Units/catalog number = 1 piece. Suitable for safety switch General purpose current rating [A] Max. Horse power rating [HP] Three phase Catalog number Weight/ unit [kg] 240 V 480 V 600 V EOH/EOHU361_ 30 10 20 30 OT30US30EOHR 1.500 EOH/EOHU362_ 60 20 50 60 OT60US30EOHR 1.500 EOH/EOHU363_ 100 40 75 100 OT100US30EOHR 1.500 EOH/EOHU364_ 200 60 125 150 OT200US30EOHR 2.940 EOH/EOHU365_ 400 150 250 350 OT400US30EOHR 6.300 EOH/EOHU366_ 600 200 400 500 OT600US30EOHR 13.598 EOH/EOHU367_ 800 250 500 500 OT800US30EOHR 14.780 EOH/EOHU368_ 1200 250 500 500 OT1200US30EOHR 39.900

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 29 Ordering information Replacement parts Fuse bases Mounting screws, terminal lugs and fuse clips included as standard. Units/catalog number = 1 piece for 3-pole switch. Weight/ Suitable for unit safety switch Fuse type Catalog number [kg] For heavy duty fusible safety switch EOH361_ Class H, K, R EOHFBR1 0.415 EOH362_ Class H, K, R EOHFBR2 0.415 EOH363_ Class H, K, R EOHFBR3LU 0.894 EOH364_ Class H, K, R EOHFBR4LU 1.971 EOH365_ Class H, K, R EOHFBR5LU 4.346 EOH366_ Class H, K, R EOHFBR6LU 6.313 EOH367_ Class L EOHFBL7 5.555 EOH368_ Class L EOHFBL8 5.460

30 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Ordering information Replacement parts Handle kit Handle, handle shield and mounting screws included as standard. Units/catalog number = 1 piece. Suitable for safety switch Catalog number Weight/ unit [kg] EOH/EOHU361, 362, 363K, JK, RK EOHH1 0.200 EOH/EOHU364, 365, 366K, JK, RK, EOH/EOHU367, J, R EOHH2 0.350 EOH/EOHU368, J, R EOHH3 1.200 OH/EOHU361, 362, 363S, SS EOHH1SS 0.300 EOH/EOHU364, 365, 366, 367S, SS EOHH2SS 0.420 EOH/EOHU368S, SS EOHH3SS 1.300 Door interlock mechanism Mounting screws included as standard. Units/catalog number = 1 piece. Suitable for safety switch Catalog number Weight/ unit [kg] EOH/EOHU361K, 362K, 363K EOHLM1 0.150 EOH/EOHU361, 362, 363JK, RK, S, SS EOHLM2 0.150 EOH/EOHU364JK, RK, S, SS EOHLM3 0.150 EOH/EOHU365, 366JK, RK, S, SS, EOH/EOHU367J, R, S, SS EOHLM4 0.150 EOH/EOHU368, EOH/EOHU368J, R EOHLM5 0.150 EOH/EOHU365K, 366K, EOH/EOHU367 EOHLM6 0.150 EOH/EOHU364K EOHLM7 0.150

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 31 Line side lug assembly Mounting screws included as standard. Units/catalog number = 3 pieces. Suitable for safety switch Catalog number Weight/ unit [kg] EOH/EOHU361_, 362_, 363_ OZXA-100/3 0.007 EOH/EOHU364_ OZXA-400/3 0.067 EOH/EOHU365_, 366_ OZXA-800/3 0.207 EOH/EOHU367_ OZXA-1200/3 0.367 EOH/EOHU368_ OZXA-1200E/3 0.717 Load side lug assembly Mounting screws included as standard. Units/catalog number = 3 pieces. Suitable for safety switch Catalog number Weight/ unit [kg] For heavy duty fusible safety switch EOH361_, 362_, 363_ OZXA-100/3 0.007 EOH364_ OZXA-400/3 0.067 EOH365_ OZXA-800E/3 0.212 EOH366_ OZXA-800/3 0.207 EOH367_, 368_ OZXA-1200/3 0.367 For heavy duty non-fusible safety switch EOHU361_, 362_, 363_ OZXA-100/3 0.007 EOHU364_ OZXA-400/3 0.067 EOHU365_, 366_ OZXA-800/3 0.207 EOHU367_ OZXA-1200/3 0.367 EOHU368_ OZXA-1200E/3 0.717 Ordering information Replacement parts

32 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Dimensional drawings Fusible safety switches SizeH W W1 D E Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 1 type EOH361K 17.99 457 12.91 328 14.41 366 6.46 164 8.70 221 EOH362K 21.3 541 12.91 328 14.41 366 6.46 164 8.70 221 EOH363K 29.33 745 12.91 328 14.41 366 6.46 164 8.70 221 EOH364K 38.39 975 17.28 439 18.54 471 7.48 190 10.28 261 EOH365K 56.06 1424 23.0 584 24.49 622 8.50 216 10.95 278 EOH366K 64.33 1634 23.0 584 24.49 622 8.50 216 11.26 286 EOH367 62.68 1592 23.0 584 24.53 623 8.50 216 11.61 295 NEMA 1: 30...800 A Fixing dimensions Fixing hole A B F C1 C2 L M Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 1 type EOH361K 9.72 247 14.69 373 4.88 124 0.31 8 0.79 20 0.28 7 0.67 17 EOH362K 9.72 247 17.99 457 4.88 124 0.31 8 0.79 20 0.28 7 0.67 17 EOH363K 13.78 350 26.02 661 6.89 175 0.31 8 0.79 20 0.39 10 0.87 22 EOH364K 13.78 350 22.05 560 6.89 175 0.31 8 0.79 20 0.39 10 0.87 22 EOH365K 19.69 500 52.76 1340 9.84 250 0.31 8 0.79 20 0.51 13 0.98 25 EOH366K 19.69 500 61.02 1550 9.84 250 0.31 8 0.79 20 0.51 13 0.98 25 EOH367 19.69 500 60.32 1532 9.84 250 0.31 8 0.79 20 0.55 14 0.98 25

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 33 Dimensional drawings Fusible safety switches SizeH W W1 W2 D E Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 12 and 3R EOH361JK, _RK 19.41 493 13.23 336 14.49 368 - - 6.30 160 9 229 EOH362JK, _RK 22.72 577 13.23 336 14.49 368 - - 6.30 160 9 229 EOH363JK, _RK 30.75 781 13.23 336 14.49 368 - - 6.30 160 9 229 EOH364JK, _RK 39.80 1011 17,28 439 18.54 471 - - 7.36 187 9.25 235 EOH365JK, _RK 58.66 1490 22.99 584 24.53 623 - - 8.50 216 10.39 264 EOH366JK, _RK 66.93 1700 22.99 584 24.53 623 - - 8.50 216 11.61 295 EOH367J, _R 66.61 1692 22.99 584 24.53 623 - - 8.50 216 11.61 295 EOH368J, _R 68.90 1750 39.96 1015 41.77 1061 43.11 1095 12.60 320 14.76 375 NEMA 1 EOH368 68.90 1750 39.96 1015 41.77 1061 43.11 1095 12.60 320 14.76 375 NEMA 12 / 3R: 30...1200 A, NEMA 1: 1200 A Fixing dimensions Fixing hole A B F O P G N K L M Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 12 and 3R EOH361JK, _RK 18.62 473 10.59 269 5.28 134 - - - - 1.10 28 083 21 0.35 9 0.35 9 0.75 19 EOH362JK, _RK 21.93 557 10.59 269 5.28 134 - - - - 1.10 28 083 21 0.35 9 0.35 9 0.75 19 EOH363JK, _RK 29.96 761 10.59 269 5.28 134 - - - - 1.10 28 083 21 0.35 9 0.35 9 0.75 19 EOH364JK, _RK 39.02 991 14.65 372 7.32 186 - - - - 1.18 30 083 21 0.35 9 0.35 9 0.75 19 EOH365JK, _RK 57.48 1460 20.16 512 10.08 256 5.20 132 4.82 122.5 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOH366JK, _RK 65.75 1670 20.16 512 10.08 256 5.20 132 4.82 122.5 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOH367J, _R 65.43 1662 20.16 512 10.08 256 5.20 132 4.82 122.5 1.00 25.5 1,14 29 0.55 14 0.55 14 0.98 25 EOH368J, _R 60.95 1548 41.14 1045 30.47 774 - - - - 3.98 101 1.18 30 0.39 10 - - - - NEMA 1 EOH368 60.95 1548 41.14 1045 30.47 774 - - - - 3.98 101 1.18 30 0.39 10 - - - - EOH361...7_ EOH368_

34 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Dimensional drawings Fusible safety switches NEMA 4X: 30...1200 A SizeH W W1 W2 D E Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] EOH361S, _SS 19.41 493 13.23 336 14.49 368 - - 6.30 160 9 229 EOH362S, _SS 22.72 577 13.23 336 14.49 368 - - 6.30 160 9 229 EOH363S, _SS 30.75 781 13.23 336 14.49 368 - - 6.30 160 9 229 EOH364S, _SS 39.80 1011 17.28 439 18.54 471 - - 7.36 187 9.25 235 EOH365S, _SS 58.66 1490 22.99 584 24.53 623 - - 8.50 216 10.39 264 EOH366S, _SS 66.93 1700 22.99 584 24.53 623 - - 8.50 216 11.61 295 EOH367S, _SS 66.61 1692 22.99 584 24.53 623 - - 8.50 216 11.61 295 EOH368S, _SS 68.90 1750 39.96 1015 41.77 1061 43.11 1095 12.60 320 14.76 375 Fixing dimensions Fixing hole A B F O P G N K L M Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] EOH361S, _SS 18.62 473 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOH362S, _SS 21.93 557 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOH363S, _SS 29.96 761 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOH364S, _SS 39.02 991 14.65 372 7.32 186 - - - - 1.18 30 0.83 21 0.35 9 0.35 9 0.75 19 EOH365S, _SS 57.48 1460 20.16 512 10.08 256 5.20 132 4.82 122.5 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOH366S, _SS 65.75 1670 20.16 512 10.08 256 5.20 132 4.82 122.5 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOH367S, _SS 65.43 1662 20.16 512 10.08 256 5.20 132 4.82 122.5 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOH368S, _SS 60.95 1548 41.14 1045 30.47 774 - - - - 3.98 101 1.18 30 0.39 10 - - - - EOH361...7_ EOH368_

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 35 Dimensional drawings Fusible safety switches, cable outlets / knockouts EOH361K, EOH361JK, EOH361RK EOH362K, EOH362JK, EOH362RK EOH363K, EOH363JK, EOH363RK EOH364K, EOH364JK, EOH364RK EOH365K, EOH365JK, EOH365RK EOH366K, EOH366JK, EOH366RK S07302

36 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Dimensional drawings Non-fusible safety switches NEMA 1: 30...800 A Catalog number SizeH H1 W W1 D E [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 1 type EOHU361K 10.59 269 11.93 303 12.80 325 14.49 368 6.34 161 8.70 221 EOHU362K 12.72 323 12.99 330 12.80 325 14.49 368 6.34 161 8.70 221 EOHU363K 15.67 398 - - 12.80 325 14.49 368 6.34 161 8.70 221 EOHU364K 25.35 644 - - 17.28 439 18.54 471 7.48 190 10.28 261 EOHU365K 40.91 1039 - - 22.99 584 24.53 623 8.78 223 10.83 275 EOHU366K 47.40 1204 - - 22.99 584 24.53 623 8.78 223 10.83 286 EOHU367 55.12 1322 - - 22.99 584 24.53 623 8.50 216 11.61 295 Catalog number Fixing dimensions Fixing hole A B F C1 C2 L M [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 1 type EOHU361K 9.09 230 6.81 173 4.88 124 0.31 8 0.79 20 0,28 7 0,67 17 EOHU362K 9.09 230 9.41 239 4.88 124 0.31 8 0.79 20 0,28 7 0,67 17 EOHU363K 9.09 230 11.57 294 4.88 124 0.31 8 0.79 20 0,28 7 0,67 17 EOHU364K 13.78 350 22.05 560 6.90 175 0.31 8 0.79 20 0.39 10 0.87 22 EOHU365K 19.69 500 37.60 955 9.84 250 0.31 8 0.79 20 1.56 14.3 0.98 25 EOHU366K 19.69 500 44.09 1120 9.84 250 0.31 8 0.79 20 1.56 14.3 0.98 25 EOHU367 19.69 500 48,82 1240 9.84 250 0.31 8 0.79 20 1.56 14,3 0.98 25

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 37 Dimensional drawings Non-fusible safety switches NEMA 12 / 3R: 30...1200 A, NEMA 1: 1200 A SizeH H1 W W1 W2 D E Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 12 and 3R EOHU361JK, _RK 11.54 293 12.40 315 12.80 325 14.49 368 - - 6.14 156 8.70 221 EOHU362JK, _RK 14.13 359 13.74 349 12.80 325 14.49 368 - - 6.14 156 8.70 221 EOHU363JK, _RK 17.32 440 - - 12.80 325 14.49 368 - - 6.14 156 8.70 221 EOHU364JK, _RK 26.77 680 - - 17.01 432 19.09 485 - - 7.36 187 10.16 258 EOHU365JK, _RK 42.72 1085 - - 23.0 584 24.53 623 - - 8.50 216 11.61 295 EOHU366JK, _RK 50.39 1280 - - 23.0 584 24.53 623 - - 8.50 216 11.61 295 EOHU367J, _R 55.12 1400 - - 23.0 584 24.53 623 - - 8.50 216 11.61 295 EOHU368J, _R 57.48 1460 - - 40.32 1024 41.89 1064 43.11 1095 12.56 319 14.76 375 NEMA 1 EOHU368 57.48 1460 - - 40.32 1024 41.89 1064 43.11 1095 12.56 319 14.76 375 Fixing dimensions Fixing hole A B F O P G N K L M Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] NEMA 12 and 3R EOHU361JK, _RK 10.75 273 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOHU362JK, _RK 13.35 339 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOHU363JK, _RK 16.69 424 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOHU364JK, _RK 25.98 660 14.65 372 7.32 186 - - - - 0.87 22 0.83 21 0.35 9 0.35 9 0.75 19 EOHU365JK, _RK 42.32 1075 20.16 512 10.08 256 5.2 132 4.88 124 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOHU366JK, _RK 49.21 1250 20.16 512 10.08 256 5.2 132 4.88 124 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOHU367J, _R 53.94 1370 20.16 512 10.08 256 5.2 132 4.88 124 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOHU368J, _R 50.32 1278 41.34 1050 25.16 639 - - - - 3.58 91 1.18 30 0.39 10 - - - - NEMA 1 EOHU368 50.32 1278 41.34 1050 25.16 639 - - - - 3.58 91 1.18 30 0.39 10 - - - - EOHU361...7_ EOHU368_

38 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Dimensional drawings Non-fusible safety switches NEMA 4X: 30...1200 A SizeH H1 W W1 W2 D E Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] EOHU361S, _SS 11,54 293 12.40 315 12.80 336 14.49 368 - - 6.14 160 8.70 229 EOHU362S, _SS 14.13 359 13.74 349 12.80 336 14.49 368 - - 6.14 160 8.70 229 EOHU363S, _SS 17.32 440 - - 12.80 336 14.49 368 - - 6.14 160 8.70 229 EOHU364S, _SS 26.77 680 - - 17.01 432 19.09 485 - - 7.36 187 10.16 258 EOHU365S, _SS 42.72 1085 - - 23.0 584 24.53 623 - - 8.50 216 11.61 295 EOHU366S, _SS 50.39 1280 - - 23.0 584 24.53 623 - - 8.50 216 11.61 295 EOHU367S, _SS 55.12 1400 - - 23.0 584 24.53 623 - - 8.50 216 11.61 295 EOHU368S, _SS 57.48 1460 - - 40.32 1024 41.89 1064 43.11 1095 12.56 319 14.76 375 Fixing dimensions Fixing hole A B F O P G N K L M Catalog number [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] [in] [mm] EOHU361S, _SS 10.75 273 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOHU362S, _SS 13.35 339 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOHU363S, _SS 16.69 424 10.59 269 5.28 134 - - - - 1.10 28 0.83 21 0.35 9 0.35 9 0.75 19 EOHU364S, _SS 25.98 660 14.65 372 7.32 186 - - - - 0.87 22 0.83 21 0.35 9 0.35 9 0.75 19 EOHU365S, _SS 42.32 1075 20.16 512 10.08 256 5.2 132 4.88 124 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOHU366S, _SS 49.21 1250 20.16 512 10.08 256 5.2 132 4.88 124 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOHU367S, _SS 53.94 1370 20.16 512 10.08 256 5.2 132 4.88 124 1.00 25.5 1.14 29 0.55 14 0.55 14 0.98 25 EOHU368S, _SS 50.32 1278 41.34 1050 25.16 639 - - - - 3.58 91 1.18 30 0.39 10 - - - - EOHU361...7_ EOHU368_

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 39 Dimensional drawings Non-fusible safety switches, cable outlets / knockouts EOHU361K, EOHU361JK, EOHU361RK EOHU362K, EOHU362JK, EOHU362RK EOHU363K, EOHU363JK, EOHU363RK EOHU364K, EOHU364JK, EOHU364RK EOHU365K, EOHU365JK, EOHU365RK EOHU366K, EOHU366JK, EOHU366RK S07303

40 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Index Type Description Page EOH361JK Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH361K Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH361RK Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH361S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 EOH361SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOH362JK Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH362K Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH362RK Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH362S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 EOH362SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOH363JK Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH363K Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH363RK Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH363S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 EOH363SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOH364JK Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH364K Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH364RK Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH364S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 EOH364SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOH365JK Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH365K Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH365RK Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH365S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 Type Description Page EOH365SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOH366JK Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH366K Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH366RK Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH366S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 EOH366SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOH367 Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH367J Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH367R Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH367S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 EOH367SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOH368 Side operated fusible safety switch, steel sheet enclosed, NEMA 1 17 EOH368J Side operated fusible safety switch, steel sheet enclosed, NEMA 12 18 EOH368R Side operated fusible safety switch, steel sheet enclosed, NEMA 3R 18 EOH368S Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 19 EOH368SS Side operated fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 19 EOHFBK3 Class T-fuse mounting kit 25 EOHFBK4 Class T-fuse mounting kit 25 EOHFBK5 Class T-fuse mounting kit 25 EOHFBK6 Class T-fuse mounting kit 25 EOHFBL7 Fuse base 29 EOHFBL8 Fuse base 29 EOHFBR1 Fuse base 29 EOHFBR2 Fuse base 29 EOHFBR3LU Fuse base 29 EOHFBR4LU Fuse base 29 EOHFBR5LU Fuse base 29 EOHFBR6LU Fuse base 29 EOHFC2T Fuse clip 25 EOHH1 Handle kit 30 EOHH2 Handle kit 30 EOHH3 Handle kit 30

Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes | 1SCC340010C0201 41 Type Description Page EOHH1SS Handle kit 30 EOHH2SS Handle kit 30 EOHH3SS Handle kit 30 EOHLM1 Door interlock mechanism 30 EOHLM2 Door interlock mechanism 30 EOHLM3 Door interlock mechanism 30 EOHLM4 Door interlock mechanism 30 EOHLM5 Door interlock mechanism 30 EOHLM6 Door interlock mechanism 30 EOHLM7 Door interlock mechanism 30 EOHRM1R Rejection member 25 EOHRM2R Rejection member 25 EOHRM34R Rejection member 25 EOHRM5R Rejection member 25 EOHRM6R Rejection member 25 EOHU361JK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 EOHU361K Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU361RK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU361S Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 22 EOHU361SS Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 22 EOHU362JK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 EOHU362K Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU362RK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU362S Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 22 EOHU362SS Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 22 EOHU363JK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 EOHU363K Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU363RK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU363S Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 22 EOHU363SS Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 22 EOHU364JK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 EOHU364K Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU364RK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU364S Side operated non-fusible safety switch, stainless steel en-closed, NEMA 4X, grade 304 22 EOHU364SS Side operated non-fusible safety switch, stainless steel en-closed, NEMA 4X, grade 316 22 EOHU365JK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 Type Description Page EOHU365K Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU365RK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU365S Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 22 EOHU365SS Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 22 EOHU366JK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 EOHU366K Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU366RK Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU366S Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 22 EOHU366SS Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 22 EOHU367 Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU367J Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 EOHU367R Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU367S Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 22 EOHU367SS Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 22 EOHU368 Side operated non-fusible safety switch, steel sheet enclosed, NEMA 1 20 EOHU368J Side operated non-fusible safety switch, steel sheet enclosed, NEMA 12 21 EOHU368R Side operated non-fusible safety switch, steel sheet enclosed, NEMA 3R 21 EOHU368S Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 304 22 EOHU368SS Side operated non-fusible safety switch, stainless steel enclosed, NEMA 4X, grade 316 22 EOHXSN13 Neutral assembly 24 EOHXSN4 Neutral assembly 24 EOHXSN56 Neutral assembly 24 EOHXSN78 Neutral assembly 24 H050-TB Hub 25 H075-TB Hub 25 H125-TB Hub 25 H150-TB Hub 25 H200-TB Hub 25 H250-TB Hub 25 H300-TB Hub 25 H350-TB Hub 25 OA1G10 Auxiliary contact block 24 OA1G10AU Auxiliary contact block 24 OA3G01 Auxiliary contact block 24 OA3G01AU Auxiliary contact block 24 OT100US30EOHR Switch-disconnect 28 OT1200U-S30EOHR Switch-disconnect 28

42 1SCC340010C0201 | Heavy duty fusible and non-fusible safety switches, 30…1200 Amperes Type Description Page OT200US30EOHR Switch-disconnect 28 OT30US30EOHR Switch-disconnect 28 OT400US30EOHR Switch-disconnect 28 OT600US30EOHR Switch-disconnect 28 OT60US30EOHR Switch-disconnect 28 OT800US30EOHR Switch-disconnect 28 OTS250G1S/3 Therminal shroud 26 OTS400G1L/3 Therminal shroud 26 OTS400G1S/3 Therminal shroud 26 OZXA-100/3 Lug assembly 31 OZXA-1200/3 Lug assembly 31 OZXA-1200E/3 Lug assembly 31 OZXA-400/3 Lug assembly 31 OZXA-800/3 Lug assembly 31 OZXA-800E/3 Lug assembly 31

Note: We reserve the right to make technical changes or modify the contents of this document without prior notice. With regard to purchase orders, the agreed particulars shall prevail. ABB does not accept any responsibility whatsoever for potential errors or possible lack of information in this document. We reserve all rights in this document and in the subject matter and illustrations contained therein. Any reproduction, disclosure to third parties or utilization of its contents – in whole or in parts – is forbidden without prior written consent of ABB. Contact us © Copyright ABB. Catalogue EOH1GB 15-06, 1SCC340010C0201 ABB Inc. / USALow Voltage Control Products16250 W Glendale DriveNew Berlin, WI 53151Phone: 888-385-1221 Fax: 800-726-1441 USA Technical Support & Customer Service:888-385-1221, Option 47:30AM to 5:30PM, CST, Monday - FridayE-Mail: [email protected] www.abb.us/lowvoltage ABB Inc. / CANADALow Voltage Products 2117 32nd Avenue Lachine QC H8T 3J1 Canada Tel.: 514-420-3100 1-800-567-0283 Technical support: [email protected] www.abb.ca/lowvoltage
