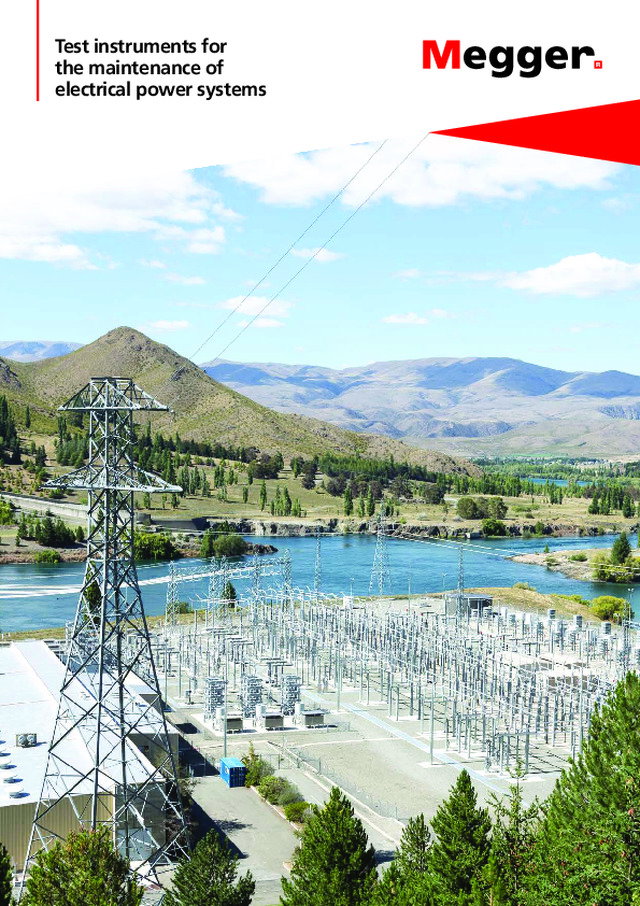

Test instruments for the maintenance of electrical power systems New Products True 3-phase turns ratiometer TTRU3 Guaranteed 0.05% accuracy from -20C to +50C See page 27 Static Motor Tester MTR105 TTRU3 Handheld motor tester See page 60 Thermal Camera TC3231 Professional infrared thermal camera See page 64 VLF test system MTR105 VLF Sinus 62 kV High-performance test and diagnostic system for medium voltage cables. TC3231 See page 43 Portable PD detection PDS 62-SIN Portable PD detection and localization system in underground cables See page 41 Portable Cable Fault Locating System VLF Sinus 62 kV ST25-30 For typical medium-voltage distribution cable fault location See page 50 ST25-30 2 Power Catalogue www.megger.com Contents INSULATION TESTING AND CABLE FAULT LOCATION CONTINUITY DC diagnostic P45 DC highvoltage or withstand P67 AC insulation testing P89 Low resistance testing P 10 11 POWER PROTECTION Circuit breaker testing Cable test van systems P 44 - 47 Time domain reflectometers TDRs P 48 - 49 POWER CABLE INFRASTRUCTURE Diagnostic testing Partial discharge testing P 36 - 39 VLF cable testing P 42 - 43 Portable cable fault systems P 50 - 51 Contact resistance testing P 12 13 Cable fault pin-pointers P 52 Analysers systems P 14 17 Sheath fault locators P 53 Primary injection testing P 18 21 Cable route tracing and identification P 54 Protective relay testing GENERAL ELECTRICAL TEST Relay testing system P 22 - 23 Multi-phase relay test systems P 24 - 25 POWER TRANSFORMER...
