Protodur Yalıtkanlı Harmonize İletkenler tpks_h05vv-f

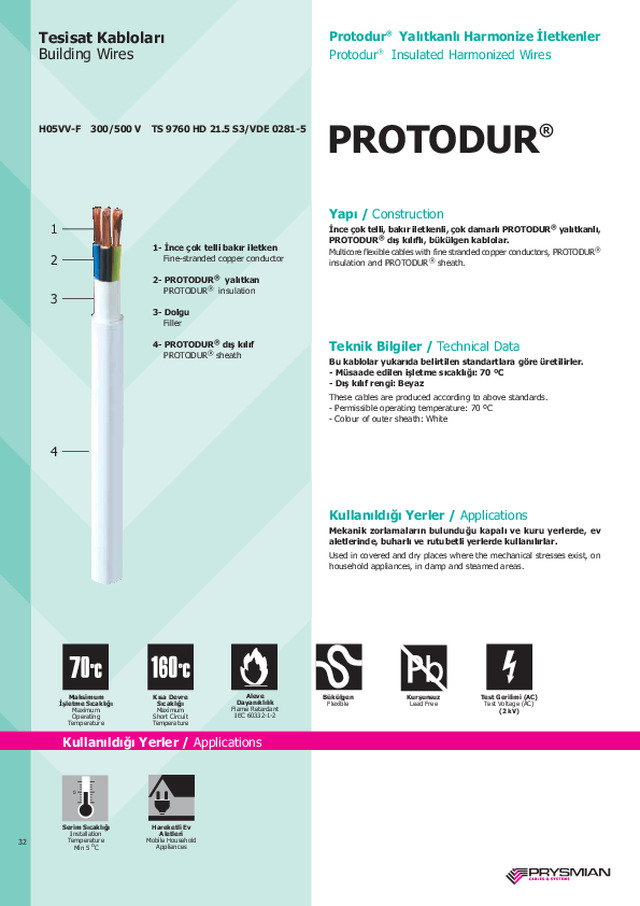

PROTODUR ® Protodur ®   Yalýtkanlý Harmonize Ýletkenler Protodur ®   Insulated Harmonized Wires Yapý / Construction Ýnce çok telli, bakýr iletkenli, çok damarlý PROTODUR ®  yalýtkanlý, PROTODUR ®  dýþ kýlýflý, bükülgen kablolar. Multicore flexible cables with fine stranded copper conductors, PROTODUR ® insulation and PROTODUR ®  sheath. Teknik Bilgiler / Technical Data Bu kablolar yukarýda belirtilen standartlara göre üretilirler. - Müsaade edilen iþletme sýcaklýðý: 70 ºC - Dýþ kýlýf rengi: BeyazThese cables are produced according to above standards. - Permissible operating temperature: 70 ºC - Colour of outer sheath: White Kullanýldýðý Yerler / Applications Mekanik zorlamalarýn bulunduðu kapalý ve kuru yerlerde, ev aletlerinde, buharlý ve rutubetli yerlerde kullanýlýrlar.Used in covered and dry places where the mechanical stresses exist, on household appliances, in damp and steamed areas. 1- Ýnce çok telli bakýr iletken     Fine-stranded copper conductor 2- PROTODUR ®   yalýtkan     PROTODUR ®   insulation 3- Dolgu     Filler 4- PROTODUR ®  dýþ kýlýf     PROTODUR ®  sheath Tesisat Kablolarý Building Wires 32 1 4 H05VV-F    300/500 V    TS 9760 HD 21.5 S3/VDE 0281-5 Maksimum Ýþletme Sýcaklýðý Maximum Operating Temperature Kýsa Devre Sýcaklýðý Maximum Short Circuit Temperature Bükülgen Flexible Kurþunsuz Lead Free Hareketli Ev Aletleri Mobile Household Appliances Test Gerilimi (AC) Test Voltage (AC) (2 kV) 2 3 Aleve Dayanýklýlýk Flame Retardant IEC 60332-1-2 0 Serim Sýcaklýðý Installation Temperature Min 5  o C Kullanýldýðý Yerler / Applications

NOT :   Akým taþýma kapasiteleri 30 ºC ortam sýcaklýðýnda geçerlidir. Current carrying capacities are valid at 30 ºC  ambient temperature. 33 Teknik Özellikler / Technical Features     2 x 0,75 14,4   5,9   55   26,0  6 100 2 x 1 19,0   6,3   64   19,5 10 100    2 x 1,5 29,0   7,2   87   13,3 16 100    2 x 2,5 48,0   8,9 133   7,98 25 100     3 x 0,75 21,6   6,3   65 26  6 100 3 x 1 29,0   6,7   75   19,5 10 100    3 x 1,5 43,0   7,8 106   13,3 16 100    3 x 2,5 72,0   9,6 163    7,98 25 100     4 x 0,75 29,0   6,8   77   26,0  6 100 4 x 1 38,0   7,4   93   19,5 10 100    4 x 1,5 58,0   8,7 131   13,3 16 100    4 x 2,5 96,0 10,5 197   7,98 20 100 300/500 V H05VV-F Nominal Kesit Rated Cross-section Bakýr faktörü Cu factor 1000 m Net aðýrlýk (yaklaþýk) Net weight (approx.) Kablo dýþ çapý (yaklaþýk) Overall diameter of cable (approx.) kg / km mm mm2 Sevk uzunluðu (yaklaþýk) Delivery length (approx.) m Akým taþýma kapasitesi Current carrying capacity A 2 Damarlý / 2 Cores 3 Damarlý / 3 Cores 4 Damarlý / 4 Cores Compliance RoHS 20 ºC’de iletken DA direnci Conductor DC resistance at 20 ºC
