Surge arrester Type 3 DEHNrail M 4-pole 255V f. industry electronics

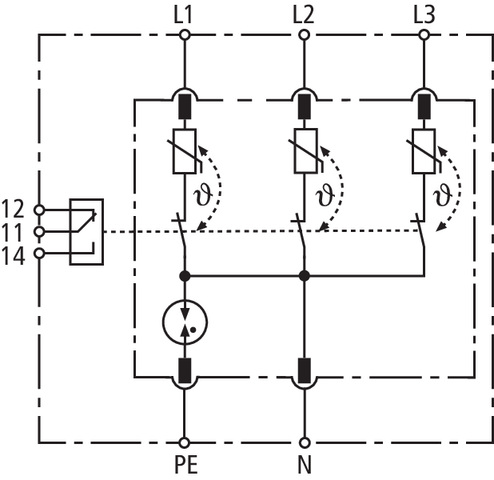

Four-pole DEHNrail modular surge arrester (type 3 according to EN 61643-1) consisting of a base part and plug-in protection module. High discharge capacity due to heavy-duty zinc oxide varistor / spark gap combination. For protecting the power supply circuit of industrial electronics equipment against transient surges in switchgear cabinets. For installation in conformity with the lightning protection zone concept at the boundaries from 1 – 2 and higher.
Ürün kimlikleri
SKU: 953406
EAN: 4013364353060
GTIN: 4013364353060
MPN: DR M 4P 255 SN1872 FM
Teknik özellikler
| Category type 3 | evet |
| Mounting method | DIN rail (top hat rail) 35 mm |
| Number of poles | 4 |
| Nominal voltage AC | 230 V |
| Nominal voltage DC | - |
| Nominal load current | - |
| Signalling at the device | Optical |
| Voltage protection level | - |
