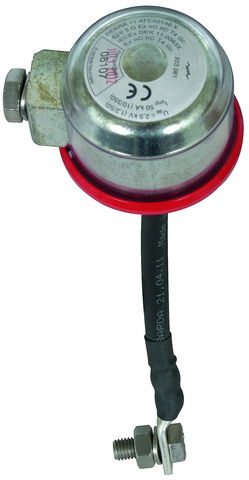

Isolating spark gap for Ex area w. connecting cable Cu 25mm² L 200 mm
Ex isolating spark gap for indirectly connecting/earthing functionally isolated installation parts under lightning conditions. For safe installation in Ex zone 2 (gases). ATEX-certified isolating spark gap for lightning equipotential bonding according to IEC 62305 in hazardous areas (zone 2) with flexible conductor connection.
Ürün kimlikleri
SKU: 923061
EAN: 4013364038905
GTIN: 4013364038905
MPN: EXFS L200
Kategoriler
Teknik özellikler
| Connection | Flange |
| Surface protection | - |
| Material of connection | Stainless steel 304 (V2A) |
| Suitable for connection | Other |
| Explosion-tested version | evet |
| Degree of protection (IP) | IP54 |
| Rated impulse sparkover voltage | 2.5 kV |
| Lightning impulse current (10/350 µs) | 50 kA |
