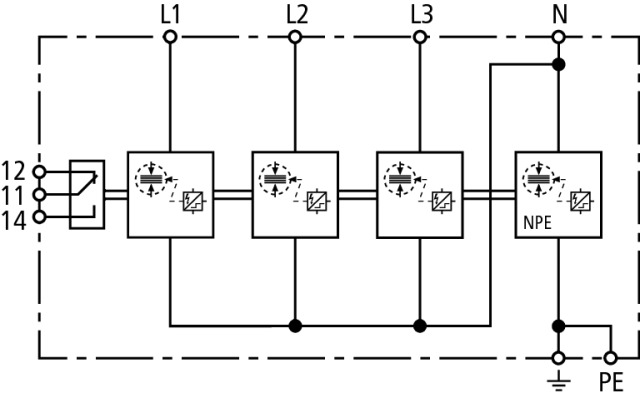

Combined arrester DEHNvap Type 1+2 f.three-phase TT and TN-S systems
Universal type 1 + type 2 combined arrester DEHNvap EMOB according to EN 61643-11 based on RAC spark gap technology. Compact design thanks to space-saving RAC spark gap technology with a width of only 1 standard DIN module / pole. Particularly for use in power supply systems for the charging infrastructure. Energy coordinated protective effect type 1 + type 2 + type 3 ensures protection of terminal equipment. For protection against surges, even in case of direct lightning strikes. Installation in conformity with the lightning protection zone concept at the boundaries from 0A – 2.
Ürün kimlikleri
SKU: 900385
EAN: 4013364422186
GTIN: 4013364422186
MPN: DVA EMOB 3P 255 FM
Kategoriler
Özellikler
|
Test class
|
Type 1 + 2
|
|
Max. PV-voltage
|
-
|
|
Mounting method
|
DIN rail (top hat rail) 35 mm
|
|
Number of poles
|
4
|
|
Construction size
|
4 modular spacing
|
|
Remote signalling
|
evet
|
|
Nominal voltage AC
|
230 V
|
|
Nominal voltage DC
|
-
|
|
Specific energy (W/R)
|
625 kJ/Ohm
|
|
Integrated backup fuse
|
-
|
|
System configuration DC
|
-
|
|
System configuration IT
|
-
|
|
System configuration TN
|
-
|
|
System configuration TT
|
evet
|
|
Signalling at the device
|
Optical
|
|
Voltage protection level
|
-
|
|
Degree of protection (IP)
|
IP20
|
|
System configuration TN-C
|
-
|
|
System configuration TN-S
|
evet
|
|
Max. continuous voltage AC
|
255 V
|
|
Max. continuous voltage DC
|
-
|
|
System configuration other
|
hayır
|
|
System configuration TN-C-S
|
-
|
|
Voltage protection level L-N
|
1.5 kV
|
|
Voltage protection level L-PE
|
-
|
|
Voltage protection level N-PE
|
1.5 kV
|
|
Voltage protection level (DC+ - DC-)
|
-
|
|
Overcurrent protected voltage tapping
|
-
|
|
Lightning impulse current (10/350 µs)
|
50 kA
|
|
Voltage switching spark gap technology
|
evet
|
|
Follow current extinguishing capability
|
25 kA
|
|
Voltage protection level (DC+/DC- - PE)
|
-
|
|
Max. conductor cross section flexible (fine-strand)
|
25 mm²
|
|
Max. conductor cross section solid (solid, stranded)
|
35 mm²
|
|
Max. overcurrent protection device, series connection (fuse)
|
100 A
|
|
Max. overcurrent protection device, parallel connection (fuse)
|
250 A
|
|
Energy-coordinated protection effect with regard to the terminal equipment
|
evet
|
