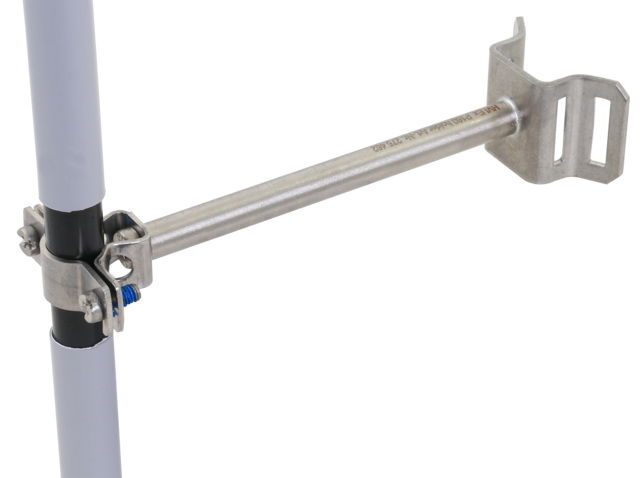

HVI-L+ Ex P160 holder f. Conductor D18mm dist. 160mm w. bracket f. tubes 50-300mm
Conductor holder for fixing to pipes (e.g. with pipe clamp) for routing the HVI light plus Conductor in the potentially explosive atmospheres Ex zone 1 (gases, vapours, mists) and Ex zone 21 (dusts). The special installation conditions safely prevent electric sparks to neighbouring metal parts when lightning current flows through the HVI light plus Conductor. Version with spacer sleeve (distance: 160 mm) for fixing to metal structural components (e.g. façades).
Ürün kimlikleri
SKU: 275462
EAN: 4013364485952
GTIN: 4013364485952
MPN: LH ZS 18 EX P160 SBB V2A
Kategoriler
Özellikler
|
Wall distance
|
55.0 - 55.0 mm
|
|
Material base part
|
Stainless steel 304 (V2A)
|
|
Material of holder
|
Stainless steel 304 (V2A)
|
|
Material of carrier
|
Stainless steel 304 (V2A)
|
|
Pipe chucking range
|
50.0 - 300.0 mm
|
|
Mounting type holder
|
Other
|
|
Thread size (metric)
|
-
|
|
Mounting type conductor
|
With screw clamp
|
|
Material of saddle clamp
|
Stainless steel 304 (V2A)
|
|
Suitable for EX-applications
|
evet
|
|
Assembly height conductor holder
|
16 mm
|
|
Suitable for width flat conductor
|
|
|
Suitable for diameter round conductor
|
18.0 - 18.0 mm
|
