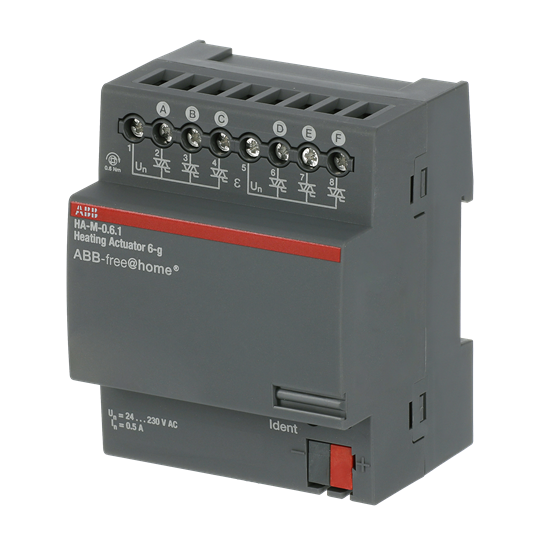

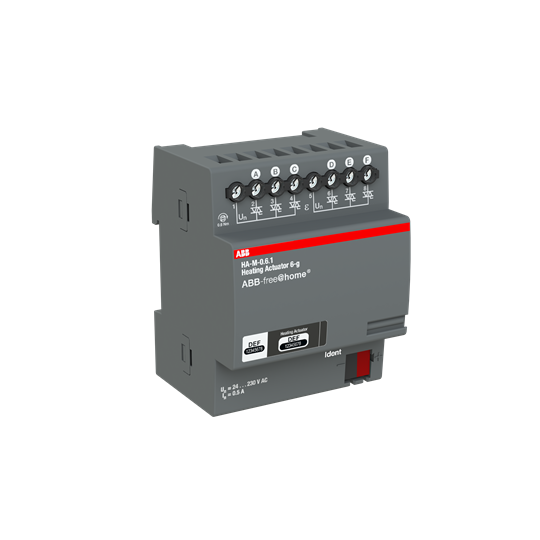

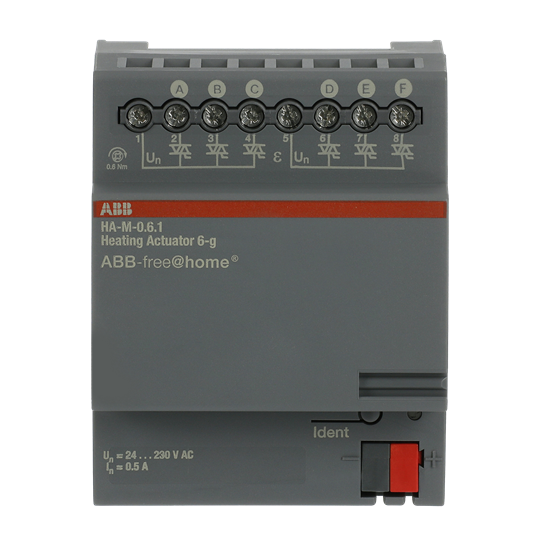

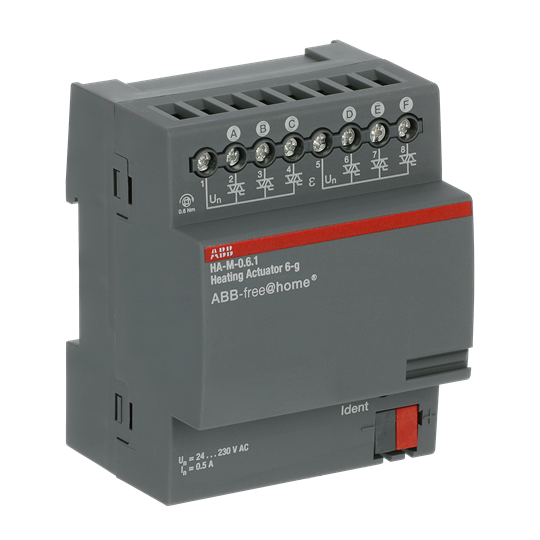

HA-M-0.6.1 Heating Actuator, 6-fold, 230 V, MDRC

Link copied
SKU
EAN
GTIN
MPN
For controlling thermoelectric actuating drives in heating/cooling systems. The outputs are protected against short-circuit and overload. The bus can be connected via enclosed terminal block.

Teknik özellikler

EFI12278 -
Manual switch hayır
Bus system KNX hayır
Bus system LON hayır
Mounting method DRA (DIN-rail adapter)
Number of outputs 6
Other bus systems Other
Switching voltage 230 - 230 V
Max. output current 0.16 A
Bus module detachable hayır
Degree of protection (IP) IP20
Bus system radio frequency hayır
Radio frequency bidirectional hayır
Bus system KNX-RF (Radio Frequency) hayır
Max. switching current (resistive load) -

Belgeler

Deeplink product page

Aç

Deeplink REACH

Aç

Dimensioned drawing

4_TE_MB_XX_V1-0_2CDC072033F0015_Rev_A.eps

Aç

Instructions for use

2CDG941147P0003.pdf

Aç

Product data sheet

Aç

Declaration RoHS

HAM_061_CE-ROHS_xx_V1-2_2CDK508141D2701.pdf

Aç
