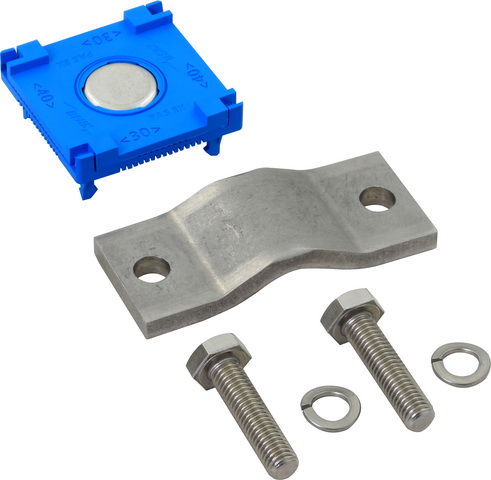

Connection kit FL 30/40 mm for EB-bar for Ex areas of zone 1/21, 2/22

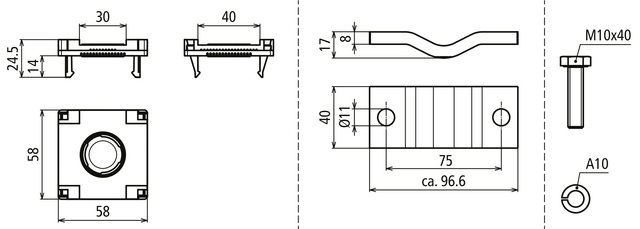

Connection kit FL 30/40 mm for PAS EX 11AP M10 V2A and PAS EX 7AP M10 V2A. For integration of metallic conductors and wires into the lightning equipotential bonding according to IEC 62305-3 as well as for protective and functional equipotential bonding according to IEC 60364-4-41/60364-5-54. For use in Ex zones 1 and 2 (gases, vapours, mists) and Ex zones 21 and 22 (dusts). Explosion group IIC (safety factor 1) according to CLC 50703-2. Complies with temperature class T4 and IEC 62561-1. Lightning current carrying capability Class H (100 kA). Screws secured against self-loosening according to VDE 0185-305-3 Supplement 2. Both indoor and outdoor installation permissible.
