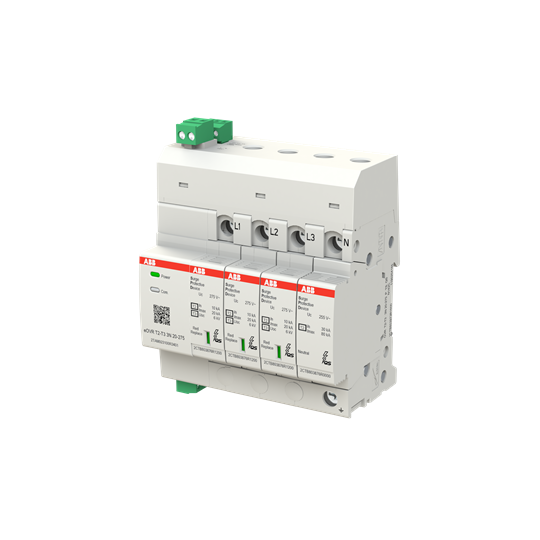

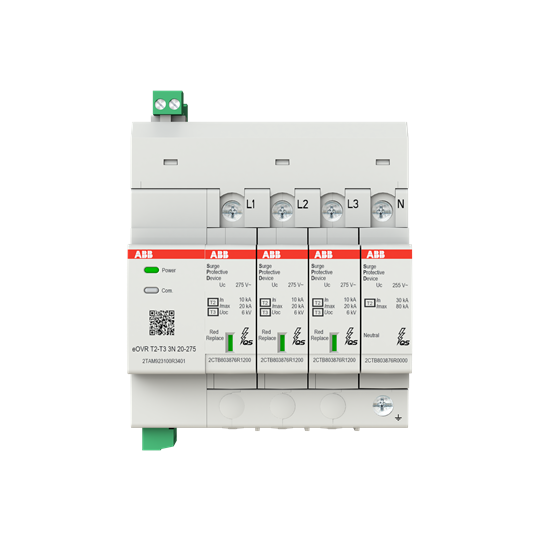

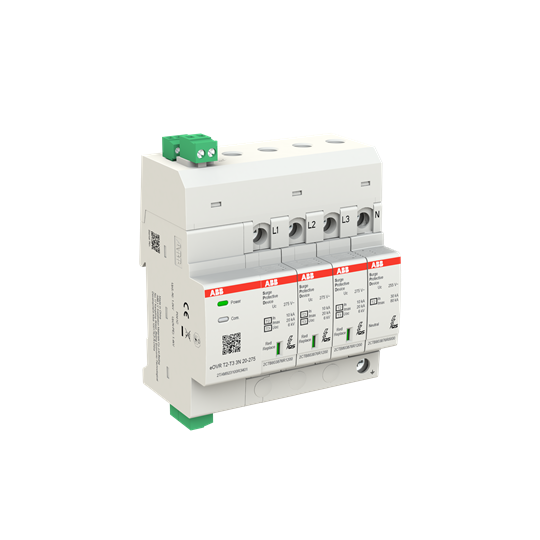

Digital Surge Protective Device

Name: Digital Surge Protective Device
Brand: ABB
SKU: 2TAM923100R3401

eOVR T2-T3 3N 20-275 Digital Surge Protective Device

Ürün kimlikleri

SKU: 2TAM923100R3401

EAN: 6941593457151

GTIN: 6941593457151

MPN: eOVR T2-T3 3N 20-275

Teknik özellikler

EFI08827	0.03875007750015500031000062
EFI08828	0.03875007750015500031000062
Category type 2	evet
Max. PV-voltage	-
Mounting method	Other
Construction size	4 modular spacing
Nominal voltage AC	230 V
Nominal voltage DC	-
Leakage-current free	evet
Integrated backup fuse	hayır
System configuration DC	hayır
System configuration IT	hayır
System configuration TN	evet
System configuration TT	evet
Signalling at the device	Optical
Voltage protection level	-
Degree of protection (IP)	IP20
System configuration TN-C	hayır
System configuration TN-S	evet
Max. continuous voltage AC	275 V
Max. continuous voltage DC	-
System configuration other	hayır
System configuration TN-C-S	hayır
Voltage protection level L-N	1.4 kV
Voltage protection level N-PE	1.4 kV
With remote signalling contact	hayır
Integrated short-circuit protection	-
Max. discharge surge current (8/20)	5 kA
Nominal discharge surge current (8/20)	5 kA
Number of conductors (without earthing)	4
Short-circuit breaking capacity (Isccr)	100 kA
Max. conductor cross section flexible (fine-strand)	25 mm²
Max. conductor cross section solid (solid, stranded)	25 mm²
Integrated short-circuit protection selective to fuse gG	-
Max. overcurrent protection device, series connection (fuse)	-
Max. overcurrent protection device, parallel connection (fuse)	125 A
