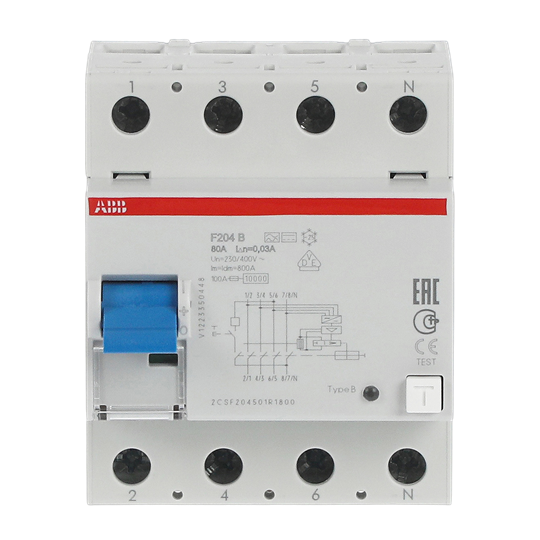

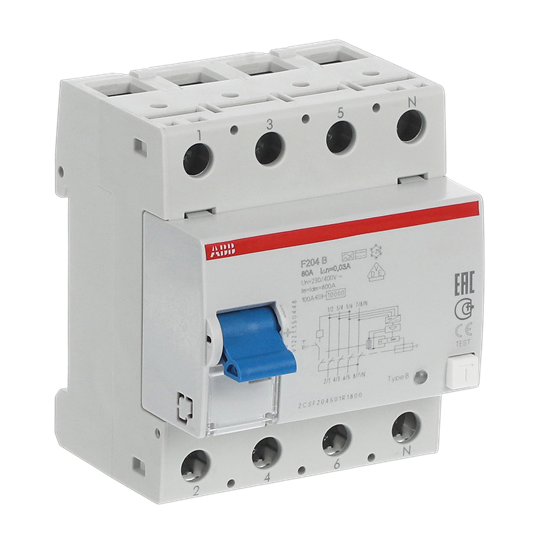

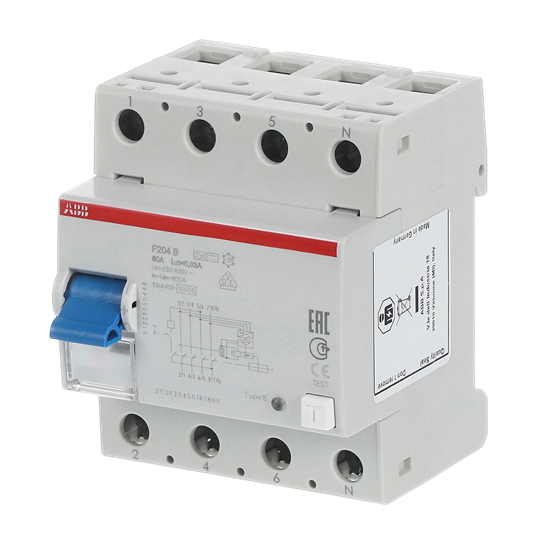

Residual Current Circuit Breaker - 4P - Type B - 30 mA - 80 A

Residual Current Circuit Breaker - 4P - Type B - 30 mA - 80 A

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product is particularly suitable for the protection against smooth d.c. earth fault currents.

Ürün kimlikleri

SKU: 2CSF204501R1800
EAN: 8012542988601
GTIN: 8012542988601
MPN: FI F204B-80/0.03

Teknik özellikler

EFI00218 2.71653
EFI07337 0.0775|0.0775
EFI07343 0|0.0387
EFI07515 -13|104
Frequency 50 Hz
Voltage type -
Rated current 80 A
Rated voltage 400 V
Explosion-proof hayır
Number of poles 4
Rated fault current 0.03 A
Selective protection hayır
With interlocking device evet
Rated insulation voltage Ui 400 V
Additional equipment possible evet
Ambient temperature during operating -25 - 40 °C
Short-circuit breaking capacity (Icw) -
Connectable conductor cross section multi-wired
