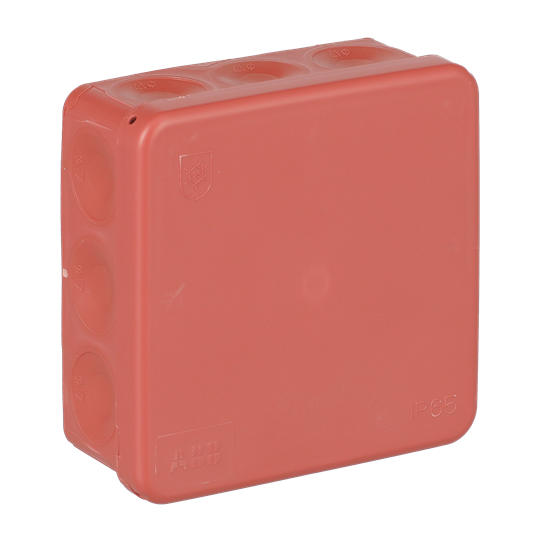

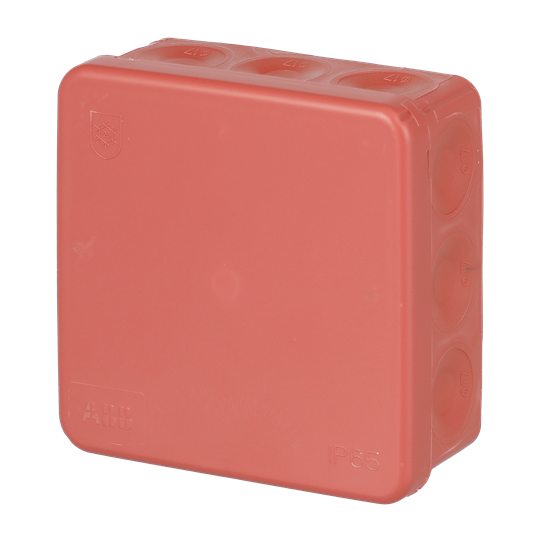

AP9R Junction box Red IP65
The square junction box AP9R (2,5 mm², 500 V) is equipped with 12 membrane cable entries (Ø 17 mm) in the sides, and two in the bottom. Cables are easy to connect by simply inserting the stripped ends through the inlets. The box locks by snapping and can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with strain-reliefs AS9, AS9.1 and AS9.3. Fits up to Ø17 mm cable. VDE-approved. Mounting temperature -25...+60 °C. Made of halogen free material (IEC/61249-2-21).
Ürün kimlikleri
SKU: 2TKA00001563
EAN: 6438199003184
GTIN: 6438199003184
MPN: AP9R
Kategoriler
Özellikler
|
Depth
|
86 mm
|
|
Shape
|
Square
|
|
Width
|
86 mm
|
|
Colour
|
Red
|
|
Length
|
39.000 mm
|
|
Castable
|
hayır
|
|
Diameter
|
-
|
|
Material
|
Plastic
|
|
Sealable
|
hayır
|
|
Connectable
|
hayır
|
|
Cover model
|
Blind cover
|
|
Halogen free
|
evet
|
|
Weatherproof
|
evet
|
|
Equipped with
|
None
|
|
With screening
|
hayır
|
|
For Ex-zone gas
|
-
|
|
Mounting method
|
Universal
|
|
Cover attachment
|
Snapped on
|
|
For Ex-zone dust
|
-
|
|
Number of inlets
|
14
|
|
Circuit integrity
|
-
|
|
For tube diameter
|
-
|
|
Transparent cover
|
hayır
|
|
Surface protection
|
Untreated
|
|
Inlet from the rear
|
evet
|
|
Mounting in the soil
|
hayır
|
|
Mounting under water
|
hayır
|
|
Operating temperature
|
-25 - 60 °C
|
|
Explosion-tested version
|
hayır
|
|
Casting compound included
|
hayır
|
|
Degree of protection (IP)
|
IP65
|
|
Degree of protection (NEMA)
|
-
|
|
Rated insulation voltage Ui
|
500 V
|
|
Max. conductor cross section
|
-
|
|
Type of housing feed-through
|
Seal membrane
|
