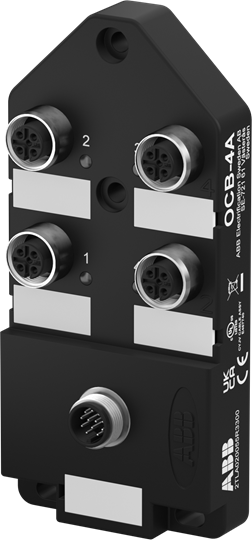

OCB-4A Connection Box
OCB-4A simplifies the connection of multiple sensors by only having one cable out from the control cabinet to the sensors. OCB-4A is a connection box for up to four safety sensors with M12-5 pin connector. Safety signals are connected individually and can have different safety functionality. M12-12 pin connector for connection to the safety controller in the cabinet.
Ürün kimlikleri
SKU: 2TLA020055R3300
EAN: 7350024486551
GTIN: 7350024486551
MPN: OCB-4A
Kategoriler
Özellikler
|
Width
|
54 mm
|
|
Height
|
118 mm
|
|
Length
|
28 mm
|
|
EFI00008
|
2.1259854
|
|
EFI00040
|
4.6456718
|
|
EFI01438
|
1.1023628
|
|
EFI02393
|
-13.0|176.0
|
|
EFI07302
|
-|-
|
|
EFI07319
|
-
|
|
EFI08200
|
-|-
|
|
Rated voltage
|
24 V
|
|
Housing colour
|
Black
|
|
Housing material
|
Plastic
|
|
Pollution degree
|
2
|
|
Operating voltage
|
24 - 24 V
|
|
Max. total current
|
2 A
|
|
With LED indication
|
hayır
|
|
Material contact body
|
Copper
|
|
Operating temperature
|
-25 - 80 °C
|
|
Diameter contact female
|
-
|
|
Material insulation body
|
PBT
|
|
Degree of protection (IP)
|
IP67
|
|
With potential separation
|
hayır
|
|
Connection for NPN-sensors
|
hayır
|
|
Material of contact surface
|
Gold
|
|
Number of sensor-/actuator-slots
|
4
|
|
Type of connector for trunk line
|
M12
|
|
Explosion safety category for gas
|
None
|
|
Explosion safety category for dust
|
None
|
|
Connectable conductor cross section
|
|
|
Cable outer diameter for cable gland
|
|
|
Thread sleeves sensor/actuator slots
|
M12
|
|
Number of channels per connector slot
|
1
|
|
Number of poles sensor/actuator slots
|
5
|
|
Max. current carrying capacity per socket
|
2 A
|
|
Type of branches for sensor-/actuator cables
|
M12
|
|
Max. current carrying capacity per I/O signal
|
2 A
|
|
Fix cable version suitable for cable guide chain
|
hayır
|
