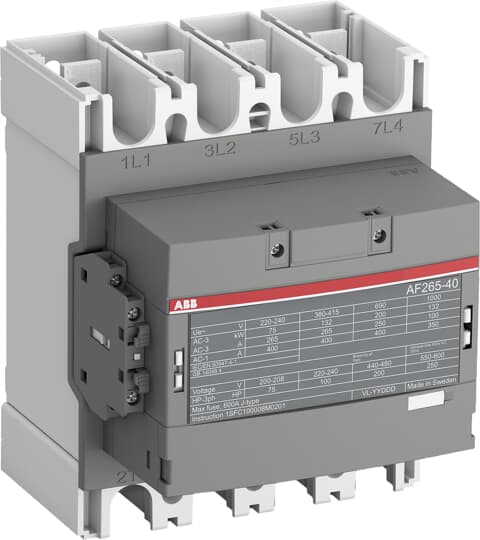

AF265-40-11-14 Contactor

Name: AF265-40-11-14 Contactor
Brand: ABB
SKU: 1SFL547102R1411

The AF265-40-11-14 is a 4 pole - 1000 V IEC or 600 V UL contactor with pre-mounted auxiliary contacts and Main Circuit Bars, controlling motors up to 132 kW / 400 V AC (AC-3) / and switching power circuits up to 400 A (AC-1) or 300 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Ürün kimlikleri

SKU: 1SFL547102R1411

EAN: 7320500505090

GTIN: 7320500505090

MPN: AF265-40-11-14

Kategoriler

Switchgear & Circuit Protection Contactors & Motor Starters

ETIM grubu

Low-voltage industrial components

Teknik özellikler

EFI00008	7.25984644
EFI00040	8.8582725
EFI00049	7.0866180
Modular version	hayır
Rated operation power NEMA	29.8280 kW
Voltage type for actuating	AC/DC
Rated control supply voltage DC	250 - 500 V
Rated operation power at AC-3, 400 V	132 kW
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz	250 - 500 V
Rated control supply voltage AC 60 Hz	250 - 500 V
Rated operation current Ie at AC-1, 400 V	400 A
Rated operation current Ie at AC-3, 400 V	265 A
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	4
Number of normally closed contacts as main contact
Number of auxiliary contacts as normally open contact	1
Number of auxiliary contacts as normally closed contact	1
