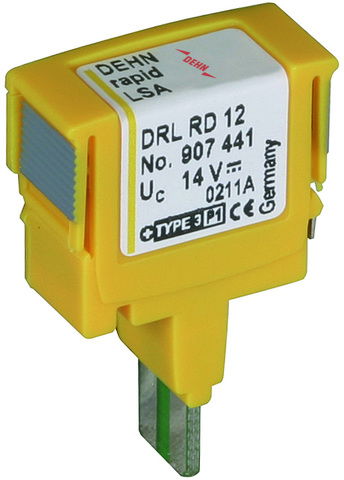

DEHNrapid LSA protective plug

Name: DEHNrapid LSA protective plug
Brand: DEHN
SKU: 907441

Protective plug (one pair), energy-coordinated with DRL plug-in SPD block, for use as single-stage protective device for terminal equipment. Low voltage protection level line-line for floating interfaces. To be mounted into EF 10 DRL. Installation recommended only in combination with DRL plug-in SPD block.

Ürün kimlikleri

SKU: 907441

EAN: 4013364107694

GTIN: 4013364107694

MPN: DRL RD 12

Kategoriler

Switchgear & Circuit Protection Circuit Breakers MCBs RCBOs RCDs

Teknik özellikler

Frequency
Connection 1	-
Earthing via	Other
Assembly width	9.4 mm
Mounting method	LSA-plus plug-in
Limiting frequency	2.7 MHz
Nominal voltage AC
Nominal voltage DC	12.0 - 12.0 V
Nominal load current	0.4 A
Signal disconnection	-
Explosion-tested version	-
Signalling at the device	-
Degree of protection (IP)	IP20
Pro-active thermo-control	-
Max. continuous voltage AC	9.5 V
Max. continuous voltage DC	14 V
With remote signalling contact	-
Voltage protection level core/core	18 V
Voltage protection level core/earth	-
Lightning impulse current (10/350 µs)	5 kA
Nominal discharge surge current (8/20)	10 kA
Number of conductors (without earthing)	2
Voltage protection level core/signal ground	-
Voltage protection level signal ground/protective ground	-
