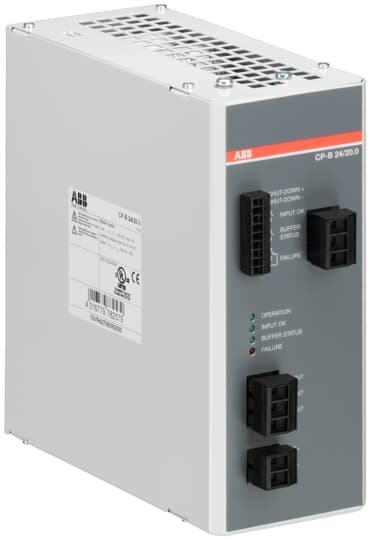

CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws

Name: CP-B 24/20.0 Buffer module 24 V / 20 A, energy storage 8000 Ws
Brand: ABB
SKU: 1SVR427060R2000

Ürün kimlikleri

SKU: 1SVR427060R2000

EAN: 4016779782579

GTIN: 4016779782579

MPN: CP-B 24/20.0

Kategoriler

Transformers & Power Supplies DIN Rail Power Supplies

Low-voltage industrial components

Depth	216 mm
Width	84 mm
Height	198 mm
EFI00008	-
EFI00040	-
EFI00049	-
EFI00332	-
EFI00846	-
Stabilized	evet
Power output	480 W
Built-in width	84 mm
Built-in height	198 mm
Modular version	hayır
Power consumption	40 VA
Short-circuit-proof	evet
Max. output current 1	-
Max. output current 2
Max. output current 3
Wall mounting possible	hayır
Rated supply voltage DC	24 - 24 V
Direct mounting possible	hayır
Degree of protection (IP)	IP20
Output voltage stabilized	evet
SIL according to IEC 61508	None
Suitable for rail mounting	evet
Degree of protection (NEMA)	1
Type of electric connection	Spring clamp connection
1st secondary output voltage	24 - 24 V
2nd secondary output voltage
3rd secondary output voltage
Secondary voltage adjustable	hayır
Rated supply voltage AC 50 Hz
Rated supply voltage AC 60 Hz
Suitable for safety functions	hayır
Voltage type (supply voltage)	AC/DC
Nominal value output current 1	20 A
Nominal value output current 2
Nominal value output current 3
Nominal value output voltage 1	24 V
Nominal value output voltage 2
Nominal value output voltage 3
Width in number of modular spacings	-
Performance level according to EN ISO 13849-1	None

Deeplink product page
Deeplink REACH
Dimensioned drawing
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
